Siderophore-mediated zinc acquisition enhances enterobacterial colonization of the inflamed gut

TL;DR

This study shows how a probiotic E. coli strain uses a molecule called yersiniabactin to acquire zinc, helping it survive in the inflamed gut.

Contribution

The study reveals a novel zinc acquisition mechanism via yersiniabactin in E. coli Nissle 1917.

Findings

Nissle uses yersiniabactin as a zincophore to grow in zinc-limited environments.

Yersiniabactin's zinc binding increases with higher pH, influencing metal acquisition.

This mechanism allows Nissle to tolerate calprotectin and thrive in the inflamed gut.

Abstract

Zinc is an essential cofactor for bacterial metabolism, and many Enterobacteriaceae express the zinc transporters ZnuABC and ZupT to acquire this metal in the host. However, the probiotic bacterium Escherichia coli Nissle 1917 (or “Nissle”) exhibits appreciable growth in zinc-limited media even when these transporters are deleted. Here, we show that Nissle utilizes the siderophore yersiniabactin as a zincophore, enabling Nissle to grow in zinc-limited media, to tolerate calprotectin-mediated zinc sequestration, and to thrive in the inflamed gut. We also show that yersiniabactin’s affinity for iron or zinc changes in a pH-dependent manner, with increased relative zinc binding as the pH increases. Thus, our results indicate that siderophore metal affinity can be influenced by the local environment and reveal a mechanism of zinc acquisition available to commensal and pathogenic Enterobacteriaceae.

Zinc is an essential cofactor for bacterial metabolism. Here, the authors show that the probiotic bacterium Escherichia coli Nissle 1917 utilizes the siderophore yersiniabactin as a zincophore, allowing the microbe to grow in zinc-limited media and to thrive in the inflamed gut.

Figures

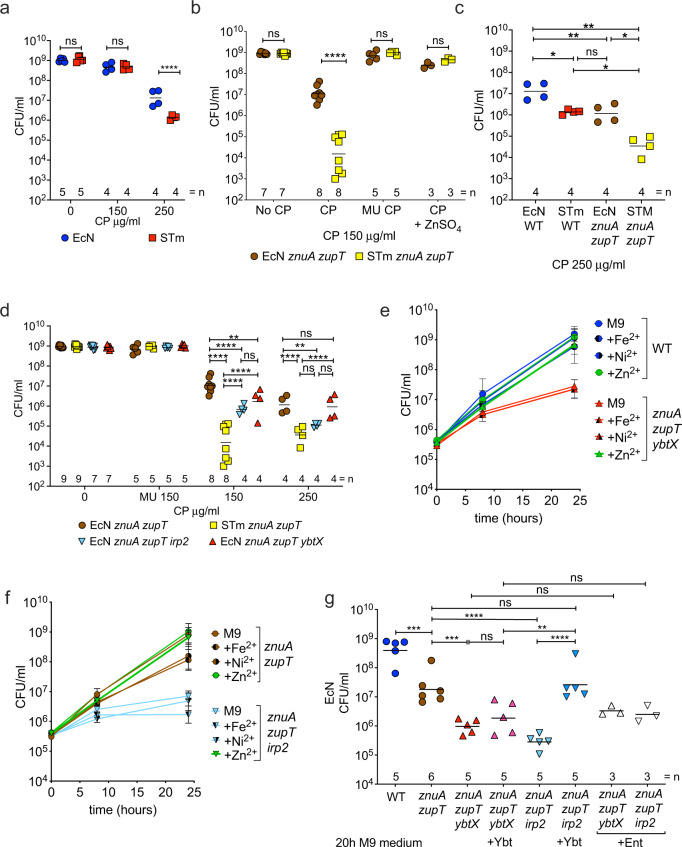

a–c). Thus, EcN is more resistant than STm to the antimicrobial activity of CP in vitro and prompted us to investigate the underlying mechanism.Fig. 1*E. coli* Nissle resistance to calprotectin-mediated zinc limitation in vitro is dependent on ZnuABC, ZupT, and yersiniabactin.a *E. coli* Nissle (EcN) and *S*. Typhimurium (STm) wild-type were grown in modified LB medium without calprotectin (CP), or supplemented with 150 µg/ml or 250 µg/ml CP. Statistics: two-way ANOVA with Šidák’s multiple comparisons test. b EcN and STm *znuA zupT* mutants were grown in modified LB medium without CP (No CP),

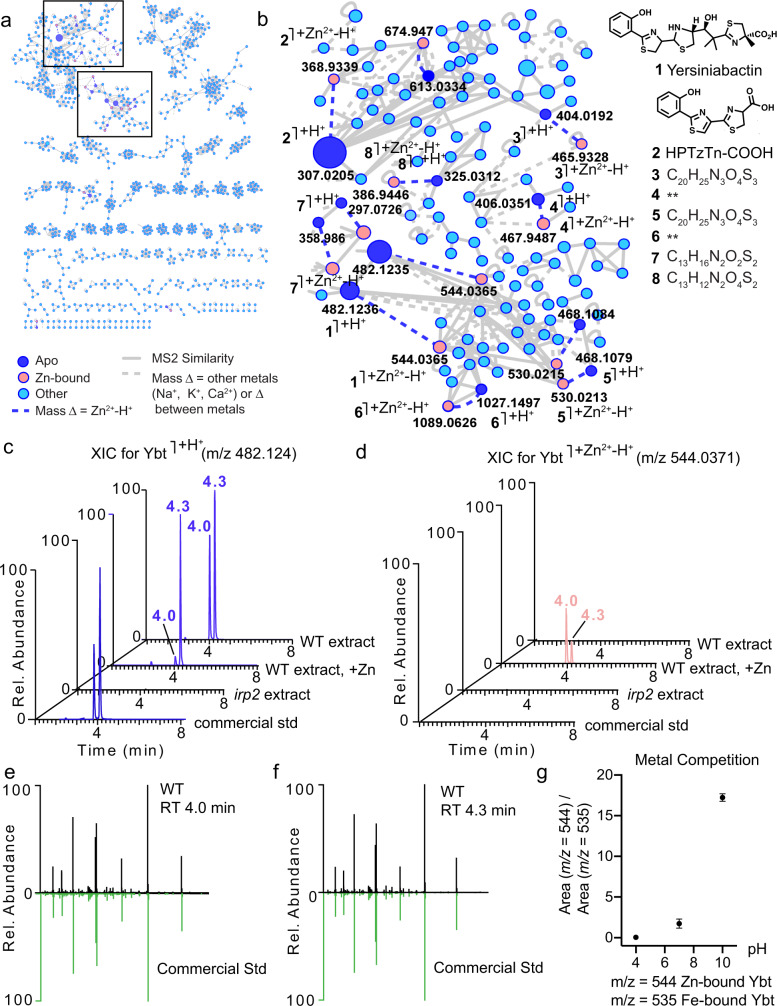

Yersiniabactin is produced by *E. coli* Nissle and directly binds zinc in a pH-dependent manner.a, b Native spray metal metabolomics was used to identify zinc-binding small molecules present in isolated EcN supernatant extracts. Zinc-binding molecules, including Ybt and other truncations, are concentrated in the boxed molecular families enlarged in panel b. Zinc-binding small molecules are observed when post-LC infusion of Zn^2+^ and post-pH adjustment are performed. Zinc-bound molecules are shown in salmon, while the corresponding protonated (Apo) form of these molecules is shown in dark blue

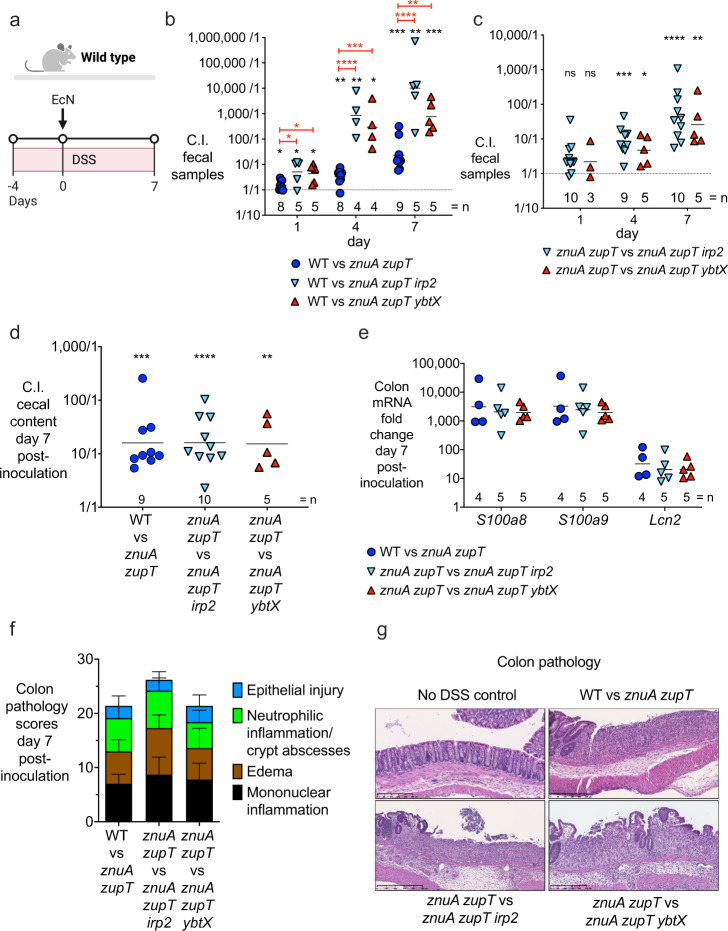

a–c). Specifically, at day 7 EcN wild-type outcompeted the *znuA zupT* mutant an average of ~23-fold, the *znuA zupT irp2* mutant an average of ~13,684-fold, and the *znuA zupT ybtX* mutant an average of ~767-fold. These results indicated that ZnuABC and ZupT are needed for optimal colonization of the inflamed gut, and that deletion of Ybt genes exacerbates the growth defect of the *znuA zupT* mutant in vivo. To further probe the specific role of Ybt, we performed a second set of competitive experiments, in which we orally inoculated DSS-treated mice with a 1:1 mixture of EcN *znuA zupT* and o

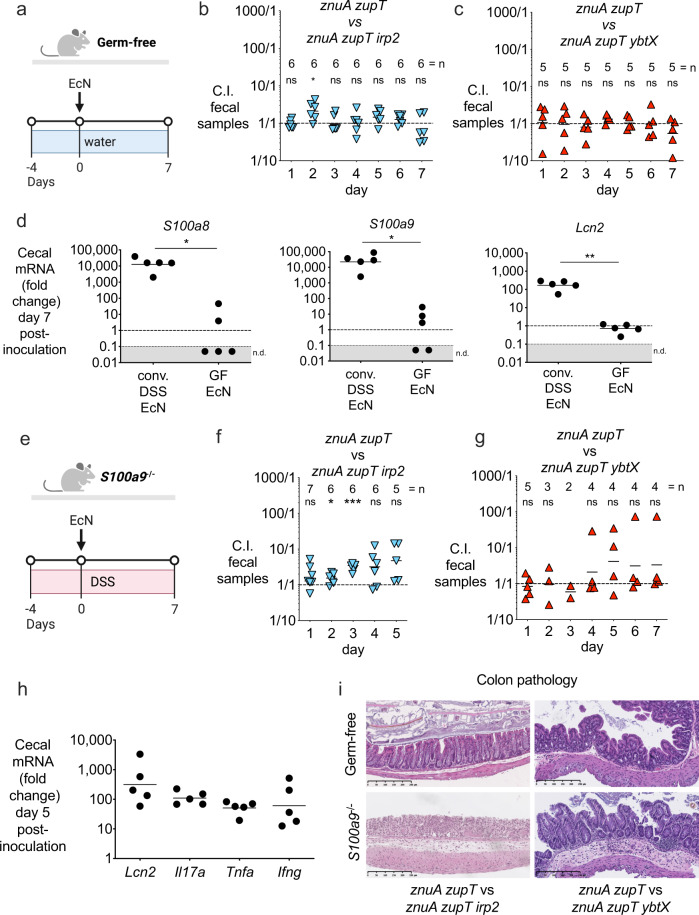

a, b). Whereas *S100a8*, *S100a9*, and *Lcn2* were highly expressed in the ceca of DSS-treated animals colonized with EcN, these genes were only minimally upregulated (< 10-fold) in germ-free mice colonized with EcN (Fig. [5d](#Fig5)). The absence of inflammation in EcN*-*colonized germ-free mice was also confirmed by colon pathology (Fig. [5i](#Fig5) and Supplementary Fig. 5e).Fig. 5Yersiniabactin-mediated zinc acquisition provides a competitive advantage for *E. coli* Nissle in the presence of inflammation and calprotectin.a Experiment timeline for panels b and c. b, c Female Germ-free Swiss

Full text

Introduction

The Enterobacteriaceae are a diverse family of bacteria that inhabit the gastrointestinal tract. Members of this group include the enteric pathogen Salmonella enterica serovar Typhimurium (S. Typhimurium, or STm), as well as Escherichia coli, a species that comprises myriad commensals, pathobionts, and pathogens. Both STm and E. coli can colonize the intestine of mammals and thrive in inflammatory conditions^1–5^. During homeostasis, the gut microbiota is primarily composed of obligate anaerobes belonging to the phyla Bacteroidetes and Firmicutes^6^. In the inflamed gut, however, the oxidative environment suppresses obligate anaerobes and favors the growth of facultative anaerobes, which include pathogenic and commensal Enterobacteriaceae^1,2,4,5,7,8^.

One mechanism that enables enterobacterial growth in the inflamed gut is the ability to scavenge metal nutrients. Many biological processes including DNA replication, transcription, respiration, and oxidative stress responses require iron, manganese, cobalt, nickel, copper, and/or zinc^9^. Iron is one of the most abundant transition metal ions in living organisms, and serves as an essential cofactor in central metabolism and respiration^10,11^. The other most abundant metal ion is zinc, which is a cofactor for an estimated 5–6% of all proteins^12^, and whose functions include acting as the catalytic center in enzymes such as metalloproteases, superoxide dismutases, and metallo-β-lactamases. Thus, bacteria must be able to acquire sufficient amounts of both iron and zinc in order to survive and replicate in a given environment.

Bacteria living inside the human host face particular difficulties in obtaining these metal nutrients. During homeostasis, the availability of such metal ions is actively limited by the host and by the resident microbiota. Moreover, nutrient metal availability is further restricted during inflammation in a process termed “nutritional immunity”^13^, wherein the host secretes antimicrobial proteins that sequester iron, zinc, and manganese from microbes to limit their growth. We have previously shown that the pathogen STm overcomes host nutritional immunity by obtaining iron, zinc and manganese in the inflamed gut^1,14–16^. In response to iron limitation, STm secretes enterobactin and salmochelin, which are small iron-scavenging molecules called siderophores^17,18^. In response to zinc limitation, STm expresses the high-affinity zinc transporter ZnuABC^15,19,20^. STm also expresses the ZupT permease, which transports zinc and other divalent metal ions^21,22^. Independently, each of these transporters has been shown to contribute to STm virulence in mouse models of infection^15,19,20,23,24^.

High-affinity zinc acquisition systems enable microbes to overcome zinc sequestration by the host protein calprotectin (CP), a heterodimer of the S100A8 and S100A9 proteins^25^. CP constitutes up to 40% of neutrophil cytosolic content^26^, and the expression of its two subunits can be induced in epithelial cells following stimulation with IL-17 and IL-22^1,27^. In the inflamed gut, expression of ZnuABC enables STm to overcome CP-mediated zinc sequestration, outcompete the microbiota, and colonize to high levels^1,15^.

In addition to STm, other Enterobacteriaceae can thrive in the inflamed intestine. One such example is the probiotic bacterium Escherichia coli Nissle 1917 (E. coli Nissle, or EcN), a strain that was first isolated in WWI from the stool of a soldier who did not develop gastroenteritis during a Shigella outbreak^28^. Since then, EcN has proven to be effective in the treatment and prevention of intestinal disorders including chronic constipation, ulcerative colitis, and infantile diarrhea^29–32^, albeit its mechanisms of action are not well understood. Our previous work has demonstrated that EcN reduces STm colonization in mouse models of gastroenteritis by utilizing multiple iron uptake systems and by secreting antimicrobial proteins known as microcins to outcompete the pathogen^3,33^.

In this work, we show that an EcN strain lacking ZnuABC and ZupT is still able to grow appreciably in zinc-limited media, leading us to discover that EcN expresses an additional means of acquiring zinc. Using our recently developed native spray metabolomics approach^34^, we find that the siderophore yersiniabactin (Ybt) produced by EcN is capable of binding zinc, and that EcN utilizes Ybt as a zincophore. Moreover, we demonstrate that EcN utilizes Ybt, in addition to the zinc transporters ZnuABC and ZupT, to effectively acquire zinc in vitro, to tolerate the antimicrobial activity of CP, and to colonize the inflamed gut.

Results

E. coli Nissle is more resistant to calprotectin-mediated zinc sequestration than S. Typhimurium

We have previously shown that multiple iron uptake systems enable EcN to colonize the inflamed gut and to compete with STm^33^. As zinc is also limited in the inflamed gut, we hypothesized that EcN must also have robust mechanisms for acquiring this metal. We thus compared the growth of EcN to the growth of STm in a rich medium supplemented with CP, a host antimicrobial protein that sequesters zinc and limits its availability to microbes^15,25^. To this end, we employed CP concentrations (125–250 μg/ml) comparable to those found in the inflamed gut^15^. EcN and STm showed similar growth in rich media without the addition of CP, but EcN grew significantly better than STm in media supplemented with CP (Fig. 1a and Supplementary Fig. 1a–c). Thus, EcN is more resistant than STm to the antimicrobial activity of CP in vitro and prompted us to investigate the underlying mechanism.Fig. 1E. coli Nissle resistance to calprotectin-mediated zinc limitation in vitro is dependent on ZnuABC, ZupT, and yersiniabactin.a E. coli Nissle (EcN) and S. Typhimurium (STm) wild-type were grown in modified LB medium without calprotectin (CP), or supplemented with 150 µg/ml or 250 µg/ml CP. Statistics: two-way ANOVA with Šidák’s multiple comparisons test. b EcN and STm znuA zupT mutants were grown in modified LB medium without CP (No CP), or supplemented with 150 µg/ml CP, 150 µg/ml Site I/II knockout mutant CP (MU CP), or 150 µg/ml CP plus 5 µM ZnSO_4_ (CP + ZnSO_4_). Statistics: two-way ANOVA with Šidák’s multiple comparison test. c EcN and STm wild-type and znuA zupT mutants were grown in modified LB medium supplemented with 250 µg/ml CP. Statistics: one-way ANOVA with Tukey’s multiple comparisons test. d EcN and STm znuA zupT mutants, as well as EcN triple mutants (znuA zupT irp2; znuA zupT ybtX), were grown in modified LB without CP, or supplemented with either 150 µg/ml mutant CP (MU 150), or with 150 µg/ml (150) or 250 µg/ml CP (250). Statistics: two-way ANOVA with Tukey’s multiple comparisons test. e, f EcN wild-type, double (znuA zupT) and triple (znuA zupT irp2; znuA zupT ybtX) mutants were grown in M9 medium (n = 3 biologically independent replicates) or in M9 supplemented with either 5 µM ZnSO_4_ (n = 3 biologically independent replicates), 5 µM FeCl_2_ (n = 5 biologically independent replicates), or 5 µM NiCl_2_ (n = 5 biologically independent replicates). g EcN wild-type and indicated double and triple mutants were grown in M9 medium or in M9 supplemented with either 1 µM yersiniabactin (Ybt) or enterobactin (Ent). Statistics: one-way ANOVA with Tukey’s multiple comparisons test. a–g Growth was quantified by enumeration of bacterial CFU on selective media after a–d 16 h static, e, f 8 h and 24 h shaking, or g 20 h shaking incubation. Data are representative of three independent experiments. a–d, g Bars represent the geometric mean. The number (=n) of biologically independent replicates for each group is indicated in each figure panel. e, f Data are presented as geometric mean values ± geometric SD. *P value ≤ 0.05; **P value ≤ 0.01; ***P value ≤ 0.001, ****P value ≤ 0.0001; ns not significant. Exact P values are reported in Supplementary Data 2. Source data are provided as a Source Data file.

Both EcN and STm encode two known zinc transport systems: the high-affinity zinc transporter ZnuABC and the permease ZupT^15,19,20,23,24^. Although the function of these two transporters in EcN has not been directly investigated, their disruption significantly diminishes the capacity of the closely-related uropathogenic E. coli strain CFT073 to grow in zinc-depleted culture media and to cause urinary tract infection^35^. To determine whether the difference in CP-resistance between EcN and STm is the result of variations related to ZnuABC and ZupT, we disrupted these transporters in both EcN and STm by deleting the genes znuA and zupT. As expected, both mutant strains (EcN znuA zupT and STm znuA zupT) grew slower than their respective parental strains in the presence of CP, but not in the presence of a Site I/II knockout mutant CP (MU CP; lacks the ability to bind zinc)^36,37^, or when ZnSO_4_ was added to the media (Fig. 1b and Supplementary Fig. 1d, e). These results indicated that ZnuABC and ZupT have similar functions in both EcN and STm, and mediate evasion of CP-dependent antimicrobial activity.

Puzzlingly, we observed that the EcN znuA zupT mutant grew up to 1000-fold better than the STm znuA zupT mutant in the presence of 125–150 μg/ml CP (Fig. 1b and Supplementary Fig. 1e). Although higher concentrations of CP (250 μg/ml) reduced the growth of the EcN znuA zupT mutant, it was still 100-fold higher than the STm znuA zupT mutant (Fig. 1c). As the addition of ZnSO_4_ rescued the growth of both the EcN and STm znuA zupT mutants (Supplementary Fig. 1f), we posited that EcN acquires zinc via an additional mechanism absent in STm.

A product of the yersiniabactin operon promotes zinc acquisition by E. coli Nissle in zinc-limited media

In iron-limiting conditions, EcN acquires iron by producing the siderophores enterobactin, salmochelin, aerobactin, and yersiniabactin (Ybt)^33^. Although the importance of siderophores in scavenging iron has been well-demonstrated in biological systems, chemists have known for decades that some siderophores can bind other metals besides iron (reviewed in Johnstone and Nolan^38^). Among the siderophores produced by EcN, Ybt has been shown to also bind copper, gallium, nickel, cobalt, and chromium^39^. Intriguingly, a product of the Ybt gene cluster has been proposed to contribute to zinc acquisition by the pathogen Yersinia pestis^40,41^; however, its identity and mechanism are unknown, as two prior studies did not provide evidence of direct zinc binding by Ybt^39,41^. We thus sought to determine whether, in addition to ZnuABC and ZupT, EcN uses a product of the Ybt operon to acquire zinc under zinc-limiting conditions.

To this end, we deleted the ybt cluster’s irp2 gene that encodes the synthetase HMWP2, thus rendering EcN unable to synthesize Ybt^42–44^. We also deleted the ybtX gene, which encodes for an inner membrane permease that, in Y. pestis, was found to be dispensable for iron uptake, but required for zinc uptake, as a znu ybtX mutant is unable to grow in zinc-limited medium^40,41^. Of note, the first published genome sequence of EcN wild-type (GenBank CP007799.1, Reister et al.^45^) indicated that irp1 and irp2 were disrupted (frameshifted and insertion sequence, respectively), although a recent sequencing effort utilizing our lab’s EcN wild-type strain revealed these genes to be intact (GenBank “CP022686.1”), which is consistent with a prior study showing that EcN produces Ybt^46^. Next, we tested the growth of EcN strains lacking these genes, in addition to the znuA zupT genes, in metal-limiting conditions (M9 minimal medium). Strains lacking znuA zupT and either irp2 or ybtX displayed a severe growth defect in M9 minimal medium, where the strains grew 1000-fold less than EcN wild-type and more than 10-fold less than EcN znuA zupT (Fig. 1d). Furthermore, growth of all mutants was restored in ZnSO_4_-supplemented M9 minimal medium (Supplementary Fig. 1g) and in LB broth without metal limitation (Supplementary Fig. 1h). Moreover, only zinc supplementation, but not iron or nickel supplementation, restored growth of the mutants to wild-type levels (Fig. 1e, f), confirming that the observed growth defects of the mutants were indeed due to zinc deficiency. Taken together, these results suggested that a product of the ybt gene cluster contributes to zinc acquisition by the probiotic EcN in zinc-limited media. We therefore hypothesized that the Ybt locus may encode for the production of a zincophore.

Yersiniabactin is a zincophore

To identify whether the ybt gene cluster produces a zincophore, we cultured EcN wild-type and the irp2 mutant in M9 minimal media and collected culture pellets and supernatants to then run ultra-high performance liquid chromatography tandem mass spectrometry (UHPLC-MS/MS). In addition to running UHPLC-MS/MS metabolomics on these samples, we performed experiments using post-liquid chromatography (LC) pH adjustment to 6.8 and infusion of a zinc acetate solution, followed by mass spectrometry – a workflow that we term native electrospray metabolomics – in order to assess whether any of the metabolites produced were capable of binding zinc^34^. This native metabolomics strategy is then combined with ion identity-based molecular networking, a new computational and data visualization strategy that allows for the discovery of mass spectrometry features with the same retention time and specified mass offsets^34^; mass spectrometry features with the same retention time and a mass difference resulting from zinc binding can be discovered directly from complex metabolomics samples.

Using this native electrospray metabolomics workflow, a number of zinc-binding small molecules were observed in the wild-type supernatant samples (Fig. 2a, b); zinc-bound nodes (each node represents an MS1 feature and its clustered MS/MS spectra) are shown in salmon and are connected to protonated nodes (dark blue) with a blue dashed line (indicating a m/z delta = [Zn^2+^-H^+^]^+^) (Fig. 2a, b). Furthermore, two peaks were observed in culture supernatant (Fig. 2c) from EcN wild-type that were absent in the irp2 mutant cultured in M9 minimal media (Fig. 2c). Feature-based molecular networking using MZmine in conjunction with Global Natural Products Social (GNPS) Molecular Networking^47,48^ allowed us to putatively identify these two peaks as Ybt. Ybt is known to tautomerize at C10 (Fig. 3), so exists as two diastereomers^49^. We confirmed that these peaks were two diastereomers of Ybt by matching the retention time, exact mass, and MS/MS spectra acquired from culture extracts to an authentic Ybt standard (Fig. 2e, f). Post-LC pH neutralization and zinc-infusion revealed the zinc-bound Ybt species, indicating that Ybt is indeed capable of binding zinc (Fig. 2d). To our surprise, we also found that one of the diastereomers (at retention time = 4.0 min) seems to bind zinc with higher preference than the other (at retention time = 4.3 min) (Fig. 2d). Since Ybt was initially discovered as an iron-binding molecule, and thus termed a siderophore, we next sought to determine the preferential conditions for binding iron versus zinc. To assess the competition between iron and zinc binding, we performed direct infusion mass spectrometry competition experiments at multiple pH values. In these experiments, we added equimolar amounts of zinc and iron to Ybt in ammonium acetate buffer adjusted to pH 4, 7, and 10. While Ybt preferentially binds iron at low pH (pH 4), it exhibits a higher preference for zinc at high pH (pH 10) (Fig. 2g). These experiments suggest that Ybt-Zn^2+^ binding is most competitive to ferric iron binding at basic pH; however, another possible explanation is that less ferric iron than Zn^2+^ is available to bind at basic pH due to solubility differences between the two metals. Nevertheless, at neutral pH (pH 7), Ybt was observed bound to iron or zinc at roughly equal proportion (Fig. 2g).Fig. 2. Yersiniabactin is produced by E. coli Nissle and directly binds zinc in a pH-dependent manner.a, b Native spray metal metabolomics was used to identify zinc-binding small molecules present in isolated EcN supernatant extracts. Zinc-binding molecules, including Ybt and other truncations, are concentrated in the boxed molecular families enlarged in panel b. Zinc-binding small molecules are observed when post-LC infusion of Zn^2+^ and post-pH adjustment are performed. Zinc-bound molecules are shown in salmon, while the corresponding protonated (Apo) form of these molecules is shown in dark blue. Structures and molecular formulas (generated using SIRIUS 4.0^78^) are provided. c Extracted ion chromatogram (XIC) for apo-Ybt ([M + H^+^]^+^ = 482.1236) is observed as two peaks (present at 4.0 and 4.3 m) in wild-type EcN supernatant (WT extract); tautomerization occurring at C10 results in the racemic mixture (Fig. 3). When post-LC pH adjustment and Zn^2+^-infusion are performed, the majority of the peak at 4.3 remains apo-Ybt (WT extract, +Zn). Neither apo-Ybt peak is present in the EcN irp2 knockout supernatant (irp2 extract). Commercial Ybt (commercial std) also elutes with a minor peak at 4.0 and a major peak at 4.3 m. d Zn^2+^-bound Ybt ([M + Zn^2+^-H^+^]^+^ = 544.0371) is not observed in the XIC of wild-type samples (WT extract), in irp2 knockout samples (irp2 extract), or in the commercial standard (commercial std) when the standard LC-MS/MS method is applied; however, when native spray metal metabolomics is applied (WT extract, +Zn; post-LC infusion of Zn^2+^ in conjunction with pH neutralization), Zn^2+^-bound Ybt is observed ([M + Zn^2+^-H^+^]^+^ = 544.0371) as the major species in the first peak (at retention time = 4.01 m). e, f Mirror plots show that peaks present at e 4.0 min and f 4.3 min (black; MS/MS of [(M + 2H^+^)/2 = 241.5654) both match the MS/MS from commercial Ybt standard (green). g Metal competition data for direct injection experiments run at pH 4, 7, and 10, in which Ybt was added to buffer in the presence of both iron and zinc; n = 3 biologically independent replicates). The ratio of extracted peak area of Zn^2+^-bound Ybt ([M + Zn^2+^-H^+^]^+^ = 544.0371) to extracted peak area of Fe^3+^-bound Ybt ([M + Fe^3+^-H^+^]^+^ = 535.0351) is shown at each of the three tested pH values.Fig. 31D 1H NMR confirms direct zinc binding to yersiniabactin.1D ^1^H NMR spectra of Ybt dissolved in CD_3_CN (top trace, 0 equivalents of Zn, red trace) as increasing zinc is titrated into the solution (0.5 equiv., gray trace), (1.0 equiv., blue trace). The loss of intensity of the NH and OH signals arises from the coordination of zinc by the corresponding N and O atoms; the signals that shift correspond to protons whose electronic environment changes due to binding of the Zn^2+^ ion. Only partial binding is observed because Ybt is in rapid equilibrium between two tautomers at C10 in addition to hydrolysis that occurs at C10 ^49^.

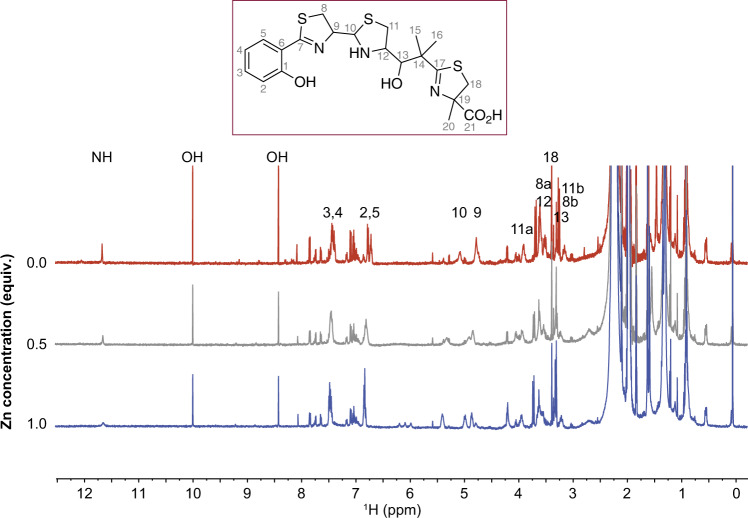

To confirm the zinc-binding observed by native electrospray metabolomics, we monitored a zinc-titration into Ybt by 1D ^1^H NMR (Fig. 3). Although Ybt is in equilibrium between two tautomers at C10 that seem to have different relative affinities for zinc, only one set of signals is observed in the spectra. This same observation was reported in earlier studies of gallium binding to Ybt^49^. The addition of zinc modulates a number of signals, including those of the NH proton and the two hydroxyl proton peaks at ~11.6, 10.0, and 8.4 ppm. The intensity of these well-resolved peaks decreases progressively upon addition of 0.5 and 1.0 equivalents of zinc, which is consistent with the nitrogen (N10-12) and oxygen (O1 and O13) heteroatoms chelating the zinc atom (Fig. 3), in a manner similar to Ybt binding of iron^50^ and copper^51^, and zinc binding by the Pseudomonas sp.-derived compound micacocidin A^52^. Finally, we found that increasing the pH of the solution via addition of 0–5 molar equivalents of NaOD had little effect on the NMR spectrum of zinc-bound Ybt complex, aside from the exchange of labile hydrogens with deuterium (Supplementary Fig. 2), showing that zinc is bound in the same manner across a broad range of pH. Given that zinc-Ybt complexes were observed using native electrospray metabolomics, and this was confirmed by NMR, we next assessed Ybt-zinc binding in the presence of CP. In competition experiments, we observed that CP exchanges zinc with Ybt even when Ybt-zinc was pre-formed, while the Site I/II knockout mutant CP (MU CP) does not participate in this exchange (Supplementary Fig. 3). Thus, CP can outcompete Ybt for zinc, consistent with the results from growth assays with WT and MU CP (Fig. 1). However, this does not rule out the possibility that Ybt may be able to scavenge the remaining zinc that is not bound by CP, akin to other zinc acquisition systems in bacteria.^53^
