Stress-Doped Interface Synergy: Unraveling the Atomic-Scale Corrosion Initiation of Al/Al2Cu Interfaces with Fe–Si Additions in Chloride Environments
Shuang Li, Wenyan Wang, Jingpei Xie, Aiqin Wang, Zhiping Mao, Wendong Qin, Qingyuan Guo
TL;DR
This study uses atomic-level simulations to understand how chloride ions cause corrosion at aluminum-copper interfaces, and how adding elements like iron and silicon can influence this process.
Contribution
The paper introduces a detailed atomic-scale analysis of corrosion initiation at Al/Al2Cu interfaces with Fe–Si additions in chloride environments.
Findings
Cl− adsorption on Al sites shows strong ionic bonding, while on Cu sites it is more covalent.

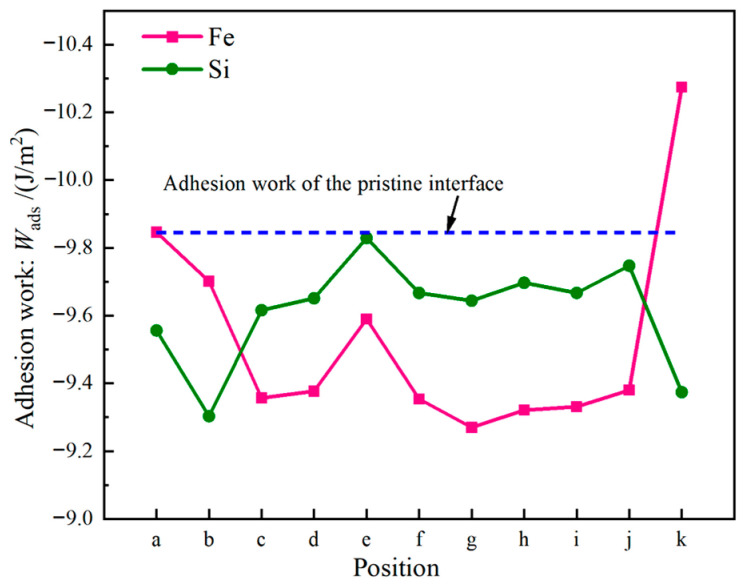

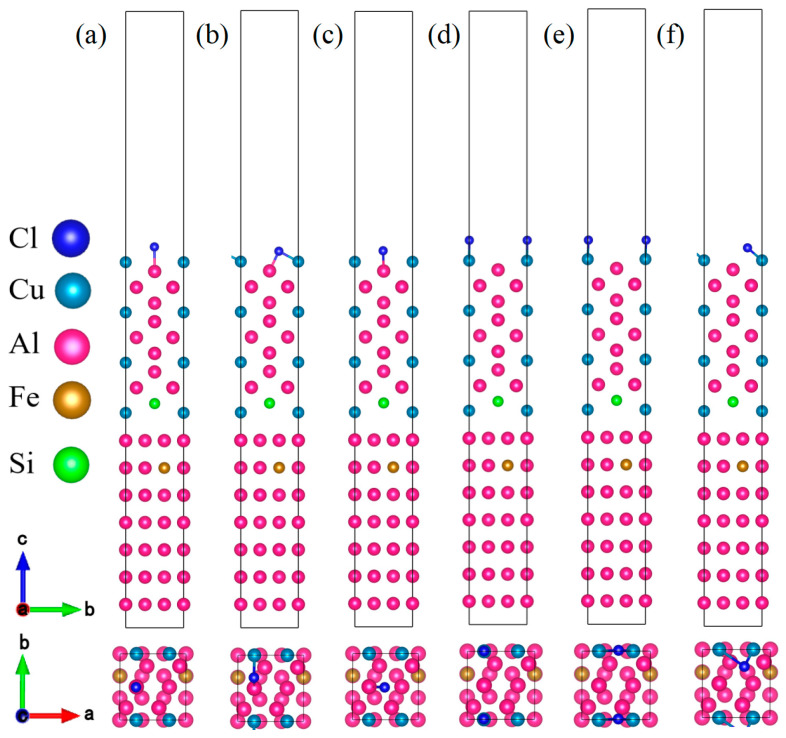

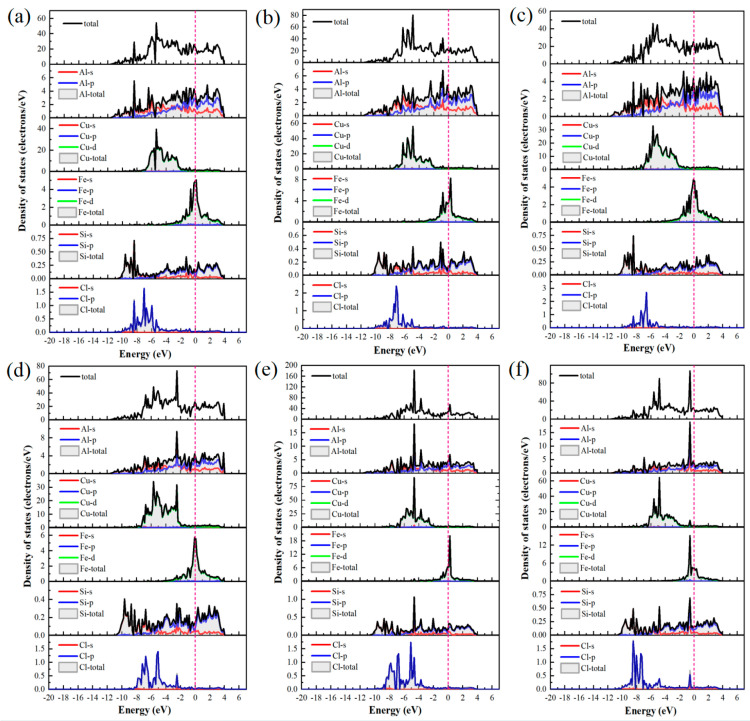

Fe/Si doping modulates the electronic structure, with Si enhancing stability and Fe introducing corrosion risks.

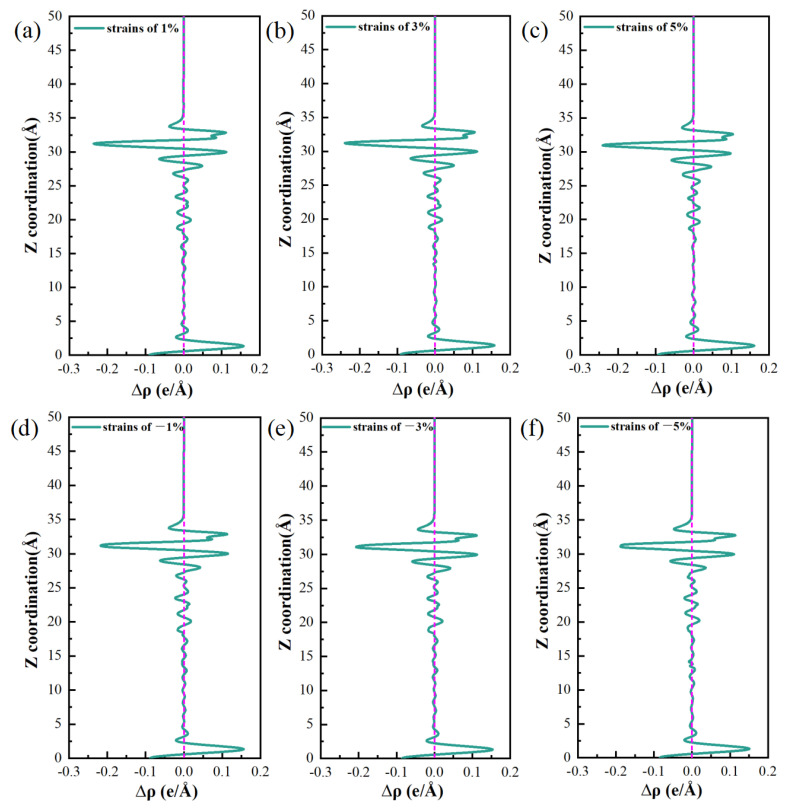

Tensile strain increases surface activity, while compressive strain affects corrosion through a three-stage mechanism.
Abstract

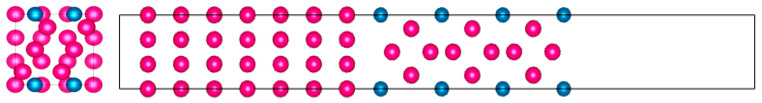

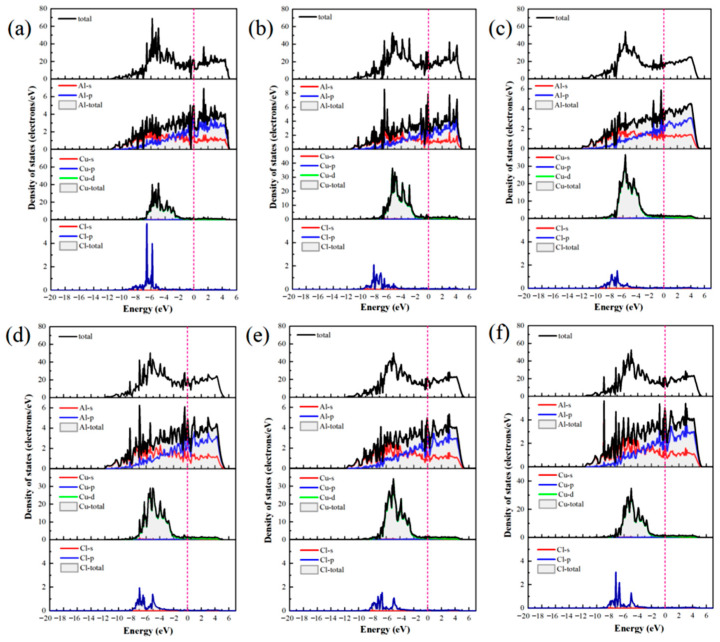

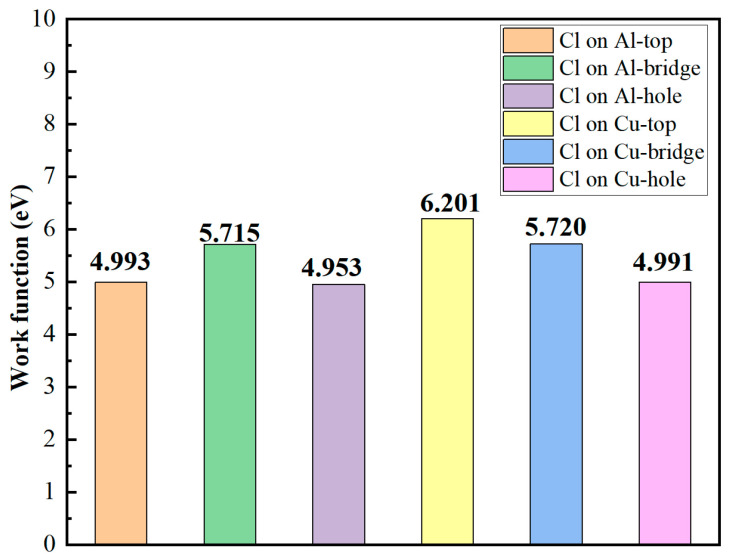

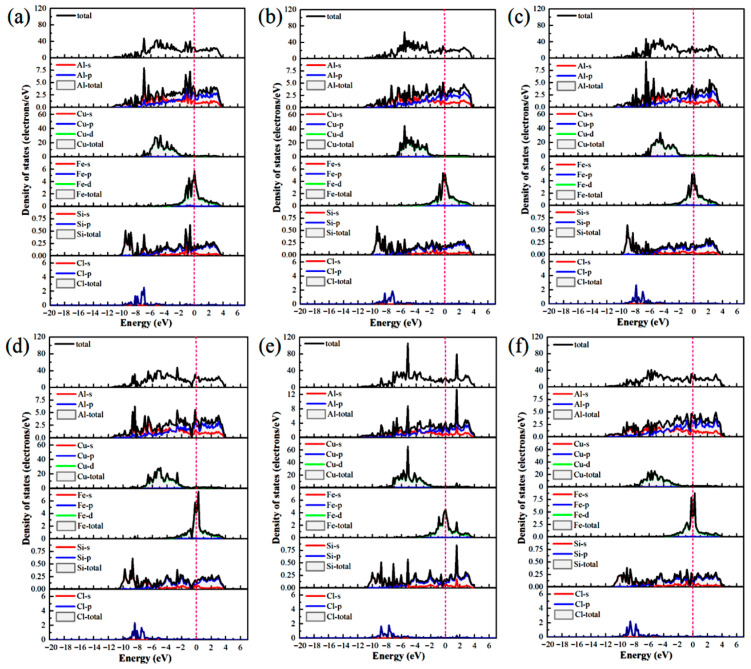

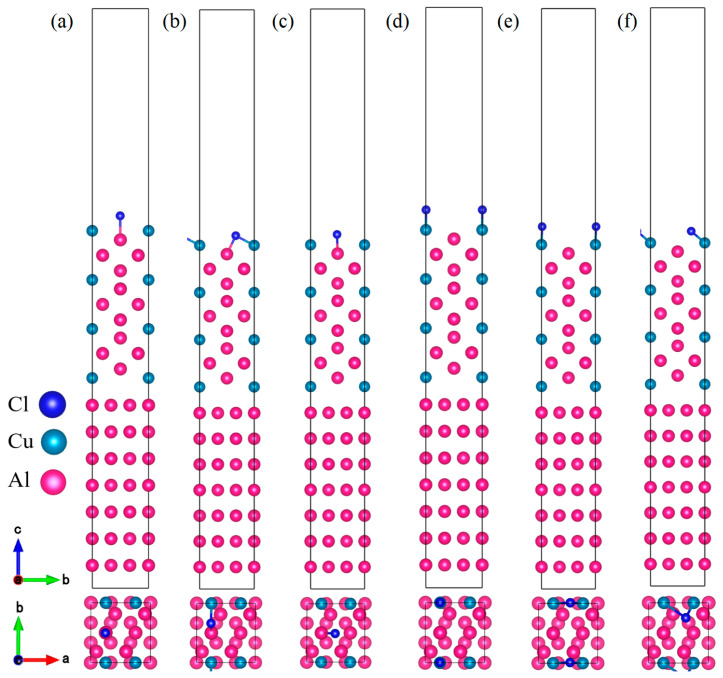

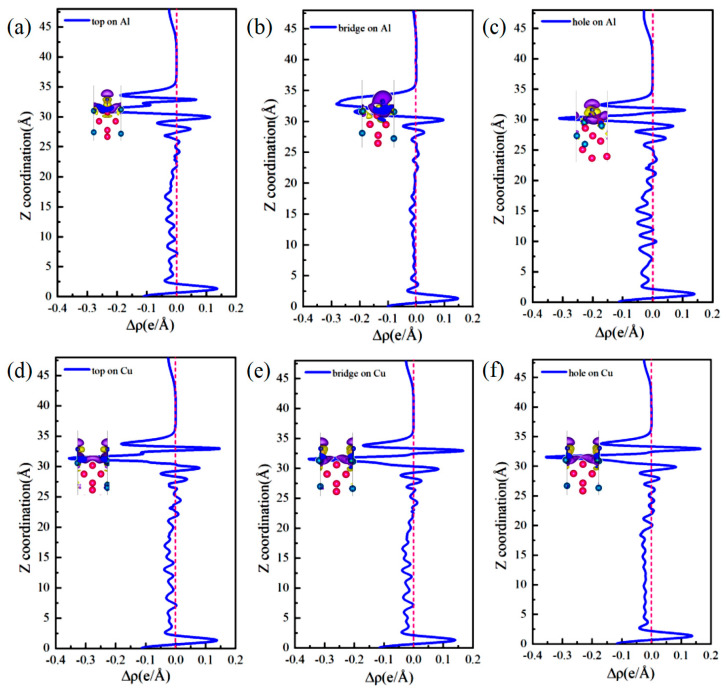

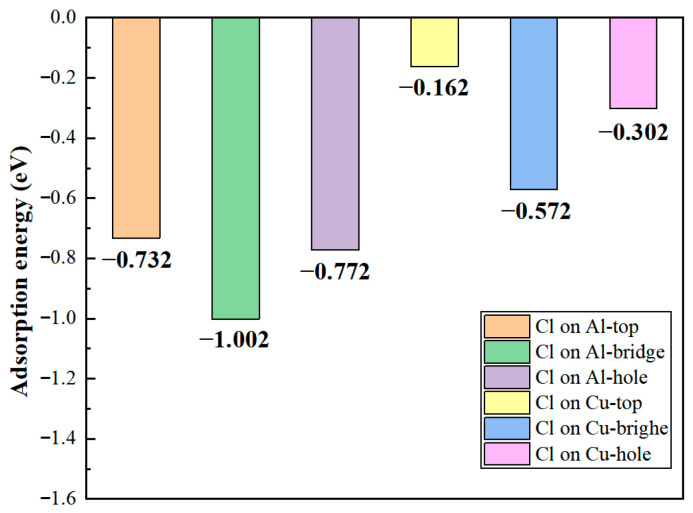

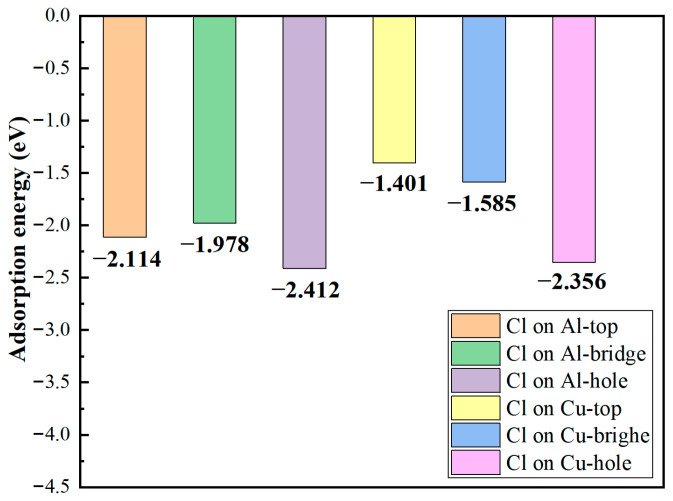

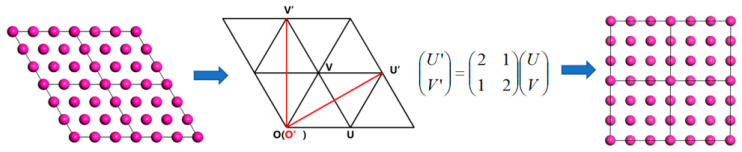

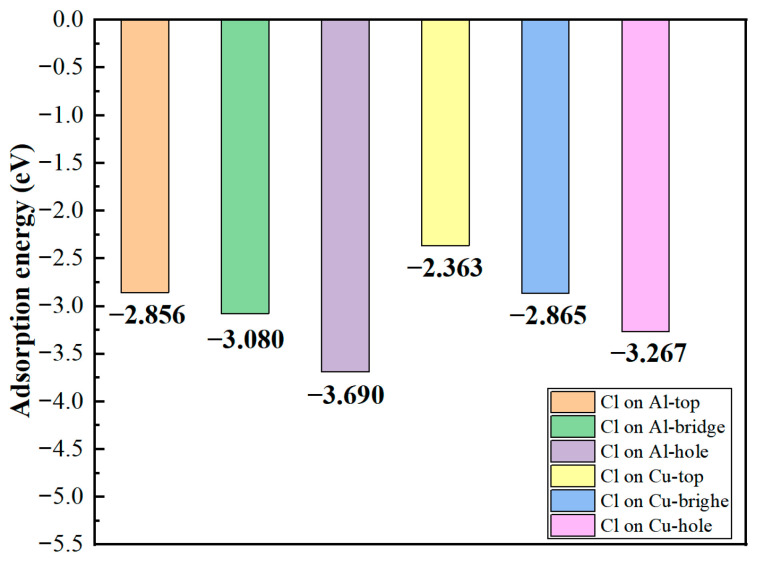

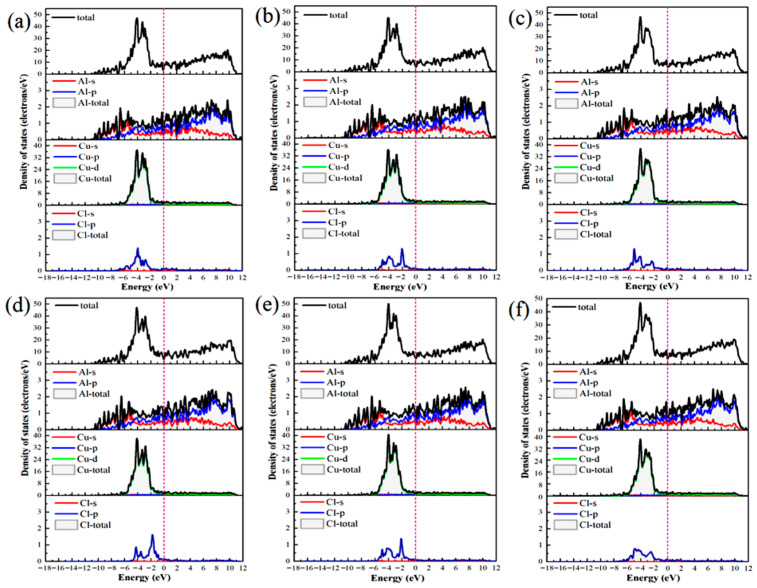

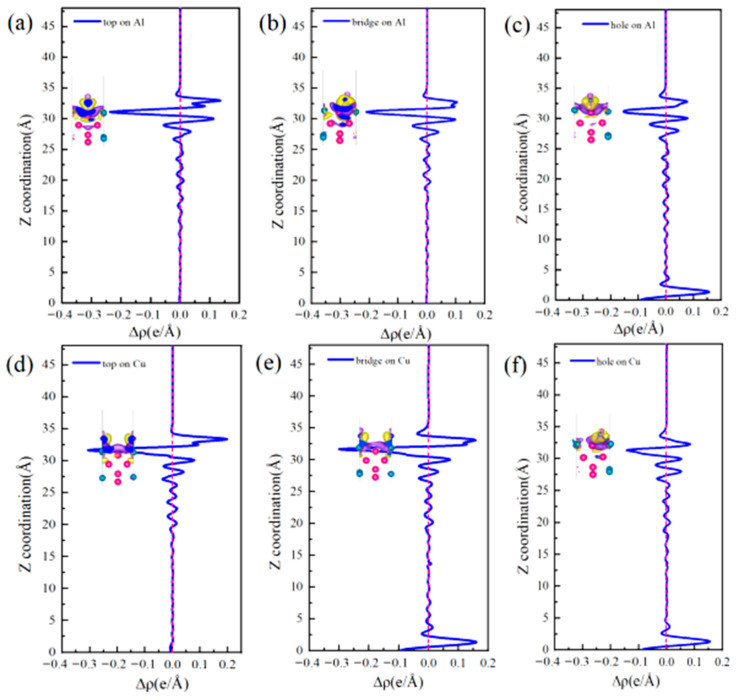

In this study, first-principles calculations were employed to systematically investigate the adsorption of Cl− on Al2Cu(110) surfaces, clean Al(111)/Al2Cu(110) interfaces, and Fe/Si-doped interfaces, as well as the influence of strain on interfacial electronic structure and corrosion activity. When Cl− is adsorbed on Al sites, the bonding between Cl and Al exhibits strong ionic characteristics with localized charge transfer, while adsorption on Cu sites is characterized by more delocalized, covalent interactions. This competition dictates the site-dependent stability of adsorption. Through geometric–electronic synergy, the interface functions as both a “Cl− enrichment zone” and an “activity source,” significantly favoring Cl− adsorption at high-activity anodic sites such as Al-hole and Al-bridge. Conversely, Cu-top sites maintain a high work function and an inert cathodic nature,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCorrosion Behavior and Inhibition · Aluminum Alloy Microstructure Properties · Hydrogen embrittlement and corrosion behaviors in metals
