Artificial thymic organoid culture generates functional iPSC-derived CD4+ invariant natural killer T cells
Sara Shiina, Tatsuki Ueda, Shoichi Iriguchi, Yasushi Uemura, Shin Kaneko
TL;DR
Scientists created functional CD4+ iNKT cells from iPSCs using a 3D organoid system, which could help boost anti-tumor immunity.
Contribution
A novel 3D organoid culture method successfully generates functional CD4+ iNKT cells from iPSCs.
Findings
3D-CD4+ iNKT cells exhibit antigen-specific helper functions and produce IFN-γ/IL-4.
They induce dendritic cell maturation and reverse T cell suppression by immunosuppressive macrophages.
These cells may serve as an adjuvant T-cell source for enhancing anti-tumor immunotherapy.

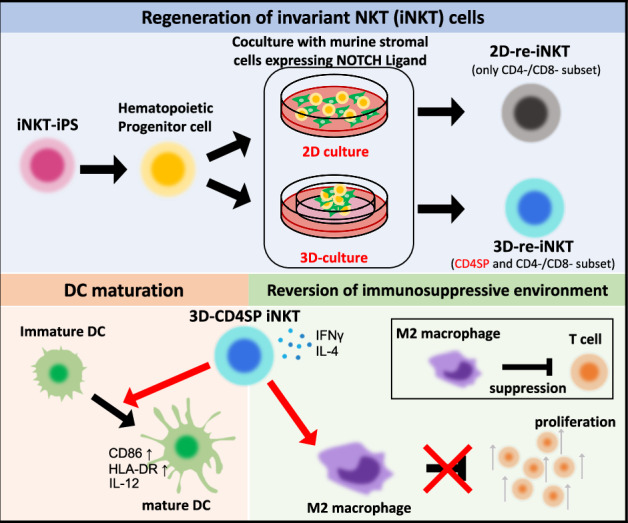

Abstract
Invariant NKT (iNKT) cells have a T-cell receptor that is common to all individuals and are activated by recognizing glycolipids on MHC class I-like CD1d molecules. Activated iNKT cells are known to exert anti-tumor effects through the activation of other immune cells and have attracted attention as promising T cells for eliciting anti-tumor immunity. However, securing a sufficient number of iNKT cells is an obstacle to treatment because iNKT cells are a very small cell population, less than 0.1% of the peripheral blood lymphocytes. Although previous studies have demonstrated redifferentiation of a large number of CD4–CD8– double-negative iNKT cells from induced pluripotent stem (iPS) cells in two-dimensional monolayer cultures, CD4+ single-positive (CD4SP) iNKT cells could not be induced. Here we show CD4SP iNKT cells can be obtained by three-dimensional (3D) organoid culture (3D-CD4+…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —https://doi.org/10.13039/501100002241MEXT | Japan Science and Technology Agency (JST)
- —Takeda-CiRA collaboration program
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsImmune Cell Function and Interaction · CAR-T cell therapy research · Immunotherapy and Immune Responses
Introduction
Recently, immune checkpoint inhibitors and chimeric antigen receptor (CAR)-T cells have demonstrated therapeutic efficacy against some cancers, and are being developed for use in a wide variety of diseases. In particular, T-cell immunotherapy has shown significant efficacy against hematologic malignancies but not against solid tumors. One reason for this is the establishment of an immunosuppressive state within tumors owing to the infiltration and proliferation of immunosuppressive cells^1^. Efforts have been made to overcome the immunosuppressive environment by combining multiple modalities.
Therefore, iNKT cells are potential candidates for this purpose. iNKT cells are unique immune cells that exhibit both innate and acquired properties. In contrast to T cells with diverse TCR sequences, iNKT cells have invariant TCRα chains (human: Vα24-Jα18) and are activated by recognizing glycolipids presented on the MHC class I-like molecule CD1d^2^. There are two subsets of iNKT cells: CD4 single-positive iNKT cells (CD4^+^ iNKT) and CD4^−^CD8^−^ double-negative iNKT (DN iNKT) cells. Activated CD4^+^ iNKT cells induce dendritic cell (DC) maturation and production of IL-12p70 in DCs via production of Th1 and Th2 cytokines (e.g., IFN-γ and IL-4) and increased expression of CD40 ligand (CD40L)^3^. CD4^+^ iNKT cell activation ultimately leads to the activation of immune cells such as natural killer (NK) cells^4^, cytotoxic T-lymphocytes (CTLs)^5^, and helper T (Th) cells through their adjuvant functions. In contrast, DN iNKT cells eliminate DCs by cytolysis, markedly reduce IL-12p70 levels, and induce Th2 differentiation of naive Th cells^3^.
The anti-tumor potential of iNKT cells has been demonstrated in several clinical trials^6,7^. Infiltration of iNKT cells into the tumor tissue is associated with improved prognosis and survival^8,9^. These results indicate that the adoptive transfer of iNKT cells may improve anti-tumor efficacy of T-cell immunotherapy. However, iNKT cells comprise less than 0.1% of peripheral blood lymphocytes, and further reductions in cell number and function have been reported in cancer patients^10,11^. Furthermore, excessive proliferation of iNKT cells in vitro leads to a functional decline in iNKT cells. Therefore, obtaining iNKT cells from patients in sufficient numbers and with sufficient functions to induce effective anti-tumor immune responses is an obstacle for iNKT cell-based immunotherapy. Thus, studies have been conducted to produce iNKT cells of sufficient quality and quantity for therapy using iNKT cell-derived iPS cells.
We and other groups have previously reported the regeneration of iPS cells derived from human iNKT cells (iNKT-iPS cells)^12,13^. We chose to use iPS cells derived from iNKT cells because iNKT-iPS cells may present better potential to redifferentiate into iNKT cells due to epigenetic memory and rearranged T-cell receptor of the original iNKT cells as described in the previous studies using different somatic cell sources^14–16^. The iNKT-iPS cells were cultured on C3H10T1/2 cells to induce hematopoietic progenitor cells, which were then cultured on an OP9-DL1 monolayer to induce iNKT cell differentiation (2D-re-iNKT cells). This differentiation method yielded CD4^−^/CD8^−^ (DN) cells and CD8 single-positive cells. However, other major subsets of iNKT cells, such as CD4^+^ iNKT cells, cannot be obtained using this method. In addition, the 2D-re-iNKT cells did not express CD5, a marker of primary mature iNKT cells. Furthermore, they exhibited several properties that differed from those of primary iNKT cells, such as a relatively lower proliferative capacity and limited cytokine-producing ability. As mentioned above, CD4^+^ iNKT cells actively participate in anti-tumor activity, and regeneration of CD4^+^ iNKT cells from iPS cells is a prerequisite for successful iNKT cell-based immunotherapy.
We hypothesized that the adaptation of three-dimensional organoid cultures during T-cell differentiation would lead to the generation of functional CD4^+^ iNKT cells as well as CD5^+^ DN iNKT cells from iNKT-iPS cells, because it was recently reported that CD4-positive αβTCR-positive T cells can be generated by making a cell aggregate comprising DL1-expressing mouse feeder cells and iPS cell-derived mesoendodermal progenitor cells and placing them in an air-liquid interface culture environment (Artificial Thymic Organoid: ATO)^17,18^. Here, we show that ATO-mediated redifferentiation of iNKT-iPS cells can regenerate both CD4^+^ and DN/CD5^+^ iNKT cells with much better functionality than 2D-re-iNKT cells. This report demonstrating Vα24-Jα18 TCR dependent and antigen-specific helper functions of CD4^+^ iNKT cells derived from iPS cells.
Result
Induction of iNKT-cell differentiation from iNKT-iPS cells using ATO method
We induced iNKT cell differentiation from iNKT-iPS cell-derived hematopoietic progenitor cells using ATO (3D-re-iNKT cells). The iNKT cell-derived iPS cells were previously established from peripheral blood CD4^+^ iNKT cells^12^. The iPS cells were cultured in a feeder-free culture system for 14 days to generate hematopoietic progenitor cells as previously reported^19^. The hematopoietic progenitor cells obtained were cultured with MS5DL4 cells in the form of a cell pellet on a cell culture insert. Flowcytometric analysis after 5 weeks showed that they uniformly expressed invariant TCR (stained with monoclonal antibody (mAb) 6B11 specific for invariant Vα24-Jα18 CDR3) and CD161, an NK receptor. CD4SP cells were also present, most of which were CD5 positive (Fig. 1a).Fig. 1. Induction of iNKT-cell differentiation from iNKT-iPS cells using ATO method.a Representative flow cytometry plots of re-differentiating T cells from CD4^+^ iNKT-iPSCs using the ATO method (n = 5) (gated by CD45, CD3 and 6B11). PBMC stands for peripheral blood mononuclear cells. b Representative flow cytometry plots of each fraction of 3D-re-iNKT and primary iNKT cells after TCR stimulation (gated by CD45, CD3 and 6B11). (3D-re-iNKT: n = 5; primary iNKT: n = 3) c Fold expansion of primary CD4^+^/DN iNKT cells, 2D-re-iNKT cells and newly induced 3D-re-iNKT cells around 2 weeks after stimulation with α-GalCer-pulsed PBMCs. Results obtained from three independent experiments. Data represent mean ± SEM of n independent experiments. Significance was assessed by one-way ANOVA with Tukey’s multiple comparison test. d Principal component analysis (PCA) of the transcriptomic data of each subset of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells. (primary iNKT: n = 3; 2D-re-iNKT: n = 3; 3D-re-iNKT: n = 3;) e Gene expression profiles of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cell subsets (primary iNKT: n = 3; 2D-re-iNKT: n = 3; 3D-re-iNKT: n = 3;). Hierarchical clustering was performed based on gene profiles related to transcription factors, NK activating and inhibitory receptors, and tissue inflammatory homing markers.
In addition to the CD4SP and DN/CD5^+^ fractions (3D-CD4^+^ iNKT and 3D-DN/CD5^+^ iNKT cells), which are major subsets of peripheral blood iNKT cells^2^, 3D-re-iNKT cells contained a DN/CD5^−^ fraction (3D-DN/CD5^−^ iNKT cells) with an expression similar to that of 2D-re-iNKT cells. To compare the functions of each fraction, each of these three fractions was separated, stimulated with the synthetic sphingoglycolipid αGC^20^, and analyzed for surface antigens. Most 3D-CD4^+^ and -DN/CD5^+^ iNKT cells expanded, while maintaining CD5 expression. In addition, 3D-re-iNKT cells expressed CD150 (SLAM) (Fig. 1b). These findings demonstrate successful regeneration and expansion of CD4^+^, DN/CD5^+^, DN/CD5^−^ fractions from iNKT-iPS cells by ATO method. The CD8SP fraction was also obtained, but stimulation with aGC resulted in almost no cell growth and no CD8 expression (Supplementary Fig. 1a-c). Therefore, further characteristics analysis of 3D-CD8-iNKT cells could not be performed.

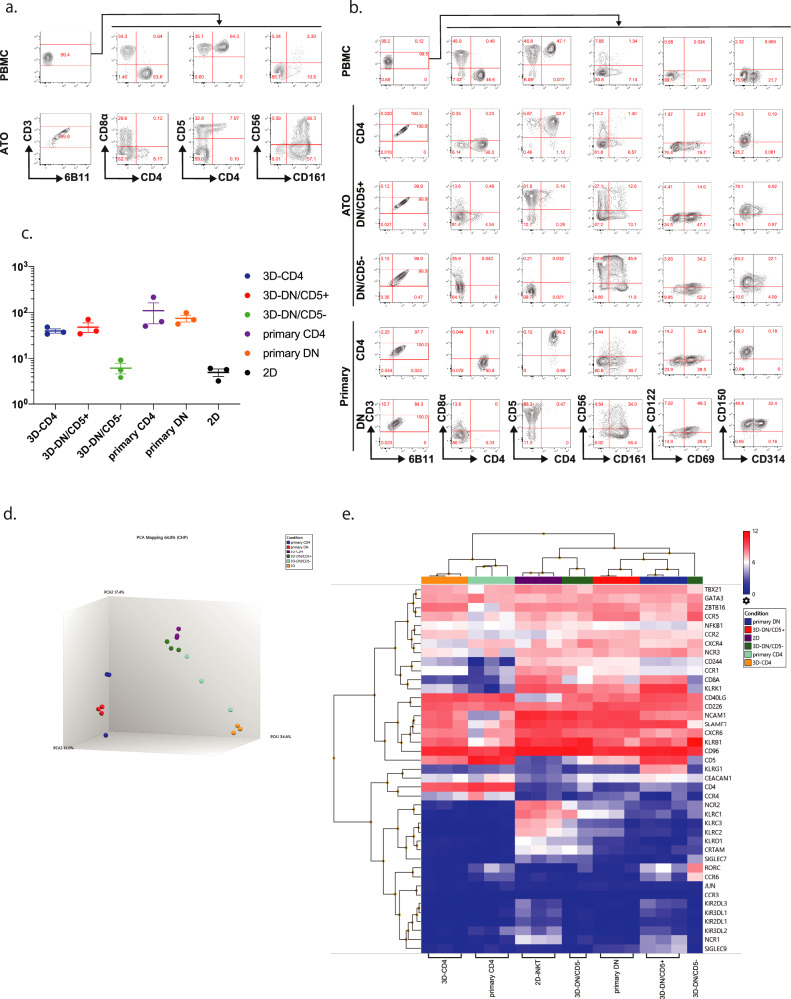

Next, we evaluated the proliferative ability of each subset of 3D-re-iNKT and primary iNKT cells in response to αGC stimulation (Fig. 1c). 3D-CD4^+^ and -DN/CD5^+^ iNKT cells showed proliferation rate comparable to primary iNKT cells. On the other hand, 3D-DN/CD5-iNKT cells and 2D-re-iNKT cells tended to show lower proliferation rates compared to the other two fractions and primary iNKT cells, although there was no significant difference. These results are consistent with our previous report that 2D-re-iNKT cells, showed low proliferation rates (7.5–24.1 fold) in response to αGC stimulation.
We further analyzed the global gene expression profiles of primary iNKT cells, 2D-re-iNKT cells and each subset of 3D-re-iNKT cells. Principal component analysis (PCA) of the transcriptomic data indicated although 3D-CD4 and primary CD4+ iNKT were allocated in different position, they were much closer than 2D-re-iNKT cells (Fig. 1d). Hierarchical clustering of the transcriptomes enabled by mRNA sequencing of the selected genes showed that 3D-DN/CD5^−^ iNKT cells are close to 2D-re-iNKT cells with the same phenotype, and the ATO-specific subsets 3D-CD4^+^ cells and primary CD4^+^ iNKT cells are in the same cluster (Fig. 1e). 2D-re-iNKT and 3D-DN/CD5^−^ iNKT cells expressed high levels of NK-activating receptor genes (e.g., NCAM1, NCR1, NCR2, KLR2, and KLR3), indicating that they were NK cell-like cells. 2D-re-iNKT cells also expressed high levels of NK inhibitory receptor genes (e.g., KIR3DL1, KIR3DL2, KIR2DL1, and KIR2DL2), suggesting that they are particularly similar to NK-like cells. Interestingly, 3D-CD4^+^ iNKT cells expressed high levels of CCR4, which is primarily expressed in IL-4-producing CD4^+^ iNKT cells^21–23^.
Cytotoxic activities of 3D-re-iNKT cells

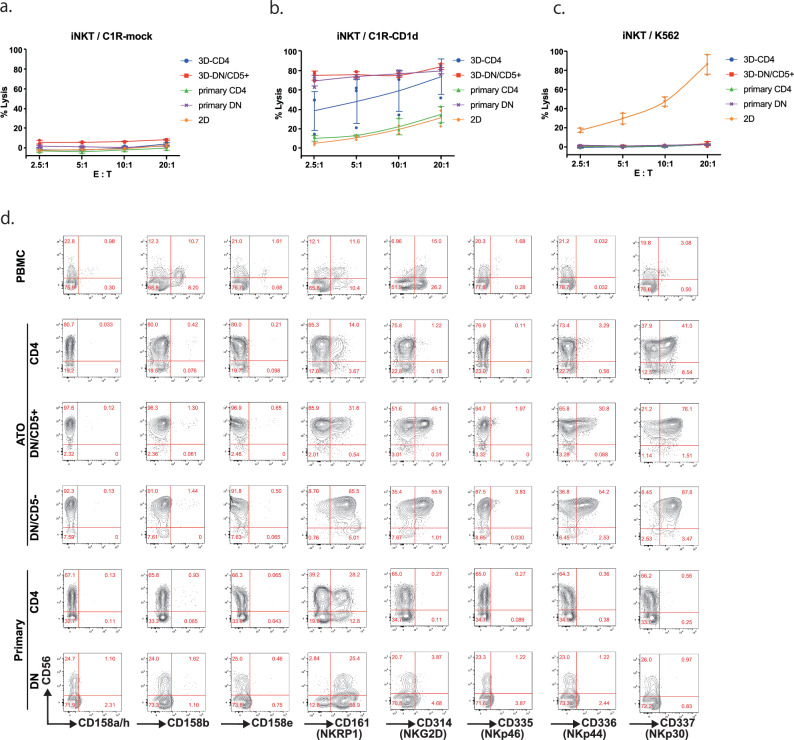

Next, we tested the antigen-specific cytotoxicity of 3D-re-iNKT cells. Since iNKT cells are activated by recognizing glycolipids present on the MHC class I-like molecule CD1d, we co-cultured iNKT cells with C1R-CD1d and C1R-mock cells and evaluated their cytotoxicity in the presence of the glycolipid αGC. 2D-re-iNKT cells, 3D-re-iNKT cells and primary iNKT cells all exhibited weak baseline cytotoxic activity when cocultured with C1R-mock (Fig. 2a). When co-cultured with C1R-CD1d, 3D-CD4^+^ iNKT cells showed intermediate cytotoxicity, whereas primary CD4^+^ iNKT cells showed low cytotoxicity. Under the same conditions, 3D-DN/CD5^+^ iNKT cells showed strong cytotoxicity, similar to that of primary DN iNKT cells. On the other hand, 2D-iNKT cells showed low cytotoxicity despite being DN iNKT cells (Fig. 2b).Fig. 2. Cytotoxic activities of 3D-re-iNKT cells.a In vitro cytotoxicity assay of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells measured by non-radioactive cytotoxicity assay using C1R-CD1d cells as target cells. Representative data of three (3D-re-iNKT and primary iNKT cells) or two (2D-re-iNKT cells) independent experiments are shown. Dots represent individual values. Means are connected by lines; error bars represent SD. n = 3 per point. b In vitro cytotoxicity assay of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells measured by non-radioactive cytotoxicity assay using C1R-mock cells as target cells. Representative data of three independent experiments are shown. Dots represent individual values. Means are connected by lines; error bars represent SD. n = 3 per point. c In vitro cytotoxicity assay of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells measured by non-radioactive cytotoxicity assay using K562 cells as target cells. Representative data of three independent experiments are shown. Dots represent individual values. Means are connected by lines; error bars represent SD. n = 3 per point. d Expression of NK cell receptors in 3D-re-iNKT cells and primary iNKT cells (gated by CD45, CD3, and 6B11).
We also examined antigen-independent cytotoxicity of 3D-re-iNKT cells by co-culture them with K562, a cell line used to test antigen-independent cytotoxicity. Only 2D-re-iNKT cells showed strong cytotoxic activity against K562, whereas 3D-CD4+ and 3D-DN/CD5+ iNKT cells did not show cytotoxic activity, similar to primary iNKT cells (Fig. 2c)^24^. To identify the possible reasons for the different antigen-independent cytotoxicity, we compared the expression of NK-activating and inhibitory receptors in each subset (Fig. 2d). NKp44, a natural cytotoxicity receptor, and NKG2D were negative in primary iNKT cells and 3D-CD4^+^ iNKT cells, while 3D-DN/CD5^+^ and -DN/CD5^−^ iNKT cells expressed these receptors. Thus, the level of antigen-independent nonspecific cytotoxicity against K562 cells could be partly explained by the differential NK-activating receptors. These results were consistent with the global gene expression profiles.
Helper functions of iNKT cells: maturation of dendritic cells
iNKT cells can indirectly promote the activation of CTLs and NK cells through DC activation. CD40L molecules expressed on activated iNKT cells stimulate DCs through CD40 ligation, inducing the upregulation of DC maturation markers and the production of IL-12p70^2^. IL-12p70 is a potent NK cell activator and an important inducer of functional antigen-specific Th1 cells and CTL responses factor^25^.

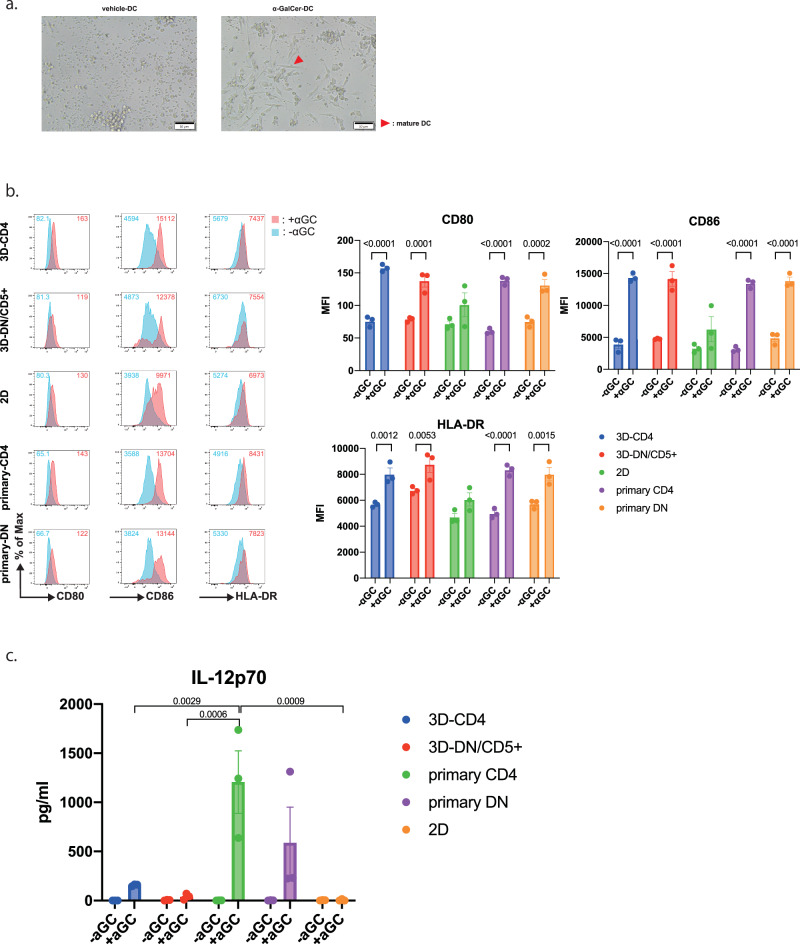

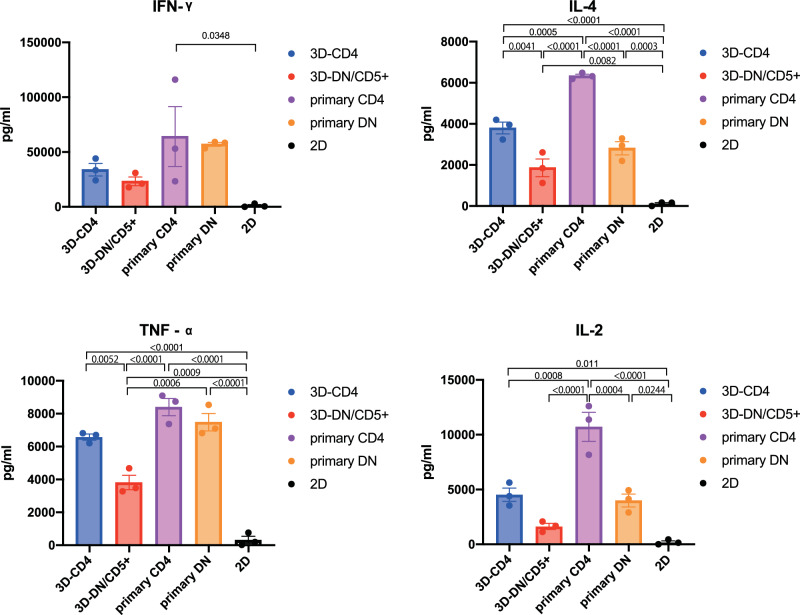

We first co-cultured each subset of 3D-re-iNKT cells with αGC pulsed-DCs and non-pulsed (vehicle)-DCs derived from peripheral blood mononuclear cells (PBMCs). After 24 h, microscopic observation revealed the presence of spindle-shaped DCs co-culture with αGC-DCs (Fig. 3a). In addition, flow cytometry analysis of DC maturation markers revealed that the expression of the costimulatory molecules CD80 (B7-1)/CD86 (B7-2) and HLA-DR increased in the presence of αGC in both 3D-re-iNKT cells and primary iNKT cells (Fig. 3b). We measured the concentration of IL-12p70 in the culture supernatants. In the co-culture with primary iNKT cells, IL-12p70 production was detected only when DCs were co-cultured with primary CD4^+^ iNKT cells. Similarly, in 3D-re-iNKT cells, IL-12p70 production was confirmed only when co-cultured with 3D-CD4^+^ iNKT cells. In contrast, co-culture with 2D-re-iNKT cells did not produce IL-12p70 (Fig. 3c). Next, we examined the cytokines produced by iNKT cells co-cultured with DCs. Each subset of 2D-re-iNKT cells, 3D-re-iNKT cells and primary iNKT cells was co-cultured with DCs and the cytokines in the supernatant were measured. Compared with 3D-DN/CD5^+^ iNKT cells, 3D-CD4^+^ iNKT cells produced higher amounts of cytokines, which was also true for primary iNKT cells. On the other hand, 2D-re-iNKT cells produced almost no cytokines compared with 3D-re- and primary iNKT cells (Fig. 4). Collectively, these results suggest that 3D-re-iNKT cells, especially 3D-CD4^+^ iNKT cells, have adjuvant functions closer to those of primary iNKT cells than 2D-re-iNKT cells.Fig. 3. Helper functions of iNKT cells : maturation of dendritic cells.a Brightfield images after 24 h co-culture of vehicle-DCs or α-GalCer-DCs with 3D-CD4^+^ iNKT cells at an effector-to-target (E:T) ratio of 1:1. The cell pointed by red triangle indicate morphological example of mature DC. b The histograms represent the mean fluorescent intensity of DC maturation markers (CD80, CD86 and HLA-DR) obtained from vehicle-treated control in blue and aGC-treated group in red in the presence of iNKT cells. Bar graphs is summarizing the mean fluorescent intensities of DC maturation markers for the three trials. Data represent mean ± SEM of n independent experiments. Significance was assessed by 2way ANOVA with Šídák’s multiple comparison test. c IL-12p70 production by DCs stimulated with primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells under conditions with or without aGC. Data represent mean ± standard error from three independent experiments. Significance was assessed by 2way ANOVA with Tukey’s multiple comparison test.Fig. 4. Helper functions of iNKT cells : cytokine profile of 3D-re-iNKT cells.Cytokine productions of primary iNKT cells, 2D-re-iNKT cells and 3D-re-iNKT cells co-cultured with DCs in the presence of vehicle or 100 ng/ml α-GalCer. Data represent mean ± standard error from three independent experiments. Significance was assessed by one-way ANOVA with Tukey’s multiple comparison test.

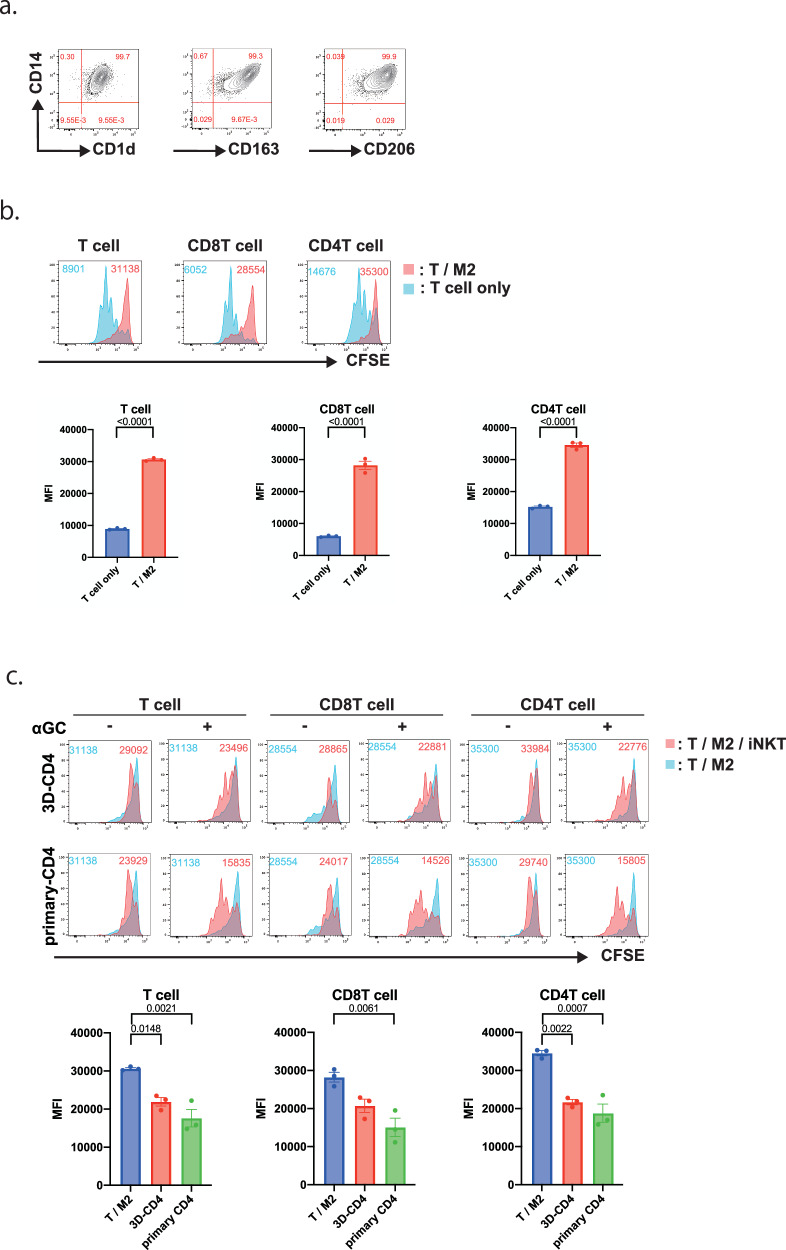

CD4+ iNKT cells can accelerate T-cell proliferation inhibited by alternatively activated macrophages in vitro
