Research on the threshold of the supply and demand of ecosystem services

TL;DR

This study introduces a new concept called TrSD to help manage ecosystem services by determining thresholds for their supply and demand.

Contribution

The paper defines and calculates a new threshold for ecosystem service supply and demand, called TrSD.

Findings

TrSD was defined based on the difference between ecosystem service supply and demand.

The TrSD method was tested in Urumqi using land use simulation and inflection point analysis.

The proposed TrSD method is shown to be innovative and useful for ecosystem service management.

Abstract

The ecological threshold has not yet formed a unified definition, and there is no definition for “the threshold of the supply and demand of ecosystem services (TrSD)”, leading to no limitation of the negative impact of production and life behavior on the supply and demand of ecosystem services. This study defined and set TrSD, and took Urumqi as an example to carry out a case study. Firstly, the concept of TrSD was elaborated referred to multiple definitions of the ecological threshold based on “the difference between the supply and demand of ecosystem services (ESr)”. Then, the geographical simulation and optimization system- future land use simulation (GeoSOS-FLUS) software was used to simulate future land use. After that, the Land Use and Land Cover (LULC) matrix model was applied to calculate ESr. Finally, the TrSD was determined via the inflection point analysis of ESr. This study concludes that the proposed TrSD and its systematic calculation method are innovative and rational. The results can be used for ecosystem service management and ecological valuation, which helps the sustainability progress of the global.

Figures

Research Framework.

Case area.

Future development scenarios.

GeoSOS-FLUS modules.

Steps of GeoSOS-FLUS’s operation.

The inflection points of ESr in the scenario of EnF.

Equations

Full text

1 Introduction

Ecosystem service was first proposed by Holden and Ehrlich in 1974 and defined by the Millennium Ecosystem Assessment as the benefits provided by ecosystems to humans [1]. In the process of social development, human demand for economy and ecosystem services is increasing. However, the supply of ecosystem services is limited, which means there may be a mismatch between the supply and demand of ecosystem services.

Ecosystem resilience is the capacity of an ecosystem to maintain its key functions and reorganize following disturbance. When the resilience of an ecosystem is sufficiently degraded due to disturbances, the system will transition from an ideal state to a high-risk state, leading to the emergence of ecological thresholds [2]. In the context of ecological thresholds, even minor changes in disturbance can cause shifts in ecosystem states [3]. In nature, ecological thresholds primarily exist in two forms: “points” and “zones.” Simply put, a “point” threshold describes an immediate condition, such as a species on the brink of extinction, while a “zone” threshold depicts the transformation process of ecosystem states [4]. Due to stresses from both internal and external factors, ecosystems undergo changes in structure and function. Once these stresses exceed certain thresholds, significant changes in ecosystem states occur [5]. Therefore, ecological thresholds are particularly important for environmental management and sustainable development.

Ecological threshold describes the process by which quantitative change leads to a qualitative change in ecosystems, it is an important indicator of urban planning. The Threshold Alliance listed nearly 50 different definitions of “ecological thresholds” based on studies such as the state of different ecosystems [6]. For example (shown in Table 1), the carrying capacity of the ecosystem mainly emphasized the stress of all biological and human activities in the area carried by the ecosystem [7]. The planetary boundary sets the safety boundary of key biophysical processes for the earth system [8,9]. Tang et al. [10] consider ecological thresholds as the critical values that cause divergence or abrupt changes in ecosystem processes or states. The abrupt changes in ecosystems stem from the accumulation of changes in resource and environmental factors during the evolution of ecosystems or the occurrence of extreme events, manifesting as a turning point in the changes of ecosystem structure and function [11]. Overall, current research lacks an analysis of the concept of “threshold” and its setting from the perspective of ecosystem service supply and demand, failing to provide guidance for controlling the balance between ecosystem service supply and demand.

Table 1: Different meanings of ecological thresholds.

To address the potential ecological risks resulting from the lack of threshold settings for the supply-demand imbalance of ecosystem services, this study propose the concept of the threshlod of the supply and demand of ecosystem services (TrSD) (All abbreviations are listed in Table 2). This study tries to define and set TrSD based on “the difference between the supply and demand of ecosystem services (ESr)” to maintain the continuous surplus of the supply and demand of ecosystem services and promote eco-friendly development. To set TrSD, the changes in ESr should be identified, and future land use should be predicted first for ESr calculation.

Table 2: Main abbreviations.

Regarding future land use and land cover prediction, cellular automata-Markov (CA-Markov), future land use simulation (FLUS) [12], geographical simulation and optimization system-future land use simulation (GeoSOS-FLUS), and conversion of land use and its effects at small region extent (CLUE-S) [13] are used for future land use prediction. Among them, GeoSOS-FLUS integrates CA-Markov and FLUS models, which can predict land use data (top-down quantitative simulation) and simulate the spatial distribution of land use (bottom-up spatial simulation) [14,15]. What’s more, it predicts future land use based on several driving factors, which can effectively deal with the common uncertainty of human activities and nature [16].

Regarding the evaluation of the supply and demand of ecosystem services, there are several methods proposed in research works, such as the land use and land cover (LULC) matrix model, integrated valuation of ecosystem services and trade-offs (InVEST), ecological footprint (EF), ecosystem services provision Index (ESPI), and land development index (LDI). Among them, the LULC matrix model can calculate the supply and demand of ecosystem services simultaneously, which only requires data on land use and the intensities of ecosystem services. The LULC matrix model establishes an ecosystem services’ supply matrix and an ecosystem services’ demand matrix to quantify the supply and the demand of ecosystem services, respectively. [17,18].

At present, the determination method of ecological thresholds mainly contains the experimental observation [2,19–21], the numerical model simulation [4,22], and the statistical analysis [23]. The inflection point analysis is a kind of statistical analysis tool, and is usually used for data analysis in the field of finance, energy consumption, internet business, etc. It is easy to operate and has a great application possibility in the field of ecological researches.

According to the above, this study mainly intends to define TrSD based on the supply and demand of ecosystem services and propose a systematic method of TrSD determination based on ESr, giving suggestions for land planning. Regarding TrSD determination, this study works in three steps: a) Obtain and predict land use/ land change data of the study area; b) Modify the intensities of LULC matrix and calculate ESr; c) Set TrSD via the inflection point analysis of ESr. The framework of this study is shown in Fig 1.

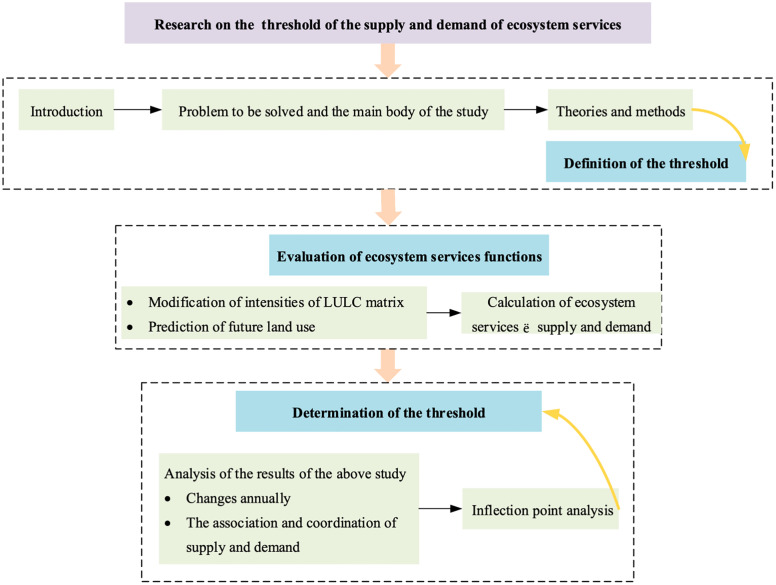

Research Framework.

Display the framework of the study and the structure of the article.

In this study, Section 2 contains the definition of TrSD, and the methods of determining TrSD. Section 3 presents the results of the case study. Section 4 makes discussions on the definition, results, and methods. Section 5 is the conclusions.

2 Case and methods

This section contains four parts. Section 2.1 and Section 2.2 introduces the basic information of the case city and data sources, respectively. Section 2.3 expresses the definition of TrSD. Section 2.4 introduces the methods for TrSD determination, including the GeoSOS-FLUS model (future land use prediction), LULC matrix model with modified ecosystem services’ intensities (ESr evaluation), and inflection point analysis of ESr.

2.1 Study area

Urumqi (86°37′33″-88°58′24″E, 42°45′32″-44°08′00″N) is located in northwest China and is the capital of Xinjiang Uygur Autonomous Region, shown in Fig 2. Urumqi is the central area of the core area of the Silk Road Economic Belt, surrounded by mountains on three sides, with a variety of land cover forms and has unique energy resource advantages as well as rich animal and plant resources. Table 3 displays the situation of land use in Urumqi in the past few years. However, Urumqi belongs to an arid area with little precipitation and faces ecological security threats such as ecological sensitivity and fragility due to historical factors. In recent years, the economy and urbanization process of Urumqi has developed rapidly. Strengthening ecological environmental protection and optimizing construction while striving to develop a social economy is the top priority of Urumqi’s current development. It has been emphasized that the development of Urumqi shall adhere to the strategy of sustainable development, continuously improve the ecological environment, and comprehensively improve the quality of the ecosystem. Therefore, from the perspective of development goals and ecological protection, this study chose Urumqi City as the case area.

Table 3: Historical land use data of Urumqi (Unit: square kilometers).

Case area.

The simple map of the case area.

2.2 Data sources

The thesis collected remote sensing images of land monitoring, digital elevation model, and another necessary data from different resources. The details were shown in Table 4. The availiblity of these data resources were explained in the file “Supporting information”.

Table 4: Data resources.

2.3 Definition of the threshold of the supply and demand of the ecosystem services

The supply and demand of ecosystem services change with human actives and ecosystem activities. According to the general concept of threshold, TrSD refers to the state in which the difference between the supply and demand of ecosystem services arrives at a tipping point. Within TrSD, the ecosystem provides sustainable ecosystem services with no significant jump in ESr, the supply of ecosystem services can maintain stable demand for ecosystem services, and the supply of ecosystem services is in good coordination with the demand for ecosystem services.

The ESr can be calculated by the following equation:

$$[eqn]$$

Among them, ESs represents the supply of ecosystem service, ESd represents the demand for ecosystem services. The calculation of ESs and ESd are introduced in Section 2.4.2. A positive value of ESr indicates that supply exceeds demand, which means a surplus of ecosystem services, while a negative value indicates that supply is less than demand, which means an ecosystem services deficit.

Referring to Sun’s [24], Guan’s [25], and Chen’s [26] research works on the association and coordination of ecosystem services supply and demand, this study listed the calculation methods of the ratio and coordination of ecosystem services supply and demand.

RSD refers to the matching degree of ecosystem services supply and demand. It can be calculated by:

$$[eqn]$$

RSD > 1 means the ecosystem service supply can maintain stable demand for ecosystem services, and the relationship between the supply and demand of ecosystem services is stable and harmonious. RSD = 1 indicates that the supply and demand of ecosystem services are saturated. RSD < 1 means that the supply of ecosystem services cannot maintain stable demand for ecosystem services, resulting in a conflict between supply and demand [27].

CSD means the coordination of ecosystem services supply and demand. It can be calculated by:

$$[eqn]$$

To ensure the coordination of the supply and demand of ecosystem services, the value of CSD shall be larger than 0.5. CSD > 0.8 means the state of the supply and demand of ecosystem services is well [28].

Within TrSD, it should satisfy the equation:

$$[eqn]$$

Among them, ESr0 is the value of ESr at the tipping point of the difference between the supply and demand of ecosystem services.

2.4 Methods

According to Section 2.3, the changes in ESr shall be identified to determine TrSD. Thus, the calculation of ESr shall be conducted. Regarding future ESr calculation, future land use shall be predicted first. This study proposed a TrSD determination method based on its definition and the supply and demand of ecosystem services, including three steps:

Step 1: Build different future development scenarios, and predict future land use change via GeoSOS-FLUS.

Step 2: Calculate the supply and demand of ecosystem services via the modified LULC matrix model.

Step 3: Make an inflection point analysis on ESr, and determine TrSD according to the results of inflection point analysis.

2.4.1 Future land use prediction.

The socio-economic development changes, the development of industry and agriculture, as well as urbanization processes drive changes in land use. This study established four development scenarios for future land use [13,15,16,29]: basic scenario (BS), economy-first scenario (E_n_F), ecology-first scenario (E_s_F), and sustainable development scenario (SD), as Fig 3 shows.

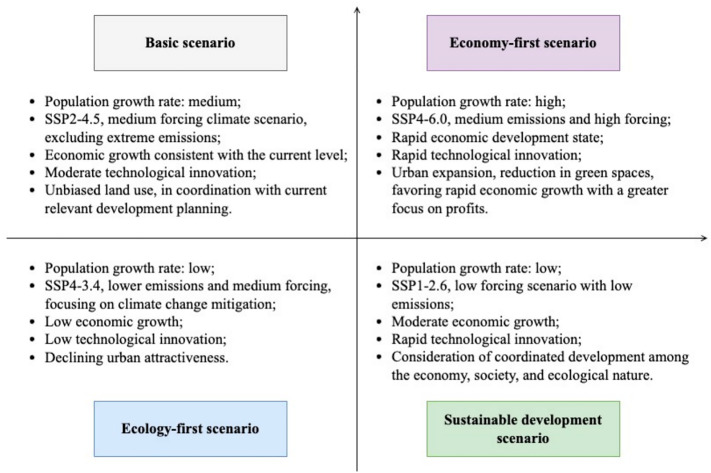

Future development scenarios.

Explain four development scenarios for future land use: basic scenario (BS), economy-first scenario (E_n_F), ecology-first scenario (E_s_F), and sustainable development scenario (SD).

This study took use of the GeoSOS-FLUS model to predict future land use in different scenarios. The model contains four modules, shown in Fig 4 [13,16]. Appendix A shows the details of the modules of the GeoSOS-FLUS model S2 File.

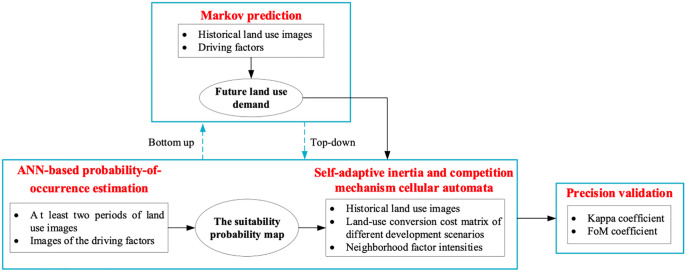

GeoSOS-FLUS modules.

The modules and their functions of the GeoSOS-FLUS model.

The deficit operation of GeoSOS-FLUS model was presented by the following five steps, shown in Fig 5. The details of the deficit operation to predict future lande use can be seen in Appendix B S2 File.

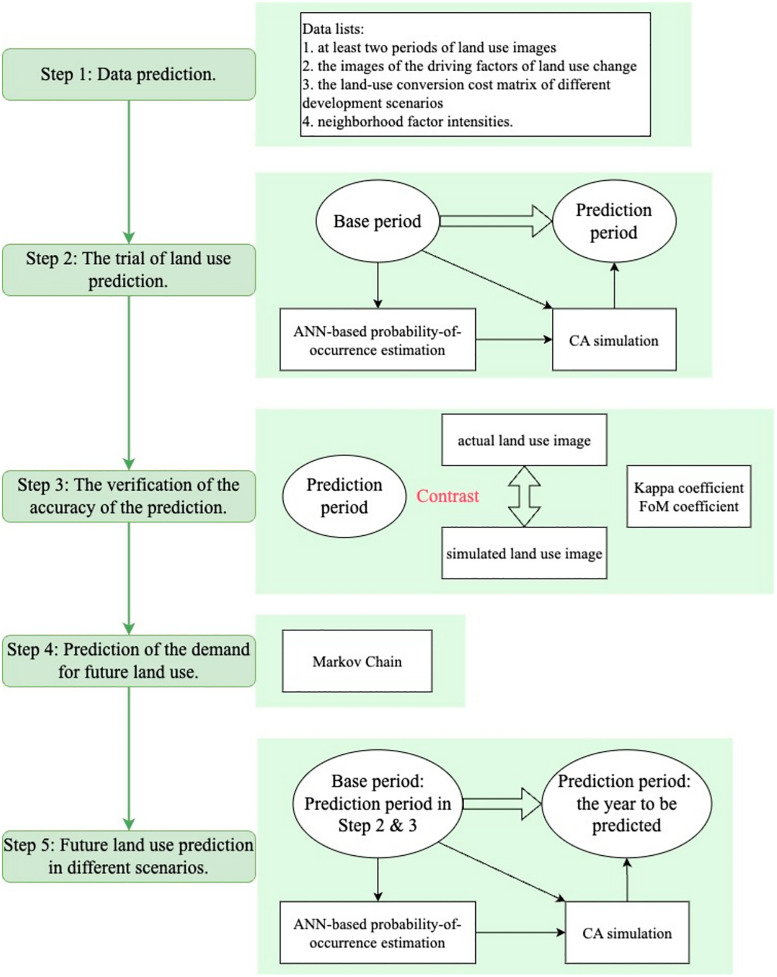

Steps of GeoSOS-FLUS’s operation.

The five steps of the GeoSOS-FLUS model for predicting future land use.

2.4.2 Quantification of ecosystem services.

a) Intensities’ modification of LULC matrix

In Burkhard’s studies [17,18,30], the land use types were similar to Coordination of Information on the Environment (CORINE), which was different from this study. The intensities of the supply and demand of ecosystem services in the LULC matrix are related to land use. To reduce the degree of inaccurate results caused by the difference, the study should modify the intensities of ecosystem services for the LULC matrix model.

Based on land use types and ecosystem service function types in this study, the intensities of the LULC matrix were modified by comparing and referring to the relevant articles [17,18,24,25,30,31]. The detailed processes are as follows, the same as that in Deng et al’s research [27].

Step 1: Compare the differences in the chosen ecosystem services. Firstly, ascertain the content of provisioning services, regulating services, and cultural services in this study, respectively. Then, compare the contents of this study with that of Wu’s [32], Burkhard’s [17,18,30], Sun’s [24], and Tao’s [31] research works.

Step 2: Analyze LULC types, and establish the LULC matrix model. After the implementation of step 1, compare the LULC types of different land cover systems to collect the intensities of ecosystem services.

Step 3: Modify the intensities of ecosystem services. Based on step 2, take the average value of the similarity or same intensities shown in Wu’s [32], Burkhard’s [17,18,30], Sun’s [24], and Tao’s [31] researches. The mean values of the calculation are the intensities of the corresponding ecosystem services supply and demand in the LULC matrix. The supply-demand intensities of ecosystem services were calculated by subtracting the intensities of the supply matrix and the intensities of the demand matrix. The results are shown in Table 5.

Table 5: The intensities of the supply matrix [1], demand matrix [2], and the difference between the supply matrix and demand matrix [3] of ecosystem services.

b) LULC Matrix calculation

To determine the threshold of the supply and demand of ecosystem services, the first is to assess ESr. LULC matrix model makes use of local LULC, with no need for more data, which is more available for this study. The detailed calculations of the supply and demand of ecosystem services are as follows.

The supply of ecosystem services:

$$[eqn]$$

Among them, i represents the classification of ecosystem services, i = 1,2,3,..., that is, provisioning services, regulating services, and cultural services.j represents LULC type, j = 1,2,...,9. $[eqn]$ is the area of the specific LULC type, km^2^; kjs represents the intensities of the supply of ecosystem services corresponding to the specific LULC type.

The demand for ecosystem services:

$$[eqn]$$

Among them, i represents the classification of ecosystem services,i = 1,2,3,..., that is, provisioning services, regulating services, and cultural services. j represents LULC type, j = 1,2,...,9. Sj is the area of the specific LULC type, km^2^; kjd represents the intensities of the demand for ecosystem services corresponding to the specific LULC type.

2.4.3 Inflection point analysis.

At present, statistical analysis and simulation models are common methods for determining thresholds [5,7]. In general, the determination of threshold mainly adopts mean analysis, inflection point analysis, two-eight rule, quartile analysis, and standard deviation confirmation methods. TrSD in this study is a macroscopic demonstration of ESr. According to the definition of TrSD in Section 2.3, its goal is to ensure the surplus of the supply and demand of ecosystem services. To determine TrSD is to find the tipping point of ESr. In the absence of a large amount of field data, the threshold can be set based on the change in the supply and demand of ecosystem services. This study intends to use inflection point analysis to analyze and confirm TrSD.

The inflection point is the concave and convex dividing point of a continuous and smooth function f(x) curve. Regarding the inflection point (x0, f(x0)), for any δ (δ > 0), it shall satisfy the equation:

$$[eqn]$$

Among them, x represents the year, f(x) is ESr. TrSD can be regarded as the f(x0). According to the definition of TrSD, the tipping point of ESr is regarded as TrSD, it is used to ensure the surplus of the supply and demand of ecosystem services. For the function f(x) with more than one inflection point, in accordance with the principle of the primacy of ecological protection, the minimum f(x0) which satisfies the requirements listed in equation (2.4) is regarded as TrSD.

3 Results

This study predicted future land use in Urumqi via the GeoSOS-FLUS model introduced in Section 2.4.1, calculated the supply and demand of ecosystem services via the modified LULC matrix model introduced in Section 2.4.2, and determined TrSD via inflection point analysis of ESr introduced in Section 2.4.3. The results are presented as follows.

3.1 Future land use

According to the method introduced in Section 2.4.1, this study predicted future land use in Urumqi. This study chose random sampling in ANN-based probability-of-occurrence estimation, the sampling rate was 20/1000 and had 12 hidden layers. The demands for future land use were predicted via the Markov chain in Section 2.4.1, and the results were shown in Table 6.

Table 6: The demands of future land use (Unit: Pixels).

Referring to Li’s [33], Liu’s [16], and Chen’s [34] research works, the cost matrixs of future scenarios were set and shown in Table 7. Regarding the weight of the neighborhood in self-adaptive inertia and competition mechanism CA, they were set on the condition that the result of Kappa ranged from 0.8 to 1 [35], and the result of FoM ranged from 0.01 to 0.5 [36]. The results were shown in Table 8. The Kappa and FoM were 0.833774 and 0.102655, separately, which meant the simulation results in this study were credible.

Table 7: The cost matrix of future scenarios.

Table 8: The weight of the neighborhood.

To identify long-term variation, this study predicted future land use in 2030, 2060, and 2100 via self-adaptive inertia and competition mechanism CA in GeoSOS-FLUS. Appendix C (including future land use of the four scenarios) displays the spatial distributions of future land use of Urumqi S2 File.

The land use data were calculated via ArcGIS 10.8, and the results were shown in Table 9. Under BS, the area of farmland will be significantly reduced, and the impervious surface will be maintained at a relatively stable level after increasing to a certain extent. Under E_n_F, urban expansion will continue to increase, and the proportion of impervious surfaces will continue to increase. Under E_s_F, the proportion of forest and grassland will increase, and some bare land and impervious surface will turn into farmland and green land. Under SD, the area of forest, shrub, grassland, water area and wetland will increase significantly, mainly from the transformation of impervious surfaces and bare land.

Table 9: The results of future land use (Unit: square kilometers).

3.2 Quantification of the supply and demand of ecosystem services

This study calculated the ESr of Urumqi in 1990, 1995, 2000, 2005, 2010, 2015, and 2020 via equations (2.4), (2.5), and (2.6), the results were shown in Table 10. The ESr of Urumqi decreased in recent years and it was in a surplus condition, which meant the supply of ecosystem services in Urumqi satisfied the demand for ecosystem services, however, the degree of satisfaction was in decreasing trend. A widening gap between the supply and demand of ecosystem services will lead to a deterioration in ecosystem health.

Table 10: The ESr of Urumqi in recent years.

The ESr of future scenarios were calculated via equations (2.1), (2.5), and (2.6) as well. The results were shown in Table 11. It can be seen that in the scenario of SD, the ESr will be higher than that in other scenarios. This indicates that to ensure ecosystem stability and security, future development is more inclined to prioritize ecological considerations.

Table 11: The ESr of Urumqi in future scenarios.

3.3 Determination of the threshold of the supply and demand of ecosystem services

3.3.1 Quantification of RSD and CSD.

This study quantified the RSD and CSD of Urumqi via equation (2.2) and equation (2.3) in Section 2.3. The results were shown in Table 12 and Table 13. It can be seen that in recent years and regardless of the development scenario chosen in the future, the RSD and CSD both satisfy the requirements listed in equation (2.4).

Table 12: The RSD and CSD of Urumqi in recent years.

Table 13: The RSD and CSD of Urumqi in future scenarios.

3.3.2 TrSD determination of Urumqi.

This study took use of inflection point analysis of the supply and demand of ecosystem services to set TrSD. To obtain the inflection points, Origin 2023 was used to conduct an inflection point analysis on ESr. The inflection points were obtained via equation (2.7), and the TrSD was limited by equation (2.4).

The authors used “Origin” to calculate and analyze the inflection points of $[eqn]$ . The specific operation of how to achieve inflection points in Origin are as follows. First, input all data into the sheet, then choose “Analysis” tool, and then start “mathematics” to “differentiate” the data with different derivative orders.

Taking the inflection point analysis of ESr in the scenario of E_n_F as an example, the differential calculus of ESr was shown in Fig 6. Taking use of the level crossing tool in Origin, the red horizontal line in Fig 6 indicates that the second derivative is 0. The four vertical lines and the third derivative intersect can read the third-order derivative value, and in the case of the point with the second derivative of 0 changing around the plus and minus signs (equation 2.7), the intersection points of the vertical lines and the ESr function curve were the inflection points of ESr in the scenario of E_n_F. In the same way, other inflection points of ESr in other scenarios were analyzed.

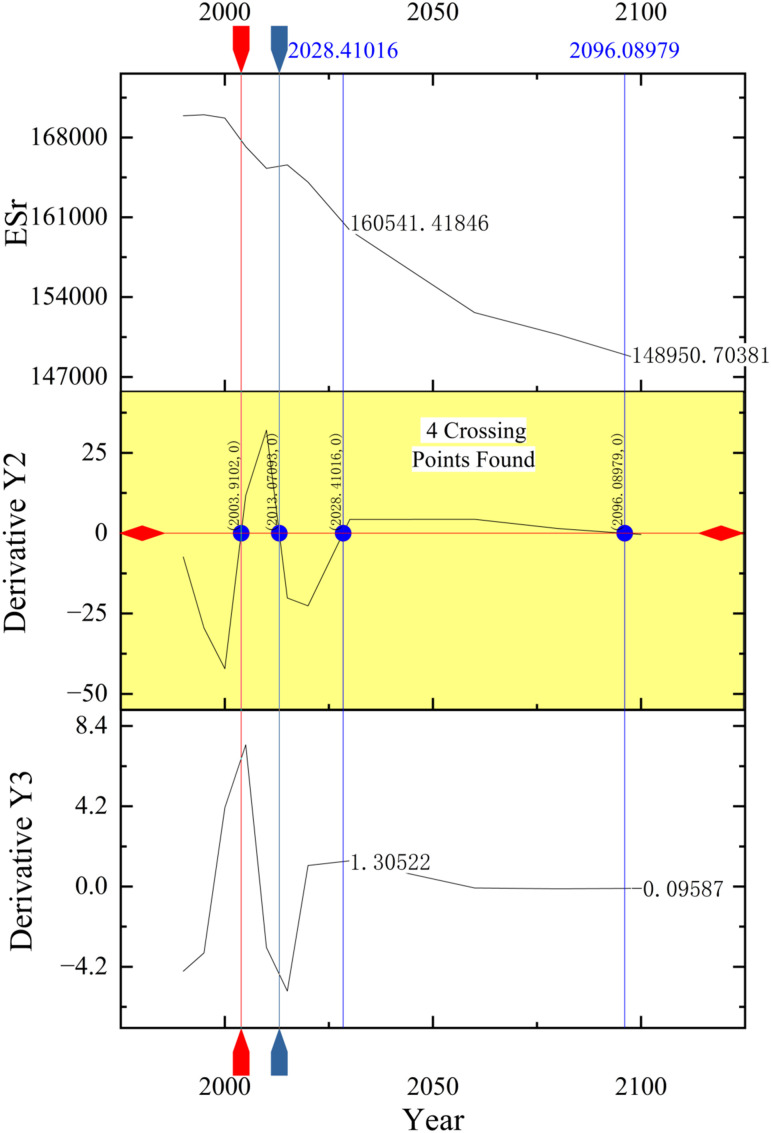

The inflection points of ESr in the scenario of EnF.

The points marked in “Derivative Y2” are the inflection points of ESr in the scenario of E_n_F.

All inflection points of ESr in Urumqi were shown in Table 14. The ordinates of inflection points were ranked in a positive direction, and the minimum value was substituted into equation (2.4) to confirm that it met the limitations of TrSD. As previously mentioned, the TrSD represents a critical value for maintaining the balance between the supply and demand of ecosystem services. The results presented earlier demonstrate that the ESr performs relatively well under the SD scenario. In line with the principle of ecological priority adopted in this study, the most ecologically favorable inflection point was selected as the TrSD. That is, the TrSD in Urumqi was determined to be 148950.70. When ESr was lower than 148950.70, it is necessary to adjust the constraints of regional economic and social activities to improve the supply capacity or demand of regional ecosystem services.

Table 14: The ordinates of the inflection points of ESr in Urumqi.

4 Discussions

This section contains three parts: 1) Discussions on the innovation and rationality of TrSD definition according to the definition itself; 2) Discussions on the feasibility of TrSD determination according to the methods themselves and the results of the case study; 3) Discussions on the reasonability of inflection point analysis according to the definition of TrSD and the result of inflection point analysis in the case study; and 4) Future work.

4.1 The innovation and rationality of TrSD definition

The definition of TrSD proposed in this study is innovative and rational. It can be regarded as a supplement to the concept of ecological threshold in terms of ESr.

In the “introduction” part, this study claimed that there was no definition of the threshold related to the supply and demand of ecosystem services based on the relationship between supply and demand. This study defined it, which was innovative.

According to Section 2.3, TrSD refers to the state in which the difference between the supply and demand of ecosystem services arrives at a tipping point. It set limitations on the relationship between the supply and demand of ecosystem services, containing the identification of RSD, CSD, and ESr, highlighting the difference between the supply of ecosystem services and the demand for ecosystem services. When the state of the supply and demand of ecosystem services arrives at its tipping point, the state of the ecosystem changes suddenly, and the TrSD is generated. This study defined TrSD based on the changes in the supply and demand of ecosystem services and is rational theoretically.

4.2 The feasibility of TrSD determination methods

According to Section 2.4, this study proposed a systematic method for TrSD determination, including the GeoSOS-FLUS model (future land use prediction), LULC matrix model (ESr quantification), and infection point analysis (ESr analysis and TrSD determination). Theoretically, the methods introduced in Section 2.4 are feasible.

To verify the feasibility of the above methods practically, this study took Urumqi as the case city and determined TrSD via the above methods. The details are as follows.

(1) This study predicted future land use in different scenarios via the GeoSOS-FLUS model. The results were shown in Section 3.1 (Table 9). Among them, the land use in the scenario of BS was consistent with the characteristics of land use change shown in recent years. It can be seen that the GeoSOS-FLUS model is feasible to predict future land use.(2) This study quantified ESr via modified LULC matrix. Since the land use types are different from Burkhard’s researches [17,18,30], this study modified the intensities of the LULC matrix in Section 2.4.2. This study made a comparison between the results generated according to the intensities used by Wu et al. [32] and the results generated according to the modified intensities in this study to quantify the supply and demand of ecosystem services in Urumqi in the same period. From the perspective of the overall trend of ESr, the two presented similar trends, indicating that the LULC matrix model modified in this study was feasible.(3) This study determined TrSD via the analysis of the tipping points found by inflection point analysis of ESr. TrSD determination aims to maintain the continuous surplus of the supply and demand of ecosystem services and to promote eco-friendly development. According to the definition of TrSD, the determination of TrSD is to find the tipping point of ESr for maintaining the matching and basic coordination of the supply and demand of ecosystem services. So, the minimum ordinate of the inflection points listed in Table 14 which meet the requirements listed in equation (2.3) was chosen to be the TrSD of Urumqi. It can be seen that the TrSD determined by the inflection point analysis is feasible.

4.3 The reasonableness of inflection point analysis used for TrSD determination

The inflection point analysis can analyze the changes in ESr and TrSD determination. It is reasonable to be used in TrSD determination.

Inflection point analysis is often used in the field of mathematics [37], economics and financial management [38], etc. In this study, the inflection point analysis method was used to analyze ESr in Urumqi for TrSD determination, expanding the application of inflection point analysis in the field of ecology and ecosystem services.

According to the definition of TrSD, the determination of TrSD is to find the tipping point of the changing ESr. This study took use of inflection points to represent the tipping points, satisfying the mathematical meaning of inflection points. This study took Urumqi as the case city and determined the TrSD of Urumqi via inflection point analysis in section 3.3.2. The determined TrSD in Urumqi was the minimum ordinate of the inflection points listed in Table 14 and has been verified to meet the requirements listed in equation (2.3), indicating that the inflection points analysis of ESr is reasonable regarding TrSD determination.

4.4 Future work

As mentioned at the beginning, the current lack of research on the threshold of ecosystem service supply and demand relationship is a gap in ecological conservation. This study proposes the concept of TrSD and a method for its determination, which can serve as a reference for planners and policymakers in daily decision-making processes related to industrial and commercial land use. Although we have demonstrated the feasibility and rationality of the proposed method, a series of supplementary studies will be necessary in the future.

(1) Uncertainties of future scenarios and land use

The series of methods adopted in this study were derived through comparative analysis and model simulation. Additionally, the analysis of future land use relies on different predefined scenarios, both of which involve certain degrees of uncertainty. In future research, we plan to incorporate studies of past years to better understand the logic of land use changes, while also integrating socioeconomic and other relevant factors to gradually improve the accuracy of the simulations.

(2) Limits on the set of TrSD

This study primarily employs inflection point analysis to determine the TrSD. This process involves two main sources of uncertainty: first, the uncertainty associated with future land use, as mentioned earlier; and second, the presence of multiple inflection points identified during the analysis. In this study, the SD scenario was selected, adhering to the principle of ecological priority. However, in real-world social contexts, numerous additional factors must be considered. Therefore, to determine the TrSD in practical applications, it is essential to further compare the threshold values derived from different scenarios. This comparison will enable the selection of an inflection point that is better aligned with actual socioeconomic conditions as the final threshold.

(3) Lack of more typical cases

Additionally, this study focused solely on Urumqi as a case study. In reality, more case studies are needed to validate the adaptability of the research method proposed in this paper.

Urumqi is a typical semi-arid region. In subsequent research, comparative studies could be conducted by selecting different types of areas and cities with varying economic strengths as case studies. In addition to analyzing the selection of different scenario models, the universality of the method proposed in this study could be further examined. For example, representative Chinese cities such as Beijing and Shanghai could be considered as case studies for further validation.

(4) Further deliberation

This study introduces the concept of TrSD, which not only addresses a gap in existing research but also provides a reference for policymakers and urban planning authorities. Currently, climate change, ecological security and conservation are critical global issues. The TrSD can reflect the security of ecosystem services, and demonstrate the balance between human activities and ecological systems. In urban planning, where land use types and surrounding infrastructure must be clearly defined, this study offers a distinct advantage: it helps maximize economic and social value while ensuring ecological security and maintaining the balance of ecosystem services.

In future research and practical applications, the proposed method can be compared with different ecosystem service valuation approaches. Additionally, integrating the TrSD into existing ecosystem service assessment frameworks should be considered. Furthermore, it could serve as a validation tool for delineating ecological protection redlines, ensuring ecological security within these designated areas.

5 Conclusions

At present, the concept of TrSD has not been studied, but it is of great significance in maintaining the continuous surplus of the supply and demand of ecosystem services and promoting eco-friendly development. This study aims to definite TrSD and propose a systematic method for TrSD determination. According to the results of the case study and the discussions on the definition of TrSD and the determination method for TrSD, this study came out with the following conclusions:

a) The threshlod of the supply and demand of ecosystem services (TrSD) was defined. The proposed systematic method of TrSD determination includes future land use prediction via GeoSOS-FLUS, ESr evaluation via the LULC matrix model (the modified intensities of the LULC matrix are rational), and inflection point analysis of ESr.b) The TrSD proposed in this study can serve as a reference standard for urban planning and development. For instance, during land use planning, it can be used as an indicator for ecological conservation to test the balance between ecological and socio-economic considerations. Furthermore, in the future, TrSD could be utilized as one of the validation indicators for delineating ecological protection redlines. It could also be integrated with ecosystem service valuation methods for further optimization.
