Valve-In-Valve TAVI in a Patient With Dextrocardia, Situs Inversus, and Challenging Commissural Alignment

TL;DR

This paper describes a successful valve-in-valve TAVI procedure in a patient with rare heart anatomy, using specialized techniques to align the new valve correctly.

Contribution

The paper introduces a novel strategy for commissural alignment during ViV-TAVI in patients with dextrocardia and situs inversus.

Findings

Loading the Evolut FX+ C-tab 180° upside down in the delivery catheter facilitated commissural alignment.

Adjusting the flush-port position to 5-o’clock enabled proper alignment of the TAVI valve with the former prosthesis.

The former prosthetic valve commissure was oriented 60° from native commissures to preserve coronary access.

Abstract

Valve-in-valve transcatheter aortic valve implantation (ViV-TAVI) for dextrocardia is challenging. An 81-year-old man with dextrocardia and situs inversus developed prosthetic aortic stenosis. Loading Evolut FX+ C-tab 180° upside down in a delivery catheter facilitates commissural alignment during ViV-TAVI in dextrocardia. To accommodate anatomical variations, the flush-port position can be adjusted. In this case, the flush port was positioned 5-o’clock (60° from the usual 3-o’clock position) to align the TAVI valve with former prosthesis, as the former prosthetic valve commissure was oriented 60° from native commissures to preserve coronary access for abnormal left coronary artery originating from native commissures. This case illustrates strategies for commissural alignment during ViV-TAVI in dextrocardia.

Figures

C](#fig1)). After the alignment of the SAV, the flush port was rotated 60° from the usual 3-o’clock position and ultimately positioned at 5-o’clock ([Figure 1D](#fig1)). The SENTINEL Cerebral Protection System (Boston Scientific) was deployed via the left radial artery in a reversed configuration ([Figure 1E](#fig1)). After determining optimal THV positioning fluoroscopically, the THV was successfully deployed after the alignment of the SAV, with subsequent postdilatation using a 20-mm True balloon (Becton Dickinson) ([Figures 1F to 1H](#fig1)). The postoperative transvalvular gradient was 26/

Full text

Achieving optimal commissural alignment during valve-in-valve transcatheter aortic valve implantation (ViV-TAVI) in patients with dextrocardia is especially challenging and has been rarely described. We present a case demonstrating practical alignment strategies.

An 81-year-old man with dextrocardia and situs inversus, who underwent surgical aortic valve (SAV) replacement with a 21-mm Epic Supra valve (Abbott Structural Heart) in 2013, developed severe prosthetic stenosis. The heart team deemed him at high risk for redo SAV replacement.

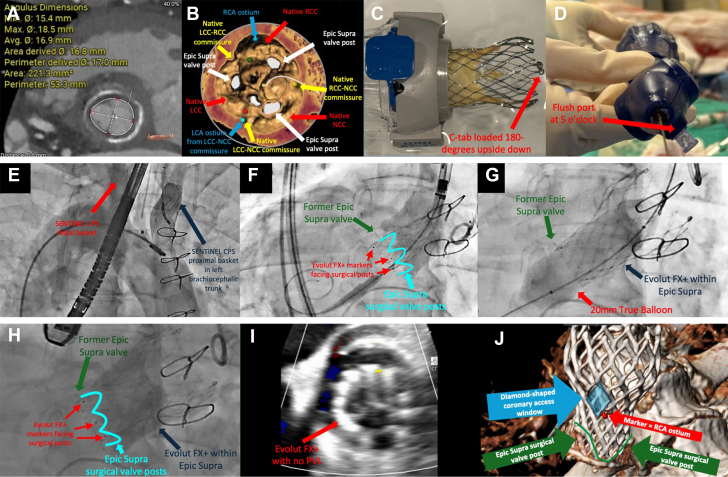

Computed tomography analysis demonstrated feasible anatomy for transfemoral ViV-TAVI. The SAV had a true inner diameter of 17 mm, an area of 221.3 mm^2^, and a perimeter of 53.3 mm (Figure 1A). Thus, a 23-mm Evolut FX+ valve (Medtronic), a new-generation supra-annular transcatheter heart valve (THV) with a dedicated commissural alignment implantation algorithm and enlarged diamond-shaped windows facilitating coronary access, was chosen. However, abnormal left coronary artery ostia originating from the native left coronary cusp and noncoronary cusp commissure posed difficulty in achieving commissural alignment. To preserve coronary accesses, the SAV was oriented in an unconventional manner, with the SAV commissure positioned at approximately 60° from native commissures (Figure 1B).Figure 1. ViV-TAVI in Dextrocardia, Situs Inversus, and Challenging Commissural Alignment(A) Annular measurements. (B) Left coronary artery (cyan) originating from the LCC-NCC commissure. The SAV was not aligned with native commissures. (C) C-tab loaded 180° upside down. (D) Flush-port position at 5-o’clock. (E) SENTINEL CPS deployed via the left radial artery. (F to H) Deployment, postdilatation, and final position of the Evolut FX+ valve. (I) No postoperative paravalvular leak. (J) Postoperative CT showing alignment between the diamond-shaped coronary access window and the former SAV. CPS = Cerebral Protection System; CT = computed tomography; LCA = left coronary artery; LCC = left coronary cusp; NCC = noncoronary cusp; PVL = paravalvular leak; RCA = right coronary artery; RCC = right coronary cusp; SAV = surgical aortic valve; TAVI = transcatheter aortic valve implantation; ViV = valve-in-valve.

It was determined that ideal THV deployment should follow alignment of the SAV. To achieve commissural alignment in the setting of dextrocardia, C-tab was first loaded 180° upside down in the delivery catheter to mirror the usual orientation (Figure 1C). After the alignment of the SAV, the flush port was rotated 60° from the usual 3-o’clock position and ultimately positioned at 5-o’clock (Figure 1D). The SENTINEL Cerebral Protection System (Boston Scientific) was deployed via the left radial artery in a reversed configuration (Figure 1E). After determining optimal THV positioning fluoroscopically, the THV was successfully deployed after the alignment of the SAV, with subsequent postdilatation using a 20-mm True balloon (Becton Dickinson) (Figures 1F to 1H). The postoperative transvalvular gradient was 26/14 mm Hg, with no paravalvular leak or aortic regurgitation (Figure 1I). Post-TAVI computed tomography demonstrated commissural alignment with the former SAV, consistent with fluoroscopic findings (Figure 1J). At 30 days, the patient's condition improved to NYHA functional class I with no paravalvular leak and a transvalvular gradient of 29/15 mm Hg.

This case demonstrated practical strategies to achieve commissural alignment for ViV-TAVI in dextrocardia and situs inversus.
