Continuous and noninvasive respiratory effort monitoring: a narrative review of emerging techniques
J. Graßhoff, R. S. P. Warnaar, D. W. Donker, P. Rostalski, E. Oppersma
TL;DR
This paper reviews new noninvasive methods for monitoring respiratory effort in patients on ventilators to prevent lung and diaphragm injuries.
Contribution
The paper introduces and evaluates three emerging noninvasive techniques for continuous respiratory effort monitoring.
Findings
Surface electromyography (sEMG) allows continuous monitoring of respiratory muscle activity via electrodes on the torso.
Computational modeling can estimate patient-specific respiratory effort from ventilator waveforms.
Diaphragm thickening fraction measured by ultrasound serves as a practical noninvasive surrogate for respiratory effort.
Abstract
Ventilator-induced lung injury and diaphragm dysfunction are well-recognized complications of mechanical ventilation and commonly attributed to inadequate ventilator settings. Excessive or insufficient assistance and the patient’s own respiratory effort are increasingly acknowledged as important factors in the pathogenesis of these injuries. Therefore, monitoring respiratory effort at the bedside is a highly relevant strategy to identify and prevent potentially injurious breathing patterns. Esophageal manometry remains the reference standard for assessing respiratory effort, but its technical complexity limits routine clinical use. Placement and calibration of the esophageal balloon are time-consuming and require specific expertise. Moreover, the invasive nature of the procedure precludes visual confirmation and leads to uncertainty about correct positioning, reducing confidence in the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

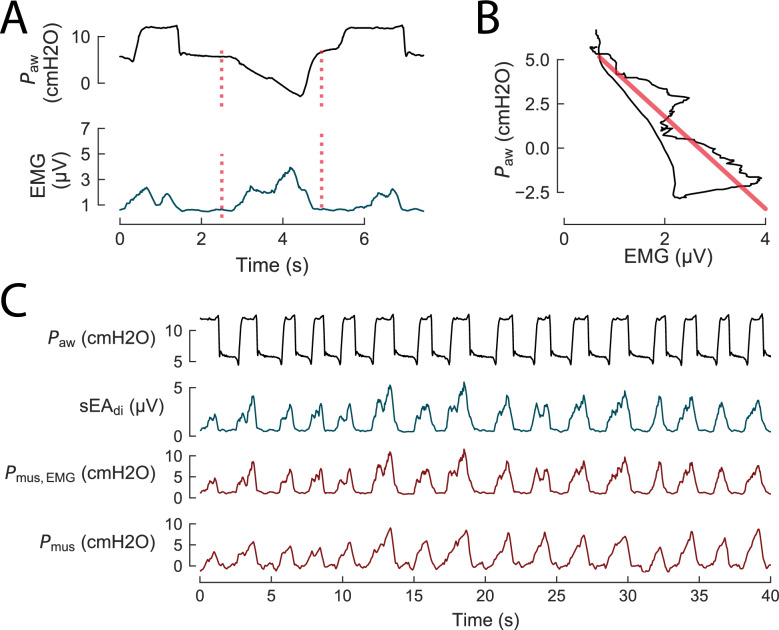

Figure 3

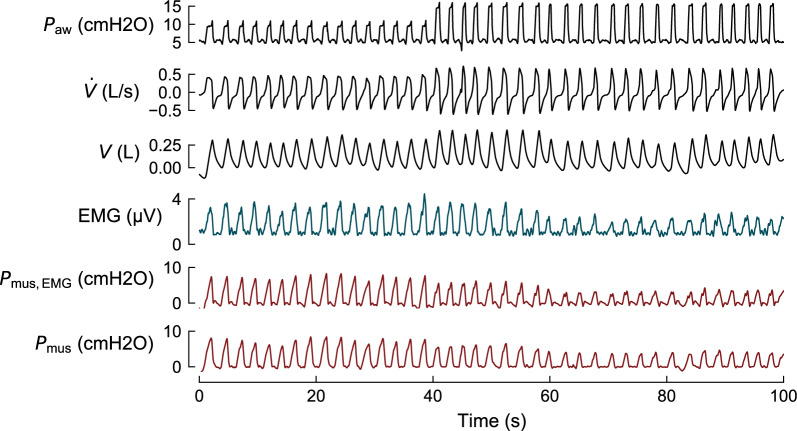

Figure 4- —https://doi.org/10.13039/100024172Schleswig-Holstein
- —Fraunhofer-Einrichtung für Individualisierte und Zellbasierte Medizintechnik IMTE (1050)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRespiratory Support and Mechanisms · Nosocomial Infections in ICU · Non-Invasive Vital Sign Monitoring
Introduction
Mechanical ventilation (MV) provides lifesaving support for patients with acute and chronic respiratory failure. However, MV contributes to ventilator-induced lung injury (VILI) and diaphragm dysfunction (VIDD), especially in the presence of excessive or insufficient respiratory effort. During assisted modes of ventilation, maintaining spontaneous breathing can help preserve diaphragm function and improve patient–ventilator interaction. Yet, recent studies showed that both insufficient and excessive breathing effort are associated with diaphragm dysfunction [1–3]. To minimize harm to both lungs and diaphragm, spontaneous effort during MV should be carefully regulated to remain within a safe and physiologically appropriate range, while asynchronous breaths should be avoided [4].
To assess respiratory effort in daily clinical practice, occlusion methods have been validated as simple, noninvasive bedside techniques [5, 6]. While these techniques appear relatively easy to perform and are commonly used in ventilated patients, their interpretation poses significant challenges. A key limitation of occlusion techniques is that they provide only intermittent measurements of respiratory effort, rather than continuous monitoring. As a result, temporal trends and significant fluctuations in respiratory effort over time may be overlooked. Patient–ventilator asynchrony, which is characterized by a temporal mismatch between the neural inspiratory time of the patient and support from the ventilator, may not be identified [6, 7].
Continuous monitoring of respiratory effort can currently only be realized at the bedside using esophageal pressure (Pes) measurement, which is still considered the reference standard. The total pressure generated by the respiratory muscles (Pmus) can be derived from Pes by correcting for chest wall elastance [8]. The value of Pmus reflects the combined effort of the diaphragm and accessory inspiratory muscles, offering a comprehensive and continuous assessment of total respiratory effort. Despite its physiological accuracy, Pes monitoring faces several practical limitations that prevent its widespread clinical use. The procedure is invasive and requires meticulous catheter placement, optimal balloon inflation, and calibration maneuvers, all of which require very specific expertise. Notably, the interpretation of Pes waveforms can be cumbersome due to potential artifacts such as cardiac oscillations or esophageal spasms, and the absence of direct visual feedback on the catheter’s precise position further complicates analyses. Consequently, Pes monitoring remains largely confined to research settings and specialized centers, and a more widespread adoption in routine clinical practice remains limited.
An alternative to assessing the mechanical output of respiratory muscles [9] is a measurement of the electrical field generated by muscles during contraction, the so-called electromyogram (EMG). The current standard technique for measuring the electrical activity of the diaphragm is based on similar nasogastric catheters as used for Pes monitoring, but featuring electrodes positioned at the level of the diaphragm. It shares potential disadvantages with Pes monitoring as it also requires a correct placement of a nasogastric catheter.
Given the limitations of bedside maneuvers that can only very intermittently be deployed and the complex and invasive reference methods for continuous assessment, there is a clear need to advance noninvasive approaches that enable real-time monitoring of respiratory effort.
This narrative review provides an integrative discussion of current approaches to noninvasively assess both the magnitude of the respiratory effort and its synchrony with the ventilator. We outline the physiological basis of these measurements, review potential methods—including surface EMG, model-based estimation, and ultrasound, as illustrated in Fig. 1—and discuss the critical steps needed for a broad clinical implementation.Fig. 1. Overview of potential methods for noninvasive and continuous monitoring of respiratory muscle effort. Surface electromyography (sEMG) captures the electrical activity of respiratory muscles using electrodes placed on the skin surface. The recorded signal represents a superposition of motor unit action potentials generated during muscle contraction, and its envelope reflects the overall activation level of the target muscle. Model-based estimation relies on a mathematical representation of the respiratory system to compute the total respiratory muscle pressure (Pmus) from standard ventilator waveforms, including airway pressure (Paw), flow, and volume. From the reconstructed Pmus signal, commonly used effort metrics such as pressure–time product (PTP) and work of breathing (WOB) can be derived. Ultrasound imaging allows for the measurement of diaphragm thickness by positioning the probe in an intercostal space within the zone of apposition. Diaphragmatic contractile activity is quantified using the thickening fraction (TF_di_), calculated as the relative increase in diaphragm thickness from end-expiration to end-inspiration
Methodology
This narrative review was conducted to provide a conceptual overview of noninvasive monitoring of respiratory drive and effort. Relevant literature was identified through non-systematic searches in PubMed and manual screening of reference lists. Articles were selected based on their relevance and contribution to current understanding. Findings are synthesized narratively to highlight key concepts, emerging evidence, and clinical implications.
Respiratory effort
Physiology
Ventilation is driven by the coordinated activation of multiple respiratory skeletal muscles. The diaphragm and intercostal muscles are the primary muscles under resting conditions, generating the negative intrathoracic pressure required for tidal breathing [10]. Under increased ventilatory demand, such as during exercise, respiratory distress, or pathological disease states, the accessory muscles, including the alae nasi, sternocleidomastoid, scalene, and genioglossus muscle, are recruited to augment inspiratory effort and maintain adequate ventilation [10]. Contraction of inspiratory muscles reduces pleural pressure, establishing a pressure gradient that facilitates air to flow into the lungs for gas exchange. The mechanical output resulting from this muscle activity reflects the pressure generated by the respiratory muscles and is referred to as respiratory effort [11–13].
Measurements
As direct measurement of pleural pressure is virtually impossible to perform in routine clinical practice due to its invasiveness, esophageal pressure is often used as its surrogate. The pressure Pes, as measured by esophageal balloon manometry, closely reflects intrathoracic pressure swings in the pleural space. From Pes, the total output of all respiratory muscles Pmus can be estimated when corrected for the elastic pressure exerted by the chest wall. The pressure generated specifically by the diaphragm (Pdi) can be derived by measuring both Pes and gastric pressure (Pga), enabling analysis of the magnitude and timing of diaphragmatic effort. Commonly used metrics for quantifying effort include work of breathing (WOB) and pressure–time product (PTP), both of which are calculated directly from Pmus or Pdi [8].

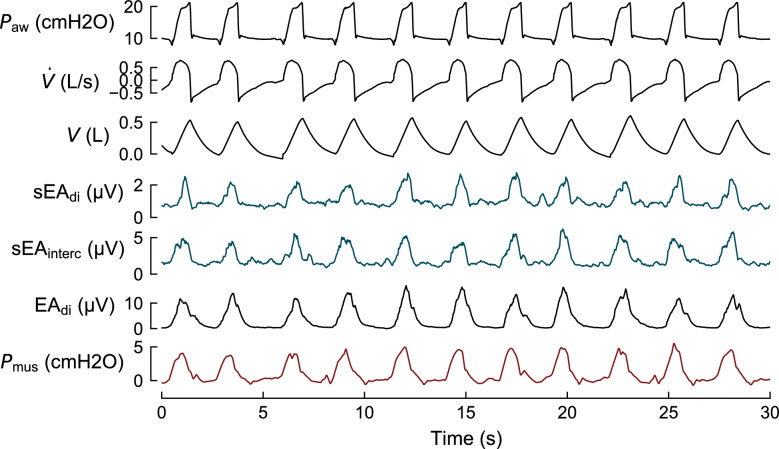

In clinical practice, the main alternative to measuring mechanical muscle output is the assessment of neural electrical activation. The electromyogram (EMG) provides a measure of motor unit action potentials during muscle activation—when recorded with electrodes on the skin overlying the muscle it is referred to as surface EMG (sEMG). In clinical practice, as the raw muscle EMG signal is difficult to interpret, the total electrical activity of a muscle is quantified via the amplitude (sometimes called envelope) of the EMG, which is shown in Fig. 2 for different muscles and measurement techniques. The electrical activity of the diaphragm (EA_di_) can be obtained invasively, using a specialized nasogastric catheter mounted with electrodes positioned in the gastroesophageal junction [9, 14], or noninvasively from sEMG recordings [15]. This noninvasive measure of electrical diaphragm activation termed surface EAdi (sEA_di_) can be easily applied in clinical practice and does not require long setup times. Figure 2 illustrates the described waveforms. When neural transmission is intact, the electrical activity of the diaphragm reflects the central activation from the respiratory center in both amplitude and timing. This neural transmission involves the generation of action potentials in the brainstem, which travel via the phrenic and other motor nerves to stimulate the respiratory muscles. As such, EA_di_ is often considered the closest available surrogate of the neural respiratory drive, defined as the electrical output from the brainstem [13], though, depending on the measurement setup, EA_di_ or sEA_di_ only capture a subset of motor units in the rural or costal part of the diaphragm. The relation between neural activation and mechanical output of a muscle is determined by its neuromechanical coupling, which measures how much pressure/force is generated per unit of electrical activity.Fig. 2. Airway pressure (Paw), flow ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\dot{V}$$\end{document} ), volume (V), surface electromyography envelope signals of the diaphragm (sEA_di_) and intercostal muscles (sEA_interc_), invasively measured electrical activity of the diaphragm (EA_di_), and respiratory muscle pressure (Pmus) derived from esophageal pressure (Pes) in an intensive care patient undergoing assisted mechanical ventilation. Data from [16]
Less invasive respiratory monitoring
With this review, we aim to contribute to the development and implementation of techniques for measuring respiratory effort that are easier to perform and interpret and less invasive than the nasogastric balloon catheter. Insertion of an esophageal or gastric pressure balloon has been referred to as both “minimally invasive” and “invasive” by different authors, though, the risk associated with inserting a nasogastric tube is certainly very limited, and only in rare cases serious complications have been reported [17, 18]. The main appeal of completely noninvasive methods for measuring effort is that they are usually less laborious in clinical practice and have much shorter preparation time than Pes measurements. Setting up the esophageal balloon is cumbersome, as it requires careful positioning and calibration of the catheter, without direct visual feedback. Proper positioning in the lower third of the esophagus is verified via the occlusion test [8], where the ratio of pressure changes in Paw and Pes during an occluded inspiratory effort is typically targeted to be between 0.8 and 1.2. When spontaneous efforts are not present, manual chest compression during an expiratory hold is used to generate a deflection of Paw and Pes. The absolute value of Pes strongly depends on the filling volume of the balloon: at higher filling volumes, Pes has a substantial positive offset, which is caused by the elasticity of the esophageal wall, though a calibration procedure for the filling volume to deal with this baseline artifact has been proposed [19]. Yet, another practical difficulty of interpreting Pes is that a precise estimate of the elastic recoil of the chest wall is needed to calculate effort. The chest wall elastance can be measured during passive conditions, though in practice it is often approximated using the rule-of-thumb formula that compliance is 4% of the predicted vital capacity per cmH_2_O [8]. Moreover, the Pes signal is often strongly contaminated by cardiac artifacts and peristaltic esophageal contractions, which may complicate interpretation of the data. These time-consuming setups are especially problematic in understaffed wards, where qualified personnel are scarce. A simple, noninvasive technique will likely be more readily adopted than Pes and lead to more readily applied routine monitoring, allowing a larger patient population to benefit from a more comprehensive observation as a clinical default.
From intermittent maneuvers to continuous monitoring
As summarized in previous literature reviews, occlusion maneuvers are currently the most used noninvasive measures to assess respiratory effort in daily clinical practice, with the highest degree of maturity, being available on all modern ventilators [5, 11, 12, 20]. The clinically widely used parameter P0.1 is defined as the drop of pressure in the first 100 ms of an inspiratory effort against occluded airways and reflects the neural output of the respiratory centers [21]. Telias and Spadaro [5] and de Vries et al. [11] recently provided important evidence for validating P0.1 as a standard tool for patients under assisted MV. They showed that P0.1 is correlated with measures of respiratory effort, including PTP/min (within-patients r^2^ ≥ 0.84). While it does enable detection of extreme respiratory effort (i.e., excessive and insufficient effort) with high sensitivity and specificity, it is far too artifact-prone to reliably measure exact values of respiratory effort [11]. An important technical factor influencing P0.1 is the difference in measurement procedure, inducing a bias if estimated without proper occlusions in certain ventilators [22]. Some ventilators perform an actual occlusion maneuver, whereas other devices extrapolate the value from the pressure drop during the triggering phase that is often shorter than 50 ms. Importantly, due to the average breath-to-breath variation within patients also turns out to be relatively high, with a coefficient of variation of up to 26% [22], which is why the common recommendation is to report averages over multiple occlusions.
The pressure Pocc is the maximal deflection from baseline during a fully occluded inspiratory effort. It was proposed independently from P0.1 as a surrogate for both inspiratory effort and lung stress [23, 24]. Compared to P0.1, Pocc exhibits reduced susceptibility to artifacts and greater discriminative power compared to P0.1, but is similarly unsuitable for precise effort quantification [6].
Although airway occlusions appear to be straightforward and widely accepted maneuvers, the major downside is their inherent discontinuity over time. Occlusion measures only represent the instantaneous respiratory effort at the very moment the maneuver is performed, often reported as average values over 3–5 single breaths. Continuous monitoring, on the other hand, enables the analysis of breath-to-breath variability, which is difficult to capture via intermittent measures. As such, increased work of breathing, signs of distress, or changes in respiratory patterns due to either changing disease status or ventilator settings can be promptly identified and addressed. Intermittent measures, moreover, only provide insight into the magnitude of respiratory drive and effort, but omit the timing and patient–ventilator interaction. Patient–ventilator asynchrony can only be deduced from a running ventilator with respiratory effort data generated during uninterrupted assisted MV.

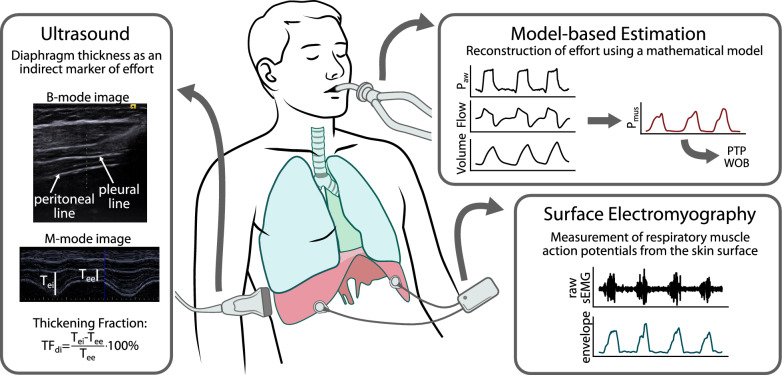

In the following paragraphs, we discuss three noninvasive methods that provide a continuous estimate of the magnitude and timing of effort holding great promise to advance respiratory muscle monitoring, as presented in Fig. 1 and Table 1. Table 1. Overview of noninvasive techniques for measuring respiratory effortNoninvasive monitoring techniqueIntermittent/continuousRespiratory musclesBest practicesRelation to effort (magnitude and asynchrony)Required expertiseClinical readinessChallengesFuture perspectivesP0.1 and P_occ_IntermittentTotal respiratory muscle outputTo reduce noise, the average of 3–5 breaths should be reportedMagnitude: moderate to strong correlation [5]; both recognize the extremes of effort (excessive/insufficient) and both have high sensitivity to small efforts; Pocc has superior discriminative power than P0.1_Asynchrony: cannot be analyzedVentilator settings and interpretation of waveformsEstablished in patient monitoring; widely available on mechanical ventilatorsP0.1 is influenced by physiological and technical factors, including the performance of the occlusion itself and the specific algorithm; some ventilators perform an actual occlusion maneuver, others extrapolate the value from the triggering phaseThe influence of ventilator models should be further investigatedModel-basedContinuous; lung parameters must be updated in regular intervalsTotal respiratory muscle outputLung parameters are estimated when the patient is passive or during maneuvers: a continuous Pmus signal is reconstructed from ventilator signals using the equation of motionMagnitude: inconclusive: depending on the study, moderate or strong correlation has been reported [39–42]Asynchrony: one study [45] reported that the model-based method enabled detecting ineffective efforts as well as precise time of breath onsets/offsetsRespiratory mechanics and modeling, equation of motionExperimental, but implementation available with the PAV+ ventilation modeThe standard equation of motion is not suited to represent nonlinear effects such as flow limitationModels should be extended to reflect nonlinearity and confirmed on larger cohorts; model-based estimation will benefit from sensor fusion, e.g., integrating sEMG signalssEMGContinuous; long measurements > 1 h might be influenced by changes in fluid balance, electrode–skin contactDiaphragm, intercostal, sternocleidomastoideus, scalene, abdominal wall musclesBilateral electrode positions: suppress ECG artifacts via gating, high-pass filtering, or wavelet denoising; neuromechanical coupling (NMC) measured with an end-expiratory occlusion maneuverMagnitude: moderate to strong correlation [16, 27]; requires conversion via neuromechanical coupling (NMC)Asynchrony: major types detectable if SNR is sufficientElectrode placement, skin preparation, interpretation of signals, waveforms and artifactsEarly clinical use, mostly research, lack of dedicated devicesSusceptible to electrical artifacts, crosstalk, motion interference; long-term stability not demonstrated yetFurther standardization, real-time processing, and longitudinal studiesUltrasoundContinuous; thickening fraction relies on manual measurements; automated operator-independent device emergingDiaphragm, intercostal, abdominal wall musclesThickening fraction of the diaphragm muscle is measured in the zone of apposition in the 8th–11th intercostal space; diaphragm thickening fraction (TF_di) is calculated as the relative thickening during an inspiratory effortMagnitude: moderate to strong correlation, not suitable to recognize precise values of effort [53, 54]Asynchrony: proposed [51, 59], but needs further researchProbe positioning; ultrasound image interpretationEarly clinical adoption; widely available in ICUsInter-observer variabilityAutomated image processing and analysis software; extra-diaphragmatic muscle imaging; AI-driven reproducibility
