The genome sequence of the Barred Hook-tip, Watsonalla cultraria (Fabricius, 1775) (Lepidoptera: Drepanidae)

TL;DR

This paper presents the genome sequence of the Barred Hook-tip moth, including a detailed assembly and gene annotation.

Contribution

The study provides a high-quality genome assembly and gene annotation for Watsonalla cultraria.

Findings

The genome assembly is 319.38 megabases long, with 99.94% scaffolded into 31 chromosomal pseudomolecules.

Gene annotation identified 16,011 protein-coding genes using Ensembl.

The mitochondrial genome was assembled and is 15.21 kilobases in length.

Abstract

We present a genome assembly from a male specimen of
Watsonalla cultraria (Barred Hook-tip; Arthropoda; Insecta; Lepidoptera; Drepanidae). The genome sequence has a total length of 319.38 megabases. Most of the assembly (99.94%) is scaffolded into 31 chromosomal pseudomolecules, including the Z sex chromosome. Gene annotation of this assembly on Ensembl identified 16 011 protein-coding genes. The mitochondrial genome has also been assembled, with a length of 15.21 kilobases.

Figures

Photograph of the Watsonalla cultraria (ilWatCult2) specimen from which samples were taken for genome sequencing.

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Hi-C contact map of the Watsonalla cultraria genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

Assembly metrics for ilWatCult2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for ilWatCult2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject PRJEB73407.

Platform	PacBio HiFi	Hi-C
ToLID	ilWatCult2	ilWatCult1
Specimen ID	Ox003068	Ox000407
BioSample (source individual)	SAMEA112775017	SAMEA7520529
BioSample (tissue)	SAMEA112775080	SAMEA7520624
Tissue	whole organism	whole organism
Instrument	Revio	HiSeq X Ten
Run accessions	ERR12721059	ERR12723477; ERR12723476; ERR12723478
Read count total	2.11 million	532.70 million
Base count total	22.33 Gb	80.44 Gb

Table 2.. Genome assembly statistics.

Assembly name	ilWatCult2.1
Assembly accession	GCA_964035505.1
Alternate haplotype accession	GCA_964035515.1
Assembly level	chromosome
Span (Mb)	319.38
Number of chromosomes	31
Number of contigs	92
Contig N50	6.83 Mb
Number of scaffolds	36
Scaffold N50	11.4 Mb
Sex chromosomes	Z
Organelles	Mitochondrion: 15.21 kb

Table 3.. Chromosomal pseudomolecules in the primary genome assembly of Watsonalla cultraria ilWatCult2.

INSDC accession	Molecule	Length (Mb)	GC%
OZ037712.1	1	13.96	37
OZ037713.1	2	13.62	37.50
OZ037714.1	3	13.13	37.50
OZ037715.1	4	13.02	36.50
OZ037716.1	5	12.86	37
OZ037717.1	6	12.80	37.50
OZ037718.1	7	12.65	37
OZ037719.1	8	12.26	36.50
OZ037720.1	9	12.11	36.50
OZ037721.1	10	11.96	37
OZ037722.1	11	11.70	37.50
OZ037723.1	12	11.40	37
OZ037724.1	13	11.31	37
OZ037725.1	14	11.14	37
OZ037726.1	15	10.93	37
OZ037727.1	16	10.76	37
OZ037728.1	17	10.75	37.50
OZ037729.1	18	10.31	38
OZ037730.1	19	9.78	37
OZ037731.1	20	9.73	37.50
OZ037732.1	21	9.23	37
OZ037733.1	22	7.97	37.50
OZ037734.1	23	7.86	38
OZ037735.1	24	7.55	38
OZ037736.1	25	7.54	37.50
OZ037737.1	26	6.83	37.50
OZ037738.1	27	5.60	38.50
OZ037739.1	28	5.10	38.50
OZ037740.1	29	4.81	39.50
OZ037741.1	30	4.37	39
OZ037711.1	Z	16.14	37

Table 4.. Earth Biogenome Project summary metrics for the Watsonalla cultraria assembly.

Measure	Value	Benchmark
EBP summary (primary)	6.C.Q63	6.C.Q40
Contig N50 length	6.83 Mb	≥ 1 Mb
Scaffold N50 length	11.40 Mb	= chromosome N50
Consensus quality (QV)	Primary: 63.2; alternate: 61.3; combined: 62.1	≥ 40
k-mer completeness	Primary: 97.74%; alternate: 88.30%; combined: 99.32%	≥ 95%
BUSCO	C:98.7% [S:98.5%; D:0.2%]; F:0.3%; M:1.0%; n:5 286	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	99.94%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Obtectomera; Drepanoidea; Drepanidae; Drepaninae; Watsonalla; Watsonalla cultraria (Fabricius, 1775) (NCBI:txid721166)

Background

Watsonalla cultraria (Barred Hook-tip) is a local woodland moth associated with mature beech, and is most frequent where extensive beech stands occur. ( Waring et al., 2017)

Adults have two flight periods (May to June and mid-July to early September). It overwinters as a pupa in a white cocoon within a curled beech leaf; larvae occur mainly June to September. Males may fly by day near the foodplant; both sexes fly at night and come to light. ( Waring et al., 2017)

In Britain it is well distributed in the south, more local in the Midlands, Wales and northern England, with recent spread noted in Yorkshire and Lancashire. It was first recorded on the Isle of Man in 2008; in Ireland it appears to be a recent colonist (first Co. Down record 1999; Irish Republic from 2007, very local), and it was first noted on Guernsey in 2013. Records on GBIF show a mainly western and central European distribution with many coastal and lowland records across the United Kingdom, Ireland and adjacent seas. ( GBIF Secretariat, 2025; Waring et al., 2017)

As part of the Darwin Tree of Life Project – which aims to generate high-quality reference genomes for all named eukaryotic species in Britain and Ireland to support research, conservation, and the sustainable use of biodiversity – we present a chromosomally complete genome sequence for Watsonalla cultraria, the Barred Hook-tip. This genome was assembled using the Tree of Life pipeline from a specimen collected in Wytham Woods, Oxfordshire, United Kingdom ( Figure 1).

Photograph of the Watsonalla cultraria (ilWatCult2) specimen from which samples were taken for genome sequencing.

Fewer than 20 genomes have been published for Drepanidae as of August 2025, including two genomes for the genus Watsonalla (data obtained via NCBI datasets, O’Leary et al., 2024). This assembly adds chromosome-scale data for the lineage. It is currently the only genome assembly available for Watsonalla cultraria and is the RefSeq reference genome for the species ( O’Leary et al., 2016).

Methods

Sample acquisition and DNA barcoding

The specimen used for genome sequencing was an adult male Watsonalla cultraria (specimen ID Ox003068, ToLID ilWatCult2; Figure 1), collected from Wytham Woods, Oxfordshire, UK (latitude 51.772, longitude –1.338) on 2022-07-22. The specimen was collected by Finley Hutchinson and Liam Crowley and formally identified by Finley Hutchinson. A second specimen used for Hi-C sequencing (specimen ID Ox000407, ToLID ilWatCult1) was collected from the same location on 2020-05-22. This specimen was collected and identified by Douglas Boyes. For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).

The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The ilWatCult2 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor. HMW DNA was extracted using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by automated SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system. For this sample, the final post-shearing DNA had a Qubit concentration of 13.8 ng/μL and a yield of 1 794.00 ng.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.

The sample was sequenced on a Revio instrument (Pacific Biosciences). The prepared library was normalised to 2 nM, and 15 μL was used for making complexes. Primers were annealed and polymerases bound to generate circularised complexes, following the manufacturer’s instructions. Complexes were purified using 1.2X SMRTbell beads, then diluted to the Revio loading concentration (200–300 pM) and spiked with a Revio sequencing internal control. The sample was sequenced on a Revio 25M SMRT cell. The SMRT Link software (Pacific Biosciences), a web-based workflow manager, was used to configure and monitor the run and to carry out primary and secondary data analysis.

Hi-C

Sample preparation and crosslinking *

The Hi-C sample was prepared from 20–50 mg of frozen tissue of the ilWatCult1 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

Hi-C library preparation and sequencing *

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools were created. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the HiSeq X Ten.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 15 breaks, 14 joins, and removal of two haplotypic duplications. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

PacBio sequencing of the Watsonalla cultraria specimen generated 22.33 Gb (gigabases) from 2.11 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 326.32 Mb, with a heterozygosity of 0.06% and repeat content of 20.56% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 66× coverage. Hi-C sequencing produced 80.44 Gb from 532.70 million reads, which were used to scaffold the assembly. Table 1 summarises the specimen and sequencing details.

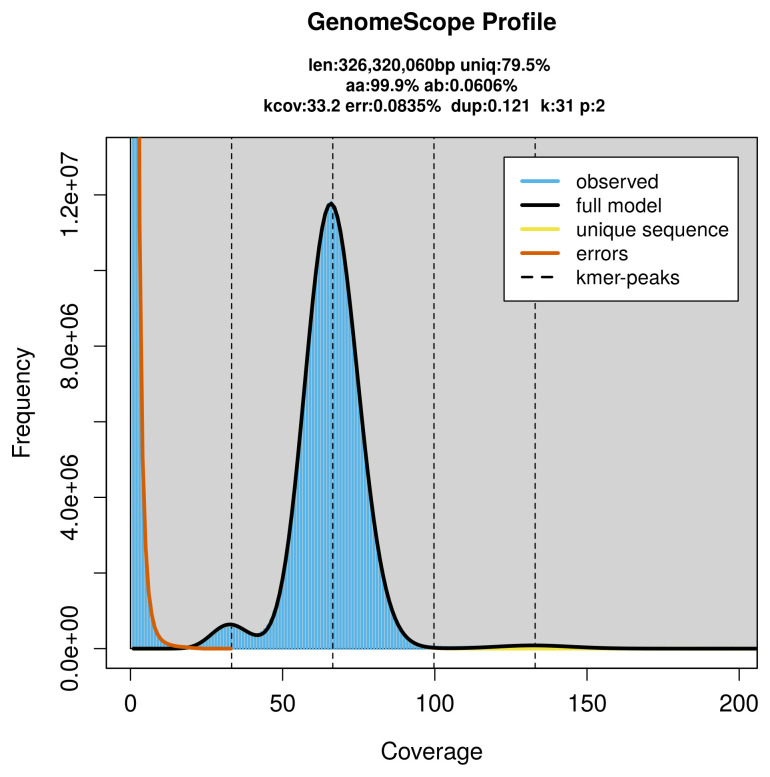

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Assembly statistics

The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 319.38 Mb in 36 scaffolds, with 56 gaps, and a scaffold N50 of 11.4 Mb ( Table 2).

Most of the assembly sequence (99.94%) was assigned to 31 chromosomal-level scaffolds, representing 30 autosomes and the Z sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3).

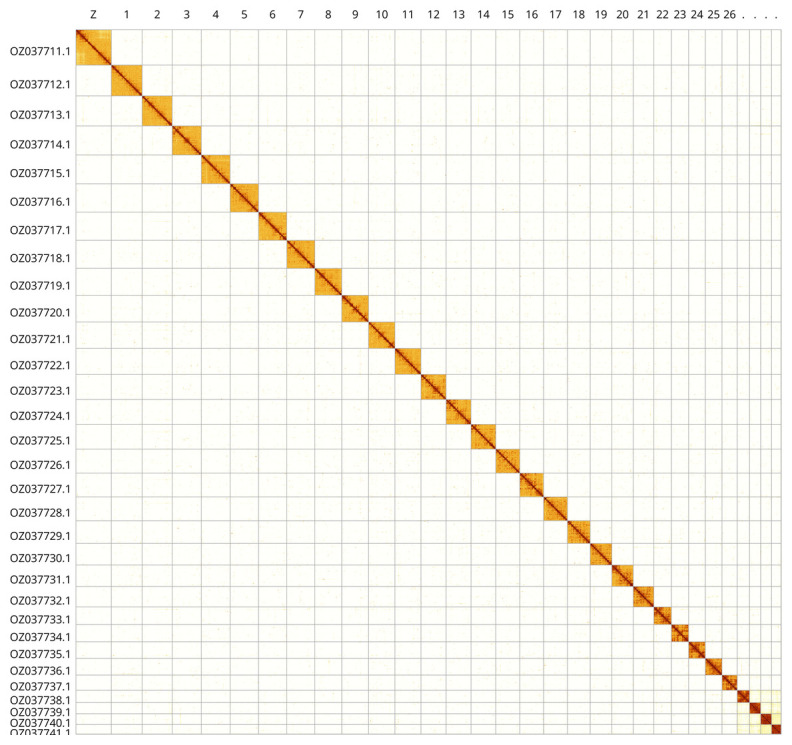

Hi-C contact map of the Watsonalla cultraria genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Watsonalla cultraria ilWatCult2.

The mitochondrial genome was also assembled (length 15.21 kb, OZ037742.1). This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

The combined primary and alternate assemblies achieve an estimated QV of 61.8. The k-mer completeness is 97.74% for the primary assembly, 88.30% for the alternate haplotype, and 99.32% for the combined assemblies ( Figure 4).

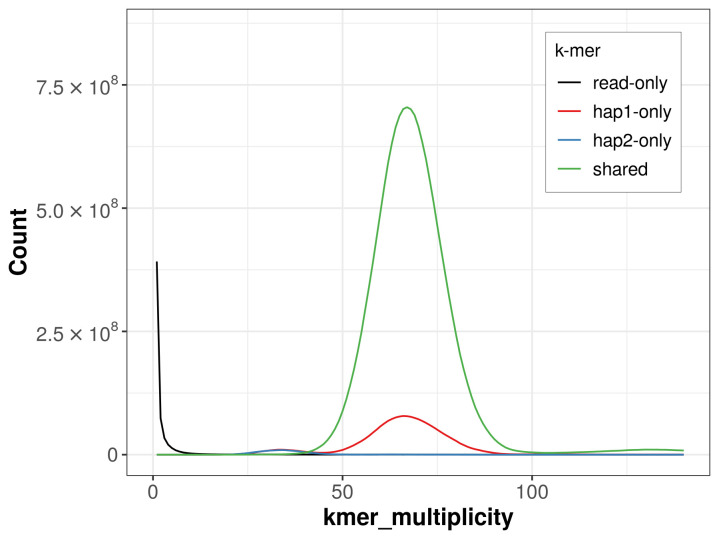

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

BUSCO v.5.5.0 analysis using the lepidoptera_odb10 reference set ( n = 5 286) identified 98.7% of the expected gene set (single = 98.5%, duplicated = 0.2%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

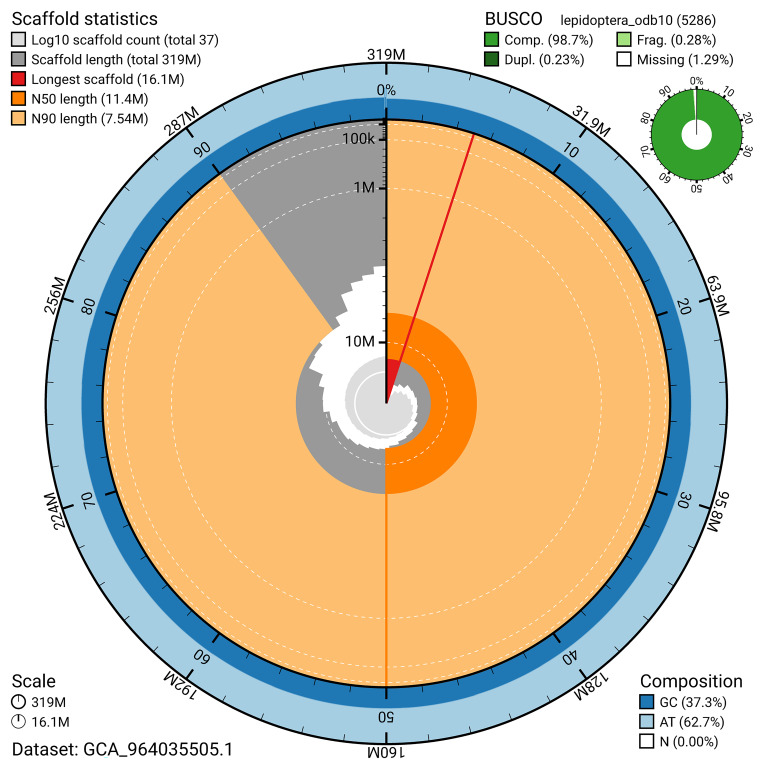

Assembly metrics for ilWatCult2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

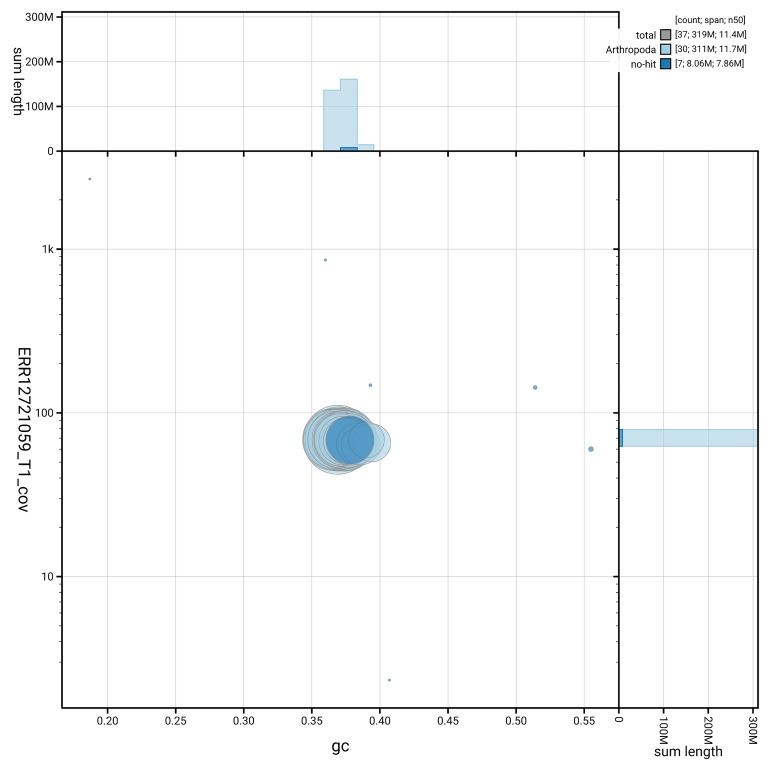

BlobToolKit GC-coverage plot for ilWatCult2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) and the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 6.C.Q63, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Watsonalla cultraria assembly.

Genome annotation report

The Watsonalla cultraria genome assembly (GCA_964035505.1) was annotated by Ensembl at the European Bioinformatics Institute (EBI). This annotation includes 16 209 transcribed mRNAs from 16 011 protein-coding genes. The average transcript length is 6 238.38 bp, with an average of 6.14 exons per transcript. For further information about the annotation, please refer to the annotation page on Ensembl.
