The genome sequence of a seed weevil, Oxystoma pomonae (Fabricius, 1798) (Coleoptera: Apionidae)

TL;DR

This paper presents the genome sequence of the seed weevil Oxystoma pomonae, including detailed gene annotations and chromosome scaffolding.

Contribution

The study provides a high-quality genome assembly and gene annotation for Oxystoma pomonae as part of a broader biodiversity genomics project.

Findings

The genome assembly is 1,174.34 megabases long and includes 11 chromosomal pseudomolecules.

Gene annotation identified 14,352 protein-coding genes using Ensembl.

The mitochondrial genome is 18.2 kilobases in length.

Abstract

We present a genome assembly from an individual female
Oxystoma pomonae (seed weevil; Arthropoda; Insecta; Coleoptera; Apionidae). The genome sequence has a total length of 1 174.34 megabases. Most of the assembly (99.97%) is scaffolded into 11 chromosomal pseudomolecules, including the X sex chromosome. The mitochondrial genome has also been assembled, with a length of 18.2 kilobases. Gene annotation of this assembly on Ensembl identified 14 352 protein-coding genes. This assembly was generated as part of the Darwin Tree of Life project, which produces reference genomes for eukaryotic species found in Britain and Ireland.

Figures

Photograph of the Oxystoma pomonae (icOxyPomo2) specimen used for genome sequencing.

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Hi-C contact map of the Oxystoma pomonae genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

Assembly metrics for icOxyPomo2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the endopterygota_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for icOxyPomo2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject PRJEB70641.

Platform	PacBio HiFi	Hi-C	RNA-seq
ToLID	icOxyPomo2	icOxyPomo2	icOxyPomo3
Specimen ID	Ox002904	Ox002904	Ox002920
BioSample (source individual)	SAMEA113425608	SAMEA113425608	SAMEA113425618
BioSample (tissue)	SAMEA113426928	SAMEA113426928	SAMEA113426941
Tissue	whole organism	whole organism	whole organism
Instrument	Revio	Illumina NovaSeq 6000	Illumina NovaSeq X
Run accessions	ERR12340110	ERR12342480	ERR12765154
Read count total	3.71 million	765.33 million	67.86 million
Base count total	33.66 Gb	115.57 Gb	10.25 Gb

Table 2.. Genome assembly statistics.

Assembly name	icOxyPomo2.1
Assembly accession	GCA_963921995.1
Alternate haplotype accession	GCA_963921945.1
Assembly level	chromosome
Span (Mb)	1 174.34
Number of chromosomes	11
Number of contigs	183
Contig N50	11.7 Mb
Number of scaffolds	18
Scaffold N50	115.24 Mb
Sex chromosomes	X
Organelles	Mitochondrion: 18.2 kb

Table 3.. Chromosomal pseudomolecules in the primary genome assembly of Oxystoma pomonae icOxyPomo2.

INSDC accession	Molecule	Length (Mb)	GC%
OY998163.1	1	163.38	33.50
OY998164.1	2	133.71	33.50
OY998165.1	3	130.21	33.50
OY998166.1	4	126.03	33.50
OY998167.1	5	115.24	33.50
OY998168.1	6	104.68	33.50
OY998169.1	7	98.69	33.50
OY998170.1	8	84.42	33.50
OY998171.1	9	76.29	34
OY998172.1	10	74.12	33.50
OY998173.1	X	67.27	34

Table 4.. Earth Biogenome Project summary metrics for the Oxystoma pomonae assembly.

Measure	Value	Benchmark
EBP summary (primary)	7.C.Q62	6.C.Q40
Contig N50 length	11.70 Mb	≥ 1 Mb
Scaffold N50 length	115.24 Mb	= chromosome N50
Consensus quality (QV)	Primary: 62.5; alternate: 63.0; combined: 62.8	≥ 40
k-mer completeness	Primary: 78.74%; alternate: 76.87%; combined: 98.39%	≥ 95%
BUSCO	C:98.2% [S:97.8%; D:0.4%]; F:0.5%; M:1.3%; n:2 124	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	99.97%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Coleoptera; Polyphaga; Cucujiformia; Curculionoidea; Apionidae; Oxystoma; Oxystoma pomonae (Fabricius, 1798) (NCBI:txid1588336)

Background

Oxystoma pomonae is a small (2.5–3.6 mm) herbivorous orthocerous weevil. O. pomonae can be distinguished from the three other British Oxystoma species by its brighter colouration: the elytra are blue and the pronotum is blackish-blue. The remaining three species have blackish-blue elytra and a black pronotum ( Duff, 2016; Morris, 1990). Oxystoma can be distinguished from other apionid genera by the distinctively shaped rostrum which bulges in the middle and narrows towards the apex. The large rounded eyes are also characteristic of the genus. A dozen Oxystoma species are known to occur in the Palaearctic Region ( Rheinheimer & Hassler, 2013).

Oxystoma pomonae feeds on a number of leguminous plants (Fabaceae), including vetches (especially Tufted Vetch, Vicia cracca, Bush Vetch, Vicia sepium and Common Vetch, Vicia sativa) and Meadow Vetchling, Lathyrus pratensis ( Morris, 1990; Rheinheimer & Hassler, 2013). As an example of an oligophagous insect with a relatively narrow choice of foodplants, O. pomonae has been noted to have more chemoreception genes than polyphagous weevil species ( Zhang et al., 2025). Eggs are laid on foodplants from June onwards. The larvae live inside seedpods, where they feed on seeds. New adults emerge from July to October. Adults overwinter and become active again from April onwards.

These weevils can be found in grassland habitats in association with their foodplants. During the autumn months, adults can be found by beating the branches of trees. O. pomonae is widespread and common in southern and central England but more locally distributed in Wales. It has not been recorded from Ireland. It occurs across Eurasia as far as Siberia and also occurs in North Africa ( Rheinheimer & Hassler, 2013).

We present a chromosome-level genome sequence for Oxystoma pomonae, produced using the Tree of Life pipeline from a specimen collected in Wytham Woods, Oxfordshire, UK ( Figure 1). This assembly is the first genome for the genus Oxystoma and one of two genomes available for the family Apionidae as of October 2025 (data obtained via NCBI Datasets, O’Leary et al., 2024).

Photograph of the Oxystoma pomonae (icOxyPomo2) specimen used for genome sequencing.

Methods

Sample acquisition and DNA barcoding

The specimen used for genome sequencing was an adult female Oxystoma pomonae (specimen ID Ox002904, ToLID icOxyPomo2; Figure 1), collected from Wytham Woods, Oxfordshire, United Kingdom (latitude 51.769, longitude –1.328) on 2022-07-11. Another specimen, collected on the same occasion was used for RNA sequencing (specimen ID Ox002920, ToLID icOxyPomo3). The specimens were collected by John Paul and Liam Crowley, and formally identified by John Paul. For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).

The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from the specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The icOxyPomo2 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor.

HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by manual SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system. For this sample, the final post-shearing DNA had a Qubit concentration of 10.69 ng/μL and a yield of 502.43 ng, with a fragment size of 13.7 kb.

RNA was extracted from whole organism tissue of icOxyPomo3 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol. The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.

The sample was sequenced on a Revio instrument (Pacific Biosciences). The prepared library was normalised to 2 nM, and 15 μL was used for making complexes. Primers were annealed and polymerases bound to generate circularised complexes, following the manufacturer’s instructions. Complexes were purified using 1.2X SMRTbell beads, then diluted to the Revio loading concentration (200–300 pM) and spiked with a Revio sequencing internal control. The sample was sequenced on a Revio 25M SMRT cell. The SMRT Link software (Pacific Biosciences), a web-based workflow manager, was used to configure and monitor the run and to carry out primary and secondary data analysis.

Hi-C

** Sample preparation and crosslinking **

The Hi-C sample was prepared from 20–50 mg of frozen tissue from the icOxyPomo2 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

** Hi-C library preparation and sequencing **

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10–16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools were created. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq 6000.

RNA library preparation and sequencing

Libraries were prepared using the NEBNext ^®^ Ultra™ II Directional RNA Library Prep Kit for Illumina (New England Biolabs), following the manufacturer’s instructions. Poly(A) mRNA in the total RNA solution was isolated using oligo(dT) beads, converted to cDNA, and uniquely indexed; 14 PCR cycles were performed. Libraries were size-selected to produce fragments between 100–300 bp. Libraries were quantified, normalised, pooled to a final concentration of 2.8 nM, and diluted to 150 pM for loading. Sequencing was carried out on the Illumina NovaSeq X to generate 150-bp paired-end reads.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. Haplotypic duplications were identified and removed using purge_dups ( Guan et al., 2020). The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included six breaks, 19 joins, and removal of two haplotypic duplications. This reduced the scaffold count by 42.4% and increased the scaffold N50 by 9.1%. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

PacBio sequencing of the Oxystoma pomonae specimen generated 33.66 Gb (gigabases) from 3.71 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 1 205.17 Mb, with a heterozygosity of 0.99% and repeat content of 45.61% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 27× coverage. Hi-C sequencing produced 115.57 Gb from 765.33 million reads, which were used to scaffold the assembly. RNA sequencing data were also generated and are available in public sequence repositories. Table 1 summarises the specimen and sequencing details.

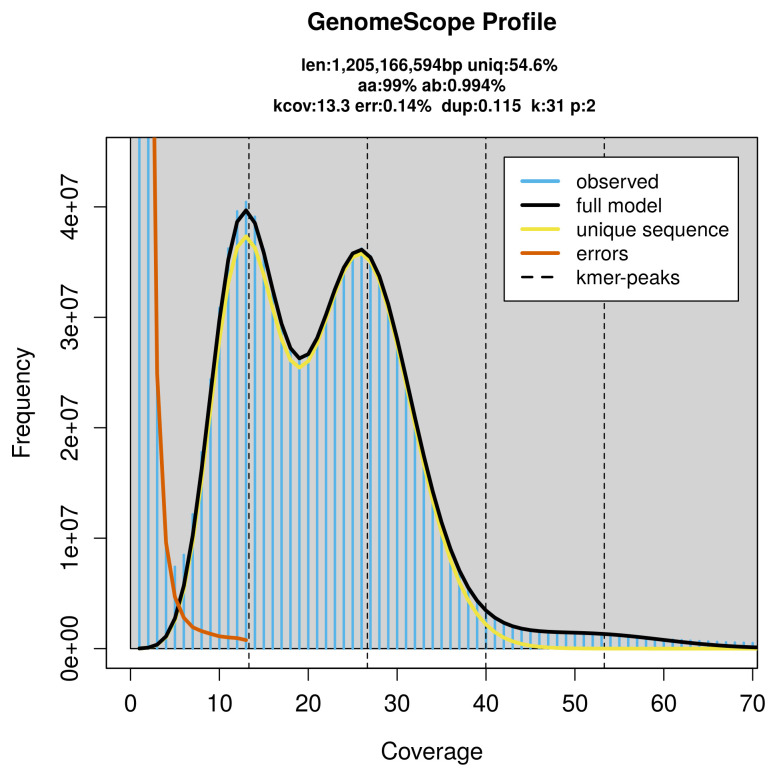

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Assembly statistics

The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 1 174.34 Mb in 18 scaffolds, with 165 gaps, and a scaffold N50 of 115.24 Mb ( Table 2).

Most of the assembly sequence (99.97%) was assigned to 11 chromosomal-level scaffolds, representing 10 autosomes and the X sex chromosome. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3). the X chromosome was identified by homology with the genome of Polydrusus tereticollis.

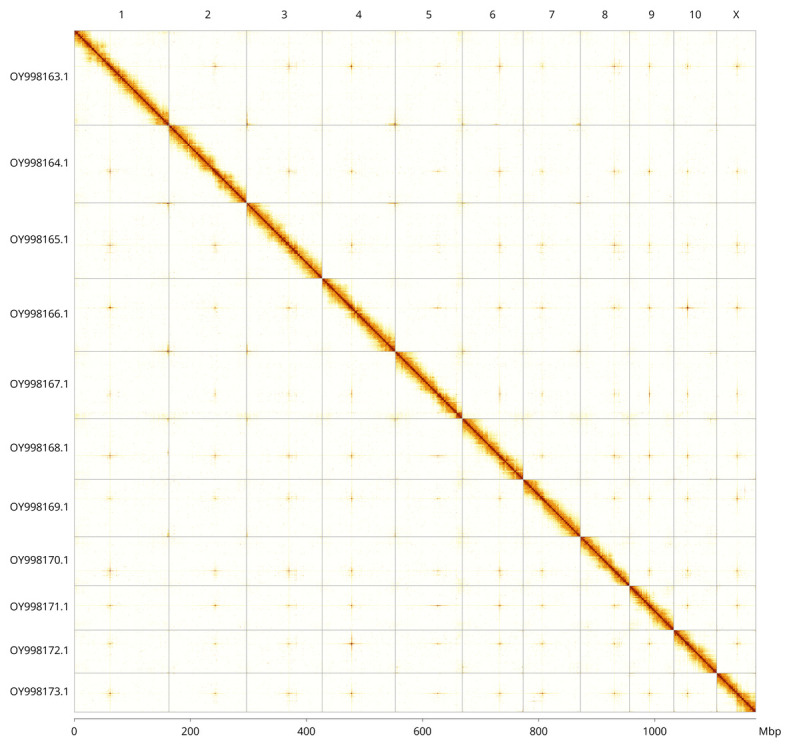

Hi-C contact map of the Oxystoma pomonae genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes, with a megabase scale shown below. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Oxystoma pomonae icOxyPomo2.

The mitochondrial genome was also assembled (length 18.2 kb, OY998174.1). This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

The combined primary and alternate assemblies achieve an estimated QV of 62.8. The k-mer completeness is 78.74% for the primary assembly, 76.87% for the alternate haplotype, and 98.39% for the combined assemblies ( Figure 4).

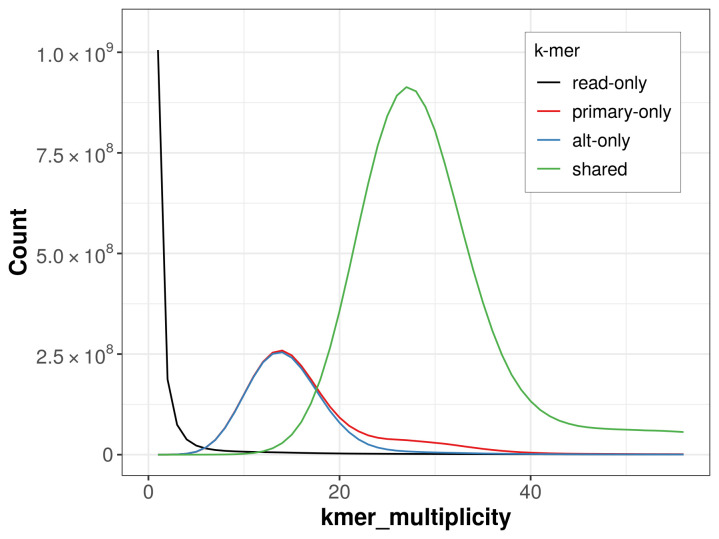

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

BUSCO v.5.5.0 analysis using the endopterygota_odb10 reference set ( n = 2 124) identified 98.2% of the expected gene set (single = 97.8%, duplicated = 0.4%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

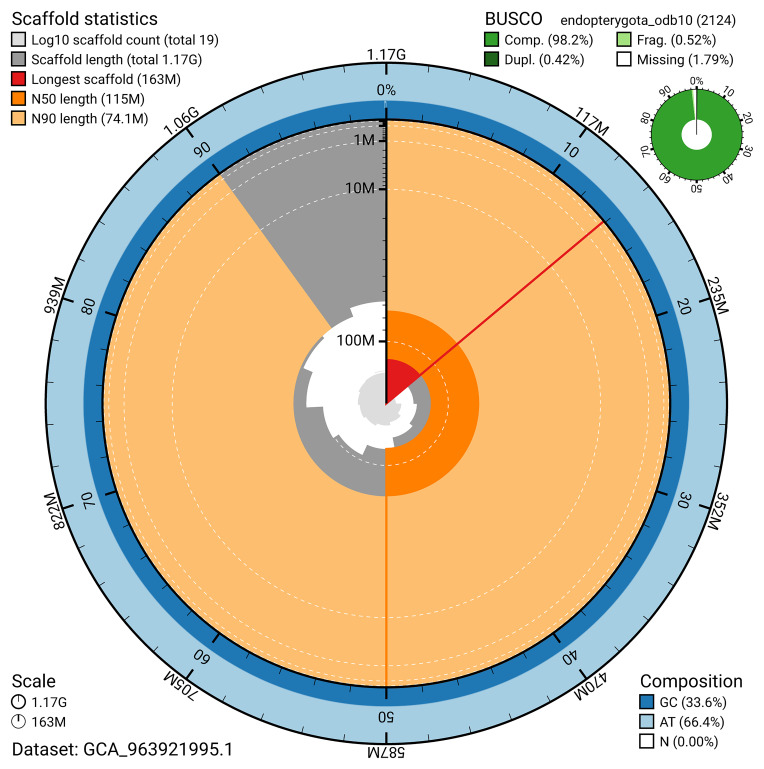

Assembly metrics for icOxyPomo2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the endopterygota_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

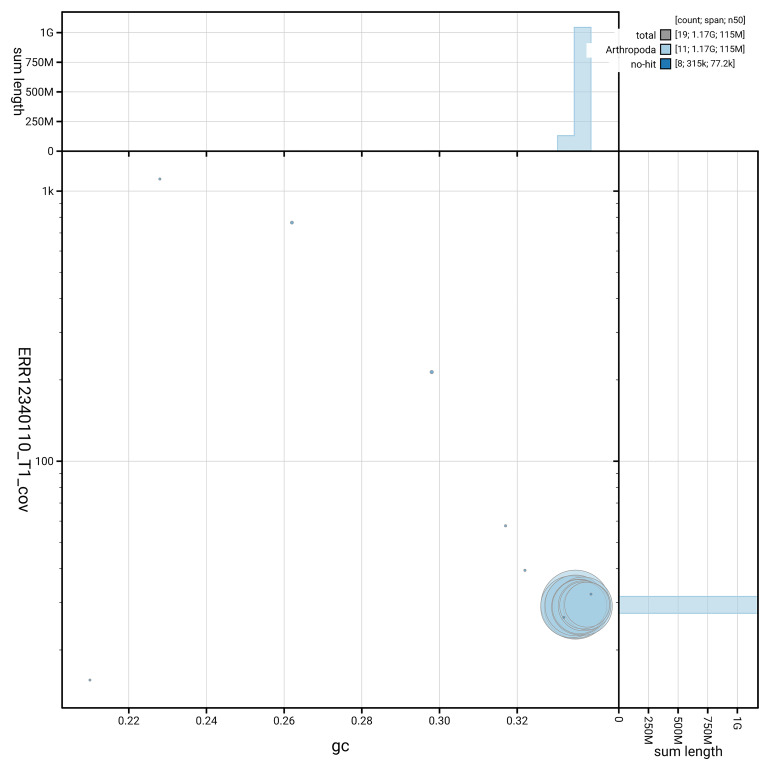

BlobToolKit GC-coverage plot for icOxyPomo2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) and the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 7.C.Q62, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Oxystoma pomonae assembly.

Genome annotation report

The Oxystoma pomonae genome assembly (GCA_963921995.1) was annotated by Ensembl at the European Bioinformatics Institute (EBI). This annotation includes 23 701 transcribed mRNAs from 14 352 protein-coding and 586 non-coding genes. The average transcript length is 35 037.77 bp, with an average of 1.59 coding transcripts per gene and 6.97 exons per transcript. For further information about the annotation, please refer to the Ensembl annotation page.
