A facile route to ‘naked’ Ag+ ions enabling the coordination of the weak Lewis base Ni(CO)4

TL;DR

This paper presents a simple method to create highly electrophilic silver ions with a weak counteranion, enabling the first structural study of a nickel tetracarbonyl complex as a Lewis base.

Contribution

The paper introduces a new method to generate Ag+ ions with a weakly coordinating anion, enabling the first structural characterization of Ni(CO)4 as a ligand.

Findings

A straightforward synthesis of Ag+ salts with the [µ-(CN)(BCF)2]− anion was developed.

The first structurally characterized complex with Ni(CO)4 acting as a ligand was synthesized.

The extremely low basicity of the [µ-(CN)(BCF)2]− anion was confirmed.

Abstract

The reaction of AgCN with two equivalents of tris(pentafluorophenyl)borane (BCF) in CH2Cl2 or ortho-difluorobenzene (oDFB) provides a straightforward access to (solvated) Ag+ salts of the weakly coordinating cyanide-bridged anion [µ-(CN)(BCF)2]− (suggested abbreviation [BCNB]). Reacting Ag[BCNB] with Ni(CO)4 yields the first structurally characterized complex in which Ni(CO)4 acts as a ligand towards a transition metal ion proving the extremely low basicity of the anion.

We report an easy method to generate highly electrophilic Ag+ ions in combination with a very weakly-coordinating counteranion. This allowed the first structural characterization of a metal complex featuring Ni(CO)4 as a Lewis base.

Figures

Selected examples of Ag[WCA] salts. (a) Multi-step synthesis procedures required. (b) Not stable as solvent free salt.

Synthesis of Ag[BCNB] from AgCN with BCF in either CH2Cl2 or oDFB at room temperature.

Molecular structure in the solid state of [Ag(oDFB)3][BCNB]. Displacement ellipsoids are shown at the probability of 50%. Disorder within coordinated oDFB molecules and BCF moieties is omitted for clarity. Color code: light-blue = silver, dark-blue = nitrogen, grey = carbon, pink = boron, yellow = fluorine, white = hydrogen.

(A) Synthesis of [Ag{Ni(CO)4(CH2Cl2)2}][BCNB]. (B) Molecular structure in the solid state of [Ag{Ni(CO)4(CH2Cl2)2}]+. Displacement ellipsoids are shown at the probability of 50%. Color code: blue = silver, turquoise = nickel, grey = carbon, red = oxygen, green = chlorine, white = hydrogen. Selected bond lengths [pm]: Ag–Ni 258.6(6). (C) Experimental low-temperature IR spectrum of [Ag{Ni(CO)4(CH2Cl2)2}][BCNB] (black) compared to the calculated (B3LYP-D3(BJ)/def2-TZVPP) spectrum of [Ag{Ni(CO)4(CH2Cl2)2}]+ (red) in the region of 2000–2350 cm−1. Calculated frequencies are scaled by 0.968 according to Duncan et al..56

Tables

Table 1. Calculated (B3LYP-D3(BJ)/def2TZVPP) reaction enthalpies and Gibbs free energies of Ni(CO)4 and Fe(CO)5 against Ag+ at 298.15 K in the gas phase in kJ mol−1

Reaction	L = Ni(CO)4			L = Fe(CO)5
	ΔE	ΔH	ΔG	ΔE	ΔH	ΔG
Ag+ + L → [Ag-L]+	−168.9	−168.6	−140.3	−221.0	−221.3	−188.2
[Ag(CH2Cl2)2]+ + L → [(CH2Cl2)2Ag-L]+	−79.2	−75.7	−29.1	−109.7	−106.6	−53.8
[Ag(CH2Cl2)3]+ + L → [(CH2Cl2)2Ag-L]+ + CH2Cl2	−8.4	−8.7	1.6	−38.9	−39.5	−23.1

Table 2. Comparison of experimental and calculated CO stretching frequencies in the region of 2000–2300 cm−1. IR spectrum of [Ag{Ni(CO)4(CH2Cl2)2}][BCNB] obtained at circa −65 °C. [Ag{Ni(CO)4(CH2Cl2)2}]+ and Ni(CO)4 have been calculated at the B3LYP-D3(BJ)/def2-TZVPP level. Frequencies are in cm−1. Calculated frequencies are scaled by 0.968 according to Duncan et al.56

Compound	IR bands: ṽ(CO)
[Ag{Ni(CO)4(CH2Cl2)2}]+ exp.	2151, 2106, 2074, 2050
[Ag{Ni(CO)4(CH2Cl2)2}]+ calc.	2152, 2110, 2084, 2074
Ni(CO)4 exp.	2057
Ni(CO)4 calc.	2051

Table 3. Results of energy decomposition analysis of the interaction between Ni(CO)4 and [Ag(CH2Cl2)2]+ using both the crystal structure (crystal) and the quantum-chemically optimized structure (optimized at B3LYP-D3(BJ)/def2-TZVPP level) at BP86-D4/TZ2P level of theory in kJ mol−1

Structure	ΔEPauli	ΔEElstat.	ΔEOrb.	ΔECOSMOa	ΔEInt
Crystal	245.7	−194.5	−145.1	—	−133.8
Crystal b	242.2	−190.5	−146.3	37.5	−96.8
Optimized	210.0	−164.8	−131.0	—	−125.7
Optimized b	206.1	−159.4	−133.7	35.9	−91.1

Full text

Introduction

Chemically robust, weakly coordinating anions (WCAs) are essential to stabilize reactive cations in both the solution phase as well as in the solid state.^1,2^ When selecting an appropriate WCA, key factors to consider are their oxidative stability,^3^ electrophilic stability^4^ and low coordination ability.^5^ Often these properties are achieved by delocalization of the negative charge over a large non-nucleophilic and chemically robust moiety.^2^ Common WCAs such as borate anions [BF_4_]^−^,^6^ and hexafluorometalates [MF_6_]^−^ (M = As, Sb; and their respective oligomeric structures) are well established.^7,8^ However, they can act as ligands towards highly electrophilic metal centers.^9^ In contrast, “designer” WCAs with improved properties are typically not commercially available and require multi-step syntheses e.g. teflate-based anions^10^ or poly-/perfluoro alkoxymetalates.^11–13^ In recent years, [Al(OC(CF_3_)3)4]^−^ (Fig. 1) showed its effectiveness in stabilizing highly reactive cations.^14^ A multi-step synthesis is required to access its silver salt by salt metathesis of the corresponding Li^+^ salt in liquid SO_2_ (boiling point −10 °C).^11,12^ However, employing such anions enabled the isolation of complexes where two neutral homoleptic transition metal carbonyls such as Fe(CO)5 act as ligands towards coinage metals Cu^+^/Ag^+^/Au^+^.^15–18^ Anions such as [SbF_6_]^−^ or [B{3,5-(CF_3_)2_C_6_H_3}4]^−^ also stabilize the corresponding mono-substituted Fe(CO)5 coinage metal adducts,^19–21^ as well as [Hg{Fe(CO)5}2]^2+^.^22^ Besides mononuclear Fe(CO)5 and M(CO)6 (M = W, Mo, Nb, Ta)^23,24^ clustered zerovalent homoleptic transition metal carbonyls (Re_2_(CO)10, M_3_(CO)12 with M = Ru, Os and Ir_4_(CO)12) were successfully coordinated to Ag^+^ as well.^25–27^

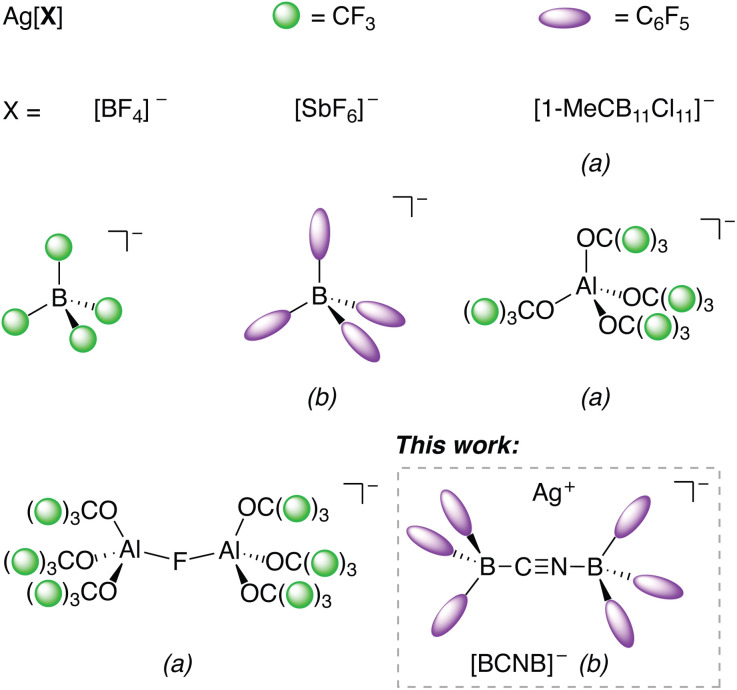

Selected examples of Ag[WCA] salts. (a) Multi-step synthesis procedures required. (b) Not stable as solvent free salt.

As indicated by the significantly lower proton affinity of Ni(CO)4 (718 kJ mol^−1^, B3LYP-D3(BJ)/def2-TZVPP) in comparison to Fe(CO)5 (815 kJ mol^−1^),^8^ use of Ni(CO)4 has so far not allowed the structural characterization of a corresponding metal complex in which it acts as a Lewis base although IR spectroscopy hinted to a potential coordination of Ni(CO)4 to Ag^+^[FAl(OC(CF_3_)3)]^−^ but the potential adduct could neither be isolated in pure form nor crystallized.^28^ To achieve this, a readily available silver salt with a very weakly coordinating counter anion, which can be synthesized in weakly basic solvents, is necessary. In this context, anions derived from fluorinated organoboron Lewis acids are underexplored with respect to their stabilization of sensitive cations in the condensed phase. In principle, anions like [B(CF_3_)4]^−^ (Fig. 1), [B(CF_3_)3_CN]^−^ or [µ-(CN){B(CF_3)3}2]^−^ have attractive properties but the B-CF_3_ moiety is only accessible via strong fluorinating agents.^29–31^ In contrast, adducts of commercially available B(C_6_F_5_)3 (BCF) are far more accessible due to the facile reactions of BCF with nucleophilic anions.^32–38^ Bochmann introduced the cyanide-bridged BCF anion [µ-(CN)(BCF)2]^−^ as the respective [CPh_3_]^+^ salt and demonstrated its use in cationic metallocene polymerization reactions.^39,40^ However, the chemistry of this excellent weakly-coordinating anion (for which we propose the abbreviation [BCNB]) has hardly been explored. Interestingly, Ag[BCNB] was never prepared although it could be of great synthetic use for halide abstraction or as an oxidizing agent.^41^ It is conceivable that it may have superior properties in comparison to the structurally related Ag^+^[B(C_6_F_5_)4]^−^ (Fig. 1), which has been prepared and is stable only in coordinating solvents (e.g. diethyl ether or toluene), as it decomposes in more weakly coordinating solvents (e.g. CH_2_Cl_2_), or even as solvent-free salt, to Ag(C_6_F_5_) and B(C_6_F_5_)3, limiting its synthetic use.^42^ Ag^+^[B{C_6_H_3_(CF_3_)2}4]^−^ is prepared in donor solvents such as MeCN, Et_2_O and THF by salt metathesis, multiple filtration steps and requires careful drying in vacuo.^43^ The presence of coordinated donor solvents at Ag^+^ had already been hypothesized in the literature and was recently confirmed.^1,44^ In 2025, an easy synthesis for [Ag(C_6_H_6_)3]^+^ [B{C_6_H_3_(CF_3_)2}4]^−^ was reported but this salt slowly decomposes in oDFB and rapidly in CH_2_Cl_2_.^44^

Results and discussion

Here we report on the silver borate salt Ag[µ-(CN)(BCF)2] (Ag[BCNB]) which is readily accessible by reacting AgCN with two equivalents of BCF in either CH_2_Cl_2_ (DCM) or ortho-difluorobenzene (oDFB) at room temperature (Scheme 1).

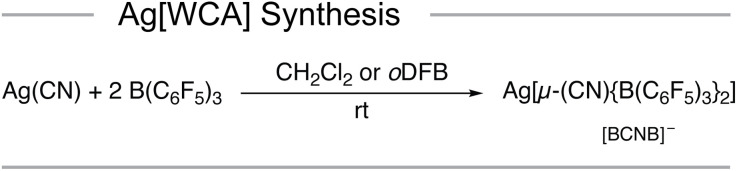

Synthesis of Ag[BCNB] from AgCN with BCF in either CH2Cl2 or oDFB at room temperature.

Both reagents are commercially available and the reaction (which takes place over several hours) is easily followed by dissolution of insoluble AgCN to give a clear colourless solution with almost quantitative conversion. The main advantage of this synthetic route is the in situ preparation using only weakly-coordinating solvents without any filtration step. Drying in vacuum gives almost colourless solids which still contain CH_2_Cl_2_ or oDFB molecules coordinated to the Ag^+^ center. These silver salts have the advantage over the structurally related Ag[B(C_6_F_5_)4] that they can be stored over a long period at room temperature (under inert conditions and exclusion of light).

The ^11^B (Fig. S3 and S12) and ^19^F NMR spectra (Fig. S4 and S11) of the product Ag[BCNB] reveal two different BCF moieties for either the N- or C-bound BCF unit in [BCNB] (^11^B: δ = −13 (br, N–B), −23 (br, C–B) ppm, in accordance to the literature).^39^ The CN stretching frequency is observed at ṽ = 2290 cm^−1^ in the IR spectrum (Fig. S10). Single crystals of [Ag(oDFB)3][BCNB] (Fig. 2) were obtained upon layering the solution with n-pentane and slowly cooling a saturated solution to −24 °C. It crystallizes in the triclinic space group P1̄ and shows that the silver cation is only weakly coordinated by the three η^2^-bound oDFB solvent molecules and anion [BCNB] with distances in the range of d(Ag–C(oDFB)) = 238.2–263.9(3) pm. Each silver center has two Ag–F anion contacts (the closest anion–cation contact is d(Ag–F(BCF)) = 297.6(6) pm), resulting in a chain-like structure (Fig. 2), unlike comparable [Ag(oDFB)2][Al(OR^F^)4] (R^F^ = C(CF_3_)3) salts without C–F⋯Ag contacts.^13^

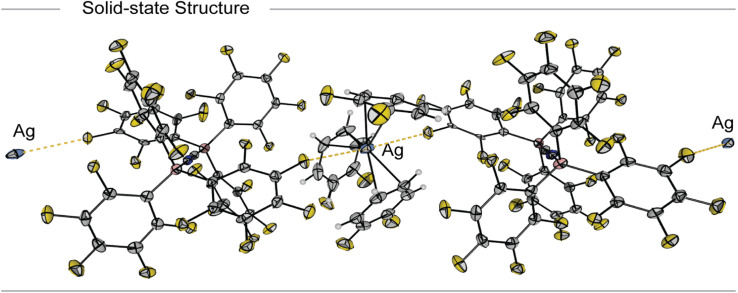

Molecular structure in the solid state of [Ag(oDFB)3][BCNB]. Displacement ellipsoids are shown at the probability of 50%. Disorder within coordinated oDFB molecules and BCF moieties is omitted for clarity. Color code: light-blue = silver, dark-blue = nitrogen, grey = carbon, pink = boron, yellow = fluorine, white = hydrogen.

Although oDFB is ideal for the synthesis of electrophilic cations, its relatively high melting point of −34 °C makes the isolation of thermally unstable compounds challenging. For such purposes, the in situ generation of Ag[BCNB] in dichloromethane (melting point of −97 °C) is ideal. The synthesis proceeds analogously to the reaction in oDFB within hours at room temperature to give a clear solution with almost quantitative conversion. Crystals of [Ag(CH_2_Cl_2_)3][BCNB] could be obtained upon cooling to −75 °C but the quality was too poor for publication. However, this source of weakly solvated Ag^+^ proved superior to oDFB solutions, as all coordination attempts of Ni(CO)4 had to be conducted at −60 °C or below to avoid total decomposition of the metal complexes. Finally, single crystals of the unprecedented [Ni(CO)4] → Ag^+^ structural motif could be obtained (Fig. 3A). Layering a DCM solution of Ag[BCNB] and Ni(CO)4 with n-pentane at −60 °C and slowly cooling the solution to −70 °C gave crystals suitable for single crystal X-ray diffraction. The crystal was identified predominantly containing [Ag{Ni(CO)4}(CH_2_Cl_2_)2][BCNB] (ca. 90%, Fig. S18) with a minor fraction (ca. 10%) of [Ag(CH_2_Cl_2_)3][BCNB] (Fig. S19). The latter likely arises from partial substitution of Ni(CO)4 by the large excess of dichloromethane during the crystallization reflecting the high lability of the system even at low temperature. DFT calculations (Table 1) reveal that this exchange is almost thermoneutral. In the crystal, environmental effects might contribute to the relative stability of [Ag{Ni(CO)4}(CH_2_Cl_2_)2][BCNB]. In the molecular structure in solid state the counter anion [BCNB] shows substitutional disorder of the {CN} moiety while the fragments {Ag{Ni(CO)4}(CH_2_Cl_2_)2} and {Ag(CH_2_Cl_2_)3} are disordered on two different positions within the asymmetric unit. Despite the intrinsic instability of [Ag{Ni(CO)4}(CH_2_Cl_2_)2][BCNB], the X-ray data unambiguously confirm the unprecedented Ag–Ni interaction. The cationic unit [Ag{Ni(CO)4}(CH_2_Cl_2_)2]^+^ (Fig. 3B) shows an Ag–Ni distance of 258.6(6) pm., which is in agreement with the calculated value of 264 pm at the B3LYP-D3(BJ)/def2-TZVPP level. To our knowledge, this represents one of the shortest Ag–Ni bond lengths ever to be reported, even below the values in polynuclear metal clusters.^45–47^ Upon coordination, Ni(CO)4 is slightly distorted from its usually tetrahedral structure to a pseudo-trigonal bipyramid. Two of the equatorial CO ligands are slightly bent towards the Ag^+^ center resulting in C_eq.–Ni–Ag angles of 74.2(3), 74.4(2)° and intramolecular Ag–C distances of 272.3(9) and 274.9(6) pm, while the third equatorial CO ligand is slightly more distant at 296.2(5) pm (C_eq.–Ni–Ag angle of 81.9(1)°). Similar interactions have been observed in other metal-only Lewis pairs with Ag^+^.^15,27^ The pseudo trigonal-bipyramidal structure is slightly distorted resulting in a C_ax.–Ni–Ag angle of 169.3(4)°. The C–O distances average to 111.0(4) pm and the Ni–C bond lengths range from 181.4(9) to 185.6(5) pm. Besides the Ni(CO)4 moiety, two DCM molecules coordinate to the Ag^+^ center. Furthermore, one additional Ag–F contact to one fluorine atom of the counterion with a distance of 297.9(3) pm is observed. One of the DCM molecules acts as a chelating ligand with two Ag–Cl contacts of 287.0(2) and 289.3(2) pm. The other DCM molecule forms one short (255.7(2) pm) and one very long Ag–Cl contact of 349.0(2) pm which is in the region of the sum of van der Waals radii of Ag and Cl (349 pm).^48^ A quantum chemically optimized structure in the gas phase (at B3LYP-D3(BJ)/def2-TZVPP level) showed a more symmetrical coordination of the two DCM moieties, underlining the importance of the additional Ag–F and Ag–Cl contacts mentioned above for the experimentally observed structure. In general, a variety of silver–dichloromethane complexes have been reported,^49,50^ with Ag–Cl bond lengths varying in the range between 252.4 pm and 302.4 pm.^51,52^ Interestingly, mono- and bidentate coordination modes are frequently observed. For example from solutions of Ag[Al(OC(CF_3)3)4] in dichloromethane solvated Ag^+^ cations with 3 chelating or 4 monodentate DCM molecules have been structurally characterized.^51–53^

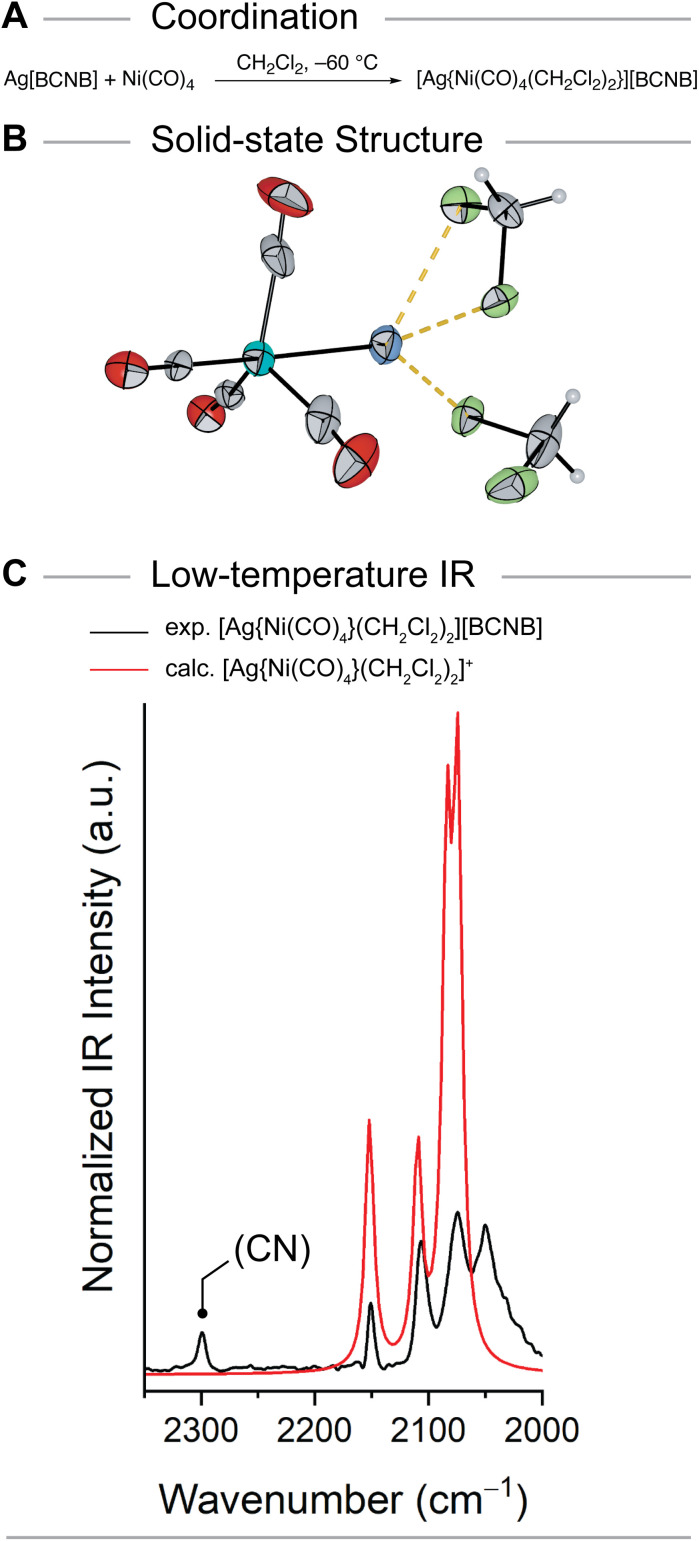

(A) Synthesis of [Ag{Ni(CO)4(CH2Cl2)2}][BCNB]. (B) Molecular structure in the solid state of [Ag{Ni(CO)4(CH2Cl2)2}]+. Displacement ellipsoids are shown at the probability of 50%. Color code: blue = silver, turquoise = nickel, grey = carbon, red = oxygen, green = chlorine, white = hydrogen. Selected bond lengths [pm]: Ag–Ni 258.6(6). (C) Experimental low-temperature IR spectrum of [Ag{Ni(CO)4(CH2Cl2)2}][BCNB] (black) compared to the calculated (B3LYP-D3(BJ)/def2-TZVPP) spectrum of [Ag{Ni(CO)4(CH2Cl2)2}]+ (red) in the region of 2000–2350 cm−1. Calculated frequencies are scaled by 0.968 according to Duncan et al..56

[Ag{Ni(CO)4(CH_2_Cl_2_)2}][BCNB] readily decomposes at temperatures >–40 °C and when exposed to reduced pressure. Raman spectra of crystalline [Ag{Ni(CO)4(CH_2_Cl_2_)2}][BCNB] were not obtainable due to fluorescence issues. However, it was possible to obtain a low-temperature IR spectrum (Fig. 3C, experimental set up see Fig. S1 and S2), which agrees well with the calculated (B3LYP-D3(BJ)/def2-TZVPP) spectrum, especially considering the neglect of the crystal environment. Both calculated and experimental spectrum reveal four CO stretching frequencies (Table 2 and Fig. 3C, S17), which nicely fit to one another. The CO frequencies within [Ag{Ni(CO)4(CH_2_Cl_2_)2}]^+^ are blue shifted compared to non-coordinated Ni(CO)4 (IR: ṽ [cm^−1^] = 2057).^54^ Nevertheless, the complex classifies as a classical carbonyl complex since the average value for ṽ(C–O) (exp. 2095/calc. 2105 cm^−1^) is below 2143 cm^−1^.^55^ Attempts to synthesize a moiety in which Ag^+^ is solely coordinated by Ni(CO)4 (mono- or bi-coordinated) employing less coordinating solvents (oDFB, 1,2,3,4-tetrafluorobenzene and CH_2_ClF) were unsuccessful so far.

The bonding situation was further investigated using energy decomposition analyses and extended transition-state analyses with natural orbitals for chemical valence (ETS-NOCV).^57,58^ The results are shown in Table 3. To account for the effects of the crystal environment, analyses were performed using both the optimized structure at the B3LYP-D3(BJ)/def2-TZVPP level and the crystal structure. Dielectric effects of the crystal environment were estimated using the COSMO model. However, both effects have only a minor impact on the results: Pauli repulsion and electrostatic interaction offset almost exactly, leaving a sizable and stabilizing orbital interaction term, that can be partly compensated by dielectric contributions of the environment. The orbital interaction between both fragments is dominated by the interaction between the HOMO of Ni(CO)4 (which is of d_z^2^_ nature) and the 5s-like LUMO of the Ag^+^ fragment (see Table S5 in the SI), as can be expected for a Lewis acid–base interaction. This interaction gives about 55% of the overall orbital interaction. However, there are additional, albeit weaker, interactions, which account for about 15% of the overall orbital contributions. They can be characterized as π-backbonding interactions from filled Ag 4d-orbitals (of d_xz/dyz_ type) into the π* orbitals of the CO ligands. These interactions are most likely the origin of the bending of the CO units observed in the crystal structure.

Conclusions

To conclude, we present a facile one-pot synthesis with high yields, requiring little to no purification, allowing access to the storable and highly electrophilic silver salt Ag[µ-(CN)(BCF)2] (proposed abbreviation Ag[BCNB]) as CH_2_Cl_2_ or oDFB solvate. The weak coordination ability of the [BCNB] anion was exploited to further react Ag[BCNB] with Ni(CO)4 forming the first structurally characterized coordination compound featuring Ni(CO)4 as a metalloligand. The resulting [Ag{Ni(CO)4}(CH_2_Cl_2_)2][BCNB] is, however, highly unstable, already decomposing at low temperatures (ca. −40 °C) and when exposed to reduced pressure. Nevertheless, we are convinced that the excellent properties of the [BCNB] anion, such as very low basicity, good solubility and structural rigidity will enable the synthesis of other highly electrophilic cations in the future and revive the interest in this weakly-coordinating anion. Consequently, the easy accessibility of Ag[BCNB] and its potential versatility as a Lewis acid, for halide abstractions as well as an oxidant could make it an attractive alternative to hitherto used Ag-WCA salts.
