The genome sequence of the Tawny Oak Tortrix, Acleris ferrugana (Denis & Schiffermüller), 1775 (Lepidoptera: Tortricidae)

TL;DR

This paper presents the genome sequence of the Tawny Oak Tortrix, a moth species, as part of a larger project to sequence British and Irish eukaryotic species.

Contribution

The paper provides a high-quality genome assembly including sex chromosomes and mitochondrial DNA for Acleris ferrugana.

Findings

The genome assembly is 480.03 megabases long with 99.03% scaffolded into 31 chromosomal pseudomolecules.

The mitochondrial genome is 16.58 kilobases long and has been fully assembled.

The genome was sequenced as part of the Darwin Tree of Life project.

Abstract

We present a genome assembly from an individual female
Acleris ferrugana (Tawny Oak Tortrix; Arthropoda; Insecta; Lepidoptera; Tortricidae). The genome sequence has a total length of 480.03 megabases. Most of the assembly (99.03%) is scaffolded into 31 chromosomal pseudomolecules, including the W and Z sex chromosomes. The mitochondrial genome has also been assembled, with a length of 16.58 kilobases. This assembly was generated as part of the Darwin Tree of Life project, which produces reference genomes for eukaryotic species found in Britain and Ireland.

Figures

Photograph of the Acleris ferrugana (ilAclFerr2) specimen used for genome sequencing.

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Hi-C contact map of the Acleris ferrugana genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

Assembly metrics for ilAclFerr2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

BlobToolKit GC-coverage plot for ilAclFerr2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Tables

Table 1.. Specimen and sequencing data for BioProject PRJEB76341.

Platform	PacBio HiFi	Hi-C	RNA-seq
ToLID	ilAclFerr2	ilAclFerr1	ilAclFerr8
Specimen ID	Ox003294	Ox000992	Ox003303
BioSample (source individual)	SAMEA113425835	SAMEA8603215	SAMEA113425841
BioSample (tissue)	SAMEA113426021	SAMEA8603781	SAMEA113426027
Tissue	whole organism	whole organism	whole organism
Instrument	Sequel IIe	Illumina NovaSeq 6000	Illumina NovaSeq X
Run accessions	ERR13245266	ERR13248929	ERR13248930
Read count total	2.59 million	950.80 million	68.68 million
Base count total	24.06 Gb	143.57 Gb	10.37 Gb

Table 2.. Genome assembly statistics.

Assembly name	ilAclFerr2.1
Assembly accession	GCA_964656575.1
Alternate haplotype accession	GCA_965112395.1
Assembly level	chromosome
Span (Mb)	480.03
Number of chromosomes	31
Number of contigs	340
Contig N50	4.03 Mb
Number of scaffolds	205
Scaffold N50	13.41 Mb
Sex chromosomes	W and Z
Organelles	Mitochondrion: 16.58 kb

Table 3.. Chromosomal pseudomolecules in the primary genome assembly of Acleris ferrugana ilAclFerr2.

INSDC accession	Molecule	Length (Mb)	GC%
OZ210445.1	1	17.97	37.50
OZ210446.1	2	16.89	37.50
OZ210447.1	3	16.18	36.50
OZ210448.1	4	15.95	37.50
OZ210449.1	5	15.16	37
OZ210450.1	6	15.09	37
OZ210451.1	7	14.51	37.50
OZ210452.1	8	14.27	37
OZ210453.1	9	14.07	37.50
OZ210454.1	10	13.98	37
OZ210455.1	11	13.78	37
OZ210456.1	12	13.77	37
OZ210457.1	13	13.41	37
OZ210458.1	14	13.02	38
OZ210459.1	15	13.02	37
OZ210460.1	16	12.99	37.50
OZ210461.1	17	12.39	37
OZ210462.1	18	12.07	37
OZ210463.1	19	11.59	37
OZ210464.1	20	11.32	37.50
OZ210465.1	21	10.45	38
OZ210466.1	22	10.21	37
OZ210467.1	23	9.97	39
OZ210468.1	24	9.61	37
OZ210469.1	25	9.15	37.50
OZ210470.1	26	9.13	36.50
OZ210471.1	27	8.83	39
OZ210472.1	28	7.27	37.50
OZ210473.1	29	6.77	37.50
OZ210474.1	W	61.44	37.50
OZ210475.1	Z	51.11	36.50

Table 4.. Earth Biogenome Project summary metrics for the Acleris ferrugana assembly.

Measure	Value	Benchmark
EBP summary (primary)	6.C.Q63	6.C.Q40
Contig N50 length	4.03 Mb	≥ 1 Mb
Scaffold N50 length	13.41 Mb	= chromosome N50
Consensus quality (QV)	Primary: 63.6; alternate: 63.6; combined: 63.6	≥ 40
k-mer completeness	Primary: 86.30%; alternate: 72.25%; combined: 99.33%	≥ 95%
BUSCO	C:98.2% [S:97.4%; D:0.8%]; F:0.3%; M:1.6%; n:5 286	S > 90%; D < 5%
Percentage of assembly assigned to chromosomes	99.03%	≥ 90%

Full text

Species taxonomy

Eukaryota; Opisthokonta; Metazoa; Eumetazoa; Bilateria; Protostomia; Ecdysozoa; Panarthropoda; Arthropoda; Mandibulata; Pancrustacea; Hexapoda; Insecta; Dicondylia; Pterygota; Neoptera; Endopterygota; Amphiesmenoptera; Lepidoptera; Glossata; Neolepidoptera; Heteroneura; Ditrysia; Apoditrysia; Tortricoidea; Tortricidae; Tortricinae; Tortricini; Acleris; Acleris ferrugana (Denis & Schiffermüller), 1775 (NCBI:txid758707)

Background

Acleris ferrugana (Tortricidae), the Tawny Oak Tortrix, is also called the Rusty Oak Button. It is a variable woodland moth, very similar to A. notana (also a variable species). Reliable separation of the two species is by dissection of the genitalia, though A. ferrugana often shows a small black scale-tuft about a quarter from the head ( NatureSpot, 2025). It is fairly common across the British and Irish Isles, more scarce to the north.

In the UK, adults fly in two generations: the first is from July to September, and the second from October to May, overwintering as an adult and reappearing in spring ( Sterling et al., 2023). Larvae feed mainly on oak ( Quercus) in a spinning between leaves, whereas A. notana uses birch ( Betula) as its food plant ( NatureSpot, 2025).

We present the first genome sequence for Acleris ferrugana, the Rusty Oak Button. The assembly was produced using the Tree of Life pipeline from a specimen collected in Wytham Woods, Oxfordshire, United Kingdom ( Figure 1). This assembly was generated as part of the Darwin Tree of Life Project, which aims to generate high-quality reference genomes for all named eukaryotic species in Britain and Ireland to support research, conservation, and the sustainable use of biodiversity ( Blaxter et al., 2022).

Photograph of the Acleris ferrugana (ilAclFerr2) specimen used for genome sequencing.

Methods

Sample acquisition and DNA barcoding

The specimen used for genome sequencing was an adult female Acleris ferrugana (specimen ID Ox003294, ToLID ilAclFerr2; Figure 1), on 2022-11-01. The specimen was collected and identified by Liam Crowley. A second specimen was used for Hi-C sequencing (specimen ID Ox000992, ToLID ilAclFerr1) was collected and identified by Douglas Boyes. A third specimen, used for RNA sequencing (specimen ID Ox003303, ToLID ilAclFerr8), was also collected and identified by Liam Crowley. All specimens were collected from Wytham Woods, Oxfordshire, United Kingdom (latitude 51.772, longitude –1.338). For the Darwin Tree of Life sampling and metadata approach, refer to Lawniczak et al. (2022).

The initial identification was verified by an additional DNA barcoding process according to the framework developed by Twyford et al. (2024). A small sample was dissected from each specimen and stored in ethanol, while the remaining parts were shipped on dry ice to the Wellcome Sanger Institute (WSI) (see the protocol). The tissue was lysed, the COI marker region was amplified by PCR, and amplicons were sequenced and compared to the BOLD database, confirming the species identification ( Crowley et al., 2023). Following whole genome sequence generation, the relevant DNA barcode region was also used alongside the initial barcoding data for sample tracking at the WSI ( Twyford et al., 2024). The standard operating procedures for Darwin Tree of Life barcoding are available on protocols.io.

Nucleic acid extraction

Protocols for high molecular weight (HMW) DNA extraction developed at the Wellcome Sanger Institute (WSI) Tree of Life Core Laboratory are available on protocols.io ( Howard et al., 2025). The ilAclFerr2 sample was weighed and triaged to determine the appropriate extraction protocol. Tissue from the whole organism was homogenised by powermashing using a PowerMasher II tissue disruptor. HMW DNA was extracted in the WSI Scientific Operations core using the Automated MagAttract v2 protocol. DNA was sheared into an average fragment size of 12–20 kb following the Megaruptor®3 for LI PacBio protocol. Sheared DNA was purified by manual SPRI (solid-phase reversible immobilisation). The concentration of the sheared and purified DNA was assessed using a Nanodrop spectrophotometer and Qubit Fluorometer using the Qubit dsDNA High Sensitivity Assay kit. Fragment size distribution was evaluated by running the sample on the FemtoPulse system. For this sample, the final post-shearing DNA had a Qubit concentration of 9.75 ng/μL and a yield of 448.50 ng, with a fragment size of 13.3 kb. The 260/280 spectrophotometric ratio was 2.36, and the 260/230 ratio was 4.02.

RNA was extracted from whole organism tissue of ilAclFerr8 in the Tree of Life Laboratory at the WSI using the RNA Extraction: Automated MagMax™ mirVana protocol. The RNA concentration was assessed using a Nanodrop spectrophotometer and a Qubit Fluorometer using the Qubit RNA Broad-Range Assay kit. Analysis of the integrity of the RNA was done using the Agilent RNA 6000 Pico Kit and Eukaryotic Total RNA assay.

PacBio HiFi library preparation and sequencing

Library preparation and sequencing were performed at the WSI Scientific Operations core. Libraries were prepared using the SMRTbell Prep Kit 3.0 (Pacific Biosciences, California, USA), following the manufacturer’s instructions. The kit includes reagents for end repair/A-tailing, adapter ligation, post-ligation SMRTbell bead clean-up, and nuclease treatment. Size selection and clean-up were performed using diluted AMPure PB beads (Pacific Biosciences). DNA concentration was quantified using a Qubit Fluorometer v4.0 (ThermoFisher Scientific) and the Qubit 1X dsDNA HS assay kit. Final library fragment size was assessed with the Agilent Femto Pulse Automated Pulsed Field CE Instrument (Agilent Technologies) using the gDNA 55 kb BAC analysis kit.

The sample was sequenced using the Sequel IIe system (Pacific Biosciences, California, USA). The concentration of the library loaded onto the Sequel IIe was in the range 40–135 pM. The SMRT link software, a PacBio web-based end-to-end workflow manager, was used to set-up and monitor the run, and to perform primary and secondary analysis of the data upon completion.

Hi-C

** Sample preparation and crosslinking **

The Hi-C sample was prepared from 20–50 mg of frozen tissue of the ilAclFerr1 sample using the Arima-HiC v2 kit (Arima Genomics). Following the manufacturer’s instructions, tissue was fixed and DNA crosslinked using TC buffer to a final formaldehyde concentration of 2%. The tissue was homogenised using the Diagnocine Power Masher-II. Crosslinked DNA was digested with a restriction enzyme master mix, biotinylated, and ligated. Clean-up was performed with SPRISelect beads before library preparation. DNA concentration was measured with the Qubit Fluorometer (Thermo Fisher Scientific) and Qubit HS Assay Kit. The biotinylation percentage was estimated using the Arima-HiC v2 QC beads.

** Hi-C library preparation and sequencing **

Biotinylated DNA constructs were fragmented using a Covaris E220 sonicator and size selected to 400–600 bp using SPRISelect beads. DNA was enriched with Arima-HiC v2 kit Enrichment beads. End repair, A-tailing, and adapter ligation were carried out with the NEBNext Ultra II DNA Library Prep Kit (New England Biolabs), following a modified protocol where library preparation occurs while DNA remains bound to the Enrichment beads. Library amplification was performed using KAPA HiFi HotStart mix and a custom Unique Dual Index (UDI) barcode set (Integrated DNA Technologies). Depending on sample concentration and biotinylation percentage determined at the crosslinking stage, libraries were amplified with 10 to 16 PCR cycles. Post-PCR clean-up was performed with SPRISelect beads. Libraries were quantified using the AccuClear Ultra High Sensitivity dsDNA Standards Assay Kit (Biotium) and a FLUOstar Omega plate reader (BMG Labtech).

Prior to sequencing, libraries were normalised to 10 ng/μL. Normalised libraries were quantified again and equimolar and/or weighted 2.8 nM pools. Pool concentrations were checked using the Agilent 4200 TapeStation (Agilent) with High Sensitivity D500 reagents before sequencing. Sequencing was performed using paired-end 150 bp reads on the Illumina NovaSeq 6000.

RNA library preparation and sequencing

Libraries were prepared using the NEBNext ^®^ Ultra™ II Directional RNA Library Prep Kit for Illumina (New England Biolabs), following the manufacturer’s instructions. Poly(A) mRNA in the total RNA solution was isolated using oligo(dT) beads, converted to cDNA, and uniquely indexed; 14 PCR cycles were performed. Libraries were size-selected to produce fragments between 100–300 bp. Libraries were quantified, normalised, pooled to a final concentration of 2.8 nM, and diluted to 150 pM for loading. Sequencing was carried out on the Illumina NovaSeq X to generate 150-bp paired-end reads.

Genome assembly

Prior to assembly of the PacBio HiFi reads, a database of k-mer counts ( k = 31) was generated from the filtered reads using FastK. GenomeScope2 ( Ranallo-Benavidez et al., 2020) was used to analyse the k-mer frequency distributions, providing estimates of genome size, heterozygosity, and repeat content.

The HiFi reads were assembled using Hifiasm ( Cheng et al., 2021) with the --primary option. The Hi-C reads ( Rao et al., 2014) were mapped to the primary contigs using bwa-mem2 ( Vasimuddin et al., 2019), and the contigs were scaffolded in YaHS ( Zhou et al., 2023) with the --break option for handling potential misassemblies. The scaffolded assemblies were evaluated using Gfastats ( Formenti et al., 2022), BUSCO ( Manni et al., 2021) and MERQURY.FK ( Rhie et al., 2020).

The mitochondrial genome was assembled using MitoHiFi ( Uliano-Silva et al., 2023), which runs MitoFinder ( Allio et al., 2020) and uses these annotations to select the final mitochondrial contig and to ensure the general quality of the sequence.

Assembly curation

The assembly was decontaminated using the Assembly Screen for Cobionts and Contaminants ( ASCC) pipeline. TreeVal was used to generate the flat files and maps for use in curation. Manual curation was conducted primarily in PretextView and HiGlass ( Kerpedjiev et al., 2018). Scaffolds were visually inspected and corrected as described by Howe et al. (2021). Manual corrections included 104 breaks and 184 joins. The curation process is documented at https://gitlab.com/wtsi-grit/rapid-curation. PretextSnapshot was used to generate a Hi-C contact map of the final assembly.

Assembly quality assessment

The Merqury.FK tool ( Rhie et al., 2020) was run in a Singularity container ( Kurtzer et al., 2017) to evaluate k-mer completeness and assembly quality for the primary and alternate haplotypes using the k-mer databases ( k = 31) computed prior to genome assembly. The analysis outputs included assembly QV scores and completeness statistics.

The genome was analysed using the BlobToolKit pipeline, a Nextflow implementation of the earlier Snakemake version ( Challis et al., 2020). The pipeline aligns PacBio reads using minimap2 ( Li, 2018) and SAMtools ( Danecek et al., 2021) to generate coverage tracks. It runs BUSCO ( Manni et al., 2021) using lineages identified from the NCBI Taxonomy ( Schoch et al., 2020). For the three domain-level lineages, BUSCO genes are aligned to the UniProt Reference Proteomes database ( Bateman et al., 2023) using DIAMOND blastp ( Buchfink et al., 2021). The genome is divided into chunks based on the density of BUSCO genes from the closest taxonomic lineage, and each chunk is aligned to the UniProt Reference Proteomes database with DIAMOND blastx. Sequences without hits are chunked using seqtk and aligned to the NT database with blastn ( Altschul et al., 1990). The BlobToolKit suite consolidates all outputs into a blobdir for visualisation. The BlobToolKit pipeline was developed using nf-core tooling ( Ewels et al., 2020) and MultiQC ( Ewels et al., 2016), with containerisation through Docker ( Merkel, 2014) and Singularity ( Kurtzer et al., 2017).

Genome sequence report

Sequence data

PacBio sequencing of the Acleris ferrugana specimen generated 24.06 Gb (gigabases) from 2.59 million reads, which were used to assemble the genome. GenomeScope2.0 analysis estimated the haploid genome size at 408.64 Mb, with a heterozygosity of 0.89% and repeat content of 28.48% ( Figure 2). These estimates guided expectations for the assembly. Based on the estimated genome size, the sequencing data provided approximately 56× coverage. Hi-C sequencing produced 143.57 Gb from 950.80 million reads, which were used to scaffold the assembly. RNA sequencing data were also generated and are available in public sequence repositories. Table 1 summarises the specimen and sequencing details.

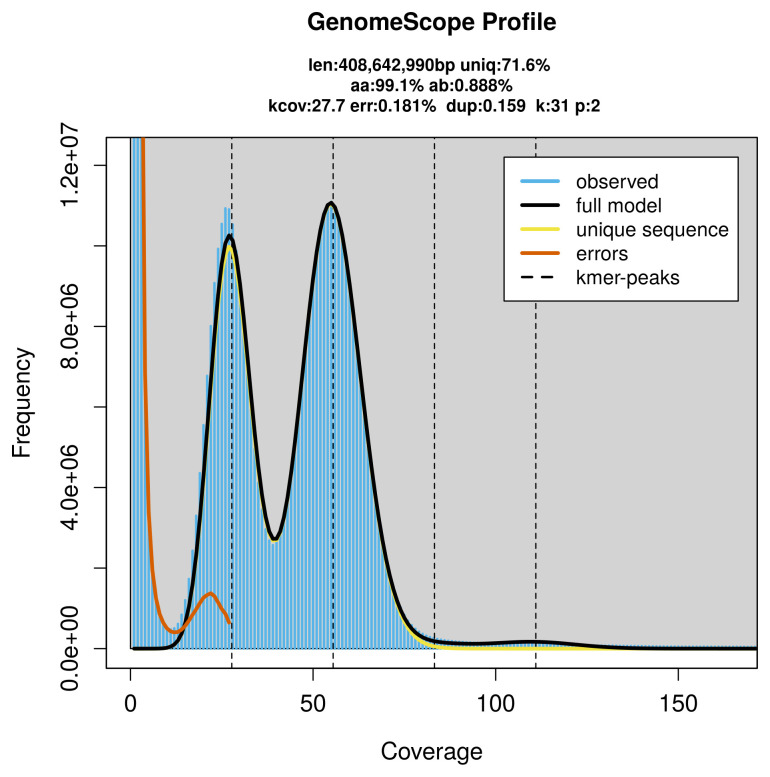

Frequency distribution of k-mers generated using GenomeScope2.The plot shows observed and modelled k-mer spectra, providing estimates of genome size, heterozygosity, and repeat content based on unassembled sequencing reads.

Assembly statistics

The primary haplotype was assembled, and contigs corresponding to an alternate haplotype were also deposited in INSDC databases. The final assembly has a total length of 480.03 Mb in 205 scaffolds, with 135 gaps, and a scaffold N50 of 13.41 Mb ( Table 2).

Most of the assembly sequence (99.03%) was assigned to 31 chromosomal-level scaffolds, representing 29 autosomes and the W and Z sex chromosomes. These chromosome-level scaffolds, confirmed by Hi-C data, are named according to size ( Figure 3; Table 3). The Hi-C data was derived from a male, resulting in the W chromosome remaining unscaffolded. Z chromosome identified based BUSCO gene painting with ancestral Merian elements ( Wright et al., 2024).

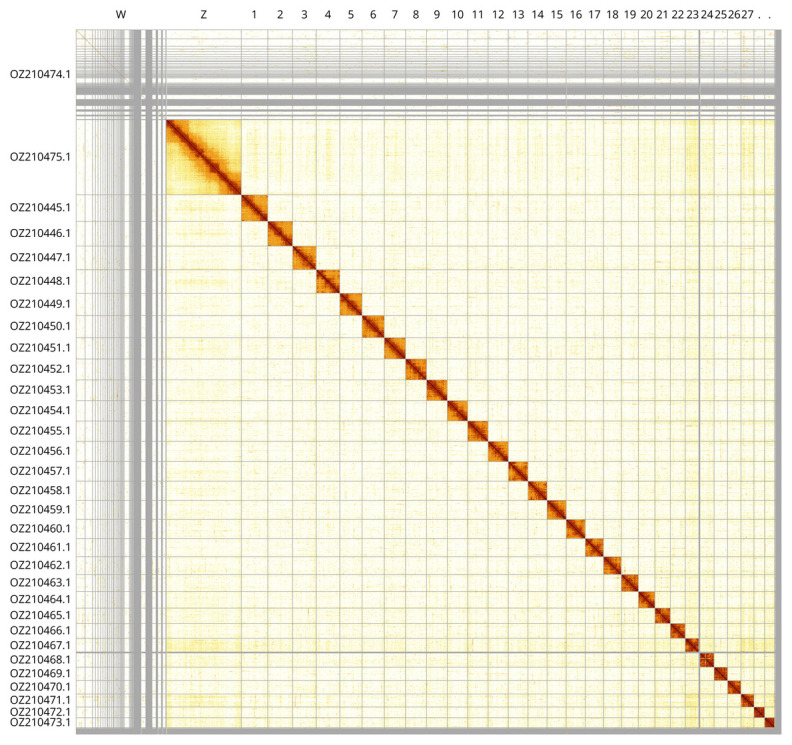

Hi-C contact map of the Acleris ferrugana genome assembly.Assembled chromosomes are shown in order of size and labelled along the axes. The plot was generated using PretextSnapshot.

Table 3.: Chromosomal pseudomolecules in the primary genome assembly of Acleris ferrugana ilAclFerr2.

The mitochondrial genome was also assembled. This sequence is included as a contig in the multifasta file of the genome submission and as a standalone record.

The combined primary and alternate assemblies achieve an estimated QV of 63.6. The k-mer completeness is 86.30% for the primary assembly, 72.25% for the alternate haplotype, and 99.33% for the combined assemblies ( Figure 4).

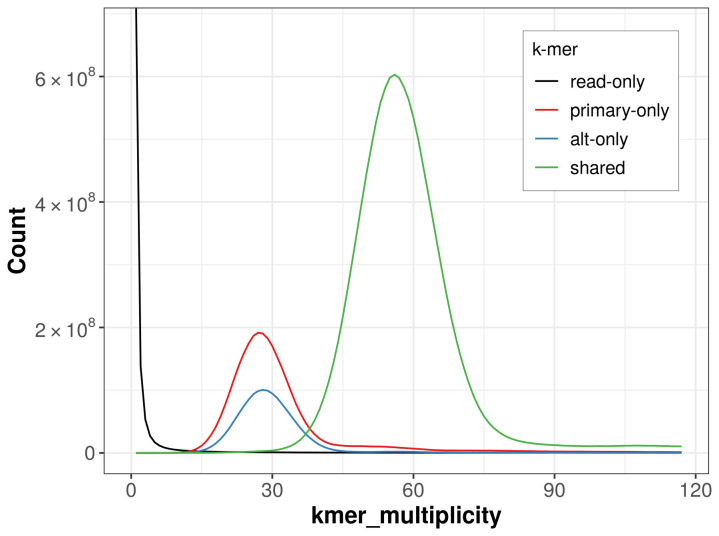

Evaluation of k-mer completeness using MerquryFK.This plot illustrates the recovery of k-mers from the original read data in the final assemblies. The horizontal axis represents k-mer multiplicity, and the vertical axis shows the number of k-mers. The black curve represents k-mers that appear in the reads but are not assembled. The green curve corresponds to k-mers shared by both haplotypes, and the red and blue curves show k-mers found only in one of the haplotypes.

BUSCO v.5.5.0 analysis using the lepidoptera_odb10 reference set ( n = 5 286) identified 98.2% of the expected gene set (single = 97.4%, duplicated = 0.8%). The snail plot in Figure 5 summarises the scaffold length distribution and other assembly statistics for the primary assembly. The blob plot in Figure 6 shows the distribution of scaffolds by GC proportion and coverage.

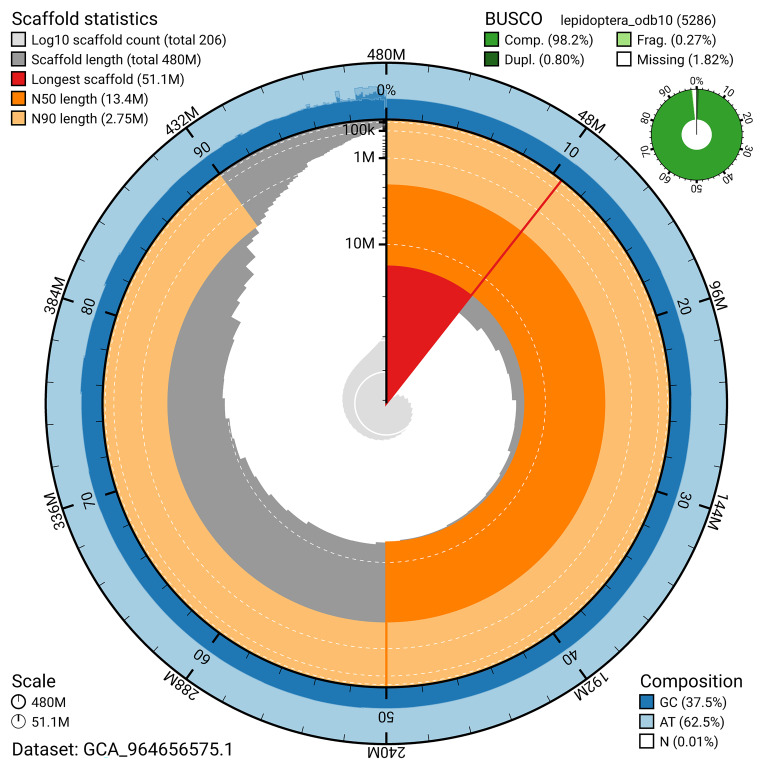

Assembly metrics for ilAclFerr2.1.The BlobToolKit snail plot provides an overview of assembly metrics and BUSCO gene completeness. The circumference represents the length of the whole genome sequence, and the main plot is divided into 1 000 bins around the circumference. The outermost blue tracks display the distribution of GC, AT, and N percentages across the bins. Scaffolds are arranged clockwise from longest to shortest and are depicted in dark grey. The longest scaffold is indicated by the red arc, and the deeper orange and pale orange arcs represent the N50 and N90 lengths. A light grey spiral at the centre shows the cumulative scaffold count on a logarithmic scale. A summary of complete, fragmented, duplicated, and missing BUSCO genes in the lepidoptera_odb10 set is presented at the top right. An interactive version of this figure can be accessed on the BlobToolKit viewer.

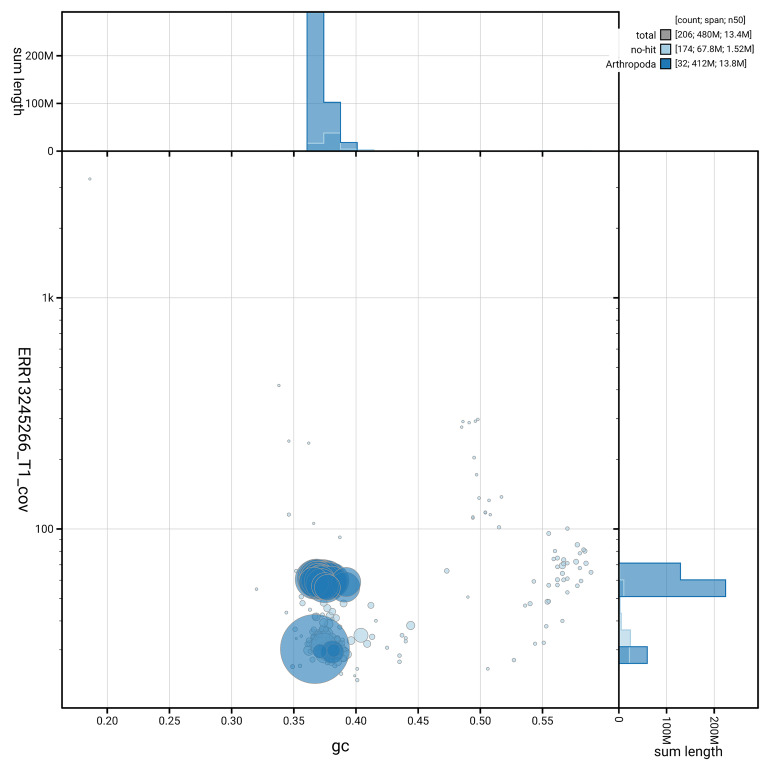

BlobToolKit GC-coverage plot for ilAclFerr2.1.Blob plot showing sequence coverage (vertical axis) and GC content (horizontal axis). The circles represent scaffolds, with the size proportional to scaffold length and the colour representing phylum membership. The histograms along the axes display the total length of sequences distributed across different levels of coverage and GC content. An interactive version of this figure is available on the BlobToolKit viewer.

Table 4 lists the assembly metric benchmarks adapted from Rhie et al. (2021) the Earth BioGenome Project Report on Assembly Standards September 2024. The EBP metric, calculated for the primary assembly, is 6.C.Q63, meeting the recommended reference standard.

Table 4.: Earth Biogenome Project summary metrics for the Acleris ferrugana assembly.
