A three-step, one-pot strategy to unsymmetrical 1,1-diarylalkenes

TL;DR

This paper presents a three-step, one-pot method for making unsymmetrical 1,1-diarylalkenes using common reagents and catalysts.

Contribution

The novelty lies in the one-pot, three-step synthesis of unsymmetrical 1,1-diarylalkenes with varied substituents.

Findings

The method uses a dibromination-elimination-Suzuki Miyaura coupling sequence.

The reaction achieves up to 70% yield with compatibility for various arylboronic acid substituents.

Low to moderate isolated yields are typical despite high selectivity in some cases.

Abstract

Develop a one-pot, three-step procedure for effective access to diverse unsymmetrical 1,1-diarylalkenes from readily accessible reagents, catalysts and substrates.

A three-step, one-pot procedure for the synthesis of unsymmetrical 1,1-diarylalkenes via a dibromination-elimination-Suzuki Miyaura coupling sequence has been designed and a range of reaction conditions have been screened. Although high selectivities can be achieved in some cases, the overall reaction typically proceeds in low to moderate isolated yields albeit up to 70% was observed. The reaction is compatible with a range of substituent patterns on the arylboronic acid and different styrenes.

The online version contains supplementary material available at 10.1186/s13104-025-07553-0.

Figures

A three-step one-pot approach to unsymmetrical diarylalkenes

One-pot, three-step reaction conditions and intermediates

Isolated yields of products. 2a–n are derived from various boronic acids in step 3, whereas 2o–q represent diverse styrenes in step 1. ^a^Not determined—product trace was observed by MS but could not be isolated

Full text

Introduction

The drive towards more sustainable and green processes has enormous ramifications for synthetic chemistry. One emerging strategy to achieve increased efficiency and improved atom economy whilst reducing energy use, resources and chemical waste, is to conduct multistep reactions in single vessels (one-pot reactions) [1]. Three categories of such reactions can be discerned; (1) Cascade/tandem reactions, in which reagents are mixed in a single operation and the multiple reaction steps happen spontaneously without further intervention [2]. (2) Multicomponent reactions (MCR), in which there is also a single operation step but with three or more reactants coupling [3]. In (3), one-pot stepwise synthesis (OPSS) there are multiple operation steps with variable conditions [3, 4].

1,1-Diarylalkenes have a range of important applications in synthesis as precursors to 1,1-diarylethanes [5], in catalysis [6] and as components of bioactive substances [7]. The most common synthetic methods for these scaffolds involve Wittig-reactions and Grignard additions to aceto- or benzophenones with subsequent dehydration [8], but also other methods have emerged [9–12]. Access to more structural diversity of 1,1-diarylalkenes and increasing drive towards higher efficiency highlights the need of new synthetic methods.

In this research note, we describe our efforts to design and explore the scope of a one-pot, three-step approach to unsymmetrical 1,1-diarylalkenes involving a bromination-elimination-cross-coupling sequence, which would enable rapid access to such structures and with a high diversification potential.

Main text

Results and discussion

We have previously investigated rapid bromination chemistry using the H_2_O_2_/HBr-combination and high-yielding, selective bromination of arenes can be effected in a few minutes under optimal conditions [13, 14]. We envisioned that such conditions would rapidly dibrominate styrenes (1), and could undergo selective elimination of the distal bromide under similar conditions [15]. Furthermore, if the resulting 1-bromo-1-arylalkene could effectively undergo a Suzuki-Miyaura cross coupling [12], one could combine the three steps in a convenient one-pot procedure employing readily accessible starting materials, reagents and catalysts to generate unsymmetrical 1,1-diarylalkenes 2 (Fig. 1).

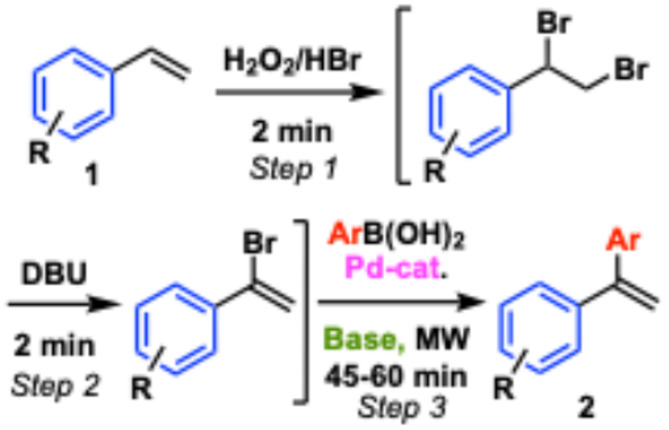

Fig. 1A three-step one-pot approach to unsymmetrical diarylalkenes

A range of conditions have been surveyed. We found that ethyl acetate was a convenient and compatible solvent for all three steps considering both performance in step 1 and solubility of reagents in further steps (Table S1). The conditions for step 1 were directly applied from our former literature procedure [13, 14], and for step 2 a detailed conditions survey is shown in the Supporting Information file (Table S2). The major side-product is the elimination product with terminal bromide (both E and Z-isomers). In Table 1 we demonstrate the influence of selected catalysts and bases on the GC-conversion of 1a to 2a (Fig. 2). The reactions have been monitored by taking out a reaction aliquot between each step for GC-MS analysis, and the GC-conversions to dibrominated styrene 3a (step 1) are consistent across the entries (89–94%). Similarly, the conversions to bromoarylalkene 4a (step 2) are consistently in the range 82–89%. The largest variation occurs in step 3 where the range is 50–90%. Surveying three common palladium catalysts at 4 mol% loading using potassium carbonate as base afforded 59–81% conversions, whereas increasing the catalyst loading to 8 mol% gave a slight increase (89%). The most promising catalyst appeared to be PdCl_2_(PPh_3_)2, and was therefore selected for further screening. Switching base to sodium carbonate did not offer any improvement, whereas cesium carbonate appeared to give most product (88–90% GC-conversion) and this was selected for further scope studies.

Table 1. Survey of step-wise GC-conversions and influence of selected catalysts and basesEntryPd-cat.BaseRel. yield3a (%)Rel. yield4a (%)Rel. yield2a (%)1PdCl_2_(PPh_3_)_2_K_2_CO_3_928667–812Pd(OAc)_2_K_2_CO_3_948959–843Pd(dba)3_K_2_CO_3_9183634^a^Pd(dba)3_K_2_CO_3_9185895PdCl_2(PPh_3)_2_Na_2_CO_3_898250–79 6

PdCl 2 (PPh 3 ) 2

Cs 2 CO 3

89

88

88–90 7PdCl_2_(PPh_3_)_2_KO^t^Bu928586GC-conversion was estimated as the product peak area percentage of the total peak areas. Entry 6 shows the conditions that gave the highest rel. yield of 2a ^a^ 8 mol% catalyst loading

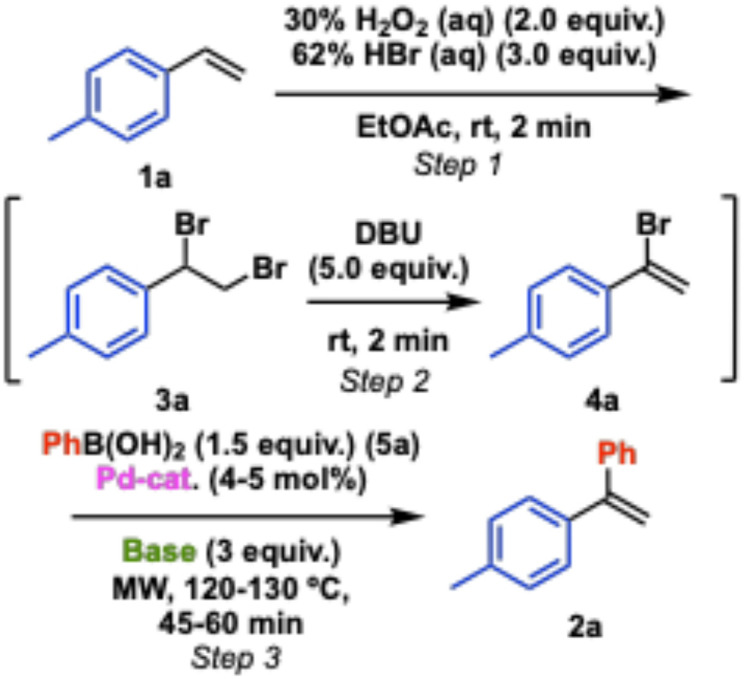

Fig. 2. One-pot, three-step reaction conditions and intermediates

With reasonably selective conditions, we next surveyed a range of arylboronic acids 5a–n in the reaction with 1a and 1o–q (Fig. 3) to assess the synthetic utility of the designed one-pot process. The isolated yields are low to moderate in the range 0–54%, with a single exception for 2e (70%). The isolated yields are lower than expected with the observed conversions in Table 1. Likely, the final cross-coupling step is underperforming in the sequence due to a complex mixture at the final stage. Moreover, the product alkenes are known to be prone to polymerization and significant product loss can occur upon isolation. The best conditions for the model system afforded 33% isolated yield of 2a. None of the compounds containing polar H-bonding functional groups (2b–c,** 2f**,** 2i**, and also 2l) were isolated under the reaction conditions, albeit traces of 2c, 2i and 2l were detected by MS. For the remaining p-series with chloro- (2d), cyano- (2e) and acetyl- (2g) substituents, yields of 45–70% were observed. The *meta-*nitro substituted product 2h was also isolated in 50% yield. The ortho-chloro-substituted 2j was formed in 54% yield and the 2,3-dimethyl substituted system 2m in 53% yield, and shows that the method tolerates both o- and *m-*substitution. For comparison, the more crowded o-dimethoxy-system 2n gave only 7% yield. The formation of 23% of 4-pyridyl-substituted 2k demonstrates some compatibility with heterocycles. Finally, three different styrenes 1o–q were tested in the reaction using the p-chloro-substituted boronic acid yielding 31–42% of 2o–q, which is roughly as expected in comparison to 2d. The results demonstrate the feasibility of the reaction with different styrenes and boronic acids, albeit in overall low to moderate yields.

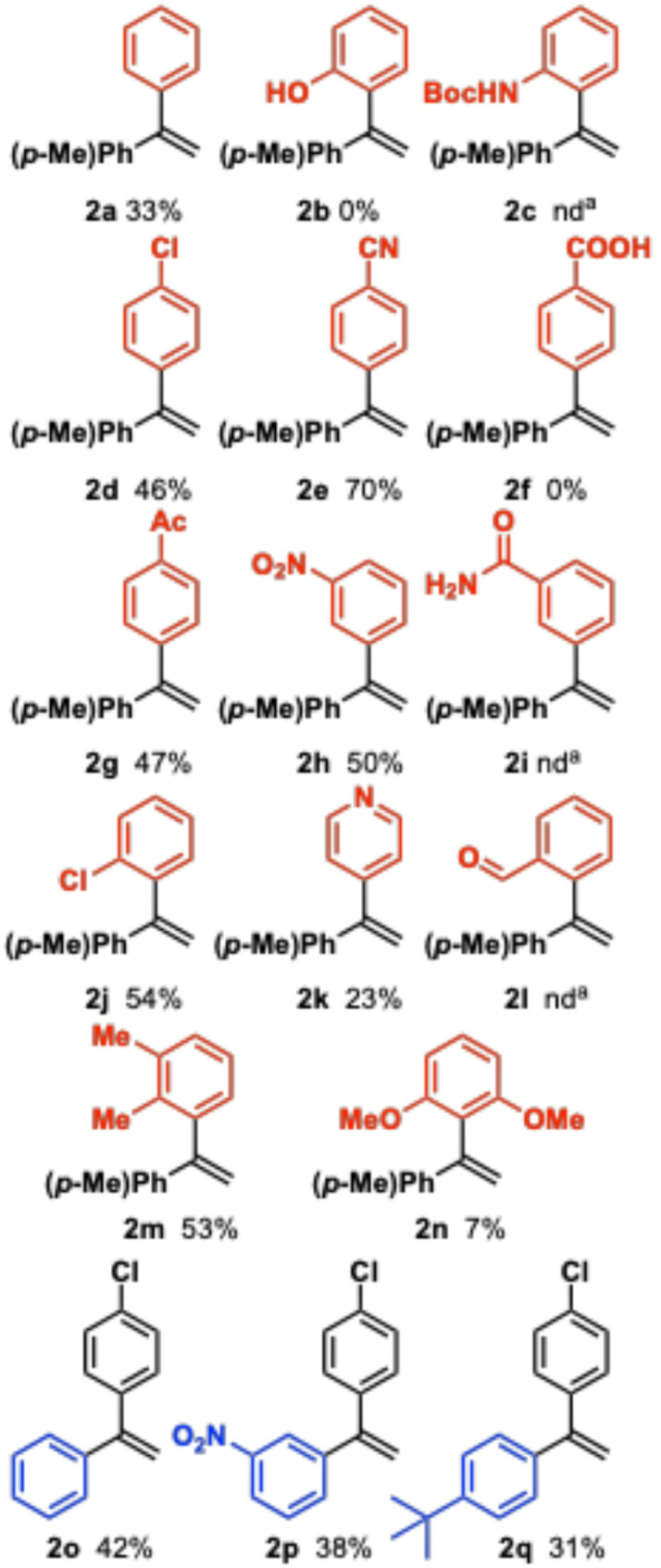

Fig. 3. Isolated yields of products. 2a–n are derived from various boronic acids in step 3, whereas 2o–q represent diverse styrenes in step 1. ^a^Not determined—product trace was observed by MS but could not be isolated

In summary, we have designed and investigated a range of reaction conditions for a rapid three-step, one-pot approach to unsymmetrical 1,1-diarylalkenes. Although high conversions can be achieved for all the steps in the sequence, the last step has a large conversion variance and the final products can be isolated mostly in low to moderate yields of 0–54%. The reaction conditions for specific substrate combinations may be susceptible to further optimization for each substrate demonstrated by the 70% isolated yield of 2e. The method may be valuable for library generation or late-stage modification where operational simplicity is crucial whilst moderate yields are acceptable.

Methods

Unless otherwise noted, purchased chemicals were used as received without further purification. Thin layer chromatography was carried out using TLC Silica Gel 60 F254 (Merck) and visualized by short-wavelength ultraviolet light or by treatment with an appropriate stain. Microwave reactions were conducted in a Monowave 300 by Anton Paar. Flash chromatography was carried out on silica gel 60 (230–400 mesh). Autoflash chromatography (normal and reversed phase) was conducted on CombiFlash EZ prep system. Normal-phase chromatography was performed on RediSep^®^Rf High Performance Gold columns in the appropriate size with the sample preloaded on a precolumn containing celite. Prep-HPLC column chromatography was conducted on a YMC-Actus Triart C18 Semi-preparative HPLC column, 12 nm, S-5 μm 20 × 150 mm 5 μm with a YMC-Triart C18, semi-preparative Guard Cartridge incl. Sealing, 12 nm, S-5 μm, 10 × 20. The sample was liquid loaded pure or mixed with a suitable solvent. Solvent systems are reported as follows: (solventA: solventB [the percentage of solvent]), when the autoflash system was used. High-resolution mass spectra HRMS(ESI) were recorded from methanol solutions on a LTQ Orbitrap XL (Thermo Scientific) in either positive or negative electrospray ionization (ESI) mode. NMR spectra were obtained on a 400 MHz Bruker Avance III HD at 20 °C. GC-MS analysis was performed on a TRACE GC ULTRA, ITQ 1100 instrument with a SUPELCO analytical SLB™-5ms Fused Silica Capillary Column 30 m × 0.2 μm film thickness.

Limitations

The overall chemical yields were variable and mostly low to moderate. A major problem with the three-step sequence is a wide range of yield outcomes in the final cross-coupling step, but also the formation of other regioisomeric alkenes in step 2 and the formation of other side-products in step 1 could contribute to these results. The problems with step 3 may be alleviated by increasing the catalyst loading. Furthermore, product loss during final work-up and isolation due to instability may be a contributing factor to the observed low to moderate yields.

Supplementary Information

Below is the link to the electronic supplementary material.

Supplementary Material 1.
