Postoperative urinary stone analysis—influence of the hydrogel retrieval method on stone analysis
C. Jacobs, F. I. Winterhagen, M. Ritter, P. Lossin, I. Grunwald, J. Stein, S. Latz
TL;DR
This study examines how using hydrogel during urinary stone removal affects the accuracy of stone analysis, finding that proper washing preserves results.
Contribution
The study demonstrates that hydrogel does not affect stone analysis when washed as recommended.
Findings
Proper washing of stones after hydrogel treatment preserves accurate stone composition analysis.
Failure to wash stones after hydrogel leads to undetermined stone composition due to interference.
Stone analysis remains 100% consistent when manufacturer instructions are followed.
Abstract
Stone analysis is crucial in patients with urolithiasis in order to initiate specific metaphylaxis in patients with high risk of recurrence. Hydrogel (mediNik®, Farco) was developed in order to improve stone-free rates. The aim of this study was to investigate whether the use of hydrogel influences the stone analysis. This randomized prospective blinded study was based on a total of 78 urinary stone analyses, the composition of which was measured before and after treatment with hydrogel. Samples were washed according to the manufacturer’s instructions (group 1), with EDTA only (group 2) or not washed after treatment with hydrogel (group 3). The samples were analyzed using Fourier transform infrared spectroscopy (ATR technique). In group 1 (100%, 63) and group 2 (100%, 5), the same urinary stone findings were recorded before and after application of the hydrogel. In group 3, the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3- —Universitätsklinikum Bonn (8930)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsKidney Stones and Urolithiasis Treatments · Pediatric Urology and Nephrology Studies · Urinary Bladder and Prostate Research
Introduction
Background
Urolithiasis represents one of the most frequent urological diagnoses worldwide. The prevalence increased significantly in the industrial nations in the last decades [1–4]. Correspondingly, the amount of surgery and interventions due to urinary stones or related complications rose tremendously [5]. It is thereby not only an individual issue due to repeated interventions, possible complications such as sepsis, ureteral stenosis, bleeding and even terminal renal insufficiency, but also an enorcmous social and economic burden due to treatment costs and loss of working hours.
The recurrence rate without targeted therapy ranges from 50 to 80%. In high risk stone formers international guidelines agree to recommend a specific stone metaphylaxis, which is capable to reduce recurrence risk to 10–15% [6–8]. Stone analysis is crucial to identify risk factors (e.g. uric acid, struvite) and determine the strategies for specific metaphylaxis. Thus, stone analysis is recommended in current guidelines e.g. in the European EAU guideline on urolithiasis for every first stone event and in case of recurrence under metaphylaxis, rapid stone recurrence, and stone recurrence after a long stone-free period.
In this context, residual stones after stone treatment gained the focus of the urological society recently. Several lines of evidence proofed, that residual fragments are an important risk factor for stone recurrence [9]. Reported stone-free rates for e.g. ureteroscopic procedures range between 38.3% and 75.0% [10–12]. Small fragments, which are difficult or impossible to remove via basket, are often left behind in the assumption that they will pass spontaneously after ureterorenoscopy. However, a study from Kang et al. showed that only 40% of patients with residual fragments < 1 mm and only 25% of patients with residual fragments < 3 mm spontaneously passaged the fragments within 2 years [13]. Small fragments can recombine and lead to recurrent symptoms or serve as a nidus for the formation of larger stones [14].
Keller et al. recently defined dust as particles ≤ 250 µm that can be aspirated through a 3.6 Fr. working channel of a modern ureterorenoscope and have a reasonable chance of passing spontaneously after the procedure [15]. Nevertheless, the intraoperative identification of fragments, that do not fulfill the criteria of dust, is often difficult due to poor visibility and phenomena such as the snow globe effect [16]. Lithotripsy of very small fragments into dust is also challenging due to dislocation of these fragments by irrigation flow and laser impulse. Therefore, the development of technologies for achieving a stone-free status has been driven forward in recent years.
In the past, approaches have been explored in this context that have not become established in clinical practice. For instance, autologous blood was applied to the stone fragments. After clotting, the fragments could be extracted as they were stuck in the blood clot. It was first described during open pyelolithotomy [17]. However, the use was restricted in the middle 1980s. The use of autologous blood regained attention 2005 [18]. However, it has not become established in routine clinical practice as it is associated with the risk of colic if not all residual blood clots are removed from the kidney, prolonged procedure time and impaired visibility.
A modern method for stone retrieval involves the use of hydrogels [19, 20]. These substances bind to the small stone material, gels, and facilitate removal. It offers the advantage of effectively binding small stone fragments and facilitating their removal without the need for additional materials. In contrast to the previously mentioned blood-clot method, residual hydrogel in the kidney dissolves with urine, gelation takes less than 3 min, and visibility is good due to coloring. However, it is not yet known whether the hydrogels change the results of stone analysis.
Hydrogel
In this study, we used a biocompatible hydrogel consisting mainly of plant polysaccharides called mediNiK^®^ (FARCO-PHARMA GmbH). The basis of the material used in this study consists of the biopolymer alginate. This consists of repeating units of the two sugar molecules β-D-mannuronate (M) and α-L-guluronate (G), which are linked together via a (1,4)-glycosidic bond. The number of individual monomers can range from a few hundred to several thousand units, with individual regions usually consisting of blocks made up of consecutive M residues (MM…), consecutive G residues (GG…), and alternating G and M residues (MGMGMG…) [24]. These long chains (GG… blocks) can be physically/ ionically cross-linked by the addition of divalent metal ions, such as calcium (Ca^2+^), and thus gelled, whereby the respective composition of the G and M blocks plays an important role in the physical properties of the hydrogel formed. The individual blocks of the α-L-guluronate, for example, are largely responsible for the subsequent strength of the hydrogel formed [25]. The special type of gel formation through a purely physical process (no chemical bonds are formed within this process within the gel) of, for example, calcium-mediated cross-linking makes it possible to dissolve the formed hydrogel again by removing the divalent metal ion, i.e., to return it to its original state. Citrate and ethylenediaminetetraacetic acid (EDTA) or hexametaphosphate [21] are a group of substances known as chelators, some of which are also used in clinical applications. The biocompatible hydrogel described in this publication for the removal of residual stones after ureterorenoscopy (URS) is CE certified and has already been described in various publications [19, 22, 23] and in a clinical study (DRKS-ID DRKS00030532).
Methods
The study underwent review by the Ethics Committee of the University of Bonn, which concluded that ethical vote is not required (361/23-EP).
This is a prospective, blinded, randomized study performed at the Urinary stone Analysis Center in Bonn, Germany. The study was based on a total of 78 urinary stone analyses, the composition of which was measured in the laboratory before and after treatment with hydrogel (mediNiK^®^, FARCO-PHARMA GmbH).
Prospective, randomized recruitment was carried out until all relevant urinary stone types (including common mixed stones) were repeatedly present and included whewellite, weddellite, carbonate apatite, brushite, struvite, uric acid, uric acid dihydrate, ammonium urate, cystine.
The urinary stones received in the urinary stone laboratory and used for this study generally range in size from 1 to 15 mm. However, in clinical practice, hydrogel is used to remove very small fragments from the renal pelvicalyceal system, which are usually smaller than 2 mm. Therefore, the size of the stones used in this study was adjusted; prior to contact with the hydrogel, they measured between 1 and 2 mm.
After initial measurement of the stone composition, the urinary calculi were placed in the hydrogel for 3–4 h and then subjected to various washes. 63 samples (group 1) were washed in 5–10 mL of a 0.5 molar EDTA solution according to the manufacturer’s instructions until the hydrogel clot was completely dissolved. This takes a few minutes. The samples are then washed briefly in water. A further 5 samples were washed with EDTA only (group 2), while 10 samples (group 3) were not washed at all after the contact time with the hydrogel. Afterwards samples underwent a new measurement and blinded evaluation. Washing procedure is ideally performed by the user in the operating room. However, urinary stone laboratories should be aware of the increasing use of medinik. If gel residues are present in the laboratory, the laboratory can and must recognize this and be aware of the washing process. Furthermore, the laboratory must be aware of the artifact bands in order to be able to wash again in case of doubt.

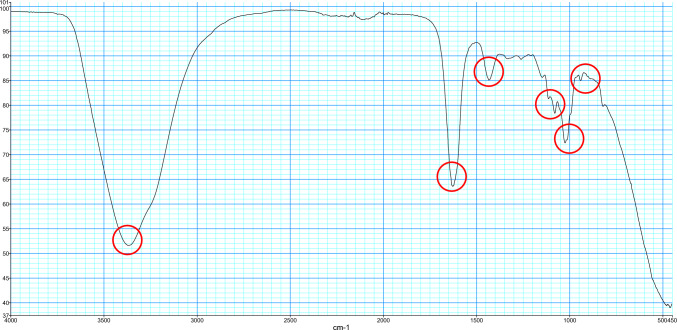

The samples were analyzed using Fourier-transform infrared spectroscopy (FTIR) in attenuated total reflection (ATR) technique (FTIR-ATR), results are shown in analysis spectra (Fig. 1). By knowing the bands of the different stone materials, the stone composition can be determined. In case of mixed stones, the individual components were semiquantitatively indicated in 5% increments. This allowed a detailed assessment of the varying composition within mixed stones and was personally conducted by the laboratory management after IT-assisted pre-evaluation. This ensured a meticulous and standardized approach to the analysis of each urinary stone sample. The two spectra were correlated using the “Spectrum.Ink” measurement software (PerkinElmer “Spectrum Two” device, software 10.7.2, PerkinElmer Inc., USA).Fig. 1mediNiK hydrogel analyzed using Fourier-transform infrared spectroscopy (FTIR) in ATR technique, results are shown in analysis spectra. Typical for mediNiK hydrogel are the bands at 3369, 1627, 1434, 1079, 1024 and 821 cm^−1^ (indicated with red circles)
Data analysis was performed using IBM SPSS Statistics v27. Descriptive statistics were calculated for categorical variables, including frequencies and proportions, while continuously coded variables were described with means and standard deviations. An unpaired, two-tailed t-test was used to test statistical significance (p < 0.05).
Results
Analysis spectra

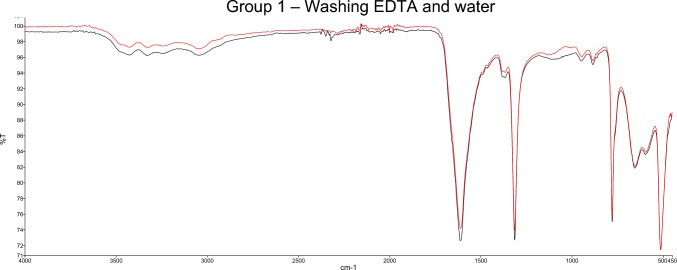

The stone composition was measured before and after treatment with hydrogel and the analysis spectra were compared. In group 1, where the hydrogel was washed out with EDTA and water according to the recommended procedure both curves correlated on average by 0.983 ± 0.0156 standard deviation. No artifact bands were detected. Results of the FTIR-ATR spectra are shown in Fig. 2.Fig. 2. Example for analysis spectra using Fourier-transform infrared spectroscopy (FTIR) before (black) and after (red) application of the hydrogel. Washing with EDTA and water was performed (group 1). The typical bands of the hydrogel cannot be seen. Correlation of the two curves: 0.9966. Stone composition: 90% whewellite, 10% weddellite
In group 2 where the samples were washed with EDTA only both curves correlated by 0.819 ± 0.258 standard deviation. In 4 of 5 cases artificial bands could be seen which did not represent the known bands of the hydrogel but might be due to EDTA rest.

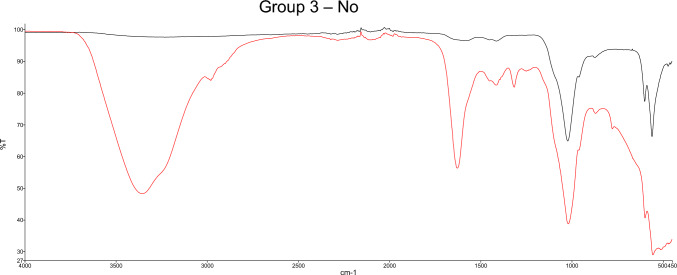

In group 3, where the samples were not washed, the analysis spectra show overlaps with the known mediNiK^®^ bands (3369, 1627, 1434, 1079, 1024 and 821 cm^−1^) (see Figs. 1 and 3).Fig. 3. Example for Analysis spectra using Fourier-transform infrared spectroscopy (FTIR) before (black) and after (red) application of the hydrogel. No washing was performed. The typical bands of the hydrogel can be seen at 3369, 1627 and 1434 cm^−1^. Correlation of the two curves: 0.4956. Stone composition: 100% carbonate apatite
