Novel Derivatives of 3-Amino-4-hydroxy-benzenesulfonamide: Synthesis, Binding to Carbonic Anhydrases, and Activity in Cancer Cell 2D and 3D Cultures

TL;DR

This paper reports the synthesis of new benzenesulfonamide compounds that bind to carbonic anhydrases and show anti-cancer activity in both 2D and 3D cancer cell cultures.

Contribution

The study introduces novel benzenesulfonamide derivatives with selective binding to carbonic anhydrases and evaluates their efficacy in 3D cancer spheroids.

Findings

Compound 9 and 21 reduced viability of cancer spheroids from multiple cell lines.

Compound 9 caused structural changes in U-87 and PPC-1 spheroids.

Compound 21 selectively affected U-87 and MDA-MB-231 spheroids but not PPC-1.

Abstract

A series of novel derivatives of 3-amino-4-hydroxybenzenesulfonamide was synthesized. As the analyzed compounds possess a sulfonamide group, the affinity of these compounds for human carbonic anhydrases (CAs) was measured by fluorescent thermal shift assay, and compound selectivity for different isoenzymes was identified. The crystal structures of the complexes of compound 25 with CAI and CAII were determined. Additionally, the activity of compounds on the viability of three cancer cell lines—human glioblastoma U-87, triple-negative breast cancer MDA-MB-231, and prostate adenocarcinoma PPC-1—was established using the MTT assay and compared to CAIX-selective and non-selective comparative compounds U-104 and acetazolamide. The half-maximal concentration (EC50) was determined for the identified most active compounds, and their selectivity over fibroblasts was established. Compound 9 (inhibitor of multi-CAs) and compound 21 (not binding to CAs), considered the most promising candidates, were tested in cancer cell 3D cultures (cancer spheroids) by assessing their effect on spheroid growth and viability. Both compounds reduced the viability of spheroids from all cancer cell lines. U-87 and PPC-1 spheroids became looser in the presence of compound 9, while the growth of MDA-MB-231 spheroids was slower compared to the control. Compound 21 reduced the growth of U-87 and MDA-MB-231 3D cultures, with no significant effect on PPC-1 spheroids.

Figures

Full text

1. Introduction

The presence of both hydrophilic (hydroxyl, amino) and lipophilic (aromatic ring) regions in the molecule can improve the pharmacokinetic properties of its derivatives. This can result in better absorption, distribution, metabolism, and excretion (ADME) profiles. It can serve as a lead compound for the development of new therapeutic agents. The compound provides a useful scaffold for structure–activity relationship (SAR) studies to understand the relationship between chemical structure and biological activity, guiding the rational design of more effective drugs.

We have previously investigated para-substituted benzenesulfonamides containing modified 5-oxopyrrolidine fragments as carbonic anhydrase (CA) inhibitors [1]. Several compounds showed more potent and selective binding to CAIX. We subsequently examined the influence of the chlorine present at the meta position on the benzenesulfonamide ring on the interaction with CA isoenzymes. Chlorinated pyrrolidinone-based benzenesulfonamide derivatives bound more strongly than non-chlorinated compounds [2]. Later, we synthesized chlorinated benzenesulfonamides with dimethyl groups at the ortho positions with a 5-oxopyrrolidine linker at the para position, and such compounds possessed a stronger affinity for CAVB [3].

In this study, we report the synthesis of hydroxybenzenesulfonamides containing a modified Schiff base, β-alanine, aminoketone, imidazole, and 5-oxopyrrolidine fragments at the meta position, and their binding affinities for twelve catalytically active CA isoenzymes were evaluated by thermal shift assay. Variation of the substituent size at the 3-position of the 5-oxopyrrolidine fragment allowed us to modulate compound binding profiles to CA isoenzymes. For testing compounds’ biological activity in vitro, we chose three different human cancer cell lines based on their aggressiveness and distinct expression of CAs. The triple-negative breast cancer cell line is frequently used as a representative model for screening therapeutic candidates targeting this cancer subtype. It is known for its aggressive nature and high metastatic potential, and is associated with elevated rates of recurrence and mortality [4]. The glioblastoma U-87 cell line is one of the most widely used in vitro models for studying an aggressive and highly invasive form of primary brain tumor [5]. While prostate carcinoma is generally regarded as less fatal, it is the second most commonly diagnosed cancer among men [6]. The limited available treatment for those types of cancer shows a need for more effective and safer alternatives. Moreover, the MDA-MB-231 cell line is often used as an in vitro model for testing the activity of carbonic anhydrase inhibitors, as it is characterized by CAIX expression [7]. Variable expression of different isoforms of CAs has been established in glioblastoma [8]. However, it was shown that the inhibition of CAII in the U-87 cell line could lead to lower resistance to anticancer drugs [9]. On the contrary, the expression of CAIX was not detected in hypoxic prostate tumors [10]; thus, we added the PPC-1 cell line for comparison of compound activity in three different in vitro models with distinct expression of CAs.

In addition, it is known that cell surface transmembrane CAIX and CAXII are usually expressed at higher levels in a hypoxic tumor environment compared to normal tissues [11,12,13]. This makes those two CAs attractive targets for anticancer drug development [14]. It is known that 3D cultures better mimic the tumor microenvironment than the cells in monolayers, including the hypoxic core and metabolic gradient [15]. Usually, hypoxia develops in spheroids exceeding 300–400 μm in diameter [16]. Thus, we tested selected compounds in tumor spheroids of such a size after their formation by a magnetic 3D bioprinting method. For this study, we chose the most active compound binding to many CAs and another one not binding to CAs but relatively highly selective towards cancer cells over fibroblasts.

This study aimed to explore the differences in the biological activity of 3-amino-4-hydroxy-benzenesulfonamides with different binding to CAs in a cancer cell monolayer (2D) and cancer spheroids (3D cultures), taking into consideration the diverse expression of CAs in selected cancer cell lines and different conditions (normoxia and hypoxia). This could help to better understand how much the selectivity towards specific CAs is important in achieving higher activity in more tumor-relevant in vitro models.

2. Results and Discussion

2.1. Chemistry

Sulfanilamides are known as efficient chemotherapeutic agents for preventing and treating human bacterial infections by disrupting bacterial, but not human, metabolism [17]. 3-Amino-4-hydroxybenzenesulfonamide is a reagent used to synthesize antagonists for somatostatin receptor subtype 5 (SST5R). It also has utility in dye applications [18,19].

Schiff bases are a large class of compounds characterized by the presence of a C=N double bond, which is essential to their biological properties. They can be found in nature or synthesized in the laboratory [20,21,22] and are reported to exhibit a broad range of biological activities, namely antibacterial [21,23], antifungal [24,25], antimalarial [26], antiproliferative, anti-inflammatory, antiviral, and antipyretic properties [27,28].

Imidazole is a constituent of various chemical structures in living organisms, including alkaloids, biotin, histamine, histidine, and nucleic acid [29]. Imidazole compounds were found to possess a diversity of pharmacological properties, like anticancer, antioxidant, anti-inflammatory, gastroprotective, histamine-H3 antagonist, and antiparasitic [29,30]. Imidazole is the core of approved drugs with acceptable activities in practice. Many different compounds with an imidazole core have been used in medicine in clinical trials for various diseases, where they have shown strong therapeutic properties. The growing trend of imidazole-based medicinal chemistry has added promising and potential therapeutic values of imidazole compounds in the treatment of incurable diseases [31]. Compared to the other heterocycles, the imidazole derivatives provide electron-rich characteristics responsible for binding with a variety of enzymes, proteins, and receptors. All this attracts the attention of medicinal chemistry researchers to explore the imidazole core in the study of new, improved therapeutic properties.

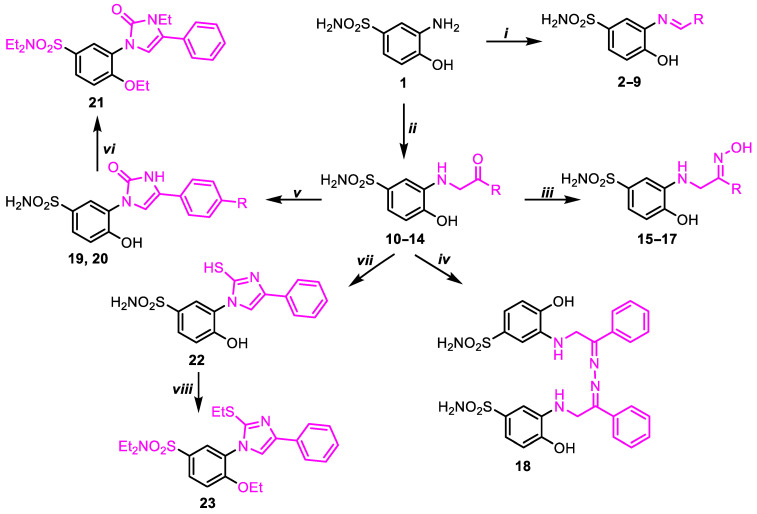

In the present study, Schiff bases were synthesized by the standard procedure (Scheme 1) starting from 3-amino-4-hydroxybenzenesulfonamide, which was condensed with the appropriate aromatic aldehyde in propan-2-ol at reflux for 1 h. The products were isolated in good to excellent yields of 57–95%. The structures of derivatives 2–5 were easily identified by the proton singlet of the N=CH group in the range of 8.62–8.74 ppm. The peak of the proton of this group for more bulky compounds 6 and 7 arose at 9.29 and 8.89 ppm, respectively, and the thiophene-bearing derivatives 8 and 9 showed this proton as the singlets at 8.85 and 9.04 ppm, respectively (Supplementary files, Figures S1–S16).

As part of our ongoing program, the synthesis of compounds with a 2-oxoethylamine core was aimed for. Starting from readily available primary amine 1, its reaction with the corresponding bromoacetophenone afforded target compounds 10–14. The reactions were performed in a mixture of water and propan-2-ol in a ratio of 1:1 at reflux for 4 h. The structures of the products were easily identified from their ^1^H NMR and ^13^C NMR spectra (Supplementary files, Figures S17–S24).

Next, obtained compounds 10–14 were applied for the synthesis of (2-(hydroxyimino)-2-arylethyl)amino derivatives 15–17, the dimer 18, and imidazoles 19–23 (Scheme 1).

To obtain ketoximes 15–17, the corresponding compounds 10, 12, and 13 were treated with a two-fold excess of hydroxylamine hydrochloride in methanol at reflux in the presence of sodium acetate in the mixtures. The products were isolated in mixtures of Z and E isomers in a ratio of 80:20 for all ketoximes (Supplementary files, Figures S17–S30).

Azines having a molecular structure of ArAr^1^C=N–N=CAr^1^Ar are of interest because of their wide range of therapeutic effects [33]. The general mechanism for obtaining the azine structure is the addition of hydrazines to the carbonyl compound to form a hydrazone, which can be followed by reaction with a second molecule of the carbonyl compound, which results in an azine derivative [34]. To prepare such a dimer, a mixture of compound 10 and hydrazine monohydrate in a 2:1 molar ratio was refluxed in methanol for 2 h. The product 3,3′-((hydrazine-1,2-diylidenebis(2-phenylethan-1-yl-2-ylidene))bis(azanediyl))bis(4-hydroxybenzenesulfonamide) (18) was obtained in an excellent yield of 92%. The NMR, IR, and mass spectral data fully confirmed the expected dimer structure (Supplementary files, Figures S31 and S32).

5-Oxo(thioxo)imidazolone, being a privileged molecule because of its biological potency and as an important pharmacophore in modern drug discovery, attracted attention to explore such rings for their new activities.

To obtain the imidazol-2-one derivatives 19, 20, the corresponding precursors 10 and 13 were cyclized with a four-fold excess of carbamide in glacial acetic acid. The reaction was carried out at reflux for 24 h, then the mixture was cooled and diluted with water to form a crystalline solid. In the ^1^H NMR spectra for 19 and 20, the singlets at 10.85 and 11.11 (for 19) as well as at 10.84 and 11.00 (for 20) ppm were assigned to the protons in the OH and NH groups, respectively; the proton of the p-HOPh of compound 20 resonated at 9.57 ppm. The proton of the imidazole CH was observed at 7.84 (19) and 7.83 (20) ppm. Moreover, the resonances in the ^13^C NMR spectra at 109.71 and 107.28 ppm were attributed to the imidazole CH, and the spectral lines at 154.82 as well at 154.65 ppm demonstrated the presence of a carbonyl group in the imidazole ring and approved the formation of 2-oxoimidazole moiety in molecules 19 and 20 (Supplementary files, Figures S33 and S34).

When compound 10 was reacted with potassium thiocyanate in a mixture of glacial acetic acid and hydrochloric acid (5:1) at reflux for 4 h, the thio analogue 22 was isolated from the reaction mixture (resynthesized according to Ref. [32]). Interestingly, compounds 19 and 20 were obtained in keto tautomeric form, while thio derivative 22 appeared to be in thiol form, showing the singlet at 12.92 ppm for SH in the ^1^H NMR spectrum. All other peaks were in excellent agreement with those given in Ref. [32].

To increase the diversity of synthesized compounds, keto- (19) and thiol- (22) tautomers were alkylated with a large amount of ethyl iodide. The reaction was performed in DMSO at reflux for 24 h. The product was isolated by adding water to the cooled reaction mixture. The ^1^H NMR spectrum of compound 21 reconfirmed the presence of the keto form of compound 19 with an NHC=O fragment in the structure. In the ^1^H NMR spectrum for 21, the absence of the singlet for the proton of the NH group at 11.00 ppm and the rise of the signals of 1.19–0.96 (m, 9H, CH_3_) and 1.34 (t, J = 6.9 Hz, 3H, CH_3_), as well 3.16 (q, J = 7.0 Hz, 4H, 2CH_2_), 3.76 (q, J = 6.9 Hz, 2H, CH_2_), and 4.19 (q, J = 6.9 Hz, 2H, CH_2_), confirmed complete ethylation of the SO_2_NH_2_, OH, and NH groups in the structure (Supplementary files, Figures S35 and S36).

In the ^1^H NMR spectrum for 23, the singlet for the SH proton at 12.92 ppm disappeared, and three triplets at 1.05, 1.21, and 1.26 ppm integrated for 6H, 3H, and 3H and three quadruplets at 3.00, 3.19, and 4.20 ppm integrated for 2H, 4H, and 2H correspond to the protons of the ethyl groups providing the N(CH_2_CH_3_)2, OCH_2_CH_3_, and SCH_2_CH_3_ fragments in the molecule (Supplementary files, Figures S37 and S38).

To assess the impact of β-alanine and 3-carboxy-5-oxopyrrolidine fragments on the bioactivity of compounds, 3-((2-hydroxy-5-sulfamoylphenyl)amino)propanoic acid (24) as well as 1-(2-hydroxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylic acid (28) and their derivatives (Scheme 2 and Scheme 3) were prepared and then examined against selected cancer cells.

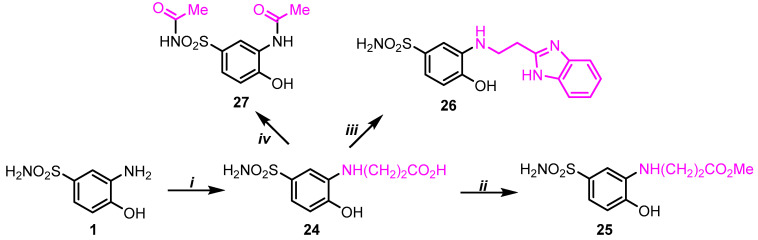

As expected, treatment of amine 1 with acrylic acid in water at reflux for 10 h afforded compound 24 (Scheme 2). In the present case, aromatic amine 1 adds to the α,β-unsaturated bond via a conjugate (Michael-type) addition, affording the corresponding N-substituted β-amino acid 24, which was then reacted with methanol in the presence of a sulfuric acid catalyst to obtain methyl ester 25. The structures of the synthesized acid 24 and its methyl ester 25 were characterized by spectroscopic methods (Supplementary files, Figures S39–S42) and microanalysis data, which fully confirmed the presence of the designed products.

To introduce the benzimidazole core in the molecule, acid 24 was heated at reflux with benzene-1,2-diamine in 4M hydrochloric acid. After completion of the reaction, the dropwise addition of an aqueous 25% ammonia to pH 8 gave the desired structure 26. From the ^1^H NMR spectrum, a broad singlet at 12.30 ppm proved the presence of the NH group of the benzimidazole structure in the molecule. The appearance of additional signals in the aromatic area indicated the presence of a new aromatic ring. In the ^13^C NMR spectrum, instead of the C=O line at 173.41 ppm, a characteristic carbon resonance at 153.18 ppm for the N=C-NH group of benzimidazole was found.

Afterwards, it was decided to form a cyclic product; thus, acid 24 was treated with acetic anhydride as a dehydrating agent, but cyclization did not occur. In this reaction, we initially expected the formation of 2-oxo-2,3,4,5-tetrahydrobenzo[b][1,4]oxazepine-7-sulfonamide; however, the actual outcome deviated from this pathway, and the N-acetylated product N-((3-acetamido-4-hydroxyphenyl)sulfonyl)acetamide (27) was isolated from the reaction mixture and fully characterized by the methods of IR and NMR (Supplementary files, Figures S43–S46) spectroscopy and microanalysis data.

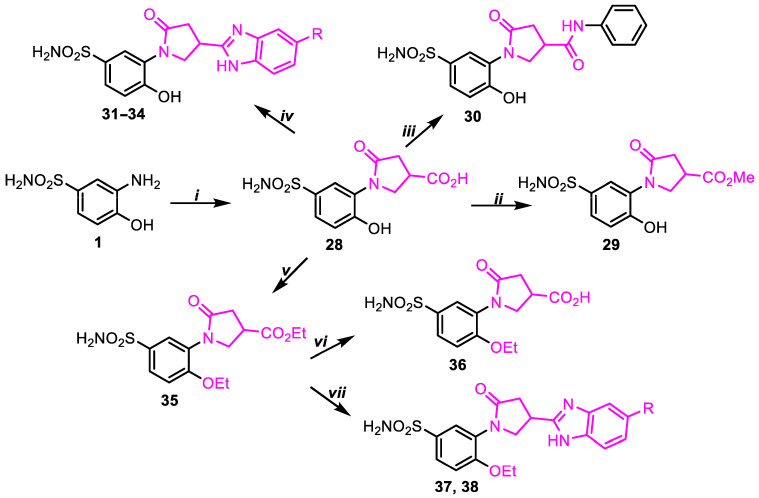

In the last stage of the study, a library of 1-(2-hydroxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylic acid derivatives were prepared by incorporating alkyl, amino, ethereal, and heterocyclic fragments into the molecular structure (Scheme 3).

Refluxing 4-hydroxy-3-aminobenzenesulfonamide (1) with itaconic acid afforded carboxylic acid 28, which was subsequently transformed into a series of derivatives. Pyrrolidine-3-carboxylic acid 28 was then reacted with methanol in the presence of a sulfuric acid catalyst to obtain methyl ester 29 (Supplementary files, Figures S47–S52), and with aniline in DMF in the presence of triethylamine at room temperature for 24 h to afford amide 30.

Benzimidazoles 31–34 were synthesized from a reaction of acid 28 and the appropriate benzene-1,2-diamine according to the commonly used method as for the preparation of 26 and fully characterized by the methods of the IR and NMR (Supplementary files, Figures S53–S60) spectroscopy and microanalysis data.

After that, it was decided to carry out the alkylation reaction of acid 28 with ethyl iodide. The reaction in DMF at ambient conditions for 14 h and in the presence of a strong base potassium hydroxide and potassium carbonate as an agent to maintain an anhydrous medium gave the O-alkylated product 35. The additional spectral lines of the aliphatic protons are visible in the ^1^H NMR spectrum of the synthesized compound. Two triplets at 1.22 and 1.33 ppm, which are integrated for three protons each and a multiplet from 4.00 to 4.31 ppm, which was integrated for four protons, showed the presence of 2C_2_H_5_ groups included in the molecule. The remaining intense singlet at 7.30 ppm indicated that ethylation of the NH_2_ group did not occur in this case. In the ^13^C NMR spectrum, the resonance lines at 14.04 and 14.40 ppm for 2CH_3_ as well as 60.80 and 64.41 ppm for 2CH_2_ fully confirmed the presence of two ethyl groups (Supplementary files, Figures S61 and S62).

Compound 35 was further refluxed in 10% hydrochloric acid for 2 h, thereby cleaving the ester bond and affording the carboxylic acid 36. In the ^1^H NMR spectrum of this compound, the remaining triplet at 1.34 ppm and quadruplet at 4.14 ppm are proton signals of the CH_2_CH_3_ group, and the deshielded proton singlet at 12.73 ppm, which was assigned to the carboxyl group, indicated a compound with a free carboxyl group. This was supported by the ^13^C NMR as well. Spectral lines at 14.42 and 64.42 ppm are signals of the carbons of the ethyl group incorporated into the structure of the molecule through the oxygen atom, and the peak at 174.27 ppm shows the restored COOH (Supplementary files, Figures S63 and S64).

Finally, the O-ethylated product 35 was applied to synthesize benzimidazoles 37 and 38, using benzene- and 4-chlorobenzene-1,2-diamines. The spectral and microanalysis data were in excellent agreement with the structures obtained (Supplementary files, Figures S65–S69).

2.2. Compound Binding to Human Carbonic Anhydrases

We measured the affinities of the synthesized compounds for recombinant human carbonic anhydrases (CAs) by fluorescent thermal shift assay (FTSA). The FTSA method (also referred to as differential scanning fluorimetry, DSF) quantifies protein–small molecule binding affinity according to the ligand-induced increase in protein stability.

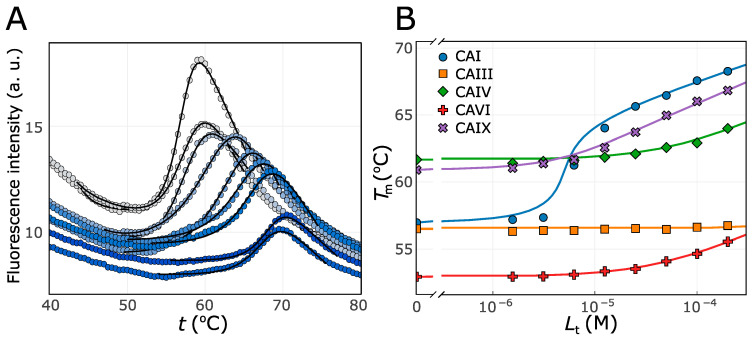

Figure 1A shows an example of the primary data obtained in this work by FTSA: the interaction of the protein CAI with compound 12. The intensity of the blue color of the symbols indicates an increase in the concentration of the added compound, i.e., the grey color corresponds to the unfolding curve of the ligand-free protein, and the dark blue color indicates the highest concentration of the compound. The symbols denote the experimental measurement points in the graph, and the lines represent the model used to determine the melting point (Tm). With increasing concentration of the added compound, the Tm increases from about 56 to 66 °C. Figure 1B shows the Tm dependence of the added ligand concentration of five recombinant human carbonic anhydrase isoenzymes (CAI, CAIII, CAIV, CAVI, and CAIX). In this example, the analyzed compound does not bind to CAIII in the range of concentrations tested (up to 200 µM), weakly binds to CAIV and CAVI (with Kd 17 µM and 20 µM, respectively), binds to CAIX with a Kd of 0.98 µM, and most strongly binds to CAI with a Kd of 6.2 nM. Although there is no direct correlation between the change in Tm and the strength of the interaction [35], the general trend is that ligands that bind more strongly are more likely to stabilize the protein.

The dissociation constants (Kd) were determined using the Thermott online tool [36]. Table 1 shows the Kd values (μM) determined for the interaction of all the compounds studied with human carbonic anhydrase isoenzymes at 37 °C. Control compounds acetazolamide (AZM) and U-104 were used in the study.

The analyzed 3,4-diphenyl-substituted benzenesulfonamides were categorized into five groups based on structural similarity. The structure-CA affinity analysis of these compounds is discussed below.

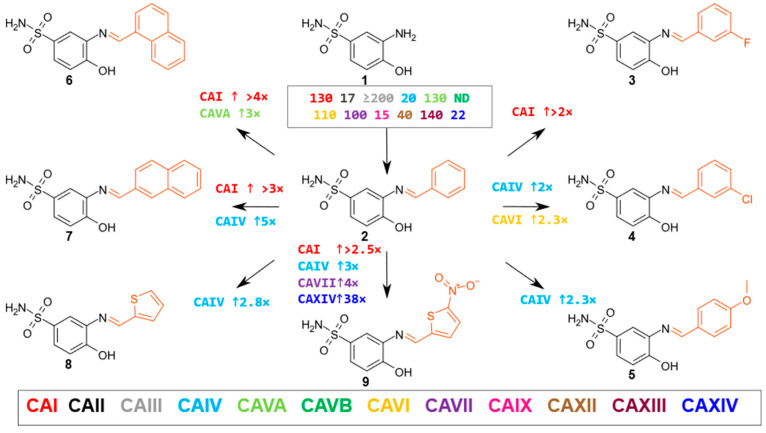

Schiff base compounds

The Shiff base group comprised eight compounds based on 4-hydroxybenzenesulfonamide. The parent compound 2 in this group, with a phenyl substituent, had a moderate affinity for CAII, CAIV, CAIX, and CAXIV isoenzymes, with Kd values of 16–28 μM and weaker binding to others. Compounds with different substituents showed minor changes: compound 4 with a 4-chlorophenyl substituent decreased the Kd value to 11–22 μM. However, compounds 3 and 5, with 3-fluorophenyl and 4-methoxyphenyl substitutions, respectively, did not have a significant effect on the affinity (Figure 2).

Introducing the naphthyl group into the compound structures (compounds 6 and 7) resulted in a better binding to CAI (Kd = 47–59 μM) than the other compounds in this group, but the overall affinity was not strong. The most significant changes were observed in the interaction of compound 6 with CAVA (Kd = 37 μM), while compound 7, with a 2-naphthyl substituent, had the strongest interaction with the CAIV isoenzyme (Kd value 5.5 μM), with which the affinity was increased by a factor of five compared to the initial compound 2. The substitution of the phenyl ring by thiophene (compound 2 vs. 8) did not significantly affect the affinity towards all CAs (affinity increased up to 3 times only for CAIV). However, compound 9, with nitrothiophene moiety, bound more strongly than the parent compound 2 to the isoenzymes CAI, CAIV, and CAVII (Kd values of 9 to 21 μM), and up to 38 times increased affinity was observed for CAXIV (Kd value 0.65 μM).

Aminoketones and their derivatives

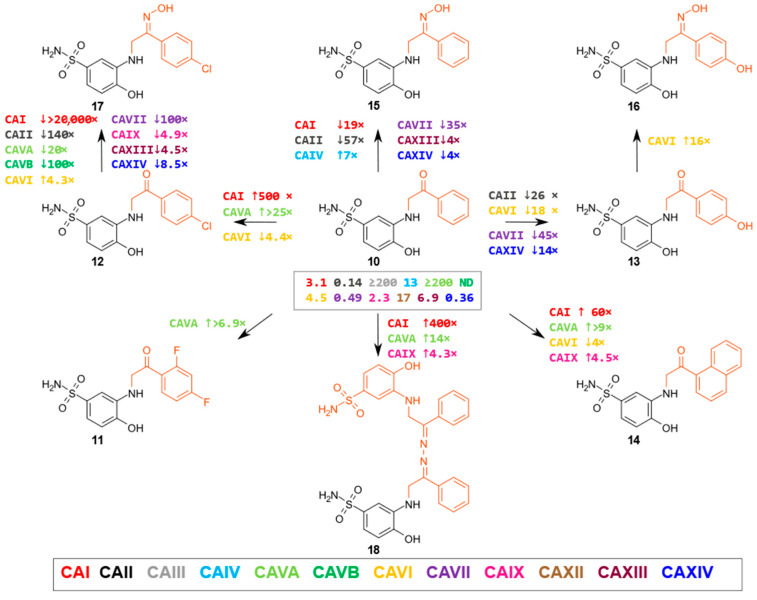

A group of aminoketones and their derivatives consists of nine compounds based on 3-amino-4-hydroxybenzenesulfonamide, with different aminoketone fragments. The substituent changes in this group significantly affected the observed affinity for different CA isoenzymes (Figure 3). Aminoketone 10, containing a phenyl substituent, had the strongest affinity for CAI, CAII, CAVII, CAIX, and CAXIV isoenzymes (Kd values in the range of 0.14–3.1 μM). The 4-chlorophenyl substituent in compound 12 notably enhanced the binding to CAI up to 500 times (Kd 6.2 nM) and to CAVA up to 25 times (Kd 8 µM) in comparison to compound 10 (Kd for CAI and CAVA is 3.1 and ≥200 µM, respectively), and 2,4-difluorophenyl- and 4-hydroxyphenyl- substituents (11 and 13, respectively) weakened the binding of the majority of these CAs in comparison to compound 10 (Kd values of 0.15 to 6 μM and 3.6 to 22 μM, respectively). Replacement of the phenyl substituent (compound 10) by a 1-naphthyl substituent (compound 14) increased the affinity for the CAI by 60 times, and for CAVA and CAIX isoenzymes by 9 and 4.5 times.

Ketoximes (15, 17, 16) derived from amino ketones (10, 12, 13) showed the strongest binding to CAVI (Kd = 2.4–5.1 μM), CAIX (Kd = 1.5–4.8 μM), and CAXIV (Kd = 1.6–2.9 μM) isoenzymes. Compounds 15 and 16 were among the most effective for CAIV (Kd = 1.9 and 3 μM, respectively) of the whole series of tested compounds. One compound in this group stood out in terms of its structure as a dimer (compound 18). It was a strong binder to CAI, CAII, CAVII, CAIX, and CAXIV isoenzymes, with Kd values in the range of 0.0077 to 0.53 μM.

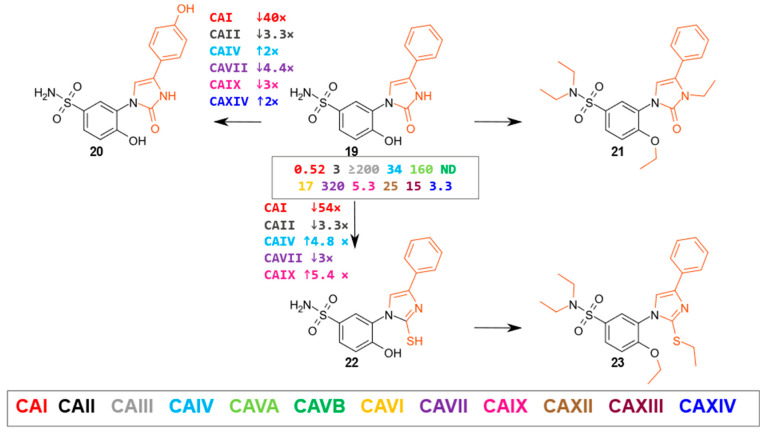

Oxoimidazoles

This group consisted of five compounds—three 4-hydroxybenzenesulfonamides (compounds 19–21) and two 4-ethoxybenzenesulfonamides (22, 23) containing a phenylsubstituted oxoimidazole fragment (Figure 4, compounds 19 to 23, alternating group in red).

Compound 19, with a phenyl substituent, bound most strongly to CAI (Kd = 0.52 μM), CAII (Kd = 3.0 μM), CAIX (Kd = 5.3 μM), and CAXIV (Kd = 3.3 μM). The introduction of a hydroxy group in the para-position of the phenyl ring (compound 20) most strongly reduced binding affinity for CAI (about 40–fold). Compound 21, bearing an alkylated tertiary sulfonamide group, completely lost its ability to bind CA isoenzymes.

2-Thioimidazole 22 bound strongly to CAIX (Kd = 0.98 μM) and moderately to CAII (Kd = 9.8 μM), CAIV (Kd = 7.1 μM), CAXIII (Kd = 14 μM), and CAXIV (Kd = 5.9 μM) isoenzymes. N-alkylated sulfonamide, compound 23, lost its affinity to CA isoenzymes.

Comparing two analogous compounds 2-oxoimidazole 19 and 2-thioimidazole 22, we observed that the compound containing the oxo group bound about fifty times more strongly to CAI (Kd = 0.52 μM) and about three times more strongly to CAII (Kd = 3.0 μM) and CAVII (Kd = 32 μM). In contrast, the compound containing the thiol group had about five times stronger binding to the isoenzymes CAIV (Kd = 7.1 μM) and CAIX (Kd = 0.98 μM).

β-Amino acids and their derivatives

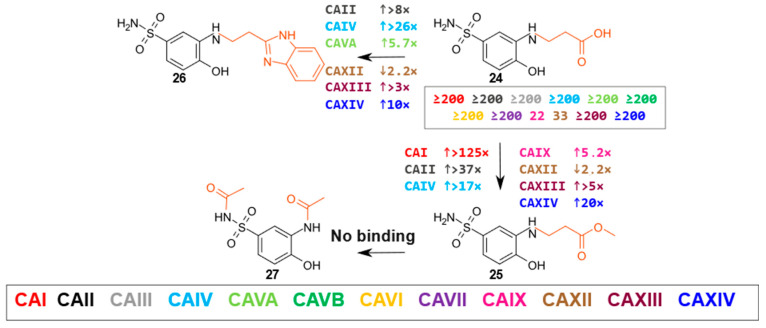

There were four compounds in this group (compounds 24–27 in Figure 5, alternating group marked in red). Carboxyl-containing compound 24 bound weakly only to CAIX and XII, (Kd values of 22 μM and 33 μM, respectively), whereas the methyl ester (compound 25) showed an increased affinity of more than 100-fold for CAI, nearly 40-fold for CAII, about 20-fold for CAIV and CAXIV, and about 5-fold for CAIX and CAXIII. The benzimidazole fragment (compound 26) increased the affinity for CAI, CAII, CAVA, CAIX, and CAXIV isoenzymes compared to the carboxyl group containing compound 24. Still, with most CAs, 26 had a weaker binding than the methyl ester 25 discussed above. Diacetylated compound 27 did not interact with CA isoenzymes.

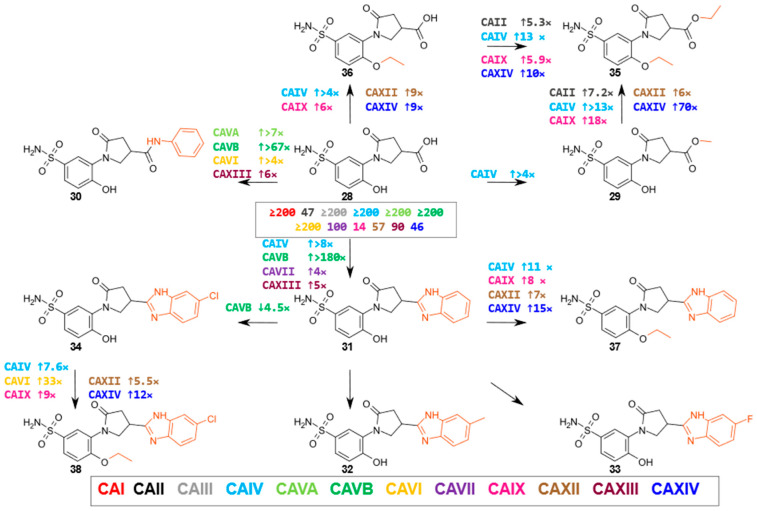

3-substituted-5-oxopyrrolidine derivatives

This group consisted of eleven compounds, 4-hydroxybenzenesulfonamide derivatives containing 3-substituted-5-oxopyrrolidine fragment (compounds 28–38 in Figure 6, with the alternating group marked in red). The 5-oxopyrrolidine-3-carboxylic acid fragment of the primary compound 28 had a weak affinity for CA isoenzymes. However, a higher selectivity for the CAIX isoenzyme was observed (Kd = 14 μM), and modification of the compound to the methyl ester 29 enhanced the binding (Kd = 7.1 μM), with an approximately four-fold increase in the affinity for CAIV. Ethylation of the hydroxyl group of compound 28 (compound 36) enhanced the interaction with most CA isoenzymes, while modification of the carboxyl group to an ester (compound 35) further increased the affinity, e.g., Kd = 0.39 μM for CAIX and Kd = 0.48 μM for CAXIV.

The specificity for CA isoenzymes changed quite significantly with the modification of parent compound 28 into amide 30. Although the overall affinity for CA isoenzymes remained weak, binding to the CAVB isoenzyme increased most (from Kd ≥ 200 µM to Kd 3 μM), while interactions with the CAVA, CAVI, and CAXIII isoenzymes also became stronger.

Compounds 31–34, with benzimidazole fragments, showed a slightly stronger affinity for CA isoenzymes than parent compound 28, with the highest affinity and selectivity of 31 for the CAVB isoenzyme (Kd = 1.1 μM). Compounds 32–34 with methyl, fluorine, and chlorine substituents at the fifth position of the benzimidazole ring interacted with most isoenzymes with similar strengths.

The modification of the hydroxyl group of compounds 28, 31, and 34 to the ethoxy group yielded compounds 36, 37, and 38, respectively, and we observed an increase in the affinity for many isoenzymes, most notably CAIV, CAVI, CAIX, CAXII, and CAXIV. For example, compound 31 with a hydroxy group bound more weakly to CAIV, CAIX, and CAXIV (Kd = 24 μM, 9.7 μM, 14 μM, respectively) than compound 37 with an ethoxy group (Kd = 2.2 μM, 1.2 μM, 0.94 μM, respectively). Analogous changes in affinity were seen with compounds 28 and 36 and compounds 34 and 38. We also observed that the carboxy group-containing compound 36 (Kd = 2.3 μM, 5.0 μM, respectively) bound more weakly than its ethyl ester 35 (Kd = 0.39 μM, 0.48 μM, respectively). In addition, compound 35 had the strongest affinity for CAIX and CAXIV isoenzymes of all the compounds in this group. Similarly, compound 28, with a carboxy group, has a weaker binding affinity than its methyl ester, 29.

In summary, this group of compounds did not bind to CAI or CAIII and bound weakly to CAII, CAVA, CAVII, CAXII, and CAXIII. Structure–activity analysis shows that the compounds containing the ether group bound better than the others to CAIV, CAIX, and CAXIV. On the other hand, 4-hydroxybenzenesulfonamide compounds containing a benzimidazole fragment exhibited a strong interaction with the CAVB isoenzyme (Kd = 1.1–4.9 μM).

Structure–activity analysis of the compounds studied shows that the addition of additional groups (e.g., ethyl, acetyl) to the primary sulfonamide fragment abolished the ability of the compounds (21, 23, 27) to bind to CA isoenzymes.

V. Alterio et al. [39] conducted a study on 4-mercaptobenzene-1,3-diol, which contains a hydroxyl group at the para-substrate of the benzene ring towards the thiol (analogous to the -OH group towards the sulfonamide in the compounds we have studied), and found by crystallography that on binding to the CAII isoenzyme, the hydroxyl group was unfavorably oriented towards the hydrophobic region consisting of the amino acid residues of Ile91, Phe131, Val135, Leu141, and Leu198. Meanwhile, deletion of the hydroxyl group improved the affinity of the molecule for the CA active site. Thus, targeting the hydrophilic hydroxyl group to the hydrophobic pocket of the CA active center created unfavorable conditions for the formation of interactions between these fragments. In our study, compounds with an -OEt group in place of -OH (35, 36, 37, 38) bound more strongly than their counterparts with a hydroxyl group, which supports this hypothesis.

2.3. Crystal Structures

Based on the previously presented structure–activity relationship, even minor structural modifications in the compound series led to substantial differences in affinity toward CAs, with compound 25 showing the highest affinity gains (compared to the structurally closest compounds, 24 and 27, Figure 5) for CAI and CAII, which guided its selection for crystallographic studies. We determined the crystal structures of the complexes of compound 25 with CAI and with CAII (PDB ID 9HWN and 9HWM, X-ray crystal structure refinement statistics and crystallization conditions presented in Supplementary Table S1). There were two protein subunits in ASU of CAI crystal and one in CAII. In all protein chains, 25 was modeled in two alternative conformations. The electron density maps of compound 25 are shown in Figure 7.

In CAII, compound 25 had two alternative positions, which differed only by the orientation of flexible tails (Figure 8A). The benzene ring of 25 was located at the hydrophobic part of the CAII active site (near Phe131). The flexible tail in the first alternate conformation was folded 180 degrees and fixed between the molecular surface formed by the benzene ring of compound 25 and the Pro202 chain. In the second alternate conformation, the head of the flexible tail was located deep in the pocket of the hydrophilic part of the CAII active site (under the side chains of His64 and Asn62). Additionally, an oxygen atom of the flexible tail formed a hydrogen bond with the side chain of Asn62.

The positions of the benzene rings in both subunits of CAI were very similar. In both subunits, compound 25 was modeled in two alternate conformations due to different orientations of the flexible tail. The benzenesulfonamide was tightly fixed between the side chains of Leu198 and His200. In both cases, the flexible tail was exposed to solvent due to the narrow shape of the CAI active site. In the first alternate conformation, the head of the flexible tails stuck to the hydrophobic surface. In the second alternate conformation, the head of the flexible tails was found in the hydrophilic part of the active site (Figure 8B).

The comparison of compound 25 bound to CAII and CAI is shown in Figure 8C. The main differences found in the surface of active sites comparing CAI and CAII are the following: Phe91 vs. Ile91, Leu131 vs. Phe131, His200 vs. Thr200, and His67 vs. Asn67. The side chains of His200 and His67 in CAI reduced the shape of the active site of CAI compared to CAII (Thr200 and Asn67). The shape differences of Phe131 (CAII) and Leu131 (CAI) were compensated for by differences between Ile91 (CAII) and Phe91 (CAI). Overall, the CAI active site was narrower than that of CAII.

2.4. Biology

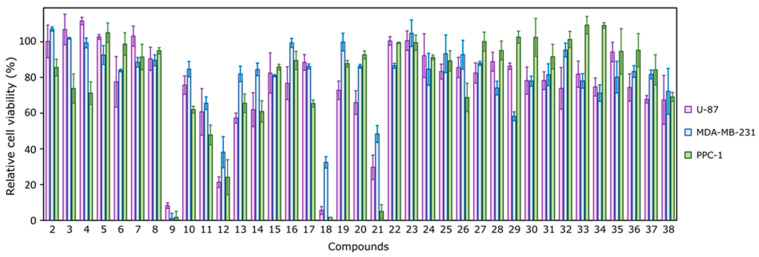

We performed biological analysis of compounds 2–38 by evaluating their effect on cancer cell viability using the MTT assay. Generally, most compounds were not active against human glioblastoma U-87, triple-negative breast cancer MDA-MB-231, or prostate adenocarcinoma PPC-1 cell lines and reduced cell viability only up to about 50% at 100 μM concentration (Figure 9). This could be explained by the aggressiveness and resistance of the selected cell lines [4,5,6]. Only four compounds (9, 12, 18, and 21) reduced the viability of at least one of the tested cell lines up to <20% (Figure 9). These compounds showed a very distinct CA binding profile (Table 1). Compounds 12 and 18 were characterized by relatively low K_d_s towards most CAs, while compound 9 showed a modest affinity, and compound 21 did not bind any of the tested CAs (Kd ≥ 200 μM). Interestingly, compound 14, which bound most CAs with relatively low Kd, did not show high cytotoxicity against either of the tested cancer cell lines.

Thus, for further biological experiments, we selected the four most active candidates to establish their half-maximal effective concentrations (EC_50_ values) and explore their effects in tumor spheroids—a 3D cell model with hypoxia—to investigate the possible relationship with their inhibitory effect on different CAs and anticancer activity.

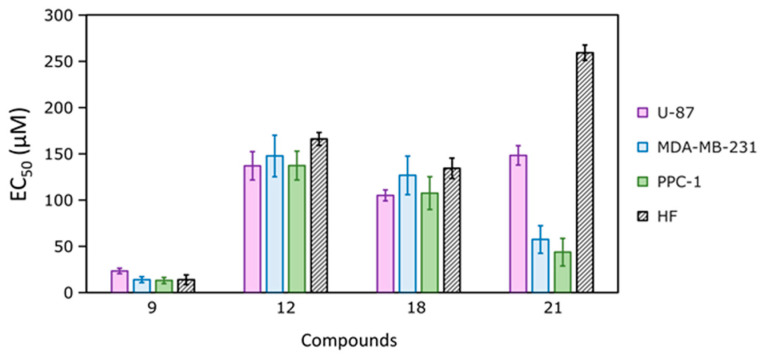

After the dose–effect correlation studies in cell lines, the EC_50_ values were calculated, which indicate the concentration at which tested compounds reduced the cell viability by 50% (Figure 10 and Table 2). The most cytotoxic was compound 9, especially against triple-negative breast cancer and prostate adenocarcinoma cell lines. However, it was not selective against cancer cells compared to fibroblasts, as the EC_50_ values were similar, and even almost twice as low in fibroblasts compared to the glioblastoma cell line.

The activity of compounds 12 and 18 was comparable towards cancer cells and fibroblasts, and there was no statistically significant difference between their EC_50_ values against separate cancer cell lines. Compound 21 was less active against the glioblastoma cell line but more active against the breast cancer and prostate cell lines and also showed 1.5–6 times higher selectivity for cancer cells over fibroblasts, which could make it a good candidate for more detailed experiments. As was discussed earlier, compound 21 did not bind to CAs and possibly acts through a different mechanism of action, which still needs to be discovered. It should be noted that, though the cytotoxicity was not very high, generally all four compounds were more active against the triple-negative breast cancer cell line MDA-MB-231 compared to CA-IX inhibitor U-104, and more active against all cell lines than the non-selective CA inhibitor acetazolamide (Table 2).

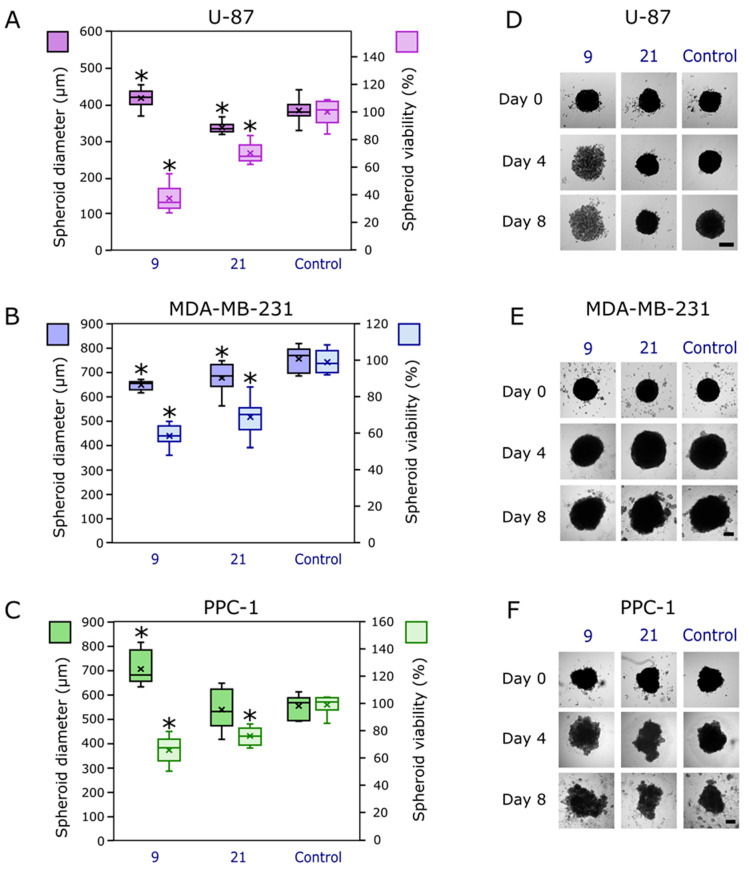

Taking into account the high activity of compound 9 and selectivity of compound 21 towards cancer cells over fibroblasts, those two candidates were tested in cancer cell three-dimensional (3D) cultures. The spheroids were formed from cancer cells and fibroblasts at a ratio of 1:1 to better mimic the tumor microenvironment [40]. In addition, fibroblasts served as a support for cancer cells and helped to keep them in a 3D configuration for 10 days (the duration of the experiments). From our previous experiments, we noticed that MDA-MB-231 cells alone did not form spheroids, or after forming spheroids, they tended to disintegrate in a few days.

Compound 21 reduced the growth of glioblastoma and breast cancer spheroids (Figure 11A,B,D,E), with no statistically significant effect on prostate cancer spheroids (Figure 11C,F). However, compound 9 showed a different effect in 3D cultures, as in its presence, the glioblastoma and prostate cancer spheroids at the end of the experiment became more diffuse, and some cells were detached from the cultures (Figure 11D,F). On the contrary, breast cancer MDA-MB-231 spheroids became smaller compared to the control (Figure 11E). It could be hypothesized that this effect is related to the inhibition of CAIX, which is highly expressed in MDA-MB-231 cells under hypoxia, while this phenomenon is not relevant for glioblastoma and prostate cells, as discussed earlier. However, in our previous experiments, we noticed that the spheroid size does not always correlate with cell viability, as some compounds may affect the cell–cell interaction and the compactness of the structure [41], so at the end of the experiment, we measured the viability of cell spheroids. It was determined that compound 9 exhibited the strongest effect on cell viability reduction of all three types of spheroids (Figure 11A–C). Overall, its effect on spheroids’ integrity could be explained by its mechanism of action related to the inhibition of carbonic anhydrases, especially CA IX, which is known to be related to cell–cell adhesion [42]. The activity of compound 21 most probably was achieved through a different mechanism of action, as it did not bind to CAs (Table 1). The obtained promising results in 3D cultures suggest that it is worth exploring the pharmacology of compound 21, considering its selectivity towards the tested cancer cell lines.

Overall, the obtained results suggest that the strongest binding to CAs is not the only or most important factor to achieve a higher effect in cancer cell 2D and 3D cultures. We hypothesize that other factors could also contribute to compound biological activity, such as oxygen concentration, cell permeability, off-target effects, etc. It is known that sulfonamides can bind not only to CAs but also to other targets, which may contribute to their polypharmacological [43] or off-target effects [44]. Additionally, it cannot be ruled out that sulfonamides could bind to other zinc-containing enzymes, of which there are over 200 identified [45]. Moreover, the selected most active sulfonamides contain different chemical fragments apart from the sulfonamide group, and they could also contribute to additional mechanisms. For example, compound 9, which was the most active in the cancer cell models, contains a nitro-thiophene group, which is known to play a role in intercalating DNA [41]. This way, several possible mechanisms of action could make this compound more potent in biological assays. Also, though compound 21 is a secondary sulfonamide and did not bind to CAs, its biological activity in cancer cells could be due to another mechanism, as some authors revealed that secondary sulfonamides can bind to another zinc-containing enzyme—histone deacetylase [46].

Overall, our results are not very surprising, as some earlier research conducted on sulfonamides binding to CAII and biological activity revealed the unpredictable behavior of some drugs, possibly as a consequence of their activity toward multiple targets [47]. Considering the complicated mechanism of action of sulfonamides, we suggest that further thorough analysis is needed to come to clearer conclusions on the correlations between distinct binding to CAs and biological activity in clearly defined in vitro tumor models.

3. Materials and Methods

3.1. Chemistry

Reagents and solvents were obtained from Sigma-Aldrich (St. Louis, MO, USA) and used without further purification. The reaction course and purity of the synthesized compounds were monitored via TLC using aluminum plates precoated with silica gel with 60 F254 nm (Merck KGaA, Darmstadt, Germany). Melting points were determined with a Barnstead Electrothermal MEL-TEMP^®^ 1101D (Electrothermal, Staffordshire, UK) and were uncorrected. NMR spectra were recorded on a Bruker BioSpin GmbH (^1^H 400 MHz, ^13^C 101 MHz) spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany). Chemical shifts were reported in (δ) ppm relative to tetramethylsilane (TMS) with the residual solvent as an internal reference (DMSO-d6, δ = 2.50 ppm for ^1^H and d = 39.5 ppm for ^13^C). Data were reported as follows: chemical shift, multiplicity, coupling constant (Hz), integration, and assignment. IR spectra (ν, cm^−1^) were recorded on a PERKIN ELMER Spectrum Bx FT-IR (Perkin–Elmer Inc., Waltham, MA, USA) using KBr pellets. Mass spectra were obtained on a Waters SQ Detector 2 mass spectrometer (Waters, Milford, MA, USA) with ESI ionization. Elemental analyses (C, H, N) were conducted using the Elemental Analyzer CE-440 (Exeter Analytical, Inc., Chelmsford, MA, USA); their results were found to be in good agreement (±0.3%) with the calculated values.

General procedure of the preparation of Schiff bases 2–9

A solution of 3-amino-4-hydroxybenzenesulfonamide (1) (1.88 g, 10 mmol) and the corresponding aldehyde (14 mmol) in propan-2-ol (30 mL) was heated at reflux for 1 h, then cooled, and the formed precipitated was filtered off, washed with propan-2-ol and diethyl ether, and recrystallized from a mixture of acetone: hexane 1:1.

3-(Benzylideneamino)-4-hydroxybenzenesulfonamide (2)

White solid, yield 2.63 g, 95%, mp 210–212 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 9.95 (s, 1H, OH), 8.72 (s, 1H, N=CH), 8.05 (d, J = 6.7 Hz, 2H, H_Ar_), 7.60 (s, 1H, H_Ar_), 7.58–7.50 (m, 4H, H_Ar_), 7.17 (s, 2H, NH_2_), 7.03 (d, J = 8.4 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 161.33, 153.70, 138.17, 135.97, 135.13, 131.74, 129.08, 128.79, 124.85, 117.48, 115.94 (C_Ar_, N=CH) ppm.

IR (KBr): n 3376 (O-H); 3345 (N-H); 1626 (C=N); 1303 (C-N); 1165 (S=O) cm^−1^.

Anal. Calcd for C_13_H_12_N_2_O_3_S, %: C 56.51; H 4.38; N 10.14; Found, %: C 56.48; H 4.35; N 10.17.

3-((4-Fluorobenzylidene)amino)-4-hydroxybenzenesulfonamide (3)

White solid, yield 1.67 g, 57%, mp 252–254 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 9.93 (s, 1H, OH), 8.72 (s, 1H, N=CH), 8.13 (t*, J* = 8.5 Hz, 2H, H_Ar_), 7.60 (s, 1H, H_Ar_), 7.55 (d, J = 8.4 Hz, 1H, H_Ar_), 7.37 (t, J = 8.5 Hz, 2H, H_Ar_), 7.16 (s, 2H, NH_2_), 7.03 (d, J = 8.4 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 164.19 (d, J = 249.7 Hz, CF), 159.90, 153.79, 137.86, 135.12, 132.68, 131.49 (d, J = 9.0 Hz, CF), 124.93, 117.31 (C_Ar_, N=CH), 115.87 (d, J = 21.8 Hz, CF) ppm.

IR (KBr): n 3381 (O-H); 3331 (N-H); 1627 (C=N); 1305 (C-N); 1220 (C-F); 1169 (S=O) cm^−1^.

Anal. Calcd for C_13_H_11_FN_2_O_3_S, %: C 53.06; H 3.77; N 9.52. Found, %: C 53.10; H 3.73; N 9.51.

3-((4-Chlorobenzylidene)amino)-4-hydroxybenzenesulfonamide (4)

White solid, yield 2.84 g, 91%, mp 239–241 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 9.98 (s, 1H, OH), 8.74 (s, 1H, N=CH), 8.08 (d, J = 8.2 Hz, H_Ar_), 7.62 (s, 2H, H_Ar_), 7.60 (s, 1H, H_Ar_), 7.56 (d, J = 8.5 Hz, 1H, H_Ar_), 7.17 (s, 2H, NH_2_), 7.03 (d, J = 8.5 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 159.93, 153.86, 137.66, 136.31, 135.14, 134.86, 130.72, 128.90, 125.14, 117.38, 116.05 (C_Ar_, N=CH) ppm.

IR (KBr): n 3400 (O-H); 3329 (N-H); 1625 (C=N); 1322 (C-N); 1163 (S=O); 689 (C-Cl) cm^−1^.

Anal. Calcd for C_13_H_11_ClN_2_O_3_S, %: C 50.25; H 3.57; N 9.01. Found, %: C 50.28; H 3.59; N 9.03.

4-Hydroxy-3-((4-methoxybenzylidene)amino)benzenesulfonamide (5)

White solid, yield 2.53 g, 83%, mp 178–180 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 9.82 (s, 1H, OH), 8.62 (s, 1H, N=CH), 8.00 (d, J = 8.2 Hz, 2H, H_Ar_), 7.57 (s, 1H, H_Ar_), 7.52 (d, J = 8.3 Hz, 2H, H_Ar_), 7.15 (s, 2H, NH_2_), 7.08 (d, J = 8.2 Hz, 1H, H_Ar_), 7.01 (d, J = 8.3 Hz, 1H, H_Ar_), 3.85 (s, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 162.16, 160.38, 153.72, 138.43, 135.10, 130.98, 128.89, 124.42, 117.13, 115.73, 114.23 (C_Ar_, N=CH), 55.46 (OCH_3_) ppm.

IR (KBr): n 3359 (O-H); 3277 (N-H); 1623 (C=N); 1323 (C-N); 1254 (C-O); 1167 (S=O) cm^−1^.

Anal. Calcd for C_14_H_14_N_2_O_4_S, %: C 54.89; H 4.61; N 9.14. Found, %: C 54.92; H 4.64; N 9.16.

4-Hydroxy-3-((naphthalen-1-ylmethylene)amino)benzenesulfonamide (6)

White solid, yield 2.73 g, 77%, mp 238–240 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.12 (s, 1H, OH), 9.29 (s, 1H, N=CH), 9.16 (d, J = 8.5 Hz, 1H, H_Ar_), 8.30 (d, J = 7.1 Hz, 1H, H_Ar_), 8.15 (d, J = 8.1 Hz, 1H, H_Ar_), 8.06 (d, J = 8.0 Hz, 1H, H_Ar_), 7.75–7.59 (m, 4H, H_Ar_), 7.57 (d, J = 8.4 Hz, 1H, H_Ar_), 7.19 (s, 2H, NH_2_), 7.07 (d, J = 8.4 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 161.26, 153.45, 139.26, 135.18, 133.50, 132.20, 130.42, 128.75, 127.64, 126.39, 125.50, 124.63, 124.39, 117.94, 115.88 (C_Ar_, N=CH) ppm.

IR (KBr): n 3397 (O-H); 3322 (N-H); 1628 (C=N); 1311 (C-N); 1163 (S=O) cm^−1^.

Anal. Calcd for C_17_H_14_N_2_O_4_S, %: C 62.56; H 4.32; N 8.58. Found, %: C 62.52; H 4.35; N 8.55.

4-Hydroxy-3-((naphthalen-2-ylmethylene)amino)benzenesulfonamide (7)

White solid, yield 2.8 g, 79%, mp 208–210 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.02 (s, 1H, OH), 8.89 (s, 1H, N=CH), 8.48 (s, 1H, H_Ar_), 8.29 (d, J = 8.5 Hz, 1H, H_Ar_), 8.10–7.97 (m, 3H, H_Ar_), 7.71–7.54 (m, 4H, H_Ar_), 7.19 (s, 2H, NH_2_), 7.06 (d, J = 8.2 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 161.58, 154.38, 138.55, 135.58, 135.09, 134.23, 133.12, 132.21, 129.29, 128.86, 128.35, 127.33, 125.40, 124.43, 118.03, 116.49 (C_Ar_, N=CH) ppm.

IR (KBr) n 3344 (O-H); 3252 (N-H); 1619 (C=N); 1323 (C-N); 1164 (S=O) cm^−1^.

Anal. Calcd for C_17_H_14_N_2_O_4_S, %: C 62.56; H 4.32; N 8.58. Found, %: C 62.59; H 4.35; N 8.55.

4-Hydroxy-3-((thiophen-2-ylmethylene)amino)benzenesulfonamide (8)

Yellowish solid, yield 2.31 g, 82%, mp 180–182 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.10 (s, 1H, OH), 8.85 (s, 1H, N=CH), 7.85 (d, J = 4.8 Hz, 1H, H_Ar_), 7.75 (d, J = 3.0 Hz, 1H, H_Ar_), 7.52 (s, 1H, H_Ar_), 7.49 (s, 1H, H_Ar_), 7.23 (t, J = 4.1 Hz, 1H, H_Ar_), 7.15 (s, 2H, NH_2_), 7.01 (d, J = 8.3 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 155.17, 153.36, 142.43, 138.01, 135.06, 133.94, 131.69, 128.27, 124.48, 118.82, 115.95 (C_Ar_, N=CH) ppm.

IR (KBr) n 3392 (O-H); 3337 (N-H); 1614 (C=N); 1303 (C-N) 1166 (S=O) cm^−1^.

Anal. Calcd for C_11_H_10_N_2_O_3_S_2_, %: C 46.80; H 3.57; N 9.92. Found, %: C 46.85; H 3.56; N 9.94.

4-Hydroxy-3-(((5-nitrothiophen-2-yl)methylene)amino)benzenesulfonamide (9)

Yellow solid, yield 2.97 g, 91%, mp 257–259 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.43 (s, 1H, OH), 9.04 (s, 1H, N=CH), 8.19 (d, J = 4.1 Hz, 1H, H_Ar_), 7.80 (d, J = 4.2 Hz, 1H, H_Ar_), 7.67 (s, 1H, H_Ar_), 7.59 (d, J = 8.5 Hz, 1H, H_Ar_), 7.20 (s, 2H, NH_2_), 7.07 (d, J = 8.5 Hz, 1H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 154.38, 154.07, 152.89, 148.73, 135.98, 135.22, 132.20, 130.34, 126.09, 119.50, 116.63 (C_Ar_, N=CH) ppm.

IR (KBr) n 3361 (O-H); 3330 (N-H); 1611 (C=N); 1500 (NO_2_); 1343 (C-N); 1149 (S=O) cm^−1^.

Anal. Calcd for C_11_H_9_N_3_O_5_S_2_, %: C 40.36; H 2.77; N 12.84. Found, %: C 40.39; H 2.74; N 12.82.

General procedure for the preparation of aminoketones 10–14

A solution of 3-amino-4-hydroxybenzenesulfonamide 1 (1.88 g, 10 mmol) and the corresponding bromoacetophenone (11 mmol) in a mixture of water and propan-2-ol (1:1, 100 mL) was heated at reflux for 4 h, then cooled, and the formed precipitated was filtered off, washed with propan-2-ol and diethyl ether, and recrystallized from propan-2-ol (10, 13, 14) or from 1,4-dioxane (11, 12).

4-Hydroxy-3-((2-oxo-2-phenylethyl)amino)benzenesulfonamide (10).

Resynthesis was carried out according to Ref. [32], and the spectral data are consistent with the original ones.

White solid, yield 2.51 g, 82%, mp. 218–220 °C.

3-((2-(2,4-Difluorophenyl)-2-oxoethyl)amino)-4-hydroxybenzenesulfonamide (11)

White solid, yield 1.13 g, 33%, mp 207–209 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 8.05–7.97 (m, 1H, OH), 7.70–7.63 (m, 2H, H_Ar_), 7.15–7.09 (m, 2H, H_Ar_), 7.07 (s, 2H, NH_2_), 7.18–6.96 (m, 2H, H_Ar_, NH_2_), 4.92, 4.78 (2s, 1H, NH), 3.70, 3.54 (2d, J = 12.0 Hz, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 192.77, 192.70 (C=O), 165.53 (d, J = 242.1 Hz, CF), 162.56 (d, J = 234.6 Hz, CF), 159.89 (d, J = 240.2 Hz, CF), 144.10, 137.25, 133.89, 132.57 (d, J = 10.9 Hz, CF),, 122.52 (d, J = 12.5 Hz, CF), 116.01, 115.36 (C_Ar_), 112.67 (d, J = 23.8 Hz, CF), 111.04 (d, J = 24.4 Hz, CF), 105.11 (t, J = 26.4 Hz, CF), 54.20 (CH_2_) ppm.

IR (KBr) n 3365 (O-H); 3264 (N-H); 1666 (C=O); 1248; 1224; 1040 (N-C, C-F); 1150 (S=O) cm^−1^.

Anal. Calcd for C_14_H_12_F_2_N_2_O_4_S, %: C 49.12; H 3.53; N 8.18. Found, %: C 49.16; H 3.51; N 8.20.

4-Hydroxy-3-((2-(4-chlorophenyl)-2-oxoethyl)amino)benzenesulfonamide (12)

Resynthesis was carried out according to Ref. [32], and the spectral data are consistent with the original ones.

4-Hydroxy-3-((2-(4-hydroxyphenyl)-2-oxoethyl)amino)benzenesulfonamide (13)

White solid, yield 1.80 g, 56%, mp 217–219 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.48 (s, 1H, OH), 10.31 (s, 1H, OH), 7.97 (d, J = 8.1 Hz, 2H, H_Ar_), 6.98 (d, J = 7.7 Hz, 4H, NH_2_, H_Ar_), 6.91 (d, J = 8.1 Hz, 2H, H_Ar_), 6.78 (d, J = 7.8 Hz, 1H, H_Ar_), 5.43 (s, 1H, NH), 4.62 (d, J = 4.2 Hz, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 193.63 (C=O), 162.59, 147.05, 136.75, 135.26, 130.47, 126.34, 115.45, 114.51, 112.14, 107.07 (C_Ar_), 49.06 (CH_2_) ppm.

IR (KBr) n 3462; 3421 (O-H); 3284 (N-H); 1662 (C=O); 1251; 1082 (N-C); 1146 (S=O) cm^−1^.

Anal. Calcd for C_14_H_14_N_2_O_5_S, %: C 52.17; H 4.38; N 8.69. Found, %: C 52.20; H 4.38; N 8.66.

4-Hydroxy-3-((2-(naphthalen-1-yl)-2-oxoethyl)amino)benzenesulfonamide (14)

White solid, yield 2.73 g, 77%, mp 220–222 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.36 (s, 1H, OH), 8.83 (s, 1H, H_Ar_), 8.19 (d, J = 7.9 Hz, 1H, H_Ar_), 8.08 (s, 2H, H_Ar_), 8.03 (d, J = 7.9 Hz, 1H, H_Ar_), 7.73–7.64 (m, 2H, H_Ar_), 7.06 (s, 1H, H_Ar_), 7.01 (s, 1H, H_Ar_), 6.99 (s, 2H, NH_2_), 6.81 (d, J = 8.1 Hz, 1H, H_Ar_), 5.51 (br. s, 1H, NH), 4.89 (s, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 195.77 (C=O), 147.07, 136.69, 135.33, 135.28, 132.20, 132.16, 129.77, 129.64, 128.89, 128.49, 127.78, 127.13, 123.43, 114.63, 112.20, 107.09 (C_Ar_), 49.72 (CH_2_) ppm.

IR (KBr) n 3420 (O-H); 3347 (N-H); 1674 (C=O); 1251; 1079 (N-C); 1145 (S=O) cm^−1^.

Anal. Calcd. for C_18_H_16_ClN_2_O_4_S, %: C 60.66; H 4.53; N 7.86. Found, %: C 60.62; H 4.57; N 7.88.

General procedure for the synthesis of hydroxylamine-containing compounds 15-17

To a solution of the corresponding compounds 10, 12, and 13 (2 mmol) in methanol (20 mL), hydroxylamine hydrochloride (0.278 g, 4 mmol) and sodium acetate trihydrate (0.54 g, 4 mmol) were added and the mixture was refluxed for 4 h. After completion of the reaction, methanol was evaporated under reduced pressure, and the resulting solid was recrystallized from water.

4-Hydroxy-3-((2-(hydroxyimino)-2-phenylethyl)amino)benzenesulfonamide (15)

White solid, yield 0.27 g, 42%, mp 160–162 °C.

^1^H NMR (400 MHz, DMSO-d6) δ Z/E mixture, 80:20, 11.65, 11.07 (2s, 1H, OH), 10.18, 10.10 (2s, 1H, OH), 7.65, 7.55 (2d, J = 6.5 Hz, 2H, H_Ar_), 7.43–7.30 (m, 3H, H_Ar_), 7.08 (s, 1H, H_Ar_), 7.00–6.88 (m, 3H, H_Ar_, NH_2_), 6.73, 6.67 (2d, J = 8.0 Hz, 1H, H_Ar_), 5.30, 5.14 (2t, J = 5.5 Hz, 1H, NH), 4.44, 4.17 (2d, J = 5.4 Hz, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 154.97, 146.88, 136.77, 135.31, 134.91, 128.65, 128.21, 128.04, 126.60, 114.60, 112.17, 106.66 (C_Ar_, C=N), 37.12 (CH_2_) ppm.

IR (KBr) n 3476; 3406 (O-H); 3255 (N-H) 1646 (C=N); 1282; 1075 (N-C); 1157 (S=O) cm^−1^.

Anal. Calcd for C_14_H_15_N_3_O_4_S, %: C 52.33; H 4.71; N 13.08. Found, %: C 52.30; H 4.68; N 13.07.

4-Hydroxy-3-((2-(hydroxyimino)-2-(4-hydroxyphenyl)ethyl)amino)benzenesulfonamide (16)

White solid, yield 0.26 g, 38%, mp 128–130 °C.

^1^H NMR (400 MHz, DMSO-d6) δ Z/E mixture, 80:20, 11.34, 10.97 (2s, 1H, OH), 10.09 (s, 1H, OH), 9.64 (s, 1H, OH), 7.54, 7.48 (2d, J = 8.1 Hz, 2H, H_Ar_), 7.09, 7.06 (2s, 1H, H_Ar_), 6.94 (s, 2H, NH_2_), 6.92 (s, 1H, H_Ar_), 6.79, 6.73 (2d, J = 8.1 Hz, 2H, H_Ar_), 6.68 (d, J = 8.1 Hz, 1H, H_Ar_), 5.26, 5.01 (2t, J = 5.8 Hz, 1H, NH), 4.34, 4.14 (2d, J = 5.7 Hz, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 158.06, 154.41, 146.94, 136.88, 135.30, 130.12, 127.89, 125.67, 115.09, 114.74, 114.59, 112.16, 106.76 (C_Ar_, C=N), 37.12 (CH_2_) ppm.

IR (KBr) n 3193 (O-H, N-H); 1647 (C=N); 1280; 1071(N-C); 1159 (S=O) cm^−1^.

Anal. Calcd for C_14_H_15_N_3_O_5_S, %: C 49.85; H 4.48; N 12.46. Found, %: C 49.82; H 4.50; N 12.50.

4-Hydroxy-3-((2-(hydroxyimino)-2-(4-chlorophenyl)ethyl)amino)benzenesulfonamide (17)

White solid, yield 0.35 g, 49%, mp 137–139 °C.

^1^H NMR (400 MHz, DMSO-d6) δ Z/E mixture, 80:20, 11.75, 11.21 (2s, 1H, OH), 10.10 (br. s, 1H, OH), 7.66, 7.58 (2d, J = 8.3 Hz, 2H, H_Ar_), 7.47, 7.39 (2d, J = 8.3 Hz, 2H, H_Ar_), 7.06, 7.02 (2s, 1H, H_Ar_), 6.92 (s, 2H, NH_2_), 6.90 (s, 1H, H_Ar_), 6.71, 6.65 (2d, J = 8.2 Hz, 1H, H_Ar_), 5.32, 5.25 (2t, J = 5.8 Hz, 1H, NH), 4.48, 4.18 (2d, J = 5.6 Hz, 2H, CH_2_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 154.34, 146.97, 136.63, 135.14, 133.74, 133.23, 130.24, 128.44, 128.13, 114.61, 112.13, 106.51 (C_Ar_, C=N), 36.95 (CH_2_) ppm.

IR (KBr) n 3406–3240 (O-H, N-H); 1606 (C=N); 1278; 1095 (N-C); 1150 (S=O); 835 (C-Cl) cm^−1^.

Anal. Calcd for C_14_H_14_ClN_3_O_4_S, %: C 47.26; H 3.97; N 11.81. Found, %: C 47.30; H 4.00; N 11.76.

3,3′-((Hydrazine-1,2-diylidenebis(2-phenylethan-1-yl-2-ylidene))bis(azanediyl))bis(4-hydroxybenzenesulfonamide) (18)

To a solution of compound 10 (0.613 g, 2 mmol) in methanol (15 mL), hydrazine monohydrate (0.055 g, 1.1 mmol) was added and the mixture was refluxed for 2 h, then cooled, and the formed precipitate was filtered off and washed with water. Product 10 was purified by dissolving it in aqueous 2.5% sodium hydroxide, filtering, and acidifying the filtrate with 30% acetic acid to pH 6–7. The purification process was repeated twice.

White solid, yield 0.56 g, 92%, mp 185–189 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 8.09 (d, J = 6.9 Hz, 4H, H_Ar_), 7.72-7.55 (m, 6H, H_Ar_), 7.01–6.54 (m, 12H, NH_2_, H_Ar_, 2OH), 5.48 (2s, 2H, 2NH), 4.84 (s, 2H, CH_2_), 4.74 (d, J = 4.2 Hz, 2H, CH_2_) ppm;

^13^C NMR (101 MHz, DMSO-d6) δ 195.88 (C=N), 148.19, 138.35, 136.83, 134.92, 134.40, 133.76, 129.04, 128.89, 128.12, 127.86, 127.52, 127.08, 125.18, 114.77, 112.09, 106.89 (C_Ar_), 49.77 (2CH_2_) ppm;

IR (KBr) n 3429 (O-H); 3368 (N-H); 1676 (C=N); 1223; 1085 (N-C); 1162 (S=O) cm^−1^.

MS (ESI), m/z (%): [M + 2H]^+^ = 610.96 (100).

Anal. Calcd for C_28_H_28_N_6_O_6_S_2_, %: C 55.25; H 4.64; N 13.81. Found, %: C 55.29; H 4.63; N 13.85.

General procedure for the synthesis of oxoimidazoles 19, 20

A solution of the corresponding compounds 10 or 13 (5 mmol) and carbamide (1.2 g, 20 mmol) in glacial acetic acid (15 mL) was refluxed for 24 h, then cooled and diluted with water (50 mL). The formed precipitation was filtered off, washed with water, and purified by dissolving it in aqueous 2.5% sodium hydroxide, filtering, and acidifying the filtrate with 30% acetic acid to pH 6-7. The purification process was repeated twice.

4-Hydroxy-3-(2-oxo-4-phenyl-2,3-dihydro-1H-imidazol-1-yl)benzenesulfonamide (19). Resynthesis was carried out based on Ref. [32], and the spectral data are consistent with the original ones.

White solid, yield 1.25 g, 75%, mp 271–273 °C.

4-Hydroxy-3-(4-(4-hydroxyphenyl)-2-oxo-2,3-dihydro-1H-imidazol-1-yl)benzenesulfonamide (20)

White solid, yield 0.55 g, 32%, mp 289–290 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 11.00, 10.84, 9.57 (3s, 3H, NH, 2OH), 7.83 (s, 1H, NCH), 7.65 (d, J = 8.6 Hz, 1H, H_Ar_), 7.42 (d, J = 8.2 Hz, 2H, H_Ar_), 7.25 (s, 2H, NH_2_), 7.12 (d, J = 8.6 Hz, 1H, H_Ar_), 7.03 (s, 1H, H_Ar_), 6.77 (d, J = 8.2 Hz, 2H, H_Ar_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 156.72, 154.65, 152.89, 135.03, 126.15, 125.23, 124.91, 124.22, 122.52, 120.24, 117.30, 115.64, 107.28 (C_Ar_, C=O) ppm.

IR (KBr) n 3600-3190 (O-H, N-H); 1656 (C= 270; 1219; 1085 (N-C); 1165 (S=O) cm^−1^.

Anal. Calcd for C_15_H_13_N_3_O_5_S, %: C 51.87; H 3.77; N 12.10. Found, %: C 51.96; H 3.79; N 12.04.

4-Ethoxy-N,N-diethyl-3-(3-ethyl-2-oxo-4-phenyl-2,3-dihydro-1H-imidazol-1-yl)benzenesulfonamide (21). To a solution of compound 19 (1.04 g, 3 mmol) in DMSO (10 mL), ground potassium hydroxide (0.25 g, 4.5 mmol) and potassium carbonate (2.1 g, 15 mmol) were added slowly, and then ethyl iodide (3.12 g, 20 mmol) was added dropwise over 10 min. The reaction mixture was heated at reflux for 24 h, then ethyl iodide together with DMSO was evaporated under reduced pressure. The obtained amorphous mass was purified by column chromatography. Eluent: acetone/hexane, 1:1.

White solid, yield 0.9 g, 41%, mp 55–57 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 7.88 (s, 1H, NCH), 7.74 (d, J = 8.6 Hz, 1H, H_Ar_), 7.54–7.39 (m, 5H, H_Ar_), 7.36 (d, J = 8.8 Hz, 1H, H_Ar_), 6.94 (s, 1H, H_Ar_), 4.19 (q, J = 6.9 Hz, 2H, CH_2_), 3.76 (q, J = 6.9 Hz, 2H, CH_2_), 3.16 (q, J = 7.0 Hz, 4H, 2CH_2_), 1.34 (t, J = 6.9 Hz, 3H, CH_3_), 1.19–0.96 (m, 9H, CH_3_) ppm;

^13^C NMR (101 MHz, DMSO-d6) δ 155.54, 151.93, 130.99, 129.38, 129.00, 128.10, 127.51, 127.29, 125.81, 125.28, 123.42, 113.72, 110.07 (C_Ar_, C=O), 64.73 (CH_2_), 41.93, 36.46, 30.69 (3CH_2_), 14.41, 14.34, 14.18 (4CH_3_) ppm;

IR (KBr) n 1693 (C=O); 1331; 1270; 1251; 1219; 1200; 1015 (N-C, C-O); 1144 (S=O) cm^−1^.

MS (ESI), m/z (%): [M + Na]^+^ = 466.12 (100). Anal. Calcd for C_23_H_29_N_3_O_4_S, %: C 62.28; H 6.59; N 9.47. Found, %: C 62.36; H 6.56; N 9.52.

4-Hydroxy-3-(2-mercapto-4-phenyl-1H-imidazol-1-yl)benzenesulfonamide (22)

Resynthesis was carried out based on Ref. [32], and the spectral data is in consistent with an original one.

Yield 0.877 g, 50.5%, mp 161–163 °C.

4-Ethoxy-N,N-diethyl-3-(2-(ethylthio)-4-phenyl-1H-imidazol-1-yl)benzenesulfonamide (23)

The compound was obtained according to the procedure of compound 21.

White solid, yield 1.1 g, 80%. 54–56 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 7.93–7.86 (m, 2H, NCH, H_Ar_), 7.91 (s, 1H, H_Ar_), 7.89 (br. s, 1H, H_Ar_), 7.82 (d, J = 7.8 Hz, 2H, H_Ar_), 7.74 (s, 1H, H_Ar_), 7.45–7.36 (m, 3H, H_Ar_), 7.23 (t, J = 7.3 Hz, 1H, H_Ar_), 4.20 (q, J = 6.8 Hz, 2H, CH_2_), 3.19 (q, J = 7.0 Hz, 4H, CH_2_), 3.00 (q, J = 7.3 Hz, 2H, CH_2_), 1.26 (t, J = 6.9 Hz, 3H, CH_3_), 1.21 (t, J = 7.3 Hz, 3H, CH_3_), 1.05 (t, J = 7.0 Hz, 6H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 156.41, 142.45, 140.98, 133.70, 131.44, 129.48, 128.56, 126.97, 126.66, 125.76, 124.26, 119.70, 113.92 (C_Ar_), 64.86, 41.80 (4CH_2_), 14.99, 14.23, 14.05 (4CH_3_) ppm.

IR (KBr) n 1333; 1298; 1274; 1219; 1199; 1089 (N-C, C-O); 1150 (S=O) cm^−1^.

Anal. Calcd for C_23_H_29_N_3_O_3_S_2_, %: C 60.10; H 6.36; N 9.14. Found, %: C 60.18; H 6.32; N 9.10.

3-((2-Hydroxy-5-sulfamoylphenyl)amino)propanoic acid (24).

A solution of amine 1 (9.41 g, 50 mmol) and acrylic acid (4.32 g, 60 mmol) in water (25 mL) was heated at reflux for 10 h, then cooled, and the formed precipitate was filtered off and purified by dissolving it in aqueous 2.5% sodium hydroxide, filtering, and acidifying the filtrate with 30% acetic acid to pH 6–7. The process was repeated twice.

White solid, yield 12.18 g, 94%, mp 182–184 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.28 (s, 1H, OH), 10.15 (s, 1H, OH), 6.99 (s, 2H, NH_2_), 6.93 (d, J = 8.7 Hz, 2H, H_Ar_), 6.73 (d, J = 7.8 Hz, 1H, H_Ar_), 5.02 (s, 1H, NH), 3.30 (t, J = 6.7 Hz, 2H, NHCH2) 2.57 (t, J = 6.7 Hz, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 173.41 (C=O), 147.17, 137.16, 135.24, 114.25, 112.14, 106.41 (C_Ar_), 38.69, 33.38 (2CH_2_) ppm.

IR (KBr) n 3437; 3346 (O-H); 3258 (N-H); 1697 (C=O); 1290; 1107 (C-N); 1139 (S=O) cm^−1^.

Anal. Calcd for C_9_H_12_N_2_O_5_S, %: C 41.53; H 4.65; N 10.76. Found, %: C 41.61; H 4.68; N 10.72.

Methyl 3-((2-hydroxy-5-sulfamoylphenyl)amino)propanoate (25).

To a solution of acid 24 (13.01 g, 50 mmol) in methanol (100 mL), conc. sulfuric acid (1.83 g, 18.66 mmol) was added, and the mixture was refluxed for 5 h. After completion, methanol was evaporated under reduced pressure, and the residue was poured with aqueous 5% sodium carbonate until pH 7 was reached and boiled. Then, the aqueous solution was decanted, and the residue was washed with water (twice) by boiling the mixture. The obtained precipitate was recrystallized from propan-2-ol.

White solid, yield 9.65 g, 70%, mp 181–183 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.86 (s, 1H, OH), 8.23 (br.s, 2H, H_Ar_, NH) 7.45–7.16 (m, 3H, H_Ar_, NH_2_), 6.92 (d, J = 8.2 Hz, 1H, H_Ar_), 3.61 (s, 3H, OCH_3_), 3.42 (t, J = 6.9 Hz, 2H, NHCH2), 2.71 (t, J = 6.8 Hz, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 171.47 (C=O), 150.11, 135.25, 130.74, 120.62, 114.32, 113.49 (C_Ar_), 52.79, 51.69, 31.87 (OCH_3_, 2CH_2_) ppm.

IR (KBr) n 3343 (O-H); 3232 (N-H); 1731 (C=O); 1286; 1097 (N-C); 1147 (S=O) cm^−1^.

Anal. Calcd for C_10_H_14_N_2_O_5_S, %: C 43.79; H 5.14; N 10.21. Found, %: C 43.70; H 5.10; N 10.25.

3-((2-(1H-benzo[d]imidazol-2-yl)ethyl)amino)-4-hydroxybenzenesulfonamide (26)

A solution of acid 24 (1.5 g, 5 mmol) and aromatic diamine (6 mmol) in 4M hydrochloric acid (25 mL) was refluxed for 24 h, then cooled, and aqueous 25% ammonia was added dropwise to reach pH 8. The formed solid was filtered off, washed with water, and purified by dissolving it in aqueous 2.5% sodium hydroxide, filtering, and acidifying the filtrate with 30% acetic acid to pH 6–7. The purification was repeated twice.

White solid, yield 0.19 g, 11.5%, mp 222–224 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.30 (br. s, 1H, NH_Benz_), 10.19 (br. s, 1H, OH), 7.49 (br. s, 2H, H_Ar_), 7.13 (dd, J = 5.6, 3.1 Hz, 2H, H_Ar_), 7.04 (s, 1H, H_Ar_), 7.01 (s, 2H, NH_2_), 6.95 (d, J = 7.9 Hz, 1H, H_Ar_), 6.73 (d, J = 8.1 Hz, 1H, H_Ar_), 5.24 (s, 1H, NH), 3.63–3.51 (m, 2H, NHCH2), 3.16 (t, J = 7.0 Hz, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 153.18, 147.20, 137.24, 135.56, 135.26, 121.30, 117.72, 114.28, 112.16, 106.51 (C_Ar_), 41.03, 28.18 (2CH_2_) ppm.

IR (KBr) n 3392 (O-H); 3255 (N-H); 1283; 1073 (N-C); 1142 (S=O) cm^−1^.

Anal. Calcd for C_15_H_16_N_4_O_3_S, %: C 54.20; H 4.85; N 16.86. Found, %: C 54.29; H 4.89; N 16.82.

** N ** -((3-Acetamido-4-hydroxyphenyl)sulfonyl)acetamide (27).

To a solution of acid 24 (1.3 g, 5 mmol) in acetic anhydride (10 mL), conc. sulfuric acid (0.18 g, 1.8 mmol) was added, and the mixture was heated at reflux for 5 h. Then, the reaction mixture was cooled, the volatile fraction was evaporated under reduced pressure, and the residue was poured with aqueous 5% sodium carbonate solution (10 mL). The formed crystalline was filtered off, washed with water, and recrystallized from water.

White solid, yield 1.05 g, 76%, mp 258–260 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 11.87 (s, 1H, NH), 11.06 (s, 1H, OH), 9.38 (s, 1H, NH), 8.51 (s, 1H, H_Ar_), 7.51 (d, J = 8.5 Hz, 1H, H_Ar_), 7.00 (d, J = 8.5 Hz, 1H, H_Ar_), 2.12 (s, 3H, CH_3_), 1.89 (s, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 169.19, 168.49 (2C=O), 151.89, 129.08, 126.65, 124.72, 120.79, 114.76 (C_Ar_), 23.81, 23.20 (2CH_3_) ppm.

IR (KBr) n 3240 (N-H, O-H); 1718; 1663 (C=O); 1291; 1081 (N-C); 1155 (S=O) cm^−1^.

Anal. Calcd for C_10_H_12_N_2_O_5_S, %: C 44.11; H 4.44; N 10.29. Found, %: C 44.24; H 4.45; N 10.32.

1-(2-Hydroxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylic acid (28)

A mixture of itaconic acid (7.81 g, 60 mmol) and 3-amino-4-hydroxybenzenesulfonamide (1) (9.41 g, 50 mol) was refluxed in water (40 mL) for 4 h and then cooled down. Then, the formed crystalline precipitate was filtered off, washed with water, and purified by dissolving it in aqueous 5% sodium hydroxide solution (60 mL), filtering, and acidifying the filtrate with hydrochloric acid to pH 5 to give the title compound 28.

White solid, yield 13.36 g, 89%, mp 130–132 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.68 (br.s, 1H, OH), 10.58 (s, 1H, OH), 7.63 (s, 1H, H_Ar_), 7.60 (d, J = 8.5 Hz, 1H, H_Ar_), 7.21 (s, 2H, NH_2_), 7.03 (d, J = 8.5 Hz, 1H, H_Ar_), 3.93–3.80 (m, 2H, CH_2_), 3.41–3.38 (m, 1H, CH), 2.76–2.56 (m, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 174.38, 172.44 (2C=O), 155.85, 134.79, 126.67, 126.40, 125.18, 116.73 (C_Ar_), 50.77, 36.24 (NCH_2_, CH_2_CO), 33.57 (CH) ppm.

IR (KBr) n 3555-2898 (N-H, O-H); 1720; 1702 (C=O); 1315; 1100 (C-N); 1166 (S=O) cm^−1^.

Anal. Calcd for C_11_H_12_N_2_O_6_S, %: C 44.00; H 4.03; N 9.33. Found, %: C 44.11; H 4.06; N 9.31.

Methyl 1-(2-hydroxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylate (29)

To a solution of carboxylic acid 28 (15.00 g, 50 mmol) in methanol (200 mL), a catalytic amount of concentrated sulfuric acid (3 mL) was added dropwise, and the mixture was heated at reflux for 8 h. The solvent was then evaporated under reduced pressure, and the residue was neutralized with 5% sodium carbonate solution to pH 8–9. After cooling, the obtained solid was filtered off, washed with plenty of water and hexane, and recrystallized from 2-propanol (60 mL) to give the title compound 29.

White solid, yield 9.29 g, 59%, mp 123–125 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.59 (s, 1H, OH), 7.63 (s, 1H, H_Ar_), 7.60 (d, J = 8.5 Hz, 1H, H_Ar_), 7.21 (s, 2H, NH_2_), 7.03 (d, J = 8.5 Hz, 1H, H_Ar_), 3.95–3.84 (m, 2H, NCH_2_), 3.68 (s, 3H, CH_3_), 3.56–3.47 (m, 1H, CH), 2.76–2.61 (m, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 173.27, 172.12 (2C=O), 155.84, 134.76, 126.66, 126.42, 125.04, 116.71 (C_Ar_), 52.19 (OCH_3_), 50.50, 36.02 (NCH_2_, CH_2_CO), 33.43 (CH) ppm.

IR (KBr) n 3369 (O-H); 3268 (N-H) 1728; 1679 (C=O); 1221 (C-O); 1332; 1078 (C-N); 1162 (S=O) cm^−1^.

Anal. Calcd for C_12_H_14_N_2_O_6_S, %: C 45.86; H 4.49; N 8.91. Found, %: C 45.79; H 4.53; N 8.84.

1-(2-Hydroxy-5-sulfamoylphenyl)-5-oxo-N-phenylpyrrolidine-3-carboxamide (30)

To a solution of acid 28 (1.5 g, 5 mmol), aniline (0.56 g, 6 mmol), and HBTU (7.58 g, 20 mmol) in DMF (10 mL), triethylamine (2.02 g, 20 mmol) was added dropwise, and the mixture was stirred at room temperature for 24 h. After completion of the reaction, the mixture was diluted with water (40 mL) and the formed solid was filtered off, washed with water, and recrystallized from propan-2-ol.

White solid, yield 1.15 g, 61%, mp 195–198 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 10.59 (s, 1H, NH), 10.16 (s, 1H, OH), 7.68–7.59 (m, 4H, H_Ar_), 7.32 (t, J = 7.8 Hz, 2H, H_Ar_), 7.22 (s, 2H, NH_2_), 7.10–7.03 (m, 2H, H_Ar_), 4.00–3.80 (m, 2H, NCH_2_), 3.55–3.48 (m, 1H, CH), 2.72 (d, J = 8.4 Hz, 2H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.55, 171.05 (2C=O), 155.82, 138.98, 134.80, 128.81, 126.67, 126.34, 125.20, 123.53, 119.39, 116.68 (C_Ar_), 51.42, 38.04 (NCH_2_, CH_2_CO), 34.15 (CH) ppm.

IR (KBr) n 3362 (O–H); 3254 (N–H); 1595; 1578 (C=O); 1281; 1093 (N–C); 1142 (S=O) cm^−1^.

Anal. Calcd for C_17_H_17_N_3_O_5_S, %: C 54.39; H 4.56; N 11.19. Found, %: C 54.46; H 4.53; N 11.14.

4-(1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)-4-hydroxybenzenesulfonamide (31)

A solution of compound 28 (2 g, 5.6 mmol) and benzene-1,2-diamine (1.21 g, 11.2 mmol) in 4M hydrochloric acid (35 mL) was heated at reflux for 24 h, then cooled, and the formed hydrochloride salt was filtered off and washed with acetone. The product was purified by dissolving it in hot water and adding 25% ammonia to pH 8.

White solid, yield 1.24 g, 66%, mp 280–283 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.63 (s, 1H, NH), 11.66 (s, 1H, OH), 7.71 (s, 1H, H_Ar_), 7.66 (d, J = 8.6 Hz, 1H, H_Ar_), 7.55 (br. s, 2H, H_Ar_), 7.27–7.19 (m, 4H, NH_2_, H_Ar_), 7.10 (d, J = 8.6 Hz, 1H, H_Ar_), 4.18–4.00 (m, 3H, CH, NCH_2_), 3.09–3.01 (dd, J = 16.4, 8.3 Hz, 1H, CH_2_CO), 2.68 (dd, J = 16.4, 4.5 Hz, 1H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.49 (C=O), 156.65, 156.00, 134.66, 126.96, 126.78, 124.83, 122.02, 117.14 (C_Ar_), 53.05, 36.61 (NCH_2_, CH_2_CO), 32.19 (CH) ppm.

IR (KBr) n 3600-3277 (O-H, N-H); 1672 (C=O); 1625 (C=N); 1300; 1085 (N-C); 1149 (S=O) cm^−1^.

Anal. Calcd for C_17_H_16_N_4_O_4_S, %: C 54.83; H 4.33; N 15.05. Found, %: C 54.91; H 4.33; N 15.10.

4-Hydroxy-3-(4-(5-methyl-1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)benzenesulfonamide (32)

White solid, yield 0.75 g, 39%, mp 175–177 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.48 (s, 1H, NH), 11.86 (s, 1H, OH), 7.69 (s, 1H, H_Ar_), 7.65 (m, J = 8.8 Hz, 1H, H_Ar_), 7.42 (d, J = 7.7 Hz, 1H, H_Ar_), 7.33 (s, 1H, H_Ar_), 7.23 (s, 2H, NH_2_), 7.08 (d, J = 8.5 Hz, 1H, H_Ar_), 7.02 (d, J = 8.1 Hz, 1H, H_Ar_), 3.94–4.16 (m, 3H, CH, NCH_2_), 3.03 (dd, J = 16.4, 8.4 Hz, 1H, CH_2_CO), 2.66 (dd, J = 16.4, 3.8 Hz, 1H, CH_2_CO), 2.41 (s, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.48 (C=O), 156.78, 134.60, 131.30, 126.81, 124.77, 123.39, 117.19 (C_Ar_), 53.05, 36.72 (NCH_2_, CH_2_CO), 32.22 (CH), 21.25 (CH_3_) ppm.

IR (KBr) n 3569 (O-H); 3195 (N-H); 1682 (C=O); 1573 (C=N); 1284; 1068 (N-C); 1147 (S=O) cm^−1^.

Anal. Calcd for C_18_H_18_N_4_O_4_S, %: C 55.95; H 4.70; N 14.50. Found, %: C 55.91; H 4.75; N 14.54.

3-(4-(6-Fluoro-1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)-4-hydroxybenzenesulfonamide (33)

White solid, yield 1.11 g, 57%, mp 289–291 °C.

IR (KBr) n 3600–3208 (O–H, N–H); 1667 (C=O); 1573 (C=N); 1273; 1065 (N–C); 1157 (S=O) cm^−1^.

^1^H NMR (400 MHz, DMSO-d6) δ 12.72 (s, 1H, NH), 11.22 (s, 1H, OH), 7.70 (s, 1H, H_Ar_), 7.64 (d, J = 8.6 Hz, 1H, H_Ar_), 7.57–7.51 (m, 1H, H_Ar_), 7.36 (d, J = 9.3 Hz, 1H, H_Ar_), 7.23 (s, 2H, NH_2_), 7.09–7.02 (m, 2H, H_Ar_), 4.16–4.00 (m, 3H, CH, NCH_2_), 3.00 (dd, J = 16.5, 8.0 Hz, 1H, CH_2_CO), 2.77 (dd, J = 16.5, 5.2 Hz, 1H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.44 (CO), 158.50 (d, J = 234.9 Hz, CF), 157.33, 156.33, 134.73, 126.74 (d, J = 20.3 Hz, CF), 124.93, 116.97 (C_Ar_), 109.88 (d, J = 23.2 Hz, CF), 52.94, 36.28 (NCH_2_, CH_2_CO), 32.08 (CH) ppm.

Anal. Calcd for C_17_H_15_FN_4_O_4_S, %: C 52.30; H 3.87; N 14.35. Found, %: C 52.23; H 3.87; N 14.29.

3-(4-(6-Chloro-1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)-4-hydroxybenzenesulfonamide (34)

The compound was prepared from 4-chloro-1,2-diaminobenzene (0.85 g, 6 mmol) by the method applied for the synthesis of compound 31.

White solid, yield 1.05 g, 52%, mp 312–315 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.77 (br.s, 1H, NH), 11.14 (s, 1H, OH), 7.64 (d, J = 8.6 Hz, 1H, H_Ar_), 7.61 (s, 1H, H_Ar_), 7.55 (d, J = 8.4 Hz, 1H, H_Ar_), 7.26–7.18 (m, 3H, NH_2_, H_Ar_), 7.07 (d, J = 8.6 Hz, 1H, H_Ar_), 4.17–3.99 (m, 3H, CH, NCH_2_), 3.05–2.95 (m, 1H, CH_2_CO), 2.85–2.75 (m, 1H, CH_2_CO) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.45 (C=O), 157.27, 156.28, 134.75, 127.27, 127.07, 126.84, 126.64, 126.26, 122.11, 116.96 (C_Ar_), 52.92, 36.20 (NCH_2_, CH_2_CO), 32.05 (CH) ppm.

IR (KBr) n 3600–3207 (O–H, N–H) 1664 (C=O); 1571 (C=N); 1266; 1067 (N–C); 1157 (S=O); 825 (C–Cl) cm^−1^.

Anal. Calcd for C_17_H_15_ClN_4_O_4_S, %: C 50.19; H 3.72; N 13.77. Found, %: C 50.10; H 3.76; N 13.80.

Ethyl 1-(2-ethoxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylate (35)

To a solution of compound 28 (15 g, 50 mmol), dimethylformamide potassium hydroxide (4.61 g, 70 mmol) and potassium carbonate (5 g, 36 mmol) were slowly added, and the mixture was left to stir at room temperature for 15 min. Afterwards, ethyl iodide (15.6 g, 100 mmol) was added dropwise, and the mixture was stirred at room temperature for 14 h. When the reaction was completed (TLC), the excess ethyl iodide was evaporated under reduced pressure, and the residue was diluted with water (150 mL). The formed precipitate was filtered off, washed with water, and recrystallized from propan-2-ol.

White solid, yield 10.31 g, 58%, mp 110–112 °C

^1^H NMR (400 MHz, DMSO-d6) δ 7.74 (d, J = 8.8 Hz, 1H, H_Ar_), 7.70 (s, 2H, H_Ar_), 7.30 (s, 2H, NH_2_), 7.27 (d, J = 8.8 Hz, 1H, H_Ar_), 4.31–4.00 (m, 4H, CH_2_), 3.99–3.79 (m, 2H, NCH_2_), 3.53–3.38 (m, 1H, CH), 2.83–2.56 (m, 2H, CH_2_CO), 1.33 (t, J = 6.8 Hz, 3H, CH_3_), 1.22 (t, J = 7.0 Hz, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.80, 172.15 (C=O), 156.12, 135.96, 126.57, 126.451, 126.38, 113.26 (C_Ar_), 64.41, 60.80, 50.70, 36.14, 33.33 (4CH_2_, CH), 14.40, 14.04 (2CH_3_) ppm.

IR (KBr) n 3298 (N–H); 1729; 1668 (C=O); 1336; 1148 (C–O); 1273; 1094 (N–C); 1162 (S=O) cm^−1^.

Anal. Calcd for C_15_H_20_N_2_O_6_S, %: C 50.55; H 5.66; N 7.86. Found, %: C 50.50; H 5.61; N 7.91.

1-(2-Ethoxy-5-sulfamoylphenyl)-5-oxopyrrolidine-3-carboxylic acid (36)

A solution of compound 35 (1.07 g, 3 mmol) in aqueous 10% hydrochloric acid (10 mL). was refluxed for 2 h, then cooled, and the obtained precipitate was filtered off, washed with diethyl ether, and recrystallized from diethyl ether.

White solid, yield 0.79 g, 80.5%, mp 173–175 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.73 (s, 1H, OH), 7.73 (d, J = 8.8 Hz, 1H, H_Ar_), 7.69 (s, 2H, H_Ar_), 7.29 (s, 2H, NH_2_), 7.26 (d, J = 8.8 Hz, 1H, H_Ar_), 4.14 (q, J = 6.7 Hz, 2H, CH_2_), 4.01–3.72 (m, 2H, NCH_2_), 3.40–3.34 (m, 1H, CH), 2.77–2.54 (m, 2H, CH_2_CO), 1.34 (t, J = 6.8 Hz, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 174.27, 172.38 (2C=O), 156.14, 135.93, 126.67, 126.41, 126.38, 113.24 (C_Ar_), 64.42, 50.90, 36.33 (3CH_2_), 33.44 (CH), 14.42 (CH_3_) ppm.

IR (KBr) n 3254 (N–H); 3088 (O–H); 1728; 1683 (C=O); 1306 (C–O); 1286; 1089 (N–C); 1161 (S=O) cm^−1^.

Anal. Calcd for C_13_H_16_N_2_O_6_S, %: C 47.56; H 4.91; N 8.53. Found, %: C 47.62; H 4.86; N 8.49.

3-(4-(1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)-4-ethoxybenzenesulfonamide (37)

A solution of compound 35 (2 g, 5.6 mmol) and o-phenylenediamine (1.21 g, 11.2 mmol) in aqueous 4M hydrochloric acid (35 mL) was heated at reflux for 24 h. After completion of the reaction, the mixture was cooled, and the formed hydrochloride salt was filtered off and washed with acetone. To obtain pure target solid, the salt was dissolved in hot water and the solution was treated with aqueous 25% ammonia to pH 8.

White solid, yield 0.75 g, 33.5%, mp 138–140 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 12.49 (s, 1H, NH), 7.76 (s, 1H, H_Ar_), 7.74 (d, J = 8.9 Hz, 1H, H_Ar_), 7.54 (dd, J = 5.1, 3.4 Hz, 2H, H_Ar_), 7.31 (s, 2H, NH_2_), 7.26 (d, J = 8.7 Hz, 1H, H_Ar_), 7.17 (dd, J = 5.5, 3.1 Hz, 2H, H_Ar_), 4.19–3.97 (m, 5H, CH, NCH_2_, CH_2_), 3.04–2.91 (m, 2H, CH_2_CO), 1.23 (t, J = 6.9 Hz, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 172.60 (C=O), 156.12, 155.01, 138.79, 135.95, 126.79, 126.41, 126.37, 121.74, 115.29, 115.02, 113.27 (C_Ar_), 64.38, 53.20, 35.49 (3CH_2_), 31.92 (CH), 14.31 (CH_3_) ppm.

IR (KBr) n 3491 (N–H); 1659 (C=O); 1596 (C=N); 1341; 1270; 1067 (N–C, C–O); 1158 (S=O) cm^−1^.

Anal. Calcd for C_19_H_20_N_4_O_4_S, %: C 56.99; H 5.03; N 13.99. Found, %: C 57.06; H 5.02; N 13.94.

3-(4-(5-Chloro-1H-benzo[d]imidazol-2-yl)-2-oxopyrrolidin-1-yl)-4-ethoxybenzenesulfonamide (38)

A solution of compound 35 (1.78 g, 5 mmol) and 4-chloro-1,2-diaminobenzene (0.85 g, 6 mmol) in aqueous 4M hydrochloric acid (35 mL) was heated at reflux for 24 h. After completion of the reaction, the mixture was cooled and treated with aqueous 25% ammonia to pH 8. The formed solid was filtered off, washed with water, and recrystallized from acetone.

White solid, yield 1.25 g, 57.5%, mp 160–162 °C.

^1^H NMR (400 MHz, DMSO-d6) δ 7.87 (s, 1H, H_Ar_), 7.81 (s, 2H, H_Ar_), 7.80–7.70 (m, 1H, H_Ar_), 7.52 (d, J = 8.7 Hz, 1H, H_Ar_), 7.52 (d, J = 8.7 Hz, 1H, H_Ar_), 7.34 (br. s, 2H, NH_2_), 7.28 (d, J = 8.7 Hz, 1H, H_Ar_), 4.44–4.34 (m 1H, CH), 4.23 (t, J = 8.9 Hz, 1H, NCH_2_), 4.19–4.04 (m, 3H, NCH_2_, CH_2_), 3.21–3.00 (m, 2H, CH_2_), 1.25 (t, J = 6.8 Hz, 3H, CH_3_) ppm.

^13^C NMR (101 MHz, DMSO-d6) δ 171.46 (C=O), 156.09, 155.33_,_ 135.98, 131.31, 133.33,129.35, 126.70, 126.52, 126.23, 125.36, 115.59, 113.87, 113.33 (C_Ar_), 64.46, 52.13, 34.79, 30.89 (3CH_2_, CH), 14.33 (CH_3_) ppm.

IR (KBr) n 3319 (N-H); 1678 (C=O); 1596 (C=N); 1335; 1267; 1040 (N-C, C-O); 1162 (S=O); 807 (C-Cl) cm^−1^.

Anal. Calcd for C_19_H_19_ClN_4_O_4_S, %: C 52.47; H 4.40; N 12.88. Found, %: 52.39; H 4.44; N 12.92.

3.2. Affinity Measurements

Twelve catalytically active recombinant human carbonic anhydrases were produced and purified as previously reported [48,49]. For transmembrane isoenzymes, only catalytic domains were produced. The compound affinities were measured using the fluorescent thermal shift assay (FTSA). The dissociation constant (Kd) for each protein–ligand pair was determined from a series of nine experimental points. Each 10 μL sample contained a solution of 5–10 μM of tested CA and a solution of the ligand at various concentrations (prepared by serial dilution) ranging from 0 to 200 μM in 50 mM phosphate buffer containing 100 mM NaCl and 4% DMSO at pH 7.0. The prepared samples were analyzed using a Rotor-Gene Q qPCR instrument (Qiagen, Hilden, Germany). A blue filter (excitation at 365 ± 20 nm, detection at 460 ± 15 nm) was used for the measurements. The initial temperature was 25 °C, and the final temperature was 99 °C; the temperature steadily increased from the initial temperature at a rate of 1 °C/min, and the fluorescence of the samples was measured every 30 s.

The raw experimental FTSA data were analyzed using the Thermott software online tool (https://thermott.com, accessed on 18 April 2023) [36]. The determined melting temperature (Tm) of each sample was then used to acquire the ligand dosing curve and the protein–ligand dissociation constant obtained by fitting the thermal stabilization model to the experimental data.

3.3. Crystallization and Structure Solution

The complex of CAI with compound 25 was prepared by mixing the protein with a four-fold excess of 25 (50 mM solution in DMSO). The complex was concentrated to 35 mg/mL and crystallized by the sitting drop method. Crystals of the CAII-25 complex were prepared by soaking crystals with reservoir solution supplemented with inhibitor at a concentration of 1 mM. Reservoir solutions and cryo-protection buffers are described in Supplementary Table S1.

All datasets were collected at beamline P13 operated by EMBL Hamburg at the PETRA III storage ring (DESY, Hamburg, Germany). Collected datasets were integrated by XDS [50] and scaled using AIMLESS v.0.7.4 and other CCP4 tools v.7.1.002 [51]. The structure was solved by molecular replacement using MOLREP v.11.7.02 [52] and 2CAB as an initial model. The model was refined by REFMAC v.5.8.0258 [53] and rebuilt in COOT v.0.9 [54]. The inhibitor model was created and minimized using AVOGADRO v.1.2.0 [55].

3.4. Biological Experiments in Cancer Cells In Vitro

Human triple-negative breast cancer MDA-MB-231, human glioblastoma (U-87), and human prostate adenocarcinoma (PPC-1) were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA). Human foreskin fibroblasts (HFs), CRL-4001, also originally sourced from ATCC, were kindly provided by Prof. Helder Santos (University of Helsinki, Helsinki, Finland). All cell lines were cultivated in Dulbecco’s modified Eagle’s GlutaMAX medium (Gibco, Carlsbad, CA, USA) enriched with 10,000 U/mL penicillin, 10 mg/mL streptomycin (Gibco, Waltham, MA, USA), and 10% fetal bovine serum (Gibco). Cell cultures were maintained at 37 °C in a humidified atmosphere containing 5% CO_2_ and used up to passage 20.

To evaluate the effects of the compounds on cell viability, the MTT assay was employed, as previously described [56]. Briefly, cells were seeded in triplicate into 96-well tissue culture-treated flat-bottom plates at a density of 4 × 10^3^ cells/well for U-87, MDA-MB-231, and PPC-1, and 5 × 10^3^ cells/well for HFs. After a 24 h incubation, cells were treated with 100 μM of the test compounds. After 72 h, the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT; Sigma-Aldrich Co., St Louis, MO, USA) was added, and the resulting formazan crystals were dissolved in 2-propanol (Sigma-Aldrich Co., St. Louis, MO, USA). Absorbance was measured at 570 and 630 nm using multidetection microplate reader Multiskan GO (Thermo Fisher Scientific Oy, Ratastie, Finland).

The EC_50_ values of the most active compounds—9, 12, 18, and 21—and the comparative compounds acetazolamide (AZM) and U-104 (Sigma-Aldrich Co., St. Louis, MO, USA) were determined using the same MTT method. Compounds 9, 12, 18, and 21 were serially diluted from 50 µM to 1.56 µM, and AZM and U-104–from 500 µM to 15.6 µM, before being added to the cells. The EC_50_, defined as the concentration reducing cell metabolic activity by 50%, was calculated using the Hill equation.

The compound activity in 3D cell cultures (cancer spheroids) was assessed by examining their effects on spheroid growth and cell viability. Briefly, cells at 70% confluence were incubated with Nanoshuttle (n3D Biosciences, Inc., Houston, TX, USA) for 8 h. The cells were then trypsinized, centrifuged, and seeded into ultra-low-attachment 96-well plates at a density of 1.5 × 10^3^ cancer cells and 1.5 × 10^3^ fibroblasts per well. Plates were then incubated for two days at 37 °C in a humidified environment on a magnetic drive. Subsequently, medium containing 10 µM of the test compounds 9 and 21 was added. Spheroid images were taken every two days using an Olympus IX73 inverted microscope (Olympus Corporation, Tokyo, Japan), and spheroid sizes were analyzed using ImageJ version 1.53o (National Institutes of Health, Bethesda, MD, USA) and Microsoft Excel for Mac 2025 software version 16.95.4 (Microsoft Corporation, Redmond, WA, USA). On the final day of the experiment, 20 µL of MTT reagent was added to each well. After a 10 h incubation, the medium was removed, and the formazan crystals were dissolved in 100 µL of DMSO overnight. Absorbance was measured at 570 and 630 nm using the Multiskan GO microplate reader (Thermo Fisher Scientific Oy, Ratastie, Finland).

All biological experiments were conducted at least three times, and results were expressed as mean ± standard deviation. Data were analyzed using Microsoft Excel for Mac 2025 software. The statistical analysis was performed using Student’s t-test. The level of significance was set as p < 0.05.

3.5. Statistical Analysis

All biological experiments were repeated at least three times, calculating the mean and standard deviation. The data were processed using Microsoft Excel for Mac 2025 software version 16.95.4 (Microsoft Corporation, Redmond, WA, USA). Statistical analysis was performed by using Student’s t-test. The level of significance was set as p < 0.05.

4. Conclusions

In this study, we successfully synthesized and characterized a series of novel functionalized Schiff base, aminoketone, 5-oxopyrrolidine, imidazole, and β-amino acid derivatives on the basis of 3-amino-4-hydroxybenzenesulfonamide and evaluated their biological activity. We assessed the binding affinities of synthesized compounds to recombinant human carbonic anhydrases using the fluorescent thermal shift assay. The compounds were grouped into five categories based on their structural similarities.

Our structure–activity analysis indicated that adding groups such as ethyl or acetyl to the primary sulfonamide fragment diminished the binding ability of certain compounds (specifically 21, 23, and 27) to the CA isoenzymes. Overall, the binding affinities of the primary sulphonamide compounds for the cancer-associated CAIX isoenzyme were in the range of 0.51–22 µM and for CAXII in the range of 6.2–75 μM.

Compounds that featured an -OEt group instead of an -OH group (compounds 35, 36, 37, and 38) exhibited stronger binding than their hydroxy group counterparts. Additionally, aminoketone compounds (12, 14, and 18) showed good binding to CAI, CAII, CAVII, CAIX, and CAXIV isoenzymes, with dissociation constants (Kd values) in the range of 0.0062–0.98 µM.

Moreover, compounds from the imidazole group (19) and the β-amino acid group (25) also demonstrated high affinity for CAI and CAII. Structural analysis revealed that the benzene ring of compound 25 was oriented differently in the active sites of CAI and CAII. In both instances, the substituent at position 3 was flexible and could adopt alternative conformations: one oriented toward the hydrophilic side and the other toward the hydrophobic side of the cavity.

Generally, most compounds were not very active against human glioblastoma U-87, triple-negative breast cancer MDA-MB-231, or prostate adenocarcinoma PPC-1 cell lines. Only four compounds (9, 12, 18, and 21) reduced the viability of at least one of the tested cell lines up to <20%. These compounds showed very distinct CA inhibitory profiles: compounds 12 and 18 were characterized by relatively low K_d_s towards most CAs, while compound 9 showed a modest affinity and compound 21 did not bind to CAs.

The EC_50_ values of the most active compounds varied in a wide range from 13.0 to 148.3 μM against different cell lines. However, even though their cytotoxicity was not very high, all four compounds were more active against the triple-negative breast cancer cell line MDA-MB-231 than CA-IX inhibitor U-104, and more active against all cell lines than the non-selective CA inhibitor acetazolamide.

Compound 9 (inhibitor of multi-CAs) and compound 21 (not binding to CAs) were identified as the most promising candidates. EC_50_ values for compound 9 ranged from 13.0 to 23.3 μM and for compound 21–from 43.7 to 148.3 μM. Both compounds reduced the viability of spheroids formed from all cancer cell lines. U-87 and PPC-1 spheroids became looser in the presence of compound 9, while the growth of MDA-MB-231 spheroids was slower compared to the control. Compound 21 reduced the growth of U-87 and MDA-MB-231 3D cultures, with no significant effect on PPC-1 spheroids.

The study results suggest that the strongest binding to CAs is not the only or the most important factor to achieve a higher effect in cancer cell 2D and 3D cultures. Activity in the cell monolayer and spheroids could also be determined by different testing conditions, including cell line, CA expression, oxygen concentration, cell permeability, off-target effects, etc. The biological activity of 3-amino-4-hydroxy-benzenesulfonamides could be related to different mechanisms of action. However, we recognize the limitations of our study, which did not include the determination of CA expression or hypoxia level, and suggest that further thorough analysis is needed to come to clearer conclusions on the correlations between distinct binding to CAs and biological activity in clearly defined in vitro tumor models.
