Flexible feature mapping topology optimization using NURBS-based component projection
Reinier Giele, Can Ayas, Matthijs Langelaar
TL;DR
This paper introduces a new topology optimization method using NURBS to create flexible feature shapes in design optimization.
Contribution
The novel method uses NURBS-based projection to allow flexible feature shapes in topology optimization.
Findings
NURBS-based feature shapes provide high flexibility in topology optimization.
The method integrates with conventional density-based formulations and allows precise control over feature shapes.
Regularization is needed to ensure optimization stability with flexible NURBS features.
Abstract
A novel feature mapping topology optimization method is presented, allowing for the creation of features with highly flexible shapes. The method easily integrates with conventional density-based formulations. Feature shapes are implicitly described by NURBS control points. The feature shape dictates the locations of two sets of projection points to represent the solid void boundaries. At these projection points, density values are projected onto a finite element mesh. The method optimizes feature shapes in a gradient-based manner, while allowing more specific control of the feature shapes than classical level set methods. Several feature fields can be combined to create a final output design. It is found that the eminent flexibility of the NURBS-based feature definition is a benefit but also requires additional regularization to guarantee stability of the optimization.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

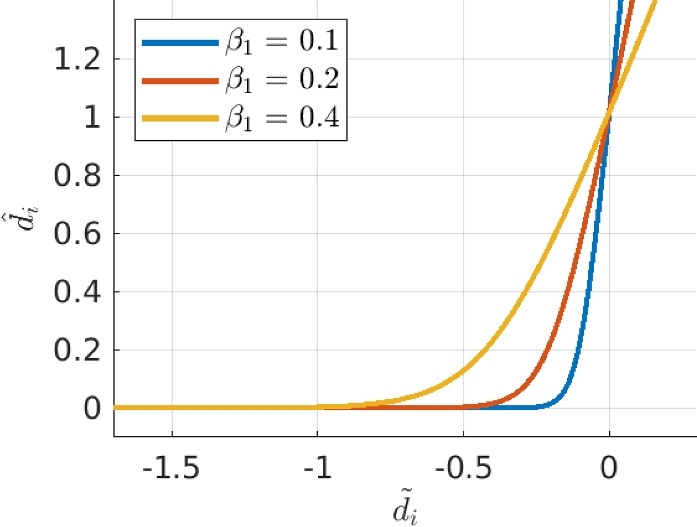

Figure 10

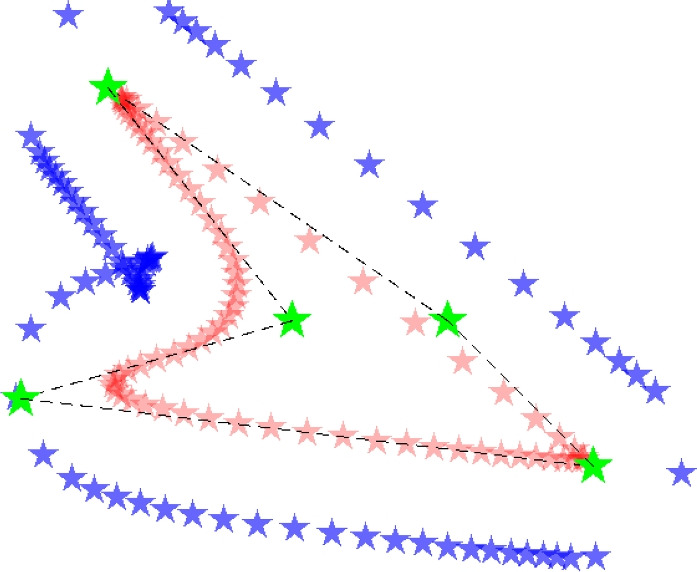

Figure 11

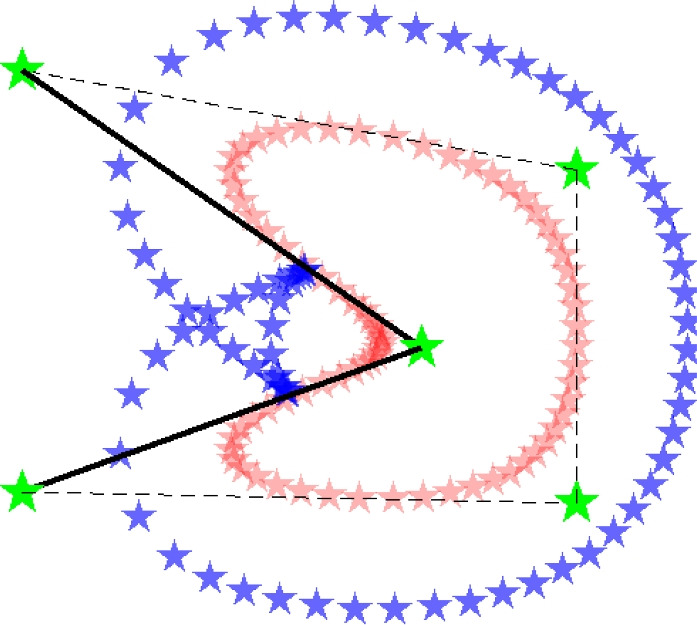

Figure 12

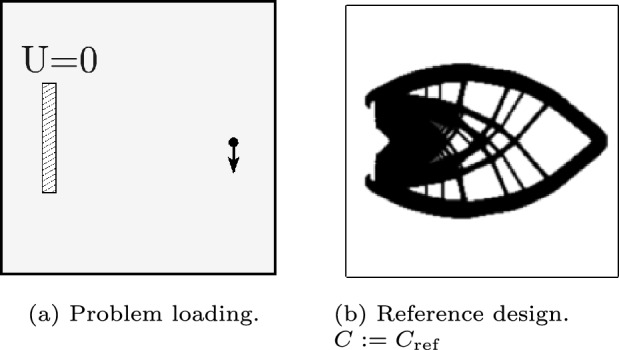

Figure 13

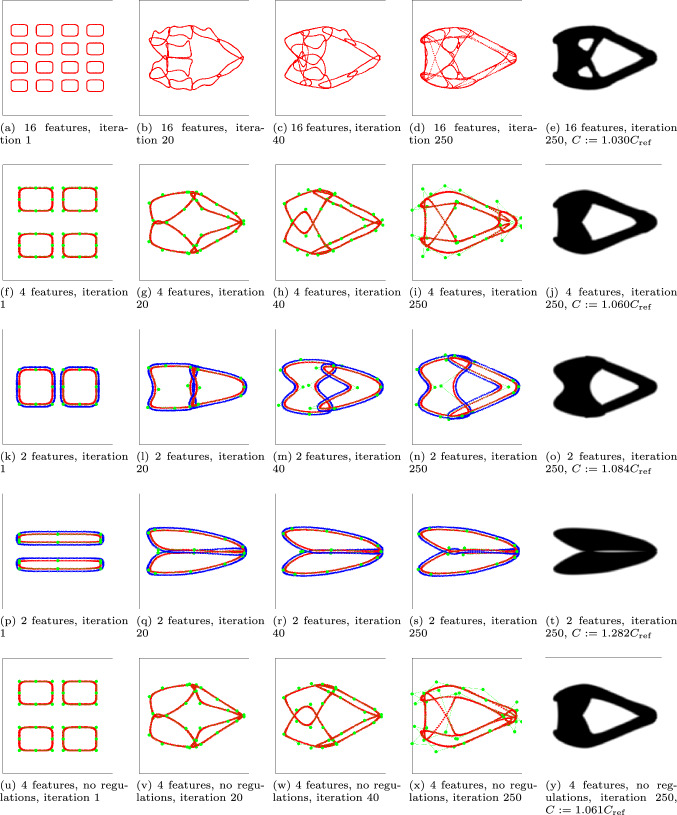

Figure 14

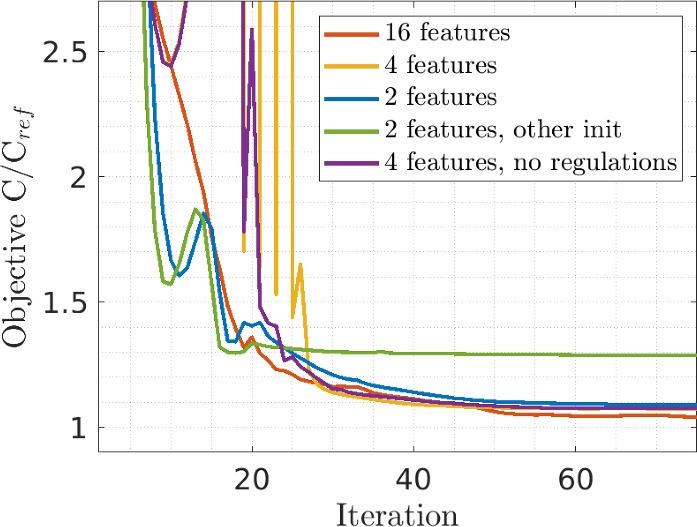

Figure 15

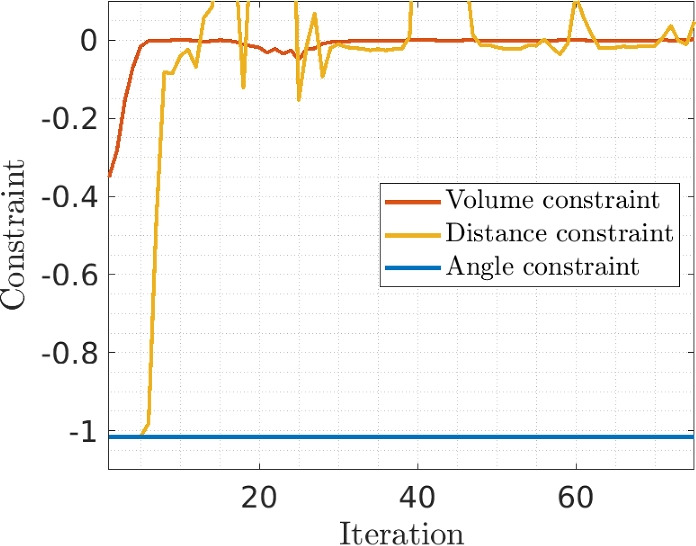

Figure 16

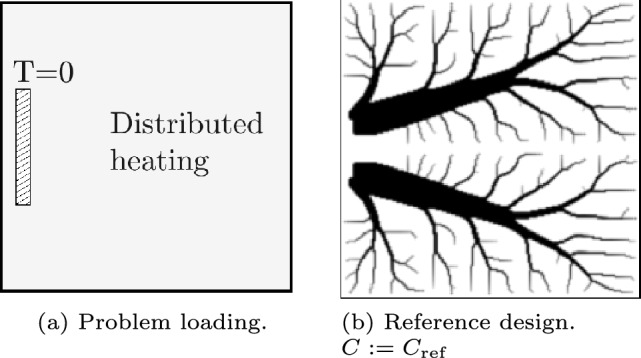

Figure 17

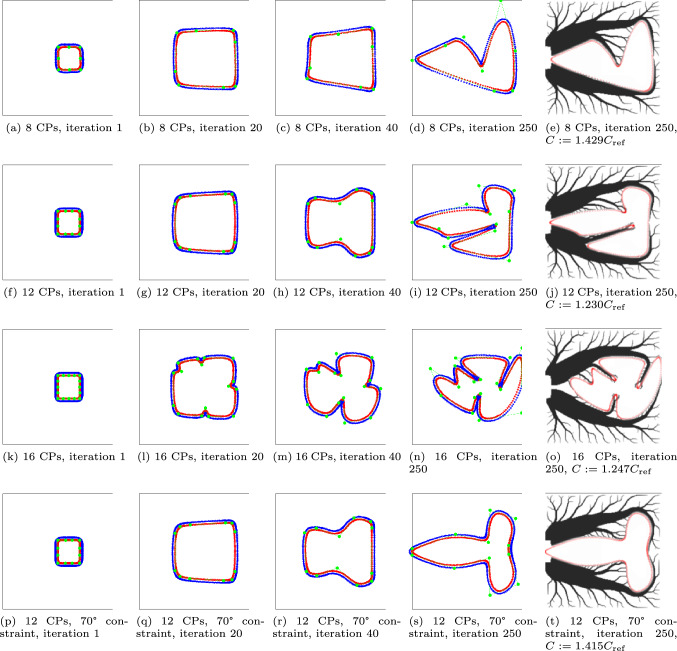

Figure 18

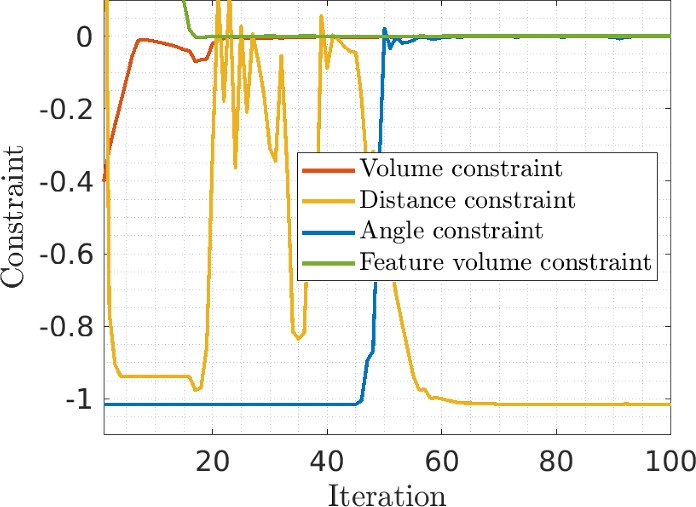

Figure 19

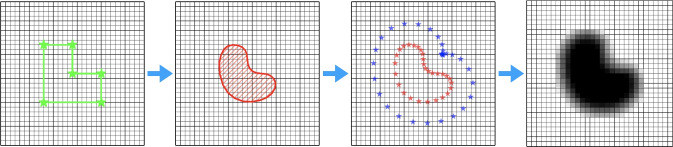

Figure 1
Figure 2

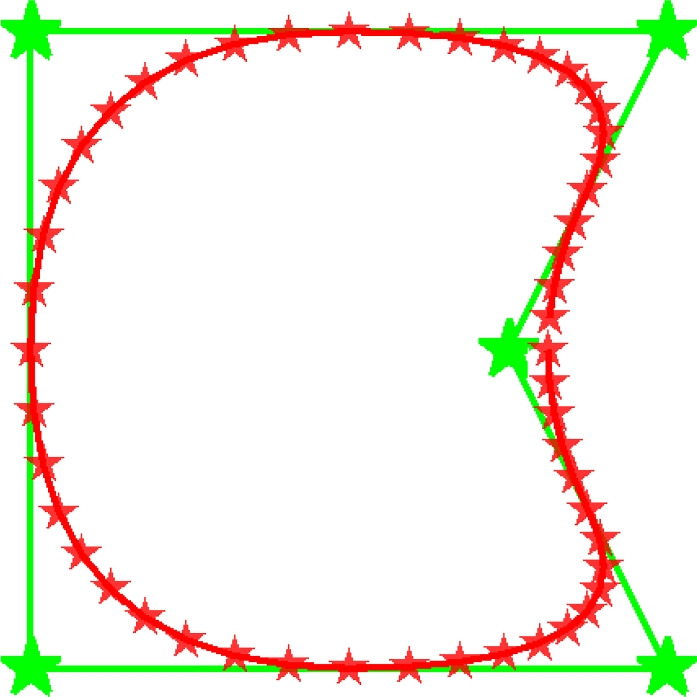

Figure 3

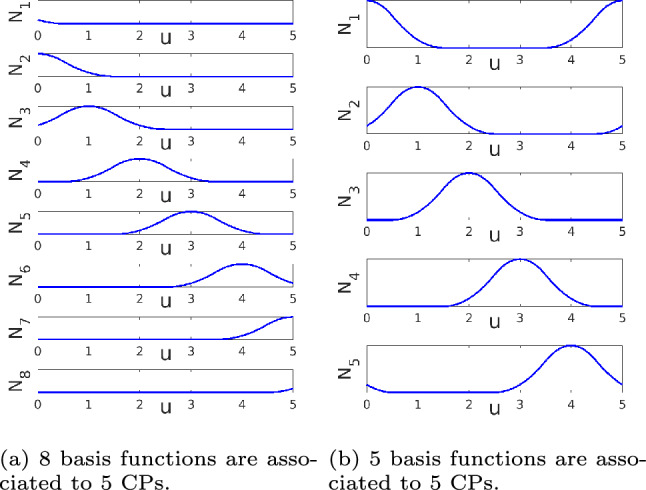

Figure 4

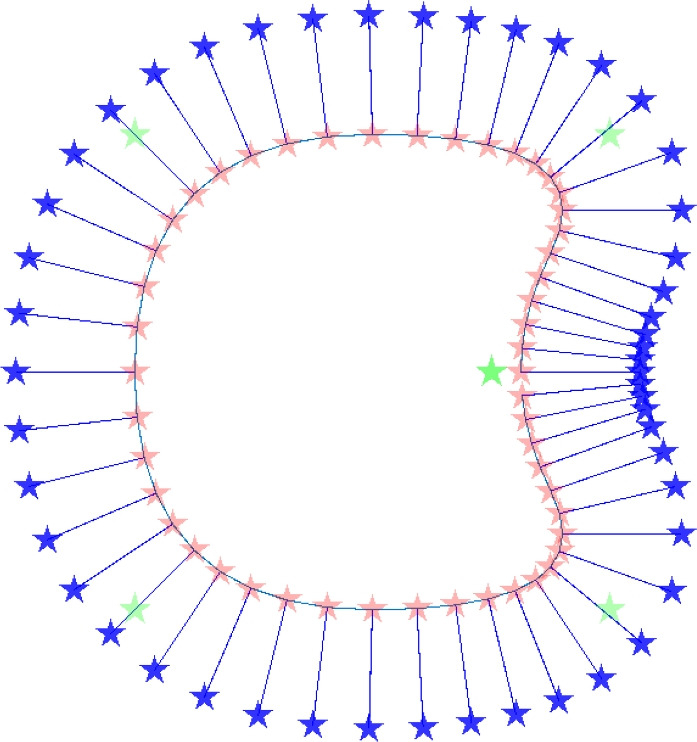

Figure 5
Figure 6

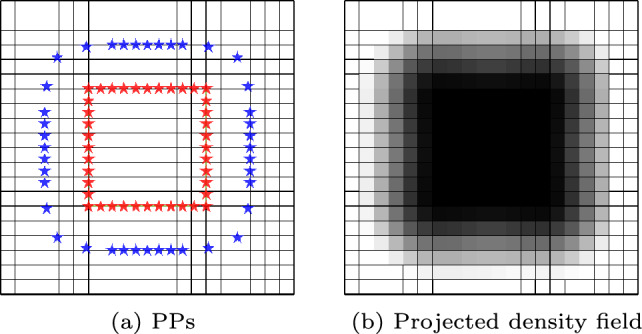

Figure 7
Figure 8

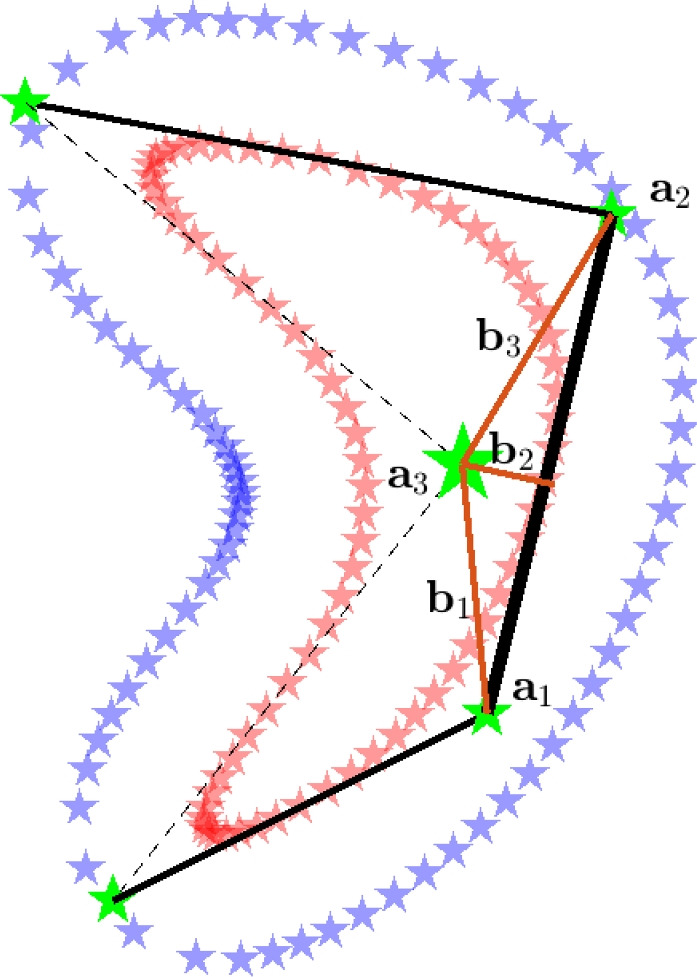

Figure 9Peer Reviews
