A convergent synthetic approach to the tetracyclic core framework of khayanolide-type limonoids

TL;DR

This paper presents a new method to build the complex tetracyclic core of khayanolide-type limonoids in a controlled and efficient way.

Contribution

The paper introduces a novel convergent synthetic strategy for constructing the tetracyclic core of khayanolide-type limonoids with enantioselectivity.

Findings

The method uses acylative kinetic resolution of a benzylic alcohol as a key step.

A 1,2-Grignard addition and an AcOH-interrupted Nazarov cyclization complete the tetracyclic core formation.

The approach provides an advanced intermediate with high stereochemical control.

Abstract

A convergent approach for the enantioselective construction of an advanced intermediate containing the [5,5,6,6]-tetracyclic core framework of the khayanolide-type limonoids was described. The strategy features an acylative kinetic resolution of the benzylic alcohol, a 1,2-Grignard addition and an AcOH-interrupted Nazarov cyclization.

Figures

Representative limonoid triterpenes.

Structures and retrosynthetic analysis of krishnolides A (7) and C (8).

Construction of α-iodoenone 13.

Construction of aldehyde 14.

Synthesis of the advanced intermediate 10 (in the X ray structure of 10 solvent molecule is omitted for clarity).

Tables

Table 1. Optimization of the interrupted Nazarov cyclization.a

Entry	Conditions	Yield (%)b
		34	10
1c	11, AlCl3, DCE, 60 °C	0	0
2c	11, BF3·Et2O, DCE, 60 °C	0	0
3c	11, Me2AlCl, toluene, 100 °C	0	0
4	11, AcOH, DCE, 70 °C	0	0
5	11, 254 nm hν, AcOH, DCM, 20 °C	57	7
6d	11, 313 nm hν, AcOH, DCM, 20 °C	0	0
7d	11, 365 nm hν, AcOH, DCM, 20 °C	0	0
8	11, 254 nm hν, AcOH, DCE, 40 °C	54	8
9	11, 254 nm hν, AcOH, DCE, 70 °C	51	9
10c	11, 254 nm hν, H2O, DCM, 20 °C	0	0
11	31, 254 nm hν, AcOH, DCM, 20 °C	0e	73e

Full text

Introduction

Limonoids, a class of tetranortriterpenoids derived biosynthetically from oxidative truncation of apotirucallane or apoeuphane precursors coupled with subsequent β-furan annulation [1–6], constitute an architecturally sophisticated family of natural products. Based on their specific skeletal rearrangements, limonoids can be systematically categorized into four subfamilies: ring intact limonoids, ring-seco limonoids, rearranged limonoids and N-containing limonoids (Figure 1). Moreover, these molecules exhibit a remarkable pharmacological portfolio encompassing anticancer, antimicrobial, anti-inflammatory, and insect antifeedant activities [7–9], positioning them as compelling targets for both therapeutic development and agrochemical innovation. Furthermore, limonoids are also renowned for their extraordinary structural complexity. For instance, the phragmalin-type limonoids represent a significant category of highly oxygenated rearranged limonoids, which contain a distinctive octahydro-1H-2,4-methanoindene cage. The fascinating architectures and remarkable biological profiles of these compounds have attracted widespread attention from the synthetic community. In 1989, Corey and Hahl made a seminal contribution [10] to the field by completing the total synthesis of azadiradione (1). Following this, Ley and his team successfully synthesized azadirachtin (2) in 2007, a limonoid extensively utilized in organic agriculture [11]. In recent years, remarkable progress has been made on the total syntheses of various limonoids, with notable contributions from researchers such as Williams [12], Yamashita [13], Hao/Yang/Shen [14], Gong/Hao/Yang [15], Newhouse [16–19], Yang/Chen [20], Renata [21], Qin/Yu [22], Ma [23], Watanabe [24], and Li [25]. Their groundbreaking work has provided valuable insights and inspired further research in synthetic chemistry involving limonoids.

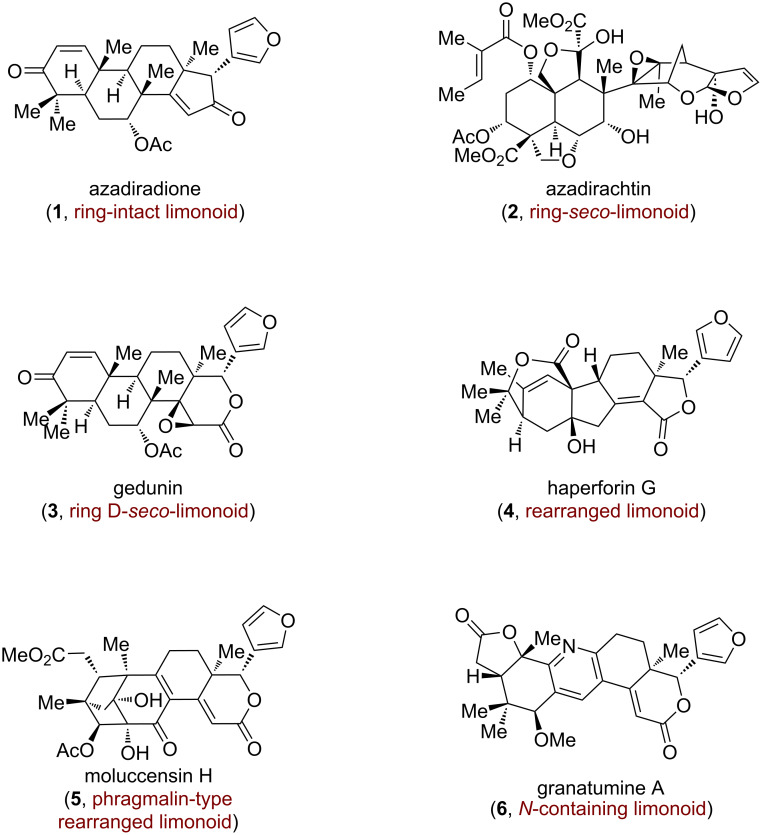

Representative limonoid triterpenes.

Krishnolides A and C (7 and 8, respectively; Scheme 1A) were identified by Wu and co-workers from the seeds of a Krishna mangrove Xylocarpus moluccensis [26]. These two molecules belong to khayanolides, a class of rearranged phragmalin limonoids characterized by a structurally intricate tricyclo[4.2.1^10,30^.1^1,4^]decane ring system. Additionally, krishnolides A and C contain 9–11 stereogenic centers and exhibit diverse oxidation patterns. Their relative and absolute configurations were determined through NMR, HRESIMS and ECD experiments, as well as single crystal X-ray diffraction analysis. A preliminary investigation revealed that krishnolide A (7) exhibited unique anti-human immunodeficiency virus (HIV) activity, representing the first report of anti-HIV activity in khayanolide-type limonoids. However, the highly oxygenated and polycyclic scaffolds pose substantial challenges toward their total synthesis. Two synthetic studies were disclosed successively by Sarpong [27] and Jirgensons [28], both focusing on the construction of the unique methanoindene cage structure (A_1_A_2_B ring system). Building upon our previous syntheses of phragmalin-type limonoids [29], we herein disclose a convergent approach leveraging an AcOH-interrupted Nazarov cyclization to establish the [5,5,6,6]-tetracyclic scaffold with precise stereochemical fidelity.

Results and Discussion

Our retrosynthetic analysis toward krishnolides A (7) and C (8) is delineated in Scheme 1B. We hypothesized that these two molecules could be synthesized from diol 9 through a late-stage modification involving adjustment of the oxidation state and regioselective acylation. The formation of 9 was envisioned to proceed via an intramolecular pinacol coupling [30–31] of [5,5,6,6]-tetracycle 10, which forges the A_2_ ring while simultaneously installing the hydroxy group at C30. The latter intermediate could in turn be derived from dienone 11 by an AcOH-interrupted Nazarov cyclization [32–34], thereby establishing the B ring with the desired all-cis stereochemical configuration, including the quaternary carbon at C10 and the essential tertiary alcohol at C1. The β-hydroxylactone moiety (D ring) in 11 could be introduced through an intramolecular aldol condensation [35] of acetate 12. Ultimately, the preparation of 12 could be traced back to aldehyde 14 through 1,2-Grignard addition with an organomagnesium reagent [36] prepared from α-iodoenone 13.

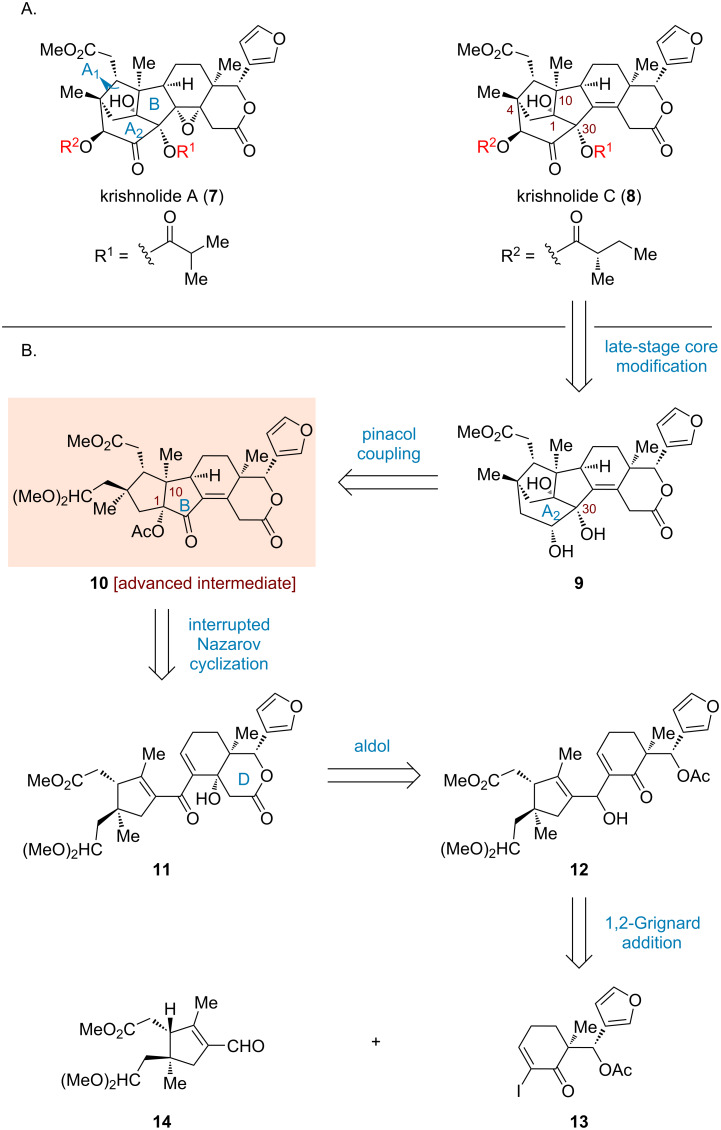

Structures and retrosynthetic analysis of krishnolides A (7) and C (8).

Our synthesis began with the preparation of α-iodoenone 13 (Scheme 2). The α-monomethylation of cyclohexenone 15 was efficiently carried out with LDA, HMPA, and MeI [37], producing enone 16 in 78% yield. Subsequently, a diastereoselective aldol reaction between 16 and 3-furaldehyde promoted by LiHMDS gave alcohol 17 with high regioselectivity (14:1 dr at C17) after an extensive screening of bases (LDA, NaHMDS, KHMDS, etc.). Drawing inspiration from the pioneering work of Birman [38], as well as Newhouse’s applications [18–19], an acylative kinetic resolution of the alcohol was achieved by using (R)-BTM (19), furnishing acetate 18 with satisfactory efficiency and enantioselectivity (37% yield, 85% ee). Finally, iodination of 18 employing Johnsen’s protocol (I_2_, pyridine) [39] provided α-iodoenone 13 in 89% yield.

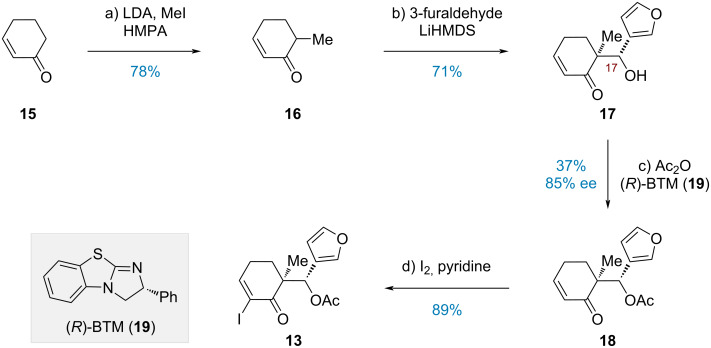

Construction of α-iodoenone 13.

On the other hand, the synthesis of acetal aldehyde 14 commenced with bicyclic ketone 21, which was prepared from (+)-Hajos–Parrish ketone in 49% yield over two steps (Scheme 3) [40–43]. Ensuring silyl enol etherification of the ketone at C29 coupled with IBX-mediated Nicolaou oxidation [44] furnished the corresponding enone in 72% yield (90% brsm). The methyl group at C10 was then introduced via a Michael addition (MeMgBr, CuI) to afford 22 in a yield of 65% (4:1 dr at C10). Initial attempts on the carbonyl 1,2-transposition protocol reported by Dong and co-workers were ineffective [45], leading to premature hydride termination and the formation of alkene 23. As an alternative solution, by treating 22 with KHMDS and PhNTf_2_, enol triflation took place successfully. The resultant triflate was coupled with n-Bu_3_SnH to afford Δ^1,29^-alkene 23 in 83% yield over two steps. Subsequent hydroboration–oxidation by employing BH_3_·THF proceeded smoothly, providing a 4.4:1 mixture of regioisomeric alcohols with the desired isomer being the major component, presumably due to the considerable steric hindrance from the quaternary carbon at C4. However, decagram-scale separation of these two isomers by chromatography proved troublesome. Fortunately, the distinct reactivity of those two alcohols toward oxidation allowed for the selective conversion of desired alcohol to ketone 24 using PCC, producing a 50% overall yield, while the recovered undesired alcohol could be reverted to 21 by Swern oxidation.

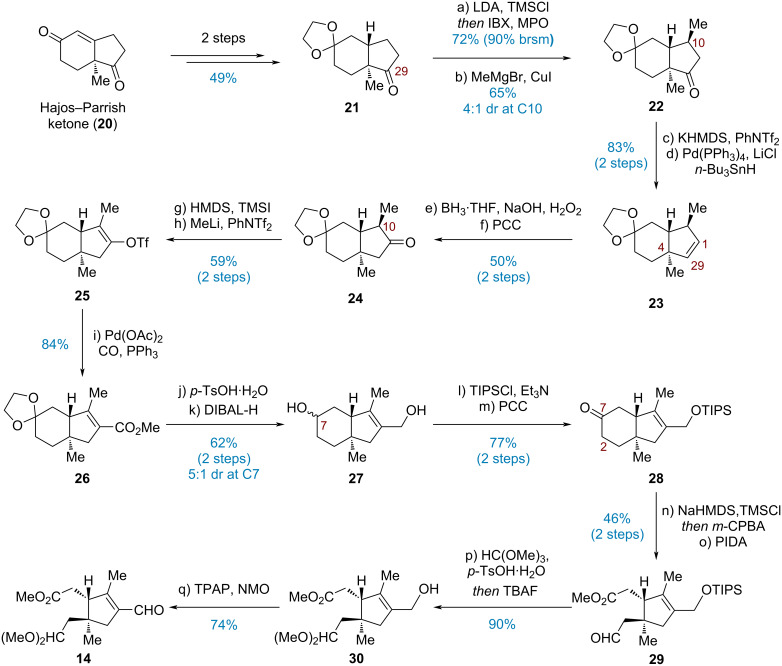

Construction of aldehyde 14.

Direct enol triflation (Et_3_N/Tf_2_O, NaH/PhNTf_2_, DTBMP/Tf_2_O, etc.) of 24 led only to epimerization at C10 or slow decomposition of the starting material (see Supporting Information File 1, Table S1). Pleasingly, treating 24 with HMDS and TMSI regioselectively generated the expected TMS enol ether [46], which underwent a Li/Si exchange in the presence of MeLi followed by interception of the lithium enolate with PhNTf_2_ to give enol triflate 25 in 59% overall yield. The following palladium-catalyzed methoxycarbonylation produced methyl ester 26 in a satisfactory yield of 84%. TIPS-protected allylic alcohol 28 was selected as the appropriate precursor for the α,β-unsaturated aldehyde and synthesized from 26 via a four-step transformation sequence, including deketalization, reduction, silylation of the primary alcohol and oxidation of the secondary alcohol. For the disconnection of the C2–C7 bond, a two-step protocol involving Rubottom oxidation and PIDA-promoted oxidative cleavage [47] was applied to deliver aldehyde 29. Finally, a one-pot acetalization and desilylation effectively afforded the acetal alcohol, which was then oxidized with the aid of TPAP, furnishing acetal aldehyde 14 in 67% yield over two steps.

With the two fragments 13 and 14 in hand, the next stage was set for the construction of the target skeleton through a 1,2-addition (Scheme 4). Preliminary trials to generate organometallic species via Li/I exchange under various conditions (n-BuLi, t-BuLi, or t-BuLi in combination with CeCl_3_ or MgBr_2_) led to rapid decomposition, likely due to inherent instability of α-iodoenone 13. Inspired by the influential studies by Knochel [36] and Baran [48], we discovered that Mg/I exchange of 13 could be accomplished with iPrMgCl·LiCl at −78 °C. The resulting Grignard reagent reacted smoothly with aldehyde 14, affording the corresponding adduct 12 in 58% yield (92% brsm). Since the newly created configuration at C30 was inconsequential, an intramolecular aldol reaction was directly carried out by treatment with LiHMDS to furnish β-hydroxylactone, which could be converted to dienone 11 through TPAP oxidation.

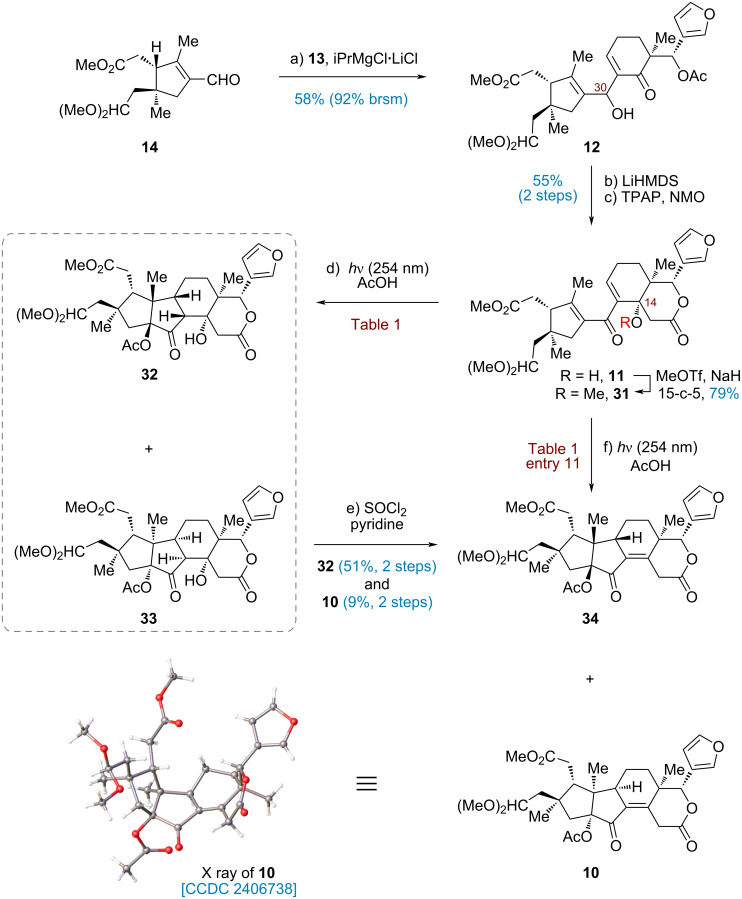

Synthesis of the advanced intermediate 10 (in the X ray structure of 10 solvent molecule is omitted for clarity).

Having secured 11, we proceeded to evaluate the pivotal Nazarov cyclization under a variety of conditions (Table 1). Initial trials under acid-mediated Nazarov conditions (AlCl_3_, BF_3_·Et_2_O and Me_2_AlCl) led to complete decomposition, while the exposure to AcOH resulted in recovery of the starting material (Table 1, entries 1–4). Recognizing the limitations of these approaches, we then turned to the milder photo-Nazarov cyclization, in which the UV-light sources were found to be critical. While irradiation at 365 or 313 nm failed to induce cyclization and only allowed recovery of the starting material (Table 1, entries 6 and 7), the disrotatory cyclization of 11 in the presence of AcOH by exposure to UV-light at 254 nm occurred exclusively to provide an inseparable mixture of 32 and 33 (Table 1, entry 5). Subsequent dehydration of the resultant mixture with SOCl_2_ and pyridine yielded separable enones 34 (51%) and 10 (9%) over two steps. The structure of 10 was unequivocally determined through X-ray crystallographic analysis (ORTEP drawing, Scheme 4). Further optimization by elevating the reaction temperature did not noticeably alter the ratio of 32 and 33 (Table 1, entries 8 and 9). Moreover, attempts to apply interrupted Nazarov cyclization with H_2_O under neutral conditions merely resulted in decomposition (Table 1, entry 10). To our delight, photoirradiation of the corresponding methyl ether 31 at 254 nm in the presence of AcOH at 20 °C led to a smooth cyclization, followed by spontaneous elimination, which produced the desired 10 as the single product, with no detection of 34 (Table 1, entry 11). This result presumably arises from the minimization of dipole–dipole repulsions between the carbonyl of the dienone moiety and the C14-OMe within the desired transition state (more details were discussed in our group’s previous work [29]).

Conclusion

In conclusion, we have developed a convergent approach for the enantioselective assembly of an advanced intermediate en route to krishnolides A and C. Key steps of our strategy entail an acylative kinetic resolution of the alcohol, a 1,2-Grignard addition and an AcOH-interrupted Nazarov cyclization. Further elaboration of intermediate 10 to krishnolides A and C, as well as other khayanolide-type limonoids is currently ongoing, and the results will be disclosed in future reports.

Supporting Information

Deposition number 2406738 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via the joint Cambridge Crystallographic Data Centre (CCDC) and Fachinformationszentrum Karlsruhe Access Structures service.

File 1Experimental procedures, NMR spectra and other characterization data for all new compounds.
