High-Energy Low-Velocity Impact Behavior of Rubber-Coated Sandwich Composite Structure with Buoyancy Material Core: Experimental and Numerical Investigation
Yi Zhu, Zhiyuan Mei, Haitao Li, Hongbo Tao, Guotao Chen
TL;DR
This study examines how rubber-coated sandwich structures with buoyancy cores respond to high-energy low-velocity impacts, revealing how the rubber layer improves damage resistance.
Contribution
The novel contribution is identifying three distinct damage stages in rubber-coated sandwich composites and quantifying the rubber layer's impact on damage threshold.
Findings
The rubber layer increases damage threshold by approximately 100% compared to non-rubber-coated structures.
Three distinct damage stages were observed in rubber-coated sandwich composites during impact.
Structures with larger curvature exhibit higher initial stiffness and larger impact damage areas.
Abstract

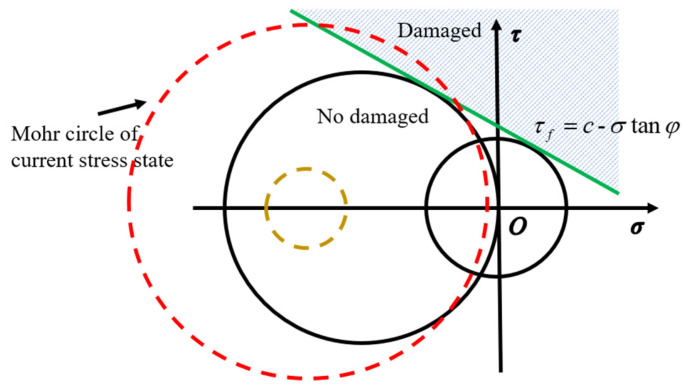

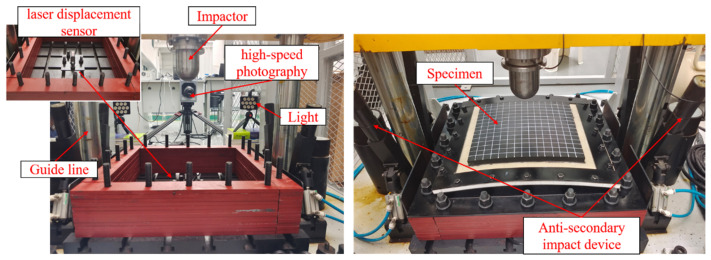

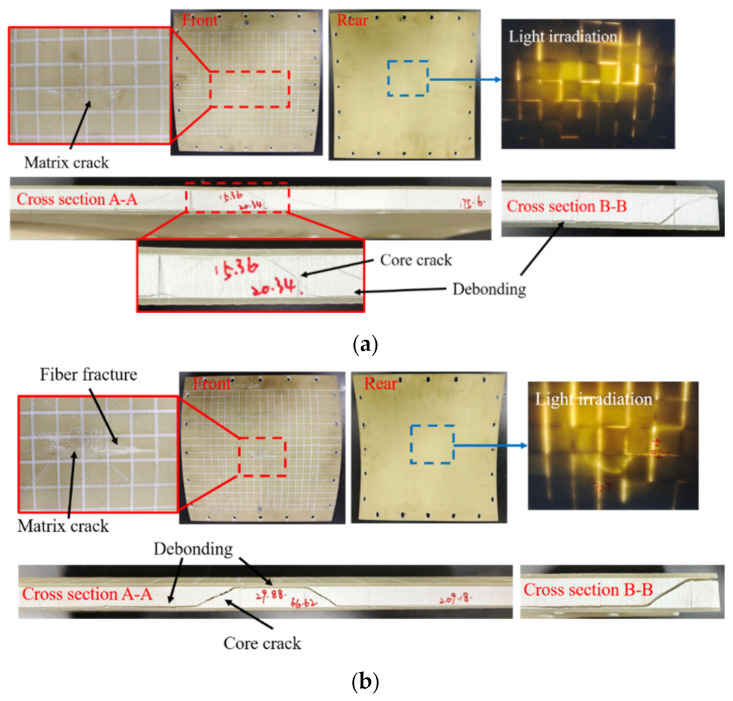

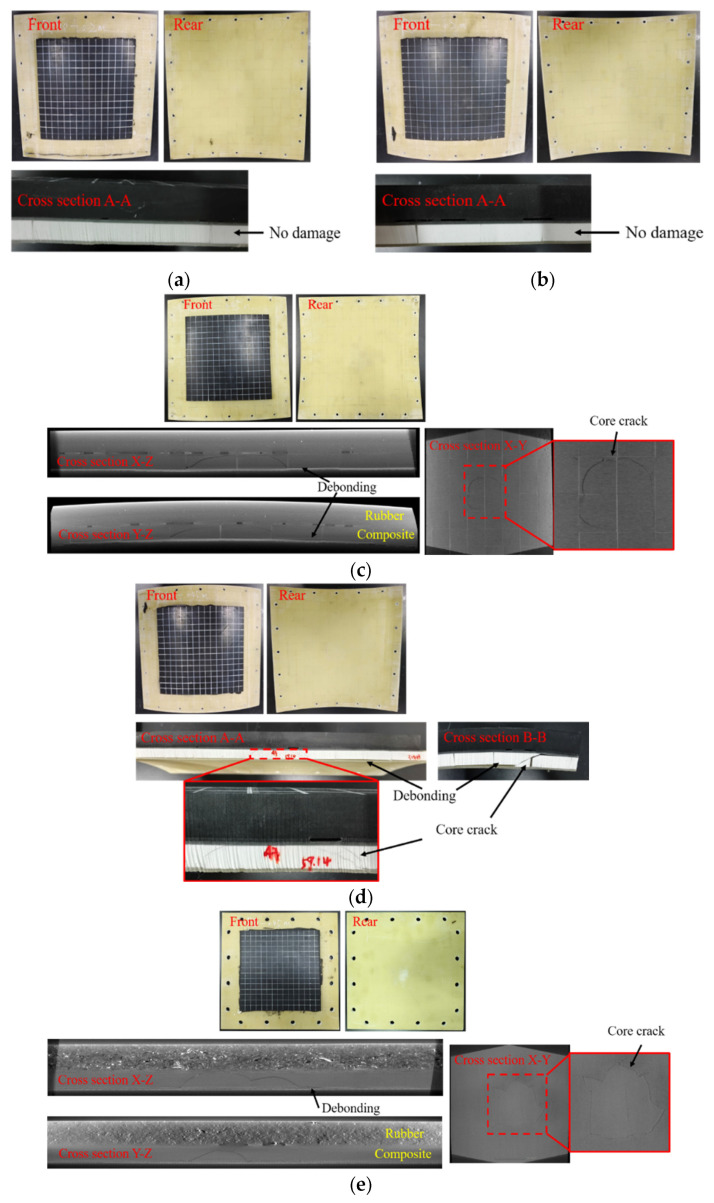

The dynamic response and failure of rubber-coated sandwich composite structures with buoyancy material core (RC-BMC-SCS) subjected to high-energy low-velocity impacts were experimentally and numerically investigated. Six types of BMC-SCSs were designed and manufactured, and high-energy low-velocity impact experiments were performed. Based on the Mohr-Coulomb theory and the Ogden hyperelasticity constitutive model, a low-velocity impact finite element analysis model was developed. The results indicate that BMC-SCS damage stages could be divided into: (1) matrix damage, (2) core cracks, (3) debonding and fiber breakage. Three distinct damage stages of the RC-BMC-SCS were revealed: (1) rubber layer energy absorption, (2) core cracks, (3) debonding. The rubber layer can enhance the damage threshold by approximately 100% compared to BMC-SCS. However, rubber energy absorption capacity has an…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

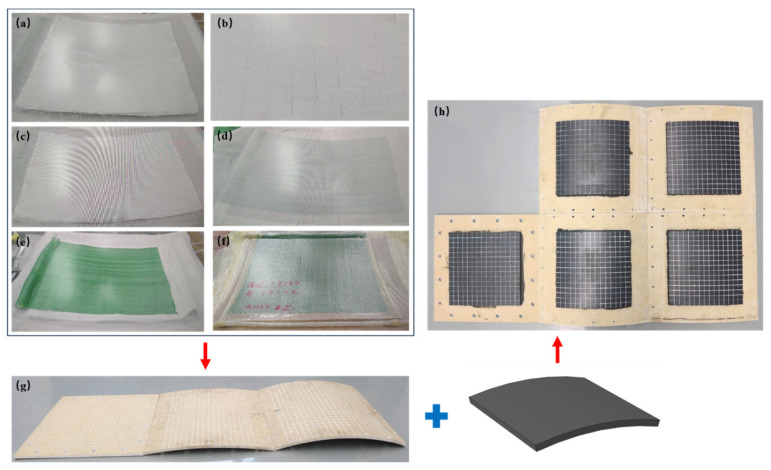

Figure 2
Figure 3

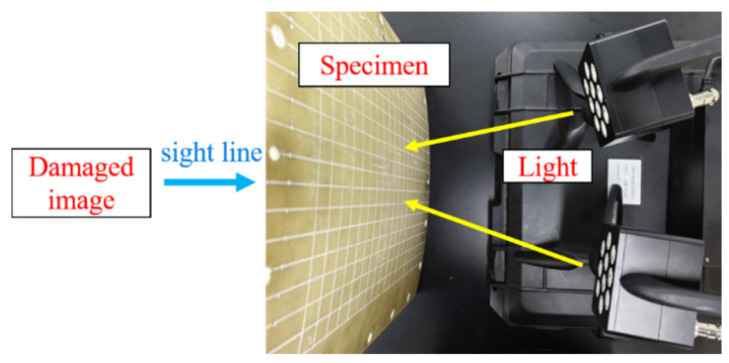

Figure 4

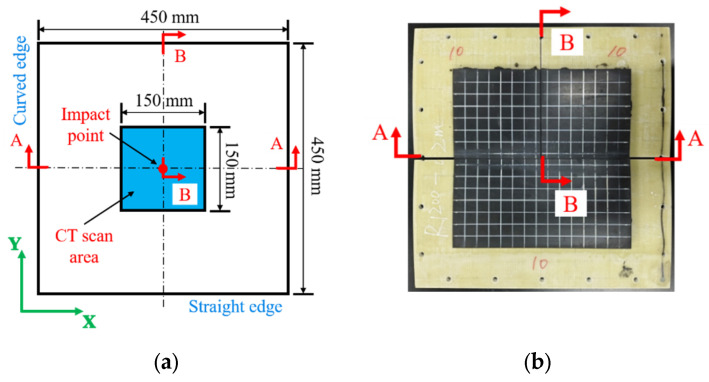

Figure 5

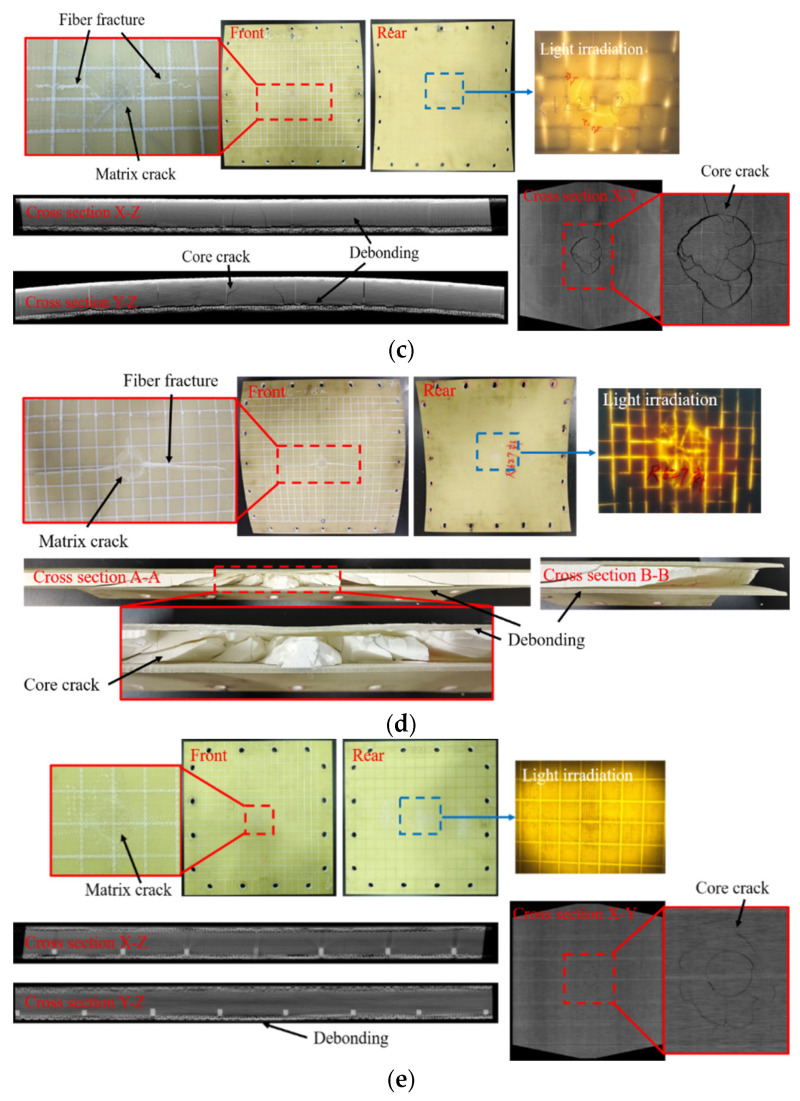

Figure 6
Figure 7
Figure 8

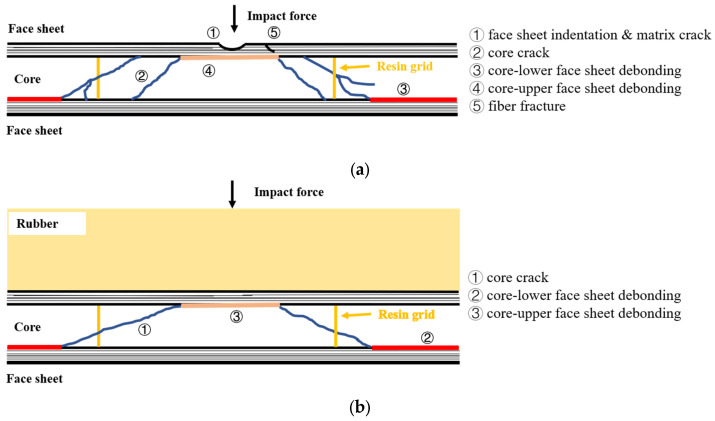

Figure 9

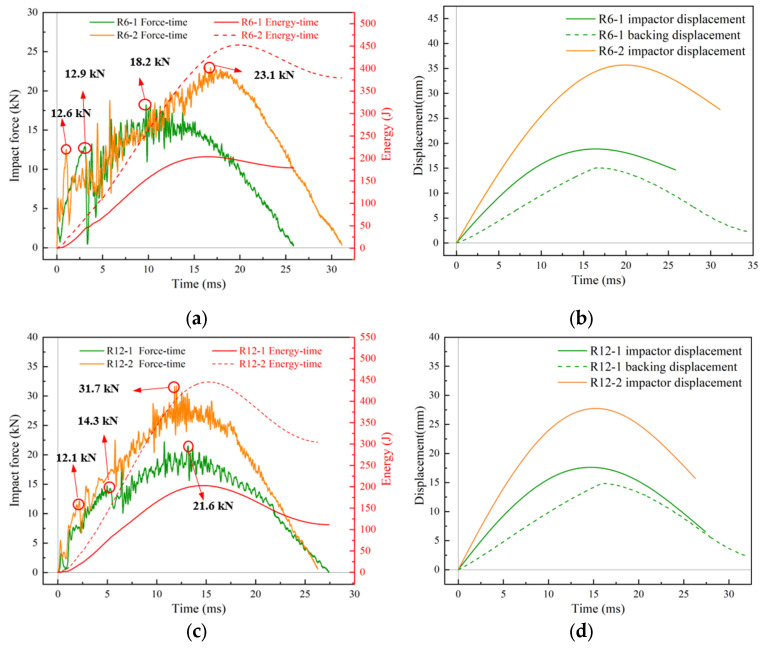

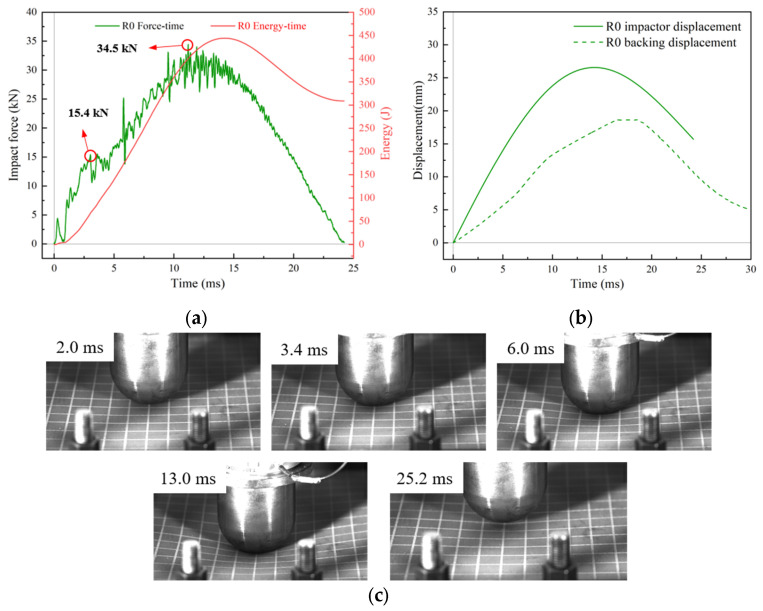

Figure 10

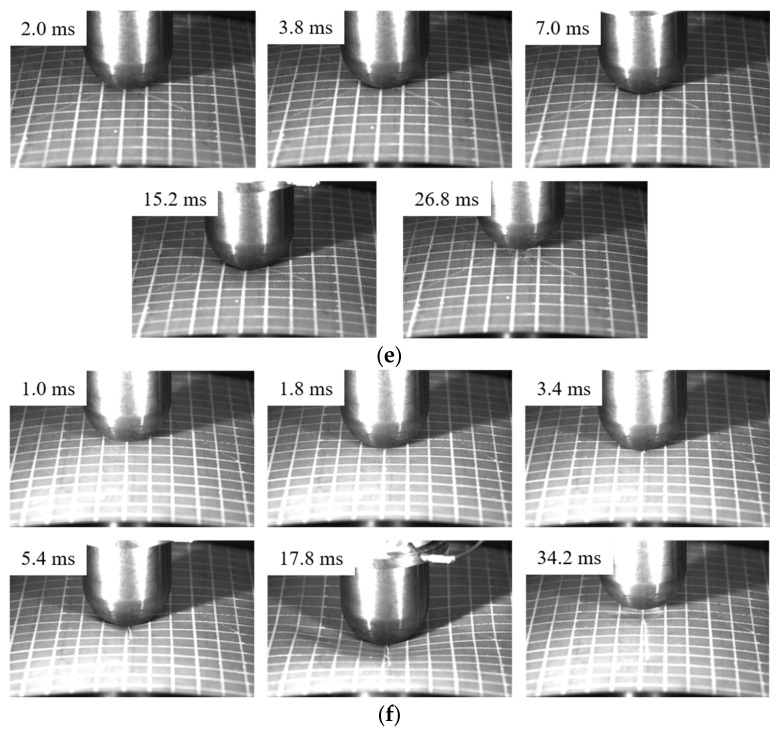

Figure 11
Figure 12
Figure 13

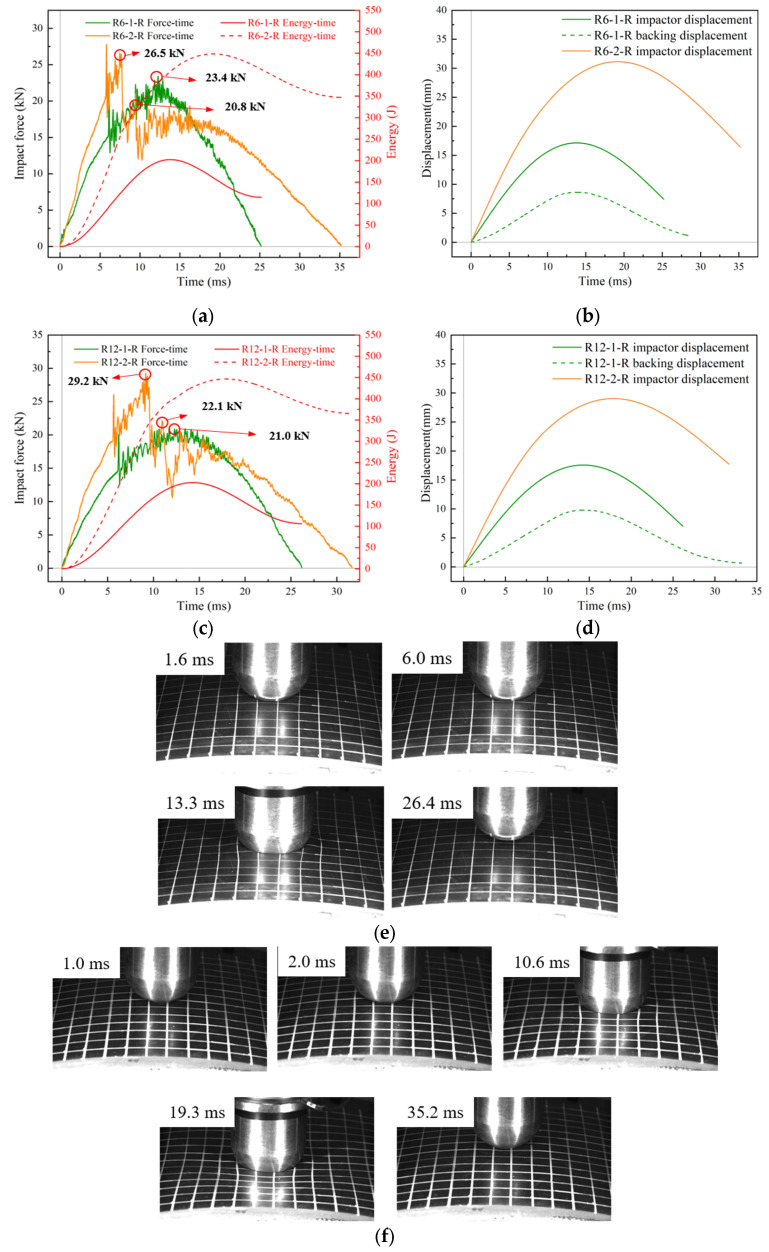

Figure 14

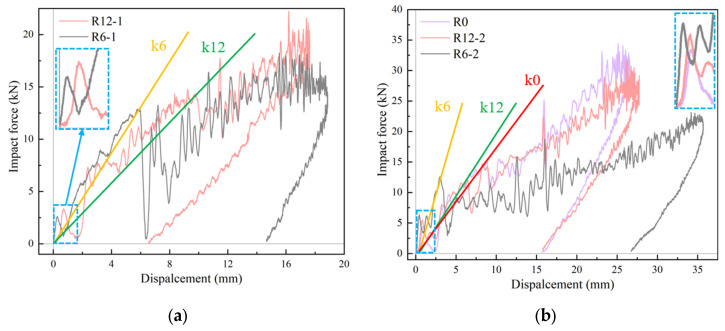

Figure 15

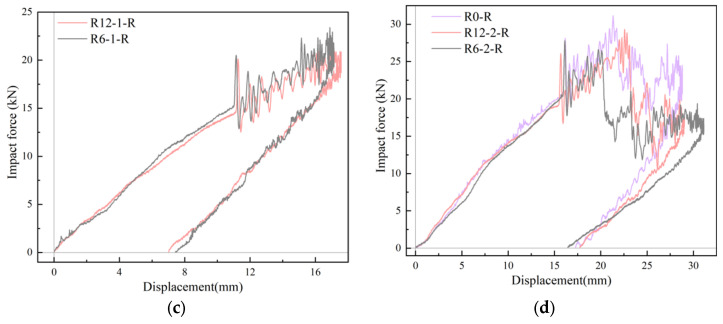

Figure 16
Figure 17
Figure 18

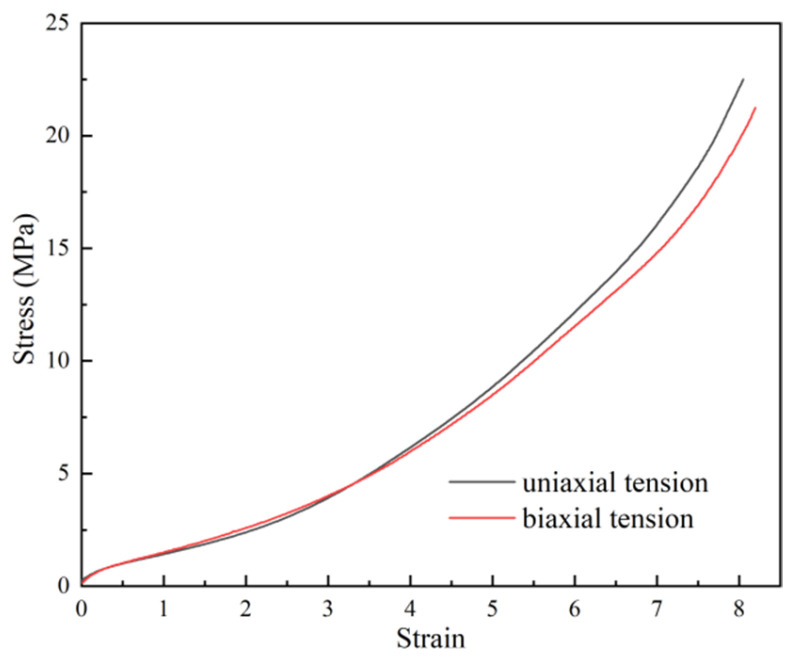

Figure 19

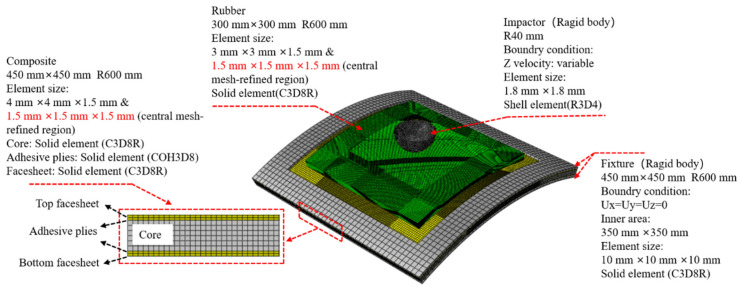

Figure 20

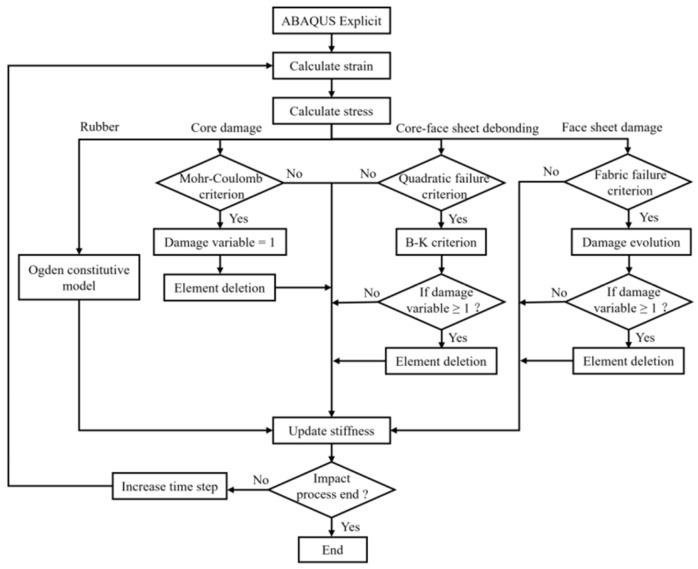

Figure 21

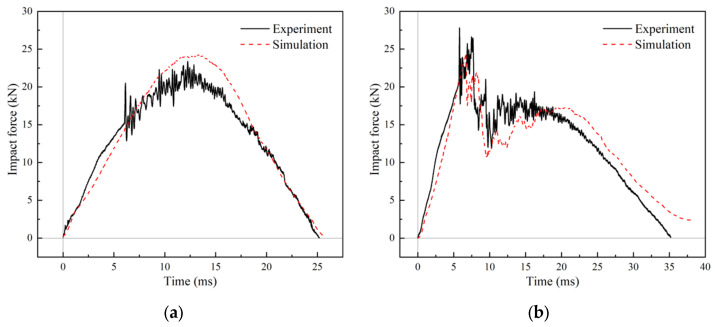

Figure 22
Figure 23

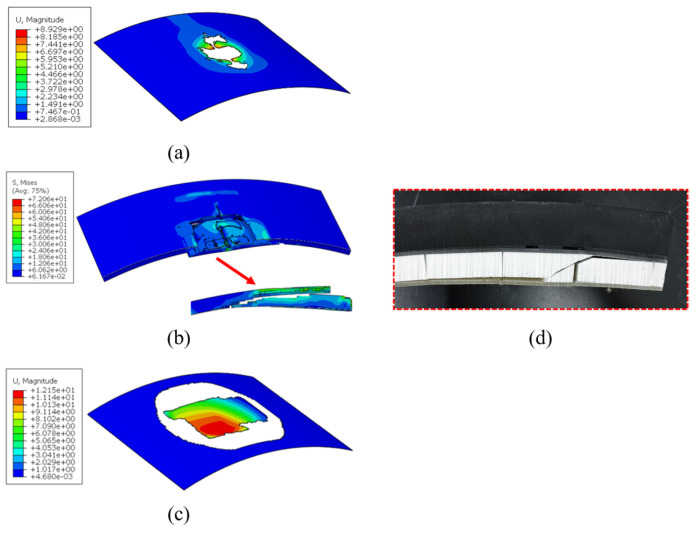

Figure 24

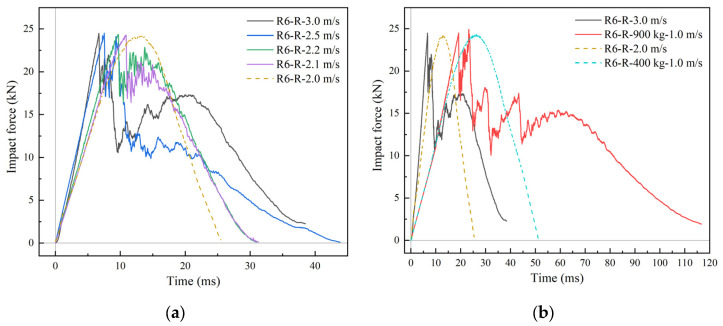

Figure 25

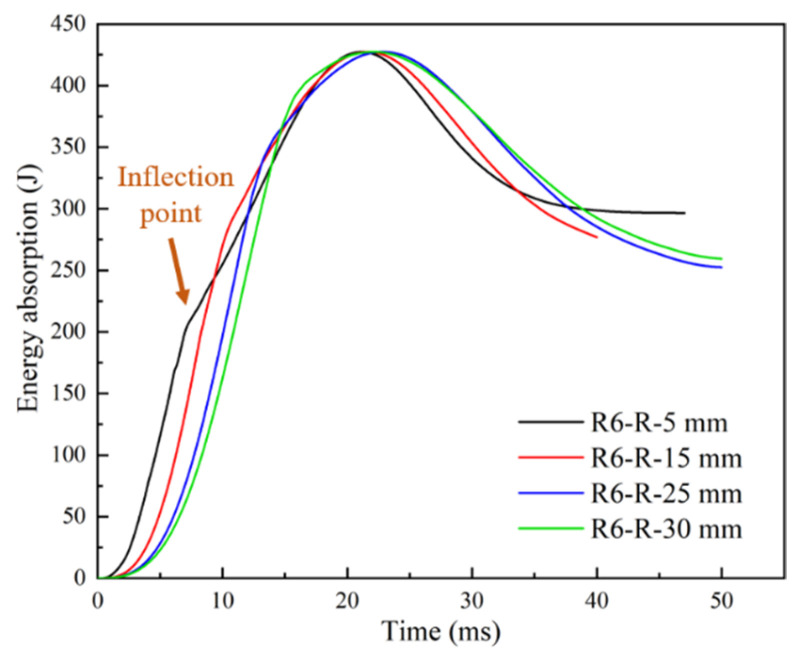

Figure 26

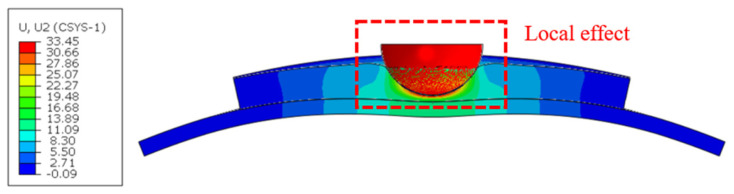

Figure 27Peer Reviews
