A novel, high throughput, and low-cost method for the detection of 40 amines relevant to inborn errors of metabolism, in under 60 min, using reverse phase high performance liquid chromatography

TL;DR

This paper introduces a fast, low-cost method to detect 40 amines linked to inherited metabolic disorders using high-performance liquid chromatography.

Contribution

The novel method enables high-throughput detection of 40 amines in under 60 minutes at low cost.

Findings

The method successfully separates 40 amines in a single 53-minute run.

It shows good reproducibility and accuracy in both standard solutions and patient samples.

The technique requires only a small sample volume and is cost-effective.

Abstract

An assessment of amino acid and amine concentrations is important for the diagnosis and management of inherited metabolic disorders (IMDs). Methods exist that measure these biologically important metabolites but are cost-prohibitive and/or time consuming. We therefore sought to develop a novel methodology, applicable to IMDs, that is both high-throughput and low cost.

Previously, we developed a methodology for rapid, repeatable, and cost-efficient separation of approximately 20 amines as a proof of concept and now expand it to amines relevant to IMDs. We describe our separation methodology using reverse phase high performance liquid chromatography with ultraviolet-visible spectrum absorbance paired with pre-column derivatization with o-pthalaldehyde.

We show reproducibility via concentration assessments, in triplicate, for each amine. We assess amines in prepared standard solutions and in biologic samples from patients with IMDs. We also detected and assessed the amino group containing compounds glutathione (oxidized and reduced forms) and ammonia. Validation was established using absolute area under the curve (AUC) and via comparison using a single internal standard.

We report good separation of 40 primary amino group containing metabolites, in a single, 53 min run. This rapid, low cost, and accurate methodology only requires a small volume of sample and can greatly increase availability and access. Finally, the numerous amines and unique compounds detected in our single run has large utility and can potentially increase clinical efficiency and broaden access to research, both important as the need for analysis of amines grows globally.

Figures

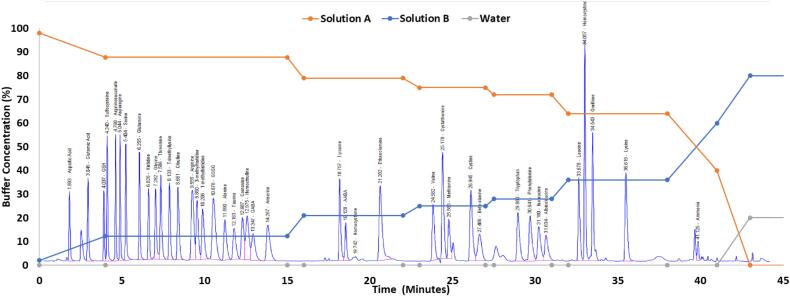

Chromatograph Showing Separation of Amine Standards. All metabolites were run at 100 μM. Unlabeled peaks are not unique to any particular metabolite when metabolites are run separately. Overlaid on the chromatograph is the buffer gradient changes.Fig. 1

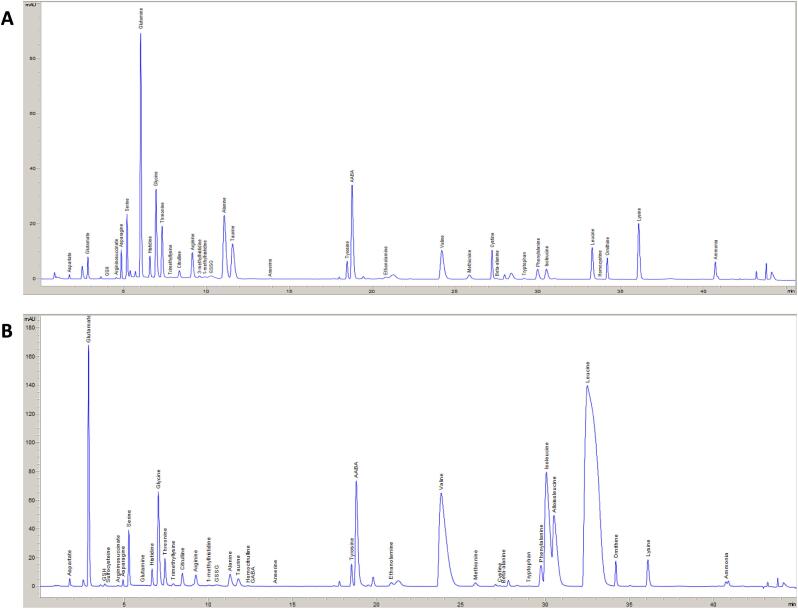

Plasma from Biologic Samples. (A) A sample from a healthy volunteer. Unlabeled peaks were unidentified and distinct, based on retention time, from known analytes in metabolite standards run during the same chromatographic program. (B) An undiluted sample from a patient with Maple Syrup Urine Disease, before therapy. Note the presence of alloisoleucine and the elevations in the other branch chain amino acids. The sample shown is undiluted to better allow for comparison of the entire profile to (A).Fig. 2

Full text

Introduction

1

Amino acids are vital metabolites that are used by the body to form proteins and neurotransmitters, they function in epigenetic regulation, act as an energy source, and have many other critical functions in health and disease. Given the many roles for amino acids, a large number of inherited and acquired disorders perturb amino acid concentrations, such as many inherited metabolic disorders (IMDs), insulin resistance, depression, organ dysfunction, and cancer. [[1], [2], [3], [4]] Indeed, we have previously published on the critical role of amino acid homeostasis in sickle cell crisis. [5] Analysis of amino acids is critical in not only diagnosis, but also prognosis and clinical monitoring in many disorders. [6]

Ion exchange technologies with post-column derivatization using ninhydrin is the classic methodology for amino acid analysis and it is often used clinically for amino acid separation. These protocols, however, suffer from long separation times, requiring multiple hours per sample, and dedicated equipment. [7] Recently, pairing high performance liquid chromatography (HPLC) with mass spectrometry has gained popularity but it is too expensive for widespread and routine use, especially in lower resource communities. [8] The cost for a single mass spectrometry system can be over $1 million, based on publicly available prices. Additionally, our internal cost assessments, using price quotes obtained from various companies and institutions, have shown that it can be greater than$1000 per sample for an amino acid analysis. Thus, the development of rapid analytical techniques using lower cost technologies has become increasingly important.

Many techniques have been developed for the detection of amino acids on HPLC systems, including some techniques to use *o-*pthalaldehyde (OPA). [4,[9], [10], [11], [12]] We have also published previously on the use of OPA for limited, 20 amino acid analyses and showed 99 % concordance with the classic ninhydrin assay. [13] However, to our knowledge no methods exist to date that allow for rapid separation of greater than 20 amino group containing metabolites, known as amines, nor for those amines specifically relevant to IMDs, in human biologic samples using a single injection.

It is becoming increasing obvious that amine homeostasis plays a role in many disorders, both common and rare. [[1], [2], [3], [4]] A barrier to the application of amine analysis to both research and clinical care, however, has been the high cost, time, and difficulty of current technologies. We therefore describe here a rapid, low-cost, and high throughput, 53 min, protocol for the detection of 40 primary amino group containing metabolites. Indeed, while pricing will vary based on usage, salaries, and other factors, we show costs may be less than $30 per sample using our methodology. We furthermore tested our methodology in biologic samples and specifically in samples from patients with certain IMDs. We suggest that this protocol could allow for the assessment of clinically relevant compounds, especially in lower resource environments. This may allow for the widespread application of amine analysis and the ease of the methodology can allow for its immediate use. This work expands on our previous peer reviewed methodology in an attempt to increase access to an amine analysis. [13]

Materials and methods

2

Chemicals and columns

2.1

The Infinity Lab Poroshell 120, 2.7 μm C18 analytical column and the corresponding guard column, borate buffer and OPA reagent were purchased from Agilent Technologies (Santa Clara, CA). HPLC grade acetonitrile, methanol, and water were purchased from VWR International (Radnor, PA). Individual amino acids and D-α-aminobutyric acid (AABA), the internal standard, and all other chemicals were purchased from Sigma Aldrich (St. Louis, MO). Argon gas was purchased from Roberts Oxygen Co (Rockville, MD).

10 mM stocks of the individual amino acids were prepared separately and stored at −80 °C until use. To check linearity and reproducibility, concentrations from 0 to 2500 μM were made by serial dilutions. Preparations were thawed or prepared fresh on the day of analysis, except for the 4 °C storage variability test, which was conducted with the same sample over multiple days. Each amino group containing metabolite was run independently and in aggregate to both resolve co-migration and to verify retention time.

Equipment

2.2

The 1290 Infinity II LC System was purchased from Agilent Technologies (Santa Clara, CA), with the addition of a 40 μL syringe and sample loop for the HPLC system. The Centrifuge 5417c was purchased from Eppendorf (Hamburg, Germany). The vortex mixer was purchased from BioExpress (Kaysville, UT). The 3 k centrifuge filters were purchased from VWR International (Radnor, PA).

Chromatographic conditions

2.3

Derivatization and injection are as described in our prior paper. [13] A binary mobile phase consisting of solution A, 20 mM sodium phosphate (dibasic), 20 mM sodium borate, and 5 mM sodium azide, pH adjusted to 7.2, and solution B, a mixture of 45 % acetonitrile, 45 % methanol, and 10 % water were used. Programming for the chromatographic run starts with 98 % of solvent A, 2 % solvent B and using multiple isocratic stepwise increases (Table 1) over a 41 min time course reduces A to 40 % and B to 60 %. This is termed the Isocratic Elution Phase. A final column elution step whereby the solution mixture is adjusted over 2 min to 80 % solution B and 20 % water, solution C, is then continued for 4 min. This is termed the Carryover Reduction Phase. Finally, over 2 min, the column is set back to 98 % solvent A and 2 % solvent B, and allowed to re-equilibrate for 4 min. This is termed the Re-Equilibration Phase. The total run time is 53 min.Table 1. Concentration of Mobile Phase. Analyte elution occurs through a series of isocratic steps with increases of the organic mobile phase buffer. Solution A, the non-organic buffer, is 20 mM sodium phosphate (dibasic), 20 mM sodium borate, and 5 mM sodium azide, adjusted to pH 7.2. Solution B, the organic buffer, is a mixture of 45 % acetonitrile, 45 % methanol, and 10 % water. Solution C is water.Table 1. PhaseTime (minutes)Solution A (%)Solution B (%)Solution C (%)Isocratic Elution Phase09820487.712.301587.712.30167921022792102375250277525027.5722803172280326436038643604140600Carryover Reduction Phase43080204708020Re-Equilibration Phase499820539820

The column temperature was held constant at 34 °C while the sample tray was maintained at 4 °C. UV detection was performed at 338 nm.

Concentration curve

2.4

A low concentration curve (0, 1, 2.5, 5, 10, 20, 30, 40, 100, 500, 1000, 1500, and 2500 μM) and high concentration curve (0, 5, 15, 20, 30, 40, 100, 150, 200, 500, 1000, 1500, and 2500 μM) were used to assess coverage across both normal and abnormal concentrations. These standard curves, conducted in triplicate, were based on published reference ranges and were used to evaluate the analytical measurement range. [14]

Method validation

2.5

Table 2 reports the calculated methodology validation characteristics for each compound. All metrics were conducted in triplicate. Baseline noise was calculated on a per compound basis by assessing the baseline signal intensities at the expected retention time for the 0 μM time point, averaged, and calculated based on the representative concentration for the analyte. The limit of detection (LoD) for each compound was calculated based on the agreed upon International Committee on Harmonization and the Clinical and Laboratory Standards Institute formula, LoD = 3.3*S/s. [15,16] Where S is the variation of the background noise and s is the slope of the concentration curve for that compound. Limit of quantitation (LoQ) was calculated based on a 10:1 ratio compared to the LoD using Clinical and Laboratory Standards Institute formula and guidelines. The carryover was determined by running a blank sample, after each 2500 μM sample in the concentration curves and assessing for signal intensity at the relevant retention time. Intra-assay variability was assessed via assay of the same sample during the same sequence as subsequent runs. Inter-assay variability was assessed via separate assays as different run sequences. To additionally interrogate sample stability during a large sample run, a delayed sample analysis variability test, the 4 °C storage variability, was conducted where samples were left in the HPLC sample tray at 4 °C for an extended period of time. Samples were left in the HPLC sample tray at 4 °C and assessed initially and then at 24 h intervals for a full 48 h.Table 2. Method validation parameters per analyte. All measurements are reported in μM unless otherwise stated. Metrics are reported based on calculations at the expected retention time per analyte. The 4 °C Storage Variability assessment was conducted on samples left in the sample tray and shown is the variability after 48 h.Table 2. CompoundBaseline NoiseLimit of DetectionLimit of QuantitationCarryoverIntra-assay Variability (%)Inter-assay Variability (%)4 °C Storage Variability (%)11-Methylhistidine0.851.303.942.80 ± 0.300.120.511.6223-Methylhistidine0.440.621.893.35 ± 0.490.110.511.653Alanine1.821.925.827.78 ± 5.380.200.830.104Alloisoleucine0.951.985.991.97 ± 0.370.170.423.435Ammonia0.919.6929.350.18 ± 0.060.300.5512.076Anserine2.944.1612.628.04 ± 4.450.131.052.527Arginine0.730.972.953.70 ± 0.190.100.952.538Argininosuccinate0.110.581.750.13 ± 0.0010.180.558.329Asparagine0.390.551.682.65 ± 1.240.421.112.8610Aspartate0.620.852.582.72 ± 0.431.050.530.1211Beta-alanine0.240.280.830.69 ± 0.22.220.971.4712Carnosine1.121.584.782.09 ± 1.080.281.374.9613Citrulline0.590.732.221.43 ± 0.570.121.182.2814Cystathionine1.631.334.027.05 ± 1.830.091.261.5415Cystine0.600.651.962.46 ± 0.610.230.462.9016Ethanolamine2.452.106.3629.36 ± 19.650.420.441.4517γ-Aminobutyric Acid (GABA)0.901.685.090.99 ± 0.730.271.273.4718Glutamate0.881.093.313.78 ± 1.430.131.572.0419Glutamine0.991.213.676.45 ± 3.630.162.281.8920Glutathione(GSH)0.264.2412.830.03 ± 0.013.922.8114.9621Glutathione Disulfide(GSSG)1.081.063.223.61 ± 1.101.121.181.6222Glycine1.462.968.964.06 ± 0.601.940.667.8123Histidine0.471.354.091.12 ± 0.650.630.257.6024Homocitrulline0.420.541.623.48 ± 3.440.351.872.4726Homocystine0.630.401.218.13 ± 0.440.181.392.1727Isoleucine2.282.878.686.52 ± 0.150.481.082.1228Leucine1.601.996.024.54 ± 0.510.710.908.3129Lysine0.470.451.3511.35 ± 0.420.430.927.5430Methionine0.781.013.061.84 ± 0.320.170.651.5831Ornithine0.870.802.427.15 ± 1.020.161.080.9732Phenylalanine0.560.702.124.44 ± 4.200.130.622.2333Serine1.261.755.313.96 ± 0.450.211.414.4334Sulfocysteine0.060.070.201.00 ± 0.100.600.582.1535Taurine0.300.401.231.45 ± 0.651.800.206.9236Threonine1.161.514.583.99 ± 1.080.360.571.4937Trimethyllysine0.691.023.092.85 ± 0.600.330.2910.2638Tryptophan0.260.351.060.92 ± 0.711.690.5918.3639Tyrosine0.250.331.011.22 ± 0.410.380.897.7940Valine1.381.815.482.47 ± 2.570.430.462.57

Biologic samples

2.6

100 μL of biologic samples, as plasma or whole blood, were obtained from healthy patients and those with select IMDs that were diagnosed previously via certified biochemical and molecular technologies. Samples were either processed immediately or stored at −80 °C until use. Samples were processed as previously described. [13] Patient and healthy participants provided informed consent under a Children's National Institutional Review Board approved study protocol (CN PRO0004911). Samples were processed and analyzed in a blinded fashion, without knowing the underlying disease status prior to analysis.

Results

3

Ideal Chromatographic Conditions (Table 1,Fig. 1). Chromatographic conditions for optimal separation were determined by preparing and injecting amino acids independently and in aggregate to resolve co-migration. Adjusting either the concentration of the mobile phase and/or the column temperature were the conditions found to have greatest effect on separation. Column temperature affected the entire chromatography spectra and was less sensitive for specific amino acid resolution than variation in mobile phase solutions but the column temperature for optimal separation was determined to be 34 °C. Chromatographic mobile phase adjustments displayed better resolution using isocratic stepwise changes for resolution rather than using a constant or variable gradient elution chromatographic condition. The vast majority of compounds elute during these isocratic holds rather than during the gradient increases between the isocratic holds (Fig. 1).Fig. 1. Chromatograph Showing Separation of Amine Standards. All metabolites were run at 100 μM. Unlabeled peaks are not unique to any particular metabolite when metabolites are run separately. Overlaid on the chromatograph is the buffer gradient changes.Fig. 1

Unlabeled peaks are non-specific peaks that are not unique to any particular amine and instead are likely due to the derivative agent, OPA, when seen in the standards.

We found that carryover of samples was minimized by the addition of a Carryover Reduction Phase to the chromatographic conditions. Specifically, carryover was maximally minimized with a mixture of 80 % of solution B with 20 % water. In order to reduce variation in analyte retention time, a Re-Equilibration Phase was added to the end of the run, prior to injection of the next sample. Four minutes was found to be the minimal amount of time necessary to allow for re-equilibration.

Concentration curves using both absolute metabolite area under the curve (AUC) and a ratio of the metabolite AUC to internal standard AUC show good correlation for all analytes. Linear fit of all amines was assessed using linear regression and was R^2^ ≥ 0.99 for all compounds (data available).

Method Validation Parameters (Table 2). We assessed the method validation parameters for each of the 40 analytes. Baseline noise, which was directly measured as signal intensity and converted to assumed concentrations of interference per amine, was less than 3 μM for all analytes. The chromatographic conditions gave a LoD less than 5 μM for all compounds except for ammonia. Similarly, the LoQ, was the worst for ammonia. For carryover, only ethanolamine, after a 2.5 mM concentration sample, had sample carryover greater than 12.5 μM or 0.5 % of the prior sample concentration. Specifically, ethanolamine showed an average carryover of 1.17 % of the maximal concentration of 2.5 mM. Measures of precision were conducted for the method as well and intra-assay and inter-assay variability was less than 4 % of the known concentration, for all compounds including the labile compound, glutathione. Comparisons of this new methodology to our prior method show equivalence in concentration for the amines assessed in our prior assay which had 99 % concordance with the classic ninhydrin assay. Variance between methodologies did not exceed intra-assay or inter-assay variance respectively.

As we purport that this method can increase the access to an amino acid analysis and therefore increase the number of analyses run sequentially, we conducted an additional measure of variation to assess the amount of variance that occurs between samples when stored in the sample tray, which is maintained at 4 °C in our instrument. This would mimic a long sample run in which they are left for greater than 24 h, such as to run overnight. As expected, maximal variability occurred after 48 h and both ammonia and glutathione showed greater than 10 % variation from the known concentration in this delayed sample analysis variability test, the “4 °C Storage Variability”, as did trimethyllysine and tryptophan. Notably, glutamate and glutamine did not show large variability under this storage condition.

Cysteine was not well detected via this methodology. A concentration curve was run for this compound and poor resolution from the baseline was noted for concentrations under 500 μM. Additionally, a second peak in the concentration curve generated for cysteine was noted to have a linear increase in concentration with cysteine concentration. Based on retention time this was determined to be cystine that resulted from the well-known spontaneous oxidation reaction of cysteine to the disulfide, cystine, at neutral pH. [17,18] Thus, in our method, the peak representing cystine was deemed to be a combined cysteine + cystine peak. Homocysteine was also unstable via this method, and spontaneously formed its disulfide homocystine. While homocysteine could be qualitatively observed and resolved from other peaks, unlike cysteine, but only on samples run within 24 h of preparation, it could not be reliably quantitated (Fig. 1). Also, there was no significant effect on inter-assay variability for the disulfide compounds suggesting that the vast majority of cysteine and homocysteine is very rapidly, before detection, oxidized to the disulfide form.

The OPA derivatization reaction was conducted in the presence of a thiol reducing reagent, specifically 2-mercaptoethanol. There was concern for multiple peaks from replacement of 2-mercaptoethanol by the thiol group in thiol containing amines, namely glutathione, cysteine, and homocysteine. Specifically, whether there would be a peak with OPA, the 2-mercaptoethanol thiol group, and the relevant amine, and a second peak without the 2-mercaptoethanol thiol group but instead with the sulfhydryl group internal to the amino acid. None of the thiol group containing amino acids gave this unique secondary peak.

Application to Biologic Samples. Biologic samples from a patient without a documented IMD as well as a patient with maple syrup urine disease (MSUD) were analyzed (Fig. 2). Additionally, samples from patients with other documented IMDs, specifically, ornithine transcarbamylase deficiency, and carbamoyl phosphate synthetase I deficiency, were assessed for practical application of the method. Using this methodology we were able to identify and quantitate all clinically relevant peaks, in a blinded fashion, which led to the same clinical interpretation as when these patients were initially diagnosed. Notably, on prior analysis of the same sample from a patient with MSUD conducted by our clinical laboratory using a ninhydrin-based assay, the pathognomonic compound alloisoleucine was only qualitatively reported via that technology.Fig. 2. Plasma from Biologic Samples. (A) A sample from a healthy volunteer. Unlabeled peaks were unidentified and distinct, based on retention time, from known analytes in metabolite standards run during the same chromatographic program. (B) An undiluted sample from a patient with Maple Syrup Urine Disease, before therapy. Note the presence of alloisoleucine and the elevations in the other branch chain amino acids. The sample shown is undiluted to better allow for comparison of the entire profile to (A).Fig. 2

Discussion

4

This method represents a novel and practical approach to amine analysis for the largest number of amino group-containing compounds to date. It is not limited solely to amino acids, but can be applied to any primary amino group containing compounds, making it a very expansive technique. Additionally, we only require a single injection for resolution of 40 analytes and we are able to separate and quantitate a number of compounds that classically via ion exchange chromatography have poor or no resolution, such as resolving alloisoleucine from cystathionine, and argininosuccinate from leucine [12,19]. One limitation of this work is the number of biologic samples assayed from patients with differing IMDs and the absence of conditions such lipemia, icterus, and hemolysis of the sample. We therefore cannot comment on the effect of these potentially interfering substances or conditions. We will continue to critically evaluate our assay, especially in biologic samples of diseases and conditions not yet assessed.

Resolution is achieved for the vast majority of compounds while still allowing for a less than 1 h total runtime. While ethanolamine had the largest carryover of all the analytes, it should be noted that it was less than 2 % of the massively supraphysiologic concentration used of 2.5 mM. For reference, the normal concentration of ethanolamine in blood is 2–12 μM. [20] Given the large concentration required to reach this small amount of carryover, it is expected to have minimal effect in nearly all cases.

We noted that the LoD and LoQ was highest for ammonia and while the intra-assay and inter-assay variability were both excellent, the 4 °C storage variability, which we used to simulation a long multi-sample run, showed the expected elevation in variability in ammonia concentration. We suspect that this increased variability is due to the known spontaneous deamination that can occur in samples and this was an expected limitation of the methodology. [21] We do not suggest that this method should replace standard ammonia assessment techniques but instead only note that we can also assess this analyte via our methodology. Separately, we note that for glutathione, tryptophan, and trimethyllysine, the delayed sample analysis variability was also greater than 10 % of the analyte concentration, suggesting that per our method these compounds are not stable for an extended time after preparation, when left in the HPLC system at 4 °C. Thus, samples in which any or all of these analytes are of concern should be analyzed within 24 h of sample preparation or the prepared filtrate frozen until ready for analysis.

We were not able to accurately quantify cysteine nor homocysteine in our methodology. Given that our method is run at neutral pH, which is known to cause oxidation of these compounds to their disulfide forms, we suspect that an adjustment to an acidic pH would improve detection of these compounds. [17,18] Further study is needed to assess for ideal conditions for these analytes and the effects of a change in pH on the remaining analytes.

Conclusion

5

Our improved method allows for the separation of 40 primary amino group containing metabolites and was applied to biologic samples in patients with disorders that result in disruptions in amine concentrations. We show minimal carryover at high concentrations and good reproducibility as inter-run and inter-day assessments. We assessed this methodology in a blinding fashion and accurately identified and quantitated the relevant compounds and disease states without prior knowledge of the diagnosis. Given the diagnostic and prognostic significance of amines, our methodology, which shows utility in biologic fluids, provides a possible solution to expanding access to those communities that cannot utilize the other methodologies for an amine analysis. This is a large unmet need as the Genetic Metabolic Dieticians International organization cites the limitations of amino acid technologies and access as barriers to implementation of their guidelines for monitoring in IMDs. [[22], [23], [24]] Notably, as with our original methodology, we preserve the small volumes of sample needed, which can be critical in the newborn period and/or with patients who would require large volume blood draws for other analyses.
