How do implants overlying the spine influence “The Law of Diminishing Returns” in early-onset scoliosis patients?
Stuart L. Mitchell, Jessica H. Heyer, Jason B. Anari, Keith D. Baldwin, Pranav Kodali, Brandon S. Ramo, Jack M. Flynn, Ryan Fitzgerald, Walter Truong, Ying Li, Lindsay Andras, Jaysson Brooks, Patrick J. Cahill
TL;DR
This study explores how the placement of spinal implants affects curve correction and spinal growth in children with early-onset scoliosis.
Contribution
The study introduces a grading system to assess implant placement and its correlation with clinical outcomes in early-onset scoliosis.
Findings
Higher overlap grades of convex-sided rods with the spine correlated with better curve correction.
Greater spinal height gains were observed with increased rod overlap.
Regression models confirmed the significance of overlap grade after controlling for other variables.
Abstract
The “law of diminishing returns” (LODR) in early-onset scoliosis (EOS) is well-known. We hypothesized that previously observed variations between constructs may be related to the lateral distance that each construct lies from the spine. We therefore sought to determine whether the curve magnitude improvement and spinal length gains for distraction-based constructs in EOS are positively correlated with the collinearity of the spine and the convex-sided implant on posteroanterior radiographs. A prospectively-collected, multicenter EOS registry was queried for all patients who underwent non-fusion, distraction-based instrumentation surgery. Post-index radiographs were graded from 1 to 5 based on amount of overlap between the convex-sided rod and the apical vertebra. Grade 1: convex rod is lateral to convex-sided pedicle; Grade 2: overlaps the convex-sided pedicle; Grade 3: lies between…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

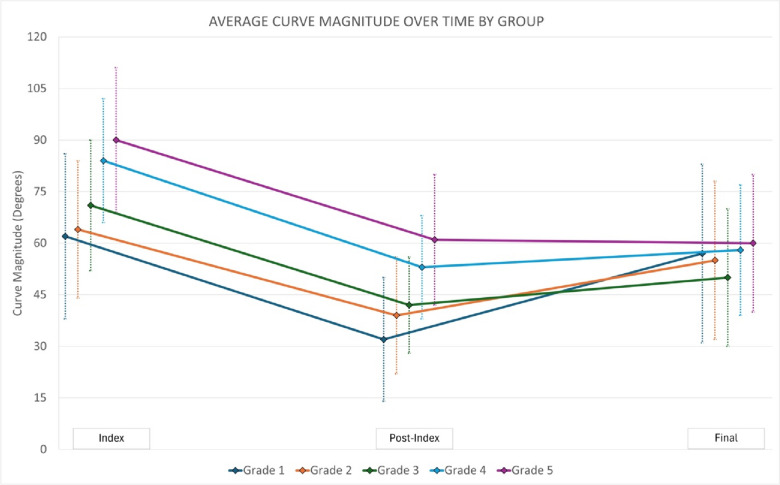

Figure 3

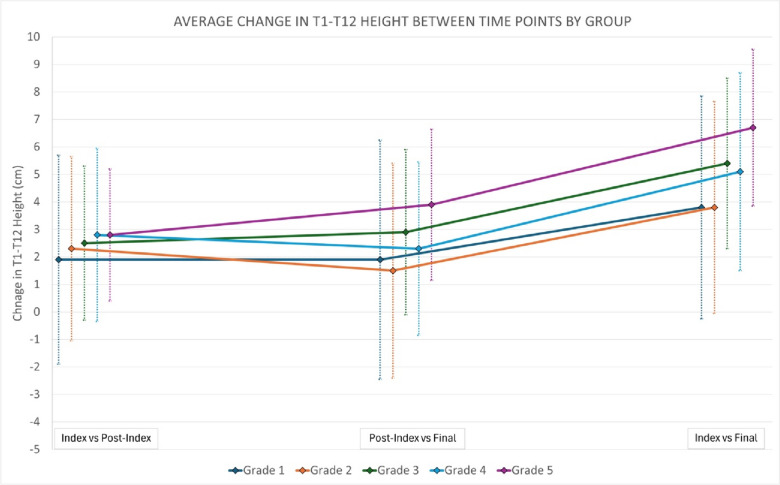

Figure 4Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsScoliosis diagnosis and treatment · Spinal Fractures and Fixation Techniques · Pelvic and Acetabular Injuries
Introduction
Early-onset scoliosis (EOS), defined as coronal curvature of the spine of 10 degrees or more in patients under ten years of age at the time of diagnosis [1, 2], is a heterogenous and complex problem to treat. At present, it is not always clear how best to manage certain EOS curves because physicians must balance continued spinal and thoracic growth with the need to control curves of worsening severity. Additionally, the patient population is heterogeneous, with a variety of underlying diagnoses, including the idiopathic population. Curves may be managed with observation alone, bracing, casting, or surgery. When curves progress in severity, distraction-based growth-friendly instrumentation surgery or growth guidance surgery (e.g., Shilla technique) may be recommended to decrease spine and chest wall deformity while permitting continued growth and lung development [3]. There are many implant choices available for pediatric spine surgeons for distraction-based instrumentation surgery that vary with regards to anchor points used (e.g., rib, spine, and pelvis) and the types of rods being used (e.g., traditional growing rods [TGR], vertical expandable prosthetic titanium rib [VEPTR], magnetically-controlled growing rods [MCGR], etc.).
Once distraction-based instrumentation surgery is undertaken, the race begins between distraction of the rods to maintain longitudinal growth of trunk and spine and spontaneous stiffening with reduced lengthening of the spine. This observation has been previously termed the “law of diminishing returns” (LODR) [4]. This LODR is well known and was first observed with traditional growing rod (TGRs) constructs [4, 5]. More frequent lengthening with magnetically-controlled growing rods (MCGRs) was theorized to potentially obviate autofusion with decreased “immobilization” time between lengthenings. However, data remains mixed for MCGR constructs [6–12]. More confusing still, investigators have demonstrated that this law of diminishing returns does not apply to rib-based distraction constructs [13], especially with more frequent lengthenings of less than every 7 months [14]. This difference between constructs may be related to the lateral distance that each construct lies from the spine [15].
To further elucidate the causes of the LODR, we sought to determine whether the curve magnitude and spinal length gains for growth-friendly spine constructs in EOS are correlated with the amount of overlap of the spine with the convex-sided implant on posteroanterior (PA) radiographs. We hypothesized that more overlap of the spine with the convex-sided implant (i.e., higher grade) would result in worse curve magnitude correction and worse spinal length (height) gain.
Methods
A prospectively-collected multicenter registry of patients with early onset scoliosis was queried for all patients who underwent distraction-based instrumentation surgery. Institutional review board approval was obtained at each of the participating institutions that enroll patients into the database. We included only patients who were <10 years of age at index surgery with ≥3 years of follow-up, ≥3 lengthenings, and bilateral distraction-based spinal instrumentation constructs. Patients with an underlying diagnosis of idiopathic, neuromuscular, or syndromic scoliosis were eligible for inclusion. Patients who were missing data including post-index and pre-definitive fusion or final follow-up curve magnitude, T1–12 measurements, or radiographs and those who underwent index surgery with definitive posterior spinal fusion or guided growth techniques (e.g., Luqué trolley, Shilla technique, etc.) were excluded. Patients with an underlying diagnosis of skeletal dysplasia, congenital scoliosis, or thoracogenic scoliosis were also excluded. All remaining patients available in the databased meeting these selection criteria were included and analyzed.

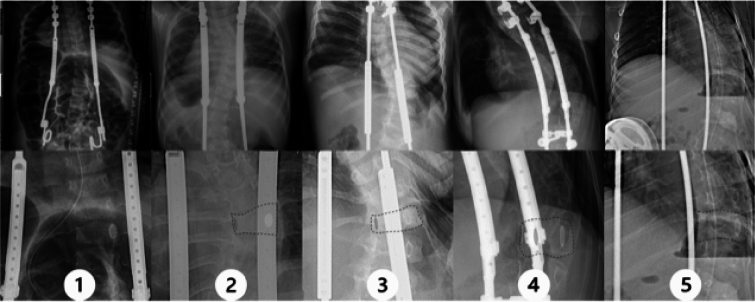

Post-index radiographs were reviewed and graded from 1 to 5 based on amount of implant overlap with the convex-sided rod at the apical vertebra (Fig. 1). All images were graded by a research assistant and attending pediatric orthopaedic surgeon and reviewed by a second pediatric orthopaedic surgeon if any disagreement. Grade 1 is defined as the convex rod being lateral to the convex-sided pedicle of the major curve; Grade 2, the convex rod overlaps the convex-sided pedicle; Grade 3, the convex rod lies between the pedicles; Grade 4, the convex rod overlaps the concave-sided pedicle; Grade 5, the convex rod is medial to the concave-sided pedicle.Fig 1. Radiographic appearance of example patients of grades 1–5 based on the location of the apical vertebra relative to the convex-sided spinal rod. The convex rod is lateral to the convex-sided pedicle for grade 1, overlaps the convex-sided pedicle for grade 2, lies between the pedicles for grade 3, overlaps the concave-sided pedicle for grade 4, and is medial to the concave-sided pedicle for grade 5
Demographic data were summarized using descriptive statistics. Two-tailed, unpaired t-tests were used to compare means curve magnitude change of the major coronal curve and height change from post-index surgery to most recent/final follow-up. One-way ANOVA was performed to assess association between post-index grade and post-index minus pre-definitive/most recent curve magnitude, post-index grade and post-index minus pre-definitive/most recent T1–T12 height, and for post-index grade and post-index minus pre-definitive/most recent L1–S1 height. In cases where definitive fusion was performed, the curve magnitude or T1–T12 height from immediately prior to the fusion surgery was used, but in patients who did not undergo a final fusion, the curve magnitude or T1–T12 height from the most recent follow-up radiographs were used. Multivariable regression modeling was used further assess the association between post-index grade and curve magnitude correction or change in T1–T12 height. The multivariable models included either curve magnitude change, or T1–12 height change and post-index grade, anchor location (ribs, spine, pelvis), age at index surgery, underlying diagnosis, and time from index surgery to pre-definitive or final X-ray. Significance was set at a = 0.05. Analyses were performed using IBM SPSS Statistics for Mac (IBM, Armonk, NY).
Results

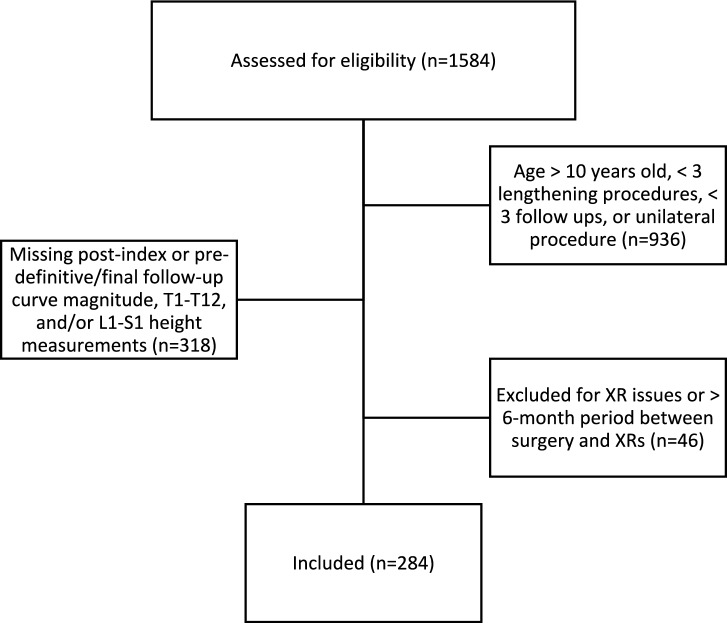

Of the initial 1584 patients identified in the query, only 284 patients (17.9%) met all selection criteria and were included (Fig. 2). The majority (54%) were female and had neuromuscular scoliosis (59%); patients were 6.7 ± 2.1-years-old at the time of index surgery with 7.1 ± 3.1 years of follow-up. Not all patients were followed until “graduation” but all were followed until final fusion, graduation, or until final follow-up available in the database. The average curve magnitude measurement of the major curve prior to the index distraction-based instrumentation surgery measured 72.0 ± 21.7 degrees (Table 1). Post-index radiographs were classified as grade 1 in 26 patients, (9%), grade 2 in 75 patients (26%), grade 3 (38%) in 107 patients, grade 4 in 56 patients (20%), and grade 5 in 20 patients (7%). For the overall cohort, we observed decreased curve magnitude immediately following index implant surgery with slight increase in curve magnitude over time (Table 1). With regards to spine length, initial improvements were observed with further length gains at the time of pre-definitive fusion or final follow-up.Fig 2CONSORT diagram illustrating flow of patient selectionTable 1Demographic and surgical factors for 284 patients treated with posterior distraction-based instrumentation for early-onset scoliosis stratified by their post-index radiographic gradeGrade 1n=26Grade 2n=75Grade 3n=107Grade 4n=56Grade 5n=20Totaln=284Female (%)505555544554Age at index (yrs)6.7±2.36.2±2.36.8±2.17.1±1.96.3±2.16.6±2.2Diagnosis, n (%) Idiopathic Neuromuscular Syndromic0 (0%)23 (88%)3 (12%)5 (7%)57 (76%)13 (17%)19 (18%)53 (50%)35 (33%)11 (20%)25 (45%)20 (36%)4 (9%)10 (22%)6 (13%)39 (14%)168 (59%)77 (30%)Time from index to final follow-up (yrs)7.3±2.76.9±2.77.2±3.56.6±2.88.6±3.07.0±3.1Index implant detailsDevice used, n (%) VEPTR22 (85%)43 (57%)25 (23%)9 (16%)3 (15%)102 (36%) MCGR3 (12%)18 (24%)33 (31%)17 (30%)1 (5%)72 (25%) TGR1 (4%)14 (19%)49 (46%)30 (54%)16 (80%)110 (39%)Proximal anchor location Ribs25 (96%)43 (57%)27 (25%)12 (21%) 3 (15%)110 (39%) Spine 0 (0%)31 (41%)79 (74%)43 (77%)17 (85%)170 (60%) *Spine+Rib(s)*1 (4%)1 (1%)0 (0%)1 (2%)0 (0%)3 (1%) Missing0 (0%)0 (0%)1 (1%)0 (0%)0 (0%)1 (0%)Distal anchor location Rib1 (4%)0 (0%)0 (0%)0 (0%)0 (0%)1 (0%) Spine1 (4%)30 (40%)71 (66%)45 (80%)13 (65%)160 (56%) Pelvis24 (92%)39 (52%)23 (21%)6 (11%)3 (15%)95 (33%) Pelvis+Spine0 (0%)5 (7%)11 (10%)5 (9%)4 (20%)25 (9%) Missing0 (0%)1 (1%)2 (2%)0 (0%)0 (0%)3 (1%)Pre-index Curve magnitude (°)62±2464±2071±1984±1890±2172±22 T1–12 height (cm)17.4±3.516.6±3.316.5±2.915.6±3.615.0±2.516.3±3.2 L1–S1 height (cm)9.2±2.79.8±2.410.1±2.39.1±2.49.0±2.09.7±2.4 T1–S1 height (cm)26.6±5.726.4±5.226.7±4.524.7±4.623.9±3.226.0±4.8Post-index Curve magnitude (°)32±1839±1742±1453±1561±1944±17 T1–12 height (cm)19.3±4.118.9±3.419.0±2.718.4±2.717.8±2.318.8±3.0 L1–S1 height (cm)10.5±3.511.3±1.911.6±2.311.8±2.010.7±1.911.4±2.3 T1–S1 height (cm)29.4±5.830.2±5.130.6±4.330.2±4.128.5±3.430.2±4.6Pre-definitive/final follow-up Curve magnitude (°)57±2655±2350±2058±1960±2054±21 T1–12 height (cm)21.2±4.620.4±4.421.9±3.320.7±3.621.7±3.221.2±3.8 L1–S1 height (cm)12.5±3.512.2±2.413.1±2.312.7±2.512.0±1.612.6±2.4 T1–S1 height (cm)33.8±7.832.5±6.135.0±4.833.4±4.933.8±4.133.8±5.5 Underwent final fusion31%29%32%43%55%35%
