Fuzzy random sensitivity analysis for the overall structure reliability of reinforced concrete freezing wellbores in deep alluvium based on hidden Markov model
Yafeng Yao, Yan Zhu, Yongheng Li, Wei Wang, Zhemei Zhang
TL;DR
This paper introduces a new fuzzy random sensitivity analysis method to improve the reliability assessment of deep underground concrete structures.
Contribution
The study proposes a fuzzy random reliability model and integrates a hidden Markov model for better analysis of structural stability in deep alluvium.
Findings
Concrete compressive strength, thick-diameter ratio, and reinforcement ratio positively affect structural reliability.
Soil depth negatively correlates with the reliability of reinforced concrete wellbores.
The fuzzy random sensitivity model provides a more accurate assessment of structural stability under uncertainty.
Abstract
To address the shortcomings of traditional reliability theory in characterizing the stability of deep underground structures, the advanced first order second moment of reliability was improved to obtain fuzzy random reliability, which is more consistent with the working conditions. The traditional sensitivity analysis model was optimized using fuzzy random optimization, and an analytical calculation model of the mean and standard deviation of the fuzzy random reliability sensitivity was established. A big data hidden Markov model and expectation-maximization algorithm were used to improve the digital characteristics of fuzzy random variables. The fuzzy random sensitivity optimization model was used to confirm the effect of concrete compressive strength, thick-diameter ratio, reinforcement ratio, uncertainty coefficient of calculation model, and soil depth on the overall structural…
Click any figure to enlarge with its caption.
Figure 10
Figure 1
Figure 2
Figure 3

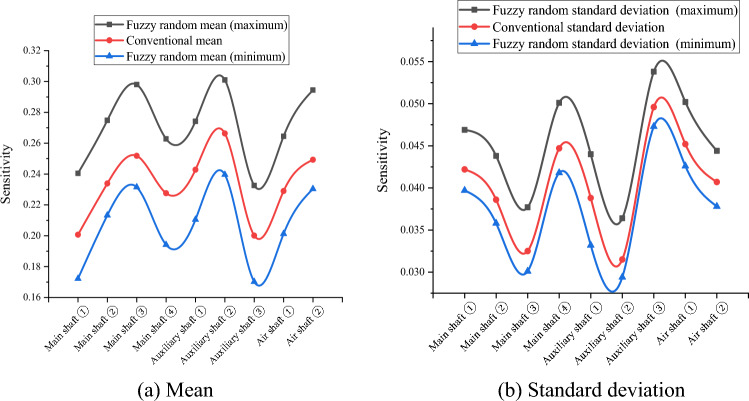

Figure 4

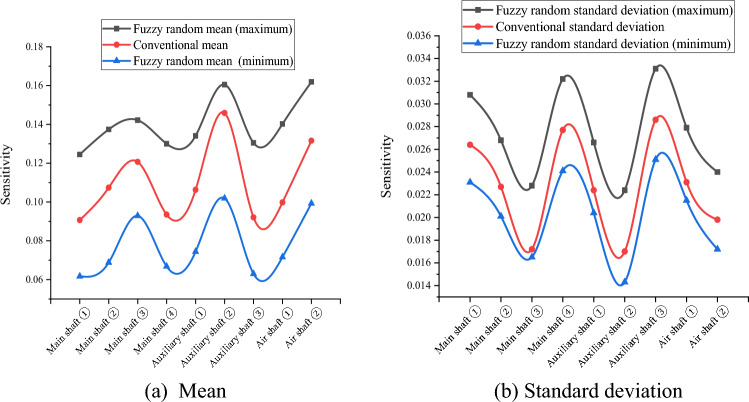

Figure 5
Figure 6
Figure 7
Figure 8
Figure 9- —National Natural Science Foundation of China
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsProbabilistic and Robust Engineering Design · Geotechnical Engineering and Analysis · Fatigue and fracture mechanics
Introduction
With the gradual exploitation of global coal resources, shallow resources have been almost exhausted, so a large number of projects are turning to deep strata for excavation. In specific deep mining processes, accidents involving frozen shafts have increased, and their reliability has become a research focus^1,2^. In contrast to the shallow shafts used previously, the practice of deep alluvium reinforced-concrete frozen shaft engineering is more complicated because of the external environment. This results in obvious fuzzy randomness of the external shaft load and ultimate resistance and the overall reliability of the frozen shaft shows high uncertainty. However, traditional reliability calculations generally adopt a load-resistance model, and the results obtained only represent the final safety and reliability degree of the structure, thus failing to clarify the influence of different parameters on the degree of reliability^3,4^. Therefore, it is necessary to conduct a sensitivity analysis of the overall structural reliability. Based on the reliability calculation, the degree of influence of different parameters on structural reliability was analyzed to distinguish the main and secondary factors that guide construction practice.
In recent studies the sensitivity analysis of structural reliability has been explored. Babazadeh et al.^5^ transformed the nonlinear limit state function into a linear limit state function by Monte Carlo simulation. On this basis, random variables were introduced, and the reliability sensitivity parameters of the mouth brooder algorithm were adopted. Wang et al.^6^ proposed an improved extended polynomial chaotic expansion method. This method models and simultaneously propagates both random and cognitive random variables, constructing a composite mapping from each cognitive variable to the response PDF. The global sensitivity index of the PDF was derived with respect to the distributed parameters. Tian et al.^7^ adopted a subset simulation method to develop a Bayesian updated structural reliability method, and established an efficient reliability-monitoring sensitivity analysis framework. Xiao et al.^8^ proposed a new effective sampling method to estimate the fault conditions and reliability sensitivity indices using a two-stage Markov chain Monte Carlo simulation. Considering the influence of random factors, Li et al.^9^ adopted Monte Carlo and adaptive Krieger-Monte Carlo simulation methods to analyze the reliability of cold-formed curtain wall glass. Based on this, a reliability sensitivity analysis of the curtain wall glass was conducted to evaluate the influence of random changes in different parameters on the reliability of the curtain wall. Proppe et al.^10^ proposed a method that extended the moving particle method to a sensitivity analysis based on local reliability. It was based completely on the evaluated samples for reliability estimation and avoided the repeated evaluation of performance functions.
In summary, most previous studies have built sensitivity analysis models using the basic theory of reliability analysis, ignoring the inherent uncertainty of complex environments and structural parameters. The result has been inaccurate sensitivity acquisition and deviation in guiding practical projects. Other studies have used probabilistic statistical theory to analyze the structural reliability and sensitivity; however, this only considers the randomness of the engineering and does not consider the fuzziness of the structure. In addition, in the sensitivity analysis, the sample space data are small and the calculation is complicated. As a result engineering applications are not extensive.
Therefore, based on the big data algorithm environment, this study regards the freezing and shaft walls of deep underground frozen wellbores as fuzzy random force fields. It first establishes a big data fuzzy random reliability model of the entire structure of the reinforced concrete frozen wellbore. Finally, it conducts a fuzzy random sensitivity analysis of the reliability of the entire structure of the wellbore during the construction period. It is important to guide the rationality of the shaft design and improve the safety and reliability of deep underground engineering.
Theory
HMM model
The main goal of big data analysis is to obtain unknown and potential information patterns and rules through a large number of effective information means and calculation methods to extract the depth value of the data and provide effective data for industrial decision-making and engineering practice^11–14^.
The HMM is a doubly random process. It is not possible to observe its state directly, which can be implicitly derived from the observed vector^15,16^.
The main components of the HMM are as follows.
- State of the modelLet the set of states be \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$s=\left\{{s}_{1},{s}_{2},\cdots ,{s}_{N}\right\}$$\end{document} and the state at time t be \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${q}_{t}\in S$$\end{document} . These states can then be transferred to each other.
- State transition matrix \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$A=({a}_{ij}{)}_{N\times N}$$\end{document} is a state matrix that describes the manner in which transitions occur between states. aij is the probability of state transition.
- Observed model valuesThe observed values are set for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$V=\left\{{v}_{1},{v}_{2},\cdots ,{v}_{M}\right\}$$\end{document} . When the state transition at time t is complete, the model generates an observable output \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${y}_{t}\in V$$\end{document} .
- The probability distribution matrix is output. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$B=({b}_{ij}{)}_{N\times M}$$\end{document} is a probability distribution function matrix describing the output.In this matrix, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${b}_{ij}={b}_{i}(j)={b}_{i}({v}_{j})=P({y}_{t}={v}_{j}\left|{q}_{t}={s}_{i}\right.)$$\end{document} is the probability that the output is vj when the state is si at time t.
- Initial state distributionLet \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\pi =\left\{{\pi }_{1},{\pi }_{2},\cdots ,{\pi }_{N}\right\}$$\end{document} be the initial state distribution of the model, where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\pi }_{i}=P({q}_{1}={s}_{i})$$\end{document} . Therefore, a complete HMM can be used to represent all the parameters using \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\lambda =\left\{A,B,\pi \right\}$$\end{document} .
Optimization of big data reliability algorithms
The traditional reliable AFOSM uses a Taylor series to expand its equation of state, with the first moment representing the mean value and the second moment representing the variance. Therefore, the reliability index of the overall structure of the approximation algorithm is the quotient of the two, as expressed in Eq. (1).
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta \approx \frac{{\mu }_{Z}}{{\sigma }_{Z}}=\frac{g({\mu }_{{x}_{1}},{\mu }_{{x}_{2}},\cdot \cdot \cdot ,{\mu }_{{x}_{m}})}{\sqrt{{{\sum }_{i=1}^{m}(\frac{\partial g}{\partial {x}_{i}})}^{2}{{\sigma }^{2}}_{{x}_{i}}}}$$\end{document}Therefore, based on the HMM of big data, an EM algorithm was adopted to improve the traditional reliability calculation method. The steps of the EM algorithm are as follows:
- Expectation step: calculate the maximum likelihood estimate based on the initial values of the parameters or model parameters of the last iteration of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\theta }^{(n)}$$\end{document} , as shown in Eq. (2).
- Maximization step: fix Q(z), When the likelihood of the data is at its maximum, the parameter expectation estimation is calculated, as shown in Eq. (3).

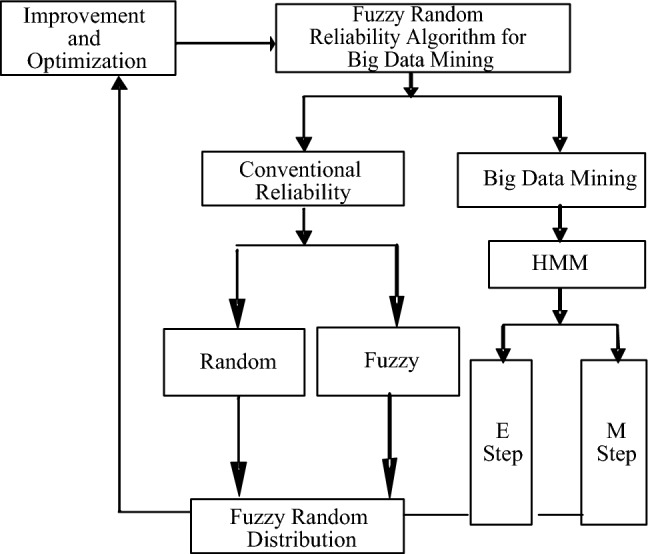

- The above steps are repeated until convergence. The big-data EM algorithm flowchart is shown in Fig. 1.Figure 1. Reliability optimization with big data algorithm.
Fuzzy random reliability of frozen wellbore structure
In China, the freezing section of a deep alluvial frozen shaft is typically double-walled. According to a large amount of engineering practice data, the inner and outer walls of a frozen shaft during construction bear mainly freezing and hydrostatic pressures, respectively. During the operation period, grouting reinforcement is usually performed between the inner and outer shaft walls, and the double shaft can be regarded as a whole. Owing to the friction caused by permafrost thaw settling and soil drainage settlement in the later stages, the permanent ground pressure is generally considered as the design control load in the safety check calculation of the entire shaft.
Therefore, the overall force on the inner and outer walls of the deep frozen shaft can be regarded as a fuzzy random force field, and the static earth pressure of the deep alluvial layer and the overall resistance of the reinforced concrete double wall can be analyzed using fuzzy random analysis to obtain fuzzy random equations, as shown in Eqs. (4) and (5)^17,18^.
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{P} = 0.013\tilde{H}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{P}$$\end{document} is the static earth pressure suffered by the entire wellbore during operation, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{H}$$\end{document} is the soil depth of different well sections. Considering the uncertainty of the parameters of the deep alluvium, they are fuzzy random variables.
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{R}_{k} = \tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} )$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{{R}_{k}}$$\end{document} is the fuzzy random value of the ultimate bearing capacity of the reinforced concrete double wall; \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\widetilde{\Theta }}_{R}$$\end{document} is the uncertainty coefficient of the calculation model; \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\widetilde{R}}_{aN} and {\widetilde{R}}_{aW}$$\end{document} are the compressive strength of the inner and outer shaft wall concrete axes, respectively; \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\widetilde{\mu }}_{N} and {\widetilde{\mu }}_{W}$$\end{document} are the ratio of the annular reinforcements of the inner and outer shaft walls, respectively. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\widetilde{\lambda }}_{N} and {\widetilde{\lambda }}_{W}$$\end{document} are the thickness-to-diameter ratio of the inner and outer shafts, respectively. All of these are fuzzy random variables. \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${m}_{N} and {m}_{W}$$\end{document} are the inner and outer wall concrete strength enhancement coefficients, respectively; \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${R}_{gN} and {R}_{gW}$$\end{document} are the strengths of the steel bars in the inner and outer shaft walls, respectively; considering the degree of influence on the ultimate bearing capacity, the above values are expressed in fixed form.
Based on the above big-data EM algorithm, the load and resistance equations are introduced into the reliability equation of fuzzy randomization, and the fuzzy random function of the overall structure of a deep alluvial reinforced concrete double-layer wellbore is established using the HMM model, as shown in Eq. (6).
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{Z} = \tilde{R} - \tilde{S} = \theta :[\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} ) - 0.013\tilde{H}]$$\end{document}In Eq. (6), the corresponding parameters have the same meaning as before.
Big data from engineering examples show that the triangular fuzzy factor can be used to characterize the uncertainty of the fuzzy random threshold \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{b}$$\end{document} , which is closer to the actual working conditions. Therefore, the fuzzy random state equation for the overall structure can be expressed as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} ) - 0.013\tilde{H} = \tilde{b}$$\end{document}Similarly, the corresponding fuzzy stochastic equations for the effective and failure states of the overall structure are expressed as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} ) - 0.013\tilde{H} > \tilde{b}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} ) - 0.013\tilde{H} < \tilde{b}$$\end{document}According to the big data algorithm, for the fuzzy random equation of state (Eq. 7) of the overall structure, the cut set region of the constraint level α is considered, and its interval equation is expressed as:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{R}_{\alpha } - \tilde{S}_{\alpha } = \theta :\left[ {\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} ) - 0.013\tilde{H}} \right]_{\alpha } = \tilde{b}_{\alpha }$$\end{document}where, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{S}_{\alpha } = \left\{ {\left( {0.013\tilde{H}} \right)_{\alpha }^{ - } ,\left( {0.013\tilde{H}} \right)_{\alpha }^{ + } } \right\},$$\end{document}
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{gathered} \tilde{R}_{\alpha } = \{ \theta :[\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} )]_{\alpha }^{ - } ,\, \hfill \\ \theta :[\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} )]_{\alpha }^{ + } \} , \hfill \\ \end{gathered}$$\end{document}
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{b}_{\alpha } = [\tilde{b}^{ - } ,\;\tilde{b}^{ + } ]_{\alpha } = \left[ {b + (\alpha - 1)d,\;b + (1 - \alpha )d} \right].$$\end{document}
According to the fuzzy interval algorithm, the fuzzy interval of the decomposed function is
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{Z}_{\alpha }^{ - } = \tilde{R}_{\alpha }^{ - } - \tilde{S}_{\alpha }^{ + } = \theta :\left\{ {\left[ {\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} )} \right]_{\alpha }^{ - } - \left[ {0.013\tilde{H}} \right]_{\alpha }^{ + } } \right\} = \tilde{b}_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{Z}_{\alpha }^{ + } = \tilde{R}_{\alpha }^{ + } - \tilde{S}_{\alpha }^{ - } = \theta :\left\{ {\left[ {\tilde{\Theta }_{R} \cdot (m_{N} \tilde{\lambda }_{N} \tilde{R}_{aN} + m_{W} \tilde{\lambda }_{W} \tilde{R}_{aW} + \tilde{\mu }_{N} R_{gN} + \tilde{\mu }_{W} R_{gW} )} \right]_{\alpha }^{ + } - \left[ {0.013\tilde{H}} \right]_{\alpha }^{ - } } \right\} = \tilde{b}_{\alpha }^{{^{ + } }}$$\end{document}According to the algorithm flow of the HMM of big data, the fuzzy random function of the overall well wall is expanded into a Taylor series and substituted into the partial derivative of the corresponding variable^19,20^, and the following results can then be obtained:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} \tilde{Z} \approx & g(u_{{x_{1} }} ,\mu_{{x_{2} }} , \ldots ,\mu_{{x_{n} }} ) + \sum\limits_{i = 1}^{n} {(x_{i} - \mu_{{x_{i} }} )\frac{\partial g}{{\partial x_{i} }}} \\ = & g\;(u_{{\tilde{H}}} ,\mu_{{\tilde{R}_{aN} }} ,\mu_{{\tilde{R}_{aW} }} ,\mu_{{\tilde{\mu }_{N} }} ,\mu_{{\tilde{\mu }_{W} }} ,\mu_{{\tilde{\lambda }_{N} }} ,\mu_{{\tilde{\lambda }_{W} }} , - 0.013(H - \mu_{H} ) \\ & + \tilde{\Theta }_{{\tilde{R}}} (R_{aN} - \mu_{{\tilde{R}_{aN} }} )(m_{N} \tilde{\lambda }_{N} ) + \tilde{\Theta }_{{\tilde{R}}} (R_{aW} - \mu_{{\tilde{R}_{aW} }} )(m_{W} \tilde{\lambda }_{W} ) + \tilde{\Theta }_{R} (\mu_{N} - \mu_{{\tilde{\mu }_{N} }} )(R_{gN} ) \\ & + \tilde{\Theta }_{R} (\mu_{W} - \mu_{{\tilde{\mu }_{W} }} )(R_{gw} ) + \tilde{\Theta }_{R} (\lambda_{N} - \mu_{{\tilde{\lambda }_{N} }} )(m_{N} \tilde{R}_{aN} ) + \tilde{\Theta }_{R} (\lambda_{W} - \mu_{{\tilde{\lambda }_{W} }} )(m_{W} \tilde{R}_{aW} ) \\ \end{aligned}$$\end{document}The fuzzy random reliability index for big-data analysis is expressed as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{gathered} \tilde{\beta } = \frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }} \approx \theta :\{ [\tilde{\Theta }_{R} \cdot (m_{N} \mu_{{\tilde{\lambda }_{N} }} \mu_{{\tilde{R}_{aN} }} + m_{W} \mu_{{\tilde{\lambda }_{W} }} \mu_{{\tilde{R}_{aW} }} + \mu_{{\tilde{\mu }_{N} }} R_{gN} + \mu_{{\tilde{\mu }_{W} }} R_{gW} ) \hfill \\ - 0.013\mu_{{\tilde{H}}} ]/\left. {[(\frac{{\partial \tilde{Z}}}{{\partial \tilde{H}}}} \right|_{{\tilde{\mu }_{H} }} \cdot \tilde{\sigma }_{H} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{R}_{aN} }}} \right|_{{\tilde{\mu }_{{\tilde{R}_{aN} }} }} \cdot \tilde{\sigma }_{{\tilde{R}_{aN} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{R}_{aW} }}} \right|_{{\tilde{\mu }_{{\tilde{R}_{aW} }} }} \cdot \tilde{\sigma }_{{\tilde{R}_{aW} }} )^{2} + \hfill \\ (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\mu }_{N} }}} \right|_{{\tilde{\mu }{}_{{\tilde{\mu }_{N} }}}} \cdot \tilde{\sigma }_{{\tilde{\mu }_{N} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\mu }_{W} }}} \right|_{{\tilde{\mu }_{{\tilde{\mu }_{W} }} }} \cdot \tilde{\sigma }_{{\tilde{\mu }_{W} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\lambda }_{N} }}} \right|_{{\tilde{\mu }_{{\tilde{\lambda }_{N} }} }} \cdot \tilde{\sigma }_{{\tilde{\lambda }_{N} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\lambda }_{W} }}} \right|_{{\tilde{\mu }_{{\tilde{\lambda }_{W} }} }} \cdot \tilde{\sigma }_{{\tilde{\lambda }_{W} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\lambda }_{W} }}} \right|_{{\tilde{\mu }_{{\tilde{\lambda }_{W} }} }} \cdot \tilde{\sigma }_{{\tilde{\lambda }_{W} }} )^{2} ]^{\frac{1}{2}} \} \hfill \\ \end{gathered}$$\end{document}In order to better illustrate the advantages of fuzzy random reliability, the freezing double-layer shaft lining in deep alluvial in Lianghuai mining is taken as an example. The traditional reliability and fuzzy random reliability of the overall structure are shown in Table 1^21,22^.Table 1. Fuzzy random reliability compared with conventional reliability.Depth (m)Conventional reliability indexConventional reliabilityFuzzy random reliability indexFuzzy random reliability \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\beta^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P_{s}^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P_{s}^{ + }$$\end{document} 391–4372.96830.99851.93002.96770.97320.9985437–5023.24010.99942.10833.23880.98250.9994502–5303.15280.99912.01983.12130.97830.9991530–5642.99050.99861.98992.98880.97670.9986
Fuzzy stochastic reliability sensitivity optimization model
Fuzzy random reliability sensitivity
Structural reliability sensitivity reflects the importance of the basic parameters for the safety of the entire structure. Usually, the importance of each parameter is determined by calculating the partial derivative of the structural parameters and failure probability^23,24^.
However, traditional reliability sensitivity is primarily based on the basic theory of traditional reliability calculations, ignoring the inherent uncertainty of complex environments and structural parameters and not considering the fuzziness and randomness of deep underground engineering.
To meet the need for fuzzy random reliability combined with actual working conditions, fuzzy random optimization of the sensitivity should also be conducted. Fuzzy random sensitivity is mainly concerned with the importance of these uncertain parameters in engineering, affecting the overall structural safety and reliability^25,26^. For this reason, the fuzzy random reliability sensitivity can be expressed by Eq. (15).
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }},\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)$$\end{document}When the characteristic distribution of the parameters is biased, the fuzzy random reliability sensitivity can be transformed into^27,28^:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\beta }}} \cdot \frac{{\partial \tilde{\beta }}}{{\partial \tilde{\mu }_{{x_{i} }} }},\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\beta }}} \cdot \frac{{\partial \tilde{\beta }}}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)$$\end{document}Combined with the fuzzy random reliability theory, the fuzzy random failure probability and fuzzy random reliability index are substituted into Eq. (16), and the following can be obtained:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\beta }}}\; \cdot \frac{{\partial \tilde{\beta }}}{{\partial \tilde{\mu }_{{x_{i} }} }} \approx \frac{{\partial \left( {1 - \frac{1}{{\sqrt {2\pi } }}\int_{ - \infty }^{\beta } {e^{{ - \frac{1}{2}x^{2} }} } dx} \right)}}{{\partial \tilde{\beta }}} \cdot \frac{{\partial \left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)}}{{\partial \tilde{\mu }_{{x_{i} }} }} = - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)}}{{\sqrt {2\pi } \tilde{\sigma }_{Z} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\beta }}}\; \cdot \frac{{\partial \tilde{\beta }}}{{\partial \tilde{\sigma }_{{x_{i} }} }} \approx \frac{{\partial \left( {1 - \frac{1}{{\sqrt {2\pi } }}\int_{ - \infty }^{\beta } {e^{{ - \frac{1}{2}x^{2} }} } dx} \right)}}{{\partial \tilde{\beta }}} \cdot \frac{{\partial \left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)}}{{\partial \tilde{\sigma }_{{x_{i} }} }} = - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)^{2} \tilde{\mu }_{Z} \tilde{\sigma }_{{x_{i} }} }}{{\sqrt {2\pi } \tilde{\sigma }_{Z}^{3} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]$$\end{document}Taking the horizontal cut set of Eqs. (17) and (18), whose constraint level is, the fuzzy random reliability sensitivity model can be expressed as
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)_{\alpha } = \bigcup\limits_{\alpha \in (0,1]} {\alpha \left[ {\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - } ,\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + } } \right]}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)_{\alpha } = \bigcup\limits_{\alpha \in (0,1]} {\alpha \left[ {\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - } ,\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + } } \right]}$$\end{document}Among them:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - } = \inf \left\{ {\bigcup\limits_{\alpha \in (0,1]} \alpha \left[ { - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)}}{{\sqrt {2\pi } \tilde{\sigma }_{Z} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]} \right]_{\alpha } } \right\}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + } = \sup \left\{ {\bigcup\limits_{\alpha \in (0,1]} \alpha \left[ { - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)}}{{\sqrt {2\pi } \tilde{\sigma }_{Z} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]} \right]_{\alpha } } \right\}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - } = \inf \left\{ {\bigcup\limits_{\alpha \in (0,1]} \alpha \left[ { - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)^{2} \tilde{\mu }_{Z} \tilde{\sigma }_{{x_{i} }} }}{{\sqrt {2\pi } \tilde{\sigma }_{Z}^{3} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]} \right]_{\alpha } } \right\}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + } = \sup \left\{ {\bigcup\limits_{\alpha \in (0,1]} \alpha \left[ { - \frac{{\left( {\frac{{\partial \tilde{Z}}}{{\partial \tilde{x}_{i} }}} \right)^{2} \tilde{\mu }_{Z} \tilde{\sigma }_{{x_{i} }} }}{{\sqrt {2\pi } \tilde{\sigma }_{Z}^{3} }}\exp \left[ { - \frac{1}{2}\left( {\frac{{\tilde{\mu }_{Z} }}{{\tilde{\sigma }_{Z} }}} \right)^{2} } \right]} \right]_{\alpha } } \right\}$$\end{document}In the above equation, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathit{inf}(\cdot )$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathit{sup}(\cdot )$$\end{document} are the minimum and maximum values, respectively, of the fuzzy random horizontal cut set interval.
Fuzzy random reliability sensitivity model of frozen wellbore mold overall structure
Using the HMM and EM algorithms for big data, the partial derivatives of each main fuzzy random variable were obtained according to the fuzzy random function of the overall structure of the reinforced concrete double-layer wellbore with a deep alluvial layer. The relevant digital feature function was substituted into Eqs. (19)–(24). The main parameters for a fuzzy random sensitivity optimization model of the reliability of a reinforced concrete double-layer shaft structure with a deep alluvial layer can then be obtained^29,30^.
- Fuzzy random sensitivity optimization model for compressive strength of concrete axis.
- Fuzzy random sensitivity model for circumferential reinforcement ratio of shaft wall.
- Fuzzy random sensitivity model for the thickness-to-diameter ratio of the wellbore.
- Fuzzy random sensitivity model for calculating the uncertainty coefficient of the model.
- Fuzzy random sensitivity model for the soil layer depth.
Among them:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{\mu }_{Z} = \mu_{{\tilde{\Theta }_{R} }} \cdot (m_{N} \mu_{{\tilde{\lambda }_{N} }} \mu_{{\tilde{R}_{aN} }} + m_{W} \mu_{{\tilde{\lambda }_{W} }} \mu_{{\tilde{R}_{aW} }} + \mu_{{\tilde{\mu }_{N} }} R_{gN} + \mu_{{\tilde{\mu }_{W} }} R_{gW} ) - 0.013\mu_{{\tilde{H}}}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tilde{\sigma }_{Z} = \sqrt {\begin{array}{*{20}l} {(\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\Theta }_{R} }}} \right|_{{\tilde{\mu }_{{\Theta_{R} }} }} \cdot \tilde{\sigma }_{{\Theta_{R} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\lambda }_{N} }}} \right|_{{\tilde{\mu }_{{\lambda_{N} }} }} \cdot \tilde{\sigma }_{{\lambda_{N} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{R}_{{{\text{a}}N}} }}} \right|_{{\tilde{\mu }_{{R_{aN} }} }} \cdot \tilde{\sigma }_{{R_{aN} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\lambda }_{W} }}} \right|_{{\tilde{\mu }_{{\lambda_{W} }} }} \cdot \tilde{\sigma }_{{\lambda_{W} }} )^{2} } \hfill \\ { + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{R}_{{{\text{a}}W}} }}} \right|_{{\tilde{\mu }_{{R_{aW} }} }} \cdot \tilde{\sigma }_{{R_{aW} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\mu }_{N} }}} \right|_{{\tilde{\mu }_{{\mu_{{_{N} }} }} }} \cdot \tilde{\sigma }_{{\mu_{{_{N} }} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{\mu }_{W} }}} \right|_{{\tilde{\mu }_{{\mu_{{_{W} }} }} }} \cdot \tilde{\sigma }_{{\mu_{{_{W} }} }} )^{2} + (\left. {\frac{{\partial \tilde{Z}}}{{\partial \tilde{H}}}} \right|_{{\tilde{\mu }_{H} }} \cdot \tilde{\sigma }_{H} )^{2} } \hfill \\ \end{array} }$$\end{document}Results and discussion
Engineering examples

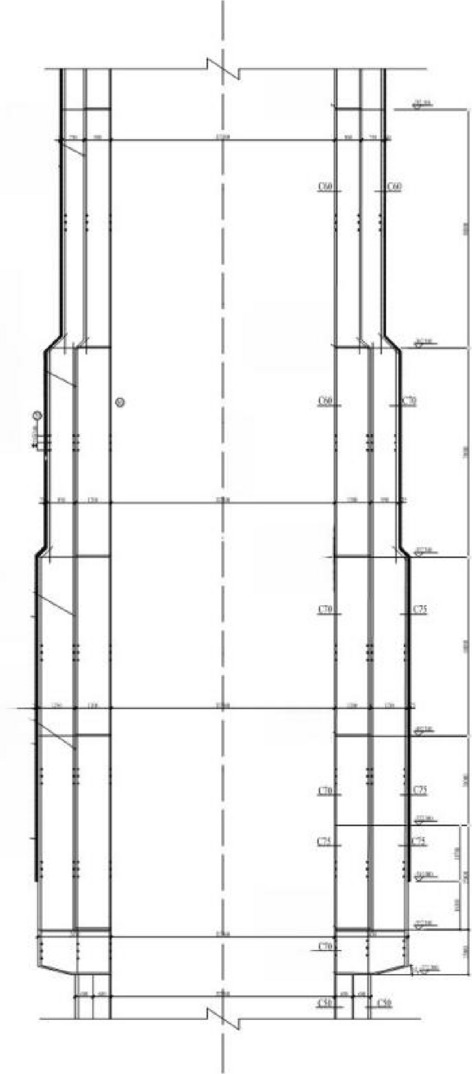

A large mine in Lianghuai mining area adopts the freezing method for construction and shaft development, through deep alluvium. The main shaft, secondary shaft, and wind shaft all adopt a reinforced concrete double wall structure. The structure of the main shaft are shown in Fig. 2. The frozen soil and shaft structure parameters during construction are shown in Tables 2 and 3. Among them, the uncertainty distribution characteristics of fuzzy random parameters are shown in Table 4.Figure 2. Shaft structure of the main well.Table 2. Frozen geotechnical parameter.MineDepth (m)LithologyWater content (%)Freezing wellbore thickness (m)Mean temperature(°C)Main shaft425Calcareous clay24.2111.6− 18.9480Calcareous clay25.6611.4− 18.7523Clay26.0211.5− 18.6Auxiliary shaft406Calcareous clay25.3111.2− 19.1452Clay27.3210.8− 19.6507Clay26.8211.4− 19.8Air shaft421Calcareous clay24.5811.820.6466Calcareous clay25.1912.121.1530Clay26.7311.721.3Table 3Structural parameters of outer wellbore.MineDepth (m)Grade of concreteInner radius (mm)Outer radius (mm)Inner reinforcement ratio(%)Outer reinforcement ratio(%)Main shaft391–430C60525063000.5280.481430–490C70525065500.5620.538490–545C75525065500.6040.573Auxiliary shaft400–420C65500060000.6820.667420–480C65520062500.7220.709480–544C70520062500.7500.696Air shaft400–430C65505064500.6520.684430–490C65505064500.7380.705490–538C70510065000.7560.732Table 4The uncertainty characteristics of parameters.Uncertainty characteristic distributionUncertainty of compressive strength of concrete axisUncertainty of circumferential reinforcement ratioUncertainty of thickness to diameter ratioUncertainty of calculating coefficientUncertainty of soil layer depthMean0.9921.0411.0330.8500.956Standard deviation0.1850.0740.2540.2170.032Coefficient of variation0.1290.0720.2450.2540.178
The cumulative freezing period was assumed to be 185 days. The coefficient for enhancing the strength of cement in the inner and outer strata was mN = 1.5, and mW = 1.8. The yield strengths of the inner and outer wall steel bars were RgN = 335 N/mm^2^, and RgW = 400 N/mm^2^.
The fuzzy random limit state values were \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{b}={\bigcup }_{\alpha \in (\text{0,1}]}\alpha [0.65+(\alpha -1)0.1,\hspace{0.33em}0.65+(1-\alpha )0.1]$$\end{document} . The constraint level was set to 0.75.
Because the variables in \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\widetilde{H},{\widetilde{R}}_{aN},{\widetilde{R}}_{aW},{\widetilde{\mu }}_{N},{\widetilde{\mu }}_{W},{\widetilde{\lambda }}_{N}, and {\widetilde{\lambda }}_{W}$$\end{document} are uncertain in practical engineering, their fuzzy randomization generations were included in the fuzzy stochastic reliability sensitivity model established in this study. MATLAB software (MathWorks MATLAB R2023b, https://ww2.mathworks.cn/products/matlab.html) was used to compile the HMM and EM algorithm for big data to calculate the fuzzy random reliability sensitivity of the main well, auxiliary well, and wind well structures in each buried depth section of the deep alluvial layer^31–34^. After 1000 iterations, the Monte Carlo method calculations and comparison results of the conventional sensitivity and fuzzy random sensitivity of each parameter are shown in Tables 5, 6, 7, 8 and 9 and Figs. 3, 4, 5, 6 and 7.Table 5. Fuzzy random sensitivity of axial compressive strength of concrete.MineDeep/mConventional mean sensitivityConventional standard deviation sensitivityFuzzy random mean sensitivityFuzzy random standard deviation sensitivity \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} Main shaft391–4300.25080.07070.20150.28380.06790.0845430–4900.28240.06140.23400.31260.06170.0802490–5450.30370.05230.27160.35700.05040.0719400–4200.26650.06850.22550.30440.05290.0766Auxiliary shaft420–4800.28030.05980.26290.31500.05120.0707480–5440.32490.05660.29320.36310.04780.0666400–4300.24890.07960.21790.28050.07540.0884Air shaft430–4900.27640.07430.24010.29590.07130.0828490–5380.31200.07010.28290.33170.06690.0784Table 6Fuzzy random sensitivity of wellbore thickness-to-diameter ratio.MineDeep/mConventional mean sensitivityConventional standard deviation sensitivityFuzzy random mean sensitivityFuzzy random standard deviation sensitivity \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} Main shaft391–4300.20070.04220.17220.24050.03970.0469430–4900.23390.03860.21330.27480.03580.0438490–5450.25180.03250.23150.29800.03010.0377400–4200.22760.04470.19420.26280.04180.0501Auxiliary shaft420–4800.24280.03880.21050.27420.03320.044480–5440.26630.03150.23960.30100.02940.0364400–4300.20010.04960.17020.23260.04730.0538Air shaft430–4900.22900.04520.20130.26450.04260.0502490–5380.24930.04070.23040.29440.03780.0444Table 7Fuzzy random sensitivity of shaft circumferential reinforcement ratio.MineDeep/mConventional mean sensitivityConventional standard deviation sensitivityFuzzy random mean sensitivityFuzzy random standard deviation sensitivity \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} Main shaft391–4300.09070.02640.06170.12450.02310.0308430–4900.10740.02270.06880.13740.02010.0268490–5450.12070.01720.09290.14220.01650.0228400–4200.09350.02770.06680.13000.02410.0322Auxiliary shaft420–4800.10630.02240.07440.13410.02040.0266480–5440.14590.01700.10190.16050.01430.0224400–4300.09210.02860.06300.13050.02510.0331Air shaft430–4900.09980.02310.07160.14020.02150.0279490–5380.13160.01980.09930.16190.01720.0240Table 8Fuzzy random sensitivity of calculation model uncertainty coefficient.MineDeep/mConventional mean sensitivityConventional standard deviation sensitivityFuzzy random mean sensitivityFuzzy random standard deviation sensitivity \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} Main shaft391–4300.22240.05570.18080.25340.05350.0597430–4900.25160.04710.22220.28110.04590.0537490–5450.27220.03960.24310.31300.03710.0461400–4200.24610.05220.21630.27380.05030.0582Auxiliary shaft420–4800.26540.04850.23770.28790.0450.0576480–5440.28760.04250.24690.32280.03560.0475400–4300.22100.06830.19140.24360.06490.0769Air shaft430–4900.25640.06440.22320.27390.06090.0708490–5380.27490.06070.24380.32000.05620.0684Table 9Fuzzy random sensitivity of soil depth.MineDeep/mConventional mean sensitivityConventional standard deviation sensitivityFuzzy random mean sensitivityFuzzy random standard deviation sensitivity \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\mu }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ - }$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathop {\left( {\frac{{\partial \tilde{P}_{f} }}{{\partial \tilde{\sigma }_{{x_{i} }} }}} \right)}\nolimits_{\alpha }^{ + }$$\end{document} Main shaft391–430− 0.1147− 0.0311− 0.0932− 0.1435− 0.0273− 0.0339430–490− 0.1352− 0.0272− 0.1023− 0.1638− 0.0242− 0.0293490–545− 0.1517− 0.021− 0.124− 0.1874− 0.0186− 0.0247400–420− 0.1381− 0.0334− 0.1067− 0.1682− 0.0305− 0.0362Auxiliary shaft420–480− 0.1528− 0.0276− 0.1282− 0.1846− 0.0246− 0.0312480–544− 0.1816− 0.0218− 0.1558− 0.218− 0.0183− 0.0246400–430− 0.1045− 0.0331− 0.082− 0.1352− 0.0309− 0.0357Air shaft430–490− 0.1289− 0.0293− 0.1045− 0.1574− 0.0267− 0.0325490–538− 0.1463− 0.0256− 0.1193− 0.1737− 0.0225− 0.0284Figure 3Fuzzy random sensitivity radar map of concrete axial compressive strength.Figure 4. Fuzzy random sensitivity radar map of wellbore thickness to diameter ratio.Figure 5. Fuzzy random sensitivity radar map of shaft circumferential reinforcement ratio.Figure 6. Fuzzy random sensitivity radar map of calculation model uncertainty coefficient.Figure 7. Fuzzy random sensitivity radar map of soil depth.

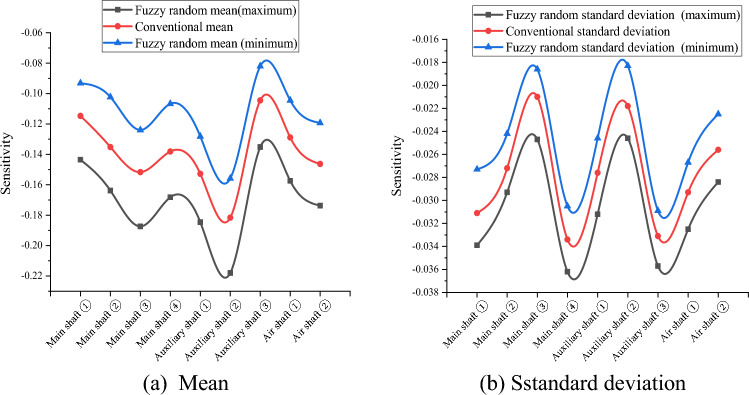

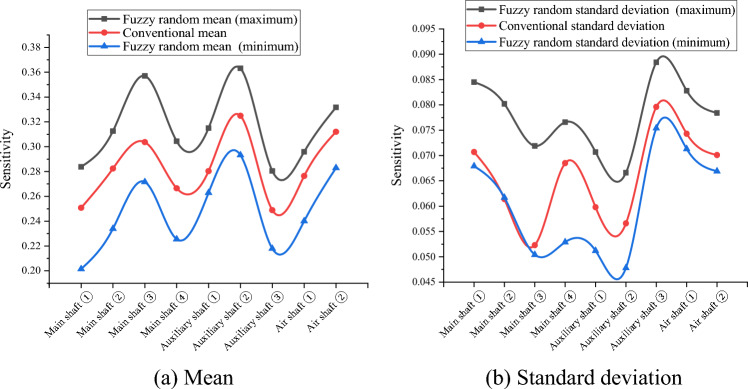

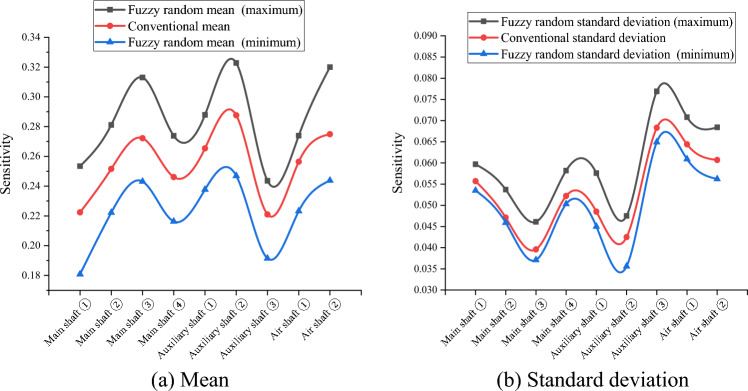

According to Tables 5, 6, 7, 8 and 9, the fuzzy random sensitivity analysis of each parameter of the frozen wellbore fully considers the gradual evolution of underground engineering from stability to instability on the basis of the fuzzy random reliability theory, thus improving the previous cognition that there are only two isolated states of structural stability. By numerical calculation of the HMM and EM algorithm, it was found that the traditional sensitivity values of each parameter are included in the fuzzy random sensitivity interval^35,36^. For example, the conventional mean sensitivities of the axial compressive strength of the main shaft concrete were 0.2508, 0.2824, 0.3037, and 0.2665, and the fuzzy random mean sensitivity ranges were [0.2015, 0.2838], [0.2340, 0.3126], [0.2716, 0.3570], and [0.2255, 0.3044]. The conventional standard deviation sensitivities of the compressive strength of the main shaft concrete were 0.0707, 0.0614, 0.0523, and 0.0685, and the fuzzy random standard deviation sensitivity ranges were [0.0679, 0.0845], [0.0617, 0.0802], and [0.0504, 0.0719]. [0.0529, 0.0766]. The above analysis shows that the fuzzy random sensitivity of the overall structural reliability of the reinforced concrete double-layer wellbore optimized by the algorithm represents the fuzzy random degree of influence of the main parameters on the overall structural reliability of the wellbore in the form of a fuzzy interval value. This is consistent with the conventional sensitivity value and is more reasonable from an engineering perspective than the traditional fixed value representation method of sensitivity.

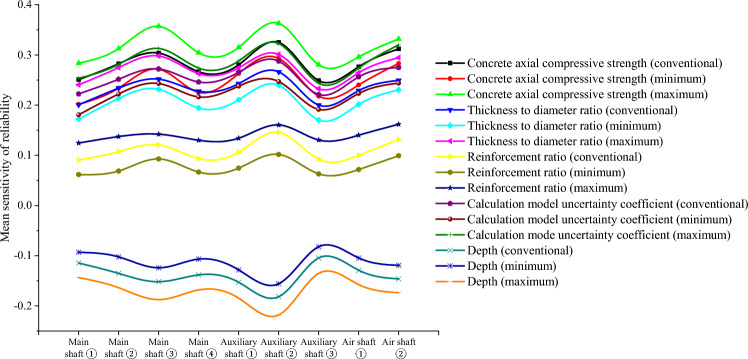

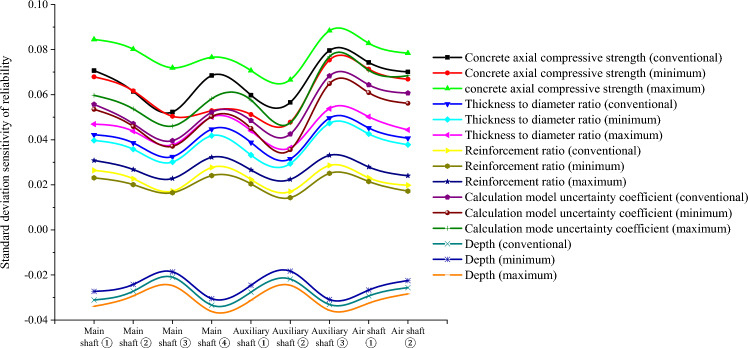

To further analyze the fuzzy random sensitivity and distinguish the importance of each parameter to the overall reliability of the wellbore structure^37,38^, the conventional sensitivity mean value and standard deviation of each major parameter can be compared with the fuzzy random sensitivity mean value and fuzzy random standard deviation^39,40^. The results are shown in Figs. 8 and 9.Figure 8. Mean comparison of fuzzy random sensitivity.Figure 9. Standard deviation comparison of fuzzy random sensitivity.
Through a comprehensive comparison of the fuzzy random sensitivity of each parameter, it can be seen that the main factors affecting the reliability of the entire structure of the frozen shaft of reinforced concrete, in order of importance, are the compressive strength of concrete, uncertainty coefficient of the calculation model, thickness-to-diameter ratio, depth of the soil layer, and reinforcement ratio. In addition, the fuzzy random sensitivity analysis in this study had positive and negative symbolic characteristics. The positive/negative sign indicates that the parameter change had a positive/negative relationship with the reliability of the overall wellbore structure. In future frozen shaft excavation practices, more attention must be paid to the main factors affecting the reliability of the shaft and distinguishing the direction characteristics of the influence. For example, the fuzzy random sensitivity numerical calculation results for the reliability of a reinforced concrete shaft in a deep alluvial layer show that the concrete compressive strength, uncertainty coefficient of the calculation model, thickness-to-diameter ratio, and reinforcement ratio are positively correlated, whereas the soil depth is negatively correlated with the overall shaft reliability. In addition, in order to further verify the robustness of the optimization algorithm, the convergence efficiency of the fuzzy random method with HMM and the traditional Monte Carlo method is compared through the above engineering cases, and the results are shown in Fig. 10. It can be seen that the fuzzy random method is more robust and efficient than the traditional method (Supplementary information).Figure 10. Efficiency comparison .
Conclusions
- To address the shortcomings of traditional reliability in characterizing the stability of deep underground structures, the AFSOM method was improved to analyze fuzzy random reliability, which is more consistent with the actual working conditions. To reflect the influence of uncertain parameters on the safety and reliability of the entire structure, the conventional sensitivity analysis model was optimized using fuzzy random reliability theory, and the mean and standard deviation calculation models of the fuzzy random reliability sensitivity were established.
- Based on the fuzzy random analysis of the overall structural resistance and load of the frozen wellbore in the deep alluvial layer, the uncertainties of different variable parameters were comprehensively considered, and the numerical characteristics of the fuzzy random variables were replaced by the HMM and EM algorithm of big data. The fuzzy random sensitivity optimization model of the concrete compressive strength, thick-diameter ratio, reinforcement ratio, uncertainty coefficient of the calculation model, and soil depth on the reliability of the entire wellbore structure were obtained.
- Engineering examples show that the optimized fuzzy random sensitivity expresses the degree of influence of each parameter on the overall reliability of the wellbore structure with a fuzzy interval value, which is consistent with the conventional sensitivity value but also provides more engineering rationality than the traditional fixed value form of sensitivity. Therefore, this method can provide a more effective reference for the safe construction of deep underground structures.
- By comparing the numerical calculation results of the fuzzy random sensitivity of the main parameters, it can be seen that the main factors affecting the reliability of the overall structure of the deep alluvial reinforced concrete double-layer wellbore are, in order of importance, the concrete compressive strength, uncertainty coefficient of the calculation model, thickness-to-diameter ratio, soil depth, and reinforcement ratio. Simultaneously, the fuzzy random sensitivity analysis also has the characteristics of positive and negative symbols, indicating that the concrete compressive strength, uncertainty coefficient of the calculation model, thickness-to-diameter ratio, and reinforcement rate have a positive relationship with wellbore reliability, whereas the soil depth has a negative relationship with wellbore reliability.
