Surgical Technique and Preliminary Outcomes of Double-Level Osteotomy for Valgus Deformity
Umito Kuwashima, Shuntaro Nejima, Marco Maiotti, Marc-Daniel Ahrend, Steffen Schröter
TL;DR
This study describes a surgical technique for correcting severe knee deformities and shows it leads to improved knee function and accurate correction.
Contribution
The paper introduces and evaluates a double-level osteotomy technique for valgus deformity with high surgical accuracy and functional outcomes.
Findings
The mTFA significantly improved from 10.3° to –1.8° postoperatively.
All clinical scores showed significant improvement after the surgery.
Surgical correction accuracy had a mean deviation of 2.7° from the planned correction.
Abstract
Data are limited regarding the surgical technique or outcomes of double-level osteotomy (DLO) combining medial closing-wedge distal femoral osteotomy and medial closing-wedge high tibial osteotomy in patients with moderate-to-severe valgus deformity. To describe the surgical technique and assess the short-term outcomes and surgical accuracy of DLO in patients with a moderate or severe valgus deformity. It was hypothesized that this technique would result in good clinical outcomes with precise deformity correction. Case series; Level of evidence, 4. Eight patients (mean age, 44.2 ± 10.9 years) with a moderate or severe valgus knee treated with DLO (9 knees; mechanical tibiofemoral angle [mTFA], 10.3°± 3.5°) were included. The mean follow-up was 25.1 ± 11.1 months. Preoperative to postoperative changes in radiographic parameters (mTFA, mechanical lateral distal femoral angle,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsIon-surface interactions and analysis · Diamond and Carbon-based Materials Research · Mass Spectrometry Techniques and Applications
In recent years, the outcome of osteotomies around the knee has improved because of technical and surgical developments.^27,34,50^ Osteotomy is a well-established treatment option for osteoarthritis (OA) in both valgus and varus knees.^24,37,42,47^ Correct planning is the key to a successful osteotomy, and a variety of approaches can be used to achieve a good result. Digital planning leads to reliable accuracy^ 44 ^ independent of the software used.^13,14,45^
In severe varus deformity, single-level osteotomy has proven to be inappropriate because it corrects the limb malalignment without maintaining neutral joint line obliquity.^4,19,39?-41^ Correction of varus in combined deformities with a single-level osteotomy has inferior long-term results compared with double-level osteotomy (DLO) addressing the deformity of both bones.^ 52 ^ The increase of shear forces after an overcorrection at the proximal tibia is likely the reason for this finding.^ 33 ^ A DLO can precisely correct the deformity and retain the neutral joint line obliquity. Babis et al^ 4 ^ reported on the first encouraging results, and other working groups using a minimally invasive approach reported on a high level of accuracy and good clinical results.^2,34^
There are fewer publications on osteotomy for valgus deformities. Most studies describe the surgical technique of distal femoral osteotomy (DFO)^16,28,55^; little research has been performed on closing-wedge high tibial osteotomy (HTO) in valgus knees.^9?-11,17,22,36,48^ The valgus deformity has to be corrected at the location where the deformity exists.^ 9 ^ Eberbach et al^ 12 ^ showed that a valgus deformity can be located in the femur (23.6%), tibia (41.0%), or femur and tibia combined (26.9%). Saragaglia and Chedal-Bornu^ 38 ^ reported on 29 cases of valgus deformity. In 5 of these cases, a DLO was performed. However, they used a medial closing-wedge HTO and a lateral opening-wedge DFO.
Data are limited regarding the surgical technique and outcome of DLO combining medial closing-wedge DFO and medial closing-wedge HTO in patients with severe valgus deformity. Thus, the purpose of this study was to describe the surgical technique and assess the short-term outcomes as well as the surgical accuracy of DLO in patients with moderate or severe valgus deformity. We hypothesized that the technique would result in good clinical outcomes with precise deformity correction.
Methods
Study Patients
This retrospective case series was approved by our institutional ethics commission, and informed consent was obtained from all included patients. Inclusion criteria were combined valgus deformity of the femur and tibia (mechanical medial proximal tibial angle [mMPTA] >90° and mechanical lateral distal femoral angle [mLDFA] <85°, or simulation of a single osteotomy would result in a new deformity), lateral compartment OA, age ≥18 years, the ability to walk >500 meters, the ability to perform moderate activities of daily living, and knee joint pain resistant to nonoperative treatment. Exclusion criteria were lack of patient consent, age <18 years old, severe disability combined with ability to walk <500 meters, and single-bone deformities.
Between July 2013 and October 2015, 12 DLO procedures for valgus knee were performed in 11 patients. Eight patients (9 knees; 9 DLOs) with postoperative follow-up data were included in the study. There were 5 women and 3 men with a mean age of 44.2 ± 10.9 years (range, 31-60 years). The mean follow-up was 25.1 ± 11.1 months (range, 12.9-40.0 months). Patient characteristics are summarized in Table 1.
**Table 1: Demographic Data of the Study Cohort (9 Knees, 8 Patients)
a**
Radiographic assessment was performed to measure several parameters, including the mechanical tibiofemoral angle (mTFA), mLDFA, mMPTA, joint line convergence angle (JLCA), posterior distal femoral angle (PDFA), and patellar height (Insall-Salvati Index,^ 21 ^ Caton-Deschamps Index,^ 8 ^ and Ihle-Schröter Index^ 20 ^) and tibial slope according to Amendola et al^ 3 ^ using a full weightbearing anteroposterior full-length radiograph and a lateral-view radiograph of the knee. We evaluated these parameters preoperatively and at the time of the postoperative follow-up. Deformity analysis and preoperative planning were conducted using mediCAD digital planning software (Hectec).^ 43 ^ The goal was to obtain the desired alignment combined with joint angles in the range of the normal values (Figures 1 and 2).

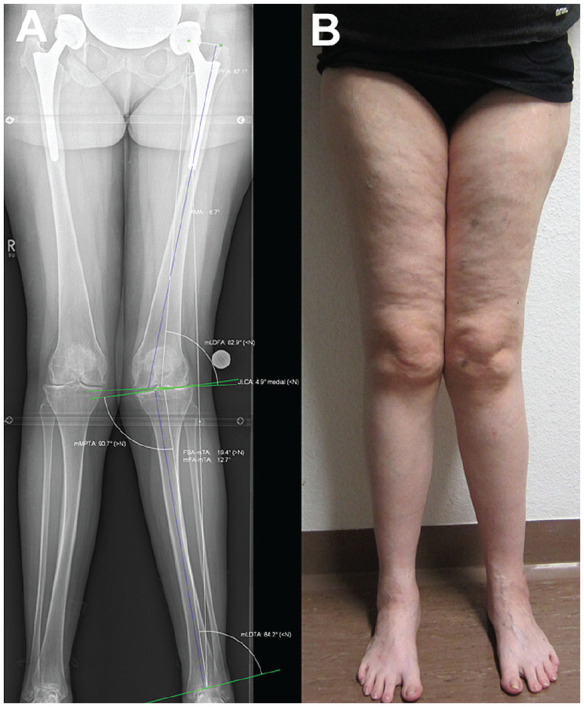

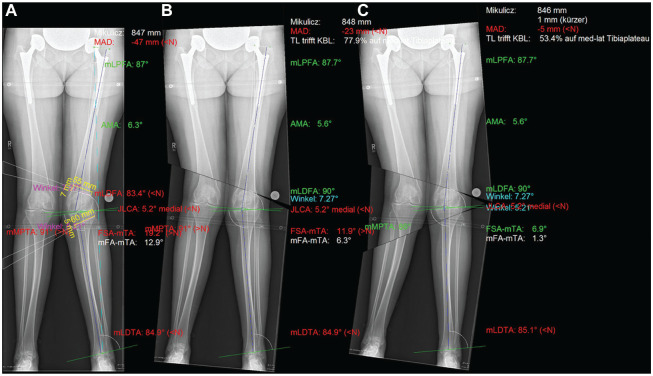

Case example: 55-year-old female patient with lateral knee pain. (A) Preoperative radiograph (deformity analysis: mechanical tibiofemoral angle [mTFA], 12.7°; mechanical lateral distal femoral angle [mLDFA], 82.9°; mechanical medial proximal tibial angle [mMPTA], 90.7°). (B) Clinical photograph. JLCA: joint line convergence angle.
Preoperative plan for a double-level osteotomy in the same patient shown in Figure 1. Femoral medial closing-wedge distal femoral osteotomy with 7-mm wedge height and medial closing-wedge high tibial osteotomy with 5-mm wedge height (A). A postoperative alignment with the following angles was planned: mechanical lateral distal femoral angle (mLDFA) of 90°, mechanical tibiofemoral angle (mTFA) of 1.3°, and mechanical medial proximal tibial angle (mMPTA) of 86°. JLCA: joint line convergence angle.
Depending on the degree of lateral and medial OA, an mTFA of 0° to –2° was intended. Surgical accuracy was calculated by subtracting the postoperatively achieved correction from the preoperatively intended correction. For this analysis, the results were mathematically converted to absolute values (positive integers). Thus, surgical accuracy was reported as deviation from the intended correction, with directionless magnitude and lower values representing greater accuracy.^ 44 ^ Preoperative knee function and postoperative outcome were evaluated using established and standardized instruments: Hospital for Special Surgery (HSS) score, Oxford Knee Score (OKS), and Lysholm score.
Surgical Technique
In all patients, an arthroscopy was performed to evaluate the cartilage and remove the intercondylar notch osteophytes. Especially in severe OA, osteophytes can weaken the anterior cruciate ligament and cause a loss of extension (Figure 3).

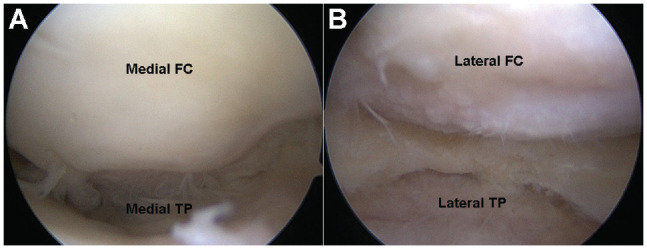

Perioperative arthroscopy showing the medial (A) and the lateral joint space (B). FC, femoral condyle; TP, tibial plateau.
After performing the arthroscopy, we started the DLO with the biplanar closing-wedge DFO using a minimally invasive approach.^28,55^ The location of the skin incision is important for a minimally invasive approach. Usually, a 5- to 6-cm skin incision at the distal medial femur is long enough. The oblique transversal bone cut is from proximal medial to distal lateral, which we recommend taking into account (Figures 4 and 5). Then, we make an incision of the fascia of the vastus medialis muscle and perform blunt preparation below the muscle belly to the bone. There are 2 possible techniques to position the radiolucent retractor posterior to the femur. The first one is to perform an incision of the intermuscular septum and bluntly dissect the soft tissue attachments from the posterior aspect of the bone. Then, the radiolucent retractor can be inserted close to the bone from medial to lateral. The second technique is to detach the periosteum along with the intermuscular septum. Then, similarly, the retractor is pushed from medial to lateral after bluntly dissecting the soft tissue of the posterior aspect of the femur. We prefer to just detach the intermuscular septum. During soft tissue preparation, the surgeon must be aware of the anatomy of the vessels. The artery is more lateral than medial at this level of the femur.^ 54 ^ Using a radiolucent retractor helps to protect the vessels, and it is still possible to use an intensifier while performing the osteotomy.

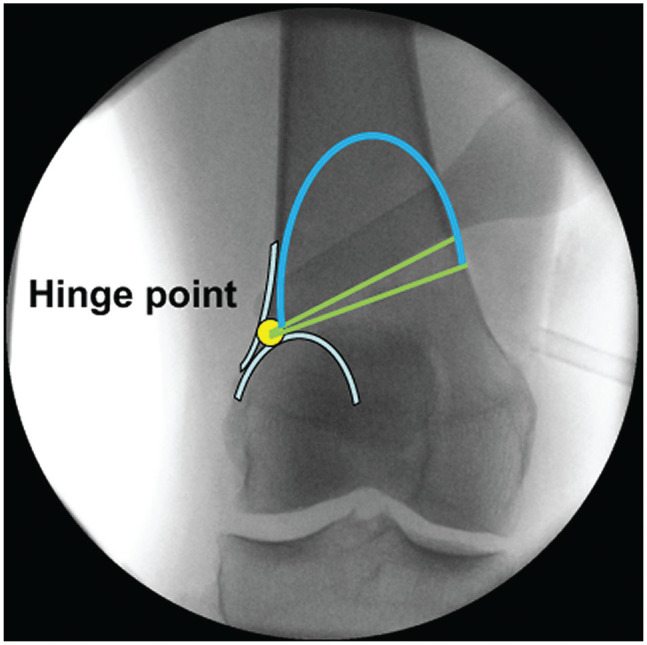

The hinge (yellow dot) is defined at the intersection of the shadow of the posterior lateral condyle and the lateral cortex. The transversal cuts are marked with green. The length of the ascending cut (blue line) should be 5 to 6 cm.

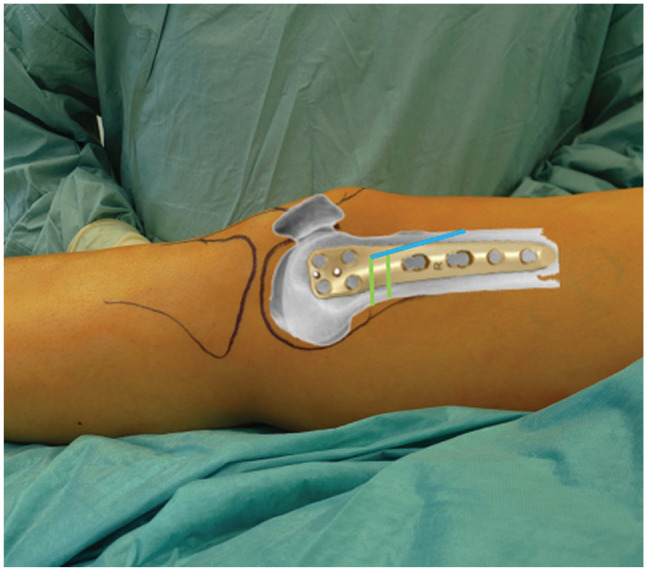

Image demonstrating the level of the double-level osteotomy and plate position in relation to the soft tissue. The blue line indicates the ascending cut, and the green lines indicate oblique transversal cuts.
Afterward, 2 or 4 K-wires (depending on the experience of the surgeon) are placed according to the preoperative plan to create an isosceles triangle and a cage for the saw blade. The distance between the K-wires is the same as the height of the wedge base, which was simulated and planned preoperatively, and the hinge is defined as the intersection of the shadow of the posterior lateral condyle and lateral cortex (Figures 4 and 6A).

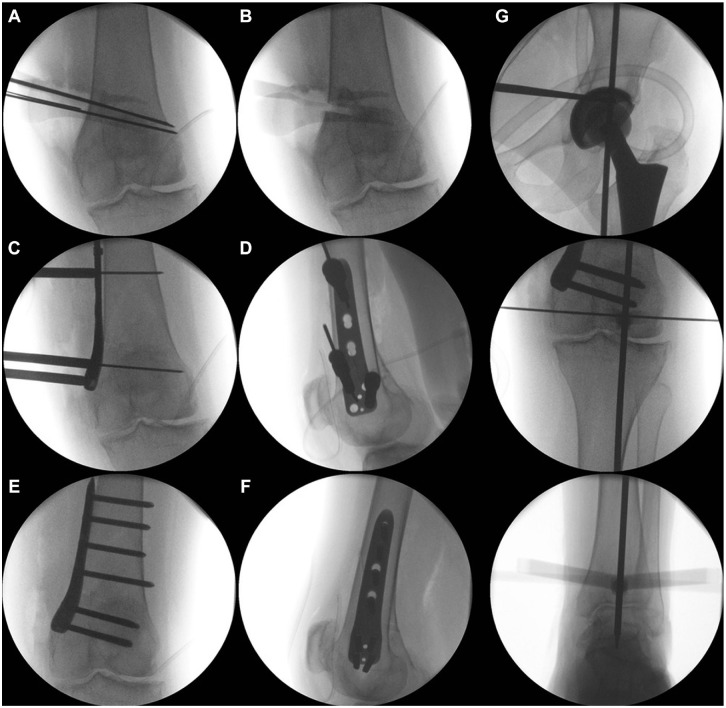

Intraoperative radiographs of the distal femoral osteotomy: positioning of the K-wires. (A) The hinge is defined as the intersection of the shadow of the posterior lateral condyle and the lateral cortex. (B) Removal of the bone wedge. (C, D) Plate position. (E, F) Radiographs of the completed distal femoral osteotomy. (G) Intraoperative control of the alignment using the alignment rod.
The tips of the K-wires on the opposite cortex should not touch each other. A distance of 1 to 2 mm between the K-wires is helpful because the saw blade is usually 1.27 mm thick. Otherwise, it will not be possible to saw close to the hinge (Figure 6A).
The oblique transversal cut should stop 0.5 cm before the lateral cortex (Figure 6B). As illustrated by the green lines in Figure 5, the oblique transversal cut is performed exclusively in the posterior two-thirds of the bone. The anterior third of the femur is not cut to prevent an anterior flange fracture (Figure 5). After finishing this cut, we make the ascending cut, which should be 5 to 6 cm in length. The minimum bone thickness of the ascending cut at the level of the oblique osteotomy is 1 cm.

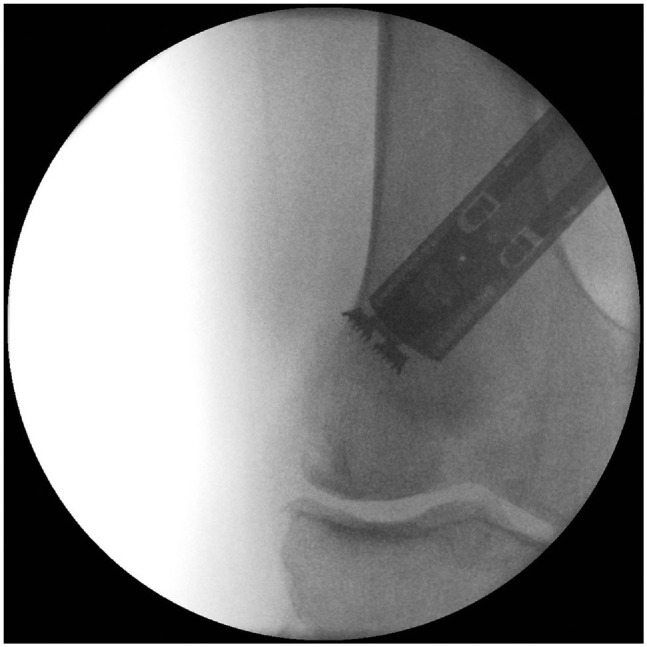

The saw blade is rotated in the plane of the ascending cut in order to cut the bone distally with the edge of the saw blade (Figure 7). In the minimally invasive approach, damage to the soft tissue is less with the Precision Saw (Stryker) than with a normal oscillating saw.
The saw blade must be rotated to cut the bone distally with the edge of the saw blade and avoid soft tissue damage at the lateral side.
The bone wedge can be removed. The osteotomy should be flexible so that it can be easily closed to avoid a hinge fracture.

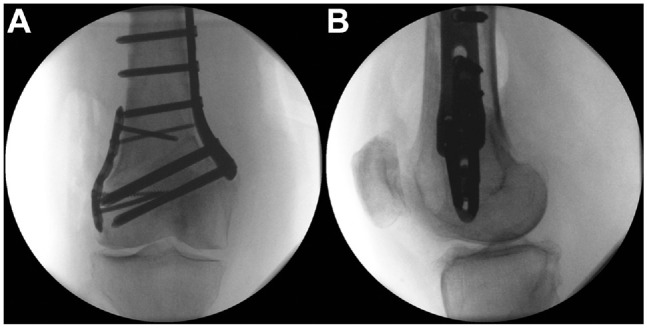

In case of a dislocated hinge fracture, fixation of the lateral hinge must be performed. A preshaped 5-hole, 3.5-mm locking compression plate with 2 screws proximal and 2 screws distal is useful. The osteotomy is still flexible and can be closed (Figure 8). This hinge plate is effective for all distal femoral osteotomies (medial or lateral, opening or closing wedge).
Fixation of the lateral hinge of a dislocated hinge fracture using a preshaped 5-hole, 3.5-mm locking compression plate. (A) Anteroposterior and (B) lateral radiographs.
The osteotomy is fixed by an angular stable plate (TomoFix MDF; DePuy Synthes) using 2 K-wires (Figure 6C). For the proximal K-wire, an additional stab incision is performed. The plate position is checked radiographically in both planes (Figure 6D). If readjustment is required, just 1 K-wire can be removed and the plate rotated. Fixation starts distally from the osteotomy with 4 screws. If this is not possible given the shape of the distal femur, bending of the plate is required. After fixation of all 4 distal screws, eccentric drilling is performed in the first proximal hole and a cortical screw inserted, leading to compression of the osteotomy. Before tightening the screw, we remove the proximal K-wire. Then, the 2 most proximal screws are inserted after a stab incision. The other 2 proximal screws can be inserted via the distal approach. The final radiographs of the closing-wedge DFO should include the alignment rod (Figure 6, E-G).
Comparison with the preoperative plan is required. For interpretation of the alignment in the supine position, it is important that the surgeon knows the ligament's stability and is aware of the risk of overcorrection in case of large ligament instability. The fascia of the muscle should be closed, a drain inserted, and the wound closed.
There are 2 possibilities for the medial HTO approach: an oblique incision^27,50^ and a straight incision.^ 23 ^ They have been previously reported for the opening-wedge HTO, but the same approaches are used for medial closing-wedge HTO. In the presented case series, just 1 case using an oblique incision was included. In all other cases, a straight incision was used. The fascia was opened in an L shape at the anterior border of the superficial medial collateral ligament (MCL), followed by preparation for insertion of the patellar tendon. In contrast to the opening-wedge HTO technique, complete detachment of the MCL must be avoided, even of the superficial MCL, because the osteotomy will be performed distal to insertion of the deep MC. Thus, there is a risk of ligament instability in midflexion of the knee if the MCL is detached completely. Use of a well-shaped retractor is recommended to avoid too much detachment and reach the lateral part of the tibia.
The main difference compared with the opening-wedge HTO is that there are 2 oblique bone cuts required, which should be performed very precisely. Otherwise, the osteotomy cannot be closed, and the risk of a hinge fracture is high. After positioning the retractor, we place 2 or 4 K-wires within the planned distance of the wedge base (Figure 9A). Both oblique transversal cuts are made first, followed by the ascending cut behind the patellar tendon (Figure 9B). Afterward, the bone wedge is removed. If the osteotomy is not flexible enough, the hinge has to be weakened using the saw. After closing the osteotomy (Figure 9C), we position a TomoFix MHT plate (DePuy Synthes) and fix it with 2 K-wires. The plate position is checked radiographically. The proximal holes of the plate are used for fixation with angular stable locking screws. Afterward, in hole 1 distal to the osteotomy, a bicortical screw is placed via eccentric drilling. After compression of the osteotomy, the alignment is checked radiographically using an alignment rod (Figure 9D). The fixation is completed by inserting 3 locking screws distally. Finally, the cortical screw is replaced by a bicortical locking screw. The final radiograph shows the correct position of the plate (Figure 9, E and F) and alignment according to the plan (Figure 9G). A drain is placed subcutaneously, and wound closure is performed. The radiographic and clinical views at the final follow-up show a straight leg (Figure 10).

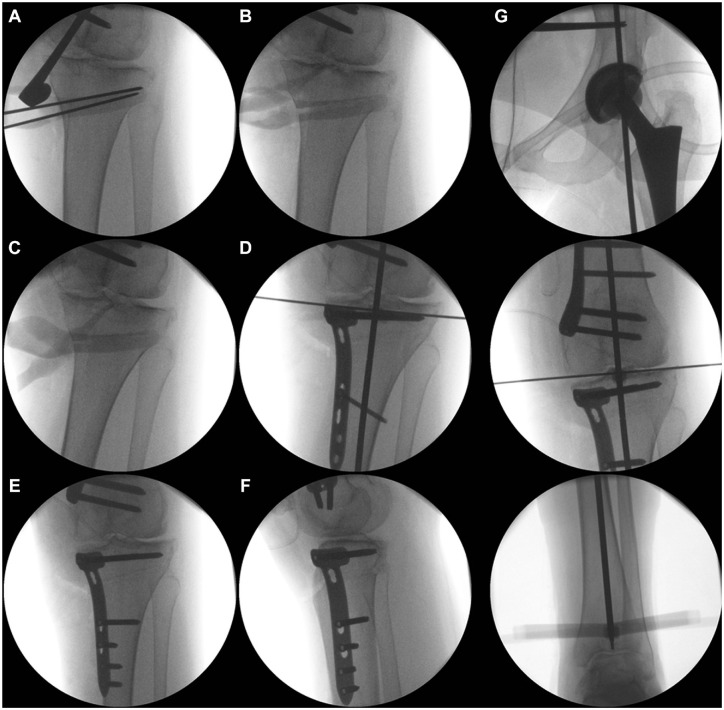

Intraoperative radiographs of the medial closing-wedge high tibial osteotomy. (A) Positioning of the K-wires aimed at the fibular head. (B, C) Removal of the bone wedge and closing of the osteotomy. Distal to the osteotomy a bicortical screw is placed via eccentric drilling. (D) After compression of the osteotomy the alignment is checked radiographically using an alignment rod. (E, F) Completed high tibial osteotomy. (G) Alignment control using the alignment rod.

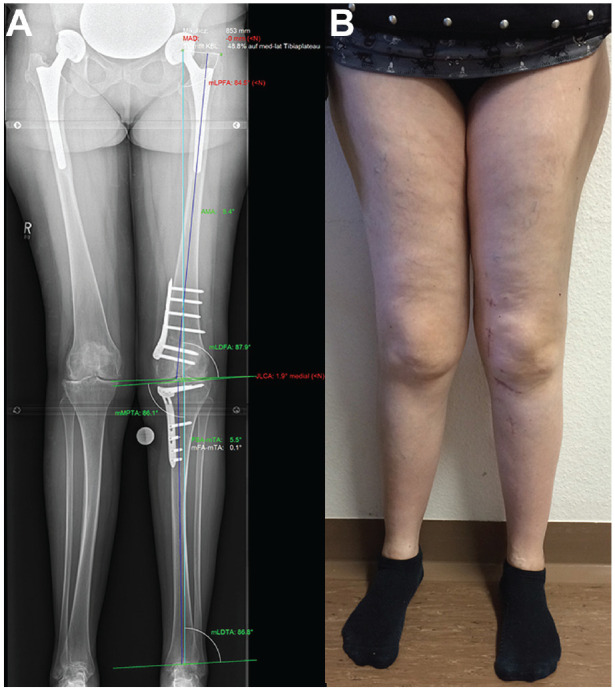

(A) Postoperative radiograph (mechanical tibiofemoral angle [mTFA], 0.1°; mechanical lateral distal femoral angle [mLDFA], 87.9°; mechanical medial proximal tibial angle [mMPTA], 86.1°) and (B) clinical photograph obtained in the same patient shown in Figure 1. JLCA: joint line convergence angle.
Postoperative Rehabilitation
The patients were allowed partial weightbearing of 20 kg from day 1 after the surgery. Full weightbearing was allowed after 6 weeks. Usually, it took an additional 2 weeks for patients to be able to walk without crutches. There was no limitation in range of motion. No orthosis was required. Physical therapy was recommended during the first 12 weeks of follow-up.
Statistical Analysis
Numeric values are reported as mean ± standard deviation (range). Paired t tests were performed to compare pre- and postoperative radiographic and clinical outcome variables. JMP statistical software (Version 12; SAS Institute) was used to analyze the data, with the level of significance set at P < .05.
Results
The preoperative and postoperative radiographic parameters are compared in Table 2. The mTFA changed significantly, from 10.3°± 3.5° preoperatively to –1.8°± 3.4° postoperatively (P < .001). The mean correction angle of both the femur and tibia was 12.1°± 4.5°. The mean changes in the mLDFA and mMPTA were 5.1°± 2.7° and 5.9°± 2.2°, respectively (P < .001 for both). The PDFA decreased significantly, from 85.9°± 3.1° to 84.2°± 2.4° (P < .01). There was no significant difference in pre- and postoperative JLCA, tibial slope, or patellar height.
**Table 2: Pre- and Postoperative Radiographic Parameters
a**
The accuracy of the correction was high (Table 3), especially the mean corrections for mTFA, mMPTA, and mLDFA, which were all <3°. Despite this result, the range of accuracy was very narrow for mTFA (0.6°-6.6°) and mMPTA (0.1°-3.2°), whereas for mLDFA the was wider (0°-6.5°). Comparison of pre- with postoperative clinical scores showed significant improvement in all 3 scores (P < .001 for all) (Table 4). The preoperative, planned, and postoperative radiological alignment parameters as well as the OKS and Lysholm score for each included knee are presented in Table 5.
**Table 3: Accuracy of Radiographic Parameters
a**
**Table 4: Pre- and Postoperative Clinical Scores
a**
**Table 5: Breakdown of Radiographic Alignment Parameters and Clinical Scores by Operated Knee (n = 9)
a**
Regarding complications, 1 patient had an intraoperative lateral hinge fracture, which was fixed using a hinge plate, as mentioned above. The healing was uneventful, and the OKS, HSS, and Lysholm scores improved from 20 to 43, from 68 to 85, and from 18 to 90, respectively. These results were comparable to those in the other patients. Therefore, the hinge fracture had no negative influence on the outcome. However, the surgical time was much longer. Another patient experienced blunt trauma at the medial proximal tibia 3 months after the surgery, and a few days later, the hematoma became infected (Staphylococcus aureus). Immediate removal of the implants was possible because of completed bone healing. The final OKS, HSS, and Lysholm scores were 44, 97, and 95, respectively.
Discussion
The most important finding of this study was that the clinical scores improved significantly after varus DLO in moderate-to-severe valgus knees with lateral OA. Moreover, the surgical accuracy was high. To the best of our knowledge, this is the first study to report the outcomes of DLO combining closing-wedge DFO and closing-wedge HTO for valgus knees.
Several studies have reported the results of medial closing-wedge DFO for valgus knees.^**^ Finkelstein et al^ 15 ^ found a 10-year survival rate of 64%, while Backstein et al^ 5 ^ reported a 10-year survival rate of 82% and a 15-year survival rate of 45%. Kosashvili et al^ 25 ^ showed deterioration of knee function at the 10-year follow-up, but function remained much better than before surgery. Meanwhile, the results of medial closing-wedge HTO for valgus knees were relatively worse compared with those of medial opening-wedge HTO for varus knees.^11,48^ Researchers have also reported that the excessive joint line obliquity caused by huge correction on the tibia was associated with inferior results. Eberbach et al^ 12 ^ showed that the valgus deformity is located in the femur (23.6%), tibia (41.0%), or femur and tibia combined (26.9%). Therefore, precise assessment of the deformity and detailed planning of the surgery is needed. The present study showed satisfying results after varus DLO in valgus knees. If excessive joint line obliquity could be produced by a single-level correction (the femur alone or tibia alone), we suggest consideration of a DLO.
The optimal postoperative alignment has been controversial in the correction of valgus deformity, including the joint line obliquity. Some researchers have recommended correction of the aTFA to 6° to 10°,^15,32,56^ and others have recommended an mTFA between 0° and 3°.^6,30^ Marin Morales et al^ 29 ^ suggested that appropriate correction was essential to obtain the best clinical results in the valgus deformity, and if undercorrection (>5° of valgus) or overcorrection (>5° of varus) was achieved, failure was often observed. Schröter et al^ 46 ^ reported that a postoperative mLDFA >90° resulted in an inferior clinical outcome compared with mLDFA >85° to 90° and noted that joint line obliquity should be avoided in the correction of valgus deformity. In the present study, we planned the postoperative mTFA to 0° to 1° varus, and the postoperative mTFA was within 3° of the planning degrees in 7 knees (77.8%). Although there were 2 cases of overcorrection, the mMPTA was <10° in all the cases. Coventry^ 11 ^ reported that obliquity of as much as 10° was found to be compatible with a good result, and also found that obliquity >10°, although statistically nonsignificant, was associated with a poor result. It might be one of the reasons why all the cases in the current study improved.
Regarding total knee replacement after varus DFO, relatively good results have been reported.^7,15,35^ However, some technical difficulties can be encountered during the surgery. Nelson et al^ 35 ^ mentioned that extra-articular varus deformity of the femur often results in a situation in which the femoral anatomic axis intersects the lateral femoral condyle rather than the intercondylar notch, and determination of the appropriate location of the starting hole using an intramedullary guide is important for obtaining optimal femoral alignment in these cases. They also cautioned that resection of relatively more bone from the distal aspect of the lateral femoral condyle than from the distal aspect of the medial femoral condyle is often necessary. As a result, lateral ligamentous instability that is not correctable using standard medial releases can be observed, which requires constrained prostheses. It might occur more frequently if large corrections were performed at only 1 level. Therefore, we suggest that surgeons should consider DLO if the preoperative plan would result in unphysiological angles with a single-level osteotomy.
Limitations
Our present study has some limitations. First, the sample size was small. We preselected patients strictly indicated for surgery. Second, there was no control group in our study. The presence of a control group would have enhanced the value of the results. However, a control group was deemed ethically unjustifiable given the retrospective design of the study. Finally, the follow-up period was relatively short, at 25.1 ± 11.1 months. Mid- and long-term outcomes should be reported in the future.
Conclusion
The results of the present study demonstrated that patients who underwent varus DLO for valgus knee showed improved knee function in the short-term follow-up. Varus DLO can be a surgical option to restore optimal alignment and joint line obliquity in patients with moderate-to-severe valgus malalignment.
