Yarkovsky effect detection and updated impact hazard assessment for Near-Earth Asteroid (410777) 2009 FD

TL;DR

This study detects the Yarkovsky effect on asteroid 2009 FD, refines its impact risk assessment over 200 years, and finds the main impact threat in 2190 with extremely low probability, improving long-term hazard predictions.

Contribution

It provides the first significant detection of the Yarkovsky effect on 2009 FD and updates its impact hazard assessment using two independent methods.

Findings

Detected the Yarkovsky effect with 4-sigma significance.

Ruled out impact in 2185, remaining risk in 2190 with probability < 10^-8.

Refined asteroid trajectory and impact predictions over 200 years.

Abstract

Near-Earth asteroid (410777) 2009 FD is a potentially hazardous asteroid with potential impacts on Earth at the end of the 22nd century. The astrometry collected during the 2019 apparition provides information on the trajectory of (410777) by constraining the Yarkovsky effect, which is the main source of uncertainty for future predictions, and informing the impact hazard assessment. We included the Yarkovsky effect in the force model and estimated its magnitude from the fit to the (410777) optical and radar astrometric data. We performed the (410777) hazard assessment over 200 years by using two independent approaches: the NEODyS group adopted a generalisation of the Line Of Variations method in a 7-dimensional space, whereas the JPL team resorted to the Multilayer Clustered Sampling technique. We obtain a 4-sigma detection of the Yarkovsky effect acting on (410777), which corresponds to a semimajor axis drift of (3.6 +/- 0.9) x 10^{-3} au/Myr. As for the hazard results of both teams, the main impact possibility in 2185 is ruled out and the only remaining one is in 2190, but with a probability smaller than 10^{-8}.

Figures

Tables

Table 1. Table 1: Observational data of the 2019 apparition, from observatories J04 and T12, with their formal uncertainties. Table columns: calendar date (year, month, and day), right ascension α 𝛼 \alpha in hours, minutes and seconds, declination δ 𝛿 \delta in degrees, minutes and seconds, uncertainty of α 𝛼 \alpha and δ 𝛿 \delta , observatory code.

Date	$\alpha$	$\delta$	${\sigma }_{\alpha }$	${\sigma }_{\delta }$	Code
2019-03-06.907914	10:14:23.603	+17 36 15.77	${0.30}^{\prime \prime }$	${0.30}^{\prime \prime }$	J04
2019-03-06.910166	10:14:22.988	+17 36 18.29	${0.15}^{\prime \prime }$	${0.15}^{\prime \prime }$	J04
2019-03-06.912418	10:14:22.326	+17 36 21.61	${0.15}^{\prime \prime }$	${0.15}^{\prime \prime }$	J04
2019-03-09.439509	10:02:15.925	+18 32 08.44	${0.036}^{\prime \prime }$	${0.035}^{\prime \prime }$	T12
2019-03-09.440157	10:02:15.723	+18 32 09.19	${0.044}^{\prime \prime }$	${0.044}^{\prime \prime }$	T12
2019-04-04.264404	07:32:22.014	+23 44 30.00	${0.031}^{\prime \prime }$	${0.031}^{\prime \prime }$	T12

Table 2. Table 2: Impact monitoring results of asteroid (410777) 2009 FD with a non-gravitational model including the Yarkovsky effect. Table columns: calendar date (year, month, and day) of the potential impact, σ 𝜎 \sigma value of the VI location along the LOV, distance of the VI trace from the centre of the Earth, local stretching at σ 𝜎 \sigma (Milani et al., 2005b ) , probability of Earth impact, and Palermo Scale. The width of the b 𝑏 b -plane confidence region is < 1 absent 1 <1  km, thus not reported.

Date	$\sigma$	Distance	Stretching	$IP$	$PS$
		$\left(R_{\oplus }\right)$	$\left(R_{\oplus }\right)$
2190-03-30.08	$-4.807$	$0.57$	$1.22\times {10}^3$	$5.56\times {10}^{-9}$	$-7.25$

Equations

$${\mathbf{a}}_t=\frac{A_2}{r^2}\hat{\mathbf{t}},$$

$${\ell }_{\mathcal{C}}=2\sqrt{b_{\oplus }^2-\frac{({\xi }_1^{\prime \prime }{\zeta }_2^{\prime \prime }-{\zeta }_1^{\prime \prime }{\xi }_2^{\prime \prime }{)}^2}{({\xi }_2^{\prime \prime }-{\xi }_1^{\prime \prime }{)}^2+({\zeta }_2^{\prime \prime }-{\zeta }_1^{\prime \prime }{)}^2}}=2.156R_{\oplus }.$$

$$w_k\simeq \frac{{\ell }_{\mathcal{C}}}{\partial {\zeta }^{\prime \prime }/\partial \zeta }=943\text{ km}.$$

Full text

††journal: Astronomy & Astrophysics

Keywords: Impact Monitoring, Line Of Variations, Monte Carlo, Virtual impactors, Yarkovsky effect

1 Introduction

Asteroid (410777) 2009 FD is known to have a non-negligible chance of impacting the Earth in the late 22nd century. With the optical observations up to 2010 and a purely gravitational model, the resulting orbital solution was very well-constrained and allowed the existence of several Virtual Impactors (VIs, Milani et al. (2005a)), in particular between 2185 and 2196, with the highest impact probability attained in 2185.

Adding the optical observations up to April 2014 and the radar Doppler measurement of Arecibo performed on April 7, 2014, the orbital uncertainty had shrunk in such a way that the biggest VI would have been ruled out. However, Spoto et al. (2014) showed that the Yarkovsky effect was a key source of future uncertainty because of the length of the impact analysis time interval and the presence of deep planetary encounters. Unfortunately, the observational data set available in 2014 was not enough to directly detect the Yarkovsky effect from the orbital fit to the astrometry.

Therefore, to model the Yarkovsky effect Spoto et al. (2014) relied on the available physical characterisation of (410777) and general properties of the Near-Earth Asteroid population. When accounting for the Yarkovsky effect, the 2185 VI could not be ruled out and had an impact probability $IP=2.7\times 10^{-3}$ and a Palermo Scale $PS=-0.43$, the highest in the risk list of both clomon-2111http://newton.spacedys.com/neodys/index.php?pc=4.1 and Sentry222http://cneos.jpl.nasa.gov/sentry/. Such a high value of the Palermo Scale was mainly due to the estimated mass of the asteroid. Based on WISE data, the diameter and the albedo of (410777) were estimated as $(472\pm 45)$ m and $(0.010\pm 0.003)$ respectively (Mainzer et al., 2014), yielding a nominal mass of $8.3\times 10^{10}$ kg by assuming a density of $1.5$ g/cm3, as in Spoto et al. (2014).

The next recomputation of the impact monitoring results by clomon-2 and Sentry occurred in the early 2016. At that time the astrometric data set of (410777) included data from two further apparitions: one in late December 2014 and one in October-December 2015, which also included radar measurements from Arecibo and Goldstone (Naidu et al., 2015). These data led to two main improvements.

The 2015 radar observations revealed that (410777) is a binary system, with the diameter of the two components roughly 120-180 m and 60-120 m (Naidu et al., 2015). These values led to a nominal estimate of $3.2\times 10^{9}$ kg for the mass of the whole system and, in turn, to a decrease of the Palermo Scale. Note that the updated measurement of the diameter is significantly lower than previously estimated from NEOWISE data (Mainzer et al., 2014) and adopted by Spoto et al. (2014). The inaccuracy of the previous estimate is explained since the WISE measurements of (410777) only correspond to few of the brightest detections and did not cover the full rotational curve of (410777)333Mainzer and Masiero, personal communication.. This under-sampling is known to lead to diameter overestimates (Mainzer et al., 2014, Figure 4).

• 2.

The constraint on the Yarkovsky effect from the astrometry became stronger than that from the physical model (see Del Vigna et al. (2018)), which is further complicated by the fact that (410777) is a binary (Vokrouhlický et al., 2005). As for the impact monitoring results, the set of VIs remained essentially the same as before.

The current astrometric data set available for (410777) includes 39 additional optical observations from the 2019 apparition. We present the updated hazard assessment for (410777), achieved independently with the Line Of Variations (LOV) method, used by NEODyS, and with the Multilayer Clustered Sampling (MLCS, Roa and Farnocchia (2019)) technique, adopted by JPL.

2 Astrometry

Asteroid (410777) was initially discovered by the La Sagra survey in March 2009, and then linked to precovery observations in the same apparition by the Spacewatch survey, which is consequently credited as discovery site. The available observational arc now extends for 10 years and 5 separate oppositions, from discovery to the latest opposition in 2019. The 2009 and 2014-2015 apparitions are responsible for the majority of the astrometry, with the latter also containing all the radar detections.

Most observations collected so far during the 2019 apparition were reported by the Spacewatch team, or by serendipitous detections by Near-Earth Objects surveys. In addition, our group provided observations from ESA’s Optical Ground Station (Minor Planet Center code J04) and the University of Hawaii 2.2 meter telescope (Minor Planet Center code T12). For these observations the astrometric uncertainty of each position is available and has been included in the orbit determination process (see Table 1). The formal uncertainties for code T12 include contributions from the astrometric solution and the centroiding on the target asteroid, added in quadrature. Uncertainties caused by variations in the sky transparency, seeing, and tracking of the telescope are much harder to quantify, but can be empirically estimated as $0.05^{\prime\prime}$ primarily in the along-track direction. In general, differential refraction also contributes to the uncertainty (see Tholen and Farnocchia (2018)), though the zenith distance of 18 deg for both the 2019 March 09 and April 04 observations suggests that the amount is at most a few hundredths of an arcsecond. We thus conservatively adopted an uncertainty floor of $0.10^{\prime\prime}$ for these three observations. For the other observations no uncertainty information is available and therefore we assumed standard weights based on the Vereš et al. (2017) error model.

A search for precovery observations in the image archives of various professional telescopes, executed via the CADC SSOIS interface (Gwyn et al., 2012), did not produce any additional detection. The object was never brighter than $V=24$ at any of the times where suitable images were being exposed by any of the $\simeq 50$ professional instruments covered by the archive.

3 Detection of the Yarkovsky effect

For this purpose we modelled the Yarkovsky perturbation by using a transverse acceleration

[TABLE]

where $r$ is the heliocentric distance and $A_{2}$ is the dynamical parameter to be estimated from the fit (Farnocchia et al., 2013; Chesley et al., 2016; Del Vigna et al., 2018). Furthermore, the force model we adopted includes the gravitational accelerations of the Sun, the eight planets, and the Moon based on the JPL planetary ephemerides DE431 (Folkner et al., 2014), the perturbations of 16 massive main belt bodies and Pluto, and the Einstein-Infeld-Hoffmann relativistic model (Moyer, 2003).

With the weighting scheme described in Section 2, the Yarkovsky parameter obtained by the NEODyS group is $A_{2}^{\textrm{NEODyS}}=(7.3\pm 1.7)\times 10^{-14}$ au/d2, which is very consistent with the value $A_{2}^{\textrm{JPL}}=(7.4\pm 1.7)\times 10^{-14}$ au/d2 found by the JPL team. The difference between the two estimates is caused by the fact that the JPL orbit solution assumes a 1-second time uncertainty for each ground-based optical observation, whereas the NEODyS solution does not444Observations of GPS satellites at T12 on the same nights as the observations of (410777) demonstrate clock accuracy at a level well within the uncertainty assumed by JPL.. The NEODyS estimate corresponds to a semimajor axis drift $da/dt=(3.8\pm 0.9)\times 10^{-3}\text{ au/Myr}$. Thus the current astrometry provides a 4-$\sigma$ Yarkovsky detection. Note that this distribution of the $A_{2}$ parameter is statistically consistent with a positive Yarkovsky drift: more precisely, the probability of $A_{2}>0$ computed by using a Gaussian formalism is $99.998\%$. The positive value of $A_{2}$ suggests that (410777) is a prograde rotator (Vokrouhlický et al., 2000).

4 Impact monitoring with the LOV method

The inclusion of the Yarkovsky effect in the dynamical model results in an initial space with 7 dimensions, corresponding to the six orbital parameters and $A_{2}$. The LOV definition of Milani et al. (2005b) can be extended to spaces with dimension greater than $6$, as was already done in Spoto et al. (2014), with an experimental version the OrbFit software. This capability has undergone testing and it is now included in the operational version OrbFit 5.0555http://adams.dm.unipi.it/orbfit/.

The LOV definition remains basically the same: the tangent vector to the LOV at one of its points is the local weak direction, which is the eigenvector of the $7\times 7$ covariance matrix related to the largest eigenvalue. Moreover, cases like (410777), for which the initial confidence region is very small, allow the use of the linear approximation of the LOV: a particular direction $\mathbf{w}\in\mathbb{R}^{7}$ is selected to approximate the LOV with the straight line passing through the nominal solution $\mathbf{x}^{*}$ with direction $\mathbf{w}$. In case of a scattering encounter (Spoto et al., 2014, Section 4) $\mathbf{w}$ is chosen in such a way that the spread of the corresponding $b$-plane points (Valsecchi et al., 2003) is maximum, so that we can fully capture the different dynamical evolution of the orbits after the scattering encounter along the LOV. In particular, this is obtained by first computing the weak direction on the scattering $b$-plane and then selecting one of its infinitely many preimages in the initial elements space through the semilinear formalism (Milani and Valsecchi, 1999). We sampled the LOV over the interval $|\sigma|\leq\sigma_{max}=5$ and with a generic completeness level of the VI search $IP^{*}=1\times 10^{-7}$. This can be achieved with a step-size that is inversely proportional to the probability density along the LOV, resulting in a sampling that is denser around the nominal solution and more sparse towards the LOV tails (Del Vigna et al., 2019). To avoid low resolution in the tail of the distribution we used a maximum value for the step-size $\Delta\sigma_{max}=0.01$. This setup led to the computation of 4719 LOV orbits, to propagate with final time in 2250.

The impact monitoring results for (410777) are shown in Table 2. As anticipated, the 2185 impact possibility has disappeared whereas the 2190 VI still remains, although located in the LOV tails and thus with a low impact probability. Indeed, the inclusion of the 2019 astrometry and the consequent improvement of the Yarkovsky effect estimate decreased the extent of the LOV projection on the 2185 $b$-plane and excluded any impact possibility within $\sigma_{max}=5$. Actually the VI still exists, but located at $\sigma\simeq 7$, and the impact probability is negligible. Typically, the effect of a close approach is to separate nearby orbits, thus increasing the uncertainty at subsequent encounters. The increased post-2185 uncertainty allows the existence of a VI in 2190.

5 Impact monitoring with the MLCS technique

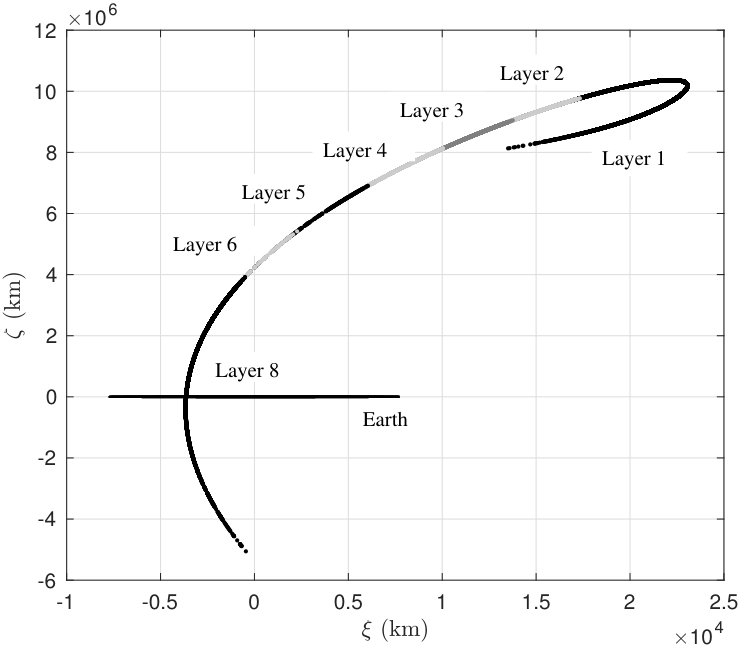

The JPL impact monitoring analysis was performed by using the Multilayer Clustered Sampling technique (Roa and Farnocchia, 2019), which is an efficient alternative to direct Monte Carlo methods. Initially, MLCS generated the first layer of virtual asteroids by randomly drawing 100 000 samples from the 7-dimensional normal distribution of the orbital elements and $A_{2}$. Identifying the 20th percentile of samples sorted by closest approach distance provides an interval of $A_{2}$ that contains the values leading to a close approach in 2190. Next, we sampled a second layer containing twice as many points as the previous one, we selected the virtual asteroids for which $A_{2}$ falls within the interval defined in the preceding step, and we propagated them to the 2190 encounter. The 20th percentile of this new set produces a reduced $A_{2}$ interval that can be used for further filtering. The process is repeated sequentially until less than a fraction of $10^{-5}$ samples satisfies the condition on $A_{2}$.666This threshold is small enough to efficiently reduce the number of virtual asteroids to propagate while ensuring that enough samples are left to produce a statistically significant result, since this threshold is three orders of magnitude greater than the expected impact probability. In this case, eight layers were required for convergence. The final step consists in sampling $10^{9}$ virtual asteroids and propagating only those that satisfy the $A_{2}$ constraint imposed by the last layer. Figure 1 shows how MLCS iteratively converges to a range of $A_{2}$ that allows an efficient exploration of the final layer. As MLCS advances to the next layer, the samples get closer to the Earth when mapped to the 2190 $b$-plane.

The distribution of samples in each layer is statistically consistent with the original 7-dimensional distribution in orbital elements and $A_{2}$, and the impact probability and its standard deviation can be computed like in the regular Monte Carlo method. We obtained $IP=(1.5\pm 0.4)\times 10^{-8}$. The difference in the result relative to the NEODyS one is fully explained by the fact that the JPL orbit solution (JPL 100) assumes a 1-second time uncertainty for optical observations, which is not part of the NEODyS orbit determination process. The values of $A_{2}$ compatible with impact trajectories are $A_{2}=(-6.5\pm 0.4)\times 10^{-15}$ au/d2, suggesting that an impact is only possible if (410777) were a retrograde rotator.

6 Estimate of the 2190 keyhole width and location

In case there is a pair of resonant returns, a keyhole is one of the preimages of the Earth impact cross section (Chodas, 1999). In other words, if an asteroid passes through a keyhole during the first encounter, it will hit the Earth at the subsequent encounter. In our case, we can estimate the width of the keyhole on the 2185 $b$-plane for impacts in 2190 by using the analytical theory of close encounters, as in Valsecchi et al. (2003). To this end we first compute the length of the chord $\mathcal{C}$ obtained by intersecting the LOV trace on the 2190 $b$-plane with the Earth impact cross section. Then the value of the keyhole’s width is estimated through the quantity $\partial\zeta^{\prime\prime}/\partial\zeta$, where $(\xi,\zeta)$ and $(\xi^{\prime\prime},\zeta^{\prime\prime})$ are the coordinates on the two pre-encounter $b$-planes, respectively. Indeed, this derivative can be seen as the factor by which the stretching increases in the time span between the first encounter and the second encounter.

On the 2190 $b$-plane, the chord $\mathcal{C}$ is contained in the LOV portion between the virtual asteroids bracketing the VI. Let $(\xi_{1}^{\prime\prime},\zeta_{1}^{\prime\prime})$ and $(\xi_{2}^{\prime\prime},\zeta_{2}^{\prime\prime})$ be their coordinates. The length of $\mathcal{C}$ is

[TABLE]

The derivative $\partial\zeta^{\prime\prime}/\partial\zeta$ depends on the semimajor axis $a$ and the unperturbed geocentric velocity $U$ of (410777) at the 2185 encounter. In our computations, we assumed $a=1.1636$ au and $U=16.2$ km/s, which are the values corresponding to the virtual asteroid closest to the VI. The 2190 $b$-plane is accessible from the 2185 $b$-plane through the $4:5$ mean motion resonance between the asteroid and the Earth. Therefore, after $h=4$ revolutions of the asteroid and $k=5$ revolutions of the Earth, a second close approach takes place. The $4:5$ resonance corresponds to the post-encounter semimajor axis $a^{\prime}=\sqrt[3]{{k^{2}}/{h^{2}}}=1.1604\text{ au}$. By the equations in (Valsecchi et al., 2003, Section 4.3) we obtain $\partial\zeta^{\prime\prime}/\partial\zeta\simeq 14.6$, and so the width of the keyhole is

[TABLE]

The centre of the keyhole, being the preimage of the midpoint of $\mathcal{C}$, is located at $\zeta_{k}=-1.333461\times 10^{6}$ km. This point belongs to the LOV portion between the two considered virtual asteroids on the 2185 $b$-plane, which are in turn located close to the resonant circle corresponding to the $4:5$ resonance777The locus of points on a given $b$-plane corresponding to a certain mean motion resonance is a circle, with centre on the $\zeta$-axis, as shown in Valsecchi et al. (2003)..

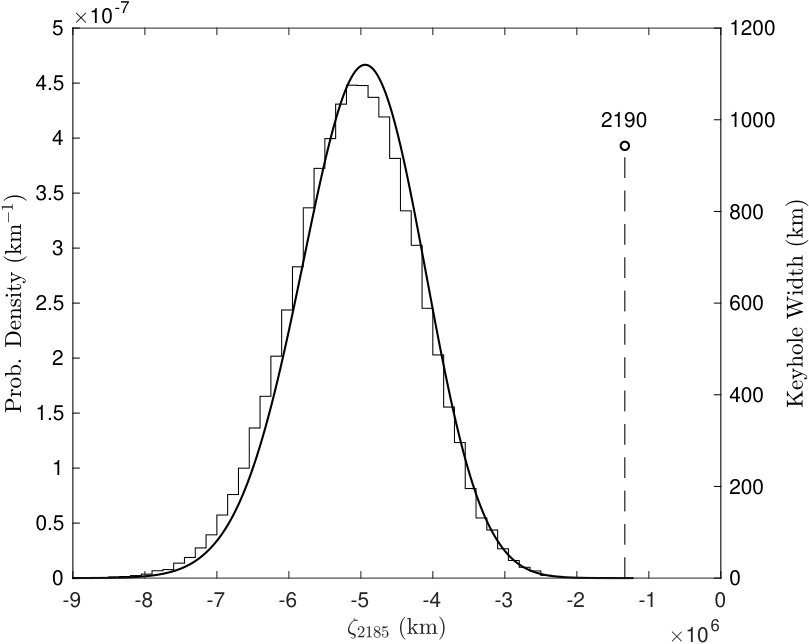

Figure 2 shows the probability density function $p(\zeta)$ on the 2185 $b$-plane, along with the location and width of the keyhole for impacts in 2190. The position of the keyhole centre on the tail of the probability distribution implies that the associated impact probability is very small. In particular, the impact probability can be estimated as $IP\simeq w_{k}p(\zeta_{k})\simeq 5.3\times 10^{-9}$, well in agreement with the result of Table 2.

7 Conclusions

We presented the new impact monitoring results for asteroid (410777) computed by both the NEODyS and JPL teams after the 2019 apparition. These 2019 astrometric observations extended the observational arc by four years and allowed a 4-$\sigma$ detection of the Yarkovsky effect through an orbital fit to the astrometry.

To perform the hazard assessment we resorted to two independent approaches, namely the LOV method for NEODyS and the MLCS technique for JPL. Both systems ended up with the removal of the 2185 VI, which was the largest one until the inclusion of the 2019 data. The only remaining VI is the one in 2190 but, since it lies towards the end of the LOV ($|\sigma|\simeq 4.8$), it has an impact probability $<10^{-8}$, which effectively rules out the corresponding impact.
