Lattice QCD on upcoming Arm architectures

TL;DR

This paper explores the potential of Arm's new SVE instruction set for accelerating Lattice QCD computations, discusses key features of SVE, and details its implementation in the Grid framework.

Contribution

It introduces the integration of Arm's SVE into Lattice QCD simulations, highlighting its potential benefits for future high-performance computing.

Findings

SVE supports vector lengths up to 2048 bits.

Implementation of SVE in Grid framework demonstrated feasibility.

Potential for significant performance improvements in Lattice QCD.

Abstract

Recently Arm introduced a new instruction set called Scalable Vector Extension (SVE), which supports vector lengths up to 2048 bits. While SVE hardware will not be generally available until about 2021, we believe that future SVE-based architectures will have great potential for Lattice QCD. In this contribution we discuss key aspects of SVE and describe how we implemented SVE in the Grid Lattice QCD framework.

Figures

Full text

1 Introduction

Arm is a vendor of intellectual property (IP). Processors based on Arm IP are used in many kinds of computing devices. For instance, Arm is the most popular architecture for mobile processors. Silicon providers also started to address the server market, e.g., Marvell implements Arm IP in their ThunderX2 system-on-a-chip (SoC) processor. ThunderX2 cores support 128-bit SIMD instructions known as NEON. The SoCs ship in various configurations featuring up to 32 of such cores clocked at a maximum frequency of 2.5 GHz. They support 8 channels of DDR4 memory, i.e., the nominal memory bandwidth is higher compared to current Intel Xeon processors.

The Isambard project [1] is the first HPC production system leveraging Arm technology. It is run as a Tier 2 service in the UK. Isambard is a Cray XC50 architecture that consists of 328 ThunderX2 servers interconnected by a Cray Aries interconnect. Another vendor of Arm-based HPC is Hewlett Packard Enterprises (HPE). Astra at Sandia National Labs, an HPE machine, is the first Petascale system based on Arm technology and achieved rank 204 in the Top500 list of November 2018. The architecture consists of 5184 ThunderX2 servers interconnected by InfiniBand.

In 2016 Arm announced a novel instruction set called Scalable Vector Extension (SVE). SVE comprises vector instructions with input operands of length 128 to 2048 bits. The Post-K supercomputer, successor to the Japanese flagship K-Computer, is scheduled to start operation at RIKEN (Kobe) in 2021. The Post-K incorporates Fujitsu A64FX processors interconnected by a custom-designed toroidal network. The A64FX processor is specifically designed for the Post-K and expected to be the first hardware implementation to support SVE, in this case a 512-bit version.

We consider SVE attractive for applications in Lattice QCD. In the framework of the QPACE 4 project we pursue evaluation and enhancement of the existing SVE software and upcoming SVE hardware technologies.

In this contribution we discuss key aspects of the SVE instruction set and programming model. We give an overview of the architecture of the Fujitsu A64FX processor and comment on how we support the NEON and SVE instruction sets in the Lattice QCD framework Grid [2].

2 Arm Scalable Vector Extension

2.1 Overview

SVE is a vector extension for Arm architectures. Here we list only the most relevant features for Lattice QCD applications and refer to [3] for a comprehensive overview.

• •

Variable-length vector units with a length of 128 to 2048 bits (the length must be a multiple of 128 bits);

• •

Vectorized 16-, 32- and 64-bit floating-point operations, including fused multiply-add and conversion of precision;

• •

Vectorized arithmetic of complex numbers, including fused multiply-add.

The instruction set is identical for all implementations. It is up to the hardware vendor to decide on a specific vector length for a given target architecture.

2.2 Upcoming hardware

SVE hardware is not available yet. The Fujitsu A64FX processor mentioned in the introduction is the first, and at present the only, SVE implementation publicly announced [4].

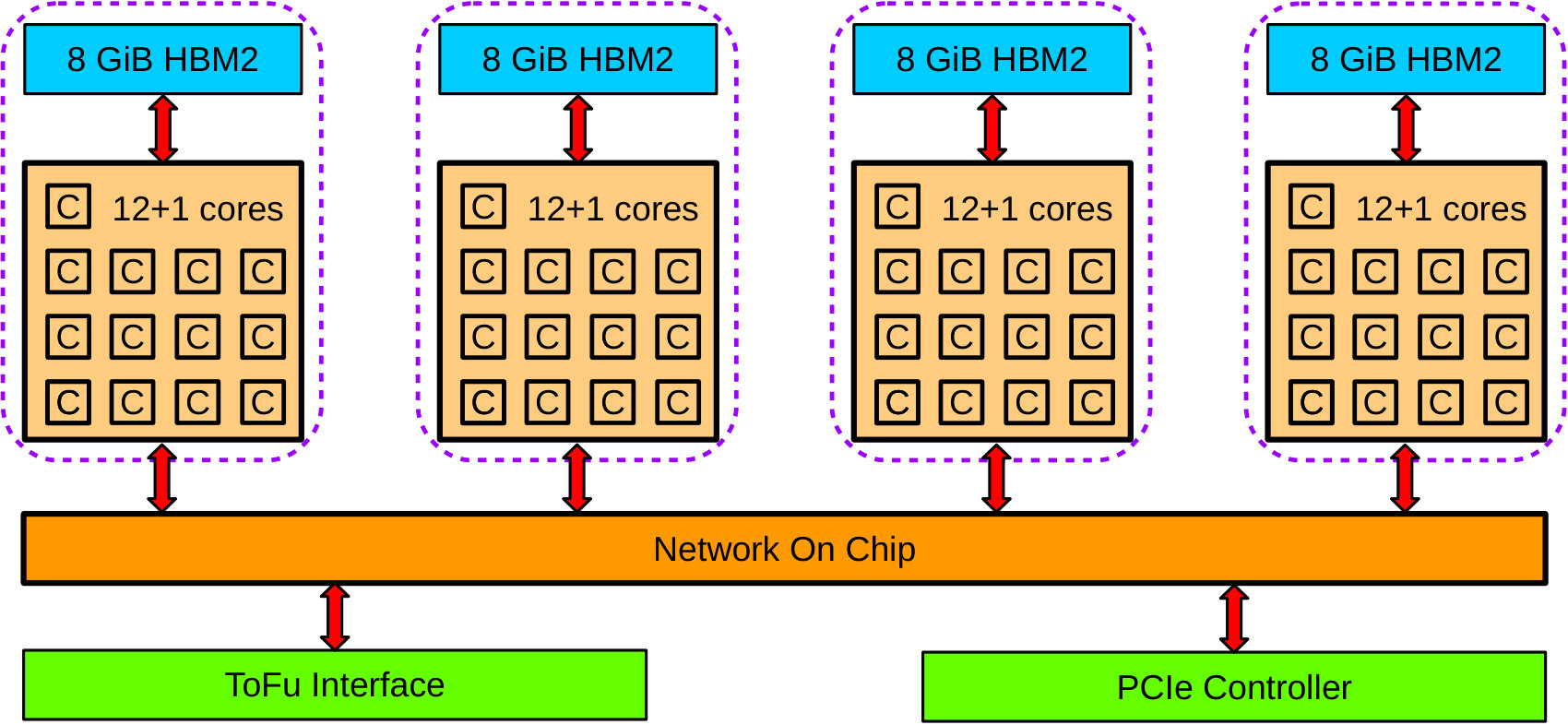

The high-level architecture of the A64FX is shown in Fig. 1. The CPU contains 48 + 4 identical out-of-order cores with 512-bit vector length and is connected to $32\text{\,}\mathrm{G}\mathrm{i}\mathrm{B}$ of in-package main memory. Cores and main memory are arranged as four cache-coherent NUMA nodes called Core Memory Groups (CMG). Each CMG consists of 12 compute cores and 1 assistant core, $8\text{\,}\mathrm{M}\mathrm{i}\mathrm{B}$ shared L2 cache and $8\text{\,}\mathrm{G}\mathrm{i}\mathrm{B}$ HBM2 high-bandwidth memory. The peak aggregate main memory throughput of the chip is $1024\text{\,}\mathrm{G}\mathrm{i}\mathrm{B}\mathrm{/}\mathrm{s}$. The CMGs are interconnected by a network-on-a-chip (NoC), implemented as a ring bus. The NoC connects to the PCIe GEN3 x16 interface and the proprietary Torus Fusion (ToFu) network interface.

The A64FX executes up to two fused multiply-add instructions per core and per cycle. The chip achieves an aggregate peak compute performance of at least $2.7\text{\,}\mathrm{T}\mathrm{F}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{/}\mathrm{s}$ in double precision. At present there is no information about the performance characteristics of the full instruction set and the CPU frequency available. Given the performance data, we estimate the CPU frequency to be at least $1.7\text{\,}\mathrm{G}\mathrm{H}\mathrm{z}$.

2.3 SVE features

A key feature of SVE is that it is Vector-length Agnostic (VLA). This means that the vector length is unknown at compile time. Code execution adapts to the hardware implementation with a specific vector length at runtime. Hardware features that enable VLA include increment instructions, which increment a variable depending on the actual vector length, and support of predication, i.e., the ability to execute operations only on parts of the input vectors depending on the content of a predication register.

As an illustrative example for the implications of VLA we discuss the daxpy kernel, which evaluates $y_{i}\leftarrow y_{i}+a\times x_{i}$ with real operands in double precision. The implementation in C99 is shown in Fig. 2.

We use the auto-vectorization capability of the armclang SVE compiler. armclang is unaware of the vector length and optimizes following the VLA paradigm. The assembly output is shown in Fig. 3.

We restrict ourselves to commenting on key aspects of the assembly and refer to [5] for a detailed discussion. The compiler creates a single loop containing vector instructions. The SVE vector length is unknown at compile time. Using predication, the operands are loaded from memory into registers, processed, and the result array is stored in memory. Predication masks the vector lanes valid for processing. Furthermore, predication eliminates the need for front-end and/or tail recursion, which is required for typical fixed-size SIMD if the length of the array is not a multiple of the SIMD width. Note that the SVE vector length does not appear explicitly. The increment of the array index takes this length into account implicitly. The number of loop iterations is thus determined at runtime. The code executes on architectures with different SVE vector lengths without the need for recompilation.

It is not guaranteed that the compiler exploits all features of the SVE instruction set. For instance, we are using the armclang compiler, which currently does not support vector instructions for complex arithmetics. This feature of SVE can nevertheless be exploited using so-called intrinsic functions. These are functions that are treated by the compiler in a special way and usually do not result in function calls. The Arm C Language Extension (ACLE) defines intrinsics for SVE [6].111ACLE intrinsics are also available for NEON. SVE ACLE also defines vector data types which reflect the VLA paradigm: vector data types do not have a defined size. They are referred to as ”sizeless structs.” Due to their sizeless nature they must not be used

• •

as data members of unions, structures and classes;

• •

to declare or define a static or thread-local storage variable; or

• •

as the argument of sizeof.

These restrictions have impact on the strategy porting our target Lattice QCD framework Grid to SVE, which we comment on in Section 3 and discuss in detail in [5].

2.4 SVE code development

While NEON hardware exists and the corresponding toolchain, including clang/LLVM, gcc and gdb, is well established, the situation is very different for SVE. No SVE hardware exists, and the tool support is still in development.

We use engineering samples of the Cavium ThunderX2 for code development. Arm provides us with their proprietary LLVM/clang-based armclang SVE compiler [7] in the context of a research contract. armclang supports ACLE intrinsics and VLA. It is unaware of the vector length and does not support fixed-size SVE. We use armclang for compiling and gdb for debugging our codes. gdb officially supports SVE as of version 8.2. For the future we plan to evaluate gcc 9, which is announced for 2019 featuring SVE intrinsics support, and also Fujitsu’s SVE compiler.

We use the Arm Instruction Emulator (ArmIE) for emulation of SVE binaries [7]. The vector length is set as a command-line parameter. We contributed to ArmIE extending its functionalities for code instrumentation. ArmIE requires native 64-bit Arm hardware.

As emulation of SVE does not allow for a performance evaluation, we also started to simulate architectures supporting SVE using the gem5 simulator. gem5 is a modular platform for computer architecture research, encompassing system-level and processor architecture [8]. RIKEN provides us with access to their gem5 simulator of the Fujitsu A64FX processor. We will optimize our code guided by simulations of the A64FX.

3 Lattice QCD on Arm architectures

Grid [2] is a highly portable Lattice QCD framework with support for a multitude of parallel architectures. Currently Grid supports vector lengths up to 512 bits. Recently efforts have been made porting Grid to nVidia GPGPUs.

In this contribution we focus on the CPU implementation. The portability issue is resolved by implementation of architecture-specific low-level functions using intrinsics, e.g., for arithmetics of complex numbers, thereby achieving 100% SIMD-efficiency.222Performance-critical kernels such as the Wilson-Dirac operator are implemented in assembly for several architectures. The core of Grid’s abstraction layer is a template class that enables direct access to vector registers using intrinsics data types. These data types are declared as member data. The implementation scheme is feasible due to the compilers’ capability to auto-generate loads/stores addressing intrinsics data types.

To illustrate the intrinsics implementation for fixed-size SIMD we show the multiplication of complex numbers for 128-bit Arm NEON architectures, which we contributed to Grid in 2017, in Fig. 4. Grid stores complex numbers within two-element structures composed of real and imaginary part. Arithmetics of real operands and permutations of vector elements are necessary for complex multiplication.

For enabling SVE in Grid we have to respect the restrictions on usage of SVE ACLE intrinsics data types pointed out in Section 2.3. We describe our strategy for adapting Grid to SVE in detail in [5]. Key aspects of our SVE-enabled implementation are the following:

• •

We fix the vector length at compile time, thereby mitigating restrictions on vector data types and omitting unnecessary loops implied by VLA.

• •

The variety of predications is minimized to fit into the register file.

• •

Hardware support for relevant features of the SVE instruction set, e.g., complex arithmetics, is added using intrinsics.

It is not a priori clear which code implementation achieves the best performance. Therefore, we implemented multiple implementation options, e.g., for processing complex numbers. The source code is available at [9]. We illustrate one implementation option for multiplication of complex numbers in Fig. 5.

4 Summary and outlook

We introduced the Arm Scalable Vector Extension (SVE), which we believe will attain significant attention in the HPC community once SVE hardware is available. In the framework of the QPACE 4 project we contribute to enhancements of the SVE toolchain and port the Grid Lattice QCD framework to SVE. For the future we plan to evaluate other SVE compilers and to optimize our code using RIKEN’s gem5 simulator of the Fujitsu A64FX processor.

Acknowledgment

We acknowledge funding of the QPACE 4 project provided by the Deutsche Forschungsgemeinschaft (DFG) in the framework of SFB/TRR-55. Furthermore, we acknowledge support from the HPC tools team at Arm and from the Post-K team at RIKEN. We thank Peter Boyle, Guido Cossu and Mitsuhisa Sato for valuable discussions.
