Spreading of an infectious disease between different locations

TL;DR

This paper investigates how local adaptive behaviors in agents can unintentionally increase disease spread across regions, using a theoretical model and empirical data from Italy's bovine database.

Contribution

It introduces a dynamical model of disease spread between two locations with agent adaptation and supports it with empirical data from Italy.

Findings

Adaptive behavior can increase systemic infectiveness

The model explains the mechanism of cross-location disease spread

Empirical data supports the theoretical findings

Abstract

The endogenous adaptation of agents, that may adjust their local contact network in response to the risk of being infected, can have the perverse effect of increasing the overall systemic infectiveness of a disease. We study a dynamical model over two geographically distinct but interacting locations, to better understand theoretically the mechanism at play. Moreover, we provide empirical motivation from the Italian National Bovine Database, for the period 2006-2013.

Figures

Tables

Table 1. Table 1: Descriptive statistics

	Mean	St. Dev.	Median	Min	Max
Distance	42.80	92.18	17.08	0	1,291
Positive	0.0002	0.0131	0	0	1
Stock	119.36	142.87	66	1	954
Observations	1,541,370
N. farms	117,758

Table 2. Table 2: Empirical Results

	(1)	(2)	(3)	(4)
	Probit	OLS	Tobit	Panel FE
${\text{Positive}}_{i,t-1}$	0.1628**	18.7323***	19.1025***	10.9276**
	(0.081)	(5.420)	(5.587)	(4.735)
${\text{Stock}}_{i,t}$	0.0010***	0.0821***	0.0846***	0.0490***
	(0.000)	(0.001)	(0.001)	(0.002)
Constant	-1.2508***	9.3844***	7.4312***	31.9721***
	(0.010)	(0.553)	(0.570)	(0.406)
$\sigma$			90.528***
			( 0.0528)
$\partial \text{Pr}\left(Y_i=1\right)/\partial \text{Positive}$	0.0524**
	(0.0271)
Observations	1,541,370	1,541,370	1,541,370	1,541,370
Log likelihood	-838,742.52		-8,819,135.6
Adj. R-squared		0.0845		0.3927

Table 3. Table 3: Bivariate selection model

	Tobit	Probit
	Distance	Pr. active at time $t$
${\text{Positive}}_{i,t-1}$	19.462***	-0.881***
	-5.591	(0.047)
${\text{Stock}}_{it}$	0.0845***	0.0004***
	(0.001)	(0.000)
${\text{Rain Dev. from Mean}}_{i,t-1}$		0.002***
		(0.001)
Constant	13.444***	1.753***
	-1.104	(0.012)
$\sigma$	90.523***
	(0.0528)
${\rho }_{12}$	-0.0077*
	(0.0047)
Observations	2,267,463	2,267,463
Log likelihood	-10,207,407

Equations

$${\text{Distance}}_{it}={\beta }_0+{\beta }_1{\text{Positive}}_{i,t-1}+{\beta }_2{\text{Stock}}_{it}+{\text{Region}}_g+{\theta }_t+{\alpha }_i+{ϵ}_{it}$$

$$t=2007Q1,\dots ,2013Q4;g=1,\dots ,20$$

$$\frac{\mathrm{d}}{\mathrm{d}t}x(t)=\nu x(t)(1-x(t))(x(t)-q),$$

$$p_A=p_A(x_A(t),x_B(t)),p_B=p_B(x_A(t),x_B(t)),$$

$$u_{a}(t)=\left\{\begin{array}[]{ll}p_{A}(t),&\mbox{if trading in }A,\\ p_{B}(t)-c_{a},&\mbox{if exporting to }B,\end{array}\right.$$

$$p_A<p_B-c_a.$$

$$\mathbb{P}\left\{a\in A:p_A(t)<p_B(t)-c_a\right\}$$

$$=F_A\left\{p_B(t)-p_A(t)\right\},$$

$$\underset{A\text{’s infected exporting to }B}{\underbrace{x_A\cdot F_A}}\cdot \underset{B\text{’s susceptible remaining in }B}{\underbrace{(1-x_B)\cdot (1-F_B)}}.$$

$$\underset{B\text{’s infected remaining}}{\underbrace{x_B\cdot (1-F_B)}}\cdot \underset{A\text{’s susceptible exporting to }B}{\underbrace{(1-x_A)\cdot F_A}}.$$

$$\underset{\text{meetings among }B\text{’s remaining agents resulting in infections}}{\underbrace{{\nu }_B{x}_B(1-F_B)(1-x_B)(1-F_B)(x_B-q)}}-\underset{\text{outflow of infected}}{\underbrace{x_B{F}_B}},$$

$$\left\{\begin{aligned} \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{A}={}&\nu_{A}\Big{[}x_{A}(1-F_{A})(1-x_{A})(1-F_{A})(x_{A}-q_{A})+{}\\ &{}+x_{A}(1-F_{A})(1-x_{B})F_{B}+(1-x_{A})(1-F_{A})x_{B}F_{B}\Big{]}-x_{A}F_{A}\\ \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{B}={}&\nu_{B}\Big{[}x_{B}(1-F_{B})(1-x_{B})(1-F_{B})(x_{B}-q_{B})+{}\\ &{}+x_{B}(1-F_{B})(1-x_{A})F_{A}+(1-x_{B})(1-F_{B})x_{A}F_{A}\Big{]}-x_{B}F_{B},\end{aligned}\right.$$

$$\left\{\begin{aligned} \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{A}={}&\nu_{A}(1-F_{A})\Big{[}x_{A}(1-x_{A})(x_{A}-q_{A})(1-F_{A})+(x_{A}+x_{B}-2x_{A}x_{B})F_{B}\Big{]}\\ &{}-x_{A}F_{A}\\ \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{B}={}&\nu_{B}(1-F_{B})\Big{[}x_{B}(1-x_{B})(x_{B}-q_{B})(1-F_{B})+(x_{A}+x_{B}-2x_{A}x_{B})F_{A}\Big{]}\\ &{}-x_{B}F_{B}.\end{aligned}\right.$$

$$F_A(c)=F_B(c)=\{\begin{array}{ll}0,& \text{ for }c\le 0\\ c,& \text{ for }c\in [0,1]\\ 1,& \text{ for }c\ge 1.\end{array}$$

$$p_A(x_A(t),x_B(t)):=1-x_A(t),p_A(x_A(t),x_B(t)):=1-x_B(t).$$

$$F_A\{p_B-p_A\}$$

$$=\max \{0,x_A-x_B\},$$

$$\left\{\begin{aligned} \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{A}={}&\nu(1-\max\{0,x_{A}-x_{B}\})\Big{[}x_{A}(1-x_{A})(x_{A}-q)(1-\max\{0,x_{A}-x_{B}\})\\ &{}+(x_{A}+x_{B}-2x_{A}x_{B})\max\{0,x_{B}-x_{A}\}\Big{]}-x_{A}\max\{0,x_{A}-x_{B}\}\\ \frac{\,\mathrm{d}}{\,\mathrm{d}t}x_{B}={}&\nu(1-\max\{0,x_{B}-x_{A}\})\Big{[}x_{B}(1-x_{B})(x_{B}-q)(1-\max\{0,x_{B}-x_{A}\})\\ &{}+(x_{A}+x_{B}-2x_{A}x_{B})\max\{0,x_{A}-x_{B}\}\Big{]}-x_{B}\max\{0,x_{B}-x_{A}\}.\end{aligned}\right.$$

$$\{\begin{array}{rl}& \frac{\mathrm{d}}{\mathrm{d}t}{x}_A=\nu x_A(1-x_A)(x_A-q)\\ & \frac{\mathrm{d}}{\mathrm{d}t}{x}_B=\nu x_B(1-x_B)(x_B-q).\end{array}$$

$$\mathbf{s}=(s_A,s_B):=\left(x_A(0),x_B(0)\right).$$

$$\mathbf{s}=(s_A,\epsilon ),\text{with}\epsilon <q<s_A.$$

$${\dot{x}}_A={\nu }_A(1-F_A)(1-x_B)F_B-x_A{F}_A=-1<0,$$

$$\left(\begin{array}{cc}{f}^{\prime }(x_A)& 0\\ 0& f^{\prime }(x_B)\end{array}\right),$$

$$\frac{\mathrm{d}}{\mathrm{d}t}(x_A,x_B)=\mathbf{V}(x_A,x_B),$$

$$\mathbf{V}(x_B,x_A)\equiv \left(V_B(x_A,x_B),V_A(x_A,x_B)\right).$$

$${\mathbf{V}}^D(x_A,x_B):=\left(\begin{array}{c}\nu x_A(1-x_A)(x_A-q)\\ \nu x_B(1-x_B)(x_B-q)\end{array}\right),$$

$$\mathbf{V}^{-}(x_{A},x_{B}):=\begin{pmatrix}\nu(1-x_{A}+x_{B})\Big{[}x_{A}(1-x_{A})(x_{A}-q)(1-x_{A}+x_{B})\Big{]}-x_{A}(x_{A}-x_{B})\\ \nu\Big{[}x_{B}(1-x_{B})(x_{B}-q)+(x_{A}+x_{B}-2x_{A}x_{B})(x_{A}-x_{B})\Big{]}\end{pmatrix}.$$

$$\mathbf{V}^{+}(x_{A},x_{B}):=\begin{pmatrix}\nu\Big{[}x_{A}(1-x_{A})(x_{A}-q)+(x_{A}+x_{B}-2x_{A}x_{B})(x_{B}-x_{A})\Big{]}\\ \nu(1-x_{B}+x_{A})\Big{[}x_{B}(1-x_{B})(x_{B}-q)(1-x_{B}+x_{A})\Big{]}-x_{B}(x_{B}-x_{A})\end{pmatrix}.$$

$$Ja{c}^{-}(q,q)=\left(\begin{array}{cc}-q(1-\nu (1-q))& q\\ 2(1-q)q\nu & -(1-q)q\nu \end{array}\right).$$

$$Ja{c}^{-}(0,0)=\left(\begin{array}{cc}-q\nu & 0\\ 0& -q\nu \end{array}\right),Ja{c}^{-}(1,1)=\left(\begin{array}{cc}-1-(1-q)\nu & 1\\ 0& -(1-q)\nu \end{array}\right),$$

$$\mathcal{C}={\mathcal{C}}^{-}\cup \{q,q\}\cup {\mathcal{C}}^{+}.$$

Full text

JEL classification codes: C32, D83, I12

Keywords: infectious disease, Italian National Bovine Database, endogenous spreading, exogenous shocks, islands model

1 Introduction

Connections between individuals are beneficial because they enable the exchange of goods and resources. However, they are also the means through which diseases and shocks may spread in a society, making it vulnerable to hazards and menaces. Due to the advances in virtual and physical communications, understanding this tradeoff has become increasingly more necessary as well as complicated.

We study how the spread of an infection evolves in a population adopting self-protecting behavioral responses which, in turn, affect the evolution of the epidemics. We focus on two interplaying mechanisms: First, how does the contact network influence the evolution of the disease by only allowing contagion via existing contacts? Second, how is the network itself endogenously modified by the behavioral response triggered by the risk perception?

In the context of a simple two-location model, we obtain analytical results from a system of ordinary differential equations. This very stylized cross-location interaction may generate complex dynamics in terms of the co-evolution of the coupled mechanism constituted by the contact network and the infection spread. The main question concerns how this stylized globalization affects the 2-location systemic resistance with respect to shocks in the infection rates. Is the coupled system more resistant to shocks than 2 separated and autarkic single locations? What happen when shocks simultaneously hit both locations?

We assume that each location has a limited recovery ability from the disease (e.g. limited hospitalization capacity for quarantine) and that sudden outbreaks in the infection rate (also called infection shocks hereafter) occur exogenously and abruptly. After being hit by such an initial infection shock, the evolution of the disease (and the effectiveness of the recovery measures) is observed over time. Small shocks are better controlled when the two locations are connected together than when they are isolated and autarkic: in fact, infected individuals who (out)flow from the most infected location to the least one, are treated in both locations and this contributes to diluting and reducing the epidemic overall. On the contrary, a large shock, even if initially concentrated in only one location, may end up infecting completely both locations, thus putting at risk the entire systemic resistance to contagion.

In terms of policy implications, given the characteristics of the disease under study (e.g. contagiousness, type of infection shocks) and given the ease of connection between the locations (e.g. autarky or globalization), the resistance of the whole system to infections depends on the resources allocated for recovery measures. As the system becomes more and more globalized by facilitating connections between distant locations, it becomes also more resistant to small infection shocks but, conversely, it also becomes more exposed to large shocks. Moreover, the relative advantage (in terms of systemic resistance) of a globalized world with respect to a system of autarkic or isolated locations becomes higher as the amount of resources dedicated to recovery measures increases, because of complementarities established between the two locations.

Related literature

Epidemiological models have been studied for decades, starting from the seminal Kermack-McKendrick compartmental models that go back to the 1920s and 1930s (Allen et al., 2008). In recent years, more attention has been devoted to incorporating agents’ behavioral response and awareness to the concurrent evolution of the disease in the population (Funk et al., 2010; Fenichel et al., 2011; Poletti et al., 2012). Moreover, because of the facility through which interconnections and interdependencies are established in a globalized world, better models need also to account for different individuals’ mobility patterns (Brauer and van den Driessche, 2001; Wang and Zhao, 2004; Manfredi and D’Onofrio, 2013).

In a literature closer to economics and to the social sciences, some theoretical works deal with strategic vaccination or with the adoption of different defensive mechanisms which may depend on the connections of the individuals (Galeotti and Rogers, 2013, 2015; Goyal and Vigier, 2015). However, with respect to this paper, other works share the same motivation dealing with diseases spreading through trade connections (Horan et al., 2015) or approach a somehow similar problem with different methodologies (Reluga, 2009).

Roadmap

The paper continues as follows. Firstly, we provide novel and fundamental empirical motivations for our analysis (Section 2). We then move to our model, with the introductory case of a single location (Section 3), the description and the results of the main model (Section 4) and its comparative statics with respect to exogenous shocks (Section 5). Section 6 concludes the main part. Additionally, the appendix includes an extension of the empirical exercise done in the motivation section (Appendix A), the proofs omitted in Sections 3, 4 and 5 (Appendix B) and the mathematical analysis of the linear case (Appendix C) which ends with the approximation of the basins of attraction of the equilibria used for the comparative statics analysis (Appendix D).

2 Motivation for our exercise

Before going on to the description of the model and of its contribution to the existing literature, we provide two strong motivations for our work. The first one comes from a novel dataset, while the other is a relevant application.

Livestock trading: infections and long-range connections

We perform an empirical analysis of trade flows of bovines in the Italian territory using the Italian National Bovine Database (Anagrafe Nazionale Bovina). This dataset has been created by the Italian Ministry of Health after the outbreak of the Bovine Spongiform Encephalopathy (BSE) in accordance with the European Economic Community Council Directive 92/102/EEC of 1992. The Directive imposed to all member states to identify each bovine using ear tags and to follow all its movements, from birth until death, through all holdings (farms, assembly centers, slaughterhouses, markets, staging points, pastures, foreign countries of origin) in the national territory.

For each movement of bovines, we have information on the location (e.g. municipality) of approximately 220,000 origin and destination premises, 90% of which are farms. The dataset records the exact date of all these movements between 2006-2013 and contains information on the stock of animals in each holding.111Information on the stock is recorded on the same date of the movement, before any inflows or outflows have occurred. With the latter information and the data on movements we compute the stock of animals at the beginning of each quarter. Information on trade flows have been merged with the SIMAN database (Sistema Informatico Malattie Animali) which registers the diseases occurred in each holding (Iannetti et al., 2014; Calistri et al., 2013). We refer also to Muscillo et al. (2018) for more detailed information.

In our analysis, we will focus on outflows from farms in each quarter, from 2007Q1 to 2013Q4.222Since 2006 was the first year of introduction of the tracking system we start using the data from the first quarter of 2007, when the running-in phase was over. We are mainly interested in determining whether the occurrence of a disease in farm $i$ at time $t-1$ affects the distances of trade flows originated from farm $i$ at time $t$.

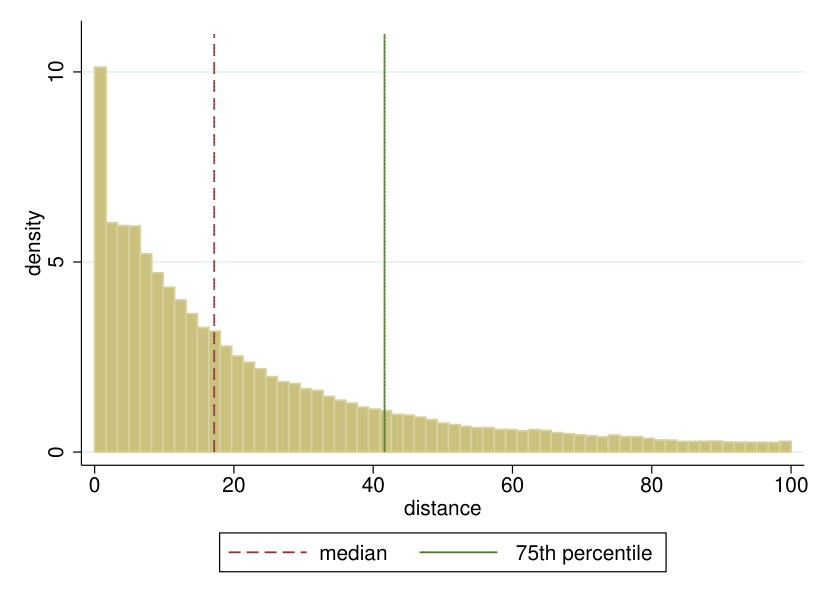

Figure 1 shows the histogram of distances for all the flows under analysis. The median value is about 17 kilometers whereas the average value and the 75th percentile are respectively 43 and 41 kilometers. About 10% of the movements occur between farms in the same municipality, thus producing a point mass at zero in the distribution of distance.

Since some staging points or assembly centers can be misclassified as farms, we retain in the sample only the holdings with a value of the stock smaller than the 99th percentile, which is equal to 954.333The 99th percentile is twice the size of the 95th percentile, the triple of the 90th percentile and about 14 times the size of the median. The empirical estimates from the unrestricted sample are qualitatively and quantitatively similar. Our final sample consists of 117,758 farms originating 1,541,370 trade flows towards other farms.

We thus estimate different regressions with trade flow distance as the dependent variable using the following specification:

[TABLE]

[TABLE]

where the dummy $\text{Positive}_{i,t-1}$ is equal to one if in the previous quarter farm $i$ has registered at least one disease; $\text{Stock}_{it}$ measures the number of bovines in farm $i$ at the beginning of quarter $t$. The variables $\text{Region}_{g}$ are regional dummies and $\theta_{t}$ are quarter dummies, while $\alpha_{i}$ are farm-specific time invariant effects used only in fixed effect regressions.

Table 1 reports descriptive statistics of the dependent variable and the main regressors. In the 2007-2013 period we observe 265 diseases which represent 0.02% of the observations (i.e. all movements) used in the empirical analysis.

The empirical results are shown in Table 2. Column 1 reports estimates from a Probit model where the dependent variable is set equal to one when the distance is larger than 41 kilometers (i.e the 75th percentile.) The estimated coefficient of the dummy Positive is statistically significant at 5% level. The marginal effect is 0.05 which means that presence at $t-1$ of a sick animal increases by 20% the probability of sending bovines in quarter $t$ to farms distant more than 41 kilometers.

The estimates from standard OLS regressions are shown in column 2. The coefficient of the dummy Positive indicates that a disease in the past increases the distance of trade by about 19 kilometers. In column 3 we report the estimated effect from a Tobit to take into account the censored nature of distance which has a point mass at zero. The estimated effect in this case is equal to 19 kilometers. Finally, in column 4, we show the estimates from a panel regression to control for farm-specific fixed effects. The estimated coefficient of the dummy Positive indicates that a registered disease at $t-1$ increases the distance by about 10 kilometers. All estimation techniques provide evidence of a positive and significant effect of past diseases on the current value of distance.

The above-mentioned results are, however, conducted on the sample of farms that exhibit non-zero movements of bovines. We have performed a robustness check to take into account possible selection effects. We have estimated a bivariate Tobit model with sample selection by maximum likelihood estimation. The results show evidence of a weak negative selection: farms that are more likely to be active tend to send bovines to closer location. Moreover, farms that have experienced a disease in $t-1$ are less likely to be active in quarter $t$. Nevertheless, the estimated effect of the dummy Positive on distance is again equal to 19 kilometers. Estimation results and the identification strategy adopted are shown in Appendix A.

The 2014 Ebola outbreak

The theoretical study of infection dynamics when the (endogenous) behavior of patients increases infections has potentially enormous applications. Such a mechanism has been at play (and possibly at the origin of) some disastrous epidemic events, like the complex case of the Zaire ebolavirus epidemic that affected West Africa since approximately December 2013 (see Figure 2).444See Chowell and Nishiura (2014) for a detailed review; see also Thomas et al. (2015) and the website of the World Bank for some estimates of the damages done to the economies of some African countries: http://www.worldbank.org/en/region/afr/publication/ebola-economic-analysis-ebola-long-term-economic-impact-could-be-devastating and also http://www.worldbank.org/en/region/afr/publication/the-economic-impact-of-the-2014-ebola-epidemic-short-and-medium-term-estimates-for-west-africa. A particularly dangerous situation can occur when contagious individuals are expelled from their villages and are able to reach big towns, or even other countries; or if they voluntary travel to other countries when they are sick, to avoid social stigma or to obtain a better treatment.

The World Health Organization (WHO) reports that in 2014, during the Ebola outbreak in West Africa:555http://www.who.int/csr/disease/ebola/one-year-report/factors/en/

“…as the situation in one country began to improve, it attracted patients from neighboring countries seeking unoccupied treatment beds, thus reigniting transmission chains. In other words, as long as one country experienced intense transmission other countries remained at risk, no matter how strong their own response measures had been.”

Directly quoted from the web site of the WHO:666Ibidem.

“Countries in equatorial Africa have experienced Ebola outbreaks for nearly four decades. […] In those outbreaks, geography aided containment. […] In West Africa [which had never experienced an Ebola outbreak], entire villages have been abandoned after community-wide spread killed or infected many residents and fear caused others to flee. […] West Africa is characterized by a high degree of population movement across exceptionally porous borders. Recent studies estimate that population mobility in these countries is seven times higher than elsewhere in the world. […] Population mobility created two significant impediments to control. […] [C]ross-border contact tracing is difficult. Populations readily cross porous borders but outbreak responders do not.

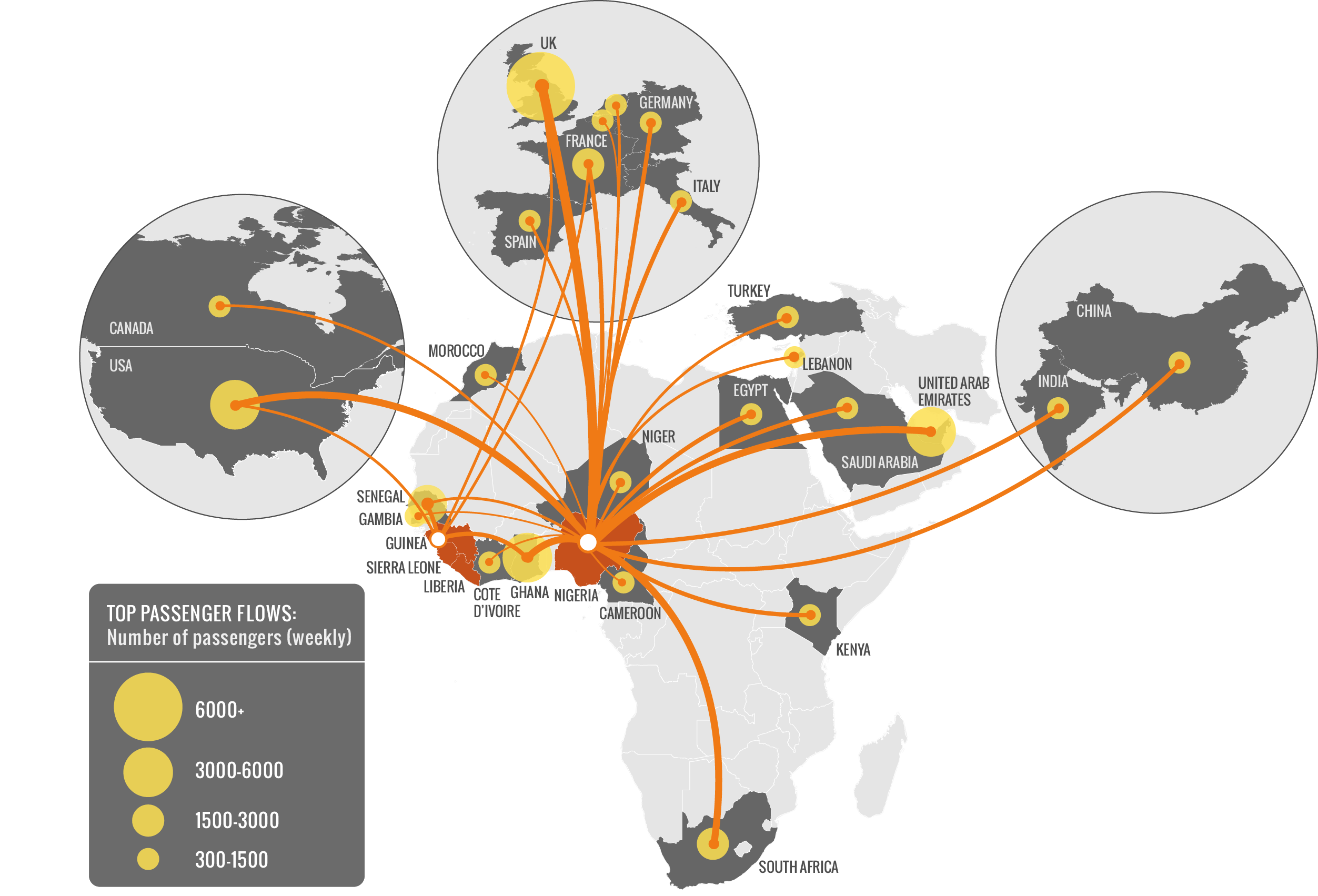

The importation of Ebola into Lagos, Nigeria on 20 July and Dallas, Texas on 30 September [2014] marked the first times that the virus entered a new country via air travelers. These events theoretically placed every city with an international airport at risk of an imported case. The imported cases, which provoked intense media coverage and public anxiety, brought home the reality that all countries are at some degree of risk as long as intense virus transmission is occurring anywhere in the world –- especially given the radically increased interdependence and interconnectedness that characterize this century.”

3 The single-location model: the building block

As a warm-up exercise, in this section we develop the building block of the model. We define a system constituted by a single location and describe how the infection evolves in it, as time passes. The dynamics is kept explicitly abstract and simple on purpose, and this has one main reason: the so-defined 1-location system is able to recover from small shocks, but unable to do so in case of large shocks (to be defined shortly). This, in turn, will allow us in the next Section 4 to consider two such systems interacting with each other and, then, evaluate what will be the effects on this whole 2-location system, in terms of resistance to shocks.

Consider a population of agents living in one location and susceptible to the infection from a transmittable disease, which can spread through personal contacts with other agents. Following the motivations from Section 2, the intuitive idea is that agents trade with each other and meet in pair. These meetings, however, are also the mean through which the disease may spread.

Let $x(t)$ denote the fraction of infected individuals at time $t$. The evolution of this fraction is ruled by the following differential equation, used for example in ecological economics as a development from the classic Bass model (Bass, 1969; D’Alessandro, 2007):

[TABLE]

where $\nu\in(0,1)$ is a parameter representing the contagiousness of the disease and $q\in(0,1)$ is a parameter which measures the capacity of the system to control the disease, which we may call quarantine. More specifically, we think of $q$ as the quantity of resources allocated to hospitalize infected individuals as well as to other disease-control measures. We consider these resources fixed and exogenous, meaning that they can change over a longer time-scale with respect to that of the evolution of the disease.

Remark**.**

Equation (2) can be seen as modified susceptible-infected model: we take the probability that an infected individual meets a susceptible one, i.e. $x(1-x)$, and that this meeting results in a new infection with probability $\nu$. We then multiply this by a factor $(x-q)$ which modifies the sign of the flow of infected depending on whether the fraction of infectives exceeds or not the quarantine threshold $q$.

PROPOSITION 3.1**.**

The dynamical system (2) has 3 critical points:

• •

the asymptotically stable, disease-free equilibrium $x=0$;

• •

an unstable equilibrium $x=q$;

• •

the asymptotically stable, endemic equilibrium $x=1$.

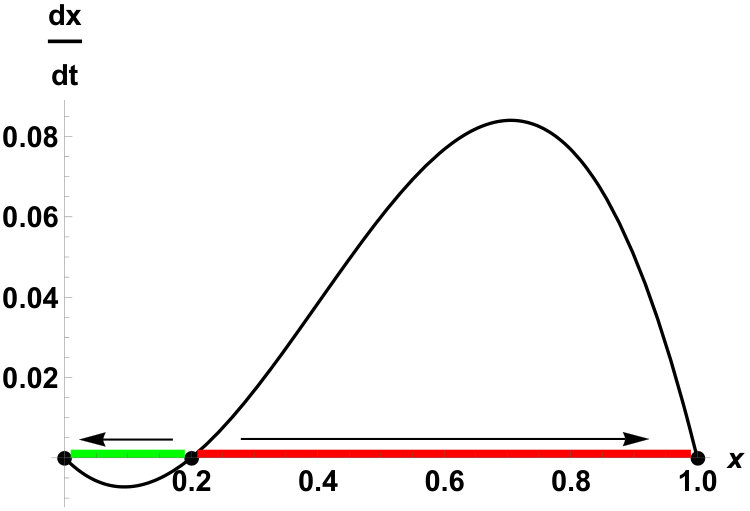

Consequently, the interval $[0,q)\subset\mathbb{R}$ is the basin of attraction of $x=0$, while $(q,1]$ is the basin of attraction of $x=1$.

Proof.

See Appendix B. ∎

Remark**.**

In ecology, this dynamics sometimes describes the evolution of a species over time (D’Alessandro, 2007). In this context, the analogy is that the species we are considering is a bacterium causing the infective disease. The threshold $q$ represents the critical mass of infections that the species has to reach and exceed in order to survive: when there are not enough infected individuals, the species cannot proliferate and propagate any more and, eventually, the epidemic dies out. Lastly, it is worth noticing that underlying assumption in the susceptible-infected model is the so-called homogeneous mixing: meetings among individuals are random, according to their relative proportion in the whole population. This is an assumption that we maintain here.

Resistance to shocks & policy

We define a shock as follows: suppose that at time $t=0$ there is a sudden and exogenous variation in the infection rate such that $x(0)=x_{0}\in[0,1]$. This initial fraction $x_{0}$ of infected is what we will call shock.

If the shock is $x_{0}<q$, i.e. below the threshold, then the system will (asymptotically) return to the disease-free equilibrium, whereas if the shock is larger than $q$, then the dynamic will converge toward 0, where the whole population is infected. If the shocks are assumed uniformly distributed over $[0,1]$, then $q$ quantifies the ability of the system to recover from a shock.

The policy implication here is then straightforward: the more resources can be allocated to control the disease (i.e. the larger $q$ is), the more the system will able to recover from larger shocks in the infection rate (i.e. the larger will be the basin of attraction of 0).

4 The 2-location model

Starting from the conclusion of the previous section, we now extend our analysis: trades and meetings will take place both within and across two geographically distinct locations (also called islands or countries hereafter) and, consequently, the same will happen to the spread of the disease. To express the incentives of economic agents, who can choose whether to interact with other agents within their own location or in the other location, we stick to the interpretation of trading and, therefore, speak also of prices. We think that the economic intuition remains the same also in other situations where prices are less explicit (as for the Ebola example of Section 2), since things could still be modeled in terms of higher and heterogeneous costs for interaction with distant locations.

Specifically, we consider 2 locations both populated by interacting agents, e.g. farmers who are trading cattle. Agents benefit from interacting with each other but, since there may be a (latent) disease spreading, this potential benefit decreases as the infection prevalence increases. This accounts for the risk of becoming infected and the reduction in performance that diseased cattle experience (e.g. slower growth, death). In the attempt to avoid contagion and risks, the agents of one location may be willing to interact with other agents in the other location, even if to do so they have to pay a higher cost related to this long-range interaction (e.g. export costs, trade barriers).

We restrict our attention to two identical and symmetric locations, where agents are homogeneous and identical in all aspects but in the export cost. In particular, different agents of the same location are assigned different costs to export to the other location and, intuitively, this may be reflecting different geographical proximity, facility in the contacts with a foreign country, etc. One key aspect is that using identical locations and identical agents is a normalization that can help guarantee that any variation in the fragility of the coupled system is due to the cross-country connection structure rather than to differences in other characteristics.

4.1 Specification

Let $A$ and $B$ denote two populations of agents living for an infinite time horizon and let $a$ and $b$ denote one of their generic agent, respectively.

Benefits from interaction and costs

Agents benefit from trading/interacting with other agents and, in particular, any agent $a\in A$ receives a gross utility of $p_{A}$, when trading in her home country $A$, and a possibly higher gross utility $p_{B}$, when instead exporting to the other country $B$. Benefits are assumed to be equal across agents and to be decreasing functions of the current infection prevalence rates $x_{A}(t),x_{B}(t)\in[0,1]$.777These can be interpreted as prices at which trade happens. This last assumption reflects the fact that trading becomes riskier as contagion spreads. Formally:

[TABLE]

for any time $t\in\mathbb{R}$.

Any generic agent $a\in A$ chooses between two (mutually exclusive) actions, respectively labeled as $A$ and $B$, which are either “trading in her home country” or “exporting to the other country”.888According to our notation, then, agents $a\in A$ can export to $B$ and, conversely, agents $b\in B$ to $A$. However, to export to the other country each agent $a\in A$ has to pay an exporting cost $c_{a}>0$, which is assumed to be randomly distributed across agents according to a cumulative distribution function $F_{A}$. The cost of trading in the home country, instead, is normalized to 0. Depending on the chosen action $A$ or $B$, agent $a$’s utility at time $t$ is then given by:

[TABLE]

so that agent $a\in A$ decides to export to $B$ at time $t$ if and only if

[TABLE]

Symmetrically, analogous definitions and notations hold for all agents $b\in B$. The same happens in the rest of this section.

Remark**.**

Notice that in our formulation agents make decisions only based on the prices $p_{A}$ and $p_{B}$ that they are able to observe in the two markets. In particular, they are not able to observe neither their status (as susceptible or infected) nor the status of the others. In the case of the cattle trade mentioned in the motivation section, this assumption is economically justified as follows. Movements are stressful for bovines, which can result in the development of diseases and reduced growth (or even death) of the animals. This also implies that latent diseases can be masked as stress and go undetected. For these reasons, farmers are compelled to report to local health institutions any situation that may be related to a disease – they would otherwise incur in high fines.

Since $c_{a}\sim F_{A}$, the above expression implies that the fraction of $A$’s agents willing to export to $B$ at time $t$ is given by

[TABLE]

or, equivalently, that the fraction of $A$’s agents trading in $A$ and not exporting is $1-F_{A}\left\{p_{B}(t)-p_{A}(t)\right\}$.

Cross-country meetings and flows of infected individuals

Let us proceed with the analysis: of the fraction of agents that are exporting from $A$ to $B$, a subfraction of them given by $x_{A}\cdot F_{A}\left\{p_{B}-p_{A}\right\}$ is of currently infected agents. Consequently, when these exporting and infected agents meet the fraction of those susceptible in $B$ that remain in $B$ for trade, which is $(1-x_{B})(1-F_{B}\{p_{A}-p_{B}\})$, this will give rise to an additional source of infected individuals for country $B$:999For ease of notation, throughout we will write $F_{A}\{p_{B}-p_{A}\}=F_{A}$ and $F_{B}\{p_{A}-p_{B}\}=F_{B}$.

[TABLE]

Still another source of infection for $B$ comes from the meetings between $B$’s infected individuals remaining in $B$ with $A$’s susceptible exporting to $B$:

[TABLE]

However, this additional infective activity due to cross-country interactions is somehow compensated with a reduction in the home country. In particular, now $B$’s within-country spreading cannot follow the single-location equation (2) given in Section 3: not only because the meetings only happen between $B$’s susceptible and infected agents that are not exporting, but also because we have to subtract the fraction of $B$’s infected agents that are exporting, as an outflow.

[TABLE]

where $\nu_{B}\in(0,1)$ is the contagiousness parameter for $B$. Analogous reasonings hold symmetrically for $A$.

By putting all these elements together, we can build a system of coupled differential equations ruling the evolution over time of the infection rates in the two countries. The first line of each equation accounts for the possibly reduced within-country epidemic spreading, whereas the second line accounts for the additional inflow of infection due to cross-country interactions just described above:101010For ease of notation, we omit the time $t$. However, it is worth remembering that $F_{A}$ and $F_{B}$ depend on $p_{A}$ and $p_{B}$ which, in turn, depend on $x_{A}(t)$ and $x_{B}(t)$.

[TABLE]

where $\nu_{A},\nu_{B}\in(0,1)$ and $q_{A},q_{B}\in(0,1)$ are the contagiousness and quarantine parameters respectively of location $A$ and $B$. The system can be algebraically rearranged as follows:

[TABLE]

Remark**.**

If cross-country export is not allowed, i.e. when $F_{A}=F_{B}=0$, then system (4) is reduced to two uncoupled equations, corresponding to two single-location models of the form of equation (2), both evolving separately.

Remark**.**

In this model, export at any instant only occurs in one direction at time, either from $A$ to $B$ or vice versa. Indeed, suppose that $p_{A}(t)<p_{B}(t)$ at a certain time $t\in\mathbb{R}$. Since $F_{A}$ and $F_{B}$ are cumulative distributions which are positive only for positive costs, then in such a case $F_{B}(p_{A}(t)-p_{B}(t))=0$ while $F_{A}(p_{A}(t)-p_{B}(t))>0$. So, there is an outflow of infection in the first equation for $x_{A}$ and an inflow in the second for $x_{B}$. However, as the following analysis will show, the infection rates $x_{A}(t)$ and $x_{B}(t)$ (as well as $p_{A}(t),p_{B}(t)$) are not necessarily monotone functions of time.

In the following, we will make the assumption that $F_{A}=1$ when $x_{A}=1$. This is intuitive: whenever in $A$ the rate of infection is the maximum, i.e. $x_{A}=1$, then all $A$’s agents would be facing the minimum home benefit $p_{A}$ and thus be willing to export, so $F_{A}=1$.

PROPOSITION 4.1**.**

System (3) is well defined in the unit square describing any $(x_{A},x_{B})\in[0,1]^{2}$.

Proof.

See Appendix B.

∎

4.2 Identical locations, linear utility & uniform cost

To keep the analysis tractable, we restrict our model to a linear specification of system (4):

• •

the two locations $A$ and $B$ are assumed to be identical, from the point of view of the epidemic parameters, so $\nu_{A}=\nu_{B}=\nu\in(0,1)$ and $q_{A}=q_{B}=q\in(0,1)$;

• •

the agents’ exporting costs $c_{a}>0$, for $a\in A$, are uniformly distributed over the interval $[0,1]$ (analogously for $b\in B$), so that the cumulative distributions are identical and of the form $F_{A}=F_{B}=\mathcal{U}(0,1)$:

[TABLE]

In particular, the maximum and minimum cost are respectively 1 and 0.

• •

The gross utilities from trading, $p_{A}$ and $p_{B}$, are assumed to depend linearly on the infection rate of the own location:

[TABLE]

Then, maximum and minimum gross utility attainable are thus normalized to 1 and 0, respectively.

With these assumptions in place, equation (3) becomes:111111Remember that $x_{A},x_{B}\in[0,1]$.

[TABLE]

and, analogously, $F_{B}=\max\{0,x_{B}-x_{A}\}$. We can then rewrite system (4) as follows:

[TABLE]

In Appendix C we derive the properties of this system, which can be summarized as follows. The system is well defined in the unit square $[0,1]^{2}\subset\mathbb{R}^{2}$, which is invariant under its dynamics, and it is symmetric with respect to the diagonal in $\mathbb{R}^{2}$ (Propositions C.3 and C.4). This system has three equilibria (Proposition C.6):

• •

$(x_{A},x_{B})=(0,0)$ and $(1,1)$, which are asymptotically stable states;

• •

$(x_{A},x_{B})=(q,q)$, which is an unstable saddle point.

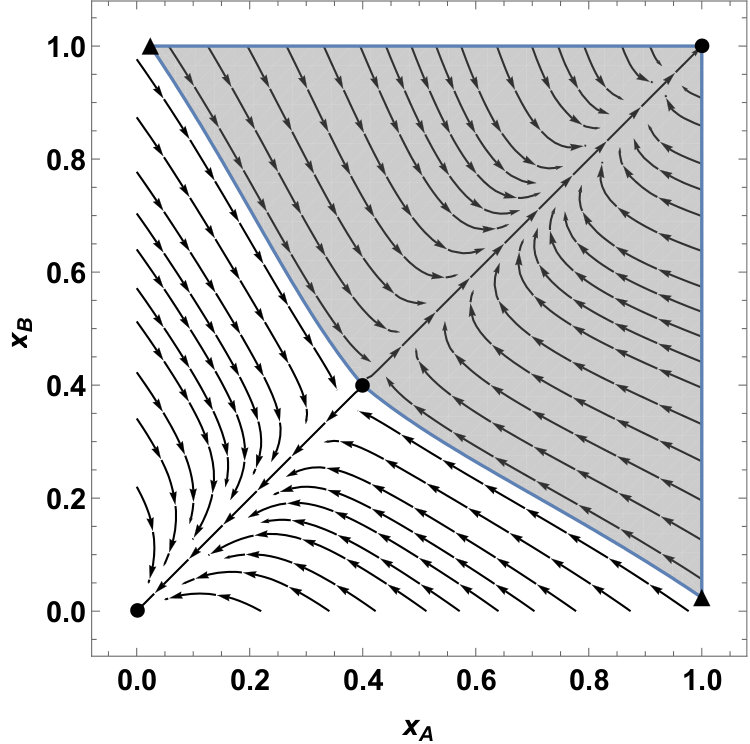

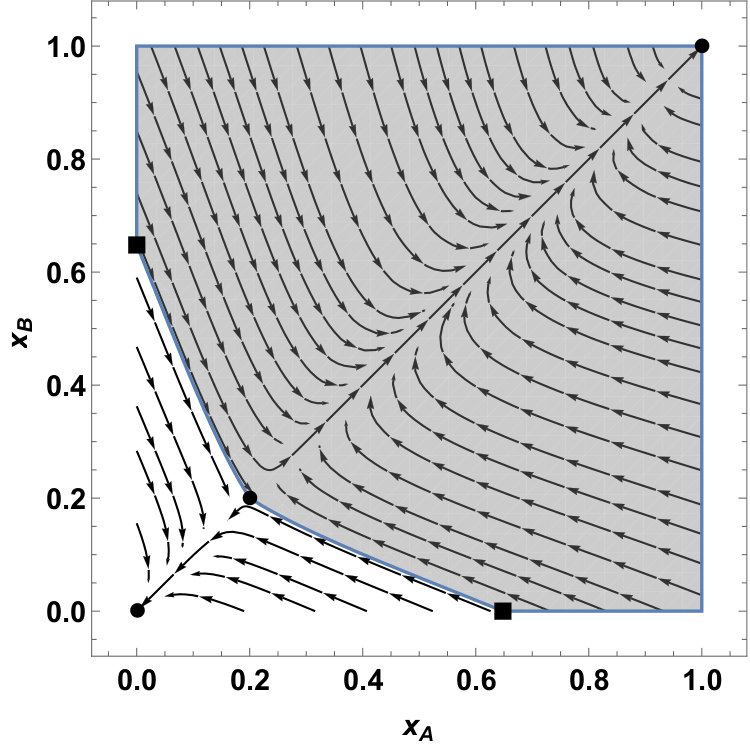

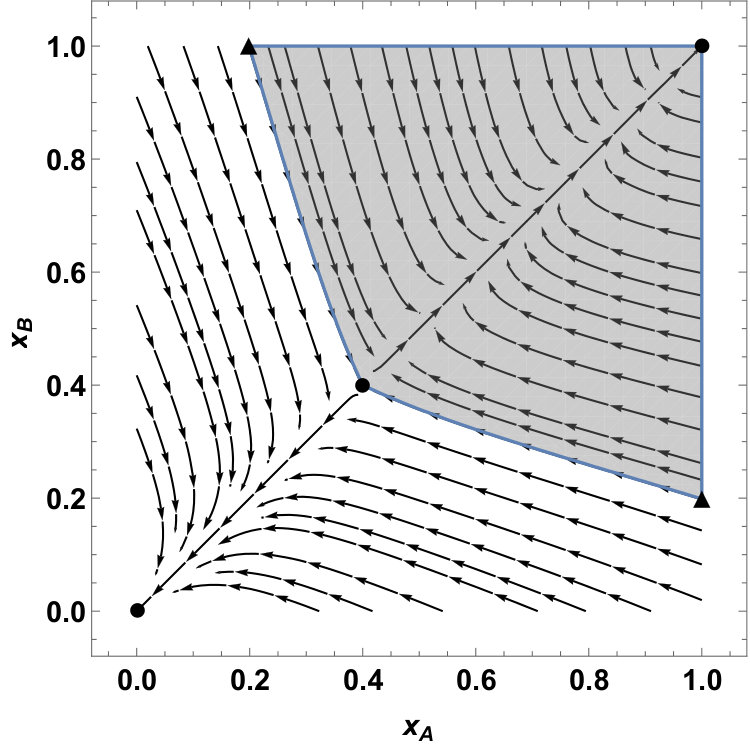

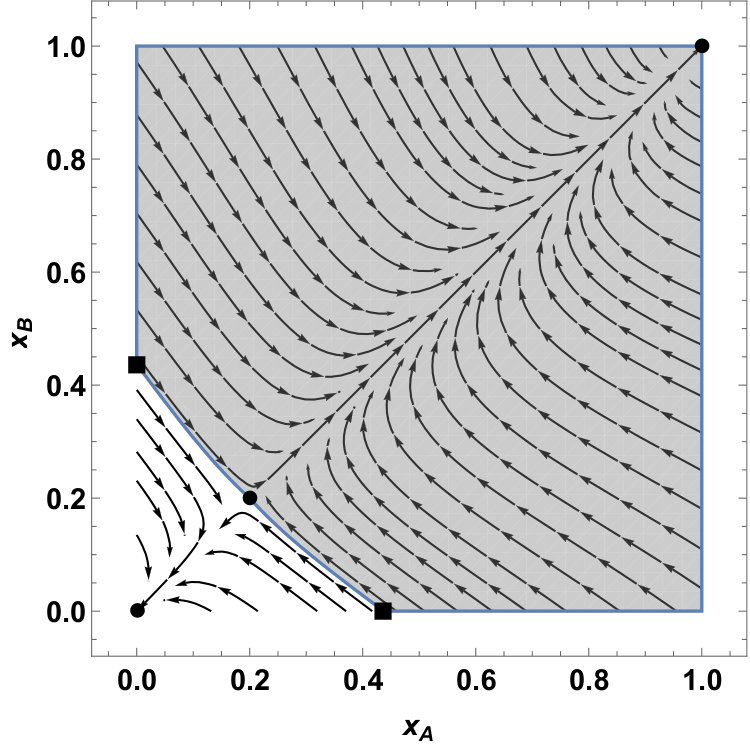

What becomes interesting is to study the basins of attractions of the two stable equilibria, and to characterize the basins’ border, which we call separatrix $\mathcal{C}$. As shown in Figure 4, depending on the parameters $\nu$ and $q$, as time $t$ passes, the solution enters the unit square either crossing its border along the segment $[q,1]\times\{0\}$ or along $\{1\}\times[0,q]$ and, eventually, converges toward $\{q,q\}$ as $t\rightarrow\infty$ (Proposition C.9).

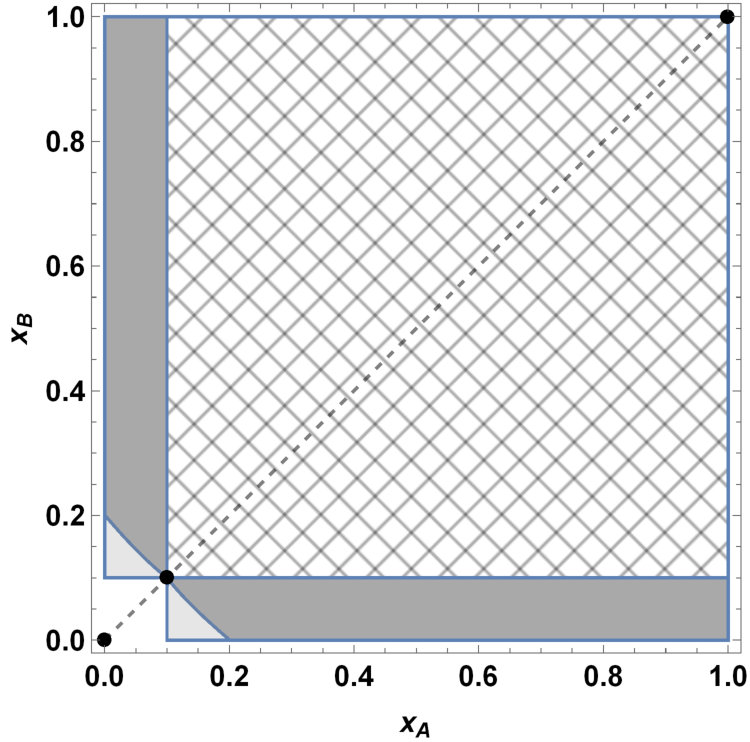

In Appendix D we show that, although the separatrix $\mathcal{C}$ cannot be described analytically, it can be very well approximated linearly. In Appendix D we also show the good accuracy of this approximation, done by mean of an extensive grid of numerical simulations. This will allow us to make a comparative statics analysis that will be then used in the following Section 5. More precisely, in Proposition D.1 and Lemma D.2 we give an explicit approximation $\widetilde{\mathcal{C}}$ of $\mathcal{C}$ and of its point of intersection with the boundaries of the unit square $[0,1]^{2}$.

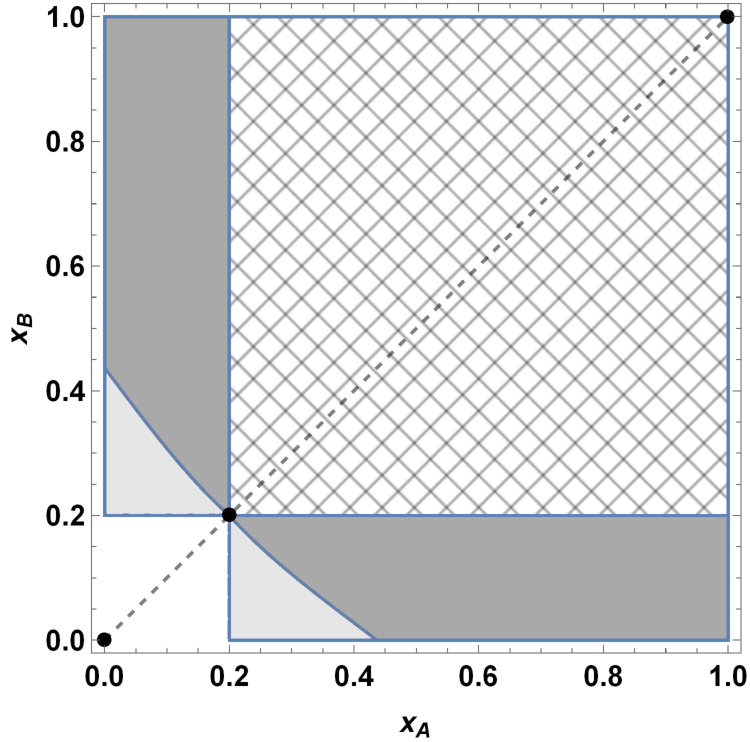

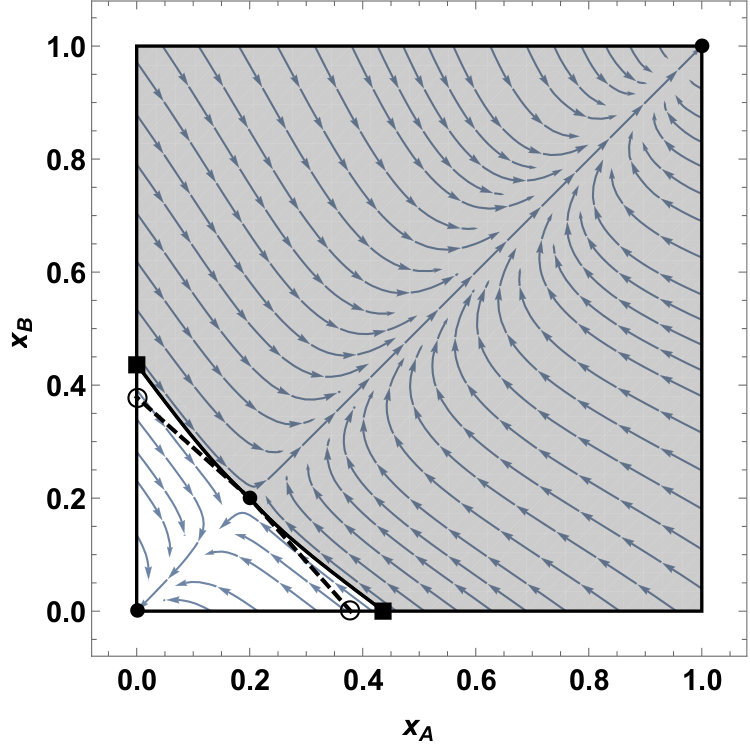

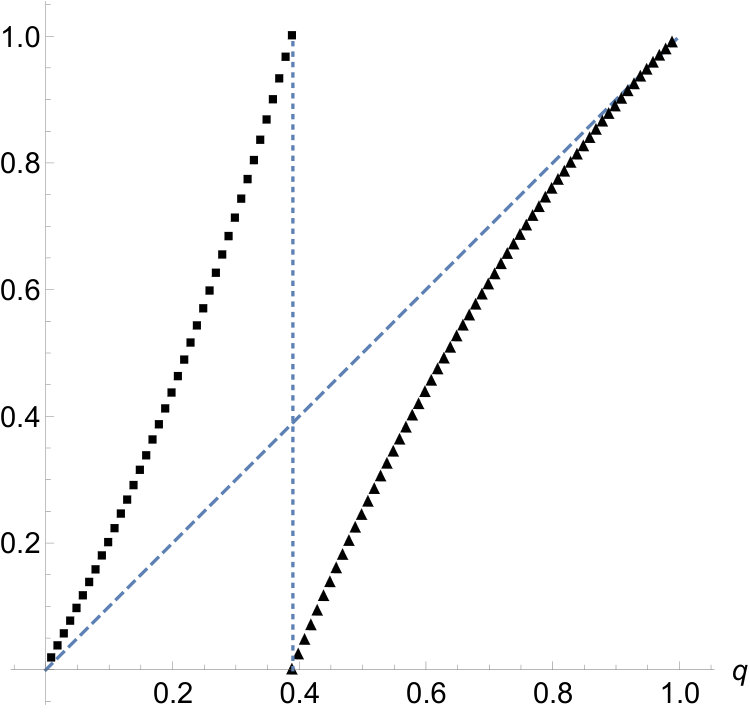

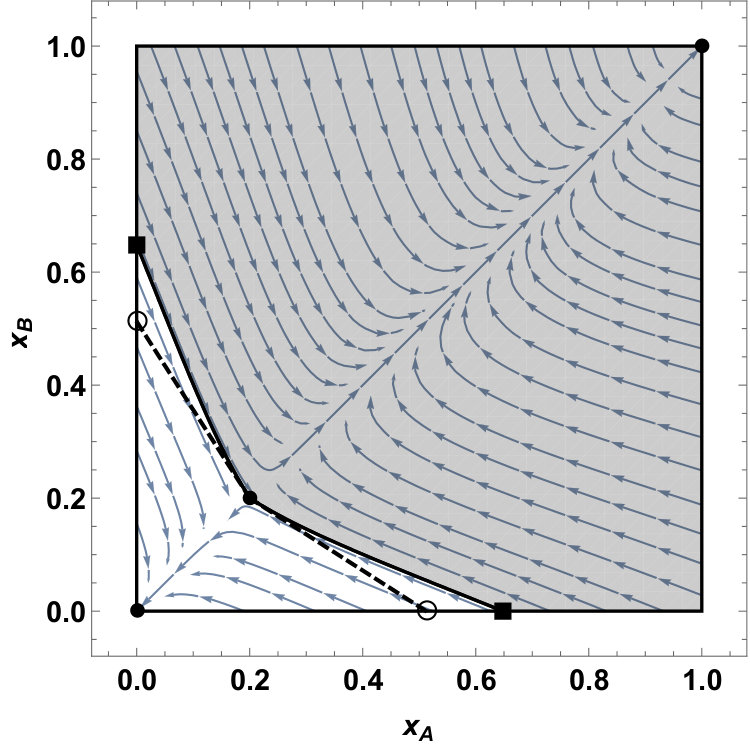

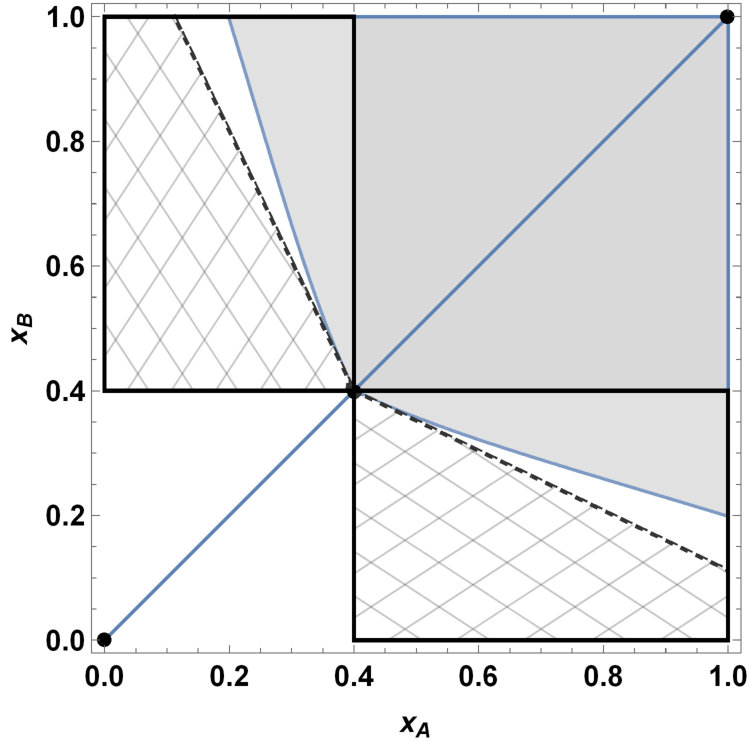

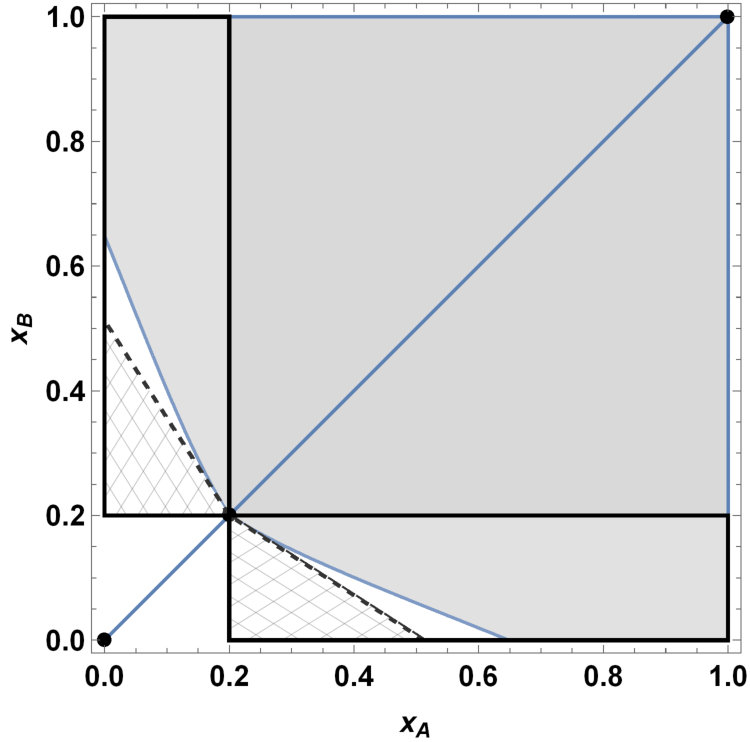

Figure 5 shows similarities and differences between $\mathcal{C}$ and $\widetilde{\mathcal{C}}$. Depending on the parameters $\nu$ and $q$, the area under the curve $\widetilde{\mathcal{C}}$ is either a trapezoid or a triangle and is easily computed analytically. By considering this area as an approximation of the area under the curve $\mathcal{C}$, which is instead impossible to compute analytically. This area obtained with this linear approximation will also be used for a comparative statics analysis in Section 5. The results are also shown in Figure 6.

5 Comparative statics with respect to exogenous shocks

We now focus our attention on the conclusions that can be drawn from the analysis of system (6) performed in Section 4.2, Appendix C and Appendix D. We will compare the two following situations:

• •

first, no cross-country trade between the two locations is allowed, i.e. they are considered separated and autarkic;

• •

second, cross-country trading is instead allowed, as described in the previous section.

By comparing these two situations we are thus able to analyze the effects of a very “stylized globalization” (the second case) on the systemic resistance to potential shocks in the infection rates. Depending on the “intensity” and “dimensionality” of the shock, being “autarkic” or “globalized” may or may not be advantageous.

In particular, small shocks are better absorbed by an interconnected system, independently of their dimensionality: intuitively, the shock is more easily diluted in a larger system. On the contrary, somehow surprisingly, large shocks may or may not have worse consequences when the locations are interconnected, depending on the amount of resources dedicated to recovering (formalized by the parameter $q$).

5.1 The case of autarky

Let us consider two autarkic locations, where no trade is possible between them and where each location is subjected to a disease-spread dynamic described by the single-location model of Section 3. The evolution over time of the two infection rates $x_{A}(t)$ and $x_{B}(t)$ of these two locations $A$ and $B$ can be written as a system of two (uncoupled) differential equations:121212For a reasonable comparison with an analogous globalized 2-location model, here we assume the same symmetric epidemic parameters $\nu_{A}=\nu_{B}=\nu$ and $q_{A}=q_{B}=q$.

[TABLE]

The dynamics and results are shown in Figure 7 (left) and summarized in the following proposition.

PROPOSITION 5.1**.**

Given two autarkic locations $A$ and $B$, system (7) has the following properties:

• •

it is symmetric with respect to the diagonal, which is then an invariant set. The super-diagonal and sub-diagonal sets in $\mathbb{R}^{2}$, $\{(x_{A},x_{B})\in\mathbb{R}^{2}:x_{A}<x_{B}\}$ and $\{(x_{A},x_{B})\in\mathbb{R}^{2}:x_{A}>x_{B}\}$, are also invariant;

• •

the unit square $[0,1]^{2}$ is invariant;

• •

the critical points where $\frac{\,\mathrm{d}x_{A}}{\,\mathrm{d}t}=\frac{\,\mathrm{d}x_{B}}{\,\mathrm{d}t}=0$ are:

• –

$(0,q)$, $(1,q)$, $(q,0)$, $(q,1)$, which all are (unstable) saddle points;

• –

$(q,q)$, which is an unstable point (source);

• –

$(0,0)$, $(0,1)$, $(1,0)$, $(1,1)$, which all are asymptotically stable equilibria.

Moreover, the separatrix curves of the saddle points are the lines $x_{A}=0$, $x_{B}=0$, $x_{A}=q$, $x_{B}=q$, $x_{A}=1$ and $x_{B}=1$, and this also makes possible characterizing the basins of attraction of the stable points in $[0,1]^{2}$:131313Of course, we only consider their intersection with the unit square, which is the sets in which the fraction of infected $x_{A}$ and $x_{B}$ make sense.

• •

$[0,q)^{2}$* is the basin of attraction of $(0,0)$;*

• •

$[0,q)\times(q,1]$* is the basin of attraction of $(0,1)$;*

• •

$(q,1]\times[0,q)$* is the basin of attraction of $(1,0)$;*

• •

$(q,1]^{2}$* is the basin of attraction of $(1,1)$.*

Proof.

See Appendix B. ∎

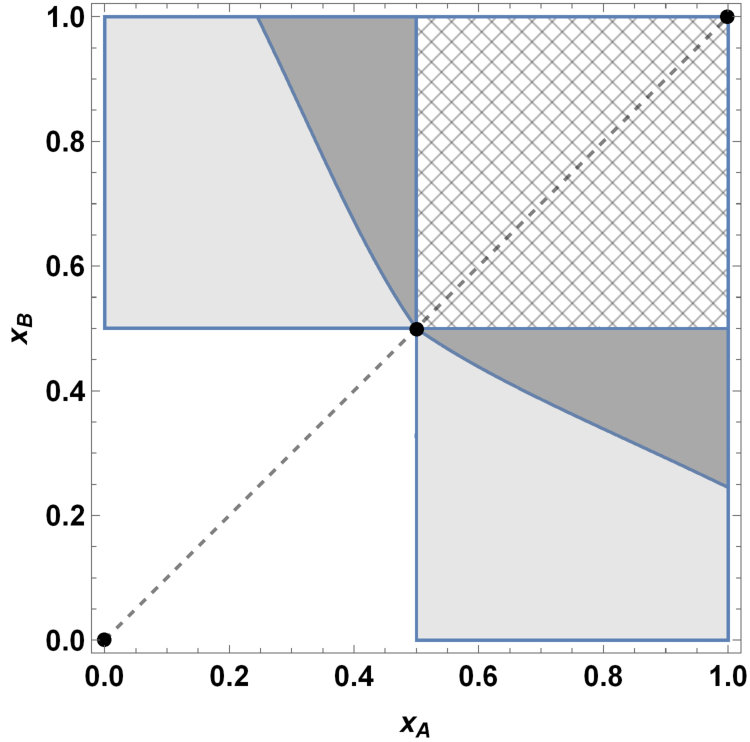

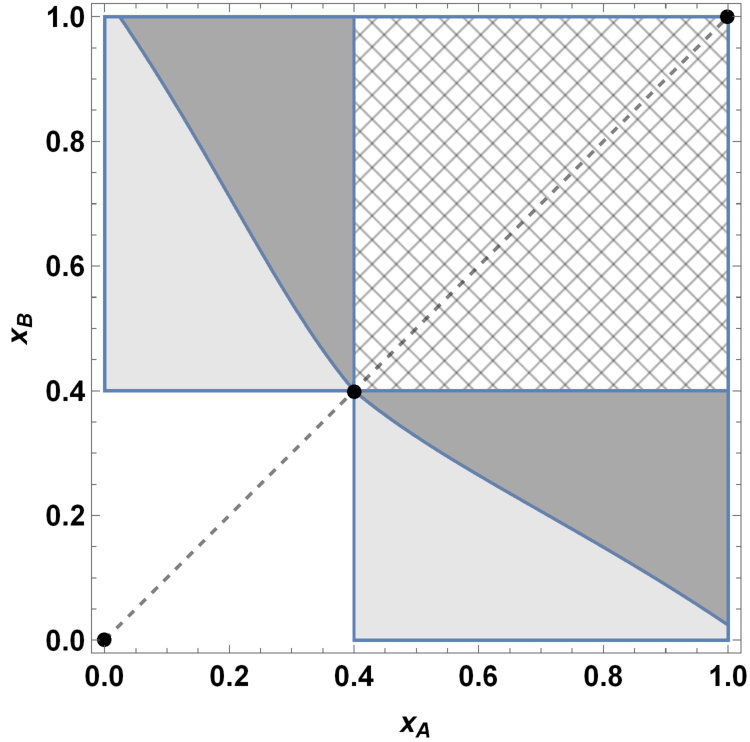

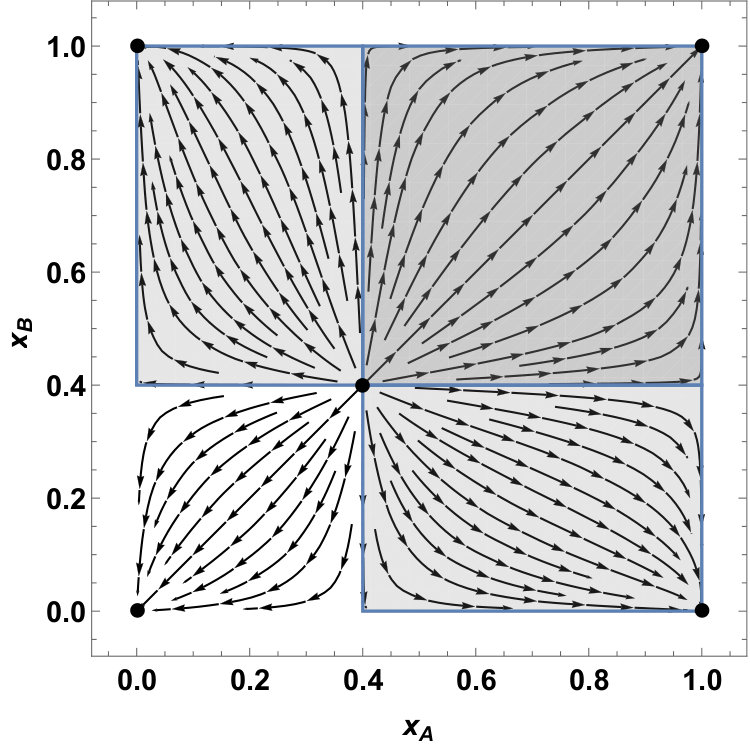

As shown in Figure 7 (left), the points $(1,0)$ and $(0,1)$ play a peculiar role: they represent a situation in which only one of the two locations is fully infected, while the other is disease free. In case of autarky, this may happen when the initial point of infection at time $t=0$ belongs to $[0,q)\times(q,1]$ or $(q,1]\times[0,q)$, which will cause the dynamics to convergence toward $(0,1)$ or $(1,0)$, respectively. Figure 7 (right) also shows that this cannot be the case when the two locations are connected and globalized. This feature will be a key ingredient in the next section about shock analysis.

5.2 Shock analysis

In line with what done in Section 3, shocks are assumed to be uniform at random over the unit square $[0,1]^{2}$ and are represented by a vector of initial conditions:

[TABLE]

Figures 7 and 8 show the comparison of the basin of attraction of the point $(1,1)$, when the locations are considered autarkic or connected. Due to the shape of these basins of attraction, we obtain the following results.141414We assume a uniform distribution of shocks just to simplify the exposition. What is important for our analysis, is just that the support of our random shocks is the unit square $[0,1]^{2}$, so that we can compare regions of this support in the two regimes of atarky and globalization. With uniform shocks areas in the support region are proportional to probabilities, but all following results could be adapted also to any other distribution of shocks, remembering that in the more general case areas should be translated into probabilities.

Given a shock $\mathbf{s}=(s_{A},s_{B})$, if it is large enough in both components or small enough in both components, then the resulting outcome is the same for an autarkic system and for a globalized system. In particular:151515Notice that assuming that the shock distribution is uniform or continuous, thus atom-less, guarantees that the probability that one component hits [math], $q$ or $1$ is zero.

• •

if $s_{A}<q$ and $s_{B}<q$, then both the autarkic system and the globalized system will be able to fully recover (white areas in Figure 8);

• •

if $s_{A}>q$ and $s_{B}>q$, then both systems will converge to a fully infected endemic state (grid-shaded areas in Figure 8).

On the contrary, the outcome resulting from a shock hitting mainly one location is completely different when the two locations are autarkic or connected. Indeed, consider an “almost” 1-dimensional shock $\mathbf{s}$ targeting mainly location $A$, that is161616Symmetrically, the argument is the same for shocks mainly concentrated in $B$.

[TABLE]

In the autarkic case, the dynamics will converge to a partial epidemic equilibrium: Proposition 5.1 and Figure 7 (left) show that $A$ would converge to fully infection while, independently, $B$ would recover.

Instead, what happens when $A$ and $B$ are connected while facing the same shock $\mathbf{s}=(s_{A},\varepsilon)$ as before? Two different situations may arise:

• •

if $s_{A}$ is large enough and such that $\mathbf{s}=(s_{A},\varepsilon)$ belongs $(1,1)$’s basin of attraction (dark-gray area in Figure 8) and then the globalized system will end up being fully infected;

• •

if, instead, $s_{A}$ is still greater than $q$ but not large enough, then $(s_{A},\varepsilon)$ belongs to $(0,0)$’s basin (light-gray in Figure 8) and so the globalized system will manage to recover from this shock.

This analysis shows that the 2-location autarkic system and the 2-location globalized system react very differently in response to large 1-dimensional shocks.

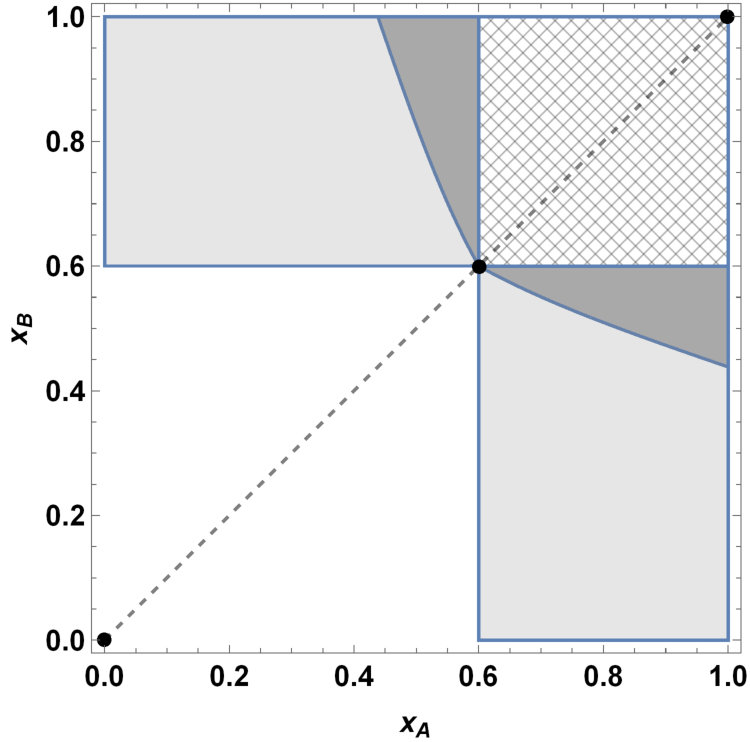

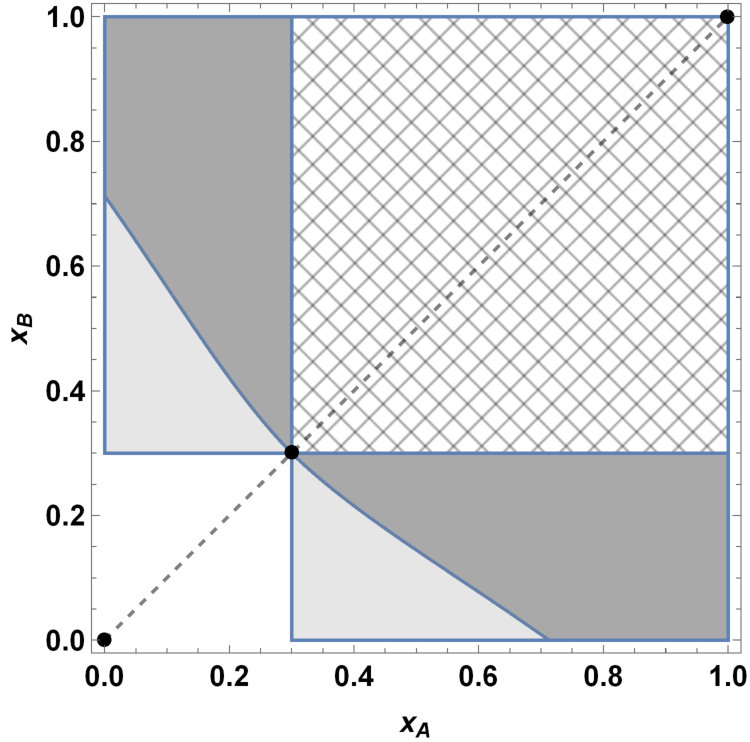

The dark-gray areas in Figure 8 are constituted by all those possible shocks that cause the infection to spread to both locations, when they are connected, or to just one location, when autarkic. Assuming a uniform shock distribution, this area, then, exactly measures the weakness of the system with respect to this kind of mainly 1-dimensional shocks and, in addition, it also captures the advantage of an autarkic system over a globalized one.

Analogously, but in an opposite way, the light-gray areas in Figure 8 capture the advantage of a globalized system over an autarkic one: shocks belonging to these regions are recovered by a connected system, whereas they result in a partial epidemic equilibrium in the autarkic case.171717These results resemble those obtained in the context of financial networks, where agents (e.g. banks) are exposed via financial dependence to others’ default and the goal is to understand how shocks spread in a financial network. As argued in Acemoglu et al. (2015): “as long as the magnitude of negative shocks affecting financial institutions are sufficiently small, a more densely connected financial network […] enhances financial stability. However, beyond a certain point, dense interconnections serve as a mechanism for the propagation of shocks, leading to a more fragile financial system.” The same kind of results are achieved in Cabrales et al. (2017).

5.3 Systemic resistance & policy

Understanding the relationship between the dark-gray areas and the light-gray areas in Figure 8 becomes necessary, because it gives an indication of the relative (dis)advantage of an autarkic system over a globalized system for systemic resistance. Figure 9 also shows that this advantage changes as the recovery parameter $q$ varies: this turns out to be crucial for policy making.

One way to address this issue is by analyzing the separatrix curve $\mathcal{C}$ of the saddle $(q,q)$, because it separates the basins of attraction of the regions of interest. Unfortunately, apart from Proposition C.9, which relies on the “local” information provided by the eigenvector of the linearized system in the neighborhood of the saddle point $(q,q)$ and on the monotonicity of the components of the vector field defining system (6) in specific areas, we have to rely on approximated results, due to the impossibility of explicitly describing $\mathcal{C}$ analytically.

Specifically, we first numerically approximate the intersection points between the separatrix $\mathcal{C}$ and the boundaries of the unit square $[0,1]^{2}$ and, then, numerically measure the gray areas and determine their relative ratio, which, as already observed, is key to understanding whether a globalized system is shock-resistance superior to an autarkic system, given the same parameters $q$ and $\nu$.

(Numerical) comparative statics

Let us first deal with the (numerical) computation of the intersection point between the separatrix $\mathcal{C}$ and the border of the unit square below the diagonal, i.e. the segments $[0,1]\times\{0\}$ and $\{1\}\times[0,1]$. 181818By symmetry with respect to the diagonal, the same analysis holds also for the border of the unit square above the diagonal. Depending on whether $\mathcal{C}$ intersects the former or latter segment, we follow the notation used in Proposition C.9 and Figure 4 respectively denote this point with $(x_{A},x_{B})=(\eta(q,\nu),0)$ or $(1,\zeta(q,\nu))$.

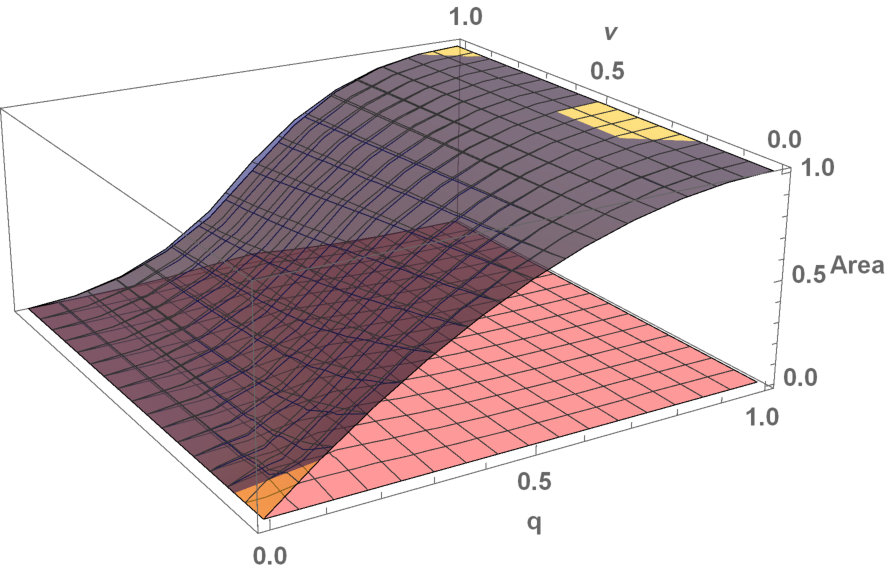

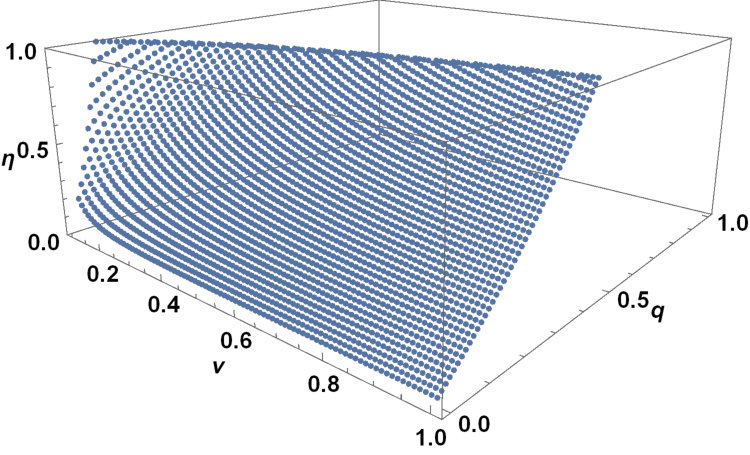

This analysis is shown in Figure 10:

• •

holding fixed $\nu\in(0,1)$, whenever $\mathcal{C}$ crosses the segment $[q,1]\times\{0\}$ in the point $(\eta(q,\nu),0)$, then $q\mapsto\eta(q,\nu)$ is increasing in $q$ and spans from [math] to $1$. Moreover, $\eta(q,\nu)>q$;

• •

analogously, when $q$ exceeds a certain threshold191919Threshold that corresponds to $q=0.39$ in Figure 10., then $\mathcal{C}$ crosses the segment $\{1\}\times[0,q]$ in the point $(1,\zeta(q,\nu))$; moreover, $q\mapsto\zeta(q,\nu)$ is increasing, going from [math] to $1$ and always satisfying $\zeta(q,\nu)<q$.

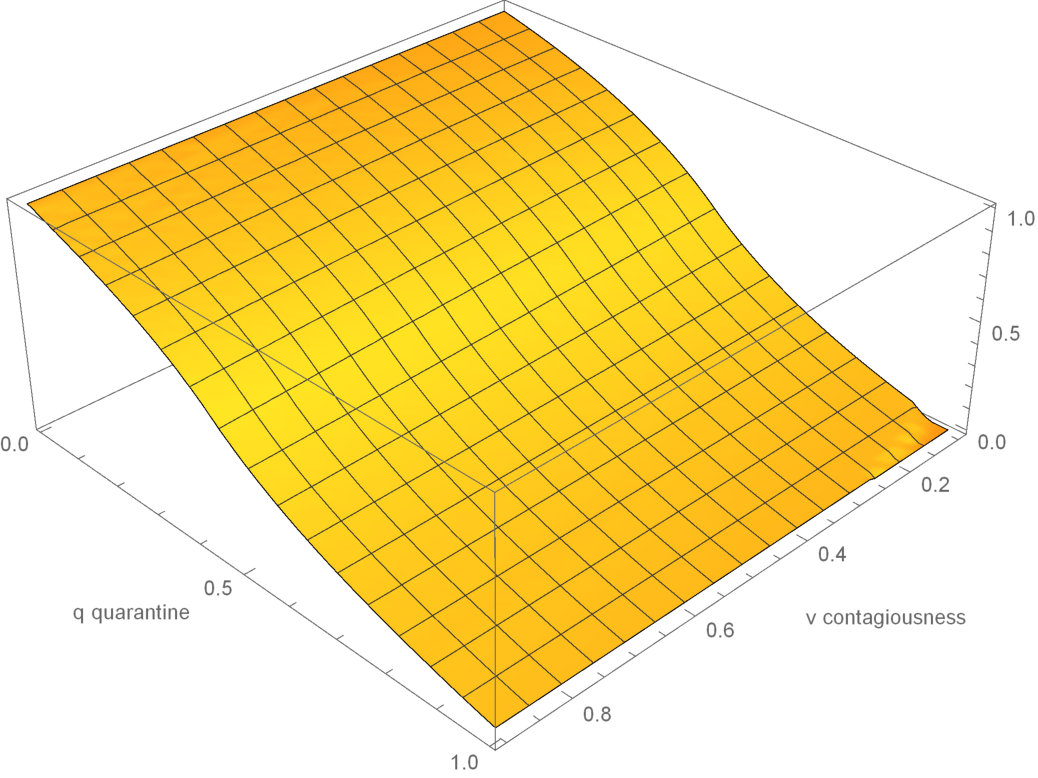

Let us now turn to the relative advantage/disadvantage of an autarkic system over a globalized system, especially when subjected to mainly 1-dimensional shocks.202020Shocks that mainly start from a single location, of the form $\mathbf{s}=(\varepsilon,s_{B})$ or $(s_{A},\varepsilon)$, with $\varepsilon\approx 0$. We have already observed that the areas in light gray and dark gray of Figures 8 and 9 measure the extent to which an autarkic system or a globalized system is relatively more or less able to recover from shocks of this kind.

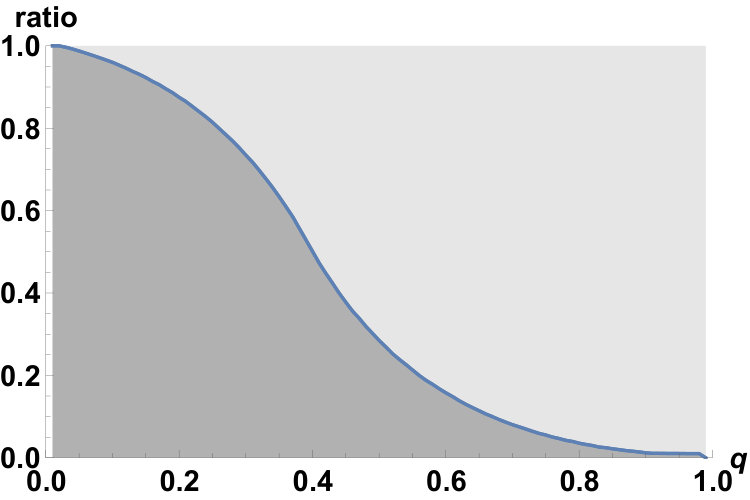

Holding fixed the contagiousness $\nu$, as the recovery parameter $q$ increases, the light-gray areas expand while the dark-gray areas shrink.212121We think of contagiousness as a parameter strictly related to the type of disease considered, so not of interest for policy making. According to our previous interpretation, this means that it becomes more likely that a 1-dimensional shock lead the autarkic system to a partial endemic equilibrium, while a corresponding reduction of the dark-gray areas means that a globalized system becomes more able to recover from shocks.222222Since it corresponds to an expansion of the white recovery area, for a globalized system. This, in turn, means that the larger it is the available level of quarantine $q$, the more convenient it becomes to be in a globalized system relative to an autarkic one. In this respect, Figure 9 shows how the light-gray and dark-gray areas change, as the quarantine $q$ changes.232323While contagiousness $\nu$ is kept fixed, because we think of it as a disease-related parameter, not subject to policy making. This analysis is also shown in Figure 11, where we plot the percentage of the rectangle $[q,1]\times[0,q]$ which is occupied by the dark-gray area. By using the shock analysis done above, as $q$ increases, we observe that having a connected 2-location system becomes more and more advantageous and resistant overall than an autarkic 2-location system.

This conclusion directly translates in terms of policy: if the available quarantine level $q$ can be taken large enough, then allowing cross-country import-export is beneficial and preferable for systemic resistance to infection shocks. On the contrary, two autarkic countries constitute a more resistant system against infection shocks when only a small level of quarantine $q$ is available.

6 Conclusions

Starting from a very simple model of epidemic diffusion among homogeneous agents, we consider the case in which two identical countries are inhabited by such agents. These agents interact and trade with each other in (random) pairs to obtain benefits and, by doing so, they also spread a contagious disease among them, which lowers the attainable gain from trade. As a response to the infection risk, agents can choose to bear (heterogeneous) costs to interact with the agents present in the other country, establishing then a stylized form of cross-country import-export trade. By assuming that both countries have (limited and fixed) resources to intervene against the infection, we are also able to introduce the possibility of recovery, that is, of reducing the infection rate.

Given the epidemic parameters, we compare the resistance to exogenous shocks in infection rates of the “autarkic” system, in which the two countries are assumed not to trade with each other, with the resistance of the “globalized” system where, instead, cross-country trade is allowed. Overall, globalized systems result more “extreme” in their reaction to shocks with respect to autarkic systems. This is a consequence of the two countries being connected: on the one hand, the globalized system has a larger “recovery capacity” when facing relatively small shocks but, on the other hand, it has a larger area where both countries end up being completely infected. In particular, the main possibility which is precluded to globalized systems with respect to autarkic ones is a situation in which only one country is infected while the other is not. On the contrary, “autarkic” systems offer a wider spectrum of possible outcomes resulting from infection shocks and, in particular, they exhibit partial endemic equilibria in which only one location is fully infected while the other is disease free.

By comparing how an autarkic system and a globalized system behave in response to shocks, we are able to understand their similarities and differences. The main result of this shock-resistance analysis is that the behavior of the two systems is substantially different especially when they are subjected to “1-dimensional large shocks”: when infection shocks hit mainly one location (and only slightly the other), a globalized system either fully recovers or becomes fully infected, while an autarkic system could exhibit partial endemic equilibria, if exposed to the same shock. Depending on the amount of resources allocated to recovery, as measured by the quarantine level $q$ in our framework, a globalized system may be preferable when large resources for quarantine are available, whereas an autarkic system is preferable in case of low resources.

Appendix Appendix A More on the econometric analysis

In this section we investigate whether the significant effect of the dummy Positive, observed in Table 2, could be a result of a selection process. To this aim, we have estimated a bivariate selection model by maximum likelihood estimation where the main equation is a Tobit model with distance as the dependent variable. The participation equation is a Probit, and estimates the probability of being active (i.e. sending at least one bovine) in quarter $t$.

Although the dependent variable in the main equation is – when not censored – continuous, the identification of the model could depend only on distributional assumptions. For this reason, we have added an exclusion restriction in the participation equation, using data on rainfalls provided by the Italian Air Force (Centro Operativo Dati per la Meteorologia). For each municipality, we have imputed the level of rainfalls and its deviation from its quarterly mean by averaging the three closest meteorological stations.242424The meteo stations are around 115 with daily data covering the entire Italian territory. We have thus included as a regressor in the participation equation the lagged value of the deviation of rainfalls from quarterly mean. Since reduced rainfalls at $t-1$ – through a negative effect on the production of crops used for animal feed (hay, corn, etc.) – lower the inflow of bovines in that municipality, this, in turn, is expected to decrease outflows at time $t$.

The bivariate model has been estimated using the Stata® command cmp developed by David Roodman.252525See Roodman (2011) for details.

The coefficient of the dummy $\text{Positive}_{i,t-1}$ indicates that farms with a sick bovine at $t-1$ are less likely to be active at time $t-1$. The deviation of rainfalls from quarterly mean has the expected positive and statistically significant effect on the probability of sending cattle at time $t$. The $\rho$ coefficient, which estimates the correlation between error terms is negative and significant at 10% , thus suggesting the presence of a weak negative selection effect. The estimated effect of $\text{Positive}_{i,t-1}$ in the Tobit main equation is, however, very close to the result shown in column 3 of Table 2.

Appendix Appendix B Proofs for Sections 3, 4 and 5

Proof of Proposition 3.1.

The derivative $\frac{\,\mathrm{d}x}{\,\mathrm{d}t}$, which is a cubic function of $x$, has only three roots $x=0$, $x=q$ and $x=1$, where it becomes equal to 0. Moreover, it is strictly negative when $x\in(0,q)$ and strictly positive when $x\in(q,1)$. ∎

Proof of Proposition 4.1.

We want to show that the unit square $[0,1]^{2}$ is an invariant set under the dynamics defined by system (3). In order to do that, we need to the vector field defining the system of equation, i.e. the right-hand side of (3) as 2-dimensional function of $(x_{A},x_{B})$ is “pointing toward the interior” of the square, while restricted on the borders of it. More formally:

• •

suppose that $x_{A}=0$. Then $\dot{x}_{A}=\nu_{A}(1-F_{A})x_{B}F_{B}\geq 0$, for any $x_{B}\in[0,1]$, as wanted.

• •

Suppose, instead, that $x_{A}=1$. By assumption, we have that $F_{A}=1$ when $x_{A}=1$, then

[TABLE]

as we wanted.

An analogous and symmetric reasoning shows that $\dot{x}_{B}\geq 0$, when $x_{B}=0$, and that $\dot{x}_{B}\leq 0$, when $x_{B}=1$. ∎

Proof of Proposition 5.1.

The vector field defining system (7) is of the form $\mathbf{F}(x_{A},x_{B})=(F_{A}(x_{A}),F_{B}(x_{B}))$, where $F_{A}(x)=F_{B}(x)=f(x):=\nu x(1-x)(x-q)$. Then, clearly the system is symmetric with respect to the diagonal, that is $\mathbf{F}(x_{B},x_{A})=\left(F_{B}(x_{A},x_{B}),F_{A}(x_{A},x_{B})\right)$.

Since $f(x)=0$ if and only if $x=0$ or $x=q$ or $x=1$, then the equilibria of system (7) are: $(0,0)$, $(0,1)$, $(1,0)$, $(1,1)$, $(q,q)$, $(0,q)$, $(1,q)$, $(q,0)$ and $(q,1)$. Moreover, since $\dot{x}_{A}=0$ when $x_{A}=0$, this means that the line $x_{A}=0$ in $\mathbb{R}^{2}$ cannot be crossed by the trajectories of the system. Analogously, the lines $x_{A}=q$, $x_{A}=1$, $x_{B}=0$, $x_{B}=q$, $x_{B}=1$ cannot be crossed, which implies that they are invariant and that the unit square $[0,1]^{2}$ is also invariant under the dynamics defined by system (7).

In order to evaluate the stability of such equilibria, it suffices to study the Jacobian of the system. Now, since the Jacobian is of the form

[TABLE]

where $f^{\prime}(x)=\nu[(2-3x)x+q(2x-1)]$, and that $f^{\prime}(0)=-\nu q<0$, $f^{\prime}(q)=\nu q(1-q)>0$ and $f^{\prime}(1)=-\nu(1-q)$ when $\nu,q\in(0,1)$, then the study of its eigenvalues simply says that: $(0,0)$, $(0,1)$, $(1,0)$ and $(1,1)$ are asymptotically stable, because the eigenvalues are both negative. The points $(0,q)$, $(q,0)$, $(1,q)$, $(q,1)$ are saddle point because they have eigenvalues of different sign. Lastly, $(q,q)$ is an unstable source point because both its eigenvalues are positive. ∎

Appendix Appendix C Analysis of the linear case

We here study system (6), which comes from the assumptions of agents’ linear utility and uniform cost distributions. In principle, the system is well defined in $\mathbb{R}^{2}$, but we will restrict our analysis to the unit square $(x_{A},x_{B})\in[0,1]^{2}$, in which the fractions of infected agents make sense. It is continuously differentiable everywhere but the diagonal of $\mathbb{R}^{2}$, i.e. over $\mathbb{R}^{2}\setminus\{(x_{A},x_{B})\in\mathbb{R}^{2}:x_{A}=x_{B}\}$. However, thanks to the symmetry of the system guaranteed by the assumptions made, we can separate the analysis focusing on three different parts: the diagonal, the super-diagonal set and the sub-diagonal. This allows us to use an ad hoc strategy to obtain some explicit results. There are two asymptotically stable equilibria, $(x_{A},x_{B})=(1,1)$ and $(0,0)$, the first corresponding to both countries being fully infected, while the second to both being disease free. There is a third equilibrium, $(q,q)$ which is an unstable saddle point. Its separatrix curves separate the basins of attraction of the asymptotically stable states, as depicted in Figure 4. It is worth noting, though, that they are not explicitly characterizable.262626There is no known way to analytically determine these curves, even in simple dynamical systems. Progresses have been made with their numerical approximations (Cavoretto et al., 2011).

For ease of exposition, let us re-write system (6) in vector notation as follows:

[TABLE]

where $\mathbf{V}(x_{A},x_{B}):=\left(V_{A}(x_{A},x_{B}),V_{B}(x_{A},x_{B})\right)$ for all $(x_{A},x_{B})\in\mathbb{R}^{2}$ and $V_{A}$, $V_{B}$ are the 2-variable, real-valued functions defined respectively by the first and second row of (6). Let us also denote the diagonal by $D:=\{(x_{A},x_{B})\in\mathbb{R}^{2}:\,x_{A}=x_{B}\}$, and the sets above and below the diagonal respectively by $\Delta^{+}:=\{(x_{A},x_{B})\in\mathbb{R}^{2}:\,x_{A}<x_{B}\}$ and $\Delta^{-}:=\{(x_{A},x_{B})\in\mathbb{R}^{2}:\,x_{A}>x_{B}\}$.

LEMMA C.1**.**

The vector field $\mathbf{V}$ is symmetric with respect to the diagonal $D$, that is, for all $(x_{A},x_{B})\in\mathbb{R}^{2}$:

[TABLE]

Proof.

The proof follows directly from the definition of $\mathbf{V}$. ∎

The vector field $\mathbf{V}$ can be seen as constituted by three basic pieces, all of which are defined over the entire $\mathbb{R}^{2}$ but such that they coincide with $\mathbf{V}$ itself when appropriately restricted on the sets $D$, $\Delta^{+}$ and $\Delta^{-}$. The following lemma formalizes this idea.

LEMMA C.2**.**

The vector field $\mathbf{V}$ when restricted on the diagonal $D$ coincides with

[TABLE]

which, in turn, is well defined over $\mathbb{R}^{2}$. 2. 2.

The vector field $\mathbf{V}$ when restricted on $\Delta^{-}$ coincides with

[TABLE] 3. 3.

The vector field $\mathbf{V}$ when restricted on $\Delta^{+}$ coincides with

[TABLE]

Proof.

When $(x_{A},x_{B})\in D$, then $\max\{0,x_{A}-x_{B}\}=\max\{0,x_{B}-x_{A}\}=0$. From this, the first point follows from the computation of $\mathbf{V}$ as defined by (6).

The second point follows because when $(x_{A},X_{B})\in\Delta^{-}$, then $\max\{0,x_{A}-x_{B}\}=x_{A}-x_{B}$ while $\max\{0,x_{B}-x_{A}\}=0$. Analogously for the third point. ∎

PROPOSITION C.3**.**

System (6) is symmetric with respect to the diagonal and it is well defined in $\mathbb{R}^{2}$. The diagonal $D$, the sets $\Delta^{+}$ and $\Delta^{-}$ are all invariant with respect to the dynamics defined by system (6).

Proof.

The symmetry of system (6) in $\mathbb{R}^{2}$ follows from that of $\mathbf{V}$. This implies that the diagonal $D$ has to be invariant and, consequently, also $\Delta^{+}$, $\Delta^{-}$ have to be invariant.

Because of the invariance, it suffices to show that the system is well defined when restricted on each of $D$, $\Delta^{+}$ and $\Delta^{-}$. From the previous Lemma C.2, it follows that the system is well defined because $\mathbf{V}^{D}$, $\mathbf{V}^{-}$ and $\mathbf{V}^{+}$ are smooth on $\mathbb{R}^{2}$ and, in particular, on $D$, $\Delta^{-}$ and $\Delta^{+}$ respectively. ∎

PROPOSITION C.4**.**

The unit square $[0,1]^{2}$ is invariant with respect to the dynamics defined by system (6).

Proof.

The following Lemma C.5 implies that, on the borders of the unit square, the vector field $\mathbf{V}$ points towards the interior. ∎

LEMMA C.5**.**

$V_{B}(\cdot,\cdot)>0$* on the segment $(0,1)\times\{0\}$ and $V_{A}<0$ on the segment $\{1\}\times(0,1)$. Consequently, by symmetry, $V_{B}<0$ on $(0,1)\times\{1\}$ and $V_{A}>0$ on $\{0\}\times(0,1)$.*

Proof.

From the definition, it follows that for all $x_{A}\in(0,1)$, it holds that $V_{B}(x_{A},0)=\nu x_{A}^{2}>0$. Analogously, for all $x_{B}\in(0,1)$, it holds that $V_{A}(1,x_{B})=-(1-x_{B})<0$. ∎

Now we can show that system (6) has 3 critical points, specifically with $(q,q)$ being a saddle point, whose separatrix curves naturally form the boundaries of the basins of attraction of the asymptotically stable points $(0,0)$ and $(1,1)$.

PROPOSITION C.6**.**

System (6) has (only) three equilibria:

• •

$(x_{A},x_{B})=(0,0)$* and $(1,1)$, which are asymptotically stable states;*

• •

$(x_{A},x_{B})=(q,q)$, which is an unstable saddle point.

Moreover, the two separatrix curves of the saddle $(q,q)$ are such that the unstable one coincide with the diagonal of the square $\{(x_{A},x_{B})\in[0,1]^{2}:x_{A}=x_{B}\}$, while the stable separatrix are part of the boundary of the basins of attraction of the stable equilibria.

Proof.

The proof follows directly by using Lemma C.2 and then applying Lemma C.8. ∎

LEMMA C.7**.**

Consider $\mathbf{V}^{-}$, as defined in Lemma C.2. Then its Jacobian $Jac^{-}(x_{A},x_{B}):=\left(\frac{\partial\mathbf{V}^{-}(x_{A},x_{B})}{\partial x_{A}}|\frac{\partial\mathbf{V}^{-}(x_{A},x_{B})}{\partial x_{B}}\right)$ when evaluated:

• •

in $(0,0)$, it has both eigenvalues equal to $-q\nu<0$, for all $q,\nu\in(0,1)$;

• •

in $(1,1)$, it has eigenvalues equal to $-(1-q)\nu$ and $-1-(1-q)\nu$, which are both negative for all $q,\nu\in(0,1)$;

• •

in $(q,q)$, it has eigenvalues equal to $q\nu(1-q)>0$, $-q(1+\nu(1-q))<0$ and corresponding eigenvectors equal to $(1,1)$ and $\left(\frac{1}{-2(1-q)\nu},1\right)$.

Consider $\mathbf{V}^{+}$. Analogously, its Jacobian has negative eigenvalues when evaluated in the points $(0,0)$ and $(1,1)$. Whereas, when evaluated in $(q,q)$, the eigenvalues are the same as above, $q\nu(1-q)>0$ and $-q(1+\nu(1-q))<0$, but their corresponding eigenvectors are $(1,1)$ and $\left(-2(1-q)\nu,1\right)$.

Proof.

By definition of $\mathbf{V}^{-}$ in Lemma C.2, the computation of the derivatives in the point $(q,q)$ yields:

[TABLE]

The eigenvalues and eigenvectors of this matrix are easily computed.

Analogously, the computation in the point $(0,0)$ and $(1,1)$ gives:

[TABLE]

from which one obtains the eigenvalues and eigenvectors as claimed above.

The last part follows from the same computations done symmetrically for $\mathbf{V}^{+}$. ∎

LEMMA C.8**.**

Consider the two vector fields $\mathbf{V}^{-}$ and $\mathbf{V}^{+}$ defined in Lemma C.2. Then:

The points $(0,0)$, $(1,1)$ and $(q,q)$ are the equilibria of both $\mathbf{V}^{-}$ and $\mathbf{V}^{+}$ respectively in the region $D\cup\Delta^{-}$ and $D\cup\Delta^{+}$. 2. 2.

$(0,0)$* and $(1,1)$ are asymptotically stable for both $\mathbf{V}^{-}$ and $\mathbf{V}^{+}$.* 3. 3.

$(q,q)$* is a saddle for both $\mathbf{V}^{-}$ and $\mathbf{V}^{+}$.*

Proof.

For the first point, consider $\mathbf{V}^{-}$. It suffices to verify that, in the region $D\cup\Delta^{-}$, $\mathbf{V}^{-}(x_{A},x_{B})=\mathbf{0}$ if and only if $(x_{A},x_{B})$ is one of the points considered in the claim. Analogously, for $\mathbf{V}^{+}$.

The second and third points follow directly from Lemma C.7. ∎

Lastly, we focus on the crucial role played by the stable separatrix curve of the saddle $(q,q)$, hereafter denoted by $\mathcal{C}$. From the theory of dynamical systems, it follows that $\mathcal{C}$ is partitioned as the image of three distinct trajectories/solutions of system (6):

[TABLE]

In our case, $\mathcal{C}^{-}$ is the piece obtained as the separatrix of the saddle $(q,q)$ with respect to the vector field $\mathbf{V}^{-}$, while $\mathcal{C}^{+}$ is the piece obtained as the separatrix of $(q,q)$ with respect to $\mathbf{V}^{+}$.

The following result formalizes what is shown in Figure 4: depending on the parameters $\nu$ and $q$, as time $t$ increases, the solution $\mathcal{C}^{-}$ enters the unit square either crossing its border along the segment $[q,1]\times\{0\}$ or along $\{1\}\times[0,q]$ and, eventually, converges toward $\{q,q\}$ as $t\rightarrow\infty$. Symmetrically, the same occurs for $\mathcal{C}^{+}$.

PROPOSITION C.9**.**

Let $\mathcal{C}$ denote the (unique) stable separatrix of the saddle point $(q,q)$ of system (6). The curve $\mathcal{C}$ can be naturally partitioned according to the following three distinct trajectories that compose it:

[TABLE]

Then $\mathcal{C}^{-}\cap[0,1]^{2}$ is included in $[q,1]\times[0,q]$ and, depending on the parameters $q$, $\nu$, it either crosses the segment $[q,1]\times\{0\}$ in a point $(\eta,0)$ or the segment $\{1\}\times[0,q]$ in a point $(1,\zeta)$. A symmetric result holds for $\mathcal{C}^{+}$.

Proof.

The result is based on the following lemmas. ∎

LEMMA C.10**.**

Let $\mathcal{C}^{-}$ denote the part of the (stable) separatrix curve of $(q,q)$ with respect to $\mathbf{V}^{-}$ that belongs to $\Delta^{-}$. Symmetrically, let $\mathcal{C}^{+}$ denote the (stable) separatrix of $(q,q)$ for $\mathbf{V}^{+}$ belonging to $\Delta^{+}$. Then: $\mathcal{C}^{-}\subset[q,1]\times[0,q]$ and $\mathcal{C}^{+}\subset[0,q]\times[q,1]$ for times $t$ large enough.

Proof.

Consider the case of $\mathcal{C}^{-}$ (the other case of $\mathcal{C}^{+}$ is symmetrical). The point $(q,q)$ is a saddle so its stable separatrix converges to $(q,q)$ as $t\rightarrow\infty$ and, additionally, it is locally linearly approximated by the vector $\left(\frac{1}{-2(1-q)\nu},1\right)$, which is the eigenvector corresponding of the negative eigenvalue of $Jac^{-}(q,q)$, from Lemma C.7. ∎

LEMMA C.11**.**

The signs of the components of the vector field defining system (6), when computed in $(x_{A},x_{B})\in(q,1)\times(0,q)$, are such that $V_{A}(x_{A},x_{B})\leq 0$ and $V_{B}(x_{A},x_{B})\geq 0$.

Symmetrically, $V_{A}\geq 0$ and $V_{B}\leq 0$ in $(0,q)\times(q,1)$.

Proof.

Consider $V^{-}_{A}(x_{A},x_{B})$, the first component of $\mathbf{V}^{-}$ (the other cases are analogous), and let us show that $V^{-}_{A}(x_{A},x_{B})<0$ when $0<x_{B}<q<x_{A}<1$. By definition in Lemma C.2:

[TABLE]

It has to be shown that for $0<x_{B}<q<x_{A}<1$ and $q,\nu\in(0,1)$

[TABLE]

that is

[TABLE]

The right-hand side is always greater than $x_{A}-q$, so that the inequality becomes:

[TABLE]

and then

[TABLE]

Taking the supremum of the left-hand side for $x_{B}\in(0,q)$, which is attained at $x_{B}=q$ gives

[TABLE]

Then the supremum for $x_{A}\in(q,1)$, obtained for $x_{A}=q$ gives

[TABLE]

which implies that all the inequalities above have to hold, as wanted. ∎

Appendix Appendix D Linearization of the separatrix curve $\mathcal{C}$ and approximation of the basins of attraction

Since that we have already observed that the separatrix $\mathcal{C}$ cannot be described analytically, we first compute a linear approximation of it and, then, confirm the results by numerical analysis. This allows us to approximate the area of the basins of attraction which is key for the comparative statics analysis done in Section 5.

We linearize system (6) in a neighborhood of the saddle $(q,q)$ using Lemma C.7. Figure 5 shows similarities and differences between $\mathcal{C}$ and its linear approximation $\widetilde{\mathcal{C}}$.

PROPOSITION D.1**.**

The separatrix $\mathcal{C}$ is linearly approximated in $(q,q)$ by the two-piece line $\widetilde{\mathcal{C}}$, which we respectively call $\widetilde{\mathcal{C}}^{+}$ and $\widetilde{\mathcal{C}}^{-}$, defined by

[TABLE]

Proof.

Let us consider $\widetilde{\mathcal{C}}^{-}$ (the case of $\widetilde{\mathcal{C}}^{+}$ is analogous). From Lemma C.7 it follows that the approximation of the (stable) separatrix of $(q,q)$ with respect to $\mathbf{V}^{-}$ is the line for $(q,q)$ with tangent given by the eigenvector corresponding to the negative eigenvalue, that is the vector $\left(\frac{1}{-2(1-q)\nu},1\right)$. Such line in $\mathbb{R}^{2}$ is parametrically described by

[TABLE]

which is implicitly written as $x_{B}=-2(1-q)\nu(x_{A}-q)+q$, for $x_{A}\geq q$. ∎

LEMMA D.2**.**

The intersection between $\widetilde{\mathcal{C}}^{-}$ and the sub-diagonal boundaries of the unit square $[0,1]^{2}$, that is, the segments $\{1\}\times[0,q]$ and $[0,q]\times\{0\}$, is the point $P^{-}=(P^{-}_{A},P^{-}_{B})$ given by

[TABLE]

Symmetrically, a point $P^{+}$ can be found as the intersection of $\widetilde{\mathcal{C}}^{+}$ and the segments $\{0\}\times[q,1]$ and $[0,q]\times\{1\}$.

Remark**.**

Notice that, provided $q\in(0,1)$ and $\nu\in(0,1)$, the two following conditions are equivalent:

[TABLE]

Moreover, when $q>1/2$ then $\nu<\frac{q}{2(1-q)^{2}}$ for all $\nu\in(0,1)$. Figure 12 shows the subregion of the square $(q,\nu)\in(0,1)^{2}$ where this condition is satisfied.

Depending on the parameters $\nu$ and $q$, the area under the curve $\widetilde{\mathcal{C}}$ is either a trapezoid or a triangle and is easily computed in the following result. By considering this area as an approximation of the area under the curve $\mathcal{C}$, this will also allow us to make a comparative statics analysis. The results are also shown in Figure 6.

LEMMA D.3**.**

If $\nu\geq\frac{q}{2(1-q)^{2}}$, consider the triangle $T^{-}\subset\{(x_{A},x_{B})\in[0,1]^{2}:x_{A}\geq x_{B}\}$ defined as the convex hull in $\mathbb{R}^{2}$ of the following set of vertexes

[TABLE]

If, instead, $\nu<\frac{q}{2(1-q)^{2}}$, consider the trapezoid $Q^{-}\subset\{(x_{A},x_{B})\in[0,1]^{2}:x_{A}\geq x_{B}\}$ defined by

[TABLE]

The measure of their area is:

[TABLE]

Whenever defined, $q\mapsto\left[\mathrm{A}(T^{-})\right](q,\nu)$ is always increasing for all $\nu$. Moreover, its derivative with respect to $q$ is:

[TABLE]

The derivative of $\mathrm{A}(Q^{-})$ is

[TABLE]

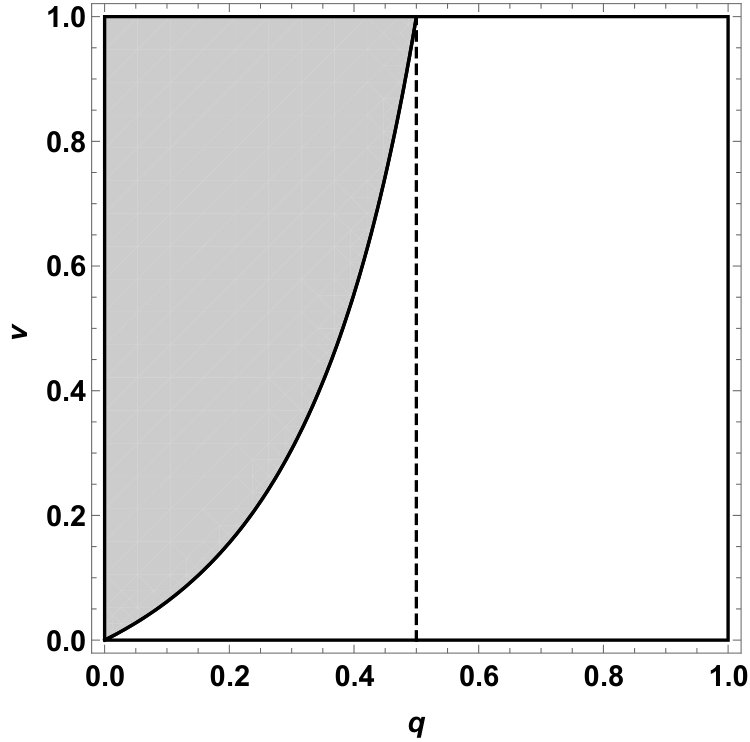

and it is positive if and only if the following condition holds272727The complicated condition derives from the fact that $\frac{1-2q}{3(1-q)^{2}}$ is decreasing while $\frac{q}{2(1-q)^{2}}$ is increasing, when $q\in(0,1)$, and they cross in $q=2/7$.

[TABLE]

Analogously, for $P^{+}$ and correspondingly $T^{+}$, $Q^{+}$ and their areas and derivatives.

Proof.

The measure of the areas of the triangle $T^{-}$ or trapezoid $Q^{-}$ are easily computed by using the coordinates of $P^{-}$ obtained in Lemma D.2. Computing the derivatives is then straightforward. ∎

Now let us compute the ratio between the area under the curve $\widetilde{\mathcal{C}}^{-}$ and the entire rectangle $[q,1-q]\times[0,q]$, as in Figure 6.

LEMMA D.4**.**

Let $\widetilde{R}^{-}(q,\nu)$ be the ratio between the area under the curve $\widetilde{\mathcal{C}}^{-}$ and the rectangle $[q,1]\times[0,q]\subset[0,1]^{2}$. Then $\widetilde{R}^{-}(q,\nu)$ is given by

[TABLE]

In an analogous fashion, the ratio above the line $\widetilde{\mathcal{C}}^{+}$ is denoted by $\widetilde{R}^{+}(q,\nu)$ and is equal to $\widetilde{R}^{-}(q,\nu)$ by symmetry.

Proof.

The numerator of $\widetilde{R}^{-}$ is given by the area of the triangle or trapezoid given by the previous Lemma D.3, that is, respectively $A(T^{-})$ or $A(Q^{-})$. The denominator, instead, is simply the area of the rectangle $[q,1]\times[0,q]$ in $\mathbb{R}^{2}$. ∎

The behavior of $\widetilde{R}(q,\nu)$, as a function of the parameters $q$ and $\nu$, is described by the following result.

LEMMA D.5** (Comparative statics on the approximated ratio $\widetilde{R}(q,\nu)$).**

Consider $\widetilde{R}^{-}(q,\nu)$ defined above. It is bounded in $[0,1]$ and its sections $q\mapsto\widetilde{R}^{-}(q,\nu)$ are increasing for all $\nu\in(0,1)$, whereas $\nu\mapsto\widetilde{R}^{-}(q,\nu)$ are decreasing for all $q\in(0,1)$. Furthermore, whenever defined, its derivatives are:

[TABLE]

Proof.

The computation of the derivatives follows directly from the formulas defining $\widetilde{R}^{-}$ in the previous Lemma. Moreover, it is straightforward to check that the denominator is always greater than the numerator, thus guaranteeing that $\widetilde{R}^{-}(q,\nu)\leq 1$. ∎

Remark**.**

Given $q$ and $\nu$, $R^{-}(q,\nu)$ just represents the part of the basin of attraction of $(0,0)$ within the rectangle $[q,1]\times[0,q]$. So, the exact total area of the basin of attraction of $(0,0)$ is readily computed as: $2\cdot R^{-}(q,\nu)+q^{2}$. Analogously for its approximation obtained with $\widetilde{R}^{-}$. These areas (and their differences) are shown in Figure 13.
