Valley-Polarized Quantum Transport Generated by Gauge Fields in Graphene

TL;DR

This paper demonstrates how combining strain-induced gauge fields and magnetic fields in graphene can produce simultaneous valley-polarized transport and quantum valley Hall effects, revealing new control over valley-dependent electronic properties.

Contribution

It introduces a novel method to generate and control valley-polarized currents in graphene using superimposed gauge fields and magnetic fields, with robust theoretical and computational analysis.

Findings

Observation of a $e^2/h$ Hall conductivity plateau indicating valley polarization.

Demonstration of coexistence of dissipative and quantum valley Hall effects.

Results are robust against disorder effects.

Abstract

We report on the possibility to simultaneously generate in graphene a {\it bulk valley-polarized dissipative transport} and a {\it quantum valley Hall effect} by combining strain-induced gauge fields and real magnetic fields. Such unique phenomenon results from a resonance/anti-resonance effect driven by the superposition/cancellation of superimposed gauge fields which differently affect time reversal symmetry. The onset of a valley-polarized Hall current concomitant to a dissipative valley-polarized current flow in the opposite valley is revealed by a $e^2/h$ Hall conductivity plateau. We employ efficient linear scaling Kubo transport methods combined with a valley projection scheme to access valley-dependent conductivities and show that the results are robust against disorder.

Figures

Equations

$${\sigma }_{\alpha \beta }$$

$$\displaystyle-v_{\alpha}\frac{dG^{a}(\epsilon)}{d\epsilon}v_{\beta}\delta(\epsilon-H)\big{]},$$

$${\sigma }_{\alpha \beta }$$

$${\mu }_{nm}^{\alpha \beta }$$

$$v_{\beta }^v\equiv P_{\mathbf{K}}{v}_{\beta }{P}_{\mathbf{K}}-P_{{\mathbf{K}}^{\prime }}{v}_{\beta }{P}_{{\mathbf{K}}^{\prime }}$$

$$\mu_{nm}^{\alpha\beta(v)}=\frac{g_{n}g_{m}}{(1+\delta_{n,0})(1+\delta_{m,0})}\mathrm{Tr}\big{[}T_{n}(\tilde{H})v_{\alpha}T_{m}(\tilde{H})v_{\beta}^{v}\big{]}.$$

Full text

In graphene and other two-dimensional materials, degenerate valleys of energy bands, well-separated in momentum space, constitute a discrete degree of freedom for low-energy carriers, provided intervalley mixing is negligible (case of long range disorder). Such valley degree of freedom can then be seen as a non-volatile information carrier, provided that it can be coupled to external probes. Similarly to research in graphene spintronics Han et al. (2014); Roche et al. (2015), valleytronics and controlling the valley degree of freedom in graphene and other 2D materials has attracted a considerable attention Lee et al. (2016); Lensky et al. (2015); Shimazaki et al. (2015), and many studies have investigated different options to realize valley polarized current or to filter electrons with a given valley polarization Rycerz et al. (2007); Xiao et al. (2007); Zhang et al. (2008); Wakabayashi and Aoki (2002); Gunlycke and White (2011); Wu et al. (2011); Settnes et al. (2016a). In presence of broken inversion symmetry, the valley index is also predicted to play a similar role as the spin degree of freedom in phenomena such as Hall transport, magnetization, optical transition selection rules, and chiral edge modes Lu et al. (2010); Yao et al. (2009); Cheng et al. (2008); Liu et al. (2010). Recently, it has been shown that for modest levels of strain, graphene can also sustain a classical valley Hall effect that can be detected in nonlocal transport measurements Zhang et al. (2017a). All this stimulates the search for efficient control of valley dynamics by magnetic, electric, and optical means, which would form the basis of valley based information processing.

On the other hand, it was soon realized that non-uniformly strained graphene can be modeled by the inclusion of a gauge field in the effective Hamiltonian (though it is not Berry-like). Such gauge field preserves time reversal symmetry, but induces pseudomagnetic fields (PMFs) of opposite signs in the two valleys forming the low-energy electronic bandstructure Fujita et al. (2011). In particular, mechanical deformations aligned along three main crystallographic directions were predicted to generate strong gauge fields, acting effectively as an uniform magnetic field, opening the possibility to trigger a pseudomagnetic quantum Hall effect for strained superlattices Guinea et al. (2009). Experimentally, evidences of PMFs with values varying from few tens up to hundreds of Tesla have been reported Levy et al. (2010); Lu et al. (2012). Finally, Gorbachev and coworkers recently measured intriguingly large nonlocal resistance signals in a situation where the alignment of a graphene monolayer onto a h-BN substrate results in a bandgap opening Gorbachev et al. (2014). Their interpretation proposes that the formation of bulk topological valley currents is intertwined with the presence of a Berry curvature generated by the mass term Song et al. (2015), a scenario which is under questioning Kirczenow (2015); Cresti et al. (2016). Accordingly to date, despite the wealth of theoretical proposals of valley dependent effects Fujita et al. (2010); Zhai et al. (2010, 2011); Song et al. (2013); Myoung and Ihm (2014); Garcia-Pomar et al. (2008); Pereira Jr et al. (2008); Hsieh and Chu (2016); Abergel and Chakraborty (2009); da Costa et al. (2015); Péterfalvi et al. (2012); Pratley and Zülicke (2014); Milovanović and Peeters (2016); Carrillo-Bastos et al. (2016); Jiang et al. (2013), experimental fingerprints of PMF on quantum transport and unambiguous demonstration of a valley Hall effect in graphene remain elusive.

Here, we predict that once the electronic structure of Dirac fermions embeds a strain-related gauge field, it is possible to fine-tune the superposition of an external real magnetic field to reach a resonant effect, where the sum of valley-dependent effective magnetic fields either sum up or cancel each other. This results in a remarkable valley-polarized quantum transport regime, exhibiting simultaneously a quantum valley Hall effect (QVHE) and a valley-polarized dissipative transport regime. To achieve such results, we use a tight-binding framework together with an efficient linear scaling quantum transport methodology and a novel valley projection scheme which gives access to valley-dependent quantum transport quantities, even in presence of disorder.

Methodology.— We employ a first nearest neighbor tight-binding (TB) model where strain is included through a modification of the hopping parameters while the external magnetic field is added using a standard Peierls substitution Pereira et al. (2009). In the Dirac approximation the strain is described by a gauge field $\pm\bm{A}_{\rm S}$, where $\pm$ denote the two valleys. Such gauge field is related to the strain tensor $\epsilon_{ij}$ through \bm{A}_{\rm S}\propto\big{(}\epsilon_{xx}-\epsilon_{yy},-2\epsilon_{xy}\big{)} Guinea et al. (2009); Vozmediano et al. (2010); Fujita et al. (2011), and the pseudomagnetic field becomes $B_{\rm S}=\bm{\nabla}\times\bm{A}_{\rm S}$. From this, it is straightforward to show that a triaxial deformation \bm{u}(x,y)=u_{0}\big{(}2xy,x^{2}-y^{2}\big{)} induces a constant PMF. Uniaxial tensile strain have also been shown to generate constant PMF Zhu et al. (2015). In the presented calculations, we use a 100 nm $\times$ 100 nm graphene sample ($\sim 4\times 10^{5}$ atoms) with a maximum strain of $\Delta_{m}\approx 8\%$ corresponding to a PMF of 50 T. The maximum strain is obtained along the edge of the sample, so all results can be rescaled, and for instance keeping $\Delta_{m}=8$ %, we find a PMF of 5 T for a sample of approximately 1 $\mu$m. The sample choice also implies that not all part of the sample experience a uniform PMF. This happens along the edge of the samples where non-uniform PMF will act as scattering centers that can mix valleys. The presented results are robust against this type of valley mixing as we considering a bulk effect happening in the part of the sample with a constant PMF. The results remain qualitatively unchanged as long as a sufficiently large part of the sample experience a uniform field.

The valley related physics can be investigated either using the Dirac’s equation Ando (2015); Cresti et al. (2016); Zhang et al. (2017b) or by performing non-local transport calculations using the Landauer-Büttiker formalism in Hall bar geometries Kirczenow (2015); Cresti et al. (2016). The former can be cumbersome for arbitrary types of disorder, while the later becomes computationally prohibitive for large scale systems. Here, the use of a real space TB method gives access to simulations of very large scale disorder systems (with up to several ten millions of atoms), accounting for disorder-induced valley mixing and other distortions of the Fermi surface Mañes et al. (2013); Masir et al. (2013); Pellegrino et al. (2011). To compute the valley conductivity tensor, we develop an efficient real-space quantum transport method using the Kubo-Bastin formula Ando (2015); Bastin et al. (1971); Crépieux and Bruno (2001)

[TABLE]

where $\Omega$ is the area of the sample, $f(\epsilon)$ is the Fermi-Dirac distribution, $v_{\alpha}$ is the $\alpha$ component of the velocity and $G^{r/a}(\epsilon)=(\epsilon-H\pm\mathrm{i}\eta)^{-1}$ are the advanced/retarded Green’s functions. The Kubo-Bastin formula can be computed efficiently by expanding $\delta(\epsilon-H)$ and $G^{r/a}(\epsilon)=(\epsilon-H\pm\mathrm{i}\eta)^{-1}$ in terms of Chebyshev polynomials Silver and Röder (1997); Weiße et al. (2006); García et al. (2015); Cresti et al. (2016). As shown in Ref. García et al. (2015), the conductivity becomes

[TABLE]

where $\Delta E=E_{\rm max}-E_{\rm min}$ is the range of the energy spectrum, $\Gamma_{mn}(\tilde{\epsilon})$ is an energy dependent function given by $(\tilde{\epsilon}-\mathrm{i}n\sqrt{1-\tilde{\epsilon}^{2}})\mathrm{e}^{\mathrm{i}n\arccos(\tilde{\epsilon})}T_{m}(\tilde{\epsilon})$  $+(\tilde{\epsilon}+\mathrm{i}m\sqrt{1-\tilde{\epsilon}^{2}})\mathrm{e}^{-\mathrm{i}m\arccos(\tilde{\epsilon})}T_{n}(\tilde{\epsilon})$, and $\mu_{nm}^{\alpha\beta}$ are the Chebyshev expansion moments

[TABLE]

Here $T_{n}(x)$ are the Chebyshev polynomials defined through the recurrence relation $T_{n+1}(x)=2xT_{n}(x)-T_{n-1}(x)$, with $T_{0}(x)=1$ and $T_{1}(x)=x$. $\tilde{H}$ and $\tilde{\varepsilon}$ are the rescaled Hamiltonian and energies so that the energy spectrum lies within the interval $[-1,1]$.The factor $g_{n}$ is known as the Jackson kernel and is incorporated to dampen the Gibbs oscillations emerging from the truncation of the expansion in Eq. (2) Weiße et al. (2006). The trace in Eq. (3), is efficiently calculated using the stochastic average scheme presented in Weiße et al. (2006); Drabold and Sankey (1993); Iitaka and Ebisuzaki (2004).

The expression in Eq. (2) has been used for computing the spin Hall conductivity Garcia and Rappoport (2016); Cresti et al. (2016) but is more general and can be applied to any type of current induced by an external electric field. We here extend the use of Eq. (2) to compute the valley conductivity tensor by introducing the valley-velocity operator $v_{\beta}^{v}$ defined as

[TABLE]

where $P_{\bm{K}}(P_{\bm{K}^{\prime}})$ is the valley projection operator onto the $\bm{K}$($\bm{K}^{\prime}$) valley, defined as $P_{\bm{K}}=\sum_{\bm{q}}w_{\bm{q}}|\bm{q}\rangle\langle\bm{q}|$ where the sum runs over the Brillouin zone. The weight $w_{\bm{q}}$, enforcing a projection to a single valley, is given by $w_{\bm{q}}=\Theta(|\bm{q}-\bm{K}|<q_{c})$, where $q_{c}$ is a cutoff that can be conveniently chosen between $\bm{K}$ and $\bm{K}^{\prime}$ e.g. $q_{c}=\pi/(3\sqrt{3}a_{0})$. Applying the operator $P_{\bm{K}}$ to a real space vector corresponds to Fourier transforming it on a Monkhorst-Pack k-grid while keeping only coefficients satisfying the condition $|\bm{q}-\bm{K}|<q_{c}$. To use the resulting vector in a real space basis, the inverse Fourier transfor is further applied. This operation is $\mathcal{O}(N\log(N))$, which is much more efficient than the $\mathcal{O}(N^{3})$ exact evaluation of the non-sparse matrix $P_{\bm{K}}$. Finally, the valley conductivity tensor is obtained by modifying the Chebyshev expansion moments $\mu_{nm}^{\alpha\beta}\rightarrow\mu_{nm}^{\alpha\beta(v)}$ , where

[TABLE]

This definition of the valley-velocity operator in a system with decoupled valleys, matches the definition given in Ref. Ando (2015) in the continuous limit, and takes into account all the contributions of intravalley and intervalley scattering to the conductivity through the full Hamiltonian.

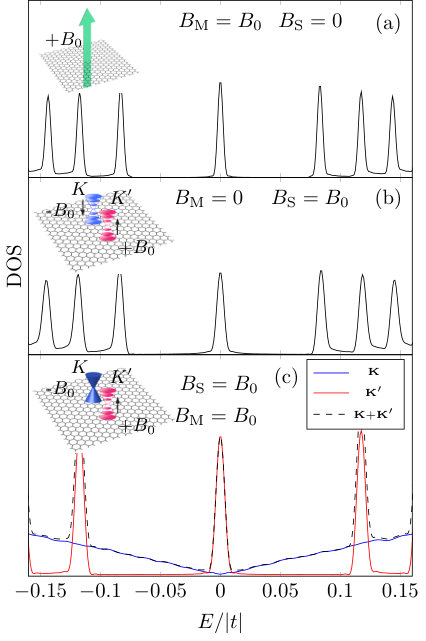

Density of states.— Fig. 1 gives the density of states (DoS) for three different cases. The presence of an external magnetic field is described by a gauge vector potential $\bm{A}_{\rm M}$ identical for the two valleys and producing the standard Landau quantization in graphene Goerbig (2011) (Fig. 1(a)). The DoS for the strained graphene structure, in absence of external field is shown in Fig. 1(b). Here the PMF (related to $\bm{A}_{\rm S}$) has opposite orientation in the two valleys, ensuring the overall time-reversal symmetry Vozmediano et al. (2010); Low and Guinea (2010); Qi et al. (2013). At last, we combine both an external magnetic field and a strain-induced PMF. We choose the external magnetic field to be equal to the PMF, $B_{\rm S}=B_{\rm M}=B_{0}$. This induces a valley anisotropy since the effective vector potential becomes $\bm{A}_{\rm M}\pm\bm{A}_{\rm S}$, depending on the valley. In Fig. 1c, the Landau quantization in valley $K^{\prime}$ corresponds to a B-field of $2B_{0}$, instead of $B_{0}$ as expected Morpurgo and Guinea (2006). The DoS in the opposite valley is half that of pristine graphene. Since the PMF also gives rise to a pronounced sublattice polarization Settnes et al. (2015); Schneider et al. (2015); Neek-Amal et al. (2013); Settnes et al. (2016b); Georgi et al. (2017), a special state is created for the zeroth Landau level. This state is both valley and sublattice polarized, meaning that only one sublattice and one valley contributes to the density of states.

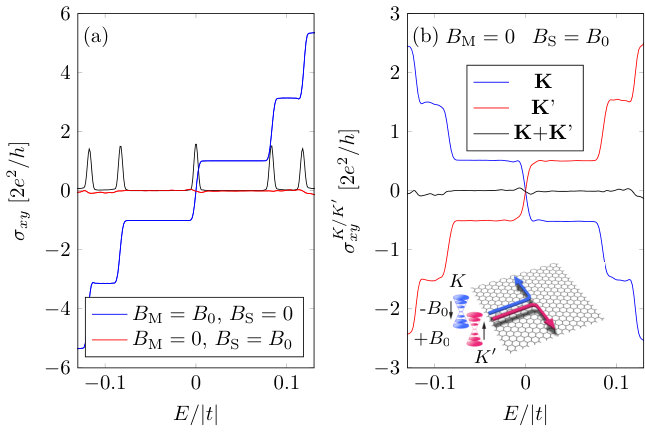

Conductivity and valley Hall effect.— The Hall conductivity $\sigma_{xy}$ in the presence of an external magnetic field (blue curve) and a strain-induced PMF (red curve) is analyzed in Fig. 2a. The external magnetic field gives rise to the quantum Hall effect exhibiting the standard $2e^{2}/h$ plateau. Differently, $\sigma_{xy}$ for the strained graphene reveals a remarkable difference since the PMF does not give rise to any Hall signal, i.e.  $\sigma_{xy}\approx 0$. However, the valley resolved calculation (Fig. 2b), shows that even though the PMF keeps the overall time reversal symmetry, it breaks the time reversal invariance in the individual valleys. Consequently, the PMF gives rise to a QVHE with opposite sign of $\sigma_{xy}^{K/K^{\prime}}$ in the two valleys such that the total charge Hall current $\sigma_{xy}=\sigma_{xy}^{K}+\sigma_{xy}^{K^{\prime}}$ is zero. In conclusion the electronic system does not experience a zero B-field charge Hall effect, but instead a quantum valley Hall effect reminiscent of the quantum spin Hall effect Bernevig and Zhang (2006); Kane and Mele (2005). The Hall plateaus of height $e^{2}/h$ are halved compared to the usual quantum Hall regime (see Fig. 2a) because only one valley is involved. Such QVHE originates from the splitting of an incoming current into the two different valleys originally moving in the same direction (see inset of Fig. 2b). This spatial valley splitting could be explored experimentally in non-local transport measurements. Indeed, this situation, first proposed in Guinea et al. (2009) appears similar, although of different origin, to the theoretical picture introduced in Ref. Gorbachev et al. (2014); Song et al. (2015).

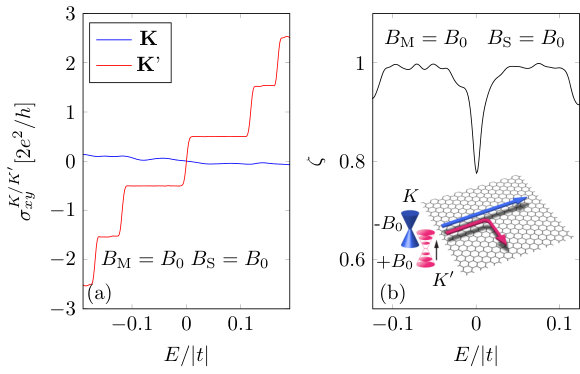

Here, to obtain a non-zero charge Hall signal, $\sigma_{xy}=\sigma_{xy}^{K}+\sigma_{xy}^{K^{\prime}}$, we apply an external magnetic field to the strained graphene sample. When both gauge fields match in amplitude, they cancel in one valley recovering the clean Dirac cone. The opposite valley gets a doubling of the effective magnetic strength, although the superimposed gauge fields have completely different origin. Fig. 3 shows the formation of the QVHE for the valley with enhanced gauge field, with quantization steps of $e^{2}/h$ for $\sigma_{xy}^{K^{\prime}}$, whereas $\sigma_{xy}^{K}=0$ exhibits no Hall signal. Effectively only one valley is deflected in this scenario, yielding a valley polarized charge Hall signal. In the ”pristine” valley, we get a normal diffusive current in the longitudinal direction. Consequently, the quantized valley-polarized Hall current is accompanied by a valley polarized diffusive transport in the longitudinal direction for energies in-between the Landau quantization (see inset of Fig. 3b). The valley polarization is $\zeta=(\sigma_{xx}^{K}-\sigma_{xx}^{K^{\prime}})/(\sigma_{xx}^{K}+\sigma_{xx}^{K^{\prime}})\approx 1$ for the longitudinal current at energies in-between the Landau levels, but is reduced at the Landau levels where both valleys has a non-zero longitudinal contribution (see Fig. 3b).

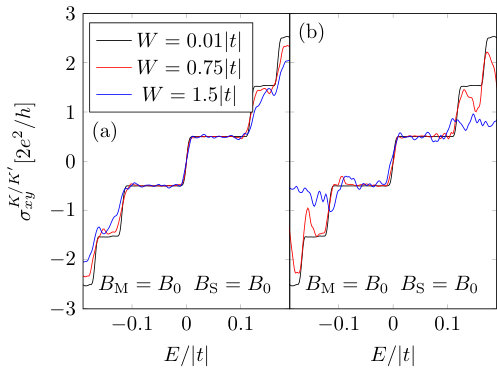

Disorder.— Finally, we study how disorder affects the valley polarized quantum transport regime. Short range Anderson disorder is described by onsite energies $\epsilon_{i}$ chosen randomly within $[-W/2,W/2]$, whereas long range disorder is modelled by Gaussian impurities at positions $\bm{r}_{n}$ with a concentration of 0.1, V_{n}=\sum_{i}\epsilon_{i}\exp\big{(}-|\bm{r}_{n}-\bm{r}_{i}|^{2}/(2\xi^{2})\big{)} with $\epsilon_{i}\in[-W/2,W/2]$ and $\xi=5a_{0}$ Roche et al. (2012). Fig. 4 shows $\sigma_{xy}^{K^{\prime}}$ in the presence of both gauge fields and types of disorder. Long range disorder, which is not expected to induce significant valley mixing, only causes minor perturbations to the QVHE associated with the strain-induced PMF. Conversely, short range disorder is expected to produce large intervalley scattering Castro Neto et al. (2009), which should strongly damage the quantization of Hall plateaus. However, surprisingly, the first plateau remains quite robust against a significant amount of disorder, whereas the higher order plateaus disappear for smaller disorder strengths. This is a manifestation of the special nature of the $n=0$ pseudo-Landau level Neek-Amal et al. (2013); Settnes et al. (2016b, c). It experiences a complete sublattice polarization with both valleys localized on one sublattice, meaning that perturbations made to one sublattice does not provoke the same valley mixing effect as perturbations made to the other. Consequently, the special nature of the $n=0$ pseudo-Landau level makes the QVHE even more robust to valley mixing.

Conclusion.— The combination of strain-induced gauge and external magnetic fields results in a remarkable “resonance” phenomenon in which the total gauge disappears in one valley and doubles in the other. This is reflected in the charge Hall signal which becomes fully valley-polarized with a $e^{2}/h$ plateau instead of the standard $2e^{2}/h$. Simultaneously, the dissipative transport coefficient is dominated by a valley-polarized contribution. The results therefore offer an experimental smoking gun for a fully realized valley-polarized quantum transport regime.
