Trace Diagrams and Biquandle Brackets

TL;DR

This paper introduces trace diagrams as a new method for computing biquandle brackets of knots and links, establishing algebraic conditions for moves and a skein relation, advancing knot invariant calculations.

Contribution

It presents a novel approach using decorated trivalent graphs for biquandle brackets and identifies key algebraic conditions for diagram manipulations.

Findings

Biquandle brackets satisfy a Homflypt-style skein relation for monochromatic crossings.

Algebraic conditions are identified for moving strands over and under traces.

A new stop condition for recursive expansion of trace diagrams is proposed.

Abstract

We introduce a method of computing biquandle brackets of oriented knots and links using a type of decorated trivalent spatial graphs we call trace diagrams. We identify algebraic conditions on the biquandle bracket coefficients for moving strands over and under traces and identify a new stop condition for the recursive expansion. In the case of monochromatic crossings we show that biquandle brackets satisfy a Homflypt-style skein relation and we identify algebraic conditions on the biquandle bracket coefficients to allow pass-through trace moves.

Figures

Equations

$${\alpha }_x(y)=y\overline{▹}x,{\beta }_x(y)=y\underline{▹}x\mathrm{and}S(x,y)=(y\overline{▹}x,x\underline{▹}y)$$

$$\begin{array}[]{rcl}(x\,\underline{\triangleright}\,y)\,\underline{\triangleright}\,(z\,\underline{\triangleright}\,y)&=&(x\,\underline{\triangleright}\,z)\,\underline{\triangleright}\,(y\,\overline{\triangleright}\,z)\\ (x\,\underline{\triangleright}\,y)\,\overline{\triangleright}\,(z\,\underline{\triangleright}\,y)&=&(x\,\overline{\triangleright}\,z)\,\underline{\triangleright}\,(y\,\overline{\triangleright}\,z)\\ (x\,\overline{\triangleright}\,y)\,\overline{\triangleright}\,(z\,\overline{\triangleright}\,y)&=&(x\,\overline{\triangleright}\,z)\,\overline{\triangleright}\,(y\,\underline{\triangleright}\,z).\end{array}$$

$$x^y=tx+(s-t)y\mathrm{and}{x}_y=sx.$$

$$x^y=x+y\mathrm{and}{x}_y=2x$$

$$\begin{array}[]{rcl}2x&=&u\\ x+y&=&w\\ 2y&=&v\\ y+z&=&u\\ 2z&=&w\\ x+z&=&v\end{array}$$

$$\left[\begin{array}[]{rrrrrr}2&0&0&2&0&0\\ 1&1&0&0&0&2\\ 0&2&0&0&2&0\\ 0&1&1&2&0&0\\ 0&0&2&0&0&2\\ 1&0&1&0&2&0\end{array}\right]\stackrel{{\scriptstyle\mathrm{row-equiv.\ over\ }\mathbb{Z}_{3}}}{{\longleftrightarrow}}\left[\begin{array}[]{rrrrrr}1&0&0&0&2&2\\ 0&1&0&0&1&0\\ 0&0&1&0&0&1\\ 0&0&0&1&1&1\\ 0&0&0&0&0&0\\ 0&0&0&0&0&0\\ \end{array}\right]$$

$$f(x\underline{▹}{x}^{\prime })=f(x)\underline{▹}f(x^{\prime })\mathrm{and}f(x\underline{▹}{x}^{\prime })=f(x)\overline{▹}f(x^{\prime })$$

$$\begin{array}[]{rcl}A_{x,y}A_{y,z}A_{x^{y},z_{y}}&=&A_{x,z}A_{y_{x},z_{x}}A_{x^{z},y^{z}}\\ A_{x,y}B_{y,z}B_{x^{y},z_{y}}&=&B_{x,z}B_{y_{x},z_{x}}A_{x^{z},y^{z}}\\ B_{x,y}A_{y,z}B_{x^{y},z_{y}}&=&B_{x,z}A_{y_{x},z_{x}}B_{x^{z},y^{z}}\\ A_{x,y}A_{y,z}B_{x^{y},z_{y}}&=&A_{x,z}B_{y_{x},z_{x}}A_{x^{z},y^{z}}+A_{x,z}A_{y_{x},z_{x}}B_{x^{z},y^{z}}\\ &&+\delta A_{x,z}B_{y_{x},z_{x}}B_{x^{z},y^{z}}+B_{x,z}B_{y_{x},z_{x}}B_{x^{z},y^{z}}\\ B_{x,y}A_{y,z}A_{x^{y},z_{y}}+A_{x,y}B_{y,z}A_{x^{y},z_{y}}&&\\ +\delta B_{x,y}B_{y,z}A_{x^{y},z_{y}}+B_{x,y}B_{y,z}B_{x^{y},z_{y}}&=&B_{x,z}A_{y_{x},z_{x}}A_{x^{z},y^{z}}.\\ \end{array}$$

$$\beta (L_f)=w^{n-p}\sum _{\mathrm{states}}\left(\left(\prod _{\mathrm{smoothings}}{C}_j\right)\left(\prod _{\mathrm{components}}\delta \right)\right).$$

$$\left[\begin{array}[]{rr|rr}1&6&2&5\\ 4&1&1&2\end{array}\right]$$

$$\displaystyle\beta\left(\raisebox{-28.90755pt}{\includegraphics{sn-no1-15.pdf}}\right)$$

$$\displaystyle\beta\left(\raisebox{-28.90755pt}{\includegraphics{sn-no1-16.pdf}}\right)$$

$$\displaystyle\beta\left(\raisebox{-28.90755pt}{\includegraphics{sn-no1-17.pdf}}\right)$$

$$\displaystyle\beta\left(\raisebox{-28.90755pt}{\includegraphics{sn-no1-18.pdf}}\right)$$

$$A_{x,y}=A_{x^z,y^z}\mathrm{and}{A}_{y,z}{B}_{x^y,z_y}=B_{x,z}{A}_{y_x,z_x}=A_{x,z}{B}_{y_x,z_x}=B_{y,z}{A}_{x^y,z_y}.$$

$$A_{y,z}=A_{y_x,z_x}\mathrm{and}{A}_{x,y}{B}_{x^y,z_y}=B_{x,z}{A}_{x^z,y^z}=A_{x,z}{B}_{x^z,y^z}=B_{x,y}{A}_{x^y,z_y}.$$

$$\text{scalebox}0.95\text{includegraphics}.$$

$$\begin{array}[]{rcll}A_{x,y}A_{x^{y},z_{y}}&=&A_{x,z}A_{x^{z},y^{z}}&(i)\\ A_{x,y}B_{x^{y},z_{y}}&=&A_{x,z}B_{x^{z},y^{z}}&(ii)\\ B_{x,y}A_{x^{y},z_{y}}&=&B_{x,z}A_{x^{z},y^{z}}&(iii)\ \ \mathrm{and}\\ B_{x,y}B_{x^{y},z_{y}}&=&B_{x,z}B_{x^{z},y^{z}}&(iv).\end{array}$$

$$A_{x,y}{A}_{y,z}{B}_{x^y,z_y}=A_{x,z}{B}_{y_x,z_x}{A}_{x^z,y^z}+A_{x,z}{A}_{y_x,z_x}{B}_{x^z,y^z}+\delta A_{x,z}{B}_{y_x,z_x}{B}_{x^z,y^z}+B_{x,z}{B}_{y_x,z_x}{B}_{x^z,y^z}.$$

$$-\delta A_{x,z}{B}_{y_x,z_x}{B}_{x^z,y^z}=A_{x,z}{B}_{y_x,z_x}{A}_{x^z,y^z}+B_{x,z}{B}_{y_x,z_x}{B}_{x^z,y^z}.$$

$$-\delta A_{x,z}{B}_{x^z,y^z}=A_{x,z}{A}_{x^z,y^z}+B_{x,z}{B}_{x^z,y^z}.$$

$$B_{x,z}{B}_{x^z,y^z}+B_{x,z}^{-1}{A}_{x,z}^2{B}_{x^z,y^z}=A_{x,z}{A}_{x^z,y^z}+B_{x,z}{B}_{x^z,y^z}$$

$$B_{x,z}^{-1}{A}_{x,z}^2{B}_{x^z,y^z}=A_{x,z}{A}_{x^z,y^z}$$

$$A_{x,z}{B}_{x^z,y^z}=B_{x,z}{A}_{x^z,y^z}.$$

$$A_{y,z}=A_{y_x,z_x}$$

$$A_{x,y}{B}_{x^y,z_y}=B_{x,z}{A}_{x^z,y^z}=A_{x,z}{B}_{x^z,y^z}=B_{x,y}{A}_{x^y,z_y}.$$

$$\text{scalebox}0.95\text{includegraphics}.$$

$$A_{x,y}{B}_{x^y,z_y}$$

$$0$$

$$(A_{x,y}{B}_{x,y}^{-1}+A_{x,y}^{-1}{B}_{x,y})B_{x,y}{A}_{x^y,z_y}$$

$$A_{x,y}{A}_{x^y,z_y}+A_{x,y}^{-1}{B}_{x,y}^2{A}_{x^y,z_y}$$

$$A_{x,y}^{-1}{B}_{x,y}^2{A}_{x^y,z_y}$$

$$B_{x,y}{A}_{x^y,z_y}$$

Full text

Keywords: Quantum enhancements, biquandles, biquandle counting invariants, biquandle brackets, trace diagrams

2010 MSC: 57M27, 57M25

1 Introduction

Biquandles are a type of algebraic structure with axioms motivated by the Reidemeister moves in knot theory. More precisely, a biquandle is a set with two operations with axioms chosen so that the number of biquandle colorings or assignments of biquandle elements to the semiarcs in an oriented knot or link diagram satisfying certain conditions at crossings is the same for all diagrams of the given knot or link, thus defining a nonnegative integer-valued invariant of knots and links known as the biquandle counting invariant $\Phi_{X}^{\mathbb{Z}}$. An enhancement of the biquandle counting invariant is a stronger invariant $\Phi_{X}^{\phi}$ which specializes to $\Phi_{X}^{\mathbb{Z}}$ in some way, e.g. by taking a cardinality or evaluating at $u=1$, etc. See [2, 3, 7] etc. for more about biquandles.

In [8] a type of enhancement of $\Phi_{X}^{\mathbb{Z}}$ was defined using skein relations with coefficients depending on the biquandle colors at a crossing. This setup poses an obvious objection: smoothings break the biquandle coloring. In [8] this problem is resolved by thinking of the invariant in state-sum form, doing all smoothings simultaneously to obtain states without biquandle colors. Generalizations of biquandle brackets have recently been described in papers such as [9] and [5].

In this paper we describe a method for computing biquandle bracket invariants recursively using a type of decorated trivalent spatial graph diagram called a trace diagram similar to diagrams used in e.g. [1] by defining biquandle colorings for these diagrams. We identify algebraic conditions on the biquandle bracket coefficients which are necessary and sufficient to allow moving strands over, under or through traces. As an application we show that biquandle brackets satisfy a skein relation similar to that of the Homflypt polynomial [4] at monochromatic crossings, and we give an example to illustrate how this can be helpful for faster hand computations of the invariant.

The paper is organized as follows. In Section 2 we review biquandles, biquandle brackets and the biquandle bracket invariant. In Section 3 we introduce trace diagrams, their biquandle colorings and our method for computing biquandle bracket values recursively in terms of trace diagrams. We identify algebraic conditions for a biquandle bracket to admit overcrossing trace moves, undercrossing trace moves or both. In Section 4 we look at the special case of monochromatic crossings, identifying a Homflypt-style skein relation satisfied by all biquandle brackets as well as the algebraic conditions required for a biquandle bracket to admit pass-through trace moves at monochromatic crossings. We conclude in Section 5 with some questions for future work.

2 Biquandles and Biquandle Brackets

In this section we briefly review biquandles and biquandle brackets; see [2, 8] for more.

Definition 1**.**

A biquandle is a set $X$ with operations $\,\underline{\triangleright}\,,\,\overline{\triangleright}\,:X\to X$ satisfying for all $x,y,z\in X$

• (i)

$x\,\underline{\triangleright}\,x=x\,\overline{\triangleright}\,x$,

• (ii)

The maps $\alpha_{x},\beta_{x}:X\to X$ and $S:X\times X\to X\times X$ given by

[TABLE]

are invertible, and

• (iii)

We have the exchange laws

[TABLE]

It is sometimes convenient for the sake of space to write $x\,\underline{\triangleright}\,y$ as $x^{y}$ and $x\,\overline{\triangleright}\,y$ as $x_{y}$.

Example 1**.**

A useful class of biquandles is Alexander biquandles: let $X$ be a module over the two-variable Laurent polynomial ring $\mathbb{Z}[t^{\pm 1},s^{\pm 1}]$ and define

[TABLE]

One easily verifies that the biquandle axioms are satisfied. In particular, if $X=\mathbb{Z}_{n}$ and $s,t\in X$ are coprime to $n$, then $X$ is a linear Alexander biquandle.

The biquandle axioms are chosen so that given a coloring of an oriented link diagram $L$ by a biquandle $X$, i.e., an assignment of elements of $X$ to the semiarcs of $L$ satisfying at every crossing the conditions

[TABLE]

before a Reidemeister move, there is a unique coloring of the diagram after the move which agrees with the pre-move coloring outside the neighborhood of the move. It follows that for a finite biquandle $X$, the number of $X$-colorings of an oriented link diagram is a link invariant. Indeed, it is not just the number of such colorings, but the set of such colorings for any fixed choice of diagram or, equivalently, the set of equivalence classes of colorings of diagrams of $L$, which is an invariant of links. In particular, if $X$ is a finite biquandle, then the set of colorings of a (tame) oriented knot or link is finite and can be computed from a diagram, either by brute force counting or by using the structure of the biquandle where possible.

Example 2**.**

Let us compute the set of colorings of the trefoil knot $3_{1}$

[TABLE]

by the linear Alexander biquandle $X=\mathbb{Z}_{3}$ with $t=1$ and $s=2$. We have biquandle operations

[TABLE]

yielding system of coloring equations over $\mathbb{Z}_{3}$

[TABLE]

so the space of colorings is the kernel of the matrix

[TABLE]

given by $\mathbb{Z}[(1,2,0,2,1,0),(1,0,2,2,0,1)]$. Then $\Phi_{X}^{\mathbb{Z}}(3_{1})=3^{2}=9$.

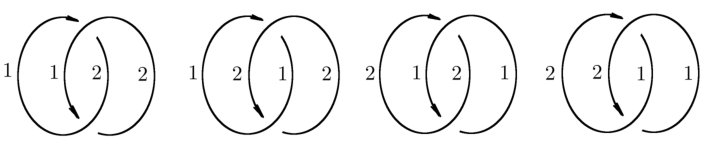

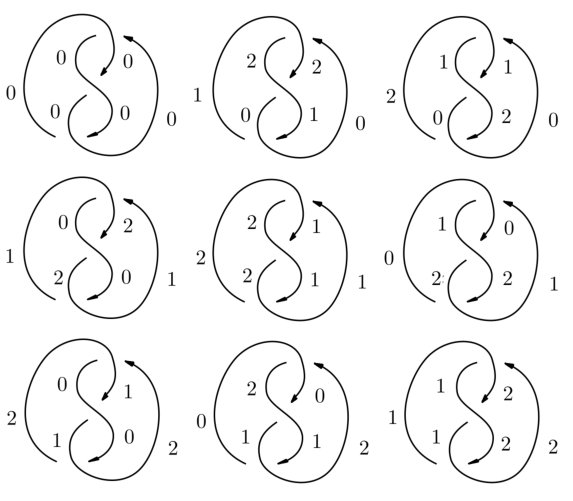

Alternatively, we can compute the set of colorings diagrammatically by checking which assignments of elements of $X$ satisfy the coloring conditions at every crossing.

[TABLE]

Definition 2**.**

A map $f:X\to Y$ between biquandles is a homomorphism if we have

[TABLE]

for all $x,x^{\prime}\in X$.

The set of $X$-colorings of a knot or link diagram $L$ can be identified with the set of biquandle homomorphisms $f:\mathcal{B}(L)\to X$ from the the fundamental biquandle $\mathcal{B}(L)$ of $L$, defined as the biquandle generated by the semiarcs of $L$ modulo the crossing relations of $L$, to the biquandle $X$. In particular, a coloring provides an image $f(x_{j})\in X$ for each generator $x_{j}$ of $\mathcal{B}(L)$, defining a unique homomorphism $f:\mathcal{B}(L)\to X$ if and only if the crossing relations of $L$ are satisfied. Thus, we have $\Phi_{X}^{\mathbb{Z}}(L)=|\mathrm{Hom}(\mathcal{B}(L),X)|$. For more see [2].

Definition 3**.**

Now, let $X$ be a biquandle and $R$ a commutative ring with identity. A biquandle bracket over $R$ is a pair of maps $A,B:X\times X\to R^{\times}$ assigning units $A_{x,y},B_{x,y}\in R$ to pairs of elements $(x,y)\in X\times X$ such that the following conditions are satisfied:

• (i)

For all $x\in X$, the elements $-A_{x,x}^{2}B_{x,x}^{-1}$ are equal, with their common value denoted as $w\in R$;

• (ii)

For all $x,y\in X$, the elements $-A_{x,y}^{-1}B_{x,y}-A_{x,y}B_{x,y}^{-1}$ are equal, with their common value denoted as $\delta$, and

• (iii)

For all $x,y,z\in X$ we have

[TABLE]

We can specify a biquandle bracket with an $n\times 2n$ block matrix $[A|B]$ where the $(i,j)$-entries of $A$ and $B$ respectively are $A_{x_{i},x_{j}}$ and $B_{x_{i},x_{j}}$. See [8] for more.

The biquandle bracket axioms are chosen so that the state-sum expansion of an $X$-colored oriented knot or link diagram $L_{f}$ using the skein relations

[TABLE]

[TABLE]

with $\delta$ the value of a simple closed curve and $w$ the value of a positive crossing

[TABLE]

is invariant under $X$-colored Reidemeister moves. More precisely, for each $X$-coloring $L_{f}$ of an $n$-crossing diagram $L$:

• •

A state of $L_{f}$ is a choice of $C_{j}=A_{xy}$ or $B_{xy}$ smoothing at every crossing $j=1,\dots,n$;

• •

For each state we compute the product of the $C_{j}$s and $\delta$s for each component of the smoothed state, and

• •

Multiply the sum of these over the set of states by the writhe correction factor $w^{n-p}$ where $n,p$ are the number of negative and positive crossings respectively,

• •

Obtaining the state-sum

[TABLE]

Then the multiset of such state-sum values over the set of $X$-colorings is the biquandle bracket multiset invariant of $L$ with respect to the biquandle $X$ and bracket $\beta$, denoted $\Phi_{X}^{\beta,M}(L).$ It is common practice to convert the multiset invariant to a “polynomial” form by writing the elements of the multiset as exponents of a dummy variable $u$ with multiplicities as coefficients, e.g. converting $\{0,0,1,1,1,5\}$ to $2+3u+u^{5}$.

Example 3**.**

Let $X=\{1,2\}$ with $1^{1}=1^{2}=1_{1}=1_{2}=2$ and $2^{1}=2^{2}=2_{1}=2_{2}=1$ and $R=\mathbb{Z}_{7}$. Then one verifies that the matrix

[TABLE]

defines a biquandle bracket with $\delta=-1(2)-1(4)=-6=1$ and $w=-1^{2}4=-4=3$. The Hopf link below has four $X$-colorings

[TABLE]

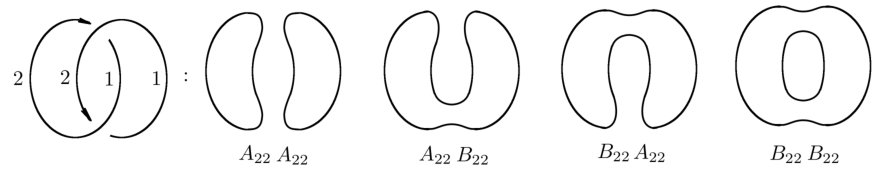

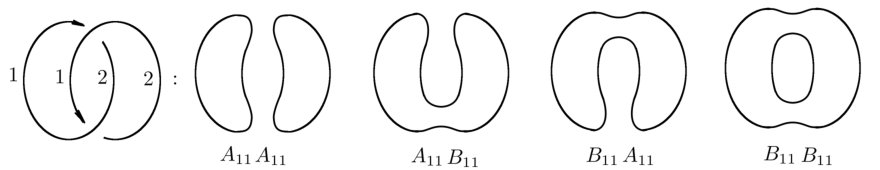

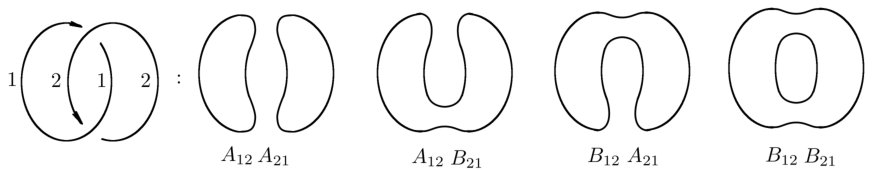

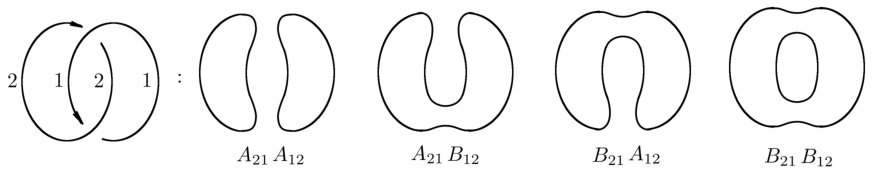

each of which expands to four states with coefficients and state-sums as pictured.

[TABLE]

[TABLE]

[TABLE]

[TABLE]

The the state-sums are

[TABLE]

Then the multiset invariant is $\Phi_{X}^{\beta,M}(L)=\{1,1,3,3\}$ or in polynomial form, $\Phi_{X}^{\beta}(L)=2u+2u^{3}$.

3 Trace Diagrams

In this section we introduce a method for computing this invariant recursively by applying the skein expansion one crossing at a time as opposed to the state-sum method of performing all smoothings simultaneously. To this end we introduce trace diagrams.

Definition 4**.**

A trace diagram is a planar diagram with crossings and signed traces:

• (i)

A crossing is a degree four vertex with pass-through orientation and crossing information, i.e. pairs of edges resolve into an oriented over-crossing strand and an oriented under-crossing strand as depicted:

[TABLE]

• (ii)

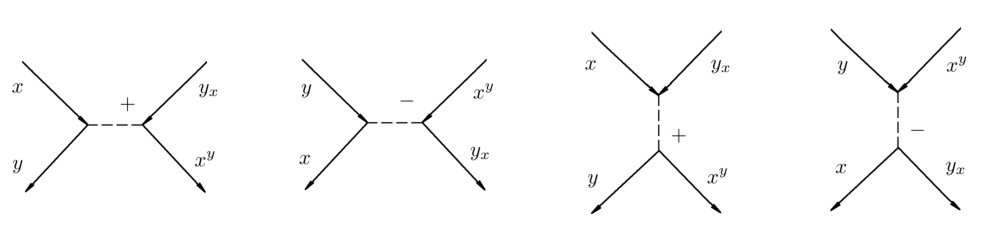

The degree three vertices have two oriented edges and one unoriented dashed edge called a trace, decorated with a $+$ or $-$ sign as depicted; we require that each trace either connects two parallel oriented pass-through vertices or connects a bivalent sink to a bivalent source so that the neighborhood of each trace is as depicted. We will refer to the former as type A traces and the later as type B traces.

[TABLE]

Unsigned trace diagrams have appeared in the literature before, with traces recording the sites of smoothings in the Kauffman bracket expansion of a knot or link. Our general idea is that a trace with a $+$ or $-$ sign respectively will act like a positive or negative crossing respectively for the purposes of biquandle colorings and Reidemeister moves. More precisely, a biquandle coloring of a trace diagram by a biquandle $X$ is an assignment of elements of $X$ to the directed edges in $X$ such that the crossing conditions from section 2 and following conditions at every trace are satisfied:

[TABLE]

Definition 5**.**

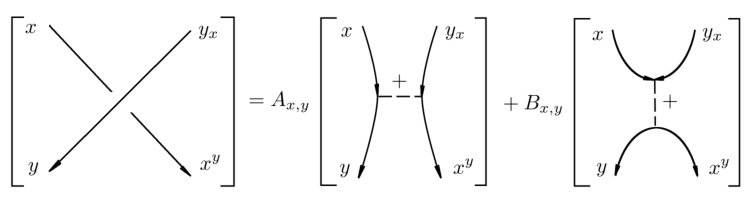

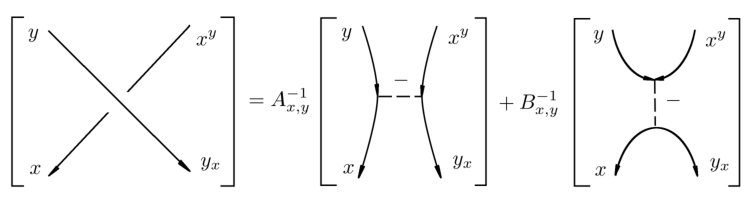

Let $X$ be a finite biquandle, $R$ a commutative ring with identity and $\beta$ an $X$-bracket over $R$. Define a map $[\ ]:\mathcal{L}_{X}\to R$ from the set of $X$-colored oriented trace diagrams $\mathcal{L}_{X}$ to $R$ recursively by the rules

• (i)

[TABLE]

[TABLE]

and

• (ii)

If $D$ is a trace diagram with no crossings, then $[D]=w^{n-p}\delta^{k}$ where $n$ is the number of negative traces, $p$ is the number of positive traces and $k$ is the number of components (i.e., simple closed curves) in the diagram obtained by deleting all the of the traces in $D$.

Observation 1**.**

If $D$ and $D^{\prime}$ are two $X$-colored trace diagrams which

• •

Are identical outside a neighborhood $N$,

• •

Have the same connectivity on the boundary of $N$, i.e., points of $\partial N$ which are connected by strands inside $D$ after traces are deleted are connected inside $D^{\prime}$ after traces are deleted and points of $\partial N$ which are not connected inside $D$ after traces are deleted are not connected inside $D^{\prime}$ after traces are deleted, and

• •

*Have equal contributions of coefficients, *$\delta$*s and *$w$s,

then $[D]=[D^{\prime}]$.

It then follows easily that:

Proposition 1**.**

For any finite biquandle $X$ and $X$-colored oriented link diagram $L_{f}$, the value $[L_{f}]\in R$ is unchanged by Reidemeister moves. In particular, we have $[L_{f}]=\beta(L_{f})$.

Thus, trace diagrams give us a way of doing skein expansion of biquandle bracket invariants recursively like we do with classical skein invariants in a way that preserves the biquandle colorings. However, this is somewhat unsatisfying since the main advantage of the recursive skein expansion is the ability to smooth, then apply Reidemeister moves to simplify the diagram before doing additional smoothings. While we can perform Reidemeister moves on trace diagrams, so far we have only allowed genuine Reidemeister moves not involving traces, i.e., moves we could have already performed prior to smoothing. Hence we ask, what happens when we move a strand of a trace diagram past a trace?

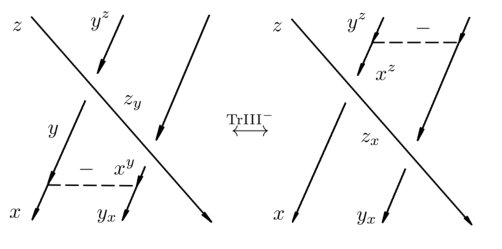

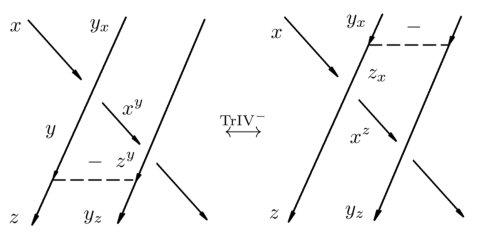

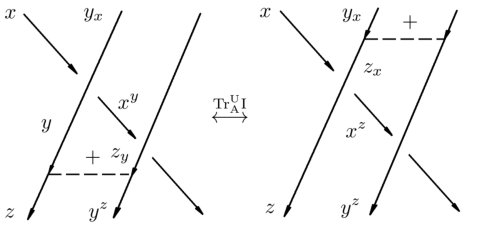

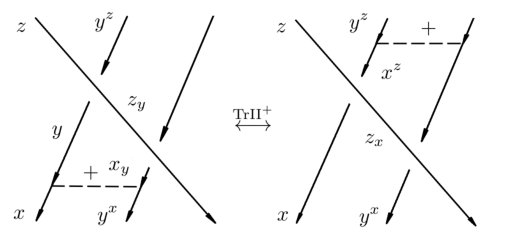

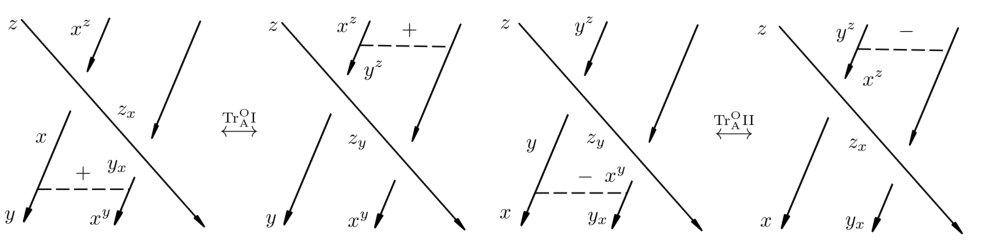

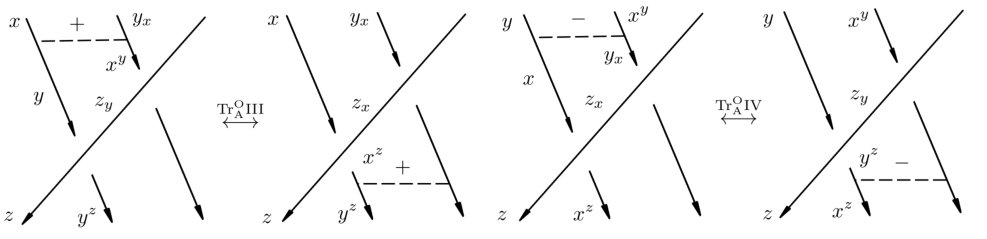

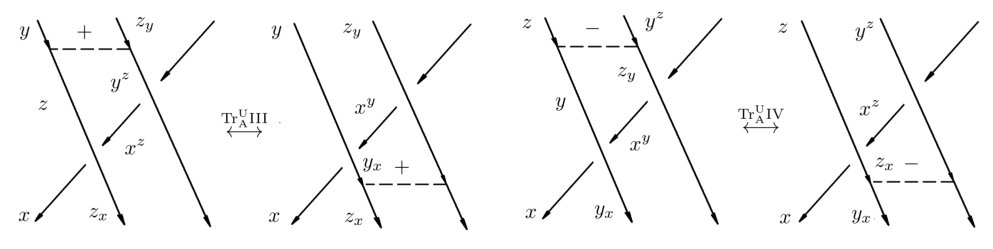

There are 16 possible oriented trace moves, each of which imposes one of two possible sets of conditions on the biquandle bracket coefficients. We note that for each move involving a trace of type A there is a corresponding move obtained by replacing the type A trace with a type B trace.

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

Theorem 2**.**

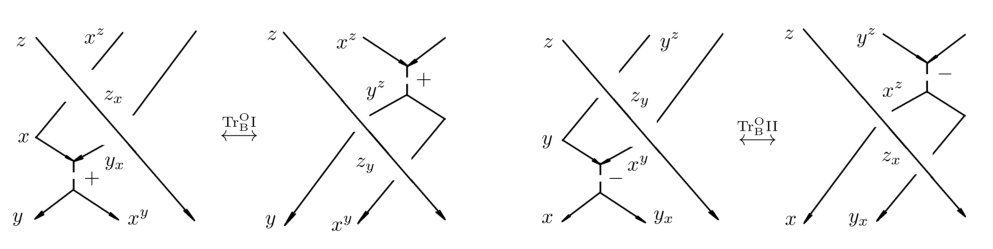

The necessary and sufficient conditions for moving a strand over a trace of type $A$ are the same as those for moving a strand over a trace of type $B$, namely with colors $(x,y,z)$ as depicted above, the coefficients must satisfy the conditions

[TABLE]

The necessary and sufficient conditions for moving a strand under a trace of type $A$ are the same as those for moving a strand under a trace of type $B$, namely with colors $(x,y,z)$ as depicted above, the coefficients must the coefficients satisfy the conditions

[TABLE]

Proof.

We consider the case of undercrossing moves; the overcrossing case is similar. Consider the move $Tr_{A}^{U}I$ with the strands colored as depicted.

[TABLE]

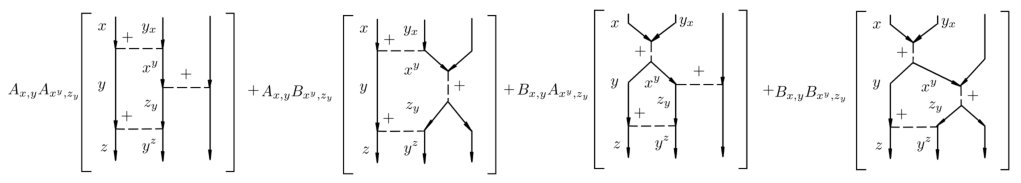

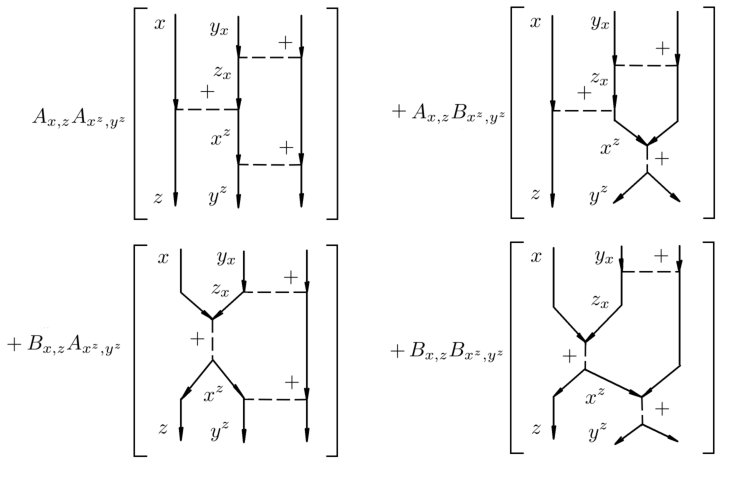

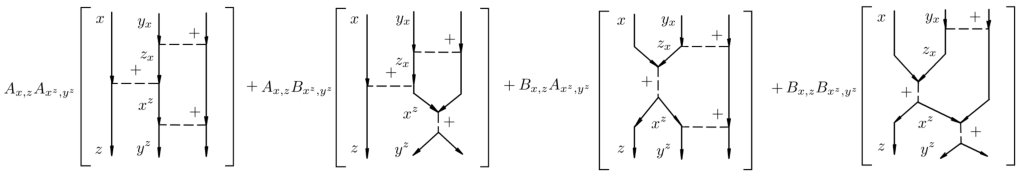

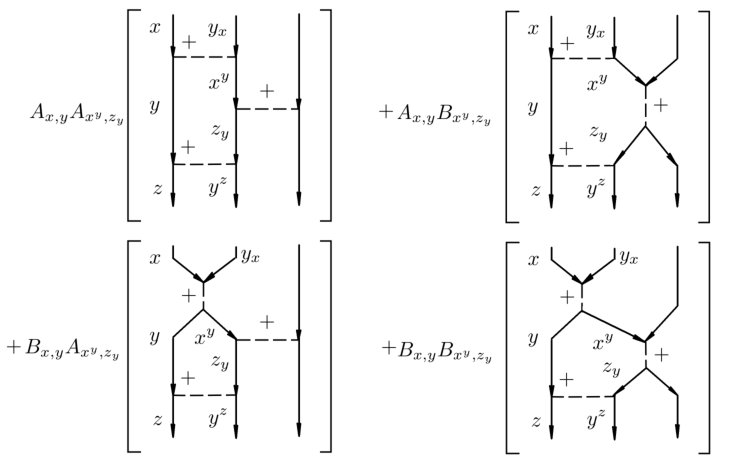

The two sides expand to

[TABLE]

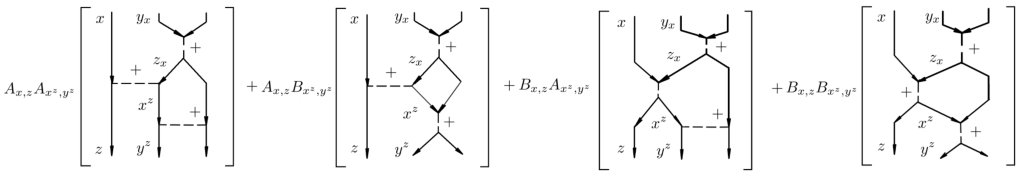

and

[TABLE]

Comparing coefficients of diagrams with the same boundary connectivity and writhe information, we obtain the requirements that for all $x,y,z\in X$ we have

[TABLE]

Suppose we have a biquandle bracket satisfying $(i)$ through $(iv)$. Equations (i) and (iv) are equivalent via the biquandle bracket axioms $A_{x,y}A_{y,z}A_{x^{y},z_{y}}=A_{x,z}A_{y_{x},z_{x}}A_{x^{z},y^{z}}$ and $B_{x,y}A_{y,z}B_{x^{y},z_{y}}=B_{x,z}A_{y_{x},z_{x}}B_{x^{z},y^{z}}$ to $A_{y,z}=A_{y_{x},z_{x}}$. To see that the left sides of equations (ii) and (iii) represent equal elements of $R$, consider the biquandle bracket axiom

[TABLE]

Since $A_{y,z}=A_{y_{x},z_{x}}$ and $A_{x,y}B_{x^{y},z_{y}}=A_{x,z}B_{x^{z},y^{z}}$, we have $A_{x,y}A_{y,z}B_{x^{y},z_{y}}=A_{x,z}A_{y_{x},z_{x}}B_{x^{z},y^{z}}$ and our equation reduces to

[TABLE]

Then multiplying through by $B_{y_{x},z_{x}}^{-1}$ we have

[TABLE]

Next, noting that $\delta=-A_{x,z}^{-1}B_{x,z}-A_{x,z}B_{x,z}^{-1}$, we have

[TABLE]

which implies

[TABLE]

whence

[TABLE]

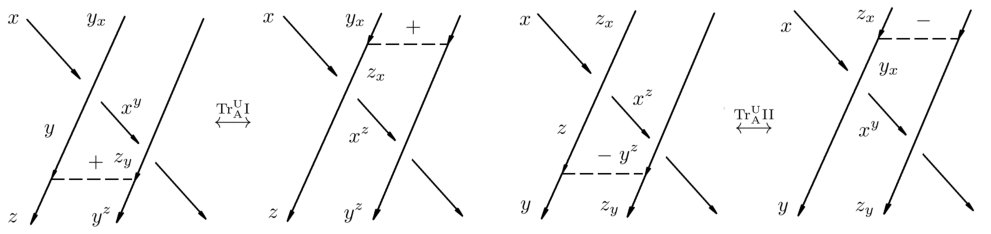

The other undercrossing type A moves yield the same equations; hence, the undercrossing moves require and are satisfied by the conditions

[TABLE]

and

[TABLE]

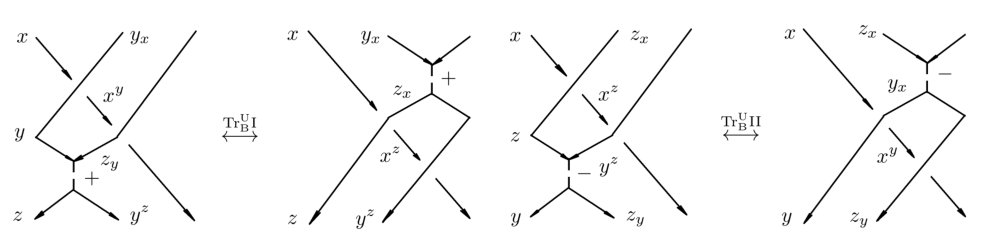

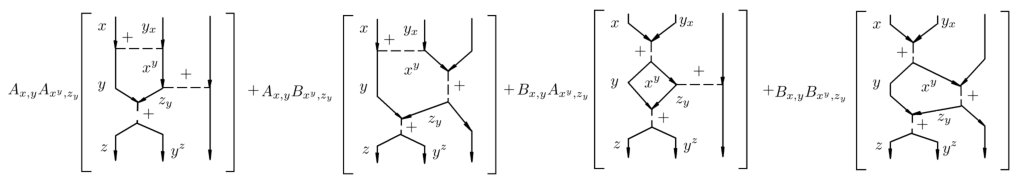

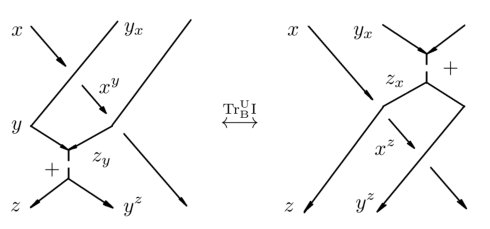

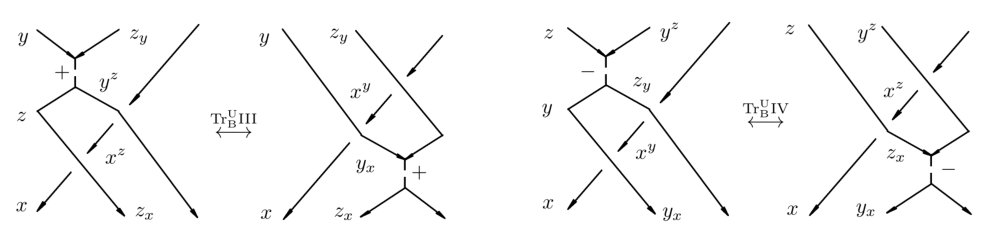

For undercrossing type B moves, expanding the two sides of the move $\mathrm{Tr}^{U}_{B}I$ as shown,

[TABLE]

we obtain

[TABLE]

and

[TABLE]

Comparing coefficients, we obtain the requirements that

[TABLE]

Recalling that $\delta=-A_{x,y}B_{x,y}^{-1}-A_{x,y}^{-1}B_{x,y}$, the second equation is equivalent to

[TABLE]

and similarly the third equation is equivalent to $A_{x,z}B_{x^{z},y^{z}}=B_{x,z}A_{x^{z},y^{z}}$. Then move $Tr_{B}^{U}I$ requires and is satisfied by the conditions

[TABLE]

Then $A_{x,z}B_{x^{z},y^{z}}=B_{x,z}A_{x^{z},y^{z}}$ implies $B_{x,z}^{-1}A_{x,z}^{2}B_{x^{z},y^{z}}=A_{x,z}A_{x^{z},y^{z}}$ which implies

[TABLE]

and then

[TABLE]

so

[TABLE]

Comparing with the biquandle bracket axiom

[TABLE]

we obtain $A_{x,y}A_{y,z}B_{x^{y},z_{y}}=A_{x,z}A_{y_{x},z_{x}}B_{x^{z},y^{z}}$ and since $A_{x,y}B_{x^{y},z_{y}}=A_{x,z}B_{x^{z},y^{z}}$, we obtain $A_{y,z}=A_{y_{x},z_{x}}$ and the type $B$ undercrossing conditions imply the type $A$ undercrossing conditions.

Definition 6**.**

A biquandle bracket $\beta$ over a biquandle $X$ is adequate for a trace move if it satisfies the algebraic conditions associated with the move. A biquandle bracket is

• •

Over-Adequate if it is adequate for all overcrossing trace moves, i.e., if for all $x,y,z\in X$ we have

[TABLE]

• •

Under-Adequate if it is adequate for all undercrossing trace moves, i.e., if for all $x,y,z\in X$ we have

[TABLE]

and

• •

Adequate if it is both over- and under-adequate.

Example 4**.**

Constant brackets where $A_{x,y}=A$ and $B_{x,y}=B$ such as those defining the classical skein invariants are adequate.

If a biquandle bracket is over-adequate, then we can freely move strands over traces during the skein expansion without changing the biquandle bracket value. If a bracket is under adequate, we can move strands under traces. If a bracket is adequate, we can move strands both over and under, matching the uncolored skein expansion case.

Example 5**.**

Biquandle brackets come in all four global types. Consider the biquandle $X$ defined by the operation matrix

[TABLE]

Our Python computations indicate that the brackets over $\mathbb{Z}_{5}$ below are adequate, over-adequate, under-adequate, and neither respectively:

[TABLE]

Of what use are trace diagrams? Coupled with the following proposition, they can be used to simplify the computation of biquandle bracket invariants analogously to how classical skein invariants can be computed by applying the skein relation to reduce to a linear combination of brackets of unlinks. First, we need a few definitions.

Definition 7**.**

A crossing in a bivalent spatial graph diagram is single-component if both its over-crossing and under-crossing strands are in the same component of the link; a crossing is multi-component if its over-crossing and under-crossing strands lie on different components of the link.

Next we define the magnetic parity of a crossing in a trace diagram by thinking analogusly with magnetic graphs like those in [6]:

Definition 8**.**

Let $D$ be a trace diagram and $c$ a single-component crossing of the diagram obtained by deleting traces. The magnetic parity of $c$ is the parity (even or odd) of the number of orientation-reversing vertices between the over- and under-crossing points of $x$ on the component of $D$ containing $c$ obtained by deleting traces.

Considering the orientations of strands yields the following:

Lemma 3**.**

The magnetic parity of a single-component crossing determines how it closes as shown:

[TABLE]

A multicomponent crossing must have even magnetic parity.

We observe that trace moves and Reidemeister moves do not change the magnetic parity of a crossing, and that magnetic parity is well-defined for single-component crossings.

Proposition 4**.**

Let $D$ be a trace diagram such that deleting the traces results in an unlink $U$ which can be reduced to a zero-crossing diagram by Reidemeister I moves. At each crossing $c$ define a weight $\phi(c)$ according to the following table:

[TABLE]

Then $[D]$ is given by

[TABLE]

where the product runs over the crossings $c$ of $D$, $k$ is the number of components of $U$ and $n-p$ is the number of negative signed traces and crossings minus the number of positive signed traces and crossings in $D$.

Proof.

Consider the case of a positive crossing. Without loss of generality we can expand innermost crossings first, i.e. select a crossing with no other crossings along one arc between its over and under instances. Then if this arc contains an odd number of orientation reversals, we have

[TABLE]

yielding a coefficient contribution of $A_{x,y}+\delta B_{x,y}$ and if it has an even number, we have

[TABLE]

yielding a coefficient contribution of $\delta A_{x,y}+B_{x,y}$. The negative crossing case is analogous.

Example 6**.**

Consider the trace diagram

[TABLE]

The crossings $c_{1}$ and $c_{2}$ both have odd magnetic parity and are both positive crossings, so we have $\phi(c_{1})=A_{x,y}+\delta B_{x,y}$ and $\phi(c_{1})=A_{y,z}+\delta B_{y,z}$, and we have $C=1$, $n=0$ and $p=3$. Then expanding via the state sum, we have

[TABLE]

as expected.

4 Monochromatic Moves

In this section we describe a few moves on trace diagrams in which the input colors for the move are all the same. First, we have a Homflypt-style skein relation at monochromatic crossings.

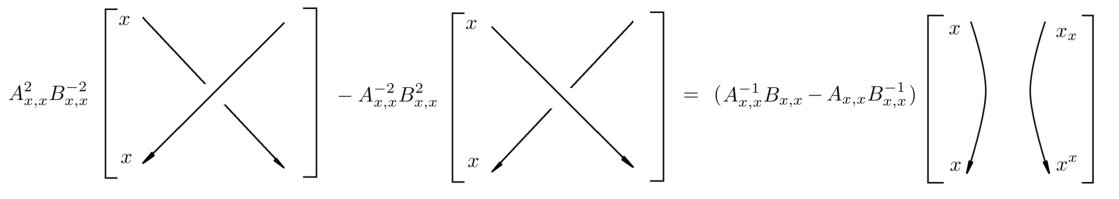

Recall that the skein relation for the Homflypt polynomial relates the invariant of an oriented knot or link with a specified positive crossing to those of the same knot with the positive crossing replaced with a negative crossing and with an oriented smoothing. Suppose we have a monochromatic crossing, i.e. a crossing in which the two left-hand biquandle colors are equal – biquandle axiom (i) then implies that the right-hand colors are equal, and after smoothing, the coloring makes sense for the oriented smoothing even without the trace. The following lemma follows easily from observation 1.

Lemma 5**.**

Let $X$ be a biquandle, $R$ a commutative ring with identity and $\beta$ an $X$-bracket over $R$. Then at monochromatic crossings we have the following identities:

[TABLE]

and

[TABLE]

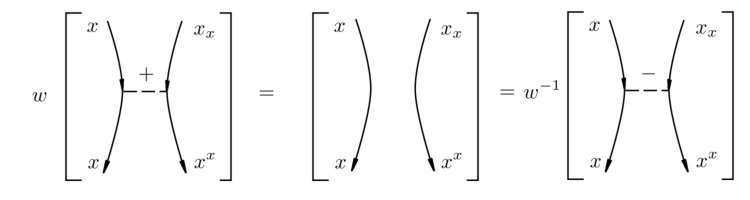

Combining the skein relations at a positive and negative crossing, we obtain

Proposition 6**.**

Let $X$ be a biquandle, $\beta$ an $X$-bracket and $L_{f}$ be an $X$-colored oriented link diagram. Then at any monochromatic crossing, $[\ ]$ satisfies the following Homflypt-style skein relation:

[TABLE]

or equivalently

[TABLE]

Proof.

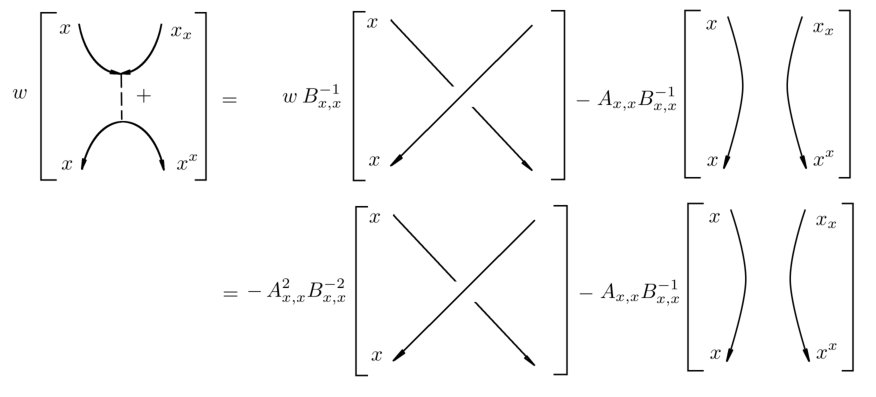

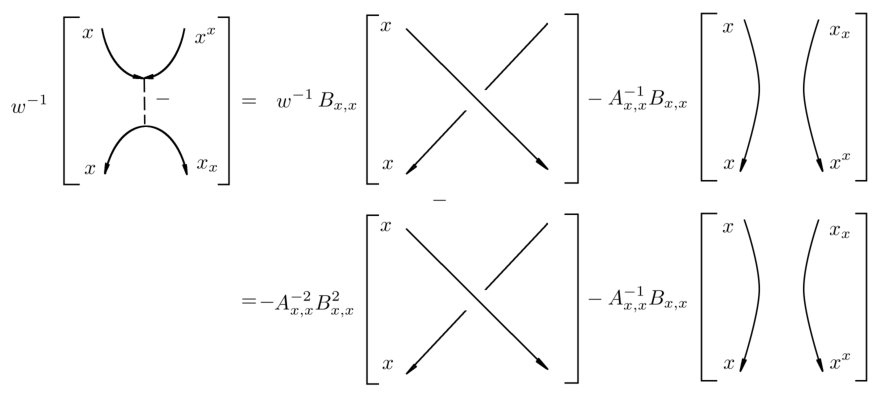

From the defining skein relations for $[\ ]$, the first identities of Lemma 5 and the fact that $w=-A_{x,x}^{2}B_{x,x}^{-1}$ we have

[TABLE]

and

[TABLE]

Then substituting in the second equation of Lemma 5 above, we obtain the result.

We can sometimes use this skein relation to simplify the calculation of $[D]$ for diagrams with monochromatic crossings by reducing such diagrams to unknots or unlinks.

Example 7**.**

Let us compute $[D]$ for the biquandle coloring of the knot diagram

with a generic biquandle bracket in three ways: the state sum method, using trace diagrams with proposition 4 and using the Homflypt-style skein relation from proposition 6.

With the state-sum method, there are eight states:

[TABLE]

[TABLE]

and we have

[TABLE]

Using trace diagrams lets us reduce the number of diagrams we need:

[TABLE]

Finally, using the Homflypt-style skein relation from proposition 6, we have

[TABLE]

Sometimes, instead of moving a strand over or under a trace, we might want to move a strand through a trace; after all, in uncolored skein expansions without traces we are free to move strands through the sites of smoothings to enable faster unknotting. Unfortunately, for a general biquandle-colored diagram, such moves are generally obstructed by the biquandle coloring except in certain cases. We will consider the case of monochromatic colorings:

Lemma 7**.**

If the three colors on the left hand side of a Reidemeister III move are the same then switching any of the three crossing signs does not change the biquandle colors on the semiarcs.

Proof.

We observe that if the biquandle colors are the same $x\in X$ down the left side of the move, then the colors on the semiarcs in the middle column are all equal to $y=x^{x}=x_{x}$ and the colors down the right column are all equal to $z=y^{y}=y_{y}$. Switching a crossing sign in a crossing on the left replaces $x_{x}$ with $x^{x}$ and vice-versa, but these are both $y$ on one side of the move and replaces $y_{y}$ with $y^{y}$ on the other, but again these are both $z$.

[TABLE]

For the remainder of this section we will let $y=x^{x}=x_{x}$. We identify four (eight if we count the moves with different trace signs separately) monochromatic trace pass-through moves:

[TABLE]

[TABLE]

Then we have

Proposition 8**.**

A biquandle bracket $\beta$ satisfies the monochromatic trace pass-through moves if for all $x\in X$ and $y=x^{x}=x_{x}$ we have

[TABLE]

Proof.

Comparing the coefficients after smoothing in move Tr${}_{B}^{T}$I, we obtain the requirements that

[TABLE]

Then the second equation reduces to

[TABLE]

and the third also reduces to

[TABLE]

Then since $\delta=-A_{x,x}B_{x,x}^{-1}-A_{x,x}^{-1}B_{x,x}$ this says

[TABLE]

Then combining this with the first condition $A_{x,x}B_{y,y}=B_{x,x}^{-1}A_{y,y}^{-1}$, we obtain

[TABLE]

and a similar computation writing $\delta=-A_{y,y}B_{y,y}^{-1}-A_{y,y}^{-1}B_{y,y}$ yields

[TABLE]

as required. The other moves yield the same conditions.

5 Questions

The conditions for over-adequacy and under-adequacy are suspiciously similar to the quandle bracket conditions in [8]. What algebraic properties of a biquandle $X$ or of a ring $R$ are sufficient to guarantee over- and under-adequacy for all $X$-brackets over $R$? What is the topological meaning of these conditions?
