Next Generation Virgo Cluster Survey. XXI. The weak lensing masses of the CFHTLS and NGVS RedGOLD galaxy clusters and calibration of the optical richness

TL;DR

This study measures weak lensing masses for a large sample of galaxy clusters from optical surveys, calibrates the mass-richness relation, and compares it with X-ray derived masses to improve cluster mass estimates.

Contribution

It provides the most comprehensive weak lensing analysis of a complete optical cluster catalog in a specific redshift range, including detailed modeling and calibration of mass proxies.

Findings

Weak lensing masses are about 10% higher than X-ray masses.

The mass-richness relation is well constrained and consistent with previous studies.

Scaling relations between lensing mass and X-ray proxies are established.

Abstract

We measured stacked weak lensing cluster masses for a sample of 1325 galaxy clusters detected by the RedGOLD algorithm in the Canada-France-Hawaii Telescope Legacy Survey W1 and the Next Generation Virgo Cluster Survey at $0.2<z<0.5$, in the optical richness range $10<\lambda<70$. After a selection of our best richness subsample ($20<\lambda<50$), this is the most comprehensive lensing study of a $\sim 100\%$ complete and $\sim 90\%$ pure optical cluster catalogue in this redshift range, with a total of 346 clusters in $\sim164~deg^2$. We test three different mass models, and our best model includes a basic halo model, with a Navarro Frenk and White profile, and correction terms that take into account cluster miscentering, non-weak shear, the two-halo term, the contribution of the Brightest Cluster Galaxy, and an a posteriori correction for the intrinsic scatter in the mass-richness relation. With this model, we obtain a mass-richness relation of $\log{M_{\rm 200}/M_{\odot}}=(14.48\pm0.04)+(1.14\pm0.23)\log{(\lambda/40)}$ (statistical uncertainties). This result is consistent with other published lensing mass-richness relations. When compared to X-ray masses and mass proxies, we find that on average weak lensing masses are $\sim 10\%$ higher than those derived in the X-ray in the range $2\times10^{13}M_{\rm \odot}<E(z) M^{X}_{\rm 200}<2\times10^{14}M_{\rm \odot}$, in agreement with most previous results and simulations. We also give the coefficients of the scaling relations between the lensing mass and X-ray mass proxies, $L_X$ and $T_X$, and compare them with previous results.

Figures

Tables

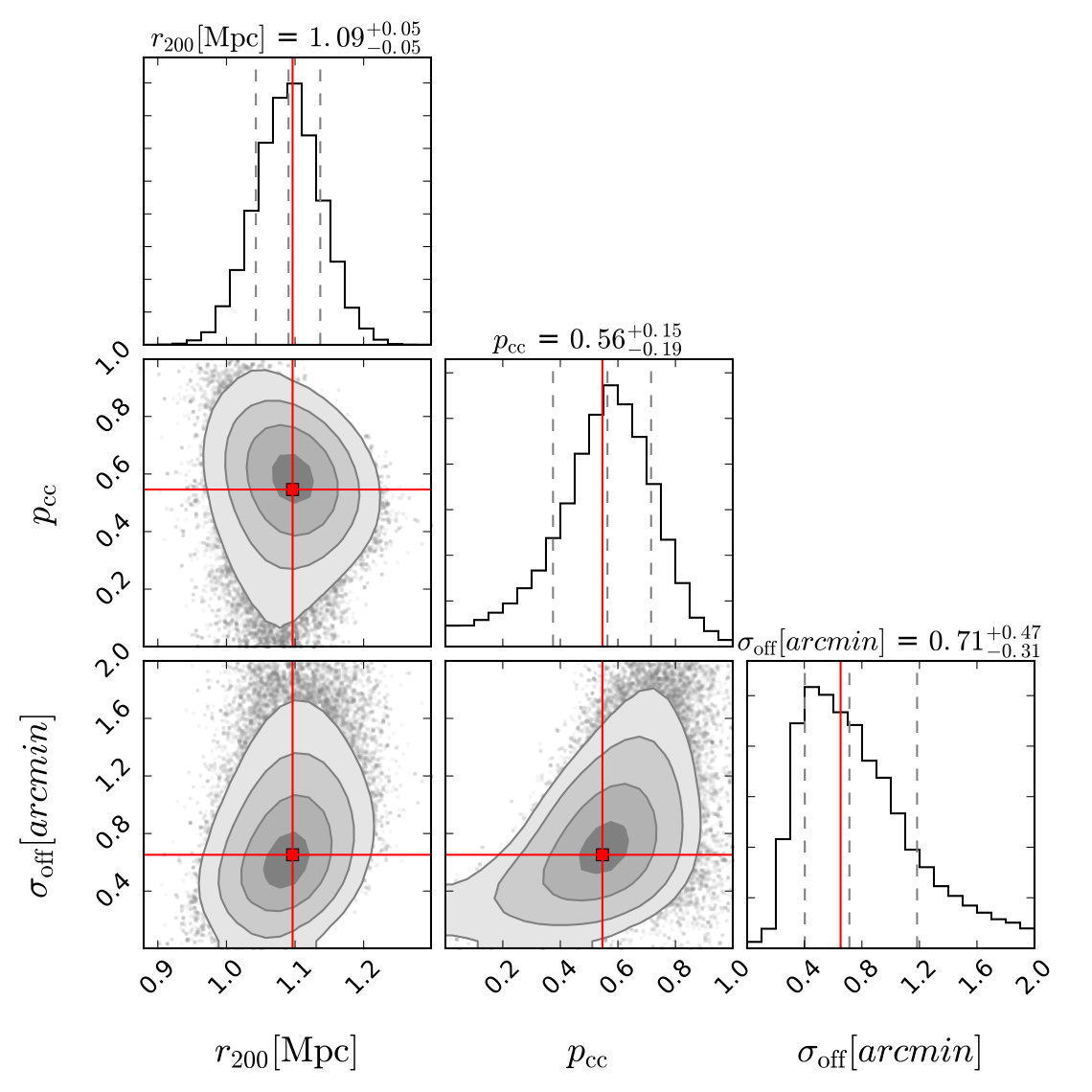

Table 1. Table 1: MCMC uniform prior ranges for the different parameters of the three Models. The lack of a numerical value indicates that the parameter is not included in the respective model.

	Basic Model	Added Scatter Model	Two Component Model
$r_{200}\left(\mathrm{Mpc}\right)$	(0, 2)	—	(0, 2)
${\sigma }_{\mathrm{off}}\left(\mathrm{arcmin}\right)$	(0, 2)	(0, 2)	(0, 2)
$p_{\mathrm{cc}}$	(0, 1)	(0, 1)	(0, 1)
${\sigma }_{\ln M|\lambda }$	—	(0.1, 0.7)	—
$\log \left(M_{200}/M_{\odot }\right)$	—	(11, 17)	—
$\log \left(M_{\mathrm{BCG}}/M_{\odot }\right)$	—	—	(9, 13) or fixed at $\log \left(M_{\mathrm{BCG}}^{\ast }/M_{\odot }\right)$

Table 2. Table 2: Parameters derived from the fit of the Basic Model, Added Scatter Model, and Two Component Model shear profiles to our measurements. Here, λ 𝜆 \lambda is the cluster optical richness derived with RedGOLD and the first column gives the richness range; N 𝑁 N is the number of stacked clusters in each bin; z 𝑧 z is the mean redshift; r 200 subscript 𝑟 200 r_{\rm 200} is the mean radius in Mpc; M 200 subscript 𝑀 200 M_{\rm 200} is the mean mass in units of 10 13 ​ M ⊙ superscript 10 13 subscript 𝑀 direct-product 10^{13}M_{\rm\odot} ; σ off subscript 𝜎 off \sigma_{\rm off} is the scale length of the offset distribution in arcmin; p cc subscript 𝑝 cc p_{\rm cc} is the percentage of correctly centered clusters in the stack; σ ln ⁡ M | λ subscript 𝜎 conditional M 𝜆 \sigma_{\rm\ln{M}|\lambda} is the intrinsic scatter in the mass–richness relation; M BCG ​ ( M BCG ∗ ) subscript 𝑀 BCG superscript subscript 𝑀 BCG M_{\rm BCG}\leavevmode\nobreak\ (M_{\rm BCG}^{*}) is the mean BCG mass in units of 10 11 ​ M ⊙ superscript 10 11 subscript 𝑀 direct-product 10^{11}M_{\rm\odot} , left as a free parameter in the fit, and fixed at the stellar mass value recovered with LePhare , respectively.

$\lambda$ Range	N	$\lambda$	z	Model	$r_{200}$	$M_{200}$	${\sigma }_{\mathrm{off}}$	$p_{\mathrm{cc}}$	${\sigma }_{\ln M|\lambda }$	$M_{\mathrm{BCG}}\left(M_{\mathrm{BCG}}^{\ast }\right)$
					Mpc	${10}^{13}{M}_{\odot }$	arcmin			${10}^{11}{M}_{\odot }$
				Basic	${0.83}_{-0.03}^{+0.03}$	${10}_{-1}^{+1}$	${1.5}_{-0.3}^{+0.3}$	${0.5}_{-0.1}^{+0.1}$	–	–
	959	$14\pm 3$	0.40	Added Scatter	${0.86}_{-0.13}^{+0.13}$	${11}_{-5}^{+5}$	${1.5}_{-0.3}^{+0.3}$	${0.5}_{-0.1}^{+0.1}$	${0.4}_{-0.2}^{+0.2}$	–
				Two Component	${0.83}_{-0.03}^{+0.02}$	${10}_{-1}^{+1}$	${1.5}_{-0.3}^{+0.3}$	${0.5}_{-0.1}^{+0.1}$	–	$1_{-3}^{+3}\left({1.53}_{-0.02}^{+0.02}\right)$
				Basic	${0.94}_{-0.04}^{+0.03}$	${14}_{-2}^{+1}$	${1.0}_{-0.7}^{+0.7}$	${0.7}_{-0.1}^{+0.2}$	–	–
	227	$24\pm 3$	0.39	Added Scatter	${0.94}_{-0.08}^{+0.08}$	${14}_{-3}^{+4}$	${0.9}_{-0.8}^{+0.7}$	${0.8}_{-0.1}^{+0.2}$	${0.4}_{-0.2}^{+0.2}$	–
				Two Component	${0.94}_{-0.04}^{+0.03}$	${14}_{-2}^{+1}$	${1.0}_{-0.7}^{+0.7}$	${0.7}_{-0.1}^{+0.2}$	–	$1_{-3}^{+3}\left({1.7}_{-0.1}^{+0.1}\right)$
				Basic	${1.09}_{-0.05}^{+0.05}$	${22}_{-3}^{+3}$	${0.7}_{-0.5}^{+0.3}$	${0.6}_{-0.1}^{+0.2}$	–	–
	87	$34\pm 3$	0.39	Added Scatter	${1.12}_{-0.13}^{+0.11}$	${24}_{-9}^{+7}$	${0.7}_{-0.4}^{+0.3}$	${0.6}_{-0.2}^{+0.2}$	${0.4}_{-0.2}^{+0.2}$	–
				Two Component	${1.09}_{-0.05}^{+0.05}$	${22}_{-3}^{+3}$	${0.7}_{-0.5}^{+0.3}$	${0.6}_{-0.2}^{+0.2}$	–	$1_{-3}^{+3}\left({1.8}_{-0.1}^{+0.1}\right)$
				Basic	${1.21}_{-0.03}^{+0.04}$	${30}_{-3}^{+3}$	${0.5}_{-0.1}^{+0.1}$	${0.1}_{-0.1}^{+0.1}$	–	–
	32	$44\pm 3$	0.39	Added Scatter	${1.18}_{-0.11}^{+0.10}$	${28}_{-8}^{+7}$	${0.5}_{-0.1}^{+0.1}$	${0.1}_{-0.1}^{+0.1}$	${0.4}_{-0.2}^{+0.2}$	–
				Two Component	${1.21}_{-0.03}^{+0.04}$	${30}_{-3}^{+3}$	${0.5}_{-0.1}^{+0.1}$	${0.1}_{-0.1}^{+0.1}$	–	$1_{-3}^{+3}\left({1.9}_{-0.2}^{+0.2}\right)$
				Basic	${1.35}_{-0.05}^{+0.04}$	${41}_{-4}^{+4}$	${1.1}_{-0.6}^{+0.8}$	${0.7}_{-0.2}^{+0.2}$	–	–
	18	$59\pm 6$	0.38	Added Scatter	${1.35}_{-0.27}^{+0.26}$	${41}_{-2}^{+2}$	${0.9}_{-0.7}^{+0.7}$	${0.7}_{-0.2}^{+0.3}$	${0.4}_{-0.2}^{+0.2}$	–
				Two Component	${1.35}_{-0.05}^{+0.04}$	${41}_{-5}^{+4}$	${1.1}_{-0.6}^{+0.8}$	${0.7}_{-0.2}^{+0.2}$	–	$1_{-4}^{+4}\left({2.0}_{-0.2}^{+0.2}\right)$

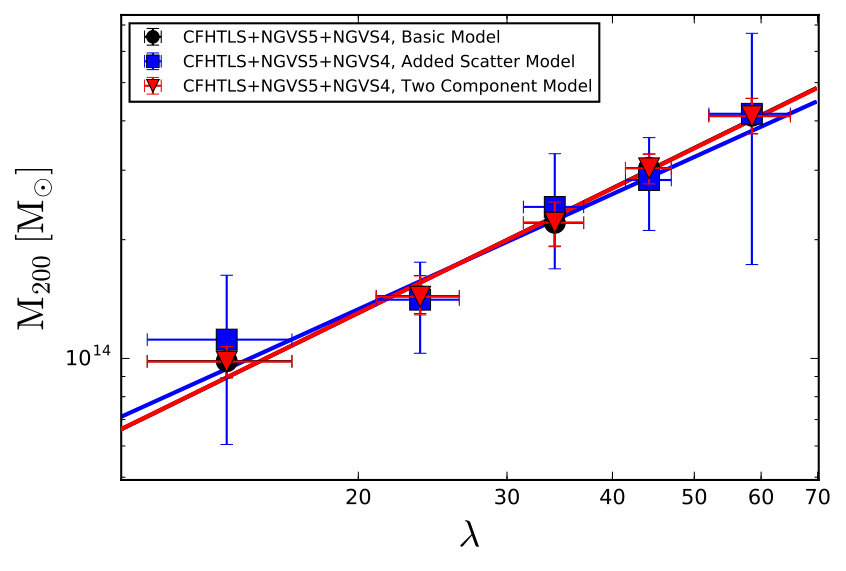

Table 3. Table 3: Results of the fit of the mass–richness relation: log ⁡ M 200 = log ⁡ M 0 + α ​ log ⁡ λ / λ 0 subscript 𝑀 200 subscript 𝑀 0 𝛼 𝜆 subscript 𝜆 0 \log{M_{\rm 200}}=\log{M_{\rm 0}}+\alpha\log{\lambda/\lambda_{\rm 0}} , with a pivot λ 0 = 40 subscript 𝜆 0 40 \lambda_{\rm 0}=40 , obtained using the three models. For the Basic and Two Component Models, we also show the results after applying the a posteriori intrinsic scatter correction (ISC). The last four columns show the normalized average difference between lensing and X-ray masses, < diff > = ( M L − M X ) / M X expectation diff subscript M L subscript M X subscript M X <\rm{diff}>=\left(M_{\rm L}-M_{\rm X}\right)/M_{\rm X} , and the average ratio of the two, < M L / M X > expectation subscript M L subscript M X <\rm{M_{\rm L}/M_{\rm X}}> , using the X-ray detections of Gozaliasl et al. ( 2014 ) (G), and Mehrtens et al. ( 2012 ) (M).

Model	$\log M_0$	$\alpha$
Basic	$14.43\pm 0.01$	$1.05\pm 0.07$	$0.06\pm 0.19$	$-0.07\pm 0.99$	$1.06\pm 0.19$	$0.93\pm 0.99$
Basic + ISC	$14.47\pm 0.02$	$1.05\pm 0.09$	$0.17\pm 0.20$	$0.01\pm 1.07$	$1.17\pm 0.20$	$1.01\pm 1.07$
Added Scatter	$14.42\pm 0.03$	$0.97\pm 0.14$	$0.12\pm 0.21$	$-0.07\pm 1.06$	$1.12\pm 0.21$	$0.93\pm 1.06$
Two Component	$14.43\pm 0.01$	$1.05\pm 0.07$	$0.06\pm 0.19$	$-0.07\pm 0.99$	$1.06\pm 0.19$	$0.93\pm 0.99$
Two Component + ISC	$14.46\pm 0.02$	$1.04\pm 0.09$	$0.15\pm 0.20$	$-0.00\pm 1.06$	$1.15\pm 0.20$	$1.00\pm 1.06$

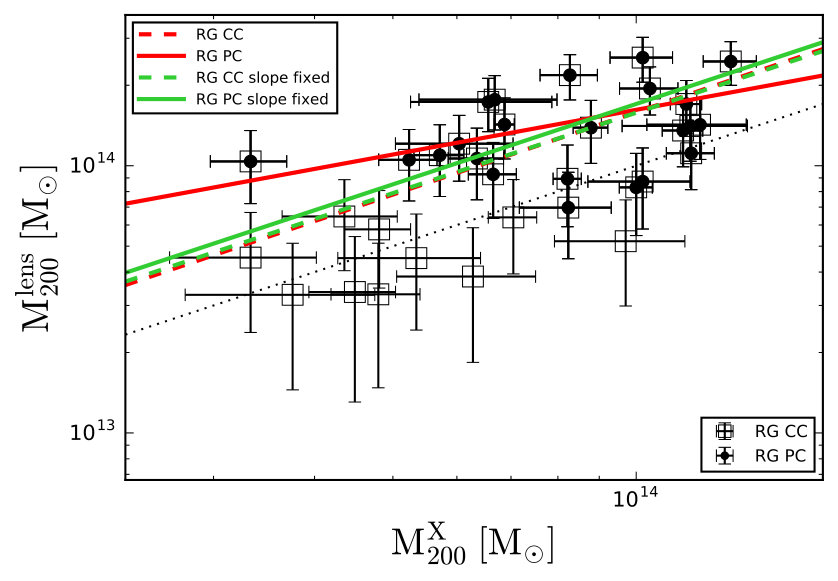

Table 4. Table 4: Results of the fit of the weak lensing mass vs X-ray mass and mass proxy relations: log ⁡ M L = a + b ​ log ⁡ M X subscript 𝑀 L 𝑎 𝑏 subscript 𝑀 X \log{M_{\rm L}=a+b\log{M_{\rm X}}} ; log ⁡ ( M 200 ​ E ​ ( z ) / M 0 ) = a + b ​ log ⁡ ( L X / L 0 ​ E ​ ( z ) ) subscript 𝑀 200 𝐸 𝑧 subscript 𝑀 0 𝑎 𝑏 subscript 𝐿 X subscript 𝐿 0 𝐸 𝑧 \log{\left(M_{\rm 200}E(z)/M_{\rm 0}\right)}=a+b\log{\left(L_{\rm X}/L_{\rm 0}E(z)\right)} ; log ⁡ ( M 200 ​ E ​ ( z ) / M 0 ) = a + b ​ log ⁡ ( T X / T 0 ) subscript 𝑀 200 𝐸 𝑧 subscript 𝑀 0 𝑎 𝑏 subscript 𝑇 X subscript 𝑇 0 \log{\left(M_{\rm 200}E(z)/M_{\rm 0}\right)}=a+b\log{\left(T_{\rm X}/T_{\rm 0}\right)} . "CC" refers to the complete catalogs and "PC" to the published catalogs (see text for the catalogs definitions and for the values of the pivot mass, luminosity, and temperature used in the fit of the scaling relations).

Relation	Sample	a	b	scatter
$M_L-M_X$	CC	$-0.13\pm 2.96$	$1.02\pm 0.21$	0.20
	PC	$6.42\pm 3.17$	$0.56\pm 0.23$	0.15
$M_L-M_X$	CC	$0.20\pm 0.03$	fixed at 1	0.20
	PC	$0.23\pm 0.03$	fixed at 1	0.17
$M_L-T_X$	CC	$0.23\pm 0.03$	$1.46\pm 0.28$	0.20
	PC	$0.28\pm 0.03$	$1.03\pm 0.30$	0.15
$M_L-L_X$	CC	$0.10\pm 0.03$	$0.61\pm 0.12$	0.20
	PC	$0.16\pm 0.03$	$0.43\pm 0.12$	0.15

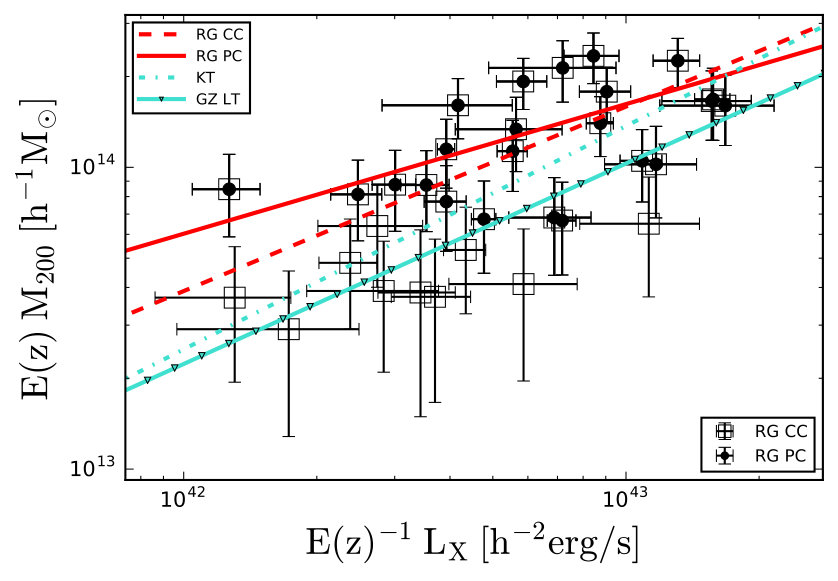

Table 5. Table 5: Comparison of our mass–temperature and mass–luminosity relations with others in literature. "CC" refers to the results obtained using the complete catalogs and "PC" using the published catalogs (see text for the catalogs definitions). Here, Δ ​ a Δ 𝑎 \Delta a is the difference in normalization, and Δ ​ b Δ 𝑏 \Delta b the difference in slope, between our results and those obtained by Kettula et al. ( 2015 ) , Mantz et al. ( 2016 ) and Leauthaud et al. ( 2010 ) . The last two columns show that our relations are consistent, in normalization and slope, within ≲ 1 ​ σ less-than-or-similar-to absent 1 𝜎 \lesssim 1\leavevmode\nobreak\ \sigma with the others in literature ( ≲ 2.5 ​ σ less-than-or-similar-to absent 2.5 𝜎 \lesssim 2.5\leavevmode\nobreak\ \sigma in normalization with Leauthaud et al. ( 2010 ) ), when using the complete catalogs.

Relation	Comparison	Sample	$\Delta a$	$\Delta b$	a Compatibility	b Compatibility
$M_L-T_X$	Kettula et al. (2015)	CC	$0.08\pm 0.14$	$0.06\pm 0.33$	$1\sigma$	$1\sigma$
		PC	$0.25\pm 0.15$	$0.49\pm 0.34$	$2\sigma$	$1.5\sigma$
	Mantz et al. (2016)	CC	$0.27\pm 0.28$	$0.06\pm 0.13$	$1\sigma$	$1\sigma$
		PC	$0.22\pm 0.54$	$0.34\pm 0.28$	$1\sigma$	$1.5\sigma$
$M_L-L_X$	Kettula et al. (2015)	CC	$0.06\pm 0.15$	$0.13\pm 0.15$	$1\sigma$	$1\sigma$
		PC	$0.24\pm 0.15$	$0.31\pm 0.15$	$1.5\sigma$	$2\sigma$
	Leauthaud et al. (2010)	CC	$0.22\pm 0.08$	$0.05\pm 0.18$	$2.5\sigma$	$1\sigma$
		PC	$0.33\pm 0.09$	$0.23\pm 0.19$	$4\sigma$	$1.5\sigma$

Table 6. Table 6: MCMC uniform prior ranges for the different parameters of the five models of the joint fit, described in Appendix A . The lack of a numerical value indicates that the parameter is not included in the respective model.

Model	$\log M_0$	$\alpha$	$p_{cc}$	${\sigma }_{off}$	${\sigma }_{M|\lambda }$	aMbcg	aCM
1	(11,16)	(-2, 2)	(0, 1)	(0, 2)	–	–	–
2	(11,16)	(-2, 2)	(0, 1)	(0, 2)	(0.1, 0.7)	–	–
3	(11,16)	(-2, 2)	(0, 1)	(0, 2)	–	(0, 10)	–
4	(11,16)	(-2, 2)	(0, 1)	(0, 2)	–	–	(0, 10)
5	(11,16)	(-2, 2)	(0, 1)	(0, 2)	(0.1, 0.7)	(0, 10)	(0, 10)

Table 7. Table 7: Parameters derived for the different parameters of the five models of the joint fit, described in Appendix A .

Model	$\log M_0$	$\alpha$	$p_{cc}$	${\sigma }_{off}$	${\sigma }_{M|\lambda }$	aMbcg	aCM
1	${14.49}_{-0.03}^{+0.03}$	${1.28}_{-0.06}^{+0.06}$	${0.65}_{-0.05}^{+0.05}$	${0.9}_{-0.3}^{+0.5}$	–	–	–
2	${14.49}_{-0.05}^{+0.05}$	${1.27}_{-0.13}^{+0.15}$	${0.65}_{-0.06}^{+0.04}$	${1.0}_{-0.4}^{+0.5}$	${0.12}_{-0.01}^{+0.05}$	–	–
3	${14.48}_{-0.03}^{+0.03}$	${1.28}_{-0.06}^{+0.06}$	${0.65}_{-0.06}^{+0.05}$	${0.8}_{-0.4}^{+0.5}$	–	$4_{-3}^{+4}$	–
4	${14.41}_{-0.02}^{+0.02}$	${1.19}_{-0.06}^{+0.06}$	${0.83}_{-0.18}^{+0.10}$	${0.6}_{-0.4}^{+0.8}$	–	–	${0.65}_{-0.06}^{+0.07}$
5	${14.40}_{-0.06}^{+0.04}$	${1.17}_{-0.12}^{+0.14}$	${0.83}_{-0.16}^{+0.11}$	${0.6}_{-0.4}^{+0.7}$	${0.13}_{-0.02}^{+0.07}$	$2_{-1}^{+4}$	${0.64}_{-0.06}^{+0.08}$

Equations

$${\gamma }_{\mathrm{t}}=-Re\left[\gamma e^{-2i\varphi }\right]$$

$$\Delta \Sigma (R)=⟨{\gamma }_{\mathrm{t}}(R)⟩{\Sigma }_{\mathrm{c}}$$

$${\Sigma }_{\mathrm{c}}=\frac{c^2}{4\pi G}\frac{D_{\mathrm{s}}}{D_{\mathrm{l}}{D}_{\mathrm{ls}}}$$

$$\begin{gathered} z_{\mathrm{phot},\mathrm{s}}>z_{\mathrm{phot},\mathrm{l}}+3\times {\sigma }_{{\mathrm{z}}_{\mathrm{phot}}}\left(i^{\prime }-ma{g}_{\mathrm{s}}\right) \\ \times \left(1+z_{\mathrm{phot},\mathrm{s}}\right) \end{gathered}$$

$$\Delta \Sigma (R)=\frac{{\sum }_{i=0}^l{\sum }_{j=0}^s{w}_{ij}{\Sigma }_{\mathrm{c},ij}{\gamma }_{\mathrm{t},ij}}{{\sum }_{i=0}^l{\sum }_{j=0}^s{w}_{ij}}$$

$$1+K(R)\equiv \frac{{\sum }_{i=0}^l{\sum }_{j=0}^s{w}_{ij}[1+m_{ij}]}{{\sum }_{i=0}^l{\sum }_{j=0}^s{w}_{ij}}$$

$$\Delta {\Sigma }_{\mathrm{cal}}(R)=\frac{\Delta \Sigma (R)}{1+K(R)}$$

$$\begin{gathered} C(R_i,R_j)= \\ {\left[\frac{N}{N-1}\right]}^2\frac{1}{N}\sum _{k=1}^N\left[\Delta {\Sigma }_k(R_i)-\overline{\Delta \Sigma }(R_i)\right] \\ \times \left[\Delta {\Sigma }_k(R_j)-\overline{\Delta \Sigma }(R_j)\right] \end{gathered}$$

$$\begin{gathered} \Delta \Sigma (R)=p_{\mathrm{cc}}[\Delta {\Sigma }_{\mathrm{NFW}}(R)+\Delta {\Sigma }_{\mathrm{nw}}(R)]+ \\ (1-p_{\mathrm{cc}})\Delta {\Sigma }_{\mathrm{sm}}(R)+\Delta {\Sigma }_{2halo}(R) \end{gathered}$$

$$\begin{gathered} \Delta \Sigma (R)=\frac{M_{\mathrm{BCG}}}{\pi R^2}+ \\ {p}_{\mathrm{cc}}[\Delta {\Sigma }_{\mathrm{NFW}}(R)+\Delta {\Sigma }_{\mathrm{nw}}(R)]+ \\ (1-p_{\mathrm{cc}})\Delta {\Sigma }_{\mathrm{sm}}(R)+\Delta {\Sigma }_{2halo}(R) \end{gathered}$$

$${\rho }_{\mathrm{NFW}}(r)=\frac{{\delta }_{\mathrm{c}}{\rho }_{\mathrm{c}}}{(\frac{r}{r_{\mathrm{s}}})(1+\frac{r}{r_{\mathrm{s}}}{)}^2}$$

$${\rho }_{\mathrm{c}}=\frac{3H(z{)}^2}{8\pi G}$$

$$r_{\mathrm{s}}=\frac{r_{200}}{c}$$

$${\delta }_{\mathrm{c}}=\frac{200}{3}\frac{c^3}{\ln (1+c)-\frac{c}{1+c}}$$

$$M_{200}=M(r_{200})=\frac{4\pi }{3}{r}_{200}^3\times 200{\rho }_{\mathrm{c}}$$

$$\log c_{200}=a+b\log \left(M_{200}/[10^{12}{h}^{-1}{M}_{\odot }]\right)$$

$${\Sigma }_{\mathrm{NFW}}(R)=2{\int }_0^{\infty }{\rho }_{\mathrm{NFW}}(R,z)dz$$

$${\overline{\Sigma }}_{\mathrm{NFW}}(<R)=\frac{2}{R^2}{\int }_0^R{R}^{\prime }{\Sigma }_{\mathrm{NFW}}(R^{\prime })d{R}^{\prime }$$

$$\Delta {\Sigma }_{\mathrm{NFW}}={\overline{\Sigma }}_{\mathrm{NFW}}(<R)-{\Sigma }_{\mathrm{NFW}}(R)$$

$$P(R_{\mathrm{off}})=\frac{R_{\mathrm{off}}}{{\sigma }_{\mathrm{off}}^2}\exp \left[-\frac{1}{2}{\left(\frac{R_{\mathrm{off}}}{{\sigma }_{\mathrm{off}}}\right)}^2\right]$$

$$\begin{gathered} {\Sigma }_{\mathrm{NFW}}(R,\theta |R_{\mathrm{off}})= \\ {\Sigma }_{\mathrm{NFW}}\left(\sqrt{R^2+R_{\mathrm{off}}^2-2R{R}_{\mathrm{off}}\cos \theta }\right) \end{gathered}$$

$${\Sigma }_{\mathrm{NFW}}(R|R_{\mathrm{off}})=\frac{1}{2\pi }{\int }_0^{2\pi }{\Sigma }_{\mathrm{NFW}}(R,\theta |R_{\mathrm{off}})d\theta$$

$${\Sigma }_{\mathrm{sm}}(R)={\int }_0^{\infty }{\Sigma }_{\mathrm{NFW}}(R|R_{\mathrm{off}})P(R_{\mathrm{off}})d{R}_{\mathrm{off}}$$

$$\Delta {\Sigma }_{\mathrm{sm}}(R)={\overline{\Sigma }}_{\mathrm{sm}}(<R)-{\Sigma }_{\mathrm{sm}}(R)$$

$$g_{\mathrm{t}}=\frac{{\gamma }_{\mathrm{t}}}{1-k}$$

$$\begin{gathered} {ϵ}_{\mathrm{t}}=\sum _{\mathrm{n}=0}^{\infty }A{g}_{\mathrm{t}}^{2n+1} \\ =A{\left(\frac{{\gamma }_{\mathrm{t}}}{1-k}\right)}^{2n+1}=A{\left(\frac{\Delta \Sigma {\Sigma }_{\mathrm{c}}^{-1}}{1-\Sigma {\Sigma }_{\mathrm{c}}^{-1}}\right)}^{2n+1} \end{gathered}$$

$$\Delta {\Sigma }_{\mathrm{nw}}(R)=\Delta {\Sigma }_{\mathrm{NFW}}(R){\Sigma }_{\mathrm{NFW}}(R)\frac{⟨{\Sigma }_{\mathrm{c}}^{-3}⟩}{⟨{\Sigma }_{\mathrm{c}}^{-2}⟩}$$

$$\begin{gathered} \Delta {\Sigma }_{2halo}(R,b)= \\ b(M_{200},z){\Omega }_{\mathrm{m}}{\sigma }_8^{2}D(z{)}^2\Delta {\Sigma }_{\mathrm{l}}(R) \end{gathered}$$

$$\Delta {\Sigma }_{\mathrm{l}}(R)={\overline{\Sigma }}_{\mathrm{l}}(<R)-{\Sigma }_{\mathrm{l}}(R)$$

$$\begin{gathered} {\Sigma }_{\mathrm{l}}(R,z)= \\ (1+z{)}^3{\rho }_{\mathrm{c},0}{\int }_{-\infty }^{\infty }{\xi }_{\mathrm{lin}}\left((1+z)\sqrt{R^2+y^2}\right)dy \end{gathered}$$

$$\begin{gathered} ln\mathcal{L}=-\frac{1}{2}{\left(\Delta {\Sigma }_{\mathrm{data}}-\Delta {\Sigma }_{\mathrm{model}}\right)}^T{C}^{-1} \\ \left(\Delta {\Sigma }_{\mathrm{data}}-\Delta {\Sigma }_{\mathrm{model}}\right) \end{gathered}$$

$$\log M_{200}=\log M_0+\alpha \log \lambda /{\lambda }_0$$

Full text

††slugcomment: Not to appear in Nonlearned J., 45.

1 INTRODUCTION

Galaxy clusters are the largest and most massive gravitationally bound systems in the universe and their number and distribution permit us to probe the predictions of cosmological models. They are the densest environments where we can study galaxy formation and evolution, and their interaction with the intra-cluster medium (Voit, 2005). For both these goals, an accurate estimate of the cluster mass is essential.

The cluster mass cannot be measured directly, but is inferred using several mass proxies. Galaxy clusters emit radiation at different wavelengths and their mass can be estimated using different tracers. Different mass proxies usually lead to mass estimations that are affected by different systematics.

From X-ray observations of the cluster gas, we can derive the gas temperature, which is related to its total mass (Sarazin, 1988), under the assumption of hydrostatic equilibrium. X-ray mass measurements are less subjected to projection and triaxiality effects, but the mass proxies are not reliable in systems undergoing mergers or in the central regions of clusters with strong AGN feedback (Allen, Evrard & Mantz, 2011).

The intracluster medium (ICM) can also be detected in the millimeter by the thermal Sunyaev–Zel’dovich effect (S-Z effect; Sunyaev & Zeldovich, 1972) and the S-Z flux is related to the total cluster mass. Unlike optical and X-ray surface brightness, the integrated S-Z flux is independent of distance, allowing for almost constant mass limit measurements at high redshifts. For the same reason, though, the method is also subjected to projection effects due to the overlap of all the groups and clusters along the line of sight (Voit, 2005).

In the optical and infrared bandpasses, we observe the starlight from cluster galaxies. If a cluster is in dynamical equilibrium, the velocity distribution of its galaxies is expected to be Gaussian and the velocity dispersion can be directly linked to its mass through the virial theorem. An advantage of this method is that, unlike X-ray and S-Z mass measurements, it is not affected by forms of non-thermal pressure such as magnetic fields, turbulence, and cosmic ray pressure. On the downside, it is sensitive to triaxiality and projection effects, the precision of the measurements is limited by the finite number of galaxies, and the assumption of dynamical and virial equilibrium is not always correct (Allen, Evrard & Mantz, 2011).

The total optical or infrared luminosity of a cluster is another indicator of its mass, given that light traces mass. Abell (1958) defined a richness class to categorize clusters based on the number of member galaxies brighter than a given magnitude limit. The luminosity distribution function of cluster galaxies is also well described by the Schechter (1976) profile, and the observation of the high-luminosity tip of this distribution allows us to better constrain cluster masses. Postman et al. (1996), for example, defined the richness parameter as the number of cluster galaxies brighter than the characteristic luminosity of the Schechter (1976) profile, $L_{\rm*}$. Different definitions are possible and intrinsically related to the technique used to optically detect galaxy clusters.

Rykoff et al. (2014) built an optical cluster finder based on the red-sequence finding technique, redMaPPer and applied it to the Sloan Digital Sky Survey (SDSS; York et al., 2000). Their richness is computed using optimal filtering as a sum of probabilities and depends on three filters based on colors, positions, and luminosity (Rozo et al., 2009; Rykoff et al., 2012, 2014, 2016; Rozo & Rykoff, 2014).

In Licitra et al. (2016a, b), we introduced a simplified definition of cluster richness based on the redMaPPer richness measurement, within our detection and cluster selection algorithm RedGOLD. RedGOLD is based on a revised red-sequence technique.

RedGOLD richness quantifies the number of red, passive, early-type galaxies (ETGs) brighter than $0.2L_{\rm*}$, inside a scale radius, subtracting the scaled background. When compared to X-ray mass proxies, the RedGOLD richness leads to scatters in the X-ray temperature-richness relation similar to those obtained with redMaPPer (Rozo & Rykoff, 2014), which is very promising because RedGOLD was applied to a lower richness threshold (i.e. lower cluster mass).

The total cluster mass can also be derived by its strong and weak gravitational lensing of background sources. In the weak lensing regime, the gravitational potential of clusters of galaxies produces small distortions in the observed shape of the background field galaxies, creating the so-called shear field, which is proportional to the cluster mass.

Because the shear is small relative to the intrinsic ellipticity of the galaxies (due to their random shape and orientation), a statistical approach is required to measure it and the signal is averaged over a large number of background sources to increase the signal-to-noise ratio (S/N; Schneider, 2006). Gravitational lensing does not require any assumptions about the dynamical state of the cluster and it is sensitive to the projected mass along the line of sight, making it a more reliable tool to determine total cluster masses (Meneghetti et al., 2010; Allen, Evrard & Mantz, 2011; Rasia et al., 2012).

In the future, as shown in Ascaso et al. (2016), optical and near-infrared (NIR) cluster surveys, such as Euclid111http://euclid- ec.org (Laureijs et al., 2011), Large Synoptic Survey Telescope (LSST)222http://www.lsst.org and J-PAS (Benítez et a., 2014), will reach deeper than X-ray and S-Z surveys, such as e-Rosita (Merloni et al., 2012), SPTpol (Carlstrom et al., 2011) and ACTpol (Marriage et al., 2011). It is thus important to understand the reliability of optical and NIR mass proxies because they will be the only mass proxy available for these new detections.

Several works in the literature have proven that the optical richness shows a good correlation with the cluster total masses derived from weak lensing (Johnston et al., 2007; Covone et al., 2014; Ford et al., 2015; van Uitert et al., 2015; Melchior et al., 2016; Simet et al., 2016). From these works, the typical uncertainty found in the cluster mass at a given richness is $\sim 10-25\%$ including statistical and systematic errors, in the mass range $6\times 10^{12}M_{\rm\odot}\lesssim M\lesssim 10^{15}M_{\rm\odot}$ and in the redshift range $0.1\lesssim z\lesssim 0.9$.

The aim of this work is to calibrate and evaluate the precision of the RedGOLD richness as a mass proxy and to compare it to stacked weak-lensing masses. We then compare our lensing-calibrated masses to X-ray mass proxies. Our approach mainly follows the one adopted by Johnston et al. (2007) and Ford et al. (2015), and we compare our results to Simet et al. (2016), Farahi et al. (2016) and Melchior et al. (2016).

The paper is organized as follows: in Section 2, we describe the shear data set and the photometric redshifts catalog; in Section 3, we briefly present the RedGOLD detection algorithm and the cluster catalogs; in Section 4, we describe the weak-lensing equations and our method; in Section 5, we present our results; in Section 6, we discuss our findings in comparison with other recent works; in Section 7, we present our conclusions.

Throughout this work, we assume a standard $\Lambda CDM$ model, with $\Omega_{\rm{m}}=0.3$, $\Omega_{\rm\Lambda}=0.7$ and $\rm{H_{\rm 0}}=70\leavevmode\nobreak\ km\leavevmode\nobreak\ s^{-1}\leavevmode\nobreak\ Mpc^{-1}$.

Magnitudes are given in the AB system (Oke & Gunn, 1983; Sirianni et al., 2005).

2 DATA

For our analysis, we use our own data reduction (Raichoor et al., 2014) of the Canada-France-Hawaii Telescope Legacy Survey (CFHT-LS; Gwyn, 2012) Wide 1 (W1) field and of the Next Generation Virgo Cluster Survey (NGVS; Ferrarese et al., 2012). We describe these two data sets below.

2.1 CFHTLenS and NGVSLenS

The CFHT-LS is a multi-color optical survey conducted between 2003 and 2008 using the CFHT optical multi-chip MegaPrime instrument (MegaCam333http://www.cfht.hawaii.edu/Instruments/Imaging/ Megacam/; Boulade et al., 2003). The survey consists of 171 pointing covering $\sim 154\leavevmode\nobreak\ deg^{2}$ in four wide fields ranging from 25 to 72 $\rm deg^{2}$, with complete color coverage in the five filters $u^{*}g^{\prime}r^{\prime}i^{\prime}z^{\prime}$. All the pointings selected for this analysis were obtained under optimal seeing conditions with a seeing $<0.8^{\arcsec}$ in the primary lensing band $i^{\prime}$ (Erben et al., 2013). The $5\sigma$ point source limiting magnitudes in a $2.0^{\arcsec}$ aperture in the five $u^{*}g^{\prime}r^{\prime}i^{\prime}z^{\prime}$ filters are $\sim 25.2$, $\sim 25.6$, $\sim 24.9$, $\sim 24.5$, $\sim 23.5$ mag, respectively (Erben et al., 2013).

The NGVS (Ferrarese et al., 2012) is a multi-color optical imaging survey of the Virgo Cluster, also obtained with the CFHT MegaCam instrument. This survey covers $104\leavevmode\nobreak\ deg^{2}$ with 117 pointings in the four filters $u^{*}g^{\prime}i^{\prime}z^{\prime}$. Thirty-four of these pointings are also covered in the $r^{\prime}$ band. As for the CFHT-LS, the optimal seeing conditions were reserved to the $i^{\prime}$-band, which covers the entire survey with a seeing $<0.6^{\arcsec}$. The $5\sigma$ point source limiting magnitudes in a $2.0^{\arcsec}$ aperture in the five $u^{*}g^{\prime}r^{\prime}i^{\prime}z^{\prime}$ filters are $\sim 25.6$, $\sim 25.7$, $\sim 24.7$, $\sim 24.4$, $\sim 23.6$ mag, respectively (Raichoor et al., 2014).

Both our CFHTLenS and NGVSLenS photometry and photometric redshift catalogs were derived using the dedicated data processing described in Raichoor et al. (2014). The preprocessed Elixir444http://www.cfht.hawaii.edu/Instruments/Elixir/ data, available at the Canadian Astronomical Data Centre (CADC)555 http://www4.cadc-ccda.hia-iha.nrc-cnrc.gc.ca/cadc/) were processed with an improved version of the THELI pipeline (Erben et al., 2005, 2009, 2013; Raichoor et al., 2014) to obtain co-added science images accompanied by weights, flag maps, sum frames, image masks, and sky-subtracted individual chips that are at the base of the shear and photometric analysis. We refer the reader to Erben et al. (2013) and Heymans et al. (2012) for a detailed description of the different THELI processing steps and a full systematic error analysis. Raichoor et al. (2014) modified the standard pipeline performing the zero-point calibration using the SDSS data, taking advantage of its internal photometric stability. The SDSS covers the entire NGVS field and 62 out of 72 pointings of the CFHT-LS W1 field ($\sim 60\leavevmode\nobreak\ deg^{2}$). Raichoor et al. (2014) constructed the photometric catalogs as described in Hildebrandt et al. (2012), adopting a global PSF homogenization to measure unbiased colors. Multicolor catalogs were obtained from PSF-homogenized images using SExtractor (Bertin & Arnouts, 1996) in dual-image mode, with the un-convolved $i^{\prime}$-band single-exposure as the detection image.

We restrict our analysis to the entire NGVS and the $\sim 60\leavevmode\nobreak\ deg^{2}$ of the W1 field that were reprocessed by Raichoor et al. (2014), to have an homogeneously processed photometric catalog on a total of $\sim 164\leavevmode\nobreak\ deg^{2}$.

For the shear analysis, as described in Miller et al. (2013), shape measurements were obtained applying the Bayesian lensfit algorithm to single-exposure $i^{\prime}$-band images with accurate PSF modeling, fitting PSF-convolved disc plus bulge galaxy models. The ellipticity of each galaxy is estimated from the mean likelihood of the model posterior probability, marginalized over model nuisance parameters of galaxy position, size, brightness, and bulge fraction. The code assigns to each galaxy an inverse variance weight $w_{\rm{lens}}\propto(\sigma_{\rm{e}}^{2}+\sigma_{\rm{pop}}^{2})^{-1}$, where $\sigma_{\rm{e}}^{2}$ is the variance of the ellipticity likelihood surface and $\sigma_{\rm{pop}}^{2}$ is the variance of the ellipticity distribution of the galaxy population. Calibration corrections consist of a multiplicative bias $m$, calculated using simulated images, and an additive bias $c$, estimated empirically from the data. As discussed in Miller et al. (2013), the former increases as the size and the S/N of a galaxy detection decrease, while the latter increases as the S/N of a galaxy detection increases and the size decreases.

2.2 Photometric Redshifts

The photometric redshift catalogs of the $\sim 60\leavevmode\nobreak\ deg^{2}$ of the CFHTLenS covered by the SDSS and of the entire NGVSLenS were obtained using the Bayesian software packages LePhare (Arnouts at al., 1999; Arnouts et al., 2002; Ilbert et al., 2006) and BPZ (Benítez, 2000; Benítez et a., 2004; Coe et al., 2006), as described in Raichoor et al. (2014). We used the re-calibrated SED template set of Capak et al. (2004).

Both LePhare and BPZ are designed for high-redshift studies, giving biased or low-quality photo-z’s estimations for objects with $i^{\prime}<20$ mag, which represent a non-negligible fraction of both samples. In order to improve the performance at low redshift, Hildebrandt et al. (2012) used an ad hoc modified prior for the CFHTLenS data. Raichoor et al. (2014) adopted a more systematic solution for our reprocessed CFHTLenS W1 field and for the NGVSLenS, building a new prior calibrated on observed data, using the SDSS Galaxy Main Sample spectroscopic survey (York et al., 2000; Strauss et al., 2002; Ahn et al., 2014) to include bright sources.

To analyze the accuracy of the photometric redshift estimates, Raichoor et al. (2014) used several spectroscopic surveys covering the CFHTLenS and NGVSLenS: the SDSS Galaxy Main Sample, two spectroscopic programs at the Multiple Mirror Telescope (MMT; Peng, E. W. et al. 2016, in preparation) and at the Anglo-Australian Telescope (AAT; Zhang et al., 2015, 2016, in preparation), the Virgo Dwarf Globular Cluster Survey (Guhathakurta, P. et al. 2016, in preparation), the DEEP2 Galaxy Redshift Survey over the Extended Groth Strip (DEEP2/EGS; Davis et al., 2003; Newman et al., 2013), the VIMOS Public Extragalactic Redshift Survey (VIPERS; Guzzo et al., 2014), and the F02 and F22 fields of the VIMOS VLT Deep Survey (VVDS; Le Fèvre et al., 2005, 2013).

As shown in Raichoor et al. (2014), when using all five filters, for $0.2<z_{\rm phot}<1$ and $i^{\prime}<23$ mag, we found a bias $\Delta z=\frac{z_{\rm phot}-z_{\rm spec}}{1+z_{\rm spec}}<0.02$ with scatter values in the range $0.02<\sigma<0.05$ and $<5\%$ of outliers. When using four bands, the quality of the measurements slightly decreases, due to the lack of the $r^{\prime}$-band to sample the 4000 Å break. In the range $0.3<z_{\rm phot}<0.8$ and $i^{\prime}>21$ mag, we obtained $-0.05<bias<0.02$, a scatter $\sigma\sim 0.06$ and an outlier rate of $10-15\%$. Our photometric redshifts are not reliable for $z<0.2$ (Raichoor et al., 2014) and we excluded these low redshifts from our cluster detection in Licitra et al. (2016a, b) and our weak lensing analysis.

In this analysis, we use the photometric redshifts derived with BPZ, corresponding to $z_{\rm best}$, the peak of the redshift posterior distribution (hereafter, $z_{\rm phot}$).

3 CLUSTER CATALOGS

3.1 The RedGOLD Optical Cluster Catalogs

3.1.1 The RedGOLD Algorithm

The RedGOLD algorithm (Licitra et al., 2016a, b) is based on a modified red-sequence search algorithm. Because the inner regions of galaxy clusters host a large population of passive and bright ETGs, RedGOLD searches for passive ETG overdensities. To avoid the selection of dusty red star-forming galaxies, the algorithm selects galaxies on the red sequence both in the rest-frame $(U-B)$ and $(B-V)$, using red sequence rest-frame zero point, slope, and scatter from Mei et al. (2009), as well as an ETG spectral classification from LePhare. In order to select an overdensity detection as a cluster candidate, the algorithm also imposes that the ETG radial distribution follows an NFW (Navarro, Frenk & White, 1996) surface density profile.

RedGOLD centers the cluster detection on the ETG with the highest number of red companions, weighted by luminosity. This is motivated by the fact that the brightest cluster members lying near the X-ray centroid are better tracers of the cluster centers compared to using only the BCG (George et al., 2012). The redshift of the cluster is the median photometric redshift of the passive ETGs.

Each detection is characterized by two parameters–the significance $\sigma_{\rm det}$ and the richness $\lambda$–which quantifies the number of bright red ETGs inside the cluster, using an iterative algorithm.

The entire galaxy sample is divided into overlapping photometric redshift slices. Each slice is then divided in overlapping circular cells, with a fixed comoving radius of $500\leavevmode\nobreak\ kpc$. The algorithm counts $N_{\rm gal}$, the number of red ETGs inside each cell, brighter than $0.2L_{\rm*}$, building the galaxy count distribution in each redshift slice. The background contribution is defined as $N_{\rm bkg}$, the mode of this distribution, with standard deviation $\sigma_{\rm bkg}$. The detection significance is then defined as $\sigma_{\rm det}=(N_{\rm gal}-N_{\rm bkg})/\sigma_{\rm bkg}$. Overdensities larger than $N_{\rm bkg}+\sigma_{\rm det}\times\sigma_{\rm bkg}$ are selected as preliminary detections. The uncertainties on the cluster photometric redshift range between 0.001 and 0.005, with an average of $0.003\pm 0.002$. In this paper, we assume that these uncertainties are negligible for our analysis (see also Simet et al., 2016).

The algorithm then estimates the richness $\lambda$, counting $N_{\rm gal}$ inside a scale radius, initially set to $1\leavevmode\nobreak\ Mpc$. The radius is iteratively scaled with richness as in Rykoff et al. (2014), until the difference in richness between two successive iterations is less than $N_{\rm bkg}$.

RedGOLD is optimized to produce cluster catalogs with high completeness and purity. In Licitra et al. (2016a, b), the completeness is defined as the ratio between detected structures corresponding to true clusters and the total number of true clusters, and the purity is defined as the number of detections that correspond to real structures to the total number of detected objects.

Following the definition of a true cluster in the literature (e.g, Finoguenov et al., 2003; Lin et a., 2004; Evrard et al., 2008; Finoguenov et al., 2009; McGee et al., 2009; Mead et al., 2010; George et al., 2011; Chiang et al., 2013; Gillis et al., 2013; Shankar et al., 2013), we define a true cluster as a dark matter halo more massive than $10^{14}\ \rm M_{\odot}$. In fact, numerical simulations show that 90$\%$ of the dark matter halos more massive than $10^{14}\ M_{\odot}$ are a very regular virialized cluster population up to redshift $z\sim 1.5$ (e.g., Evrard et al., 2008; Chiang et al., 2013). In order to validate the performance of our algorithm to find clusters with a total mass larger than $10^{14}\ \rm M_{\odot}$ and measure our obtained sample completeness and purity, we have applied RedGOLD to both galaxy mock catalogs and observations of X-ray detected clusters (Licitra et al., 2016a). For details on the method and the performance of the algorithm when applied to simulations and observations, we refer the reader to Licitra et al. (2016a).

3.1.2 The RedGOLD CFHT-LS W1 and NGVS Cluster Catalogs

We use the CFHT-LS W1 and NGVS cluster catalogs from Licitra et al. (2016a) and Licitra et al. (2016b), respectively. For both surveys, when using five bandpasses, in the published catalogs, we selected clusters more massive than $\approx 10^{14}M_{\rm\odot}$, the mass limit for which $\sim 90\%$ of dark matter halos at $z_{\rm phot}<1.5$ are virialized (Evrard et al., 2008). In Licitra et al. (2016a, b), we calibrated the $\sigma_{\rm det}$ and $\lambda$ parameters to maximize the completeness and purity of the catalog of these type of objects.

Licitra et al. (2016a) demonstrated that, when we considered only detections with $\sigma_{\rm det}\geq 4$ and $\lambda\geq 10$ at $z_{\rm phot}\leq 0.6$, and $\sigma_{\rm det}\geq 4.5$ and $\lambda\geq 10$ at $z_{\rm phot}\lesssim 1$, we obtain catalogs with a completeness of $\sim 100\%$ and $\sim 70\%$, respectively, and a purity of $\sim 80\%$ (see Figure 7 and 8 from Licitra et al., 2016a).

In both the CFHT-LS W1 and the NGVS, we masked areas around bright stars and nearby galaxies. We found that in only $\sim 2\%$ of the cluster candidates (low richness structures at high redshift) are more than $10\%$ of their bright potential members masked (Licitra et al., 2016a). Therefore, our richness estimates are not significantly affected by masking.

For the NGVS, as explained above, the five-band coverage was limited to only the $\sim 30\%$ of the survey. The lack of the $r^{\prime}$-band in the remaining pointings, causes higher uncertainties on the determination of photometric redshifts for sources at $0.3<z_{\rm phot}<0.8$ but the global accuracy on the photometric redshifts remains high even for this sample, as shown in Raichoor et al. (2014). Because there are some fields in which the quality of the $r^{\prime}$-band is lower because of the lower depth and the lack of coverage of the intra-CCD regions, this adds to the difficulty of detecting the less-massive structures at intermediate and high redshifts, as well as the determination of the clusters center and richness.

To quantify this effect in the richness estimation, Licitra et al. (2016b) compared the values recovered with a full band coverage $\lambda_{\rm r}$ to the ones obtained without the $r^{\prime}$-band $\lambda_{\rm wr}$, and measured $\Delta\lambda/\lambda_{\rm r}\equiv(\lambda_{\rm r}-\lambda_{\rm wr})/\lambda_{\rm r}$, in different redshift bins. Median values of $\Delta\lambda/\lambda_{\rm r}$ and their standard deviations are listed in Table 2 of Licitra et al. (2016b). At $z_{\rm phot}<0.5$ and $z_{\rm phot}>0.8$, the two estimates are in good agreement, with $\Delta\lambda/\lambda_{\rm r}<10\%$. This is due to the fact that the $(g-z)$ and $(i-z)$ colors straddle the 4000 Å break at $z_{\rm phot}<0.5$ and $z_{\rm phot}>0.8$, respectively. At $0.5<z_{\rm phot}<0.6$, $\lambda_{\rm wr}$ is systematically underestimated of $\sim 40\%$ on average and, at $0.6<z_{\rm phot}<0.8$, it is systematically overestimated of $\sim 20\%$ on average. The first systematic is due to the use of the $(g-z)$ color, which changes less steeply with redshift and has larger photometric errors, compared with $(r-i)$ and $(i-z)$ colors. The latter is caused by the use of the $(i-z)$ color only, without the additional cut in the $(r-z)$ or $(r-i)$ colors that allows us to reduce the contamination of dusty red galaxies on the red sequence (Licitra et al., 2016b).

To take this into account, we correct the $\lambda_{\rm wr}$ estimations using the average shifts given in Table 2 of Licitra et al. (2016b). As we will discuss later, since for this analysis we are only selecting clusters at $z_{\rm phot}<0.5$ (see below), so using four bands preserves the same level of completeness and purity as using the five-bands catalog.

For these reasons, we built two separate catalogs for the NGVS: the first for the $\sim 20\leavevmode\nobreak\ deg^{2}$ covered by the $r^{\prime}$-band and the second for the entire NGVS using only four bandpasses. In this last catalog, we corrected for the average shift in $\lambda$ when applying our thresholds (Licitra et al., 2016b). Hereafter, we define the NGVS catalog obtained on the area covered by the five bandpasses as NGVS5 and the catalog obtained with four bandpasses as NGVS4.

The CFHT-LS W1 published catalog includes 652 cluster candidate detections in an area of $\sim 60\leavevmode\nobreak\ deg^{2}$. The NGVS published catalogs include 279 and 1505 detections, in the $\sim 20\leavevmode\nobreak\ deg^{2}$ with the five band coverage and in the rest of the survey, respectively.

We select cluster subsamples from these catalogs for our weak lensing analysis. Knowing that the peak in the lensing efficiency is found at $z_{\rm phot}\sim 0.4$ for source galaxies at $z_{\rm phot}\sim 1$ (Hamana et al., 2004) and that shear measurements from ground-based telescopes are reliable for clusters with redshifts $0.2<z_{\rm phot}<0.5$ (Kasliwal et al., 2008), we select detections only in this redshift range $0.2<z_{\rm phot}<0.5$, where the lower limit is due to the fact that our photometric redshifts are not reliable for $z_{\rm phot}<0.2$, as noted in Section 2.2 and presented in Raichoor et al. (2014) and Licitra et al. (2016a). We also discard clusters with richness $\lambda<10$ and $\lambda>70$. In fact, as shown in Licitra et al. (2016a) at richness $\lambda<10$, our purity decreases for a given significance threshold. For our significance threshold of $\sigma_{\rm det}>4$, $\lambda<10$ implies a contamination of false detections larger than $\sim 20\%$. For $\lambda>70$, we have very few detections and there are not enough clusters to obtain an average profile from a statistically significant sample.

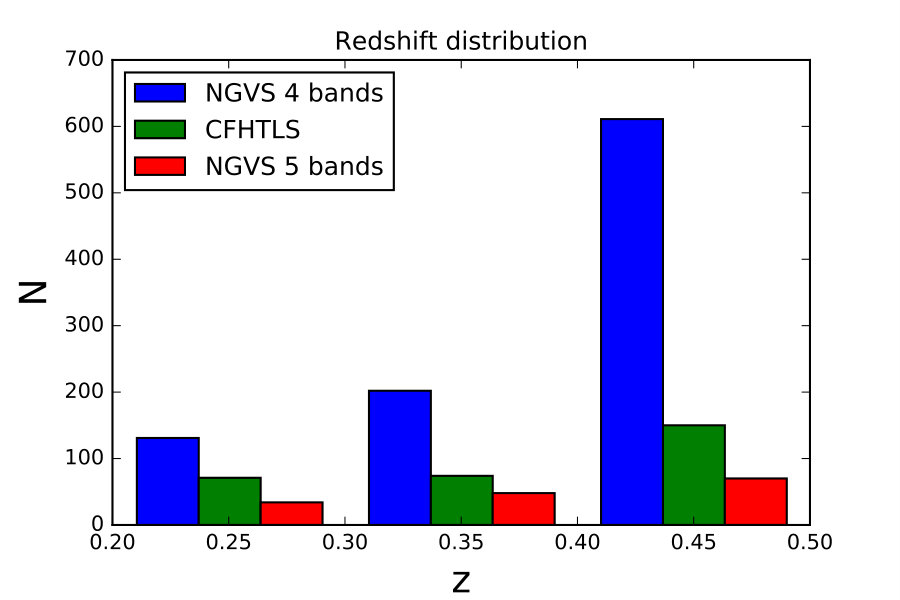

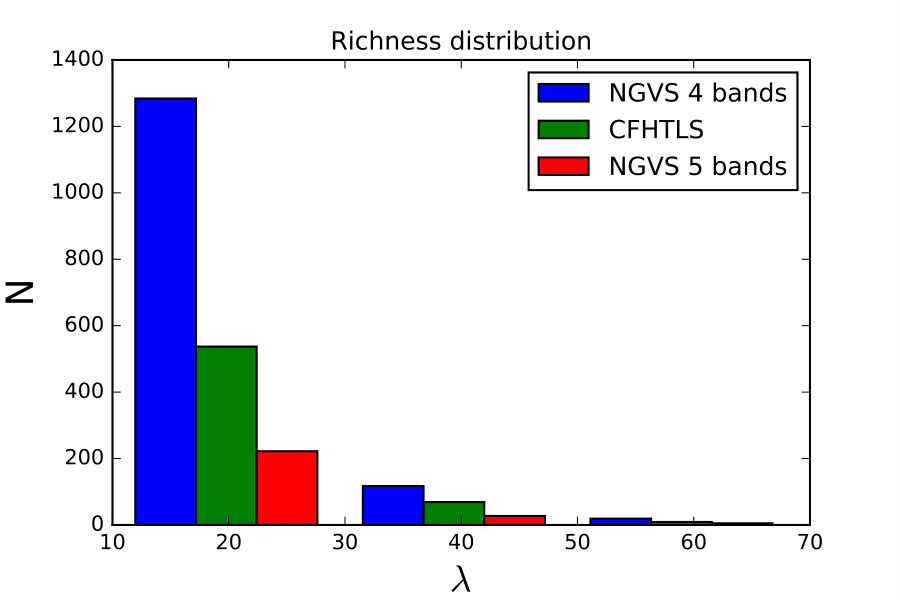

Our final selection for the weak lensing analysis includes 1323 clusters. Their richness and redshift distributions are shown in Figure 1. Hereafter, we will define the catalogs to which we applied the thresholds in significance, richness, and redshift for the weak lensing analysis as selected catalogs. The published Licitra et al. (2016a, b) catalogs, to which we applied the thresholds in significance and richness, will be referred to as Licitra’s published catalogs. The Licitra et al. (2016a, b) catalogs, without any threshold, will be called complete catalogs.

3.2 The X-Ray Cluster Catalogs

Gozaliasl et al. (2014) analyzed the XMM-Newton observations in the $\sim 3\leavevmode\nobreak\ deg^{2}$ overlapping the CFHT-LS W1 field, as a part of the XMM-LSS survey (Pierre et al., 2007) 666https://heasarc.gsfc.nasa.gov/W3Browse/all/cfhtlsgxmm.html. They presented a catalog of 129 X-ray groups, in a redshift range $0.04<z_{\rm phot}<1.23$, characterized by a rest frame $0.1-2.4\leavevmode\nobreak\ keV$ band luminosity range $10^{41}-10^{44}\leavevmode\nobreak\ ergs\leavevmode\nobreak\ s^{-1}$. They removed the contribution of AGN point sources from their flux estimates and applied a correction of $\sim 10\%$ for the removal of cool core flux based on the high-resolution Chandra data on COSMOS as shown in Leauthaud et al. (2010). They used a two-color red-sequence finder to identify group members and calculate the mean group photometric redshift. They inferred cluster’s $M_{\rm 200}$ masses using the $L_{\rm X}-M$ relation of Leauthaud et al. (2010), with a systematic uncertainty of $\sim 20\%$.

Mehrtens et al. (2012) presented the first data release of the XMM Cluster Survey, a serendipitous search for galaxy clusters in the XMM-Newton Science Archive data 777https://heasarc.gsfc.nasa.gov/W3Browse/all/xcs.html. The catalog consists of 503 optically confirmed clusters, in a redshift range $0.06<z_{\rm phot}<1.46$. Four hundred and two of these clusters have measured X-ray temperatures in the range $0.4<T_{\rm X}<14.7\leavevmode\nobreak\ keV$. They derived photometric redshifts with the red-sequence technique, using one color. They used a spherical $\beta$-profile model (Cavaliere & Fusco-Fermiano, 1976) to fit the surface brightness profile and derive the bolometric (0.05 - 100 keV band) luminosity in units of $10^{44}\leavevmode\nobreak\ erg\leavevmode\nobreak\ s^{-1}$ within the radius $R_{\rm 200}$ and $R_{\rm 500}$.

In Section 5.3, we will use these catalogs to compare our lensing masses with X-ray masses and calculate the scaling relations between lensing masses and X-ray temperature and luminosity. We analyze the two catalogs separately because the different treatment of the emission from the central regions of the clusters leads to different mass estimates. In Section 6.2 we will discuss these results.

4 WEAK LENSING ANALYSIS

In this section, we describe our weak lensing analysis. Our aim is to infer cluster masses by reconstructing the tangential shear radial profile $\gamma_{\rm t}(R)$, averaging in concentric annuli around the halo center, and fitting it to a known density profile. Here, $\gamma_{\rm t}(R)$ accounts for the distortion, due to the gravitational potential of the lens, of the shape of the background sources in the tangential direction with respect to the center of the lens. It is defined as:

[TABLE]

with $\gamma=\epsilon_{\rm 1}+i\epsilon_{\rm 2}=|\gamma|e^{2i\phi}$, where $\epsilon_{\rm 1}$ and $\epsilon_{\rm 2}$ are the ellipticity components of the galaxy and $\phi$ is the position angle of the galaxy respect to the center of the lens (Schneider, 2006).

As described in Wright & Brainerd (2000), the tangential shear profile $\gamma_{\rm t}(R)$ is related to the surface density contrast by:

[TABLE]

where $R$ is the projected radius with respect to the center of the lens and:

[TABLE]

is the critical surface density. Here, $c$ is the speed of light and $D_{\rm s}$, $D_{\rm l}$, and $D_{\rm ls}$ are the angular diameter distances from the observer to the source, from the observer to the lens, and from the lens to the source, respectively.

To infer cluster masses, we fit the measured $\Delta\Sigma(R)$ profile, obtained as described in Section 4.1, to the theoretical models introduced in Section 4.2.

4.1 Cluster Profile Measurement

To measure cluster masses, we need to fit the cluster radial profiles. This is possible individually only for the most massive clusters in our sample ($M_{\rm 200}>4\times 10^{14}M_{\rm\odot}$ for a signal-to-noise ratio $S/N>3$; they represent the $\sim 2\%$ of the sample), while the noise dominates for the others. In order to increase the S/N and measure average radial profiles for all the other detections, we stack galaxy clusters in five richness bins, from $\lambda=10$ to $\lambda=70$, in steps of 10 (20 for the last bin) in richness.

We select the background galaxy sample using the following criteria:

[TABLE]

where $z_{\rm phot,s}$ is the source redshift, $z_{\rm phot,l}$ is the lens redshift, and $\sigma_{\rm z_{phot}}\left(i^{\prime}-mag_{\rm s}\right)$ is the error on the photometric redshift as a function of the source $i^{\prime}$-band magnitude. This function was obtained by interpolating the values in Figure 9 of Raichoor et al. (2014), up to $i^{\prime}\sim 24.7\leavevmode\nobreak\ mag$. We tested different cuts in magnitude ($i^{\prime}\sim 24.7,\leavevmode\nobreak\ 24,\leavevmode\nobreak\ 23.5,\leavevmode\nobreak\ 23\leavevmode\nobreak\ mag$), and found consistent results in all cases. We can conclude that the inclusion of faint sources in the background sample does not introduce a bias in the total cluster mass estimation.

Following Ford et al. (2015), we then sort the background galaxies in 10 logarithmic radial bins from $0.09\leavevmode\nobreak\ Mpc$ from the center of the lens to $5\leavevmode\nobreak\ Mpc$. In fact, at radii closer than 0.09 $Mpc$, galaxy counts are dominated by cluster galaxies, and at larger radii, the scatter in the mass estimate can be $\geq 20\%$ because of the contribution of large-scale structure (Becker & Kravtsov, 2011; Oguri & Hamana, 2011).

In each radial bin, we perform a weighted average of the lensing signal as follows:

[TABLE]

where we sum over every lens-source pair (i.e. i–j indices up to the $l$ number of lenses and $s$ number of sources). The weights $w_{ij}=\Sigma^{-2}_{{\rm c},ij}w_{\rm lens}$ (Mandelbaum et al., 2005) quantify the quality of the shape measurements through the lensfit weights $w_{\rm lens}$ (defined in Section 2.1) and down-weight source galaxies that are close in redshift to the lens through $\Sigma^{-2}_{{\rm c},ij}$, which is evaluated for every lens-source pair using $z_{\rm phot}$ to calculate the angular diameter distances that appear in Equation 3.

We then need to correct the measured signal, applying the calibration corrections introduced in Section 2.1. As shown in Heymans et al. (2012), the ellipticity estimated by lensfit can be related to the true ellipticity (i.e. the sum of the shear and of the galaxy intrinsic ellipticity) as $\epsilon_{\rm lens}=(1+m)[\gamma+\epsilon_{\rm int}]+c$, where $m$ and $c$ are the multiplicative and additive biases. While the latter can be simply added on single ellipticity measurements, the first needs to be applied as a weighted ensemble average correction:

[TABLE]

This is done to avoid possible instabilities in case the term $(1+m)$ tends to zero. In this way, we also remove any correlation between the calibration correction and the intrinsic ellipticity (Miller et al., 2013). The calibrated signal is written as:

[TABLE]

To estimate the errors on $\Delta\Sigma(R)$, we create a set of 100 bootstrap realizations for each richness bin, selecting the same number of clusters for each stack but taking them with replacements. We apply Equation 5 to obtain $\Delta\Sigma(R)$ for each bootstrap sample.

Following Ford et al. (2015), we then calculate the covariance matrix:

[TABLE]

where $R_{i}$ and $R_{j}$ are the radial bins, $N$ is the number of bootstrap samples, and $\overline{\Delta\Sigma}(R_{i})$ is the average over all bootstrap realizations.

For each radial bin, we weight the shear using the lensfit weights as shown in Equation 5, so these error bars also include the error on the shape measurements of the source galaxies. We calculate the covariance matrix to take into account the correlation between radial bins and the contribution to the stacked signal of clusters with different masses inside the same richness bin.

4.2 Cluster Profile Model

In order to fit the tangential shear profiles, we use a basic analytic model for the cluster profile, to which we progressively add additional terms to obtain our fiducial model, which we will call Final model. This procedure permits us to quantify how adding additional terms changes the final cluster profile model.

Our basic analytic model is the following (hereafter Basic Model):

[TABLE]

Here, $\Delta\Sigma_{\rm NFW}$ is the surface density contrast calculated from an NFW density profile, assumed as the halo profile; $\Delta\Sigma_{\rm nw}$, $\Delta\Sigma_{\rm sm}$ and $\Delta\Sigma_{\rm 2halo}$ are correction terms that take into account, respectively, non-weak shear, cluster miscentering, and the contribution to the signal from large-scale structure; and $p_{\rm cc}$ is a free parameter related to the miscentering term, and represents the percentage of correctly centered clusters in each stack.

Each term and the free parameters of the Basic Model are described in detail in the following sections.

As shown by Gavazzi et al. (2007), the two contributions to the shear signal from the luminous and dark matter can be distinguished by fitting a two-component mass model, which takes into account the contribution from the stellar mass of the halo central galaxy $M_{\rm BCG}$. In order to model the BCG signal, we follow Johnston et al. (2007) and add a point mass term to Equation 9 (hereafter Two Component Model):

[TABLE]

The BCG mass, $M_{\rm{BCG}}$, is either fixed at the value of the mean BCG stellar mass in each bin (hereafter $M_{\rm BCG}^{*}$), or left as a free parameter in the fit. We obtained $M_{\rm BCG}^{*}$ using our photometric and photometric redshift catalogs from Raichoor et al. (2014), and Bruzual & Charlot (2003) stellar population models with LePhare, in fixed redshift mode at the galaxy photometric redshift.

Previous works (Becker et al., 2007; Rozo et al., 2009) have also shown that, when fitting the model profile to the halo profile derived from the observations in richness bins, the intrinsic scatter between the dark matter halo mass and the richness biases mass measurements. Following their modeling, we assume that the mass $M_{\rm 200}$ has a log-normal distribution at fixed richness, with the variance in $\ln{M_{\rm 200}}$, $\sigma_{\rm\ln{M200}|\lambda}$, and we add $\sigma_{\rm\ln{M200}|\lambda}$ to our Basic Model (hereafter Added Scatter Model).

All the averages in the equations below are performed using the same weighting as in equation 5.

4.2.1 $\Delta\Sigma_{\rm NFW}$ Profile

For the cluster halo profile, we assume an NFW profile. Numerical simulations have shown that dark matter halos density profiles, resulting from the dissipationless collapse of density fluctuations, can be well-described by this profile:

[TABLE]

where $\rho_{\rm c}$ is the critical density of the universe; $c$ is the concentration parameter; $\delta_{\rm c}$ is a dimensionless parameter that depends only on the concentration; $r_{\rm s}$ is the scale radius of the cluster; and $r_{\rm 200}$ is the radius at which the density is 200 times the critical density of the universe and can be considered as an approximation of the virial radius of the halo. The mass $M_{\rm 200}$ is the mass of a sphere of radius $r_{\rm 200}$ and average density of $200\rho_{\rm c}$:

[TABLE]

Simulations have also shown that there is a relation between $M_{\rm 200}$ and $c$ (e.g. Navarro, Frenk & White, 1996; Bullock et al., 2001). In order to take this into account, we use the Dutton & Macció (2014) mass–concentration relation:

[TABLE]

with $a=0.520+(0.905-0.520)\exp{(-0.617z^{1.21})}$ and $b=-0.101+0.026z$. This reduces the dimensionality of the model to one parameter, $r_{\rm 200}$, from which we can calculate the halo mass using Equation 12.

Integrating the tridimensional NFW density profile along the line of sight, we can calculate the NFW surface density:

[TABLE]

Integrating again, we get $\overline{\Sigma}_{\rm NFW}(R)$, the average surface density inside a radius $R$:

[TABLE]

Finally, we can calculate the first term in Equation 9:

[TABLE]

4.2.2 Miscentering Term

Because the NFW density profile is spherically symmetric, an error in the determination of the halo center would lead to systematic underestimation of the lens mass. In fact, the random stacking offset smooths the differential surface mass density profile (George et al., 2012).

Following Licitra et al. (2016a), we use both simulations and X-ray observations to obtain a model of the distribution of the offsets between the RedGOLD center and the cluster true center. We apply RedGOLD to the lightcones of Henriques et al. (2012), and calculate the offsets between the centers estimated by the algorithm and the true centers from the simulations. We also match our RedGOLD detections to X-ray detections in the same areas (Gozaliasl et al., 2014) to measure our average offset between RedGOLD and X-ray cluster centers. We perform the match between the RedGOLD and the Gozaliasl et al. (2014) catalogs by imposing a maximum separation between centers of $1\leavevmode\nobreak\ Mpc$ and a maximum difference in redshift of $\Delta z=0.1$.

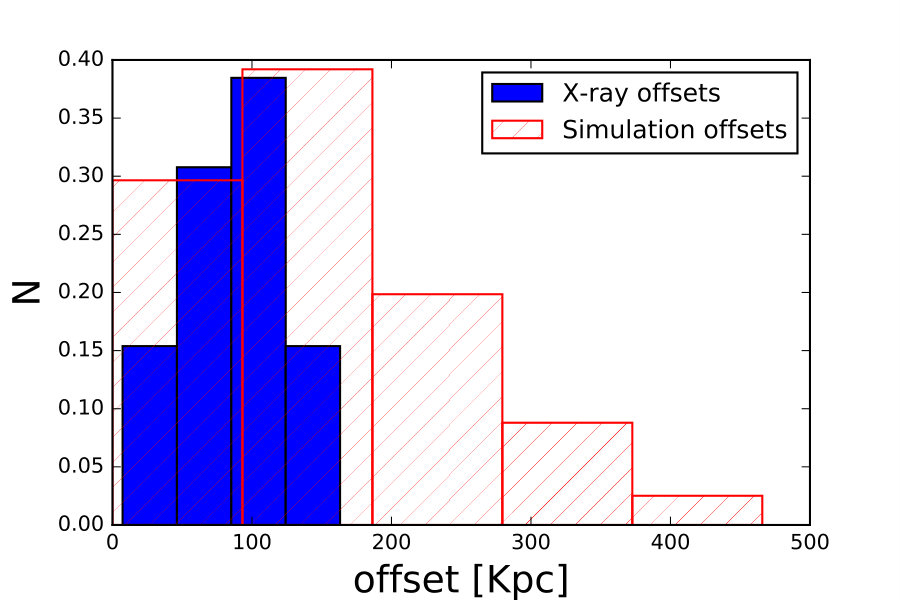

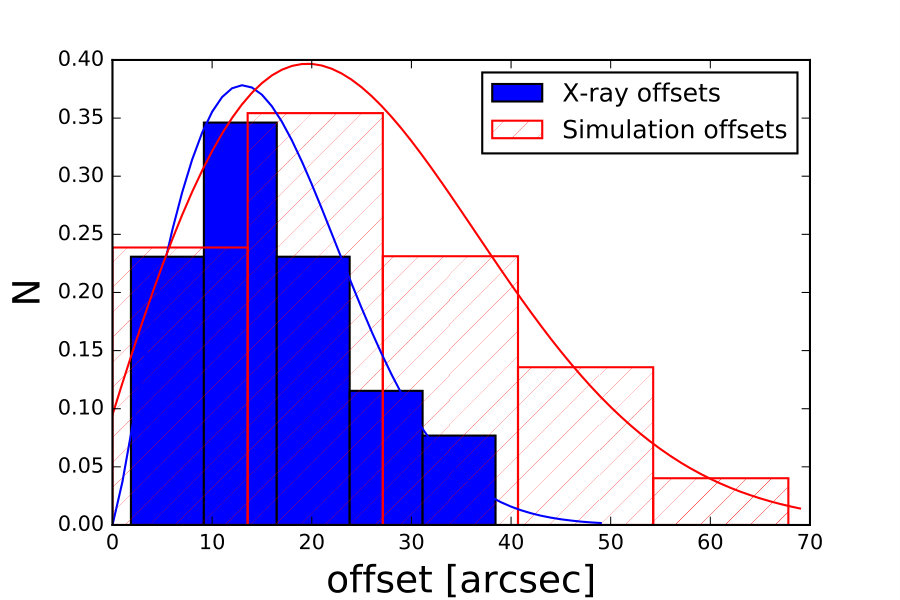

In both cases, we find that the distribution of the offsets on the plane perpendicular to the line of sight can be modeled as a Rayleigh distributions with modes of 23 and $13\leavevmode\nobreak\ arcsec$, respectively (Figure 2, on the left; see also Johnston et al., 2007; George et al., 2012; Ford et al., 2015). What is important is that the model (a Rayleigh distribution) is the same in both cases, even if the precise values of the mode are different. In fact, the mode of the Rayleigh distribution, from which its mean, median and variance can be derived, will be derived as a free parameter from our analysis. In Figure 2, on the right, we also show the offset distributions in kpc. A Rayleigh distribution is also consistent with the published center offset distribution predicted from cosmological simulations for X-ray detected clusters, including AGN feedback (Cui et al., 2016).

We assume that this distribution represents the general offset distribution for our entire RedGOLD sample $P(R_{\rm off})$, and model it following Johnston et al. (2007):

[TABLE]

where $R_{\rm off}$ is the offset between the true and the estimated center, projected on the lens plane, and $\sigma_{\rm off}$ is the mode, or scale length, of the distribution. The surface density measured at the coordinates $(R,\theta)$, with $\theta$ the azimuthal angle, relative to the offset position, $R_{\rm off}$, is:

[TABLE]

and the azimuthal averaged surface density around $R_{\rm off}$ is given by:

[TABLE]

To model the effect of miscentering, we smooth the $\Sigma_{\rm NFW}(R|R_{\rm off})$ profile convolving it with $P(R_{\rm off})$:

[TABLE]

and obtain the stacked surface density profile $\Sigma_{\rm sm}(R)$ around the offset positions of our ensemble of clusters with offset distribution $P(R_{\rm off})$ (Yang et al., 2006; Johnston et al., 2007; George et al., 2012).

Finally we can write the miscentering term as:

[TABLE]

with $\overline{\Sigma}_{\rm sm}(<R)$ being, as before, the average surface density within the radius $R$.

The miscentering term adds two free parameters to our model, $\sigma_{\rm off}$ and $p_{\rm cc}$, which is the percentage of correctly centered clusters in the stack, already introduced in Equation 9.

4.2.3 Non-weak Shear Term

The non-weak shear correction arises from the fact that what we actually measure is the reduced shear:

[TABLE]

where $k\equiv\Sigma_{\rm NFW}/\Sigma_{\rm c}$ is the convergence. Usually in the weak lensing regime $g_{\rm t}\approx\gamma_{\rm t}$, if $\gamma_{\rm t}<<1$ and $k<<1$, but for relatively massive halos, this assumption may no longer hold at the innermost radial bins in which we want to measure the cluster profile.

As described in Johnston et al. (2007), we introduce the non-weak shear correction term, calculated in Mandelbaum et al. (2006). In the non-weak regime, the tangential ellipticity component, $\epsilon_{\rm t}$ is proportional to $g_{\rm t}$, instead of $\gamma_{\rm t}$. We can expand $\epsilon_{\rm t}$ in power series as:

[TABLE]

As shown in detail in appendix A of Mandelbaum et al. (2006), we can calculate the correction term from the expansion in power series to the second order of $\epsilon_{\rm t}$, in powers of $\Sigma_{\rm c}$. We obtain the following term, which we add in Equation 9:

[TABLE]

4.2.4 Two-halo Term

On large scales, the lensing signal is dominated by nearby mass concentrations, halos, and filaments. Seljak (2000) developed an analytic halo model in which all the matter in the universe is hosted in virialized halos described by a universal density profile. They computed analytically the power spectrum of dark matter and galaxies, and their cross-correlation based on the Press & Schechter (1974) model. They found that, ignoring the contribution from satellite galaxies, a cluster can be modeled by two contributions: the one-halo term and the two-halo term. The first represents the correlation between the central galaxy and the host dark matter halo and corresponds to $\Delta\Sigma_{\rm NFW}(R)$. The second accounts for the correlation between the cluster central galaxy and the host dark matter halo of another cluster.

On large scales, the two-halo power spectrum is proportional to the halo bias and the linear power spectrum, $P_{\rm 2halo}\propto b(M_{\rm 200,z})P_{\rm lin}(k)$. In order to calculate the surface density associated to the two-halo term, we integrate the galaxy-dark matter linear cross-correlation function $\xi_{\rm lin}(r)$, obtained by the Fourier transform of the linear power spectrum.

Following Johnston et al. (2007) and Ford et al. (2015), we can write the two-halo term as:

[TABLE]

where $b(M_{\rm 200},z)$ is the bias factor, $\Omega_{\rm m}$ is the matter density parameter, $\sigma^{2}_{\rm 8}$ is the amplitude of the power spectrum on scales of 8 $h^{-1}Mpc$, $D(z)$ is the growth factor and

[TABLE]

where

[TABLE]

The factor $(1+z)$ arises from the conversion from physical units to comoving units.

For the bias factor, we use the analytic formula calculated by Seljak & Warren (2004), and for $P_{\rm lin}(k)$, we use tabulated values from CAMB (Lewis, Challinor & Lasenby, 2000).

5 RESULTS

5.1 Cluster Mass Estimation

5.1.1 Fit the Profile Model to the Shear Profile

We fit the shear profiles, obtained as described in Section 4.1 with the density profile models of Section 4.2, progressively adding model parameters to quantify their impact on the final results.

We start from the Basic Model with an NFW surface density contrast and correction terms that take into account cluster miscentering, non-weak shear, and the two halo term. This model has three free parameters: the radius $r_{\rm 200}$, from which we calculate the mass $M_{\rm 200}$ from Equation 12, and the miscentering parameters $p_{\rm cc}$, and $\sigma_{\rm off}$.

We then take into account the intrinsic scatter in the mass–richness relation through the Added Scatter Model, which has four free parameters: $\log{M_{200}}$, $p_{\rm cc}$, $\sigma_{\rm off}$, and $\sigma_{M|\lambda}$. For each bin, we use the mass–richness relation, calculated from the Basic Model to infer the mean mass of the stacked clusters, as a first approximation. We then randomly scatter the mass using a gaussian distribution with mean $\left<\ln{M_{\rm 200}}\right>$ and width $\sigma_{\rm\ln{M200}|\lambda}$.

Finally, we consider the Two Component Model, with four free parameters: $r_{\rm 200}$, $p_{\rm cc}$, $\sigma_{\rm off}$, and $\log{M_{\rm BCG}}$. When we fix the BCG mass to the mean stellar mass for each richness bin, $M_{\rm BCG}=M_{\rm BCG}^{*}$, the free parameters reduce to three.

The parameters used in each case are summarized in Table 1.

We perform the fit using Markov Chains Monte Carlo (MCMC; Metropolis et al., 1953). This method is particularly useful when the fitting model has a large number of parameters, the posterior distribution of the parameters is unknown, or the calculation is computationally expensive. MCMC allows efficient sampling of the model likelihood by constructing a Markov chain that has the target posterior probability distribution as its stationary distribution. Each step of the chain is drawn from a model distribution and is accepted or rejected based on the criteria defined by the sampler algorithm.

To run our MCMC, we use emcee888https://github.com/dfm/emcee (Foreman-Mackey et al., 2013), a Python implementation of the parallel Stretch Move by Goodman & Weare (2010). In order to choose the starting values of the chain we first perform a minimization with the Python version of the Nelder–Mead algorithm, also known as downhill simplex (Nelder & Mead, 1965). We used flat priors (i.e. a uniform distribution within a given range) for all parameters. Our initial priors, for the three different models, are shown in Table 1. All parameters are constrained to be positive and inside a range chosen according to their physical meaning. To choose the range for the intrinsic scatter, we refer to the values calculated by Licitra et al. (2016a). They found $\sigma_{\rm\ln{M}|\lambda}=0.39\pm 0.07$ using the X-ray catalog of Gozaliasl et al. (2014) and $\sigma_{\rm\ln{M}|\lambda}=0.30\pm 0.13$ from Mehrtens et al. (2012).

MCMC produce a representative sampling of the likelihood distribution, from which we obtain the estimation of the error bars on the fitting parameters and of the confidence regions for each couple of parameters. We calculate the model likelihood using the bootstrap covariance matrix of Equation 8:

[TABLE]

We use an ensemble of 100 walkers, a chain length of 1000 steps and a burn-in of 100 steps leading to a total of 90,000 points in the parameters space. In order to test the result of our chain, we check the acceptance fraction and the autocorrelation time, to be sure that we efficiently sample the posterior distribution and have enough independent samples.

5.1.2 Fit Parameters

We perform the fit of the models to the observed profiles on each of the three samples, CFHT-LS W1, NGVS5, and NGVS4. We then combine the CFHTLS and NGVS5, and all the three samples together.

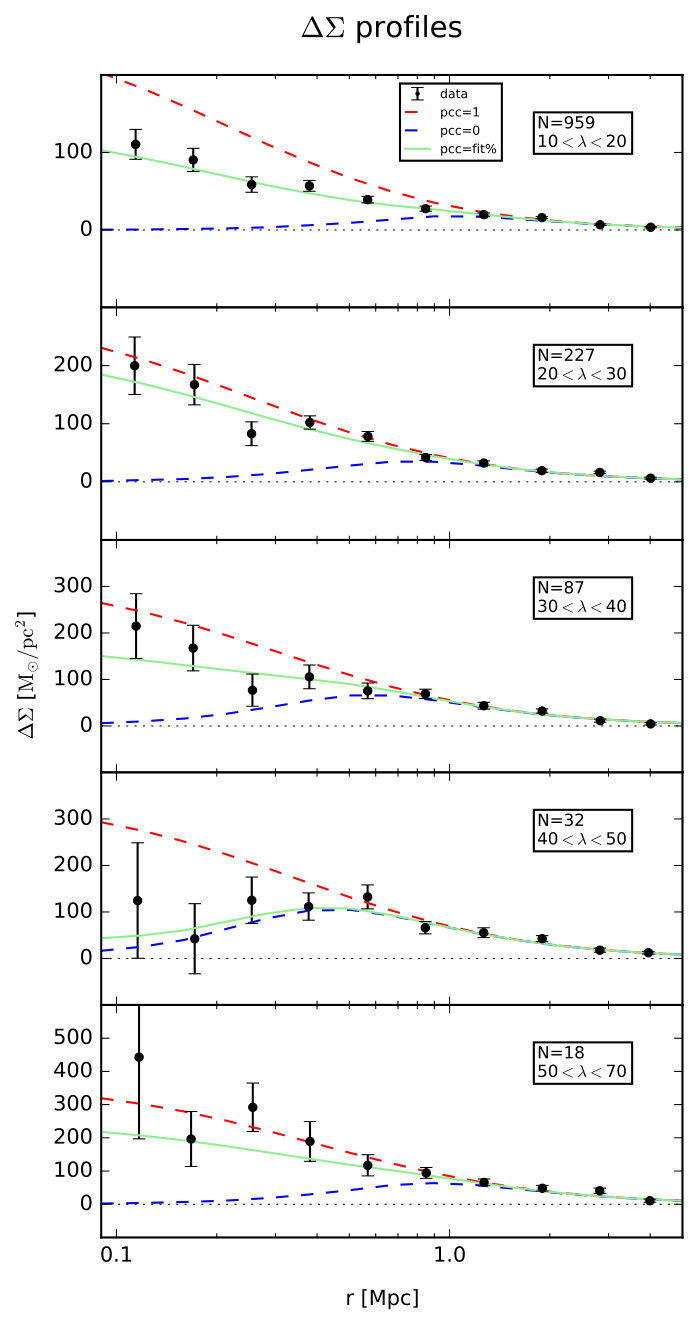

The profiles obtained using the Basic Model and the complete sample (CFHT-LS W1 + NGVS5 + NGVS4) are shown in black in Figure 3, on the left. The error bars on the shear profiles are the square root of the diagonal elements of the covariance matrix.

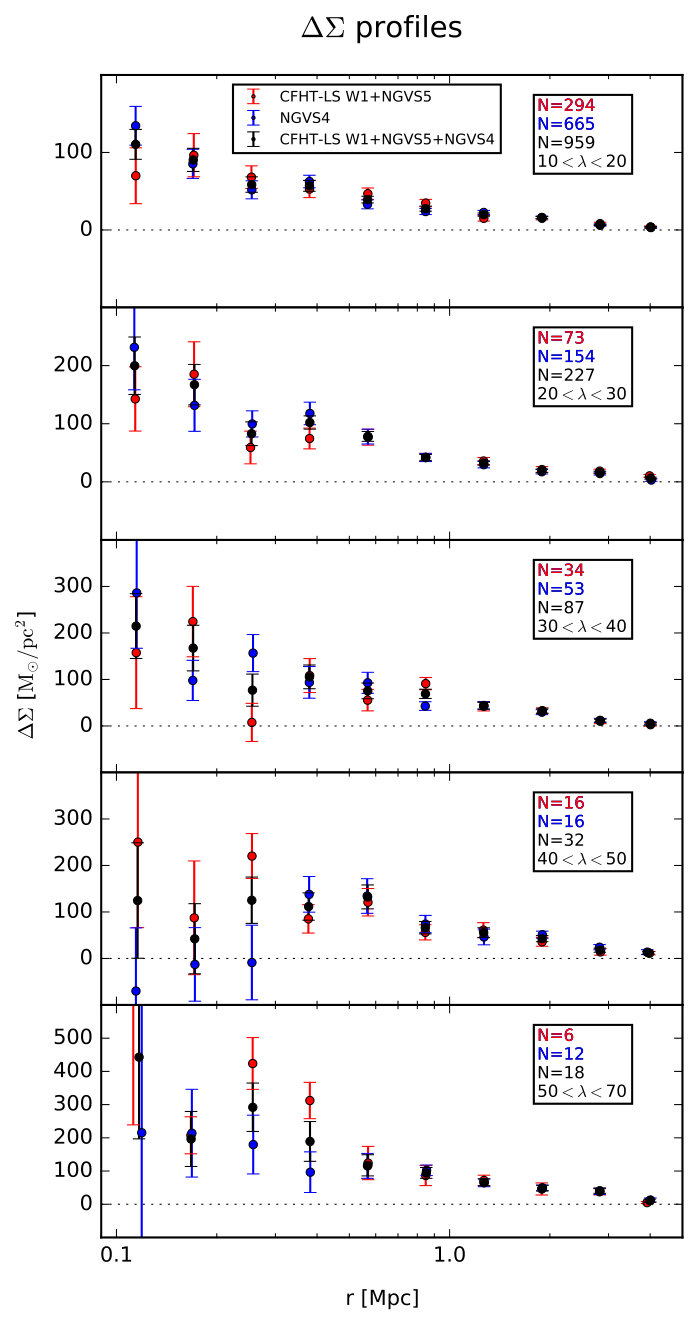

The profiles measured using the CFHT-LS W1 + NGVS5 sample, the NGVS4 sample, and the complete sample are shown in Figure 4. They are consistent within $1\sigma$ and the error bars are smaller in the last case. We can conclude that the richness shifts applied to NGVS4 seem not to bias our results when this sample is added to the other two that are covered by five bands. Increasing the sample size, we notice a progressive improvement in the profiles that are recovered with a lower noise level.

Because the miscentering correction is the one that most affects the mass estimation, in Figure 3, on the left, we show the fitted profiles (green lines), and the profiles that we would obtain with and without the miscentering term. The red lines represent the profiles we would obtain in the case in which all the clusters in the stack were perfectly centered ($p_{\rm cc}=1$), and the blue lines show the opposite case ($p_{\rm cc}=0$). An incorrect modeling of this effect leads to biased mass values (i.e. mass underestimation between 10 and $40\%$, Ford et al., 2015).

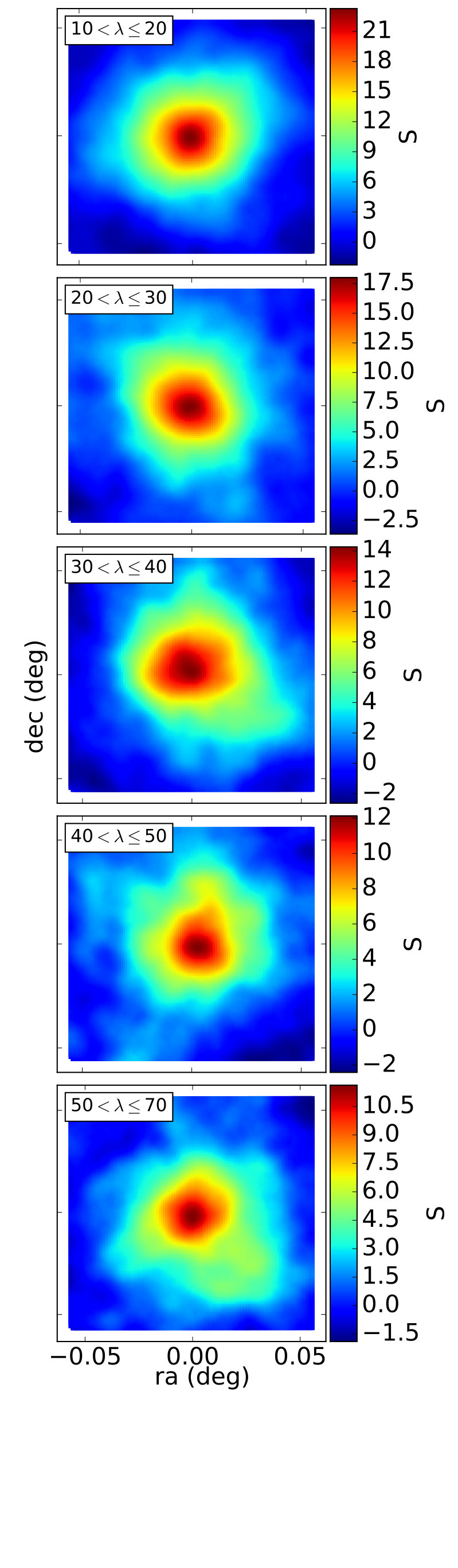

In Figure 3, on the right, we show the lensing S/N maps. These maps were calculated using aperture mass statistics (Schneider, 1996; Schirmer et al., 2006; Du & Fan, 2014). For each richness bin, we create a grid with a side of $1\leavevmode\nobreak\ Mpc$ and binning of $0.001\leavevmode\nobreak\ deg$, centered on the stacked clusters. In each cell, we evaluate the amount of tangential shear, filtered by a function that maximizes the S/N of an NFW profile, inside a circular aperture, following Schirmer et al. (2006). For stacked clusters, a $S/N\sim 10$ is considered sufficient to recover the fitting parameters (Oguri & Takada, 2011). All richness bins have $S/N\geq 10$. The highest richness bin shows the lowest S/N, being less populated than the others.

We show the results of our fits in Table 2, for the Basic Model, Added Scatter Model, and Two Component Model. The values of the radius, of the mass, and of the miscentering parameters for each richness bin are consistent within 1$\sigma$ for the three models. We found that the intrinsic scatter and BCG mass are not constrained by the data. The main effect of the addition of $\sigma_{M|\lambda}$ to the fit is to introduce more uncertainties and to increase the error on the estimated parameters. The inclusion of $M_{\rm BCG}$ in the model (either set as a free parameter or fixed to $M_{\rm BCG}^{*}$) has no impact on the estimated parameters, which are therefore the same as those obtained using the Basic Model. We can conclude that the contribution of the BCG mass is not significant in the radial range we are using to fit the shear profiles.

In Figure 5, we show an example of error bars and the confidence regions of the parameters, obtained using the python package corner by Foreman-Mackey et al. (2016). This example corresponds to the third richness bin, fitted with the Two Component Model. On the diagonal, we show the one-dimensional histograms of the parameter values, representing the marginalized posterior probability distributions. Under the diagonal, we show the two-dimensional histograms for each couple of parameters and the confidence levels corresponding to $0.5\sigma$, $1\sigma$, $1.5\sigma$ and $2\sigma$.

5.2 Mass–Richness Relation

Using the mass measured for each richness bin, we perform a fit to a power law to infer the mass–richness relation for all three models, using the python orthogonal distance regression routine (Boggs & Rogers, 1990) to take into account the errors in both $\log{\lambda}$ and $\log{M_{\rm 200}}$:

[TABLE]

with a pivot richness $\lambda_{\rm 0}=40$.

In Table 3 and in Figure 6, we show the results obtained fitting the three models. The slope and the normalization values are all consistent within $1\sigma$, for the three models. We notice that the uncertainties in the fit of the Added Scatter Model are larger, due to the inclusion of the intrinsic scatter as a free parameter.

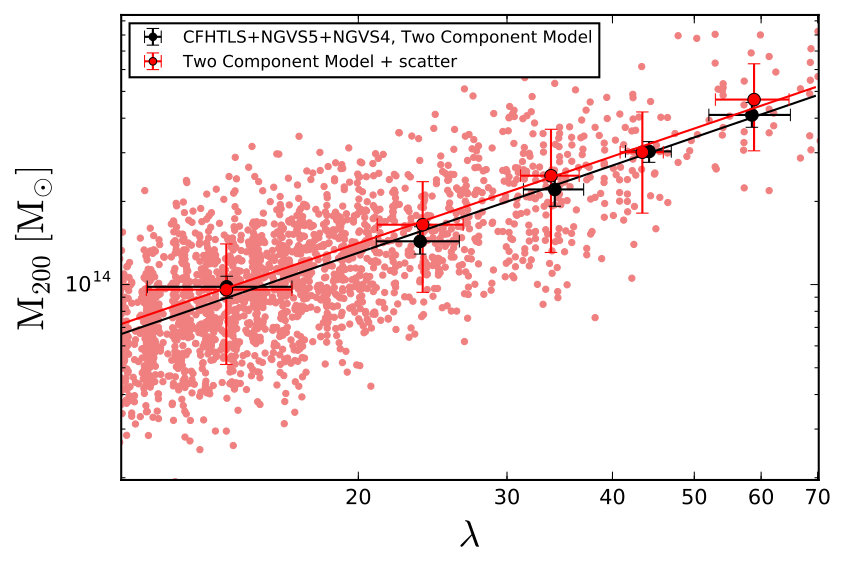

In order to also take into account the intrinsic scatter between richness and mass in the Basic and in the Two Component Models, we apply an a posteriori correction as in Ford et al. (2015). Using the mass–richness relation inferred from the Basic Model and from the Two Component Model, we calculate the mass of all the clusters in the sample, then we scatter those masses assuming a log-normal distribution centered on $\log{M_{\rm 200}}$ and with a width $\sigma_{\rm\ln{M}|\lambda}=0.39$, based on the scatter measured by Licitra et al. (2016a). We repeat this procedure, creating 1000 bootstrap realizations, choosing masses randomly with replacements from the entire sample. We then calculate the new mean mass values in each richness bin and average them over all bootstrap realizations. We then repeat the fit to infer the new mass–richness relation. This procedure is illustrated in Figure 7, where we show the results from the fit to the Two Component Model (in black), the scattered masses (in light red), and the new mean masses and mass–richness relation (in red). Due to the shape of the halo mass function, the net effect of the intrinsic scatter correction is to lead to a slightly higher normalization value of the mass–richness relation. The introduction of the the intrinsic scatter between richness and mass does not significantly change our results obtained with the Basic or with the Two Component Model. In fact, the difference in normalization for the original models and their scattered versions is less than $1\%$.

Having verified the impact of each model term on the final results, we consider as our Final Model the model that takes into account all the parameters considered so far, the Two Component Model with the a posteriori intrinsic scatter correction. Our final mass–richness relation is then: $\log{M_{\rm 0}}=14.46\pm 0.01$ and $\alpha=1.04\pm 0.09$.

Our uncertainty on the mass–richness relation parameters above is statistical. We expect systematic biases to be of the same order as the statistical uncertainties, from previous work on the CFHT-LS survey. In fact, Miller et al. (2013) and Heymans et al. (2012) estimated that the residual bias in the CFHTLenS analysis (and as a consequence on the NGVSLenS, given that the survey characteristics and reduction techniques are the same) could reach maximal values around $3--5\%$ (see also Simet et al. (2016); Fenech Conti et al. (2017)), which is on the same order of magnitude of our statistical uncertainties ($\sim$ 5%).

We checked that our richness binning choice does not affect the recovered mass–richness relation. We performed the fit, discarding the lower (most contaminated) and the highest (less populated) bins, and found consistent results. We have also verified that our procedure does not significantly bias our results, compared to a joint fit (e.g. Viola et al., 2015; Simet et al., 2016). We describe this test in Appendix A.

5.3 Comparison with X-Ray Mass Proxies

To compare our mass estimates with X-ray mass proxies, we follow the same matching procedure as in Licitra et al. (2016a). We use the Gozaliasl et al. (2014) and Mehrtens et al. (2012) X-ray catalogs, and perform the match between their and our detections imposing a maximum separation of $1\leavevmode\nobreak\ Mpc$ and a maximum difference in redshift of 0.1. We include detections from both the published and the complete catalogs to broaden our sample, and have more statistics to perform the scaling relation fits. Results obtained with the complete catalogs might be affected by contamination biases, since for those, we estimated the purity to decrease to $\sim 60\%$ (Figure 8 and 9 of Licitra et al., 2016a).

Within all three fields, we recover 36(27) objects from the match of the complete(published) catalog with Gozaliasl et al. (2014) (in this case, all objects are from the CFHT-LS W1 field), and 21(17) from objects from the match of the complete(published) catalog with Mehrtens et al. (2012). As shown in Licitra et al. (2016a), RedGOLD recovers 38 clusters, up to $z\sim 1$, in the $3\leavevmode\nobreak\ deg^{2}$ of the CFHT-LS W1 field, covered by Gozaliasl et al. (2014) catalog. The clusters detected by RedGOLD that do not have an X-ray counterpart seem to be, from visual inspection, small galaxy groups. It is possible that these systems have an X-ray emission below the X-ray detection limit, or that they are not relaxed systems and do not have any X-ray emission at all.

As explained in Section 3.2, Gozaliasl et al. (2014) $M_{\rm 200}$ masses were estimated using the $M_{\rm X}-L$ relation of Leauthaud et al. (2010). We estimate Mehrtens et al. (2012) $M_{\rm 200}$ masses from the $r_{\rm 200}$ values given in their catalog, using Equation 12. Our masses $M_{\rm 200}^{lens}$ are calculated using our final mass–richness relation.

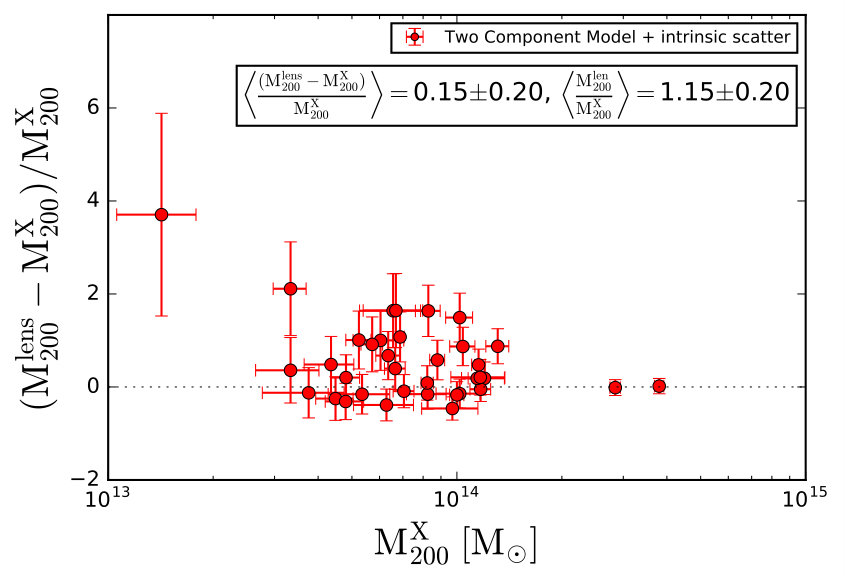

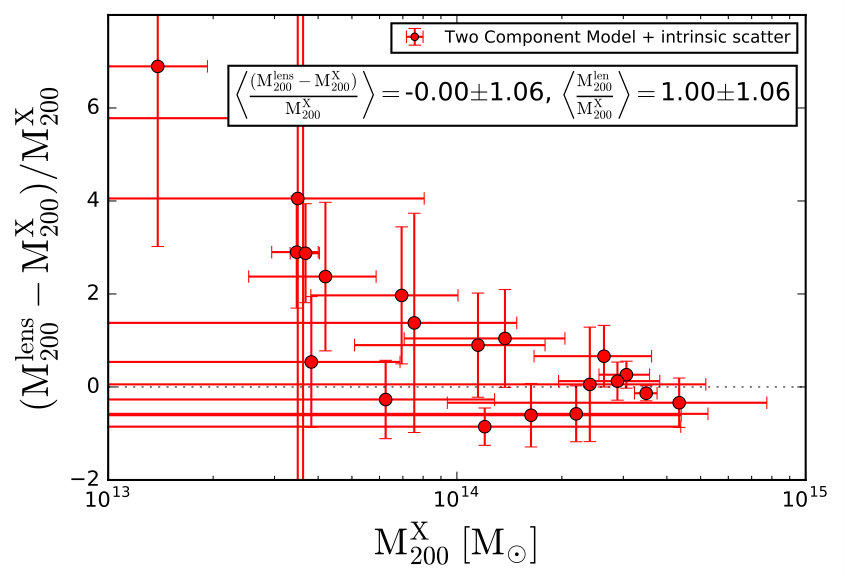

In Figure 8, we show the normalized difference between the X-ray masses of Gozaliasl et al. (2014) and lensing masses $\left(M_{\rm 200}^{lens}-M_{\rm 200}^{X}\right)/M_{\rm 200}^{X}$ as a function of $M_{\rm 200}^{X}$, obtained using our Final Model. The ratio is measured with respect to $M_{\rm 200}^{X}$ since our sample is X-ray selected (i.e. we select the clusters in the X-ray catalog, and then compare their X-ray and lensing mass estimate).

In the last four columns of Table 3, we show the mean normalized difference and the mean ratio between lensing and X-ray masses, for the three models, obtained with Gozaliasl et al. (2014) and Mehrtens et al. (2012) catalogs. For all models, the mean differences obtained using $M_{\rm 200}^{X}$ from Gozaliasl et al. (2014) ($\sim 0.1-0.2$) are higher than those obtained using Mehrtens et al. (2012) ($\sim-0.1-0.0$). However, uncertainties on the individual measurements are larger and the scatter in the difference are about an order of magnitude higher for the Mehrtens et al. (2012) sample. Because of the large uncertainty, we do not consider results obtained with the Mehrtens et al. (2012) catalogs reliable.

As explained in Section 3.2, Gozaliasl et al. (2014) masses were calculated from the X-ray luminosity, after the excision of the AGN contribution and the correction for cool core flux removal. We find that this leads to X-ray mass estimates that are lower compared to masses derived with weak lensing than those calculated without core excision. Hereafter, we will use only the Gozaliasl et al. (2014) sample, given the larger uncertainty in our results obtained using the Mehrtens et al. (2012) sample, and the higher number of cluster matches. Core-excised X-ray temperatures are also known to better correlate with cluster masses (Pratt et al., 2009).

Using X-ray masses from the Gozaliasl et al. (2014) catalog and the lensing masses estimated from the mass–richness relation derived from our Final Model, applied on the complete catalogs, we find a mean normalized difference of $0.15\pm 0.20$ ($\frac{M_{\rm 200}^{lens}}{M_{\rm 200}^{X}}=1.15\pm 0.20$), considering the whole mass range. If we consider two different mass ranges, we find a mean normalized difference of $0.17\pm 0.24$ for $M_{\rm 200}^{X}<10^{14}M_{\rm\odot}$, and a mean normalized difference of $0.14\pm 0.18$ for $M_{\rm 200}^{X}\geq 10^{14}M_{\rm\odot}$. This corresponds to $\sim 15\%$ higher lensing masses in the whole mass range, and $\sim 20\%$ and $\sim 15\%$ higher lensing masses for $M_{\rm 200}^{X}<10^{14}M_{\rm\odot}$ and $M_{\rm 200}^{X}>10^{14}M_{\rm\odot}$, respectively.

To obtain scaling relations, we exclude the two clusters with mass $M_{\rm 200}^{X}<2\times 10^{13}M_{\rm\odot}$ from the matched sample with Gozaliasl et al. (2014), because both our and the X-ray catalog are incomplete at these low masses. We also do not consider the two highest mass matches ($M_{\rm 200}^{X}>2\times 10^{14}M_{\rm\odot}$), because our catalog is incomplete in this mass range, given our low area coverage. All four excluded clusters were matches with the Licitra’s published catalog.

In Figure 9, we plot the $M_{\rm 200}^{X}-M_{\rm 200}^{lens}$ relation, and in Figure 10, the $L_{\rm X}-M_{\rm 200}^{lens}$ and the $T_{\rm X}-M_{\rm 200}^{lens}$ relations. In those plots, the black dots represent matches with the RedGOLD cluster detections in Licitra’s published catalogs, while the black squares represent all those with the complete catalogs (see Section 3.1). This difference between our lensing masses and those calibrated with lensing masses from Leauthaud et al. (2010) includes different contributions, and it is not a straightforward difference between our lensing masses and X-ray selected lensing masses. In fact, both the Gozaliasl et al. (2014) selection in $L_{X}$ (when stacking clusters to derive the Leauthaud et al. (2010) lensing masses), our selection based on the Licitra et al. (2016a, b) richness, and differences in the shear calibration in our data and Leauthaud et al. (2010) contribute to this difference, and interpreting it precisely implies degeneracies on each contribution.

In Figure 9, we show the relation between X-ray and lensing masses:

[TABLE]

The black dotted line is the diagonal, the solid lines are the fit to the published catalogs, and the dashed lines are the fit to the complete catalogs. The red lines were obtained with the slope as a free parameter of the fit, and the green lines with the slope fixed at unity. For the *published * catalogs, our threshold in richness and $\sigma_{\rm det}$ is meant to select clusters with $M_{\rm 200}>10^{14}M_{\rm\odot}$ with a completeness $\sim 80\%$. Part of these detections have X-ray masses lower than our selection threshold of $M_{\rm 200}>10^{14}M_{\rm\odot}$; in fact, their X-ray masses are in the range $2\times 10^{13}M_{\rm\odot}<M_{\rm 200}^{X}<10^{14}M_{\rm\odot}$. We expect to have a contamination of clusters with these lower masses, and our purity of $\sim 80\%$ is calculated for real clusters with $M_{\rm 200}^{X}>10^{13}M_{\rm\odot}$. However, our completeness decreases (<80%) in this mass range ($M_{\rm 200}^{X}<10^{14}M_{\rm\odot}$), as shown in Licitra et al. (2016a).

When fixing the slope at the unity, we obtain $a=0.20\pm 0.03$($a=0.23\pm 0.03$), and a scatter of $\sigma_{M}=0.20$ dex ($\sigma_{M}=0.17$ dex) for the complete (published) catalogs. In this case, the difference in $a$ for the two samples is negligible, $\sim 0.03\pm 0.06$ dex. The small shift in normalization ($\sim 0.2$ dex) compared to the diagonal is expected, because lensing mass estimates are generally higher than X-ray masses (Zhang et al., 2008; Rasia et al., 2012; Simet et al., 2015). When leaving the slope as a free parameter, we find $a=-0.13\pm 2.96$ and $b=1.02\pm 0.21$, with a scatter of $\sigma_{M}=0.20$ dex ($a=6.42\pm 3.17$ and $b=0.56\pm 0.23$, with a scatter of $\sigma_{M}=0.15$ dex) for the complete (published) catalogs. The incompleteness when using the published catalogs appears to bias our fit slope, which becomes much shallower than the diagonal.

In Figure 10, we show the mass–luminosity and mass–temperature relations. We apply a logarithmic linear fit, in the form:

[TABLE]

where $E(z)=H(z)/H_{\rm 0}$, $M_{\rm 0}=8\times 10^{13}\;h^{-1}M_{\rm\odot}$ for the $M_{\rm 200}-L_{\rm X}$, $M_{\rm 0}=6\times 10^{13}\;h^{-1}M_{\rm\odot}$ for the $M_{\rm 200}-T_{\rm X}$, $L_{\rm 0}=5.6\times 10^{42}\;h^{-2}erg/s$, and $T_{\rm 0}=1.5\;keV$.

For the mass–luminosity relation, we find $a=0.10\pm 0.03$ and $b=0.61\pm 0.12$, with a scatter $\sigma_{\rm logM_{\rm 200}|L_{X}}=0.20$ dex($a=0.16\pm 0.03$ and $b=0.43\pm 0.12$, with a scatter $\sigma_{\rm logM_{\rm 200}|L_{X}}=0.15$ dex) for the complete(published) catalogs. For the mass–temperature relation, we find $a=0.23\pm 0.03$ and $b=1.46\pm 0.28$, with a scatter $\sigma_{\rm logM_{\rm 200}|T_{X}}=0.20$ dex($a=0.28\pm 0.03$ and $b=1.03\pm 0.30$, with a scatter $\sigma_{\rm logM_{\rm 200}|T_{X}}=0.15$ dex), for the complete(published catalogs). The relations obtained with the published catalogs show again shallower slopes. Our results are consistent with the expected deviations from self-similarity (Böhringer et al., 2011).

We summarize our results in Table 4.

6 DISCUSSION

6.1 Comparison to Previously Derived Mass–Richness Relations

In this section, we discuss our results in the context of similar current studies.

As stated before and shown in Licitra et al. (2016a, b), our richness estimator $\lambda$ is defined in a similar way as the richness from redMaPPer (Rykoff et al., 2014). The redMaPPer richness is defined as $\lambda_{\rm RM}=\sum p_{\rm mem}\theta_{\rm L}\theta_{\rm R}$, where $p_{\rm mem}$ is the probability that each galaxy in the vicinity of the cluster is a red-sequence member and $\theta_{\rm L},\theta_{\rm R}$ are weights that depend on luminosity and radius. In this calculation, only galaxies brighter than $0.2L_{\rm*}$ and within a scale radius $R_{\rm\lambda}$ are considered. The radius is richness-dependent and it scales as $R_{\rm\lambda}=1.0(\lambda/100)^{0.2}h^{-1}Mpc$.

The RedGOLD richness is a simplified version of $\lambda_{\rm RM}$. We constrained the radial distribution of the red-sequence galaxies with an NFW profile and applied the same luminosity cut and radius scaling as in Rykoff et al. (2014) but did not apply a luminosity filter. Unlike the redMaPPer definition, our richness is not a sum of probabilities. Those choices were made to minimize the scatter in the mass–richness relation. For redshifts $z<0.3$, the difference $\frac{\lambda_{\rm RM}-\lambda}{\lambda}$ is only of $5--15\%$, while it increases to $40--60\%$ at $0.4<z<0.5$, where the redMaPPer richness is systematically higher (Licitra et al., 2016a). This difference might be due to the different depths of the CFHTLenS and SDSS surveys. This means that we can compare our results with others obtained using the redMaPPer cluster sample.

Simet et al. (2016) performed a stacking analysis of the redMaPPer cluster sample, using shear measurements from the SDSS. Their sample is much larger than ours, consisting of 5,570 clusters, with a redshift range $0.1<z<0.3$, lower than the one used for this work, and a richness range $20\leq\lambda_{\rm RM}\leq 140$. With these data, they were able to characterize the different systematic errors arising in their analysis with great accuracy. For the mass–richness relation, they obtained the normalization $\log{(M_{\rm 0}\;[h^{-1}M_{\rm\odot}])}=14.34\pm 0.04$ (the error includes both statistical and systematic error) and the slope $\alpha=1.33^{+0.9}_{\rm-0.1}$. To compare our results to theirs, we use our masses in units of $h^{-1}M_{\rm\odot}$ and we repeat our fits. Using our Final Model, we obtain $\log{M_{\rm 0}}=14.31\pm 0.02$ and $\alpha=1.04\pm 0.09$ (the errors are only statistical). Our normalization is consistent within $1\sigma$ and our slope is consistent within $\sim 2\sigma$ of Simet et al.’s. Comparing the masses at the pivot richness, $\lambda_{\rm 0}=40$, we obtain $2.04\times 10^{14}h^{-1}M_{\rm\odot}\pm 0.02$ compared to Simet et al.’s $2.21\times 10^{14}h^{-1}M_{\rm\odot}\pm 0.15$.

In another recent work, Farahi et al. (2016) inferred the mass–richness relation using the same sample of SDSS redMaPPer clusters ($0.1<z<0.3$ and $\lambda_{\rm RM}>20$), performing a stacking analysis and estimating the velocity dispersion of the dark matter halos from satellite-central galaxy pairs measurements. For the mass–richness relation, they found a normalization of $14.19\pm 0.1$ and a slope of $1.31\pm 0.19$ (the error includes both statistical and systematic error), using a pivot $\lambda_{\rm 0}=30$. Repeating the fit using their pivot richness, we obtain $\log{M_{\rm 0}}=14.18\pm 0.02$ and $\alpha=1.04\pm 0.09$, consistent within less than $1\sigma$ in normalization and $1.5\sigma$ in slope, with their results. At the pivot richness $\lambda_{\rm 0}=30$ our mass is $1.51\times 10^{14}M_{\rm\odot}\pm 0.02$, consistent with their value of $1.56\times 10^{14}M_{\rm\odot}\pm 0.35$.

Melchior et al. (2016) calibrated the mass–richness relation and its evolution with redshift up to $z<0.8$, using 8000 RedMaPPer clusters in the Dark Energy Survey Science Verification (DES; Dark Energy Survey Collaboration, 2016) with $5\leq\lambda_{\rm RM}\leq 180$. They found a normalization $M_{\rm 0}=2.35\pm 0.34\times 10^{14}M_{\rm\odot}$ and a slope $1.12\pm 0.26$, using the pivot richness $\lambda_{\rm 0}=30$ and a mean redshift $z=0.5$. Their errors include both statistical and systematic errors. These results are consistent with ours within less than $1\sigma$, both in normalization and slope, even if this sample has a larger average redshift, where we expect our richness definitions to be less similar.

Our normalization is in perfect agreement with all the works cited above ($<1\sigma$). On the other hand, there is a slight tension between our slope and those of Simet et al. (2016) and Farahi et al. (2016) ($1.5-2\sigma$), but not with Melchior et al. (2016) ($<1\sigma$). Our slope is also consistent with the first mass–richness relation inferred using the redMaPPer cluster sample from Rykoff et al. (2012), and with the Saro et al. (2015) richness-mass relation, inferred by cross-matching the SPT-SZ survey with the DES redMaPPer cluster sample. They found values of 1.08 (the error is not given) and $0.91\pm 0.18$, respectively. Saro et al. (2015) value has been converted from the slope of the richness-mass relation to the slope of the mass–richness relation by Simet et al. (2016).

We cannot compare our results with the scaling relations obtained in Johnston et al. (2007), Covone et al. (2014), Ford et al. (2015), or van Uitert et al. (2015) because their definition of richness is different.

We conclude that our fit of the mass–richness relation is in agreement with the other works cited above. These results confirm the efficiency of the RedGOLD richness estimator, and quantify the relation between the RedGOLD richness measurements and the total cluster masses obtained with weak lensing. Even without using a probability distribution, our richness is as efficient as the more sophisticated redMaPPer richness definition.

6.2 Weak Lensing vs X-Ray Masses

In Figure 10, we compare our lensing mass versus X-ray mass proxies relations to those of other works in literature.

In the $L_{\rm X}-M_{\rm 200}^{lens}$ plot, we compare our results with those from Kettula et al. (2015) and Leauthaud et al. (2010). We remind the reader that the fit to the published catalogs (solid red line) shows a shallower slope because of our selection in mass, which, while it optimizes purity, leads to a bias in slope due to the lack of clusters detected at masses $M_{\rm 200}<10^{14}M_{\rm\odot}$ (see discussion in Section 5.3).

Because of the large uncertainties, the fit to both the complete and published catalogs (dashed red line) are consistent within $<1\sigma$ and $<2\sigma$, respectively, in normalization and slope, with results from Kettula et al. (2015), even if our normalizations are higher.

With respect to the $E(z)M_{\rm 200}$ derived from Leauthaud et al. (2010) (and, as a consequence, from Gozaliasl et al. (2014), because they use Leauthaud et al. (2010) to derive their mass relations), we are consistent within $<2.5\sigma$ in normalization and within $<1\sigma$ in slope for the complete catalogs. For the published catalogs, we are inconsistent in normalization (the normalization difference is $\sim 3.7\sigma$) but consistent in slope within $<1.5\sigma$.

Both Kettula et al. (2015) and Leauthaud et al. (2010) did not apply the miscentering correction but, while the first performed their lensing analysis on single clusters, the latter stacked their low-mass clusters in very poorly populated bins. This procedure could have introduced a bias that led to more smoothed profiles and thus to lower mass estimates and to a lower normalization of the scaling relation.

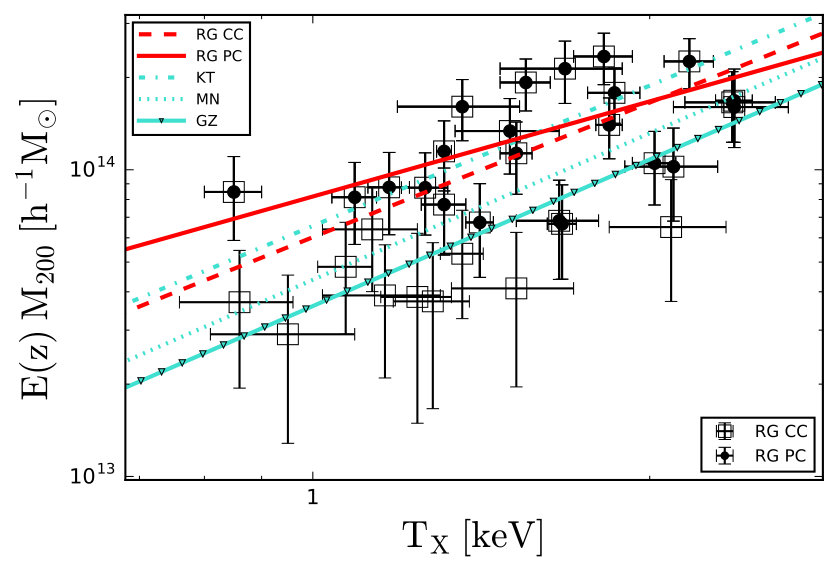

In the $T_{\rm X}-M_{\rm 200}^{lens}$ plot, we compare our results with Kettula et al. (2015) and Mantz et al. (2016). Because their masses are derived at the overdensity $\Delta=500$, we convert their $M_{\rm 500}$ values to $M_{\rm 200}$, using $M_{\rm 200}=1.35M_{\rm 500}$ from Rines et al. (2016), derived considering that the mass–concentration relation weakly depends on mass (Bullock et al., 2001) and assuming an NFW profile with a fixed concentration $c=5$. We find that the normalization and slope of our fit to the complete(published) catalogs are consistent with the Kettula et al. (2015) results within $<1\sigma$($\lesssim 2\sigma$), and with Mantz et al. (2016) results within $<1\sigma$($<1.5\sigma$) in normalization and slope.

In Table 5, we show the differences in normalization, $\Delta a$, and in slope, $\Delta b$, between our results and those used for comparison for the mass–luminosity, and the mass–temperature relations.

Given that our results based on the RedGOLD complete catalogs are consistent with other results in the literature, we conclude that the thresholds that we apply in the RedGOLD published catalog introduces systematics in the fit of the cluster lower mass end.

Selecting samples based on lensing measurements, simulations predict that mass measurements from lensing are systematically lower than the cluster true total mass by $\sim 5--10\%$ (in the mass range $M^{sim}>5\times 10^{14}$) and those from X-ray proxies (in the mass range $10^{14}<M_{\rm 200}^{X}<5\times 10^{15}$) by $\sim 25--35\%$, with $\left<M^{sim}_{\rm{X}}/M^{sim}_{\rm{L}}\right>\sim 0.7-0.8$ (Meneghetti et al., 2010; Rasia et al., 2012). When we compare our weak lensing mass measurements to X-ray Gozaliasl et al. (2014) cluster masses (Figure 8 and Table 3), for X-ray selected clusters, for the Final Model we obtain $\sim 15\%$ higher lensing masses in the whole mass range, and $\sim 20$ and $\sim 15\%$ higher lensing masses for $M_{\rm 200}^{X}<10^{14}M_{\rm\odot}$ and $M_{\rm 200}^{X}>10^{14}M_{\rm\odot}$, respectively.

As we mentioned before in Section 5.3, and from Table 3 and Figure 8, the mean residuals and ratio values obtained using Mehrtens et al. (2012) catalog are lower, with $\left<M_{\rm{L}}/M_{\rm{X}}\right>\sim-0.1-0.0$, which means that non core-excised temperature led to overestimated X-ray masses, as expected (Pratt et al., 2009).

Previously published XMM-Newton X-ray to lensing mass ratios are obtained with a selection on lensing, and show values of $\left<M_{\rm{X}}/M_{\rm{L}}\right>\sim 0.91-0.99$ (Zhang et al., 2008) and $\sim 0.72-0.96$ (Simet et al. (2015), using observations from Piffaretti et al., 2011; Hajian et al., 2013). Given that we measure the bias on the lensing mass given an X-ray selection, we cannot compare our measurements directly with those obtained by the measure of the bias in the X-ray mass given the lensing mass. However, the trend is similar and consistent with simulation. Our uncertainty on $\left<M_{\rm{L}}/M_{\rm{X}}\right>$ ($\sigma_{\rm\left<M_{\rm{L}}/M_{\rm{X}}\right>}\sim 15-20\%$) is also similar to those cited in these works ($\sigma_{\rm\left<M_{\rm{X}}/M_{\rm{L}}\right>}\sim 3-20\%$).

We remind the reader, however, that even if our results are consistent with previous work, the scaling relations, difference and ratios that we obtain between our lensing masses and those in Gozaliasl et al. (2014) depend on the Gozaliasl et al. (2014) selection in $L_{X}$ (when stacking clusters to derive the Leauthaud et al. (2010) lensing masses). Our selection based on the Licitra et al. (2016a, b) richness and differences in the shear calibration in our data and Leauthaud et al. (2010) contribute to this difference; interpreting them precisely implies understanding the degeneracies on each contribution.

It is also known that XMM-Newton and Chandra have different instrument calibrations that lead to different temperature estimations, with Chandra X-ray temperatures being higher and leading to higher cluster mass estimation (Israel et al., 2014; von der Linden et al., 2014; Schellenberger et al., 2015). Applying the correction from Schellenberger et al. (2015), to convert XMM-Newton masses to Chandra masses, we find $\left<M_{\rm{L}}/M_{\rm{X}}\right>_{\rm Chandra}=0.99\pm 0.17$, using the lensing masses from our Final Model.

7 SUMMARY AND CONCLUSIONS

We measure weak lensing galaxy cluster masses for optically detected cluster candidates stacked by richness. We fit the weak lensing mass versus richness relation and compare our findings to X-ray detected mass proxies in the area.

Our cluster sample was obtained with the RedGOLD (Licitra et al., 2016a) optical cluster finder algorithm. The algorithm is based on a revised red-sequence technique and searches for passive ETG overdensities. RedGOLD is optimized to detect massive clusters ( $M_{\rm 200}>10^{14}M_{\rm\odot}$) with both high completeness and purity. We use the RedGOLD cluster catalogs from Licitra et al. (2016a, b) for the CFHT-LS W1 and NGVS surveys. The catalogs give the detection significance and an optical richness estimate that corresponds to a proxy for the cluster mass.

For our weak lensing analysis, we use a sample of 1323 published clusters, selected with a threshold in significance of $\sigma_{\rm det}\geq 4$ and in richness $\lambda\geq 10$ at redshift $0.2\leq z\leq 0.5$, for which our published catalogs are $\sim 100\%$ complete and $\sim 80\%$ pure (Licitra et al., 2016a). In order to compare our lensing masses to X-ray mass proxies, we considered both the published and complete Licitra et al.’s catalogs, as defined in Section 3.1.2.

Our photometric and photometric redshift catalogs were obtained with a modified version of the THELI pipeline (Erben et al., 2005, 2009, 2013; Raichoor et al., 2014), and weak lensing shear measurements with the shear measurement pipeline described in Erben et al. (2013), Heymans et al. (2012), and Miller et al. (2013).

We calculate our cluster mean shear radial profiles by averaging the tangential shear in logarithmic radial bins in stacked cluster detections binned by their richness. We apply lens-source pairs weights that depend on the lensing efficiency and on the quality of background galaxy shape measurements.

We obtain the average cluster masses in each richness bin by fitting the measured shear profiles using three models: (1) a basic halo model (Basic Model), with an NFW surface density contrast and correction terms that take into account cluster miscentering, non-weak shear, and the second halo term; (2) a model that includes the intrinsic scatter in the mass–richness relation (Added Scatter Model); and (3) a model that includes the contribution of the BCG stellar mass (Two Component Model). In the Basic and in the Two Component Models, we apply an a posteriori correction to take into account the intrinsic scatter in the mass–richness relation.

We find that our Final Model is the Two Component Model, which, with the inclusion of the a posteriori correction for the intrinsic scatter in the mass–richness relation, is more complete in taking into account the systematics, and more reliable in the obtained results.

Our main results are:

• •

We test different cluster profile models and fitting techniques. We find that the intrinsic scatter in the mass–richness relation and the BCG mass are not constrained by the data. While the miscentering correction is necessary to avoid a bias in the measured halo masses, the inclusion of the BCG mass does not affect the results.

• •

Comparing weak lensing masses to RedGOLD optical richness, we calibrate our optical richness with the lensing masses, fitting the power law $\log{M_{\rm 200}}=\log{M_{\rm 0}}+\alpha\log{\lambda/\lambda_{\rm 0}}$. For our Final Model, we obtain $\log{M_{\rm 0}}=14.46\pm 0.02$ and $\alpha=1.04\pm 0.09$, with a pivot richness $\lambda_{0}=40$.

Even if our sample is one order of magnitude smaller than the SDSS and DES redMaPPer cluster samples used in Simet et al. (2016), Farahi et al. (2016) and Melchior et al. (2016), our results are consistent with theirs within $1-2\sigma$. This confirms that our cluster selection is not biased toward a different cluster selection when compared to the SDSS and DES redMaPPer cluster samples, as we expect.

• •

Using our mass–richness relation and X-ray masses from Gozaliasl et al. (2014), we infer scaling relations between lensing masses and X-ray proxies.

For the lensing mass versus X-ray luminosity relation $\log{\left(\frac{M_{\rm 200}E(z)}{M_{\rm 0}}\right)}=a+b\log{\left(\frac{L_{\rm X}}{L_{\rm 0}E(z)}\right)}$, we find $a=(0.10\pm 0.03)$ and $b=(0.61\pm 0.12)$, with $M_{\rm 0}=8\times 10^{13}h^{-1}M_{\rm\odot}$ and $L_{\rm 0}=5.6\times 10^{42}h^{-2}erg/s$.

For the lensing mass versus X-ray temperature relation $\log{\left(\frac{M_{\rm 200}E(z)}{M_{\rm 0}}\right)}=a+b\log{\left(\frac{T_{\rm X}}{T_{\rm 0}}\right)}$, we obtain $a=(0.23\pm 0.03)$ and $b=(1.47\pm 0.28)$, with $M_{\rm 0}=6\times 10^{13}h^{-1}M_{\rm\odot}$ and $T_{\rm 0}=1.5KeV$.

Our results are consistent with those of Kettula et al. (2015) and Mantz et al. (2016), within $<1\sigma$. Our normalization is consistent within $<2.5\sigma$, and our slope within $1\sigma$, of the results of Leauthaud et al. (2010) (and therefore with Gozaliasl et al. (2014)). They are also consistent with expected deviations from self-similarity (Böhringer et al., 2011).

• •

We find a scatter of $0.20$ dex, for all three relations, consistent with redMaPPer scatters, confirming the Licitra et al. (2016a, b) results that the RedGOLD optical richness is an efficient mass proxy. This is very promising because our mass range is lower than that probed by redMaPPer, and the scatter does not increase as expected to these lower mass ranges.

In order to increase the accuracy of the weak lensing mass estimates, it will be important to increase the number density of background sources to achieve a higher S/N in the shear profile measurements in the future. This will be possible with ground- and space-based large-scale surveys such as the LSST999https://www.lsst.org/, Euclid101010http://euclid- ec.org and WFIRST111111http://wfirst.gsfc.nasa.gov. Also, the next generation radio surveys such as SKA121212http://www.skatelescope.org will allow us to extend weak lensing measurements to the radio band, giving access to even larger scales. Cluster samples will then be an order of magnitude bigger than the one used for this work, allowing us to constrain cluster masses and their scaling relations with even higher accuracy (e.g. Sartoris et al. (2016), Ascaso et al. (2016)).

This work is based on observations obtained with MegaPrime/MegaCam, a joint project of CFHT and CEA/IRFU, at the Canada-France-Hawaii Telescope (CFHT) which is operated by the National Research Council (NRC) of Canada, the Institut National des Sciences de l’Univers of the Centre National de la Recherche Scientifique (CNRS) of France, and the University of Hawaii. This research used the facilities of the Canadian Astronomy Data Centre, operated by the National Research Council of Canada with the support of the Canadian Space Agency. CFHTLenS data processing was made possible thanks to significant computing support from the NSERC Research Tools and Instruments grant program. R.L., S.M., and A.Ra. acknowledge the support of the French Agence Nationale de la Recherche (ANR) under the reference ANR10- BLANC-0506-01-Projet VIRAGE (PI: S.Mei). S.M. acknowledges financial support from the Institut Universitaire de France (IUF), of which she is senior member. H.H. is supported by the DFG Emmy Noether grant Hi 1495/2-1. We thank the Observatory of Paris and the University of Paris D. Diderot for hosting T.E. under their visitor programs. Facilities: CFHT.

Appendix A JOINT FIT TEST

In order to check that individually fitting the profile of each richness bin does not introduce a bias in the determination of the mass–richness relation parameters, we tested a joint fit (e.g. Viola et al., 2015; Simet et al., 2016). This method consists of the simultaneous fitting of the profiles associated whit all richness bins. In this case, the fitting parameters will be directly the normalization and slope of the mass–richness relation, and the likelihood of the model will be the sum of the likelihoods of all shear profiles.

Also for the joint fit, we changed the free parameters to understand how each free parameter could change the results. We tested different models, each with different free parameters:

Model 1

has four parameters: $\log M_{0}$, $\alpha$, $p_{\rm cc}$, and $\sigma_{\rm off}$, which are the normalization and slope of the mass–richness relation, and the miscentering parameters. The BCG mass is fixed at $M_{\rm BCG}^{*}$.

Model 2

has five parameters: $\log M_{0}$, $\alpha$, $p_{\rm cc}$, $\sigma_{\rm off}$, and $\sigma_{M|\lambda}$, which are the parameters of Model 1 with the addition of the intrinsic scatter of the mass–richness relation. The BCG mass is fixed at $M_{\rm BCG}^{*}$.

Model 3

has five parameters: $\log M_{0}$, $\alpha$, $p_{\rm cc}$, $\sigma_{\rm off}$, and $aMbcg$, which are the parameters of Model 1 with the addition of a constant that multiplies $M_{\rm BCG}^{*}$, so that $M_{\rm BCG}=aMbcg\times M_{\rm BCG}^{*}$.

Model 4

has five parameters: $\log M_{0}$, $\alpha$, $p_{\rm cc}$, $\sigma_{\rm off}$, and $aCM$, which are the parameters of Model 1 with the addition of the amplitude of the mass-concentration relation used (i.e. Dutton & Macció, 2014). The BCG mass is fixed at $M_{\rm BCG}^{*}$.

Model 5

has seven parameters: $\log M_{0}$, $\alpha$, $p_{\rm cc}$, $\sigma_{\rm off}$, $\sigma_{M|\lambda}$, $aMbcg$, and $aCM$.

In Table 6 we find the priors on the parameters. In Table 7, we find the results of the MCMC for the different models.

We found that the results from the different models are consistent with each other within $<1.5\sigma$; except one, the $\log M_{0}$ obtained with Model 4, which is only consistent with those from Models 1 and 3 within $2.2\sigma$ . The normalization and slope of the mass–richness relation are well-constrained in all models. Here, $aMbcg$ is not constrained, and the inclusion of this parameter in the fit does not affect the other parameters. This result is consistent with what was found in Section 5.1.2, from the comparison of the Basic and Two Component Models. The amplitude of mass–concentration relation is constrained, but it is slightly degenerate with the miscentering parameters that are less well-constrained in the models that include $aCM$. Moreover, for these models, the normalization and slope of the mass–richness relation have lower values compared to the models without $aCM$. Here, $\sigma_{M|\lambda}$ is constrained but it has a lower value than expected from Licitra et al. (2016a, b).

When comparing the results from the joint fit to the results from our Final Model, we find consistent results ($<1-2\sigma$), confirming that the two approaches are consistent and equivalent.
