I Introduction

Roboticists have been investigating navigation in human environments since the 1990s [37]. A hallmark study was the RHINO experiment, deployed as a tour guide in Bonn, Germany [16]. This experiment was followed by the MINERVA robot [59], exhibited at the Smithsonian in Washington D.C. These studies inspired research in the broad area of robotic navigation in the presence of humans, ranging from additional tour guide work [8, 29] to field trials for social partner robots [53, 38]. The underlying navigation architecture of nearly every pre-2010 study was predict-then-act (an unfortunate misnomer, since robot action influences human response), where human and robot motion were assumed independent. In [61], the independence assumption of predict-then-act was shown to lead to robot-human miscalibration: either the planner moved overcautiously (underestimating cooperation) or overaggressively (overestimating cooperation). Since a well behaved path existed (the humans did fine), this behavior was safety or efficiency suboptimal. Importantly, failures occurred across the crowd density spectrum: [62] empirically demonstrated a 3x safety decrement compared to coupled human-robot models for densities ranging from 0.1-0.7 people/m2. Additionally, work in cognitive systems engineering [21, 32, 20], team cognition [18, 19] and human-agent-robot teamwork [14, 15] corroborates the criticality of joint modeling.

Although [62, 36] utilized joint human-robot models (like [30]), neither achieved both optimality and tractability; [62] showed that infinite samples achieves optimality (like [34]), but finite sampling cannot provide guarantees. In [36], the action space was decomposed into convex sampling regions; as we will show, this approach fractures the pure sampling optimality guarantees.

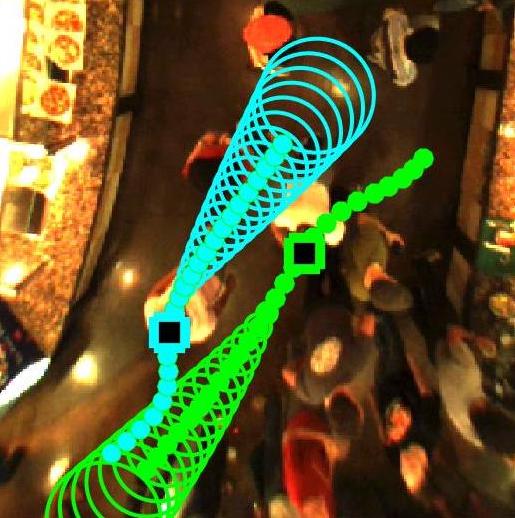

In this paper, we extend [60, 36] so both optimality and sparsity are achieved. We argue that correctly formulated sparsity is a precursor to optimality. Our approach reconsiders a motion primitive—agents go left or right around each other—as a dynamic interplay between agent Gaussian processes (GPs). Consider a standard approach for determining free space: in Figure 2a the Voronoi diagram is built around the cyan agent at time $t$ and equal probability is assigned to left or right directions around the cyan agent. The prediction densities in the left pane show that the cyan agent prefers left, so left and right are not equal probability (Figure 2b confirms this assertion). Voronoi diagrams make an independence assumption: by constructing free space without considering human-robot interplay, the human and robot are decoupled (thus inducing human-robot miscalibration). With interacting GPs, free space is dynamically generated by the co-evolution of human and robot trajectory distributions; reactive obstacles—humans—are constraints on the robot’s motion. Whereas interaction almost universally precipitates exponential complexity, interacting GPs decrease joint action space size (we do not refute motion planning’s complexity [49] since reactive obstacles allow higher granularity reasoning, mitigating combinatorics). Succinctly: navigation in a GP basis is sparse and the coefficients rank optimality.

II Related Work

Independent agent Kalman filters are a common starting point for crowd prediction. However, this approach leads to an uncertainty explosion that makes efficient navigation impossible [61]. Some research has thus focused on controlling uncertainty. For instance [58, 10, 40] develop high fidelity independent models, in the hope that controlled uncertainty will improve navigation performance. In [25] predictive uncertainty is bounded; intractability is avoided with receding horizon control [45]; collision checking algorithms developed in [24], with roots in [11, 12], keeps navigation safe. The insight is that since replanning is used, predictive covariance can be held constant at measurement noise. In [5, 33] more sophisticated individual models are developed: GP mixtures [48] with a Dirichlet Process (DP) prior over mixture weights [57]. DP priors allow the number of motion patterns to be data driven while the GP enables inter-motion variability; RRT [41] finds feasible paths; collision checking [4] guarantees safety. In the work above, independent agent models are the core contribution; we show that this is insufficient for crowd navigation.

Proxemics [28] studies proximity relationships, providing insight about social robot design: in [43, 44, 56] proxemics informs navigation protocol. Similarly, [17] studies pedestrian crossing behaviors using proxemics. In [55] RRTs are combined with a proxemic potential field [35]. Instead of using proxemic rules, [50] adopts the criteria of [39]. Personal space rules guide the robot’s behavior by extending the Risk-RRT algorithm developed in [27] (Risk-RRT extends RRT to include the probability of collision along candidate trajectories). The work in [3] is more agnostic about cultural considerations; a “probabilistic collision cost” is based on inevitable collision states [9]. The work in [26] argues that robot and environment dynamics and a sufficient look-ahead guarantees collision avoidance. Although these approaches model human-robot interaction, they do not model human-robot cooperation: respecting a proper distance between human and robot (similar to [67]) is emphasized.

Human intention aware path planning has recently become popular (see [37] for a comprehensive accounting). In [6, 7] multi-faceted human intent is modeled; the challenge is accurately inferring the true intention and hedging against uncertainty. This is addressed through the use of partially observable Markov decision processes and mixed observability Markov decision processes. In [63], anticipatory indicators of human walking motion informs co-navigation; [47] caches a library of motion level indicators to optimize intent classification; [46] takes a similar approach for anticipating when a human wants to interact with a robot. In the important legibility and predictability studies of [23, 22], robot motion is optimized to meet predefined human acceptability criteria. All these approaches model human intent a-priori, rather than as an online human-robot interplay.

Some approaches learn navigation strategies by observing example trajectories. In [42], learned motion prototypes guide navigation. In [66], maximum entropy inverse reinforcement learning (max-Ent IRL) learns taxi cab driver navigation strategies from data; this method is extended to an office navigation robot in [67]. In [31], max-Ent IRL is extended to dynamic environments. Their planner is trained using simulated trajectories, and the method recovers a planner which duplicates the behavior of the simulator. In [65], agents learn how to act in multi-agent settings using game theory and the principle of maximum entropy.

In [52] coupled human-robot models generated autonomous behaviors that were efficient and communicative (between a single human and a single robot); it remains unclear if coupled dynamical systems using reinforcement learning scales to multiple agents. In [51], human state information was gathered by coupling robot action to human prediction. Using deep learning for the crowd prediction problem [1] raises an important question (since [2] collects millions of training examples): can social navigation be learned? The combinatorics of social navigation (Section IV-D) makes naive approaches (e.g., brute force learning without exploiting sparsity) seem infeasible.

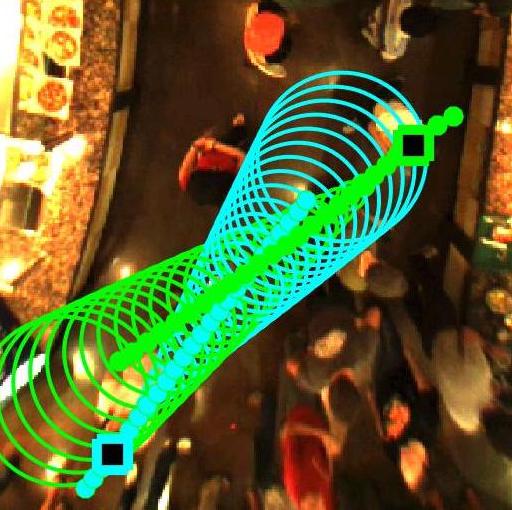

In [36] pure sampling is observed to be ineffective for coupled models; some mechanism is required to guide sampling ([64, 54] makes a similar observation, but RVO/HRVO was shown brittle to noise and motion ambiguity in [60]). To guide sampling, Voronoi techniques applied to static obstacles parses the action space into convex regions. However, static Voronoi techniques (or any static convex region identifier) leads to suboptimal strategies: by ignoring motion, a human-robot decoupling assumption is made. In reactive environments, free space is dynamically generated by the probabilistic interplay of human and robot trajectory distributions (see Figure 3). Sparse IGP (sIGP) achieves this high level interaction, establishing sparsity and optimality guarantees in the process.

III Terminology

We collect measurements $\mathbf{z}^{R}_{1:t},\mathbf{z}^{1}_{1:t},\ldots,\mathbf{z}^{n_{t}}_{1:t}$ of the robot trajectory $\mathbf{f}^{R}\colon t\in\mathbb{R}\to\mathcal{X}$, where $\mathcal{X}$ is the joint action space and $n_{t}$ human trajectories $\mathbf{f}=[\mathbf{f}^{1},\ldots,\mathbf{f}^{n_{t}}]\colon t\in\mathbb{R}\to\mathcal{X}$, which are governed by $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}^{1}\mid\mathbf{z}^{\mathbf{f}^{1}}_{1:t}),\ldots,p(\mathbf{f}^{n_{t}}\mid\mathbf{z}^{\mathbf{f}^{n_{t}}}_{1:t})$. We do not assume that every measurement of $\mathbf{z}^{R}_{1:t}$ and $\mathbf{z}_{1:t}^{\mathbf{f}}$ in $1:t$ is present. We use the shorthand $\mathbf{z}_{1:t}^{\mathbf{f}}=[\mathbf{z}^{\mathbf{f}^{1}}_{1:t},\ldots,\mathbf{z}^{\mathbf{f}^{n_{t}}}_{1:t}]$; similarly, we let $p(\mathbf{f}\mid\mathbf{z}_{1:t}^{\mathbf{f}})=\prod_{i=1}^{n_{t}}p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}}).$ We model both $\mathbf{f}^{i}$ and $\mathbf{f}^{R}$ as stochastic processes. Our robot and pedestrian models are represented in a GP basis (Figure 4):

[TABLE]

The mixture weights are the likelihood of the data: $w^{R}_{\ell}=\mathcal{N}(\mathbf{f}^{R}=\mathbf{z}_{1:t}^{R}\mid\boldsymbol{\mu}^{R}_{\ell},\boldsymbol{\Sigma}_{\ell})$ and $w^{\mathbf{f}^{i}}_{k}=\mathcal{N}(\mathbf{f}^{i}=\mathbf{z}_{1:t}^{\mathbf{f}^{i}}\mid\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k},\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k})$. Although the GPs evolve at each time step, we suppress time in the mean and covariance functions: $\boldsymbol{\mu}\equiv\boldsymbol{\mu}(t)$ and $\boldsymbol{\Sigma}\equiv\boldsymbol{\Sigma}(t)$. As an illustration of the GP basis, consider Figure 4 and the distribution $p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})=\sum_{k=L,R}w^{\mathbf{f}^{i}}_{k}\mathcal{N}(\mathbf{f}^{i}\mid\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k},\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k})$. If $w^{\mathbf{f}^{i}}_{L}>w^{\mathbf{f}^{i}}_{R}$ then $\operatorname*{arg\,max}_{\mathbf{h}}p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})=\boldsymbol{\mu}^{\mathbf{f}^{i}}_{L}.$ Optimization over $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{L}$ can be misleading since $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{R}$ is ignored. What if the human is debating whether to visit Lenny or Rhonda? What if the human is “flexible” in how they intend to travel to Lenny or Rhonda? For crowd navigation to be successful, we must reason over ambiguity and flexibility. We make this precise.

Definition 1

We call $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k},\boldsymbol{\mu}^{R}_{j}$ human and robot intentions. If $N^{\mathbf{f}^{i}}_{t},N^{R}_{t}>1$, intention ambiguity is present. We measure intention preference with the weights $w^{\mathbf{f}^{i}}_{k},w^{R}_{\ell}$. E.g, if one weight is large, intention ambiguity is small.

Definition 2

Flexibility is the willingness of an agent to compromise about intention $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k}$ or $\boldsymbol{\mu}^{R}_{j}$. Mathematically, the flexibility of intent $\boldsymbol{\mu}^{R}_{j}$ or $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k}$ is $\boldsymbol{\Sigma}^{R}_{j}$ or $\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k}$.

Flexibility is motivated by the following: suppose an agent is unimodal with model $\mathcal{N}(\mathbf{x}\mid\boldsymbol{\mu},\boldsymbol{\Sigma})$. If the agent intends $\boldsymbol{\mu}$ strongly (by providing data supporting $\boldsymbol{\mu}$) then $\boldsymbol{\Sigma}$ is small; the agent is $\boldsymbol{\Sigma}$ unwilling to compromise on $\boldsymbol{\mu}$. If the agent has not provided a strong signal supporting $\boldsymbol{\mu}$ then $\boldsymbol{\Sigma}$ is small.

Definition 3

The probability of collision of $\mathcal{N}(\mathbf{f}^{R}\mid\boldsymbol{\mu}^{R}_{\ell},\boldsymbol{\Sigma}^{R}_{\ell})$ and $\mathcal{N}(\mathbf{f}^{i}\mid\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k},\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k})$ is (see Section 5.2 of [60])

[TABLE]

where $w_{\ell,k}=(2\pi)^{-T/2}|\boldsymbol{\Sigma}^{R}_{\ell}+\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k}|^{-1/2}$ and $Z^{-1}_{\ell,k}$ is the normalization coefficient resulting from multiplying two Gaussians. We note \max\big{[}P(\kappa)\big{]}=w_{\ell,k}.

In crowd navigation we are interested in the probability of not colliding $P(\neg\kappa)=w_{\ell,k}-P(\kappa)=w_{\ell,k}(1-Z^{-1}_{\ell,k}/w_{\ell,k}).$ To mitigate symbol proliferation, we introduce a shorthand.

Definition 4

Let $\mathcal{N}_{\mathbf{f}^{\chi},\sigma}=\mathcal{N}(\mathbf{f}^{\chi}\mid\boldsymbol{\mu}^{\chi}_{\sigma},\boldsymbol{\Sigma}^{\chi}_{\sigma})$; $\chi\in\{R,1,\ldots,n_{t}\}$, $\sigma\in\{\ell,k\}$. Thus $\mathcal{N}_{\mathbf{f}^{3},k}=\mathcal{N}(\mathbf{f}^{3}\mid\boldsymbol{\mu}^{\mathbf{f}^{3}}_{k},\boldsymbol{\Sigma}^{\mathbf{f}^{3}}_{k})$.

Definition 5

The operator $\mathbf{P}_{\neg\kappa}$ is defined as

[TABLE]

We define $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}\equiv w_{\ell,k}(1-Z^{-1}_{\ell,k}/w_{\ell,k})=P(\neg\kappa)$.

Definition 6

Independent agent planning* optimizes a decoupled cost function $C(\mathbf{f}^{R},\mathbf{f})=C_{R}(\mathbf{f}^{R})C_{\mathbf{f}}(\mathbf{f})$.*

Definition 7

Sampling based motion planning (SBMP)* draws $\mathbf{f}^{R}_{k}\sim p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $\mathbf{f}_{k}\sim p(\mathbf{f}\mid\mathbf{z}_{1:t}^{\mathbf{f}})$, and then computes the optimal joint trajectory $\operatorname*{arg\,min}_{\mathbf{f}^{R},\mathbf{f}}C(\{\mathbf{f}^{R}_{k},\mathbf{f}_{k}\}_{k=1}^{N})$, where $C(\{\mathbf{f}^{R}_{k},\mathbf{f}_{k}\}_{k=1}^{N})$ is some joint cost function. If we can sample uniformly from the cost function, then SBMP is a sampling based approximation of the joint distribution*

[TABLE]

Definition 8** (Convex lane approach [36])**

Convex lanes are regions through the crowd with a single optima. The convex lane approach creates a convex lane $\{\psi_{i}\}_{i=1}^{m}\in\mathcal{X}$ partition, with weights $w^{\psi_{i}}=P(\psi_{i})$, based on current pedestrian positions. Inference samples lanes $\psi_{j}\sim\{w^{\psi_{i}}\}_{i=1}^{m}$ and then trajectories $[\mathbf{f}^{R},\mathbf{f}]_{k}\sim p_{\psi_{j}}(\mathbf{f}^{R},\mathbf{f})$:

[TABLE]

IV Statistical Principles of Crowd Navigation

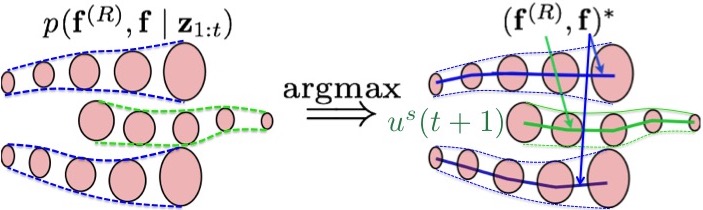

In [61], robot navigation in dense human crowds was explored as a probabilistic inference problem, rather than as a cost minimization problem. This enabled the perspective that navigation in crowds is a joint decision making problem: how should the robot move, in concert with the humans around it, so that the intent and flexibility of each participant is simultaneously optimized? The high level mathematics of this approach makes explicit how crowd navigation is best understood as joint decision making. First, the joint predictive distribution $p(\mathbf{f}^{R},\mathbf{f}\mid\mathbf{z}_{1:t}^{R},\mathbf{z}_{1:t}^{\mathbf{f}})$ over the robot trajectory $\mathbf{f}^{R}$ and the crowd trajectory $\mathbf{f}$ is formulated. The robot’s next action $u^{I}(t+1)$—what the robot is predicted to do according to the human and robot models—is then clear (Figure 3):

[TABLE]

The robot action $u^{I}(t+1)$ is interactive: $\operatorname*{arg\,max}_{\mathbf{f}^{R},\mathbf{f}}$ balances $\mathbf{f}^{R},\mathbf{f}$’s intentions and flexibilities against collision avoidance, and so is the optimal robot-crowd decision. Furthermore,

[TABLE]

If we have individual robot and crowd models $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}\mid\mathbf{z}_{1:t}^{\mathbf{f}})$, then a standard factorization [13] is

[TABLE]

that is, $p(\mathbf{f}^{R}\mid\mathbf{z}^{R}_{1:t},\mathbf{f})=\psi(\mathbf{f}^{R},\mathbf{f})p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}).$ In this section we derive what property $\psi(\mathbf{f}^{R},\mathbf{f})$ must have in order to preserve the statistical integrity of $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}\mid\mathbf{z}_{1:t}^{\mathbf{f}})$. Using $\psi(\mathbf{f}^{R},\mathbf{f})$, we expand $p(\mathbf{f}^{R},\mathbf{f}\mid\mathbf{z}_{1:t}^{R},\mathbf{z}_{1:t}^{\mathbf{f}})$ in a GP basis and derive an inference approach to find the optimal solution.

IV-A Statistical invariants of cooperative navigation

For clarity, we study a single robot $\mathbf{f}^{R}$ and a single human $\mathbf{f}^{i}$:

[TABLE]

where $\mathbf{z}_{1:t}=[\mathbf{z}_{1:t}^{R},\mathbf{z}_{1:t}^{\mathbf{f}^{i}}]$. What should the interaction function $\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ be? First, let $\mathbf{f}^{R}-\mathbf{f}^{i}\equiv[\mathbf{f}^{R}(1),\ldots,\mathbf{f}^{R}(T)]-[\mathbf{f}^{i}(1)\ldots,\mathbf{f}^{i}(T)]$, where $\mathbf{f}^{R}(t),\mathbf{f}^{i}(t)\in\mathcal{X}$ and we discretize the functions $\mathbf{f}^{R},\mathbf{f}^{i}$ by $1:T$ to define subtraction. A plausible choice is $\psi(\mathbf{f}^{R},\mathbf{f}^{i})=\prod_{\tau=1}^{T}(1-\exp(-\frac{1}{2\gamma}(\mathbf{f}^{R}(\tau)-\mathbf{f}^{i}(\tau))^{2}))$ since this function models joint collision avoidance [61]. However, recall that $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}),p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$ encode online intention and flexibility information (Equation III, Definitions 1, 2): the means and covariances capture inter-agent intention and flexibility that is specific to and influenced by the environment. If the avoidance distance $\gamma>0$ then $\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ alters joint flexibility in a static and generic way (Figure 5): $\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ ignores the peculiarities of agent-specific flexibilities (e.g., agent 1 and 2 are flexible with each other in a specific way). To preserve the statistics of $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}),p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$ we introduce the following ($\mathbf{f}^{R}_{\ell}\sim p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}),\mathbf{f}^{i}_{k}\sim p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$):

[TABLE]

That is, $\bar{\delta}(\mathbf{f}^{R}_{\ell},\mathbf{f}_{k}^{i})$ accomplishes the following: if $\mathbf{f}^{R}_{\ell}(t)$ and $\mathbf{f}^{i}_{k}(t)$ intersect then $p(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t})=0$; otherwise, $p(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t})=p(\mathbf{f}^{R}_{\ell}\mid\mathbf{z}_{1:t}^{R})p(\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$. We let $\bar{\delta}(\mathbf{f}^{R},\mathbf{f})$ be the point-wise operator acting on $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}),p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$.

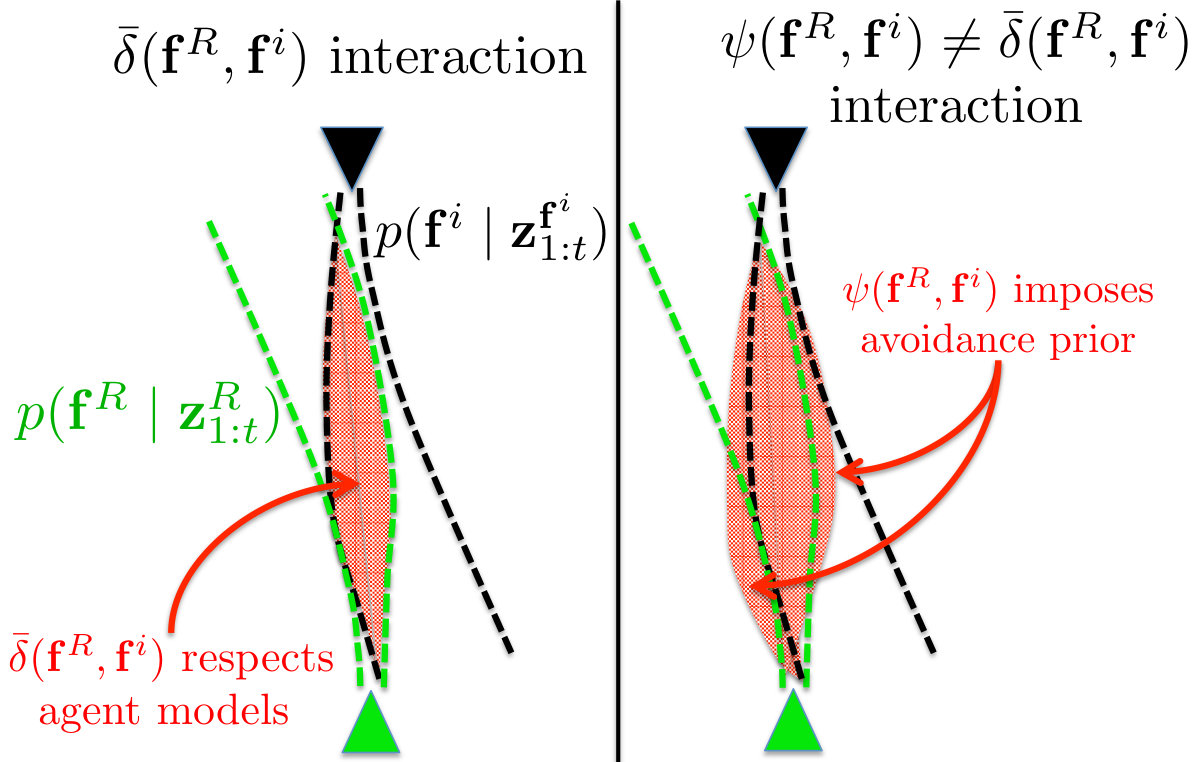

Lemma IV.1** ($\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ must have $\{0\}$-support)**

If $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R}),p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$ are GP mixtures and if the joint decomposes as in Equation IV.3, then $\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ must have $\{0\}$-support.

Proof:

Let $\mathbf{f}^{i}_{k}\sim p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$, $\mathbf{f}^{R}_{\ell}\sim p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$, $\eta^{\mathbf{f}^{i}}_{k}=p(\mathbf{f}^{i}=\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$, and $\eta^{R}_{\ell}=p(\mathbf{f}^{R}=\mathbf{f}^{R}_{\ell}\mid\mathbf{z}^{R}_{1:t})$ throughout the proof.

Let $\psi(\mathbf{f}^{R},\mathbf{f}^{i})=\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$; then, for all $\ell$, $p(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t})=\bar{\delta}(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k})\eta^{R}_{\ell}\eta^{\mathbf{f}^{i}}_{k}.$ If $\nexists t\in[1,T]$ such that $\mathbf{f}^{R}_{\ell}(t)=\mathbf{f}^{i}_{k}(t),$ then $\bar{\delta}(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k})\eta^{R}_{\ell}\eta^{\mathbf{f}^{i}}_{k}=\eta^{R}_{\ell}\eta^{\mathbf{f}^{i}}_{k}$; otherwise, it is zero. Thus, $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$ respects the agent flexibility data contained in $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ while preventing collision trajectories. The same argument can be made for $p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$; thus, $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$ respects the flexibility data in $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$.

Conversely, let $\psi(\mathbf{f}^{R},\mathbf{f}^{i})\neq\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$. Then $p(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k}\mid\mathbf{z}_{1:t})=\psi(\mathbf{f}^{R}_{\ell},\mathbf{f}^{i}_{k})\eta^{R}_{\ell}\eta^{\mathbf{f}^{i}}_{k}$. Since $\psi(\mathbf{f}^{R},\mathbf{f})$ has finite support, the flexibility of $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$ will be misrepresented: $\psi(\mathbf{f}^{R},\mathbf{f})$ is as an flexibility prior, but flexibility data is contained in the agent distributions. ∎

Other $\{0\}$-support functions satisfy these requirements. However, $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$ has the strongest collision avoidance properties. In [61], $\psi(\mathbf{f}^{R},\mathbf{f}^{i})$ was based on observations of human cooperation; such a static and generic interaction function is statistically inappropriate and unnecessary. By capturing intention and flexibility in $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})$ and $p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$, statistical correctness demands $\psi(\mathbf{f}^{R},\mathbf{f}^{i})=\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$.

IV-B Implementing $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})$

Unfortunately, $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})p(\mathbf{f}^{i}\mid\mathbf{z}_{1:t}^{\mathbf{f}^{i}})$ is not analytic. To construct an approximation, we begin by defining

[TABLE]

and note that $\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})=1-\delta(\mathbf{f}^{R},\mathbf{f}^{i}).$ Thus,

[TABLE]

Recalling $\mathbf{P}_{\neg\kappa}$ (Definition 5), we define single agent $\textrm{sIGP}.$

Definition 9

Single agent sIGP is defined as

[TABLE]

where $w^{R}_{\ell},w^{\mathbf{f}^{i}}_{k}$ are defined after Equation III.

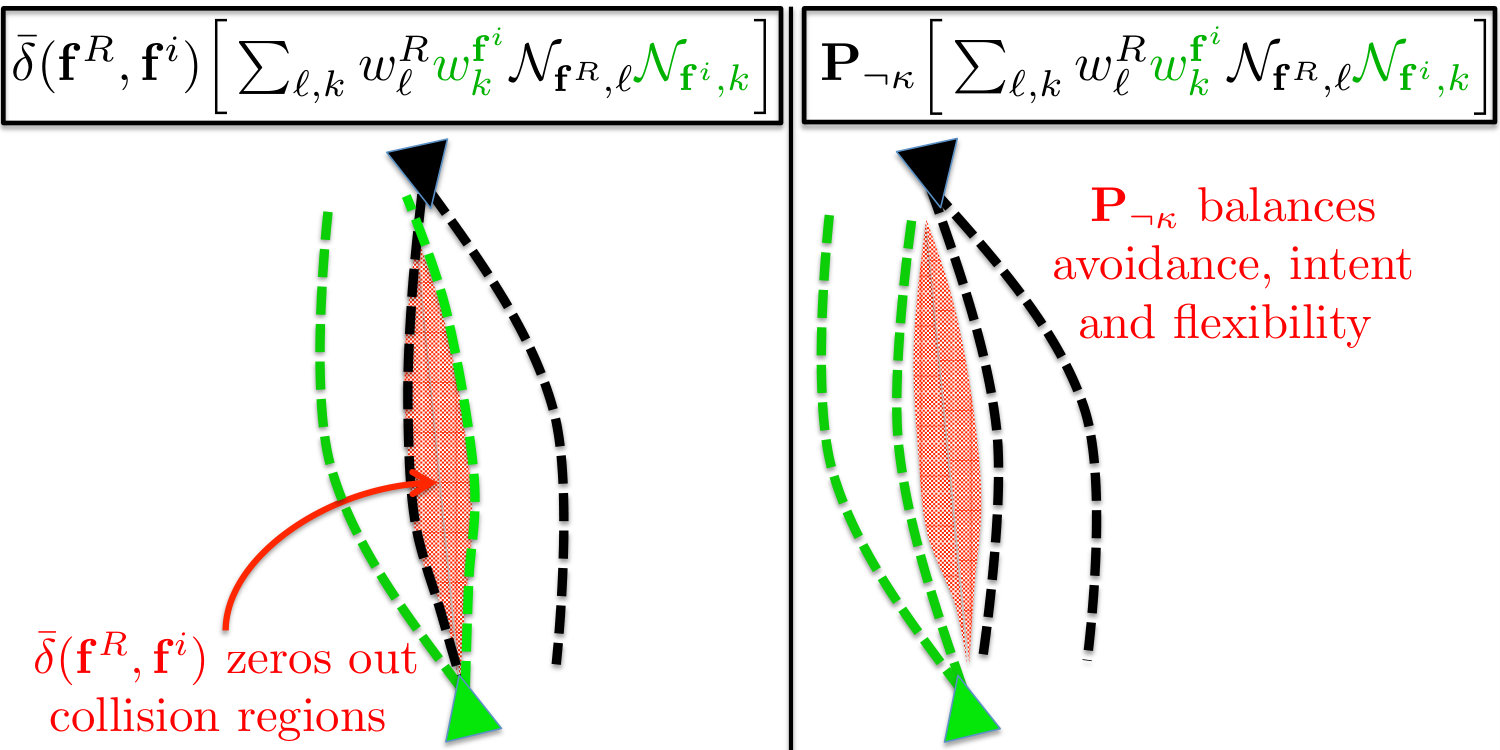

$\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}=w_{\ell,k}(1-Z^{-1}_{\ell,k}/w_{\ell,k})$ measures overlap (regions of intersecting trajectories) between $\mathcal{N}_{\mathbf{f}^{R},\ell},\mathcal{N}_{\mathbf{f}^{i},k}$. Thus, $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}$ gives exponentially more weight to basis pairs $\mathcal{N}_{\mathbf{f}^{R},\ell}\mathcal{N}_{\mathbf{f}^{i},k}$ with less overlap than to those with more overlap. The effect of $\mathbf{P}_{\neg\kappa}$ is to give the most weight to bases that balance collision avoidance against human and robot flexibility and intent $w^{R}_{\ell}w^{\mathbf{f}^{i}}_{k}$; probability mass of $p(\mathbf{f}^{R},\mathbf{f}^{i}\mid\mathbf{z}_{1:t})$ is thus shifted around collision regions (right, Figure 6). Similarly, in Equation IV-B, $[1-\delta(\mathbf{f}^{R},\mathbf{f}^{i})]$ zeros out intersecting trajectories in $\mathcal{N}_{\mathbf{f}^{R},\ell},\mathcal{N}_{\mathbf{f}^{i},k}$. The effect is to shift probability mass around collision regions while conserving $w^{R}_{\ell}w^{\mathbf{f}^{i}}_{k}$ (left, Figure 6).

Equation 9 is motivated by Lemma IV.1. However, sIGP is appealing in its own right: since $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}$ falls off exponentially as GPs overlap, sparsity is inherent to sIGP. Further, bases with large values of $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}w^{R}_{\ell}w^{\mathbf{f}^{i}}_{k}$ simultaneously optimize joint collision avoidance, intention and flexibility.

Sparsity is thus a natural precursor to optimality.

IV-C Multiple agent formulation

We extend Definition 9 to $n_{t}$ interacting agents:

[TABLE]

Lemma IV.1 applies to $\psi(\mathbf{f}^{R},\mathbf{f})$; if we let $\bar{\delta}(\mathbf{f}^{R},\mathbf{f})=\prod_{i=1}^{n_{t}}\bar{\delta}(\mathbf{f}^{R},\mathbf{f}^{i})\prod_{j>i}^{n_{t}}\bar{\delta}(\mathbf{f}^{i},\mathbf{f}^{j})$ then sIGP takes the form

[TABLE]

Example Let $n_{t}=2$ and $N^{R}_{t}=N^{\mathbf{f}^{1}}_{t}=N^{\mathbf{f}^{2}}_{t}=1$. Then

[TABLE]

The effect of $\bar{\delta}(\mathbf{f}^{R},\mathbf{f})$ on $p(\mathbf{f}^{R}\mid\mathbf{z}_{1:t}^{R})p(\mathbf{f}\mid\mathbf{z}_{1:t}^{\mathbf{f}})$ is to minimize the probability mass in regions of overlap between the GPs. To construct sIGP we follow the factorization of $\bar{\delta}(\mathbf{f}^{R},\mathbf{f})$. We note that $\mathbf{P}_{\neg\kappa}$ acts pairwise on GP bases:

[TABLE]

We explain the expression inside the brackets: $p(\mathbf{f}^{R},\mathbf{f}\mid\mathbf{z}_{1:t})$ is a mixture of weighted bases $w^{R}_{\ell}w^{\mathbf{f}^{1}}_{k_{1}}\cdots w^{\mathbf{f}^{n_{t}}}_{k_{n_{t}}}\mathcal{N}_{\mathbf{f}^{R},\ell}\mathcal{N}_{\mathbf{f}^{1},k_{1}}\cdots\mathcal{N}_{\mathbf{f}^{n_{t}},k_{n_{t}}}$ with $\ell\in\{1,\ldots,N^{R}_{t}\}$ and for each $i=1:n_{t}$ we have $k_{i}\in\{1,\ldots,N^{\mathbf{f}^{i}}_{t}\}$. Thus, before $\mathbf{P}_{\neg\kappa}$ operates on this mixture, there are $N=N^{R}_{t}\prod_{i=1}^{n_{t}}N^{\mathbf{f}^{i}}_{t}$ components. We generalize $\mathbf{P}_{\neg\kappa}$ to act on each pair $\ell,k_{i}$ of each base $\mathcal{N}_{\mathbf{f}^{R},\ell}\mathcal{N}_{\mathbf{f}^{1},k_{1}}\cdots\mathcal{N}_{\mathbf{f}^{n_{t}},k_{n_{t}}}$ (we leverage the empirical observation from [62] that pedestrian robot interaction is more important than pedestrian-pedestrian interaction). Thus

[TABLE]

Definition 10

Multi-agent sIGP is defined as

[TABLE]

where $\eta\in\{1,\ldots,N^{R}_{t}\prod_{i=1}^{n_{t}}N^{\mathbf{f}^{i}}_{t}\}$. That is, $\eta$ enumerates all the possible combinations of bases discussed above. Let $[\boldsymbol{\Lambda}\boldsymbol{w}]_{\eta}=[\boldsymbol{\Lambda}^{R,\mathbf{f}^{1}}\cdots\boldsymbol{\Lambda}^{R,\mathbf{f}^{n_{t}}}w^{R}w^{\mathbf{f}^{1}}\cdots w^{\mathbf{f}^{n_{t}}}]_{\eta}$. From Equation IV.1 the optimal action is $u^{I}(t+1)=\mathbf{f}^{R^{*}}(t+1).$

IV-D Computational complexity

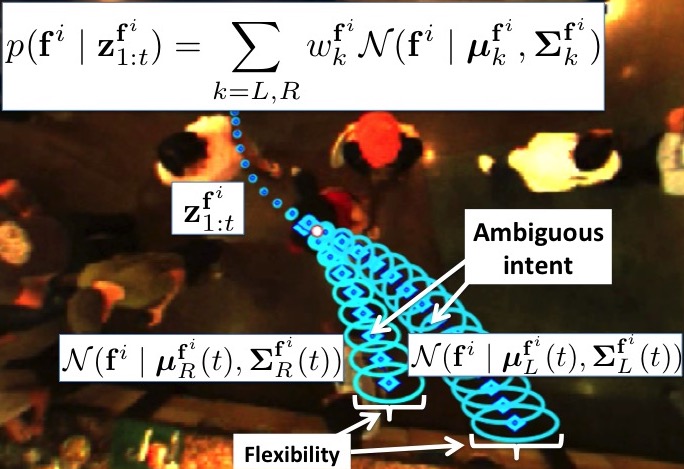

Consider the case of a single agent and a robot (Figure 6). Here $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}$ has non-trivial value except for a left and right mode for each agent (since $\boldsymbol{\Lambda}_{\ell,k}^{R,\mathbf{f}^{i}}$ decays exponentially as the GPs overlap). Thus, even though $N=N^{R}_{t}N^{\mathbf{f}^{i}}_{t}$, the number of non-trivial bases is $N_{sIGP}=2.$ For larger values of $n_{t}$, this result still holds: since our GP basis models “high level” activity—each agent must maintain a “left” and “right” GP basis—$N_{sIGP}=\mathcal{O}(2)$. Of course, our basis elements $\mathcal{N}_{\mathbf{f}^{1}}\cdots\mathcal{N}_{\mathbf{f}^{n_{t}}}$ grow more complex with $n_{t}$—a “left” and a “right” GP for each agent—so the number of GPs we compute is $\mathcal{O}(2^{n_{t}})$.

Lemma IV.2** (sIGP $\mathcal{O}(2^{n_{t}})$-sparse)**

To approximate Equation 10 accurately, $\mathcal{O}(2)$ GPs for each of the $n_{t}$ agents is required. We say that multi-agent sIGP is $\mathcal{O}(2^{n_{t}})$-sparse.

Proof:

By inspection of Equation 10, we see that each \big{[}\boldsymbol{\Lambda}^{R,\mathbf{f}^{1}}\cdots\boldsymbol{\Lambda}^{R,\mathbf{f}^{n_{t}}}\big{]}_{\eta} term only has non-trivial weight for GPs that do not overlap. By the argument above, this is $\mathcal{O}(2)$ GPs for each of the $n_{t}$ agents. ∎

GPs, as used here, are fast to compute. In [62], 60 GPs were computed, and then 10000 samples were drawn from each GP, all in about 0.1 seconds. Critically, however, we do not have an analytic transform into sparse space; instead, we resort to approximate inference to compute the high value bases.

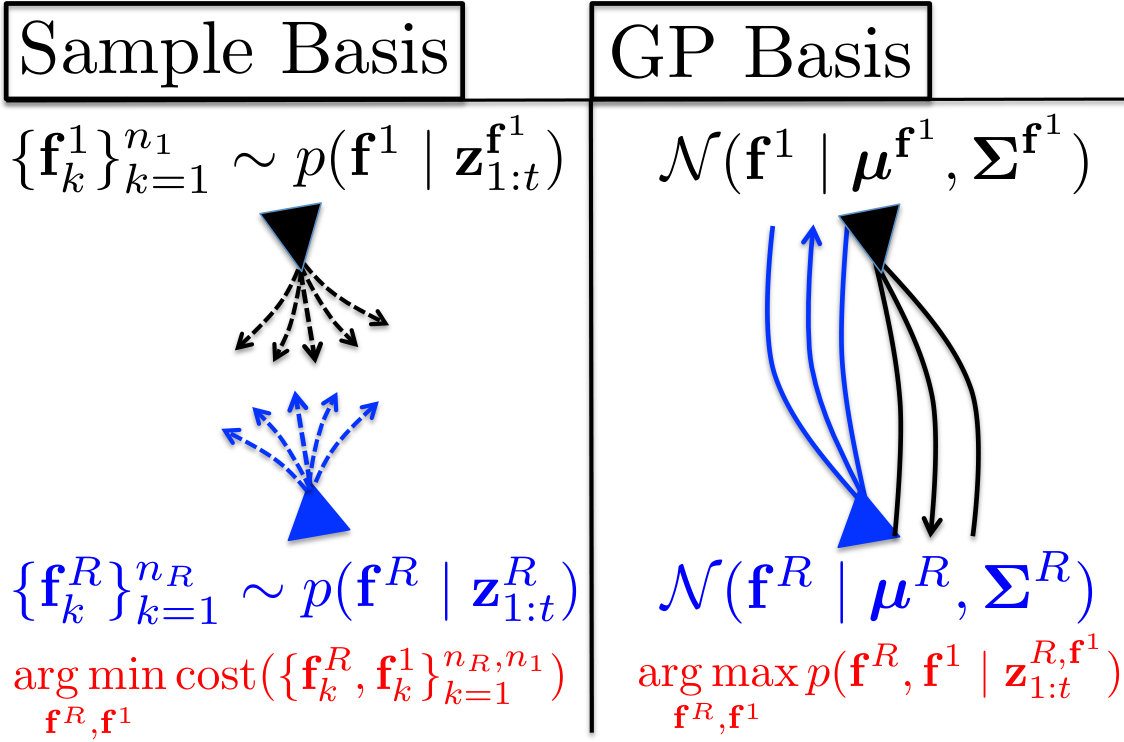

In contrast, trajectory sampling requires a decision at both the high level (“left” or “right”) and at each time step in the look-ahead ($T=30$ in [62]). In [62], $n_{t}=5$ (although up to 30 pedestrians were within a few meters of the robot); using this value, the number of samples needed for accurate navigation in dense crowds is $\mathcal{O}(2^{2n_{t}T})=\mathcal{O}(10^{90})$.

Lemma IV.3

SBMPs (Def. 7) need $\mathcal{O}(2^{2n_{t}T})$ computations.

Proof:

Based on the argument above, sampling based motion planners need $\mathcal{O}(2^{2n_{t}T})$ to provide coverage of the space. In general, coverage is needed—especially for low probability events (Figure 7)—to ensure safety failures do not occur. ∎

Note the difference here with sIGP: by exploiting the kernel trick of GPs, the mean and covariance function are used as proxies for families of trajectories. This is why the computational complexity of sIGP is $\mathcal{O}(2^{2n_{t}})$ and not $\mathcal{O}(2^{2n_{t}T})$. Further, by interacting the GPs, and dynamically creating free space by co-evolving human and robot distributions, we efficiently guide probability mass placement (Figure 7). As [36] notes, the combinatorics of multiple interacting agents is too extreme to hope for tractability—and thus optimality guarantees—without exploiting the structure of the space.

IV-E Approximate inference of the GP basis of $p(\mathbf{f}^{R},\mathbf{f}\mid\mathbf{z}_{1:t})$

Inference of sIGP is slightly different than conventional inference of distributions. In particular, if we find the basis element $\mathcal{N}_{\mathbf{f}^{R},\ell}\prod_{i=1}^{n_{t}}\mathcal{N}_{\mathbf{f}^{i},k_{i}}$ with the largest coefficient $\boldsymbol{\alpha}=\prod_{i=1}^{n_{t}}\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}\prod_{j>i}^{n_{t}}\boldsymbol{\Lambda}^{\mathbf{f}^{i},\mathbf{f}^{j}}_{k_{i},k_{j}}w^{R}_{\ell}w^{\mathbf{f}^{i}}_{k_{i}}$ then we have found the optimal navigation strategy. Unfortunately, we do not have an analytic procedure to discover basis elements with large coefficients $\boldsymbol{\alpha}$; we thus resort to approximation. Equation III did not specify how to generate the GP bases. Previous work has addressed this: in [62], goals were inferred and GPs were conditioned on those goals. In [33], the number of components of a GP mixture was learned with Dirichlet process priors.

Instead, we sample GPs directly. This is tractable since GPs are specified by the mean and covariance function. Thus,

[TABLE]

and similarly for $\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k_{i}},\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k_{i}}$. We choose $p(\boldsymbol{\mu}^{R}\mid\mathbf{z}_{1:t}^{R})=\mathcal{N}(\mathbf{f}^{R}\mid\boldsymbol{\mu}^{R}_{0},\boldsymbol{\Sigma}^{R}_{0})$, the most likely GP given the data $\mathbf{z}_{1:t}^{R}$, and sample $\boldsymbol{\Sigma}^{R}_{\ell}\sim\alpha\boldsymbol{\Sigma}_{0}$ where $\alpha\sim\mathcal{U}[.1,1]$ (and similarly for each agent $\mathbf{f}^{i}$). The weights are computed as the likelihood of the data $\mathbf{z}_{1:t}$ conditioned on the samples: $w^{R}_{\ell}=\mathcal{N}(\mathbf{f}^{R}=\mathbf{z}_{1:t}^{R}\mid\boldsymbol{\mu}^{R}_{\ell},\boldsymbol{\Sigma}_{\ell})$ and $w^{\mathbf{f}^{i}}_{k}=\mathcal{N}(\mathbf{f}^{i}=\mathbf{z}_{1:t}^{\mathbf{f}^{i}}\mid\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k},\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k}).$

V Optimality theorems of Crowd Navigation

Theorem V.1** (sIGP optimal)**

sIGP is jointly optimal with respect to collision avoidance, intent and flexibility of the robot and the $n_{t}$ agents.

Proof:

Inspecting Equation 10, we see that the coefficient $\eta^{*}=\max_{\eta}[\boldsymbol{\Lambda}\boldsymbol{w}]_{\eta}$ is an optimal balance of collision avoidance, intent and flexibility of each agent and the robot. Since the collision avoidance coefficients constrain a single GP to a convex lane, we have that \operatorname*{arg\,max}_{\mathbf{f}^{R},\mathbf{f}}p(\mathbf{f}^{R},\mathbf{f}\mid\mathbf{z}_{1:t})=[\mathcal{N}_{\mathbf{f}^{R}}\mathcal{N}_{\mathbf{f}^{1}}\cdots\mathcal{N}_{\mathbf{f}^{n_{t}}}\big{]}_{\eta^{*}} and $u^{I}(t+1)=\boldsymbol{\mu}^{R}_{\eta^{*}}$—see Eq. IV.1. ∎

These sparsity (Lemma IV.2) and optimality results make sIGP a compelling crowd navigation approach. We consider sparsity and optimality properties of state of the art approaches.

Corollary V.2

Independent agent based planning methods (Definition 6) are suboptimal with respect to collision avoidance and intent and flexibility of the robot and human agents.

Proof:

Recall that independent planning methods assume $C(\mathbf{f}^{R},\mathbf{f})=C_{R}(\mathbf{f}^{R})C_{\mathbf{f}}(\mathbf{f})$. But the discussion of $\boldsymbol{\alpha}_{\eta}=[\boldsymbol{\Lambda}^{R,\mathbf{f}^{1}}\cdots\boldsymbol{\Lambda}^{R,\mathbf{f}^{n_{t}}}w^{R}w^{\mathbf{f}^{1}}\cdots w^{\mathbf{f}^{n_{t}}}]_{\eta}$ in Theorem V.1 showed how the coupling term $\boldsymbol{\alpha}_{\eta}$ balances collision avoidance against intent and flexibility. If $C(\mathbf{f}^{R},\mathbf{f})=C_{R}(\mathbf{f}^{R})C_{\mathbf{f}}(\mathbf{f})$ then these competing objectives cannot be balanced. See Figure 7. ∎

The practical ramification of independent modeling is efficiency suboptimal (overcautious) or safety suboptimal (overaggressive) behavior. This suboptimality was described in [61] and empirically observed in [62] (the freezing robot problem).

By assuming that the human is independent of the robot (predict-then-act), the predicted collision probability is much larger than the true collision probability. Without damping the cost function, this leads to overcautious behavior. Alternatively, damping the cost function leads to robot-human miscalibration: in congestion, the only way that a robot can move safely and efficiently is by leveraging human cooperation [61].

Lemma V.3

The convex lane approach of Definition 8 is a special case of sIGP.

Proof:

If we restrict convex lane identification to time $t$—that is, we restrict the means and covariances to be evaluated at $\boldsymbol{\mu}^{R}_{\ell}(t),\boldsymbol{\mu}^{\mathbf{f}^{i}}_{k_{i}}(t)$ and $\boldsymbol{\Sigma}^{R}_{\ell}(t),\boldsymbol{\Sigma}^{\mathbf{f}^{i}}_{k_{i}}(t)$ in $\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}$—then we recover the convex lane approach. Thus, in Equation 10, if we choose $\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}=\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}(t)$ the convex lane approach is recovered. ∎

Corollary V.4

Convex lane approaches are suboptimal with respect to collision avoidance, intent and flexibility of the robot and human agents.

Proof:

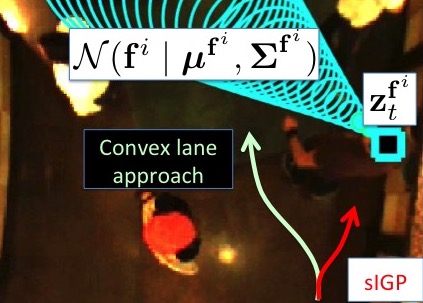

Because convex lane approaches consider pedestrians as static, collision avoidance errors occur (Figure 7); the method is thus multi-objective suboptimal. ∎

By Corollary V.2, independence assumptions between the human and robot in planning leads to suboptimality. But the convex lane approach assumes that the human, at time $t$, is not responding to the robot’s movements at the “lane” level. Thus, convex lane approaches assume a human-robot independence.

Lemma V.5

sIGP* is performance lower bounded by the convex lane approach of Definition 8.*

Proof:

Suppose that $\mathbf{f}^{i}$ is static. Then $\mathcal{N}_{\mathbf{f}^{i},k}$ is centered at $\mathbf{z}^{\mathbf{f}^{i}}_{t},$ $\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}=\boldsymbol{\Lambda}^{R,\mathbf{f}^{i}}_{\ell,k_{i}}(t)$ and the convex lane approach is recovered.

Suppose that $\mathbf{f}^{i}$ is moving. Then sIGP optimizes collision avoidance, intent and flexibility; Figure 7 illustrates how the convex lane approach can fail while sIGP is optimal. ∎

VI Evaluation

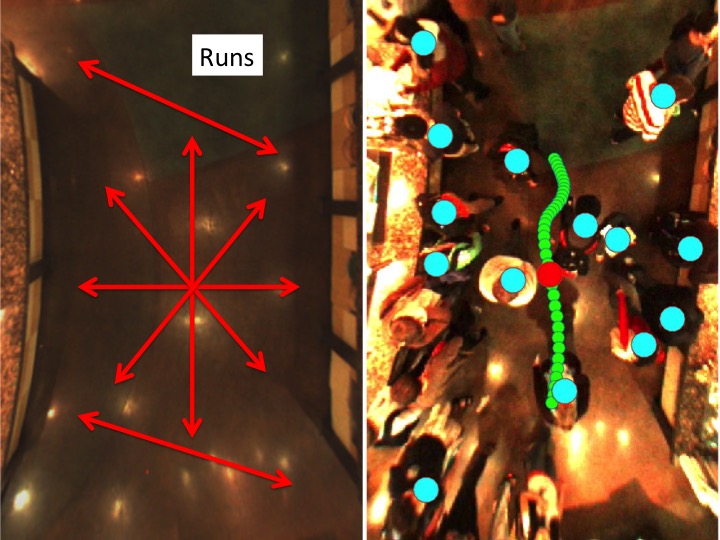

Following the approach described in Section IV-E, we empirically examine the sIGP approach, using data from [62]. In particular, we examine the computation, safety, robot speed and number of samples required for the scenario in Figure 8, and present our results in Table I. In this scenario, $n_{t}=14$ pedestrians are present, and all are computed over. Notably, about 6 of the pedestrians are near the wall and do not leave their position during the run; they serve primarily as a check on sIGP’s ability to compute over large numbers of agents and manage the uncertainty explosion with large numbers of agents. Critically, then, about 8 people interacted with the robot, so $n_{t}^{active}\approx 2^{8}$; thus complexity was $\mathcal{O}(2^{n_{t}^{active}})=\mathcal{O}(256).$ Since 500 samples were used, this provides empirical validation of Lemma IV.2. Further, the left pane of Figure 8 shows that the robot is minimally disruptive while avoiding collisions, providing empirical validation for Theorem V.1. We conducted runs in 12 directions (left pane, Figure 8). The right pane of Figure 8 provides a snapshot of sIGP in mid run. Note how sIGP is able to weave smoothly through highly dense traffic with real time computation. Performance for the other directions showed similar characteristics. Average human walking speed is 1.3 m/s, and people often brushed shoulders.
