Deterministic creation of a four-qubit W state using one- and two-qubit gates

TL;DR

This paper presents a deterministic optical scheme for creating a four-qubit W state using a combination of one- and two-qubit gates, leveraging existing photonics technology and an extra spatial mode degree of freedom.

Contribution

The scheme introduces a novel combination of optical gates, including a specially-designed V gate, enabling efficient W state creation without initial entanglement resources.

Findings

The proposed setup can be implemented with current photonics technology.

It achieves deterministic four-qubit W state creation.

Utilizes an extra spatial mode degree of freedom for enhanced processing.

Abstract

We propose an optical scheme to build an entangled network composed of $W$ state based on polarization encoded qubits (photons). This new setup consists of 2 $cNOT$ gates, 4 $V$ gates, 2 $Hadamard$ gates and basic optical tools such as polarizing beamsplitters ($PBS$s) and path couplers ($PC$s). $V$ gate is a specially-designed tool acting as a two-qubit gate which is composed of a $cNOT$ gate, 3 $PBS$s and a $PC$. By using this gate, one benefits from the temporarily generated optical degree of freedom, which is the spatial mode of a photon in the proposed scheme. Using an extra degree of freedom allows us to perform more capable processing for $W$-state creation protocols. We use four photons as input, which means we do not need entanglement as a resource. Also, we show that the proposed scheme can be implemented by operating the quantum optical gates which can be realized via current photonics technology.

Figures

Equations

$$cNOT|H(V),0⟩=\eta |H(V),0⟩,$$

$$cNOT|0,H(V)⟩=\eta |0,H(V)⟩$$

$$\mathbb{V}={\mathbb{V}}_3{\mathbb{V}}_2{\mathbb{V}}_1$$

$$\begin{array}{r}\mathbb{V}(a_{1H}^{+}{a}_{2H}^{+}|0000⟩)={\mathbb{V}}_3{\mathbb{V}}_2{\mathbb{V}}_1(a_{1H}^{+}{a}_{2H}^{+}|0000⟩)\\ ={\mathbb{V}}_3{\mathbb{V}}_2(b_{1H}^{+}{b}_{2H}^{+}|0000⟩)={\mathbb{V}}_3(b_{1H}^{+}{b}_{2H}^{+}|0000⟩)\\ =(c_{1H}^{+}{c}_{2H}^{+}|0000⟩)=|HH00⟩,\end{array}$$

$$\begin{array}{r}\mathbb{V}(a_{1H}^{+}{a}_{2V}^{+}|0000⟩)={\mathbb{V}}_3{\mathbb{V}}_2{\mathbb{V}}_1(a_{1H}^{+}{a}_{2V}^{+}|0000⟩)\\ ={\mathbb{V}}_3{\mathbb{V}}_2(b_{1H}^{+}{b}_{4V}^{+}|0000⟩)={\mathbb{V}}_3(b_{1H}^{+}{b}_{4V}^{+}|0000⟩)\\ =(c_{1H}^{+}{c}_{2V}^{+}|0000⟩)=|HV00⟩,\end{array}$$

$$\begin{array}{r}\mathbb{V}(a_{1V}^{+}{a}_{2H}^{+}|0000⟩)={\mathbb{V}}_3{\mathbb{V}}_2{\mathbb{V}}_1(a_{1V}^{+}{a}_{2H}^{+}|0000⟩)\\ ={\mathbb{V}}_3{\mathbb{V}}_2(b_{3V}^{+}{b}_{2H}^{+}|0000⟩)={\mathbb{V}}_3(b_{3V}^{+}{b}_{2H}^{+}|0000⟩)\\ =(c_{1V}^{+}{c}_{2H}^{+}|0000⟩)=|VH00⟩,\end{array}$$

$$\begin{array}{r}\mathbb{V}(a_{1V}^{+}{a}_{2V}^{+}|0000⟩)={\mathbb{V}}_3{\mathbb{V}}_2{\mathbb{V}}_1(a_{1V}^{+}{a}_{2V}^{+}|0000⟩)\\ ={\mathbb{V}}_3{\mathbb{V}}_2(b_{3V}^{+}{b}_{4V}^{+}|0000⟩)={\mathbb{V}}_3(b_{3V}^{+}{b}_{4H}^{+}|0000⟩)\\ =(c_{1V}^{+}{c}_{2H}^{+}|0000⟩)=|VH00⟩.\end{array}$$

$$\ket{B_{1}}\otimes\ket{B_{2}}=\frac{1}{\sqrt{4}}\big{(}\ket{HVHV}+\ket{HVVH}+\ket{VHHV}+\ket{VHVH}\big{)},$$

$$\mathbb{U}\ket{B_{1}}\otimes\ket{B_{2}}=\frac{1}{\sqrt{4}}\big{(}\ket{HHHV}+\ket{HHVH}+\ket{HVHH}+\ket{VHHH}\big{)},$$

$$\mathbb{U}={\mathbb{V}}_{31}{\mathbb{V}}_{23}{\mathbb{V}}_{14}{\mathbb{V}}_{42}$$

$$\begin{split}&\mathbb{V}_{31}\mathbb{V}_{23}\mathbb{V}_{14}\mathbb{V}_{42}[\leavevmode\resizebox{281.85585pt}{}{$\frac{1}{\sqrt{4}}\big{(}\ket{HVHV}+\ket{HVVH}+\ket{VHHV}+\ket{VHVH}\big{)}$}]\\ &=\mathbb{V}_{31}\mathbb{V}_{23}\mathbb{V}_{14}[\leavevmode\resizebox{281.85585pt}{}{$\frac{1}{\sqrt{4}}\big{(}\ket{HHHV}+\ket{HVVH}+\ket{VHHV}+\ket{VHVH}\big{)}$}]\\ &=\mathbb{V}_{31}\mathbb{V}_{23}[\leavevmode\resizebox{281.85585pt}{}{$\frac{1}{\sqrt{4}}\big{(}\ket{HHHV}+\ket{HVVH}+\ket{VHHH}+\ket{VHVH}\big{)}$}]\\ &=\mathbb{V}_{31}[\leavevmode\resizebox{281.85585pt}{}{$\frac{1}{\sqrt{4}}\big{(}\ket{HHHV}+\ket{HVHH}+\ket{VHHH}+\ket{VHVH}\big{)}$}]\\ &=\leavevmode\resizebox{281.85585pt}{}{$\frac{1}{\sqrt{4}}\big{(}\ket{HHHV}+\ket{HVHH}+\ket{VHHH}+\ket{HHVH}\big{)}$}.\end{split}$$

Full text

I INTRODUCTION

The property of entanglement of quantum states has attracted many researchers around the globe since the famous EPR paper 1 . Fundamental quantum features of this property have been studied 2 . There have been proposals for certain information tasks including the creation, manipulation and quantification of bipartite entanglement 2 ; 3 . An understanding of multipartite entanglement may allow us to improve schemes which are specialized for certain tasks because some quantum information tasks require sophisticated quantum states. For example, $GHZ$ states are used to achieve consensus in distributed networks 4 , and $W$ states are required for the optimal universal quantum cloning machine 5 . Experimental and theoretical works have shown that $Cluster$ and $GHZ$ states can be created or expanded 6 . Since $W$ states have more complicated structures, their creation is more challenging, and an efficient scheme has not yet been experimentally demonstrated. Optical setups have been proposed to fuse two $W$ states or to expand a $W$ state with ancillary photons 7 ; 8 . It has been shown that by integrating a $Fredkin$ gate to the setup in 8 the success probability of the fusion process and the size of the resultant $W$ state can be increased 9 . In the optical setups including the basic fusion gate, multiple $W$ states can be fused simultaneously 10 ; 11 . All these schemes work probabilistically, increasing the resource cost with respect to the size of final state. There are also deterministic schemes for preparing $W$ states by using creation and expansion methods 12 ; extra1 ; extra2 . The deterministic creation scheme has been proposed by Yesilyurt et al. 12 , in which four photons are sent into the circuit which consists of 5 $cNOT$ gates and a $Toffoli$ gate, giving a four-qubit W state in the end. This strategy is a sophisticated one since a three-qubit gate is required to implement the circuit. We simply discard this requirement by showing the creation can be achieved with only $cNOT$ gates. An extensive creation scheme has been introduced for deterministic generation of a $W$ state with an arbitrary size extra1 . This setup requires eight $cNOT$s to obtain a four-qubit $W$ state whereas the current scheme needs only six $cNOT$s. Another approach is deterministic expansion scheme, doubling the size of the initial W state extra2 .

II THE W-STATE CREATION SCHEME

In this work, we propose an optical setup to create a $W$ state of four qubits based on the polarization property of photons. Unlike previous schemes, this method uses four non-entangled photons as resources and obtains the desired state with a unit probability. Previous optical fusion schemes use the $W$ states of smaller sizes as resources to start the process 8 ; 9 ; 10 . Creating a $W$ state deterministically also makes it more advantageous for other fusion schemes to create large-scale $W$ states because they can start fusion with four-qubit $W$ states directly, reducing the resource cost. Since the proposed operation is deterministic, no photon is observed, meaning no photon will be lost. The basic elements used in this scheme are polarizing beamsplitters ($PBS$s), path couplers ($PC$s) and $Hadamard$ gates. We use 2 $cNOT$ gates and 4 $V$ gates, which are composed of $PBS$s, $PC$ and a $cNOT$ gate. The operation of a $cNOT$ gate is to rotate the target qubit’s polarization by 90 degrees if the control qubit is vertical polarized ($V$-polarized). The other element fulfilling the nonunitary transformation is called $V$ gate. This is a two-qubit gate acting only when both input photons are $V$-polarized and changing the polarization of the target qubit by 90 degrees. Fig. 1 shows the action of each element with creation operators, aij+, bij+ and cij+ where i is the spatial mode and j is polarization. Non-occupied modes are vacuum states denoted by zero, and when at least one of the input modes is not occupied, the $cNOT$ gate does not act on the input state,

[TABLE]

[TABLE]

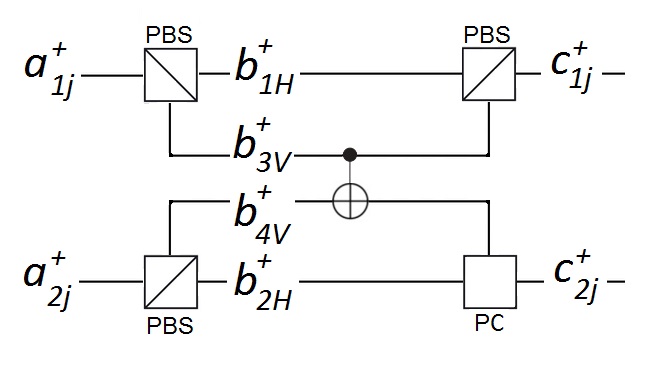

where $\eta$ is a complex amplitude rescaling relative to the non-vacuum case, which is 1 for brevity as proposed by Pittman et al. 13 ; 14 . We divide the non-unitary transformation of the $V$ gate into three sub-operations corresponding to the transformations of the first two $PBS$s, the $cNOT$ gate, and the combined operation of the $PC$ and the last $PBS$:

[TABLE]

such that

[TABLE]

[TABLE]

[TABLE]

and

[TABLE]

To note, $PC$ combines a polarization-based photonic state with a vacuum state for each input by erasing the mode degeneracy. This tool has been recently used in the fusion scheme of $W$ states with Kerr nonlinearities 15 . As can be seen, the $V$ gate changes the polarization of the target qubit from vertical to horizontal only when both photons are $V$-polarized. Therefore, this is a non-unitary transformation.

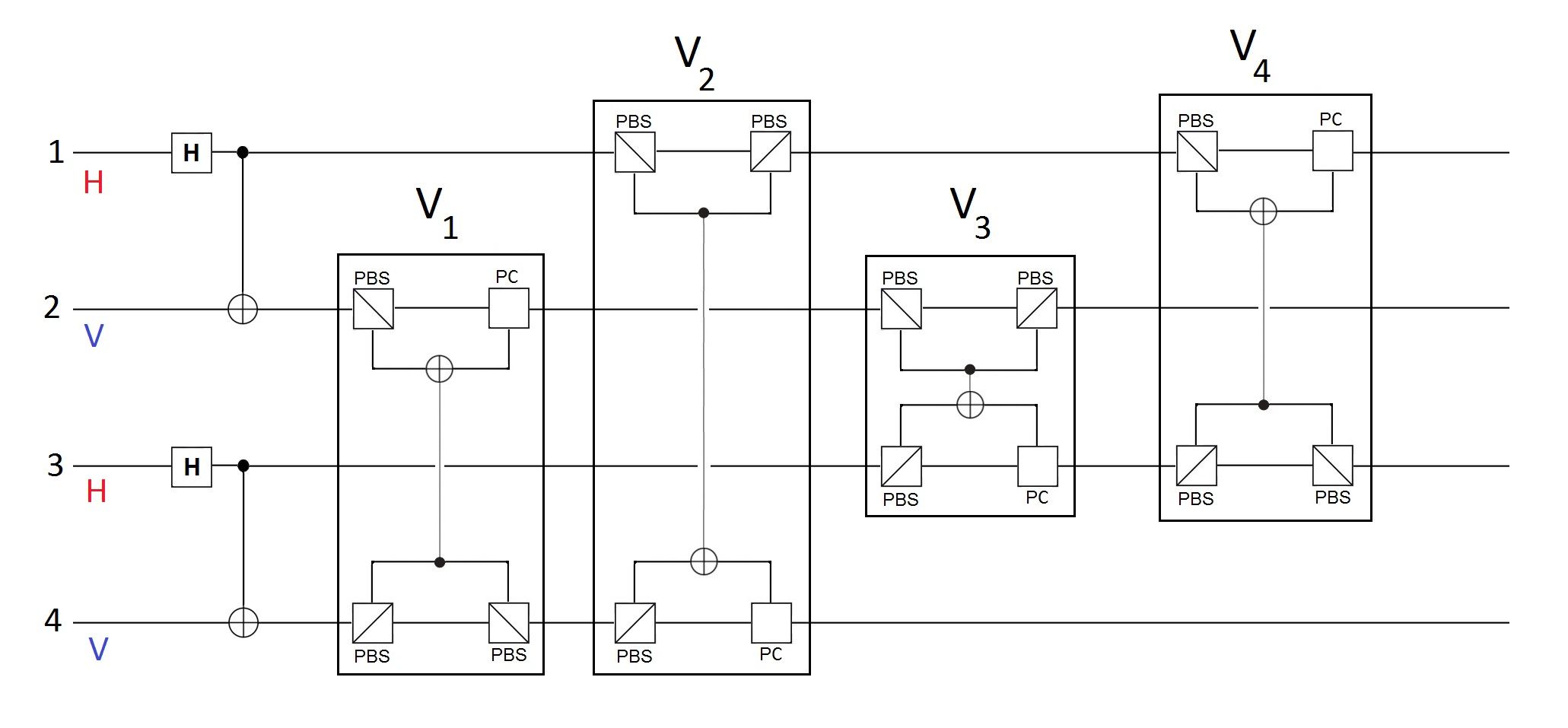

Firstly, we create $W$-type $Bell$ states by using two $Hadamard$ gates and two $cNOT$ gates as seen in Fig. 2. The tensor product of these two states is as follows:

[TABLE]

and we define the whole process of $V$ gates by $\mathbb{U}$ such that

[TABLE]

which is a four-qubit $W$ state. The operator $\mathbb{U}$ can be decomposed into four sub-operators:

[TABLE]

with subindices showing the modes of the target and the control qubits, respectively. In the following, each step is shown explicitly:

[TABLE]

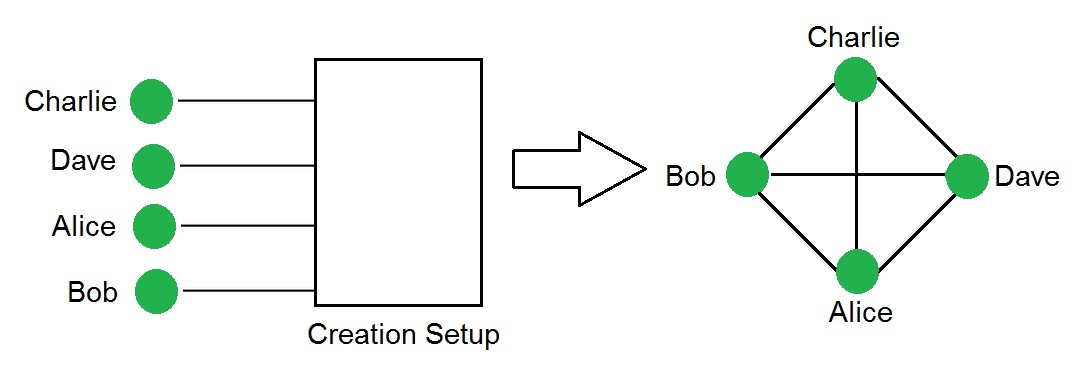

The schematic depiction of the creation process can be seen in Figure 3.

III THE REALIZATION OF THE CIRCUIT AND CONCLUSION

This newly proposed setup creates a $W$ state of four qubits deterministically in contrast to the previous fusion schemes (not considering application probabilities of the gates). The basic fusion gate 8 , which is composed of basic linear optical tools, is used to create a $W$ state of any size. Even though the construction of the fusion scheme is inexpensive, a $W$ state of four qubits is created with a probability of 4/9. The $Fredkin$ gate is integrated into the basic fusion gate, increasing the probability of a four-qubit $W$-state creation to 2/3 9 . Yet this scheme is still probabilistic, and moreover, the application probability of a linear optical $Fredkin$ gate is very low, in the order of $10^{-3}$ f . The schemes fusing three and four $W$ states have also been proposed in the literature 10 ; 11 . It has been shown that four $W$-type $Bell$ states can be fused to create a four-qubit $W$ state with a probability of 1/4, by using three $cNOT$s and one $Toffoli$ gate 10 . Although there are feasible proposals to implement a $cNOT$ gate, a linear optical $Toffoli$ gate is implemented with a probability of 1/32 16 , which means this fusion process is not very feasible with current photonics technology. In the scheme for fusion of three $W$ states, two $Bell$ states and a three-qubit $W$ state can be used as resources to create a four-qubit $W$ state with a probability of 1/3 11 . In this scheme, a $Fredkin$ gate is required together with two basic fusion gates, therefore lowering the success probability as in the previous scheme. Furthermore, the common requirement of the previously introduced schemes is that entangled states are needed as resource. The only deterministic scheme which does not require entangled photonic states as in our case is composed of 5 $cNOT$s and a $Toffoli$ gate 12 . Since we need 6 $cNOT$ gates in the current scheme, we discard the requirement of a $Toffoli$ gate, leading to a more applicable circuit.

Even though we call the proposed scheme deterministic, this is because we do not take into account the application probabilities of the gates. To build a preferable circuit, one also needs to consider the realization of the $cNOT$ gate. The $cNOT$ gate can be implemented with the probability of 1/9 via linear optics 17 . This leads to a very small implementation probability in the order of $10^{-6}$. Moreover, the effect of photon loss (amplitude damping channel) may lead to experimental imperfection 18 . However, if one can increase physical resources to include maximally entangled photon states, the $cNOT$ gate can be applied with a probability of 1/4. To take this step further, weak cross-Kerr nonlinearities can be used to realize a $cNOT$ gate almost deterministically, which requires fewer physical resources than other linear optical schemes 19 .

In conclusion, we have introduced an optical setup which consists of six $cNOT$ gates and basic optical elements. The proposed setup provides an efficient creation of a $W$ state of four photons, reducing the cost of the target $W$ state for previous setups that require $W$ states as resources. From the experimental perspective, since the process is done by one- and two-qubit gates, and no larger-scale gates are needed, we emphasize the importance of $cNOT$ implementations. The $cNOT$s can be efficiently demonstrated with current photonics technology using the different methods mentioned earlier. The described optical tools are common in laboratories.
