Long-Range Nonlocality in Six-Point String Scattering: simulation of black hole infallers
Matthew Dodelson, Eva Silverstein
TL;DR
This paper demonstrates that string scattering amplitudes exhibit nonlocal longitudinal spreading effects, supporting the idea that strings can interact over extended distances, which has implications for understanding black hole infallers.
Contribution
The study provides a gauge-invariant S-matrix calculation showing longitudinal spreading in string scattering, a novel simulation of black hole infaller dynamics.
Findings
Amplitude supports scattering at predicted longitudinal separation
Amplitude larger than in comparable quantum field theory models
Dependence on string coupling consistent with string theory expectations
Abstract
We set up a tree-level six point scattering process in which two strings are separated longitudinally such that they could only interact directly via a non-local spreading effect such as that predicted by light cone gauge calculations and the Gross-Mende saddle point. One string, the `detector', is produced at a finite time with energy by an auxiliary sub-process, with kinematics such that it has sufficient resolution to detect the longitudinal spreading of an additional incoming string, the `source'. We test this hypothesis in a gauge-invariant S-matrix calculation convolved with an appropriate wavepacket peaked at a separation between the central trajectories of the source and produced detector. The amplitude exhibits support for scattering at the predicted longitudinal separation , in sharp contrast to the analogous quantum field theory amplitude…
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7

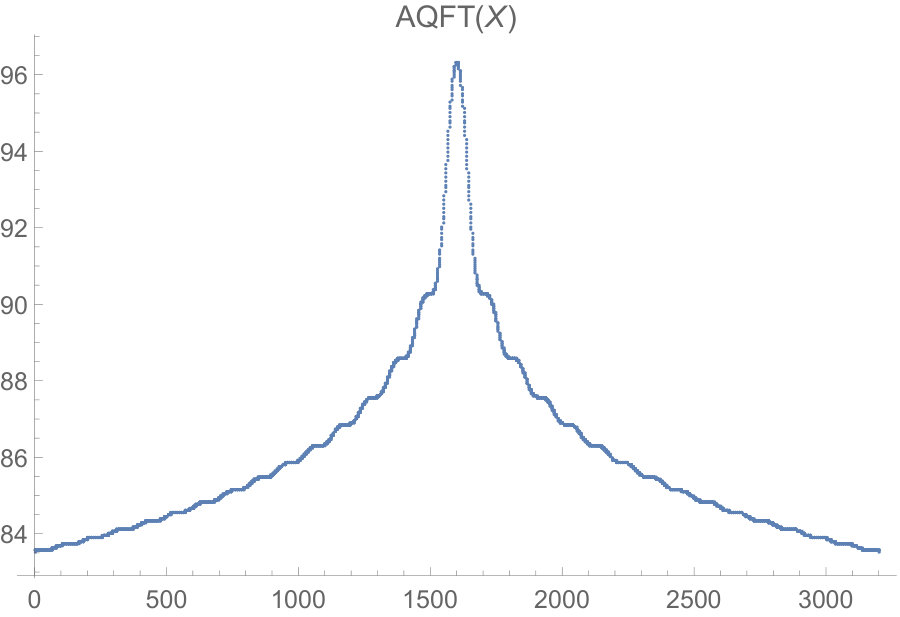

Figure 8
Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Long-Range Nonlocality in Six-Point String Scattering: simulation of black hole infallers
Matthew Dodelson1 and Eva Silverstein1,2
1Stanford Institute for Theoretical Physics, Stanford University, Stanford, CA 94306
2Kavli Institute for Particle Astrophysics and Cosmology, Stanford, CA 94025
Abstract We set up a tree-level six point scattering process in which two strings are separated longitudinally such that they could only interact directly via a non-local spreading effect such as that predicted by light cone gauge calculations and the Gross-Mende saddle point. One string, the ‘detector’, is produced at a finite time with energy by an auxiliary sub-process, with kinematics such that it has sufficient resolution to detect the longitudinal spreading of an additional incoming string, the ‘source’. We test this hypothesis in a gauge-invariant S-matrix calculation convolved with an appropriate wavepacket peaked at a separation between the central trajectories of the source and produced detector. The amplitude exhibits support for scattering at the predicted longitudinal separation , in sharp contrast to the analogous quantum field theory amplitude (whose support manifestly traces out a tail of the position-space wavefunction). The effect arises in a regime in which the string amplitude is not obtained as a convergent sum of such QFT amplitudes, and has larger amplitude than similar QFT models (with the same auxiliary four point amplitude). In a linear dilaton background, the amplitude depends on the string coupling as expected if the scattering is not simply occuring on the wavepacket tail in string theory. This manifests the scale of longitudinal spreading in a gauge-invariant S-matrix amplitude, in a calculable process with significant amplitude. It simulates a key feature of the dynamics of time-translated horizon infallers.
Contents
-
2 Kinematics, predicted detector resolution, and pole structure
-
4.4 The closed form string theory amplitude for two orderings
-
5.1.1 Contour integral, light cone evolution, and interaction scales
1 Introduction and setup
Light cone [1] and saddle point [2] calculations strongly suggest a significant degree of longitudinal nonlocality in string theory in the regime of large center of mass energy compared to the string scale, . As reviewed in [3, 4], both analyses [1, 2] lead to the relations111The Gross-Mende saddle point is slightly larger than the longitudinal spreading scale, [4, 5]. This leads to a -dependent suppression factor in the four-point function [4].
[TABLE]
for relativistic scattering, where denotes the transverse momentum transfer in the process.222The relevant decomposition into light cone and transverse directions is determined uniquely by requiring that is shared equally among the scattered strings, defining the ‘brick wall frame’ as in [6]. As the resolution in light cone time improves at large center of mass energy, the nonlocality in the direction increases. A computation in [6], combining light cone and saddle point techniques, explicitly derives the cutoff on the mode number of worldsheet vacuum fluctuations which corresponds to the finite light-cone time resolution,333In the appendix, we clarify the distinction between this detector-dependent cutoff and the subtraction of the power law divergence in a similar sum over modes that enters into the string mass spectrum in light cone gauge. We thank Milind Shyani and Ying Zhao for discussions. as explained recently in [3]. More broadly, the UV softness of string amplitudes in itself implies some spreading of probability in position space.
However, the quantities computed in [1] are not manifestly gauge-invariant, and the embedding coordinates in [2] are evaluated on complex saddle points and hence are not directly applicable to the real geometry of the scattering process. Therefore it is of interest to understand the role of the relations (1.1) in real, gauge-invariant quantities. This has been discussed in a number of very interesting works such as [7][8][9][10], but the results on the basic question of long-range interaction were inconclusive. In [4], we began a detailed analysis of this using wavepackets convolved against four and five point tree-level string scattering amplitudes, exhibiting features – such as the deflection of the traced-back trajectory of a scattered string wavepacket before its center of mass would collide – which are difficult to explain purely by the transverse spreading . Excluding purely transverse non-locality is important, and the arguments in [4] are subtle, giving only indirect indications of the long range predicted by (1.1).
More generally, it is crucial to take into account the possibility that fluctuations in the central positions of strings could account for effects that would otherwise be ascribed to the longitudinal spreading.444In [4], this was conditional on an assumption that the incoming strings deflect directly into the corresponding outgoing ones in Regge kinematics, and that scattering can occur at the peak trajectory – the most probable central value among position wavepackets. In this work, we will find that in an appropriate six point scattering process, the large scale of longitudinal spreading directly emerges at the level of the peak wavepacket separation of the relevant strings, in a kinematic regime we identify explicitly, improving substantially on [4]. In this regime, moreover, a simple tree level quantum field theory analogue model would not interact as strongly at this separation, provided that we identify its four-point couplings with the amplitudes of certain sub-processes in the string theory (one of which is Regge-soft). In order to test the spreading interpretation further, we summarize a result of [11] in a weakly varying dilaton background, which yields string coupling dependence consistent with scattering at this peak wavepacket separation. As a result, the longitudinal spreading prediction survives a substantial test.
Let us summarize the setup in more detail. We will analyze a scattering process which directly exhibits the expected scale of longitudinal non-locality. A four-point sub-process produces a string at finite time (say ) which is kinematically set up to be an effective detector of the longitudinal spreading of a third incoming source string.
According to the prediction of (1.1), this third incomer could interact with the putative detector even if its center crosses the interaction region earlier, by a timescale of up to order . With separated Gaussian wavepackets for the trajectories of and , with peak , longitudinal spreading would produce contributions supported at of order , a dynamical scale that is insensitive to the shape of the wavepacket. This is in contrast to the corresponding process in quantum field theory, for which scattering only occurs for particle delayed with respect to ; in that case any contribution with is ascribable to scattering a tail of the wavefunction in position space.
By analyzing the amplitude for scattering between localized external states, we perform a quantitative test of the prediction that the third incomer interacts with the putative detector at a separation in the direction of order .555Below we will be more precise about the factors multiplying in the interaction scales arising in various regimes. With Gaussian wavepackets for the trajectories of and , with peak and position-space width , we find a string theory amplitude which exhibits a peak of support early in by the predicted amount. We take a relatively thin width in momentum space in order to optimize the detector kinematics, which leads to somewhat coarse (but still sufficient) resolution in position space. In sharp contrast, QFT comparison models instead produce a distribution with width at small , with Gaussian-suppressed support at large consistent with scattering on the tail of the wavepackets. If we identify the four-point sub-process amplitudes in tree-level QFT and string theory, then string theory produces parametrically stronger scattering at , and a further analysis using a linear dilaton background fits with this picture of the scattering geometry [11]. This result arises in a regime in which the string theory amplitude is not obtained as a convergent sum over QFT propagators (which we compare and contrast to a special regime with such an expansion).
The predicted long-range longitudinal non-locality could have far-reaching implications, becoming particularly interesting when applied to horizon physics [3, 12]. In that context, the trajectories of test objects time-translated relative to each other by develop an exponentially large center of mass energy squared in the near-horizon region, where is the curvature radius in the geometry. This region, a Rindler patch of flat spacetime, is given by
[TABLE]
The large near-horizon energy arises even for weakly curved geometries, with the evolution in the geometry gradually building up a large relative boost. The two trajectories cross the horizon displaced in the direction by an amount that grows linearly with the center of mass energy.
In this situation, non-locality that grows in a way commensurate with the center of mass energy can lead to interaction between the two infallers [12]. In [3], we analyzed this explicitly for the non-locality introduced by longitudinal string spreading, finding a wide window of parameters where this occurs, given (1.1). This would not occur for weakly interacting particles at the same order, and we characterized this as a breakdown of effective quantum field theory in horizon physics. (However, it is an interesting question whether this would occur just as well for field theories such as QCD which exhibit Regge behavior and may have a string-theoretic formulation, something we can investigate using holographic large-N gauge theories [20].)
In fact, the process described by our flat spacetime six-point function provides a calculable simulation of the configuration of early and late infallers in horizon physics. In that problem, the two strings’ centers never cross paths in the near horizon region; as just noted they are widely separated in , and appear in the near horizon region as if they had already moved past each other. That means that in the Rindler patch, they are configured just like the source and detector strings in our six-point process, as shown in Figure 2.666We thank D. Marolf for early discussions of a setup like this. It will be very interesting to apply this to articulate more explicit predictions for observables in black hole physics and cosmology.
1.1 Quantum field theory comparison models
We will explicitly compare and contrast the behavior of the string theory amplitude just set up with two tree-level field theory models, whose amplitudes appear below in (4.26-4.27). The simplest is a six-point contact interaction, with a coupling ; we will refer to this model as QFT0. The second, QFT1, is a model with four point interactions and , with a massless particle. The six point scattering in this theory includes massless exchange, and we will focus on this model in making our comparisons.
2 Kinematics, predicted detector resolution, and pole structure
In order to set up the process described in the previous section, we consider string scattering. For simplicity we work in kinematics for which the incoming and outgoing strings move in three dimensions . In general for relativistic string motion the wavefunctions are linear combinations of vertex operators with momenta
[TABLE]
where
[TABLE]
Since we are working in a Minkowski spacetime background, the scattering amplitude contains an energy-momentum conserving delta function. In the process of interest, the strings are moving mainly in the direction. By working with appropriate wavepackets and incorporating the delta function in the amplitude, we will be able to consistently restrict the momenta to this regime while still localizing the strings sufficiently in position space to test for longitudinal interaction.
We will work with on-shell wavefunctions (linear combinations of momentum eigenstate vertex operators) – that are pure momentum eigenstates for the outgoing strings , and . We must also specify wavefunctions for the incoming strings , , and . For reasons that will become clear below, in the longitudinal () direction we will work with Gaussians of string-scale width for and (with central values in position space separated by a parameter ) and for we will specify a wavefunction supported only within a very small range of of order . Here and below, we use a tilde to denote momenta that are integrated over in the wavepackets that we will explicitly set up below.
Define the total energy-momentum as
[TABLE]
This is constant, fixed by the choice of momentum eigenstates for strings . We will work in a frame where the total transverse momentum vanishes (), and is of order . We are interested in a regime in which and are moving toward negative with momenta , and is moving toward positive with momentum , as depicted in Figure 1.
We will find it sufficient, and simplest, to work at fixed transverse momenta
[TABLE]
and will consider separately the cases and .
We solve the longitudinal (-direction) momentum conservation condition with
[TABLE]
Moreover, for all our wavepackets, once we impose energy conservation will vary, if at all, within a small enough range that the variation of and essentially cancel: . Thus is conjugate to the longitudinal spatial separation between and .
Next let us consider the energy conserving delta function
[TABLE]
with
[TABLE]
The delta function sets this function to zero.
First consider the case . Energy conservation fixes
[TABLE]
for
[TABLE]
For , if the trajectories of and are separated in the longitudinal plane at one time, they never meet. We will introduce Gaussian wavepackets with support well within the endpoints of the range (2.9). This case of is sufficient for our simplest test of spreading below in §5.1.
Next let us consider . In this case, there is a meeting point of the and trajectories (as depicted below in figure 4). Let us consider (2.7) as a function of at fixed . It has a minimum at . For sufficiently large , this minimum is above zero and there is no solution. For sufficiently small , there are 2 solutions. In the regime where for all strings, this is given to good approximation by
[TABLE]
At one special value of there is a single solution to , at which . Losing the solution as we increase through this point has a simple interpretation: it corresponds to a kinematic configuration such that and cannot meet at a point if they cross the plane at separate positions in , since they are moving at the same speed in the direction. Thus there is no support for a pointlike interaction between them. For we will work with a wavepacket for with nonzero support only for a small range of . The amplitude, including the energy conserving delta function, will then restrict the range of to be sufficiently small that we can work in a simple kinematic regime.
In all of our calculations below, the wavepackets will have significant support only for momenta satisfying in which the kinematics simplifies to the form
[TABLE]
constrained by the energy-momentum conserving delta function, as just discussed. The restricted support in momentum space will entail a position-space tail, whose effects we will include in our analysis.
The amplitude depends on kinematic invariants
[TABLE]
which provide a useful, albeit redundant, parameterization. These are fixed (of order ) between strings moving in the same direction, and large in magnitude (of order ) for strings moving in opposite directions. The intermediate string described above,
[TABLE]
and specifically the behavior of as a function of , will play an important role. Some of the invariants we will refer to in our analysis are explicitly
[TABLE]
2.1 Detector and spreading prediction
The string worldsheet topology and vertex operator ordering allows for a process in which and join to produce Strings and , with joining to produce and . In our analysis we will not assume this sequence of events in spacetime, but in this subsection we will briefly review the prediction [1, 3] for a spreading-induced interaction between and in such a process.
If we view string as a detector of string ’s spreading, then for the light cone prediction is777See specifically Section 2.3 of [3] for the suppression of the spreading radius for a timelike detector trajectory, corresponding to in (2.22). For , the light cone spreading prediction is . [1, 3]
[TABLE]
The last estimate here is applicable in the regime , for which String and its continuation into string have light cone energy
[TABLE]
The sign here corresponds to the fact that string is outgoing, while string is an incoming leg of the process in which it is a putative detector of the spreading of string . According to the predictions of longitudinal spreading [1, 3, 4, 6], this implies sufficient light-cone time resolution for string or to detect string , with a predicted range bounded above by (at high energy with fixed momentum transfer).
It is important to note, as in [3, 4] that the predicted interaction between the string and the detector is causal: in the free single-string state, the mode sum which determines the mean square size of the string is quadratically divergent, cut off by the energy resolution of the detector. A time advance, in which interaction occurs without the centers of the strings meeting, is not acausal in this context. In the next subsection we briefly review the manifestation of causality in the S-matrix, and its limitations.
2.2 Pole structure, causality, and the S-matrix
In tree-level quantum field theory, there is no spreading phenomenon in light cone gauge analogous to that in string theory, and causality demands that point particles scatter without time advances. In that case, one can work with gauge-invariant local operators which commute outside the light-cone to establish causality and hence the absence of time advances.
In string theory, we work with the S-matrix because we do not have such simple local observables. The manifestation of causality in the S-matrix is encoded in the prescription at the poles, in that the Fourier transform of a simple pole in momentum space gives a step function in position space. The limitations on this arise because the Fourier transform is not exactly what arises in computing S-matrix amplitudes, since energies are positive and the amplitude includes the energy-momentum conserving delta function which is not analytic. But since the prescription is the same in string theory and QFT [14][15], it is important to understand the implications of S-matrix data alone for scattering advances as a function of the center of mass of each string.
At the level of the momentum space amplitude, string theory does not generally decompose into a convergent sum of particle propogators. This will play a role in our results below. The standard limitations on the information contained in S-matrix amplitudes will also enter our analysis. In general the connection between analyticity and causality is not completely sharp in the S-matrix [16][17]. Because the energies of the particles are positive, one does not obtain the full Fourier transform, and hence we do not precisely get a step function in time.888We expand on this via toy integrals in the appendix. In some circumstances, this is a small effect. But assessing that for a given scattering problem requires analyzing it in detail with explicit wavepackets, taking into account the behavior of the momentum space amplitude over the range of momenta supported.
A related limitation is the uncertainty principle: imperfect knowledge of the the relative momenta of scatterers can complicate the determination of their range of interaction. Consider more specifically the process we are setting up in this work. The trajectories for A and C on the peak of the wavepackets we will set up in the generic case are depicted below in figure 4 in §5. For as depicted there, scattering at would require longitudinal non-locality; conversely if scattering at is delayed, not requiring non-locality. We will use appropriate wavepackets to restrict the support of to be negative, as depicted. For a class of momentum ranges, the resulting amplitudes exhibit a sharp distinction between quantum field theory and string theory.
In S-matrix amplitudes with wavepackets, the scattering may appear advanced as a function of the peak position in the wavefunction, but this may be consistent with purely delayed scattering on its tail. We will present results that are consistent with this interpretation in our tree-level QFT comparison models, whose amplitudes track the tails of the position space wavefunctions and exhibit strong dependence on their parameters. In string theory, we will find rather different behavior which is consistent with the longitudinal spreading prediction. In a regime where the amplitude is not obtained as a convergent sum over particle propagators, we will see that its amplitude is larger than the corresponding QFT one, provided that we identify the four-point sub-process amplitudes in QFT and string theory. The possibility that the scattering proceeds via longitudinal spreading (as opposed to only occurring on the wavepacket tail) passes a further test in [11] that we will summarize.
3 Wavepackets
In order to understand aspects of the position space geometry of the scattering process, it is useful to convolve the momentum-space string amplitude with nontrivial wavepackets for the strings , , and . That is, we consider linear combinations of on-shell vertex operators for the incoming strings.
Before discussing our wavepackets in detail, let us briefly review how they fit into the total probability for scattering, taking into account relativistic normalization factors.999See e.g. chapter 4 of [13] for the relevant background and conventions. We will set up wavepackets for incomers and normalized as
[TABLE]
Then the probability for , , and , to scatter into within a momentum range of outgoing momenta is given by
[TABLE]
where
[TABLE]
In the kinematic regime which will interest us, the factors of in the denominator will not vary substantially with the supported by the wavepackets. As a result, we can pull out those factors and focus on the behavior of the momentum space amplitude convolved with the wavepackets , keeping in mind that the final result for the amplitude includes the inverse powers of . We note that these factors are common to string theory and quantum field theory.
These factors must also be included in considering the implications for black hole physics.101010We thank D. Stanford for a discussion of this point. In that setup, however, the incoming energies which enter into the relativistic normalization in the asymptotically flat region of the black hole geometry are much smaller than the center of mass energy of time-translated infallers in the near horizon region [3].
3.1 Wavepacket widths
Before getting into any details, let us comment on the width of the wavepackets. The light cone gauge spreading prediction described above in §2.1 is given in terms of the momentum of the detector , so we will work with wavepackets that are supported in a window of momenta for which longitudinal spreading is expected from that point of view. At the same time, of course, we wish to resolve aspects of the geometry of the process in position space so we cannot work with pure momentum eigenstates. We will see that we can use wavepackets that localize sufficiently in momentum and position space to satisfy both of these requirements.
Let us spell this out more explicitly, since it is a somewhat subtle aspect of our analysis. We will include wavepackets for and , whose relative position is conjugate to the momentum variable (as discussed above, string will solve the longitudinal momentum conservation delta function, absorbing the change in ’s longitudinal momentum).
The required resolution in position space is not too stringent in itself: we are interested in resolving the relative positions of and within the large predicted spreading scale . In momentum space, however, requiring that the wavepackets have their support reasonably close to the optimal detector kinematics leads to a nontrivial condition. In particular, let us require to stay of order in magnitude, since according to (2.22) the spreading would degrade strongly otherwise. We can translate that to a limit on the support of using (2.19)
[TABLE]
Restricting the support of to within of order restricts to within of order . This is a strong constraint on the momenta. Fortunately, it is still within the broad position space resolution we need, but the corresponding wavepackets are quite wide in position space compared to string scale. Below, we will find the most interesting results for wavepackets of this kind – of width in momentum space (with the order parameter being specifically ). We will comment further on the role of this parameter below.
3.2 Gaussian wavepackets for and
For and , we will work with Gaussian wavepackets, centered on trajectories with momentum , as in the setup of Figure 1. In momentum space the wavepackets take the form
[TABLE]
where is a canonical momentum variable, and the subscripts are parameters of the wavefunction. The position space wavefunction is
[TABLE]
At this is a Gaussian centered at with width . At other times, it is approximately Gaussian centered on the trajectory . The evolved position space wavepacket also has a contribution with a power-law tail, but this is suppressed by . We will center string such that at the peak of its wavepacket, it crosses at , and send C in with a peak trajectory passing through at .
3.3 Wavepackets for string
Let us next discuss wavepackets for string . In the case , energy conservation fixes (2.8), and we can work with any wavepacket for with support at that value. The remainder of this section is not essential for the reader interested in the simplest test of spreading in kinematics, which is contained in §5.1 below.
3.3.1 wavepackets used in analysis
For our analysis below, we will consider wavefunctions which are sharply supported between two nearby values of . One example of this is simply the step function
[TABLE]
where we defined
[TABLE]
Here is the canonical momentum variable, and the subscripts are parameters of the wavefunction. In our setup, and are both of order .
This wavepacket for B is sharply cut off in momentum space, which will lead to a power law tail in position space. This may seem like a counterintuitive choice, given that we would like to constrain the position space geometry. However, as we will discuss in detail below (see Figure 4 and eqn (5.26)), the resolution we need for B’s trajectory is much weaker than that for A and C. The utility of the sharp cutoff in is that this, in combination with the energy-momentum conservation in the amplitude, sharply ensures that (i) the strings are moving in the intended direction, and (ii) the range of momentum integrated over is small enough that is absorbed by to good approximation. This simplifies the analysis and interpretation, leaving enough structure in position space to strongly distinguish the behavior of string theory and tree-level quantum field theory.
If we take B to have zero transverse momentum (an eigenstate with ), the corresponding position space wavefunction is
[TABLE]
Again is the peak of the wavefunction, not to be confused with that of a position eigenstate. The corresponding probability in position space is
[TABLE]
This is nearly constant for but drops rapidly beyond that scale. We will put in our analysis, so that the peak of this wavepacket describes B hitting A at .
A variant of this which is useful is to take a triangular region of support between and ,
[TABLE]
where we defined
[TABLE]
and we work at . The Fourier transform to position space gives in this case
[TABLE]
This has a tail , and a finite variance in position and momentum space.
We will analyze the amplitudes for QFT and string theory convolved with these wavepackets. It will be useful for interpreting the potential contribution from wavefunction tails to check the sensitivity of these amplitudes to the width of the Gaussians (3.6) and the difference between the step function and triangular wavefunctions for B.
As mentioned above, we will work with such that the resulting range of values allowed by energy-momentum conservation (2.10) satisfies
[TABLE]
for all contributing to the amplitude. The required range of can be obtained by differentiating the energy conservation condition , which gives
[TABLE]
The difference is the separation between the two solutions to energy conservation (2.10). Within each range of solutions (Figure 3), we have
[TABLE]
As a result, the integral is only over in the regime . That is, for the above kinematics with , we can satisfy energy-momentum conservation to good approximation by absorbing a deformation by . This momentum variable is conjugate to the separation between the two strings in position space at time . To sum up, we choose such that over the full range of support in momentum space, we have the hierarchy
[TABLE]
This restricted range for and is dictated by the amplitude along with the wavepacket for , not the wavefunctions for and .
4 Momentum space amplitude
In this section, we introduce the momentum space string amplitude and describe some of its key features within our kinematic regime of interest. We will be interested in two open string orderings, and two kinematic regimes. We will compare and contrast string theory with QFT, with the sign of one of the kinematic variables playing an interesting role. In one of the regimes, the amplitude can be expanded into a convergent sum over QFT propagators . In the other regime, the analogous expansion in propagators comes dressed with additional dependence on the detector kinematics . This will enable us to distinguish the behavior of string theory in the latter regime from that of QFT, which scatters on the tail of the wavepacket for .
Before entering into the details, let us summarize the result of this section. In our regime of interest, the relevant piece of the amplitude will take the form
[TABLE]
with non-integer. (We will discuss the case of integer below as well; it has a different pole structure.) Here the first two factors are the amplitude for the auxiliary four point process in our setup and the four point amplitude describing the process . The last factor varies strongly with the momentum variable conjugate to the separation between A and C, via its dependence on . When , this Beta function can be expanded into a convergent sum over propagators, while for this is not the case.
4.1 Open string orderings and gauge invariance
We will work with open strings, focusing on particular orderings and . In each of these cases, strings and cannot simply scatter early into strings and as that would violate gauge invariance. This is useful because such scattering would introduce an extra ambiguity of interpretation: even if the scattering is supported for an early central trajectory of relative to , that could proceed simply via followed by . This is important because the internal exchange could generate a spread amplitude in , the separation between strings and in our setup. As mentioned above, this separation is conjugate to , on which varies strongly. The kinematic variable also varies strongly with . So spreading in a case with exchange would be more difficult to test given this more prosaic interpretation of an early, local four point interaction involving and .
Gauge invariance in the orderings we consider do allow an early 5 point interaction followed by a 3 point interaction . A local field theory with constant 3 and 5 point vertices joined by an propagator would not produce spreading in , as does not vary strongly with . String spreading could introduce an interaction between and at large .
4.2 Simplification near a pole
We would like to work with a complete expression for the amplitude that we convolve with a wavepacket. At five points, the integral over vertex operator positions yields a closed form expression in terms of Beta functions and a hypergeometric function. At six points this is not the case, but we can obtain a complete expession if we work sufficiently near a pole, factorizing the amplitude into a 3 point function times a five point function. We will first work this out for bosonic open string tachyon scattering in the relativistic regime , and then describe the generalization to the superstring, for which the external states and the leading poles are massless.
In the bosonic case, factorizing near the leading pole in is a good approximation for
[TABLE]
as can be seen as follows from the generalized OPE analysis in [6]. Sufficiently near the pole, the integral over worldsheet vertex operator positions is dominated by the regime in which the vertex operators for String and String approach each other, . In this regime, including the leading correction to the OPE gives [6]
[TABLE]
Contracting the correction term in the exponent with other vertex operators in the amplitude, one finds that it is of order , where indexes the other vertex operators. The leading that contribute are of order (for ). This leads to an integral of the form
[TABLE]
The dominant contribution to this integral is at of order (beyond which it is suppressed by the oscillatory factor). Plugging back in and expanding in gives a series of the form . The condition for this to be a valid expansion is (4.2).
We must respect this condition consistently with the linear combination of momentum eigenstates we take for our wavepacket. In particular, by varying the first line of (2.19) with respect to , we find that since we keep (3.17), the variation of is negligible.
Given this, we can derive a closed form expression for the amplitude [18, 19], as we will discuss in the following subsections. We should emphasize that we will not work right on the pole, but will keep a small but finite distance away from it. We describe this kinematic regime in detail in Appendix B.
4.3 Simplified amplitude from the vertex operator integral
As we will discuss shortly, near one pole the amplitude is given explicitly in terms of Beta functions and hypergeometric functions [18, 19]. In this section we will derive the simplified amplitude (4.1) in our kinematic regime via the vertex operator integrals. Let work for simplicity in the bosonic theory, and define
[TABLE]
In this section, we will take these kinematic invariants large (aside from ), neglecting order one offsets that arise in the exact amplitude.
For the ordering , the integral over vertex operator positions can be written as111111See e.g. [14] for the relevant background on tree-level string scattering and the integral expression for the momentum space amplitude.
[TABLE]
where we have set and .
We will estimate the integral in two regimes of the integral. In our kinematics, , which is very large. As a result, the factor implies that the integral is dominated by . In more detail, the saddle point equation for is
[TABLE]
In our kinematics (described in detail in appendix B), the numerator of the third term is parametrically smaller than the second, which is parametrically smaller than the first. When is not close to , the third term is negligible and this equation has a solution
[TABLE]
This reduces the integral to
[TABLE]
The final exponent can be simplified,
[TABLE]
Given , what remains is the integral expression for times two four-point amplitudes, one of which is near a pole and one in a Regge regime. This is the contribution of interest in our application, as it varies strongly with variations in , the variable conjugate to the longitudinal separation of A and C. We will comment on the contour integral for further below in §5.1.1 in a more specific kinematic regime of interest; its dominant contribution indeed comes from far from .
The remaining contribution comes from the region in the integral. This leads to weak dependence on , since the factor depending on in (4.6) is now close to 1. This extra term is given explicitly below in (4.4.2)-(4.23).
4.4 The closed form string theory amplitude for two orderings
Let us now enter into further details of the momentum space string amplitude. We will start with the bosonic theory. At the end of this section, we briefly describe the small shifts (removing the tachyon pole) arising in the superstring case. Finally, we will comment on the size of the amplitude in different versions of our basic process depending on the identification of the auxiliary process.
4.4.1 Ordering
One useful form of this amplitude is
[TABLE]
with the standard prescription, where we have used (4.5). This is equal to the following sum
[TABLE]
We can collect the factors in the th term in the sum as
[TABLE]
The sum here converges as long as
[TABLE]
For comparison with QFT, it is interesting to expand this in terms of propagators by expanding in terms of its poles. We work in the regime where the sum over converges as in (4.14). This gives
[TABLE]
If we perform the sum over first, it converges (giving back the original ). However, the sum over does not generally converge if performed first; that requires sufficiently large.
For special choices of kinematics, this amplitude simplifies further. One useful example is to apply Saalschutz’s theorem
[TABLE]
with
[TABLE]
(with a positive integer).
We can write this simplified amplitude in two useful forms. First define
[TABLE]
The sign of this variable will play an interesting role in the dynamics. In terms of this we can us (4.16) to write the amplitude as
[TABLE]
This further simplifies to
[TABLE]
Within the kinematic regime of our setup, is much greater than the other variables in the arguments of the functions, so the last factor in (4.19-4.20) is approximately 1.
In this regime, the amplitude is approximately given by
[TABLE]
For , the last Beta function has a convergent expansion in terms of massive propagators. For it does not, but the function in the equivalent form (4.19) can be expanded in propagators, dressed by additional dependence.
4.4.2 Ordering
For the ordering , we obtain a similar form of the amplitude without as many special kinematic choices. It is simplest to write the five-point function as the sum of two terms,
[TABLE]
If is not an integer, the hypergeometric functions reduce to 1 and the answer is approximately
[TABLE]
The second term is similar to the simple form (4.21) above. The first term will not vary strongly as we integrate over the momentum variable conjugate to the separation between and .
In this ordering, the case where is a negative integer works out as follows. The hypergeometric function on the first line of (4.4.2) has poles at negative integers , while the poles in the second line of (4.4.2) come from the beta function out in front. The remaining finite part comes from expanding the around negative integer ,
[TABLE]
The first surviving term is at ,
[TABLE]
4.4.3 Integer
Let us briefly comment on the special case of integer . For positive integer , the function reduces to a finite sum of propagators, and for negative integer , the function reduces to a polynomial in of order . However, the full amplitude contains a logarithmic factor (4.25) which also depends on .
The amplitude (4.25) is interesting, but physically distinct from that of our main setup aimed at simulating black hole infallers: it does not exhibit poles corresponding to production of the putative detector. We will focus on non-integer , although some of the analysis below goes through in either case. The integer case may be useful for separating issues using the absence of poles in that case.
4.4.4 Superstring
In order to avoid dealing with tachyon kinematics, let us briefly mention the analog of our amplitude for massless vector open superstrings. There, from extra structure in the vertex operators for the massless external states, one obtains a sum of terms with two or three of the kinematic invariants (4.5) shifted by , which among other things removes the tachyon pole in . The amplitude also contains a kinematic factor [19] which is a function of the external momenta and polarization vectors, and is independent of . It will not substantially affect the shape of the amplitude in position space.
4.4.5 The size of the amplitude
For the application to black hole physics, the system is auxiliary, as explained in the introduction. This means that we should strip off the four-point amplitude corresponding to the subprocess in order to estimate the size of the effect in the black hole. In the form of the amplitude we have analyzed here, this means we strip off the pole, which leaves us with a Regge-suppressed interaction from the first factor in (4.19-4.20). (It is less suppressed than in hard scattering, but still soft.)
To potentially obtain a more dramatic effect, we can instead work in a kinematic regime where the auxiliary process is Regge suppressed. This can be obtained in two ways. One would be to work with rather than near a pole, so that the sub-process is Regge suppressed.
However, we can obtain the equivalent situation simply by time-reversing the above setup, considering , and as incoming strings. Then the auxiliary process is and the predicted spreading-induced interaction is . In both our orderings and , gauge invariance again prevents an early interaction between strings and in this time reversed version. In this version, the Regge suppressed factor is auxiliary.
It is important to note that although , the amplitude is not strictly on the pole. In the appendix we elaborate on the relevant aspects of our kinematic regime. Specifically, eqn (B.5) shows that requires .
Finally, we note that there may be effects in curved spacetime which affect the range of spreading. A linear dilaton gradient has an interesting calculable effect discussed in [11], and something similar may arise in curved spacetime. As in [3], one may most directly relate flat spacetime results to those in a black hole in the near-horizon Rindler region, putting the strings in their light cone ground state there. Having made this choice of intermediate state, the geometry may have a nontrivial effect as we evolve the state back through the outside geometry of the black hole. The effect of the curved geometry and the form of our scattering states evolved back toward the boundary is also important to understand in the context of AdS/CFT.
4.5 QFT comparison amplitudes
It will be useful to compare and contrast this with the tree-level quantum field theories defined above, with the following amplitudes. First, the six point contact interaction alone gives
[TABLE]
Four point couplings with a massless particle has the amplitude
[TABLE]
We could consider more general QFT models with a finite number of poles at various mass scales.
In string theory, the amplitude has richer structure as a function of . As noted above, it is not always expressable as a convergent sum over QFT propagators. This will lead to the key difference in their behavior. (Even when there is a convergent sum over propagators, it involves an infinite sum over higher spin intermediate states, leading to softer behavior than any QFT truncation.)
4.6 Note on pole structure and open string gauge symmetry
It is worth emphasizing an interesting subtlety in our analysis. As explained at the beginning of this section, we work with open string orderings precluding the possibility of an early collision producing an intermediate string plus . If we had allowed that, then the analogue of our simplified form of the amplitude
[TABLE]
would be (e.g. for ordering )
[TABLE]
This has poles in as well as in . Implementing the standard prescription, these sets of poles are on opposite sides of the axis in the complex plane.
In going from that ordering to our orderings of interest, we lose the poles. The remaining poles in are on one side of the axis within the kinematic regime of momenta in our setup, the same side as the pole in our QFT1 comparison model. In the QFT model, this pole structure is tied to the purely delayed interactions.
As discussed above in §2.2, this alone does not imply locality. What we will find below is that for , the amplitude can be written as a convergent sum over particle propagators (a finite sum if is integer) and it leads to results consistent with local scattering, with early support as a function of the peak separation of the position space wavefunction indistinguishable from scattering on the tail of the wavefunction. In contrast, for , the amplitude (4.29) has a rich structure in momentum space. It grows like at large within a broad window of in our regime. For a window of small , it decomposes into two terms with strongly varying phases that generate strong support for early (and late) interactions at a scale .
4.7 Combining the orderings
A complete calculation includes all the orderings of open strings. These contain different sets of poles, and generically do not cancel out. For example, the two orderings we evaluated above have a common factor , but a different pole structure in in one of the auxiliary factors.
5 Results in QFT and String Theory
In this section, we integrate the wavepackets in Section 3 against the string (4.11) and tree level field theory (4.26-4.27) amplitudes in Section 4. We work in transverse momentum eigenstates, evaluating the amplitude on .
We will start by focusing on the case with , and then generalize to . To begin with we will analyze wavepackets with support over a particular range of for which the momentum-space amplitude contains the structure relevant for spreading. In §6 we will generalize to a larger family of wavepackets.
5.1 The case
The geometry and kinematics is particularly simple if we set . In that case, the central trajectories never meet in position space. In momentum space the structure is also simplified, as discussed above in (2.8-2.9). Energy conservation sets to a specific value at which (and ) can vary widely while still satisfying energy-momentum conservation. In this section, we will analyze Gaussian wavepackets for and that constrain the momentum within an interesting regime for which the momentum space amplitude (4.1) exhibits a rich structure that will play a key role in our test of string spreading.
For this case, we simply use Gaussian wavepackets for and , with width . After convolving the amplitude with the wavepackets and imposing energy-momentum conservation, the amplitude takes the form
[TABLE]
where
[TABLE]
and is the momentum-space amplitude with the energy-momentum conserving delta function stripped off.
Let us work with the ordering of §4.4.2, for which the form of the amplitude takes the very simple form (4.23) to good approximation for general , including .121212This is not the case for our derivation above of the simplification of the the ordering, whose reduction to the form (4.21) involved taking ); from (B.6) this requires . The second term in in this amplitude varies strongly with . We will also specify
[TABLE]
which leads to a simple structure relevant for our test of longitudinal spreading. In the range
[TABLE]
it is useful to express this as
[TABLE]
This has several important features. The sinusoidal factor expands into two phases . These vary strongly with : in each term this phase combines with the factor to shift the support in by a large scale . To assess the effect of the other factors, we start by noting that the function has a minimum at . The width of this minimum is of order
[TABLE]
where the subscript indicates that this is the width of the extremum in the amplitude (as opposed to the wavepacket). We will use a Gaussian wavepacket which introduces a maximum in the integrand at this point.
In particular, we specify the center and width of Gaussian wavepackets for A and C as follows. We will use the same prescription in string theory and QFT so that we can directly compare the shape and size of the resulting amplitude in the QFT1 model and string theory. For simplicity, let us center our Gaussian wavepackets at . Let us further specify a sufficiently small width for the wavepackets in momentum space that the Gaussian maximum dominates over the amplitude minimum at , producing a net maximum. Including all numerical factors, if we define
[TABLE]
in terms of a numerical factor , then the integrand has a net maximum at .
We obtain a stronger condition if we require that this be a global maximum (where for we replace the poles by half their residues). At or , the wavepacket suppression is and the amplitude is unsuppressed; this is smaller than the amplitude at the maximum of the wavepacket as long as
[TABLE]
Imposing the above conditions, we can still satisfy
[TABLE]
These choices simplify our analysis, while being sufficient to distinguish string theory from QFT. The narrow width in momentum space was anticipated in our discussion at the beginning of §3: it ensures that support for is limited to a window for which longitudinal spreading is expected according to (2.22).
We can now put this together with all amplitude factors and integrate the amplitude against the wavepacket, expanding the into its two phase terms. This gives one term with the central trajectory of C advanced131313Again we emphasize that the interaction itself is consistent with causality: the interaction between the endpoints of string and the detector may be purely delayed. (centered at )
[TABLE]
as well as a similar delayed term centered at .
Let us finally compare this to the QFT1 model with propagator , which gives approximately
[TABLE]
Here there are no phase terms and the Gaussian is centered at , consistently with QFT scattering on the tail of the Gaussian wavepacket. This shape is very different from the string theory case, which as just noted is peaked at .
Let us also compare the magnitude of the amplitude of the two theories at . As discussed above in §4.4.5, the appropriate comparison involves stripping off the auxiliary process amplitude, which we may take to be . The remaining QFT amplitude is
[TABLE]
This is (the price we paid for forcing the Gaussian width small enough to focus on the simple extremum of the amplitude), but is still exponentially suppressed.
In terms of (5.7), the ratio of the magnitudes of the string and QFT amplitudes at is
[TABLE]
Altogether, this exhibits a window in which the QFT result is parametrically suppressed (as we increase ) compared to string theory. Thus the size as well as the shape of the string theory amplitude indicates physics beyond this tree level QFT model, even within the simplified regime of parameters defined above. Again, we should emphasize that this comparison involves stripping off a Regge-soft four point amplitude in string theory (identifying it with the corresponding four point coupling in the QFT1 model).
The shape and amplitude of the string theory result suggests that it is not scattering on the tail, but this could be subtle. One could ask whether it is scattering on the tail of the wavefunction with only delayed interactions with respect to the central positions of C and A, at a momentum with enhanced amplitude compensating for the suppression on the tail of the wavefunction. The momentum space amplitude, including the residues of the poles for non-integer , grows like for . But the Gaussian wavepacket strongly suppresses the contributions from this region, so they cannot compete with the amplitude given in (5.10) at .
One way to assess this is to introduce a varying dilaton background as a tracer of the interactions [11]. We can introduce a linear dilaton background in the direction (for a wide range of ) to distinguish purely delayed scattering from advanced scattering (in terms of the central positions of and ). The string coupling in this region behaves as
[TABLE]
where is the open string coupling. The advanced scenario depicted in figure 1 involves splitting off early, which implies a relative factor of compared to scattering at the origin, with . We analyze this in [11], finding agreement with this prediction. Moreover, the linear dilaton affects the spreading prediction in a calculable way, degrading it for sufficiently large . The scattering amplitude in the linear dilaton background confirms this prediction as well.
5.1.1 Contour integral, light cone evolution, and interaction scales
In this subsection, we will note an interesting feature of the vertex operator integral generating the factor in our amplitude. This can be written
[TABLE]
The upper end of this integral is modified in the full amplitude; there are no poles in .
For simplicity, let us work with our amplitude between the poles of the function (5.15), at negative half-integer values of (for integer ). We will also take and to be large and positive, as is the case near the center of the wavepacket above. In this regime, the Beta function reduces to
[TABLE]
The integrand of (5.15) has a maximum at
[TABLE]
The integrand has a cut which we can take to run from to 0, and a square root branch cut from to . (The latter is a square root branch cut because we took half-integral.) Now integrate from 0 to 1 along the following contour. We split it into two pieces: the first is times the integral from to above the first cut, around the upper half plane to , and back to above the second cut. The second piece is times the reflection of the first across the real line (i.e. going below the cuts). Since , the integrand is highly suppressed at infinity. The two contours between and cancel each other, since we obtain a factor of crossing the square root branch cut. The contours between and get contributions from the saddles (5.17). Altogether we get
[TABLE]
times the width of the saddle. In the regime defined above, this is a good approximation to the amplitude.
It is interesting to express this as follows. Let us write and , as in light cone gauge quantization (now taking the light cone ‘time’ variable in the rather than the direction). We can write (5.15) as
[TABLE]
with the contour for corresponding to the one explained above for . The saddles are generically at the complex values
[TABLE]
However, if we specialize to , where we centered the wavepackets above, then , so this is a purely real saddle, corresponding to Lorentzian time evolution. The last factor in the integrand in (5.19) is then
[TABLE]
where the denote terms that vary weakly with . This could be viewed as evolving string for a time , or
[TABLE]
This interpretation fits quantitatively with the possibility that the effect derived above is not on the tail of the wavepackets, but occurs at the peak value . Although it is not possible to read off real-time physics from S matrix amplitudes, it may be possible to extract gauge-invariant information from time differences such as the one just noted, perhaps in combination with a background field such as the linear dilaton described above. In the latter analysis [11], a single power of the open string coupling evaluated at the peak (early) trajectory of . This is consistent with an early 3 point interaction in which . That lines up with the evolution along just described.
5.1.2 More specific comparison to light cone prediction
To finish this analysis, let us briefly comment on the comparison of this result to the refined light cone predictions reviewed above in §2.1. The result (5.10) fits with (2.22) given a distribution of the form
[TABLE]
where we used that the leading contribution to (5.10) came from , and that as explained in our appendix , the detector has negligible transverse motion: is small, of order . Such a distribution linear in the exponent for the longitudinal direction is suggested by the linear dependence of the worldsheet action on , in contrast to the Gaussian distribution for transverse spreading arising from . See [3, 4] for more discussion of this point.
More generally, it would be interesting to better understand the role of vis a vis the light cone gauge calculations. From the point of view of the light cone gauge calculations reviewed in §2.1, the spreading estimate (2.22) is given in terms of the momentum of the detector. This is based on a simple estimate of the resolution required, refined by the factor as discussed in [3]. But the state of the detector has more parameters (in principle an infinite number). As we have seen, the structure of the amplitude is strongly dependent on the sign of : in particular, this determines whether it can be written as a convergent sum of propagators . It is possible that additonal detector parameters (such as ) enter into the efficiency of the detection of string spreading. This would be interesting to explore further.
5.2 Generalization to
Next, we will analyze the case with . The geometry of the and trajectories is more involved here, in that they meet at a finite (but very late) time. For this analysis, we will localize string using a wavepacket (3.7) that sharply restricts the range of , leading via energy-momentum conservation to a sharp restriction on the range of . This entails a broad position-space tail for , which we study in detail below. For the and wavepackets, we may use Gaussians of width , for example taking of order string scale.
5.2.1 Momentum basis
Performing the integral over absorbs the longitudinal momentum conserving delta function. For the square wavepacket for string B (3.7), this gives
[TABLE]
where again is the peak value of the separation between and , is the peak value of ’s momentum, and so on; denotes the amplitude with the energy-momentum conserving delta function stripped off. Below, we will also present results for the case of the triangular wavepacket for string B (3.3.1). In all of our cases of interest, varies significantly only in the direction in the range of momenta supported by the wavepackets and energy-momentum conservation.
Next we perform the integral over , absorbing the energy-conserving delta function (2.6). Denoting these solutions , and suppressing the parameters aside from , we are left with
[TABLE]
where was defined in (2.7). Given and , we have two ranges of support for as depicted in Figure 3; we can use the former to tune the latter, keeping all contributions .
The derivative varies weakly with :
[TABLE]
where in the last step we used that the integral is restricted to the regime we have discussed where . We are left with a relatively simple integral over a pair of tunable, finite ranges of . We will evaluate this numerically. For simplicity we consider a single range of , since each behaves similarly, and we treat as a constant (5.25).
Let us work in a range of which does not overlap with the poles, but starts close to the massless pole and extends further into the regime of spacelike . This gives very distinct results in string theory as compared to all the QFT comparison models, as we will see.
Before moving to that, we will further map out the geometry of the process, setting up an equivalent calculation of in a position basis. This will be very useful in assessing the contribution from the tail of the B wavepacket.
5.2.2 Position basis
As depicted in Figure 4, for the trajectories of A and C meet at a very late, but finite, timescale:
[TABLE]
In our integral, the values of and that are supported are such that this quantity is of order , given . If , the trajectories never meet as we discussed above in subsection §5.1.
This point of direct intersection of the trajectories, and the subsequent region where C is delayed relative to A, is accessible on the tail of the position space wavefunction (3.9) or (3.3.1), which is a power law. Since the wavepackets localizing A and C are Gaussian with width , if we assume local interactions then the tail of takes over at a value of satisfying
[TABLE]
for the square wavepacket; they meet further out in for the triangular wavepacket.
It will be useful to compute (5.23) also in a position basis. Specifically, we can write it as
[TABLE]
where
[TABLE]
where as above, denotes a solution to the energy conserving delta function, and is the momentum-space amplitude with the energy-momentum conserving delta functions stripped off. This is given explicitly by
[TABLE]
(as long as ). In this form, we can determine the range of that contributes.
The integral (5.28) is explicitly
[TABLE]
say for our first version (3.9) of the B wavepacket (a square step in momentum space).
5.2.3 QFT model results
The QFT0 model is a simple contact interaction, and its amplitude directly tracks the tail of the wavepacket, as in figure 5 below.
Let us next calculate for the QFT1 model, which will provide a very useful model to compare and contrast with string theory in various regimes. Let us start by analyzing this explicitly in the regime where the range is somewhat smaller than the Gaussian width , so the latter can be neglected to good approximation.
Given this, the momentum basis expression for in the QFT1 model is given to good approximation by the integral (using integration variable )
[TABLE]
where is the minimal value of in the supported range of momenta.

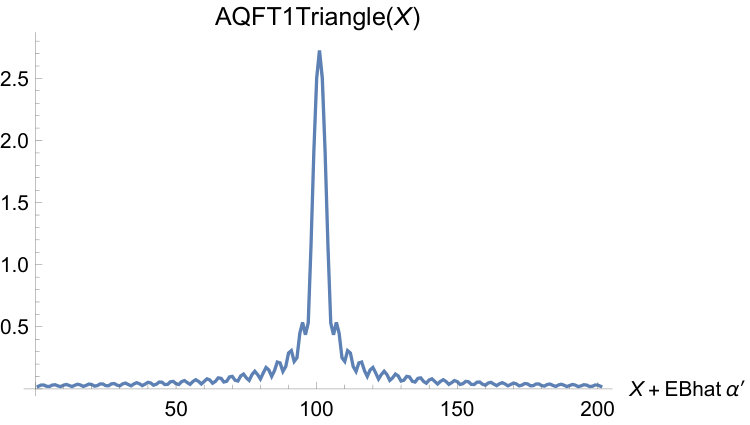

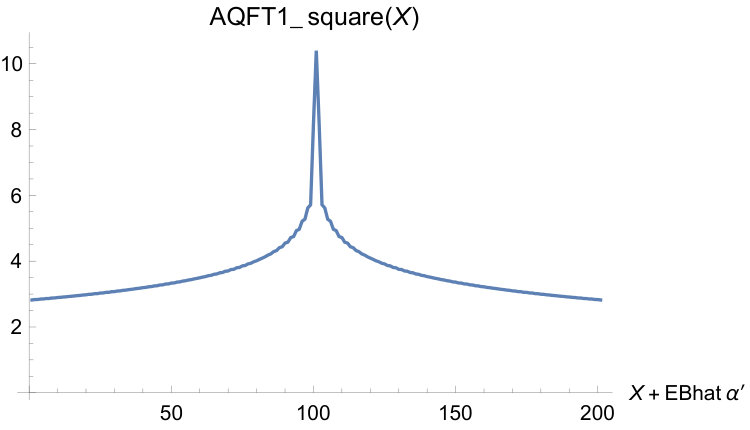

In figure 5 we plot for the QFT models (including there the dependence on computed numerically). The essential physics is contained in the analytic result (5.32). It is peaked at the origin and falls off away from there. This suggests that its support for is accounted for by scattering on the tail of the wavepacket, as expected from causality.
** tail contributions**
Indeed, we can explicitly reproduce this formula from the tail part of the wavefunction, using the position basis representation of . Starting from (5.31), we can perform the integral in various orders. Let us first Fourier transform the amplitude , giving a step function. Then inverting the Fourier transform, this leads to the position space expression for in the QFT1 model:
[TABLE]
where
[TABLE]
We will first analyze the tail, i.e. the contribution from . For this purpose, it is useful to perform the integral starting from (5.33). First, we Taylor expand to second order in , finding
[TABLE]
with higher derivatives negligible in our kinematics. At this order, the integral is now just a Gaussian. Evaluating that leads to
[TABLE]
The variance in the denominator of the exponent here is
[TABLE]
Since we are integrating out on the tail, the second term here is larger in magnitude than . This is much larger than in our calculation of .
Next, expand the factor into its two phase terms. From the Gaussian factor and one term in this expansion of the factor, along with the part of the phase in (5.34), we obtain
[TABLE]
where
[TABLE]
From (5.38) we derive resonant contributions to the integral
[TABLE]
with width
[TABLE]
Since our tail contribution has an endpoint of integration, we should check if the width is smaller than the distance to this endpoint. We find that the resonance is well within the contour of integration if we integrate over a somewhat larger range of (still very large in magnitude), say as opposed to . This larger integral includes the purely delayed tail. 141414Alternatively, we could work just on the tail and obtain a portion of the width of the resonance for some range of .
Note that the in (5.39) and (5.40) are independent: we have two resonances, and within each resonance there are two terms from expanding the into phases. Plugging back in, the phase becomes
[TABLE]
Next let us work in the regime , which corresponds to (5.48) below. Given that, we can expand the square root in the term. Then (5.42) becomes
[TABLE]
From this, we note that there is a term for which the signs are such that this exponent will cancel. In the resulting integral over , the remaining phase is .
Plugging in the resonance and width appropriately, and including all parametric factors, the two resonant contributions to the integral are
[TABLE]
and
[TABLE]
The first resonance is on the tail .
Using the integral
[TABLE]
valid for , we find that the first resonance reproduces the result for calculated in momentum space above in (5.32), valid in the regime outside of the width of the Gaussian wavepacket. The second resonance gives a phase times
[TABLE]
The hierarchy we took above, which amounts to
[TABLE]
means that we can expand the second argument in . As a result, the second resonance gives a subdominant contribution. Altogether, this reproduces our momentum basis result for in the QFT1 model, from a contribution on the B wavepacket tail at large negative .
QFT1 summary
We have computed quantitatively in both a momentum and position basis, obtaining results consistent with the expectation that the QFT models are scattering on the tail for . In figure 5, we plot for the QFT comparison models.
5.2.4 String Theory with
Next, we analyze in string theory in two interesting kinematic regimes. In order to clarify the distinction between string theory and QFT, we focus on the expression for the amplitude as a sum over propagators.
First, we treat the case with . In that case, is spread out to the extent predicted by light cone calculations. However, the amplitude (4.20) has a convergent expansion in terms of QFT propagators, for each of which we may ascribe scattering at early values of to the tail of the wavefunction.
Next, we treat . In that case, we find stronger spreading of , and there is no such convergent expansion in terms of propagators. However, we can express it in terms of propagators dressed with additional dependence, explicitly showing how the analogous tail contribution in position space fails to account for (as it did for the QFT propagators).
** and a cautionary tail**
Let us briefly compare this result with the amplitude in a different regime, including a subspace with a convergent sum over QFT propagators. For this, we work with (4.20), and in the regime .

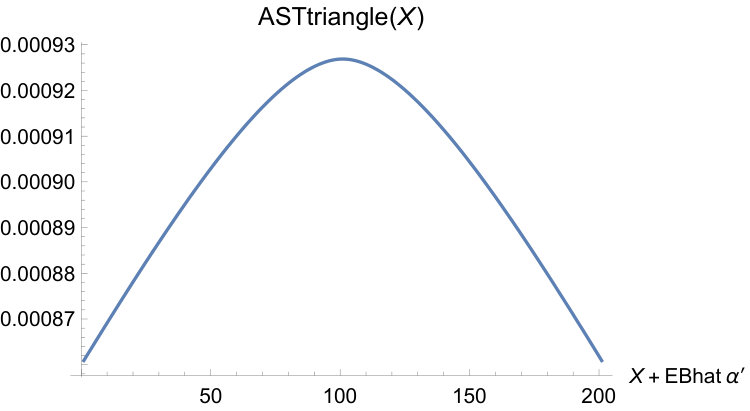

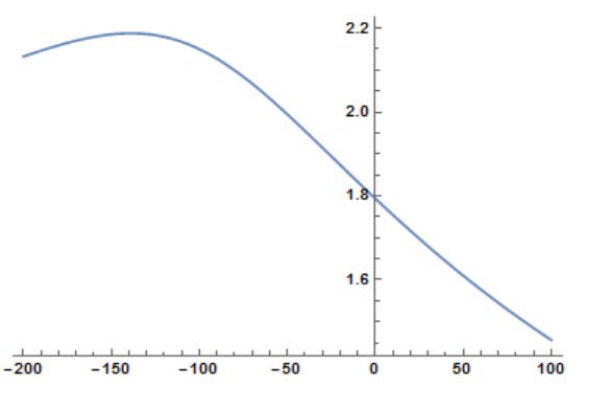

The shape of is plotted in figures 6-7. As a function of , the peak wavepacket separation between A and C, it is spread out at the level predicted for spreading-induced interactions. This includes the predicted dependence on and relative insensitivity to wavepacket parameters.
However, at least in the subset of the kinematic parameter space we are in, this may be a red herring. The Beta function factor (in the superstring generalization) has a convergent expansion in terms of propagators. As such, it may be possible to ascribe the scattering at entirely to the tail in this case. So our analysis in this regime does not lead to a clear identification of the spread shape for to longitudinal spreading induced interaction, despite the appearance of the predicted scales. This example is a cautionary tale against over-interpreting by itself, although it still illustrates an interesting difference operationally between QFT and string theory in the same setup.
Since the effect proposed in [1] does not admit an immediate effective field theory description, it makes sense to search for S-matrix evidence for it from amplitudes not obtained as a convergent sum over QFT propagators. We turn to that next.
** and a stronger test of Longitudinal String Spreading**
Let us start from the form (4.19) of the amplitude, and expand the in terms of propagators, giving
[TABLE]
Working in the regime reduces this to
[TABLE]
This exhibits nontrivial dependence multiplying each propagator , so we can make a direct comparison with QFT term by term. Let us expand the into its two phase terms, restricting our momentum interval to the regime .
Since is approximately linear in , we get the result for a QFT model with a propagator (e.g. for the QFT1 model in (5.32)) but with the replacement
[TABLE]
where the depends on which term of the expanded function we consider.
As a result, the extra exponential dependence on yields two terms. In each, the support of the amplitude is spread out and shifted (either early or late) by a scale . As a result, the calculation of the tail contribution to in our position basis in this case does not account for the amplitude: the dominant resonance is shifted early relative to the tail (and the support in is also spread out as a result of the imaginary part of the shift (5.51)).
Figure 8 illustrates the contrast. The string theory result is spread by the predicted amount compared to the QFT1 model with amplitude (which scatters on the tail of the wavepacket).
This analysis has focused on the terms in the deformed propagator expansion. We should make sure that the effect does not cancel out among the propagators. We have numerically calculated , revealing that the advanced and delayed contributions at the wide scale survive in the amplitude summed over .
Altogether, we find that the prediction of long range interactions via longitudinal string spreading passes a significant test. This occurs in a regime where the amplitude decomposes into our auxiliary process, a factor that fits with , and an additional factor with structure in . The effect arises most strongly (and most unambiguously) in a kinematic regime where the amplitude does not arise as a convergent sum over propagators. It is notable that this result is somewhat delicate, depending on kinematic regime choices (such as versus in the present examples). As we discussed above in the case, this can be viewed as a parameter of the state of the off-shell detector , one which evidently enters into the process in a nontrivial way.
6 A family of more general wavepackets
We have focused thus far on a small range of momentum within which the string theory amplitude contains interesting structure generating advanced interactions, using relatively narrow wavefunctions in momentum space. Let us finally analyze the problem with more generic wavepackets. To be specific, we will work at , with Gaussian wavepackets for A and C of width in momentum space.
We can rewrite the Beta function containing the leading dependence in the amplitude as
[TABLE]
in terms of a parameter that we can choose. We will convolve this with a wavepacket term by term in the sum over , and then perform the sum.
Each term is similar to the analysis in §5.1 above. We center the wavepacket at
[TABLE]
which is the minimum of the factors in the amplitude. This relation enables us to trade the arbitrary parameter for the central momentum . Since the width of this minimum is of order , we further specify so that these factors are nearly constant within the range of support of the wavepacket. With these specifications, the convolution of the amplitude with the wavepacket is approximately given by
[TABLE]
plus a similar delay term. Here is as defined above (5.2) and includes the width of the minimum of the factors in the amplitude; we will specify it explicitly below. A saddle point estimate for the integral would give a result proportional to , with support at . We would like to determine if this early support survives the alternating sum over .
Before getting to the sum, let us simplify the prefactor in (6.3): using (6.2) we find
[TABLE]
We will find a compensating factor of in the sum, along with a residual suppression.
Let us work at for simplicity. If we write the propagator as the Fourier Transform of a step function,
[TABLE]
and use
[TABLE]
then the sum in (6.3) can be written as
[TABLE]
where we have defined
[TABLE]
and
[TABLE]
with the second term arising from the width of the minimum of the factors in the amplitude. We have also used the fact that the range of integration in (6.3) can be extended to to good approximation since the Gaussian strongly suppresses contributions from the endpoints at .
Next, let us study the conditions for a saddle point in the integral, starting from the second line of (6). Neglecting the Gaussian factor, which generically varies more weakly with than the other two factors, we find
[TABLE]
If , meaning spacelike (6.2), then is imaginary and we find no suppression from the Gaussian wavepacket factor at the saddle, as in our previous analysis with . There is a crossver at : for then develops a real part, and for large it is well approximated by .
This latter case is relevant for exploring much wider momentum-space wavepackets, for which we can push to the regime . The integral over has a saddle point near , which can also be seen as the first maximum of the strongly peaked factor in the last line of (6). This gives a contribution to the amplitude (including all factors) of order
[TABLE]
The penultimate suppression factor here is approximately given by (taking )
[TABLE]
where in the second expression we used .
To interpret this, recall that we have centered the wavepacket at . If the expression in square brackets in (6.12) were 1, the factor (6.12) would coincide with the suppression factor from the position space tail of the Gaussian wavefunction which would apply if the scattering occurs at the origin (i.e. with no advance between the center of and the center of ). For positive , the factor (6.12) suppresses the amplitude more than this, suggesting delayed scattering. But for , this factor is less suppressed than the tail factor for scattering at the origin or later (and hence the result is enhanced compared to tree-level QFT). This is the case which exhibited spreading in the previous examples, and which has no convergent expansion in terms of QFT propagators. Here we see the effect persists in this family of wavepackets with wider momentum-space width (6.8) centered at (6.2).
7 Conclusions, implications, and future directions
In this work we performed a new S-matrix test of the prediction [1][3][4] that strings with large center of mass energy can interact at a large separation . In our six point scattering process, such an interaction is predicted between strings and . Tree-level quantum field theory has no such interaction. With appropriate wavepackets peaked at a separation between and , we calculated the amplitude defined in the main text. In a particular kinematic regime, one in which the string amplitude is not a convergent sum of QFT propagators, this exhibits the predicted difference between string theory and the analogous tree-level QFT models. String theory has peaked support for interactions at the scale , whereas the relevant QFT models exhibit narrow support around dictated by the wavepacket, consistently with scattering on its tail. In the string theory case, the analysis here combined with [11] provides a nontrivial test of the possibility that the large longitudinal range in arises from scattering at that scale as suggested by the longitudinal spreading in the light cone wavefunction.
We have emphasized that tree-level quantum field theory at the same order would not exhibit the same effect, but it is a very interesting question whether rich enough QFT interactions could do so. This question seems particularly sharp in QFTs with string-theoretic holographic duals, into which we can embed the present calculation [20] in an appropriate kinematic regime. The warp factor in the geometry makes a significant difference as compare to the flat spacetime version of the calculation, reproducing essential features of QFT correlators. But one must check carefully whether any long-range interaction survives. It will be very interesting to see how the tension between the locality of the QFT and these new tests of the non-locality of fundamental strings plays out.
This sharpens other questions about the role of this effect in the AdS/CFT correspondence, in systems with a perturbative string-theoretic gravity side. The dual field theory OPE relations constrain the late-time behavior of correlators. In curved spacetime examples such as AdS, the details we encountered here will also likely prove important. For example, we have seen that the strength of the amplitude depends on the kinematic regime supported by the wavepackets, and we also find that background gradients can affect the spreading [11]. In AdS/CFT, the wavepackets injected by insertions of local operators on the boundary may or may not support spreading interactions. It will be interesting to understand how this plays out in AdS, in real-time processes describing thermalization as well as the out of time order calculables characterizing chaos [21]. The latter probe near the horizon of the gravity-side black hole, where the most interesting EFT-violating effects can arise. More generally, in the context of bulk reconstruction in AdS/CFT, this effect limits the level of locality to be recovered from the CFT; this may be particularly accessible in approaches based on scattering such as [22].
It will be interesting to apply these results to black hole infallers. There, the role of the auxiliary process is played by the geometry itself. Our results provide a test of the prediction [3] that early and late infallers interact parametrically more strongly at a separation in the near horizon region than is the case for tree-level effective field theory. Determining the level of EFT breakdown is important for resolving the thought experimental puzzle articulated in [23].151515See [24] for recent reviews, and [25] for other recent work on potential string theoretic effects. If the present results correspond to longitudinal spreading induced interactions which translate to the black hole problem as in §4.4.5, it would indicate a stronger interaction between early and late infallers than in tree-level quantum field theory. Since this effect sets in on a relatively short timescale, it will be interesting to see if it could ever lead to observable signatures. The regime exhibiting an EFT breakdown developed in [3], however, requires a strong condition on the local energy of the detector. Having further tested the basic effect in the present work, exhibiting directly the predicted long-range longitudinal spreading scale, it will be interesting to return to horizon physics to analyze more systematically the scope of the deviations from general relativity that it could produce.
Acknowledgements
We dedicate this work to John Schwarz on the occasion of his 75th birthday. It is a pleasure to thank Byungwoo Kang for very helpful discussions as well as progress on D-brane and holographic gauge theory applications. We thank Don Marolf for very useful comments, in particular for a discussion in which we developed this type of setup as a mockup of the configuration relevant in horizon physics [3]. We thank Nima Arkani-Hamed, Steve Giddings, David Gross, Joe Polchinski, Andrea Puhm, Francisco Rojas, Steve Shenker, Milind Shyani, Douglas Stanford, Tomonori Ugajin, and Ying Zhao for interesting discussions of related issues. We are also very grateful to Simon Caron-Huot for useful comments and criticisms at an earlier stage of this project. We would also like to thank the KITP and the Aspen Center for Physics for hospitality during parts of this project. The work of E.S. was supported in part by the National Science Foundation under grant PHY-0756174 and NSF PHY11-25915 and by the Department of Energy under contract DE-AC03-76SF00515. The work of M.D. was supported in part by a Stanford Graduate Fellowship.
Appendix A Sums and subtractions in light cone gauge string theory
In this section we clarify a somewhat subtle aspect of the light cone gauge spreading prediction [1]. This is is somewhat out of the main thread of our analysis of the six point S-matrix amplitude, but is an interesting consistency check of the physical prediction we are testing. In light cone gauge , the Virasoro constraint identifies the modes of with the Virasoro generators of the transverse dimensions. In the superstring, these Virasoro generators include contributions from worldsheet fermions, reviewed in [26]. This leads to
[TABLE]
This is divergent, but can be cut off at a mode number corresponding to the light cone time resolution of a putative detector of the spreading, as reviewed in [3]. It leads to the prediction noted in (2.22) in the main text.
A similar sum arises in the mass shell condition determining the string spectrum, which coming from the zero point energy in the worldsheet Hamiltonian. This quadratic divergence is the contribution of the transverse matter fields to the two dimensional cosmological constant. A contribution in this sum would not reproduce the mass spectrum of the string, which is obtained in the bosonic theory by subtracting this divergence using a local counterterm. Given this, one might wonder if (A.1) should be cancelled by this subtraction,161616We thank Ying Zhao and Milind Shyani for reminding us of this question. If there were such a prescription, it would leave intact the transverse spreading prediction (which is logarithmic, and not removable by such a tuning).
However, it is straightforward to separate issues using the superstring, which explicitly treats the two sums differently. The calculation of the worldsheet mass spectrum, the leading divergence cancels between worldsheet bosons and fermions. At the same time, as just noted, no such cancellation arises in (A.1). This explains why the two infinite sums are not on equal footing, clarifying the prediction (2.22) from (A.1) [1].
Appendix B Kinematic details
As described in the main text, we work in a regime with , and focus mainly on transverse momentum eigenstates with . We analyze various kinematic regimes for , and the range of . In this appendix, we verify that these regimes are consistent by verifying that these quantities are independently tunable to the extent required.
Let us restrict ourselves to a regime for which and are all . Then (2.19) simplifies further, and we find
[TABLE]
where in the last step we specialized to as in the main text, where we also set .
To ensure , let us write with . Then
[TABLE]
Similarly, we find that
[TABLE]
where again . Thus and are independently variable.
Meanwhile the dependence of (B.1) on enables its range to be separately chosen as in the examples in the main text. A small variation in generates a large change in via the -dependence.
Finally, as described in the main text, a regime of interest will be , so we are not working right on the pole, but can stay near it in order to work with a relatively simple form for the momentum space amplitude.
Appendix C The role of the poles
In this appendix, we use a toy integral to elaborate on why the prescription in the S-matrix does not by itself exclude time advances (measured with respect to the center of a scattering object), despite the fact that the Fourier transform of a pole is a step function. Consider the function
[TABLE]
with . This is somewhat analogous to a momentum-space scattering amplitude, but with the energy conserving delta function stripped off; it does not have the square root branch cuts arising in the full propagator of an intermediate state from the on-shell frequencies of external states. The Fourier transform of this function is
[TABLE]
That is, we get a step function contribution for positive from a pole at positive momentum , and a step function contribution for negative from a pole at negative momentum .
Even before reinstating the missing delta function and frequency dependence, it is worth noting that (C.2) does not imply that scattering at positive momentum only gets support from positive and vice versa, because of the uncertainty principle. To spell that out, we introduce a toy model wavefunction (with Fourier transform ), supported only at . This is supported for the sign of momentum in the pole at that generated the term in (C.2), while the term came from the pole at . Nonetheless, the scattering will depend nontrivially on . We convolve against the toy amplitude (C.1), computing
[TABLE]
where we have expressed this convolution in both position and momentum space. Plugging in the above functions, this is
[TABLE]
The contribution proportional to here, the term in (C.2) does not vanish even though the toy wavefunction only has support at .
Next let us consider a toy problem which incorporates more of the elements of the scattering problem analyzed in the bulk of this paper. In the extreme case of a eigenstate there, the toy model amplitude would be of the form
[TABLE]
for constant . Denoting the two solutions to the function , the Fourier transform of this amplitude is
[TABLE]
where is the argument of the delta function. In this expression, the and terms are no longer step functions even at the level of this Fourier transform. A similar statement holds for the situation worked out in the main text, where the wavefunction for B is given by (3.7); this is not a momentum eigenstate but restricts its momentum integral to lie between two closeby values. As discussed in the main text, this gives us sufficient resolution to distinguish the behavior of our tree-level QFT and string theory amplitudes. In this appendix, we have simply reviewed in more detail why the prescription in the S-matrix, which is common to string theory and QFT, does not by itself sharply restrict the scattering to a step function contribution.
The reference list from the paper itself. Each links out to its DOI / PubMed record.
- 1[1] L. Susskind, “Strings, black holes and Lorentz contraction,” Phys. Rev. D 49 , 6606-6611 (1994). M. Karliner, I. R. Klebanov, and L. Susskind, “Size and Shape of Strings,” Int. J. Mod. Phys. A 3 1981 (1988). [hep-th/9308139].
- 2[2] D. J. Gross and P. F. Mende, “String Theory Beyond the Planck Scale,” Nucl. Phys. B 303 , 407 (1988).
- 3[3] M. Dodelson and E. Silverstein, “String-theoretic breakdown of effective field theory near black hole horizons,” ar Xiv:1504.05536 [hep-th].
- 4[4] M. Dodelson and E. Silverstein, “Longitudinal nonlocality in the string S-matrix,” ar Xiv:1504.05537 [hep-th].
- 5[5] Simon Caron-Huot, unpublished notes.
- 6[6] R. C. Brower, J. Polchinski, M. J. Strassler, C. Tan, “The Pomeron and gauge/string duality,” JHEP 0712 005 (2007) [hep-th/0603115].
- 7[7] D. Amati, M. Ciafaloni and G. Veneziano, “Superstring Collisions at Planckian Energies,” Phys. Lett. B 197 , 81 (1987). D. Amati, M. Ciafaloni and G. Veneziano, “Can Space-Time Be Probed Below the String Size?,” Phys. Lett. B 216 , 41 (1989).
- 8[8] D. Lowe, J. Polchinski, L. Susskind, L. Thorlacius, J. Uglum, “Black hole complementarity versus locality,” Phys. Rev. D 52 6997-7010 (1995) [hep-th/9506138].
