Helium Ionization in the Diffuse Ionized Gas surrounding UCHII regions

TL;DR

This study measures helium ionization in the diffuse gas around UCHII regions, revealing non-uniform helium ionization and suggesting dust absorption as a potential cause for low helium ionization levels.

Contribution

It provides new measurements of the helium to hydrogen ion ratio in diffuse gas near UCHII regions and explores the causes of non-uniform helium ionization.

Findings

Helium is not fully ionized in the observed regions.

Helium lines are undetected in some positions, with low upper limits on ion ratio.

Dust absorption may explain the low helium ionization levels.

Abstract

We present measurements of the singly ionized helium to hydrogen ratio ($n_{He^+}/n_{H^+}$) toward diffuse gas surrounding three Ultra-Compact HII (UCHII ) regions: G10.15-0.34, G23.46-0.20 \& G29.96-0.02. We observe radio recombination lines (RRLs) of hydrogen and helium near 5 GHz using the GBT to measure the $n_{He^+}/n_{H^+}$ ratio. The measurements are motivated by the low helium ionization observed in the warm ionized medium (WIM) and in the inner Galaxy diffuse ionized regions (DIR). Our data indicate that the helium is not uniformly ionized in the three observed sources. Helium lines are not detected toward a few observed positions in sources G10.15-0.34 \& G23.46-0.20 and the upper limits of the $n_{He^+}/n_{H^+}$ ratio obtained are 0.03 and 0.05 respectively. The selected sources harbor stars of type O6 or hotter as indicated by helium line detection toward the bright radio continuum emission from the sources with mean $n_{He^+}/n_{H^+}$ value 0.06$\pm$0.02. Our data thus show that helium in diffuse gas located a few pc away from the young massive stars embedded in the observed regions is not fully ionized.We investigate the origin of the non-uniform helium ionization and rule out the possibilities : (a) that the helium is doubly ionized in the observed regions and (b) that the low $n_{He^+}/n_{H^+}$ values are due to additional hydrogen ionizing radiation produced by accreting low-mass stars (Smith 2014). We find that selective absorption of ionizing photons by dust can result in low helium ionization but needs further investigation to develop a self-consistent model for dust in HII regions.

Figures

Tables

Table 1. Table 1: Properties of the selected sources

Properties	Value	Ref/Note
G10.15$-$0.34
Distance	3.6 kpc	1
UCH ii regions	G10.15$-$0.34	2
Angular size of envelope	10′.9 $\times$ 6′.7	3
Linear size of envelopeaa Linear size is estimated using the distance give in the table here	11.3 pc $\times$ 6.9 pc
Flux density of envelope at 1.43 GHz	55.22 Jy	3
Assumed electron temperature of the ionized gas	8000 K
Lyman continuum luminositybb Lyman continuum luminosity is estimated as described in Rubin (1968) using the flux density at 1.43 GHz, distance to the source and electron temperature given in the table here. No correction for dust extinction is applied.	6.0 $\times {10}^{49}$ s-1
Star typeccType of the star from the estimated Lyman continuum luminosity using the results of Martins, Schaerer & Hiller (2005).	O3 V
G23.46$-$0.20
Distance	6 kpc	4,5
UCH ii regions	G23.455$-$0.201	2
Angular size of envelope	8′.8 $\times$ 5′.8	3
Linear size of envelopeaa Linear size is estimated using the distance give in the table here	15.4 pc $\times$ 10.1 pc
Flux density of envelope at 1.43 GHz	11.31 Jy	3
Assumed electron temperature of the ionized gas	8000 K
Lyman continuum luminositybb Lyman continuum luminosity is estimated as described in Rubin (1968) using the flux density at 1.43 GHz, distance to the source and electron temperature given in the table here. No correction for dust extinction is applied.	3.5 $\times {10}^{49}$ s-1
Star typeccType of the star from the estimated Lyman continuum luminosity using the results of Martins, Schaerer & Hiller (2005).	O4.5 V
G29.96$-$0.02
Distance	6.2 kpc	6
UCH ii regions	G29.95$-$0.01, G29.86$-$0.04	2, 6
Angular size of envelope	6′.3 $\times$ 5′.2	3
Linear size of envelopeaa Linear size is estimated using the distance give in the table here	11.7 pc $\times$ 9.4 pc
Flux density of envelope at 1.43 GHz	12.69 Jy	3
Assumed electron temperature of the ionized gas	8000 K
Lyman continuum luminositybb Lyman continuum luminosity is estimated as described in Rubin (1968) using the flux density at 1.43 GHz, distance to the source and electron temperature given in the table here. No correction for dust extinction is applied.	4.2 $\times {10}^{49}$ s-1
Star typeccType of the star from the estimated Lyman continuum luminosity using the results of Martins, Schaerer & Hiller (2005).	O4 V

Table 2. Table 2: Summary of Observation

Source	RA(2000)	DEC(2000)	Obs. Time	RRLs Averaged	Eff. Int.
			(minutes)		(hrs)
G10.15$-$0.34
G10.15$-$0.34a	18:09:23.5	$-$20:19:25	4.9	104, 109, 110, 111, 113	0.8
G10.15$-$0.34b	18:09:09.5	$-$20:21:00	14.6	104, 109, 110, 111	2.0
G10.15$-$0.34c	18:09:23.5	$-$20:22:25	9.8	104, 109, 110, 111	1.3
G10.15$-$0.34d	18:09:36.0	$-$20:22:25	9.8	104, 109, 110, 111	1.3
G23.46$-$0.20
G23.46$-$0.20a	18:34:44.7	$-$08:32:17	7.3	104, 109, 110, 111, 113	1.2
G23.46$-$0.20b	18:34:32.7	$-$08:32:17	9.8	104, 109, 110, 111	1.3
G23.46$-$0.20c	18:34:24.7	$-$08:33:60	9.8	104, 109, 110, 111	1.3
G23.46$-$0.20d	18:35:03.7	$-$08:33:09	9.8	104, 109, 110, 111	1.3
G23.46$-$0.20e	18:35:13.7	$-$08:33:08	9.8	104, 109, 110, 111	1.3
G23.46$-$0.20f	18:35:40.6	$-$08:30:21	9.8	104, 109, 110, 111	1.3
G29.96$-$0.02
G29.96$-$0.02a	18:46:10.4	$-$02:41:45	4.9	104, 109, 110, 111, 113	0.8
G29.96$-$0.02b	18:45:56.8	$-$02:42:16	9.8	104, 109, 110, 111	1.3
G29.96$-$0.02c	18:46:15.8	$-$02:38:15	9.8	104, 109, 110, 111	1.3
G29.96$-$0.02d	18:46:20.8	$-$02:40:14	9.8	104, 109, 110, 111	1.3
G29.96$-$0.02e	18:46:21.8	$-$02:37:44	9.8	104, 109, 110, 111	1.3
G29.96$-$0.02f	18:46:04.9	$-$02:45:45	8.1	104, 109, 110, 111	1.1

Table 3. Table 3: Observed line parameters

Source	TL   aa1$\sigma$ errors in the estimated quantities are given in the bracket. The upper limit on line temperature are 1$\sigma$ limit. If a parameter is fixed during Gaussian fitting, then the corresponding error is set to 0.0.	$\Delta V$   aa1$\sigma$ errors in the estimated quantities are given in the bracket. The upper limit on line temperature are 1$\sigma$ limit. If a parameter is fixed during Gaussian fitting, then the corresponding error is set to 0.0.	$V_{LSR}$   aa1$\sigma$ errors in the estimated quantities are given in the bracket. The upper limit on line temperature are 1$\sigma$ limit. If a parameter is fixed during Gaussian fitting, then the corresponding error is set to 0.0.	Line
	(K)	(km s-1)	(km s-1)
G10.15-0.34a	2.071 (0.034)	27.38 (0.2)	13.03 (0.03)	H
	0.972 (0.035)	51.68 (0.6)	13.17 (0.09)	H
	0.116 (0.018)	27.42 (1.1)	13.03 (0.00)	He
	0.056 (0.005)	34.46 (6.3)	21.33 (3.86)	CbbThis line component is tentatively identified as due to carbon atom based on its LSR velocity offset from the hydrogen RRL. However, we note the larger line width compared to the typical width (10 km s-1) of carbon lines observed toward PDRs.
G10.15-0.34b	0.047 (0.001)	36.98 (0.4)	16.13 (0.18)	H
	$\le$ 0.002			He, C
G10.15-0.34c	0.048 (0.004)	24.47 (1.3)	12.77 (0.34)	H
	0.071 (0.005)	48.06 (1.0)	6.29 (0.46)	H
	$\le$ 0.003			He, C
G10.15-0.34d	0.067 (0.003)	19.15 (0.6)	8.46 (0.18)	H
	0.092 (0.003)	43.56 (0.5)	16.34 (0.30)	H
	0.006 (0.001)	14.86 (2.7)	8.46 (0.00)	He
	$\le$ 0.003			C
G10.15-0.34avgccSpectrum obtained by averaging the data toward positions G10.15-0.34b and G10.15-0.34c.	0.064 (0.001)	38.98 (0.3)	12.83 (0.13)	H
	$\le$ 0.002			He,C
G23.46-0.20a	0.547 (0.001)	24.08 (0.1)	101.06 (0.04)	H
	0.040 (0.001)	30.26 (1.4)	64.60 (0.58)	H
	0.033 (0.001)	19.41 (1.1)	101.06 (0.00)	He
	0.015 (0.002)	9.50 (1.6)	102.50 (0.68)	C
G23.46-0.20b	0.289 (0.001)	22.75 (0.1)	99.10 (0.06)	H
	0.025 (0.001)	22.95 (1.6)	57.32 (0.65)	H
	0.013 (0.001)	15.38 (2.0)	99.10 (0.00)	He
	0.009 (0.002)	7.34 (2.0)	102.10 (0.87)	C
G23.46-0.20c	0.233 (0.001)	19.48 (0.1)	98.10 (0.05)	H
	0.022 (0.001)	27.87 (1.7)	58.17 (0.67)	H
	0.013 (0.001)	12.44 (1.4)	98.10 (0.00)	He
	$\le$ 0.003			C
G23.46-0.20d	0.040 (0.001)	15.30 (0.7)	57.03 (0.36)	H
	0.026 (0.001)	23.97 (1.7)	99.94 (0.86)	H
	0.016 (0.001)	17.54 (3.3)	76.78 (0.97)	H
	$\le$ 0.002			He, C
G23.46-0.20e	0.045 (0.001)	16.87 (0.7)	59.15 (0.32)	H
	0.035 (0.001)	26.24 (1.7)	95.61 (1.00)	H
	0.021 (0.003)	14.17 (2.0)	77.70 (0.66)	H
	$\le$ 0.003			He, C
G23.46-0.20f	0.049 (0.001)	26.47 (0.5)	89.20 (0.19)	H
	0.014 (0.001)	17.82 (1.3)	57.34 (0.55)	H
	$\le$ 0.002			He, C
G23.46-0.20avgddSpectrum obtained by averaging the data toward positions G23.46-0.20d and G23.46-0.20f.	0.026 (0.001)	15.89 (0.5)	56.87 (0.21)	H
	0.035 (0.001)	32.32 (0.6)	90.36 (0.22)	H
	$\le$ 0.002			He, C
G29.96-0.02a	0.512 (0.016)	29.11 (0.4)	101.35 (0.11)	H
	0.083 (0.014)	46.37 (1.5)	89.35 (2.21)	H
	0.045 (0.002)	26.94 (1.1)	101.35 (0.00)	He
	0.018 (0.004)	4.97 (1.1)	99.67 (0.48)	C
G29.96-0.02b	0.461 (0.005)	19.85 (0.1)	99.28 (0.04)	H
	0.054 (0.005)	40.26 (1.3)	93.58 (0.62)	H
	0.033 (0.001)	19.18 (0.7)	99.28 (0.00)	He
	0.014 (0.001)	10.11 (1.2)	97.09 (0.51)	C
G29.96-0.02c	0.180 (0.005)	18.23 (0.3)	95.45 (0.07)	H
	0.035 (0.005)	43.33 (2.6)	95.25 (0.56)	H
	0.013 (0.001)	13.55 (1.6)	95.45 (0.00)	He
	$\le$ 0.003			C
G29.96-0.02d	0.141 (0.003)	19.11 (0.3)	96.02 (0.07)	H
	0.040 (0.003)	46.11 (1.7)	95.91 (0.38)	H
	0.010 (0.001)	15.94 (1.6)	96.02 (0.00)	He
	$\le$ 0.003			C
G29.96-0.02e	0.166 (0.002)	20.07 (0.2)	96.89 (0.07)	H
	0.014 (0.002)	56.08 (3.7)	87.29 (1.85)	H
	0.012 (0.001)	15.57 (1.5)	96.89 (0.00)	He
	$\le$ 0.003			C
G29.96-0.02f	0.283 (0.002)	19.67 (0.2)	97.68 (0.07)	H
	0.023 (0.002)	14.50 (1.4)	97.68 (0.00)	He
	0.007 (0.003)	8.25 (3.5)	102.62 (1.47)	C

Table 4. Table 4: n H ​ e + / n H + subscript 𝑛 𝐻 superscript 𝑒 subscript 𝑛 superscript 𝐻 n_{He^{+}}/n_{H^{+}} ratio toward the observed positions

Source	$n_{H{e}^{+}}/n_{H^{+}}$   aa1$\sigma$ error in the estimated quantity is given in the bracket. The upper limits are also 1$\sigma$ limit	$V_{LSR}$	Offset	Tb4.9   bbMain beam brightness temperature at 4.875 GHz at the observed positions obtained from the galactic plane survey of Altenhoff et al. (1979).	EM
		(km s-1)	(pc)	(K)	(pc cm-6)
G10.15-0.34a	0.056 (0.009)	13.03	0.9	50.0	$4.0\times {10}^5$
G10.15-0.34b	$\le$ 0.052	16.13	4.7	5.0	$4.0\times {10}^4$
G10.15-0.34c	$\le$ 0.037	12.77,6.29	3.1	5.0	$4.0\times {10}^4$
G10.15-0.34d	0.073 (0.018)	8.46	3.9	5.0	$4.0\times {10}^4$
G10.15-0.34avg	$\le$ 0.033	12.83	3.9	$\cdots$	$4.0\times {10}^4$
G23.46-0.20a	0.048 (0.003)	101.06	2.0	8.0	$6.4\times {10}^4$
G23.46-0.20b	0.031 (0.005)	99.10	5.7	6.0	$4.8\times {10}^4$
G23.46-0.20c	0.035 (0.005)	98.10	10.1	3.6	$2.9\times {10}^4$
G23.46-0.20d	$\le$ 0.094	99.94	9.0	2.0	$1.6\times {10}^4$
G23.46-0.20e	$\le$ 0.072	95.61	13.0	1.8	$1.4\times {10}^4$
G23.46-0.20f	$\le$ 0.050	89.20	24.4	1.1	$8.7\times {10}^3$
G23.46-0.20avg	$\le$ 0.051	90.36	15.5	$\cdots$	$1.2\times {10}^4$
G29.96-0.02a	0.081 (0.005)	101.35	5.2	10.0	$7.9\times {10}^4$
G29.96-0.02b	0.069 (0.003)	99.28	6.1	8.0	$6.4\times {10}^4$
G29.96-0.02c	0.053 (0.008)	95.45	5.7	4.0	$3.2\times {10}^4$
G29.96-0.02d	0.061 (0.008)	96.02	7.8	2.8	$2.2\times {10}^4$
G29.96-0.02e	0.058 (0.007)	96.90	8.6	2.4	$1.9\times {10}^4$
G29.96-0.02f	0.061 (0.008)	97.68	11.5	3.0	$2.4\times {10}^4$

Table 5. Table 5: Selective absorption due to dust

Properties	Value	Note
G10.15$-$0.34
Path length (pc)	4.4	aaPath length, $R_{H^{+}}$, in Eq. A9 estimated from the angular size and distance given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and assuming a spherical distribution for the ionized gas (Panagia & Walmsley, 1978).
Electron density (cm${}^{-3}$)	135	bbElectron density, $n_e$, in Eq. A9 estimated using the Lyman continuum luminosities given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and $R_{H^{+}}$.
$n_{H{e}^{+}}/n_{H^{+}}$	$\le$ 0.033	From Table 4
${\gamma }^{\prime }$	0.04cc${\gamma }^{\prime }$ is obtained from the listed $n_{H{e}^{+}}/n_{H^{+}}$ ratio as discussed in Appendix A.3.
a0	4.4	$\varphi$=0.25dd$\varphi$ is the H ii region filling factor. $f_{uv}$ is the ratio of the dust absorption cross section for hydrogen Lyman photons to the extinction cross section at 13.6 eV in the Weingartner & Draine (2001) dust model (see Appendix A.3)., $f_{uv}$=0.5dd$\varphi$ is the H ii region filling factor. $f_{uv}$ is the ratio of the dust absorption cross section for hydrogen Lyman photons to the extinction cross section at 13.6 eV in the Weingartner & Draine (2001) dust model (see Appendix A.3).
	2.4	$\varphi$=0.64, $f_{uv}$=1.0
	2.9	$\varphi$=0.25, $f_{uv}$=1.0
	2.2	$\varphi$=0.25, $f_{uv}$=2.0
G23.46$-$0.20
Path length (pc)	6.2	aaPath length, $R_{H^{+}}$, in Eq. A9 estimated from the angular size and distance given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and assuming a spherical distribution for the ionized gas (Panagia & Walmsley, 1978).
Electron density (cm${}^{-3}$)	62	bbElectron density, $n_e$, in Eq. A9 estimated using the Lyman continuum luminosities given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and $R_{H^{+}}$.
$n_{H{e}^{+}}/n_{H^{+}}$	$\le$ 0.051	From Table 4
${\gamma }^{\prime }$	0.06cc${\gamma }^{\prime }$ is obtained from the listed $n_{H{e}^{+}}/n_{H^{+}}$ ratio as discussed in Appendix A.3.
a0	4.0	$\varphi$=0.25, $f_{uv}$=0.5
	2.1	$\varphi$=0.64, $f_{uv}$=1.0
	2.7	$\varphi$=0.25, $f_{uv}$=1.0
	2.0	$\varphi$=0.25, $f_{uv}$=2.0
G29.96$-$0.02
Path length (pc)	5.2	aaPath length, $R_{H^{+}}$, in Eq. A9 estimated from the angular size and distance given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and assuming a spherical distribution for the ionized gas (Panagia & Walmsley, 1978).
Electron density (cm${}^{-3}$)	90	bbElectron density, $n_e$, in Eq. A9 estimated using the Lyman continuum luminosities given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and $R_{H^{+}}$.
$n_{H{e}^{+}}/n_{H^{+}}$	0.053eeMinimum $n_{H{e}^{+}}/n_{H^{+}}$ ratio observed toward G29.96$-$0.02.	From Table 4
${\gamma }^{\prime }$	0.06cc${\gamma }^{\prime }$ is obtained from the listed $n_{H{e}^{+}}/n_{H^{+}}$ ratio as discussed in Appendix A.3.
a0	3.4	$\varphi$=0.25, $f_{uv}$=0.5
	1.9	$\varphi$=0.64, $f_{uv}$=1.0
	2.3	$\varphi$=0.25, $f_{uv}$=1.0
	1.8	$\varphi$=0.25, $f_{uv}$=2.0

Equations

$$\frac{n_{H{e}^{+}}}{n_{H^{+}}}=\frac{\int T_{L,He}dv}{\int T_{L,H}dv},$$

$$EM=\frac{T_{b4.9}}{8.235\times 10^{-2}{T}_e^{-0.35}{\nu }^{-2.1}}$$

$$\zeta (m)\equiv mdN/dm$$

$$=$$

$${\int }_{m_l}^{m_u}\zeta (m)dm/m=1$$

$$\gamma \approx <q_{He}>/<q_H>$$

$$T_h^4=\frac{f_{acc}{L}_{acc}}{4\pi R_s^2{f}_h\sigma }$$

$$\frac{n_{H{e}^{+}}}{n_{H^{+}}}=\frac{{\int }_{V(H{e}^{+})}{n}_{H{e}^{+}}{n}_{e}dV}{{\int }_{V(H^{+})}{n}_{H^{+}}{n}_{e}dV}\approx yR.$$

$$R\equiv \frac{{\int }_{V(H{e}^{+})}{n}_{H^{+}}^{2}dV}{{\int }_{V(H^{+})}{n}_{H^{+}}^{2}dV}\approx \frac{R_{H{e}^{+}}^3}{R_{H^{+}}^3},$$

$${\tau }_H$$

$${\tau }_{He}$$

$$q_H^{{}^{\prime }}$$

$$q_{He}^{{}^{\prime }}$$

$${\gamma }^{\prime }=\gamma \text{exp}(-({\tau }_{He}-{\tau }_H))=\gamma \text{exp}(-{\tau }_H(a_0{R}^{1/3}-1))$$

Full text

ISM: general — ISM: H ii regions — ISM: structure — ISM: lines and bands — Galaxy: general — radio lines: ISM

1 Introduction

The existence of a diffuse ionized gas in the Galaxy is evident from a variety of observations (Hoyle & Ellis 1963, see review by Haffner et al. 2009). This gas, referred to as the Warm Ionized Medium (WIM), is now considered to be one of the major components of the interstellar medium (ISM). The WIM has been primarily studied using optical emission lines. These studies show that the local electron density of the WIM is in the range 0.01 to 0.1 cm${}^{-3}~{}$ and emission measures are typically {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}10 pc cm*-6* (Haffner et al., 2009). In, or near the disk of the inner Galaxy, optical lines suffer strong extinction and hence the distribution of the ionized gas has been studied in the radio frequency regime. In particular, low frequency ({\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}} 2 GHz) radio recombination line (RRL) observations have detected diffuse ionized regions (DIR) with local density in the range 1 to 10 cm${}^{-3}~{}$and emission measure {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}1000 pc cm*-6* (Lockman, 1976; Anantharamaiah, 1986; Roshi & Anantharamaiah, 2000; Alves et al., 2015). It is generally thought that both WIM and DIR are ionized by massive stars. To maintain ionization, the WIM and the DIR together require about 80% of the ionizing radiation from all OB stars in the Galaxy (Mezger, 1978; Murray & Rahman, 2010). Thus the WIM and DIR form an energetically important component of the interstellar medium.

The WIM in the Galaxy has been shown to have low $n_{He^{+}}/n_{H^{+}}$ number density ratios from optical line observations ({\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}0.027; Reynolds & Tufte (1995), see also Haffner et al. (2009)). Here $n_{He^{+}}$ is the number density of singly ionized helium (He) and $n_{H^{+}}$ is that of ionized hydrogen (H). RRL observations toward DIR have provided an upper limit on $n_{He^{+}}/n_{H^{+}}$ of $\sim$ 0.013 (Heiles et al., 1996; Roshi et al., 2012). Ionization of both these components of the interstellar medium (ISM) is thought to be due to UV photons from O6-type or hotter stars that leak out of HII regions (Mezger 1978; see also Anderson et al. 2011, Luisi et al. 2016 for observational evidence of photon leakage from H ii regions). However, if stars hotter than $\sim$ O6 are the primary ionization sources of the DIR and the WIM, the ratio $n_{He^{+}}/n_{H^{+}}$ should be close to that of the actual He/H abundance ratio of $\sim$ 0.1 (see Draine 2011, Table 15.1 and section 15.5). This is because: (1) $\leq$18% of the ionizing photon flux from O6 or hotter stars, can fully ionize He in the ionized H region; (2) the ionization cross-sections for photons more energetic than the ionization potentials of H and He decrease with energy proportional to $(h\nu)^{-3}$ resulting in greater mean-free paths for the highest energy photons and expected “hardening” of the radiation field with distance from the source of ionization. Thus, the low $n_{He^{+}}/n_{H^{+}}$ ratios in the WIM and DIR are not understood.

There are at least two important issues related to the low helium ionization in the diffuse regions. Firstly, the observed $n_{He^{+}}/n_{H^{+}}$ ratio toward several H ii regions harboring O6 or hotter stars is lower than the cosmic abundance of helium (Shaver et al., 1983). The mean value of $n_{He^{+}}/n_{H^{+}}$ ratio obtained toward such H ii regions is 0.08, indicating the presence of 20 % neutral helium. The possible effects that can produce lower helium ionization include (a) selective absorption by dust (Mezger, Smith & Churchwell (1974); see Section 5) and (b) line-blanketing in the atmosphere of the O stars (see for example Martins, Schaerer & Hiller 2005). Secondly and possibly even more problematic is how the ionizing UV photons escape through the HII ionization fronts that surround hot O stars and the surrounding DIRs of compact HII regions. In particular, are the $n_{He^{+}}/n_{H^{+}}$ ratios significantly decreased in their passage to the WIM? This is obviously a function of how clumpy and dusty the ISM is in the neighborhood of massive star formation regions. Although these two are important issues, the main motivation of this investigation is to determine if the $n_{He^{+}}/n_{H^{+}}$ ratios are systematically decreased in ionized gas surrounding the earliest stages of massive star-forming regions.

Lyman continuum radiation leaking out of H ii regions ionizes gas in its immediate vicinity as well as at large distances from the H ii region. The collection of ionized gas surrounding compact H ii regions, referred to as envelopes of H ii regions, in the inner Galaxy form the DIR (Anantharamaiah, 1986). The hierarchical structures in molecular cloud/ISM produce similar morphology at different physical scales and at early stages of star-formation. For example, many Ultra-Compact H ii (UCH ii ) regions are known to have extended, diffuse ionized gas – referred to as envelopes of UCH ii regions or UCH ii envelopes – associated with them ( Garay et al.  1993, Kurtz et al.  1999, Kim & Koo 2001; see also Churchwell 2002). UCH ii regions are ionized by massive stars that are still embedded in their natal molecular cloud thus representing a very early stage of star-formation. The morphology of UCH ii regions and their envelopes is similar to that of compact H ii regions and the DIR. The emission measure of these envelopes is typically {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}}} a few times $10^{3}$ pc cm*-6*, an order of magnitude larger than the emission measure of DIR. The envelops of UCH ii regions absorb more than 65% of the ionizing radiation from the embedded stars (Kim & Koo, 2001), which is comparable to the percentage of UV photons absorbed by DIR. Thus observing He RRLs from higher emission measure diffuse gas surrounding UCH ii regions may provide a clue to resolve the He ionization problem in the DIR. In Section 2 we describe the selection of sources for observation and discuss their properties. The observations and data analysis are discussed in Section 3. Our main results are presented in Section 4 and a discussion of the results are given in Section 5. A summary of the main results is given in Section 6. Appendix A.1 to A.3 gives the details of the analysis discussed in Section 5.

2 Source Selection

A systematic study of continuum and RRL emission toward 16 UCH ii regions was done by Kim & Koo (2001). They detected diffuse, extended emission toward 14 UCH ii regions in their sample. The similarity of the LSR velocity of hydrogen RRLs from the UCH ii regions and the diffuse gas suggests that the H ii region and the diffuse component are associated (see Section 4.1 for further discussion on velocity structure based on our data set). This association is also suggested by the continuum morphology of these sources. The continuum emission from UCH ii regions and their envelope was used to estimate the Lyman continuum photon flux required to maintain ionization. This Lyman continuum photon flux is used to estimate the required stellar spectral type. The spectral types for the 14 UCH ii regions range from O4 to O9. We selected three sources (G10.15-0.34, G23.46-0.20 & G29.96-0.02) with embedded stars of type O5.5 or earlier for helium RRL observations. H ii region models with a single ionizing star suggest that the helium and hydrogen Strömgren spheres will overlap for these sources. Hence helium is expected to be singly ionized in the envelope of the selected UCH ii regions.

VLA 21 cm images of the three selected sources G10.15-0.34, G23.46-0.20 & G29.96-0.02 are shown in Figs. 1,  2 and  3 respectively. These images are from the data obtained by Kim & Koo (2001) and have an angular resolution of $\sim$ 40″$\times$ 20″. We show Spitzer three-color images of the three targets in Fig. 4,5 & 6, with GLIMPSE 3.6 and 8.0 $\mu$m data in blue and green (Benjamin et al., 2003; Churchwell et al., 2009) and MIPSGAL 24 $\mu$m data in red (Carey et al., 2009). The red MIPSGAL emission is from warm dust grains spatially coincident with the ionized gas in H ii regions. The green GLIMPSE 8.0 $\mu$m emission is dominated by polycyclic aromatic hydrocarbons (PAH) in the photodissociation regions (PDRs). A brief description of the selected sources are given below and a summary of their properties is given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions.

2.1 G10.15-0.34

The G10.15-0.34 region is part of the W31 star-forming complex (Shaver & Goss, 1970). Numerous H ii regions and star clusters are present in this well known star-forming region (Beuther et al., 2011). G10.15-0.34 is one of the dominant infrared and radio continuum sources in W31 and is referred to as W31-South. The UCH ii region G10.15-0.34 is located in the complex W31-South (Wood & Churchwell, 1989). The distance to W31 is very uncertain since different indicators provide different distances ranging from near ($\sim$ 2 kpc) to far ($\sim$ 15 kpc) kinematic distances (Deharveng et al., 2015). Infra-red spectrophotometric analysis of O stars in the H ii region indicates that G10.15-0.34 is at 3.55 kpc (Moisés et al., 2011; Blum et al., 2001). H i absorption studies resolve the kinematic distance ambiguity indicating a near distance of about 3.55 kpc (Urquhart et al., 2012). Trigonometric parallax measurements provide a distance to W31 complex of 4.95 kpc (Sanna et al., 2014). The measured parallax is for the H2O maser source in G10.62-00.38, one of the H ii regions in the W31 complex. This H ii region is about 0o.5 away from G10.15-0.34, which corresponds to a projected separation on the sky of about 30 to 40 pc depending on the assumed distance. It is possible that the two H ii regions are at different distances. Here we adopt a distance of 3.55 kpc for the G10.15-0.34 region and for the UCH ii region G10.15-0.34 (see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions).

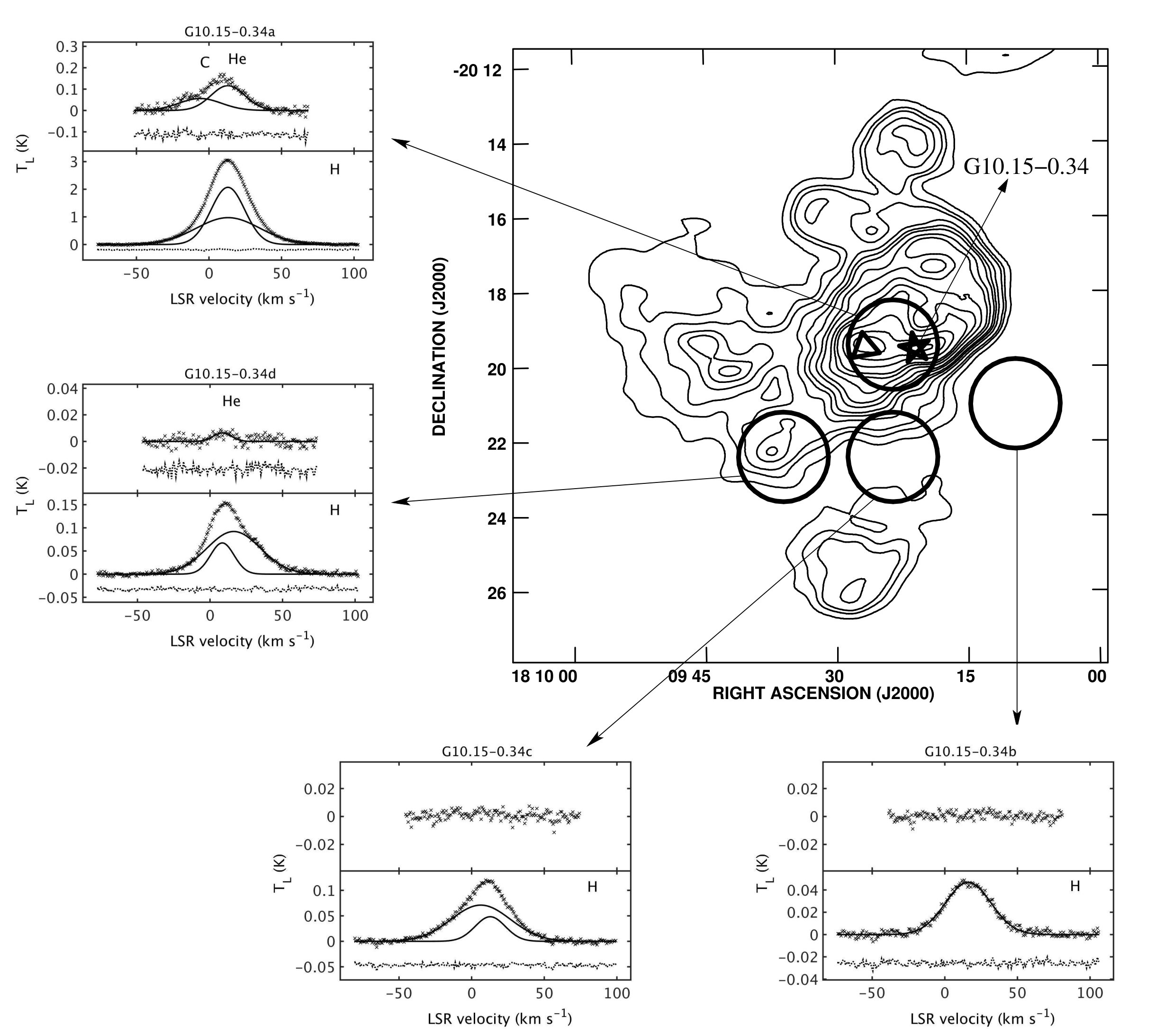

The UCH ii region G10.15-0.34 is located at the western peak in the 21 cm image of the region G10.15-0.34 (see Fig. 1, Kim & Koo 2001). The diffuse gas surrounding the UCH ii region has an angular extent of 10′.9 $\times$ 6′.7, which corresponds to a linear size of 11.3 pc $\times$ 6.9 pc at the distance of 3.55 kpc. The Lyman continuum photon flux (not corrected for dust extinction) obtained from the 21 cm continuum flux density for the diffuse gas is 3.5 $\times 10^{49}$ s*-1*, corresponding to a single ionizing star of type O3 V (Martins, Schaerer & Hiller, 2005). We use a temperature for the ionized gas of 8000 K and a flux density at 21 cm of 55.22 Jy (Kim & Koo, 2001) to estimate the Lyman continuum photon flux (Rubin, 1968). The Lyman continuum photon flux obtained from 21 cm emission is a lower limit of the ionizing luminosity due to radio continuum optical depth effects and possible escape of UV photons. The diffuse 21cm emission spatially coincides with a complex ionization ridge seen in the high angular resolution (7″.5 $\times$ 4″.3) 5 GHz continuum image of G10.15-0.34 (Ghosh et al., 1989). NIR spectrophotometric study of a 1.′7 $\times$ 1.′8 region centered at RA 18:09:26.71, DEC $-$20:19:29.7 (J2000; roughly coincides with the position G10.15-0.34a in Table 2) has identified four O5.5-type stars, which together can account for most of the radio derived Lyman continuum emission of the UCH ii envelope (Blum et al., 2001).

2.2 G23.46-0.20

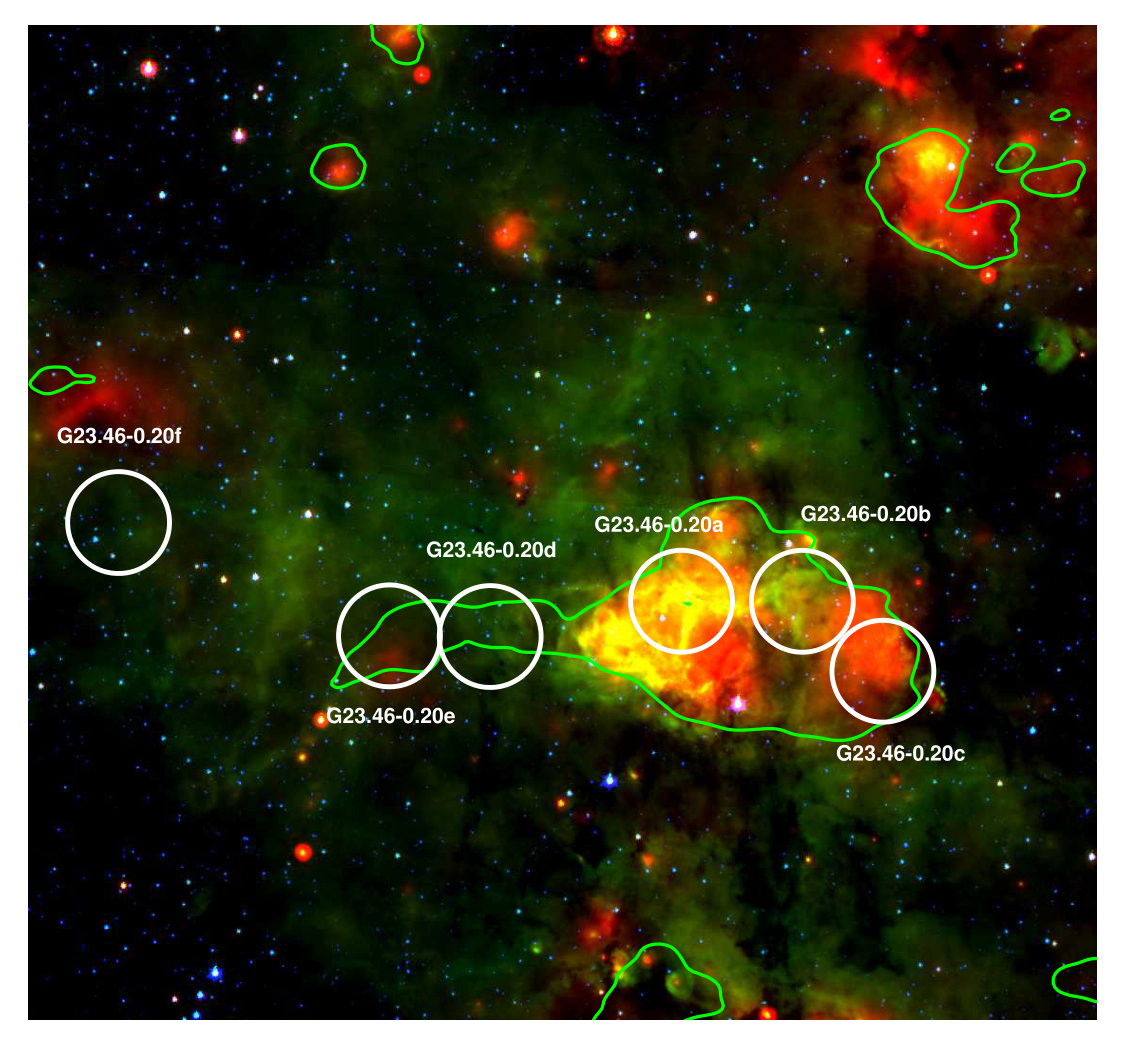

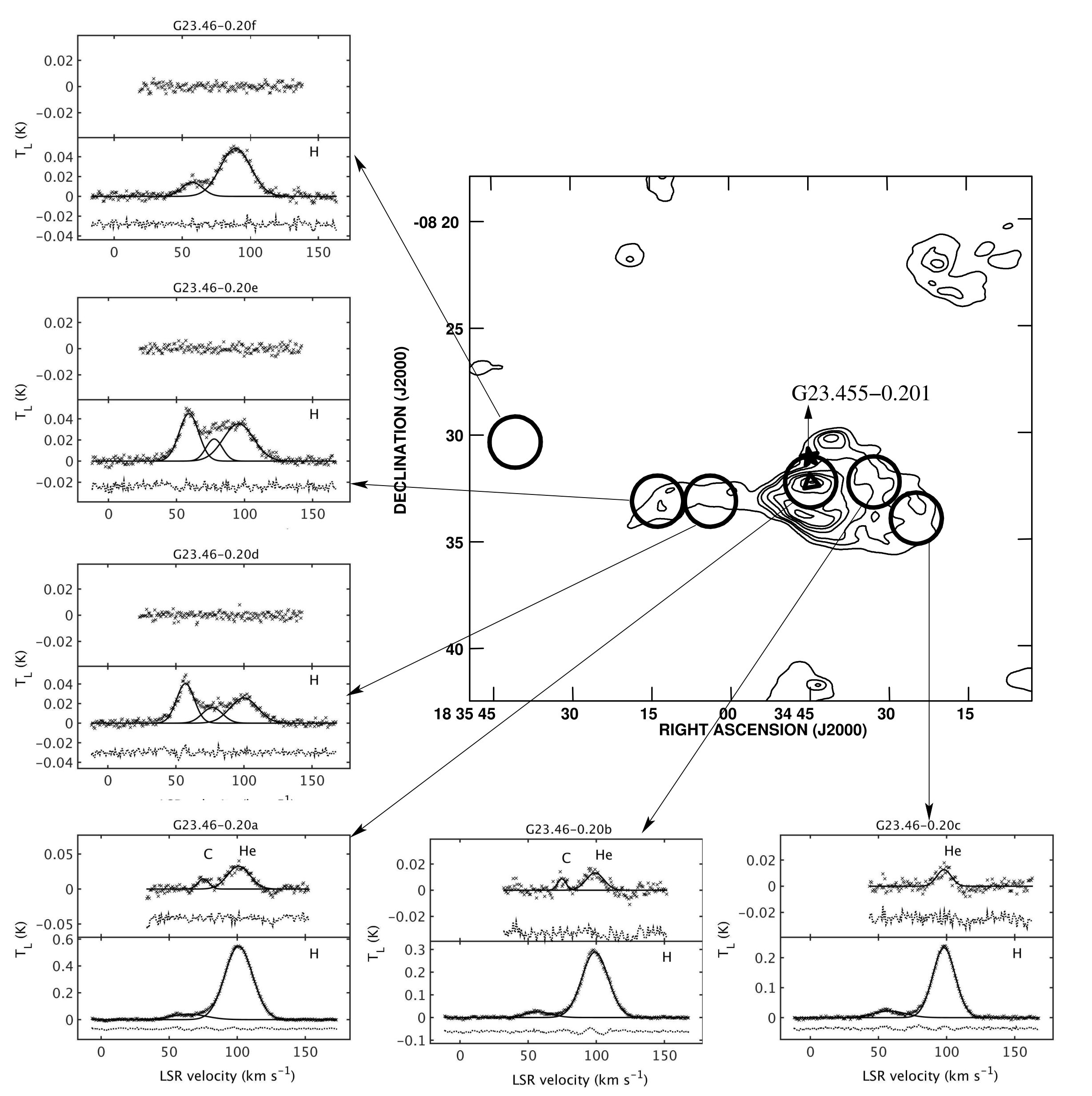

The 21 cm image of the G23.46-0.20 region is shown in Fig 2 (Kim & Koo, 2001). The UCH ii region G23.455-0.201 (Wood & Churchwell, 1989) is located slightly north of the strongest continuum peak in the 21 cm emission (marked as a star in Fig 2). The LSR velocity of H76$\alpha$ RRL observed toward the UCH ii region is 99.0 km s*-1*(Kim & Koo, 2001). Sewilo et al. (2004) analyzed the LSR velocity of the molecular cloud associated with the UCH ii region and placed it at the near kinematic distance of about 6 kpc (see Wienen et al. 2015). The distance to the 12 GHz methanol source G23.44-0.18 obtained from parallax measurements is 5.88 kpc (Brunthaler et al., 2009). Based on the parallax measurement and LSR velocity study we adopt the distance to the G23.46-0.20 region as 6 kpc (see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions).

The G23.46-0.20 region is located in the direction of the Galaxy where several stellar clusters, supernova remnants (SNR) and giant molecular clouds are present (Messineo et al., 2014). The diffuse gas surrounding the UCH ii region exhibits two peaks in the 21 cm continuum emission separated in the north-south direction (see Fig. 2). The strongest peak (marked as a triangle in Fig. 2) coincides with the IR source G23.437-0.209 (Crowther & Conti, 2003). The 21 cm continuum emission is elongated in the east-west direction, part of which coincides with the shell of the W41 SNR (Leahy & Tian, 2008). The angular size of the G23.46-0.20 region is 8′.8 $\times$ 5′.8. At the distance of 6 kpc, the linear size of the diffuse emission region is 15.4 pc $\times$ 10.1 pc. The Lyman continuum luminosity (not corrected for dust extinction and contamination from W41 SNR emission) obtained from the integrated radio flux density at 21 cm (11.31 Jy; Kim & Koo 2001) is 4.0 $\times 10^{49}$ s*-1*, for an assumed ionized gas temperature of 8000 K. If a single star is responsible for the ionizing luminosity, then the type of the star is O4.5 V (Martins, Schaerer & Hiller, 2005).

2.3 G29.96-0.02

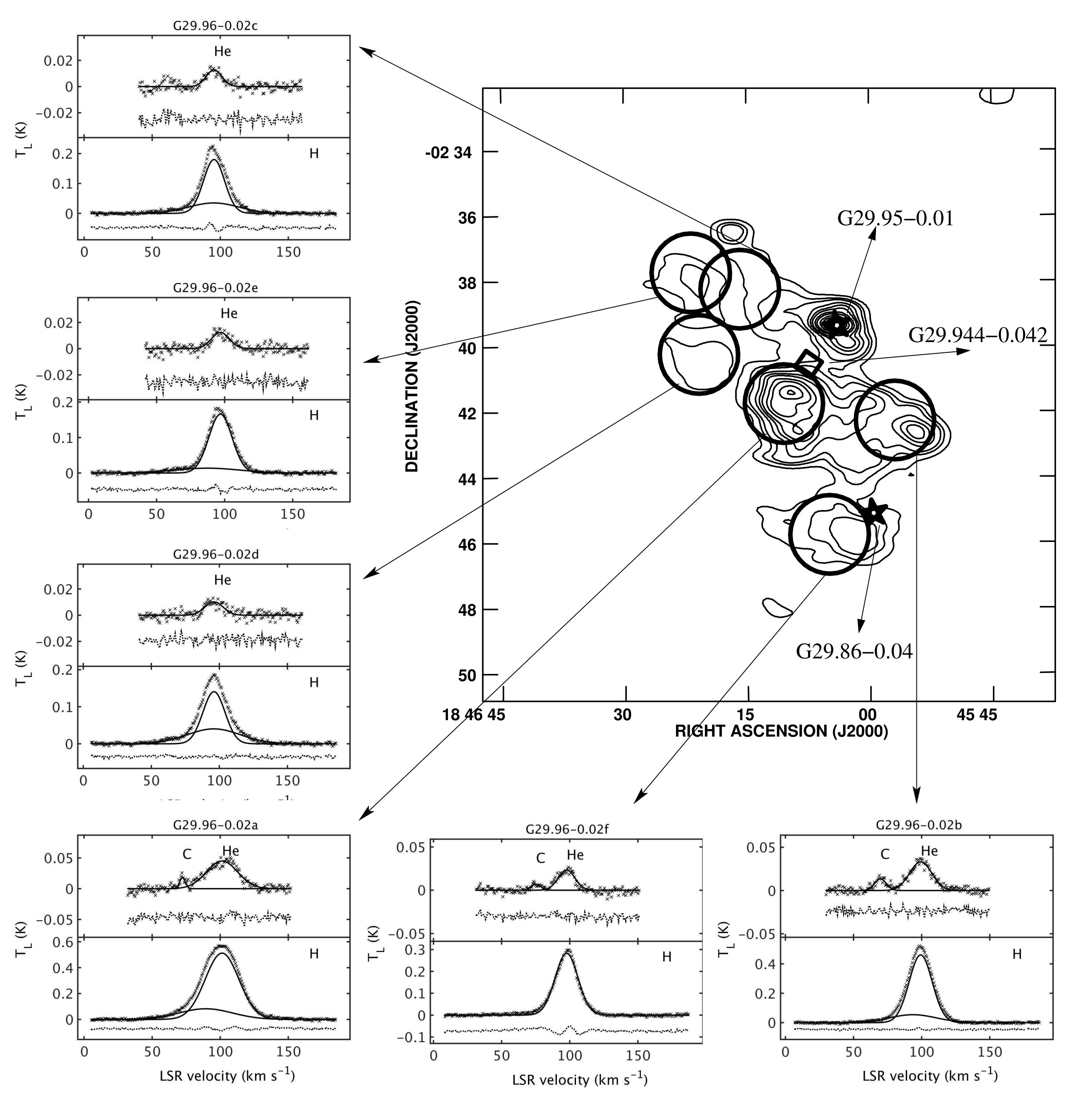

G29.96-0.02 is a well known star-forming region in the inner Galaxy. It is part of the W43 complex and is referred to as W43-South. The 21 cm continuum image of the region is shown in Fig. 3 (Kim & Koo, 2001). The location of the cometary UCH ii region G29.95-0.01 (Wood & Churchwell, 1989) coincides with the strongest continuum peak (see Fig. 3). Trigonometric parallax measurements were made toward two 12 GHz methanol sources in the G29.96-0.02 region – one associated with the UCH ii region G29.95-0.01 and the second towards G29.86-0.04. The distance obtained to the two sources are 6.21 kpc and 5.26 kpc respectively (Zhang et al., 2014). Here we adopt 6.2 kpc as the distance to the G29.96-0.02 region (see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions).

The 21 cm emission from G29.96-0.02 is extended over 6′.3 $\times$ 5′.2, corresponding to a linear size of 11.7 pc $\times$ 9.4 pc. The NRAO/VLA Sky Survey (NVSS), which has an angular resolution of 45″, has cataloged 10 sources consisting of both unresolved and extended objects (Condon et al., 1998). The brightest NVSS source is associated with the cometary UCH ii region G29.95-0.01 (Wood & Churchwell, 1989). The physical properties of the NVSS sources were obtained from their radio continuum emission (Beltrán et al., 2013). These sources harbor stars of type O5 to B0. The giant H ii region G29.944-0.042 is located south-east of G29.95-0.01. The Lyman continuum photon flux estimated using the flux density at 21 cm (12.69 Jy; Kim & Koo 2001) is 4.8 $\times 10^{49}$ s*-1*. The temperature of the ionized gas is assumed to be 8000 K for estimating the Lyman continuum luminosity and no dust extinction correction is applied. The luminosity can be produced by a single ionizing star of type O4 V (Martins, Schaerer & Hiller, 2005). K band spectroscopy shows that the central exciting star of the UCH ii region G29.95-0.01 is of type O5 (Hanson et al., 2005). Note that the estimated Lyman continuum luminosity is only 44% of that obtained for the giant H ii region G29.944-0.042 from 6 cm continuum observations (Conti & Crowther, 2004). The 6 cm source size obtained for G29.944-0.042 is 3′.7 (Kuchar & Clark, 1997). We attribute this discrepancy to radio continuum optical depth effects at 21 cm.

3 Observation and Data Reduction

The sizes of the selected sources are listed in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions. The typical physical size of the selected diffuse regions surrounding UCH ii regions is {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}}}9 pc, which corresponds to an angular size {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}}}5${}^{{}^{\prime}}$. We made RRL observations toward 13 positions in the selected sources with the Robert C. Byrd Green Bank Telescope (GBT) near 5 GHz. The FWHM (full width at half power) beam width of the telescope near 5 GHz was about 2′.5, allowing us to sample physical scales smaller than the sizes of the diffuse regions in the selected sources. The J2000 RA and DEC of the observed positions are listed in Table 2 and are shown in Figs. 1,2 & 3. For comparison, we also observed 3 positions (G10.15-0.34a, G23.46-0.20a, G29.96-0.02a; see Figs. 1,2 & 3 and Table  2) toward peaks in the 21 cm continuum images of the selected regions.

We simultaneously observed eight RRL transitions (104$\alpha$, 105$\alpha$, 106$\alpha$, 109$\alpha$, 110$\alpha$, 111$\alpha$, 112$\alpha$ & 113$\alpha$) of hydrogen, helium and heavy elements. The reference spectra to correct for bandpass shape were obtained by switching the frequency by 8.5 MHz ($\sim$ 530 km s*-1*). GBTIDL routines were used to correct for bandpass shape for each RRL transition and calibrate the spectra in units of antenna temperature. Doppler tracking was done using the H110$\alpha$ RRL transition during observation. The residual Doppler correction in other RRL transitions was done offline by shifting them in LSR velocity. The Doppler corrected spectra for each RRL transition were averaged using GBTIDL routines. The rest of the data analysis was done using routines developed in Matlab. The average spectrum for each transition was examined for radio frequency interference (RFI). After editing RFI affected spectra and removing spectra that have beta transitions contaminating the helium line, we re-sampled the sub set of RRL spectra to a common velocity resolution. This sub set was averaged to obtain the final integrated spectrum. The RRL transitions averaged to get the final spectrum are listed in Table 2. The actual observing time and effective integration time, obtained from the number of transitions averaged, for each position is also included in Table 2. The effective integration time is the actual integration time of the final spectra after editing out the RFI affected spectra and averaging the data corresponding to the listed transitions in Table 2. A 4th order polynomial was subtracted from the final spectrum.

4 Results

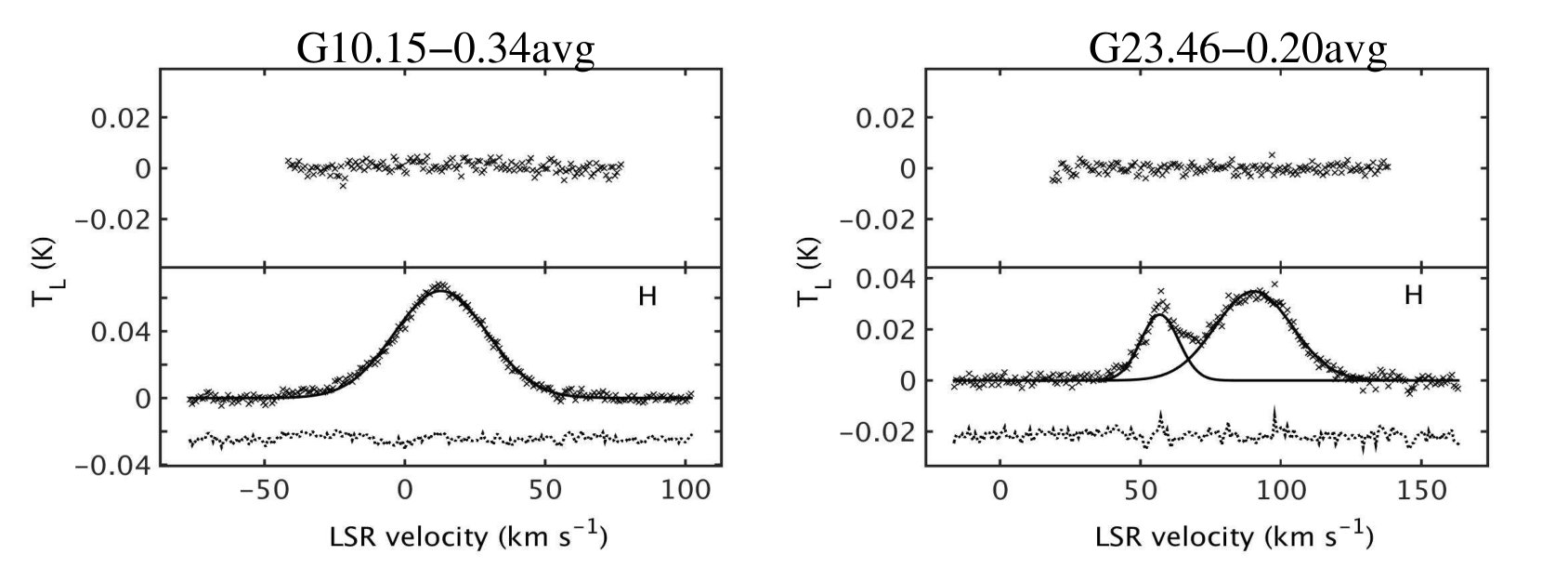

Results of Gaussian component analysis of the final spectra are included in Table 3. The source name, peak line amplitude in K, FWHM line width in km s*-1*, LSR velocity of the line in km s*-1* and the atom responsible for the line emission are included in Table 3. The final spectra and the Gaussian components are shown in Figs. 1,  2 and  3. The signal-to-noise ratio of the hydrogen line is greater that 10 $\sigma$ in most cases allowing us to fit multiple Gaussian components to the line profile. We choose the minimum number of Gaussian components for the hydrogen line so that the residuals after subtracting the Gaussian model are consistent with the RMS of the spectral noise. Since we did not know a priori which hydrogen line component corresponds to the helium line, we tried several methods to obtain the helium line parameters. We found that the different methods provide a slightly different value for the $\frac{n_{He^{+}}}{n_{H^{+}}}$ ratio (see below), but all these values are consistent within 1.5$\sigma$ estimation error of this ratio. We finally adopted the following strategy to get the helium line parameters – we set the LSR velocity of the helium line equal to the central velocity of the strongest hydrogen line while fitting the Gaussian components. The exception is for the position G10.15-0.34d where the helium line velocity is close to the 8.45 km s*-1* hydrogen line component and hence we used this velocity for the central velocity of helium. No constraints were used to obtain line parameters of atoms heavier that helium. The heavy element is tentatively identified as carbon based on its frequency and its relatively high abundance compared to other heavy elements with ionization potential $<$ 13.6 eV.

4.1 LSR velocity of hydrogen line

The LSR velocity structure of the hydrogen lines toward the observed sources was studied earlier by Kim & Koo (2001). We re-examine the line velocity structure with our new, sensitive RRL observations. The line structure in general is complex, exhibiting multiple velocity components toward all the three sources. Toward the 4 observed positions in G10.15-034, the peak hydrogen line velocity ranges between 16.3 and 6.3 km s*-1*, with a mean value of 12.3 km s*-1*. The velocity spread of this source is attributed to bipolar-flow exhibited by the ionized gas (Kim & Koo, 2001). A bipolar-flow is also inferred from the velocity structure of dense molecular tracers observed toward G10.15-034 (Kim & Koo, 2003; Deharveng et al., 2015). The mean velocity of the molecular tracers is in good agreement with that of the RRLs. Thus the diffuse gas observed toward G10.15-034 is likely to be associated with the UCH ii region G10.15-034 as concluded earlier by Kim & Koo (2001). The size of the diffuse region is about 8 pc (see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions), much larger than the UCH ii region, and hence multiple massive stars in the star-forming region will be contributing to the ionization of the diffuse gas.

The hydrogen line toward G23.46-0.20 shows at least three LSR velocity components – $\sim$ 60, 76 and 95 km s*-1*. The LSR velocity of hydrogen line observed toward the UCH ii region is 99 km s*-1* (Kim & Koo, 2001) and hence it is likely that only the 95 km s*-1* component is associated with the source G23.46-0.20. This is because, there is no evidence for outflows with such large velocity difference to produce the other line components. Further, the kinematic distances of the 60 and 76 km s*-1* line components are greater than a kpc from that of the 95 km s*-1* component. Thus the 60 and 76 km s*-1* components are most likely due to ionized gas along the line of sight. The 95 km s*-1* component in our data shows a velocity range from 89.2 to 101.1 km s*-1* over the 6 observed positions toward the source, with a mean value of 97.2 km s*-1*. The 13CO line observed toward G23.46-0.20 shows a similar velocity range. The velocity structures of molecular line and RRL have been interpreted as due to a champagne flow (Kim & Koo, 2003) and not due to multiple ionized gas location along the line-of-sight. As in the case of G10.15-034, the large size of the diffuse gas (12 pc; see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions) implies multiple stars present in the star-forming region G23.46-0.20 may be contributing to the ionization of the diffuse region.

The LSR velocity range of hydrogen line observed toward 6 positions in G29.96-0.02 is between 87.3 and 101.4 km s*-1*, with a mean value of 95.9 km s*-1*. The mean velocity is similar to the LSR velocity of RRLs (95.3 km s*-1*) observed toward the UCH ii region (Wood & Churchwell, 1989). Molecular line observations show a velocity gradient from $\sim$ 92 to 100 km s*-1* roughly in agreement with that observed in RRLs. There are several compact H ii regions embedded in the diffuse ionized gas. Thus the velocity structure of the diffuse gas is likely to be reflecting the blending of ionized gas from the different compact sources.

To summarize, in all three observed sources, we could identify a line component that has LSR velocity similar to that of the UCH ii regions. We consider that this line component is due to emission from the diffuse ionized gas surrounding the UCH ii regions. In the following sections, we refer to the gas with the identified velocity component as the UCH ii envelope. It is likely that several ionizing sources embedded in the diffuse gas are contributing to the ionization of this gas.

4.2 Helium to hydrogen line ratio

The ratio

[TABLE]

obtained from the RRL data is given in Table 4. Here $T_{L,He}$ and $T_{L,H}$ are the line antenna temperatures of helium and hydrogen, respectively (see Table 3), and the integration is over LSR velocity. The computed value of $n_{He^{+}}/n_{H^{+}}$ ratio along with 1 $\sigma$ error as well as upper limits are listed in column 2 in Table 4. The velocities of the hydrogen line components used to obtain the ratio are given in column 3. In cases where helium line is not detected, the upper limit for the ratio is computed using the 1$\sigma$ value at the line free region of the spectrum and the net line width of the hydrogen line components listed in column 3 as the expected width of the helium line. The other columns are source name (column 1), offset distance from the ‘ionization center’ (column 4; see below), 4.875 GHz brightness temperature (column 5; see below) and emission measure (column 6). The emission measures are obtained from the main beam brightness temperature, estimated from the 4.875 GHz continuum survey of Altenhoff et al. (1979), which has similar angular resolution as that of the GBT observations. The emission measure is obtained using the equation (Mezger & Henderson, 1967)

[TABLE]

where $EM$ has units pc cm*-6*, $T_{b4.9}$ is the brightness temperature in K at the frequency $\nu=4.875$ GHz, $T_{e}$ is the electron temperature in K (see Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions).

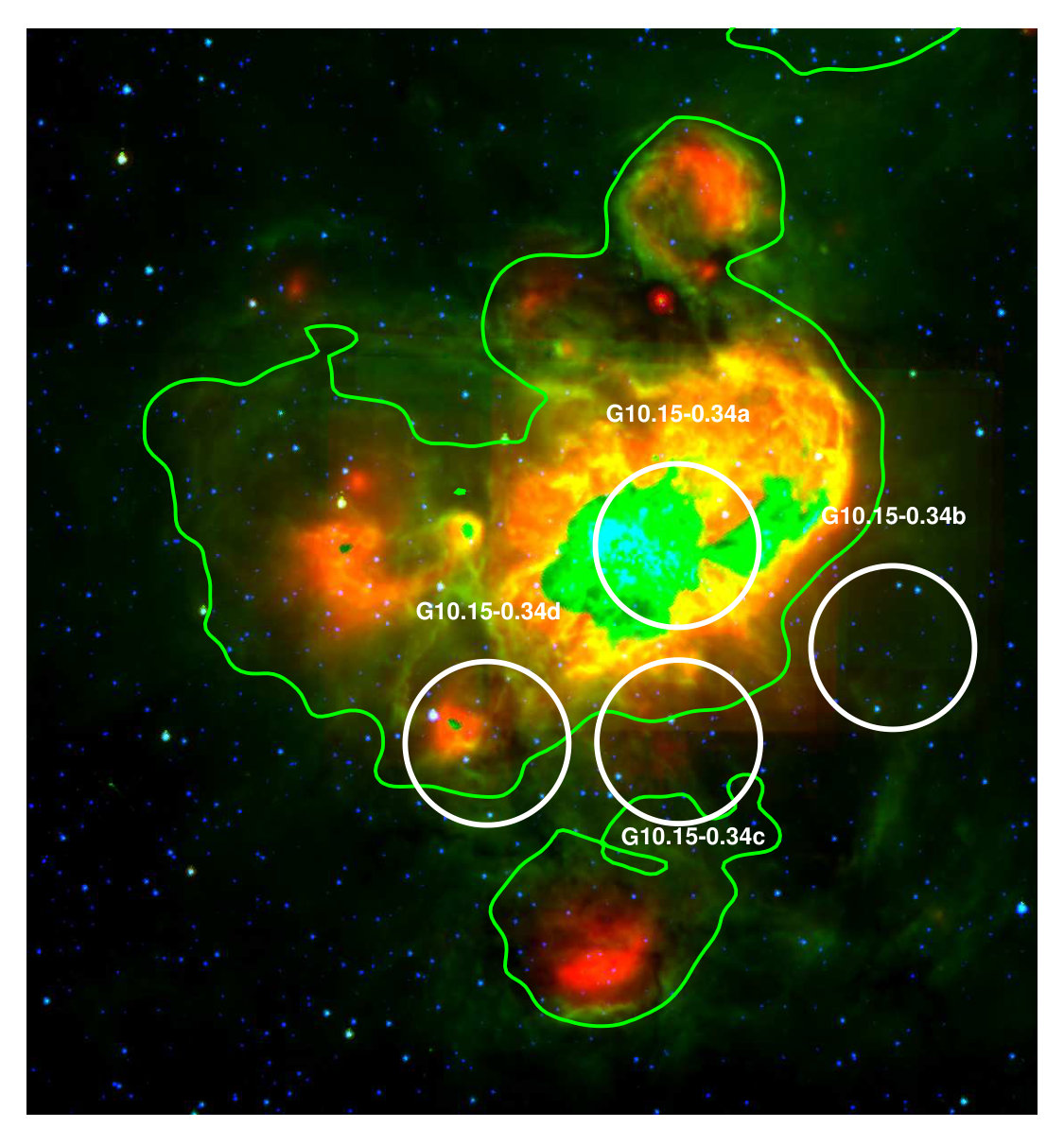

The helium lines are detected toward G10.15-0.34a & d in G10.15-0.34. We use the 24 $\micron$ emission in the MIPSGAL data, which has higher angular resolution ($\sim$ 6″) than the 21 cm images, to identify compact H ii regions (emission shown in red in Fig. 4) in the observed positions. This identification can be done because, a large part of the 24 $\micron$ emission originates from very small dust grains (few nanometer in size) inside H ii regions heated by UV radiation from the star and collision with ionized gas particles (Pavlyuchenkov, Kirsanova & Wiebe, 2013). The observed correlation between the 24 $\micron$ emission and 21 cm flux density of Galactic H ii regions supports this picture (Anderson et al., 2014). Both these positions have bright 24 $\micron$ emission indicating the presence of compact H ii regions. Helium lines are not detected toward G10.15-0.34c & b. No compact H ii regions are present in these directions as inferred from the 24 $\micron$ image. We averaged the GBT spectra observed toward these two positions to get a stringent upper limit on helium line emission. The line parameters obtained from the average spectrum is listed in Table 3. The LSR velocity of the hydrogen line (12.8 km s*-1*) is similar to those observed toward other positions in the source G10.15-0.34. Thus the positions G10.15-0.34c & b sample the more diffuse region of the UCH ii envelope. The 1$\sigma$ upper limit for helium line emission and the value of the $\frac{n_{He^{+}}}{n_{H^{+}}}$ toward the diffuse region are $\sim$ 2 mK and 0.03 respectively, both obtained from the average spectrum.

Helium lines are detected toward positions G23.46-0.20a,b &c. Examination of the 24 $\micron$ image indicates that compact H ii regions are present in these regions (see Fig. 5). No helium lines were detected toward positions G23.46-0.20d,e &f. Toward the position G23.46-0.20e a compact H ii region is present as inferred from its 24 $\micron$ emission. The hydrogen lines toward positions G23.46-0.20d &f have components with LSR velocities 99.9 and 89.2 km s*-1* respectively. The strongest hydrogen line components toward positions G23.46-0.20a,b,c & e shows a gradient in LSR velocity with values reducing from 101.1 km s*-1* to 95.6 km s*-1*. Thus the diffuse ionized gas toward G23.46-0.20d as well as G23.46-0.20f may be associated with G23.46-0.20. We averaged the GBT spectra toward G23.46-0.20d &f to get a stringent upper limit on helium line emission. The upper limit for the value of the $\frac{n_{He^{+}}}{n_{H^{+}}}$ obtained from this average spectrum is 0.05.

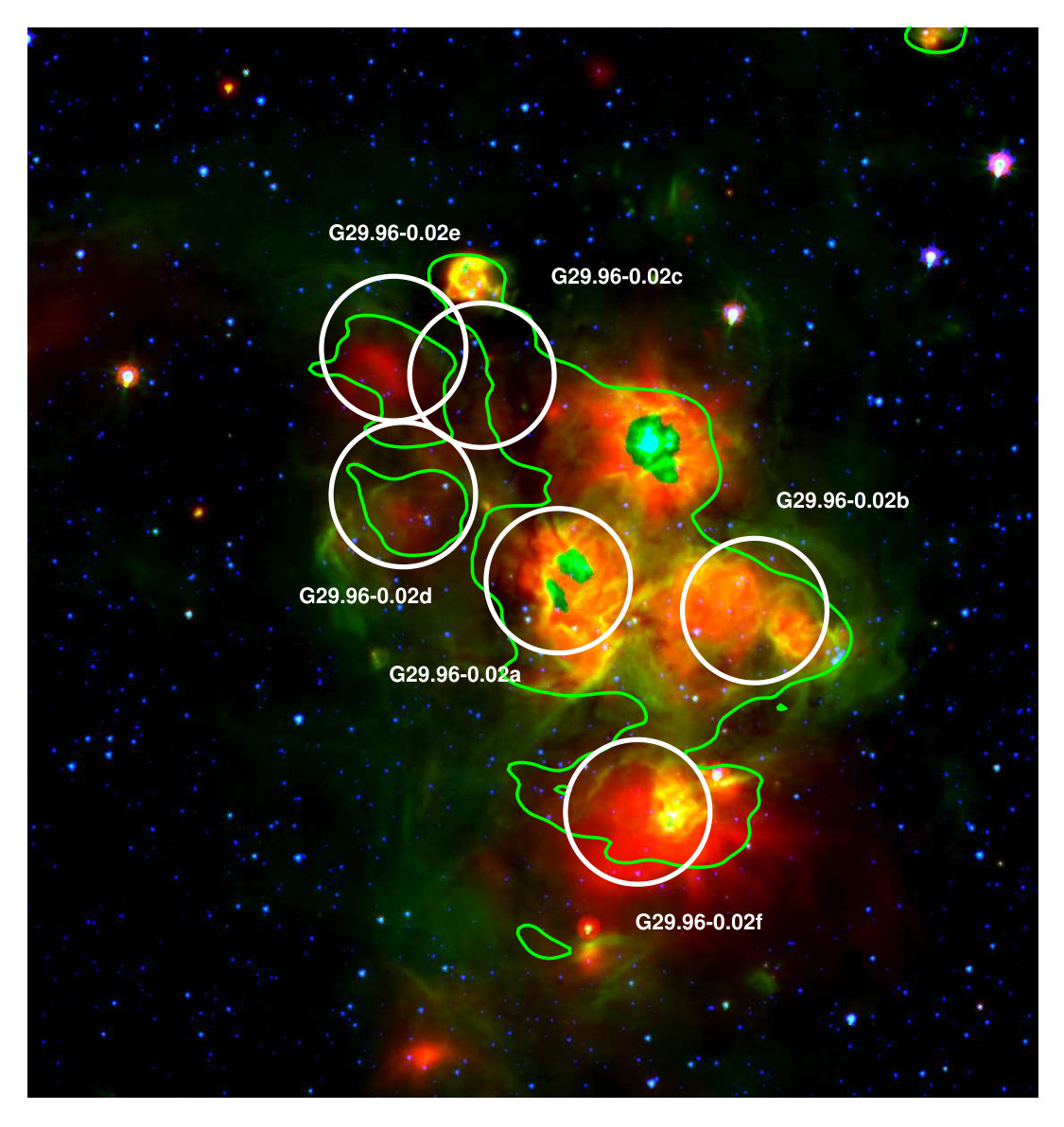

Helium lines are detected toward all the observed positions in G29.96-0.02. All these positions have associated bright 24 $\micron$ emission indicating the presence of compact H ii regions (see Fig. 6). The value of the $\frac{n_{He^{+}}}{n_{H^{+}}}$ varies between 0.53 and 0.81 at the observed positions. Such variation is also observed toward the sources G10.15-0.34 and G23.46-0.20 at positions where helium lines are detected.

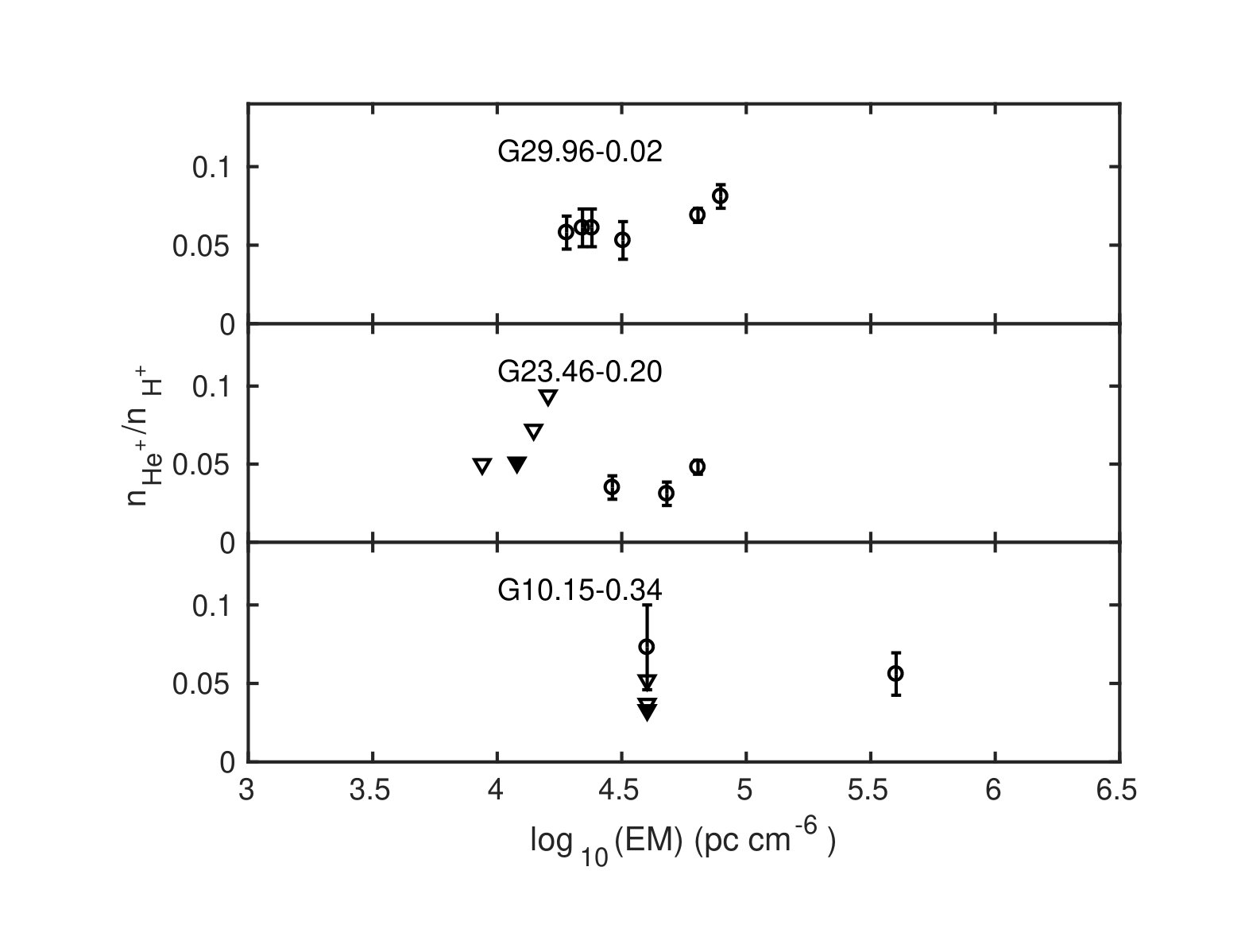

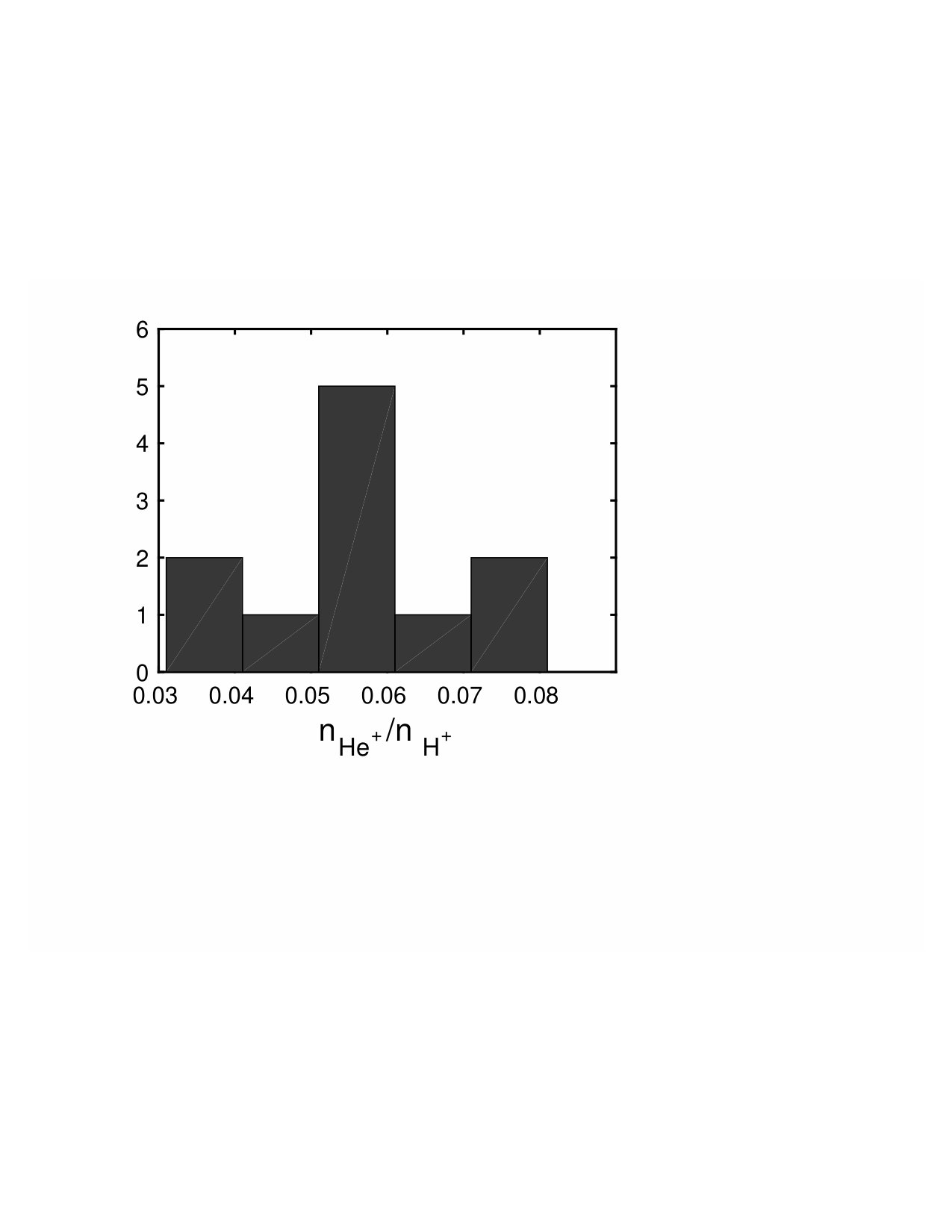

Fig. 8 shows the histogram of the values for $n_{He^{+}}/n_{H^{+}}$ ratio obtained toward positions where helium lines are detected from all the three sources. The values of the ratio from our sample range from 0.033 to 0.081; the mean value is 0.058. The mean value for $n_{He^{+}}/n_{H^{+}}$ ratio is consistent with those observed toward compact H ii regions in the Galaxy (Churchwell et al., 1974; Quireza et al., 2006). It may be noted that some of the H ii regions observed by Churchwell et al. (1974) and Quireza et al. (2006) may be ionized by stars later than O6 and hence the mean value of $n_{He^{+}}/n_{H^{+}}$ from their data set is biased toward lower values.

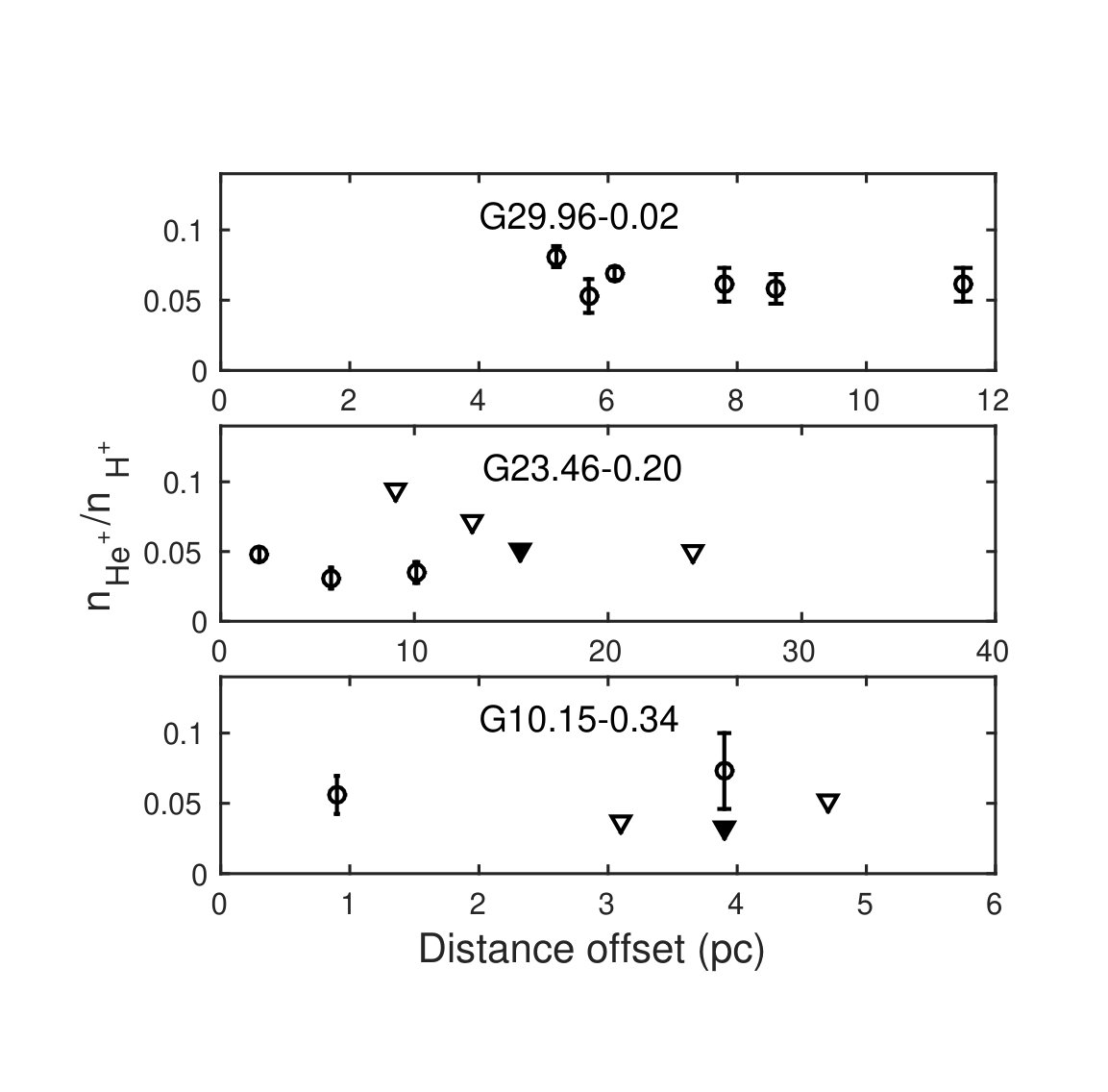

Multiple OB stars are responsible for the ionization of the observed sources. Due to the complexity of the source, however, it is difficult to identify a region, referred to as the ‘ionization center’, where most of the massive stars are located in each source. We assigned the ‘ionization center’ for the region G10.15-0.34 as the center of the NIR emission observed by Blum et al. (2001)(RA 18:09:26.71, DEC $-$20:19:29.7 J2000; see Section 2; shown in Fig. 1), which has revealed 4 O type stars. The ‘ionization center’ for the region G23.46-0.20 is taken as the UCH ii region G23.455-0.201 and that for the region G29.96-0.02 is taken as the UCH ii region G29.95-0.01. In Fig. 9, we plot the values of the $n_{He^{+}}/n_{H^{+}}$ ratio against the estimated distance offset (see Table 4) of the observed positions from the ‘ionization center’. We also plot the measured $n_{He^{+}}/n_{H^{+}}$ values against the estimated emission measure (see Table 4) in Fig. 10. The upper limits obtained from the average spectra are included in the plot with filled triangles. No particular trends are evident in these plots but it is clear that the helium is not uniformly ionized in the observed regions.

5 Discussion

We first examine the observed $n_{He^{+}}/n_{H^{+}}$ ratio toward the continuum bright regions (G10.15-0.34a, G23.46-0.20a & G29.96-0.02a). The first two positions encompass the UCH ii regions G10.15-0.34 and G23.455-0.201 respectively. The third position is observed near the giant H ii region G29.944-0.042. The mean value of the $n_{He^{+}}/n_{H^{+}}$ ratio obtained from the data toward the three positions is 0.062$\pm$0.02. This value is slightly lower than the mean value of $n_{He^{+}}/n_{H^{+}}$ ratio (0.08$\pm$0.02)observed towards H ii regions ionized by stars of spectral type O6 or hotter star (Shaver et al., 1983). The origin of this lower $n_{He^{+}}/n_{H^{+}}$ value may be related to the non-uniform helium ionization observed in the selected sources.

In the diffuse regions in the sources G10.15-0.34 and G23.46-0.20 less than 33% and 51 %, respectively, of the helium is singly ionized. The detection of helium lines toward high emission measure regions in the envelopes implies stars of type O6 or earlier are embedded in these regions. If these stars are responsible for the ionization of the diffuse gas then helium is expected to be fully ionized. Thus, the situation in the UCH ii envelopes is similar to the WIM and DIR – i.e. stars of type O6 or earlier are required for the ionization of WIM and DIR but helium in these regions is observed to be not fully ionized. Observations toward WIM and DIR probe helium ionization at distances greater than a few tens of parsec from the ionizing stars. Our observations, on the other hand, probe helium ionization in diffuse regions at distances {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}} 10 pc from newly born massive stars. Below we investigate possible origins for the non-uniform helium ionization.

As mentioned earlier, stars hotter than $\sim$ O6 are the likely primary ionization sources of the DIR and WIM. A “hardening” of the radiation field with distance from the ionizing source is expected since the the ionization cross-sections for both H and He decrease with energy proportional to $(h\nu)^{-3}$. If that is the case, can helium be doubly ionized in regions where He*+* lines are not detected ? The velocity range of RRL spectra obtained in our observation include 167$\alpha$, 175$\alpha$ and 178$\alpha$ recombination line transitions of He*++. The velocity range of 167$\alpha$ transition overlaps with the H105$\alpha$ line. The 178$\alpha$ transition is affected by a bad baseline. We therefore examined the 175$\alpha$ transition of He++* but failed to detect the line from any of the observed positions. We further averaged the spectra from all the observed positions after resampling and shifting them in velocity but again failed to detect the He*++* line. The 1$\sigma$ upper limit we obtained is 0.004 K. Thus we conclude that helium is not doubly ionized at the observed positions.

The sizes of the helium and hydrogen ionization zones depend on the number of ‘helium’ ($q_{He}$; i.e. photon wavelength range 228 Å $<\lambda<504$ Å) and ‘hydrogen’ ($q_{H}$; i.e. photon wavelength range 504 Å  $<\lambda<912$ Å) Lyman photons available for ionization (Mathis, 1971). It is convenient to characterize the Lyman photon spectrum by the ratio $\gamma=\frac{q_{He}}{q_{H}}$ (Mathis, 1971). To understand physically the dependence of the ionization zone size to $\gamma$, to a first approximation, we assume (a) that all the $q_{He}$ photons ionize helium and (b) the photons due to the recombination of helium ions ionize hydrogen. The first assumption is justified since the ionization cross section of helium for energies $\geq$ 24.6 eV is larger compared to that of hydrogen. The second assumption follows from the energy level of helium and the probability of the paths involved in the recombination process. With the above assumptions and keeping in mind that the helium recombination rate is $\sim$ 18% of that of hydrogen in region where both atoms are (singly) ionized, the ionization equilibrium implies that the size of helium ionization zone is smaller than the hydrogen ionization zone if $\gamma$ {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}0.2 (see Draine (2011) page 172 for further reading). A numerical solution to this problem was presented by Mathis (1971), where he derived the relationship between $\gamma$ and the sizes of the ionization zones of the two atoms (see Appendix A.3). The observed UCH ii envelopes are ionized by multiple OB stars, which may be members of a cluster. In the early stage of star formation, it is likely that the massive members of the cluster are embedded in (locally) ionization bounded regions and may not be contributing to the ionization of the diffuse regions in the envelopes, which then results in a change in $\gamma$ of the radiation field. Here we ask, if the diffuse regions in the UCH ii envelopes are ionized by the rest of the stars in the cluster, what upper mass of the cluster member can produce the observed $n_{He^{+}}/n_{H^{+}}$ ratio ?

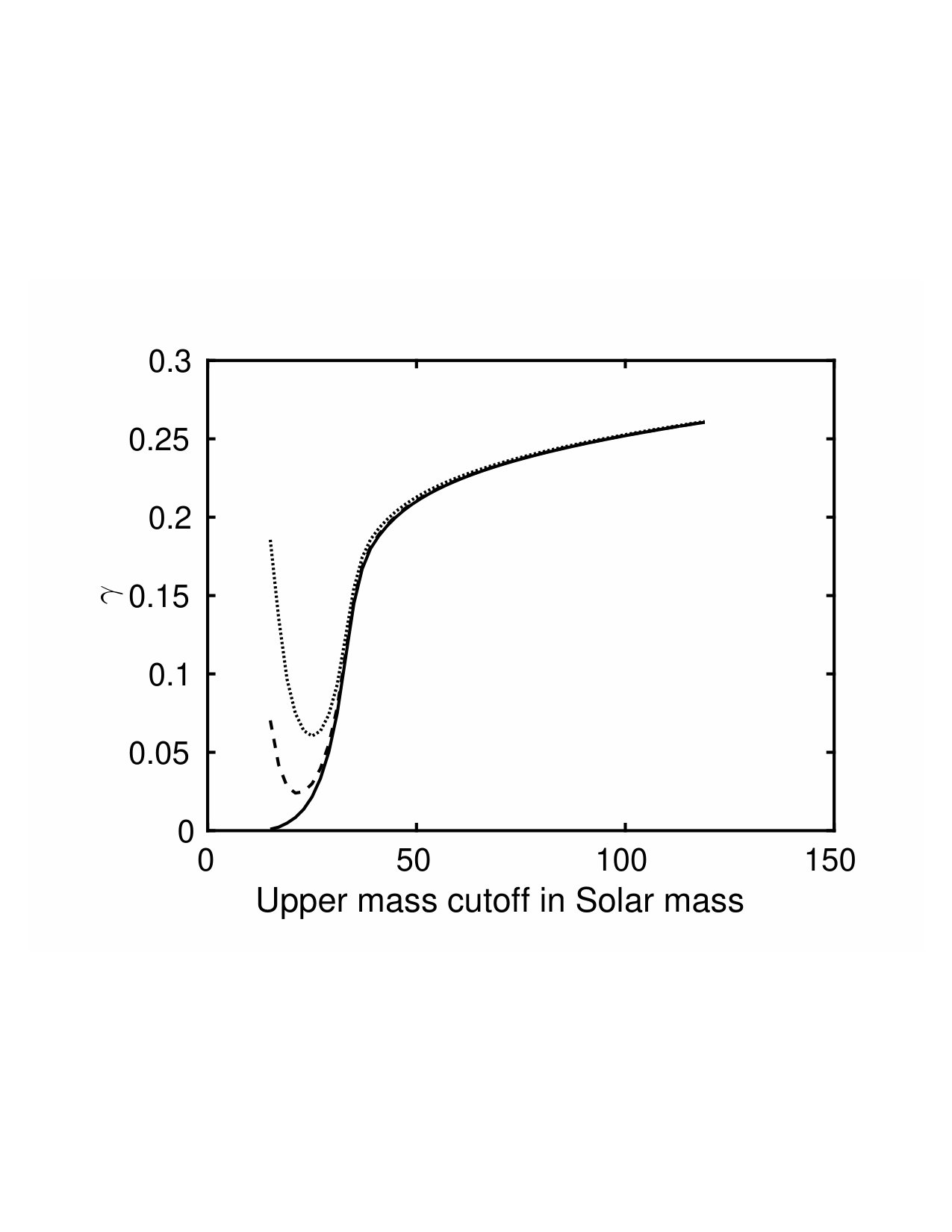

In Appendix A.1, we compute $\gamma$ as a function of the upper cutoff mass for the cluster. The result is shown in Fig. 11. The observed $n_{He^{+}}/n_{H^{+}}$ ratios are used to obtain $\gamma$ for the radiation field as described in Appendix A.3 (no selective dust absorption in considered here, i.e. $a_{0}$ is taken as unity). The measured upper limit to $n_{He^{+}}/n_{H^{+}}$ ratio for G10.15-0.34 and G23.46-0.2 are $\sim$ 0.03 and 0.05 respectively. The estimated $\gamma$ for the two sources are, respectively, 0.04 and 0.06. Thus, from Fig 11, it follows that the upper mass of the cluster member that ionizes these UCH ii  envelopes has to be {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}30 M${}_{\odot}~{}$to explain the observed value of the $n_{He^{+}}/n_{H^{+}}$ ratio. The Lyman continuum emission estimated for G10.15-0.34 and G23.46-0.2 is $\sim$ 5 $\times 10^{49}$ s*-1* (average value for these two sources from Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions). If all the cluster members are contributing to the ionization, then the mean ionizing flux per solar mass is 6.1 $\times 10^{46}$ s*-1* M${}_{\odot}~{}$-1 (see Appendix A.1) implying a cluster mass of $\sim$ 800 M${}_{\odot}~{}$. For this cluster mass, statistical uncertainties in stellar population of the cluster are expected to be large, especially at the high mass end. We note here that our analysis does not take into account this statistical uncertainty and thus the upper mass cutoff estimated above can be somewhat uncertain. Further observations are needed to include the statistical uncertainty in the analysis and will be presented elsewhere.

The infra-red (IR) continuum emission from H ii regions are reprocessed stellar radiation from dust. The bolometric luminosity of H ii regions estimated from the IR emission can thus be used to infer the stellar type. For several H ii regions, the estimated Lyman continuum luminosities, obtained from their radio free-free emission, exceed those expected from their inferred stellar type (Wood & Churchwell, 1989; Sánchez-Monge et al., 2013). It has been suggested that this excess ionizing radiation is due to accreting low-mass stars present in the star-forming region (Smith, 2014). The ‘hot’ spots on the stellar surface in such accreting stars form the additional source for Lyman continuum emission. We investigate whether the presence of such accreting low-mass stars in our observed sources can contribute to the hydrogen Lyman photons thus modifying the net $\gamma$. The details of the analysis is given in Appendix A.2. We find that the effective temperature of the ‘hot’ spot is {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr>\crcr\sim\crcr}}}}} 35000 K during a considerable fraction of the accretion phase111 Since the hot spot effective temperature is in excess of 35000 K, detecting helium RRLs from individual H ii regions with Lyman excess is another test for the ‘cold’ accretion, hot spot model.. Thus the contribution from accreting low mass stars modifies the net $\gamma$ of the ionizing radiation in such a way that the helium is expected to be ionized (see Fig. 11). We conclude that ionizing radiation from accreting low-mass stars cannot be the cause of the low $n_{He^{+}}/n_{H^{+}}$ ratio observed toward the selected sources.

Finally, we investigate whether selective absorption of Lyman photons due to dust in the H ii regions can produce the observed low $n_{He^{+}}/n_{H^{+}}$ ratio, as suggested earlier by Mezger, Smith & Churchwell (1974). Appendix A.3 summarizes the analysis. In this process, the dust absorption cross section of helium Lyman photons is larger than that of hydrogen Lyman photons, which changes $\gamma$ as the photons propagate through the H ii region. This change in $\gamma$ in turn reduces the size of the helium ionization zone, thus lowering the observed $n_{He^{+}}/n_{H^{+}}$ ratio. To estimate the change in $\gamma$, we first express the dust absorption cross sections in terms of the extinction cross section at 13.6 eV provided by the Weingartner & Draine (2001) dust model. The ratio of the helium to hydrogen Lyman photon absorption cross sections, $a_{0}$, is then estimated using the observed $n_{He^{+}}/n_{H^{+}}$ ratio and taking the $\gamma$ due to the stellar cluster as 0.2 ( see Appendix A.3). The results are given in Table 5 for different H ii region filling factors and $f_{uv}$. $f_{uv}$ is a scaling factor that takes into account of deviations in the cross section at 13.6 eV from the Weingartner & Draine (2001) value. The estimated $a_{0}$ values range from $\sim$ 1.8 to 4.4, which are closer to those obtained by Panagia & Smith (1978) but a factor $\sim$ 1.8 smaller than the values obtained by Mezger, Smith & Churchwell (1974). In the Weingartner & Draine (2001) dust model, the extinction cross section increases from $\sim$ 2 $\times 10^{-21}$ cm2/H-atom at 13.6 eV to $\sim$ 4 $\times 10^{-21}$ cm2/H-atom at $\sim$ 18 eV and then declines below $\sim$ 0.2 $\times 10^{-21}$ cm2/H-atom at 24.6 eV. The extinction and absorption cross sections are related through the dust albedo (see Appendix A.3), which is not known in the relevant photon energy range. The estimated values of $a_{0}$ indicates that the absorption cross section needs to be larger by a factor $\geq$ 1.8 for photons of energy 24.6 eV compared to that at 13.6 eV. The dust model of Weingartner & Draine (2001) is derived from extinction measurements toward diffuse ISM and consists of silicate and carbonaceous grains with size 4 $\times 10^{-4}\mu$m to $\sim$ 0.5 $\mu$m. In H ii regions the grains with size {\mathrel{\mathchoice{\lower 2.9pt\vbox{\halign{\m@th\displaystyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\textstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}{\lower 2.9pt\vbox{\halign{\m@th\scriptscriptstyle\hfil#\hfil\cr<\crcr\sim\crcr}}}}}$$10^{-3}\mum (mostly PAH molecules) are destroyed in the central region close to the ionizing star (Pavlyuchenkov, Kirsanova & Wiebe, 2013). The dominant grains are the very small graphite grains, as inferred from the bright 24 $\mu$m emission from many H ii regions. Whether a self consistent modeling of dust emission from H ii regions can provide the above estimated properties for the absorption cross section of very small graphite grains needs further investigation. Thus with the current data, we are unable to conclusively establish whether selective absorption is the cause for low observed $n_{He^{+}}/n_{H^{+}}$ ratio.

6 Summary

We observed helium and hydrogen RRLs near 5 GHz toward envelopes of three UCH ii regions – G10.15-0.34, G23.46-0.20 & G29.96-0.02. This data set is used to investigate helium ionization in the UCH ii envelopes. Our main results are :

Our observations indicated that helium was not uniformly ionized in the UCH ii envelopes. Toward G10.15-0.34 and G23.46-0.20 helium lines were not detected in a few positions and the upper limits obtained for the $n_{He^{+}}/n_{H^{+}}$ ratio were 0.033 and 0.051 respectively. Our data thus show that helium is not fully ionized in the diffuse regions located at a few pc from the young massive stars embedded in the observed sources. 2. 2.

The mean value of the $n_{He^{+}}/n_{H^{+}}$ ratio obtained from the positions nearer to the peak of the radio continuum emission in the observed sources was 0.06$\pm$0.02, consistent with the value measured toward compact H ii regions in the Galaxy. 3. 3.

No $He^{++}$ RRLs were detected toward the observed sources (1 $\sigma$ upper limit is 4 mK), which ruled out the possibility that helium may be doubly ionized in the diffuse regions of the UCH ii envelopes. 4. 4.

Toward G10.15-0.34 & G23.46-0.20, we investigated the spectrum of the radiation that ionizes the diffuse regions. We considered that the stars of type O6 and earlier were embedded in (locally) ionization bounded regions and were not contributing to the ionization of the diffuse regions. The observed upper limit on the $n_{He^{+}}/n_{H^{+}}$ ratio then provided an upper mass of $\sim$ 30 M${}_{\odot}~{}$for the cluster members that ionize the diffuse regions. This upper mass, however, is somewhat uncertain due to statistical uncertainty in the cluster population. 5. 5.

Our investigation ruled out accreting low-mass stars (Smith, 2014; Cesaroni et al., 2016) as a possible source for additional hydrogen ionizing photons required to produce low $n_{He^{+}}/n_{H^{+}}$ ratio in the UCH ii envelopes. 6. 6.

We also investigated whether selective absorption of Lyman photons by dust was responsible for low helium ionization. We found that the ratio of helium and hydrogen absorption cross section of Lyman photons by dust, $a_{0}$, should be in the range 1.8 to 4.4 to account for the observed $n_{He^{+}}/n_{H^{+}}$ ratio. However, a self-consistent model for dust absorption cross section over a wide wavelength range needs to be developed to conclusively establish the role of selective absorption.

Appendix A Appendix: Computation of $\gamma$ and $a_{0}$

Here we summarize the computation of (a) $\gamma$, the helium to hydrogen photon number ratio, due to a star cluster; (b) $\gamma$ with emission from low-mass accreting stars in the cluster and (c) the parameter $a_{0}$ which characterize the selective dust absorption of Lyman photons.

A.1 Expected helium ionization due to a cluster

Computation of hydrogen ($q_{H}$) and helium ($q_{He}$) Lyman photons from a cluster requires a knowledge of these photon emission by stars of different mass and the mass function of the cluster. We consider here a modified version of Muench IMF (Muench et al., 2002) discussed by Murray & Rahman (2010)

[TABLE]

We used $\Gamma=1.35$, the slope of Salpeter IMF, for high mass stars (Murray & Rahman, 2010), $m_{l}=0.1$ M${}_{\odot}~{}$, $m_{1}=0.6$ M${}_{\odot}~{}$($m_{2}=0.025$ M${}_{\odot}~{}$, which is below $m_{l}$). The maximum value for the upper mass cutoff, $m_{u}$, is taken as 120 M${}_{\odot}~{}$. $N_{0}$ is fixed through the normalization

[TABLE]

The Lyman photon emission from stars are taken from the models of Martins, Schaerer & Hiller (2005). With the above IMF and $m_{u}=120$ M${}_{\odot}~{}$, we get a mean mass of $<m>=0.71$ M${}_{\odot}~{}$and mean Lyman continuum photons per sec per M${}_{\odot}~{}$, $<q>/<m>=6.1\times 10^{46}$ s*-1* M${}_{\odot}~{}$-1. These values are consistent with those obtained by Murray & Rahman (2010). The helium to hydrogen Lyman photon number ratio is

[TABLE]

where $<q_{He}>$ and $<q_{H}>$ are the IMF weighted helium and hydrogen Lyman photon emission per sec. $<q_{He}>$ is approximately taken as the Lyman continuum photons with $\lambda<504$ Å (Martins, Schaerer & Hiller, 2005). $\gamma$ is computed for different $m_{u}$ in the range 15 to 120 M${}_{\odot}~{}$. The result of the computation is plotted in Fig. 11.

A.2 The effect of accreting low mass stars

Several H ii regions have Lyman continuum emission in excess of what is expected from the star type determined from their IR emission (Wood & Churchwell, 1989; Sánchez-Monge et al., 2013). A model that can account for the excess Lyman photon emission in terms of accreting low-mass stars is presented by Smith (2014) (see also Hosokawa, Yorke & Omukai 2010). Recent observation of infall tracers toward Lyman excess H ii regions supports the accretion model (Cesaroni et al., 2016). Here we use Fig. 2 and Fig. 3 of Smith (2014), which gives respectively the stellar radius and accretion luminosity as a function of the mass of the accreting star. We consider the ‘cold’ accretion case as suggested by Smith (2014). The mass-radius and mass-luminosity relationships are given for different accretion rates. To account for the observed Lyman excess in H ii regions accretion rates in the range $10^{-5}$ to 10${}^{{}^{-}3}$ M${}_{\odot}~{}$yr*-1* are required. Calculations here are presented with accretion rate of 10*-4* M${}_{\odot}~{}$yr*-1*. The excess Lyman emission originates at ‘hot’ spots created on the surface of the star during ‘cold’ accretion. The temperature, $T_{h}$, of the hot spot is obtained by assuming a fraction, $f_{acc}$, of the accretion luminosity is converted to thermal energy. Thus

[TABLE]

where $L_{acc}$ is the accretion luminosity, $\sigma$ is the Stefan-Boltzmann constant, $R_{s}$ is the radius of the central star, $f_{h}$ is the fraction of the surface area covered by the hot spot. Following Smith (2014), we take $f_{acc}=0.75$ and $f_{h}=0.05$. The Lyman continuum photon emission from this hot spot is taken as that due to a star with the same effective temperature in the models of Martins, Schaerer & Hiller (2005). The fraction of low-mass stars in cold accretion phase with hot spot in the cluster is not known; we assume 1 % and 5% of low-mass stars are in such a phase for the computation. We re-computed $\gamma$ of the radiation from the cluster by considering 1 % and 5% of stars in the mass range 1 to 6 M${}_{\odot}~{}$are in the accretion phase and have hot spots. The result of these computations is shown in Fig. 11.

A.3 The effect of dust within the H ii region

We are interested in the effect of dust within the H ii region on the size of the helium ionization region. In Section 5, we presented a physical argument to illustrate that in a dust free H ii region the size of the ionization zones of helium and hydrogen is determined by the Lyman photon number ratio $\gamma$. In ionization equilibrium equation, the zone sizes are involved to get the total recombination rates of hydrogen and helium, which are volume integrals over the respective ionization regions. The observed helium to hydrogen ratio are obtained from the ratio of antenna temperatures (see Eq. 1). The antenna temperatures depend on the line flux densities and hence are proportional to the total recombination rates. Thus

[TABLE]

where

[TABLE]

the volume integrals in the numerator and denominator are over the regions, respectively, where helium and hydrogen are ionized, $R_{He^{+}}$ and $R_{H^{+}}$ are radii of the two zones, if they are spherical in shape, $n_{He^{+}}$ is the helium ion density, $n_{H^{+}}$ is the proton density, $n_{e}$ is the electron density and $y$ is the cosmic abundance of helium. Mathis (1971) derived numerically the relationship between $\gamma$ and $R$ for $y=0.1$ (Fig. 3 in Mathis (1971); see also comment by Mezger, Smith & Churchwell (1974)).

The dust in the H ii region absorbs and scatters Lyman photons. Let $\sigma_{H}$ and $\sigma_{He}$ be the effective (i.e. weighted by stellar radiation flux density) absorption cross section of hydrogen and helium Lyman photons respectively, assumed to be constant over the corresponding wavelength range. The absorption optical depths of hydrogen and helium Lyman photons are

[TABLE]

[TABLE]

where $x_{g}$ is the dust to gas number density ratio, $\phi$ is the filling factor and the parameter $a_{0}\equiv\sigma_{He}/\sigma_{H}$. The dust model of Weingartner & Draine (2001), derived for diffuse ISM, provides the extinction cross section, $\sigma_{WD}$, near 13.6 eV as $\sim$ 1.8 $\times 10^{-21}$ cm2/H-atom (their Fig. 14, $R_{V}$ = 3.1 model). In Eq. A9 & A10, we expressed the absorption optical depths in terms of the Weingartner & Draine (2001) absorption cross section at 13.6 eV, which is $\sigma_{WD}/(1-\Gamma)$ where $\Gamma$ is the dust albedo. We assume $\Gamma$ is constant over the Lyman continuum. A parameter $f_{uv}\equiv\frac{\sigma_{H}x_{g}}{\sigma_{WD}x_{g}/(1-\Gamma)}$ is defined to take into account of deviations from the Weingartner & Draine (2001) dust model. The absorption due to dust changes the Lyman photon rates, which can be expressed as

[TABLE]

If $\tau_{He}$ is not equal to $\tau_{H}$, the two photon rates change differently, which results in selective dust absorption proposed by Mezger, Smith & Churchwell (1974) (see also Panagia & Smith 1978). Thus selective absorption modifies Lyman photon ratio, $\gamma^{\prime}=\frac{q_{H}^{{}^{\prime}}}{q_{He}^{{}^{\prime}}}$, which in turn affects the sizes of the ionization zones of the two atoms (Mathis, 1971). $\gamma^{\prime}$ is related to the original photon rate $\gamma$ as (Mezger, Smith & Churchwell, 1974; Panagia & Smith, 1978)

[TABLE]

where the ratio $R_{He^{+}}/R_{H^{+}}=R^{1/3}$ for spherically symmetric ionization zones but is a good approximation for non-uniform H ii regions (Mezger, Smith & Churchwell, 1974; Panagia & Smith, 1978). Note that, if the ionization is due to a stellar cluster then in the above equation $\gamma$ and hence $\gamma^{\prime}$ needs to be obtained as given in Eq. A5

Our aim here is to get values for $a_{0}$ from the observed $n_{He^{+}}/n_{H^{+}}$ values or its upper limit. We use Eq. A7 to get $R$ from the observed value $n_{He^{+}}/n_{H^{+}}$ for $y\approx 0.1$. If selective dust absorption is present, then Fig. 3 of Mathis (1971) will provide a $\gamma^{\prime}$ corresponding to the estimated $R$. The $\gamma$ for the cluster radiation is taken as 0.2 (see Fig. 11), a reasonable value for the sources we have observed. Eq. A13 & A9 can then be used to get $a_{0}$ for a given $\phi$ and $f_{uv}$. The radius $R_{H^{+}}$ is estimated from the angular size and distance to the sources provided in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and $n_{e}$ is obtained using the Lyman continuum luminosity given in Table Helium Ionization in the Diffuse Ionized Gas surrounding UCH ii regions and $R_{H^{+}}$. The estimated $a_{0}$ values for a set of $\phi$ and $f_{uv}$ are given in Table 5.

We thank Drs Kim and Koo for providing their 21cm images. We acknowledge the critical comments by an anonymous referee that have significantly improved the presentation of the results in the paper. Facility: Green Bank Telescope
