Tempered Monoids of Real Numbers, the Golden Fractal Monoid, and the Well-Tempered Harmonic Semigroup

TL;DR

This paper introduces the concept of tempered monoids derived from musical harmonics and equal temperaments, revealing unique fractal and product-compatible properties, with implications for musical tuning systems.

Contribution

It defines the tempered monoid structure, characterizes the unique product-compatible and fractal monoids, and connects these mathematical structures to musical tuning, especially the 12-tone equal temperament.

Findings

The logarithmic monoid is the unique product-compatible tempered monoid.

The golden ratio generates the only nonbisectional fractal monoid.

Maximum equal divisions of the octave for odd-filterability is 12, matching Western music.

Abstract

This paper deals with the algebraic structure of the sequence of harmonics when combined with equal temperaments. Fractals and the golden ratio appear surprisingly on the way. The sequence of physical harmonics is an increasingly enumerable submonoid of (R+,+) whose pairs of consecutive terms get arbitrarily close as they grow. These properties suggest the definition of a new mathematical object which we denote a tempered monoid. Mapping the elements of the tempered monoid of physical harmonics from R to N may be considered tantamount to defining equal temperaments. The number of equal parts of the octave in an equal temperament corresponds to the multiplicity of the related numerical semigroup. Analyzing the sequence of musical harmonics we derive two important properties that tempered monoids may have: that of being product-compatible and that of being fractal. We demonstrate that, up to normalization, there is only one product-compatible tempered monoid, which is the logarithmic monoid, and there is only one nonbisectional fractal monoid which is generated by the golden ratio. The example of half-closed cylindrical pipes imposes a third property to the sequence of musical harmonics, the so-called odd-filterability property. We prove that the maximum number of equal divisions of the octave such that the discretizations of the golden fractal monoid and the logarithmic monoid coincide, and such that the discretization is odd-filterable is 12. This is nothing else but the number of equal divisions of the octave in classical Western music.

Figures

Equations

$$H=\{0,12,19,24,28,31,34,36,38,40,42,43\}\cup \{i\in \mathbb{N}:i⩾45\}.$$

$$Q=\{0\}\cup \{n+\frac{k}{2^{n+1}}:n\in \mathbb{N}\text{mbox}and0⩽k⩽2^{n+1}-1\}.$$

$$\{1,1+\frac{1}{4},1+\frac{1}{2},1+\frac{3}{4}\}.$$

$$D=\{0\}\cup \{n+\frac{k}{10^n}:n\in \mathbb{N}\text{mbox}and0⩽k⩽10^n-1\}$$

$$\lfloor r\rfloor_{\alpha}=\left\{\begin{array}[]{ll}\lfloor r\rfloor&\mbox{ if }r-\lfloor r\rfloor<\alpha,\\ \lceil r\rceil&otherwise\end{array}\right.$$

$$[mM]:=\{[mr]:r\in M\},\text{mbox}\lfloor mM\rfloor :=\{\lfloor mr\rfloor :r\in M\},\text{mbox}\lceil mM\rceil :=\{\lceil mr\rceil :r\in M\}.$$

$$19Q$$

$$\displaystyle\big{[}19Q\big{]}$$

$$\lfloor 19Q\rfloor$$

$$16Q$$

$$\displaystyle\big{[}16Q\big{]}$$

$$\lfloor 16Q\rfloor$$

$$L$$

$${\pi }_i(M)=\{i+{\tau }_0^{(i)},i+{\tau }_1^{(i)},\dots ,i+{\tau }_{{\ell }_i-1}^{(i)}\},$$

$${\pi }_{i+1}(M)=\bigcup _{r=0}^{r<{\ell }_i}\bigcup _{s=0}^{s<\ell }\{(i+1)+{\tau }_r^{(i)}+{\tau }_s^{(1)}({\tau }_{r+1}^{(i)}-{\tau }_r^{(i)})\}.$$

$$\{1,1.1,1.2,1.3,1.4,1.5,1.6,1.7,1.8,1.9\}.$$

$$M$$

$$\frac{{\lambda }_3-{\lambda }_2}{{\lambda }_4-{\lambda }_2}=\frac{{\lambda }_5-{\lambda }_4}{{\lambda }_6-{\lambda }_4}.$$

$$\frac{{\log }_2(3/2)}{{\log }_2(4/2)}=\frac{{\log }_2(5/4)}{{\log }_2(6/4)},$$

$$F$$

$$\begin{array}[]{rrcl}f_{0}:&\{0\}&\rightarrow&[0,1)\\ &0&\mapsto&0\\ \\ f_{\ell}:&{\mathbb{N}}_{0}\cap[0,2^{\ell})&\rightarrow&[0,1)\\ &n&\mapsto&\left\{\begin{array}[]{ll}pf_{\ell-1}(n)&\mbox{ if }n<2^{\ell-1},\\ p+qf_{\ell-1}(n-2^{\ell-1})&\mbox{ if }n\geqslant 2^{\ell-1},\end{array}\right.\end{array}$$

$$\begin{array}[]{l}\{2,2+p^{2},2+p,2+2p-p^{2}\},\\ \{3,3+p^{3},3+p^{2},3+2p^{2}-p^{3},3+p,3+p+p^{2}-p^{3},\\ \ \ \ \ \ 3+2p-p^{2},3+3p-3p^{2}+p^{3}\},\\ \end{array}$$

$$\lfloor 12F\rfloor$$

$$\begin{array}[]{ll}11\lambda_{2}=11&11\varphi_{2}=11\\ 11\lambda_{3}=17.4346&11\varphi_{3}=17.7984\\ 11\lambda_{4}=22&11\varphi_{4}=22\end{array}$$

$$\begin{array}[]{ll}11\lambda_{8}=33&11\varphi_{8}=33\\ 11\lambda_{9}=34.8692&11\varphi_{9}=35.5967\\ 11\lambda_{10}=36.5412&11\varphi_{10}=37.2016\\ \end{array}$$

Full text

The sequence of physical harmonics is an increasingly enumerable submonoid of $({\mathbb{R}}^{+},+)$ whose pairs of consecutive terms get arbitrarily close as they grow. These properties suggest the definition of a new mathematical object which we denote a tempered monoid. Mapping the elements of the tempered monoid of physical harmonics from ${\mathbb{R}}$ to ${\mathbb{N}}$ may be considered tantamount to defining equal temperaments. The number of equal parts of the octave in an equal temperament corresponds to the multiplicity of the related numerical semigroup.

Analyzing the sequence of musical harmonics we derive two important properties that tempered monoids may have: that of being product-compatible and that of being fractal. We demonstrate that, up to normalization, there is only one product-compatible tempered monoid, which is the logarithmic monoid, and there is only one nonbisectional fractal monoid which is generated by the golden ratio.

The example of half-closed cylindrical pipes imposes a third property to the sequence of musical harmonics, the so-called odd-filterability property.

We prove that the maximum number of equal divisions of the octave such that the discretizations of the golden fractal monoid and the logarithmic monoid coincide, and such that the discretization is odd-filterable is $12$. This is nothing else but the number of equal divisions of the octave in classical Western music.

Keywords: musical harmonics; equal temperament; monoids; increasing enumeration; numerical semigroup; tempered monoid; logarithm; fractal; golden ratio

Classification: 2010 Mathematics Subject Classification: 00A65; 20M14

1 Introduction

The science of acoustics describes how harmonics of a given fundamental tone appear together with the fundamental tone when this one is played by a mechanical musical instrument. The way harmonics arise in each instrument describes its timbre. This paper deals with the algebraic structure of the sequence of harmonics when combined with equal temperaments. Fractals and the golden ratio appear surprisingly on the way.

Hidden fractal patterns in music

Fractal geometry, coined by Mandelbrot [19, 20], studies self-similarity, appearing when each small piece of a shape contains a scaled copy of the whole shape, and, in turn, each small piece of this scaled copy contains an even smaller scaled copy of the whole shape, and so on. This self-similarity pattern has then been observed in many other fields apart from geometry. Music has not been an exception [24, 15, 9, 18, 3]. Brothers, among his vast literature (see [5] and all the references in the chapter) identifies several ways of scaling in music: duration, pitch, melodic intervals, melodic moments, harmonic intervals, structure, and melodic or rhythmic motivic scaling. This way, fractal patterns are identified in scores by Bach, Mozart, Ravel, Chopin, Beethoven, Strauss, Debussy, and even The Beatles. Wuorinen [25] relaxes the notion of self-similarity to self-affinity and specifies three levels at which the fractal characteristics of music seem to manifest themselves: the acoustic signal, pitch and rhythm, and structure. The three levels form a progression from the concrete-physical to the metaphorical-structural, and thus, increasing in artistic significance while diminishing in specificity. On his side, Madden [18] points at fractal behaviour of the harmonic sequence but reducing it to its logarithmic behaviour. Our discussion starts there. Wuorinen [25] postulates that although the musical sound has been traditionally divided into pitch, rhythm, timbre and loudness, only pitch and rhythm can be organized in a fractal way. He asserts that “timbre and loudness seem not to have fractal characteristics as they figure in music”. Frame and Urry [8], state that “fractal aspects of music are patterns hidden by our sequential perception of music. What other fractal patterns will music reveal?” We can say that in this paper we reveal one of such fractal patterns mentioned by Frame and Urry [8]. Our pattern is related to the algebraic structure of the sequence of harmonics when combined with equal temperaments, and so, indirectly related to timbre as addressed by Wuorinen.

The golden ratio

The golden ratio is, if not the most, one of the most popular irrational numbers. It appears in nature and in art and it is strongly related to the equally popular Fibonacci numbers. The literature about the golden ratio, also called the divine proportion, is enormous and it is not our aim to be exhaustive. We just mention the book [17] and refer the reader to all the references therein. Music analysts speculate about the presence of the divine proportion in many compositions of several authors such as Bach and Mozart, or more insistently in Béla Bartók’s scores. Certainly, many 20th and 21st century composers have used it consciously in their compositions. Our fractal patterns will be indeed generated by the golden ratio.

The harmonic sequence

Let us return to the phenomenon of harmonics. Tones are essentially wave frequencies and the harmonics of a fundamental tone correspond to integer multiples of that frequency.

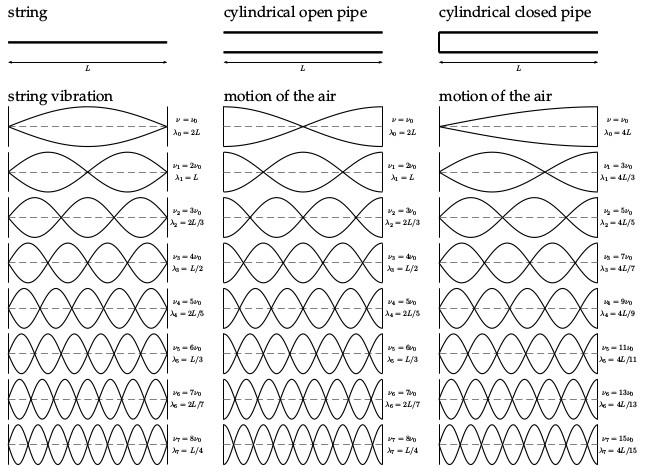

Figure 1 illustrates three different models of standing waves. The first one corresponds to the vibration of a string with fixed ends, the second one corresponds to the motion of the air inside a cylindrical pipe with two open ends such as a flute, and the third one corresponds to the motion of the air inside a cylindrical pipe with one open end and one closed end, such as a clarinet or an organ pipe. In the three cases, the first wave represents a fundamental tone and the subsequent waves represent the harmonics associated with the fundamental tone. In the example of the string and the open pipe, the frequencies of the harmonics are all integer multiples of the frequency of the fundamental, while in the example of a pipe with one open end and one closed end, the frequencies of the harmonics are all odd multiples of the frequency of the fundamental. The octave corresponds to a ratio of frequencies equal to $2$.

Equal temperaments

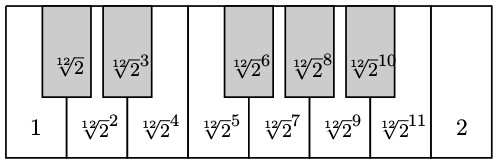

In twelve-tone equal temperament the octave is divided into $12$ equal semitones and the scale is tuned so that the ratio of the frequencies of consecutive semitones is $\sqrt[12]{2}$. Thus, the ratio of the frequencies corresponding to a tone (i.e. two semitones) is $(\sqrt[12]{2})^{2}$, the ratio of frequencies corresponding to a minor third (a tone plus a semitone) is $(\sqrt[12]{2})^{3}$, and so on. In particular, the ratio of the frequencies corresponding to an octave is $(\sqrt[12]{2})^{12}=2$. Conversely, the number of semitones between notes of frequencies $f_{1}$ and $f_{2}$ is $\log_{\sqrt[12]{2}}(f_{1}/f_{2})=12\log_{2}(f_{1}/f_{2})$. If another number, say $n$, of equal divisions of the octave is used, then the frequencies of consecutive notes differ by a factor of $\sqrt[n]{2}$, so that the number of $n$-th divisions between notes with frequencies $f_{1}$ and $f_{2}$ is $n\log_{2}(f_{1}/f_{2})$.

Matching the harmonic sequence and equal temperaments

The frequencies of any equal temperament do not match the frequencies of the pure notes in the harmonic series, since the frequencies of pure harmonic notes correspond to integer multiples of the frequency of the fundamental note while the frequencies in equal temperament correspond, except for the octaves, to nonrational multiples of the frequency of the fundamental. In this paper we deal with the properties of the harmonic series when matched to equal temperaments, that is, when the pure-harmonic tones are approximated by their neighboring counterparts in equal temperament.

If one focuses on the example of the string with fixed ends, the notes corresponding to the harmonic series of C2 are approximately the ones in Figure 2 (a), when approximated by the twelve-tone equal temperament. The same notes appear in cylindrical open pipes. In the example of cylindrical pipes with one open end and one closed end, only half of these harmonics appear, namely, the ones in Figure 2 (b).

For each note in the harmonic sequence of Figure 2 (a), take its distance in semitones to the fundamental tone. We get the following set.

[TABLE]

These semitone intervals collapse at some point, since there is not a one-to-one correspondence from pure harmonics to semitone intervals.

The discrete model of numerical semigroups

The set $H$ is the result of amplifying the set of logarithms $\{\log_{2}{1},\log_{2}{2},\log_{2}{3},\dots\}$ by a factor of 12 and then rounding the obtained real numbers to integer numbers. The logarithms, as is vastly known, and as will be expained later, appear when one thinks of the values of notes as their relative interval with respect to the fundamental and when one requires the intervals between notes to behave like a proper distance. This is related to what we call the product-compatibility property. Notice that $12\log_{2}(13)=44.4$ approximately and so, depending on the rounding criterion, the $13$th harmonic can be considered to be at $44$ semitones or at $45$ semitones of the fundamental. We chose to consider the 13th harmonic at 45 semitones of fundamental tone, as it has been preferred by traditional authors. This will be justified later. More recently, though, composers influenced by “spectral music” have often represented this harmonic by the pitch 44 semitones above the fundamental. See [23] for another mathematical justification of representing the 13th harmonic as 45 semitones above the fundamental.

The procedure of amplifying a sequence of real numbers and then mapping them to integer numbers is what we call a discretization of the initial sequence of real numbers. This way, $H$ is a discretization of the sequence of logarithms with amplifying factor $12$ and rounding threshold $0.4$.

The sequence of logarithm-related real numbers is an ideal physical model while its discretization is a feasible realization of it. Natural properties of the discretization, in the context of harmonics, are: (i) it is a subset of non-negative integers containing [math], (ii) only finitely many non-negative integers are missing, and (iii) it is closed under addition. The addition closure amounts to the fact that the harmonics of a harmonic of a fundamental tone should be harmonics of that fundamental tone. These three properties are exactly the properties defining a numerical semigroup (see Section 2). Hence, we call the set $H$ the well-tempered harmonic semigroup.

Discretizing the sequence of physical harmonics into numerical semigroups may be considered tantamount to setting equal temperaments. The number of equal parts of the octave in an equal temperament is the amplifying factor in the discretization and it corresponds to the multiplicity of the related numerical semigroup, i.e. its smallest non-zero element. The present paper treats special ideal sequences of real numbers and their discretizations into numerical semigroups, using a variety of multiplicities to discretize, so obtaining different numerical semigroups.

The ${\mathbb{R}}$ model of tempered monoids

The ideal sets of real numbers that we want to discretize must be an increasing sequence of non-negative real numbers. Other natural properties of these sequences, paralleling what has been said in the previous paragraphs, are that (i) they must contain [math], (ii) the limit of the differences of consecutive elements is zero, and (iii) the sequences must be closed under addition. We say that an increasing sequence satisfying (i), (ii), and (iii) is a tempered monoid (see Section 2).

Let us concentrate on two additional properties that tempered monoids can have, which have a translation into the harmonic series. The first one is the product-compatibility, arising when one tries to fit the multiplicative nature of harmonics and frequency ratios in the additive environment of pitch and interval distances. Indeed, suppose that the pitch difference of each harmonic with respect to the fundamental tone is represented by the increasing sequence $\rho_{1}=0,\rho_{2},\rho_{3},\dots$. Now, the difference between the pitch of the third harmonic and the pitch of the fundamental tone must be the same as the difference between the pitch of the third harmonic of the fifth harmonic and the pitch of the fifth harmonic itself (see Figure 3). This means that $\rho_{15}-\rho_{5}=\rho_{3}$. In general, for any positive integers $i$, $j$, it is required that $\rho_{ij}-\rho_{i}=\rho_{j}$ or, equivalently, $\rho_{ij}=\rho_{i}+\rho_{j}$. The tempered monoids satisfying this equality for any positive integers $i,j$ will be called product-compatible tempered monoids.

The second additional property of interest of a tempered monoid is that of being fractal. We can divide a segment in a fractal way as follows. First we halve it. We call this a bisection of the interval since the two parts in which we divide the interval are equal. Then we halve each half and so on, indefinitely (see Figure 4 (a)). The same idea can be applied by dividing the interval into two parts in a given proportion, not necessarily into two equal parts, and so, not necessarily a bisection. Next, divide each of the parts following the same proportions as in the first cut. Divide again each of the parts in the same proportions and so on. We obtain an apparently chaotic but strictly fractal partition (see Figure 4 (b)).

Similarly, take the octave as the segment to be divided and restrict to the twelve-tone equal temperament approximation of harmonics. We can observe that in each next octave in the harmonic series, the intervals appearing in the previous octave are divided always into two parts with the same portions (see Figure 5). Observe that the octave between the second and fourth harmonics is divided by the third harmonic leaving $7/12$ of the octave on the left and $5/12$ on the right. The two intervals obtained now, C-G, G-C, are then repeated within the octave comprised between the fourth and eighth harmonics and subsequently divided leaving the best possible approximation (restricted to the twelve-tone equal temperament) of $7/12$ of the interval on the left and the best possible approximation of $5/12$ of the interval on the right, thus obtaining C-E, E-G and G-B$\flat$, B$\flat$-C. Each black note in Figure 5 is a new note that did not appear in any previous octave, and which divides an interval of two notes appearing in the previous octave in the same portions of approximately $7/12$ of the interval on the left and $5/12$ of the interval on the right. The division of the octave into $12$ equal parts is used here in the introduction for simplicity. In the following sections all possible divisions of the octave are considered a priori.

Lastly, the frequencies of the harmonics of cylindrical pipes with one open end and one closed end suggest to analyze the so-called odd-filterable tempered monoids and odd-filterable numerical semigroups. For tempered monoids, odd-filterable means that the subsequence of elements with odd index is closed under addition. The discretization of a tempered monoid into a numerical semigroup collapses at some point, in the sense that two different real elements of the tempered monoid map to the same integer element of the numerical semigroup. Now, we say that a numerical semigroup is odd-filterable if the subsequence of elements with odd index is closed under addition before collapse. That is, the sums of pairs in it that are smaller than the collapse are either in the subsequence or are larger than the collapse.

Our results

In this paper we prove that there is only one product-compatible tempered monoid up to normalization, and that there is only one nonbisectional fractal monoid, up to normalization. Furthermore we will prove that the unique nonbisectional division for fractal monoids is nothing else but the inverse of the golden ratio. The quotient $7/12$ used in the previous paragraph is an approximation of it. Notice that although there are much better rational approximations to the golden ratio, $7/12$ is its closest fraction when restricted to denominator $12$.

Then we will show that the discretization of the unique product-compatible tempered monoid and the discretization of the unique nonbisectional fractal monoid coincide only when we divide the octave into $1$, $2$, $3$, $4$, $5$, $6$, $7$, $8$, $9$, $10$, $12$, $13$, or $18$ parts. We finally will prove that when dividing the octave into $13$ or $18$ equal parts, the related numerical semigroups are not odd-filterable, but when dividing it into $12$ equal parts, it keeps the odd-filterability property.

This allows us to conclude that the maximum number of equal divisions of the octave such that the discretization of the unique product-compatible tempered monoid is simultaneously fractal and odd-filterable is $12$. The resulting numerical semigroup is the well-tempered harmonic semigroup $H$ in (1). This gives an alternative justification for the choice of number $12$ in the division of the octave into equal parts.

For a mathematical explanation of different stationary waves produced in different instruments and temperaments see [13], [14], and [22]. Other references treating the number of equal divisions of the octave are [2], [7], and [16]. For a general reference on numerical semigroups see [21].

2 Numerical semigroups and tempered monoids

In this section we introduce the two main mathematical objects of this paper. They are numerical semigroups and the newly defined tempered monoids. Both are examples of increasingly enumerable submonoids of $({\mathbb{R}}^{+},+)$, called $\omega$-monoids in [4]. Different results related to submonoids of $({\mathbb{R}}^{+},+)$ can be found in [6, 12, 1, 10, 11].

Definition 2.1**.**

A numerical semigroup is an additive submonoid of ${\mathbb{N}}_{0}$ with finite complement in ${\mathbb{N}}_{0}$. The second element of $S$, i.e., the smallest non-zero element of $S$, is its multiplicity, denoted $m(S)$.

The set $H$ in equation (1) is a numerical semigroup of multiplicity $12$.

In this paper we introduce the notion of tempered monoid.

Definition 2.2**.**

A tempered monoid is a strictly increasing sequence $M=\{\mu_{1},\mu_{2},\mu_{3},\dots\}$ of non-negative real numbers such that (i) $\mu_{1}=0$, (ii) $\lim_{n\rightarrow\infty}(\mu_{n+1}-\mu_{n})=0$, (iii) $M$ is closed under addition, that is, for any $i,j\in{\mathbb{N}}$, there exists $k\in{\mathbb{N}}$ such that $\mu_{k}=\mu_{i}+\mu_{j}$.

A tempered monoid is called normalized if its smallest non-zero element is $1$. If a tempered monoid $M$ is normalized, for $i>0$ we define its $i$-th period, denoted $\pi_{i}(M)$, as the set of elements in $M$ that are at least as large as $i$ and that are strictly smaller than $i+1$. The granularity of $M$ is the cardinality of its first period.

Example 2.3*.*

The following set is a tempered monoid.

[TABLE]

Its granularity is $4$. Its first period is

[TABLE]

Example 2.4*.*

The following set is a tempered monoid.

[TABLE]

Its granularity is $10$ and its $i$-th period has cardinality $10^{i}$.

3 Discretization of tempered monoids to obtain numerical semigroups

In this section we explain how we can obtain numerical semigroups by discretizing the elements of tempered monoids.

For a real number $r$ let $[r]$ be its integer rounding by the nearest integer, let $\lfloor r\rfloor$ be its integer floor, and let $\lceil r\rceil$ be its integer ceiling. More generally, given $r\in{\mathbb{R}}$ and $\alpha\in{\mathbb{R}}$ with $0\leqslant\alpha\leqslant 1$, let

[TABLE]

In particular, $\lfloor\cdot\rfloor=\lfloor\cdot\rfloor_{1}$, $\lceil\cdot\rceil=\lfloor\cdot\rfloor_{0}$, $[\cdot]=\lfloor\cdot\rfloor_{0.5}$.

For a tempered monoid $M$ and a positive integer $m$ we can similarly apply the operations to the tempered monoid elementwise:

[TABLE]

More generally, $\lfloor mM\rfloor_{\alpha}:=\{\lfloor mr\rfloor_{\alpha}:r\in M\}.$

The first and second condition, respectively, in the definition of a tempered monoid imply that the set $\lfloor mM\rfloor_{\alpha}$ satisfies the first and second condition, respectively, in the definition of a numerical semigroup, for any $\alpha$. However, the third condition in the definition of a tempered monoid $M$ does not guarantee in general the third condition for the set $\lfloor mM\rfloor_{\alpha}$ to be a numerical semigroup for a general positive integer $m$ and a real number in the unit interval $\alpha$.

Example 3.1*.*

Let $Q$ be the set in Example 2.3 and let $m=19$. Then,

[TABLE]

Notice that $33,40\in[19Q]$, but $33+40=73\not\in[19Q]$, while $28\in\lfloor 19Q\rfloor$, but $28+28=56\not\in\lfloor 19Q\rfloor$. Hence, neither $[19Q]$ nor $\lfloor 19Q\rfloor$ are numerical semigroups.

We say that a normalized tempered monoid $M$ is discretizable by a multiplicity $m$ under rounding, under flooring, under ceiling or, more generally, under rounding by $\alpha$, if $[mM]$, $\lfloor mM\rfloor$, $\lceil mM\rceil$, or $\lfloor mM\rfloor_{\alpha}$, respectively, is a numerical semigroup. Notice that if the resulting integer set is a numerical semigroup, then $m$ is the multiplicity of the resulting numerical semigroup, in each case. It is easy to check that every normalized tempered monoid is discretizable at least by $m=1$. When $m=1$ the semigroup obtained is the semigroup of the naturals with the zero.

Example 3.2*.*

Let $Q$ be the set in Example 2.3 and let $m=16$. Then,

[TABLE]

Since both $[16Q]$ and $\lfloor 16Q\rfloor$ are numerical semigroups, $Q$ is discretizable by $16$ either by rounding or by flooring.

4 Product-compatible tempered monoids

In this section we introduce the property of product-compatibility and prove that there is only one normalized product-compatible tempered monoid. We call it the logarithmic monoid.

Definition 4.1**.**

We say the tempered monoid $M=\{\mu_{1},\mu_{2},\mu_{3},\dots\}$ with $\mu_{i}<\mu_{i+1}$ is product-compatible if $\mu_{ij}=\mu_{i}+\mu_{j}$ for any $i,j\in{\mathbb{N}}$. For a justification of this definition, see the introduction and Figure 3.

Example 4.2*.*

The logarithmic monoid is the set $L=\{\log_{2}(i):i\in{\mathbb{N}}\}$. Denote $\lambda_{1}=\log_{2}(1)$, $\lambda_{2}=\log_{2}(2),\dots$ See next the (rounded) smallest elements in $L$:

[TABLE]

It is left to the reader to check that $L$ is a product-compatible tempered monoid. It follows from the well-known property of logarithms stating that the logarithm of a product is the sum of logarithms.

Theorem 4.3**.**

The logarithmic monoid $L$ is the unique product-compatible normalized tempered monoid.

Proof.

Suppose that $M=\{\mu_{1},\mu_{2},\mu_{3},\dots\}$ with $\mu_{i}<\mu_{i+1}$ is a normalized product-compatible tempered monoid. One can check by induction that $\mu_{j^{k}}=k\mu_{j}$ for any $k\in{\mathbb{N}}$, $j\in{\mathbb{N}}$. Now, it is claimed that $\mu_{i}=\log_{2}(i)$ for any $i\in{\mathbb{N}}$. Indeed, suppose that this does not hold for some $i\in{\mathbb{N}}$. Then $\mu_{i}<\log_{2}(i)$ or $\mu_{i}>\log_{2}(i)$. Suppose first that $\mu_{i}<\log_{2}(i)$. There exist $p,q\in{\mathbb{N}}$ such that $\mu_{i}<p/q<\log_{2}(i)$. In particular, $q\mu_{i}<p$ while $q\log_{2}(i)>p$. This, together with equality $\mu_{j^{k}}=k\mu_{j}$ implies that $\mu_{i^{q}}=q\mu_{i}<p=p\mu_{2}=\mu_{2^{p}}$, while $i^{q}=2^{q\log_{2}(i)}>2^{p}$, a contradiction since the sequence $\mu_{1},\mu_{2},\mu_{3},\dots$ is supposed to be increasing. An analogous contradiction is found for the case $\mu_{i}>\log_{2}(i)$. ∎

5 Fractal monoids

In this section we define fractal monoids and we prove that there is only one nonbisectional fractal monoid of granularity $2$. It is generated by the golden ratio and it is hence called the golden fractal monoid.

Definition 5.1**.**

Let $M=\{\mu_{1},\mu_{2},\mu_{3},\dots\}$ with $\mu_{i}<\mu_{i+1}$ be a normalized tempered monoid with granularity $\ell$. For any $i\in{\mathbb{N}}$, let $\ell_{i}$ be the cardinality of the $i$th period of $M$ and suppose that

[TABLE]

with $\tau^{(i)}_{0}=0<\tau^{(i)}_{1}<\tau^{(i)}_{2}<\dots<\tau^{(i)}_{\ell_{i}-1}<\tau^{(i)}_{\ell_{i}}=1$. We say that $M$ is fractal if for any $i\in{\mathbb{N}}$,

[TABLE]

Roughly speaking, we say that a tempered monoid is a fractal monoid if for any $i\in{\mathbb{N}}$ and for any interval between consecutive elements in the $i$th period, the same interval appears in the next period (just adding $1$ to each end) divided exactly in the same portions as the interval from $1$ to $2$ is divided in the first period.

It is obvious that for each first period there exists exactly one such construction. So, for a fixed first period, there is at most one fractal monoid. Whether it exists or not will depend on whether the construction in (2) gives a set closed under addition or not. If this is the case, we say that the first period generates the tempered monoid as a fractal monoid.

Example 5.2*.*

The tempered monoid $D=\{0\}\cup\{n+\frac{k}{10^{n}}:n\in{\mathbb{N}}\mbox{ and }0\leqslant k\leqslant 10^{n}-1\}$ from Example 2.4 is a fractal monoid. It is generated by the period

[TABLE]

Example 5.3*.*

Let us parallel the observation in Figure 5, analyzing the period $\{1,1+7/12\}$. If this period generated a fractal monoid, the monoid should be

[TABLE]

However, this is not a tempered monoid since it is not closed under addition. Indeed, $2(1+7/12)=3+2/12\not\in M$. Thus, $\{1,1+7/12\}$ does not generate a fractal monoid.

Example 5.4*.*

The tempered monoid $L=\{\lambda_{i}=\log_{2}(i):i\in{\mathbb{N}}\}$ in Example 4.2 is not fractal. Indeed, since its granularity is $2$, for it to be fractal it should satisfy

[TABLE]

In that case one would have

[TABLE]

implying that $(\log_{2}(1.5))^{2}=\log_{2}(1.25)$, which is false.

Lemma 5.5**.**

The cardinality of the $i$th period of a fractal monoid of granularity $\ell$ is $\ell^{i}$, for any $i\in{\mathbb{N}}$.

Example 5.6*.*

For any integer $\ell\geqslant 2$, the period $\{1,1+1/\ell,\dots,1+(\ell-1)/\ell\}$ generates a fractal monoid whose $i$th period is $\pi_{i}=\{i,1+1/\ell^{i},1+2/\ell^{i},\dots,1+(\ell^{i}-1)/\ell^{i}\}$.

This example leads to the next definition.

Definition 5.7**.**

We say that the tempered monoid generated by the period $\{1,1+1/\ell,\dots,1+(\ell-1)/\ell\}$, for $\ell\geqslant 2$ is the perfect fractal monoid of granularity $\ell$. The perfect fractal monoid of granularity $2$ is called the bisectional fractal monoid.

Example 5.8*.*

The fractal monoid $D$ in Example 2.4 is a perfect fractal monoid.

We denote the golden ratio $\frac{1+\sqrt{5}}{2}$ by $\phi$. The proof of the next theorem requires some lemmas and the whole set has been moved to the end of the section.

Theorem 5.9**.**

The period $\{1,\phi\}$ generates a fractal monoid. 2. 2.

The unique nonbisectional normalized fractal monoid of granularity $2$ is exactly the fractal monoid generated by the period $\{1,\phi\}$.

Definition 5.10**.**

The golden fractal monoid is the fractal monoid generated by the period $\{1,\phi\}$. It is denoted by $F$ and its terms are written $\varphi_{1},\varphi_{2},\varphi_{3},\dots$ The first (rounded) terms are listed below.

[TABLE]

The proof of Theorem 5.9 will be preceded by three lemmas. For the lemmas we need some notation. Given $p\in(0,1)$, let $q=1-p$ and define

[TABLE]

for $\ell\in{\mathbb{N}}$. Notice that $f_{\ell}$ depends on the choice of $p$. The next lemma is a consequence of the definitions and describes the relationship between the maps $f_{\ell}$ and fractal monoids.

Lemma 5.11**.**

If a tempered monoid $M=\{\mu_{1},\mu_{2},\mu_{3},\dots\}$ with $\mu_{i}<\mu_{i+1}$ is fractal and has $\{1,1+p\}$ as its first period, then

• •

the elements of $M$ are exactly $\mu_{i}=\lfloor\log_{2}(i)\rfloor+f_{\lfloor\log_{2}(i)\rfloor}(i-2^{\lfloor\log_{2}(i)\rfloor})$,

• •

*the *$\ell$th period of $F$ is $\{\ell+f_{\ell}(0),\ell+f_{\ell}(1),\ell+f_{\ell}(2),\ell+f_{\ell}(3),\dots,\ell+f_{\ell}(2^{\ell}-1)\}$, with $\ell+f_{\ell}(0)<\ell+f_{\ell}(1)<\ell+f_{\ell}(2)<\ell+f_{\ell}(3)<\dots<\ell+f_{\ell}(2^{\ell}-1)$.

The next lemma states a simple result that will be used several times in the proofs of the following lemmas. It can be proved by induction.

Lemma 5.12**.**

If $\ell,n\in{\mathbb{N}}_{0}$ with $\ell\geqslant 1$ and $n<2^{\ell-1}$, then $f_{\ell-1}(n)=f_{\ell}(2n)$.

In the next lemma we take $p=\phi-1=\frac{-1+\sqrt{5}}{2}=0.618033\dots$. We use that, in this case, $p^{2}=1-p$, $1=p+p^{2}$ and $2p=1+p^{3}$.

Lemma 5.13**.**

Let $p=\phi-1$, $q=1-p$, and let $\ell,n\in{\mathbb{N}}_{0}$ with $\ell>0$ and $n<2^{\ell}$. The sum $p+f_{\ell}(n)$ is one of

• •

$f_{\ell+1}(c)$* for some $0\leqslant c<2^{\ell+1}$,*

• •

$1+pf_{\ell+1}(d)$* for some $0\leqslant d<2^{\ell+1}$.*

Proof.

If $\ell=1$ then $n$ is either [math] or $1$ and $p+f_{1}(0)=p+0=p=f_{1}(1)$, while $p+f_{1}(1)=p+p=1+p^{3}=1+pf_{2}(1)$. Suppose that $\ell>1$ and assume that the lemma is true for $\ell-1$.

If $n<2^{\ell-2}$, then $p+f_{\ell}(n)=p+pf_{\ell-1}(n)=p+p^{2}f_{\ell-2}(n)=f_{\ell-1}(n+2^{\ell-2})=f_{\ell+1}(2^{2}n+2^{\ell})$, with $0\leqslant 2^{2}n+2^{\ell}<2^{\ell+1}$.

If $2^{\ell-2}\leqslant n<2^{\ell-1}$, then $p+f_{\ell}(n)=p+pf_{\ell-1}(n)=p+p^{2}+p^{3}f_{\ell-2}(n-2^{\ell-2})=1+p^{3}f_{\ell-2}(n-2^{\ell-2})=1+pf_{\ell}(n-2^{\ell-2})=1+pf_{\ell+1}(2n-2^{\ell-1})$, with $0\leqslant 2n-2^{\ell-1}<2^{\ell+1}$.

If $n\geqslant 2^{\ell-1}$, then $p+f_{\ell}(n)=2p+p^{2}f_{\ell-1}(n-2^{\ell-1})=1+p^{3}+p^{2}f_{\ell-1}(n-2^{\ell-1})=1+p^{2}(p+f_{\ell-1}(n-2^{\ell-1}))$ with $n-2^{\ell-1}<2^{\ell-1}$. By the induction hypothesis, this either equals $1+p^{2}f_{\ell}(c^{\prime})=1+pf_{\ell+1}(c^{\prime})$ with $c^{\prime}<2^{\ell}$, and hence, with $c^{\prime}<2^{\ell+1}$, or $1+p^{2}(1+pf_{\ell}(d^{\prime}))=1+p(p+p^{2}f_{\ell}(d^{\prime}))=1+pf_{\ell+1}(d^{\prime}+2^{\ell})$ with $d^{\prime}<2^{\ell}$, and thus, with $d^{\prime}+2^{\ell}<2^{\ell+1}$.

∎

Lemma 5.14**.**

Let $p=\phi-1$ and $q=1-p$. If $i,j,a,b\in{\mathbb{N}}_{0}$, with $0\leqslant a<2^{i}$ and $0\leqslant b<2^{j}$, then $f_{i}(a)+f_{j}(b)$ is one of

• •

$f_{i+j}(c)$* for some $0\leqslant c<2^{i+j}$,*

• •

$1+f_{i+j+1}(d)$* for some $0\leqslant d<2^{i+j+1}$.*

Proof.

We proceed by induction on $i+j$. If $i+j$ equals [math] then the result is obvious. Suppose that $i+j>0$. If one of $i$ and $j$ is [math] then the result is also obvious. Therefore, we can assume that both $i$ and $j$ are non-zero. On one hand, $f_{i}(a)=pf_{i-1}(a^{\prime})$ or $f_{i}(a)=p+qf_{i-1}(a^{\prime})$ for some $a^{\prime}<2^{i-1}$. On the other hand, $f_{j}(b)=pf_{j-1}(b^{\prime})$ or $f_{j}(b)=p+qf_{j-1}(b^{\prime})$ for some $b^{\prime}<2^{j-1}$. Hence, one of the next cases holds.

$f_{i}(a)+f_{j}(b)=pf_{i-1}(a^{\prime})+pf_{j-1}(b^{\prime})=p(f_{i-1}(a^{\prime})+f_{j-1}(b^{\prime}))$ for some $a^{\prime}<2^{i-1}$ and some $b^{\prime}<2^{j-1}$. By the induction hypothesis, this equals one of

• •

$pf_{i+j-2}(c)$ for some $0\leqslant c<2^{i+j-2}$,

• •

$p(1+f_{i+j-1}(d))$ for some $0\leqslant d<2^{i+j-1}$.

On one hand, $pf_{i+j-2}(c)=f_{i+j-1}(c)=f_{i+j}(2c)$, with $2c<2^{i+j}$. On the other hand, $p(1+f_{i+j-1}(d))$ can be either $p(1+pf_{i+j-2}(d^{\prime}))$ or $p(1+p+qf_{i+j-2}(d^{\prime}))$ for some $d^{\prime}<2^{i+j-2}$. But $p(1+pf_{i+j-2}(d^{\prime}))=p+p^{2}f_{i+j-2}(d^{\prime})=f_{i+j-1}(d^{\prime}+2^{i+j-2})=f_{i+j}(2d^{\prime}+2^{i+j-1})$ with $2d^{\prime}+2^{i+j-1}<2^{i+j}$, while $p(1+p+qf_{i+j-2}(d^{\prime}))=p+p^{2}+p^{3}f_{i+j-2}(d^{\prime})=1+f_{i+j+1}(d^{\prime})$, with $d^{\prime}<2^{i+j+1}$. 2. 2.

$f_{i}(a)+f_{j}(b)=pf_{i-1}(a^{\prime})+p+qf_{j-1}(b^{\prime})$ for some $a^{\prime}<2^{i-1}$ and some $b^{\prime}<2^{j-1}$. If $i=1$, then $a^{\prime}=0$ and $f_{i}(a)+f_{j}(b)=p+qf_{j-1}(b^{\prime})=f_{j}(b^{\prime}+2^{j-1})=f_{i+j}(2^{i}b^{\prime}+2^{i+j-1})$, with $2^{i}b^{\prime}+2^{i+j-1}<2^{i+j}$. Therefore, we can assume $i>1$. Now, by the definition of $f$, the sum $f_{i}(a)+f_{j}(b)$ equals one of

• •

$p^{2}f_{i-2}(a^{\prime})+p+qf_{j-1}(b^{\prime})=p+p^{2}(f_{i-2}(a^{\prime})+f_{j-1}(b^{\prime}))$ if $a^{\prime}<2^{i-2}$,

• •

$p(p+qf_{i-2}(a^{\prime}-2^{i-2}))+p+qf_{j-1}(b^{\prime})=1+p^{2}(pf_{i-2}(a^{\prime}-2^{i-2})+f_{j-1}(b^{\prime}))$ if $a^{\prime}\geqslant 2^{i-2}$.

The first sum, by the induction hypothesis, is either $p+q(f_{i+j-3}(c^{\prime}))=f_{i+j-2}(c^{\prime}+2^{i+j-3})=f_{i+j}(2^{2}c^{\prime}+2^{i+j-1})$ with $c^{\prime}<2^{i+j-3}$ and hence, with $2^{2}c^{\prime}+2^{i+j-1}<2^{i+j}$, or $p+q(1+f_{i+j-2}(d^{\prime}))=1+p^{2}f_{i+j-2}(d^{\prime})=1+f_{i+j}(d^{\prime})=1+f_{i+1+1}(2d^{\prime})$, with $d^{\prime}<2^{i+j-2}$ (and hence with $2d^{\prime}<2^{i+j+1}$).

To analyze the second sum, notice that $pf_{i-2}(a^{\prime}-2^{i-2})<p$ and, thus, $pf_{i-2}(a^{\prime}-2^{i-2})+f_{j-1}(b^{\prime})<1+p$. Now, taking this into account, and applying the induction hypothesis, we have that $1+p^{2}(pf_{i-2}(a^{\prime}-2^{i-2})+f_{j-1}(b^{\prime}))$ has the form $1+p^{2}(f_{i+j-2}(c^{\prime}))=1+f_{i+j}(c^{\prime})=1+f_{i+j+1}(2c^{\prime})$ for some $c^{\prime}<2^{i+j-2}$ (and hence $2c^{\prime}<2^{i+j+1}$), or $1+p^{2}(1+pf_{i+j-2}(c^{\prime\prime}))=1+p(p+qf_{i+j-2}(c^{\prime\prime}))=1+pf_{i+j-1}(c^{\prime\prime}+2^{i+j-2})=1+f_{i+j}(c^{\prime\prime}+2^{i+j-2})=1+f_{i+j+1}(2c^{\prime\prime}+2^{i+j-1})$ for some $c^{\prime\prime}<2^{i+j-2}$ (and hence $2c^{\prime\prime}+2^{i+j-1}<2^{i+j+1}$). 3. 3.

$f_{i}(a)+f_{j}(b)=p+qf_{i-1}(a^{\prime})+pf_{j-1}(b^{\prime})$ for some $a^{\prime}<2^{i-1}$ and some $b^{\prime}<2^{j-1}$. This case can be proved as the previous one. 4. 4.

$f_{i}(a)+f_{j}(b)=p+qf_{i-1}(a^{\prime})+p+qf_{j-1}(b^{\prime})=2p+q(f_{i-1}(a^{\prime})+f_{j-1}(b^{\prime}))$ for some $a^{\prime}<2^{i-1}$ and some $b^{\prime}<2^{j-1}$. By the induction hypothesis, this equals one of

• •

$2p+qf_{i+j-2}(c^{\prime})$ for some $0\leqslant c^{\prime}<2^{i+j-2}$,

• •

$2p+q(1+f_{i+j-1}(d^{\prime}))$ for some $0\leqslant d^{\prime}<2^{i+j-1}$.

On one hand, $2p+qf_{i+j-2}(c^{\prime})=p+f_{i+j-1}(c^{\prime}+2^{i+j-2})$ and the result follows by Lemma 5.13.

On the other hand, $2p+q(1+f_{i+j-1}(d^{\prime}))=1+p+qf_{i+j-1}(d^{\prime})=1+f_{i+j}(d^{\prime}+2^{i+j-1})=1+f_{i+j+1}(2d^{\prime}+2^{i+j})$ with $2d^{\prime}+2^{i+j}<2^{i+j+1}$.

∎

Now we are ready to prove Theorem 5.9.

Proof.

One needs to see that, for the case when $p=\phi-1$, the set described in Lemma 5.11 is closed under addition. This is a direct consequence of Lemma 5.14. 2. 2.

Suppose that $M$ is a normalized nonbisectional fractal monoid of granularity $2$. Then its first period is $\{1,1+p\}$ for some $p$ with $0<p<1$. By Lemma 5.11, the second and third periods of the tempered monoid must be

[TABLE]

where the elements in each period are presented in increasing order.

If $M$ is nonbisectional then $p\neq 0.5$. For $M$ to be closed under addition, it must hold that $(1+p)+(1+p)=2+2p\in M$.

If $p<0.5$, then $2+p<2+2p<3$. Looking at the elements of the second period, one can deduce that $2+2p=2+2p-p^{2}$, leading to $p=0$, which is out of the range.

Then, $p$ must be larger than $0.5$. In this case, $3<2+2p<3+p$. Looking at the elements of the third period, one can deduce that $2+2p$ is either $3+p^{3}$, $3+p^{2}$, or $3+2p^{2}-p^{3}$. This leads to the equations $p^{3}-2p+1=(p^{2}+p-1)(p-1)=0$, $p^{2}-2p+1=(p-1)^{2}=0$ or $p^{3}-2p^{2}+2p-1=(p^{2}-p+1)(p-1)=0$. Among these equations, the unique one having a real solution in the range $0.5<p<1$ is the first one, being the solution $p=\frac{-1+\sqrt{5}}{2}=\phi-1$. Hence, $1+p=\phi$.

∎

6 Odd-filterable tempered monoids and odd-filterable numerical semigroups

As explained in the introduction and illustrated in Figure 1 and in Figure 2 (b), cylindrical pipes with one open end and one closed end produce only the harmonics corresponding to odd multiples of the frequency of the fundamental. This suggests the definitions of odd-filterable tempered monoids and odd-filterable numerical semigroups.

Definition 6.1**.**

A tempered monoid is odd-filterable if the elements in its ordered sequence with odd index form a tempered monoid.

Theorem 6.2**.**

The logarithmic monoid $L$ is odd-filterable.

Proof.

The logarithmic monoid $L$ is formed by the elements in the increasing sequence $(\lambda_{i})_{i\in{\mathbb{N}}}=(\log_{2}(i))_{i\in{\mathbb{N}}}$. We claim that the sequence of its terms with odd index $(\bar{\lambda}_{i})_{i\in{\mathbb{N}}}=(\lambda_{2i-1})_{i\in{\mathbb{N}}}=(\log_{2}(2i-1))_{i\in{\mathbb{N}}}$ is a tempered monoid. Let us check the three conditions of a tempered monoid.

Its smallest element is $\bar{\lambda}_{1}=\log_{2}(1)=0$ 2. 2.

$\bar{\lambda}_{n+1}-\bar{\lambda}_{n}=\log_{2}(2n+1)-\log_{2}(2n-1)=\log_{2}(\frac{2n+1}{2n-1})$. Since the sequence $\frac{2n+1}{2n-1}$ converges to $1$, for any $\varepsilon>0$ one can take $n_{0}$ large enough so that $\frac{2n+1}{2n-1}<2^{\varepsilon}$ for any $n>n_{0}$. Then $\bar{\lambda}_{n+1}-\bar{\lambda}_{n}<\varepsilon$ for any $n>n_{0}$. 3. 3.

The third condition follows from the fact that the product of odd integers is again an odd integer.

∎

However, the golden fractal monoid $F$ is not odd-filterable. Indeed, let $\tau=\phi-1$. Then $\varphi_{3}=1+\tau$, $\varphi_{5}=2+\tau^{2}$, while the sum of them is $\varphi_{3}+\varphi_{5}=3+\tau+\tau^{2}=3+1=4=\varphi_{16}$, which has an even index in $F$.

The notion of odd-filterability for numerical semigroups is a bit more elaborate. Let $S=\lfloor mM\rfloor_{\alpha}$, that is, $S$ is a numerical semigroup which arises from a tempered monoid $M=\{M_{i}\}_{i\in{\mathbb{N}}}$ which has been discretized by a multiplicity $m$ under rounding by $\alpha$. Then we define the collapse of $S$ with respect to $\{M,m,\alpha\}$ as the smallest integer $\kappa$ such that $\kappa=\lfloor m\mu_{i}\rfloor_{\alpha}=\lfloor m\mu_{i+1}\rfloor_{\alpha}$ for some $i$.

Example 6.3*.*

Consider the unique nonbisectional fractal monoid $F$ of granularity $2$. Discretize it by multiplicity $12$ and by flooring. That is,

[TABLE]

Notice that the resulting semigroup $\lfloor 12F\rfloor$ is the well-tempered harmonic semigroup $H$ in (1). In this case, the collapse is $55$, since $\lfloor 12\mu_{23}\rfloor=\lfloor 55.0031\rfloor=\lfloor 12\mu_{24}\rfloor=\lfloor 55.4164\rfloor=55$ and $\lfloor 12\mu_{i}\rfloor\neq\lfloor 12\mu_{i+1}\rfloor$ for any $i<23$.

Definition 6.4**.**

Suppose $S$ is a numerical semigroup of the form $S=\lfloor mM\rfloor_{\alpha}$. We say that $S$ is odd-filterable with respect to $M,m,\alpha$ if the sum of any two elements in the semigroup with odd index is another element in the semigroup which either has odd index, or is bigger than or equal to the collapse.

Example 6.5*.*

Let us check that the well-tempered harmonic semigroup $H$ from (1), as a discretization of $F$ by flooring, is odd-filterable. Indeed, let us denote the elements of $H$ as follows: $h_{1}=0$, $h_{2}=12$, $h_{3}=19$, $h_{4}=24$, $h_{5}=28$, $h_{6}=31$, $h_{7}=34$, $h_{8}=36$, $h_{9}=38$, $h_{10}=40$, $h_{11}=42$, $h_{12}=43$, $h_{13}=45$, $h_{14}=46$, $h_{15}=47$, $h_{16}=48$, $h_{17}=49$, $h_{18}=50$, $h_{19}=51$, $h_{20}=52$, $h_{21}=53$, $h_{22}=54$, $h_{23}=55$, $h_{24}=56$, …

Now, let us analyze all the sums of two elements with odd index. On one hand, $h_{1}+h_{2i-1}=h_{2i-1}$ for any $i\in{\mathbb{N}}$. If one of the summands is $h_{3}$, the options are $h_{3}+h_{3}=h_{9}$, $h_{3}+h_{5}=h_{15}$, $h_{3}+h_{7}=h_{21}$, and $h_{3}+h_{2i-1}$, with $2i-1\geqslant 9$, which is larger than the collapse. For any other pair of summands, $h_{2i-1}+h_{2j-1}$, with $2i-1,2j-1\geqslant 5$, the sum is larger than the collapse.

7 Emergence of the well tempered harmonic semigroup

In this section we prove that the maximum number of equal divisions of the octave such that the discretizations of the golden fractal monoid $F$ and the logarithmic monoid $L$ coincide, and such that the discretization is odd-filterable is $12$. This is nothing else but the number of equal divisions of the octave in classical Western music.

Theorem 7.1**.**

There exists a numerical semigroup of multiplicity $m$ that is simultaneously a discretization of the logarithmic monoid $L$ and a discretization of the golden fractal monoid $F$ if and only if $m\in\{1,2,3,4,5,6,7,8,9,10,12,13,18\}$.

Proof.

In Table 1 we give a numerical semigroup of each multiplicity, whenever it exists, such that it is a simultaneous discretization of $L$ and $F$.

Let us prove now that there are no $\alpha_{L}$, $\alpha_{F}$ such that $\lfloor 11L\rfloor_{\alpha_{L}}=\lfloor 11F\rfloor_{\alpha_{F}}$, and $\lfloor 11L\rfloor_{\alpha_{L}}$ is a numerical semigroup. Indeed, suppose that, conversely, $\alpha_{L}$, $\alpha_{F}$ satisfy both conditions. Observe that,

[TABLE]

where the real values have been rounded. The fact that $\lfloor 11L\rfloor_{\alpha_{L}}=\lfloor 11F\rfloor_{\alpha_{F}}$ implies that $\lfloor 11\lambda_{3}\rfloor_{\alpha_{L}}=\lfloor 17.4346\rfloor_{\alpha_{L}}$ equals $\lfloor 11\varphi_{3}\rfloor_{\alpha_{F}}=\lfloor 17.7984\rfloor_{\alpha_{F}}$, which in turn must be either $17$ or $18$. Since $11\varphi_{8}=33$ and $11\varphi_{9}=35.5967$, we deduce that $17+17=34\not\in\lfloor 11F\rfloor_{\alpha_{F}}$, and so $17$ can not be in the discretization. On the other hand, since

[TABLE]

we deduce that $18+18=36$ does not belong to the discretization. So, the discretization is not a numerical semigroup.

Similar arguments show that for $m=14,15,16,17$, and for $m>18$, there are no $\alpha_{L}$, $\alpha_{F}$ such that $\lfloor mL\rfloor_{\alpha_{L}}=\lfloor mF\rfloor_{\alpha_{F}}$, and $\lfloor mL\rfloor_{\alpha_{L}}$ is a numerical semigroup. As an example, for $m=34$, $34\lambda_{5}=78.9456$ while $34\varphi_{5}=80.9868$. For multiplicities larger than $34$, it holds that $m\varphi_{4}=m\lambda_{4}=2m$, while $m\varphi_{5}>m\lambda_{5}+2>2m$. So, to have $\lfloor mL\rfloor_{\alpha_{L}}=\lfloor mF\rfloor_{\alpha_{F}}$, one needs $\lfloor m\lambda_{5}\rfloor_{\alpha_{L}}=\lfloor m\varphi_{5}\rfloor_{\alpha_{F}}$, which is impossible since $m\varphi_{5}>m\lambda_{5}+2$. ∎

Theorem 7.2**.**

There exists an odd-filterable numerical semigroup of multiplicity $m$ that is simultaneously a discretization of the logarithmic monoid $L$ and a discretization of the golden fractal monoid $F$ if and only if $m\in\{1,2,3,4,5,6,7,8,10,12\}$.

Proof.

First of all, we leave to the reader to check that the numerical semigroups in Table 1, except for $\lfloor 9L\rfloor_{0.13}=\lfloor 9F\rfloor_{0.56}$, $\lfloor 13L\rfloor_{0.18}=\lfloor 13F\rfloor_{0.94}$, and $\lfloor 18L\rfloor_{0.05}=\lfloor 18F\rfloor_{0.88}$, are odd-filterable. The case of flooring of $F$ with multiplicity $12$ is shown in Example 6.5, and the other cases can be shown in a similar way.

Let us show now that there is no odd-filterable numerical semigroup of multiplicity $9$ that is simultaneously a discretization of $L$ and a discretization of $F$. Indeed, suppose that $S=\lfloor 9L\rfloor_{\alpha_{L}}=\lfloor 9F\rfloor_{\alpha_{F}}$ is a numerical semigroup for some $\alpha_{L}$ and some $\alpha_{F}$. Let $S=\{s_{1}=0,s_{2},s_{3},\dots\},$ with $s_{i}<s_{i+1}$ for all $i\in{\mathbb{N}}$. We deduce that $s_{3}$ must be either $14$ or $15$. Since $28$ is not in $\lfloor 9F\rfloor_{\alpha}$ for any $\alpha$, $s_{3}$ must be $15$. Then $30$ must be in $\lfloor 9F\rfloor_{\alpha_{F}}$ and the unique option is $30=\lfloor 9\lambda_{10}\rfloor_{\alpha_{L}}=\lfloor 9\varphi_{10}\rfloor_{\alpha_{F}}$, which has even index and is smaller than the collapse. Then the semigroup can not be odd-filterable.

Similarly, it can be shown that there is no odd-filterable numerical semigroup of multiplicity $13$ or $18$ that is simultaneously a discretization of $L$ and a discretization of $F$, and it is left to the reader.

∎

Let us finally check that the numerical semigroup $H$ in the introduction, which equals $\lfloor 12L\rfloor_{0.40}=\lfloor 12F\rfloor_{1.00}$ in the proof of Theorem 7.1 is, indeed, the unique simultaneous discretization of $L$ and $F$ with multiplicity $12$.

Theorem 7.3**.**

The unique numerical semigroup of multiplicity $12$ that is simultaneously a discretization of the logarithmic monoid $L$ and a discretization of the golden fractal monoid $F$ is the well-tempered numerical semigroup $H$.

Proof.

Suppose that $S=\lfloor 12L\rfloor_{\alpha_{L}}=\lfloor 12F\rfloor_{\alpha_{F}}$ is a numerical semigroup for some $\alpha_{L}$ and some $\alpha_{F}$. Let $S=\{s_{1}=0,s_{2},s_{3},\dots\},$ with $s_{i}<s_{i+1}$ for all $i\in{\mathbb{N}}$. From $s_{5}=\lfloor 12\lambda_{5}\rfloor_{\alpha_{L}}=\lfloor 12\varphi_{5}\rfloor_{\alpha_{F}}$ we deduce that $\alpha_{L}\leqslant 0.8631$ and that $\alpha_{F}>0.5836$. Consequently, $s_{3}=19$. Now, $38=19+19$ must be in $S$ and so $\alpha_{F}>0.8328$. From this bound on $\alpha_{F}$ and the first bound on $\alpha_{L}$ we deduce that $S=H$.∎

8 Conclusion

Theorem 7.2 states that multiplicity $12$ is the largest value for which the discretization of the logarithmic monoid keeps the property that every interval is successively divided using the same ratio (in fact, the golden ratio), and also, it satisfies the property of being half-closed-pipe admissible. The number $12$ is indeed the number of equal divisions of the octave in classical Western music.

Tuning systems dividing the octave in more than 12 parts, like quarters of tone or Holdrian commas miss at least one of these properties.

Theorem 7.3 shows that the well-tempered harmonic semigroup $H$ in (1) is the unique simultaneous discretization of multiplicity $12$ of the unique product-compatible tempered monoid and the unique nonbisectional fractal monoid of granularity $2$. In other words, the well-tempered harmonic semigroup $H$ is the unique simultaneous discretization of multiplicity $12$ of the logarithmic monoid and the golden fractal monoid.

For its importance, we believe $H$ should be given a name and we suggest to call it the well-tempered harmonic semigroup.

Acknowledgment.

The author would like to thank Julio Fernández, Pilar Bayer, Shalom Eliahou, Alfons Reverté, Pere Casulleras, Marly Cormar, and Felix Gotti for many stimulating and clarifying discussions. She would also like to thank the anonymous referees for their encouraging and helpful contributions. Finally she thanks Clifton Callender, Thomas Fiore, and Emmanuel Amiot. This work was supported by the Catalan Government under grant 2017 SGR 00705 and by the Spanish Ministry of Economy and Competitivity under grant TIN2016-80250-R.
