Heavy neutrino potential for neutrinoless double beta decay

TL;DR

This paper investigates the statistical properties of the heavy neutrino potential in neutrinoless double beta decay, exploring conditions for heavy neutrino existence and the role of sterile neutrinos as candidates.

Contribution

It introduces a statistical framework for analyzing the heavy neutrino potential and discusses the existence conditions for sterile neutrinos as heavy neutrino candidates.

Findings

Statistical properties of the heavy neutrino potential are characterized.

Existence conditions for heavy neutrinos are established.

Sterile neutrinos are identified as potential heavy neutrino candidates.

Abstract

Heavy neutrino potential for neutrinoless double beta decay is studied with focusing on its statistical property. The existence condition for heavy neutrinos is also presented. In particular sterile neutrinos are possible candidate for heavy nuetrinos. The statistics provide a gross view of understanding amplitude of constitutional components of the nuclear matrix element.

Figures

Tables

Table 1. Table 1: Large contributions are listed from 1st to 10th largest ones. Two symmetric cases resulting in an equivalent value are shown in the same position.

	Fermi		Gamow-Teller		Tensor
Ranking	$\left(nl{n}^{\prime }{l}^{\prime }\right)$	Value	$\left(nl{n}^{\prime }{l}^{\prime }\right)$	Value	$\left(nl{n}^{\prime }{l}^{\prime }\right)$	Value
1	(0 0 0 0)	$0.261$	(0 0 0 0)	$0.230$	(0 0 0 0)	0.125
2	(1 0 1 0)	$0.232$	(1 0 1 0)	$0.217$	(1 0 1 0)	$0.099$
3	(2 0 2 0)	$0.210$	(2 0 2 0)	$0.207$	(0 0 1 0)	$0.088$
					(1 0 0 0)
4	(0 0 1 0)	$0.193$	(3 0 3 0)	$0.198$	(2 0 2 0)	$0.083$
	(1 0 0 0)
5	(3 0 3 0)	$0.192$	(1 0 2 0)	$0.1809$	(1 0 2 0)	$0.080$
			(2 0 1 0)		(2 0 1 0)
6	(1 0 2 0)	$0.190$	(2 0 3 0)	$0.1806$	(0 0 0 1)	$0.072$
	(2 0 1 0)		(3 0 2 0)		(0 1 0 0)
7	(2 0 3 0)	$0.179$	(0 0 1 0)	$0.171$	(3 0 3 0)	$0.0714$
	(3 0 2 0)		(1 0 0 0)
8	(1 0 3 0)	$0.161$	(1 0 3 0)	$0.160$	(0 0 1 1)	$0.0710$
	(3 0 1 0)		(3 0 1 0)		(1 1 0 0)
9	(0 0 2 0)	$0.157$	(0 0 2 0)	$0.145$	(2 0 3 0)	$0.070$
	(2 0 0 0)		(2 0 0 0)		(3 0 2 0)
10	(0 0 3 0)	$0.132$	(0 0 3 0)	$0.130$	(0 0 2 0)	$0.065$
	(3 0 0 0)		(3 0 0 0)		(2 0 0 0)

Equations

$$\begin{array}[]{ll}[T_{0\nu}^{1/2}]^{-1}=G\left\{|M^{0\nu}|^{2}\left({\displaystyle\frac{m_{\nu}}{m_{e}}}\right)^{2}+|M^{0N}|^{2}\left(\eta_{N}\right)^{2}\right\},\end{array}$$

$$\begin{array}[]{ll}[T_{0\nu,{\rm I}}^{1/2}]^{-1}=G_{I}\left\{|M^{0\nu}_{\rm I}|^{2}\left({\displaystyle\frac{m_{\nu}}{m_{e}}}\right)^{2}+|M_{\rm I}^{0N}|^{2}\left(\eta_{N}\right)^{2}\right\},\end{array}$$

$$\begin{array}[]{ll}[T_{0\nu,{\rm II}}^{1/2}]^{-1}=G_{II}\left\{|M^{0\nu}_{\rm II}|^{2}\left({\displaystyle\frac{m_{\nu}}{m_{e}}}\right)^{2}+|M_{\rm II}^{0N}|^{2}\left(\eta_{N}\right)^{2}\right\},\end{array}$$

$$\begin{array}[]{ll}|M_{\rm I}^{0N}|^{2}/|M^{0\nu}_{\rm I}|^{2}\neq|M_{\rm II}^{0N}|^{2}/|M^{0\nu}_{\rm II}|^{2},\end{array}$$

$$\begin{array}[]{ll}\left({\displaystyle\frac{m_{\nu}}{m_{e}}}\right)^{2}={\displaystyle\frac{-|M^{0N}_{\rm II}|^{2}[G_{I}T_{0\nu,{\rm I}}^{1/2}]^{-1}+|M^{0N}_{\rm I}|^{2}[G_{II}T_{0\nu,{\rm II}}^{1/2}]^{-1}}{|M^{0\nu}_{\rm II}|^{2}|M_{\rm I}^{0N}|^{2}-|M^{0\nu}_{\rm I}|^{2}|M_{\rm II}^{0N}|^{2}}},\end{array}$$

$$\begin{array}[]{ll}\left(\eta_{N}\right)^{2}={\displaystyle\frac{|M^{0\nu}_{\rm II}|^{2}[G_{I}T_{0\nu,{\rm I}}^{1/2}]^{-1}-|M^{0\nu}_{\rm I}|^{2}[G_{II}T_{0\nu,{\rm II}}^{1/2}]^{-1}}{|M^{0\nu}_{\rm II}|^{2}|M_{\rm I}^{0N}|^{2}-|M^{0\nu}_{\rm I}|^{2}|M_{\rm II}^{0N}|^{2}}},\end{array}$$

$$\begin{array}[]{ll}|M^{0N}_{\rm I}|^{2}G_{I}T_{0\nu,{\rm I}}^{1/2}\neq{\displaystyle|M^{0N}_{\rm II}|^{2}G_{II}T_{0\nu,{\rm II}}^{1/2}}\end{array}$$

$$|M_{\mathrm{I}}^{0\nu }{|}^2{G}_I{T}_{0\nu ,\mathrm{I}}^{1/2}=|M_{\mathrm{II}}^{0\nu }{|}^2{G}_{II}{T}_{0\nu ,\mathrm{II}}^{1/2}$$

$$\begin{array}[]{ll}\left({\displaystyle\frac{m_{\nu}}{m_{e}}}\right)^{2}={\displaystyle\frac{[G_{I}T_{0\nu,{\rm I}}^{1/2}]^{-1}}{|M^{0\nu}_{\rm I}|^{2}}}{\displaystyle\frac{|M^{0\nu}_{\rm II}|^{2}|M^{0N}_{\rm I}|^{2}-|M^{0\nu}_{\rm I}|^{2}|M^{0N}_{\rm II}|^{2}}{|M^{0\nu}_{\rm II}|^{2}|M_{\rm I}^{0N}|^{2}-|M^{0\nu}_{\rm I}|^{2}|M_{\rm II}^{0N}|^{2}}}={\displaystyle\frac{1}{G_{I}}}{\displaystyle\frac{[T_{0\nu,{\rm I}}^{1/2}]^{-1}}{|M^{0\nu}_{\rm I}|^{2}}}\end{array}$$

$$\begin{array}[]{ll}\left({\displaystyle|M^{0N}_{\rm II}|^{2}[G_{I}T_{0\nu,{\rm I}}^{1/2}]^{-1}-|M^{0N}_{\rm I}|^{2}[G_{II}T_{0\nu,{\rm II}}^{1/2}]^{-1}}\right)\left({\displaystyle|M^{0\nu}_{\rm II}|^{2}[G_{I}T_{0\nu,{\rm I}}^{1/2}]^{-1}-|M^{0\nu}_{\rm I}|^{2}[G_{II}T_{0\nu,{\rm II}}^{1/2}]^{-1}}\right)\leq 0,\end{array}$$

$$\begin{array}[]{ll}M^{0\nu}=M_{\rm F}^{0\nu}-\frac{g_{V}^{2}}{g_{A}^{2}}M_{\rm GT}^{0\nu}+M_{\rm T}^{0\nu}\end{array}$$

$$\begin{array}[]{ll}M^{0N}=M_{\rm F}^{0N}-\frac{g_{V}^{2}}{g_{A}^{2}}M_{\rm GT}^{0N}+M_{\rm T}^{0N}\\ \end{array}$$

$$\begin{array}[]{ll}M_{\alpha}^{0x}=\langle 0_{f}^{+}|O_{\alpha}^{0x}|0_{i}^{+}\rangle\vspace{2.5mm}\\ =\sum{\rm TBTD}(n^{\prime}_{1}l^{\prime}_{1}j^{\prime}_{1}t^{\prime}_{1},n^{\prime}_{2}l^{\prime}_{2}j^{\prime}_{2}t^{\prime}_{2},n_{1}l_{1}j_{1}t_{1},n_{2}l_{2}j_{2}t_{2};J)\vspace{1.5mm}\\ \quad\langle n^{\prime}_{1}l^{\prime}_{1}j^{\prime}_{1}t^{\prime}_{1},n^{\prime}_{2}l^{\prime}_{2}j^{\prime}_{2}t^{\prime}_{2};J|O_{\alpha}^{0x}(r)|n_{1}l_{1}j_{1}t_{1},n_{2}l_{2}j_{2}t_{2};J\rangle_{\rm AS}\end{array}$$

$$\begin{array}[]{ll}\langle n^{\prime}_{1}l^{\prime}_{1}j^{\prime}_{1}t^{\prime}_{1},n^{\prime}_{2}l^{\prime}_{2}j^{\prime}_{2}t^{\prime}_{2};J|O_{\alpha}^{0x}(r)|n_{1}l_{1}j_{1}t_{1},n_{2}l_{2}j_{2}t_{2};J\rangle\vspace{2.5mm}\\ =2{\displaystyle\sum_{S,S^{\prime},\lambda,\lambda^{\prime}}}\sqrt{j_{1}^{\prime}j_{2}^{\prime}S^{\prime}\lambda^{\prime}}\sqrt{j_{1}j_{2}S\lambda}~{}\langle l_{1}^{\prime}l_{2}^{\prime}\lambda^{\prime}S^{\prime};J|S_{\alpha}|l_{1}l_{2}\lambda S;J\rangle~{}\langle n_{1}^{\prime}l_{1}^{\prime}n_{2}^{\prime}l_{2}^{\prime};J|H_{\alpha}(r)|n_{1}l_{1}n_{2}l_{2}\rangle\vspace{1.5mm}\\ \quad\left\{\begin{array}[]{ccc}l_{1}^{\prime}&1/2&j_{1}^{\prime}\\ l_{2}^{\prime}&1/2&j_{2}^{\prime}\\ \lambda^{\prime}&S^{\prime}&J\end{array}\right\}~{}\left\{\begin{array}[]{ccc}l_{1}&1/2&j_{1}\\ l_{2}&1/2&j_{2}\\ \lambda&S&J\end{array}\right\}\end{array}$$

$$⟨nl,NL|n_1{l}_1,n_2{l}_2{⟩}_{\lambda }⟨n^{\prime }{l}^{\prime },N^{\prime }{L}^{\prime }|n_1^{\prime }{l}_1^{\prime },n_2^{\prime }{l}_2^{\prime }{⟩}_{{\lambda }^{\prime }}$$

$$\begin{array}[]{ll}\langle l_{1}^{\prime}l_{2}^{\prime}\lambda^{\prime}S^{\prime};J|S_{\alpha}|l_{1}l_{2}\lambda S;J\rangle\langle n_{1}^{\prime}l_{1}^{\prime}n_{2}^{\prime}l_{2}^{\prime};J|H_{\alpha}(r)|n_{1}l_{1}n_{2}l_{2}\rangle\vspace{3.5mm}\\ ={\displaystyle\sum_{\rm mos2}}\langle nl,NL|n_{1}l_{1},n_{2}l_{2}\rangle_{\lambda}\langle n^{\prime}l^{\prime},N^{\prime}L^{\prime}|n_{1}^{\prime}l_{1}^{\prime},n_{2}^{\prime}l_{2}^{\prime}\rangle_{\lambda^{\prime}}\langle l^{\prime}L\lambda^{\prime}S^{\prime};J|S_{\alpha}|lL\lambda S;J\rangle\langle n^{\prime}l^{\prime}|H_{\alpha}(\sqrt{2}\rho)|nl\rangle,\end{array}$$

$$\begin{array}[]{ll}\langle n^{\prime}l^{\prime}|H_{\alpha}(\sqrt{2}\rho)|nl\rangle.\end{array}$$

$$\begin{array}[]{ll}H_{\alpha}(\sqrt{2}\rho)=\frac{2R}{\pi}{\displaystyle\int_{0}^{\infty}}f_{\alpha}(\sqrt{2}\rho q)\frac{h_{\alpha}(q)}{\sqrt{q^{2}+m_{\nu}^{2}}(\sqrt{q^{2}+m_{\nu}^{2}}+\langle E\rangle)}~{}q^{2}~{}dq.\end{array}$$

$$\begin{array}[]{ll}H_{\alpha}(\sqrt{2}\rho)=\frac{2R}{\pi}{\displaystyle\int_{0}^{\infty}}f_{\alpha}(\sqrt{2}\rho q)\frac{h_{\alpha}(q)}{q+\langle E\rangle}~{}q~{}dq,\end{array}$$

$$\begin{array}[]{ll}H_{\alpha}(\sqrt{2}\rho)=\frac{1}{m_{\nu}^{2}}\frac{2R}{\pi}{\displaystyle\int_{0}^{\infty}}f_{\alpha}(\sqrt{2}\rho q)h_{\alpha}(q)~{}q^{2}~{}dq,\end{array}$$

$$\begin{array}[]{ll}h_{\rm F}(q^{2})=\frac{g_{V}^{2}}{(1+q^{2}/\Lambda_{V}^{2})^{4}}\vspace{2.5mm}\\ h_{\rm GT}(q^{2})=\frac{2}{3}\frac{q^{2}}{4m_{p}^{2}}(\mu_{p}-\mu_{n})^{2}\frac{g_{V}^{2}}{(1+q^{2}/\Lambda_{V}^{2})^{4}}+\left(1-\frac{2}{3}\frac{q^{2}}{q^{2}+m_{\pi}^{2}}+\frac{1}{3}\left(\frac{q^{2}}{q^{2}+m_{\pi}^{2}}\right)^{2}\right)\frac{g_{A}^{2}}{(1+q^{2}/\Lambda_{A}^{2})^{4}}\vspace{2.5mm}\\ h_{\rm T}(q^{2})=\frac{1}{3}\frac{q^{2}}{4m_{p}^{2}}(\mu_{p}-\mu_{n})^{2}\frac{g_{V}^{2}}{(1+q^{2}/\Lambda_{V}^{2})^{4}}+\left(\frac{2}{3}\frac{q^{2}}{q^{2}+m_{\pi}^{2}}-\frac{1}{3}\left(\frac{q^{2}}{q^{2}+m_{\pi}^{2}}\right)^{2}\right)\frac{g_{A}^{2}}{(1+q^{2}/\Lambda_{A}^{2})^{4}}\vspace{2.5mm}\\ \end{array}$$

$$\begin{array}[]{ll}{\displaystyle\sum_{n,n^{\prime},l,l^{\prime}}}k_{n,n^{\prime},l,l^{\prime}}~{}\langle n^{\prime}l^{\prime}|H_{\alpha}(\sqrt{2}\rho)|nl\rangle.\end{array}$$

Full text

1 Introduction

Observation of neutrino oscillation has clarified the nonzero neutrino mass. The observation of neutrinoless double-beta decay, for whose existence nonzero neutrino mass plays a supportive role, is associated with important physics; e.g.,

• •

existence of Majorana particle,

• •

breaking of leptonic number conservation,

• •

quantitative determination of neutrino mass.

In this sense neutrinoless double-beta decay is intriguing enough to bring about an example exhibiting the physics beyond the standard model of elementary particle physics (for a review, see [1]). Although LSND [2] experiment has suggested the possible existence of heavy neutrinos (recognized as “sterile neutrino” in various literatures), theorists started to account for such a contribution to the neutrinoless double beta decay half life only recently. In addition, regarding the motivation for sterile neutrinos, the GALLEX/SAGE experiments [3] and the reactor anomaly support such existences. All three experiments suggest neutrino masses on the eV scale. Another motivation is that sterile neutrinos could be dark matter candidates, in that case the masses are on the keV scale.

If heavy neutrinos exist, those neutrinos are mixed into the effective mass. As an example of relation between the half life of neutrinoless double-beta decay, the effective light neutrino mass ($m_{\nu}$), and the effective heavy neutrino mass ($\eta_{N}$) is given by [4, 5]

[TABLE]

where $G$ is the phase space factor (its value is obtained rather precisely), $m_{e}$ is the electron mass (its value is also precisely obtained), $\eta_{N}$ denotes the effective mass relative to electron mass, and $M^{0\nu}$ and $M^{0N}$ are the nuclear matrix elements (NME, for short) for light and heavy neutrinos respectively. In this context light neutrinos mean already-observed ordinary neutrinos. Under the existence of heavy neutrino, we need to have half life observations for two different double-beta decay events (for example, decay of calcium and xenon):

[TABLE]

and

[TABLE]

where indices ${\rm I}$ and ${\rm II}$ identify the kind of decaying nuclei. Because there are two unknown quantities: $m_{\nu}$ and $\eta_{N}$, here we have two equations. In order to determine the neutrino mass, it is necessary to calculate $M_{\rm I}^{0\nu}$, $M_{\rm II}^{0\nu}$, $M_{\rm I}^{0N}$ and $M_{\rm II}^{0N}$ very precisely. At this point, many calculations by various theoretical models have been dedicated to NME calculations. Since the detail information on initial and final states (i.e., quantum level structure of these states) is necessary for the calculation of NMEs, it is impossible to have reliable NME without knowing nuclear structures. The impact of precise NME calculations is expected to be large enough (e.g., for a large-scale shell model calculation for light neutrinos, see Ref. [6]), and the unknown leptonic mass-hierarchy and the Majorana nature of neutrinos are expected to be discovered.

In this article heavy neutrino potential for neutrinoless double beta decay (for the definition, see Eq. (17)) is studied from a statistical point of view. The results in this article are intended to be compared to light neutrino cases (that is, ordinary neutrino case) presented in Ref. [7]. The comparison clarifies the contribution of heavy neutrinos for neutrinoless double beta decay half-life.

2 Condition for the existence of heavy neutrino

Role of the nuclear matrix element is seen by solving Eqs. (2)-(3). Under the validity of

[TABLE]

the effective neutrino mass for light and heavy neutrinos are represented by

[TABLE]

and

[TABLE]

respectively. The condition (4) is valid if nuclear structure effect on double beta decay is not so simple; indeed it is not true only if NMEs for different decay candidates are exactly the same in their heavy-to-light ratios. This condition was explored in Refs. [8, 9]. According to Eq. (5), the experimentally-confirmed nonzero neutrino effective mass suggests that

[TABLE]

where note that Eq. (7) is written only by heavy neutrino NMEs and half lives. According to Eq.  (6),

[TABLE]

suggests that heavy neutrinos do not exist. The satisfaction of Eq. (8) means either one of the following possibilities:

(i) the present framework (1) is too simple to be valid,

(ii) heavy neutrinos do not exist.

Since Eq. (8) is written even without knowing anything about heavy neutrino, this condition is practically used as the sufficient condition for the existence of heavy neutrino under the validity of the framework (1) (i.e., heavy neutrino existence condition for Eq. (1)). It is worth noting that, as discussed around Eq. (15) of Ref. [1], additional terms can be added to Eq. (1). Under the non-existence of heavy neutrino (by applying Eq. (8) to Eq. (5)),

[TABLE]

trivially follows. If the squared masses are positive,

[TABLE]

must be satisfied (i.e., real mass condition).

3 Neutrino potential

3.1 Nuclear matrix element

Nuclear matrix element in double beta decay is investigated under the closure approximation. It approximates all the different virtual intermediate energies by a single intermediate energy (i.e., with the averaged energy called closure parameter). For neutrinoless double beta decay, nuclear matrix element for light and heavy neutrinos are written by

[TABLE]

and

[TABLE]

respectively, where $g_{V}$ and $g_{A}$ denote vector and axial coupling constants, and $\alpha$ of $M_{\alpha}^{0\nu}$ is the index for the double beta decay of three kinds: $\alpha=$ F, GT, T (Fermi, Gamow-Teller, and tensor parts). According to Ref. [10], each part is further represented by the sum of two-body transition density (TBTD) and anti-symmetrized two-body matrix elements.

[TABLE]

where $O^{0x}_{\alpha}(r)$ are transition operators of neutrinoless double beta decay, and $0_{i}^{+}$ and $0_{f}^{+}$ denote initial and final states, respectively ($x$ is either $\nu$ or $N$). The sum is taken over indices $(n_{i}l_{i}j_{i}t_{i},n^{\prime}_{j}l^{\prime}_{j}j^{\prime}_{j}t^{\prime}_{j})$ with $i,j=1,2$, where $n$, $l$, $j$ and $t$ mean principal, angular momentum and isospin quantum numbers, respectively, $j_{1}$ and $j_{2}$ (or $j_{1}^{\prime}$ and $j_{2}^{\prime}$) are coupled to $J$ (or $J$), similarly $l_{1}$ and $l_{2}$ (or $l_{1}^{\prime}$ and $l_{2}^{\prime}$) are coupled to $\lambda$ (or $\lambda^{\prime}$), and $t_{1}=t_{2}=1/2,~{}t_{1}^{\prime}=t_{2}^{\prime}=-1/2$ is valid if neutrons decay into protons.

The two-body matrix element before the anti-symmetrization is represented by

[TABLE]

where $H_{\alpha}(r)$ is the neutrino potential, $S_{\alpha}$ denotes spin operators, $S$ and $S^{\prime}$ mean the two-body spins, and $\{\cdot\}$ including nine numbers denotes the 9j-symbol. By implementing the Talmi-Moshinsky transforms:

[TABLE]

the harmonic oscillator basis is transformed to the center-of-mass system.

[TABLE]

where $\rho=r/\sqrt{2}$ is the transformed coordinate of center-of-mass system, and “mos2” means that the sum is taken over $(n,n^{\prime},l,l^{\prime},N,N^{\prime})$ [10]. In this article, in order to have a comparison to the preceding results [7], we focus on the neutrino potential effect arising from

[TABLE]

This part is responsible for the amplitude of each transition from a state with $n$, $l$ to another state with $n^{\prime}$, $l^{\prime}$, while the cancellation is determined by spin-dependent part. For calculations of heavy-neutrino exchange matrix elements, see Refs. [11, 12, 13, 14, 15].

3.2 Neutrino potential represented in the center-of-mass system

Under the closure approximation neutrino potential [16, 17, 18] is represented by

[TABLE]

where $q$ is the momentum of virtual neutrino, $m_{\nu}$ is the effective neutrino mass, $R$ denotes the radius of decaying nucleus, and $f_{\alpha}$ is a spherical Bessel function ($\alpha=0,2$), In particular $\langle E\rangle$ is called the closure parameter, which means the averaged excitation energy of virtual intermediate state. In Eq. (18) neutrino potentials include the dipole form factors (not just the form factors) that take into account the nucleon size. The massless neutrino limit ($m_{\nu}\to 0$) of neutrino potential is

[TABLE]

and the heavy mass limit ($m_{\nu}>>\langle E\rangle$,  $m_{\nu}^{2}>>q^{2}$) of neutrino potential is

[TABLE]

For ordinary light neutrinos, the neutrino potential in the massless limit can be utilized. Simkovic unit is exploited for heavy neutrino case, in which the value of $m_{\nu}^{2}H_{\alpha}(\sqrt{2}\rho)$ is divided by proton and electon masses (i.e. the value of $(m_{\nu}^{2}/m_{p}m_{e})H_{\alpha}(\sqrt{2}\rho)$ is shown in this article). Following the corresponding study on massless limit cases [7], this article is devoted to investigate heavy mass limit cases.

The representation of neutrino potentials are

[TABLE]

where $\mu_{p}$ and $\mu_{n}$ are magnetic moments satisfying $\mu_{p}-\mu_{n}=4.7$, $m_{p}$ and $m_{\pi}$ are proton mass and pion mass, and $\Lambda_{V}=850$MeV, $\Lambda_{A}=1086$MeV are the finite size parameters.

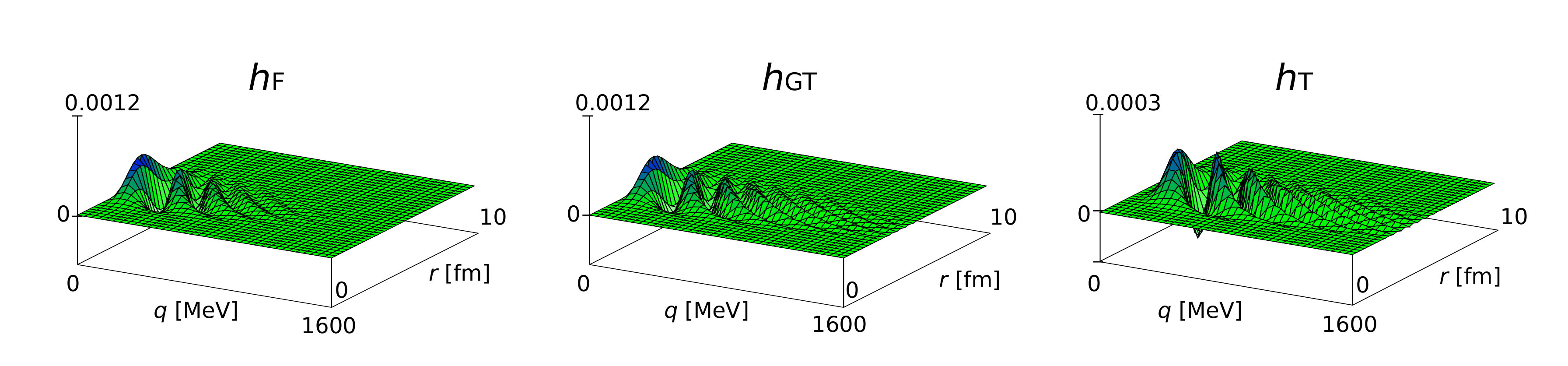

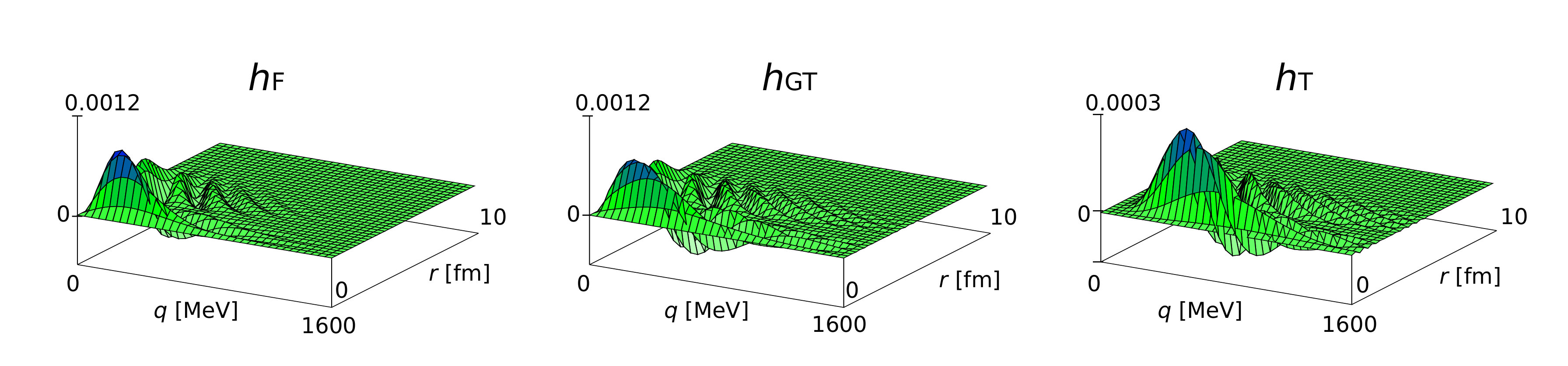

Figure 1 shows the integrand of Eq. (20). In any case ripples of the form: $q\rho$ = const. can be found if $q$ and $\rho$ are relatively large. The upper-value of the integral range should be at least equal to or larger than $q=1600$ MeV. In our research including our recent publication [6], we take $q=2000$ MeV and $r=10$ fm as the maximum value for numerical integration of Eq. (20) (massless neutrino cases). We noticed that, for the convergence, $q_{\max}$ of the integral should be rather larger for the heavy cases compared to the light cases.

4 Statistics

Since actual quantum states are represented by the superposition of basic states such as $|nl\rangle$ in the shell-model treatment, the contribution of neutrino potential part can be regarded as the superposition:

[TABLE]

using a suitable set of coefficients $\{k_{n,n^{\prime},l,l^{\prime}}\}$ determined by the nuclear structure of grandmother and daughter nuclei. Accordingly, in order to see the difference between the light and heavy neutrino contributions, it is worth investigating the statistical property of neutrino potential part (17) at heavy mass limit.

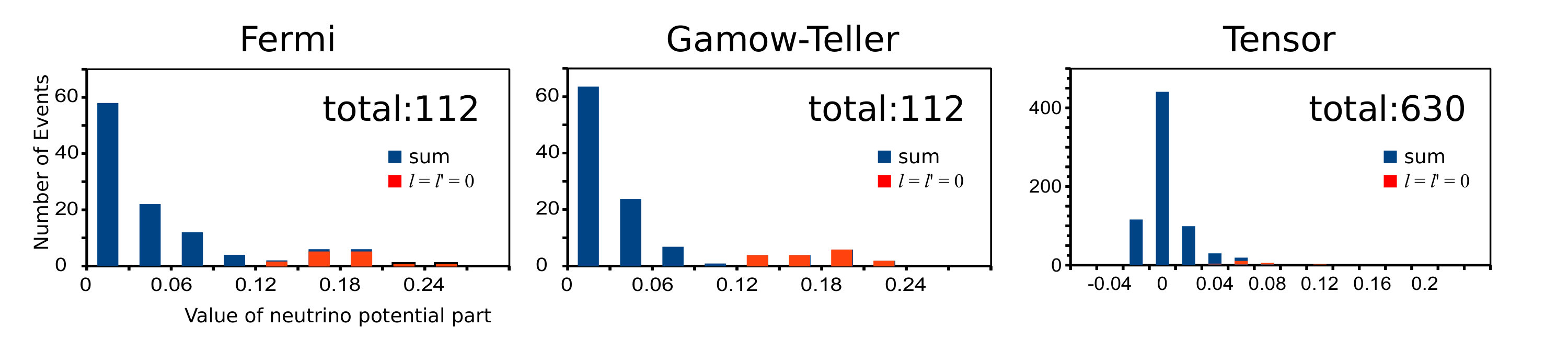

Frequency distribution of neutrino potential part (17) is shown in Fig. 2. The values are always positive for Fermi and Gamow-Teller parts, while the tensor part includes non-negligible negative values. Indeed, the sum of positive and negative contributions of tensor part suggests that total sum 9.458 is obtained by the cancellation between $+9.943$ and $-0.485$ (i.e., $9.458=9.943-0.485$). The order of the magnitude is different only for the tensor part. Indeed, the average of the nonzero components is 0.0526 for the Fermi part, 0.0485 for the Gamow-Teller part, and 0.0063 for the tensor part. Contributions with $l=l^{\prime}=0$ (sum) cover 49.6$\%$ of the total contributions (sum) for Fermi, 52.3$\%$ for Gamow-Teller parts, and 12.8$\%$ for tensor part. Since the corresponding values in light ordinary neutrino cases are 27.1$\%$ for Fermi part, 27.1$\%$ for Gamow-Teller part, and 7.2$\%$ for tensor part [7], $l=l^{\prime}=0$ component is clarified to play a more dominant role (roughly equal to twice) in heavy neutrino case.

Large contributions for Fermi, Gamow-Teller and tensor parts are summarized in Table 1. Contribution labeled by $(n~{}l~{}n^{\prime}~{}l^{\prime})=(0~{}0~{}0~{}0)$ (i.e. transition between $0s$ orbits) provides the largest contribution in any part. Roughly speaking, we see that $s$-orbit is remarkably significant in heavy neutrino cases. Indeed, all the top 10 contributions of Fermi and Gamow-Teller parts are completely filled with $s$-orbit contributions. As seen in the top 10 list the order of the kind $(n~{}l~{}n^{\prime}~{}l^{\prime})$ are similar for Fermi and Gamow-Teller parts, where note that the order of Fermi and Gamow-Teller parts is exactly the same for ordinary light neutrino case as far as the top 10 list is concerned [7]. Ten largest contributions (sum) cover 49.6$\%$ of the total contributions (sum) for the Fermi part, 52.3$\%$ for the Gamow-Teller part, and 13.4$\%$ for the tensor part. The minimum value for the tensor part is -0.0086 achieved by $(n~{}l~{}n^{\prime}~{}l^{\prime})=(3~{}0~{}3~{}4)$ and $(3~{}4~{}3~{}0)$.

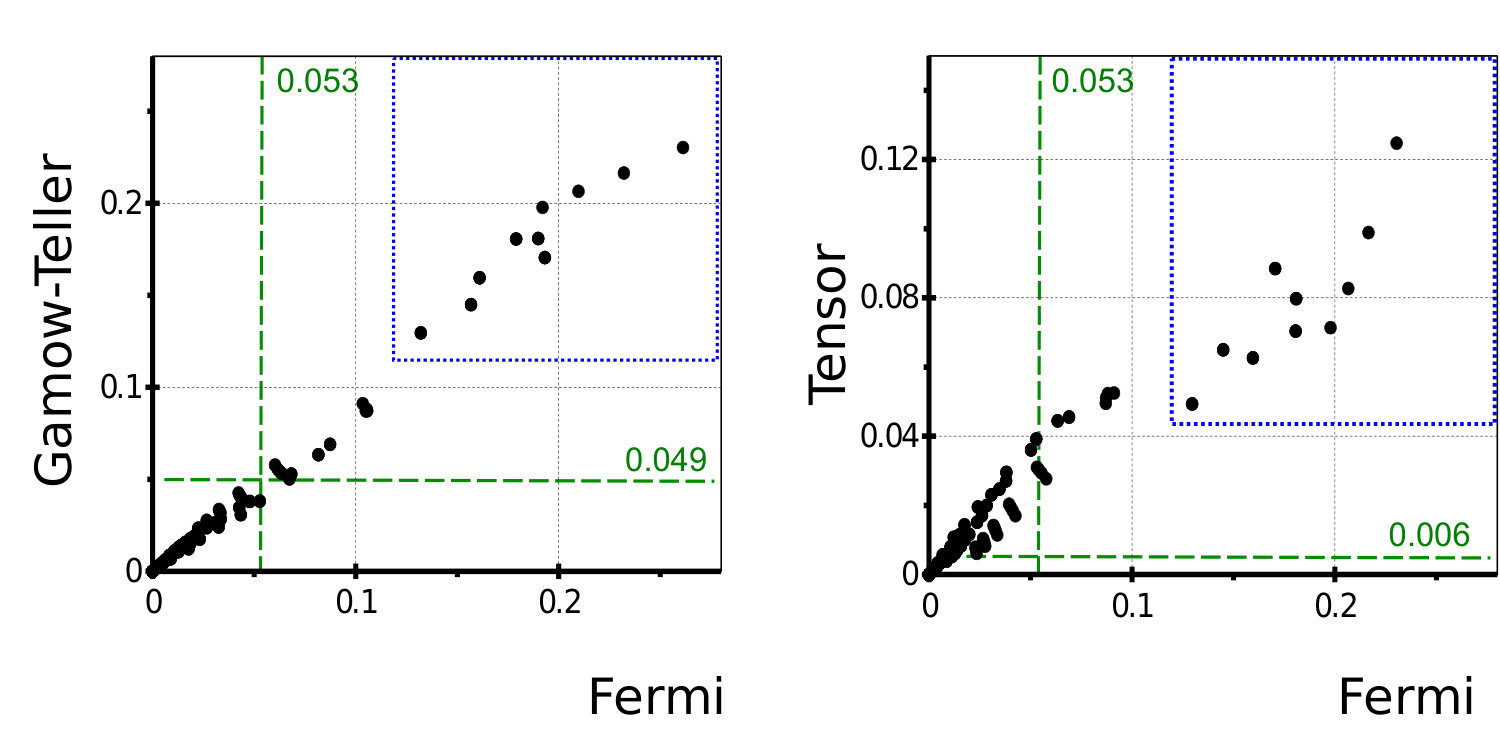

Correlation between the values of Eq. (20) for different parts are examined in Fig. 3. Comparison between Fermi and Gamow-Teller parts shows that they provide almost the same values, although the Fermi part generally shows slightly larger value compared to the Gamow-Teller part. Such a quantitative similarity between Fermi and Gamow-Teller parts is not trivial since we can find essentially different mathematical representations at least in their form factors (cf. Eq. (21)). The tensor part is positively correlated with the Fermi part (therefore Gamow-Teller part). The $l=l^{\prime}$ components of the tensor part contributions (sum) cover 28.9$\%$ of the total tensor part contributions (sum).

5 Summary

There are components of the two kinds in the nuclear matrix element; one is responsible for the amplitude and the other is for the cancellation. As a component responsible for the amplitude, neutrino potential part (i.e., Eq. (17)) is investigated in this article. The presented results are valid not only to a specific double-beta decay candidates but also to all the possible candidates within $n,n^{\prime}=0,1,\cdots,3$ and $l,l^{\prime}=0,1,\cdots,6$. Note that, in terms of the magnitude, almost 40$\%$ smaller values are applied for the Gamow-Teller part in calculating the nuclear matrix element since $(g_{V}/g_{A})^{2}=(1/1.27)^{2}\sim 0.62$ (cf. Eq. (12)).

Among several results on heavy neutrino cases, positive correlation of the values between Fermi, Gamow-Teller and tensor parts has been clarified. This property is common to the light ordinary neutrino cases. Apart from the tensor part values, almost a half of the total contributions has been shown to be occupied only by 10 largest contribution in which 10 largest contribution is exactly the same as $l=l^{\prime}=0$ contributions. As a result the enhanced dominance of $s$-wave contribution is noticed for heavy neutrino cases.

The other components of the NMEs also responsible for the cancellation will be studied in the next opportunity.
