Zooming in to Massive Star Birth

Shuo Kong11affiliationmark:

Dept. of Astronomy, Yale University, New Haven, Connecticut 06511, USA

Jonathan C. Tan22affiliationmark: 33affiliationmark:

Dept. of Space, Earth and Environment, Chalmers University of Technology, Gothenburg, Sweden

Dept. of Astronomy, University of Virginia, Charlottesville, Virginia 22904, USA

Paola Caselli44affiliationmark:

Max-Planck-Institute for Extraterrestrial Physics (MPE), Giessenbachstr. 1, D-85748 Garching, Germany

Francesco Fontani55affiliationmark:

INAF - Osservatorio Astrofisico di Arcetri, L.go E. Fermi 5 I-50125, Florence, Italy

Ke Wang66affiliationmark:

European Southern Observatory (ESO), Karl-Schwarzschild-Str. 2, D-85748 Garching, Germany

Michael J. Butler77affiliationmark:

Max Planck Institute for Astronomy, Königstuhl 17, D-69117 Heidelberg, Germany

Abstract

We present high resolution (0.2″, 1000 AU) 1.3 mm ALMA observations of massive infrared dark cloud clump, G028.37+00.07-C1, thought to harbor the early stages of massive star formation. Using $\rm N_{2}D^{+}$ (3-2) we resolve the previously identified C1-S core, separating the bulk of its emission from two nearby protostellar sources. C1-S is thus identified as a massive ( $\sim 50\>M_{\odot}$ ), compact ( $\sim 0.1\>$ pc diameter) starless core, e.g., with no signs of outflow activity. Being highly deuterated, this is a promising candidate for a pre-stellar core on the verge of collapse. An analysis of its dynamical state indicates a sub-virial velocity dispersion compared to a trans-Alfvénic turbulent core model. However, virial equilibrium could be achieved with sub-Alfvénic conditions involving $\sim 2\>$ mG magnetic field strengths.

1. Introduction

One way to distinguish between different theoretical models of massive star formation is to study the initial conditions of gas before formation of a massive protostar (see, e.g., Tan et al., 2014, for a review). Core accretion models, e.g., the Turbulent Core model of McKee & Tan (2002, 2003, hereafter MT03), assume that this initial condition is a massive pre-stellar core (PSC). By analogy with low-mass PSCs (see, e.g., Caselli & Ceccarelli, 2012; Friesen et al., 2014), these cores are expected to be highly deuterated and thus well-traced by species such as $\rm N_{2}D^{+}$ . On the other hand, competitive accretion models (e.g., Bonnell et al., 2001; Wang et al., 2010) do not involve massive PSCs as the initial conditions for massive star formation.

Tan et al. (2013, hereafter T13) used $\rm N_{2}D^{+}$ (3-2) to identify the C1-S core in a pilot survey with ALMA in Cycle 0 at 2.3″ resolution of four infrared dark cloud (IRDC) clumps (see also Kong et al., 2017, for an extension of this survey to 32 more IRDC clumps). The C1-S core is at the western end of the massive IRDC G028.37+00.07 at a distance of about 5 kpc (Rathborne et al., 2006). Kong et al. (2016) measured the deuteration fraction, $D_{\rm frac}^{\rm N2H+}\equiv[{\rm N_{2}D^{+}}]/[{\rm N_{2}H^{+}}]$ , in this “core” (i.e., roughly 3.5″in radius) to be $\simeq 0.2$ to 0.7, which, by comparison with the models of Kong et al. (2015), may indicate a relatively old astrochemical age compared to the local free-fall time of the core.

Tan et al. (2016, hereafter T16) presented results from the compact configuration (i.e., 1.5″resolution) follow-up of the C1-S region with ALMA in Cycle 2, in particular reporting the detection of two protostellar outflow sources in the vicinity (i.e., within $\sim 0.1\>$ pc) of the core center (see also Feng et al., 2016). If these protostars are embedded in the core, then this would obviously invalidate its status as a PSC. Such a situation arose for the massive IR-quiet core N63 (Bontemps et al., 2010), which was later observed to host a powerful, collimated outflow (Duarte-Cabral et al., 2013). The only other previously reported candidate massive PSC is G11.92−0.61-MM2, detected solely by its continuum emission (Cyganowski et al., 2014). However, the non-detection of any molecular lines toward this source is peculiar and makes it difficult to assess the reliability of the structure, e.g., via a dynamical mass measurement.

Here we present the full results of our Cycle 2 observations of C1-S, combining compact and extended configuration observations that achieve 0.2″resolution. With this higher-resolution data, we are able to spatially and kinematically resolve the $\rm N_{2}D^{+}$ (3-2) core from the nearby protostars, so we conclude it remains a promising candidate to be a massive PSC.

2. Observations

2.1. ALMA Observations

The observations were carried out during ALMA Cycle 2, under the project 2013.1.00248.S (PI: Tan) using two configurations of the 12m-array. The compact configuration (C34-1) observation was performed on 05-Apr-2015 (UTC) with 34 12-m antennas and a total on-source integration time of 2087 seconds. The baselines range from 15m to 327m, corresponding to angular scales from 10″ to 1″. The angular resolution obtained from this observation is about 1.5″. The bandpass calibrator was J1924-2914; the flux calibrator was Neptune; the gain calibrator was J1912-0804; and the delay calibrator was J1902-0458. The system temperature was about 85 K. The extended configuration (C34-6) data were taken on 03-Jul-2015 (UTC) with 43 12-m antennas and a total on-source integration time of 4174 seconds. The baselines range from 34m to 1574m, corresponding to angular scales from 2.3″ to 0.2″. The angular resolution obtained from this observation is about 0.25″. The bandpass calibrator was J1751+0939; the flux calibrator was Titan; the gain calibrator was J1827-0405; and the delay calibrator was J1912-0804. The system temperature was about 95 K. Both observations targeted R.A.= $\rm 18^{h}42^{m}46\fs 585634$ , DEC.= $\rm-04\arcdeg 04\arcmin 12\farcs 36111$ (J2000), which is inbetween the C1-N and C1-S (see T16). The primary beam FWHM was $\sim$ 26″, covering both sources.

The observations were carried out in ALMA band 6. Four basebands and seven spectral windows were used. Baseband 1 was set to a single spectral window centered on the source frame $\rm N_{2}D^{+}$ (3-2) line (rest frequency is 231.32183 GHz; C1 source frame radial velocity is 79.4 $\>{\rm km\>s}^{-1}$ ), with a total bandwidth of 58 MHz (76 $\rm km~{}s^{-1}$ ) and a velocity resolution of 0.05 $\rm km~{}s^{-1}$ . Baseband 2 was set to a single spectral window for a continuum observation, centered at 231.00 GHz, with a total bandwidth of about 2 GHz, but also including coverage of 12CO(2-1) (rest frequency 230.538 GHz) with a velocity resolution of 1.3 $\rm km~{}s^{-1}$ . This set-up is especially useful for identifying CO outflows from protostars. (The CO line is excluded from the continuum band and the final aggregate continuum bandwidth is $\sim$ 1.4 GHz for imaging). Baseband 3 was set to a single spectral window centered on $\rm C^{18}O$ (2-1) (rest frequency 219.56036 GHz) with a total bandwidth of 58 MHz (80 $\rm km~{}s^{-1}$ ) and a velocity resolution of 0.05 $\rm km~{}s^{-1}$ . Baseband 4 was split into four spectral windows at rest frequencies of: 216.11258 GHz for $\rm DCO^{+}$ (3-2); 216.94560 GHz for CH3OH(5(1,4)-4(2,2)); 215.59595 GHz for SiOv=1(5-4); and 217.23853 GHz for DCN(3-2). Each of these windows has a total bandwidth of 58 MHz ( $\sim$ 81 $\rm km~{}s^{-1}$ ) and a 0.2 $\rm km~{}s^{-1}~{}$ velocity resolution. The data are Hanning smoothed.

We performed the standard cleaning procedure in CASA using the task clean. For the continuum and CO data, we used the Briggs weighting with a robust number of 0.5 (restoring beam $\sim$ 0.25″). To have the best sensitivity, we used the natural weighting for the line data, including $\rm N_{2}D^{+}$ (3-2), $\rm DCO^{+}$ (3-2), $\rm C^{18}O$ (3-2), and DCN(3-2) (restoring beam $\sim$ 0.3″). For the compact data, we performed three iterations of phase-only self-calibration, which improved the sensitivity by a factor of two. The self-calibration solutions to the continuum image were applied to other spectral windows. The final continuum sensitivity achieved is 0.12 mJy beam*-1* for the compact-configuration data; 0.042 mJy beam*-1* for the extended-configuration data; 0.040 mJy beam*-1* for the combined data. The line sensitivity for the compact configuration data is $\sim 10\>$ mJy beam*-1* per 0.1 $\rm km~{}s^{-1}$ ; for the extended configuration data is $\sim 8\>$ mJy beam*-1* per 0.1 $\rm km~{}s^{-1}$ ; for the combined data is $\sim 6\>$ mJy beam*-1* per 0.1 $\rm km~{}s^{-1}$ . In the following, all analysis are based on the combined images.

2.2. VLA Observations

The Karl G. Jansky Very Large Array (VLA) of NRAO was pointed towards C1-S in its D configuration on 2014 August 12 and September 11, with the same correlator setup to observe NH3 (J,K) = (1,1) and (2,2) lines. We used a bandwidth of 8 MHz with a channel width of 7.8 kHz (corresponding to $\sim$ 0.1 $\rm km~{}s^{-1}$ ) in dual polarization. The antenna gain, bandpass, and flux variations were calibrated by standard calibrators J1851+0035, J1743-0350, and 3C286, respectively, for both observing sessions. Data reduction was performed in CASA 4.2.2. The calibrated visibilities from the two sessions were imaged together. During imaging, we smoothed the channel width to 0.2 $\rm km~{}s^{-1}~{}$ and used a natural weighting, in order to optimize the signal-to-noise ratio. The resulting data cubes have an rms noise of 4 mJy per 3″ synthesized beam.

We will use these NH3 data to derive gas kinetic temperature following the routines outlined in Wang et al. (2012, 2014), which use the detailed method developed by Ho & Townes (1983) and Rosolowsky et al. (2008). We model the NH3 (J,K) = (1,1) and (2,2) spectra simultaneously with five free parameters, including kinetic temperature, excitation temperature, NH3 column density, velocity dispersion, and line central velocity. The model fitting is performed on pixels with $>6\sigma$ NH3 (J,K) = (1,1) integrated intensity. These temperature measurements are discussed below in section 3.1, specifically for their use in providing partial constraints on the temperatures needed for mass estimates from the mm dust continuum emission, assuming coupling of gas and dust temperatures.

3. Results

3.1. 1.3 mm Dust Continuum Emission and $\rm NH_{3}$ -Derived Temperature Map

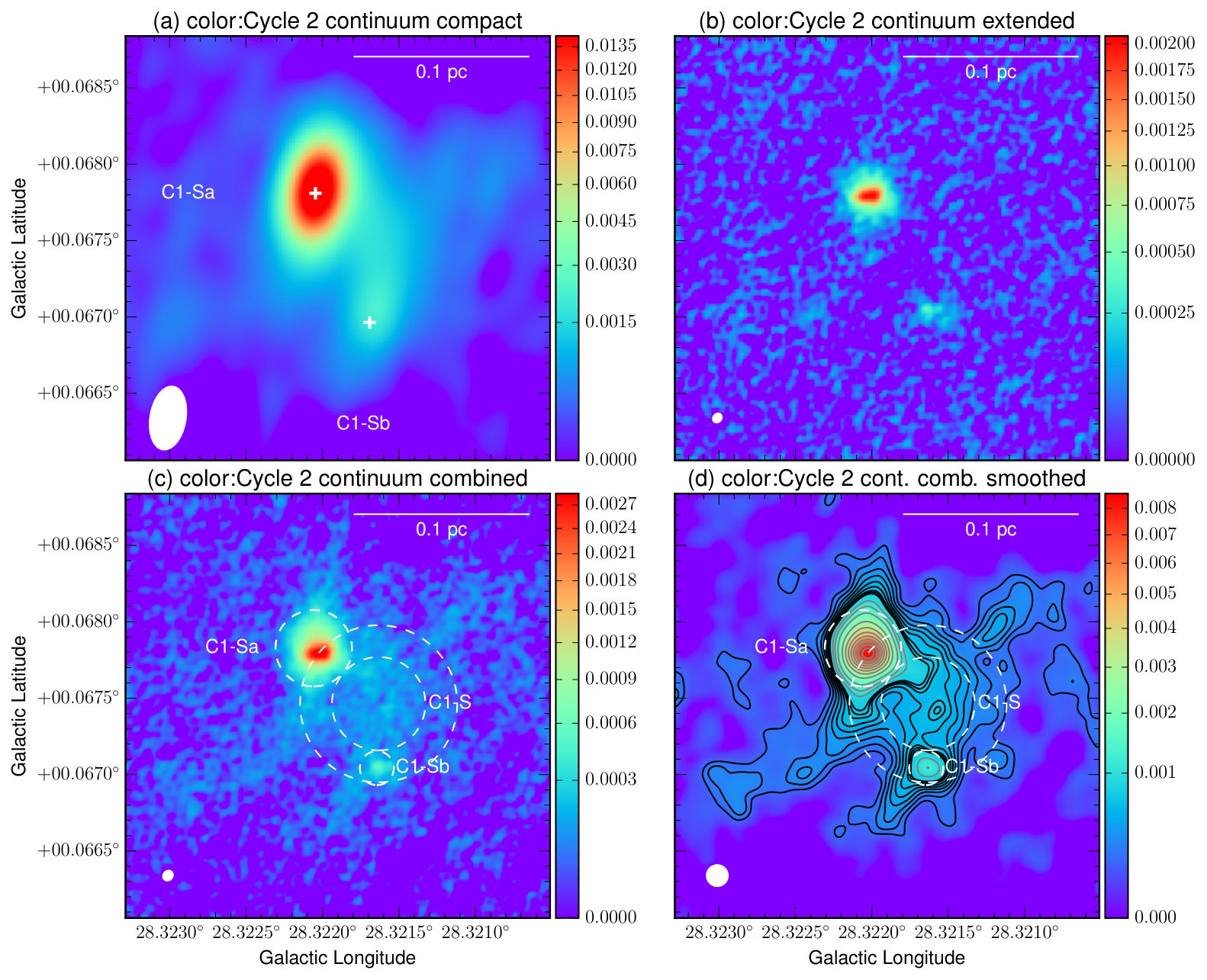

Figure 1 shows the 1.30 mm continuum images of the C1-S region. Note, that T16 already presented compact configuration images of the entire observed region and in this paper we will focus mostly on the sub-region shown in Figure 1. Panel (a) shows the compact-array data with 1.5″ beam. The two protostellar cores C1-Sa and C1-Sb from T16 are labeled with plus signs. Panel (b) presents the extended-array data with a beam size of 0.2″. Panel (c) shows the combined data with a final resolution also of 0.2″. The synthesized beam corresponds to a physical scale of about 0.005 pc, i.e., $\sim$ 1000 AU, given the adopted distance to the source of 5.0 kpc. Panel (d) shows the same data as (c), but now smoothed to about 0.5″ resolution. We also overlay contours for the continuum emission in Panel (d). There is a small continuum peak in C1-S.

We define C1-Sa and C1-Sb with two circular regions (the dashed circles in Figures 1c and d). The C1-Sa core shows a relatively smooth profile as a function of radius from the center, resolved with $\gtrsim$ 10 beams and with no sign of fragmentation. The bright central region shows elongation in the direction of Galactic longitude. The elongation is resolved with 3 synthesized beams. In the continuum image of Figure 1c, a bipolar structure is seen stretching out from C1-Sa in the approximately (Galactic) north-south directions. This structure coincides with the CO outflow axis (T16, and see, below, §3.3), indicating that there is dust in this outflow or along its cavity walls that is likely heated to temperatures greater than those of dust in the ambient environment.

Our defined core region of C1-Sb is much smaller in size compared to C1-Sa, with only $\sim 4$ beams across its diameter. The peak flux density is also several times smaller than that of C1-Sa.

The angular distance between C1-Sa and C1-Sb is $\sim 3$ ″, corresponding to about 15,000 AU (0.073 pc). Interestingly, in this region between C1-Sa and C1-Sb, we see a diffuse distribution of 1.30 mm dust emission. At least in projection, it appears to connect C1-Sa and C1-Sb with an arc-like shape. It does not show any clear centrally peaked profile. This structure spatially overlaps with the $\rm N_{2}D^{+}$ (3-2) core C1-S defined in T13. In the following, we show the new high-resolution $\rm N_{2}D^{+}~{}$ data and we make new definitions of the size of this core, i.e., with an inner and outer scale considered, which are also shown in Figures 1c and d.

Our primary method of estimating masses is based on 1.3 mm dust continuum emission, following eq. (7) of T13, i.e., using the opacities of the moderately coagulated thin ice mantle model of Ossenkopf & Henning (1994). The mass surface density from mm continuum is:

[TABLE]

where $\lambda_{1.30}=\lambda/1.30\>{\rm mm}$ and $T_{d,10}=T_{d}/10\>{\rm K}$ . We choose $\kappa_{\nu}=5.95\times 10^{-3}\>{\rm cm^{2}\>g^{-1}}$ and assume 30% uncertainties in these opacities. This method of mass estimation depends on the adopted dust temperature, which is somewhat uncertain. We thus calculate core masses for a range of temperatures.

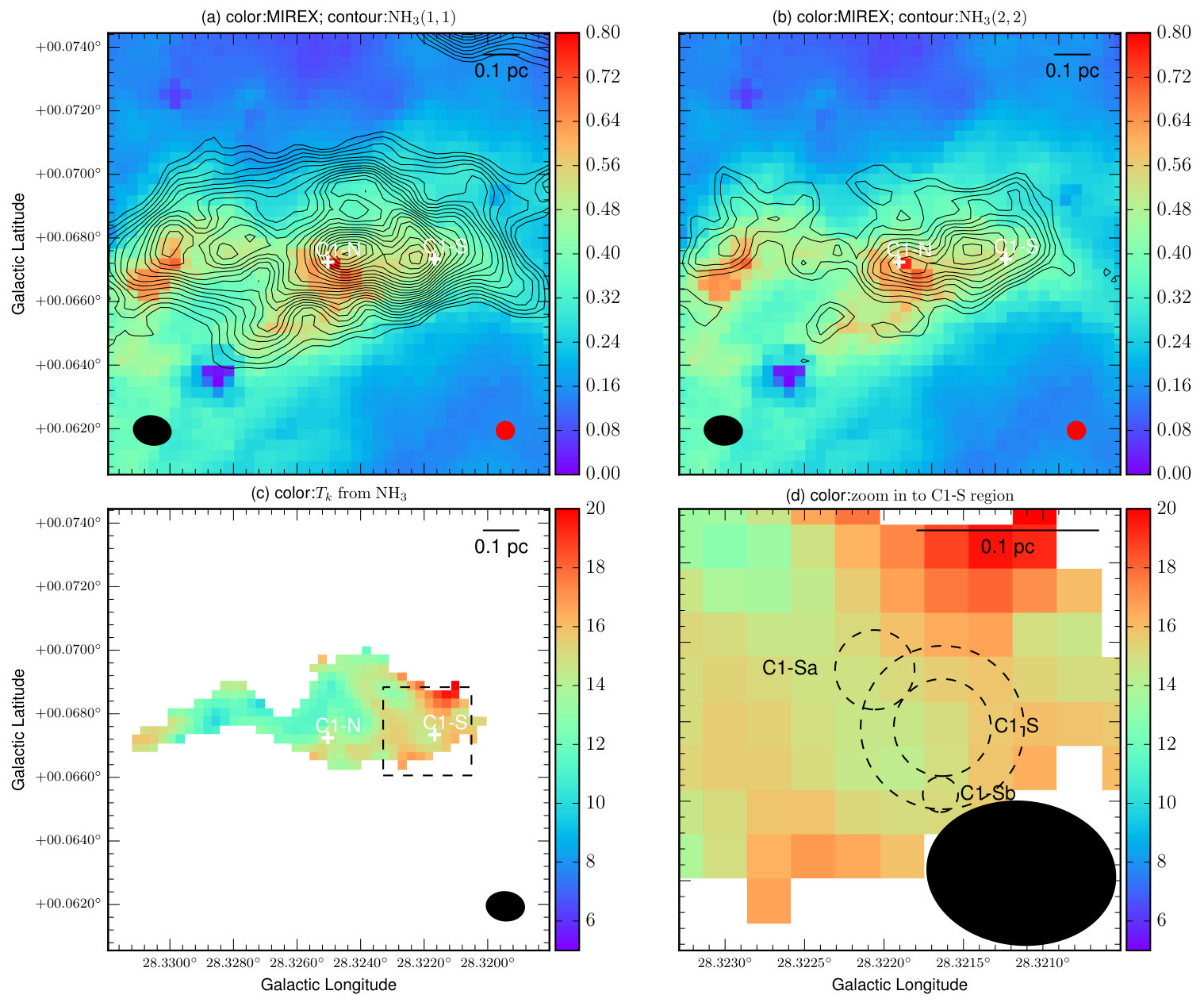

Figure 2 shows the gas kinetic temperature $T_{k}$ measured from the VLA NH3 observations. A temperature of $T_{k}\simeq 13\>$ K to $16\>$ K is observed towards the C1-S region, with slightly warmer temperatures just to the north. However, given the relatively low critical density ( $\sim 10^{3}\>$ cm*-3*) of the NH3 transitions (i.e., compared to $\sim 3\times 10^{6}\>{\rm cm}^{-3}$ for $\rm N_{2}D^{+}$ (3-2)), we expect that the temperature traced by NH3 is likely influenced by the lower density envelope material around the C1-S $\rm N_{2}D^{+}~{}$ core . The line width of the NH3 lines are also broader than $\rm N_{2}D^{+}$ (3-2), discussed below. The protostellar cores are not well resolved by the NH3 observations, so the ability to see any warmer gas associated with these protostellar envelopes is compromised by beam dilution.

T13 estimated $T_{d}=10\pm 3$ K, based on the region appearing dark at up to $\sim 100\>{\rm\mu m}$ . Thus for the C1-S starless core, defined in the next subsection, we will adopt $T_{\rm dust}=10\pm 3$ K. In the models of Zhang et al. (2014) for high-mass protostellar cores and those of Zhang & Tan (2015) for low-mass cores, the envelope gas temperature is between $\sim$ 15 K to 30 K during the phases of evolution relevant to C1-Sa (i.e., early phases, given the expectation of it being a massive protostellar core, see below) and to C1-Sb (i.e., most evolutionary phases relevant to low-mass star formation, given the expectation it is a lower-mass protostar, see below). Here we adopt a fiducial temperature of 20 K for the protostellar cores C1-Sa and C1-Sb, with lower and upper bounds of 15 K and 30 K, respectively. The measured core flux density in C1-Sa is 40.9 mJy and in C1-Sb is 2.31 mJy, with systematic uncertainties in these absolute values expected to be $\lesssim 10\%$ so that overall mass uncertainties are dominated by other factors, such as temperature and dust opacity uncertainties. Table 1 shows the resulting core masses based on the observed mm continuum fluxes, given these temperature uncertainties. The 1 $\sigma$ continuum mass sensitivity is 0.03 $M_{\odot}$ per beam at $T$ = 20 K.

The mass estimates of the C1-S starless core are discussed below in the next subsection. The protostellar envelope of C1-Sa has an estimated mass of about $30\>M_{\odot}$ , with a range of values from $\sim 20$ to $50\>M_{\odot}$ given the temperature uncertainties. Based on the momentum flux of its CO outflow, T16 estimated the mass of the C1-Sa protostar to be $\lesssim 3\>M_{\odot}$ . Thus C1-Sa is consistent with being a massive protostellar core that is in a relatively early phase of collapse. We find that C1-Sb has about a 14 times smaller mm continuum flux and thus the mass estimates for its envelope are just a few Solar masses. Given that its CO outflow momentum flux is only moderately smaller than that of C1-Sa, this suggests that C1-Sb is a low or intermediate mass protostar at a more advanced evolutionary stage of its collapse. This is also consistent with C1-Sb’s larger outflow cavity opening angle (T16, see also §3.3).

3.2. $\rm N_{2}D^{+}$ (3-2) Emission

3.2.1 Definition of the C1-S Pre-stellar Core

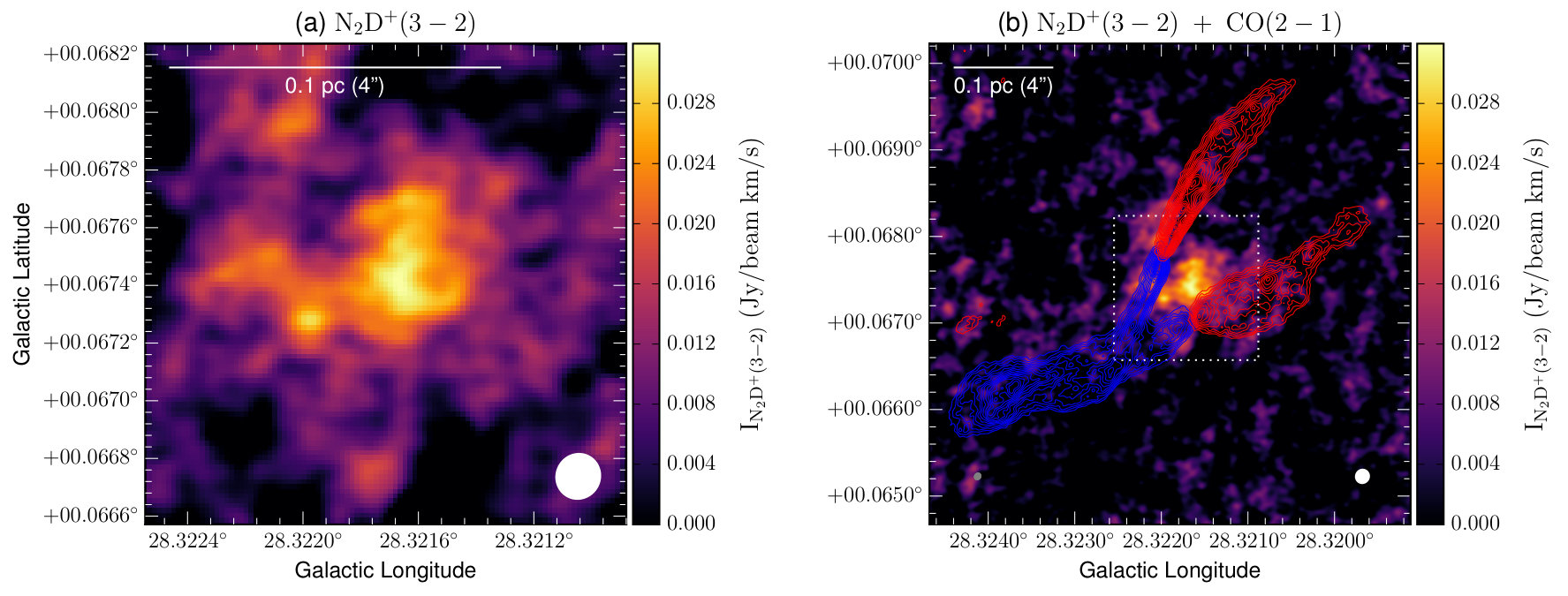

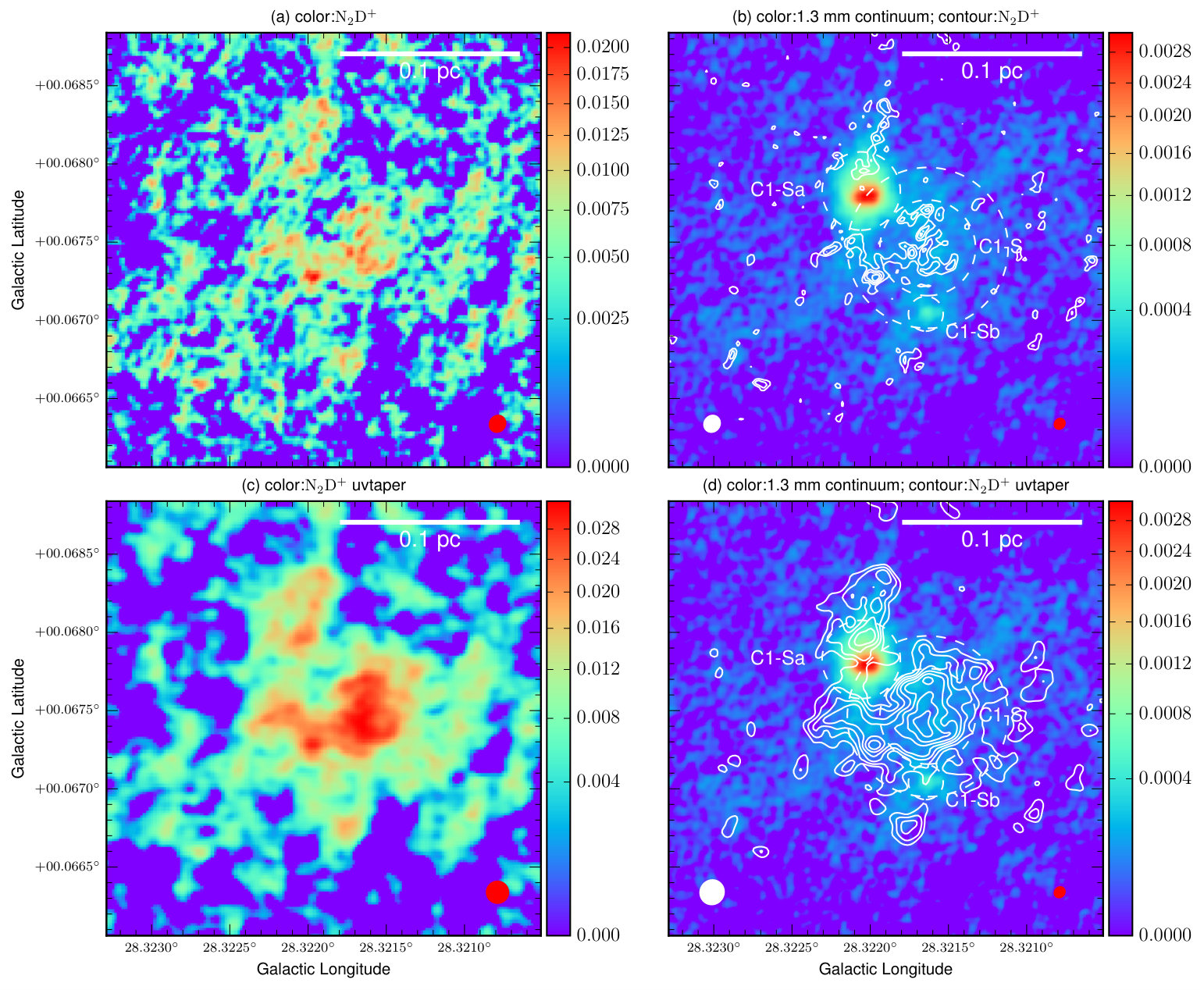

Figure 3 shows the $\rm N_{2}D^{+}$ (3-2) 0th-moment map of the C1-S region, integrated from 76.9 to 81.9 $\rm km~{}s^{-1}~{}$ (i.e., centered on the 79.4 $\rm km~{}s^{-1}~{}$ measured for the C1-S core by T13). Several versions of the map are shown. In panel (a), we show the combined data of $\rm N_{2}D^{+}$ (3-2) with a final synthesized beam size of 0.3″. In panel (b), the same $\rm N_{2}D^{+}~{}$ image is overlaid as contours on top of the 1.30 mm continuum image from Figure 1c. Since noise features are quite visible across the image in panel (a), in panel (c) we show a smoothed image, obtained by applying an outer uv-taper to the $\rm N_{2}D^{+}~{}$ data to have a $0.57\arcsec\times 0.54\arcsec~{}P.A.=89.59\arcdeg$ beam. Then in panel (d), we show the smoothed $\rm N_{2}D^{+}~{}$ image on top of the continuum image. One can see from Figure 3, especially panels (c) and (d), that there is centrally concentrated $\rm N_{2}D^{+}~{}$ emission inbetween C1-Sa and C1-Sb. As we discuss below, this structure, which we will refer to as a “core”, contains a large fraction of the $\rm N_{2}D^{+}$ (3-2) flux of the C1-S core defined by T13. We remind that the $\rm N_{2}D^{+}$ (3-2) flux of C1-S is the strongest source of such emission in the wider region and is highly localized in position and velocity space, i.e., to $\sim 0.1$ pc spatial and $\lesssim 0.5\>{\rm km\>s}^{-1}$ velocity scales. In addition to the radial gradient in $\rm N_{2}D^{+}$ (3-2) intensity, C1-S also shows some internal substructure in this emission at the factor of about two to three level. Such variation is broadly consistent with the astrochemical models of Goodson et al. (2016) of a monolithic core that is partially supported by turbulence. In these models the abundance of $\rm N_{2}D^{+}~{}$ increases by several orders of magnitude and depends on local density, temperature and other gas properties, so fluctuations of a factor of a few are readily explained as being in response to local transient turbulent fluctuations, without necessarily implying that these structures will fragment into separate entitites.

We define “C1-S inner” as the circle centered approximately on the peak $\rm N_{2}D^{+}$ (3-2) 0th-moment contours, while extending out as far as possible to just reach, in projection, the C1-Sa and C1-Sb protostellar cores. C1-S inner contains 23% of the total $\rm N_{2}D^{+}$ (3-2) flux in the high-resolution image (panel b). We also define “C1-S outer” with a circular aperture that shares the same center but expanded to cover a larger fraction (44%) of the $\rm N_{2}D^{+}$ (3-2) flux in the region (see Figure 3b and d). C1-S outer partially overlaps C1-Sa and fully overlaps C1-Sb. In any later analysis, pixels in C1-Sa and C1-Sb, e.g., containing mm continuum flux or $\rm N_{2}D^{+}$ (3-2) flux, are excluded from contributing to C1-S outer.

Note here that we are defining C1-S inner and outer by their centrally-peaked $\rm N_{2}D^{+}~{}$ emission, unlike C1-Sa or C1-Sb that were defined by centrally-peaked continuum emission. As shown in Figure 4, C1-Sa shows a centrally-peaked 1.3 mm continuum intensity profile, while C1-S’s profile is much shallower. The lack of a centrally peaked continuum morphology in C1-S, compared to C1-Sa and C1-Sb, is thus evidence for it being a starless, pre-stellar core, rather than a protostellar core. Note also that the extent of material that is dynamically associated with C1-S, e.g., bound to it, may be larger than the example aperture of C1-S outer. Fig. 3c shows this more extended $\rm N_{2}D^{+}$ (3-2) emission, although a small part of this may be associated with the C1-Sa and C1-Sb protostars.

The 1.3 mm continuum-derived mass estimates for C1-S inner and outer shown in Table 1 range from about $25$ to $60\>M_{\odot}$ for the fiducial choice of assumptions, i.e., a dust temperature of 10 K. Temperature uncertainties from 7 to 13 K induce about a factor of two uncertainty in the mass estimates. Note, however, that these mass estimates have so far been based on the total flux observed towards a given aperture. Clump envelope substraction, i.e., where the average flux density in an annular region extending to twice the core radius (and excluding the protostars C1-Sa and C1-Sb) is subtracted (see §3.2.4), leads to modest reductions in these mass estimates by factors of about 0.64 for C1-S inner and 0.83 for C1-S outer in the fiducial case. Thus, the mass that is associated with the observed $\rm N_{2}D^{+}$ (3-2) emission, especially when considered at its outer scale, appears to be of sufficient quantity to form a massive star, if this core were to undergo quasi-monolithic collapse.

C1-S is a highly deuterated core. The deuteration analysis of Kong et al. (2016), which was applied to the 3.5″radius C1-S aperture of T13 found $D_{\rm frac}^{\rm N2H+}\equiv[{\rm N_{2}D^{+}}]/[{\rm N_{2}H^{+}}]\simeq 0.2$ to 0.7. We thus expect the actual deuteration level in C1-S outer and inner to be even higher. Such high levels of deuteration are expected to be achieved in gas that is kept in a cold ( $T\lesssim 20\>$ K) and dense state for a relatively long time, i.e., compared to the local free-fall time. Such conditions are found to be common in low-mass pre-stellar cores (Caselli & Ceccarelli, 2012) and may be expected to arise in more massive pre-stellar cores also, assuming such cores exist.

In summary, C1-S shows no obvious sign of star formation. It has no centrally peaked continuum profile. It has no corresponding CO outflows (as will be shown below in §3.3). In Herschel 70 $\micron$ and 100 $\micron$ images, this entire region has no sign of point sources (Lim et al. 2016; Lim et al., in prep.). While C1-Sa and C1-Sb have some level of $\rm N_{2}D^{+}$ (3-2) emission, this tracer does not show obvious concentrations at the locations of their continuum emission peaks. Meanwhile, C1-S has a strongly concentrated $\rm N_{2}D^{+}$ (3-2) structure away from the protostars. We thus conclude that C1-S is likely to be a highly deuterated massive starless core.

3.2.2 Core Structure

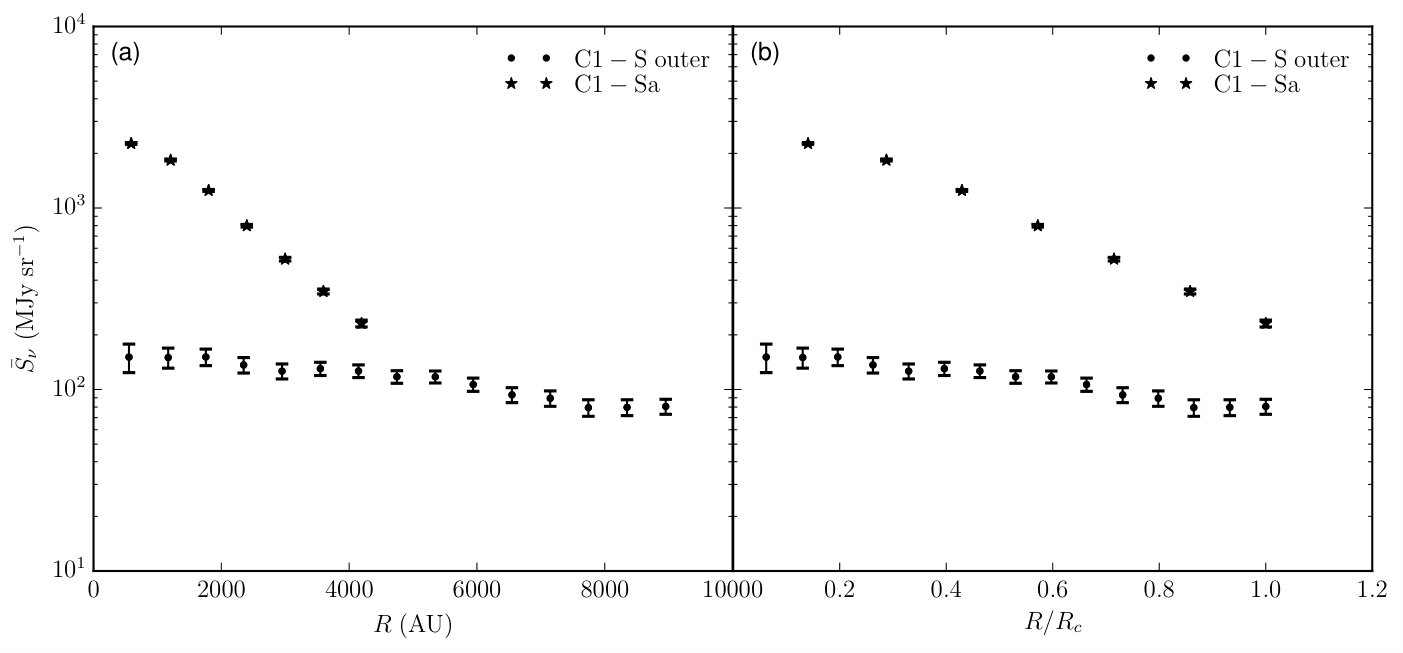

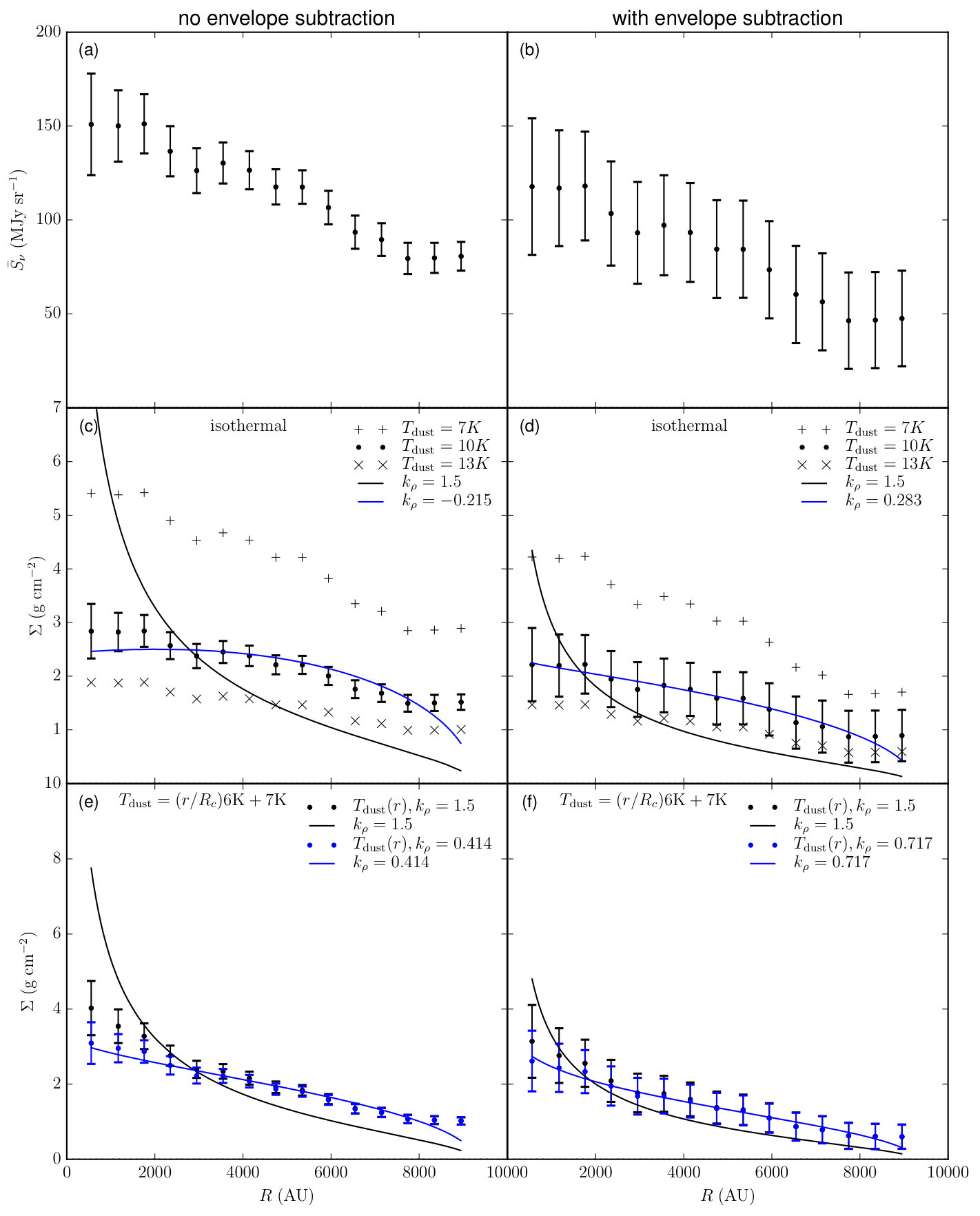

Figure 5 shows the radial structure of C1-S outer as inferred from thermal dust continuum emission. In panel (a) we show the total $\bar{S}_{\rm 1.3mm}(R)$ (averaged in annuli), while in (b) we show the result after envelope subtraction. This background envelope level is assessed as the average value of $\bar{S}_{\rm 1.3mm}$ in an annulus from one to two core radii (excluding the C1-Sa and C1-Sb regions). We estimate the uncertainty associated with this process as equal to the level of fluctuations seen in 8 independent regions of the annulus, i.e., that have linear dimensions comparable to the radius of the core. The standard deviation of these mean values is adopted as the uncertainty, which is about 70% of overall envelope value. In panel (c), we calculate the mass surface density profile from the total 1.3 mm flux density based on Eq.1. Since C1-S is a candidate starless core, we first assume $T_{\rm dust}=10\>$ K across the core (black dots). We also calculate two more cases where $T_{\rm dust}=7\>$ K and $T_{\rm dust}=13\>$ K, which we use to assess the uncertainty in the mass surface density estimates.

Following the turbulent core model of MT03, we assume a core volume density profile following a singular polytropic spherical structure: $\rho~{}\propto~{}r^{-k_{\rho}}$ , where $k_{\rho}=1.5$ in the fiducial case. We project the volume density to surface density $\Sigma$ by integrating along the line of sight. Then we find the best fitting model, first for the case of $k_{\rho}=1.5$ (black line in panel c). It has a density at core surface (9250 AU) (i.e., the radius of C1-S outer) of $n_{H}=8.40\times 10^{5}\>{\rm cm}^{-3}$ . However, this model is not a very good fit to the data. We then allow $k_{\rho}$ to vary, which yields a best-fit model with $k_{\rho}=-0.215$ (blue line), i.e., $\rho$ increasing towards the core surface, which is not expected for physically realistic models. We repeat the analysis for the clump envelope-subtracted profiles shown in panel (d). Now the best-fit $k_{\rho}$ is 0.283. This has density declining with radius, but is still much shallower than the fiducial case of MT03.

In panels (e) and (f), we also investigate models with a temperature gradient in the core. As an example, we consider a linear gradient with $T=7K$ at the core center and $T=13K$ at the core surface, similar to the range of values seen in some lower-mass pre-stellar cores (Crapsi et al., 2007). The newly-derived $\Sigma$ profile are shown as dots. One can see $\Sigma$ is more centrally-peaked compared to the isothermal case. Again we model the core and the best-fit $k_{\rho}=0.414$ for the total flux case and $k_{\rho}=0.717$ for the envelope-subtracted case. Opacity variations within the core, e.g., due to grain growth in the denser central regions, could also lead to changes in the derived density structures. Lacking any good constraints on temperature and opacity variations within the core, we conclude that it is difficult to determine the core structure from the current data. We also note that as a starless core contracts to becoming a pre-stellar core on the verge of forming a protostar, its density profile is expected to steepen (Shu, 1977).

3.2.3 Core Kinematics

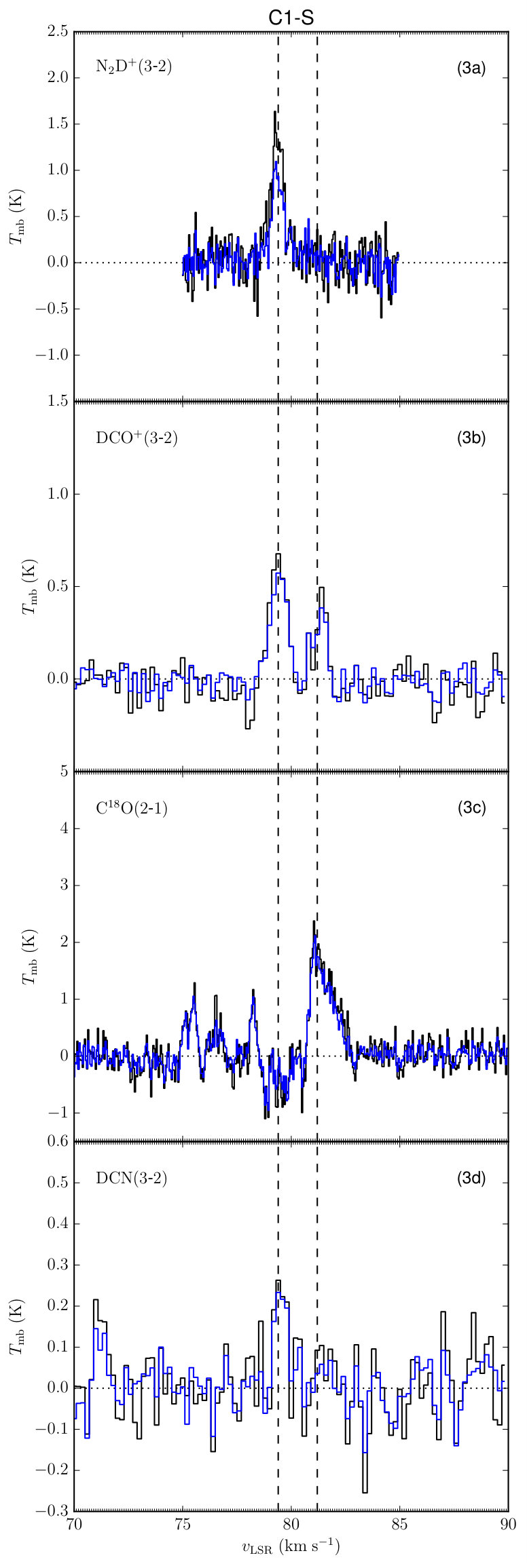

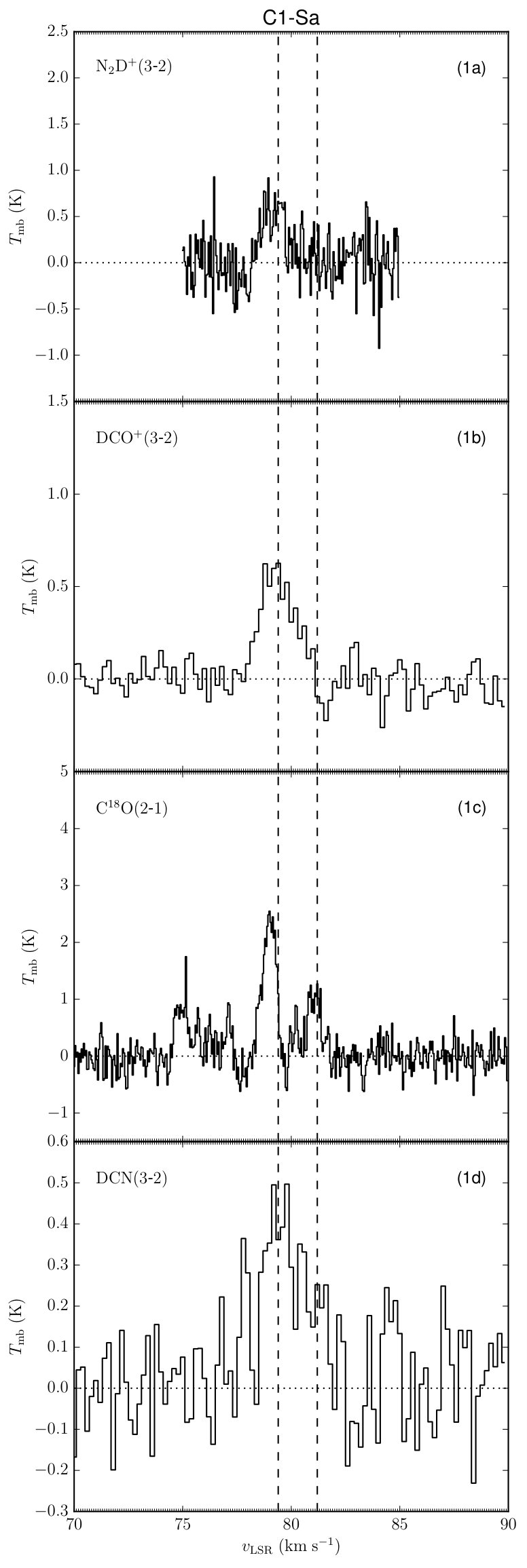

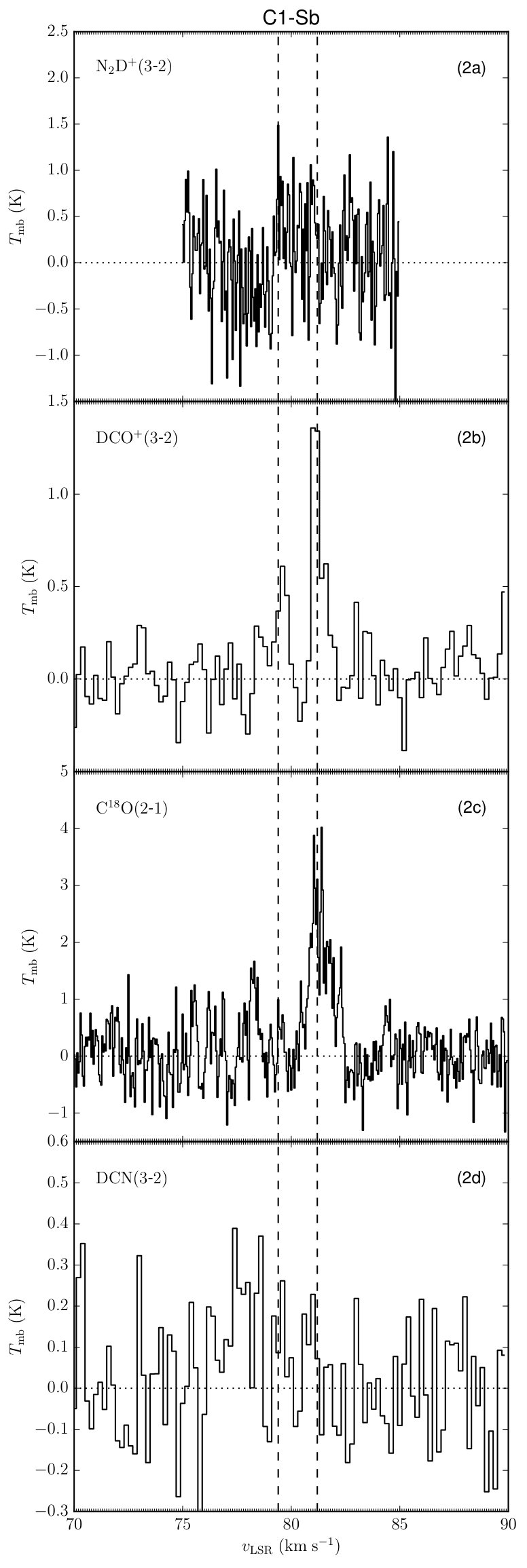

Figure 6 shows the spectra of $\rm N_{2}D^{+}$ (3-2), $\rm DCO^{+}$ (3-2), $\rm C^{18}O$ (2-1) and DCN(3-2) from the C1-Sa, C1-Sb and C1-S inner cores. The spectra are averaged over the circular core apertures and converted to $T_{\rm mb}$ . Considering the spectra of the C1-Sa protostar, one can see that most of its emission from dense gas tracers is close to the 79.4 $\rm km~{}s^{-1}~{}$ velocity component identified in $\rm N_{2}D^{+}$ (3-2) by T13 (hereafter $v_{\rm low}$ ). There is a relatively weak velocity component in $\rm C^{18}O$ (2-1) at 81.2 $\rm km~{}s^{-1}~{}$ (hereafter $v_{\rm high}$ ). Like T16, we argue the protostellar core C1-Sa is at the $v_{\rm low}$ velocity. We note that multiple velocity components are commonly seen in IRDCs (e.g., 2013MNRAS.428.3425H).

For the C1-Sb protostar, from the spectra of $\rm DCO^{+}$ (3-2) and $\rm C^{18}O$ (2-1) we see that the main velocity component is at 81.2 $\rm km~{}s^{-1}~{}$ ( $v_{\rm high}$ ). There is a relatively weak component in $\rm DCO^{+}$ (2-1) at $v_{\rm low}$ and a hint of a feature in $\rm N_{2}D^{+}$ (3-2) at $v_{\rm low}$ . We argue the protostellar core C1-Sb is at $v_{\rm high}$ . T16 also suggested a higher radial velocity for C1-Sb based on the low velocity resolution channel maps of 12CO(2-1).

The C1-S core, defined by $\rm N_{2}D^{+}$ (3-2), is at 79.4 $\rm km~{}s^{-1}~{}$ ( $v_{\rm low}$ ). This C1-S component is also seen in $\rm DCO^{+}$ (3-2) and DCN(3-2), but not in $\rm C^{18}O$ (2-1). We also see the $v_{\rm high}$ component in $\rm DCO^{+}$ (3-2) and $\rm C^{18}O$ (2-1).

Overall, these spectra suggest that C1-Sa is likely to be part of the same cloud enclosing C1-S, while C1-Sb is a core that is part of a separate larger scale structure, potentially connected to C1-N (T13). We note that in the C1 region, we generally see these two velocity components in a variety of datasets. The velocity difference is typically 1.8 $\rm km~{}s^{-1}$ . It remains to be seen whether these components are interacting, i.e., via a collision, or are simply overlapping in the plane of the sky but are physically separated in the third spatial dimension.

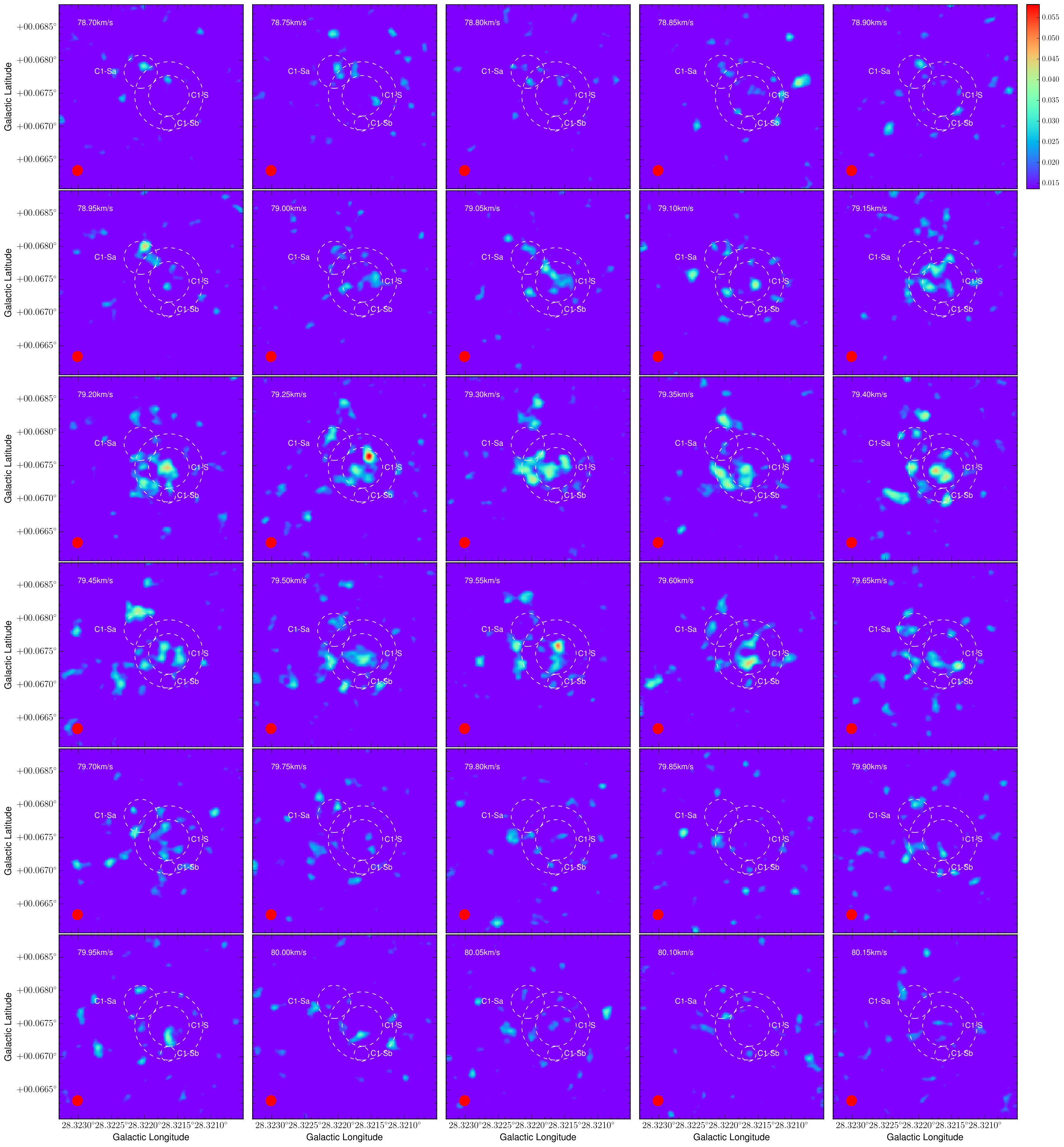

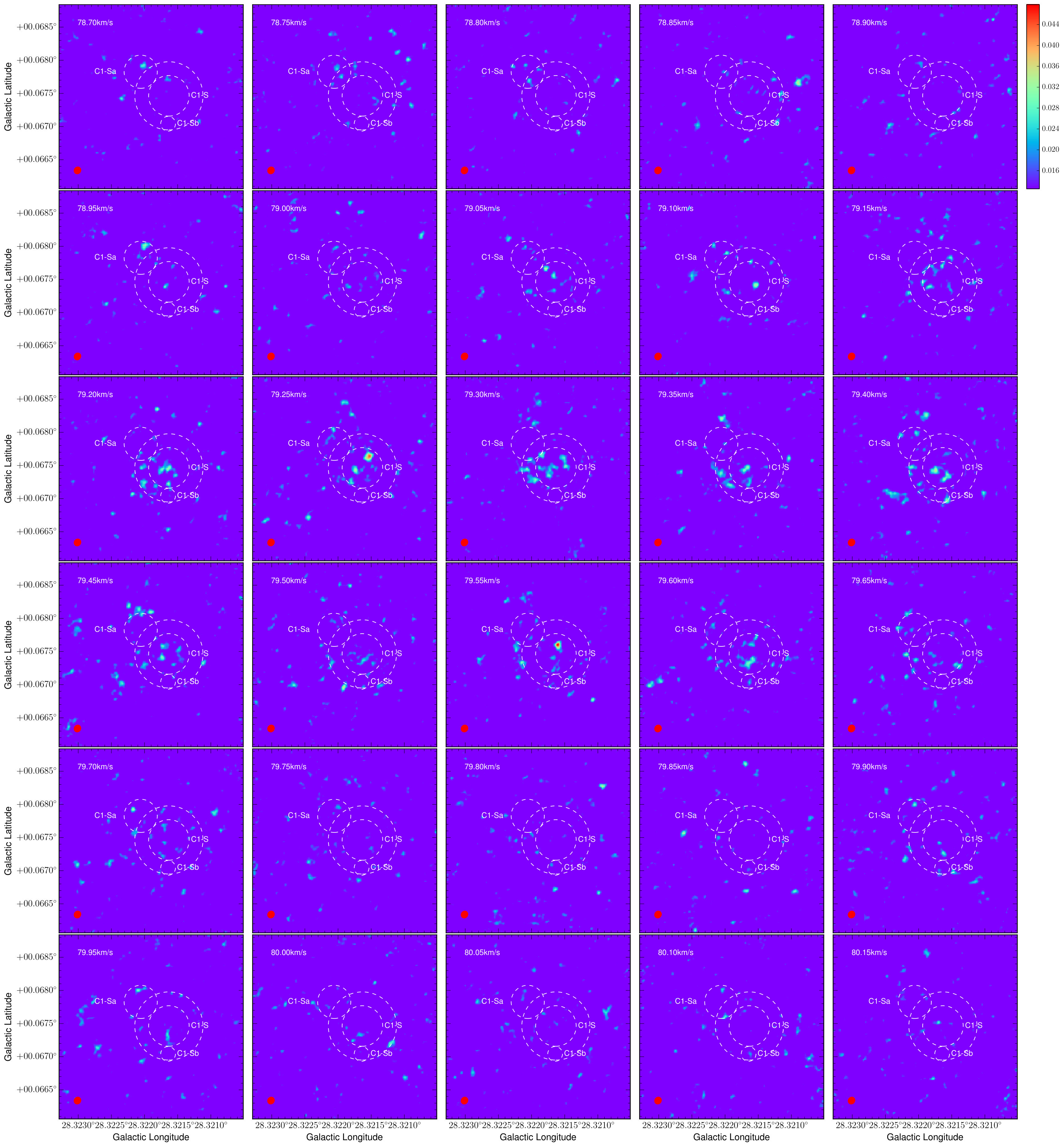

Figures 7 and 8 show the channel maps of the $\rm N_{2}D^{+}$ (3-2) data, with the latter uv-tapered to $\sim$ 0.5″resolution. The three cores C1-Sa, C1-Sb and C1-S are shown with white dashed circles. The velocity range of the channels covers essentially all of the detected $\rm N_{2}D^{+}$ (3-2) emission (above 3 $\sigma$ ). $\rm N_{2}D^{+}$ (3-2) in C1-Sa is more prominent in channels $\lesssim$ 79.1 $\rm km~{}s^{-1}$ , while in C1-S it is more dominant in channels $\gtrsim$ 79.1 $\rm km~{}s^{-1}$ . From 79.1 $\rm km~{}s^{-1}~{}$ to 80.0 $\rm km~{}s^{-1}$ , C1-S is filled with widespread $\rm N_{2}D^{+}~{}$ features, with little indication of any large scale velocity gradients.

To examine this further, Figure 9 shows the 1st-moment map of the combined $\rm N_{2}D^{+}$ (3-2) data, with velocity measurements shown for those pixels with a 2 $\sigma$ and 3 $\sigma$ detection of the species, i.e., to illustrate the effect of the choice of this threshold. C1-S shows a quite coherent structure around 79.4 $\rm km~{}s^{-1}$ . No clear sign of global rotation is seen in C1-S. There is a stronger velocity gradient seen across C1-Sa, equivalent to about a 0.8 $\rm km~{}s^{-1}$ change across the diameter of the core (see Figure 9(j) and (n)). The direction of the gradient (E-W) is consistent with the continuum elongation. Figure 9 shows the 2nd-moment map of the combined $\rm N_{2}D^{+}~{}$ data (the last two columns). In the fourth column, we subtract the intrinsic dispersion of the $\rm N_{2}D^{+}$ (3-2) hyperfine structure in quadrature from the 2nd-moment map (calculated at 2 $\sigma$ and 3 $\sigma$ ). Consequently, the number of available pixels is limited by the sensitivity. C1-Sa shows moderately enhanced 2nd-moment, which may be caused by its outflow (§3.3).

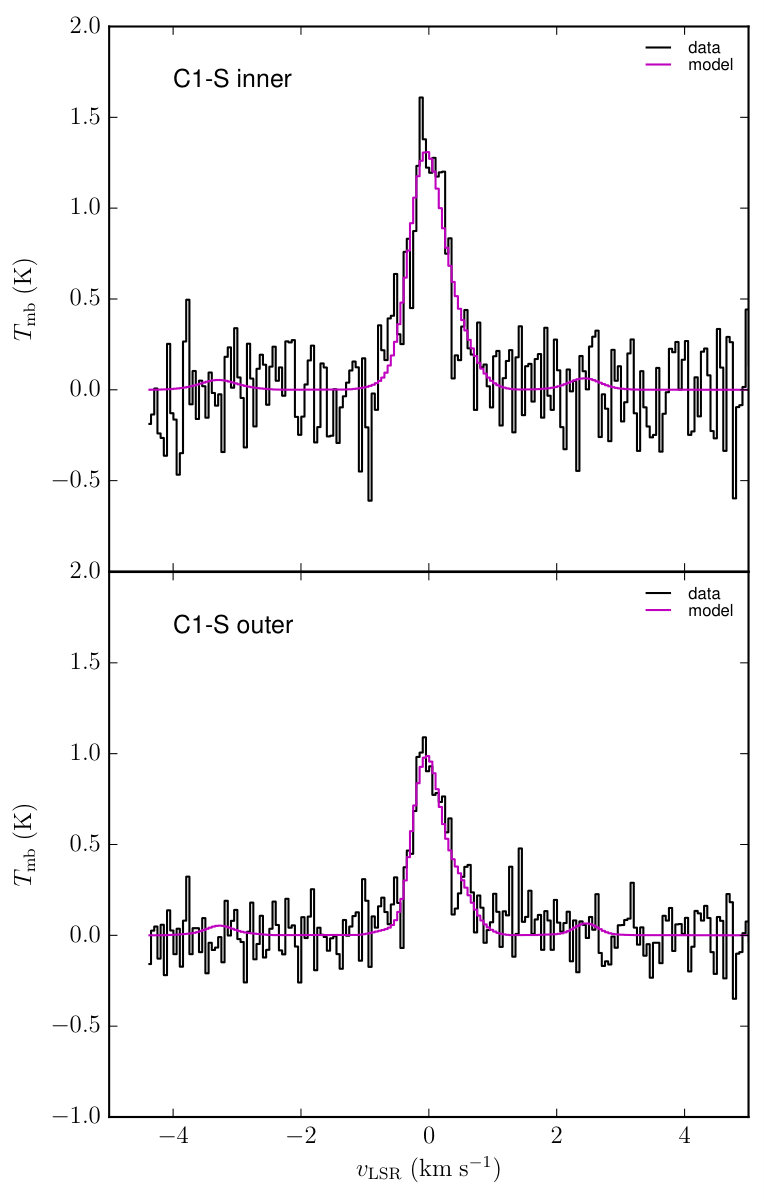

We performed hyperfine-structure spectral fitting to the $\rm N_{2}D^{+}$ (3-2) spectrum using the HFS method of the CLASS software package111http://www.iram.fr/IRAMFR/GILDAS in Figure 10, assuming the line is optically thin (see the optical depth check in Kong et al., 2016). The thermal component of $\rm N_{2}D^{+}~{}$ is subtracted in quadrature from the line dispersion, and the thermal component of H2 gas (assuming $10\pm 3$ K) is added back in quadrature to obtain the total velocity dispersion of the core as derived from the $\rm N_{2}D^{+}~{}$ observations ( $\sigma_{\rm N_{2}D^{+}}$ ) (see T13). These results are listed in Table 3. The observed line profiles of $\rm N_{2}D^{+}~{}$ are dominated by turbulent motions, although the total velocity dispersions are under $0.4\>{\rm km\>s^{-1}}$ .

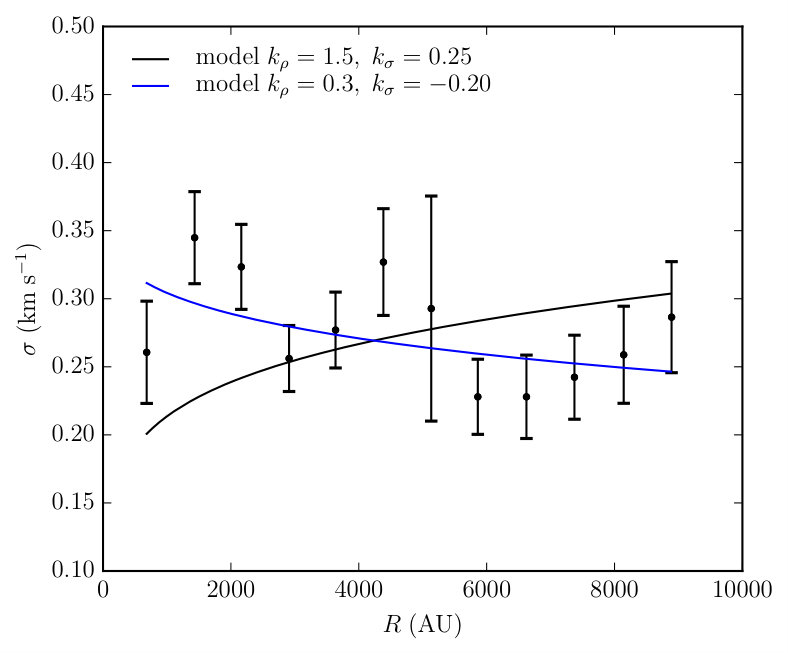

Figure 11 shows the C1-S outer core velocity dispersion $\sigma$ as a function of projected radius, $R$ . The core is dissected into the same set of annuli as in Figure 5. Within each annulus, we extract the averaged $\rm N_{2}D^{+}$ (3-2) flux density and form a spectrum. Then we fit the hyperfine structure of $\rm N_{2}D^{+}$ (3-2) and derive $\sigma_{\rm N_{2}D^{+}}$ , as described above.

We first model the core velocity dispersion following the MT03 model, where the core volume density follows $\rho(r)~{}\propto~{}r^{-k_{\rho}}$ and the velocity dispersion follows $\sigma(r)~{}\propto~{}r^{k_{\sigma}}$ . The fiducial MT03 model has $k_{\rho}=1.5$ and $k_{\sigma}=0.25$ . We project the $\sigma(r)$ to the sky plane by summing the line-of-sight mass-weighted $\sigma(r)$ in quadrature (this is the same as the emission-weighted averaging in the optically thin, isothermal limit). Finally we normalize the 2D $\sigma-R$ model based on a $\chi^{2}$ minimization to the data (converted to $\sigma_{\rm N_{2}D^{+}}$ , following the methods described above). The model curve (black) is shown in Figure 11. It has a velocity dispersion at core surface of $\sigma_{s}=0.306~{}\rm km~{}s^{-1}$ . We also try a shallower density profile with $k_{\rho}=0.3$ . This time we allow $k_{\sigma}$ to vary, finding a best-fit result $k_{\sigma}=-0.201$ and $\sigma_{s}=0.245~{}\rm km~{}s^{-1}$ .

These results indicate that velocity dispersion is fairly constant with radius in the C1-S core. The fiducial turbulent core model is consistent with the observed velocity dispersion versus projected radius profile, although its continuum flux profile is too concentrated (unless one invokes strong temperature and/or opacity gradients). A flatter density profile, i.e., $k_{\rho}=0.3$ , which is more favored by the continuum flux profile, still implies a relatively flat velocity dispersion profile, although now declining with radius. However, these results assume a constant abundance of $\rm N_{2}D^{+}~{}$ in the core, which is a caveat that needs to be borne in mind.

3.2.4 Core Dynamics

We follow T13 to measure the C1-S core properties at both the inner and outer scales and investigate its dynamics. We first use the MIREX image from Butler et al. (2014) to estimate the mass surface density of the core ( $\Sigma_{c}$ ) and its clump envelope ( $\Sigma_{\rm cl,MIREX}$ ), evaluated from an annulus extending out to twice the core radius. However, we note that the C1-S region may be “saturated” in the MIREX map, i.e., it may only provide a lower limit to the actual mass surface density (see discussion in Butler & Tan, 2012; Butler et al., 2014; Lim & Tan, 2014). For the C1-S core we find $\Sigma_{\rm c,MIREX}\simeq 0.5\>{\rm g\>cm^{-2}}$ for both the inner and outer core regions. We also find quite similar values for the clump mass surface density via this method, i.e., $\Sigma_{\rm cl,MIREX}$ . This indicates that saturation in the map is indeed a problem. Another potential difficulty with estimates based on the MIREX map is that its angular resolution is only 2″.

As a result of these potential problems with the MIREX map of this region, we also measure mass surface densities of the core and clump envelopes based on their mm continuum emission, i.e., $\Sigma_{\rm c,mm,tot}$ and $\Sigma_{\rm cl,mm}$ . The subscript “tot” means no envelope subtraction (see below). Following T13, we adopt $T=10\pm 3\>$ K for the core, which results in lower and upper limits denoted as sub- and superscripts. For the clump we adopt $T=15\pm 5\>$ K, i.e., with such temperatures being expected to be relevant for larger-scale regions in IRDCs (e.g., Pillai et al., 2006, see also Fig. 2). With these methods we find that C1-S core has $\Sigma_{\rm c,mm,tot}\simeq 2.41$ and $1.96\>{\rm g\>cm^{-2}}$ at its inner and outer scales, respectively. The surrounding clump envelopes around these apertures have $\Sigma_{\rm cl,mm}\simeq 0.80$ and $0.34\>{\rm g\>cm^{-2}}$ , respectively. Given these results, we focus our attention on core properties for the dynamical analysis using the mm continuum derived mass surface densities.

We consider two cases for estimating core physical properties: (1) no envelope subtraction, i.e., using total mm continuum fluxes, for which we use the subscript “tot”, e.g., $S_{\rm c,mm,tot}$ , $\Sigma_{\rm c,mm,tot}$ , $M_{\rm c,mm,tot}$ , etc.; (2) with envelope subtraction, for which we use variable names with no additional subscript, e.g., $\Sigma_{\rm c,mm}$ , $M_{\rm c,mm}$ , etc. The resulting physical properties of C1-S, including volume densities (assuming spherical geometry and adopting a mean molecular weight of $2.33m_{\rm H}$ ), are listed in Table 3. With the fiducial dust temperature estimates, the derived masses of C1-S inner are $M_{\rm c,mm,tot}=25.5\>M_{\odot}$ and $M_{\rm c,mm}=17.1\>M_{\odot}$ , i.e., background subtraction makes a substantial difference in the mass estimate. For C1-S outer, the masses are $M_{\rm c,mm,tot}=58.8\>M_{\odot}$ and $M_{\rm c,mm}=48.8\>M_{\odot}$ , i.e., the effects of background subtraction are more modest (in a relative sense). The implied volume densities in C1-S, also listed in Table 3, are $n_{\rm H}\sim$ several $\times 10^{6}\>{\rm cm^{-3}}$ .

Now with estimates of the radii, masses and velocity dispersions of the C1-S inner and outer core structures, along with their clump envelope mass surface densities, we are able to compare these to predictions of the Turbulent Core Model of MT03. Our general methodological approach follows that of T13. The mass-weighted average velocity dispersion of a virialized core, including pressure equilibrium with its surroundings, is given, in the fiducial case by (MT03; T13):

[TABLE]

where $\phi_{B}=1.3+1.5m_{A}^{-2}\rightarrow 2.8$ is a dimensionless parameter that accounts for the effects of magnetic fields, $m_{A}\equiv\sqrt{3}\sigma/v_{A}\rightarrow 1$ is the Alfvén Mach number and $v_{A}=B/\sqrt{4\pi\rho}$ is the Alfvén speed. The fiducial case considered by MT03 (indicated by the $\rightarrow$ values, above) involved approximately equal support in the core by turbulence and large-scale magnetic fields. If magnetic fields play a more important role, then this is represented by a smaller Alfvén Mach number, i.e., sub-Alfvénic turbulence, and a larger value of $\phi_{B}$ . In this case, a virial equilibrium core would have a smaller turbulent line width.

Thus our basic procedure is to evaluate $\sigma_{\rm c,vir}$ using equation (2) and compare it with the observed 1D velocity dispersion inferred from the $\rm N_{2}D^{+}$ (3-2) line, $\sigma_{\rm N_{2}D^{+}}$ . We do this for the C1-S inner and outer scales and for the case of no clump envelope background subtraction and with such background subtraction. These results are listed in Table 4. The ratio $\sigma_{\rm N_{2}D^{+}}/\sigma_{\rm c,vir,mm}$ is found to be approximately equal to 0.4 for both C1-S inner and outer, which is similar to the results of T13 based on the lower resolution observations of C1-S and of Kong et al. (2017) for other $\rm N_{2}D^{+}~{}$ cores in IRDCs.

There are two possible interpretations for these results. The first possibility is that the core really is in a sub-virial state, i.e., it is on the verge of undergoing fast collapse because it lacks sufficient internal pressure support. Evaluation of the Bertoldi & McKee (1992) virial parameter (see Table 4), which is often used to assess the dynamical state of cores, would also seem to indicate such a situation. However, the high densities of the core imply short free-fall times (also listed in Table 4), which are $\sim 2\times 10^{4}\>$ yr. Gas in the core would be expected to relatively quickly acquire infall velocities, which would approach the free-fall speed and thus give the core an apparent velocity dispersion that is comparable to that of virial equilbrium. It seems unlikely that all the core material is slowly moving and on the verge of fast collapse, especially on the different scales of C1-S inner and outer. In addition, the astrochemical modeling of the deuteration process that increases the abundance of $\rm N_{2}D^{+}~{}$ compared to $\rm N_{2}H^{+}~{}$ is thought to take a relatively long time compared to the local free-fall time. The results of Kong et al. (2016); Goodson et al. (2016) indicate that the C1-S core should be contracting at a rate smaller than 1/3 of that of free-fall collapse in order to have enough time to reach the observed levels of deuteration.

The second possibility is that the C1-S core is quite close to a state of virial equilibrium and is only undergoing relatively slow contraction compared to that of free-fall collapse. This would then require stronger magnetic fields compared to those of the fiducial ( $m_{A}=1$ ) turbulent core model. The values of these fiducial $B$ -field strengths are about 0.5 mG on the scale of C1-S outer and 0.8 mG at C1-S inner. The values of $\phi_{B}$ to achieve virial equilibrium, $\phi_{\rm B,vir}$ , are several times larger than that of the fiducial case (Table 4). These correspond to conditions of sub-Alfvénic turbulence with $m_{A}\simeq 0.2$ and magnetic field strengths of $\sim 2$ to 3 mG. We note that such $B$ -field strengths are consistent with the values predicted by the empirical relation for median values of Crutcher et al. (2010), $B_{\rm med}\simeq 0.22(n_{\rm H}/10^{5}\>{\rm cm^{-3}})^{0.65}$ (valid for $n_{\rm H}>300\>{\rm cm^{-3}}$ ), given the observed densities of C1-S inner and outer. This relation predicts $B$ -field strengths of 3.2 and 2.7 mG using the envelope-subtracted densities of C1-S inner and outer, respectively. Finally, such values of $B$ -field strengths can also help to explain why C1-S does not appear to have fragmented significantly, i.e., based on its mm continuum morphology222Note the order unity fluctuations in $\rm N_{2}D^{+}$ column density within C1-S are easily within the range expected from abundance variations (Goodson et al. 2016). Furthermore, we have carried out a similar dynamical analysis on local $\rm N_{2}D^{+}$ peaks and find these to be relatively more gravitationally stable compared to C1-S at its inner and outer scales.. Table 3 lists the magnetic field strengths, $B_{\rm c,crit}$ , that would be needed for the magnetic critical mass Bertoldi & McKee (1992) to equal the observed core masses: at the scale of C1-S outer we see that $B_{\rm c,crit}\simeq B_{\rm c,vir}\simeq 2\>$ mG.

In summary, given the above results, we conclude that the second case of core dynamics regulated by relatively strong, $\sim 2\>$ mG, magnetic fields appears to be the more likely scenario. Such magnetic field strengths are reasonable given the observed densities. They help explain the fragmentation scale of C1-S outer, i.e., $\sim 50\>M_{\odot}$ . They would allow C1-S outer to be virialized and thus potentially relatively old compared to its free-fall time, which helps to explain its observed high level of deuteration of $\rm N_{2}H^{+}~{}$ , i.e., high abundance of $\rm N_{2}D^{+}$ . We return to this point in §4, where we consider the implications of the observed C1-S properties for astrochemical models. The predictions of there being dynamically important magnetic fields are: (1) strong Zeeman splitting of species, such as CN, if they are present in the gas phase within the core; (2) ordered dust continuum emission polarization angles, assuming dust grains can align with the $B$ -fields; (3) relatively small infall rates compared to free-fall. Again, we return to discussion of these predictions below in §4.

3.3. CO Outflows

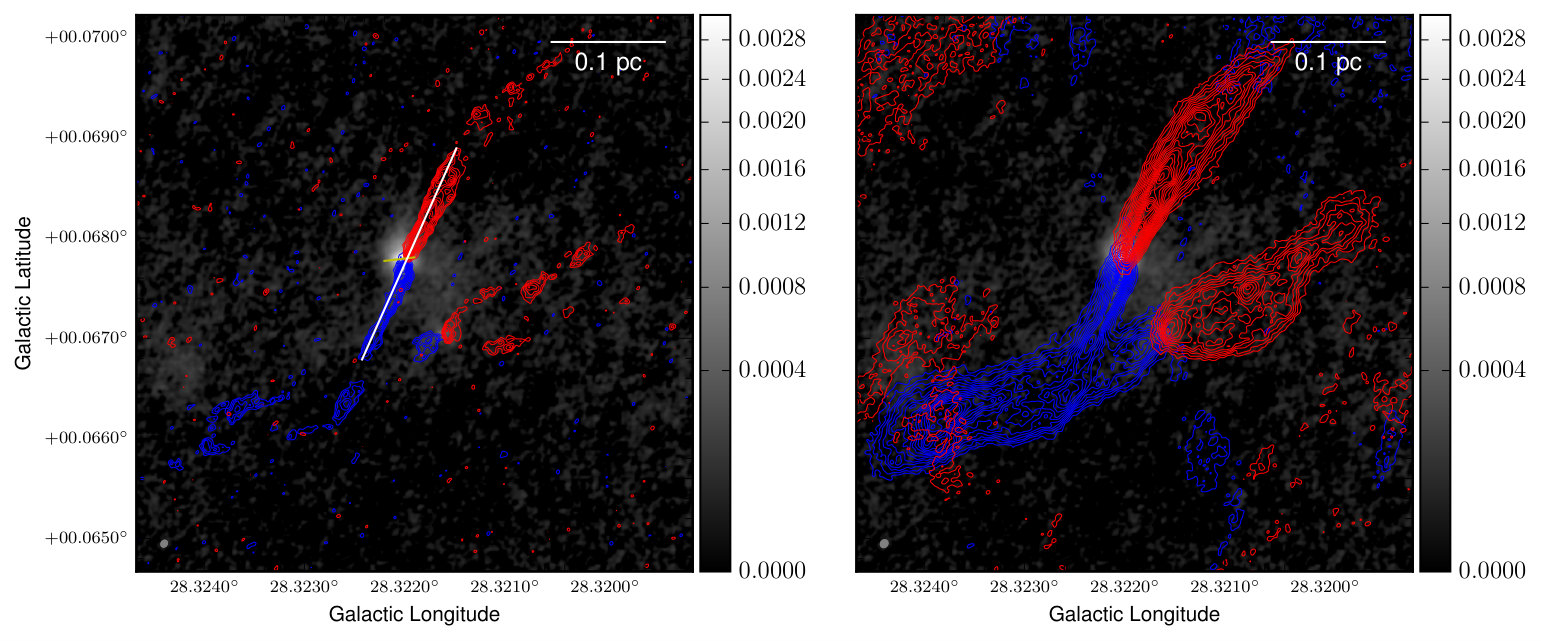

Figure 12 shows the new high-resolution CO(2-1) data, which can be compared to the compact configuration results presented by T16. In the figure we show both the extended-only data (Figure 12a), which emphasizes the finest structures, and the combined data (Figure 12b). In panel (a), we can see a very narrow and collimated bipolar outflow launched from C1-Sa. We draw a white line to roughly represent the outflow axis. We also draw a yellow line to show the approximate orientation of the continuum elongation. The position angle between the two lines is about 60∘, which means the angle between the normal direction to the continuum elongation and the outflow axis is approximately 30∘. Also relevant is that the origin of the outflow appears to be slightly offset from the continuum peak (by one beam). The outflow is only marginally resolved in the direction perpendicular to the flow axis (by $\sim 3$ beams). An upper limit on the half opening angle of the outflow cavity is estimated to be $\lesssim 10^{\circ}$ . One can see clumpy structures in both the blue and red lobes. The redshifted outflow appears to change the orientation of its flow axis by a small angle, $\sim 10^{\circ}$ , once it is about 0.1 pc away from the protostar. The blueshifted side does not show evidence for such a deflection, however, its overlap with the C1-Sb outflow makes this harder to discern. The observed extent of the outflow appears to be set by sensitivity, rather than being a real, physical limit.

The outflow from C1-Sb shows a wider opening angle at its base. The cavity walls, i.e., outflow lobe boundaries, are apparent in the extended configuration image. The blue lobe overlaps with that from C1-Sa, but it is not clear if this involves a physical interaction or is simply a projection effect.

There appear to be some high-velocity CO(2-1) emission features in the wider region. However, some of these features may be artifacts resulting from imperfect cleaning of the image, given the strong sources of the C1-Sa and C1-Sb outflows. Or these features could be outflows from other nearby protostars or other ambient high-velocity gas in the IRDC or projected along the line of sight.

Finally and most importantly for the purposes of this paper, neither panel (a) or panel (b) of Figure 12 show any hint of CO outflows from C1-S. This is further evidence that the C1-S core is likely to be starless.

3.4. Ancillary Molecular Lines

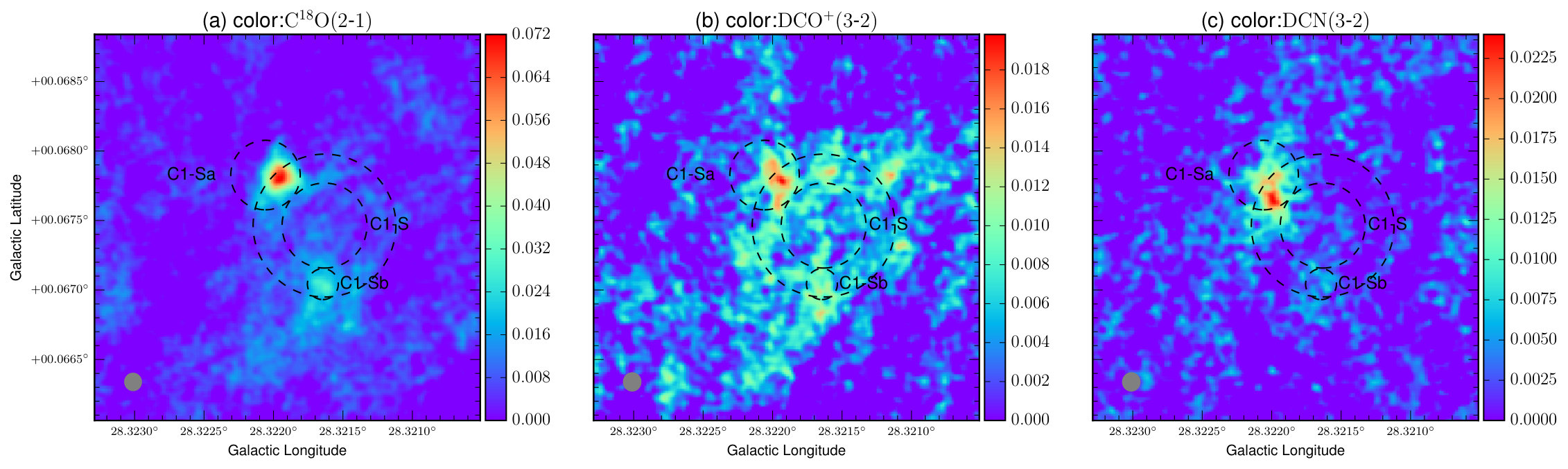

Figure 13 shows the 0th-moment maps of $\rm C^{18}O$ (2-1), $\rm DCO^{+}$ (3-2), and DCN(3-2). The integrations are centered on 79.4 $\rm km~{}s^{-1}~{}$ and within a range from 76.9 to 81.9 $\rm km~{}s^{-1}$ . Note in Figure 6 there is another velocity component at about 75 $\rm km~{}s^{-1}$ seen in $\rm C^{18}O$ (2-1), but this is not included in these maps. $\rm C^{18}O$ (2-1) emission is nearly absent in C1-S (see also the spectra shown in Figure 6), but is rather mostly concentrated in C1-Sa and C1-Sb.

The lack of $\rm C^{18}O$ (2-1) emission in C1-S can be explained by CO depletion from the gas phase. In the C1-S core and much of its clump envelope, we expect that the temperature is $\lesssim 15\>$ K (see, e.g., Figure 2). At such temperatures, CO is mostly frozen-out onto dust grains (Caselli & Ceccarelli, 2012). As shown in Figure 6(3c), C1-S inner has no detected $\rm C^{18}O$ (2-1) flux (i.e., at velocities immediately around 79.4 $\rm km~{}s^{-1}~{}$ overlapping with the $\rm N_{2}D^{+}$ (3-2) emission). We use the 3 $\sigma$ 0th-moment $\rm C^{18}O$ (2-1) noise level (0.446 K $\rm km~{}s^{-1}~{}$ for C1-S inner) to calculate an upper limit of $\rm C^{18}O~{}$ column density $N_{\rm C^{18}O}^{\rm C1-S~{}inner}<3.00\times 10^{14}\>{\rm cm}^{-2}$ , assuming an excitation temperature of 10 K and optically thin conditions. This corresponds to an abundance constraint of [ $\rm C^{18}O$ ]/[H] $=2.91\times 10^{-10}$ (using $\Sigma_{\rm c,mm,tot}$ from Table 3 and assuming 1.0 g cm*-2* corresponds to $N_{\rm H}$ = 4.27 $\times$ 1023 cm*-2*. Assuming [12CO/H] = 10*-4* and [16O/18O] = 557 (Wilson, 1999), the above abundance constraint in C1-S inner corresponds to a CO depletion factor of $f_{D}>616$ . Such high CO depletion factors have also been found toward the center of the lower-mass pre-stellar core L1544 (Caselli et al., 1999, 2002), suggesting similarity of astrochemical properties of this source with C1-S.

$\rm C^{18}O$ (2-1) emission is observed towards the protostars C1-Sa and C1-Sb. This is to be expected, since in the protostellar models of Zhang et al. (2014); Zhang & Tan (2015), early-stage protostellar cores can have mean temperatures up to $T\sim 30$ K, which is significantly above the CO sublimation temperature of 17 K (van Dishoeck et al., 1993).

The 0th-moment map of DCO+(3-2) shows emission from C1-Sa, a relative lack of emission from C1-S inner (consistent with the large amount of CO freeze-out), and hints of emission from the envelope around C1-S inner. DCN(3-2) shows strong emission only from the C1-Sa protostar, though with enhancement slightly offset from the peak of the continuum emission.

Figure 14 shows the 1st-moment maps of $\rm C^{18}O$ (2-1), $\rm DCO^{+}$ (3-2) and DCN(3-2), evaluated using the same velocity range as the 0th-moment maps shown in Figure 13. Only cells above 3 $\sigma$ values are included. The $\rm C^{18}O$ (2-1) 1st-moment map clearly shows two velocity components. Much of the region is filled with the 81.2 $\rm km~{}s^{-1}~{}$ component, while in C1-Sa the 79.4 $\rm km~{}s^{-1}~{}$ component dominates.

A plausible overall picture of the C1 region is the following. There are two overlapping clouds, one at 79.4 $\rm km~{}s^{-1}~{}$ and the other at 81.2 $\rm km~{}s^{-1}$ . The first one has strong CO depletion (except in a local region around the protostar C1-Sa) and deuteration (especially with $\rm N_{2}D^{+}$ ), while the latter still has abundant CO but little $\rm N_{2}D^{+}$ . C1-Sa and C1-S are in the 79.4 $\rm km~{}s^{-1}~{}$ cloud, while C1-Sb is in the 81.2 $\rm km~{}s^{-1}~{}$ cloud. While C1-S shows a narrow line width in $\rm N_{2}D^{+}$ (3-2), C1-Sa line profiles are broader (i.e., dispersion of 0.32 km/s from an HFS fit, 1.3 times larger than that of C1-S inner), perhaps being caused by its outflows (Figure 6). It is unclear if the 79.4 $\rm km~{}s^{-1}~{}$ and 81.2 $\rm km~{}s^{-1}$ clouds are interacting or not.

3.5. Astrochemical Modeling of C1-S

We carry out an astrochemical model of C1-S inner given its observed properties. The chemical model is from Kong et al. (2015): it follows the time-dependent change of more than 100 species, including $\rm N_{2}D^{+}$ . We adopt $n_{\rm H}=6\times 10^{6}\>{\rm cm}^{-3}$ , i.e., the envelope-subtracted estimate based on mm continuum emission. We set gas and dust temperatures to 10 K and the heavy element depletion factor to 600 (based on $\rm C^{18}O~{}$ abundance estimation in §3.4). Note we are assuming this depletion factor for the elemental abundances of Carbon, Oxygen, and Nitrogen. The model results show that the equilibrium abundance of $\rm N_{2}D^{+}~{}$ is [ $\rm N_{2}D^{+}$ ]/[H] = 1.94 $\times$ 10*-11*. If we decrease/increase $n_{\rm H}$ by a factor of 2, the equilibrium value of [ $\rm N_{2}D^{+}$ ]/[H] = (1.84, 1.90) $\times$ 10*-11*, respectively. If we set $T$ = (7, 13) K, the equilibrium [ $\rm N_{2}D^{+}$ ]/[H] = (1.70, 2.10) $\times$ 10*-11*, respectively. If we decrease/increase $f_{D}$ by a factor of 2, the equilibrium [ $\rm N_{2}D^{+}$ ]/[H] = (3.11, 0.94) $\times$ 10*-11*, respectively. If we decrease/increase cosmic ionization rate by a factor of 2, the equilibrium [ $\rm N_{2}D^{+}$ ]/[H] = (1.91, 1.84) $\times$ 10*-11*, respectively. These results illustrate the sensitivity of the theoretical equilibrium abundance of $\rm N_{2}D^{+}$ to astrochemical model parameters.

On the observational side, if we assume an $\rm N_{2}D^{+}$ (3-2) excitation temperature $T_{\rm ex}~{}$ = 10 K, the C1-S inner $\rm N_{2}D^{+}~{}$ column density is 1.39 $\times$ 1012 cm*-2*. Using the $\Sigma_{\rm c,mm}=1.61\>{\rm g\>cm^{-2}}$ from Table 3, we derive an $\rm N_{2}D^{+}~{}$ abundance [ $\rm N_{2}D^{+}$ ]/[H] = 2.02 $\times$ 10*-12*. Considering the possibility of sub-thermal excitation, we also try $T_{\rm ex}~{}$ = 6.4 K (Fontani et al., 2011), which yields [ $\rm N_{2}D^{+}$ ]/[H] = 4.90 $\times$ 10*-12*. For $T_{\rm ex}~{}$ = 4.1 K, which was the low end of the range considered by Kong et al. (2016), [ $\rm N_{2}D^{+}$ ]/[H] = 2.82 $\times$ 10*-11*.

Given these results, we conclude that if $T_{\rm ex}~{}$$\simeq 4\>$ K, then the observed abundance of $\rm N_{2}D^{+}~{}$ in C1-S inner is consistent with the equilibrium value predicted by our astrochemical model for the observed density, temperature and depletion factor. The timescale to reach 90% of the equilibrium is 1.36 $\times$ 105 yr for an initial ortho-to-para ratio of $\rm H_{2}$ of 3. This is about a factor of 8 longer than the free-fall time of C1-S inner. If the initial ortho-to-para ratio of $\rm H_{2}$ is 0.1, the timescale will be shortened by a factor of 1.3 (Kong et al., 2015).

4. Discussion and Conclusions

We have presented higher angular resolution follow-up observations of the C1-S core, first identified by its $\rm N_{2}D^{+}$ (3-2) emission by T13. The CO observations of T16 identified two protostellar outflow sources near C1-S and it was speculated that one of these, C1-Sa, may be forming from the core. However, now with about 10 $\times$ better angular resolution we are able to see that C1-S, as traced by its $\rm N_{2}D^{+}$ (3-2) emission, is distinct from the C1-Sa and C1-Sb protostars. Thus C1-S remains a good candidate to be a massive ( $\sim 50\>M_{\odot}$ ) starless core, being highly deuterated and CO depleted ( $f_{D}\gtrsim 600$ ) and lacking concentrated mm continuum emission and any sign of CO outflows (see the summary Figure 15).

The velocity dispersion of C1-S, as traced by $\rm N_{2}D^{+}$ (3-2), indicates either sub-virial conditions in the trans-Alfvénic case, or else that the core is in approximate virial equilibrium with stronger magnetic fields ( $\sim 2\>$ mG) that dominate over turbulent pressure support, i.e., turbulence is sub-Alfvénic within the core. We favor the latter interpretation, since such $B$ -field strengths are consistent with an extrapolation of the $B$ versus density relation of Crutcher et al. (2010). They also help explain the mass of C1-S at its outer scale as being set by the magnetic critical mass. Astrochemical modeling indicates that a relatively long core age compared to the free-fall time is needed to reach the observed highly deuterated state, and once a core is older than a few free-fall times, it is expected to be able to approach approximate virial equilibrium. Predictions of this scenario are that the continuum emission from C1-S will show strong polarization and that Zeeman splitting may be observed from species such as CN, if they remain in the gas phase at a level high enough to be observed. Unfortunately the weakness of the dust continuum emission and the apparent high heavy element depletion factor in C1-S may make these tests difficult to carry out. Another prediction is that infall velocities, i.e., as traced by inverse P-Cygni profiles from suitable species (e.g., the $\rm N_{2}H^{+}$ (1-0) line, as has been observed in lower-mass pre-stellar cores; Keto & Caselli, 2010), will show infall speeds that are a small fraction of the local free-fall speed.

These observations break new ground in being able to resolve the kinematic structure of the massive starless core. We have been able to measure the radial profile of turbulence in the core, which is seen to have a relatively constant velocity dispersion with radius. We have presented high resolution first moment maps of the internal velocity structure. The statistics of these kinematic properties can be compared against numerical simulations of such cores (Goodson et al., 2016). We defer a detailed comparison with such simulations to a future paper.

The observations presented here have also revealed more details about the C1-Sa and C1-Sb protostars. C1-Sa is consistent with being a massive protostellar core ( $\sim 30\>M_{\odot}$ ) that is in a very early stage of formation. It exhibits a very collimated outflow with a half-opening angle of $\lesssim 10^{\circ}$ . The presence of $\rm N_{2}D^{+}~{}$ in C1-Sa is consistent with the findings by Emprechtinger et al. (2009), who found that the $D_{\rm frac}^{\rm N_{2}H^{+}}~{}$ can be as large as 20% in young low-mass protostars, while it declines in more evolved sources. C1-Sb appears to be a lower mass protostellar core ( $\sim 2\>M_{\odot}$ ), but at a later stage of development, e.g., with a wider outflow cavity opening angle.

The overall presence of a massive starless core alongside a relatively massive protostellar core and lower mass protostellar core gives interesting clues about the early stages of massive star formation, at least in one case. The environment within this region of about 0.1 pc projected scale, is not especially crowded, particularly considering that C1-Sb seems to be at a quite different velocity and may be physically separated along the line of sight. This leaves just the C1-S and C1-Sa sources, both relatively massive, monolithic objects. There is no evidence so far for a cluster of protostars that all drive outflows, which is an expectation of Competitive Accretion models (e.g., Bonnell et al., 2001; Wang et al., 2010). The current observations can easily detect sources like C1-Sb that have about a $2\>M_{\odot}$ protostellar core and its level of protostellar outflow activity, if they are present. The $5\sigma$ continuum mass sensitivity is $0.15\>M_{\odot}$ per beam (for $T=20\>$ K).

Deeper, more sensitive observations with ALMA will lead to improved understanding of these sources. For example, higher sensitivity $\rm N_{2}D^{+}~{}$ observations can better probe the kinematic subtructure of the C1-S core. Other transitions should be observed to constrain the excitation temperature of this species. Similar observations of $\rm N_{2}H^{+}$ are needed to map the deuteration structure. Higher sensitivity and angular resolution observations in high velocity CO(2-1) and in mm dust continuum will enable more stringent constraints to be placed on the protostellar content of this region. A search for cm continuum emission is needed to better constrain models (Tanaka et al., 2017) of the potentially massive protostar C1-Sa.

We thank an anonymous referee for comments that improve the paper. We thank Mengyao Liu, Matthew Goodson, Crystal Brogan, Jim Braatz, Sarah Wood, Shawn Booth, and Héctor Arce for helpful discussions. SK was funded by NSF award AST-1140063 while conducting this study. JCT acknowledge an NRAO/SOS grant and NSF grant AST1411527. PC acknowledges the financial support of the European Research Council (ERC; project PALs 320620). This paper makes use of the following ALMA data: ADS/JAO.ALMA#2013.1.00248.S. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada), NSC and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. Facilities: ALMA; VLA

Bibliography42

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Bertoldi & Mc Kee (1992) Bertoldi, F., & Mc Kee, C. F. 1992, Ap J, 395, 140
2Bonnell et al. (2001) Bonnell, I. A., Bate, M. R., Clarke, C. J., & Pringle, J. E. 2001, MNRAS, 323, 785
3Bontemps et al. (2010) Bontemps, S., Motte, F., Csengeri, T., & Schneider, N. 2010, A&A, 524, A 18
4Butler & Tan (2012) Butler, M. J., & Tan, J. C. 2012, Ap J, 754, 5
5Butler et al. (2014) Butler, M. J., Tan, J. C., & Kainulainen, J. 2014, Ap J, 782, L 30
6Caselli & Ceccarelli (2012) Caselli, P., & Ceccarelli, C. 2012, A&A Rev., 20, 56
7Caselli et al. (1999) Caselli, P., Walmsley, C. M., Tafalla, M., Dore, L., & Myers, P. C. 1999, Ap J, 523, L 165
8Caselli et al. (2002) Caselli, P., Walmsley, C. M., Zucconi, A., et al. 2002, Ap J, 565, 344

TL;DR

Contribution

Findings

Abstract

Peer Reviews

Videos

Zooming in to Massive Star Birth

Abstract

1. Introduction

2. Observations

2.1. ALMA Observations

2.2. VLA Observations

3. Results

3.1. 1.3 mm Dust Continuum Emission and NH3\rm NH_{3}NH3​-Derived Temperature Map

3.2. N2D+\rm N_{2}D^{+}N2​D+(3-2) Emission

3.2.1 Definition of the C1-S Pre-stellar Core

3.2.2 Core Structure

3.2.3 Core Kinematics

3.2.4 Core Dynamics

3.3. CO Outflows

3.4. Ancillary Molecular Lines

3.5. Astrochemical Modeling of C1-S

4. Discussion and Conclusions

3.1. 1.3 mm Dust Continuum Emission and $\rm NH_{3}$ -Derived Temperature Map

3.2. $\rm N_{2}D^{+}$ (3-2) Emission
