Divalent metal cations stimulate skeleton interoception for new bone formation in mouse injury models

TL;DR

Divalent metal cations promote new bone formation by activating a nerve and immune cell pathway in mice.

Contribution

The study reveals that divalent cations stimulate bone growth through a skeleton interoceptive circuit involving immune and nerve cells.

Findings

Divalent cations promote prostaglandin E2 secretion from macrophages, stimulating skeleton interoception.

Activation of skeleton interoception reduces sympathetic tone to support new bone formation.

Macrophage depletion or sensory nerve knockout eliminates the osteogenic effects of divalent cations.

Abstract

Bone formation induced by divalent metal cations has been widely reported; however, the underlying mechanism is unclear. Here we report that these cations stimulate skeleton interoception by promoting prostaglandin E2 secretion from macrophages. This immune response is accompanied by the sprouting and arborization of calcitonin gene-related polypeptide-α+ nerve fibers, which sense the inflammatory cue with PGE2 receptor 4 and convey the interoceptive signals to the central nervous system. Activating skeleton interoception downregulates sympathetic tone for new bone formation. Moreover, either macrophage depletion or knockout of cyclooxygenase-2 in the macrophage abolishes divalent cation-induced skeleton interoception. Furthermore, sensory denervation or knockout of EP4 in the sensory nerves eliminates the osteogenic effects of divalent cations. Thus, our study reveals that divalent cations promote bone formation through the skeleton interoceptive circuit, a finding which could prompt the development of novel biomaterials to elicit the therapeutic power of these divalent cations.

Mechanisms underlying bone formation induced by divalent metal cations remain largely unknown. Here the authors show that these cations can activate the skeleton interoceptive circuit through the immune-neural axis to initiate new bone formation.

Figures

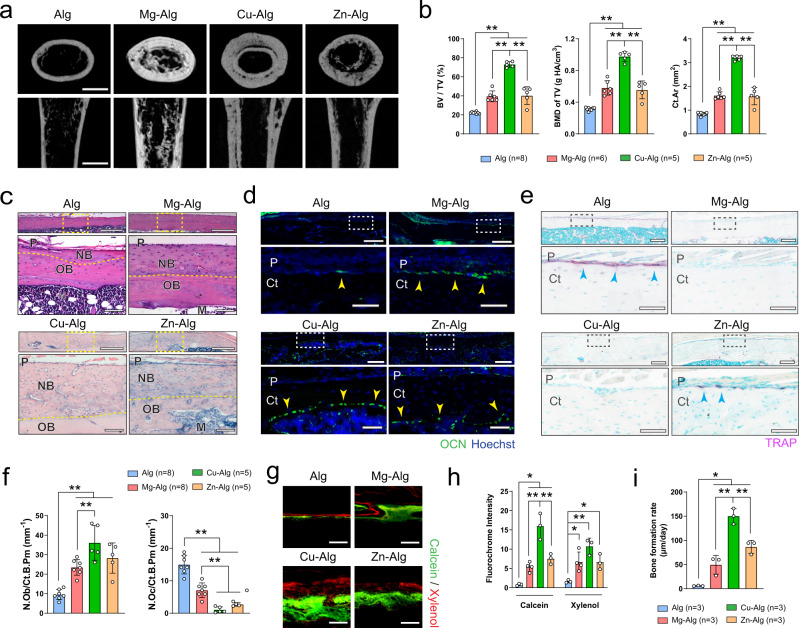

a) after evaluating their cytotoxicity in vitro (Supplementary Fig. 1b). Pure alginate (Alg) or divalent cation-releasing alginate (i.e., Mg–Alg, Cu–Alg, and Zn–Alg) was placed in a tunnel defect drilled from the patellofemoral groove of the distal femur along the axis of the femoral shaft. Micro-computed tomography (µCT) analysis showed a substantial increase in bone volume fraction (BV/TV), bone mineral density (BMD of TV), and polar moment of inertia (ρMOI) in the femur 4 weeks after the placement of divalent cation–releasing alginate compared with the pure alginate-treated control mice (Fi

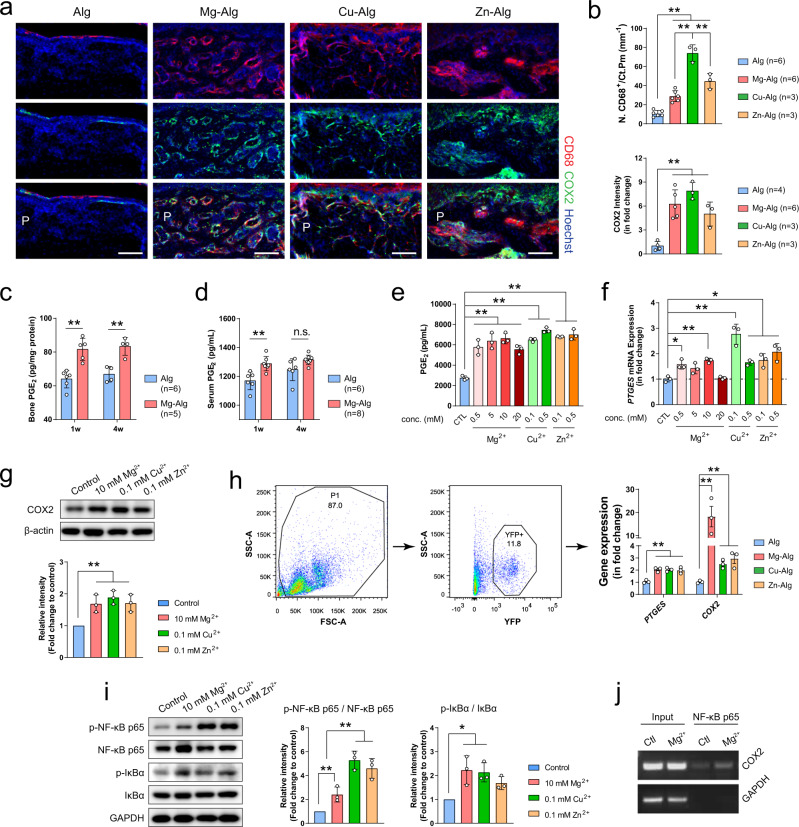

a, b) at early inflammatory stage of bone healing (i.e., day 7 after the injury). The majority of immune cells present at this key stage of new bone formation were found to be F4/80^+^CD68^+^ macrophages rather than CD11c^+^ dendritic cells, CD19^+^ B-cells, or CD3^+^ T-cells (Supplementary Fig. 4c). We demonstrated that the number of CD68^+^ macrophages increased significantly in the bone marrow and periosteum of divalent cation-treated femurs compared with controls (Fig. [2a, b](#Fig2) and Supplementary Fig. 5a). Co-immunostaining of COX2 with CD68 demonstrated that COX2 was expressed primar

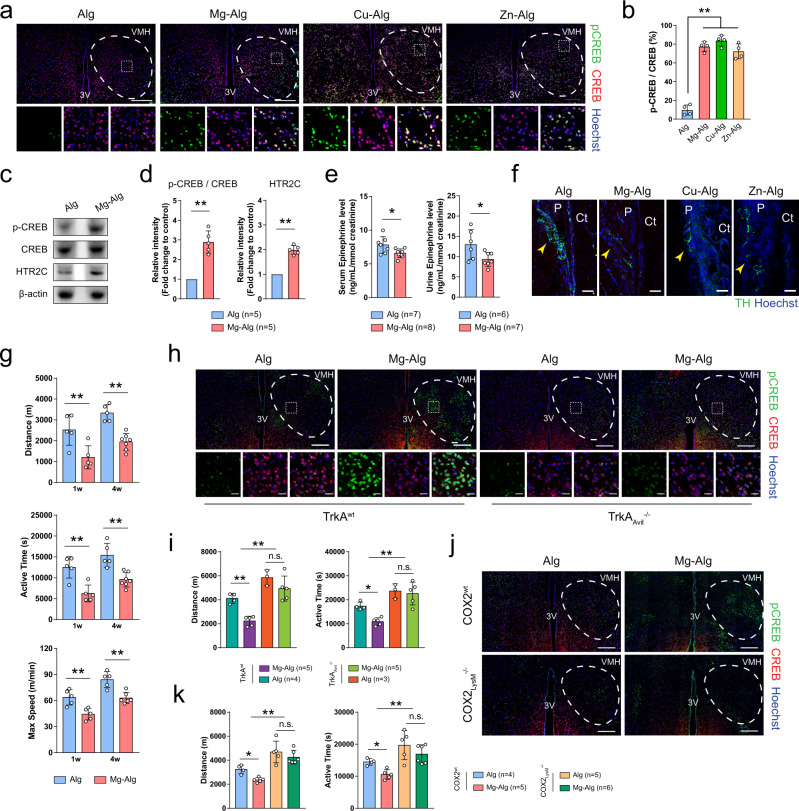

Divalent cations downregulate sympathetic activity through hypothalamic CREB signaling.Representative immunofluorescent images (a) and corresponding quantification (b) showing the phosphorylation of CREB in the ventromedial hypothalamus (VMH) 1 week postoperatively (*n* = 4). Lower images (scale bars = 20 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 200 µm). Representative Western blots (c) and corresponding quantification (d) showing the phosphorylation of CREB and the expression of 5-hydroxytryptamine receptor 2C (HTR2C) in the hypothalamus tissue o

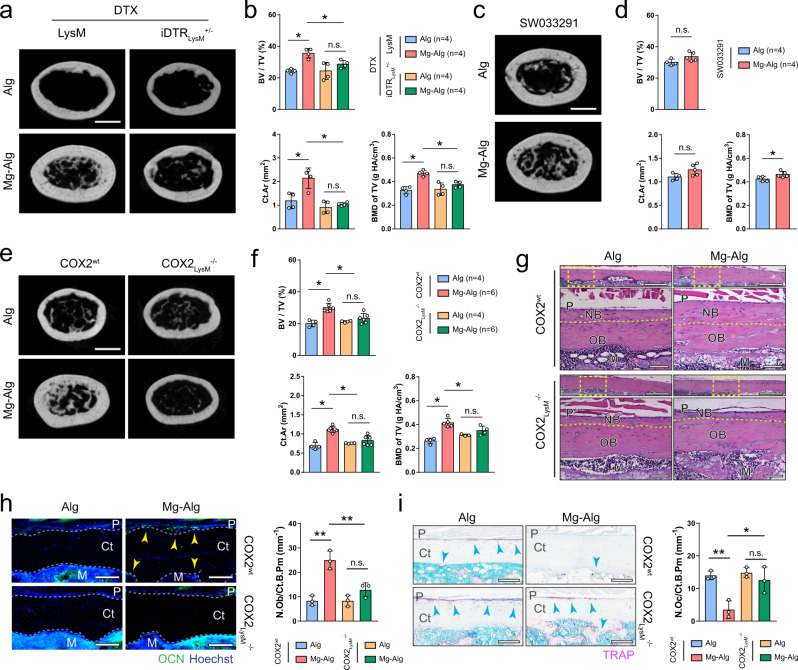

a), whereas, Mg^2+^-releasing hydrogel effectively promoted new bone formation after bone injury in LysM-Cre mice, similar to its effect in WT mice. Interestingly, when bone PGE_2_ level was elevated with injection of SW03329 (a PGE_2_ degradation enzyme inhibitor), the new bone formation in the injured femur improved significantly in both the control group and the Mg–Alg group (Fig. [3c, d](#Fig3) and Supplementary Fig. 6b). Specifically, new bone formation at the peripheral cortex of the injured femur with injection of SW033291 in the control group was similar in the Mg^2+^-treated group on

Full text

Introduction

It has been known from the late 1990s that various divalent metal cations, such as magnesium ions (Mg^2+^), zinc ions (Zn^2+^), and copper ions (Cu^2+^), play vital roles in bone growth, modeling, and remodeling^1–3^. Over the decades, the regulatory effects of these divalent cations on osteogenesis, osteoclastogenesis, angiogenesis, and immune responses have been gradually revealed^4–9^. However, it was not until recently that the involvement of nervous system in the new bone formation induced by divalent metal cations has begun to be realized^10^. So far, it remains unclear whether the central nervous system (CNS), which has emerged to play an important role in bone homeostasis^11–14^, participate in this process. The CNS not only reacts to external stimuli, such as temperature, sound, odor, and taste, as exteroception but also receives signals from many physiological systems inside the body, including the cardiovascular, respiratory, gastrointestinal, genitourinary systems, and nociceptive systems, as interoception. In recent years, the interoceptive processes by which our body senses, interprets, integrates, and regulates signals from peripheral organs have emerged as a key mechanism for the control of internal state of our body by CNS^15^. The interocpetion system consists of ascending neural pathways that transmit the internal body signals to the brain, the CNS where the input interoceptive information is processed, and the descending neural pathways through which the interoceptive signals are circled back to regulate peripheral organs. In addition to the central and peripheral nervous system, several other components, such as the endocrine and immune systems, are proposed to be involved in the interoception process^16,17^.

Unmyelinated free sensory nerve endings branch throughout tissues to recognize and carry signals related to pain, temperature, and mechanical stimuli^18^. As the largest organ, the skeleton accounts for more than 20% of human body weight. Bone tissues have abundant sensory and sympathetic innervations that connect bones with dorsal root ganglia (DRG) and the CNS^19–21^. The upregulation of sympathetic tone through serotonin and cAMP-response element binding protein (CREB) signaling in the hypothalamus contributes to decreased bone formation and increased bone resorption^13,22^. We have recently found that CNS senses bone density through prostaglandin E2 (PGE_2_) as an ascending interoceptive signal and regulates bone formation through sympathetic nerves as the descending interoceptive pathway^14^. Specifically, PGE_2_ secreted by osteoblasts in response to mechanical loading activates PGE_2_ receptor4 (EP4) to stimulate phosphorylation of CREB in hypothalamus, where the tyrosine hydroxylase (TH) expression is downregulated for a sympathetic activity to induce commitment of mesenchymal stem/stromal cell (MSCs) to osteoblast lineage. Knockout of the EP4 gene in the sensory nerves or knockout of cyclooxygenase-2 (COX2) in the osteoblastic cells significantly increased sympathetic activity and reduced bone volume in adult mice. Our studies further demonstrate that ascending skeleton interoceptive signaling target hypothalamus to maintain the balance between bone and fat metabolism^23,24^. Moreover, we also showed sensory innervation into porous endplates is responsible for spinal hypersensitivity, thus, low-dose celecoxib maintains skeleton interoception in the endplate, thereby decreasing vertebral endplate porosity and innervation for the treatment of spinal pain^25,26^. Importantly, our most recent studies reveal that Skeleton interoception regulates bone and fat metabolism through hypothalamic neuroendocrine hypothalamic neuropeptide Y (NPY) (ref. ^1^) and physiological PGE2 levels maintain skeleton interoception activity for bone homeostasis to reduce vertebral endplate porosity and spinal pain (ref. ^2^). Therefore, the skeleton interoception could represent an essential circuit of the CNS in the control of bone metabolism and may shed a light on our understanding of divalent metal cation-induced bone formation.

Innate and adaptive immune processes, which become profoundly apparent after bone injury, play important roles in bone biology^27^. The presence of a series of immune cell-derived cytokines in the early inflammatory stage promotes the recruitment of fibroblasts, mesenchymal stem cells, and osteoprogenitor cells from their local niches to initiate bone repair^28,29^. For example, PGE_2_, a well-recognized pro-inflammatory cytokine that is upregulated only during the initial stage of bone healing, is suggested to play an important role in new bone formation. The mutation of the 15-hydroxyprostaglandin dehydrogenase gene (HPGD), which is responsible for the degradation of PGE_2_^30^, plays a major role in promoting tissue regeneration^31,32^. Indeed, patients with an HPGD mutation have presented with subperiosteal new bone formation^33^. Since PGE_2_ can elicit primary pain and prolong nociceptor sensitization^34,35^, nonsteroidal anti-inflammatory drugs (NSAIDs), which inhibit cyclooxygenase (COX), the limiting enzyme of PGE_2_, have been used to manage post-injury pain. However, there is increasing evidence that the use of NSAIDs, especially selective COX2 inhibitors, can affect bone healing^36,37^. These findings suggest that the inflammatory molecules produced by the immune system in response to bone injury may serve as biochemical signals to initiate the interoceptive control of bone regeneration.

In recent years, the immunomodulatory function of orthopedic biomaterials has been increasingly acknowledged. In fact, the host immune response to implanted biomaterials is now recognized as a determinant for the long-term survival and regenerative function of such biomaterials^38,39^. Owing to the central role of macrophages in the immune reaction to bone biomaterials, as well as their heterogeneity and plasticity, macrophage is one of the most important target cells for immunomodulation in the biomaterial field^39^. Divalent metal cations, such as Mg^2+^, Zn^2+^, and Cu^2+^, have been extensively used to modify orthopedic biomaterials since the discovery of their osteogenic effects^8,40–43^. However, despite their well-recognized roles in the regulation of the immune response^44^, the mechanism through which the divalent cation-modulated immune niche contributes to bone regeneration remains largely unclear. Indeed, the in vitro effects of divalent metal cations on osteogenesis starkly contradict our findings in a more complex in vivo model, because their osteogenic effects on the well-orchestrated bone healing process may involve the interplay of multiple systems in our body. We have recently showed the essential role of early inflammatory response in Mg^2+^-induced new bone formation, as Mg^2+^ stimulates macrophage via transient receptor potential cation channel member 7 (TRPM7) to create a pro-osteogenic immune microenvironment^7^. Since the effective window of Mg^2+^ coincides with the reinnervation phase of bone healing^45^, we hypothesize the communication between the immune system and the neural system can trigger the skeleton interoception for the regulation of new bone formation.

In this study, we sought to characterize the mechanism for divalent cation-induced bone formation. We found that divalent metal cations, including Mg^2+^, Zn^2+^, and Cu^2+^, activated skeletal interoception through the immune-neural axis to initiate CNS regulation of bone formation. During the early stage of bone healing, divalent cation-induced PGE_2_ secretion from macrophages stimulated EP4 in the sensory nerves. Importantly, the sprouting and arborization of sensory nerves in response to macrophage-derived PGE_2_ transmitted interoceptive signals to the CNS to tune down sympathetic tone through hypothalamic CREB signaling, resulting in increased osteogenesis and decreased osteoclastogenesis in the injured bone. We revealed a previously unknown role of divalent cations in bone formation through skeletal interoception.

Results

Divalent cation-induced bone formation

To investigate the effect of metallic divalent cations including Mg^2+^, Zn^2+^, or Cu^2+^ on bone formation, we used an alginate-based hydrogel to facilitate the temporary and localized delivery of these divalent cations in mouse femurs (Supplementary Fig. 1a) after evaluating their cytotoxicity in vitro (Supplementary Fig. 1b). Pure alginate (Alg) or divalent cation-releasing alginate (i.e., Mg–Alg, Cu–Alg, and Zn–Alg) was placed in a tunnel defect drilled from the patellofemoral groove of the distal femur along the axis of the femoral shaft. Micro-computed tomography (µCT) analysis showed a substantial increase in bone volume fraction (BV/TV), bone mineral density (BMD of TV), and polar moment of inertia (ρMOI) in the femur 4 weeks after the placement of divalent cation–releasing alginate compared with the pure alginate-treated control mice (Fig. 1a, b and Supplementary Fig. 2a). Particularly, cortical bone area (Ct.Ar), cortical bone thickness (Ct.T), and bone perimeter (B.Pm) were greater in the divalent cation-treated group compared with the controls (Fig. 1a, b and Supplementary Fig. 2a). We found a similar trend in the increase of trabecular thickness (Tb.T) in the femurs treated with Mg^2+^ or Cu^2+^, although it was less pronounced (Supplementary Fig. 2a). Indeed, hematoxylin and eosin (H&E) staining showed significant new bone formation located primarily at the peripheral cortex in the divalent cation-treated femurs (Fig. 1c). Moreover, immunofluorescent staining revealed that the number of osteocalcin^+^ (OCN^+^) osteoblasts increased significantly on the endocortical and periosteal surfaces of femurs treated with Mg^2+^, Zn^2+^, or Cu^2+^ (Fig. 1d, f). Meanwhile, the number of tartrate-resistant acid phosphatase^+^ (TRAP^+^) cells on the endocortical and periosteal surfaces decreased significantly in the divalent cation-treated femurs compared with the controls (Fig. 1e, f). In particular, the number of osterix^+^ and Runx2^+^ osteoprogenitors in the periosteum was also significantly higher after the release of Mg^2+^ from the hydrogel (Supplementary Fig. 2b, c). Furthermore, using fluorochrome labeling, we showed that the release of divalent cations, including Mg^2+^, Zn^2+^, and Cu^2+^, contributed to a significantly higher rate of mineral deposition, as manifested by an increased fluorochrome (i.e., calcein and xylenol) intensity and an increased distance between the two fluorochrome labels (Fig. 1g–i and Supplementary Fig. 2d). We also confirmed that the delivery of divalent cations didn’t lead to any histological alteration in the spleen, liver, kidney, and heart tissues at either the early (week 1, Supplementary Fig. 3a) and later stage (week 4, Supplementary Fig. 3b) of the bone healing process. Therefore, our results reveal that divalent cations, including Mg^2+^, Zn^2+^, and Cu^2+^, could stimulate periosteal new bone formation.Fig. 1. Divalent cations released from alginate induce new bone formation.a Reconstructed micro-computed tomography (µCT) images (scale bars = 1 mm) showing the new bone formation in mouse femurs grafted with Mg^2+^-, Cu^2+^-, or Zn^2+^-releasing alginate. Pure alginate grafted mice serve as control. b Corresponding measurements of bone volume fraction (BV/TV), bone mineral density (BMD of TV), and cortical bone area (Ct.Ar). c Representative images of hematoxylin and eosin (H&E) staining showing periosteal new bone formation (n = 3). Lower images (scale bars = 100 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 500 µm). P, periosteum; NB, new bone; OB, old bone; M, marrow. d Representative immunofluorescent images showing the presence of osteocalcin^+^ (OCN^+^) osteoblasts on the cortical bone surface. Lower images (scale bars = 50 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 200 µm). P, periosteum; Ct, cortical bone. e Representative images of tartrate-resistant acid phosphatase (TRAP) staining showing the presence of TRAP^+^ osteoclasts on the cortical bone surface. Lower images (scale bars = 100 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 400 µm). f Histomorphological analysis of osteoblast (N.Ob/Ct.B.Pm) and osteoclast (N.Oc/Ct.B.Pm) numbers on the cortical bone surface. Representative images of calcein/xylenol labeling showing periosteal new bone formation (g, scale bars = 100 μm), quantitative analysis of fluorescence intensity of calcein and xylenol (h), as well as corresponding measurement of bone formation rate (i). Data are mean ± standard deviation (s.d.) *P < 0.05, **P < 0.01 by 1-way analysis of variance (ANOVA) with Tukey’s post hoc test. Source data are provided as a source data file.

Divalent cation-induced PGE2 production from macrophages

To examine the mechanism of divalent cation-induced bone formation, we first characterized the immune response around the divalent cation-releasing alginate, because new bone formation in the periosteum can be evidenced by µCT and H&E staining (Supplementary Fig. 3a, b) at early inflammatory stage of bone healing (i.e., day 7 after the injury). The majority of immune cells present at this key stage of new bone formation were found to be F4/80^+^CD68^+^ macrophages rather than CD11c^+^ dendritic cells, CD19^+^ B-cells, or CD3^+^ T-cells (Supplementary Fig. 4c). We demonstrated that the number of CD68^+^ macrophages increased significantly in the bone marrow and periosteum of divalent cation-treated femurs compared with controls (Fig. 2a, b and Supplementary Fig. 5a). Co-immunostaining of COX2 with CD68 demonstrated that COX2 was expressed primarily in CD68^+^ macrophages in the periosteum (Fig. 2a), and that the stimulation of divalent cations, including Mg^2+^, Zn^2+^, or Cu^2+^, significantly increased expression of COX2 in CD68^+^ macrophages in the callus (Fig. 2a, b and Supplementary Fig. 5b). Indeed, the release of Mg^2+^ significantly elevated PGE_2_ concentration in bone (Fig. 2c) and serum (Fig. 2d) during the early stage (i.e., week 1), when the injured site was undergoing acute inflammation. To examine the mechanism of divalent cation-induced COX2 expression, we isolated and cultured the primary mouse bone marrow macrophages (BMM) with the divalent cations. Mg^2+^, Zn^2+^, and Cu^2+^ all promoted secretion of PGE_2_ (Fig. 2e). Importantly, when used at a specific level (i.e., 0.1 mM Zn^2+^, 0.1 mM Cu^2+^, or 10 mM Mg^2+^), the divalent cations upregulated prostaglandin E synthase (PTGES) gene expression (Fig. 2f) and protein levels of COX2 in the BMM (Fig. 2g) without affecting cell viability (Supplementary Fig. 1b). We also verified these findings by sorting macrophages in LysM-YFP mice for RT-qPCR assay after the placement of divalent cation-releasing alginate. Our data showed Mg–Alg, Cu–Alg, and Zn–Alg all contributed to significantly upregulated expression of PTGES and COX2 (Fig. 2h). Furthermore, divalent cations led to the phosphorylation of nuclear factor-κB (NF-κB) p65 and inhibitor of nuclear factor-κB (IκBα), the key cascade proteins in the NF-κB signaling pathway (Fig. 2i). Indeed, Mg^2+^ significantly increased the binding of NF-κB p65 to the COX2 gene promoter as shown in chromatin immunoprecipitation (ChIP) assay (Fig. 2j). Thus, we showed that divalent cations stimulate the secretion of PGE_2_ from macrophages during the inflammation stage of the bone healing process.Fig. 2. Divalent cations stimulate secretion of prostaglandin E2 (PGE_2_) by macrophages.a Co-immunostaining of cyclooxygenase-2 (COX2) with cluster of differentiation 68 (CD68) in the periosteum at week 1 postoperatively (scale bars = 100 µm). b Quantification of macrophage numbers on the cortical bone surface and COX2 intensity in the periosteum at week 1 postoperatively. Enzyme-linked immunosorbent assay (ELISA) analysis of the bone (c) and serum (d) PGE_2_ concentration at week 1 and week 4 postoperatively. e ELISA analysis (n = 3) showing the effect of different concentrations of Mg^2+^, Zn^2+^, or Cu^2+^ on the release of PGE_2_ from bone marrow macrophages (BMM). f Real-time polymerase chain reaction analysis of PTGES mRNA expression in mouse BMM after 3-day incubation culture medium supplemented with different concentrations of Mg^2+^, Zn^2+^, or Cu^2+^ (n = 3). g Representative Western blots and corresponding quantification showing the effect of different divalent cations on the expression of COX2 in mouse BMM (n = 3). h Gating strategies for flow cytometry sorting of YFP^+^ macrophages and the RT-qPCR data showing PTGES and COX2 mRNA expression in macrophage at week 1 postoperatively (n = 3). i Representative Western blots and corresponding quantification showing the effect of different divalent cations on the phosphorylation of NF-κB and IκBα in mouse BMM (n = 3). j Chromatin immunoprecipitation assay showing that the NF-κB p65 at the COX2 promoter was upregulated by the stimulation of Mg^2+^ (n = 3). Data are mean ± s.d. n.s. (nonsignificant), *P < 0.05, **P < 0.01 by one-way ANOVA with Tukey’s post hoc test (b, e–i) or two-way ANOVA with Tukey’s post hoc test (c, d). Source data are provided as a source data file.

Ablation of COX2 in macrophages eliminates periosteal bone formation

To validate the mechanism in vivo, we established an inducible macrophage-depleted mouse model by crossing LysM-Cre mice with iDTR^wt^ mice. Macrophage depletion was effectively achieved in iDTR_LysM_^+/−^ mice by injecting diphtheria toxin (DTX). Macrophage depletion diminished the effect of Mg^2+^ on bone healing, as there was no significant difference between the Mg–Alg group and the control group in bone formation on µCT (Fig. 3a, b and Supplementary Fig. 6a), whereas, Mg^2+^-releasing hydrogel effectively promoted new bone formation after bone injury in LysM-Cre mice, similar to its effect in WT mice. Interestingly, when bone PGE_2_ level was elevated with injection of SW03329 (a PGE_2_ degradation enzyme inhibitor), the new bone formation in the injured femur improved significantly in both the control group and the Mg–Alg group (Fig. 3c, d and Supplementary Fig. 6b). Specifically, new bone formation at the peripheral cortex of the injured femur with injection of SW033291 in the control group was similar in the Mg^2+^-treated group on H&E staining (Supplementary Fig. 6c). Moreover, the numbers of OCN^+^ osteoblasts and TRAP^+^ osteoclasts on the endocortical and periosteal surfaces of femurs were similar regardless of the presence of Mg^2+^ in the alginate with injection of SW033291 (Supplementary Fig. 6d, e).Fig. 3. Macrophage-derived PGE_2_ mediates divalent cation-induced bone formation.Reconstructed µCT images (a, scale bars = 1 mm) showing the cross-section of LysM or iDTR_LysM_^+/−^ mouse femurs after the administration of diphtheria toxin and corresponding measurements (b) of BV/TV, BMD of TV, and Ct.Ar. Reconstructed µCT images (c, scale bars = 1 mm) showing the cross-section of mouse femurs after the administration of SW033291 and corresponding measurements (d) of BV/TV, BMD of TV, and Ct.Ar. Reconstructed µCT images (e, scale bars = 1 mm) showing the cross-section of femurs from COX2^wt^ mice or COX2_LysM_^−/−^ mice grafted with pure alginate or Mg^2+^-releasing alginate, as well as corresponding measurements (f) of BV/TV, BMD of TV, and Ct.Ar. g Representative H&E staining images showing the periosteal new bone formation in COX2^wt^ or COX2_LysM_^−/−^ mice (n = 3). Lower images (scale bars = 100 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 500 µm). h Representative immunofluorescent images and corresponding quantification showing the presence of OCN^+^ osteoblasts on the cortical bone surface (scale bars = 100 µm, n = 3). i Representative TRAP staining images and corresponding quantification showing the presence of TRAP^+^ osteoclasts on the cortical bone surface (scale bars = 100 µm, n = 3). Data are mean ± s.d., *P < 0.05, **P < 0.01 by one-way ANOVA with Tukey’s post hoc test (b, f, h, i) or Student’s two-sided T-test (d). Source data are provided as a source data file.

We further generated mice with conditional COX2 knockout in the macrophages (COX2_LysM_^−/−^) by crossing COX2^wt^ mice with LysM-Cre mice. Mg^2+^-releasing hydrogel failed to induce thickening of cortical bone in injured femurs of COX2_LysM_^−/−^ mice compared with COX2^wt^ mice (Fig. 3e, f and Supplementary Fig. 7a). Mg^2+^-induced new bone formation at the peripheral cortex of femurs in COX2^wt^ mice was not seen in COX2_LysM_^−/−^ mice on H&E staining (Fig. 3g). Again, the effect of Mg^2+^ on OCN^+^ osteoblasts and TRAP^+^ osteoclasts on both endocortical and periosteal surfaces was diminished in COX2_LysM_^−/−^ mice (Fig. 3g, i). These data show that COX2 in macrophages is responsible for PGE_2_ production for divalent cation–induced bone formation.

Sensory nerves are essential for divalent cation–induced bone formation

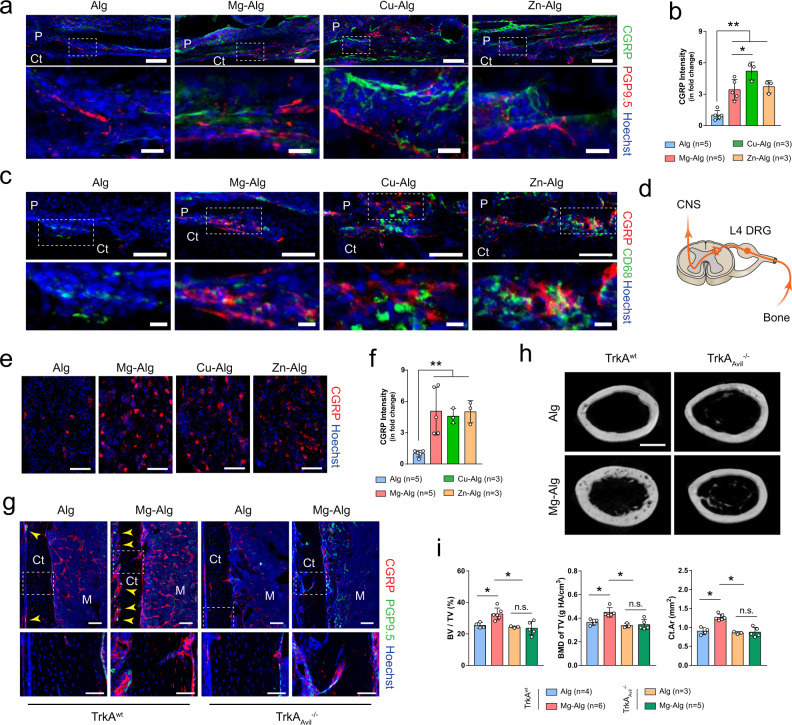

Given that PGE_2_ activates EP4 in the sensory nerve to maintain skeletal interoception activity, we examined whether sensory nerves are associated with divalent cation-induced bone formation. Prominent sprouting and arborization of calcitonin gene-related polypeptide-α^+^ (CGRP^+^) sensory nerve fibers coursing longitudinally over the outer periphery of the reactive callus were observed in immunostaining of periosteum (Fig. 4a). The intensity of CGRP^+^ nerve fibers in the periosteum was significantly increased with divalent cations (Fig. 4b). Importantly, terminal dendrites of CGRP^+^ sensory nerves were spatially associated with CD68^+^ macrophages in the reactive periosteum (Fig. 4c). Moreover, the expression of CGRP was significantly increased in the ipsilateral DRG of mice treated with divalent cations (Fig. 4d–f). Interestingly, CGRP^+^ dendrite sprouting observed primarily around COX2^+^ macrophages in the periosteum of COX2^wt^ mice treated with divalent cations was missing from COX2_LysM_^−/−^ mice (Supplementary Fig. 7b). We then created a sensory denervation mouse model (TrkA_Avil_^−/−^) by crossing sensory nerve-specific Cre (Advillin-Cre) mice with nerve growth factor receptor tropomyosin receptor kinase A (TrkA) floxed (TrkA^wt^) mice to confirm the essential role of sensory nerve in divalent cation-induced bone formation. Indeed, Mg^2+^ significantly increased the density of CGRP^+^ sensory nerve fibers in the bone marrow cavity and the endocortical and periosteal surfaces of TrkA^wt^ mice 7 days after surgery, whereas the number of CGRP^+^ sensory nerve fibers in TrkA_Avil_^−/−^ mice was significantly lower relative to WT mice (Fig. 4g). Similarly, Mg^2+^ stimulated bone formation in TrkA^wt^ mice, and such effects were eliminated in TrkA_Avil_^−/−^ mice (Fig. 4h, i and Supplementary Fig. 7c). Taken together, divalent cation-induced sensory innervation in injured bone tissue is essential for new bone formation.Fig. 4. Deletion of sensory nerve abolishes divalent cation-induced bone formation.a, b Representative immunofluorescent images and corresponding quantification showing the sprouting and arborization of calcitonin gene-related polypeptide-α^+^ (CGRP^+^) sensory nerves within the periosteum at week 1 postoperatively. Lower images (scale bars = 20 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 100 µm). c Co-immunostaining of CGRP with CD68 in the periosteum at week 1 postoperatively. Lower images (scale bars = 20 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 100 µm). DRG of L4 lumbar, which is responsible for the sensation of left femur, was harvested at week 1 postoperatively for histology study (d), representative immunofluorescent images (e), and corresponding quantification (f) showing the expression of CGRP (scale bars = 100 µm). g Representative immunofluorescent images showing the presence of CGRP^+^ sensory nerves in the femurs of TrkA^wt^ or TrkA_Avil_^−/−^ mice. Lower images (scale bars = 50 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 100 µm). Reconstructed µCT images (h, scale bars = 1 mm) showing the cross-section of femurs from TrkA^wt^ mice or TrkA_Avil_^−/−^ mice grafted with pure alginate or Mg^2+^-releasing alginate and corresponding measurements (i) of BV/TV, BMD of TV, and Ct.Ar. Data are mean ± s.d., *P < 0.05, **P < 0.01 by one-way ANOVA with Tukey’s post hoc test. Source data are provided as a source data file.

Divalent cations stimulate PGE2/EP4 skeleton interoception in downregulation of sympathetic activity

We have shown that PGE_2_ activates sensory nerves via EP4 to induce phosphorylation of CREB in the VMH of the hypothalamus as a skeletal interoception pathway^22,46^. We, therefore, investigated whether local delivery of divalent cations could trigger CREB phosphorylation in the hypothalamus. Immunostaining of brain sections showed that phosphorylation of CREB was significantly increased in the contralateral VMH of mice at 1 week after the delivery of Mg^2+^, Zn^2+^, or Cu^2+^ in the injured femurs (Fig. 5a, b). CREB phosphorylation in the hypothalamus with upregulation in 5-hydroxytryptamine receptor 2C (HTR2C) was confirmed by Western blot analysis (Fig. 5c, d). Moreover, using enzyme-linked immunosorbent assay (ELISA), we showed that Mg^2+^ significantly reduced epinephrine levels in serum and urine compared with controls, indicating suppression of sympathetic tone in Mg–Alg-injected mice (Fig. 5e). To examine whether divalent cation-induced CREB phosphorylation downregulates tyrosine hydroxylase (TH) for sympathetic activity, we performed immunostaining of TH for sympathetic nerves. The density of TH^+^ sympathetic nerve fibers on the periosteal surface of divalent cation-treated femurs was significantly less in mice injected with divalent cation-releasing alginate compared with the controls (Fig. 5f). In parallel, spontaneous activity of mice, an indicator of sympathetic tone and postoperative pain^26^, was assessed by spontaneous activity wheels. Compared with controls, the release of Mg^2+^ contributed to significantly shorter daily distance and duration, as well as lower maximum speed of running-wheel activity at weeks 1 and 4 after surgery (Fig. 5g). Finally, we examined the effect of divalent cations on the activation of skeletal interoception in TrkA_Avil_^−/−^ and COX2_LysM_^−/−^ mice, as well as their WT littermates. With sensory nerve denervation, the effect of Mg^2+^ on phosphorylation of CREB was diminished compared with their WT littermates (Fig. 5h). Daily distance and duration of running-wheel activity in TrkA_Avil_^−/−^ mice were significantly longer than in their WT littermates (TrkA^wt^), whereas such effect of Mg^2+^ on decreasing spontaneous activity was abolished in TrkA_Avil_^−/−^ mice (Fig. 5i). Additionally, the increase of hypothalamic CREB phosphorylation triggered by Mg–Alg was abolished in COX2_LysM_^−/−^ mice (Fig. 5j). Similarly, the effect of Mg^2+^ on decreasing the daily distance and duration of running-wheel activity was diminished in COX2_LysM_^−/−^ mice (Fig. 5k). Taken together, our data show that divalent cations promote PGE_2_ from macrophages to activate skeletal interoception, resulting in downregulation of sympathetic tone and new bone formation.Fig. 5. Divalent cations downregulate sympathetic activity through hypothalamic CREB signaling.Representative immunofluorescent images (a) and corresponding quantification (b) showing the phosphorylation of CREB in the ventromedial hypothalamus (VMH) 1 week postoperatively (n = 4). Lower images (scale bars = 20 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 200 µm). Representative Western blots (c) and corresponding quantification (d) showing the phosphorylation of CREB and the expression of 5-hydroxytryptamine receptor 2C (HTR2C) in the hypothalamus tissue of mice at week 1 postoperatively. e ELISA of serum and urine epinephrine levels of mice at week 1 postoperatively. f Representative immunofluorescent images showing the presence of tyrosine-hydroxylase^+^ (TH^+^) sympathetic fibers on cortical bone surface (n = 3, scale bars = 50 µm). g The daily distance (m), duration (s), and maximum speed of running-wheel activity of WT mice at weeks 1 and 4 postoperatively (n = 5). Representative immunofluorescent images showing the phosphorylation of CREB in the VMH of TrkA^wt^ or TrkA_Avil_^−/−^ mice (h), as well as COX2^wt^ or COX2_LysM_^−/−^ mice (j) at week 1 postoperatively (n = 3). Lower images (scale bars = 20 µm) are high-resolution versions of VMH regions in the upper images (scale bars = 200 µm). The daily distance (m) and duration (s) of running-wheel activity of TrkA^wt^ mice or TrkA_Avil_^−/−^ (i), as well as COX2^wt^ or COX2_LysM_^−/−^ (k) mice at week 4 postoperatively. Data are mean ± s.d. *P < 0.05, **P < 0.01 by Student’s two-sided T-test (d, e), two-way ANOVA with Tukey’s post hoc test (g), or 1-way ANOVA with Tukey’s post hoc test (b, i, k). Source data are provided as a source data file.

Knockout of EP4 in the sensory nerve inhibits divalent cation-induced activation of skeletal interoception

EP4 is the PGE_2_ receptor in the skeletal interoception and is known as the primary receptor in bone remodeling and homeostasis^47^. We first prepared conditional medium from Mg^2+^-treated macrophages to test its effect on EP4 expression. EP4 expression in primary DRG neurons was increased more than 10-fold relative to treatment with Mg^2+^ alone (Fig. 6a). We then generated EP4_Avil_^−/−^ mice by crossing Advillin-Cre mice with EP4^wt^ mice. Mg^2+^-induced bone formation was abolished in EP4_Avil_^−/−^ mice with induction of EP4 ablation in the sensory nerves, as shown by µCT (Fig. 6b, c and Supplementary Fig. 7d). We confirmed with H&E staining that the new bone formation induced by Mg^2+^ at the peripheral cortex was diminished with conditional knockout of EP4 in sensory nerve fibers (Fig. 6d). Moreover, the increase of osteoblasts in the periosteum and decrease of osteoclasts were diminished in EP4_Avil_^−/−^ mice after postoperative administration of Mg^2+^ (Supplementary Fig. 8a, b). Again, as in COX2 ablation mice, the effect of Mg–Alg on the daily distance and duration of running-wheel activity was also abolished in EP4_Avil_^−/−^ mice (Fig. 6e). Importantly, phosphorylation of CREB in the hypothalamus was not detectable in EP4_Avil_^−/−^ mice treated with Mg–Alg, unlike their EP4_Avil_^−/−^ littermates (Fig. 6f).Fig. 6. Knockout of PGE_2_ receptor 4 (EP4) in sensory nerves abolishes divalent cation-induced bone formation.a EP4 expression in DRG neurons stimulated by 10 mM Mg^2+^ with or without the conditioned medium from Mg^2+^-treated macrophages (n = 3). Reconstructed µCT images (b, scale bars = 1 mm), corresponding measurements (c), and representative H&E staining images (d) showing the new bone formation in EP4^wt^ mice or EP4_Avil_^−/−^ mice (n = 3). Lower images are high-resolution versions (scale bars = 100 µm) of the boxed regions in the upper images (scale bars = 500 µm). e The running-wheel activity of EP4^wt^ or EP4_Avil_^−/−^ mice at week 4 postoperatively. f The phosphorylation of CREB in the VMH of EP4^wt^ or EP4_Avil_^−/−^ mice at week 1 postoperatively (n = 3, scale bars = 200 µm). Reconstructed µCT images (g, scale bars = 1 mm), corresponding measurements (h), and representative H&E staining images (i) showing the new bone formation in mice injected with vehicle (Veh) or propranolol (PROP) Lower images (scale bars = 100 µm) are high-resolution versions of the boxed regions in the upper images (scale bars = 500 µm). j The running-wheel activity of mice injected with vehicle or propranolol at week 4 postoperatively. k Schematic diagram showing the findings of this study. The divalent cations triggered the production of PGE_2_ from macrophages, which activated the EP4 at the sensory nerve to tune down sympathetic tones via the CREB signaling in the VMH, resulting in increased osteogenesis and decreased osteoclastogenesis in the periosteum. Data are mean ± s.d. *P < 0.05, **P < 0.01 by one-way ANOVA with Tukey’s post hoc test (a, c, e, h, j). Source data are provided as a source data file.

To validate the hypothesis that downregulation of sympathetic activity mediates Mg^2+^-induced cortical bone thickening, we injected mice with propranolol, a widely used β2-adrenergic antagonist. Propranolol contributed to significantly more periosteal new bone formation in Mg^2+^–Alg-injected femurs compared with the vehicle group, whereas it failed to increase bone formation in Alg-treated femurs relative to the vehicle group (Fig. 6g, h and Supplementary Fig. 8c). The bone that was newly formed in response to the stimulation of Mg^2+^ after the administration of propranolol was located primarily at the peripheral cortex, as was previously observed in WT mice (Fig. 6i). Moreover, mice injected with propranolol had a shorter duration of running-wheel activity regardless of Alg or Mg–Alg treatment (Fig. 6j). Interestingly, the activation of CREB phosphorylation observed in the contralateral VMH was not prominent after the injection of SW033291 (Supplementary Fig. 8d), suggesting that the local stimulation caused by the Mg^2+^-induced release of PGE_2_ from macrophages was largely masked by the systematic administration of SW033291. Similarly, the decrease in spontaneous activity caused by Mg–Alg relative to Alg was diminished as the distance and duration of running-wheel activity in Alg treated mice were lower after the injection of SW033291 (Supplementary Fig. 8e). Therefore, EP4 in the sensory nerves mediates the activation of skeletal interoception to downregulate sympathetic activity, leading to new bone formation in the injured site.

Discussion

In recent years, rapid progress has been made in the development of novel biodegradable metal implants^10,48^. With controlled degradation kinetics and gradual integration with bone tissue, biodegradable metal implants have been demonstrated to be superior to traditionally used bioinert metal implants for the treatment of musculoskeletal injuries. Particularly, these biodegradable implants can induce new bone formation through the release of various divalent metal cations^10,48^. Moreover, given the promising osteogenic properties of these divalent metal cations, they are also widely used for the modification of various kinds of orthopedic biomaterials^8,41,49^. Indeed, compared with expensive biological therapeutic agents and complex surgical procedures, the intervention using divalent cations appears to be a cost-effective way to achieve bone regeneration. However, it remains largely unclear how divalent cations induce new bone formation and whether these divalent cation-releasing biomaterials also induce bone formation through similar molecular and cellular mechanisms. In this study, we discovered that the divalent cations, Mg^2+^, Zn^2+^, and Cu^2+^ serve as interoceptive signals to initiate CNS regulation of new bone formation after injury, which suggests the complexity of the underlying mechanism for divalent cation-induced bone regeneration has been greatly underestimated. Therefore, we believe that a clear understanding of the mechanism through which these divalent cations contribute to new bone formation through interoception will greatly benefit the development of novel biomaterials to fully elicit the therapeutic potential of these divalent cations.

The immune system and the nervous system are paramount to sense and respond to changes in our body, as they possess unique qualities that enable them to counter deviations in the internal environment^16^. Upon the delivery of divalent cations, which disrupts the homeostasis in bone microenvironment, the acute immune response contributes to a series of inflammatory chemokines and cytokines that relay information to the nervous system to initiate interoceptive control of bone formation. As a hallmark of inflammatory response after bone injury, COX2/PGE_2_ plays a key role in cortical bone repair^33,36,37^. Subcutaneous administration of PGE_2_ contributes to new bone formation on the endocortical and periosteal surfaces of ovariectomized and intact rats^50^, whereas global knockout of COX2 almost eliminates of periosteal bone formation during bone healing^51^. In this study, we showed divalent cations, including Mg^2+^, Zn^2+^, and Cu^2+^, significantly increased PGE_2_ production from CD68^+^ macrophages in the reactive periosteum. Interestingly, PGE_2_ activated EP4 signaling in the CGRP^+^ sensory nerve endings as the biochemical interoceptive signal. Moreover, our data showed that the injection of SW03329 elevated PGE_2_ concentration in the control group to support cortical bone formation but did not further significantly promote Mg^2+^-induced periosteal new bone formation. This implies that PGE_2_-EP4 signaling in skeletal interoception is not entirely concentration-dependent, and there might be a specific window of PGE_2_ levels for the activation of the immune-neural axis during bone healing—if so, this warrants further investigation. This observation suggests that secretion of PGE_2_ specifically by macrophages stimulates divalent cations-induced bone formation through skeleton interoception.

Although the immunomodulatory effects of divalent cations have been reported, the inflammatory responses induced by these divalent cations don’t always produce specific inflammatory cytokines (e.g., PGE_2_) to facilitate new bone formation^52–55^. Instead, the immunomodulatory effects of these divalent cations are highly concentration-dependent and tissue-specific. Moreover, as bone tissue is the major reservoir for minerals in human body, the inflammation in this microenvironment induced by high levels of divalent cations may initiate the deposition of these trace minerals in hard tissue to alleviate their potential long-term toxicity. Therefore, the storage exogenous divalent cations in newly formed bone tissue could be an effective and efficient strategy to maintain the physiological condition in bone microenvironment. In this study, by utilizing the different cross-linking potential of Mg^2+^, Zn^2+^, and Cu^2+^ on alginate^56^, Mg–Alg, Zn–Alg, and Cu–Alg were designed exquisitely to harness the immunomodulatory effects of these divalent cations on macrophages. For instance, Zn^2+^ and Cu^2+^ released at a very low level (i.e., approximately 0.1 mM), which is also seen in either zinc or copper implants with slow degradation rate, produced PGE_2_ without eliciting cytotoxicity. In comparison, 10 mM of Mg^2+^ released from Mg-alginate, similar to that from degradable magnesium-based implants^57^, stimulated the production of PGE_2_ from macrophages, though Mg^2+^ has been recognized as an anti-inflammatory agent due to its suppressive effects on pro-inflammatory molecules^58,59^. The immunomodulatory effects of the divalent cations were also shown manifested by the activation of the NF-κB signaling pathway in BMM. Given that Mg^2+^ promotes the nuclear translocation of NF-κB p65 in binding to COX2 promoter, it is anticipated that the NF-κB signaling pathway, which is crucial in inflammation responses^60^, may play a central role in divalent cation-induced regulation of PGE_2_. Although many of the inflammatory cytokines, such as IL-1β, IL-6, and TNF-α, can be recognized by their receptors expressed in the sensory nerve to modulate the nervous system^61^, PGE_2_, among all inflammatory mediators, tends to receive the most attention due to its role in mediating peripheral pain pathway^62^. By using a primary culture of DRG neurons and the mice with conditional knockout COX2 in macrophage, we demonstrated that the activation of sensory neurons is actually triggered by the macrophage-derived PGE_2_ in response to the stimulation of divalent cations. Moreover, the ablation of EP4 in sensory nerves abolished the osteogenic effect of Mg^2+^ in the periosteum, thus showing that the crosstalk between immune and neural system is essential in skeletal interoception-mediated new bone formation.

The density of sensory and sympathetic fibers in the periosteum remains the highest in the skeletal system^21^. The periosteum covers almost the entire bone surface and is one of the most regenerative tissues for skeletal osteogenesis^63^. Damage of the periosteum severely impairs cortical bone homeostasis^64,65^ and bone fracture healing^10,65^. Moreover, an increase in the density of sensory and sympathetic nerve fibers in injured bone tissue has been reported to contribute to the bone healing process^45,66,67^. The sprouting and arborization of sensory nerve fibers in the periosteum in response to bone injury^45^ or mechanical stimulation^68^ may facilitate the sensation of stimuli and the initiation of osteogenesis. CGRP^+^ sensory nerves that emanate from the DRG of the spinal cord detect multiple stimuli in bone tissues (including inflammatory cytokines) and process and relay these signals to higher CNS levels^69^. In addition to its major role as a neurotransmitter and neuromodulator, CGRP is also considered a peptide that can be released from the peripheral nerve terminals to regulate osteoclast and osteoblasts^70,71^, which was recently reported to be implicated in the new bone formation induced by pure magnesium implant^10^. In our study, a conspicuous increase in the number of CGRP^+^ nerve fibers in divalent cation-treated femurs suggests an association between the activation of sensory afferents and the inflammatory microenvironment, which is indispensable in skeleton interoceptive circuit. Therefore, the upregulation of CGRP in response to divalent cations may possess multiple functions, including the nociceptive transmission contributing to central sensitization and the direct control of bone cells through the receptors they shared. The spiral-like TH^+^ sympathetic nerve fibers typically wrap around the major blood vessels in the periosteum and penetrate the cortical bone via Volkmann’s and Haversian canals^72,73^. They are known to be capable of regulating osteoblast activity through β2-adrenergic receptors (β2AR)^13,74^. Meanwhile, by increasing the secretion of the receptor activator of nuclear factor kappa-B ligand (Rankl) from osteoblasts, the sympathetic nervous system can also stimulate osteoclastic bone resorption^12,75^. We found that PGE_2_ produced by divalent cation-stimulated macrophages tunes down sympathetic activity for the differentiation of OCN^+^ osteoblasts on the endocortical and periosteal surfaces. Moreover, in both the macrophage depletion and sensory denervation models, elevated PGE_2_ in the periosteum failed to trigger the activation of CREB signaling in the VMH or periosteal new bone formation, indicating that the macrophage-mediated immune response and the sensation of afferent nerves are indispensable in the CNS recognition of stimulation from Mg^2+^, Zn^2+^, or Cu^2+^ after bone injury. Importantly, CREB signaling in the ipsilateral DRG and the contralateral VMH by periosteal delivery of divalent cations downregulates sympathetic activity as a precise temporal-spatial feedback to the injured site for bone regeneration, as the bone homeostasis of the contralateral femur was not altered after the activation of skeletal interoception (Supplementary Fig. 9a–c).

The discovery of the skeleton interoception-mediated new bone formation triggered by Mg^2+^, Zn^2+^, and Cu^2+^ indicates that the complexity of the underlying mechanism for the osteogenic effects of these divalent cations has been greatly underestimated. Nevertheless, it is important to note that there have been multiple approaches reported in the past few decades through which these divalent cations may modulate bone homeostasis^6–9^. And this may explain the difference among the three tested divalent cations in term of their bone formation outcome. For instance, in our study, the highest bone volume was observed in the Cu–Alg group, as the old bone was barely resorbed from the endosteal surface by osteoclasts following the new bone formation on periosteal surface. In fact, from as early as 1981, Cu^2+^ has been reported to have a direct dose-dependent inhibitory effect on osteoclastic activity^76^. Cu^2+^ has also been used in biomaterials to shift the equilibrium between bone formation and bone resorption because the tolerance of osteoclasts and osteoblasts to Cu^2+^ differs^77,78^. In addition to the bone cells, some divalent cations like Mg^2+^ and Zn^2+^ have also been shown to facilitate type H vessel formation by targeting endothelial cells, which couples angiogenesis with osteogenesis during bone healing^6^. This subtype of vessels, characterized by the co-expression of CD31 and endomucin, can provide niche signals for perivascular osteoprogenitors to promote osteogenesis^79,80^. Recent studies showed the sensory innervation following bone injury is an essential upstream mediator for vasculature^45^, and electrical stimulation at DRG could promote type-H vessel formation to enhance bone regeneration^81^. Therefore, it would be interesting to further explore to which extend are angiogenesis and vasculogenesis involved in skeleton interoception and what their specific role may be in divalent cation-induced new bone formation.

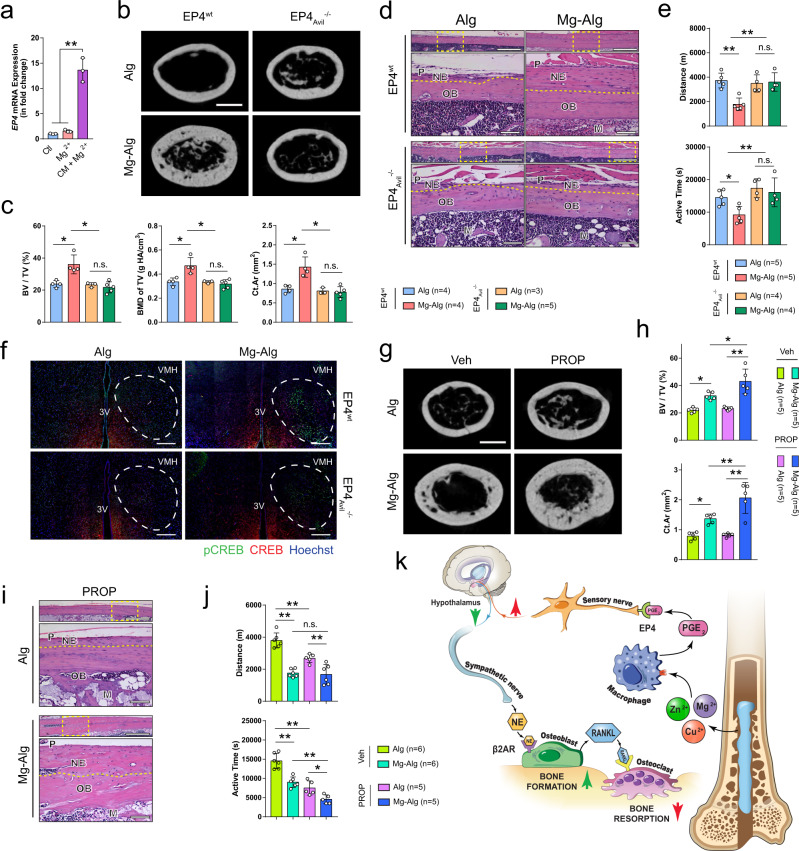

In summary, we found that skeletal interoception mediates divalent cation-induced bone formation (Fig. 6K). The controlled delivery of Mg^2+^, Zn^2+^, or Cu^2+^ stimulates to the production of PGE_2_ from CD68^+^ macrophages, which is followed by rapid reinnervation of CGRP^+^ sensory nerve fibers in the reactive periosteum. Activation of EP4 receptor in sensory nerves by local PGE_2_ induces CREB signaling in the VMH as an ascending interoceptive signal, which downregulates sympathetic activity as a descending interoceptive signal to induce osteogenesis at the injured bone treated with divalent cations. The discovery of divalent cation-induced bone formation through skeletal interoception could revolutionize the current understanding of bone regeneration and inspire innovative orthopedic biomaterials for bone tissue engineering.

Methods

Mouse breeding

All animal experimental protocols and relevant ethical regulations were followed, and the study was approved by the Animal Care and Use Committee of The Johns Hopkins University, Baltimore, MD, USA (Protocol number: MO21M276). The Advillin-Cre (Avil-Cre) mouse strain was kindly provided by Xingzhong Dong (Department of Neuroscience, The Johns Hopkins University, Baltimore, MD, USA). The TrkA^fl/fl^ mice were obtained from David D. Ginty (Department of Neurobiology, Harvard Medical School, Boston, MD, USA). The LysM-Cre mice and iDTR^fl/fl^ mice were purchased from the Jackson Laboratory (Bar Harbor, ME, USA). The COX2^fl/fl^ mice were provided by Harvey Herschman (Department of Biological Chemistry, University of California, Los Angeles, Los Angeles, CA, USA). The EP4^fl/fl^ mice were obtained from Brian L. Kelsall (Laboratory of Molecular Immunology, National Institutes of Health, Bethesda, MD, USA). The Rosa26YFP reporter mice were obtained from Center for Comparative Medicine Research (CCMR), the University of Hong Kong. Heterozygous male Avil-Cre mice were crossed with a female TrkA^fl/fl^ or EP4^fl/fl^ mouse. The offspring were intercrossed to generate the following genotypes: wild type (referred to as WT in the text), Avil-Cre (Cre recombinase expressed driven by advillin promoter), TrkA^fl/fl^ (mice homozygous for TrkA flox allele, referred to as TrkA^wt^ in the text), EP4^fl/fl^ (mice homozygous for EP4 flox allele, referred to as EP4^wt^ in the text), Avil-Cre::TrkA^fl/fl^ (conditional deletion of TrkA receptor in Advillin lineage cells, referred to as TrkA_Avil_^−/−^ in the text), Avil-Cre::EP4^fl/fl^ (conditional deletion of EP4 receptor in Advillin lineage cells, referred to as EP4_Avil_^−/−^ in the text). Heterozygous male LysM-Cre mice were crossed with a female iDTR^fl/fl^ mouse or a COX2^fl/fl^ mouse. The offspring were intercrossed to generate the following genotypes: WT, LysM-Cre, iDTR^fl/fl^, COX2^fl/fl^ mice (mice homozygous for COX2 flox allele, referred to as COX2^wt^ in the text), LysM-Cre::iDTR^fl/-^ (referred to as iDTR_LysM_^+/−^ in the text), LysM-Cre::COX2^fl/fl^ (conditional deletion of COX2 in monocyte-macrophage lineage, referred to as COX2_LysM_^−/−^ in the text). Homozygous male LysM-Cre mice were crossed with a female Rosa26YFP mouse to generate LysM-YFP mice.

The genotypes of the mice were determined by polymerase chain reaction (PCR) analyses of the genomic DNA, which was extracted from mouse tails. The primers used for genotyping were Avil-Cre: Forward: CCCTGTTCACTGTGAGTAGG, Reverse: GCGATCCCTG AACATGTCCATC; LysM-Cre: Forward: CCCAGAAATGCCAGATTACG, Reverse: CTTGGGCTG CCAGAATTTCTC; TrkA loxP allele: Forward: AACAGTTTTGAGCATTTTCTATTGTTT, Reverse: CAAAGAAAACAGAAGAAAAAT AATAC; iDTR loxP allele: Forward: GCGAAGAGTTTGTCCTCAACC, Reverse: AAAGTCGCTCT GAGTTGTTAT; COX2 loxP allele: Forward: AATTACTGCTGAAGCCCACC, Reverse: GAATCTC CTAGAACTGACTGG; EP4 loxP allele: Forward: TCTGTGAAGCGAGTCCTTAGGCT, Reverse: CG CACTCTCTCTCTCCCAAGGAA. All animals were maintained at the animal facility of The Johns Hopkins University School of Medicine.

In vivo treatment

Twenty percent alginate gel (Alg) was prepared by mixing sodium alginate powder (Sigma-Aldrich, St. Louis, MO, USA,180947) in deionized water, while 10% magnesium chloride (MgCl_2_, Sigma-Aldrich, M8266), 10% zinc chloride (ZnCl_2_, Sigma-Aldrich, 208086), and 10% copper chloride (CuCl_2_, Sigma-Aldrich, 307483) were used for the preparation of magnesium cross-linked alginate (Mg–Alg), zinc cross-linked alginate (Zn–Alg), and copper cross-linked alginate (Cu–Alg). Twelve-week-old male mice were anesthetized by intraperitoneal injection with ketamine (Vetalar, Ketaset, Ketalar; 75 mg/kg, intraperitoneally) and xylazine (Rompun, Sedazine, AnaSed; 10 mg/kg, intraperitoneally). A longitudinal incision was made at the left knee and the patella was dislocated to expose the femoral condyle. Using a 20-gauge needle (Becton, Dickinson and Company, BD Syringe, 309644), we created a tunnel with a diameter of 1 mm from the patellofemoral groove of the distal femur along the axis of the femoral shaft. After thorough irrigation with saline (Quality Biological Inc, 114055101), either pure alginate or divalent cation-releasing alginate (0.01 mL) was injected into the femoral canal. Meanwhile, a same tunnel defect was created in the right femur, but no material was injected. The wounds were sutured layer-by-layer, and the mice were housed in a specific-pathogen-free facility after the surgery. A monocyte-macrophage lineage depletion mouse model was induced by intraperitoneal injection of diphtheria toxin (DTX, Sigma-Aldrich, D0564) in iDTR_LysM_^+/−^ mice every other day during the week before and the week after the surgery. A PGE_2_ degradation enzyme inhibitor, SW033291 (Selleck Chemicals, Houston, TX, USA), was administered by intraperitoneal injection at 10 mg/kg every day for 1 week after the surgery. A low-dose β-adrenergic receptor blocker, propranolol (PROP, Sigma-Aldrich, 1576005), was administered by intraperitoneal injection at 0.5 mg/kg every day for 1 week after the surgery.

µCT analysis

At designated time points, the femurs were harvested from the mice and fixed overnight using 4% paraformaldehyde. Analysis was performed using a high-resolution µCT scanner (SkyScan 1275, Bruker, Kontich, Belgium). The voltage of the scanning procedure was 65 kv with a 153-μA current. The resolution was set to 8.7 μm per pixel. Two phantom-contained rods with a standard density of 0.25 and 0.75 g/cm^3^ were scanned with each sample for calibration. Data reconstruction was completed using NRecon software (v1.6, SkyScan), data analysis was accomplished using CTAn software (v1.9, SkyScan), and 3D model visualization was performed using CTvox software (v3.2, SkyScan). Bone volume fraction (BV/TV), bone mineral density (BMD of TV), trabecular number (Tb. N), trabecular thickness (Tb. Th), cortical thickness (Ct. Th), cortical area (Ct. Ar), bone perimeter (B. Pm), and ρ-moment of inertia (ρMOI) were measured via µCT data.

Fluorochrome labeling

Two fluorochrome labels were used sequentially to evaluate periosteal new bone formation rate after the placement of divalent cation releasing alginate. In brief, calcein green (5 mg/kg, Sigma-Aldrich, C0875) was subcutaneously injected into mouse femora one week after the surgery, while xylenol orange (90 mg/kg, Sigma-Aldrich, 52097) was injected two weeks after the surgery. The fluorochrome labels were visualized under a fluorescence microscopy (Niko ECL IPSE 80i, Japan). The intensity of fluorescence and the distance between two labeling were measured and analyzed by ImageJ software (NIH, USA).

Immunofluorescence and histomorphometric analysis

At designated time points, mice femurs were fixed with 4% paraformaldehyde (Fisher Scientific, SF100-4) overnight and decalcified with 10% ethylenediaminetetraacetic acid (pH = 7.4) for 21 days. For immunostaining, the samples were dehydrated in 20% sucrose solution with 2% polyvinylpyrrolidone (PVP, Sigma-Aldrich, PVP40) for 24 h and embedded in 8% gelatin (Sigma-Aldrich, 1288485) supplemented with 20% sucrose (Fisher Scientific, S5-500) and 2% PVP. 40 μm-thick coronal-oriented sections of the femurs were obtained using a cryostat microtome. For histomorphometry, the samples were dehydrated in ethanol, embedded in paraffin, and prepared into 5 µm-thick coronal-oriented sections using a rotary microtome. The brain and DRG tissues harvested from the mice were fixed with 4% paraformaldehyde, dehydrated with 30% sucrose, and embedded in an optimal cutting temperature compound (OCT, Sakura Finetek, Torrance, CA, USA, 4583). 10 μm-thick coronal-oriented sections of the brain and DRG were obtained using a cryostat microtome.

Immunostaining was performed using a standard protocol. Briefly, the sections of the brain and DRG were incubated with primary antibodies to mouse OCN (Abcam, Cambridge, UK, ab93876, 1:200), CD68 (Abcam, ab31630, 1:400), CGRP (Abcam, ab81887, 1:300), PGP9.5 (Abcam, ab108986, 1:300), COX2 (Abcam, ab15191, 1:200), CREB (Abcam, 178322, 1:200), p-CREB (Abcam, ab32096, 1:200), and TH (Millipore Sigma, Burlington, MA, USA, AB152, 1:100) overnight at 4 °C. Alexa-Fluor 488-conjugated and Alexa-Fluor 647-conjugated secondary antibodies (Thermo Fisher Scientific, Waltham, MA, USA) were used for immunofluorescent staining, while the nuclei were counterstained with Hoechst 33324 (Thermo Fisher Scientific). Immunofluorescent images were captured using an LSM 780 confocal microscope (Zeiss, Oberkochen, Germany). For hematoxylin and eosin (H&E) staining, selected slides were stained in hematoxylin (Thermo Fisher Scientific, 7231) for 3 min and counterstained with eosin (Thermo Fisher Scientific, 7111) for 1 min. TRAP staining (Sigma-Aldrich, 387A) was performed in selected slides from each sample according to the manufacturer’s instructions. In brief, selected slides were pre-warmed to 37 °C in waterbath and incubated in TRAP Staining Solution Mix 37 °C at for 15 min. The nucleus was counterstained by Methyl green (Millipore Sigma, M8884). Images were captured using a polarized light microscope (Nikon Eclipse VL100POL, Tokyo, Japan), and quantitative histomorphometric analysis was performed using Image J software (v.1.5, National Institutes of Health, Bethesda, MD, USA).

Cell sorting

All cell sorting was performed on a BD FACSAria^TM^ SORP Cell Sorter (BD Biosciences, USA). At week 1 after the placement of divalent cation-releasing alginate, the femurs were harvested and rinsed with 1X PBS (Thermo Fisher Scientific, 10010023). After the removal of muscle tissue, bone marrow was flushed out with 1X PBS. The cells on the cortical bone were isolated by digesting the crushed bone chips in PBS containing 1 mg/mL Collagenase I (Sigma-Aldrich, SCR103) for 20 min at 37 °C. Cells were thoroughly washed, underwent red blood cell lysis (Invitrogen, Thermo Fisher Scientific, 00-4333-57), and resuspended in PBS containing 2% fetal bovine serum (FBS, Invitrogen, Thermo Fisher Scientific, 26140079). For cell sorting, YFP positive cells were sorted into chilled 15 mL centrifuge tubes containing PBS supplemented with 2% FBS. The harvested cells were washed and centrifuged before the addition of RNeasy lysis buffer (Qiagen, Germantown, MD, USA, 79216) for the extraction of total RNA.

Cell culture

Primary BMM and DRG neurons from 4-week-old mice were isolated. For the isolation of BMM, the mice were euthanized and both femurs were dissected to remove soft tissue. The femurs were then crushed into pieces and digested with α-MEM (Minimum Essential Medium Eagle α Modification, Fisher Scientific, MT10022CV) containing 3 mg/mL Collagenase I (Worthington Biochemical Corp, Lakewood, NJ, USA, LS004194), 4 mg/mL dispase (Sigma-Aldrich, D4818), and 1 U/mL deoxyribonuclease-I (Invitrogen, Thermo Fisher Scientific, 18047019). The single-cell suspension was achieved by passing the solution through a cell strainer to remove tissue fragments. After incubation in a humidified incubator with 5% CO_2_ at 37 °C, the non-adherent cells were harvested and cultured in α-MEM supplemented with 20 ng/mL macrophage colony-stimulating factor (M-CSF, R&D Systems, Minneapolis, MN, USA, 416-ML) for 7 days. For the isolation of DRG neurons, DRGs from the L2–L5 spinal levels were isolated in cold DMEM/F12 (Dulbecco’s Modified Eagle Medium/Nutrient Mixture F-12) medium (Invitrogen, Thermo Fisher Scientific, 11320033) and then digested with 1 mg/mL collagenase type A (Roche, Basel, Switzerland, 05349907103) at 37 °C. After trituration and centrifugation, cells were resuspended and seeded on glass coverslips coated with ploy-D-lysine and laminin. The culture medium was replaced 6 h after seeding, and the adherent cells were further cultured at 37 °C with 5% CO_2_ for 3 days before use.

ELISA

Whole blood samples were collected by cardiac puncture immediately after the mice were euthanized. Serum was collected by centrifuging at 2000 × g for 15 min and then stored at −80 °C before analysis. The total bone protein was harvested from the femurs grafted with pure alginate or Mg–Alg. The mid-shaft of the femur, approximately 1 cm long, was ground into mud using a ceramic mortar and pestle under cooling. The mud of the bone tissue was then homogenized in pre-cooled radioimmunoprecipitation assay (RIPA) lysis and extraction buffer (Thermo Fisher Scientific, 89900) for 1 h. The buffer solution was centrifuged at 15,000 × g for 20 min at 4 °C. The supernatant was collected for protein concentration quantification with the BCA Protein Assay Kit (Thermo Fisher Scientific, A53225). An equal amount of protein from each sample was subjected to quantitative analysis using a specific ELISA kit per the manufacturer’s instruction. The PGE_2_ concentrations in the serum and bone marrow were determined by the PGE_2_ ELISA kit (Cayman Chemical, Ann Arbor, MI, USA, 514010). The OCN level was determined by an OCN ELISA kit (Biomedical Technologies Inc, Tewksbury, MA, USA, BT470). The serum and urine epinephrine levels were determined by an epinephrine ELISA kit (ALPCO, Salem, NH, USA, 17-EPIHU-E01.1).

Quantitative real-time polymerase chain reaction (qPCR)

The total RNA of the cells was extracted and purified using the RNeasy Plus kit (Qiagen, Germantown, MD, USA, 74034) per the manufacturer’s instructions. For the reverse transcription, complementary DNA was synthesized using the SuperScript First-Strand Synthesis System (Invitrogen, Thermo Fisher Scientific, 18091050). The primers used in the RT–qPCR assay were synthesized by Life Technologies (Thermo Fisher Scientific) based on sequences retrieved from Primer Bank (http://pga.mgh.harvard.edu/primerbank, Supplementary Table 1). SYBR Green-Master Mix (Qiagen, Germantown, MD, USA, A46113) was used for the amplification and detection of complementary DNA on a C1000 Thermal Cycler (Bio-Rad Laboratories, Hercules, CA). The mean cycle threshold (Ct) value of each target gene was normalized to the housekeeping gene glyceraldehyde-3-phosphate dehydrogenase (GAPDH). The results were shown as a fold change using the ∆∆Ct method.

Western blot

The total protein from animal tissues or cell cultures was lysed using RIPA lysis and extraction buffer supplemented with a protease inhibitor cocktail (Thermo Fisher Scientific, 78430). After centrifugation at 15,000 × g for 10 min at 4 °C, the supernatants were collected to measure the protein concentration with the BCA Protein Assay Kit. A total of 30 µg of protein was subjected to sodium dodecyl sulfate-polyacrylamide gel electrophoresis and then blotted on the nitrocellulose membranes (Bio-Rad Laboratories, 1620115). The membrane was blocked in 5% w/v bovine serum albumin (BSA, Sigma-Aldrich, A9418) and incubated with blocking buffer-diluted primary antibodies overnight at 4 °C. The primary antibodies used were CREB (Abcam, 178322, 1:1000), p-CREB (Abcam, ab32096, 1:1000), HTR2C (ab197776, 1:1000), COX2 (Abcam, ab15191, 1:1000), p-IκBα (CST, 2859, 1:1000), IκBα (CST, 4814, 1:1000), p-NF-κB p65 (CST, 3033, 1:1000), NF-κB p65 (CST, 8242, 1:1000), and β-actin (CST,8457, 1:2000). The proteins were visualized by an enhanced chemiluminescence kit (Thermo Fisher Scientific, 34580) and exposed under a ChemiDoc XRS System (Bio-Rad Laboratories).

Behavioral analysis

The spontaneous activity of mice after surgery was assessed using spontaneous activity wheels (BIO-ACTIVW-M, Bioseb, Boulogne, France). Mice were housed in polycarbonate cages with free access to stainless steel activity wheels (diameter 23 cm; width 5 cm), which were connected to an analyzer that automatically recorded the distance traveled, mean speed, maximum speed, and total active time. The mice had ad libitum access to food and water during the test. They were allowed to acclimatize to the environment for at least 24 h before data were recorded.

Chromatin immunoprecipitation (ChIP) assay

After the stimulation, the ChIP assay was performed using an Agarose ChIP Kit (Thermo Fisher Scientific, 26156) according to the manufacturer’s instructions. In brief, the chromatin was cross-linked by 1% formaldehyde and digested by micrococcal nuclease. The lysate was incubated with rabbit anti-NF-κB p65 at 4 °C overnight followed by incubation with ChIP Grade Protein A/G Plus Agarose. The purified DNA was analyzed by PCR assay using primers targeting mouse COX2 promoters: sense 5′-CCCGGAGGGTAGTTCCATGAAAGACTTCAAC-3′ and antisense 5′-GGTGGAGCTGGCAGGATGCAGTCCTG-3′. The primers targeting the GAPDH promoter served as a positive control. PCR products obtained after 40 cycles were separated on 2% agarose gels.

Statistical analysis

All data analyses were performed and illustrated using Prism software (v. 7, GraphPad Software, San Diego, CA, USA). Data are presented as means ± standard deviations (SD). For comparisons between two groups, two-tailed Student’s T-tests were used. For comparisons among multiple groups, one-way or two-way analysis of variance (ANOVA) was used, followed by Tukey’s post hoc test. Significant differences among groups were defined and noted as *P < 0.05 or **P < 0.01. The sample size was based on preliminary data, as well as on observed effect sizes.

Reporting summary

Further information on research design is available in the Nature Research Reporting Summary linked to this article.
