High-Performance Mg3Sb2-xBix Thermoelectrics: Progress and Perspective

TL;DR

This paper reviews recent progress in Mg3Sb2-xBix thermoelectric materials, highlighting their potential as a low-cost alternative for energy-efficient cooling and power generation.

Contribution

The paper provides a comprehensive review of the structure-property relationships and optimization strategies for Mg3Sb2-xBix thermoelectrics.

Findings

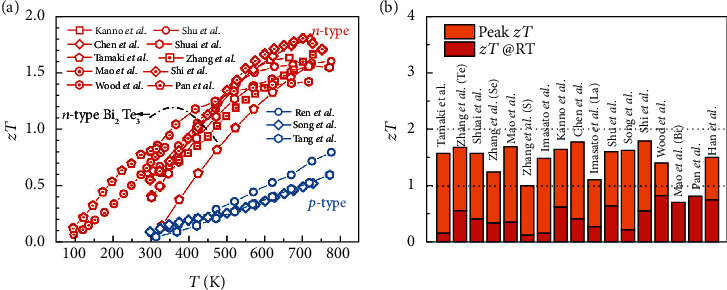

Mg3Sb2-xBix alloys achieve an average zT above unity between 300–700 K.

Band engineering and grain boundary modification are key strategies for enhancing thermoelectric performance.

The material is a promising alternative to Bi2Te3-xSex alloys for room-temperature applications.

Abstract

Since the first successful implementation of n-type doping, low-cost Mg3Sb2-xBix alloys have been rapidly developed as excellent thermoelectric materials in recent years. An average figure of merit zT above unity over the temperature range 300–700 K makes this new system become a promising alternative to the commercially used n-type Bi2Te3-xSex alloys for either refrigeration or low-grade heat power generation near room temperature. In this review, with the structure-property-application relationship as the mainline, we first discuss how the crystallographic, electronic, and phononic structures lay the foundation of the high thermoelectric performance. Then, optimization strategies, including the physical aspects of band engineering with Sb/Bi alloying and carrier scattering mechanism with grain boundary modification and the chemical aspects of Mg defects and aliovalent doping, are extensively reviewed. Mainstream directions targeting the improvement of zT near room temperature are outlined. Finally, device applications and related engineering issues are discussed. We hope this review could help to promote the understanding and future developments of low-cost Mg3Sb2-xBix alloys for practical thermoelectric applications.

Figures
