Clustering and reverse transcription of HIV‐1 genomes in nuclear niches of macrophages
Elena Rensen, Florian Mueller, Viviana Scoca, Jyotsana J Parmar, Philippe Souque, Christophe Zimmer, Francesca Di Nunzio
TL;DR
This study shows that HIV-1 can reverse transcribe its genome and form DNA clusters inside the nuclei of macrophages, challenging previous assumptions about the virus's replication process.
Contribution
The study reveals that HIV-1 reverse transcription and DNA clustering can occur in the nucleus, not just the cytoplasm.
Findings
Infected macrophages form nuclear foci containing viral DNA and RNA clusters.
Reverse transcription can resume in the nucleus after being temporarily inhibited.
Nuclear reverse transcription can produce transcription-competent viral DNA.
Abstract
In order to replicate, human immunodeficiency virus (HIV‐1) reverse‐transcribes its RNA genome into DNA, which subsequently integrates into host cell chromosomes. These two key events of the viral life cycle are commonly viewed as separate not only in time, but also in cellular space, since reverse transcription (RT) is thought to be completed in the cytoplasm before nuclear import and integration. However, the spatiotemporal organization of the early viral replication cycle in macrophages, the natural non‐dividing target cells that constitute reservoirs of HIV‐1 and an obstacle to curing AIDS, remains unclear. Here, we demonstrate that infected macrophages display large nuclear foci of viral DNA (vDNA) and viral RNA, in which multiple viral genomes cluster together. These clusters form in the absence of chromosomal integration, sequester the paraspeckle protein CPSF6, and localize to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure EV1
Figure EV2
Figure 2
Figure 3
Figure EV3
Figure 4
Figure 5
Figure 6
Figure 7
Figure EV4- —Fondation pour la Recherche Médicale (FRM) 10.13039/501100002915
- —Agence Nationale de Recherches sur le Sida et les Hépatites Virales (ANRS) 10.13039/501100003323
- —Institut Carnot Pasteur MS
- —Sidaction 10.13039/100009060
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHIV Research and Treatment · Immune Cell Function and Interaction · interferon and immune responses
Introduction
Productive infection by the human immunodeficiency virus 1 (HIV‐1), the causative agent of AIDS, requires reverse transcription (RT) of the viral RNA (vRNA) genome into double‐stranded viral DNA (vDNA) and subsequent integration of the vDNA into host cell chromosomes. Studies in immortalized cell lines such as HeLa and activated CD4^+^ T cells have established a spatiotemporal sequence of events where: (i) vDNA is synthesized by RT in the cytoplasm, with concomitant degradation of the template vRNA, (ii) the vDNA genome translocates into the nucleus, (iii) the integrase enzyme (IN) inserts the vDNA into the genome, and (iv) the integrated vDNA genome undergoes transcription that leads to viral progeny (Freed, 2001; Hu & Hughes, 2012). How the HIV‐1 replication cycle proceeds in other cell types remains comparatively underexplored. Indeed, different cell types can exhibit widely divergent responses to viral attacks, owing to, e.g., different restriction factors or immune cell defense mechanisms (Stremlau et al, 2004; Goujon et al, 2013; Rasaiyaah et al, 2013; Lahaye et al, 2018). Macrophages are terminally differentiated, non‐dividing cells derived from blood monocytes, which play a critical role in the innate and adaptive immune response (Gordon & Taylor, 2005; Koppensteiner et al, 2012; Ganor et al, 2019). Along with activated CD4^+^ T cells, macrophages are natural target cells for HIV‐1, and accumulating evidence points to a critical role of these cells in viral persistence, which remains a major roadblock to eradicating HIV (Honeycutt et al, 2017; Ganor et al, 2019). Despite this importance, the early steps of HIV‐1 infection in macrophages remain elusive. Here, we use imaging approaches to visualize and quantify the cellular localizations of vDNA and vRNA in infected macrophages and study their link with RT. Our data reveal that genomic vRNA forms nuclear clusters that associate with nuclear speckle factors and provide surprising evidence that these structures can harbor a nuclear RT activity.
HIV‐1 genomes form large nuclear foci in infected macrophages
To study HIV infection in macrophages, we used primarily ThP1 cells, a human monocytic cell line, and differentiated them into macrophage‐like cells by stimulation with phorbol esters (Schwende et al, 1996). We infected these cells with VSV‐G pseudotyped HIV‐1 carrying the HIV‐2 accessory protein Vpx (unless stated otherwise), which overcomes the natural resistance of macrophages to viral infection by counteracting the host restriction factor SAMHD1 (Laguette et al, 2011). To enable fluorescent labeling of the virus, we used a virus carrying the endogenous viral integrase (IN) gene fused to an HA‐tag (Petit et al, 1999, 2000). The tagged virus is similarly infectious as the untagged virus (Petit et al, 1999; Blanco‐Rodriguez et al, 2020). We analyzed reverse transcription (RT) with qPCR by measuring viral DNA synthesis and the presence of nuclear viral DNA (vDNA) forms including 2LTRs at different times post‐infection (p.i.). In parallel, we also measured the number of integrated proviruses, revealing a low level of integration in these cells at 24 h p.i. (Appendix Fig S1). These assays indicated that RT peaks at ~ 24 h p.i. and that the formation of episomal nuclear forms (2LTRs), peaks at ~ 30 h p.i., confirming that these early steps of HIV‐1 infection in ThP1 macrophage‐like cells are delayed relative to HeLa cells (Arfi et al, 2008).
To visualize the reverse‐transcribed viral DNA genome, we infected ThP1 cells in the presence of the nucleotide analog EdU for 24 h (Peng et al, 2014; Stultz et al, 2017) with a multiplicity of infection (MOI) of 50 (unless otherwise stated), as measured by qPCR on 293T cells. Fluorescent visualization of EdU was performed at 48 h p.i. by click chemistry, unless stated otherwise. Because the vast majority of ThP1 cells were terminally differentiated, EdU did not incorporate into host cell chromosomes. A minority of cells (~ 5%) exhibited bright EdU signal throughout the nucleus, clearly indicating that these cells failed to differentiate and continued to replicate their DNA (Appendix Fig S2A). We excluded these cells from further analysis throughout this study and only considered the remaining, terminally differentiated cells. Our images revealed strikingly large and bright EdU foci in the nuclei of infected cells, whereas uninfected control cells displayed only a very weak background signal (Fig 1A, Movie EV1, Appendix Fig S2B and C). While the nuclear envelope of some cells displayed invaginations, dual‐color imaging of EdU with immunostained lamin in infected cells confirmed that these foci are located within the nuclear lumen (Figs 1C, and EV1A and B). Quantifications indicated that ~ 73% of cells contained one or more foci (Fig 1I) and that foci had a median size (as measured by the full width at half maximum, FWHM, of intensity profiles) of ~ 600 nm (interquartile range ~ 175 nm; n = 40 foci) (Fig 1B and F). In addition to these large foci, some infected cells also showed discrete nuclear punctae of much lower brightness, with a size (FWHM) of ~ 370 nm, close to the microscope’s theoretical resolution of ~ 300 nm and hence consistent with particles of similar or smaller size (Fig 1A and F). Triple color imaging of EdU together with immunolabeled capsid (CA) and integrase (IN) exhibited clear colocalization, thereby simultaneously confirming the viral nature of EdU‐labeled DNA, and showing that the EdU foci (hereafter referred to as “vDNA foci”) are enriched in these viral proteins (Fig 1D, Appendix Fig S3). Importantly, although our experiments used viral particles incorporating Vpx to increase HIV‐1 infection efficiency, we observed that in absence of Vpx, infected ThP1 cells also form nuclear vDNA foci, ruling out the possibility that these foci are an artifact due to the presence of Vpx (Appendix Fig S4).

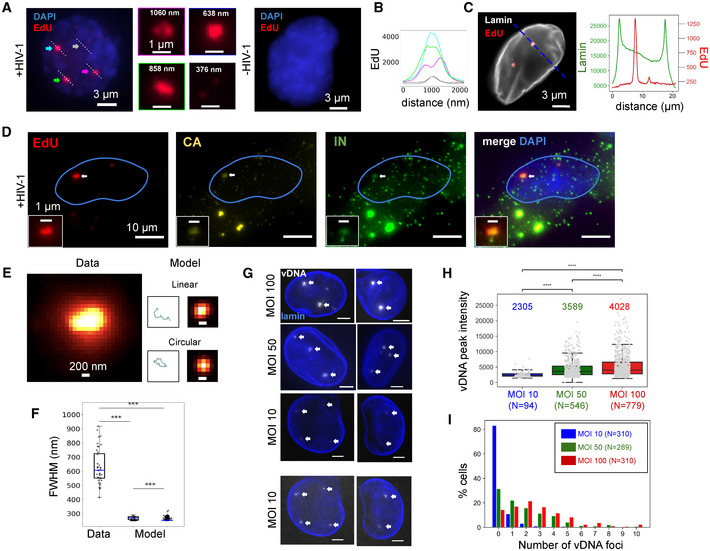

*HIV genomes form large nuclear foci in macrophages A–CEdU‐labeled viral DNA forms large foci in ThP1 cells infected by HIV‐1. EdU images are shown in red, DAPI images in blue. (A) Left: nucleus of an infected cell at 48 h p.i. displays three large and bright EdU foci (colored arrows), as well as small and dim punctae (gray arrows). Center: Magnified views have colored borders matching the colors of the arrows. 3D images show that EdU foci are located within the nucleoplasm (Movie EV1, Appendix Fig S2). Right: nucleus of an uninfected cell displays no EdU signal. (B) Graph shows EdU intensity profiles along lines shown in (A), with colors matching the corresponding arrows. (C) Dual‐color image of an infected cell with EdU (red) and immunolabeled lamin (gray). Curves to the right plot the intensity profile of EdU and lamin along the dashed blue line. The EdU intensity peaks do not coincide with lamin enrichment. See also Fig EV1A and B.DMulticolor images of an infected cell showing EdU (red) with CA (yellow) and integrase (green). The colocalization of nuclear EdU foci with CA and IN (arrows) confirms that EdU specifically labels viral DNA and shows the presence of these proteins in vDNA foci. See also Appendix Fig S3.E, FvDNA foci are much larger than the predicted size of single viral genomes. (E) Left image shows an observed, EdU‐labeled vDNA focus. Right: simulations of a single linear or circular 10 Kb long chromatinized DNA polymer chain and corresponding predicted images in diffraction‐limited (~ 300 nm resolution) microscopy. (F) Boxplots show the distribution of sizes (FWHM, full width at half maximum) of n = 40 measured vDNA foci (for MOI 100) compared to the sizes predicted for linear (left) and circular (right) chains based on n = 100 simulated configurations each. Blue lines in boxes define medians, top and bottom limits define upper and lower quartiles, respectively. Whiskers show the full data range, except for outliers. Gray dots are individual data points. All differences are highly significant (Wilcoxon test data vs. model: ***P ≈ 3 × 10−20, circular vs. linear model: ***P ≈ 10−17).GImages of vDNA foci (arrows) in ThP1 cells infected with multiplicities of infection (MOI) 10, 50, and 100. Images for MOI 10 are shown at two different contrast levels to reveal dimmer spots. Scale bars, 3 µm.HBoxplots compare the peak intensities inside individual vDNA foci for MOIs 10, 50, and 100. Central lines in boxes define medians, top and bottom limits define upper and lower quartiles, respectively. Whiskers show the full data range, except for outliers. Gray dots are individual data points. Intensities increase significantly with MOI (Wilcoxon tests: MOI 10 vs. MOI 50: ***P ≈ 5 × 10−16; MOI 50 vs. MOI 100: ***P ≈ 5 × 10−5; MOI 10 vs. MOI 100: **P ≈ 2 × 10−23). Data from one experiment. A replicate showed similar results.IHistograms show the number of foci per nucleus for MOIs of 10 (blue), 50 (green), and 100 (red).

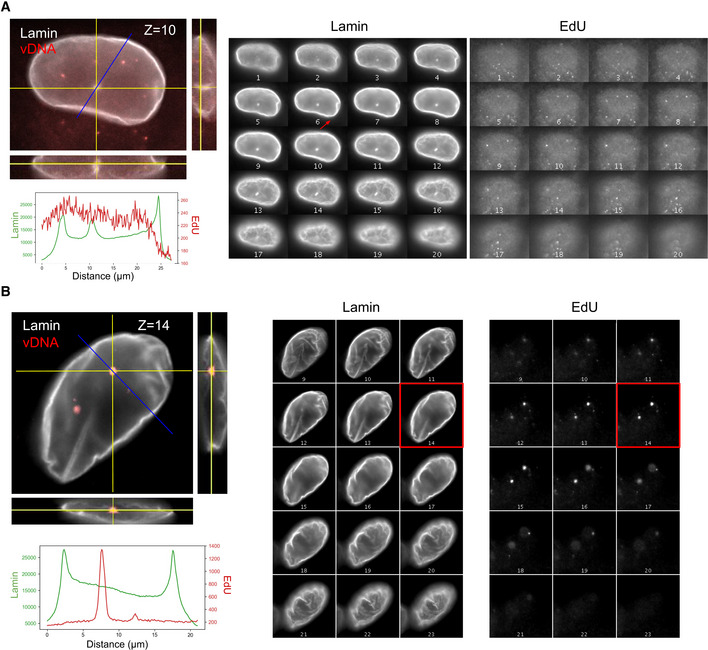

EdU foci are not located in nuclear invaginations A, B3D images of immunostained lamin and EdU are shown to assess the presence of nuclear envelope invaginations and the location of EdU foci in infected ThP1 cells. Images on the left are orthogonal views of z‐stacks, where the central image shows an XY slice, and the images to the right and below show XZ and YZ slices at positions indicated by the yellow lines. The blue line indicates the location for the measurement of intensity profiles. The plots below show intensity profiles for the lamin and EdU channel along the blue lines. Montage views on the right show all z‐slices of the Lamin and EdU channels separately. (A) Nucleus of an infected cell showing an invagination, as evidenced by the enrichment of Lamin in the intensity profile (middle peak), as well as in the montage views. The chosen line profile crosses the invagination but does not show an enrichment of EdU. (B) Another infected cell with a line profile chosen to cross one of the EdU foci. No lamin enrichment was detected at the location of the EdU foci (peak of EdU). Panels on the left are identical to Fig 1C.
We next asked whether the observed vDNA foci might correspond to individual viral genomes by further analyzing their size and dependence on the MOI. First, we considered the possible size of a single ~ 10 Kb long piece of DNA, the approximate length of the HIV‐1 genome. We used polymer simulations that model the chromatinized vDNA as a linear or circular chain of nucleosomes (Arbona et al, 2017; Geis & Goff, 2019) (Figs 1E, and EV2A and B). Our simulations predict a distribution of apparent sizes for a single 10 Kb long HIV‐1 genome that is close to the microscope’s spatial resolution of ~ 300 nm, hence is much smaller than the observed sizes of nuclear vDNA foci (Fig 1F). Thus, nuclear vDNA foci are larger than expected for single genomes, suggesting that they may comprise multiple genomes. Second, we analyzed the intensity of vDNA foci for MOIs of ~ 10, ~ 50, and ~ 100 (Fig 1G and H). Note that EdU labeling does not involve signal amplification, enabling a quantitative interpretation of the measured intensities. If individual foci correspond to individual genomes, their number is expected to increase proportionally with the MOI, but their intensity should not depend on MOI. In our data, both the number of vDNA foci and their peak intensity significantly increased from MOI 10 to MOI 50, and again from MOI 50 to MOI 100 (Fig 1H and I). Therefore, the MOI dependence of the vDNA intensity also argues for the coexistence of multiple genomes within these foci.

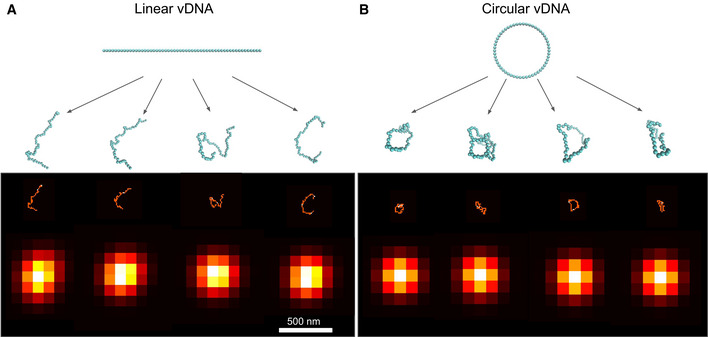

Simulated configurations and images of HIV‐1 DNA A, BSimulated configurations and images of the HIV‐1 DNA in linear (A) or circular form (B). The 10 Kb long viral genome is represented as a chain of 59 nucleosomes of 11 nm diameter. Starting from the linear or circular initial structures shown (blue chains on top), molecular dynamics simulations (Langevin dynamics) generate 100 independent configurations (only 4 are shown as blue chains of beads). The corresponding image is blurred by convolution with the microscope point spread function (approximated as a Gaussian of standard deviation 100 nm), resulting in the images shown in the bottom row.
Nuclear vDNA/vRNA foci contain multiple HIV‐1 genomes
To analyze the potential association of vDNA foci with viral RNA (vRNA), we used RNA‐FISH probes directed against the POL gene of HIV‐1 (Tsanov et al, 2016). We verified the specificity of RNA‐FISH using uninfected cells and ruled out the possibility that RNA‐FISH probes bind vDNA using infected cells treated with RNase (Appendix Fig S5A and B). The dual‐color EdU/RNA‐FISH images showed bright vRNA foci that displayed high and significant colocalization with the vDNA foci (64% of EdU foci contained vRNA, and 30% of vRNA spots contained vDNA; P < 0.01), indicating that viral RNA and DNA occupy the same nuclear space (Fig 2A and B; Appendix Fig S6). The vDNA and vRNA intensities in colocalizing spots exhibited a strong positive correlation (Fig 2C).

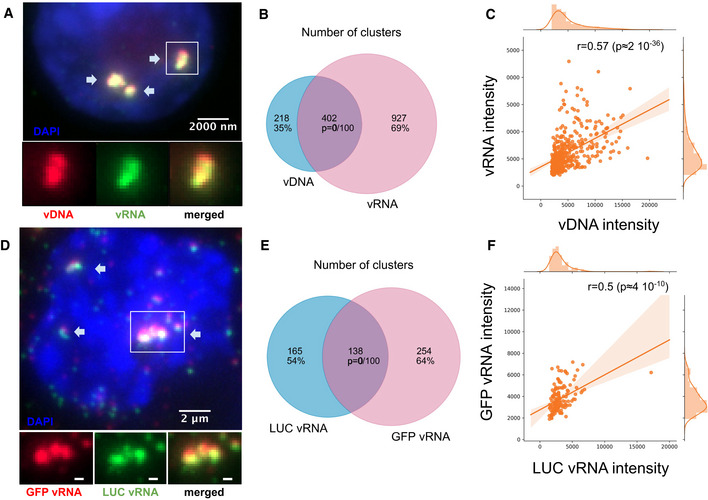

Nuclear foci contain multiple viral RNAs and DNA genomes A–CvDNA foci are also foci of vRNA. (A) Dual‐color image of an infected ThP1 cell showing the viral DNA (red) and the RNA visualized by RNA‐FISH (green). Arrows show foci containing both vDNA and vRNA. The bottom row shows the boxed region magnified, with vDNA and vRNA displayed separately and in combination. See also Appendix Fig S6. (B) Venn diagram shows the number of vDNA foci and vRNA foci and the number of vDNA foci colocalizing with vRNA foci. The P‐value indicates the significance of colocalization based on a jittering analysis (see Materials and Methods). (C) Scatter plot shows the intensities of vDNA and vRNA in colocalizing foci with the Spearman correlation r and associated P‐value.D–FIn ThP1 cells co‐infected with a HIV1‐GFP virus and a HIV1‐LUC virus, nuclear foci contain mixtures of both viruses. (D) Dual‐color image shows RNA‐FISH against GFP (red) and RNA‐FISH against LUC (green). Arrows show foci containing both GFP vRNA and LUC vRNA. The bottom row shows the boxed region magnified, with GFP vRNA and LUC vRNA displayed separately and in combination. See Appendix Fig S7. (E) Venn diagram shows the number of GFP RNA foci, the number of LUC RNA foci, and the number of GFP RNA foci colocalizing with LUC RNA foci. (F) Scatter plot shows intensities of GFP RNA and LUC RNA in colocalizing foci with the Spearman correlation r and associated P‐value.
To directly test for the presence of multiple viral genomes in nuclear foci, we co‐infected cells with two HIV‐1 strains containing different reporter genes, GFP and luciferase (LUC). We then performed dual‐color RNA‐FISH with two different sets of probes directed against GFP and LUC (Fig 2D). We confirmed the specificity of our RNA‐FISH probes using control cells infected with only one of the two reporter viruses (Appendix Fig S7). In co‐infected cells, RNA‐FISH revealed strong colocalization of LUC and GFP RNA (45% of LUC RNA foci contained GFP RNA, and 35% of GFP RNA foci contained LUC RNA; P < 0.01) (Fig 2E). In colocalizing foci, intensities of GFP and LUC RNA correlated positively (Fig 2F). Taken together with our observation that vRNA foci occupy the same nuclear regions as vDNA foci (Fig 2A and B), these data firmly establish that nuclear foci are clusters consisting of multiple HIV‐1 genomes.
Viral genome clusters are associated with nuclear body factors
Inspection of our dual EdU/DAPI images indicates that vDNA clusters are located in nuclear regions with lower densities of host cell DNA (Appendix Fig S8; Fig 3E). This opens the possibility of an association of HIV genomes with nuclear bodies (Matera, 1999; Spector, 2001), membrane‐less compartments located in the interchromosomal space. We therefore examined the possible association of viral clusters with host proteins, starting with the cleavage and polyadenylation‐specific factor subunit 6 (CPSF6). CPSF6 is known to interact with CA and has been implicated in the regulation of different steps of the viral life cycle from HIV‐1 nuclear import to integration site distribution (Lee et al, 2010; Price et al, 2012; Achuthan et al, 2018; Buffone et al, 2018; Burdick et al, 2020). In uninfected cells, CPSF6 displayed a diffuse nucleoplasmic signal; in infected cells, however, CPSF6 accumulated in a small number of nuclear foci, which colocalized with vDNA, in agreement with a recent report (Bejarano et al, 2019) (median Pearson’s r = 0.30; Costes P < 0.01 for 16 out of 19 regions of interest) (Fig 3A and D; Appendix Fig S9). CPSF6 is known to associate with paraspeckles, nuclear bodies often found in the vicinity of nucleoli and speckles (Fox et al, 2002; Naganuma & Hirose, 2013). To test whether viral clusters associate with paraspeckles, we imaged the non‐coding RNA NEAT1 (Nuclear Enriched Abundant Transcript 1/Human nuclear paraspeckle assembly transcript 1), an essential architectural component of paraspeckles (Naganuma & Hirose, 2013; Zhang et al, 2013; Yamazaki et al, 2018). In uninfected cells, NEAT1 was enriched in a small number of nuclear clusters, as expected for paraspeckles (Fig 3B; Appendix Fig S10A). In infected cells, NEAT1 displayed a similar localization pattern, and NEAT1 foci appeared in close vicinity to the vDNA clusters, but did not overlap with them and appeared to be excluded (median Pearson’s r = −0.19; Costes P < 0.01 for 19/19 regions of interest) (Fig 3B and D; Appendix Fig S10B). The core paraspeckle protein NONO (p54nrb), recently found to be essential for triggering an immune response to HIV in dendritic cells through interaction with CA (Lahaye et al, 2018), was also excluded from vDNA (Fig EV3A–D). Thus, viral clusters do not localize to paraspeckles, but upon infection, the paraspeckle factor CPSF6 relocates to viral clusters.

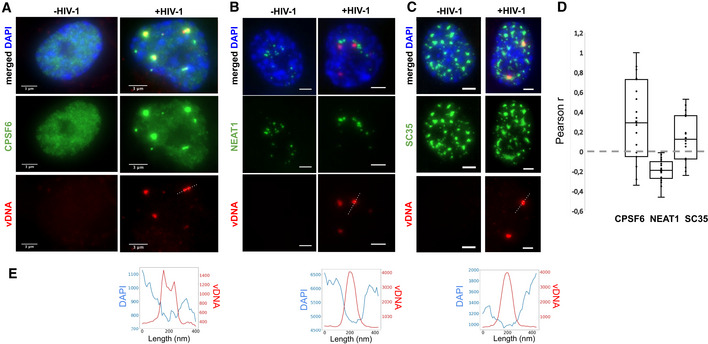

Viral clusters contain specific nuclear body factors A–CImages of infected (right) or uninfected (left) ThP1 cells showing the vDNA (EdU) in red, the nucleus (DAPI) in blue, and selected nuclear body factors in green. (A) Green image shows immunolabeling of CPSF6. (B) Green image shows RNA‐FISH against NEAT1. (C) Green image shows immunolabeling of SC35. See also Appendix Figs S9–S14.DBoxplots show Pearson correlations r between vDNA (EdU) and CPSF6, NEAT1, or SC35 in 17–19 regions of interest (ROIs). Central lines in boxes define medians, top and bottom limits define upper and lower quartiles, respectively. Whiskers show the full data range, except for outliers. Gray dots are individual data points. Significance of positive or negative correlations was assessed using the Costes method of random ROI shifts. Highly significant (P < 0.01) positive correlations between vDNA and CPSF6 intensities are found in 16 out of 19 ROIs; highly significant negative correlations between vDNA and NEAT1 are found in 19/19 ROIs, and highly significant positive correlations between vDNA and SC35 are found for 16/17 ROIs. Data are from one experiment. For CPSF6, the experiment was repeated with similar results.EIntensity profiles of EdU and DAPI along the dotted lines in the vDNA images above.
vDNA clusters do not colocalize with the CA‐binding protein NONO A, BImage of uninfected (left) and infected (right) ThP1 cells showing immunolabeled NONO in green, EdU in red, and the nucleus (DAPI) in blue. Scale bars: 15 µm in A, 5 µm in B.CIntensity profiles of EdU, DAPI, and NONO along a profile crossing a vDNA focus (rectangle in B).DBoxplot shows Pearson correlations between vDNA (EdU) and NONO. Center line defines the median, top and bottom limits define upper and lower quartiles, respectively. Whiskers show full data range, except for outliers. Black dots are individual data points. The negative correlation values indicate an absence of colocalization between vDNA and NONO (Costes P‐value < 0.05 for 18 out of 18 cells, and < 0.01 for 14 out of 18 cells; data for one experiment).
Paraspeckles are often found in proximity to speckles, nuclear bodies enriched in pre‐mRNA splicing factors (Spector & Lamond, 2011). Therefore, our data raised the possibility that viral clusters are associated with speckles. To investigate this, we imaged the non‐small nuclear ribonucleoprotein particle factor SC35, a well‐studied splicing regulator, and bona fide marker of speckles (Spector & Lamond, 2011). Images of SC35 in uninfected cells showed a large number (typically ~ 10–15) large nuclear bodies (typical size ~ 1–2 µm), as expected for speckles (Lamond & Spector, 2003) (Fig 3C). In HIV‐1 infected cells, SC35 displayed a similar pattern. Interestingly, nuclear vDNA clusters colocalized with a subset of these SC35 positive bodies (median Pearson’s r = 0.14; Costes P < 0.01 in 16/17 regions) (Fig 3C and D; Appendix Fig S11). Thus, our data suggest that HIV‐1 genome clusters enriched in the paraspeckle protein CPSF6 associate with the splicing and speckle factor SC35.
Viral integration is not required for viral DNA cluster formation
To determine whether the formation of vDNA clusters requires the integration of the viral genome into host chromosomes, we infected cells with an integration‐deficient mutant virus (D116A) (Berger et al, 2009). Interestingly, we again observed the presence of large vDNA clusters which are also associated with vRNA (Fig 4A, Appendix Fig S12). As for the virus containing the functional integrase (Fig 2A–C), the colocalization of vDNA and vRNA was highly significant and intensities in colocalizing clusters correlated significantly (Spearman’s r = 0.51, P = 1.6 × 10^−5^) (Fig 4B and C). Additionally, when we treated cells at the time of infection with 10 µM of Raltegravir (RAL), an inhibitor of HIV integration, we also observed large and bright vDNA clusters associated with vRNA (Appendix Fig S13B). These experiments demonstrate that the formation of vDNA/vRNA clusters does not depend on integration of the viral genome into host chromosomes.

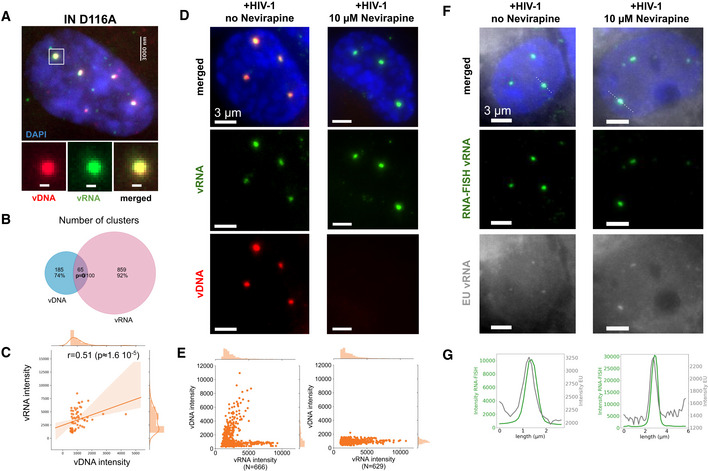

Nuclear clusters can form in absence of integration and contain incoming vRNA Image of a ThP1 cell infected with an integration‐deficient HIV‐1 carrying the mutation D116A in the catalytic site of IN. The EdU‐labeled vDNA is shown in red and the vRNA detected by RNA‐FISH in green. The nucleus (DAPI) is shown in blue. See Appendix Fig S12 for a larger image region.Venn diagram shows the number of vRNA clusters, the number of vDNA clusters, and the number of vRNA clusters colocalizing with vDNA clusters. The P‐value indicates the significance of colocalization based on a jittering analysis (see Materials and Methods).Scatter plot shows vDNA and vRNA intensities in colocalizing vDNA and vRNA clusters with the Spearman correlation r and associated P‐value.ThP1 cells were infected with HIV‐1 at an MOI of 20, in absence (left) or presence (right) of nevirapine (NVP, 10 µM). Blue: DAPI staining. Green: vRNA (RNA‐FISH). Red: vDNA (EdU).Scatter plots show intensities of vDNA and vRNA in detected vRNA clusters.Image of a ThP1 cell infected by HIV‐1 with EU‐labeled RNA in absence (left) or presence (right) of nevirapine (NVP, 10 µM). Blue: DAPI staining. Green: vRNA (RNA‐FISH). Gray: EU‐labeled vRNA. See Appendix Fig S19 for a larger image region.Intensity profiles of EU and RNA‐FISH along the dotted lines in panel F (top).
Viral RNA clusters contain mostly genomic RNA
The dual‐color EdU/RNA‐FISH images reported above clearly indicate that vDNA clusters colocalize with vRNA (Fig 2A–C). However, our RNA‐FISH probes against the HIV‐1 POL gene cannot distinguish between incoming (genomic) vRNA and newly transcribed (messenger) vRNA. We therefore sought to verify the nature of the observed vRNA by treating cells with 10 µM of nevirapine (NVP), a potent RT inhibitor. The efficacy of the drug was demonstrated by the absence of detectable vDNA in infected nuclei; to our surprise, however, we still observed bright vRNA clusters in the nucleus, whether we exposed the cells to NVP for 24 h, 48 h, or 72 h (Fig 4D and E; Appendix Figs S1, S14A and S20). Because HIV‐1 transcripts cannot be produced in the absence of vDNA, we conclude that nuclear vRNA clusters at these time points contain mostly incoming, genomic vRNA, in NVP treated cells.
We next asked if genomic vRNA clusters also exist in absence of RT inhibition. Intensity distributions of vRNA clusters in NVP treated cells at 48 h p.i. were similar to those in untreated cells (Appendix Fig S14B), strongly suggesting that the vRNA clusters in the untreated cells are also mostly composed of genomic vRNA. To verify this directly, we turned to a different labeling technique that, unlike RNA‐FISH, highlights the genomic, but not the transcribed, vRNA. Specifically, we used 5‐ethynyl uridine (EU), another nucleoside analog that incorporates into nascent RNA during transcription and can be fluorescently detected by click chemistry, as for EdU (Jao & Salic, 2008; Xu et al, 2013). As demonstrated previously (Xu et al, 2013), we used EU to label HIV RNA in 293T producer cells, then we infected NVP treated or untreated ThP1 cells with this virus (MOI 50), and performed fixation at 24 h p.i., followed by click chemistry labeling and fluorescence imaging, in combination with RNA‐FISH (Fig 4F, Appendix Fig S15). Despite the presence of a significant background signal, we observed EU spots in the nucleus of both NVP treated and untreated cells that coincided with vRNA clusters (Fig 4G, Appendix Fig S15). These data therefore strongly support the presence of genomic vRNA in the nucleus, regardless of whether cells have been pharmacologically treated.
Nuclear viral RNA clusters can undergo reverse transcription
The unexpected presence of genomic vRNA clusters in the nucleus (Fig 4D–G) raises the intriguing question as to whether they can serve as templates for RT. To test this possibility, we took advantage of the reversibility of RT inhibition by NVP. We reasoned that if RT occurs locally in vRNA clusters, allowing RT to resume after temporary RT inhibition would lead to the detection of newly synthesized vDNA within these nuclear structures.
We first exposed cells to NVP starting from the time of infection during 24, 48, or 72 h. Dual‐color images obtained at all three time points showed an absence of nuclear vDNA signal, as expected, while the vRNA clusters remained clearly visible, as above (Appendix Fig S14A, Fig 4D). Next, we exposed cells to NVP starting from the time of infection for 48 h or 72 h, then removed NVP by wash‐out and imaged cells 24 h later. Strikingly, in both experiments, we observed clear vDNA clusters that colocalized with the vRNA clusters, and displayed positive correlation of their intensities (Fig 5A, B, E and F; Appendix Fig S16), as in untreated cells (Fig 2A–C). This appearance of vDNA at vRNA clusters can be explained by a local RT activity within the nuclear vRNA clusters. Alternatively, the observed vDNA clusters might reflect nuclear import of vDNA synthesized exclusively in the cytoplasm, between the time points of NVP wash‐out and fixation. In the first case (nuclear RT), we expect that clusters containing more vRNA also exhibit higher amounts of vDNA. This is indeed the case, as evidenced by the positive correlations between vRNA and vDNA intensities in colocalizing clusters in all wash‐out experiments (Fig 5E).

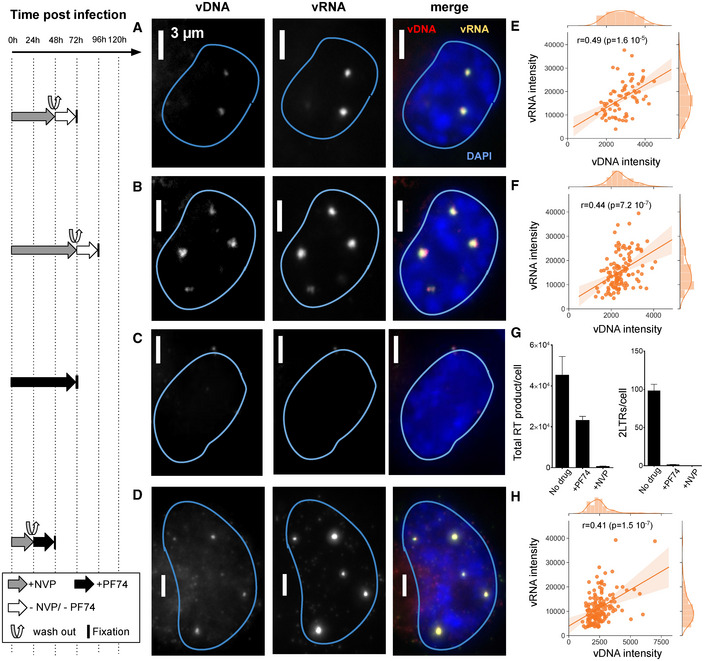

Reverse transcription in nuclear clusters of infected macrophagesThe left panel shows the timeline of drug exposure experiments. A–DImages show vRNA and vDNA in an infected ThP1 cell (MOI 20) for each of four experimental conditions. See Appendix Figs S15–S17 for images of larger regions. (A, B) ThP1 cells were exposed to NVP for 48 h (A) or 72 h after infection (B), then NVP was washed out, and cells were fixed for click chemistry 24 h later. (C) Cells were exposed to PF74 for 72 h after infection, then fixed for click chemistry. (D) Cells were exposed to NVP for 24 h after infection, then NVP was washed out, and cells were exposed to PF74, before being fixed for click chemistry 24 h later.E, F, HScatter plots show vDNA and vRNA intensities in colocalizing clusters with Spearman correlation r and associated P‐values. Replicates of the four experiments yielded similar results.GqPCR measures DNA synthesis (left) and nuclear import (right) at 72 h p.i. in absence of drug treatment, or after exposure to NVP or PF74. Bars and error bars define mean and standard deviation, respectively. Samples were analyzed in triplicate and two biological replicates were performed.
To further assess both possibilities, we next quantified the amount of vRNA in the cytoplasmic and nuclear compartments using an automated analysis based on FISH‐quant and ImJoy (Mueller et al, 2013; Ouyang et al, 2019). These analyses indicated that the nuclear vRNA pool exceeded the cytoplasmic pool by at least ~ 7‐fold after 72 h of NVP treatment (Appendix Fig S14C). Thus, the amount of vRNA available for cytoplasmic RT and subsequent nuclear import during the 24 h after wash‐out is much smaller than the amount of vRNA available for nuclear RT. Therefore, the nuclear vDNA detected in our NVP wash‐out experiments more likely arises from local RT in nuclear clusters rather than import of vDNA synthesized in the cytoplasm.
To directly rule out a contribution of cytoplasmically synthesized vDNA to nuclear vDNA clusters after NVP removal, we aimed to pharmacologically block nuclear import using the molecule PF‐3450074 (PF74). At low concentrations (1.25–2.5 µM), PF74 impedes nuclear import of HIV‐1 without abolishing RT (Blair et al, 2010; Francis & Melikyan, 2018; Bejarano et al, 2019; Balasubramaniam et al, 2019; Blanco‐Rodriguez et al, 2020). Indeed, when we exposed cells to 1.5 µM of PF74 for 72 h after infection, qPCR indicated that RT was roughly halved, while 2LTR formation was virtually eliminated (Fig 5G). We observed no discernable nuclear vRNA in PF74‐treated cells at 48 h or 72 h p.i. and a higher cytoplasmic vRNA pool as compared to NVP treated cells at the same time point, confirming inhibition of nuclear import (Fig 5C, Appendix Figs S17A and B, and S18). Finally, we treated cells with NVP for 24 h p.i., then washed NVP out and immediately exposed the cells to 1.5 µM PF74 for another 24 h. Despite the block of nuclear import, we again observed clear vDNA clusters colocalizing with vRNA clusters in the nucleus, with positively correlating intensities (Fig 5D and H; Appendix Fig S17C). We made the same observation when exposing cells to NVP for 48 h, applying PF74 at 36 h, and washing out NVP (while keeping the cells exposed to 1.5 µM of PF74) at 48 h p.i. (Appendix Fig S19). We additionally performed qPCR analyses of circular 2LTRs, an exclusively nuclear form of vDNA that can persist in the nucleus for several weeks (Gillim‐Ross et al, 2005) (Appendix Fig S1). Interestingly, we were able to amplify 2LTRs in samples after NVP wash‐out, whether or not followed by exposure to PF74, albeit with a 3–7 fold reduction compared to untreated cells; this reduction was ~ 10‐fold when applying PF74 at 36 h p.i. and washing out NVP at 48 h p.i. (Appendix Fig S20). Nevertheless, the detection of 2LTRs in these experiments corroborates the synthesis of complete vDNA by RT in the nucleus. We also analyzed the presence of proviral DNA using ALU‐PCR (Di Nunzio et al, 2013; Lelek et al, 2015). While we could amplify these integrated vDNA forms in untreated cells or in simple NVP wash‐out experiments, we failed to do so in the experiments involving PF74 exposure (Appendix Fig S20). This suggests that the majority of the vDNA detected consist of unintegrated genomes, in agreement with our above findings using an integration‐deficient virus (Fig 4A–C) or when inhibiting integration pharmacologically (Appendix Fig S12). Notwithstanding, our data argue against the possibility that the nuclear vDNA clusters arise exclusively from import of cytoplasmically synthesized vDNA and therefore constitute compelling evidence for a nuclear RT activity within vRNA clusters after the release of RT inhibition.
Nuclear RT activity results in transcription‐competent vDNA
In addition, we asked whether the viral DNA synthesized in the nucleus after pharmacological block followed by release of RT is competent for transcription. To address this, we infected cells with the virus carrying the GFP reporter gene used above (Fig 2D, Appendix Fig S21) and quantified the percentage of GFP‐positive cells using flow cytometry (FACS) (Fig 6A–D, Appendix S21G and H). Cells infected with MOI 20 and fixed at 3 (Appendix Fig S21G) days or 7 days (Fig 6B) p.i. displayed ~ 9 and ~ 12% of GFP‐positive cells, respectively, vs. 0% for uninfected cells (Fig 6A). When we inhibited RT by NVP treatment for 3 days, allowed RT to resume by washing out NVP and fixed cells for imaging 4 days later, ~ 4% of cells were found to be GFP positive (Fig 6C) against 0.3% of GFP^+^ cells in presence of NVP at 7 days p.i. (Appendix Fig S21H). The percentage of GFP‐positive cells was lower when 1.5 µM of PF74 was added at the moment of NVP wash‐out, or 12 h before the wash‐out, to block nuclear import of the remaining cytoplasmic virus (~ 1.2 and ~ 0.94%, respectively) (Fig 6D, Appendix Fig S21H). Although these percentages are considerably lower than for untreated cells, they are much larger than for cells treated with NVP until fixation (0.04% at 3 days p.i., 0.33% at 7 days p.i.) (Appendix Fig S21G and H) or cells treated with PF74 for 3 days (0.15%) (Fig S21G). These FACS results were corroborated by imaging (Fig 6E–H, Appendix Fig S21A). Importantly, we did not use EdU in these experiments because we observed that EdU negatively interferes with viral transcription (Appendix Fig S21F). Overall, our data suggest that nuclear RT activity, at least in conditions where RT was initially suppressed, can lead to the production of transcription‐competent viral DNA.

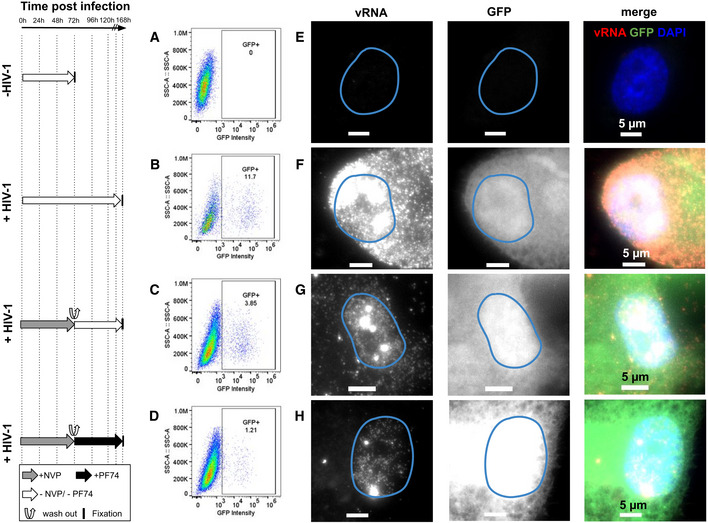

Nuclear RT can yield transcription‐competent vDNAThe left panel shows the timeline of infection and/or drug exposure experiments. A–DPercentage of GFP‐positive cells at 3 and 7 days post‐infection analyzed by FACS in absence of EdU. (A) Uninfected control cells. (B) Untreated, infected ThP1 cells fixed at 3 days (72 h) p.i. (C) Infected cells were exposed to NVP for 72 h, then NVP was washed out and cells were cultured for another 96 h and fixed at 7 days p.i. (D) Infected cells were cultured for 72 h p.i., then NVP was washed out and cells were exposed to the nuclear import inhibitor PF74 for another 96 h and fixed at 7 days p.i.E–HMulticolor images of ThP1 cells infected with a GFP reporter virus. vRNA (RNA‐FISH) is labeled in red, GFP in green, and nuclei (DAPI) in blue. (E) Uninfected control cells. (F) Untreated, infected ThP1 cells fixed at 3 days (72 h) p.i. (G) Infected cells were exposed to NVP for 72 h, then NVP was washed out and cells were cultured for another 96 h and fixed at 7 days p.i. (H) Infected cells were cultured for 72 h p.i., then NVP was washed out and cells were exposed to the nuclear import inhibitor PF74 for another 96 h and fixed at 7 days p.i. The experiment was repeated three times.
Nuclear clustering and reverse transcription in primary macrophages
Finally, we asked if the main phenotypes described in ThP1 cells above also extend to primary macrophages. We therefore prepared monocyte‐derived macrophages (MDM) obtained from two healthy donors. FACS analysis indicated that ~ 76% of these cells were CD14 positive, confirming that the large majority consisted of macrophages (Appendix Fig S22). We then infected these MDMs with VSV‐G‐pseudotyped HIV‐1ΔEnv. Cells from donor 1 were infected with the GFP reporter virus in presence of Vpx, while cells from donor 2 were infected with a virus without GFP and in absence of Vpx. We imaged the vDNA and vRNA using EdU and RNA‐FISH, using similar experimental conditions as for the ThP1 cells above, including absence of treatment, treatment with NVP, and treatment with NVP followed by wash‐out, (Figs 7 and EV4, Appendix Fig S23). In untreated MDMs at 7 d post‐infection, we again observed bright nuclear foci of vDNA in a sizeable fraction of the cell population for both donors (15 out of 31 counted for cells, i.e. ~ 50%, for cells, for donor 2 and 22 out of 53, i.e. ~ 30% for donor 1), thus both in presence and in absence of Vpx (Fig 7A and B, and Appendix Fig S23A and E). Focusing on cells from donor 2 (infected without Vpx), we measured vDNA foci sizes (FHWM) similar to those measured in ThP1 cells (median ~ 520 nm, interquartile range = 259 nm, n = 20 regions of interest) (Fig 7E). These vDNA foci also partially colocalize with vRNA foci (Fig 7A and B), as previously shown for ThP1 cells (Costes P‐values < 0.05 in 18 out of n = 20 regions) (Fig 7F). Neither vDNA nor vRNA foci could be observed in uninfected MDM cells (Appendix Fig S23B and F).

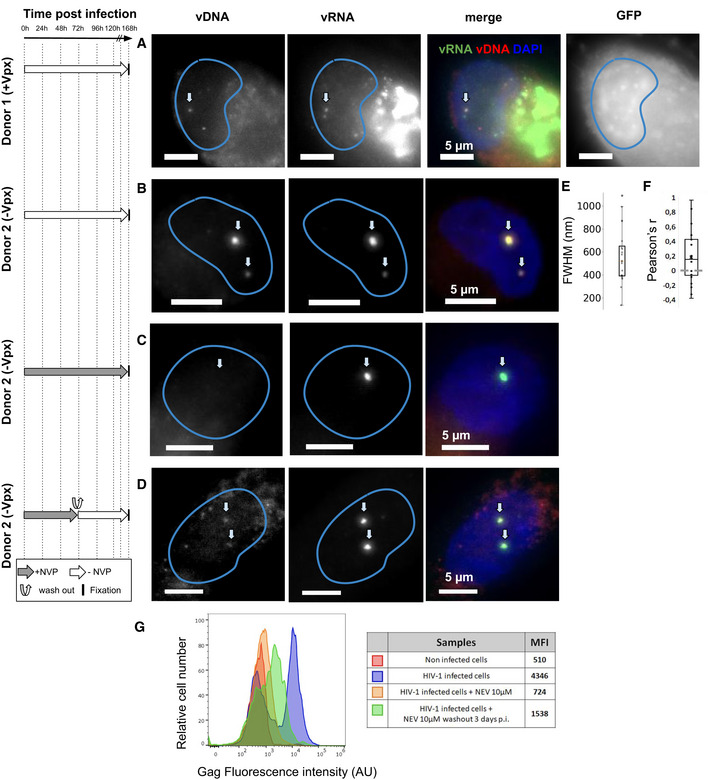

Clustering of vDNA/vRNA and nuclear RT in primary human macrophagesThe left panel shows the timeline of infection and/or drug exposure experiments. A–DMulticolor images of vDNA, vRNA, DAPI, and/or GFP in monocyte‐derived macrophages (MDMs) from two different donors, infected with HIV1. Cells from donor 1 were infected with VSV‐G‐pseudotyped HIV‐1ΔEnv Vpx carrying a GFP reporter (A) and cells from donor 2 were infected with a VSV‐G‐pseudotyped HIV‐1ΔEnv without Vpx (B–D). (A, B) Infected cells were left untreated and fixed at 6 d p.i. (C) Infected cells were treated with 10 µM Nevirapine (NVP) throughout the experiment and fixed at 6 days p.i. (D) Infected cells were exposed to NVP for 3 days p.i., then NVP was washed out and cells were cultured for another 4 days and fixed at 7 days p.i. Arrows in (A–D) show the position of selected vRNA foci.EBoxplot shows the size of DNA foci in untreated infected cells from donor 2 imaged at 7 days p.i. (B), measured by the FWHM of n = 24 foci. The red line defines the median, top, and bottom limits define upper and lower quartiles, respectively. Whiskers show the full data range, except for outliers. Gray dots are individual data points.FBoxplot shows Pearson’s r, measuring colocalization of DNA with RNA foci in the same cells (n = 20). Center line defines the median, top, and bottom limits define upper and lower quartiles, respectively. Whiskers show the full data range, except for outliers. Black dots are individual data points.GFACS analysis of Gag positive cells from donor 2 in different conditions. Red: uninfected cells. Blue: untreated infected cells at 7 days p.i. as in (B). Orange: cells were treated with NVP for 7 days as in (C). Green: infected cells were exposed to NVP for 3 days, then NVP was washed out and cells were cultured for another 4 days as in (D). Median of fluorescence intensities (MFI) for each sample are shown in the table.

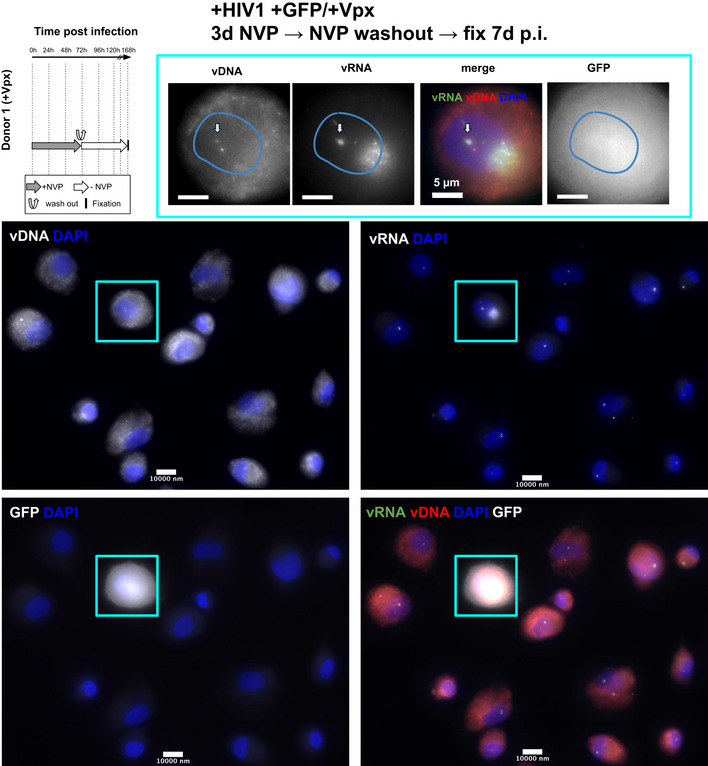

HIV‐1 transcription in primary macrophages after temporary inhibition of RTMulticolor images of MDMs from donor 1, infected with a HIV‐1 virus carrying a GFP reporter and in presence of Vpx. Cells were treated with Nevirapine (NVP) for 3 days, then NVP was washed out and cells were fixed for imaging 4d later (i.e., at 7 days p.i.). Images show the vDNA, vRNA and/or GFP signal and DAPI.
