One-dimensional sawtooth and zigzag lattices for ultracold atoms
Ting Zhang, Gyu-Boong Jo
TL;DR
This paper introduces tunable optical lattices for ultracold atoms that can switch between zigzag and sawtooth shapes, enabling the study of quantum many-body states.
Contribution
The paper presents a new method to control and tune lattice geometries for ultracold atoms, enabling nearly flat bands in sawtooth configurations.
Findings
Zigzag and sawtooth lattices can be experimentally realized using superlattices with commensurate wavelengths.
A nearly flat band is achievable in sawtooth lattices by tuning parameters, with the excited band's bandwidth reduced to 2% of the ground band.
The proposed lattices offer a versatile platform for studying interaction-driven quantum states with ultracold atoms.
Abstract
We describe tunable optical sawtooth and zigzag lattices for ultracold atoms. Making use of the superlattice generated by commensurate wavelengths of light beams, tunable geometries including zigzag and sawtooth configurations can be realised. We provide an experimentally feasible method to fully control inter- (t) and intra- (t′) unit-cell tunnelling in zigzag and sawtooth lattices. We analyse the conversion of the lattice geometry from zigzag to sawtooth, and show that a nearly flat band is attainable in the sawtooth configuration by means of tuning the lattice parameters. The bandwidth of the first excited band can be reduced up to 2% of the ground bandwidth for a wide range of lattice setting. A nearly flat band available in a tunable sawtooth lattice would offer a versatile platform for the study of interaction-driven quantum many-body states with ultracold atoms.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

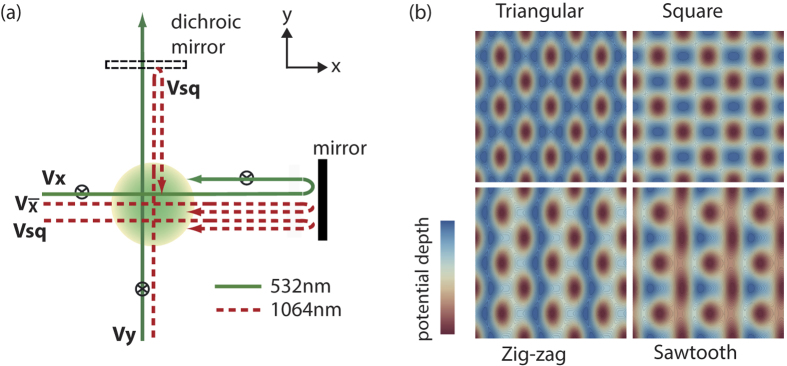

Figure 1

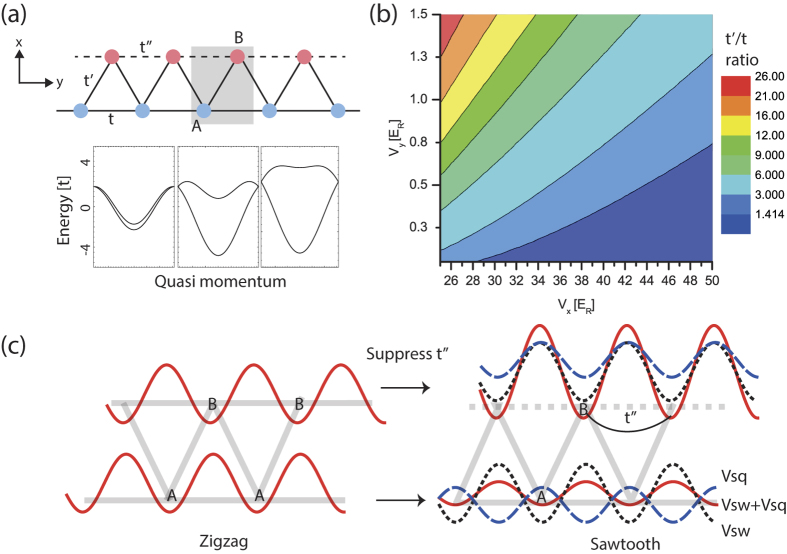

Figure 2

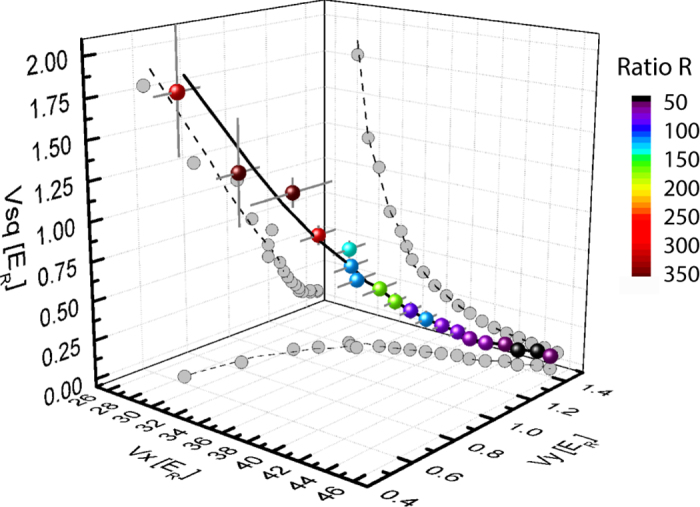

Figure 3

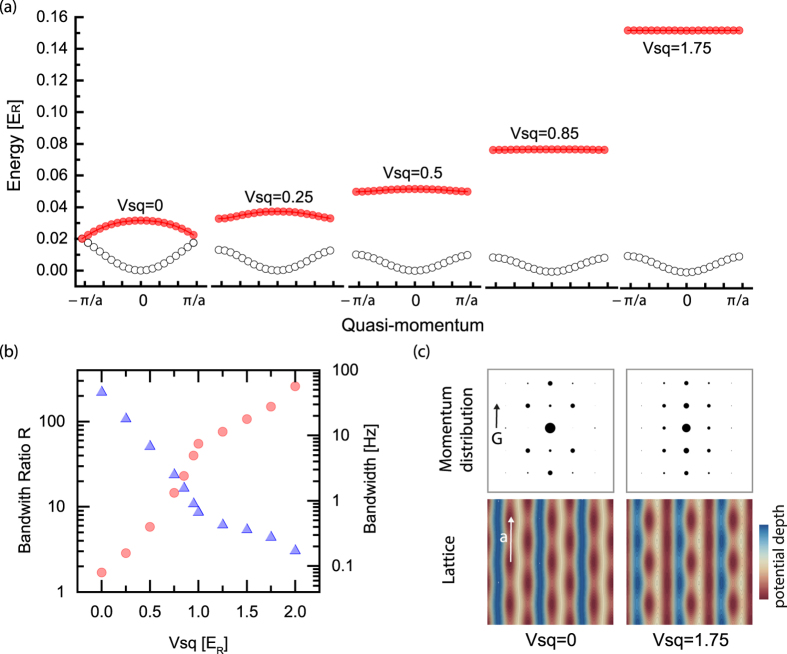

Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
Figure 25
Figure 26
Figure 27
Figure 28
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33Peer Reviews
