Congo Red Interactions with Curli-Producing E. coli and Native Curli Amyloid Fibers

TL;DR

The study explores how Congo red dye interacts with amyloid fibers produced by E. coli, offering insights into quantifying and comparing these fibers across different strains.

Contribution

The novel contribution is the characterization of Congo red's binding properties with curli fibers and E. coli cells, including pH dependence and lack of histidine residue influence.

Findings

Congo red binds to curliated E. coli cells without inhibiting growth.

Congo red binding to curli is pH-dependent.

Histidine residues in CsgA protein do not affect Congo red binding.

Abstract

Microorganisms produce functional amyloids that can be examined and manipulated in vivo and in vitro. Escherichia coli assemble extracellular adhesive amyloid fibers termed curli that mediate adhesion and promote biofilm formation. We have characterized the dye binding properties of the hallmark amyloid dye, Congo red, with curliated E. coli and with isolated curli fibers. Congo red binds to curliated whole cells, does not inhibit growth, and can be used to comparatively quantify whole-cell curliation. Using Surface Plasmon Resonance, we measured the binding and dissociation kinetics of Congo red to curli. Furthermore, we determined that the binding of Congo red to curli is pH-dependent and that histidine residues in the CsgA protein do not influence Congo red binding. Our results on E. coli strain MC4100, the most commonly employed strain for studies of E. coli amyloid biogenesis, provide a starting point from which to compare the influence of Congo red binding in other E. coli strains and amyloid-producing organisms.

Figures

Congo red and E. coli.(A) Curli-producing E. coli bind CR when growing on CR-supplemented nutrient agar (left). The depletion of CR from the underlying agar can be observed when cells are removed from the growth plate (right). (B) Supplementation of the agar with CR at concentrations up to 200 μg/mL does not affect curli production on a per cell basis as assessed by Western blot analysis. CsgA is the main curli fiber subunit and CsgG oligomerizes in the outer membrane to form a pore for the transport of curli subunits to the cell surface. (C) Supplementation of the agar with CR also does not influence the typical kinetics of curli production, where more curli are produced as cells enter the stationary phase. (D) A whole-cell CR depletion assay provides a way to evaluate and compare curli production among MC4100 samples. Bacteria were incubated with 10 μg/mL CR and the extent of free CR in the supernatant after centrifugation of CR-bound whole cells was monitored by UV-Vis spectrophotometry. CR depletion from the supernatant is enhanced in a linear fashion as the number of cells and amount of curli are increased. Error bars correspond to the standard deviation of measurements for three separate samples.

Interactions of CR with isolated curli.(A) Surface plasmon resonance experiments performed with immobilized curli revealed that CR binding is relatively weak; CR binds to curli with an approximate kd of 2.8 μM. (B) A CR depletion assay allowed facile examination of CR binding to isolated curli, similar to the whole-cell assay performed in Fig 1. The data demonstrate that CR binding to curli is pH dependent and is not dependent on histidine in the CsgA sequence. (C) Curli produced by wild-type MC4100 are comparable to those formed by the histidine mutants and are not influenced by changes in pH, as demonstrated by electron microscopy.

Full text

Introduction

E. coli and Salmonella species assemble extracellular adhesive amyloid fibers termed curli that mediate cell-surface and cell-cell interactions and serve as an adhesive and structural scaffold to promote biofilm assembly and other community behaviors [1–4]. Curli are among a growing list of functional microbial amyloids that emphasize Nature’s ability to coordinate the assembly of amyloid fibers to promote community behavior and function. Amyloid fibers contribute to sporulation in Streptomyces [5] and to adhesion and biofilm formation in E. coli [1,4] as well as in Salmonella species [2], B. subtilis [6], S. aureus [7], and S. mutans [8], and others [8,9]. Curli and other amyloid fibers have important roles in modulating the viscoelastic properties of biofilms. This property has been identified in rheological studies of natively produced curli-containing pellicle (biofilm formed at the air-liquid interface) [10] and in studies of in vitro formed biofilm-like materials [11]. In E. coli, curli biogenesis requires specific molecular machinery encoded by the csgBA and csgDEFG operons [3]. In vivo polymerization of the major curli subunit CsgA into β-sheet-rich amyloid fibers requires the nucleator protein, CsgB [3]. CsgG is an outer membrane protein [12] and CsgE and CsgF are assembly factors required for the stabilization and transport of CsgA and CsgB to the cell surface [13,14]. Thus, in contrast to the undesired and alternative protein folding events that lead to amyloid formation in human amyloid diseases including Alzheimer’s, Parkinson’s, and Huntington’s diseases [15], bacteria harness dedicated machinery in order to direct the assembly of amyloid fibers at their cell surface for function.

As amyloid, curli share some general structural, biochemical, and biophysical properties with other functional amyloids and disease-related amyloids. Structurally, amyloid fibers are comprised of polypeptides rich in β-sheet secondary structure in which individual β-strands are primarily aligned perpendicular to the fiber axis [16,17]. Amyloid fibers share biochemical properties: they are resistant to SDS [18] and proteases [19] and they bind the classic amyloid dyes, Congo red (CR) and thioflavin T [20]. CR was the dye first used to identify amyloid in tissue specimens and remains a benchmark to identify the presence of amyloid through its detectable fluorescence upon binding to amyloid or its birefringence under polarized light. CR binding to β-amyloid has been studied extensively and reviewed recently, and it is used to ultimately confirm diagnoses of Alzheimer’s diseases through post-mortem staining of brain tissue [21].

Curli production among E. coli and Salmonella strains is often scored qualitatively by the staining of colonies grown in the presence of CR. However, because CR can bind to other cellular features in some bacterial strains including cellulose, care must be taken to consider dye binding as a reliable indicator of amyloid production only among bacterial strains that exhibit curli-dependent CR binding, i.e. among strains in which curli mutations abolish CR binding [22]. In this way, CR-binding phenotypes have been valuable in studies of curli biogenesis in MC4100, the most well studied E. coli strain for dissecting curli biogenesis [3]. MC4100 produces curli localized at the cell surface. When grown on CR-containing nutrient agar medium, curliated whole cells bind CR and deplete the dye from the underlying agar. Deletion of the curli chaperone-like protein, CsgF, on the other hand, results in aberrant assembly and fiber mislocalization [12]. In the csgF mutant, CR binding is observed in the underlying agar after cells are removed from the agar, which is attributed to the mislocalization of curli fibers away from the cell surface [12]. This phenotype, as well as other phenotypes ascribed to fibers formed in modified genetic backgrounds, has improved our model of curli assembly and the multi-protein curli machinery. The coordinated assembly process emphasizes the importance of examining the structural and biochemical properties of curli when formed natively by E. coli, when possible, rather than using curli-like fibers polymerized in vitro from purified preparations of the major fiber subunit protein, CsgA. Thus, we examined the interactions of curliated whole cells and native curli with the amyloid dye CR.

Results and Discussion

CR has been used extensively to supplement nutrient agar as a selection medium to distinguish curli-producing bacteria from non-curliated bacteria when CR-binding is confirmed to be curli-dependent (Fig 1A). Final CR concentrations in indicator plates are typically 10–30 μg/mL. We determined that bacterial growth in CR-containing agar medium with final CR concentrations as high as 200 μg/mL did not alter curli production, as assessed by Western blot analysis with the detection of CsgA and CsgG protein levels of whole-cell samples normalized by cell number (Fig 1B). This assay was also performed for a panel of uropathogenic E. coli, and we similarly found that CR did not inhibit curli production for these clinically relevant E. coli strains (S1 Fig) [23,24]. S1 Fig also demonstrates that curli produced by UTI89 and the other clinical isolates grown in the presence of CR required formic acid treatment for depolymerization to run into the gel for subsequent detection, a standard requirement for amyloid fibers. Western blot analysis as a function of growth time also revealed that CR does not influence the kinetics of curli production in vivo (Fig 1C). The appreciated time-dependence of curli production on agar can be noted in the curli protein Western blot profiling, where curli production is upregulated as cell density increases from 6 through 36 hours. Thus, although CR has been shown to inhibit the formation of amyloid fibers by some amyloidogenic proteins in vitro [25], we demonstrate that CR does not inhibit the biogenesis of curli in vivo during growth on YESCA agar.

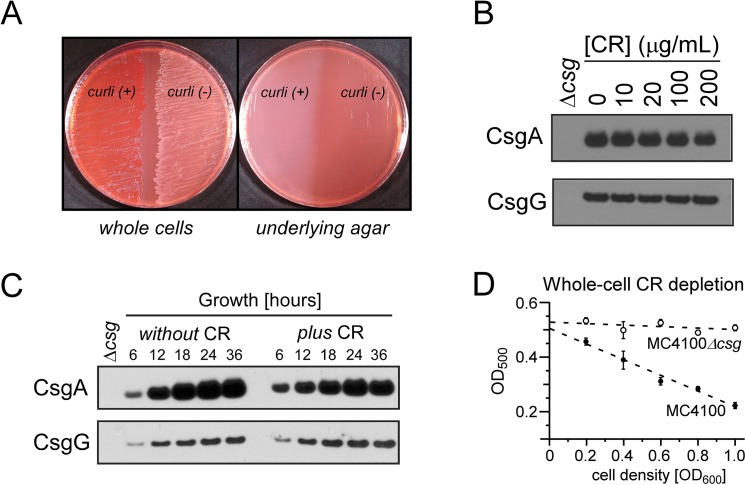

Congo red and E. coli.(A) Curli-producing E. coli bind CR when growing on CR-supplemented nutrient agar (left). The depletion of CR from the underlying agar can be observed when cells are removed from the growth plate (right). (B) Supplementation of the agar with CR at concentrations up to 200 μg/mL does not affect curli production on a per cell basis as assessed by Western blot analysis. CsgA is the main curli fiber subunit and CsgG oligomerizes in the outer membrane to form a pore for the transport of curli subunits to the cell surface. (C) Supplementation of the agar with CR also does not influence the typical kinetics of curli production, where more curli are produced as cells enter the stationary phase. (D) A whole-cell CR depletion assay provides a way to evaluate and compare curli production among MC4100 samples. Bacteria were incubated with 10 μg/mL CR and the extent of free CR in the supernatant after centrifugation of CR-bound whole cells was monitored by UV-Vis spectrophotometry. CR depletion from the supernatant is enhanced in a linear fashion as the number of cells and amount of curli are increased. Error bars correspond to the standard deviation of measurements for three separate samples.

Curliated whole cells grown normally on YESCA agar without CR have been noted for their ability to bind CR upon incubation with a CR solution [26,27]. We characterized this phenomenon quantitatively using MC4100 whole cells. Increases in CR depletion tracked linearly with bacterial concentration (Fig 1D). As the density of MC4100 was increased, more CR was depleted from the solution. Curli mutant cells, MC4100Δcsg, did not exhibit significant CR binding and depletion. Thus, relative cell-associated curli levels in MC4100 can be determined by a CR depletion assay. This provides a convenient and rapid way to assay and compare curli production across whole-cell samples that may be advantageous as a higher throughput assay without requiring immunoblotting or fiber purification protocols.

Previous studies with isolated native curli [3] and other amyloid fibers, notably β-amyloid [28], have demonstrated the absorbance and fluorescence spectral changes that occur when CR binds to curli and amyloids. UV-Vis spectra exhibit an increase in CR intensity and a red shift when CR is bound to curli[3]. In addition, CR exhibits very little detectable fluorescence in solution, but fluoresces when bound to curli [3,22]. We extended the biophysical analyses of native curli to examine CR binding using Surface Plasmon Resonance (SPR).

The use of SPR to examine the binding of CR to curli required the identification of a suitable regeneration condition in order to remove CR from immobilized fibers after compound association and dissociation events during the SPR measurement (S2 Fig). Of all the conditions tested to remove CR bound to native curli fibers, a few successful regeneration conditions were identified: 100% DMSO; 50% DMSO/10 mM NaOH; and 100% DMF. Conditions that did not remove CR from curli fibers included: acetone, dichloromethane, ethyl acetate, 2-propanol, tetrahydrofuran, and toluene. Additionally, a solution of 100 mM HCl that was employed for the regeneration of curli-like fibers fibrillized in vitro [29] was not sufficient to remove CR from our native curli fibers. We selected 50%DMSO/10mM NaOH as the regeneration condition for our SPR experiments as it was most compatible with the SPR instrument and protocols.

The association and dissociation kinetics of CR as a function of concentration are presented in Fig 2A. CR association gradually increased during the association phase from 0 to 150 s as CR was introduced at the specified concentration through continuous flow over immobilized curli fibers on the SPR chip for the duration of the association phase (Fig 2A). During the dissociation phase, CR was not present in the buffer and a gradual decline in response units (RU) during the next 150 s revealed the dissociation of CR from the immobilized fibers, yielding a final residual response of about 50 RU. Thus, a fraction of CR remained bound to curli and was only removed after the regeneration step. The complete removal of CR and regeneration of curli was achieved with a solution of 50%DMSO/10mM NaOH. Binding to curli was unaffected by repeated regeneration and identical response curves were obtained whether the experiments were performed as a function of increasing or decreasing CR concentration. The equilibrium binding constant was obtained using the Langmuir model (A+L ←→ AL) by non-linear curve fitting of the Langmuir binding isotherm, R_eq_ = (k_a_ [A]/ (k_a_ [A] + K_d_)) * R_max_, where R_eq_ is the shift in SPR angle at equilibrium (or “Response units”, RU) and R_max_ is the maximum analyte binding capacity of the surface in RU. The equilibrium constant, K_d_, for CR binding to curli was determined to be 2.8 μM, as calculated from the association and dissociation rates. This value is similar to those reported for CR binding to other amyloids including Aβ11–28 (1–10 μM) [30].

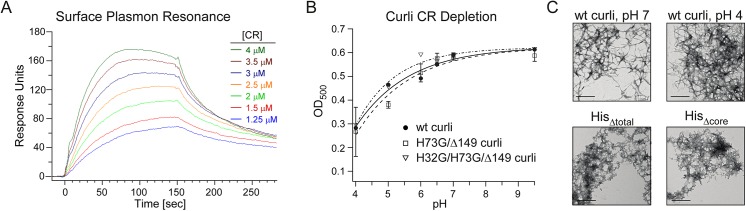

Interactions of CR with isolated curli.(A) Surface plasmon resonance experiments performed with immobilized curli revealed that CR binding is relatively weak; CR binds to curli with an approximate kd of 2.8 μM. (B) A CR depletion assay allowed facile examination of CR binding to isolated curli, similar to the whole-cell assay performed in Fig 1. The data demonstrate that CR binding to curli is pH dependent and is not dependent on histidine in the CsgA sequence. (C) Curli produced by wild-type MC4100 are comparable to those formed by the histidine mutants and are not influenced by changes in pH, as demonstrated by electron microscopy.

CR binding to β-amyloid fibers formed in vitro has been reported to be pH-dependent [30]. To determine if CR binding to curli fibers displayed a similar pH-dependence, we adapted the whole-cell CR depletion assay to monitor the depletion of CR resulting from CR binding to isolated curli rather than using whole cells, which would not tolerate extreme pH conditions. Solutions of 0.1 mg/mL curli at pH values of 4 to 9.5 (in 80% ethanol) were incubated with 10 μg/mL CR followed by centrifugation to pellet curli and bound CR. Free CR in the supernatant was monitored by UV-Vis spectrophotometry. More CR bound to curli at lower pH values, and CR binding decreased, with more free CR present in the supernatant, as pH values increased from 6 to 9.5 (Fig 2B). Selection of ethanol in the assay was based upon its use in histological screens and assays [30,31]. The general morphology of curli fibers in 80% (v/v) ethanol was not affected as determined by TEM (Fig 2C).

The pH dependence of CR binding to curli is similar to the proton dissociation curve for histidine, and CR binding to β-amyloid fibers formed in vitro has been shown to be dependent on the presence of histidine in the protein sequence [32]. Thus, we tested whether histidine might underlie Congo red binding in curli using curli isolated from cells producing: (i) wild type CsgA (as above); (ii) CsgA lacking histidine residues only within the proposed amyloid core (H73G/Δ149), curliΔHis_core_; and (iii) CsgA lacking histidine residues in both the proposed amyloid core and the N-terminus (H32G/H73G/Δ149), curliΔHis_total_. CsgA contains an N-terminal sec signal sequence that is removed upon secretion into the periplasm. Following this, the next N-terminal 22 amino acids are protease sensitive and not thought to be part of the CsgA amyloid core, and includes His32. The proposed amyloid core consists of residues 43–151[33]. As demonstrated in Fig 2B, CR binding to curli fibers isolated from the histidine mutants was comparable to the binding to wild-type fibers. Electron micrographs confirmed that the mutant CsgA proteins assembled into amyloid fibers, although they were somewhat shorter in length from curli isolated from MC4100 (Fig 2C). We note that in the curli preparations, the yield of curli isolated from the His mutants was considerably lower than that of wild type curli isolated from MC4100. Thus, in the His mutants, a preparation using cell lysates was employed to access fibers that still remained cell-associated, whereas a more gentle application of shear forces is sufficient to remove wild-type curli from MC4100.

In summary, CR has been used extensively in microbiological studies to score the production of microbial amyloids as well as polysaccharides and other extracellular factors. However, there is little detail available regarding how CR binds to microbial amyloid fibers. Furthermore, CR inhibits the fibrillization of some amyloidogenic proteins, such as β-amyloid [25], in in vitro amyloid polymerization assays. Yet, in microbial systems such as E. coli and Salmonella, CR has not appeared to inhibit amyloid biogenesis in vivo. Here, we have demonstrated quantitatively that CR does not inhibit the production of curli in E. coli when supplemented in nutrient agar at concentrations up to 200 μg/mL, and does not influence the kinetics of curli production.

A tractable feature of microbial amyloids is the presentation of amyloid fibers at the cell surface. Such extracellular display permits facile identification and visualization by electron microscopy, simple whole-cell amyloid-staining using CR or other dyes, and relatively straightforward isolation and purification. Thus, fibers and fiber-dye or fiber-protein complexes can be readily examined using fibers formed natively in their cellular context. Using SPR, we demonstrated that CR binds to immobilized curli with an approximate K_d_ of 2.8 μM. We also discovered that CR binding to curli is pH dependent and is not histidine dependent. This is consistent with a previous study that demonstrated that a synthetic short peptide related to a fragment of CsgA still polymerized and would bind CR despite not containing histidine [34]. Other curli residues may play a role in CR binding to curli such as the aromatic amino acids phenylalanine and tryptophan that may interact with the phenolic rings in CR [35]. In contrast, lysine was shown to be required for CR binding to the fungal prion Het-S [36]. Our comparative analysis on the influence of CR with curliated E. coli and isolated curli formed natively in vivo provides a benchmark from which to compare other curli-binding molecules, mutant curli fibers, curli-type fibers formed through in vitro polymerizations, and other functional bacterial amyloids formed in vivo.

Methods

Curli-associated E. coli sample preparation

Bacteria were grown on YESCA (0.5g/L yeast extract; 10g/L casamino acids) agar plates in the presence or absence of CR at 26°C. A CR (MP Biomedicals, LLC, Cat# 150711, Lot# MR30568) stock solution was prepared as 2 mg/mL in water and sterile-filtered. Designated volumes of CR were added to stirring hot agar medium to achieve the desired final concentration before pouring standard plates (approximately 25mL media per 100 mm petri plate). For the photographed plate in Fig 1A, MC4100 were grown for 48 hours at 26°C on YESCA agar containing 25 μg/mL CR.

Western blot analysis

The cell-associated curli proteins, CsgA and CsgG, were examined by immunoblot assays as described [37]. Whole-cell samples with equivalent cell number were prepared as cell pellets of 1mL cell culture with an OD_600_ of 1.0. Each pellet was treated with 100 μL hexafluoroisopropanol (HFIP) or formic acid (FA), as indicated, to dissociate curli subunits. HFIP or FA was removed by vacuum centrifugation, and samples were resuspended in SDS-PAGE loading buffer. Protein gel electrophoresis was carried out using 12% SDS-PAGE gels (Invitrogen). Proteins were transferred to 0.2 μm nitrocellulose transfer membranes (Whatman). The polyclonal rabbit antiserum to CsgA or CsgG was used as the primary antibody and horseradish peroxidase (HRP) conjugated goat anti-rabbit antibody (Pierce) was used as the secondary antibody [38].

Whole-cell Congo red depletion assay

Whole-cell samples were suspended in ice-cold PBS as a dilution series with OD_600_ of 0.2 to 1.0, and CR was added to a final concentration of 10 μg/mL from a filtered stock solution of 1 mg/mL. The cells were incubated with CR for 10 minutes at room temperature with rocking. The cells were pelleted (10,000 g for 5 minutes), and the absorbance at 500 nm of the supernatant was measured. For all absorbance experiments, a cell path length of 1 cm was used (Perkin Elmer Lambda 35 UV/Vis Spectrometer). Each sample was prepared and assayed in triplicate. Error bars correspond to the standard deviation of measurements for three separate samples.

Surface Plasmon Resonance (SPR)-based Biosensor Analysis

The interaction of CR with curli fibers was analyzed by Surface Plasmon Resonance using a BIACORE 3000 biosensor system (GE Healthcare). Analyte (CR) dilutions were performed in HBS-EP (10 mM HEPES, pH 7.4, 150 mM NaCl, 3mM EDTA, and 0.005% v/v Surfactant P20) running buffer. Curli were immobilized onto a CM5 biosensor chip by amine coupling chemistry using N-hydroxysuccinimide (NHS) and N’-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC). To investigate binding of CR, the diluted analyte was injected over the curli fiber surface. The experiments were performed at 25°C using a flow rate of 50 L/min. For each experiment, at least 5 different concentrations of CR were injected over each experimental and control flow cell for 150 s. Dissociation was allowed to occur at the same flow rate for 180 s in Running Buffer alone. The surface was regenerated after each injection of analyte using two 18 s pulses of 50% DMSO/ 10mM NaOH which led to complete dissociation of the residually bound CR. All data were corrected for non-specific binding by subtracting the signal measured in a control cell lacking immobilized ligand. Both data processing and kinetic fitting were performed using Scrubber software, version 2 (BioLogic Software, Pty., Australia) or BIAevaluation software 4.1 (Biacore).

Curli production and isolation

Wild-type curli were isolated from YESCA-agar grown MC4100 as previously described [7]. To obtain CsgA lacking histidines or lacking only core histidines, appropriate plasmids (pMC3-H32G-H73G-Δ149 and pMC3-H73G-Δ149, respectively) were generated using pMC3 (Chapman Laboratory) as a template (GenScript, New Jersey, USA). Protein expression was performed in E.coli strain LSR12 grown in Luria broth at 37°C. Protein expression was induced with 0.25 mM ITPG for 60 minutes when cell densities reached an OD_600_ of ~1. Cells were harvested by centrifugation (10,000 g, 20 minutes, 4°C). The cell pellet was frozen and then resuspended in lysis buffer (8 M GdnHCl). Cells were lysed by sonication (6x 10 s bursts with 15 s cooling period on ice between each burst) and centrifuged (10,000 g, 20 minutes, 4°C) to remove cellular debris. The supernatant was dialyzed overnight against 50 mM Na_2_HPO_4_ (3.5 MWCO), and then centrifuged (13,000 g, 30 minutes, 20°C). The pellet was resuspended in 10 mM Tris, pH 7.4 with 4% (w/v) final concentration SDS and incubated overnight, rocking at room temperature. The CsgA-H73G-Δ149 fibrils were initially pelleted (13,000 g, 60 minutes, 20°C) and then resuspended in 10 mM Tris (pH 7.4). The curli were pelleted again (30,000 g, 30 minutes, 20°C) and resuspended in 10 mM Tris (pH 7.4); this final washing step was repeated approximately four times until the SDS was removed. The final curli pellet was resuspended in 5 mL of water. The concentration of the curli solution was determined using the BCA Protein Assay (Thermo Scientific Pierce BCA Protein Assay Kit). CR was quantified by measuring the absorbance at 500 nm in 10 mM Tris-HCl at pH 7.5, with an extinction coefficient of 5 x 10^4^ M^-1^ cm^-1^.

Transmission electron microscopy (TEM)

Negative staining TEM was performed on curli samples. Samples were applied to 300-mesh copper grids coated with Formvar film (Electron Microscopy Sciences, Hatfield, PA) for 2 min, rinsed in deionized water, negatively stained with 2% uranyl acetate for 90 s, and air-dried. Microscopy was performed on the JEM-1400 (JEOL, LLC).

Curli-only Congo red depletion assay

Curli (0.1 mg/mL) were suspended in solutions of nominal pH values of 4 to 9.5, in 80% (v/v) ethanol and 5 mM buffer (glycine at pH 4.0 and 5.0; 4-morpholineethanesulfonic acid (MES) at pH 6.0 and 6.5; and Tris(hydroxymethyl)-aminomethane (TRIS) at pH 7.0 and 9.5). For the pH-dependence assays, curli (0.1 mg/mL) were incubated with 10 μg/mL CR (from 1 mg/mL aqueous stock solution) for 10 minutes, rocking at room temperature before centrifugation (13,000 g for 10 minutes) to remove curli and bound CR. The supernatant absorbance was measured at 500 nm. Each sample was prepared and assayed in triplicate with the exception of CsgA-H32G-H73G-Δ149 fibrils, which was only a single sample due to limited sample size. Error bars correspond to the standard deviation of measurements for three separate samples.

Supporting Information

S1 FigCongo red and E. coli.Supplementation of the agar with CR at concentrations of 25μg/mL does not affect curli production on a per cell basis as assessed by Western blot analysis for any of the E. coli clinical isolates that were tested. The blots were probed for CsgA, which is the main curli fiber subunit. Additionally, in all cases, formic acid was required to depolymerize curli fibers into its SDS-soluble subunits.(TIF)Click here for additional data file.

S2 FigTesting regeneration conditions for SPR.Suitable regeneration conditions (RC) were required to remove CR from curli fibers during the SPR measurements. The conditions tested are shown in the figure. CR was incubated with either (A) whole-cells or (B) isolated curli, and centrifuged to obtain a pellet. The pellet was then resuspended in the RC before centrifugation. The pellets before and after incubation in the RC are shown. For the successful conditions, CR was removed from the pelleted whole-cells or isolated curli. A few successful conditions were identified: 100% DMSO; 50% DMSO/10 mM NaOH; and 100% DMF. We selected 50%DMSO/10mM NaOH as the RC for our SPR experiments as it was most compatible with the SPR instrument and protocols.(JPG)Click here for additional data file.
