Reconstructing A/B compartments as revealed by Hi-C using long-range correlations in epigenetic data
Jean-Philippe Fortin, Kasper D. Hansen
TL;DR
This paper shows how to estimate A/B compartments in the genome using various epigenetic data, making it easier to study chromatin structure in many cell types.
Contribution
A novel method to reconstruct A/B compartments using long-range correlations in epigenetic data across multiple platforms.
Findings
A/B compartments can be reliably estimated using epigenetic data from multiple platforms.
Long-range correlations in epigenetic data differ between open and closed chromatin compartments.
The method is applicable to a wide range of cell types, including human cancers.
Abstract
Analysis of Hi-C data has shown that the genome can be divided into two compartments called A/B compartments. These compartments are cell-type specific and are associated with open and closed chromatin. We show that A/B compartments can reliably be estimated using epigenetic data from several different platforms: the Illumina 450 k DNA methylation microarray, DNase hypersensitivity sequencing, single-cell ATAC sequencing and single-cell whole-genome bisulfite sequencing. We do this by exploiting that the structure of long-range correlations differs between open and closed compartments. This work makes A/B compartment assignment readily available in a wide variety of cell types, including many human cancers. The online version of this article (doi:10.1186/s13059-015-0741-y) contains supplementary material, which is available to authorized users.
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

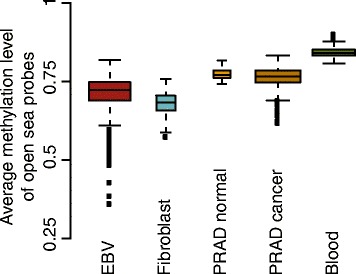

Figure 10

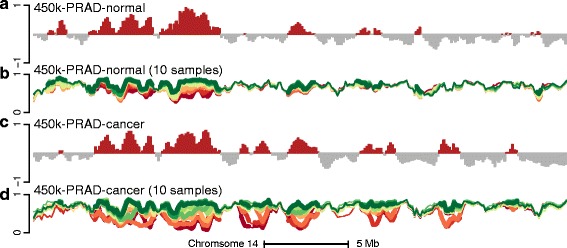

Figure 11

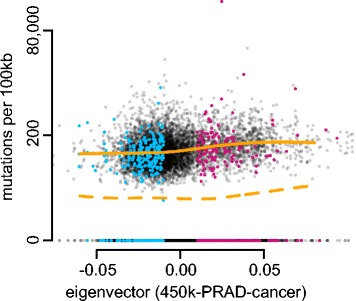

Figure 12

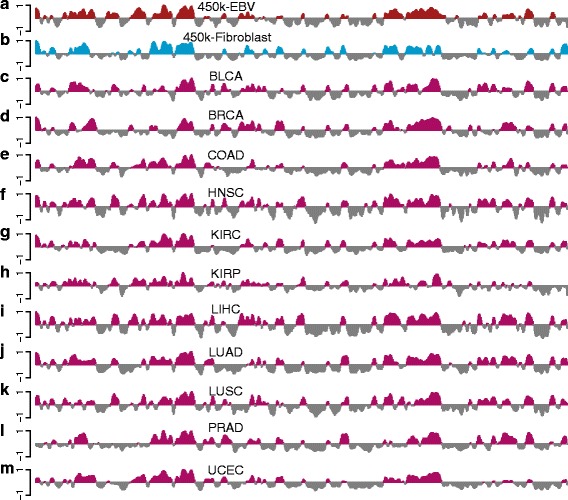

Figure 13

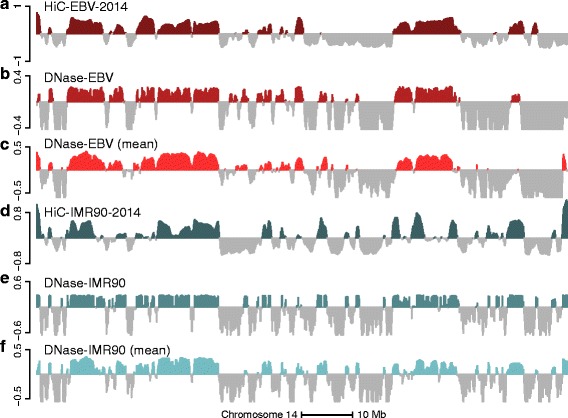

Figure 14

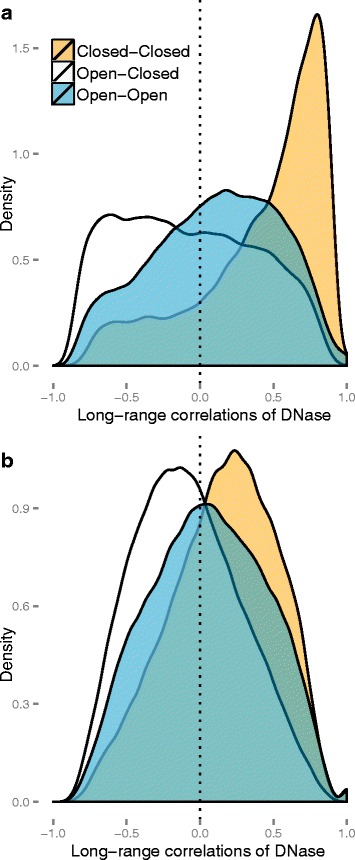

Figure 15

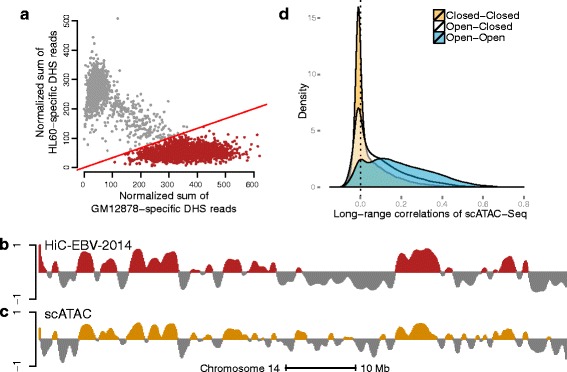

Figure 16
Figure 17

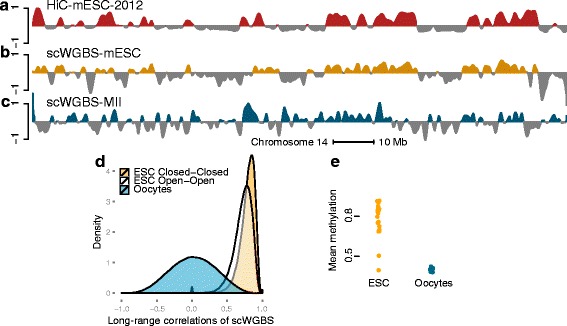

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5

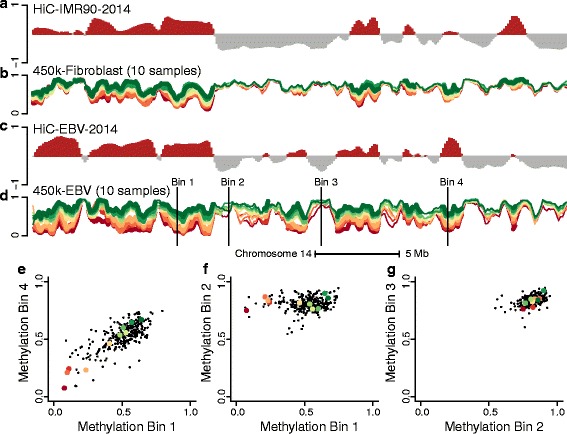

Figure 6

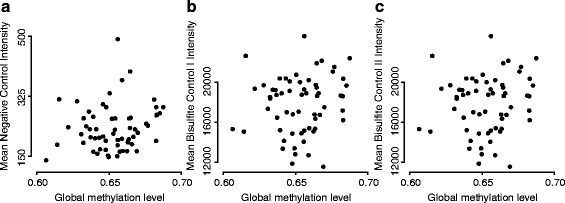

Figure 7

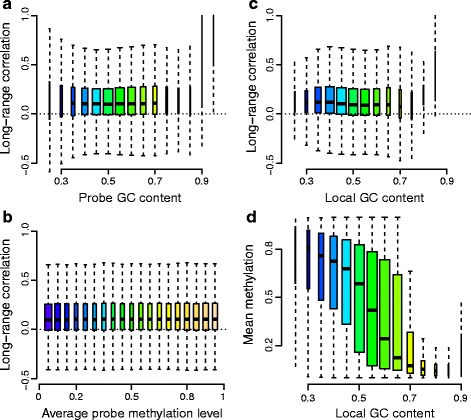

Figure 8

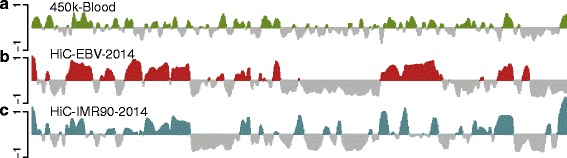

Figure 9Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsInhalation and Respiratory Drug Delivery
Background
Hi-C, a method for quantifying long-range physical interactions in the genome, was introduced by Lieberman-Aiden et al. [1], and it was reviewed in Dekker et al. [2]. A Hi-C assay produces a so-called genome contact matrix, which – at a given resolution determined by sequencing depth – measures the degree of interaction between two loci in the genome. In the last 5 years, significant efforts have been made to obtain Hi-C maps at ever increasing resolutions [3–8]. Currently, the highest resolution maps are 1 kb [7]. Existing Hi-C experiments have largely been performed in cell lines or for samples where unlimited input material is available.
In Lieberman-Aiden et al. [1], it was established that at the megabase scale, the genome is divided into two compartments, called A/B compartments. Interactions between loci are largely constrained to occur between loci belonging to the same compartment. The A compartment was found to be associated with open chromatin and the B compartment with closed chromatin. Lieberman-Aiden et al. [1] also showed that these compartments are cell-type specific, but did not comprehensively describe differences between cell types across the genome. In most subsequent work using the Hi-C assay, the A/B compartments have received little attention; the focus has largely been on describing smaller domain structures using higher resolution data. Recently, it was shown that 36 % of the genome changes compartment during mammalian development [8] and that these compartment changes are associated with gene expression; they conclude “that the A and B compartments have a contributory but not deterministic role in determining cell-type-specific patterns of gene expression”.
The A/B compartments are estimated by an eigenvector analysis of the genome contact matrix after normalization by the observed–expected method [1]. Specifically, boundary changes between the two compartments occur where the entries of the first eigenvector change sign. The observed–expected method normalizes bands of the genome contact matrix by dividing by their mean. This effectively standardizes interactions between two loci separated by a given distance by the average interaction between all loci separated by the same amount. It is critical that the genome contact matrix is normalized in this way, for the first eigenvector to yield the A/B compartments.
Open and closed chromatin can be defined in different ways using different assays such as DNase hypersensitivity or chromatin immunoprecipitation (ChIP) sequencing for various histone modifications. While Lieberman-Aiden et al. [1] established that the A compartment is associated with open chromatin profiles from various assays, including DNase hypersensitivity, it was not determined to what degree these different data types measure the same underlying phenomena, including whether the domain boundaries estimated using different assays coincide genome-wide.
In this manuscript, we show that we can reliably estimate A/B compartments as defined using Hi-C data by using Illumina 450 k DNA methylation microarray data [9] as well as DNase hypersensitivity sequencing [10, 11], single-cell whole-genome bisulfite sequencing (scWGBS) [12] and single-cell assay for transposase-accessible chromatin (scATAC) sequencing [13]. Data from the first two assays are widely available for a large number of cell types. In particular, the 450 k array has been used to profile a large number of primary samples, including many human cancers; more than 20,000 samples are readily available through the Gene Expression Omnibus (GEO) and The Cancer Genome Atlas (TCGA) [14]. We show that our methods can recover cell-type differences. This work makes it possible to study A/B compartments comprehensively across many cell types, including primary samples, and to investigate further the relationship between genome compartmentalization and transcriptional activity or other functional readouts.
As an application, we show how the somatic mutation rate in prostate adenocarcinoma (PRAD) is different between compartments and we show how the A/B compartments change between several human cancers; currently TCGA does not include assays measuring chromatin accessibility. Furthermore, our work reveals unappreciated aspects of the structure of long-range correlations in DNA methylation and DNase hypersensitivity data. Specifically, we observe that both DNA methylation and the DNase signal are highly correlated between distant loci, provided that the two loci are both in the closed compartment.
Results and discussion
A/B compartments are highly reproducible and are cell-type specific

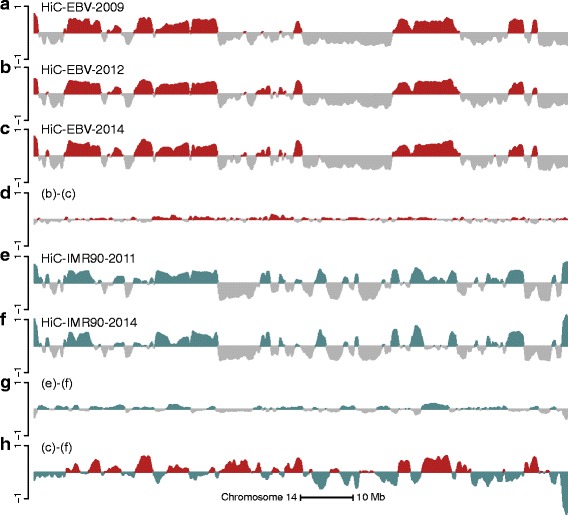

We obtained publicly available Hi-C data on Epstein–Barr virus (EBV)-transformed lymphoblastoid cell lines (LCLs) and fibroblast cell lines and estimated A/B compartments by an eigenvector analysis of the normalized Hi-C contact matrix (“Materials and methods”). The contact matrices were preprocessed with iterative correction and eigenvector decomposition (ICE) [15] and normalized using the observed–expected method [1]. As in Lieberman-Aiden et al. [1], we found that the eigenvector divides the genome into two compartments based on the sign of its entries. These two compartments have previously been found to be associated with open and closed chromatin; in the following, we will use open to refer to the A compartment and closed to refer to the B compartment. The sign of the eigenvector is arbitrary; in this manuscript, we select the sign so that positive values are associated with the closed compartment (“Materials and methods”). In Fig. 1, we show estimated eigenvectors at 100-kb resolution from chromosome 14 across two cell types measured in multiple laboratories with widely different sequencing depth, as well as variations in the experimental protocol. We observed a very high degree of correspondence between replicates of the same cell type; on chromosome 14, the correlation between eigenvectors from experiments with the same cell type is greater than 0.96 (ranges from 0.96 to 0.98). The agreement, defined as the percentage of genomic bins that are assigned to the same compartment in two different experiments, is greater than 92 % (ranges from 92.6 % to 96.0 %) on chromosome 14. These measures vary little between chromosomes; a full depiction is available in Additional file 1: Figure S1. Fig. 1A/B compartments are reproducible and cell-type specific. The figure displays data on all of chromosome 14 at 100-kb resolution. The first eigenvector is shown for the observed–expected normalized (a) HiC-EBV-2009, (b) HiC-EBV-2012 and (c) HiC-EBV-2014 datasets. d The difference between (b) and (c). The first eigenvector is shown for the observed–expected normalized (e) HiC-IMR90-2013 and (f) HiC-IMR90-2014 datasets, and (g) their difference. h The difference between (c) and (f), which is greater than the technical variation depicted in (d) and (g). This establishes that Hi-C compartments are highly reproducible between experiments in different laboratories and that compartments are cell-type specific
Using high-resolution data does not change the estimated A/B compartments as seen in Additional file 1: Figure S2. Note that the Hi-C datasets have been processed into unadjusted contact matrices using different alignment and filtering pipelines (see “Materials and methods” for details); this shows that the choice of alignment and filtering method has negligible impact on estimation of A/B compartments.
Figure 1 shows the A/B compartments are cell-type specific, with a variation between cell types that exceeds technical variation in the assay; this has been previously noted [1, 8]. The correlation between eigenvectors from different cell types is around 0.60, in contrast to 0.96+ between eigenvectors from the same cell type.
ICE normalization removes any marginal dependence of the contact matrix on GC content by forcing the marginal sums of the contact matrix to be constant [15]. Despite this, Imakaev et al. [15] found high correlation (0.80) between the first eigenvector of the contact matrix and GC content of the underlying bin, and interpreted this as a biological association and not technical bias. To investigate further whether this dependence is a result of technical bias or a biological association, we computed the dependence for multiple experiments (Additional file 1: Figure S3). Like the eigenvector itself, we found that the dependence shows little variation between experiments done on the same cell line but in different labs, and some variation between cell lines (Additional file 1: Figures S3 and S4). This comparison includes two cell line experiments performed in the same laboratory with the same experimental protocol. That the effect of GC content depends on the cell line suggests that the relationship at least partly reflects biology. Various biological entities are correlated with GC content, including gene density [16]; it is therefore not inconceivable that open and closed chromatin has a biological association with GC content. It is possible computationally to adjust for the dependence on GC content by regressing out the fitted LOESS curve displayed in Additional file 1: Figure S3; like Imakaev et al. [15], we currently believe that doing so will remove some biological signals.
In the remainder of the manuscript, we use the most recent data, i.e. HiC-EBV-2014 and HiC-IMR90-2014, to represent eigenvectors and A/B compartments derived from Hi-C data in these cell types.
Predicting A/B compartments from DNA methylation data
To estimate A/B compartments using epigenetic data other than Hi-C, we first concentrate on DNA methylation data assayed using the Illumina 450 k microarray platform. Data from this platform are widely available across many different primary cell types. To compare with existing Hi-C maps, we obtained data from 288 EBV-transformed LCLs from the HapMap project [17].

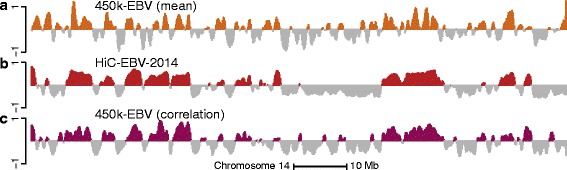

DNA methylation is often described as related to active and inactive parts of the genome. Most established is high methylation in a genic promoter leading to silencing of the gene [18]. As a first attempt to predict A/B compartments from DNA methylation data, we binned the genome and averaged methylation values across samples and CpGs inside each bin. Only CpGs more than 4 kb away from CpG islands were used; these are termed open sea CpGs (“Materials and methods”). We found that high levels of average methylation were associated with the open compartment and not the closed compartment; this might be a consequence of averaging over open sea probes. Figure 2 depicts data from such an analysis for LCLs on chromosome 14 at a 100-kb resolution. It shows there is some agreement between estimated compartments from Hi-C and this analysis, with a correlation of 0.56 and a compartment agreement between datasets of 71.7 % on this chromosome. In this analysis, we implicitly assume that there is no variation in compartments between different individuals for the same cell type. Fig. 2. The methylation correlation signal is a better predictor of A/B compartments than the average methylation signal. The figure displays data on all of chromosome 14 at 100-kb resolution. a The smoothed, average methylation signal on the beta-value scale for the 450 k-EBV dataset. The signal has been centered by the mean and the sign has been reversed so that values close to one correspond to low methylation values. b The first eigenvector of the HiC-EBV-2014 Hi-C dataset. c The smoothed first eigenvector of the binned correlation matrix of the 450 k-EBV dataset. We see that (c) correlates better with (b) than (a)
Surprisingly, we found that we could improve considerably on this analysis by doing an eigenvector analysis of a suitably processed between-CpG correlation matrix (Fig. 2). This matrix represents correlations between any two CpGs measured on the 450 k array, with the correlation being based on biological replicates of the same cell type. The correlation eigenvector shows strong agreement with the Hi-C eigenvector, certainly higher than with the average methylation vector (Fig. 2). Quantifying this agreement, we found that the correlation between the two vectors is 0.85 and the compartment agreement is 83.8 % on chromosome 14. Genome-wide, the correlation is 0.71 and the agreement is 79 % (Table 1); chromosome-specific measures are depicted in Additional file 1: Figure S5; we tend to perform worse on smaller chromosomes. Again, this analysis implicitly assumes lack of variation in compartments between biological replicates. Table 1. Correlation and agreement between Hi-C and 450 k-based eigenvector estimates of genome compartments. Thresholding refers to excluding genomic bins where the entries of the relevant eigenvector have an absolute value less than 0.01Chromosome 14GenomeNo thresholdCorrelation0.850.750.700.74Agreement83.7 %79.1 %79.0 %79.5 %Bins retained100 %100 %100 %100 %Threshold, methylationCorrelation0.870.780.740.77Agreement88.8 %83.4 %87.9 %87.9 %Bins retained86 %85 %78 %79 %Threshold, methylation and Hi-CCorrelation0.890.840.770.81Agreement93.0 %90.5 %92.6 %92.8 %Bins retained76 %67 %66 %64 %
Closely examining differences between the 450 k-based predictions and the Hi-C-based estimates, we found that almost all disagreements between the two methods occur when an entry in one of the two eigenvectors is close to zero; in other words, where there is uncertainty about the compartment in either one of the two analyses. Excluding bins where the 450 k-based prediction is close to zero, that is bins that have an absolute eigenvector value less than 0.01, we got an agreement of 88.8 % (14.2 % of the bins excluded). Excluding bins where either the 450 k-based prediction is close to zero or the Hi-C eigenvector is close to zero, we got an agreement of 93 % (24.8 % of the bins excluded).
Our processing of the correlation matrix is as follows (see “Materials and methods” for details); the rationale behind our choices will be explained later in the manuscript. First, in our correlation matrix, we only included so-called open sea CpGs; these CpGs are more than 4 kb away from CpG islands. Next, we binned each chromosome into 100-kb bins and computed which open sea CpGs are inside each bin; this varies between bins due to the design of the 450 k microarray. To get a single number representing the correlation between two bins, we took the median of the correlations of the individual CpGs located in each bin. We obtained the first eigenvector of this binned correlation matrix and gently smoothed the signal by using two iterations of a moving average with a window size of three bins.
The sign of the eigenvector is chosen so that the sign of the correlation between the eigenvector and column sums of the correlation matrix is positive; this ensures that positive values of the eigenvector are associated with the closed compartment (see “Materials and methods”).
Long-range correlations in DNA methylation data predict A/B compartment changes between cell types

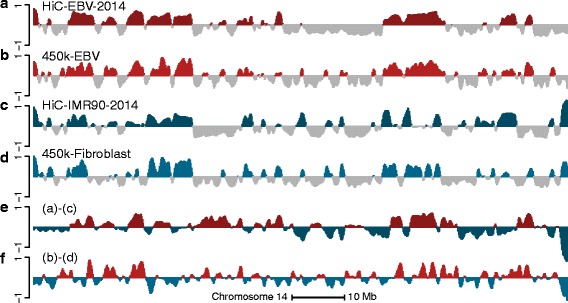

To examine how well the predictions based on long-range correlations in 450 k data capture differences between cell types, we obtained publicly available 450 k data from 62 fibroblast samples [19], and compared them to Hi-C data from the IMR90 cell lines. Note that the fibroblast cell lines assayed on the 450 k platform are from primary skin in contrast to the IMR90 cell line, which is a fetal lung fibroblast. Figure 3, Table 1 and Additional file 1: Figure S5 show our ability to recover the A/B compartments in fibroblasts; it is similar to our performance for EBV-transformed lymphocytes. Fig. 3. Cell-type-specific A/B compartments using Hi-C data are predicted using DNA methylation data. The figure displays data on all of chromosome 14 at 100-kb resolution. a The first eigenvector of the HiC-EBV-2014 dataset. b The smoothed first eigenvector of the binned correlation matrix of the 450 k-EBV dataset. c The first eigenvector of the HiC-IMR90-2014 Hi-C dataset. d The smoothed first eigenvector of the binned correlation matrix of the 450 k-fibroblast dataset. e The difference between (a) and (c). f the difference between (b) and (d). The high correlation between (e) and (f) supports that the correlation eigenvectors of the 450 k data can be used to find differences between compartments in the two cell types
To establish firmly that the high correlation between our predicted compartments using DNA methylation and Hi-C data is not due to chance, we compared the predicted compartments in EBV-transformed lymphocytes and fibroblasts to Hi-C data from different cell types, including the K562 cell line, which serves as a somewhat independent negative control. In Additional file 1: Figure S6, we show the correlation and agreement between the two sets of predicted compartments and Hi-C data from the three cell types. There is always a decent agreement between predicted compartments of any two cell types, but the agreement is consistently higher when the prediction is from data from the same cell type, such as the Hi-C data.
How to quantify best the differences in A/B compartments is still an open question. Lieberman-Aiden et al. [1] used 0 as a threshold to differentiate the two compartments. Considering the difference of two eigenvectors derived in different cell types, it is not clear that functional differences exist exactly when the two eigenvectors have opposite signs; instead, functional differences might be associated with changes in the magnitude of the eigenvectors reflecting a genomic region being relatively more open or closed. We note that the genomic region highlighted as cell-type specific, and validated by fluorescence in situ hybridization, in Lieberman-Aiden et al. [1], is far away from zero in one condition and has small values fluctuating around zero in the other condition.
Following this discussion, we focus on estimating the direction of change in eigenvectors between different cell types. Figure 3 shows estimated differences between Hi-C and 450 k eigenvectors for two cell types. Large differences between the two vectors are replicated well between the two data types, but there is disagreement when the eigenvectors are close to zero. This is to be expected; there is technical variation in such a difference even between Hi-C experiments (Fig. 1). Using the data displayed in Fig. 1, we found that the technical variation in the Hi-C data is such that 98 % of genomic bins have an absolute value less than 0.02. Using this cutoff for technical variation, we found that the correlation between the two difference vectors displayed in Fig. 3 is 0.85 when restricted to the 24 % of genomic bins where both vectors have an absolute value greater than 0.02. The signs of the differential vectors are also in high agreement; they agree in 90 % of the genomic bins exceeding the cutoff for technical variation. In contrast, the correlation is 0.61 when the entire chromosome is included, reflecting that the technical noise is less correlated than the signal.
Large domains of intermediate methylation have been previously described [20], as well as long blocks of hypomethylation associated with colon cancer and EBV transformation [21–23]. We obtained previously characterized [20] partially methylated domains (PMDs) in IMR90 and found a significant overlap with closed compartments from the HiC-IMR90-2014 dataset (odds ratio: 13.6) as well as closed compartments from the 450 k-fibroblast dataset (odds ratio: 16.4). Likewise, we obtained previously characterized blocks of hypomethylation associated with EBV transformation [23] and found a significant overlap with closed compartments from the HiC-EBV-2014 dataset (odds ratio: 11.9) and 450 k-EBV dataset (odds ratio: 9.4). This confirms the overlap, previously described by Berman et al. [21], between Hi-C compartments and these types of methylation domain.
The structure of long-range correlations in DNA methylation data
To understand why we are able to predict open and closed compartments using the 450 k array, we studied the structure of long-range correlations in DNA methylation data. First, we noted that entries in our binned correlation matrix (within a chromosome) do not decay with distance between bins (Additional file 1: Figure S7a). This is in contrast to a Hi-C contact matrix, which has repeatedly been shown to decay with distance as expected (Additional file 1: Figure S7b). However, for the first eigenvector to define open and closed compartments, the Hi-C contact matrix needs to be normalized using the observed–expected method [1]. This normalization has the consequence that values in the matrix no longer decay with distance (Additional file 1: Figure S7c).

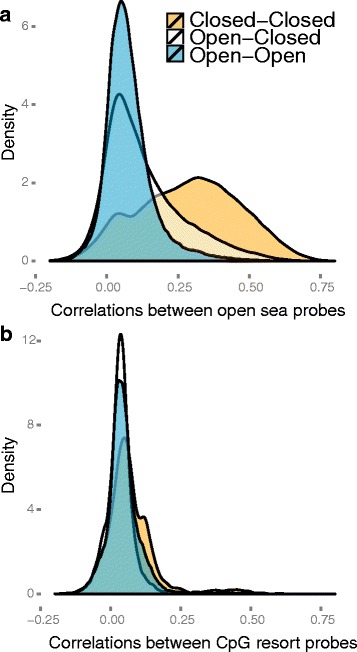

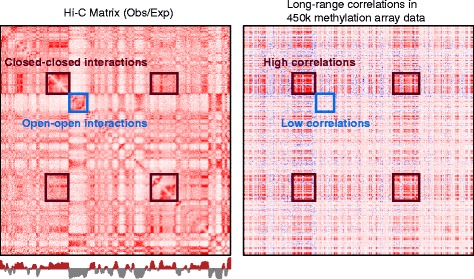

In Fig. 4, we show density plots of binned correlations on chromosome 14, stratified in two ways. The first stratification separates correlations between bins that are both in the open compartment or both in the closed compartment, and also cross-compartment correlations. This stratification shows that we have a large number of intermediate correlation values (0.2–0.5), but only between bins that are both in the closed compartment. The second stratification separates open sea probes and CpG resort probes (probes within 4 kb of a CpG island; see “Materials and methods”). This stratification shows that we only have intermediate correlation values for open sea probes; CpG resort probes are generally uncorrelated. In conclusion, we have the following structure of the binned correlation matrix: most of the matrix contains correlation values around zero (slightly positive), except between two bins both in the closed compartment, which have an intermediate correlation value of 0.2–0.5. This shows why an eigen analysis of the binned correlation matrix recovers the open and closed compartments; see Fig. 5 for an illustration. Fig. 4. Densities of the correlations of the 450 k methylation probes. Chromosome 14 was binned at resolution 100 kb and we display the binned, stratified correlations for the 450 k-EBV dataset. Each plot shows one density curve for each type of interaction: between two bins in open compartments, between two bins in closed compartments and between a bin in the open compartment and the closed compartment. a Binned correlations for open sea probes only. b Binned correlations for CpG resort probes only. Most correlations are around zero, except correlations between two open sea probes in the closed compartment. The open and closed compartments were defined using the HiC-EBV-2014 datasetFig. 5The relationship between a Hi-C contact matrix and a binned DNA methylation correlation matrix. Depicted are the observed–expected normalized genome contact matrix for the HiC-IMR90-2014 dataset together with the binned correlation matrix for the 450 k-fibroblast dataset. Both matrices depict chromosome 14 at resolution 100 kb. There is a relationship between A/B compartments in the Hi-C data and regions with low and high correlations
