The Toll-Like Receptor 5 Agonist Entolimod Mitigates Lethal Acute Radiation Syndrome in Non-Human Primates
Vadim I. Krivokrysenko, Ilia A. Toshkov, Anatoli S. Gleiberman, Peter Krasnov, Inna Shyshynova, Ivan Bespalov, Ratan K. Maitra, Natalya V. Narizhneva, Vijay K. Singh, Mark H. Whitnall, Andrei A. Purmal, Alexander N. Shakhov, Andrei V. Gudkov, Elena Feinstein
TL;DR
Entolimod, a drug that activates Toll-like receptor 5, can significantly improve survival in primates exposed to lethal radiation, even when given up to 48 hours after exposure.
Contribution
Entolimod shows radioprotective effects in non-human primates when administered up to 48 hours post-irradiation, offering a potential treatment for radiation disasters.
Findings
Entolimod reduced mortality risk 2-3 fold in irradiated primates when given up to 25 hours post-exposure.
Entolimod improved survival and accelerated recovery of hematopoietic and immune system organs.
Treatment reduced gastrointestinal tract damage and accelerated crypt regeneration.
Abstract
There are currently no approved medical radiation countermeasures (MRC) to reduce the lethality of high-dose total body ionizing irradiation expected in nuclear emergencies. An ideal MRC would be effective even when administered well after radiation exposure and would counteract the effects of irradiation on the hematopoietic system and gastrointestinal tract that contribute to its lethality. Entolimod is a Toll-like receptor 5 agonist with demonstrated radioprotective/mitigative activity in rodents and radioprotective activity in non-human primates. Here, we report data from several exploratory studies conducted in lethally irradiated non-human primates (rhesus macaques) treated with a single intramuscular injection of entolimod (in the absence of intensive individualized supportive care) administered in a mitigative regimen, 1–48 hours after irradiation. Following exposure to…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEcology and biodiversity studies · Wildlife Ecology and Conservation · Rangeland and Wildlife Management
Introduction
Acute radiation syndrome (ARS) is the clinical manifestation of pathologies that develop soon after exposure to toxic doses of whole or partial-body ionizing radiation [1, 2]. ARS in humans has been well characterized [3] and described as several principal subsyndromes (depending on the absorbed radiation dose): hematopoietic (HP), gastrointestinal (GI) and cerebrovascular (CV). In humans, the HP and GI subsyndromes are induced by a broad range of total body irradiation (TBI) doses starting at 2 and 4 Gy, respectively, and hence, always co-exist at doses >4 Gy. Radiation doses in the 2–4 Gy range cause death primarily via severe HP injury, leading to increased risk of sepsis due to immunosuppression (stemming from granulo- and lymphopenia) and hemorrhagic events due to thrombocytopenia. With higher levels of radiation exposure (>4 Gy), GI tract damage has an increasing impact on general morbidity and accelerates the onset of death by further raising the risk of bleeding, dehydration and sepsis due to reduced integrity of the GI epithelium on the background of disabled immune and coagulation systems. While multi-organ failure associated with TBI doses leading to the CV subsyndrome of ARS (which develops at doses higher than 10–20 Gy) is practically incurable, the types and degrees of damage associated with isolated HP or combined HP and GI subsyndromes may be potentially treatable. However, there is currently no medical radiation countermeasure (MRC) approved specifically for prevention or treatment of any type of ARS.
MRCs can be generally classified into three major categories: radioprotectants (administered before exposure), radiomitigators (administered shortly after radiation exposure, prior to development of manifest ARS) and therapeutics (aimed for use during manifest ARS). A number of MRCs are currently being developed by various academic and industrial institutions (for recent comprehensive reviews, see [4–6]). Whereas the first two categories of MRCs are comprised of pharmaceuticals (small molecules or biologics), MRCs belonging to the third category are mostly represented by cell replacement therapies.
Radioprotectants are aimed at reduction of radiation damage and include anti-oxidants such as e.g., amifostine, vitamin E, and 5-Androstenediol (5-AED) [7–14] which reduce the concentration of toxic reactive oxygen species generated through radiation-induced ionization of organic and inorganic molecules in cells and tissues. Another principal opportunity to prevent radiation injury is to use inhibitors of apoptosis, the main cause of cell loss in radiosensitive organs [15]. Strong radioprotective properties of inhibitors of the proapoptotic p53 pathway [16, 17] and activators of antiapoptotic NF-κB signaling [18–20] are in line with this paradigm.
Radioprotectants can be useful under conditions of planned and predictable radiation exposure: for military personnel, first responders, and some categories of civilians. However, their value is relatively limited in realistic radiation disaster scenarios in which radiation exposure is unexpected and cannot be prepared for. Reduction of the scale of casualties in such situations requires the use of radiomitigative agents that are effective when administered after irradiation. This is not a trivial task since, in large part, the effects of radiation are rapid and irreversible. Therefore, for radiomitigation, the emphasis shifts away from antioxidants and inhibitors of apoptosis towards agents capable of promoting tissue regeneration and/or enabling the organism to survive temporary vulnerabilities associated with coagulopathy, immunosuppression, and loss of GI tract integrity.
In this regard, pharmacological activation of NF-κB, a key regulator of innate and adaptive immune responses [21, 22], seems to be an ideal approach for radiomitigation. In addition to suppressing apoptosis and inducing endogenous antioxidants (e.g., SOD2 and ferritin [23, 24]), activated NF-κB drives production of a large spectrum of secreted bioactive factors (e.g., cytokines, chemokines, and anti-infective molecules), many of which have ameliorative effects on pathologies caused by systemic genotoxic stresses and promote tissue regeneration [25]. In fact, a significant proportion of reported radiomitigators are capable of NF-κB activation. These include 5-AED [10, 11, 26], synthetic mimetics of mycoplasma lipopeptides that act via stimulation of Toll-like receptor (TLR) 2/6 heterodimers [19, 20]; IL-12 (HemaMax) [27–29] and a pharmacologically optimized recombinant derivative of the natural TLR5 agonist, bacterial flagellin (FliC), entolimod (previously known as CBLB502) [18], which is the main topic of this study.
Entolimod is being developed as MRC under the Animal Rule [30] specifically designed by the US Food and Drug Administration (FDA) as regulatory framework for testing experimental therapeutics whose assessment for efficacy is non-ethical in humans. Instead (in addition to safety trials in humans) such therapeutics are evaluated for efficacy in two animal species in which the model of the disease of interest as well as the response to the drug of interest closely model those in humans. Therefore, experiments in non-human primate (NHP) model of ARS that closely resembles human ARS [31] are considered obligatory. Here, we summarize the data on the radiomitigative efficacy of entolimod obtained in a series of exploratory studies performed in 164 NHPs. These experiments demonstrated that entolimod acts as a potent mitigator of radiation injury, capable of substantial (2–3 fold) and significant reduction of the risk of death when administered as single injection within 48 hours after lethal (LD_50-75/40_) TBI in the absence of additional intensive individualized supportive care. Reduced mortality from ARS caused by entolimod treatment was associated with reduced damage to and accelerated recovery of both HP and GI system tissues. These properties of entolimod make it a highly promising candidate MRC for use in realistic scenarios of radiation disasters, when victims cannot rely on a specialized clinical care for an extended period of time.
Materials and Methods
Entolimod drug substance and vehicle
Entolimod was expressed in E. coli and purified to >98% purity (at SynCo BioPartners, LLC, Amsterdam, The Netherlands) using a validated cGMP process involving 2-step (ion-exchange and hydrophobic interaction) chromatographic purification followed by endotoxin removal with a dedicated ion exchange column. Release testing indicates <100 EU/mg endotoxin, <5 ng/mg residual DNA, and <100 ng/mg host cell protein content in the entolimod drug product. Absence of additional contaminating TLR ligands was confirmed using specific TLR-expressing reporter cell lines (InvivoGen, San Diego, CA). The vehicle for entolimod was Dulbecco’s Phosphate-Buffered Saline (PBS; Gibco BRL, Life Technologies Inc., Grand Island, NY) in earlier studies and PBS-0.1% Tween 80 (O’Brien Pharmacy, Mission, KS) in later studies. Animals received a single injection of entolimod or vehicle in the quadriceps muscle, using a dose volume of 0.2 ml/kg, at 1, 4, 16, 25 or 48 hours after the end of irradiation.
Animals
The care and use of nonhuman primates (Macaca mulatta, Chinese subspecies, from Sichuan Province) were in accordance with the principles outlined in the current Guide for the Care and Use of Laboratory Animals published by the National Institutes of Health, and the recommendations of the Weatherall report for The Use of Non-Human Primates in Research (December 2006).
All procedures for NHP studies were reviewed and approved by one or more of the following: the IACUC of Frontier Biosciences (Chengdu, Sichuan Province, China) (studies Rs-03, Rs-04, Rs-06, Rs-08, Rs-09, and Rs-14; IACUC protocol numbers B200609-P01, B200704-P01, B200718-P001, B200803-P002, B200903-P001, and B200901-P001); the IACUC of University of Illinois at Chicago (study Rs-22; IACUC protocol number 09–125); and the US Department of Defense Animal Care and Use Review Office (studies Rs-08, Rs-09, and Rs-22; ACURO protocol numbers CBMS-FY08-007, CBMS-FY08-008, and CBMS-FY09-022).
The NHP irradiation studies were conducted by Frontier Biosciences, Chengdu, Sichuan Province, China (studies Rs-03, Rs-04, Rs-06, Rs-08, Rs-09, and Rs-14) and UIC Toxicology Research Lab, Chicago, IL (Rs-22), Contract Research Organizations that are OLAW assured (assurance numbers A5723-01 and A3460-01, respectively) and AAALAC accredited. The NHP irradiation studies were approved under IACUC protocol numbers listed above. During the study, all efforts were made to minimize pain, distress, and suffering as stated in the approved IACUC protocols.
For studies conducted at Frontier Biosciences, rhesus macaques were obtained from Ping’an Animal Breeding and Research Base (Chengdu, Sichuan Province, China) or Suzhou Xishan Zhongke Laboratory Animal Co., Ltd (Suzhou, Jiangsu Province, China). For the study conducted at UIC TRL, rhesus macaques (Chinese subspecies) were obtained from Covance Laboratories (Madison, WI). At both CROs, 2–5 year old animals of both genders that weighed between 3 and 7 kg were used. The animals were research and irradiation naïve, clinically healthy, and certified to be free of specific pathogenic microorganisms (such as Salmonella sp., Shigella sp., Mycobacterium tuberculosis, cercopithecine herpesvirus type I (B virus), and Toxoplasma gondii). All animals received helminthicide treatment at their breeding facilities. Upon arrival at CROs, macaques were quarantined (typically for ≥3 weeks) while being subjected to daily cage-side observations, repeated laboratory testing (complete blood counts, serum biochemistry, blood coagulation, and electrocardiography) as well as body weight and temperature monitoring. During the pre-study period, the animals were also trained for being hand-caught and briefly restrained. Upon completion of the pre-study period, animals meeting pre-defined health criteria (consistently displaying normal clinical and laboratory parameters) were accepted into the study and randomly assigned to study groups based on their most recently measured body weight (even distribution per gender per weight). Approximately equal numbers of male and female animals were included in each study group. During the entire observation period (before and after irradiation), animals were housed in individual stainless steel cages in environment-controlled rooms with room temperature of 16–29°C, relative humidity of 30–70%, and a 12 hour light/dark cycle. In addition to fresh fruits and vegetables daily, animals were fed primate chow in studies at Frontier Biosciences (either prepared in-house or manufactured by Beijing Keaoxieli Feed Co. Ltd, China) or commercial certified primate biscuits in the study conducted at UIC TRL (Harlan Teklad Primate Diet 2055C). Fresh drinking water was provided ad libitum.
Radiation sources and irradiation
In studies conducted at Frontier Biosciences, animals received 25 mg/kg pentobarbital sodium in the animal room to achieve mild anesthesia before transportation and an additional 8–10 mg/kg Ketamine injection during transit to the irradiation facility. For irradiation, sedated animals were restrained in plastic irradiation chairs. 5–11 animals were irradiated simultaneously, with balanced inclusion of animals from all study groups in each irradiation cohort. Male and female animals were irradiated separately. Animals were irradiated bilaterally using the cobalt-60 (^60^Co) gamma-ray sources located at Sichuan Atomic Energy Institute. The first source (used in studies Rs-03, Rs-04, Rs-06, and Rs-08) was a vertical bundle of vertically aligned ^60^Co rods. The second source (used in studies Rs-09 and Rs-14) was configured as a vertical rectangular array of vertically aligned ^60^Co rods. Dose rates in different experiments varied from ~0.8 to 1.1 Gy/min (0.94, 0.92, 0.83, 0.73, 1.06 and 1.03 Gy/min for studies Rs-03, Rs-04, Rs-06, Rs-08, Rs-09 and Rs-14, respectively) and animals received a total 6.5–6.75 Gy in-air dose (equivalent to 6.0–6.2 Gy midline dose for ~3–5 kg animals). Individual animal dosimetry was performed using thermoluminescent dosimeter (TLD) sets provided and evaluated by Global Dosimetry Solutions, Inc. Calibration of the radiation field of the source was performed periodically based on the Chinese National Standard [Standard Method for Using the Ferrous Sulfate (Fricke) Dosimeter to Measure Absorbed Dose in Water] GB139-89.
In the Study Rs-22 conducted at UIC TRL, animals were sedated with ketamine (10–20 mg/kg) and placed in plastic restraint boxes for the duration of transport and irradiation. Animals were irradiated using a rotating 6 MV LINAC source (Varian Clinac 2100EX) to a uniform total body in-air dose of 11 Gy, at a dose rate of 0.8±0.025 Gy/min (to achieve a 10.1 Gy midline dose). Dose measurements were made at the center of the cylindrical phantom (diameter = 8–10 cm) containing a PTW 31010 0.1cc Semiflex Ion chamber placed on the both sides of each animal. NanoDot dosimeters were used for measurement of individual surface doses.
In-life procedures
All animals participating in studies with survival as the primary endpoint were observed for 40 days after TBI. During this period, cage-side observations were performed two or three times each day, at least 6 hours apart. Signs of morbidity and moribundity were recorded.
Blood was repeatedly collected from saphenous or cephalic veins for monitoring of complete blood counts (pre-dose, then almost every day on days 1–15, then every 3–4 days) and cytokine and entolimod levels (pre-dose, then at least at 1, 2, 4, 8, 24 hours post-dose). During blood collection, animals were briefly restrained without sedation. Body weights (at least once per week) and body temperature (at least twice per week) were also recorded. Food and fruit consumption was evaluated daily on a semiquantitative scale (good, fair, or poor). Following irradiation, no intensive individualized supportive care was provided other than oral rehydration, topical anti-infective treatment of lesions and general analgesia with fentanyl patches and/or buprenorphine when deemed necessary by the study veterinarian. No ketamine or opiates known to affect the immune system [32–34] were used in the study after entolimod treatment. For nutritional support, animals were provided with water soaked biscuits and extra amount of fruit.
Terminal procedures
Moribund animals were subjected to euthanasia based on pre-specified criteria: severe weight loss (>20% loss of initial weight over a 3-day period); complete anorexia (for >3 days, with signs of deterioration); weakness and inability to obtain food or water (for >24 hours); complete unresponsiveness; low core body temperature (<35.9°C) following a period of febrile neutropenia; severe rapidly developing acute anemia (<40 g/L hemoglobin, < 13% hematocrit, and a drop of ≥7% in hematocrit between consecutive tests); and/or other signs of severe organ system dysfunction with a poor prognosis (as determined by a veterinarian). The euthanasia criteria were based on those generally recommended by veterinarian guidelines for studies involving terminal endpoints [35] with addition of 2 ARS-specific criteria recommended by Armed Forces Radiobiology Research Institute (AFRRI), relating to the rapid onset of acute anemia or drop in core body temperature following a period of febrile neutropenia. Similar criteria for moribund animal euthanasia were also applied by other groups conducting efficacy studies in the NHP model of ARS [27–29, 36, 37]. In studies with survival as the primary endpoint, all animals that survived to day 40 after TBI were subjected to scheduled euthanasia. In studies aimed at evaluation of gastrointestinal (GI) tract morphology, animals were euthanized at 8 hours or 5–7 days after TBI (depending on the study). All animals that were euthanized or found dead were subjected to gross pathology examination, with samples of bone marrow (sternum), spleen, thymus, lymph nodes, and GI tract segments collected for histological examination. In Study Rs-14, bone marrow aspirates were collected from iliac crests for colony forming assays.
Histology
General histological analysis of organ samples was performed by light microscopy of paraffin sections (3–5 μm thick, 1–3 per organ or intestinal segment of each animal) stained with hematoxylin-eosin (H&E). Immunohistochemical detection of SOD2 expression, TUNEL staining and EdU incorporation analyses were performed in deparaffinized sections. The following antibodies were used for immunohistochemical evaluation: goat anti-SOD2 (N-20) pAb (sc-18503, Santa Cruz Biotechnology, Santa Cruz, CA); mouse anti-smooth muscle actin mAb conjugated with Cy3 (C6198, Sigma-Aldrich, St. Louis, MO); rabbit anti-phospho-histone H3 pAb (06–570, Millipore, Billerica, MA); and rabbit anti-neuro-specific tubulin beta III pAb (ab18207, Abcam, Cambridge, UK). The following reagents and kits were used histochemical evaluation: ApopTag Fluorescent In Situ Apoptosis Detection Kit (S7110, Chemicon, Millipore, Billerica, MA) for TUNEL detection, and azide-modified Alexa Fluor 488 (Invitrogen, Life Technologies, Grand Island, NY) for EdU incorporation. Samples were examined using a Zeiss AxioImager A1 microscope equipped an epifluorescent light source; images were captured with an AxioCam MRc digital camera and processed with a Zeiss Axio Imager Z1 microscope (Carl Zeiss, Germany).
The extent of morphologic alterations observed in histological sections was assessed by a blind semi-quantitative evaluation (see S1 Methods).
Bone marrow colony forming assays
Analysis of total CFC numbers (which includes CFU-G, CFU-M, CFU-GM, CFU-GEMM, and BFU-E colonies) as well as separate analyses of BFU-E and CFU-Mk were performed using media and reagents from StemCell Technologies according to the manufacturer’s instructions (MethoCult, Cat. #28404; MegaCult-C Cat. #28413; StemCell Technologies, Vancouver, Canada). The number of colonies per 10^4^ live cells was calculated (after adjustment for hemodilution according to [38]).
Laboratory and analytical assays
Complete blood counts (CBC) analysis was performed using automated blood cell counters (at Frontier Biosciences: Cell-Dyn 3700SL, Abbott, USA; at UIC TRL: Advia 120, Siemens Healthcare, USA). Cytokine levels in plasma (using K2EDTA as an anticoagulant) were determined using Luminex multiplex immunological assays at Armed Forces Radiobiology Research Institute (Bethesda, MD), Baylor Institute for Immunology Research (Dallas, TX), or Millipore Corporation (St. Charles, MO). In study Rs-03, levels of G-CSF, IL-4, IL-6, IL-10, and IFNγ were analyzed using human-targeted Fluorokine MAP assays from R&D Systems (Minneapolis, MN) and levels of IL-2, IL-3, IL-8, IL-12p70, and IP-10 were tested using Upstate (Temecula, CA) human-targeted Beadlyte Multi-Cytokine Flex assays. In studies Rs-09 and Rs-14, levels of G-CSF, IL-6, IL-8, and IFNγ were analyzed using Non-Human Primate Cytokine/Chemokine Milliplex Panel from Millipore, Inc. (Billerica, MA) and IL-10 was analyzed using human-targeted Fluorokine MAP Luminex assay from R&D Systems (Minneapolis, MN).
Entolimod levels in serum or plasma were determined at CBLI using a sandwich ELISA method employing proprietary entolimod-specific polyclonal antibodies.
Data analysis
Statistical analysis
Numbers of surviving animals (at 40 days after irradiation) were compared pair-wise using Fisher’s exact test. Kinetics of mortality was compared between groups by Log rank test. For analysis of the effect of entolimod treatment on survival, the natural logarithm of odds ratio of survival (odds of survival in the treated group divided by that in the control group) was chosen as the metric. The odds associated with a probability p were defined as p / (1 –p). For a group of size n with 100% survival, odds were defined as (n − 0.5) / n; for groups with 0% survival odds were defined as 0.5 / n. Quantitative data were evaluated using Student’s t-test. All tests were two-sided. P-values <0.05 were considered statistically significant. Error bars in graphs represent standard errors (unless specified otherwise). GraphPad Prism 5.0 and Microsoft Excel 2007–2010 were used for most statistical analyses.
Calculation of days with Grade 4 cytopenia/anemia
Definition of a study day as cytopenic/anemic was based on actual values when available, or on imputed values for days when samples were not collected. Imputation was performed by linear interpolation over time between actual measurements, or by using the last observation carried forward between the day of last available measured value and the day of death. Percentage of live days with Grade 4 cytopenia/anemia was calculated as number of days with cytopenia/anemia divided by number of days the animal was alive during the 40-day observation period.
Area under the curve (AUC) values for cytokine and entolimod levels were calculated using the trapezoid rule
To eliminate the influence of differences in basal cytokine levels, AUC values were background-adjusted by subtracting the minimum observed factor concentration from all other concentrations before calculation.
Results
Treatment of NHPs with entolimod within 48 hours after lethal TBI significantly reduces the risk of death from ARS
To investigate the potency of entolimod in increasing survival of NHPs when administered after lethal TBI, a series of non-GLP studies in rhesus macaques were performed using a TBI dose range of LD_50/40—LD_75/40 (50–75% lethal over 40 days). This TBI dose range was chosen as being an approximate upper threshold at which exposed individuals would be at substantial risk of death, but might still be salvageable by medical therapy. This report presents the results generated within four survival experiments, designated Rs-03, Rs-06, Rs-09 and Rs-14, involving a total of 164 animals. The study groups for all 4 experiments are shown in Table 1. In all of these studies, the effects of intramuscular (i.m.) injection of entolimod were monitored for 40 days after irradiation. In addition to monitoring animal morbidity and mortality, multiple physiological parameters, blood cell counts, levels of elicited cytokines in peripheral blood (pharmacodynamics) and entolimod pharmacokinetics (PK) were evaluated. To prevent suffering, moribund animals were euthanized according to a predefined set of criteria (uniformly used in NHP studies described here, see Materials and Methods). No supportive care was provided other than oral rehydration (drinking water given ad libitum) and non-systemic treatment of external lesions. Study groups were composed of approximately equal numbers of male and female animals. Following irradiation, animals generally developed a clinical picture of ARS with typical prodromal and manifest illness features [31, 39].
Table 1: Efficacy of a single injection of entolimod in increasing 40-day survival of lethally irradiated NHPs when administered at different dose levels within 1–48 hours after TBI.
First, in studies Rs-03 and Rs-06, we examined the effective timeframe for radiomitigative efficacy of 40 μg/kg entolimod, a dose previously established as radioprotective in NHPs [18]. Animals (n = 8–12 per group) were irradiated with 6.5 Gy TBI and treated with entolimod at 1, 16, 25, or 48 hours after irradiation. Forty-day survival in vehicle-treated groups was 20% and 25% in studies Rs-03 and Rs-06, respectively, whereas survival in all entolimod-treated groups was 67–75%. Thus, NHP survival was improved by an absolute 42–50% with survival odds ratios ranging from 6 to 9.3 regardless of entolimod administration time within the first 48 hours after TBI (Fig 1A and 1B; and Table 1).

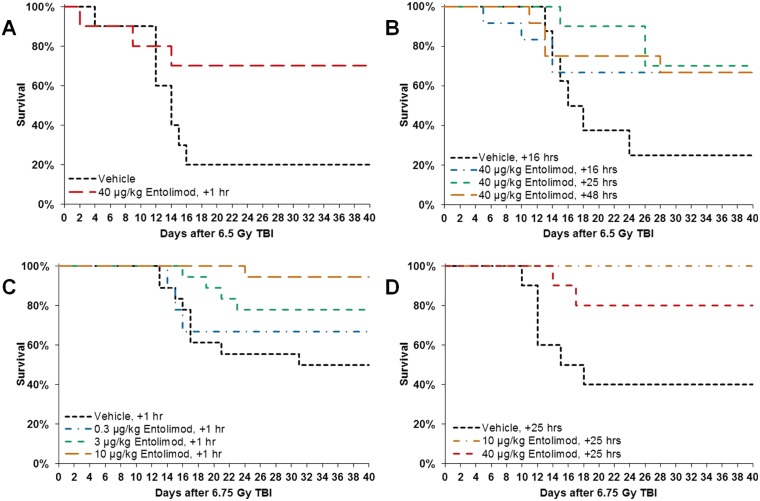

Improved survival of non-human primates (NHPs) injected with entolimod 1–48 hours after lethal irradiation.Kaplan-Meier plots of non-human primate (NHP) survival over the 40 days following exposure to LD50/40 –LD75/40 doses of total body irradiation (TBI) are shown. Time frame of entolimod efficacy (panels A, B) was evaluated in studies Rs-03 (treatment at 1 h after LD75/40 TBI; N = 10) and Rs-06 (treatment at 16, 25, or 48 h after LD75/40 TBI; N = 8–12). Dose-dependence of entolimod efficacy (panels C, D) was tested in studies Rs-09 (treatment at 1 h after LD50/40 TBI; N = 18) and Rs-14 (treatment at 25 h after LD50/40 TBI; N = 10).
The two subsequent studies, Rs-09 and Rs-14, explored dose-dependence of the survival effect of entolimod in NHPs at the boundaries of the 25-hour post-TBI period with the drug injected at either 1 or 25 hours after TBI, respectively. Animals (n = 10–18 per group) were irradiated with 6.75 Gy TBI (from a different radiation source compared to the two first studies) and received vehicle or entolimod injections at 0.3, 3 or 10 μg/kg (Rs-09) or 10 or 40 μg/kg (Rs-14) dose levels. Forty-day survival in vehicle-treated groups was 50% (Rs-09) or 40% (Rs-14), while entolimod doses of 10–40 μg/kg were fully efficacious in rescuing 80–100% of irradiated NHPs. These data correspond to increases in survival of 40–60% with survival odds ratios ranging between 6 and 28.5. Entolimod treatment at 3 μg/kg provided partial efficacy (28% survival increase) and the lowest tested dose of 0.3 μg/kg showed little or no efficacy (17% survival increase) (Fig 1C and 1D; and Table 1).
The survival advantage of 40–60% provided by efficacious entolimod doses was uniformly observed across all four of the studies reported here, although statistical significance was not reached in some individual groups (probably due to their small size). Similarity of study design elements, treatment regimens, and animal populations allowed meta-analysis in which similarly treated groups were pooled. Pooling of vehicle-treated groups from all 4 studies (n = 46) resulted in 37% 40-day survival, while pooling of all groups treated with fully efficacious 10 and 40 μg/kg entolimod doses at 25 hours after TBI (n = 30) indicated 83% 40-day survival. This 46% increase in 40-day survival was highly statistically significant (P = 0.0001 by Fisher’s exact test) with a survival odds ratio of 8.5 (Table 1).
The kinetics of mortality was similar in all 4 studies, with the majority of deaths occurring on days 12–16 after TBI and no deaths occurring after day 30. Mean survival time ranged from 18.7±3.7 to 29.4±2.7 days in vehicle-treated groups (24.9±1.8 days with all vehicle-treated groups pooled), while after ≥10 μg/kg entolimod treatment, mean survival time substantially increased to a range of 30.6±4.1 to 40.0±0.0 days (36.8±1.4 days in pooled group analysis; P = 0.0001 by Log-rank test for difference in survival kinetics) (Fig 1 and Table 1).
Entolimod treatment accelerates recovery of hematopoiesis in lethally irradiated NHPs
Radiation damage to the HP system is one of the major causes of lethality at ~LD_50_-LD_70_ doses of TBI. Therefore, to investigate the mechanisms underlying entolimod’s radiomitigative efficacy, the content of different hematopoietic cell types was examined in peripheral blood and bone marrow samples collected in the four NHP studies described above.
Comparison of hematology data from control lethally irradiated NHPs and those treated with a single injection of entolimod revealed that across all four studies, the efficacious drug doses of ≥10 μg/kg reduced the duration and severity of thrombocytopenia, neutropenia, and anemia when given at any tested time point within 1–48 hours post-TBI (Fig 2A–2D and Fig 2G–2H, S1A–S1D Fig and S1G–S1H Fig; Table 2; and S1, S2, S3, and S4 Tables). In the context of ARS, anemia should be interpreted as a result of hemorrhage exacerbated by radiation-imposed suppression of compensating erythropoiesis (Fig 2E and 2F; S1E and S1F Fig) since mature erythrocytes are radioresistant [40] and their life span in the circulation of NHPs is 60 days [41].

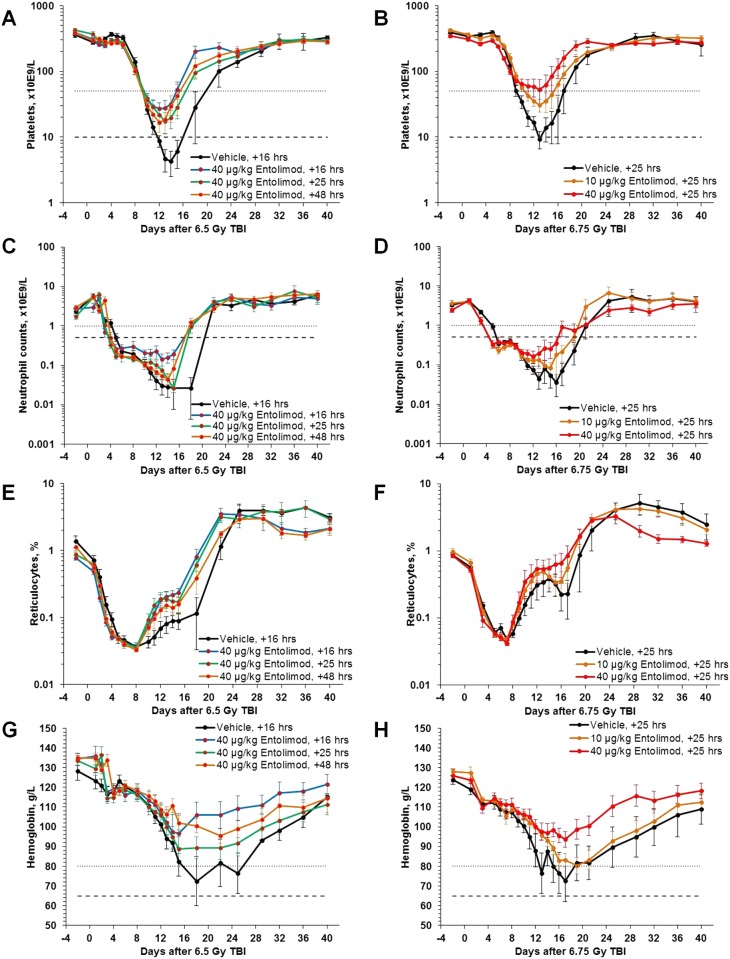

Accelerated hematological recovery of peripheral blood in NHPs injected with entolimod 16–48 hours post-irradiation.NHPs were treated with a single injection of entolimod at 16–48 hours after LD50/40 or LD75/40 TBI. A, C, E, G: Effect of 40 μg/kg entolimod administered at different time points (16, 25 or 48 hours) after 6.5 Gy TBI (LD75/40; study Rs-06; N = 8–12). B, D, F, H: Effect of different entolimod doses (10 or 40 μg/kg) administered at 25 hours after 6.75 Gy TBI (LD75/40; study Rs-14; N = 10). Cytopenia/anemia thresholds: dotted lines—Grade 3 (platelets <50,000/μL; neutrophils <1,000/μL; hemoglobin <80 g/L); dashed lines—Grade 4 (platelets <10,000/μL; neutrophils <500/μL; hemoglobin <65 g/L). Error bars represent standard errors.
Table 2: Mean nadir values of neutrophils, platelets and hemoglobin in peripheral blood following total body irradiation and vehicle or entolimod treatment.
Although small group sizes reduced the statistical significance of the effects in some individual cases, the positive trends indicating entolimod-mediated amelioration of HP ARS were clearly observed in all reported studies (Table 2; and S1, S2, S3, and S4 Tables). In pooled group analysis (analogous to that described for survival), entolimod effects were highly statistically significant. Thus, nadir neutrophil counts were increased by entolimod treatment from 0.01±0.003 x10^3^/μl to 0.04±0.011 x10^3^/μl (P = 0.006), nadir platelet counts—from 11.9±6.1 x10^3^/μl to 25.9±5.1 x10^3^/μl (P = 0.08), and nadir hemoglobin levels—from 64.6±2.9 x10^3^/μl to 83.5±2.7 x10^3^/μl (P<0.0001) (Table 2). At the same time, the proportion of live days (when a particular animal was alive and had cytopenia) with Grade 4 neutropenia (neutrophil counts <500/μl) was decreased by entolimod treatment from 55%±3% in vehicle-treated groups to 41%±3% (P = 0.001, S1 Table), with Grade 4 thrombocytopenia (platelet counts <10,000/μl)–from 17%±2% to 5%±2% (P<0.0001, S3 Table), and with Grade 4 anemia (hemoglobin level <65 g/L)–from 10%±2% to 3%±2% (P = 0.003, S4 Table). While entolimod treatment did not change the incidence of Grade 4 neutropenia (proportion of animals that developed this condition at least once during 40 days of observation), it reduced the incidence of Grade 4 thrombocytopenia from 78% in vehicle-treated groups to 43% (pooled group analysis, P = 0.003, S3 Table), and of Grade 4 anemia—from 50% in control groups to 17% (pooled group analysis, P = 0.004, S4 Table). In addition to decreased severity and duration of thrombocytopenia, accelerated recovery of erythropoiesis in entolimod-treated NHPs (Fig 2E and 2F; S1E and S1F Fig) also contributed to markedly decreased incidence of ARS-associated Grade 4 anemia. Unlike the survival endpoint, where saturation of entolimod’s effect was achieved at dose of 10 μg/kg (Fig 1C and 1D), the effect of entolimod on hematological parameters continued to improve between 10 and 40 μg/kg doses (Fig 2B, 2D, 2F and 2H). This is consistent with the notion that achieving certain threshold levels (for example, above Grade 4 cytopenias/anemia) is sufficient to support survival.
Consistent with the finding of accelerated recovery of blood cellularity after hematopoietic nadirs in entolimod-treated irradiated NHPs, the bone marrow (BM) of treated animals displayed accelerated morphological recovery. Analysis of hematoxylin-eosin-stained sternum sections collected from surviving NHPs at 40 days post-TBI showed that BM from animals given a single injection of 40 μg/kg entolimod within 48 hours after TBI was considerably better regenerated compared to control monkeys. The hematopoietic cells were not only numerous, but also densely arranged in clusters among the sinusoids and the inconspicuous fat component. The elements of the three hematopoietic lineages (granulocytic, erythroid, and megakaryocytic) were spread out and in close contact with each other. In some animals, BM morphology was normal or close to normal, although others still had slightly or moderately hypoplastic BM. In contrast, BM of control NHPs was clearly less cellular and contained more adipose elements. Accelerated morphological recovery in entolimod-treated NHPs was also observed in lymphoid organs, including thymus, spleen and lymph nodes (Fig 3). These differences were statistically significant when blindly assigned semi-quantitative histological scores were compared (Table 3). Similar effects were induced by a single injection of 10 μg/kg entolimod administered at 25 hours after TBI (S2 Fig; and S5 Table).
Enhanced morphological recovery of hematopoietic and lymphoid organs in NHPs treated with entolimod post-irradiation.NHPs were treated with a single injection of 40 μg/kg entolimod 16, 25 or 48 hours after LD75/40 total body irradiation (TBI). Tissue morphology was assessed 40 days post-irradiation and compared to that in control NHPs treated with vehicle 16 hours after LD75/40 TBI. Representative histological images (hematoxylin-eosin staining) of sternum bone marrow sections, thymuses, spleens and mesenteric lymph nodes of animals that survived to study termination on Day 40 post-TBI (study Rs-06) are shown. Scale bars: 100 μm for bone marrow, 200 μm for thymus, spleen, and lymph node.
Table 3: Histological evaluation of hematopoietic/lymphoid organs from NHPs that survived to day 40 after 6.5 Gy TBI and vehicle or entolimod treatment (study Rs-06)
To investigate the kinetics of entolimod-elicited BM recovery in more detail, a dedicated study was performed in which mice were injected with vehicle or entolimod 25 hours after 9 Gy TBI (~LD_50/30_) and then euthanized for histological and other evaluations at different time points. As shown in S3A Fig, the first histological signs of active hematopoiesis were evident in the BM of entolimod-treated mice as early as 3 days after TBI (2 days after drug treatment), with full-scale hematopoiesis observed by day 14. In comparison, the onset of hematopoietic recovery in vehicle-treated mice occurred between post-irradiation days 14 and 28, and full-scale hematopoiesis was further shifted to a time interval between days 28 and 56. Interestingly, the first signs of hematopoiesis in the BM of entolimod-treated mice were localized to the trabecular cell lining, suggesting stimulation of the HP stem cell compartment by entolimod [42]. Indeed, as early as 7 days after TBI, very early granulomonocytic progenitors (CFU-GM colonies) from entolimod-treated mice were elevated in number and displayed increased proliferative potential compared to those from vehicle-treated mice (S3B Fig).
Analysis of BM aspirates obtained from NHPs on day 40 after exposure to 6.75 Gy TBI and treated with either vehicle (n = 4) or 40 μg/kg entolimod (n = 4) 25 hours later revealed a clear positive influence of the drug on the content of hematopoietic progenitor cells, including total colony forming cells (CFC), erythroid burst forming units (BFU-E), and megakaryocyte colony forming units (CFU-Mk) (granulocyte lineage progenitors were not separately analyzed). The most substantial entolimod-elicited effect was on CFU-Mk, for which the frequency per 10^4^ viable BM cells was increased ~4.8-fold from 0.34 ±0.11 in vehicle-treated animals to 1.63 ±0.05 (P<0.05). The frequencies of CFC and BFU-E in entolimod-treated animals were increased by 22% and 36%, respectively, compared to vehicle-treated controls. The observed dominance of entolimod’s effect on CFU-Mk compared to progenitors of other lineages at this late time point (40 days after TBI) may be due to differences in the kinetics of recovery of different HP lineages, with the thrombopoietic lineage being known for its slow restoration following BM ablation and transplantation compared to other lineages [43].
Taken together, these data demonstrate that entolimod is a potent mitigator of radiation injury in the HP system, and acts via stimulation of accelerated hematopoietic recovery.
Entolimod treatment reduces initial damage in the GI tract and accelerates its regeneration in lethally irradiated NHPs
Acute high-dose irradiation sufficient to induce GI ARS results in high degrees of apoptosis in the GI tract mucosa and submucosal elements (lamina propria, mucosa muscularis, lymphoid accumulations), leading to atrophy, increased permeability, susceptibility to hemorrhage (especially on the background of thrombocytopenia) and/or intussusceptions. Histological analyses were used to evaluate the effects of entolimod treatment on these signs of radiation damage to the NHP GI tract.
Assessment of NHP GI histology at 40 days after LD_50-75/40_ TBI doses did not reveal substantial differences between surviving entolimod- or vehicle-treated irradiated animals (S6 Table), most likely due to near-completion of regeneration by this late post-TBI time point regardless of treatment. Nevertheless, mean histological scores were generally higher in entolimod-treated groups compared to vehicle-treated control groups (S6 Table). This radiomitigative/pro-regeneration effect of entolimod was most apparent in the radiosensitive small intestine [44] and was observed in all histological substructures of the GI tract (villi and/or surface epithelium; crypts; and lamina propria with submucosa). The level of radiomitigation was moderate in the cecum and minimal to nonexistent in the colon and rectum, where radiation injury was not prominent (as observed in histological analysis of samples from animals that died during the course of the study).
To assess the effect of entolimod on the GI component of ARS during the peak of GI damage, three additional dedicated NHP studies were designed (S7 Table). In these studies, irradiated animals (a total of 48 NHPs, equal numbers of males and females) were euthanized at different time points between 8 hours and 7 days after TBI, when signs of immediate and early radiation-induced GI damage are typically observed along with indications of the initiation of recovery processes [18, 45–48]. The animals received TBI doses sufficient to induce moderate to severe GI injury (6.5–11 Gy, expected to cause 70–100% mortality) and entolimod doses ranging between 0.3 and 40 μg/kg at 1 to 25 hours after TBI. Some animals received EdU injections prior to euthanasia to allow evaluation of crypt proliferation by visualization of EdU incorporation on histological sections.
At 8 hours after 6.5 Gy TBI, the number of apoptotic cells counted in ~200 small intestine crypts was ~4.2-fold lower in animals treated with entolimod 1 hour after TBI (~1.16 TUNEL-positive cells/crypt) compared to vehicle-treated animals (~4.74 TUNEL-positive cells/crypt) (Fig 4A). There were only a few apoptotic cells in the crypts of the large intestine and rectum (~0.3 cells/crypt) regardless of treatment. Administration of entolimod also resulted in more robust expression of the NF-κB-regulated [23] anti-oxidant enzyme SOD2 in small intestine villi, crypts and lamina propria (Fig 4B). Entolimod-treated (1 hour after TBI) NHPs showed improved morphology in all analyzed GI segments at 5 days after exposure to 6.5 Gy TBI compared to vehicle-treated controls (S4 Fig). In addition to showing improved preservation/recovery of intestinal villi, crypts, and lymphoid accumulations in the lamina propria, entolimod-treated animals demonstrated better preservation of elements of the intestinal nervous system and muscularis mucosa (S5 Fig). The mitigative effect of entolimod on radiation-induced injury to the GI tract was inversely proportional to the time interval between irradiation and drug administration, but was still clearly observed even when the drug was given 25 hours after TBI (S4 Fig). At 7 days after 11 Gy TBI, irradiated and entolimod-treated (40 μg/kg, at 4 hours after TBI) NHPs, unlike vehicle-treated animals, demonstrated massive crypt regeneration as indicated by robust EdU incorporation (Fig 4C) and tissue morphology (microcolony growth visible by light microscopy, Fig 4D). Parallel semiquantitative blind histological assessment of radiation injury in different tissue elements throughout the small and large intestines showed statistically significant differences, indicating a beneficial effect of entolimod treatment (Table 4 and S8 Table).
Entolimod treatment ameliorates radiation damage in the gastrointestinal (GI) tract. A, B. Small intestine sections from NHPs 8 hours after exposure to 6.5 Gy TBI and treatment with vehicle or 40 μg/kg entolimod 1 h later (study Rs-04). Blue—DAPI nuclear staining, red—smooth muscle actin immunostaining. A. TUNEL staining showing fewer apoptotic cells (green) in GI crypts of entolimod-treated NHPs (scale bar 100 μm); B. SOD2 immunostaining (green) showing more positive cells in GI villi (arrowheads) and lamina propria (arrows) of entolimod-treated NHPs (scale bar 50 μm). C, D. Small intestine sections of NHPs 7 days after exposure to 11 Gy TBI and treatment with vehicle or 40 μg/kg entolimod 4 h later (study Rs-22). C. Visualization of proliferating cells in the jejunum crypts: EdU (10 mg/kg i.v. 1 h before euthanasia) inclusion in replicating DNA (green) and phosphohistone 3 immunostaining of mitotic cells (red) showing more intensive proliferation of GI crypts in entolimod-treated NHPs (scale bar– 200 μm). D. H&E staining of ileum sections: upper panels—low magnification (scale bar– 200 μm), lower panels—high magnification (scale bar– 50 μm).
Table 4: Histological evaluation of GI tract segments on day 7 after 11 Gy TBI and vehicle or 40 μg/kg entolimod treatment at +4 hours (study Rs-22, N = 4/group).
Overall, our data demonstrate that entolimod effectively mitigates radiation injury to the GI system, likely acting via reduction of apoptosis and stimulation of regeneration.
Pharmacokinetics and pharmacodynamic effects of entolimod in lethally irradiated NHPs
In the NHP studies reported here, plasma levels of numerous cytokines were measured at multiple time points following entolimod treatment. G-CSF and IL-6, previously established as potential entolimod efficacy biomarkers [49], displayed the most substantial and consistent dose-dependent responses to the drug when administered after LD_50-75/40_ TBI doses, with levels peaking on average at 2–4 hours after drug administration (Fig 5). These results are similar to observations made in non-irradiated NHPs and NHPs irradiated with LD_20-30/40_ TBI doses [49]. Both of these cytokines were induced somewhat by radiation alone (Fig 5A and 5B); therefore, treatment with entolimod close to TBI (e.g., at 1 hour after TBI) resulted in a combined effect of both treatments on the magnitude of cytokine increase. When entolimod was administered at 25 hours after TBI (after dissipation of radiation-induced G-CSF and IL-6 responses in vehicle-treated animals), entolimod-elicited cytokine profiles were more similar to those seen in non-irradiated animals (Fig 5C–5F and [49]).

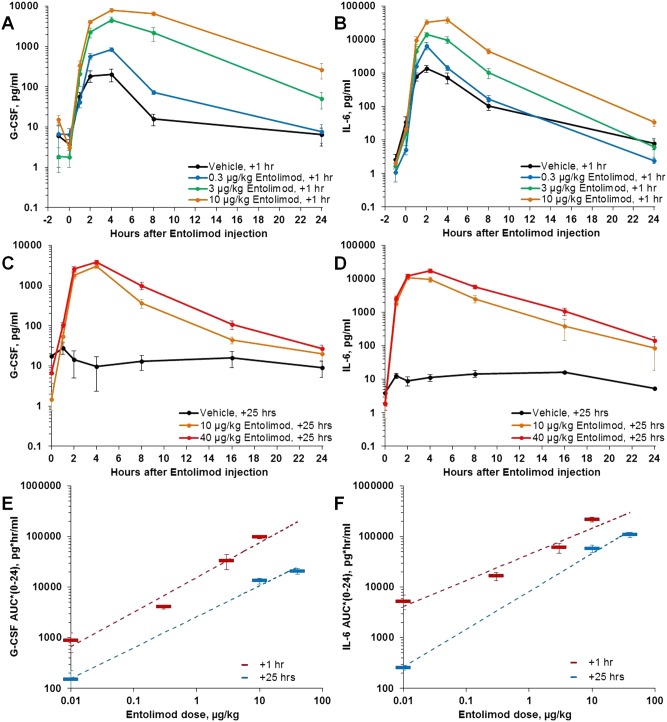

Effect of entolimod treatment on G-CSF and IL-6 levels in peripheral blood of irradiated NHPs. A, B: Effect of different entolimod doses administered 1 h after LD50/40 TBI (6.75 Gy; study Rs-09; N = 18). C, D: Effect of different entolimod doses administered 25 h after LD50/40 TBI (6.75 Gy; study Rs-14; N = 10). E, F: Comparison of dose-dependence of background-adjusted Area Under the Curve (AUC0-24) values for G-CSF and IL-6 after entolimod treatment given 1 h versus 25 h after LD50/40 TBI (with dashed log-linear regression lines). Error bars represent standard errors.
Among other cytokines previously shown to be substantially influenced by entolimod in non-irradiated or sublethally irradiated (LD_20-30/40_ TBI) NHPs [49], IL-8, with neutrophil-mobilizing activity [50], and IL-10, with anti-inflammatory activity [51, 52], are also worth mentioning (S6 Fig). Both factors were found to be strongly responsive to entolimod and, to some extent, also to TBI. However, the magnitude of their elevation by entolimod and its dependence on drug dose were less consistent among different studies compared to G-CSF or IL-6. Neither radiation nor entolimod elicited any apparent response in pro-inflammatory cytokines such as IL-2, IP-10, IL-12p70, IL-4, IFNγ, or IL-3.
The pharmacokinetics of entolimod was similar in irradiated and non-irradiated NHPs, with C_max_ and AUC_0-24_ values being very close at identical drug doses. In both irradiated and non-irradiated NHPs, measured concentrations and exposures of entolimod in the blood displayed clear dose dependence (S7 Fig).
Necropsy findings
Gross pathology findings at necropsy of animals that succumbed to ARS before Day 40 were generally consistent with those expected from ARS pathogenesis and consisted of hemorrhages (of varying extents and degrees of severity, mainly observed in the skin, GI tract, lungs and pericardium), septic complications (mainly in the lungs, pericardium, and skin), and generalized sepsis with multiple organ involvement. Among frequent findings, there were intussusceptions in the small and large intestines, adhesions in the abdominal and thoracic cavities, and signs of lung edema. There were no marked differences in gross pathology findings between entolimod- and vehicle-treated animals. This observation is not unexpected since entolimod treatment did not succeed in mitigating radiation damage in the animals that were necropsied during the course of the study, as evidenced by their mortality. At the same time, NHPs in which entolimod was actually effective (leading to their survival until study termination on Day 40 post-TBI—40–60% of animals at doses ≥ 10 μg/kg) could not be assessed for gross pathology status at the time of early recovery from ARS injury.
Gross pathology findings in animals that survived to the end of the study and were euthanized on Day 40–41 post-TBI were minimal regardless of treatment group, indicating that post-ARS recovery was generally complete by that time point. This observation was consistent with the lack of mortality from ARS after day 30 in all study groups. Certain differences indicating efficacy of entolimod, particularly in hematopoietic and lymphoid organs, were noticed at histological examination and are described in relevant sections above.
Discussion
Development of an effective MRC is a cornerstone of the 2009 US Institute of Medicine report assessing medical preparedness to respond to a terrorist nuclear event and the 2009 US Homeland Security Council Planning Guidance to a Nuclear Detonation. A specific hypothetical scenario developed by Los Alamos Laboratories [53] for a 10KT ground explosion in Washington, DC estimates that ~130,000 individuals will receive between 1.25 and 8.3 Gy of irradiation. The chances of survival from lethal ARS for this group of victims could be increased if a relevant MRC were available. MRCs suitable for use in a mass-casualty scenario of this scale would ideally: (1) be effective even when administered late after TBI, as a single agent, and without the need for individualized intensive supportive care available only in hospitals; (2) be easily administered by untrained personnel; and (3) ameliorate both HP and GI damage (due to the interdependence of these two sub-syndromes).
The results described here and in previous publications [18, 49, 54–57] demonstrate that entolimod possesses all of the aforementioned desirable properties for an MRC. In fact, when given to NHPs as a single agent (without additional intensive supportive care) via a simple i.m. injection up to 48 hours after TBI, entolimod had a strong and consistent radiomitigative effect in four independent experiments involving 164 NHPs. Overall, entolimod treatment reduced the risk of NHP death 2-3-fold at TBI doses of LD_50-75/40_, providing an absolute survival advantage of 40–60% over vehicle treatment. In two additional studies with a total of 82 NHPs exposed to LD_20/40_-LD_30/40_ TBI doses, single injection of entolimod within at least 48 hours after TBI increased survival by 20–31%: from 69–80% in vehicle-treated control groups to 100% in entolimod-treated groups (V.I.K and E.F., unpublished data). Although the magnitude of achievable survival improvement in these latter two studies was limited by low lethality of the TBI doses used, the survival odds ratios were ≥4.75. The NHP studies reported here clearly show that entolimod treatment in the context of lethal TBI leads to reduced damage and accelerated recovery in both the radiosensitive HP and GI systems.
Entolimod is a recombinant protein derived from the FliC flagellin of Salmonella, a natural ligand of TLR5 [58–60]. Expression of TLR5 on cells of both the HP and GI systems [61–63] was among the factors that initially prompted testing of its natural and engineered agonists as potential MRCs. Entolimod binds and stimulates TLR5 with the same specific activity as flagellin [18] and, hence, all known TLR5-mediated biological activities of flagellin can be theoretically also attributed to entolimod. The anti-ARS effects of both entolimod and FliC flagellin are entirely TLR5-dependent [49, 64]. Binding of entolimod to TLR5 results in stimulation of a number of downstream pathways, including those regulated by the key TLR5-activated transcription factor, NF-κB. Ultimately, as shown in the model in Fig 6, this engages multiple mechanisms of action against the multi-faceted toxic effects of ionizing radiation.

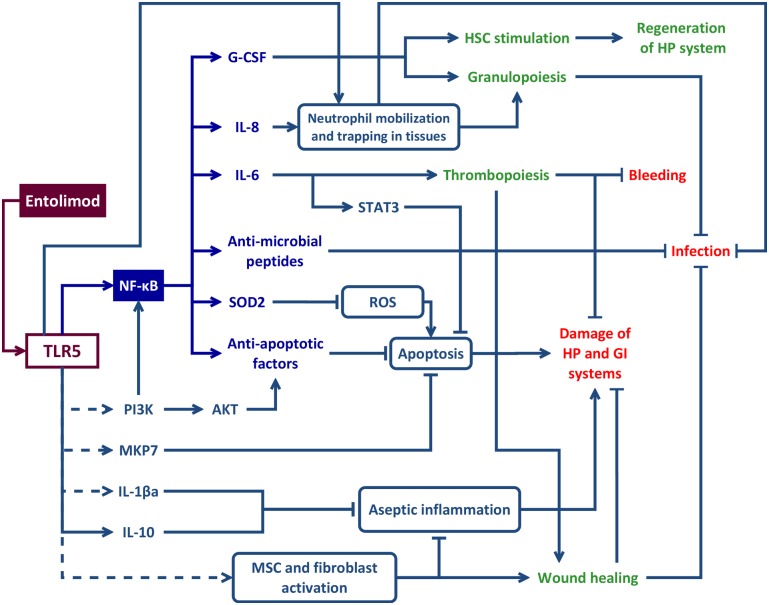

Schematic presentation of mechanism(s) underlying anti-acute radiation syndrome (ARS) effects of entolimod.Entolimod binding to Toll-like receptor 5 (TLR5) initiates a cascade of events, all merging at attenuation of major pathological processes—leading causes of death in ARS: damage to hematopoietic (HP) and gastrointestinal (GI) systems resulting in bleeding and sepsis. The immediate TLR5-dependent effectors include anti-oxidants (e.g., SOD2), anti-apoptotic factors (both NF-κB-dependent (i.e., IAP and Bcl family members [67–70]), and NF-κB-independent (i.e., PI3K/AKT, MKP7 and STAT3 [54, 71–73]), hematopoietic cytokines (e.g., G-CSF and IL-6 [49]), anti-infective factors [54, 90–95] and processes (e.g., neutrophil mobilization). In addition, stimulation of TLR5 is expected to inhibit radiation-induced aseptic inflammation involved in secondary tissue damage [64] e.g. via induction of an anti-inflammatory cytokine IL-10, IL-1β antagonist (IL-1βa) [76] and stimulation of mesenchymal stem cells (MSC) known to express TLR5 [77, 78] and to have anti-inflammatory properties [79]. Together with fibroblasts that can be induced to proliferate via TLR5 stimulation [104], MSC may also contribute to wound-healing processes [79]. Dashed lines show all molecular connections downstream of TLR5 that are not directly established for entolimod, but are extrapolated from published data on TLR5-dependent effects of flagellin.
One of these mechanisms appears to be neutralization of radiation-triggered reactive oxygen species (ROS) by the enzyme superoxide dismutase (SOD2) [65], which is strongly induced by entolimod in both mouse [18] and NHP (this manuscript) models of ARS. Another mechanism that is a likely contributor to entolimod’s radioprotective and radiomitigative effects is inhibition of radiation-induced apoptosis, which is well-recognized as a major cause of the tissue damage and cytopenias observed in ARS [66]. Anti-apoptotic effects of entolimod are likely mediated via induction of NF-κB and its downstream anti-apoptotic effectors, such as members of the IAP [67] and Bcl-2 [68–70] protein families. Additional anti-apoptotic mechanisms of entolimod may include direct activation of the PI3K pathway [71, 72] and of a specific anti-apoptotic phosphatase, MKP7, recently identified as an inhibitor of radiation-dependent GI cell apoptosis [73], both triggered by flagellin stimulation of TLR5. In agreement with these published data, entolimod was shown to reduce radiation-induced apoptosis of cells in GI tissues both in mice [18] and NHPs (this manuscript). It may also attenuate apoptosis of other types of cells relevant to development of ARS. For example, inhibition of neutrophil apoptosis by flagellin treatment has been reported [74, 75]. In addition, stimulation of TLR5 is expected to inhibit radiation-induced aseptic inflammation involved in secondary apoptotic tissue damage [64] e.g. via induction of an anti-inflammatory cytokine IL-10, IL-1β antagonist (IL-1βa) [76] and stimulation of mesenchymal stem cells (MSC) known to express TLR5 [77, 78] and to have anti-inflammatory properties [79].
Restoration of the integrity and functionality of damaged organs following irradiation depends on the availability of sufficient numbers of undamaged tissue stem cells. The ability to protect and stimulate stem cells is expected to be an important property of any effective radiomitigator. In fact, our studies demonstrated protective and stimulatory effects of entolimod on stem cells in both HP and GI tissues as documented in irradiated or chemotherapy-treated mice [18, 57] and irradiated NHPs (this manuscript). Entolimod-treated irradiated NHPs displayed increased clonogenic potential of the BM and improved survival of intestinal-crypt stem cells as indicated by robust and accelerated crypt proliferation. The beneficial effects of entolimod on HP and GI stem cells are translated into facilitation of morphological recovery of the corresponding tissues [18, 56, 57]. The mechanism(s) underlying entolimod’s stimulatory effects on stem cells are likely mediated by induced cytokines, some of which are known to possess this activity [80–85]. Among the cytokines elevated in response to entolimod, two hematopoietic cytokines, G-CSF and IL-6, consistently showed the strongest induction. The importance of these cytokines for the radiomitigative activity of entolimod was proven experimentally in vivo using neutralizing antibodies [49] and is fully consistent with their previously defined biological activities as stimulators of granulo- and thrombopoiesis, respectively [86–88]. Consequently, both the severity and duration of radiation-induced thrombocytopenia and neutropenia were significantly reduced in entolimod-treated NHPs. Entolimod’s promotion of red blood cell lineage recovery (reticulocytes) with kinetics and magnitude similar to its effects on thrombocytopenia may be suggestive of stimulation of megakaryocyte/erythrocyte-restricted progenitors (MEPs), which in mouse experiments were shown to be sufficient to confer radioprotection [89]. The combined effects of entolimod on reducing the severity and duration of thrombocytopenia, and accelerating recovery of the erythroid lineage result in markedly diminished incidence of life-threatening Grade 4 hemorrhagic anemia, one of the hallmarks of HP ARS.
Loss of tissue integrity due to TBI leads to development of wounds and septic complications, which are especially dangerous on the background of impaired tissue repair and immunosuppression. Anti-infective properties reported for flagellin (and likely also relevant for entolimod due to its similar mechanism of action) are consistent with its general role as a trigger of TLR5-mediated innate immune response to bacterial infection. Indeed, flagellin was shown to induce secretion of antimicrobial factors, such as IL-17, S100A8/S100A9, hepcidin and other small peptides with antimicrobial activity, to support anti-infective defenses and tissue repair in the lungs, gut, skin and cornea [54, 90–95]. Direct anti-bacterial activity of flagellin (or a flagellin variant with a structure similar to that of entolimod) has been demonstrated in animal infection models [64, 93, 96]. This activity was likely associated with the ability of flagellin/entolimod to elicit early neutrophil mobilization (observed even in irradiated NHPs within 24 hours following entolimod treatment—see Fig 2C and 2D; S1C and S1D Fig) followed by neutrophil infiltration into tissues where they play an important role in local antibacterial responses [93]. Mobilization and tissue deposition of neutrophils (especially in the lung and the liver) can be explained by both entolimod-dependent induction of IL-8 [50] and by entolimod’s direct action on TLR5 expressed on the surface of neutrophils [97, 98]. TLR5 activation also enhances the phagocytic capacity and the respiratory burst activity of airway neutrophils, which likely contributes to their antibacterial potency [99]. At later times in the course of ARS, entolimod-induced accelerated recovery from radiation cytopenias would also be expected to contribute to antibacterial immunity (via restored granulocyte/macrophage function) and wound healing (via restored blood clotting and tissue trophic function of platelets) [100–103]. Another mechanism through which entolimod may promote wound healing is direct stimulation of fibroblasts and MSC [79, 104].
Many of the aforementioned factors and mechanisms involved in the anti-ARS activity of entolimod have been previously demonstrated to possess certain radiomitigative activities on their own. For example, AEOL 10150, a small molecule mimetic of antioxidant SOD, was shown to reduce local radiation-induced lung injury and increase survival of lethally-irradiated mice (although multiple administrations were required) [105, 106]. G-CSF-based Neupogen is in clinical use for treatment of chemotherapy-induced neutropenia. Moreover, G-CSF was recently shown to significantly improve survival of lethally irradiated NHPs if injected daily beginning 24 hours after TBI [36]. However, this effect was only achievable on the background of intensive supportive care [28] and was lost if drug administration was initiated 48 hours after TBI [37]. IL-6 is known to accelerate on its own and to potentiate G-CSF-mediated multi-lineage HP recovery following irradiation [107, 108]. Recombinant human IL-6 significantly improved recovery from chemotherapy-induced thrombocytopenia in clinical trials [109]. However, in a NHP model of sublethal (4.5 Gy) radiation-induced bone marrow aplasia, only a regimen of multiple daily IL-6 administrations starting from 24 hours after TBI and continuing for 23 consecutive days was able to boost platelet count restoration (with granulopoiesis being unaffected) [81]. These limitations make recombinant human IL-6 or Neupogen only marginally suitable for use in potential mass casualty radiation disasters. Hence, the power of entolimod as a radiomitigator, compared with products that address only a single aspect of radiation toxicity, is likely to stem from its pleiotropic mechanism of action allowing it to simultaneously counteract multiple aspects of radiation injury (summarized in Fig 6).
One of the candidate MRCs that is currently under development (by Neumedicines, Inc.) is IL-12/HemaMax. Similar to entolimod, a single injection of HemaMax administered subcutaneously 24 hours after lethal TBI was able to improve survival and hematopoietic recovery without additional supportive care in several experiments in NHPs [27–29]. However, the magnitude of its effects on cytopenias and survival was inferior to that of entolimod: absolute survival improvement reached with HemaMax at LD_50-65_ radiation doses was only 20% compared to 40–60% achieved with entolimod at LD_50-75_ doses of TBI, and did not reach statistical significance by pre-specified analyses [27, 28]. No data are available regarding HemaMax’s radioprotective activity when administered before TBI or radiomitigative activity when administered at time points later than 24 hours after TBI. IL-12 is known to act as a naïve T cell-activating factor promoting their Th1 maturation. It also stimulates production of cytotoxic cytokines such as IFNγ and TNFα from T-cells and natural killer (NK) cells, respectively [110]. Interestingly, neither IL-12 nor its principal downstream effector, IFNγ, was induced by entolimod in any species tested to date (humans, NHPs, rodents). Although the mechanism of action of HemaMax as a MRC has yet to be defined, it is clearly different from that of entolimod, which suggests that combination of the two compounds might result in additive or synergistic anti-ARS efficacy.
Entolimod is currently being developed towards approval as a MRC for reducing the risk of death following lethal TBI. Since it is not feasible or ethical to conduct trials in humans for evaluation of the efficacy of drugs against lethal TBI, formal development of entolimod is being conducted under the FDA’s Animal Efficacy Rule (21 C.F.R. $ 314.610) allowing pivotal demonstration of drug efficacy in accepted animal model(s) of a life-threatening human disease. The studies described in this manuscript resulted in determination of important parameters of entolimod activity (efficacious dose range and time window of administration relative to TBI) that allowed design and conduct of a pivotal efficacy experiment in the NHP model of ARS (submitted for publication) in support of FDA approval. In addition, these studies identified specific ameliorative effects of entolimod on HP and GI radiation injury, thus providing the mechanistic basis for its ability to significantly and substantially improve survival of lethally irradiated NHPs. An additional important finding of the reported experiments—that the anti-ARS effect of entolimod administered 48 hours after TBI is comparable to that at earlier time points—will be the focus of a future statistically powered time-ranging study to further define the extent of entolimod’s radiomitigative benefits.
Supporting Information
S1 FigAccelerated recovery of the peripheral blood cellularity and hemoglobin content in NHPs irradiated with LD_50/40_ or LD_75/40_ of TBI and treated with different doses of entolimod 1 hour later.(PDF)Click here for additional data file.
S2 FigComparable restorative effects of single 10 or 40 μg/kg entolimod treatments given 25 hours after TBI on morphological recovery of hematopoietic and lymphoid organs in NHPs 40 days after irradiation with LD_50/40_ of TBI.(PDF)Click here for additional data file.
S3 FigAccelerated kinetics of bone marrow regeneration and proliferating phenotype of CFU-GM colonies in entolimod-treated CD2F1 mice after LD_50/30_ of TBI and entolimod treatment.(PDF)Click here for additional data file.
S4 FigImproved GI tract morphology in NHPs irradiated with 6.5 Gy TBI and treated with a single injection of entolimod at 1, 16, or 25 hours later.(PDF)Click here for additional data file.
S5 FigImproved preservation of intestinal innervation and muscularis mucosae integrity in the GI tract of irradiated NHPs treated with entolimod 1 hour after 6.5 Gy TBI.(PDF)Click here for additional data file.
S6 FigEffect of single dose entolimod treatment on IL-8 and IL-10 levels in the peripheral blood of NHPs irradiated with LD_50/40_ or LD_75/40_ doses of TBI.(PDF)Click here for additional data file.
S7 FigEntolimod concentrations in the peripheral blood of NHPs (irradiated with LD_50/40_ (6.75 Gy) TBI or non-irradiated) at different times after single intramuscular injection of the indicated drug doses.(PDF)Click here for additional data file.
S1 MethodsSemi-quantitative scoring of HP and GI organ morphology on histological sections.(PDF)Click here for additional data file.
S1 TableIncidence and duration of Grade 4 neutropenia (neutrophil count <500 cells/μL) in lethally irradiated NHPs treated with vehicle or entolimod.(PDF)Click here for additional data file.
S2 TableIncidence and duration of absolute neutropenia (neutrophil count <10 cells/μL) in lethally irradiated NHPs treated with vehicle or entolimod.(PDF)Click here for additional data file.
S3 TableIncidence and duration of Grade 4 thrombocytopenia (platelet count <10,000 cells/μL) in lethally irradiated NHPs treated with vehicle or entolimod.(PDF)Click here for additional data file.
S4 TableIncidence and duration of Grade 4 anemia (hemoglobin level <65g/L) in lethally irradiated NHPs treated with vehicle or entolimod.(PDF)Click here for additional data file.
S5 TableSemi-quantitative histological evaluation of hematopoietic/lymphoid organs from NHPs that survived to day 40 after 6.75 Gy TBI followed by vehicle or entolimod treatment (study Rs-14).(PDF)Click here for additional data file.
S6 TableSemi-quantitative histological evaluation of GI tract segments from NHPs that survived to day 40 after 6.5 Gy TBI and vehicle or entolimod treatment (study Rs-06).(PDF)Click here for additional data file.
S7 TableLayout of studies dedicated to assessment of entolimod effects on GI tract histopathology in the course of ARS.(PDF)Click here for additional data file.
S8 TableSemi-quantitative histological evaluation of GI tract sub-structures on day 7 after 11 Gy TBI and vehicle or 40 μg/kg entolimod treatment at 4 h post-TBI (study Rs-22, N = 4).(PDF)Click here for additional data file.
