Dynamics of T-Junction Solution Switching Aimed at Patch Clamp Experiments

TL;DR

This paper studies how to control the timing of solution exchanges in patch clamp experiments using T-junctions, which is important for drug discovery involving ion channels.

Contribution

The study introduces a new method for manufacturing T-junctions and identifies key factors influencing solution exchange timing.

Findings

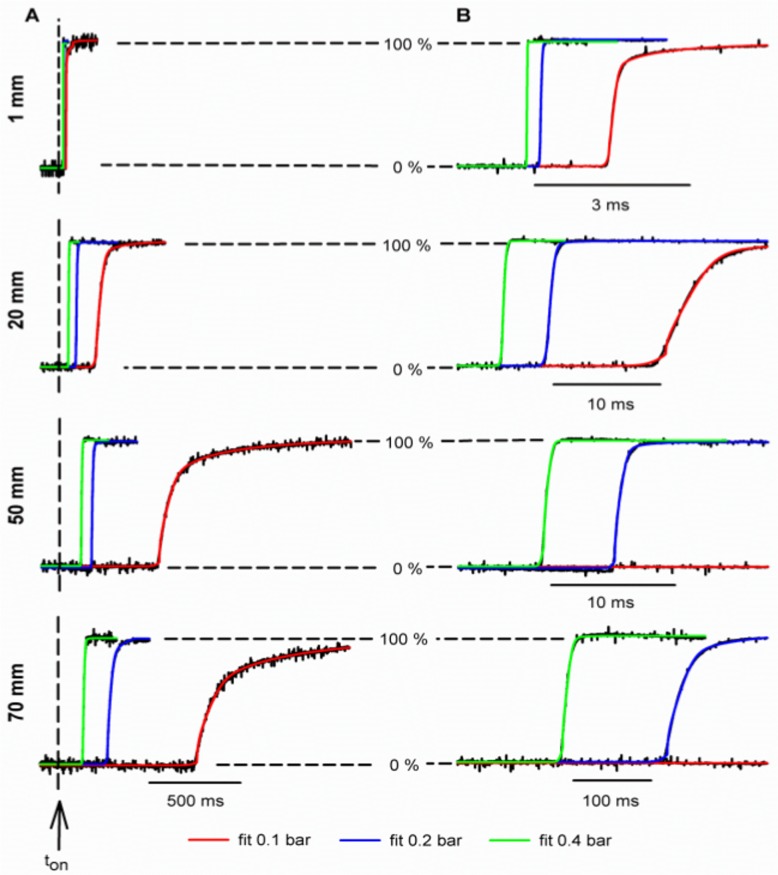

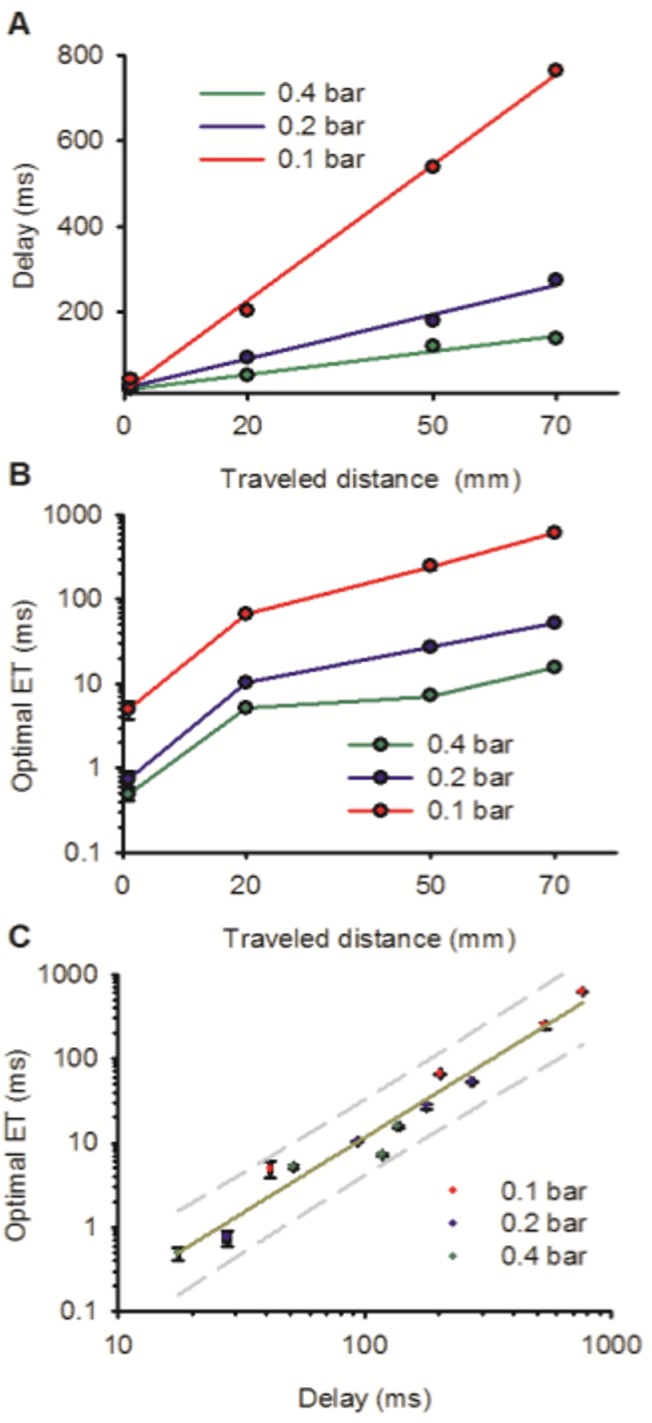

Time delay in solution exchange correlates linearly with travelled distance and fluid velocity.

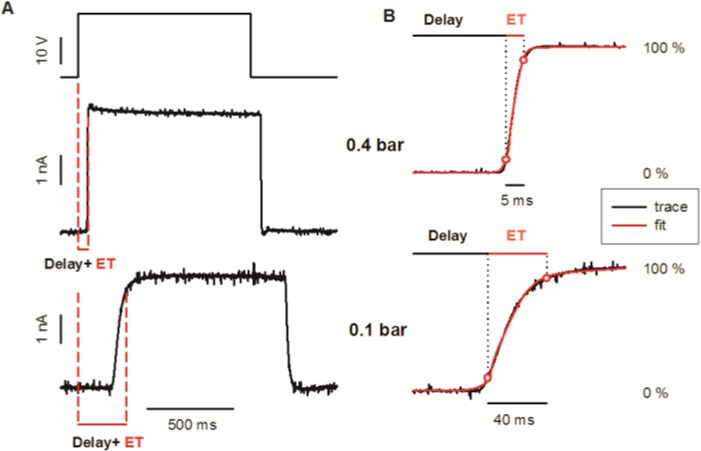

Exchange time increases quadratically with delay, but some variability remains unexplained.

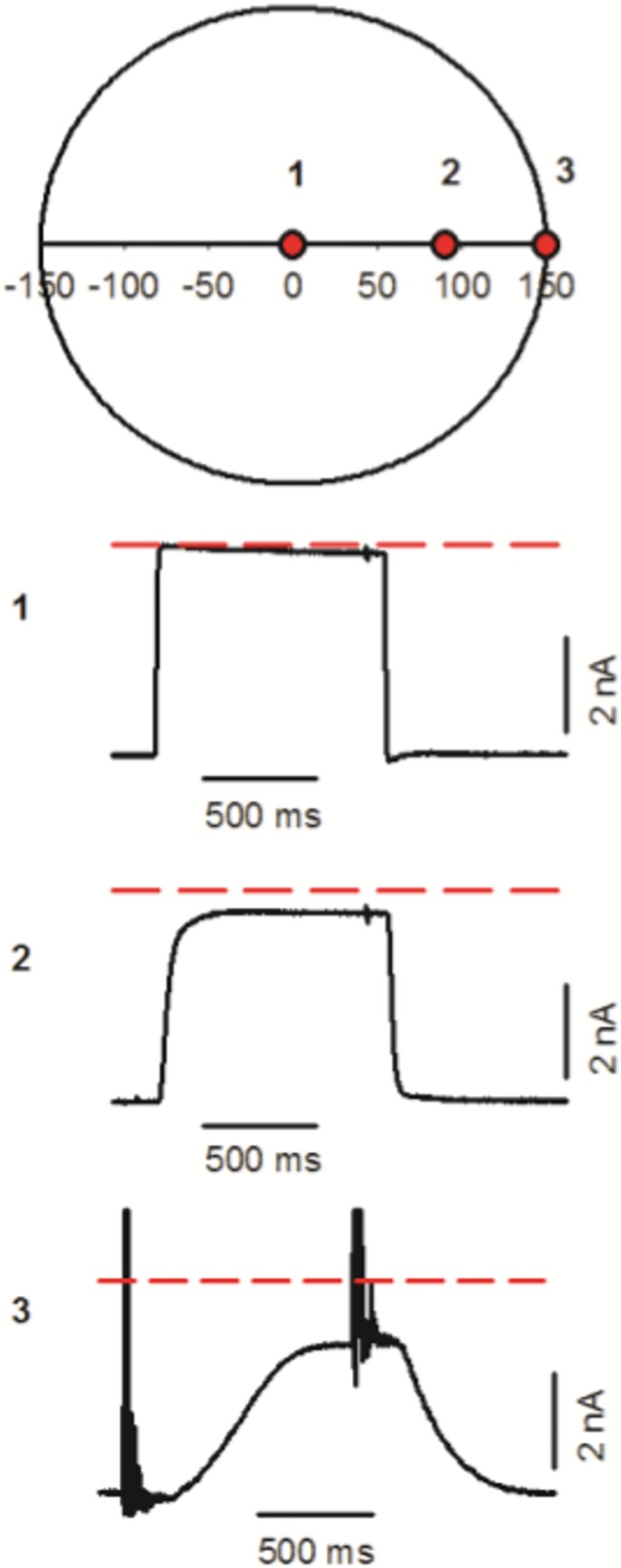

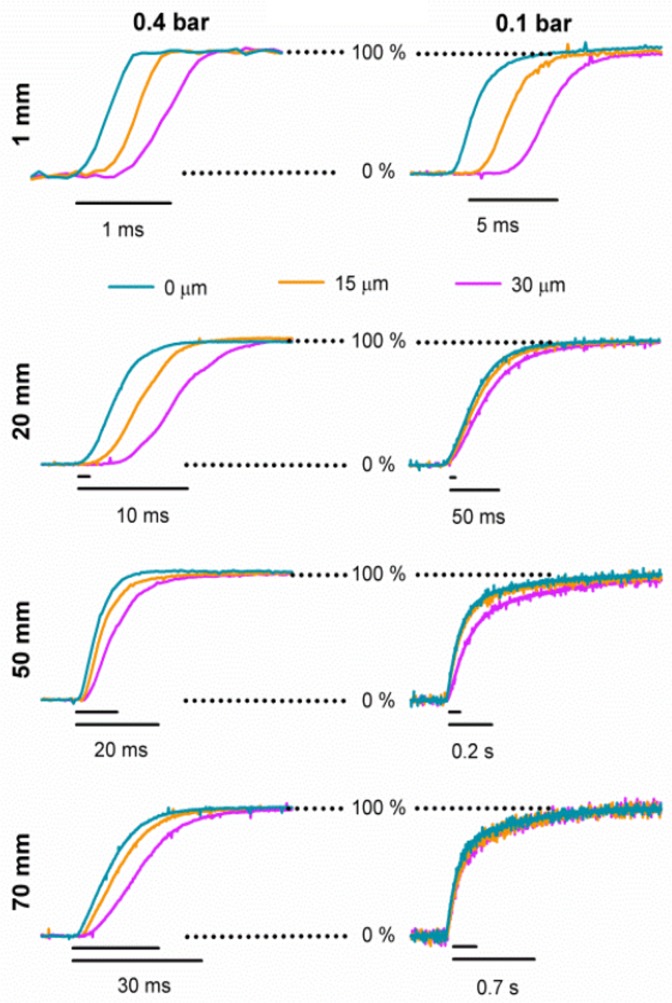

Pipette position relative to the stream center significantly affects delay and exchange times.

Abstract

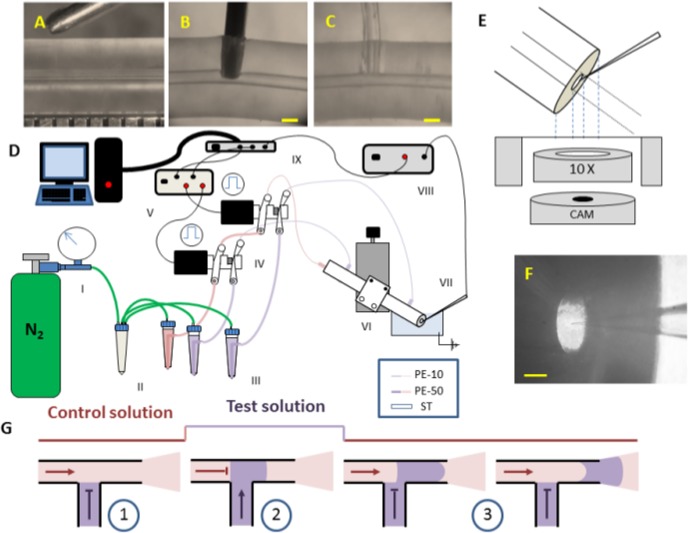

Solutions exchange systems are responsible for the timing of drug application on patch clamp experiments. There are two basic strategies for generating a solution exchange. When slow exchanges are bearable, it is easier to perform the exchange inside the tubing system upstream of the exit port. On the other hand, fast, reproducible, exchanges are usually performed downstream of the exit port. As both strategies are combinable, increasing the performance of upstream exchanges is desirable. We designed a simple method for manufacturing T-junctions (300 μm I.D.) and we measured the time profile of exchange of two saline solutions using a patch pipette with an open tip. Three factors were found to determine the timing of the solution switching: pressure, travelled distance and off-center distance. A linear relationship between the time delay and the travelled distance was found for each tested pressure, showing its dependence to the fluid velocity, which increased with pressure. The exchange time was found to increase quadratically with the delay, although a sizeable variability remains unexplained by this relationship. The delay and exchange times increased as the recording pipette moved away from the center of the stream. Those increases became dramatic as the pipette was moved close to the stream borders. Mass transport along the travelled distance between the slow fluid at the border and the fast fluid at the center seems to contribute to the time course of the solution exchange. This effect would be present in all tubing based devices. Present results might be of fundamental importance for the adequate design of serial compound exchangers which would be instrumental in the discovery of drugs that modulate the action of the physiological agonists of ion channels with the purpose of fine tuning their physiology.
