Comprehensive diffusion tensor tractography of three dopaminergic pathways in advanced Parkinson’s disease: a case report
Heun Jae Ryu, Jeong Pyo Seo, Seo Yoon Park
TL;DR
This case report uses diffusion tensor tractography to show structural changes in three brain pathways in a patient with advanced Parkinson’s disease, linking these changes to both motor and non-motor symptoms.
Contribution
The study provides a rare comprehensive DTT analysis of all three major dopaminergic pathways in advanced Parkinson’s disease.
Findings
DTT revealed structural alterations in mesocortical, mesolimbic, and nigrostriatal pathways in a patient with advanced Parkinson’s disease.
The nigrostriatal tract showed the most pronounced degeneration, with reduced fiber density and disrupted integrity.
The findings highlight DTT’s potential as a clinical and educational tool for understanding Parkinson’s disease manifestations.
Abstract
This qualitative, exploratory case report presents comprehensive diffusion tensor tractography (DTT) analysis of all three major dopaminergic pathways in advanced Parkinson’s disease (PD), which is rarely reported. We present a case demonstrating structural alterations across mesocortical, mesolimbic, and nigrostriatal pathways in a patient with severe motor and non-motor symptoms, highlighting DTT’s educational and clinical visualization value. A 77-year-old female with advanced PD presented with a complex symptom profile including severe cognitive impairment (MMSE not assessable), major depression (predating motor symptoms by 7 years), severe dysphagia with silent aspiration (PAS 8), bilateral motor weakness (MMT P- to P+), and wheelchair dependence. DTT analysis revealed marked architectural differences compared to an age-matched control subject. The mesocortical tract showed…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1- —https://doi.org/10.13039/501100003725National Research Foundation of Korea
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Neuroimaging Techniques and Applications · Parkinson's Disease Mechanisms and Treatments · Neurological disorders and treatments
Introduction
Parkinson’s disease (PD) is a progressive neurodegenerative disorder characterized by the loss of dopaminergic neurons, particularly in the substantia nigra pars compacta [1]. This neurodegeneration affects three major dopaminergic pathways: the nigrostriatal tract (controlling motor function), the mesocortical pathway (involved in executive functions and cognition), and the mesolimbic pathway (crucial for reward and emotional processing) [2–4]. Understanding the structural integrity of these pathways is important for several reasons. While motor symptoms have traditionally been the focus of PD research, non-motor symptoms significantly impact patients’ quality of life and often precede motor manifestations [5]. Moreover, the complex interaction between these pathways influences both disease progression and treatment effectiveness [6].
Diffusion tensor tractography (DTT), derived from diffusion tensor imaging (DTI), enables three-dimensional visualization of specific neural pathways, providing insights into structural connectivity changes in neurological conditions [7, 8]. Several studies have demonstrated DTT’s utility in evaluating the nigrostriatal pathway in PD [9, 10], but comprehensive analyses simultaneously examining all three major dopaminergic pathways in advanced PD cases remain limited in the literature. The visualization of these pathways can provide valuable information about their architecture and connectivity patterns, particularly in advanced stages where severe structural changes might be present [11, 12].
Prior DTT studies in PD have predominantly focused on the nigrostriatal pathway, demonstrating reduced tract density and altered fractional anisotropy values in early to moderate disease stages [9, 10, 13]. Studies examining the mesocortical pathway have reported associations between tract integrity and cognitive decline in PD patients with dementia [14, 15], while investigations of the mesolimbic pathway have linked structural changes to affective symptoms and depression [16, 17]. However, comprehensive assessment of all three dopaminergic pathways simultaneously in a single advanced PD case remains notably absent from the literature, limiting our understanding of how these systems may be affected concurrently in end-stage disease.
Advanced PD cases presenting with severe multidomain symptomatology are rarely subjected to detailed DTT analysis, yet such cases offer important educational value and insights into end-stage structural changes. This visualization approach could enhance understanding of the relationship between structural alterations and clinical manifestations, potentially aiding clinicians in comprehending complex symptom profiles [11].
We report a case of advanced PD where DTT was used to visualize and characterize alterations in all three major dopaminergic pathways. This comprehensive approach illustrates the structural basis of the patient’s complex symptomatology, demonstrating DTT’s potential utility as a clinical visualization and educational tool. Importantly, this case report does not aim to infer or establish structure–function relationships, but rather to provide an anatomical visualization framework illustrating pathway-specific architectural changes in advanced PD.
Case report
Clinical history
A 77-year-old female patient presented with advanced Parkinson’s disease that showed a progressively deteriorating course. The patient was initially diagnosed with Parkinson’s disease in April 2016, when she began using a walking aid intermittently. Her medical history was significant for major depression and alcohol use disorder since 2009, and she had been diagnosed with dementia in 2013 prior to her Parkinson’s disease diagnosis. Sixteen months after onset, she suffered a left femoral neck fracture requiring total hip replacement, after which she became wheelchair-dependent. By November 2019, her functional status had deteriorated significantly, reaching a modified Rankin Scale score of 4.
Motor profile
At the time of evaluation in May 2023, bilateral motor weakness was evident, with Manual Muscle Testing showing P- to P+ level in both upper and lower extremities. Physical examination revealed preserved pupillary reflexes. Despite severe impairment, the patient maintained some functional abilities, including the capacity to follow single-step commands and respond to name questions with lip movements. She demonstrated reflexive swallowing within 30 s after oral stimulation and could maintain a standing position for one minute with full assistance.
Cognitive and psychiatric symptoms
The patient presented with severe hypersomnia, although recent adjustments had improved her daytime wakefulness. She also exhibited hyperventilation, which showed improvement with dopaminergic medication adjustment. Her cognitive function was severely impaired, rendering the Mini-Mental State Examination impossible to conduct.
Swallowing function
Videofluoroscopic swallowing examination revealed severe dysphagia with silent aspiration (PAS 8) for both thin liquids and semisolids.
Comorbidities
The patient’s condition was further complicated by multiple comorbidities, including hypertension, type 2 diabetes mellitus, unspecified dementia, atrial fibrillation, suspected deep vein thrombosis, and bilateral osteoarthritis (Kellgren-Lawrence grade 4/4).
Functional status and treatment response
During the course of treatment, the patient showed modest improvements in alertness and ventilation with medication adjustment and rehabilitation efforts. Her responses to dopaminergic medication were particularly notable in managing hyperventilation symptoms, suggesting preserved responsiveness in certain dopaminergic pathways despite advanced disease. The rehabilitation program focused on maintaining functional abilities through physical and occupational therapy, resulting in limited but meaningful achievements such as assisted standing capability.
Given her complex medical conditions and advanced disease state, a comprehensive follow-up plan was established, including continued care in rehabilitation medicine, internal medicine, otolaryngology, and neurology departments. The patient was scheduled for transfer to a long-term care facility for ongoing management of her condition. Regular monitoring of cognitive status, swallowing function, and motor abilities was planned to optimize her care regimen and quality of life. Written informed consent was obtained from the patient’s legal guardian for the publication of this case report and accompanying neuroimaging results. The patient’s privacy and personal information have been protected in accordance with ethical guidelines.
Methods
DTI data acquisition
DTI data acquisition for the patient was performed in May 2023. DTI data were acquired using a Synergy-L SENSE head coil on a 3T system equipped with single-shot echo-planar imaging. For each of the 32 non-collinear diffusion-sensitizing gradients, 67 contiguous slices were acquired parallel to the anterior commissure-posterior commissure line. The imaging parameters were as follows: acquisition matrix = 96 × 96, reconstructed matrix = 192 × 192 matrix, field of view = 240 × 240 mm², TR = 10,398 ms, TE = 72 ms, parallel imaging reduction factor (SENSE factor) = 2, EPI factor = 59 and b = 1000 s/mm², NEX = 1, slice gap = 0, and slice thickness 2.5 mm. The age-matched control subject was scanned using a 1.5T Gyroscan Intera system (Philips, Best, The Netherlands) with comparable imaging parameters.
Image processing and tractography
The Oxford Centre for Functional Magnetic Resonance Imaging of the Brain (FMRIB) software library (FSL; www.fmrib.ox.ac.uk/fsl) was used to analyze the diffusion-weighted imaging data [18, 19]. Affine multi-scale two-dimensional registration was used to correct for head motion effects and image distortions caused by eddy currents. A probabilistic tractography method based on a multi-fiber model was used for fiber tracking and was applied utilizing tractography routines implemented in FMRIB’s Diffusion Toolbox (step length 0.5 mm, 5000 streamline samples, curvature threshold = 0.2) [19–22].
Dopaminergic pathway reconstruction
Three major dopaminergic pathways were reconstructed following established protocols [23–25]:
- Mesocortical tract: Fibers connecting the ventral tegmental area to the prefrontal cortex. Two regions of interest (ROIs) were placed: the first ROI at the ventral tegmental area in the midbrain, and the second ROI in the prefrontal cortex [23].
- Mesolimbic tract: Fibers from the ventral tegmental area to the nucleus accumbens. ROIs were placed at the ventral tegmental area and the nucleus accumbens region in the ventral striatum [23].
- Nigrostriatal tract: Fibers connecting the substantia nigra to the striatum. ROIs were placed at the substantia nigra in the midbrain and the dorsal striatum [24, 25].
ROI placement was independently verified by two experienced researchers with expertise in neuroimaging to ensure anatomical accuracy and consistency. ROI placement was performed by two experienced researchers who were blinded to the diagnostic status of the subjects to minimize potential bias. The same probabilistic tractography parameters and threshold values were applied consistently for both the patient and control subject. For optimal visualization of all dopaminergic pathways, fiber tracking was performed with a threshold value of 3, which was selected to maximize tract visibility while maintaining anatomical plausibility.
Qualitative comparison analysis
The reconstructed dopaminergic pathways were qualitatively compared with those of an age-matched healthy control subject (77-year-old female with no history of neurological or psychiatric disorders). The control subject is used solely for illustrative visual comparison and does not constitute a normative reference or semi-quantitative comparator. Inter-individual variability in tractography reconstruction, particularly in elderly brains, limits direct comparisons between individuals. The control subject had no known history of microvascular disease, though age-related microvascular changes cannot be entirely excluded. This comparison focused on visual assessment of the following features:
- Tract presence and overall continuity.
- Architectural patterns and trajectory.
- Relative fiber density (assessed through visual inspection of tract volume and coverage).
- Pathway integrity and coherence.
No quantitative statistical analysis was performed given the single-case design. The comparison was intended to illustrate gross architectural differences and provide context for interpreting the patient’s structural changes, rather than to establish statistical significance. Observations were documented through consensus between the two independent reviewers to enhance reliability of the qualitative assessments. We acknowledge that the patient was scanned at 3T while the control was scanned at 1.5T. Importantly, since 3T imaging typically provides superior tract visualization compared to 1.5T, the observation of markedly reduced tract architecture in the patient (scanned at 3T) compared to the control (scanned at 1.5T) represents a conservative finding, as any scanner-related bias would favor better visualization in the patient.
Results
DTT analysis was performed in a 77-year-old female patient with advanced Parkinson’s disease and compared with an age-matched healthy control subject (77-year-old female with no neurological history). Visual comparison revealed notable architectural differences across all three major dopaminergic pathways.
Mesocortical tract
The mesocortical tract showed marked structural alterations compared to the control subject. The patient’s tract exhibited notably reduced fiber density and thinning, particularly evident in projections to the prefrontal cortex. Lateral view analysis revealed disruption in tract continuity, with fragmentation of the pathway architecture that was distinctly different from the continuous, well-organized tract observed in the control subject. These structural differences were observed alongside the patient’s severe cognitive impairment, including inability to complete MMSE assessment and difficulty with multi-step commands, though a causal relationship cannot be confirmed from this single-case qualitative analysis.
Mesolimbic tract
The mesolimbic tract demonstrated considerable degradation in the patient compared to the control subject. The overall tract volume appeared diminished, with alterations in pathway integrity and trajectory patterns. The pathway architecture showed reduced coherence, particularly in connections involving the ventral tegmental area, contrasting with the robust, well-defined tract observed in the control. This structural deterioration was observed in parallel with the patient’s history of major depression, which predated her motor symptom onset by seven years, although multiple factors may contribute to this association.
Nigrostriatal tract
The nigrostriatal tract revealed the most pronounced degeneration among the three pathways. The patient showed markedly reduced fiber density throughout the tract, with widespread disruption of pathway integrity. The extent of architectural changes was substantial when compared to the control subject’s well-preserved nigrostriatal tract, which displayed continuous fibers with clear definition. This pattern of severe structural alteration was observed alongside the patient’s severe motor symptoms, including bilateral motor weakness (MMT P- to P+) and progression to wheelchair dependence.
Comparative overview
Collectively, all three dopaminergic pathways demonstrated notable structural compromise in the patient, with the severity of apparent degeneration most evident in the nigrostriatal tract, followed by the mesocortical and mesolimbic pathways. The pathway-specific patterns of structural change were observed alongside the patient’s clinical symptom profile, encompassing motor, cognitive, and neuropsychiatric manifestations (Fig. 1).

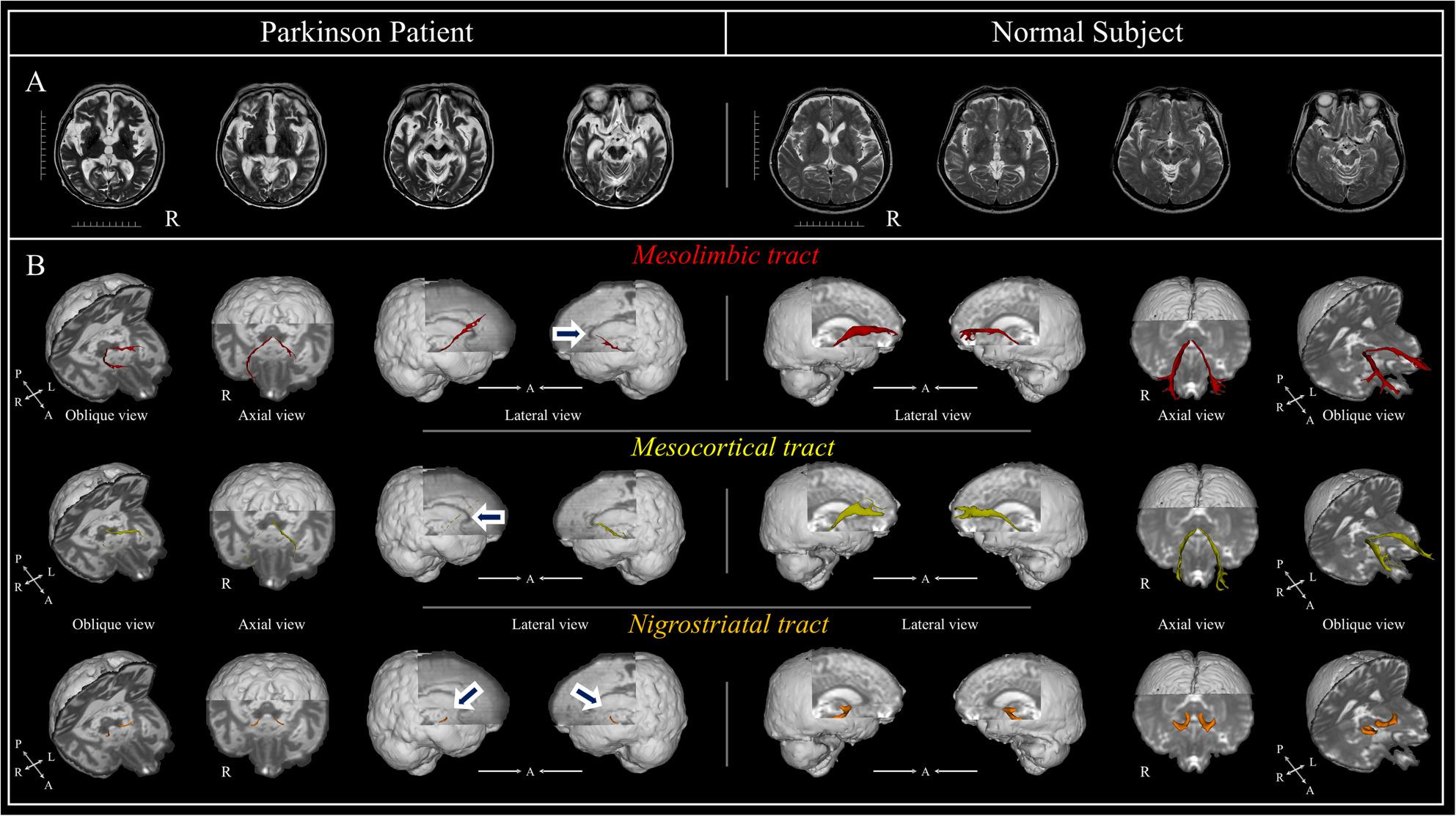

Fig. 1DTT visualization of major dopaminergic pathways in Parkinson's disease and normal control. A. T2-weighted axial brain MRI images showing anatomical structures at the same brain levels in Parkinson's patient (left) and normal subject (right). B. DTT reconstructions showing three major dopaminergic pathways: • Mesolimbic tract (red): Patient shows reduced volume and altered trajectory (blue arrows) compared to normal subject's intact pathway. • Mesocortical tract (yellow): Patient exhibits reduced fiber density and thinning (blue arrows), especially in prefrontal projections. • Nigrostriatal tract (orange): Patient demonstrates severe degeneration with reduced fiber density (blue arrows) versus normal subject's intact architecture. Images shown in oblique, axial, and lateral views for each tract. R: right, A: anterior, L: left, P: posterior. Scale bar = 100 mm (10 mm intervals)
