Treatment resistance factors associated with Talaporfin sodium photodynamic therapy for local control after chemoradiotherapy for esophageal cancer
Masashi Tamaoki, Akira Yokoyama, Chikatoshi Katada, Kenshiro Hirohashi, Yosuke Mitani, Yusuke Amanuma, Takahiro Horimatsu, Hirokazu Higuchi, Natsuko Yamahigashi, Motoo Nomura, Hiroyuki Inoo, Katsuyuki Sakanaka, Mitsuhiro Nikaido, Takahiro Shimizu, Yo Kishimoto, Shigeru Tsunoda
TL;DR
This study identifies esophageal stenosis before treatment as a factor that reduces the effectiveness of Talaporfin-PDT for esophageal cancer.
Contribution
The study identifies esophageal stenosis as a novel predictor of resistance to Talaporfin-PDT for local control in esophageal cancer.
Findings
The local complete response rate for Talaporfin-PDT was 65.5%.
Patients with pre-treatment esophageal stenosis had significantly worse survival outcomes.
Esophageal stenosis was an independent predictor of local treatment failure.
Abstract
Talaporfin sodium photodynamic therapy (Talaporfin-PDT) shows a high local complete response (L-CR) rate for local failure after chemoradiotherapy in esophageal cancer; however, some patients do not achieve L-CR. We investigated the treatment resistance factors associated with Talaporfin-PDT for local control. This study included 55 consecutive patients with ycT1-2 esophageal cancer who received Talaporfin-PDT. We investigated the L-CR rate, cumulative survival rate according to local effect, and treatment resistance factors associated with Talaporfin-PDT for local control using a multivariate logistic regression model. The L-CR rate was 65.5% (95% confidence interval [CI]: 52.3–76.6). During the median follow-up of 17.8 months (range, 1.7–69.3), the 1-year overall survival (OS), progression-free survival (PFS), and disease-specific survival (DSS) rates were significantly higher in…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsEsophageal Cancer Research and Treatment · Photodynamic Therapy Research Studies · Skin Protection and Aging
Introduction
Esophageal cancer is the sixth most common cause of cancer death worldwide [1]. Although definitive chemoradiotherapy (CRT) is a curative treatment option for locally advanced esophageal cancer patient who do not wish to undergo surgery [2], local failure after CRT is high and has been major problem to achieve cure [3, 4]. Salvage surgery and endoscopic resection (ER) are indicated for local failure after CRT. However, salvage surgery could not preserve the organ and has a risk of severe complications including treatment-related death [5–7]. On the other hand, the salvage ER is a less-invasive curative treatment option which can preserve the organ; however. its indications are limited to treatment of mucosal lesions [8–10]. Chemotherapy such as taxane or immune checkpoint inhibitors may be selected as second-line chemotherapy for local failure after CRT. However, the complete response (CR) rate of such chemotherapy is quite low at less than 10% [11–13].
We previously reported that talaporfin sodium photodynamic therapy (Talaporfin-PDT) is an effective and safe treatment option as an organ-preservation strategy in patients with local failure after CRT for esophageal cancer [14]. The indications for Talaporfin-PDT are the presence of a residual or recurrent esophageal cancer localized shallower than the muscularis propria, no indications for salvage surgery because of an unfavorable general condition, and the patient’s refusal of salvage surgery. The local complete response (L-CR) rate for Talaporfin-PDT was reported as 69–88.5%, and life-threatening severe adverse events was not reported [14, 15]. Patients who achieve L-CR after PDT significantly improved survival compared with those who do not achieve L-CR [15, 16].
If local control can be achieved, the prognosis can be improved. Therefore, in this study, we investigated the treatment resistance factors for local control of Talaporfin-PDT in patients with esophageal cancer treated with CRT.
Methods
Participants
Patients who were initially treated with Talaporfin-PDT from October 2015 through April 2022 and who met the following criteria were retrospectively collected in our hospital. The inclusion criteria were as follows: (1) residual or recurrent esophageal cancer after CRT, (2) tumors pathologically diagnosed as squamous cell carcinoma or adenocarcinoma, (3) lesions limited to ycT1 or ycT2, and (4) no regional lymph node or distant metastases identified using computed tomography (CT). The exclusion criteria were as follows: (1) metachronous esophageal cancer, (2) newly diagnosed esophageal cancer in the radiation field used to treat other diseases, (3) metastasis in the esophagus, 4) history of treatment with porfimer sodium-PDT, (5) local failure after ER followed by prophylactic adjuvant CRT, or (6) no evaluation of local efficacy after treatment.
Residual esophageal cancer was defined as the presence of a non-CR lesion after CRT, recurrent esophageal cancer was defined as local recurrence after achieving CR for CRT, and residual or recurrent esophageal cancer was defined as local failure. Endoscopic findings before Talaporfin-PDT were classified into superficial type and submucosal tumor type and ulcerated type [17].
Written informed consent was obtained from all patients for the Talaporfin-PDT procedures.
Study variables
The study variables were as follows: (1) L-CR rate after Talaporfin-PDT; (2) clinical characteristics (gender, age, ECOG performance status, cTNM stage, histology, initial treatment, tumor location, endoscopic findings, ycT stage, maximum tumor diameter on endoscopic images, circumference of tumor, esophageal stenosis, laser dose) according to local effect after Talaporfin-PDT; (3) cumulative survival rates (overall survival [OS], progression-free survival [PFS], and disease-specific survival [DSS]) according to local effect after Talaporfin-PDT; (4) adverse events associated with Talaporfin-PDT; (5) treatment resistance factors associated with Talaporfin-PDT for local control using a multivariate logistic regression model; and (6) cumulative survival rates (OS, PFS, and DSS) in patients with or without factors associated with resistance.
Talaporfin-PDT
Talaporfin-PDT was applied by intravenous administration of 40 mg/m^2^ talaporfin sodium. The lesion was irradiated with a diode laser at a wavelength of 664 nm, 4 h after the administration of talaporfin sodium. The diode laser was delivered via a frontal light distributor through an endoscope. The fluence of the diode laser was set at 100 J/cm^2^, and the fluence rate was 150 mW/cm^2^. According to the size of the lesion, multiple treatment fields were overlapped to cover the whole lesion. Endoscopic observation was performed on the day after Talaporfin-PDT. If an insufficiently irradiated area was found, additional diode laser irradiation was performed as described previously [14]. Patients were hospitalized in a room maintained at less than 500 lx for 2 weeks and advised to avoid direct sun exposure for 4 weeks after the administration of talaporfin sodium.
Evaluation of clinical stage
The clinical stage was determined according to the TNM classification of the International Union Against Cancer, 8th edition [18]. The ycT stage before Talaporfin-PDT was evaluated using endoscopic ultrasound (EUS). If evaluating the ycT stage by EUS was difficult, the invasive depth of the residual or recurrent esophageal cancer was evaluated by conventional endoscopy.
Esophageal stenosis before Talaporfin-PDT

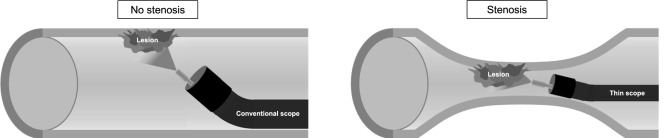

Esophageal stenosis was defined as the inability of a conventional scope (tip diameter < 10 mm) to pass from the primary site to the distal side. In this study, esophageal stenosis was analyzed as a situation in which all or part of an irradiated lesion was located within the stenosis. Figure 1 demonstrates representative image where the irradiation site overlaps with the area of stenosis. In patients with esophageal stenosis, when irradiation was difficult using a conventional scope, a thin scope was advanced into the esophageal stricture to irradiate the lesion. Esophageal stenosis before Talaporfin-PDT” that EG-L580NW (Fujifilm medical Co., Ltd., Tokyo, Japan) was used for PDT with the thin scope.Fig. 1. Talaporfin sodium photodynamic therapy (Talaporfin-PDT) in patients with esophageal stenosis. When using a thin endoscope to irradiate irradiating lesions within a stenotic area with the thin scope, it is technically difficult to maintain a vertical view of the lesion and an appropriate distance due to the narrow and often deformed lumen. These factors may contribute to the reduced treatment response observed in patients with pre-treatment stenosis. Therefore, irradiation must be performed at an inadequate oblique angle, and effective irradiation is not feasible
Treatment evaluation and surveillance
After Talaporfin-PDT, esophagogastroduodenoscopy (EGD) surveillance was performed at least every 2–3 weeks until the treatment-induced ulceration healed. Local efficacy was classified as L-CR or non-L-CR at each evaluation based on EGD findings. The criteria for L-CR were as follows: (1) confirmation of the disappearance of treatment-induced ulceration and scar formation, (2) no tumor endoscopically observed, and (3) disappearance of cancer cells histologically confirmed using a biopsy specimen when possible. After the patient had achieved L-CR, EGD was performed at least every 1–2 months until 6 months after Talaporfin-PDT. Chest/abdominal CT was performed at least every 3–6 months after Talaporfin-PDT. Lymph node and distant recurrence were defined as enlargement of a lymph node and a new lesion detected on CT, respectively.
Statistical analysis
For the analysis of clinical characteristics and adverse events, Fisher’s exact test or the Wilcoxon’s rank sum test was used to identify differences between 2 groups. OS was defined as the time from Talaporfin-PDT to death from any cause, and it was censored at the date of the last follow-up for survivors. DSS was defined as the time from Talaporfin-PDT to death caused by esophageal cancer, and it was censored at the date of the last follow-up for survivors or death from any cause other than esophageal cancer. PFS was defined as the time from Talaporfin-PDT to the date of first recurrence or progression, or to the time of death from any cause, and it was censored at the date of the last visit for patients without progression. The survival curves were estimated using the Kaplan–Meier method, and P values were calculated using the log-rank test. The significance level of the P value was set at 0.05.
A logistic regression model was used to estimate the odds ratio and 95% confidence interval (CI) for non-L-CR. In selecting variables for the multivariate analysis, the results of univariate analyses were used only as a reference, and variables were primarily chosen based on their clinical importance and potential relevance to local control. In patients with multiple lesions, the main lesion was selected for analysis according to the following diagnostic criteria: (1) the lesion that did not achieve L-CR, (2) the deepest lesion identified in EUS or EGD findings, or (3) the largest lesion in EGD findings. All statistical analyses were performed using JMP® (SAS Institute Inc., Cary, NC, USA).
Results
Participants

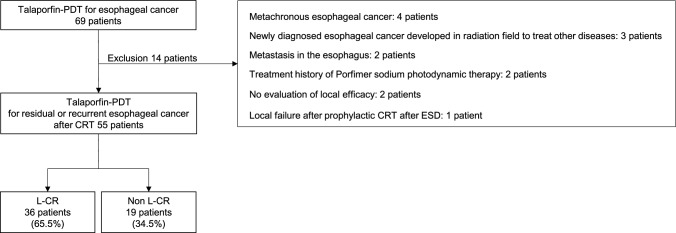

During the period under study, a total of 69 patients with esophageal cancer underwent Talaporfin-PDT in our hospital. We excluded 4 patients with metachronous esophageal cancer; 3 patients with newly diagnosed esophageal cancer developed in the radiation field used to treat pharyngeal cancer, lung cancer, or cervical lymph node tuberculosis; 2 patients with metastasis in the esophagus; 2 patients with a treatment history of porfimer sodium-PDT; 2 patients with no evaluation of local efficacy because of transfer immediately after treatment; and 1 patient with local failure after ER followed by prophylactic adjuvant CRT. The remaining 55 patients were included in this study. Among them, 36 (65.5%, 95% CI: 52.3–76.6) patients achieved L-CR (Fig. 2). It was confirmed histologically in 33 of the 36 patients that achieved LC-R.Fig. 2. Flowchart of patient inclusion. Talaporfin-PDT: talaporfin sodium photodynamic therapy, CRT, chemoradiotherapy; ESD, endoscopic submucosal dissection; L-CR, local complete response
Table 1 displays the demographic details of the 55 patients and the attributes of their lesions based on the local effects following talaporfin-PDT. Among the patients with ycT1 stage disease prior to talaporfin-PDT, 27 (75.0%) were in the L-CR group and 10 (52.6%) were in the non-L-CR group, with no significant difference observed (P = 0.132). The median laser dose of talaporfin-PDT was 450 J (range, 200–1200 J) for the L-CR group and 550 J (range, 300–700 J) for the non-L-CR group, with a significant difference noted (P = 0.045). Table 1. Patients and lesion characteristics according to local effect after Talaporfin sodium photodynamic therapy (Talaporfin-PDT)Local effect after Talaporfin-PDTTotalL-CRNon L-CRP value(n = 55)(n = 36)(n = 19)Gender (male/female)(48/7)(30/6)(18/1)0.401Age (years old) (median, range)74 (52–102)73.5 (52–92)74 (59–102)0.936ECOG performance status (0–1/> 2)(55/0)(36/0)(19/0)–cT stage before initial treatment (1/2/3/4)(29/11/8/7)(21/6/4/5)(8/5/4/2)0.540cN stage before initial treatment (0/1/2/3/X)(30/10/11/2/2)(25/4/6/0/1)(5/6/5/2/1)0.008cM stage before initial treatment (0/1/X)(49/5/1)(33/3/0)(16/2/1)0.563Histology (squamous cell carcinoma/adenocarcinoma)(54/1)(36/0)(18/1)0.346Initial treatment (chemoradiotherapy/radiotherapy)(45/10)(32/4)(13/6)0.077Tumor location (Ce-Ut/Mt/Lt)^a^(9/27/19)(7/17/12)(2/10/7)0.804Endoscopic findings (superficial type/submucosal tumor type/ulceration type)^a^(36/13/6)(26/7/3)(10/6/3)0.345ycT stage before Talaporfin-PDT (ycT1/ycT2)^a^(37/18)(27/9)(10/9)0.132Maximum tumor diameter on endoscopic images (**≤ **15 mm/> 15 mm)^a^(34/21)(25/11)(9/10)0.148Circumference of tumor (≤ 1/4/> 1/4)^a^(36/19)(26/10)(10/9)0.233Esophageal stenosis before Talaporfin-PDT (absent/present)^a^(47/8)(33/3)(14/5)0.109Laser dose (Joule) (median, range)^b^500 (200–1200)450 (200–1200)550 (300–700)0.045^a^In patients with multiple lesions, the main lesion was selected^b^In patients in which planed Talaporfin-PDT was performed in two phases for multiple lesions, the total dose of the two planed Talaporfin-PDT was listed
Cumulative survival rates according to local effect
During the median follow-up period of 17.8 months (range, 1.7–69.3), 11 patients died of esophageal cancer, and 6 patients died of other causes. Local recurrence and lymph node/distant metastasis developed in 25 and 14 patients, respectively.

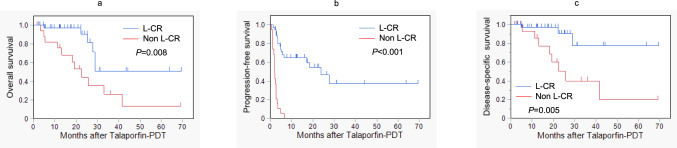

The cumulative survival rates were analyzed in relation to the local effect (L-CR vs. non-L-CR), as depicted in Fig. 3. The OS rates at 1 and 3 years (Fig. 3a) were 97.0% and 50.9% for L-CR, compared to 75.6% and 26.5% for non-L-CR, respectively, showing a significant difference (P = 0.008). Similarly, the PFS rates (Fig. 3b) were 64.6% and 37.1% for L-CR, whereas non-L-CR was 0% at both time points, with a highly significant difference (P < 0.001). The DSS rates (Fig. 3c) were 97.0% and 77.6% for L-CR, compared to 85.7% and 40.0% for non-L-CR, respectively, also showing a significant difference (P = 0.005).Fig. 3. Cumulative survival rates according to local effect after talaporfin sodium photodynamic therapy (Talaporfin-PDT). a Overall survival. b Progression-free survival. c Disease-specific survival
Adverse events associated with Talaporfin-PDT according to local effect
Adverse events associated with Talaporfin-PDT were found in 81.8% of the study patients. The main adverse events were esophageal pain (58.2%), nausea (30.9%), fever (27.3%), esophageal stenosis (20.0%), hemorrhage (5.5%), and perforation (1.8%). There were no treatment-related deaths. Grade 3 hemorrhage according to the Common Terminology Criteria for Adverse Events (CTCAE) version 5.0 was observed in 1 patient with non-L-CR. Grade 4 perforation according to the CTCAE version 5.0 was observed in 1 patient with non-L-CR who developed life-threatening pneumonia caused by a tracheoesophageal fistula. The frequency of adverse events did not differ between the L-CR and non-L-CR groups (Table 2). Table 2. Adverse events associated with Talaporfin sodium photodynamic therapy (Talaporfin-PDT) according to local effectLocal effect after Talaporfin-PDTP valueTotalL-CRNon L-CR(n = 55)(n = 36)(n = 19)Esophageal pain32 (58.2%)19 (52.8%)13 (68.4%)0.389Nausea17 (30.9%)10 (27.8%)7 (36.8%)0.548Fever15 (27.3%)9 (25.0%)6 (31.6%)0.752Stenosis11 (20.0%)5 (13.9%)6 (31.6%)0.161Hemorrhage3 (5.5%)1 (2.8%)2 (10.5%)0.272Perforation1 (1.8%)0 (0.0%)1 (5.3%)0.346Skin photosensitivity0 (0.0%)0 (0.0%)0 (0.0%)–Adverse events were graded according to the CTCAE version 5.0
Treatment resistance factors associated with Talaporfin-PDT for local control
In univariate analyses, local resistance following Talaporfin-PDT showed a certain association with the initial treatment modality (treatment intensity), ycT stage prior to Talaporfin-PDT, and the presence of esophageal stenosis before the procedure. However, none of these factors achieved statistical significance (P = 0.071, 0.098, and 0.086, respectively). Although these variables were not statistically significant in the univariate analyses, they were considered clinically important factors that could potentially influence local control. Consequently, they were included in the multivariable model to minimize potential confounding. In multivariate analysis, esophageal stenosis before the procedure emerged as an independent predictor of local failure after Talaporfin-PDT, with an odds ratio of 5.626 (95% confidence interval: 1.051–30.124, P = 0.044) (Table 3). In the multivariate analysis of 54 patients, excluding those with adenocarcinoma, esophageal stenosis before the procedure was once again identified as an independent predictor of local failure after Talaporfin-PDT, with an odds ratio of 5.969 (95% confidence interval: 1.114–31.985, P = 0.037) (Supplementary Table S1). Table 3. Treatment resistance factors associated with Talaporfin sodium photodynamic therapy (Talaporfin-PDT) for local control by logistic regression modelNon L-CR (%)UnivariateMultivariateOdds ratio (95% CI)P valueOdds ratio (95% CI)P valueGender Male18/48 (37.5)1 (ref.) Female1/7 (14.3)0.278 (0.031–2.497)0.253Age ≤ 7510/30 (33.3)1 (ref.) > 759/25 (36.0)1.125 (0.369–3.431)0.836cT stage before initial treatment T18/29 (27.6)1 (ref.) ≥ T211/26 (42.3)1.925 (0.624–5.937)0.254Initial treatment modality Chemoradiotherapy13/45 (28.9)1 (ref.)1 (ref.) Radiotherapy6/10 (60.0)3.692 (0.893–15.274)0.0714.272 (0.939–19.427)0.060Tumor location Ce-Ut2/9 (22.2)1 (ref.) Mt10/27 (37.0)2.059 (0.356–11.906)0.420 Lt7/19 (36.8)2.042 (0.328–12.691)0.444Macroscopic type Superficial type10/36 (27.8)1 (ref.) Submucosal tumor type6/13 (46.2)2.229 (0.600–8.275)0.231 Ulceration type3/6 (50.0)2.600 (0.448–15.092)0.287ycT stage before Talaporfin-PDT ycT110/37 (27.0)1 (ref.)1 (ref.) ycT29/18 (50.0)2.700 (0.834–8.741)0.0983.116 (0.865–11.224)0.082Maximum tumor diameter on endoscopic images ≤ 15 mm9/34 (26.5)1 (ref.) > 15 mm10/21 (47.6)2.525 (0.803–7.945)0.113Circumference of tumor ≤ 1/410/36 (27.8)1 (ref.) > 1/49/19 (47.4)2.340 (0.734–7.456)0.151Esophageal stenosis before Talaporfin-PDT Absent14/47 (29.8)1 (ref.)1 (ref.) Present5/8 (62.5)3.929 (0.824–18.731)0.0865.626 (1.051–30.124)0.044

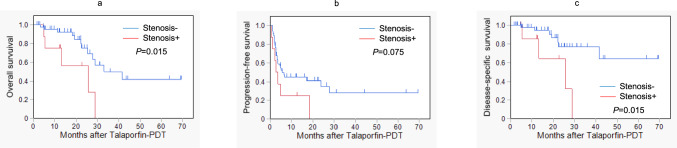

To identify any relationship between the factors associated with resistance and survival, we analyzed the cumulative survival rates of patients with or without esophageal stenosis prior to Talaporfin-PDT, as shown in Fig. 4. The OS rates at 1 and 3 years (Fig. 4a) were 75.0% and 0.0%, compared to 92.4% and 49.7%, respectively, with a significant difference noted at P = 0.015. The PFS rates (Fig. 4b) were 25.0% and 0.0% versus 44.6% and 28.0%, respectively, with no significant difference (P = 0.075). The DSS rates (Fig. 4c) were 85.7% and 0.0%, compared to 94.6% and 76.9%, respectively, with a significant difference found at P = 0.015.Fig. 4. Cumulative survival rates in patients with or without esophageal stenosis before talaporfin sodium photodynamic therapy (Talaporfin-PDT). a Overall survival. b Progression-free survival. c Disease-specific survival
