From simulation to application: enhancing preclinical evaluation of dissolvable microarray patches through PBPK modelling
Maja Railic, Wilhelmus E. A. de Witte, Stephan Schaller, Sarah Toluwanimi Agboola, Ziad Sartawi, Waleed Faisal, Mohamed Elkhashab, Abina Crean, Sonja Vucen
TL;DR

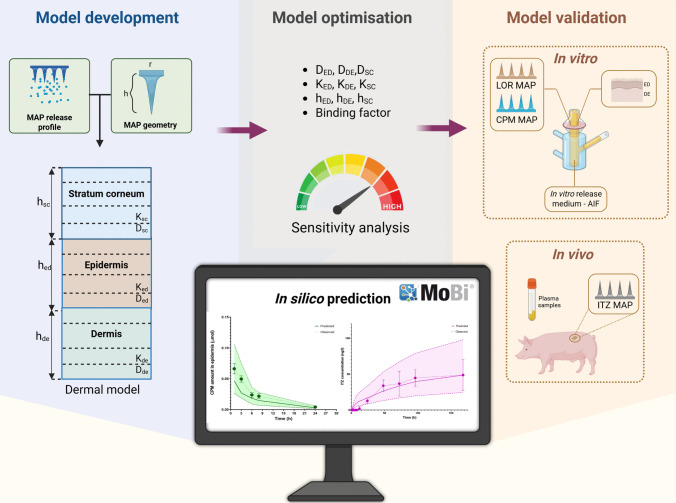

This paper introduces a PBPK model optimized for dissolvable microarray patches to improve drug delivery predictions and preclinical evaluation.
Contribution
The study presents a novel PBPK model adaptation for dissolvable microarray patches using drug-specific release profiles and skin parameters.
Findings
The optimized PBPK model accurately predicted drug kinetics for dissolvable microarray patches in vitro and in vivo.
The model incorporated microneedle geometry and drug release profiles for loratadine, chlorpheniramine maleate, and itraconazole.
Validation showed robust performance across different drug molecules and experimental conditions.
Abstract
Dissolvable microarray patches (MAP) represent a promising drug delivery platform; however, the absence of standardised protocols for their preclinical evaluation poses a significant barrier to regulatory approval and clinical translation. Physiologically Based Pharmacokinetic (PBPK) modelling is a powerful tool for predicting drug kinetics following MAP application, addressing key challenges associated with in vitro and in vivo studies such as experimental variability, complex study design, and data extrapolating across different populations. However, adapting PBPK models for dissolvable MAP is inherently complex due to the interplay between microneedle geometry, drug release kinetics, and skin physiology. In this study, an existing dermal PBPK model in MoBi® was optimised for dissolvable MAP by incorporating microneedle geometry and in vitro release profiles of MAP formulations…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —http://dx.doi.org/10.13039/501100024242Synthesis and Solid State Pharmaceutical Centre
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvancements in Transdermal Drug Delivery · Dermatology and Skin Diseases · Contact Dermatitis and Allergies
Introduction
The skin has long been recognised as a viable and effective route for drug delivery. To overcome its protective barrier, various delivery systems have been developed. Among these, dissolvable microarray patches (MAP) stand out for their unique ability to mechanically disrupt the stratum corneum (SC), enabling the release of drug cargo into deeper skin layers, thus facilitating both local and systemic treatments [1, 2]. Despite significant research and technological advancements, a pharmaceutical dissolvable MAP has yet to be commercialised. Among the several obstacles to their clinical translation are the absence of standardised preclinical assessment protocols and well-defined product quality attributes, which make it difficult to consistently produce systems that meet strict quality, safety, and efficacy standards [3].
Preclinical testing of dissolvable MAP involves various in vitro methods to evaluate drug release, its penetration through the skin layers, and permeability into simulated systemic circulation. However, these methods are often oversimplified, failing to accurately replicate the complex environment of in vivo skin [4]. Experimental variables, including skin metabolism, age, gender, and application site, significantly influence the results and their translatability to clinical settings [5]. These challenges extend to in vivo studies, where the choice of animal model and sampling methods can profoundly affect data interpretation [6]. Moreover, preclinical studies are often costly and associated with numerous ethical concerns [7].
Physiologically Based Pharmacokinetic (PBPK) modelling offers a solution to many of these challenges by enhancing the precision and reliability of both in vitro and in vivo studies. PBPK models integrate drug-specific properties with detailed physiological and biological knowledge to create a mechanistic framework that predicts drug behaviour in biological systems [8]. Recognised for their predictive accuracy, these models are increasingly endorsed by regulatory agencies for guiding decisions on drug-drug interactions, enzyme activity, pharmacogenetics, and therapy optimisation [9]. Efforts have been made to optimise PBPK models for various routes of administration, including dermal applications [10–12]. As a result, dermal models have been integrated into commercially available software programs such as GastroPlus^®^ (Simulations Plus, USA), Simcyp™ (Certara, UK), and MoBi^®^ (Open System Pharmacology). However, the application of PBPK modelling to the development of MAP products remains unexplored. Yadav et al. [13] attributed the limited progress in modelling and simulation tools for MAP to two main factors, a lack of sufficient parameters for relevant theoretical frameworks and limited expertise and interest in modelling these systems. Despite these challenges, the fundamental principles of drug pharmacokinetics through the skin are well-established [14–16], and experimental approaches can provide the necessary input parameters. Therefore, adapting existing dermal models for MAP is feasible and warrants investigation.
Existing dermal models primarily focus on conventional topical and transdermal systems, which are applied to the skin surface. However, MAP penetrate the skin and can deliver drugs into all three layers – stratum corneum (SC), viable epidermis (ED), and dermis (DE). The geometry of MAP can vary significantly depending on their design, critically influencing their skin penetration and drug distribution [17, 18]. Consequently, adapting PBPK models to account for these variations is essential. Moreover, MAP are fabricated using diverse methods, often incorporating polymeric matrices to control drug release rates [19]. The drug release rate from MAP determines the partitioning of the drug between the microneedle and the skin, influencing subsequent processes such as diffusion through skin layers, metabolism, and potential systemic absorption. Hence, incorporating drug release kinetics into modelling approaches is critical.
Elucidating the factors that influence drug movement across different skin layers can enhance the therapeutic efficacy of treatments for diseases such as skin cancer, psoriasis, and certain allergic or fungal conditions that require precise targeting of specific layers [20–23]. Therefore, simulation outcomes should ideally provide insights into drug kinetics within both the skin and systemic circulation. For drugs that undergo systemic exposure, PBPK models should also account for the redistribution of the active ingredient between the skin and systemic circulation. This is often achieved using whole-body-skin models to ensure accurate predictions [24]. These predictions rely on numerous input parameters related to a drug's physicochemical properties and skin-specific biological factors, which can vary significantly due to inter and intra-subject, as well as intra-study variability [24]. When experimental data are unavailable, quantitative structure–property relationships (QSPR) models or other computational methods can be used to estimate parameters; however, these approaches may introduce a degree of uncertainty. Sensitivity analysis and parameter optimisation are valuable tools for improving model reliability [24, 25]. However, it is important to select scientifically sound parameters, ensuring they are mechanistically relevant and represent data that cannot be obtained experimentally.
While the primary goal of PBPK models is to predict drug product in vivo behaviour, they can also play a crucial role in guiding experimental design during the early stages of product development. One commonly used test to evaluate drug distribution between the skin layers and release medium following MAP application is In Vitro Permeation Testing (IVPT). However, IVPT studies often suffer from high variability and low reproducibility [26]. Verified and validated PBPK models can serve as valuable tools for assessing the validity of IVPT results, informing further experimental studies and reducing both time and resources required for testing [12].
Building on the considerations outlined above, in this study we have developed a PBPK model designed to accurately predict drug distribution across skin layers and systemic absorption following MAP application. To achieve this, the dermal model from MoBi^®^ was specifically adapted for prediction of dissolvable MAP behaviour. This process involved incorporating microneedle geometry and in vitro release profiles for two types of MAP: a polymeric MAP loaded with the hydrophilic drug chlorpheniramine maleate (CPM), and drug-only MAP containing the lipophilic compounds loratadine (LOR) and itraconazole (ITZ). Uncertain input parameters related to skin thickness and drug-skin diffusion, partitioning and binding were carefully analysed and refined to improve the model's predictive accuracy. The optimised model was validated using experimental data from CPM and LOR MAP IVPT on porcine skin, as well as in vivo preclinical studies of ITZ MAP in a pig model, demonstrating robust performance across various drug molecules and experimental conditions.
Materials and methods
Materials
LOR (CAS 79794–75-5, purity > 98%), CPM (CAS 113–92-8, purity > 98%), and ITZ (CAS 84625–61-6, purity > 98%) were obtained from KEMPROTEC Limited (UK). Polyvinylpyrrolidone/vinyl acetate (PVP/VA; Kollidon^®^ VA 64, K-value 28, relative viscosity 1.178–1.55 for 1% aqueous solution) was supplied by BASF SE (Germany). Acetonitrile, methanol (both HPLC gradient-grade), and formic acid were sourced from Sigma-Aldrich (Ireland). Glacial acetic acid and HPLC-grade water were purchased from Fisher Scientific (UK). All other chemicals used were of pharmaceutical grade and were utilised as received.
PBPK model development
MAP design
In this study, we used dissolvable MAP fabricated and characterised as previously described [27, 28]. LOR, CPM, and ITZ MAP comprised 25 pyramidal microneedles (5 × 5), each 500 μm in height and 333 μm in base width, with 2.2 mm base-to-base spacing and a total array area of approximately 1 cm^2^.Drug amount loaded in MAP was 0.5 ± 0.09, 0.1 ± 0.02 and 0.4 ± 0.09 mg per patch for LOR, CPM and ITZ MAP, respectively. The penetration depth of the dissolvable MAP was experimentally determined for all formulations using the Parafilm M^®^ insertion method [29], and was found to be approximately 70% of the total microneedle length (Fig. S1, Supplementary Information). Model development and optimisation were performed using porcine ear skin, with the thicknesses of the skin layers estimated to be 21 μm (SC), 72 μm (ED), and 1500 μm (DE), based on previous reports [30].
In vitro release testing (IVRT)

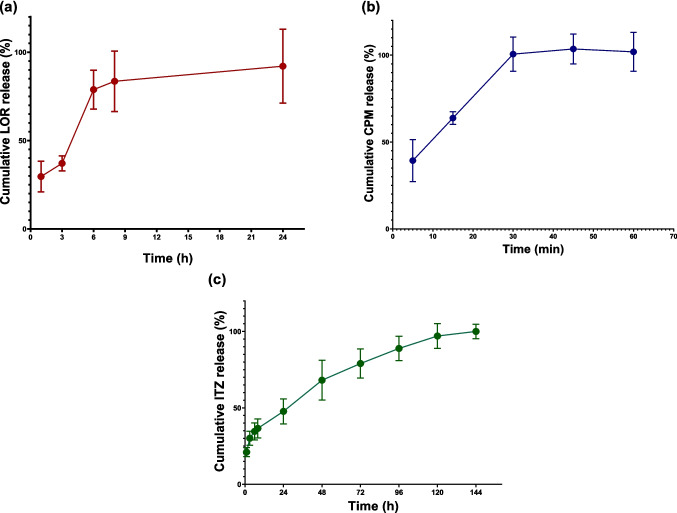

In vitro release testing (IVRT) was conducted to determine drug release rates for model development. IVRT was performed following established protocol [27]. MAP were immersed in the release medium and incubated at 37 °C under constant agitation. To better mimic physiological conditions, the biorelevant medium artificial interstitial fluid (AIF) was used, with its composition described previously [27, 31]. To ensure sink conditions, AIF was supplemented with 2% w/v polysorbate-80 for LOR MAP and 1% w/v sodium lauryl sulfate for ITZ MAP. IVRT was conducted for 24 h for LOR MAP, 1 h for CPM MAP, and 144 h for ITZ MAP, with sampling performed at designated time points. The varying durations of the release studies were chosen based on differences in release rates to ensure complete drug release. Drug concentrations were quantified using previously reported HPLC methods [27, 28]. The cumulative drug release data at each time point were incorporated into the dermal model in the MoBi^®^ software.
Development of dermal model for dissolvable MAP

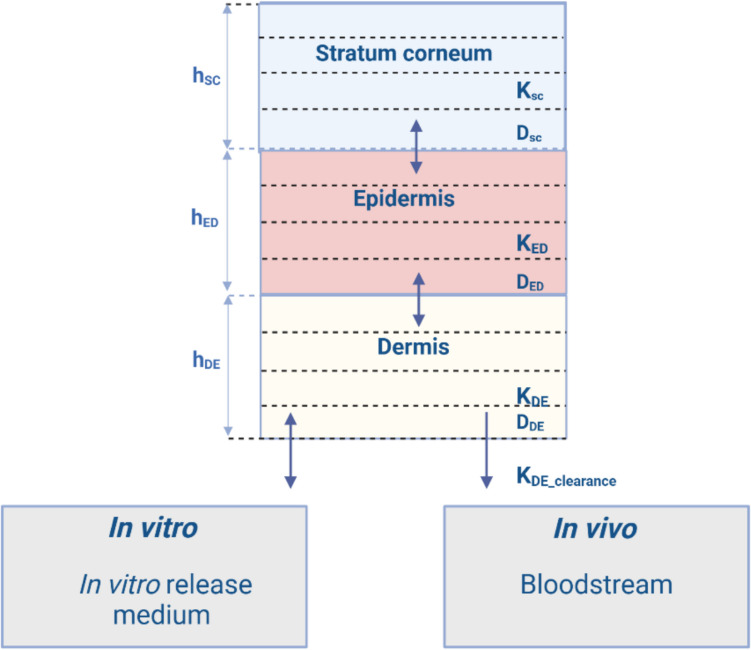

The dermal model in MoBi^®^ software (v.11) was developed based on the theoretical aspects of skin permeation described by Dancik et al. [16]. This model represents the skin as a multilayered slab consisting of three compartments which represent skin layers: SC, ED and DE (Fig. 1). Each layer inherits diffusion parameters based on its physical and chemical properties. The overall permeability in each skin layer is described by the diffusion coefficient (DSC, DED, DDE) and partitioning coefficient (KSC, KED, KDE). Within each layer, the drug can partition into four sublayers, which represent different phases, and each sublayer is further divided into ten smaller sections. Drug diffusion between these sections is governed by the ordinary differential equation [Eq. 1]:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d{A}_{SL,n}}{dt}={D}_{SL}*\left({C}_{SL, n-1}- {C}_{SL, n}\right)*\frac{{A}_{r}}{{dh}_{SL}}$$\end{document}where A_SL,n_ is the amount of compound in the n^th^ section of skin layer SL (i.e. SC, DE or ED), D_SL_ is the skin layer-specific diffusion coefficient, C_SL,n-1_ is the concentration of compound in the n-1th section of skin layer SL, C_SL,n_ is the concentration of compound in the n^th^ section of skin layer SL, Ar is the application surface area and dh_SL_ is the skin layer-specific thickness of one section.Fig. 1. Schematic representation of the dermal model in MoBi^®^. Each skin layer is illustrated with four sublayers, which are further divided into ten sections (not shown in the illustration). Abbreviations: h_sc_, h_ED_ and h_DE_ denote the thicknesses of the stratum corneum, epidermis, and dermis, respectively. K_sc_, K_ED_ and K_DE_ represent the drug partition coefficients for the stratum corneum, epidermis, and dermis, while K_DE_clearance_ corresponds to the clearance rate constant for drug removal from the dermis into systemic circulation. D_sc_, D_ED_ and D_DE_ denote the diffusion coefficients of the drug in the respective skin layers. Created with BioRender.com
Drug transition between the SC and ED layers, as well as between the ED and DE layers, is modeled as follows [Eq. 2] [Eq. 3]:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d{A}_{SC}}{dt}={A}_{r}*\left(\frac{\left(\frac{{D}_{SC}}{{h}_{SC}}\right)*(\frac{{D}_{ED}}{{h}_{ED}})}{\left(\frac{{D}_{SC}}{{h}_{SC}}\right)+\left(\frac{{K}_{ED/SC}*{D}_{ED }}{{K}_{SC/ED}*{h}_{ED}}\right)} \right)\left(\left(\frac{{K}_{ED/SC}*{C}_{SC}}{{K}_{SC/ED}}\right)-{C}_{ED}\right)$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d{A}_{ED}}{dt}={A}_{r}*\left(\frac{\left(\frac{{D}_{ED}}{{h}_{ED}}\right)*(\frac{{D}_{DE}}{{h}_{DE}})}{\left(\frac{{D}_{ED}}{{h}_{ED}}\right)+\left(\frac{{K}_{DE/ED}*{D}_{DE }}{{K}_{ED/DE}*{h}_{DE}}\right)} \right)\left(\left(\frac{{K}_{DE/ED}*{C}_{ED}}{{K}_{ED/DE}}\right)-{C}_{DE}\right)$$\end{document}where A represents the amount of drug in the respective skin layer (SC or ED), D is the diffusion coefficient in the corresponding layer (SC, ED, or DE), K is the partition coefficient between the adjacent layers (SC/ED or ED/DE), h represents the thickness of the respective layer, c is the drug concentration, and Ar is the application surface area.
In DE, permeation is similarly modelled as one-dimensional diffusion for in vitro simulations [Eq. 4]:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{{dA}_{DE}}{dt}={D}_{de}*\frac{{C}_{DE}}{dh}*{A}_{r}$$\end{document}where A_DE_ is the amount of drug in the DE, D_DE_ is the diffusion coefficient in the dermis, h is the layer thickness, C_DE_ is the drug concentration in DE, and Ar is the application surface area.
For in vivo conditions, however, an additional clearance term is included to account for the drug's removal into the bloodstream [Eq. 5]:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{d{A}_{DE}}{dt}={k}_{DE}*dh*Ar*{c}_{DE}$$\end{document}where, k_DE_ is dermal clearance rate.
Although the original dermal model in MoBi^®^ was designed for topical and transdermal formulations where the drug is applied on the SC surface, we adapted it for use with dissolvable MAP. Based on the MAP design and skin thickness, we determined that the microneedles would penetrate all sublayers of both SC and ED, as well as the first sublayer of DE. Using the microneedle geometry and the distribution of the drug across the layers, we then calculated the percentage of total drug amount present in each skin sublayer immediately following MAP application (Fig. 2). To implement this in MoBi^®^, we created nine separate applications, assigning the calculated drug amount to each corresponding skin sublayer. Since drug distribution within the smaller sections (10 sections within each sublayer) occurs rapidly, we did not model separate applications for these smaller compartments.Fig. 2. Distribution of drug across skin layers following MAP application. Each of the three skin layers is divided into four sublayers. After MAP application, the drug is distributed in the stratum corneum, epidermis, and the first layer of dermis. The percentages of the total drug loaded into the MAP are shown for each skin layer. Created with BioRender.com
In addition to modelling drug distribution following microneedle application, it was essential to account for the drug release profile, as only the drug released from the MAP can penetrate through the skin layers and achieve the desired therapeutic effect. To achieve this, the model incorporated a time-dependent release fraction, which was directly implemented as a table of in vitro release data. At each time point, the available drug amount for permeation was determined as the product of the initial dose and the experimentally derived release fraction.
The original dermal model, developed for topical formulations, includes parameters for drug distribution into hair follicles and evaporation into the air. As these processes are not applicable to dissolvable MAP, where the drug is delivered directly into the skin, the corresponding parameters were set to zero in our simulations.
Taking into account considerations above, following assumptions were made:
- Model assumes uniform insertion of microneedles across the skin. Variations in penetration depth or angle during duration of experiment could affect drug distribution;
- Only drug released from MAP can transverse across skin layers and reach systemic circulation;
- Presence of a polymer matrix in MAP formulation is not considered to influence drug diffusion through the skin;
- Drug does not enter the hair follicles.
For the LOR and CPM MAP, an adopted dermal model was used for in vitro application. However, to track ITZ concentrations in plasma, a combined whole body- dermal model was employed, as described below.
Whole body model for ITZ
The simulation of ITZ plasma concentrations following oral administration in pigs was performed using the PK-Sim software. The minipig model, developed and implemented in PK-Sim as outlined by Suenderhauf and Parrott [32], was adapted to our study. The input parameters used for the simulation are detailed in Table 1. The accuracy of the simulation results was confirmed by comparison with previously published in vivo data [28]. Finally, the whole body model following oral administration of ITZ was integrated with the dermal model using the MoBi^®^ software. Table 1. Input parameters for the ITZ whole body modelInput parameterValueMolecular weight (g/mol)705.64 [34]LogP6.5 [35]Fraction unbound (%)0.02 [34]pKa3.7 [34]Solubility at pH7 (g/l)0.0096 [35]Solubility gain per charge1000 [36]Intrinsic clearance (l/min)278 [37]Dose (mg)50 [28]Calculation method for Partition coefficients and Cellular PermeabilitiesPK-Sim StandardThe dissolution profile of ITZ capsules in biorelevant medium was obtained from Thiry et al. [33]
PBPK model optimisation
The input parameters for the dermal model, including the drugs’ physicochemical properties, are provided in Table 2. Other critical parameters influencing drug diffusion (DSC, DED, DDE), partitioning (KSC, KED, KDE) and binding (Binding factor), as well as biological parameters such as skin thickness, underwent sensitivity analysis if they were unavailable, unreliable, or not directly derived from experimental data or literature. Supplementary Table S1 provides a detailed overview of these parameters, including their descriptions and equations. Sensitivity analysis was performed to assess their impact on model outcomes, and highly sensitive parameters were further optimised using the Levenberg–Marquardt algorithm. Table 2. Physicochemical input parameters for selected drug molecules used in the PBPK modelInput parameterLORCPMITZC atoms222035Cl atoms112Compound typeBaseBaseBaseDouble bonds7913Experimental denstity (g/cm^3^)1.30 [38]1.28 [39]1.27 [40]Experimental water solubility (g/cm3)1.34X10^−5^ [35]0.05 [35]9.64X10^−6^ [35]Fraction unbound (%)3 [41]30 [42]0.02 [34]H atoms232335SC hydrationhydratedhydratedhydratedSkin propertyIn vitroIn vitroIn vivologP4.80 [35]3.62 [35]6.5 [35]Melting temperature (°C)135 [35]133 [35]168 [35]Molecular weight (g/mol)382.88 [41]390.9 [43]705.60 [34]N atoms228O atoms242Rings424Skin surface temperature (°C)323232Strongest base pKa4.5 [41]9.47 [43][34]
PBPK model validation
In vitro validation
The model was validated for the in vitro performance of LOR and CPM MAP using data obtained in IVPT studies. These studies were conducted in vertical Franz diffusion cells (PermeGear, USA) with porcine ear skin as the membrane and biorelevant AIF as the receptor medium. MAP were inserted into the prepared skin samples using an in-house applicator (25 N) and secured in the donor compartment with adhesive tape, following a protocol described in detail previously [27], with modifications to the sampling procedure. In addition to collecting samples from the release medium, skin samples were removed from the setup, and the ED and DE layers were separated using a heat separation method [44] at each time point (1, 3, 6, 8 and 24 h). Drug content in each layer was then quantified using previously described and validated HPLC methodology [27, 28]. The experimental data for drug amounts in the ED, DE, and in the in vitro release medium (referred as ‘in vitro sink’ in MoBi^®^) were compared with model predictions. Absolute average fold error (AAFE) between predicted and observed curves was calculated using a previously reported equation [45]. Models with AAFE values between 1 and 2 were deemed successfully verified. Additionally, observed and predicted data were plotted to visually assess whether the predicted values fell within a two-fold range of the observed values.
In vivo validation
The model was validated for in vivo performance using data from ITZ MAP in vivo studies conducted on Landrace pigs, as previously described by Sartawi et al. [28]. These studies utilized MAP with the same geometry as noted above, but with a larger array (14 × 14), corresponding to a total ITZ dose of 4.1 mg. The PBPK model was verified if the AAFE for concentration–time profiles and pharmacokinetic parameters (C_max_, T_max_, AUC_0→24 h_, and AUC_0→168 h_) was between 1 and 2, and if the ratio of predicted to observed pharmacokinetic parameters fell within 0.5 to 2.
Results
PBPK model development and optimisation

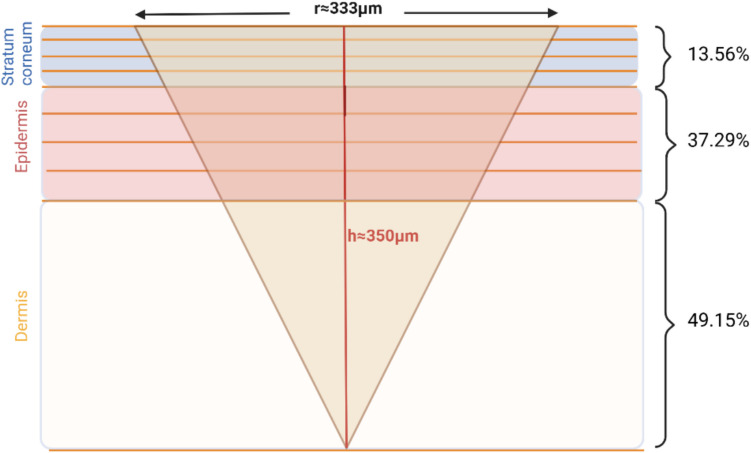

The PBPK model for dissolvable MAP was developed by integrating their geometry and the drug release profiles into an existing dermal model in MoBi^®^. The geometry was used to estimate the percentage of the total dose distributed in skin layers and sublayers. The drug release profiles in the biorelevant media determined through IVRT studies are presented in Fig. 3. CPM exhibited a rapid release profile, with an initial burst of 39.3 ± 12.1% of drug released within the first 5 min, followed by complete drug release within 30 min. In contrast, LOR and ITZ displayed prolonged release profiles, with complete drug release occurring after 24 and 120 h, respectively. The fraction of drug released at each time point predetermined the amount of drug dose available for permeation in the skin layers.Fig. 3. In vitro drug release profile from MAP in biorelevant media: (a) CPM; (b) LOR and (c) ITZ (n = 3.). Drug release profile significantly varied between the proposed formulations. CPM exhibited rapid release, while LOR and ITZ demonstrated prolonged release. Y error bars indicate the standard deviation

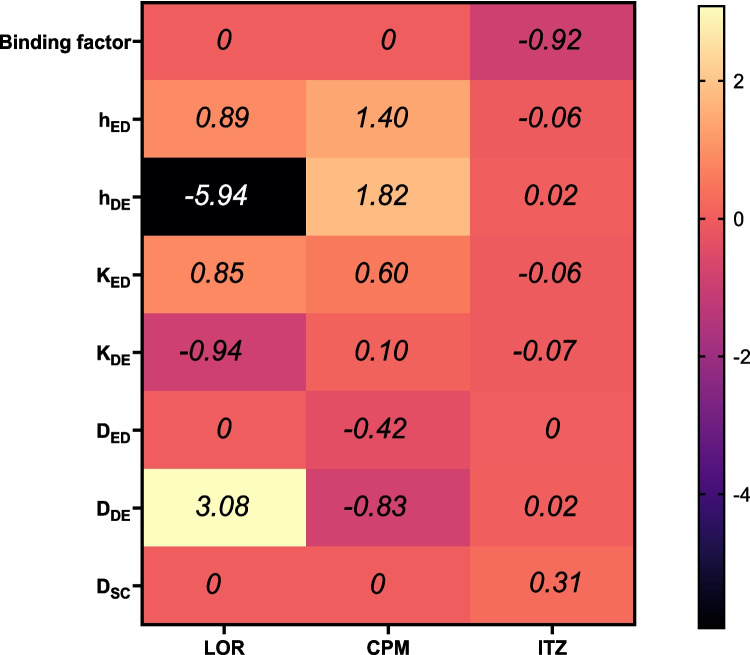

To refine the PBPK model parameters and enhance predictive accuracy, a sensitivity analysis was performed to identify the parameters with the greatest influence on model outcomes for each drug. For LOR MAP, the most critical parameters influencing predictions were identified as dermal thickness, dermal diffusion and partition coefficients, as well as epidermal thickness and epidermal partition coefficient. Similarly, for CPM MAP, dermal thickness, the dermal diffusion coefficient, and epidermal thickness were the key determinants of model outcomes. In contrast, for ITZ MAP, the binding factor emerged as the most influential parameter affecting plasma drug concentration predictions (Fig. 4). These findings guided subsequent parameter optimisation to improve the model's fit and reliability. Optimised parameter values are presented in Table 3, and figures showing predicted vs observed data prior to optimisation can be found in the Supplementary Information (Fig. S2-S4).Fig. 4. Heatmap showing a sensitivity analysis of the most influential parameters for model predictions across three drug formulations: LOR, CPM, and ITZ MAP. Sensitivity coefficients farther from 0 indicate a stronger influence on model outcomes. Positive values correspond to an increase, and negative values indicate a decrease in the model outcome, reflecting the direction of each parameter's effect. For LOR MAP, key parameters include dermal thickness, dermal diffusion coefficient, dermal partition coefficient, epidermal thickness, and epidermal partition coefficient. For CPM MAP, dermal thickness, dermal diffusion coefficient, and epidermal thickness were the most significant factors. The binding factor was identified as the most influential parameter for ITZ MAP. Abbreviations: h_ED_, h_DE_- thickness of epidermis and dermis; K_ED_, K_DE_ – partition coefficients in epidermis and dermis; D_ED_, D_DE_, D_SC,_ – diffusion coefficients in epidermis, dermis and stratum corneumTable 3Key parameters identified in sensitivity analysis for LOR, CPM, and ITZ MAP: starting and optimal valuesDrugParameterStarting valueOptimal valueLORD_DE_ (cm^2^/s)3.32 × 10^–8^5.34 × 10^–8^K_DE_44.6738.55K_ED_44.6746.00Dermal thickness (µm)15001439.42Epidermal thickness (µm)7285CPMD_DE_ (cm^2^/s)2.52 × 10^–7^2.79 × 10^–7^Dermal thickness (µm)15001237.02Epidermal thickness (µm)7280ITZBinding factor2101.871262.99D_DE_ diffusion coefficient in dermis, K_DE_ partition coefficient in dermis, K_ED_ partition coefficient in epidermis
PBPK model validation
In vitro model validation

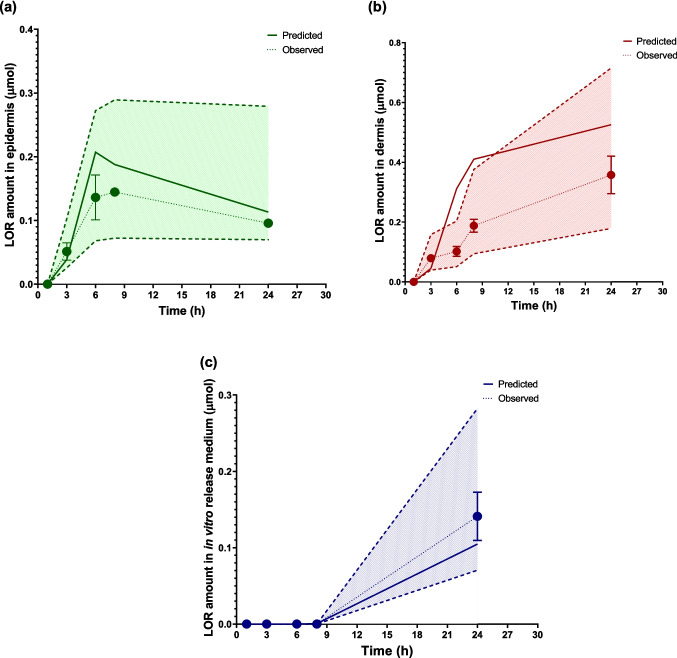

The developed PBPK model was validated using in vitro performance data obtained from IVPT studies conducted with LOR and CPM MAP. Validation involved comparing the observed and predicted drug amounts in the ED, DE and the in vitro release medium.
The AAFE values, calculated between the predicted and observed curves, were 1.42 for the ED, 1.53 for the DE, and 1.37 for the in vitro release medium. As shown in Fig. 5a–c, the predicted amounts of LOR generally fell within a two-fold range of the observed data. A discrepancy was observed in DE, where the model overpredicted drug concentrations at the 6- and 8-h time points compared to the observed values. Although concentrations at these two timepoints fell outside the two-fold range of the observed data, the AAFE of 1.53 indicates that the model's overall accuracy remains within an acceptable error margin.Fig. 5LOR distribution in skin layers and release medium over time: (a) epidermis, (b) dermis, and (c) cumulative release in in vitro release medium (n = 2). Solid lines represent model predictions, dots represent in vitro observed data, and the shaded region indicates the two-fold error margin for predicted values. For the dermis, the predicted amounts at the 6- and 8-h time points were overestimated. Y error bars indicate the standard deviation

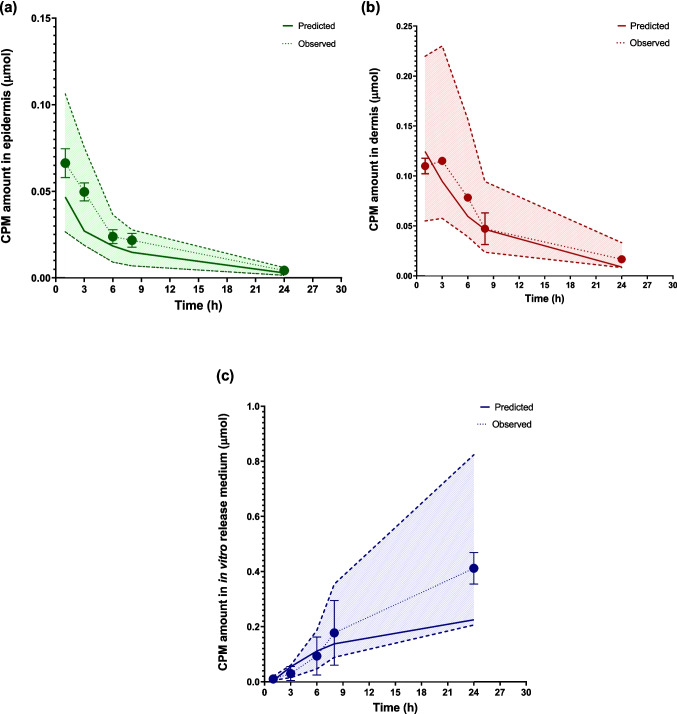

Similarly, for CPM MAP, the calculated AAFE values for the predicted versus observed curves were 1.28 for the ED, 1.33 for the DE, and 1.37 for the in vitro release medium, reflecting good model accuracy. Additionally, the simulated CPM amounts consistently stayed within a two-fold range of the observed data across the ED, DE, and in vitro release medium, as shown in Fig. 6a–c.Fig. 6CPM distribution in skin layers and release medium over time: (a) epidermis, (b) dermis, and (c) cumulative release in in vitro release medium (n = 2). Solid lines represent model predictions, dots represent in vitro observed data, and the shaded region indicates the two-fold error margin for predicted values. All predicted data fall within this range. Y error bars indicate the standard deviation
In vivo model validation

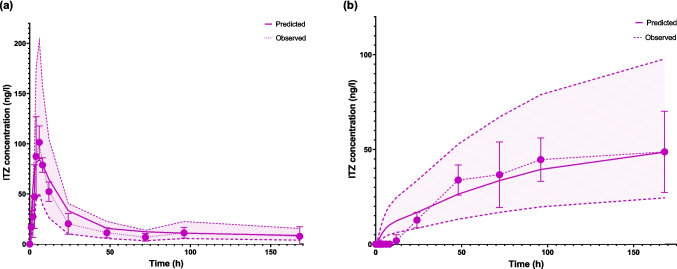

The whole-body model was validated using in vivo data for ITZ following oral administration in pigs. As shown in Fig. 7a, a strong correlation was observed between the measured and predicted values. Building on this validation, the model was integrated with a dermal model to simulate ITZ plasma concentrations following MAP application. This integrated model was further validated using in vivo data from pigs treated with ITZ MAP. The AAFE was calculated for the concentration–time profile from 12 to 168 h, as the observed data at earlier time points (0–12 h) were zero, making it impossible to compute AAFE using the equation. The AAFE for the predicted versus observed profile during this period was 1.02, indicating a good fit. This was further supported by the observed versus predicted plot (Fig. 7b). Additionally, comparisons of pharmacokinetic parameters revealed that the AAFE for AUC_0→168 h,_ C_max_, and T_max_ values fell within the proposed range of 1–2, while the ratio of predicted to observed values for these parameters was within the acceptable 0.5–2 range (Table 4). However, the ratio of predicted to observed AUC_0→24 h_ exceeded this range.Fig. 7ITZ plasma concentrations after (a) oral administration of capsules and (b) MAP administration (n = 5). Solid lines represent model predictions, dots represent in vivo observed data, and the shaded region indicates the two-fold error margin for predicted values. For MAP, the predicted concentrations during the initial phase (0–24 h) were overestimated. Y error bars indicate the standard deviationTable 4Pharmacokinetic parameters calculated from observed and predicted data for MAP application on landrace pigs in vivoObservedPredictedAAFERatioAUC_0→24 h_ (ng hr^−1^ ml)90.9 ± 53.1263.82.902.90AUC_0→168 h_ (ng hr^−1^ ml)5233.7 ± 2669.15546.51.061.06C_max_ (ng ml^−1^)52.5 ± 20.549.11.070.94t_max_ (h)144 ± 41.6155.31.081.08Profile 12-168h--1.02-Observed data are presented as mean ± standard deviation (n = 5). Abbreviations: AAFE absolute average fold error, AUC0 → 24 h—area under the curve from 0 to 24 h; AUC0 → 168 h—area under the curve from 0 to 168 h, Cmax—maximum concentration of the drug in plasma, tmax—time at which Cmax occurs
