A dual-mode dual-stator hybrid rotor synchronous and vernier machine for variable speed applications
Sajad Ali, Qasim Ali, Hafiz Mudassir Munir, Hasan A. Zidan
TL;DR
This paper introduces a new type of electric motor for washing machines that can efficiently switch between low-speed washing and high-speed drying.
Contribution
The paper introduces a novel dual-mode dual-stator hybrid rotor machine for variable-speed applications.
Findings
The machine achieves 20 Nm torque at 530 rpm in vernier mode with 77% efficiency.

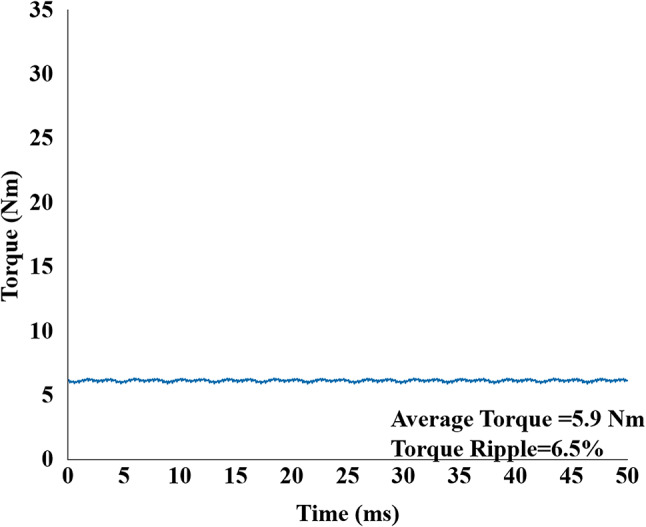

It provides 5.9 Nm torque at 1200 rpm in synchronous mode with 94.7% efficiency.
The design is compact, magnet-light, and energy-efficient compared to existing motors.
Abstract

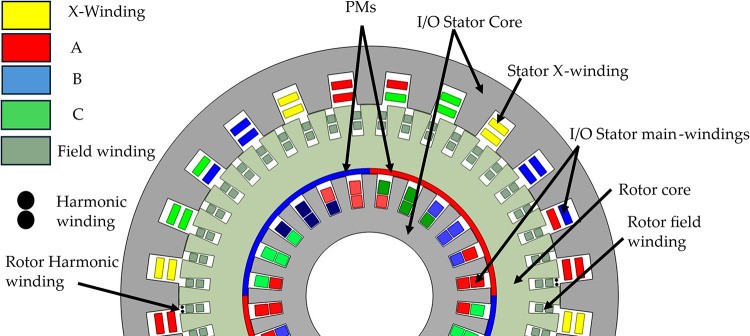

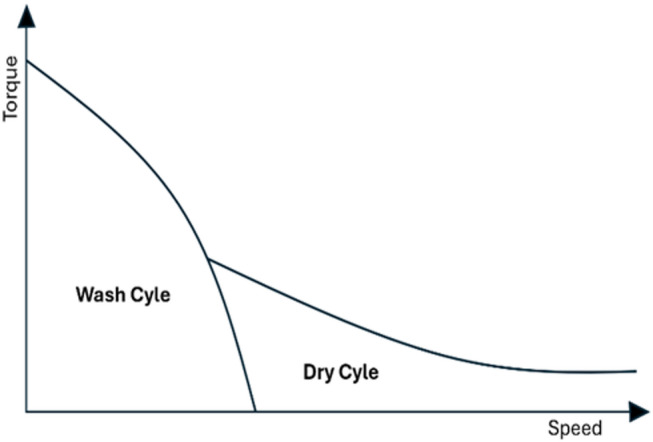

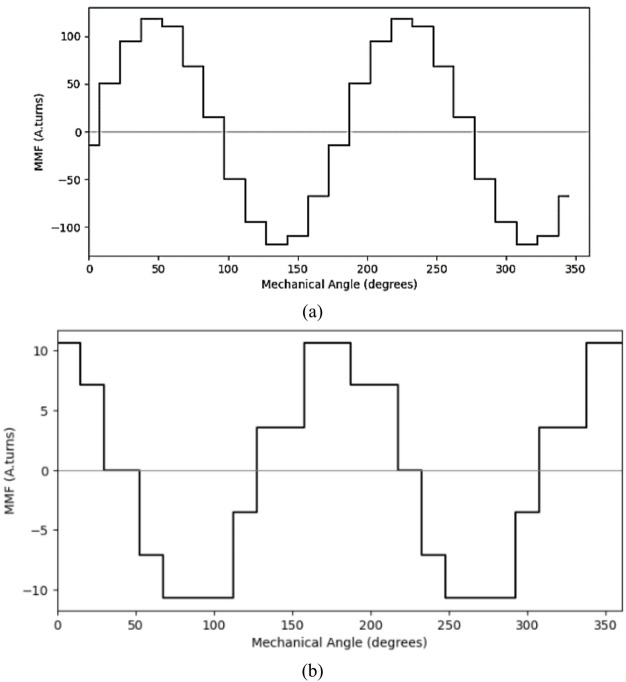

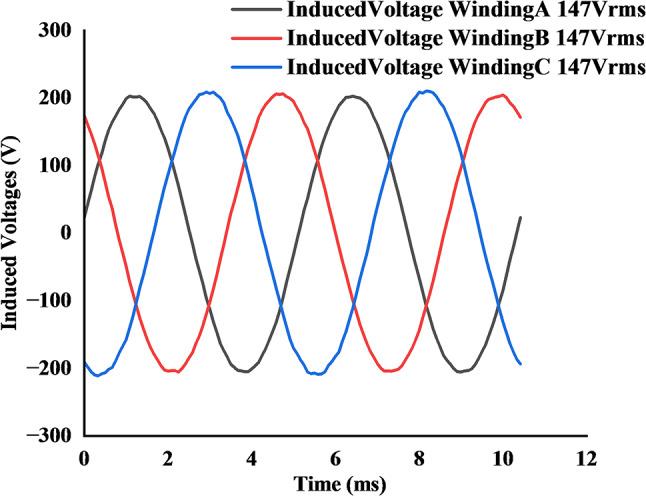

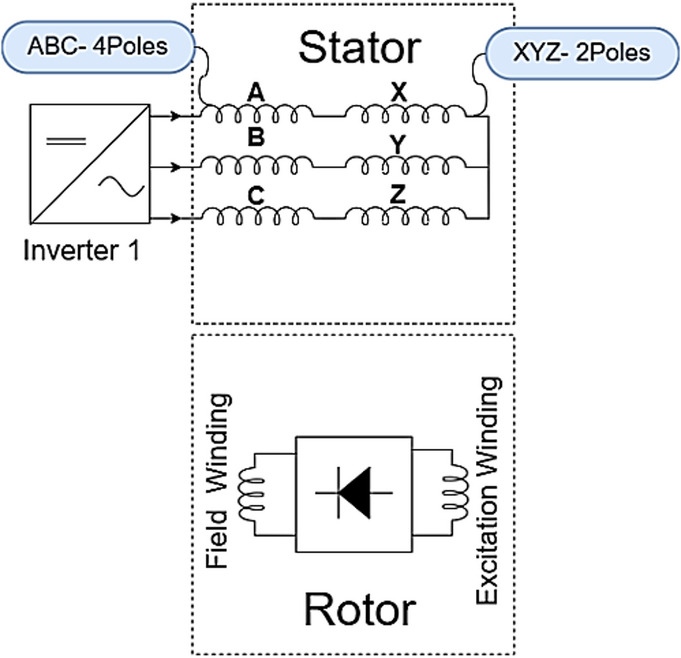

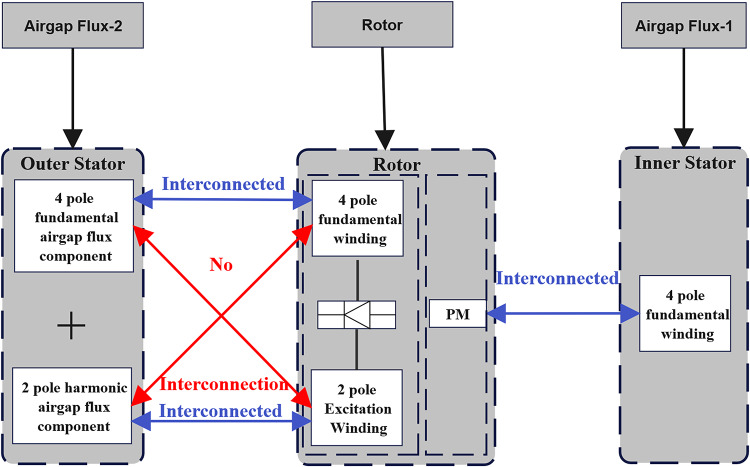

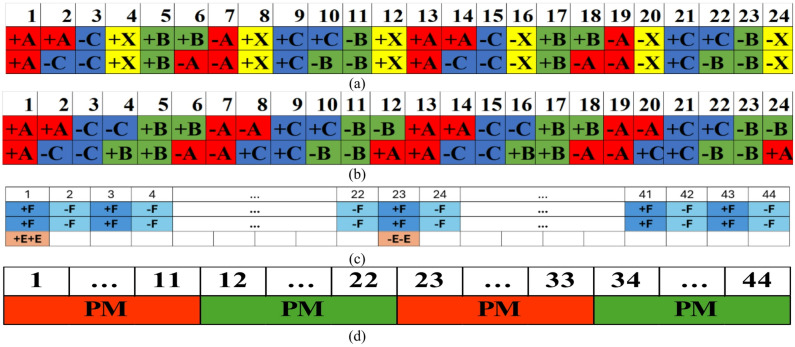

This paper presents the design and electromagnetic performance evaluation of a Dual-Mode Dual-Stator Hybrid-Rotor Synchronous and Vernier Machine (DMDS-HRSVM) developed for automatic washing-machine applications. The washing machine operates in two distinct cycles: a low-speed, high-torque wash cycle and a high-speed, energy-efficient spin-dry cycle. The proposed configuration combines two stators with a single hybrid rotor, allowing the machine to operate in both brushless vernier and synchronous modes within one compact structure Machines outer stator is made of 24 slots, each with either a 4 pole main winding 2 pole auxiliary winding, which combine together to create fundamental and subharmonic magnetomotive force (MMF) components in the air gap. These elements cause voltages in a 2pole rotor excitation winding by the airgap the induced AC is rectified by a rotating rectifier to the…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 10

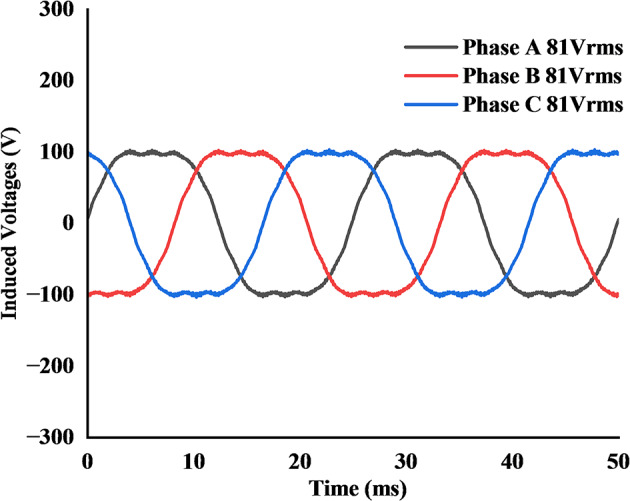

Figure 11
Figure 12

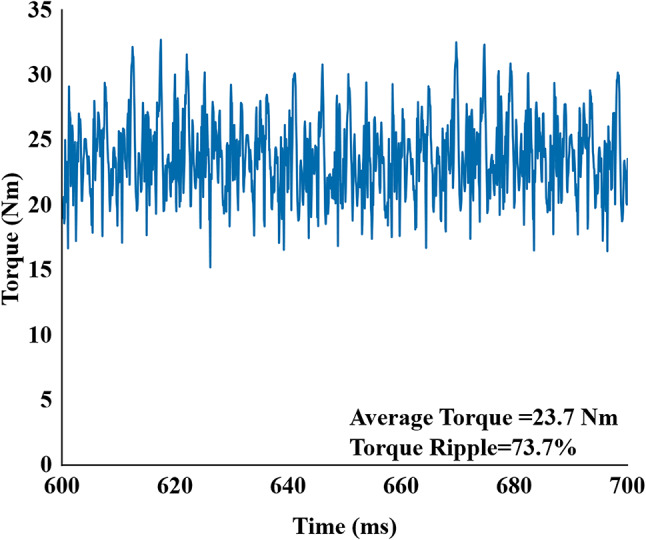

Figure 13

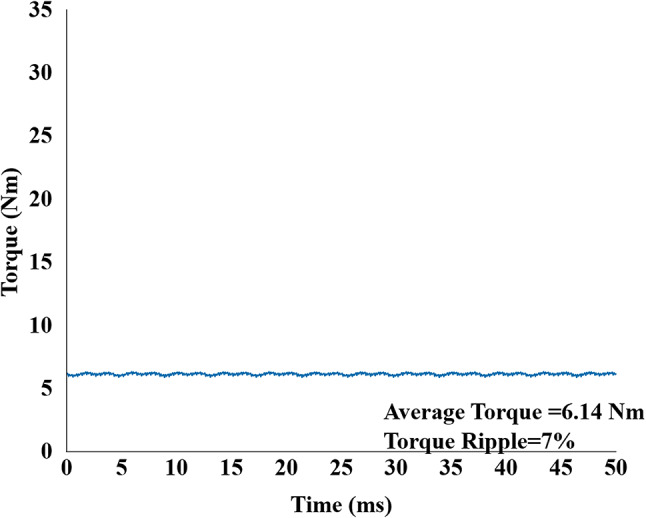

Figure 14

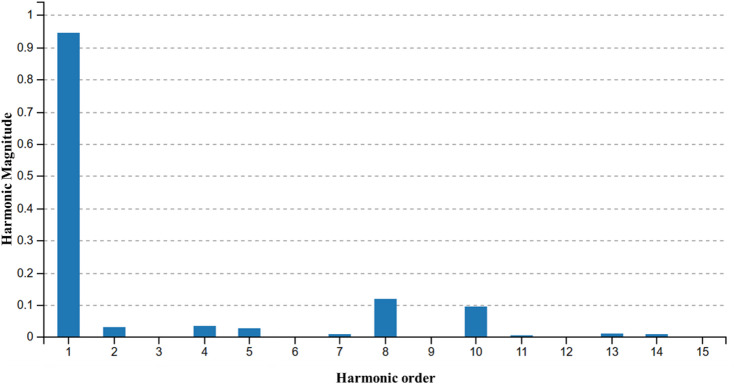

Figure 15

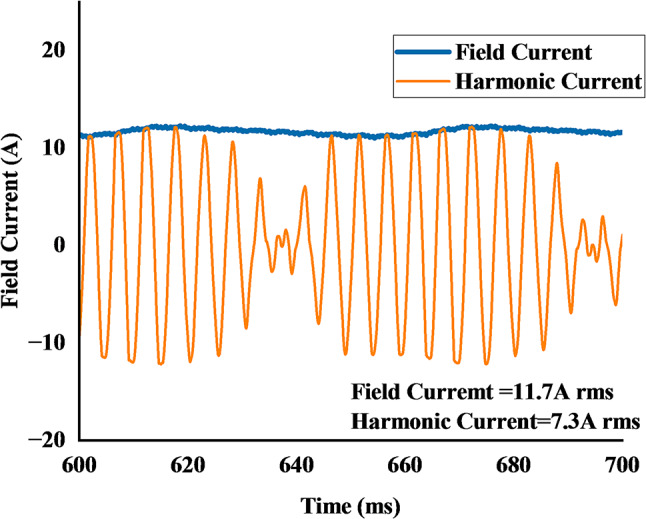

Figure 16

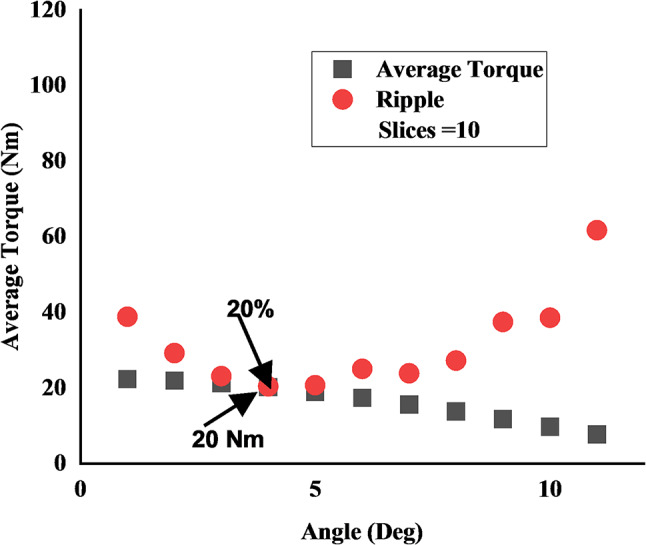

Figure 17

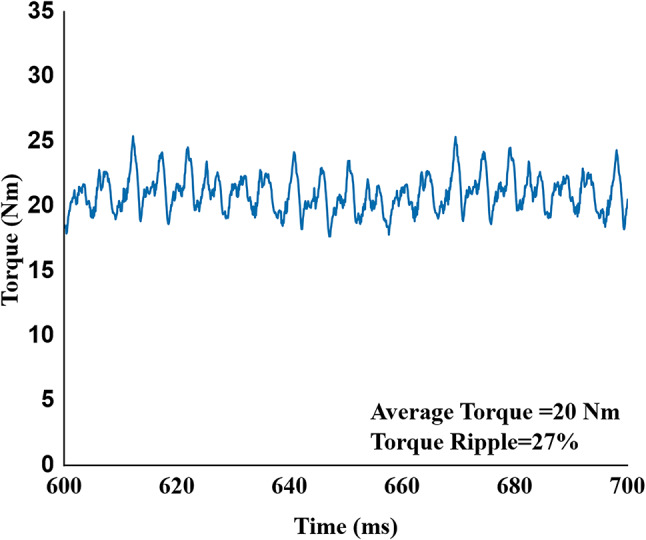

Figure 18

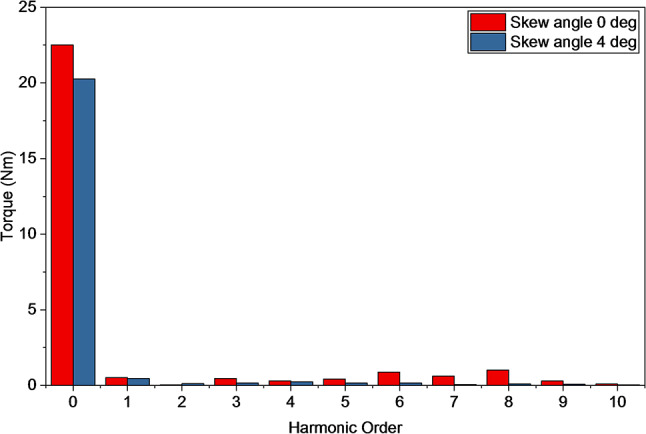

Figure 19
Figure 1
Figure 20

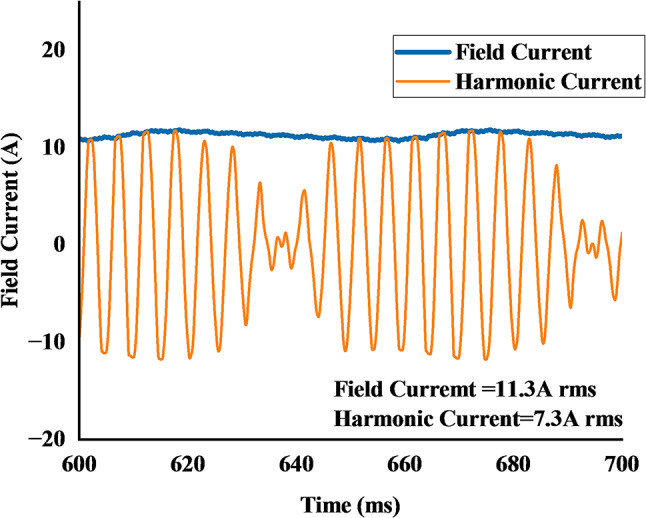

Figure 21

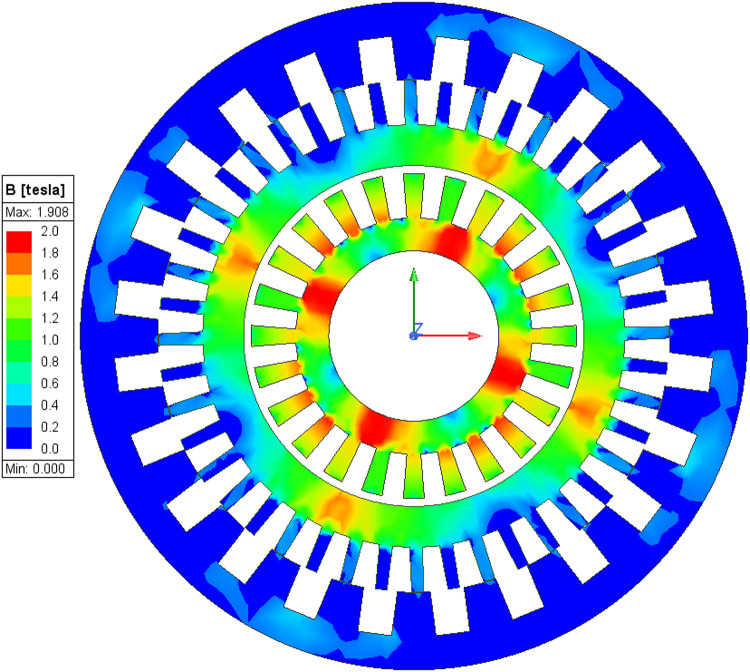

Figure 22

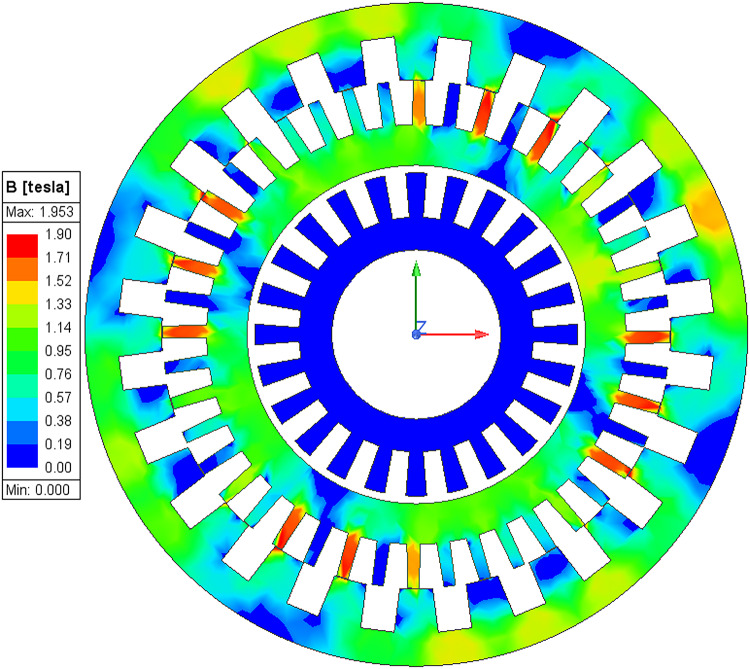

Figure 23

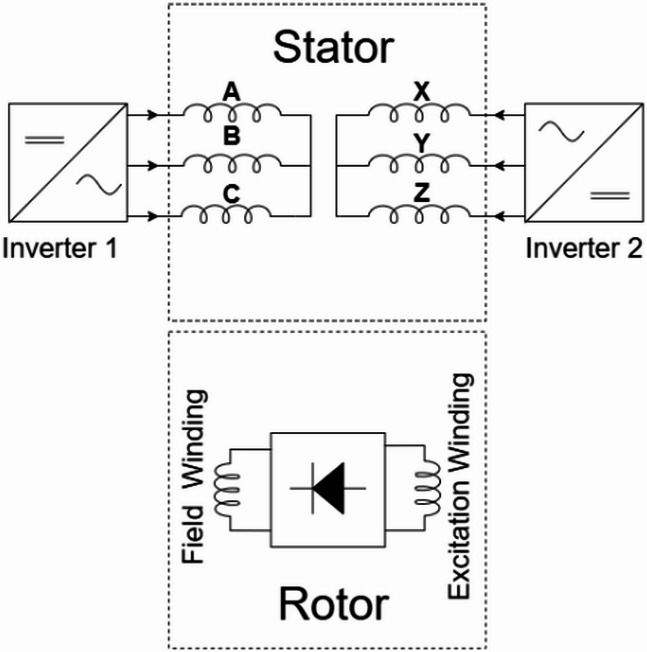

Figure 2

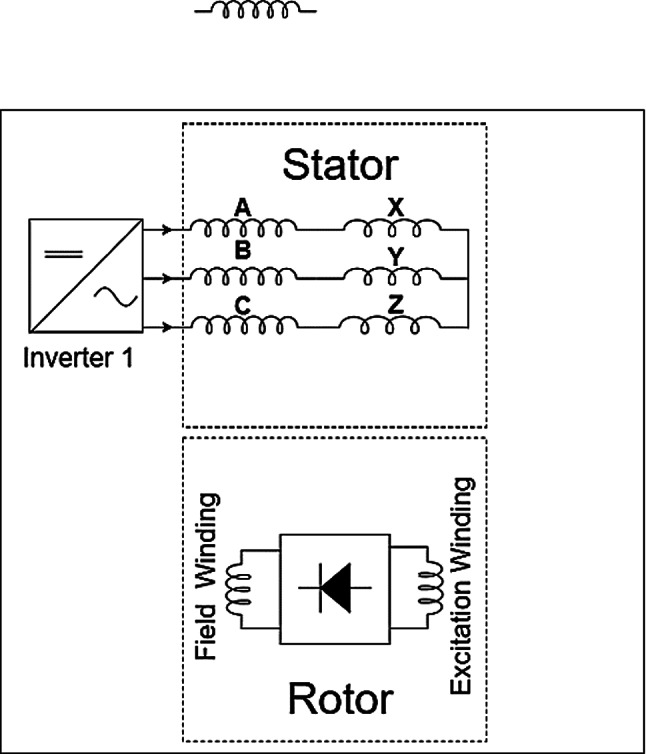

Figure 3

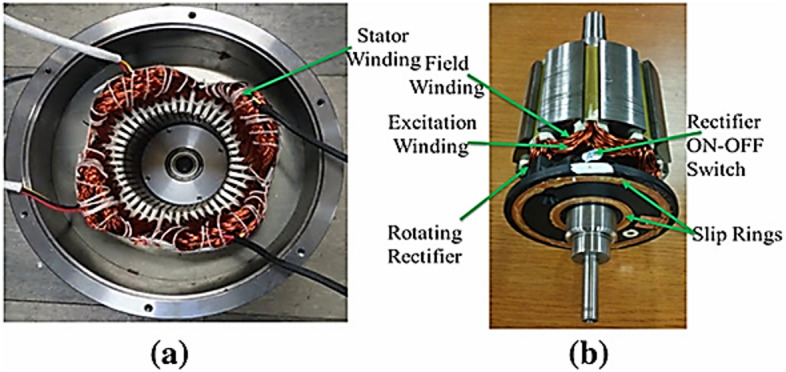

Figure 4
Figure 5
Figure 6

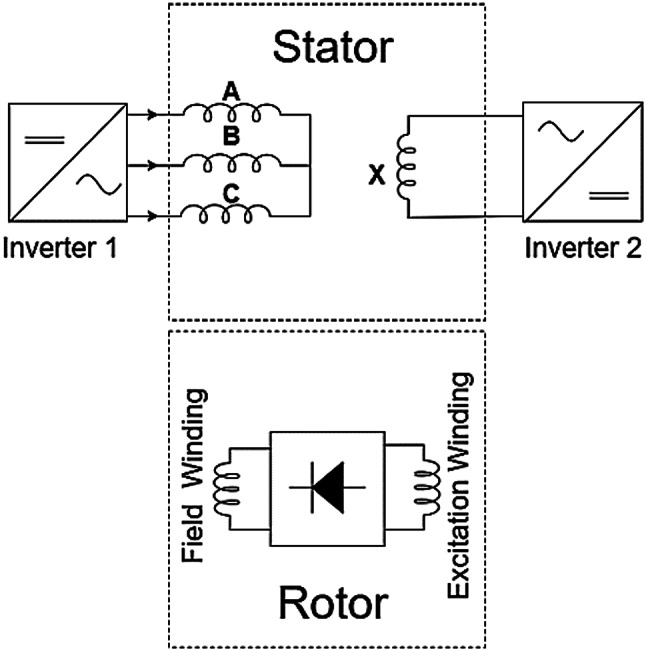

Figure 7
