Ion-Sieving Dual-Scale Asymmetric Cellulose Membrane as a Sustainable Paper-Based Separator for Ultra-Stable Zinc Anodes

TL;DR

A biodegradable paper-based separator is developed to improve the stability and performance of zinc-ion batteries.

Contribution

A dual-scale asymmetric cellulose membrane is introduced to regulate ion transport and suppress dendrite growth in zinc anodes.

Findings

The membrane enables ultra-stable zinc||zinc symmetric cells with over 1,900 hours of cycling.

The design achieves a sixfold lifespan extension compared to commercial separators.

The separator is fully biodegradable and reduces costs by 83%.

Abstract

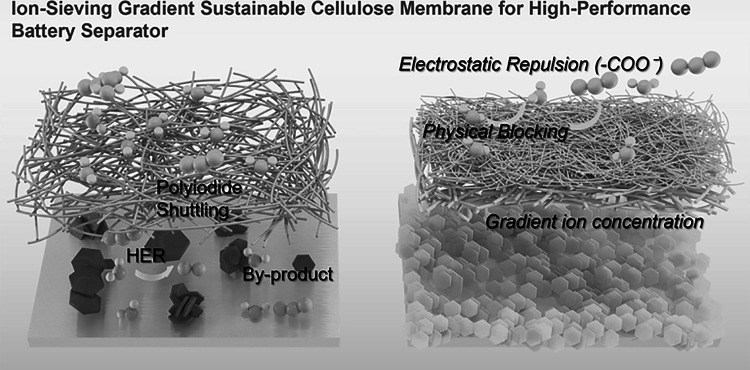

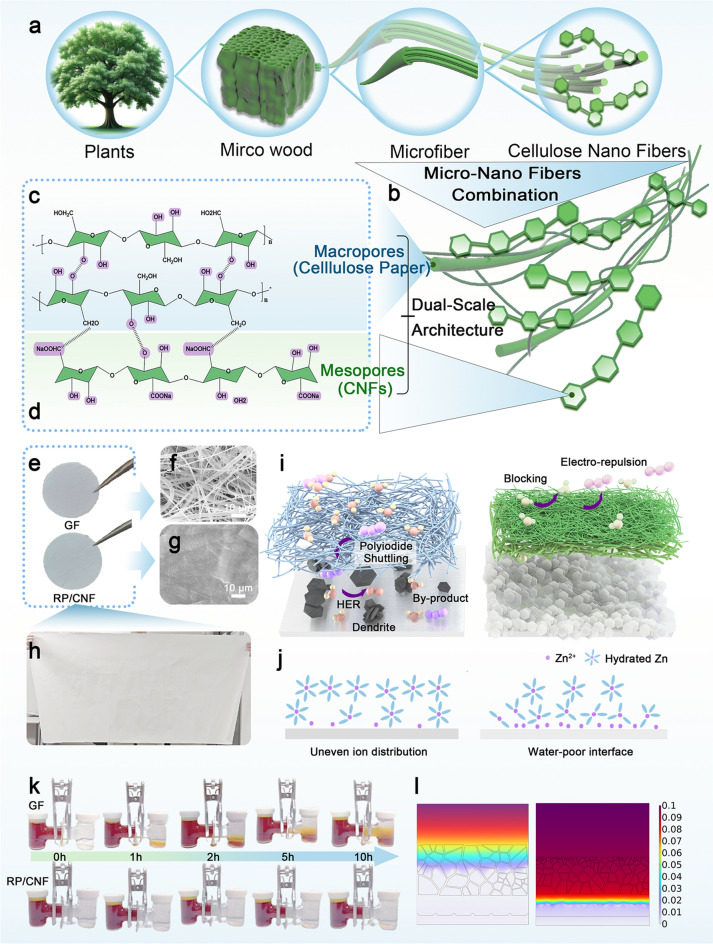

A cost-effective and fully biodegradable dual-scale paper-based separator is engineered by intertwining macroporous rice paper with mesoporous nanofibers.Nanoporous ion sieving and molecular confined pathways effectively suppress polyiodide shuttling and water-induced side reactions.Regulated ion transport induces a uniform solid-electrolyte interphase, enabling dendrite-free anodes and high Coulombic efficiency.

A cost-effective and fully biodegradable dual-scale paper-based separator is engineered by intertwining macroporous rice paper with mesoporous nanofibers.

Nanoporous ion sieving and molecular confined pathways effectively suppress polyiodide shuttling and water-induced side reactions.

Regulated ion transport induces a uniform solid-electrolyte interphase, enabling dendrite-free anodes and high Coulombic efficiency.

The online version contains supplementary material available at 10.1007/s40820-026-02165-0.

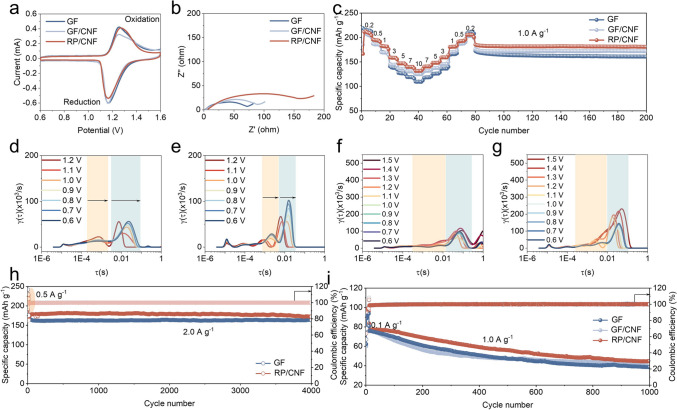

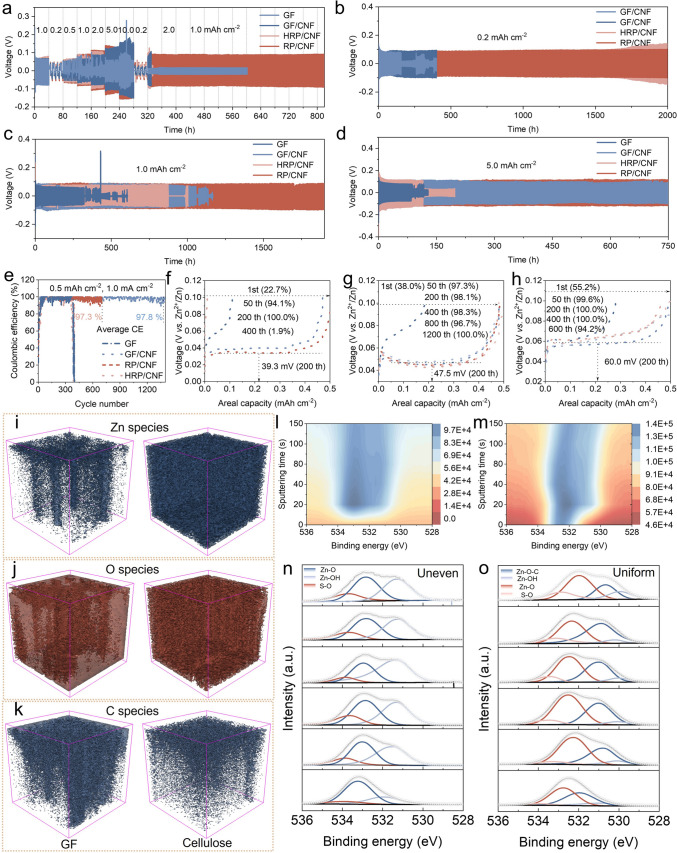

Conventional glass fiber separators used in aqueous zinc-ion batteries (ZIBs) are inadequate in suppressing Zn dendrite growth and parasitic reactions due to unregulated ion transport. Here, we design a fully biodegradable and dual-scale asymmetric paper-based membrane that synergistically couples a macroporous paper scaffold with a surface layer of carboxylated nanoporous cellulose nanofibers (CNFs) for ion regulation. This dual-scale architecture establishes coordination-assisted ion-hopping pathways via Zn2+–COOH interactions, homogenizing Zn2+ flux to enable uniform nucleation and inhibit dendrites. Simultaneously, the nanoporous and negatively charged CNF layer functions as an ion sieve, preferentially conducting Zn2+ while restricting water mobility and polyiodide shuttling, thereby mitigating side reactions. When deployed as a separator, the membrane enables an ultra-stable Zn||Zn symmetric cell cycling over 1,900 h at 1.0 mA cm−2 and an average Coulombic efficiency of 97.3% in Zn||Cu cells, achieving a sixfold lifespan extension over commercial glass fiber separators. The corresponding Zn||I2 full cell retains a specific capacity of 172.8 mAh g−1 after 4,000 cycles at 2.0 A g−1, underscoring its efficacy in suppressing shuttle effects. This cellulose-based design reduces separator cost by 83% while ensuring full biodegradability, offering a practical and sustainable pathway toward high-performance ZIBs.

The online version contains supplementary material available at 10.1007/s40820-026-02165-0.

Figures
