Efficacious Anti-Cancer Drugs Targeting Nicotinamide N-Methyltransferase (NNMT) in Cultured Human Oral Squamous Cell Carcinoma (OSCC)

TL;DR

This study explores new drugs targeting NNMT enzyme to treat oral cancer, showing they reduce cancer cell activity and affect energy metabolism.

Contribution

Novel NNMT inhibitors (AG-670 and AO-022) are proposed as potential anti-cancer drugs for oral squamous cell carcinoma.

Findings

NNMT inhibitors effectively block NNMT enzyme activity and show cytotoxicity in oral cancer cells.

The inhibitors reduce mitochondrial oxygen consumption in SCC-4 and DOK cells but not in MCF-7 cells.

NNMT inhibitors do not directly inhibit mitochondrial electron transport chain activity.

Abstract

Background/Objectives: Oral squamous cell carcinoma (OSCC) is a major cause of human cancer. The enzyme, nicotinamide N-methyltransferase (NNMT), is overexpressed in a variety of human cancers, including OSCC. Our objective was to target NNMT with novel inhibitors and determine their anti-cancer efficacy while shedding light on their possible mechanism of action. Methods: We identified two small molecule inhibitors of NNMT (AG-670 and AO-022) based on a pharmacophore of the in silico nicotinamide binding site. These inhibitors were investigated for (i) potency to inhibit the activity of the isolated NNMT enzyme (EC50 values), (ii) cytotoxicity (IC50 values) against the human OSCC cell line, SCC-4, and (iii) ability to affect cellular energy metabolism, as measured by oxygen consumption, in SCC-4 cells (plus dysplastic oral keratinocytes (DOK) cells and breast cancer MCF-7 cells). Immunoblotting was used to determine whether NNMT was expressed in the aforementioned cells. Results: NNMT is expressed in SCC-4 and DOK cells (and primary human oral keratinocytes) but not MCF 7 cells. The NNMT inhibitors inhibit isolated NNMT enzyme activity and were cytotoxic to SCC-4 cells (EC50 and IC50 values in the micromolar range). Sublethal doses of the inhibitors were demonstrated to inhibit in situ mitochondrial oxygen consumption in SCC-4 and DOK cells but not in MCF-7 cells. It was demonstrated that the NNMT inhibitors do not directly inhibit mitochondrial electron transport chain activity. Thus, we deduce that the NNMT inhibitors affect mitochondrial activity indirectly via NNMT. Conclusions: It is concluded that NNMT is a potential drug target for oral cancer.

Figures

Full text

1. Introduction

Oral squamous cell carcinoma (OSCC) accounts for up to 90% of all oral malignancies and is the sixth most common cancer worldwide [1]. Treatment involves surgical removal of the tumor, radiation, and chemotherapy although such treatments are not always satisfactory with 5-year survival of only 50% being recorded [1,2]. We were interested in a more targeted approach to compliment the established cancer therapeutics. The enzyme, N-nicotinamide methyltransferase (NNMT), is overexpressed in a variety of human cancers, including oral squamous cancer biopsies [3], and has recently been investigated by several laboratories as a potential anti-cancer target [4,5,6,7,8,9,10,11]. Nicotinamide N-methyltransferase (NNMT) catalyzes the methylation of nicotinamide (NAM) by transferring the methyl group the methyl donor S-adenosyl-L-methionine to nicotinamide, subsequently generating S-adenosyl-L-homocysteine and 1-methylnictotinamide [12,13] (Figure 1A). NNMT thus modulates intracellular NAD^+^ levels, which are crucial for energy metabolism, oxidative phosphorylation [14,15] and metabolic enzyme activity via NAD^+^-dependent sirtuin deacetylases [16].

Under normal physiologic conditions, NNMT is predominantly expressed by hepatocytes in the liver, white adipose tissue, skeletal muscle and lung, while multiple mesenchymal cell types have lower levels of NNMT expression [17,18]. However, numerous studies have suggested that NNMT expression is significantly increased in several kinds of cancer, including neuroblastoma [19], oral squamous cell carcinoma [3], papillary thyroid cancer [20], lung cancer [21], breast cancer [22], gastric cancer [23], pancreatic cancer [24], colorectal cancer [25], renal carcinoma [26], and ovarian clear cell carcinoma [27]. High NNMT expression in these cancers appears to be inversely associated with the tumor size and progression, suggesting that NNMT may have potential effects in an initial step of malignant conversion [28]. However, and interestingly, there are also cancer cell lines where NNMT is not expressed such as in the estrogen-receptor positive breast cancer cell line MCF 7 [29,30].

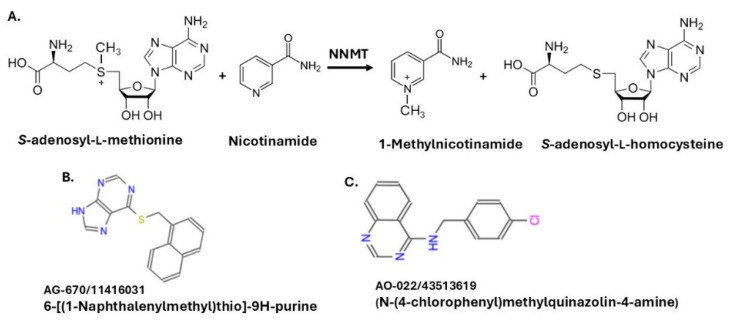

Several NNMT inhibitors have been identified to date, such as methylated quinolines [6], nicotinamide analogs [7,8], covalent inhibitors [4,9], and amino-adenosine and alkynyl derived bi-substrate inhibitors [5,10,11]. Our laboratory identified two small molecule inhibitors of NNMT (AG-670 and AO-022) (Figure 1B,C) based on a pharmacophore of the in silico nicotinamide binding site (Supplementary Section S1). We know from the aforementioned previous studies that NNMT is an anti-cancer target in many tissues. We hypothesized that the inhibition of NNMT would be cytotoxic to OSCC and, through the very nature of the enzyme impacting NAD^+^-levels, have a downstream effect on oxidative phosphorylation. The effect of these modulators (AG-670 and AO-022) of NNMT activity on OSCC cell viability and energy metabolism was evaluated.

2. Results

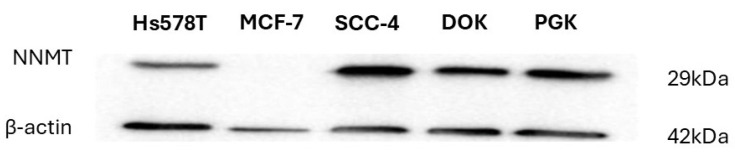

The enzyme, nicotinamide N-methyltransferase (NNMT), is overexpressed in a variety of human cancers. Figure 2 demonstrates that NNMT is expressed in Hs578T cells (a triple negative breast cancer cell line), SCC-4 cells (an oral squamous cell carcinoma cell line), DOK cells (a pre-cancerous dysplastic oral keratinocytes cell line) and primary oral gingival keratinocytes (PGK cells). However, Figure 2 demonstrates that NNMT is not expressed in estrogen (ER), progesterone (PR), and glucocorticoid receptor-positive MCF7 cells, confirming data presented by others [29,30].

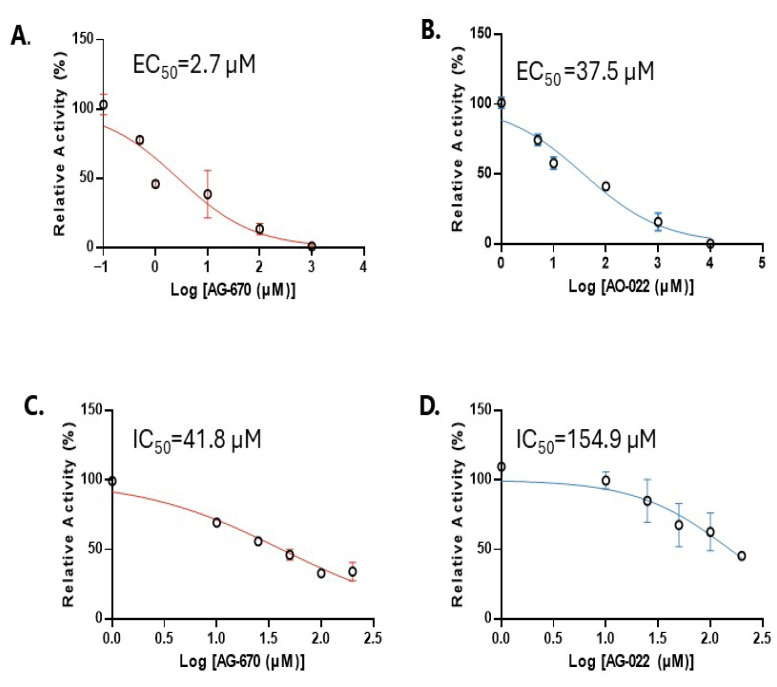

Figure 3 demonstrates the potency of the two small molecule inhibitors (AG-670 and AO-022) on isolated NNMT enzyme activity and SSC4 cell cytotoxicity. Figure 3A,B demonstrate that AG-670 and AO-022 directly inhibit enzyme activity with EC_50_ values of 2.7 µM (95% CI: 1.4–5.8) and 37.5 µM (95% CI: 23.4–60.5), respectively. Figure 3C,D demonstrate that AG-670 and AO-022 are potent to SCC-4 cells with IC_50_ values of 41.8 µM (95% CI: 33.5–65.3) and 154.9 µM (95% CI: 108.5–268.4), respectively.

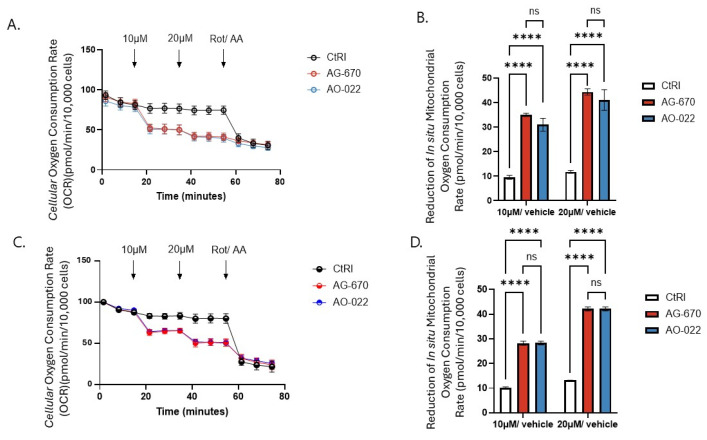

We next determined the effect of sublethal doses of NNMT inhibitors (AG-670 and AO-022) on oxygen consumption rates (OCR) in SCC-4 and DOK cells (Figure 4), which are cells that have been shown to express NNMT (Figure 2). Cellular oxygen consumption rates are regularly used as an index of general cellular metabolism in primary cells and in many, but not all, cancer cells. We could demonstrate that both AG-670 and AO-022, at a sublethal dose of 10 µM, inhibit cellular oxygen consumption (Figure 4A,C) by inhibiting in situ mitochondrial oxygen consumption (~3–4 fold) in SCC-4 and DOK cells (Figure 4B,D), respectively. Similar results were observed for Hs578T cells (Figure S4), which also express NNMT (Figure 2).

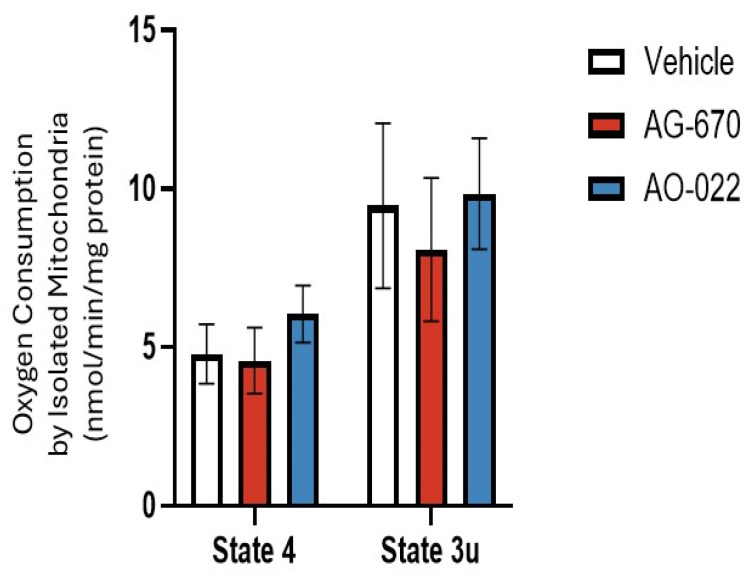

As the NNMT inhibitors were designed for the nicotinamide site in NNMT, it was decided to investigate the efficacy of AG-670 and AO-022 on oxygen consumption by isolated mitochondria (Figure 5). It was demonstrated that neither inhibitor affected oxygen consumption in isolated mitochondria respiring on glutamate and malate, which are a source of matrix NADH_2_ for complex 1-initiated electron transport chain activity.

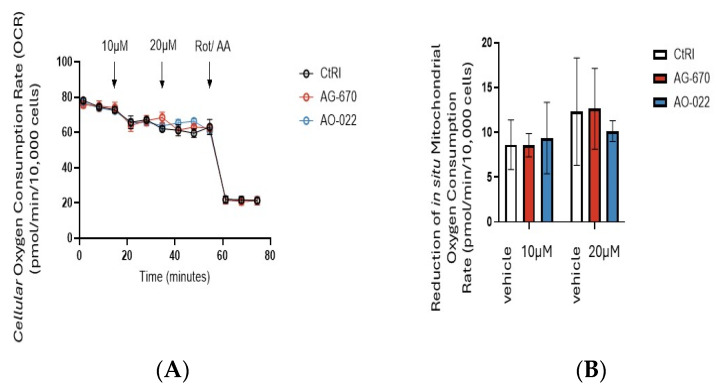

We then determined the effect of sublethal doses of NNMT inhibitors (AG-670 and AO-022) on oxygen consumption rates (OCR) in MCF 7 cells (Figure 6), which are cells that have been demonstrated not to express NNMT (Figure 2). We demonstrated that neither AG-670 nor AO-022, at a sublethal dose of 10 µM, inhibited cellular oxygen consumption (Figure 6A) or in situ mitochondrial oxygen consumption in MCF 7 cells (Figure 6B).

3. Discussion

Oral squamous cell carcinoma (OSCC) accounts for up to 90% of all oral malignancies and is the sixth most common cancer worldwide. Our research was interested in finding molecular targets to treat this cancer. The enzyme, N-nicotinamide methyltransferase (NNMT), is one such candidate and has been shown to be overexpressed in a variety of human cancers [3,20,21,22,23,24,25,26,27]. Hence, NNMT has been investigated by several laboratories as a potential anti-cancer target [4,5,6,7,8,9,10,11]. In this paper, NNMT is shown to be expressed in oral squamous cell carcinoma (SCC-4) cells, dysplastic oral keratinocyte (DOK) cells, primary gingival keratinocyte (PGK) cells and the triple negative breast cancer cell line Hs578T. These data are consistent with NNMT expression in OSCC biopsies [3]. Furthermore, we confirm that NNMT is not expressed in MCF 7 breast cancer cells, as has been demonstrated by others [29,30]. In addition, the NNMT inhibitors selected from our pharmacophore design (Supplementary Section S1) have been demonstrated to be direct inhibitors of the enzyme NNMT and cytotoxic to SCC-4 cells. In an endeavor to examine the mechanism behind that potency, AG-670 and AO-022 were tested for efficacy on cellular oxygen consumption, which is an index of the overall metabolism in cells. It was demonstrated that sublethal doses of AG-670 and AO-022 inhibit in situ mitochondrial oxygen consumption in intact SCC-4 (and DOK and Hs578T cells), from which we deduce that a restriction of ATP supply is a prelude to, and probable factor in, the potency of the drugs. Furthermore, although the drugs were designed to target NNMT, it was important to establish whether the inhibition of in situ mitochondrial oxygen consumption in SCC-4 cells might be due to a direct effect on mitochondrial function independent of NNMT. This was addressed firstly by demonstrating that AG-670 and AO-022 do not directly inhibit the mitochondrial electron transport chain function in isolated mitochondria, and secondly, by demonstrating that AG-670 and AO-022 had no effect on in situ mitochondrial oxygen consumption in MCF 7 cells, i.e., cells that do not express NNMT. We therefore conclude that NNMT activity directly affects mitochondrial activity in situ and that the inhibitors of NNMT inhibit in situ mitochondrial oxygen consumption in SCC-4 indirectly via the inhibition of NNMT. The instant impact of the NNMT inhibitors on mitochondrial function would indicate that a decline energy metabolism is the primary event in the cytotoxic action of these drugs and hardwires NNMT activity to mitochondrial function. Possible explanations as to the mechanism behind the indirect inhibition of mitochondrial function via NNMT stem from a couple of interesting observations in the literature. Parsons et al. [31] revealed that NNMT expression contributes to cell survival by enhancing complex I activity, which is a process that appears to be mediated via the protection of the mitochondrial complex 1 subunit, NDUFS3, from degradation. The same group also demonstrated that these effects arise due to the increased production of MNA as well as demonstrating that NNMT and 1-methylnicotinamide are cytoprotective against Complex I inhibitors MPP^+^ and rotenone, which is mediated via the maintenance of Complex I activity arising from the protection of NDUFS3 from inhibitor-mediated damage. In the SH-SY5Y cell line, the expression of NNMT substantially reduced cell death, which correlated with an increase in the ATP/ADP ratio and Complex I activity. Interestingly, Liu et al. [32] demonstrated that NNMT increases mitochondrial complex I activity in situ in SH-SY5Y cells via sirtuin 3, which is a mitochondrial NAD^+^-dependent deacetylase [33,34]. Further lines of inquiry would investigate whether our inhibitors affect energy-dependent enzymes, such as AMPK and sirtuin 1 activity, and cancer phenotypes such as epithelial–mesenchymal transition, all of which are affected by NNMT activity [35,36,37]. Also, the validation of cytotoxicity across additional OSCC cell lines (e.g., SCC-9, SCC-15, SCC-25, Cal-27) would be an important next step. Future work might also seek to generate a NNMT knock-out OSCC cell line, generated by CRISPR-cas9, for instance, as a more relevant negative control to MCF-7 cells. The relative expression levels of NNMT in primary versus OSCC cells would also be worth investigating in the context of inhibitor potency.

4. Materials and Methods

4.1. In Silico Modeling

The two small molecule inhibitors of NNMT (AG-670 and AO-022) (Figure 1B,C) were purchased from Specs Compound Handling B.V./eMolecules (Zoetermeer, The Netherlands) based on our work defining the pharmacophore of the in silico nicotinamide binding site (Supplementary Information S1).

4.2. Cell Culture

All cells were purchased from the American Type Culture Collection (ATCC) (Manassas, VA USA) and cultured as per their recommendations. SCC-4 cells were originally derived from stage 3 tongue cancer in a 50-year-old male [38]. Dysplastic oral keratinocyte (DOK) cells were originally from the dorsal part of the tongue of a 57-year-old man [39]. MCF-7 cells are a human breast cancer cell line derived from a 69-year-old female with metastatic adenocarcinoma. It is a key luminal A subtype cell line, characterized by being estrogen (ER), progesterone (PR), and glucocorticoid receptor-positive [40]. Hs578T is a triple negative (no estrogen, progesterone and HER2 receptors) breast cancer cell line originally from epithelial cells isolated from breast tissue derived from a 74-year-old female breast cancer patient [41,42]. A small number of primary gingival keratinocyte (PGK) cells were also cultured for immunoblotting. All cells were cultured as described in Karavyraki and Porter [43].

4.3. Immunoblotting

The detection of NNMT was assessed by immunoblot using Novus Biologicals (Bio-Techne, Minneapolis, MN, USA) antibody NBP2-00537 with cell lysates, using the methodology described in Ge et al. [44].

4.4. Cytotoxicity (IC50)

Cell viability was determined by Alamar blue assay using a range of NNMT inhibitor concentrations over 72 h using 1% FBS.

4.5. Enzyme Activity (EC50)

An NNMT inhibitor screening assay kit (Sigma-Aldrich (Saint Louis, MO, USA), MAK229) was used to determine the potency of inhibitors on the isolated enzyme. This kit utilizes SAM as the methyl group donor and nicotinamide as the substrate. NNMT methylates nicotinamide generating S-adenosylhomocysteine (SAH) and 1-methylnicotinamide. The SAH is hydrolyzed by SAH hydrolase to form homocysteine, the free thiol group of which is detected using a thiol-detecting probe, generating an enhanced fluorescence signal (λex = 392 nm/λem = 482 nm).

4.6. Oxygen Consumption Rates (OCR)

Cellular and in situ mitochondrial oxygen consumption (OCR) were determined by a Seahorse XF analyzer (Agilent, Santa Clara, CA, USA) as described in Karavyraki and Porter [43]. AG-670 and AO-022 were dissolved in DMSO (vehicle). Antimycin A (AntiA) and rotenone (Rot) were ultimately added to inhibit in situ mitochondrial oxygen consumption in order to quantify the cellular oxygen due to mitochondrial activity. Oxygen consumption by isolated mitochondria from rat liver using NADH-dependent substrates (glutamate and malate) in the presence and absence of NNMT inhibitors was determined using a Rank Oxygen Electrode as described in Martin et al. [45].

4.7. Statistical Analysis

All data are presented as the mean ± SEM from n independent experiments (n-values specified for each figure in the figure legends). Comparisons between two groups were performed using unpaired two-tailed Student’s t-tests. Comparisons between three or more groups (n) were performed using one-way ANOVA followed by Dunnett’s or Tukey’s post hoc test for multiple comparisons as appropriate. Statistical significance was set at p < 0.05. IC_50_ and EC_50_ values were determined by nonlinear regression analysis using a four-parameter logistic (variable slope) model: Y = Bottom + (Top − Bottom)/(1 + 10^((LogEC_50_ − X) × HillSlope)) with 95% confidence intervals derived from the fitted curves. All statistical analyses and curve fitting were performed using GraphPad Prism (Graph Software LLC, Boston, MA, USA) (version 10.6.1).

5. Conclusions

This study has identified two novel small molecule inhibitors of NNMT and demonstrated that NNMT is a potential drug target for oral cancer.
