Decarburization Control of H13 Steel Under Varying Process Pressures During Austenitization
Gi-Hoon Kwon, Byoungho Choi, Su-Young Choi, Kyoung Jun An, Kyoung Il Moon
TL;DR
This study examines how process pressure affects decarburization in H13 steel during heat treatment, impacting surface quality and hardness.
Contribution
The paper introduces a one-dimensional diffusion model to explain pressure-dependent decarburization mechanisms in H13 steel.
Findings
High-vacuum conditions reduce decarburization in H13 steel during austenitization.
Increasing pressure accelerates carbon loss, leading to deeper decarburized layers and reduced hardness.
The model accurately captures the transition in decarburization mechanisms with pressure changes.
Abstract
Decarburization during austenitization degrades the surface integrity and mechanical performance of tool steels, yet the quantitative influence of process pressure remains unclear. In this study, the effect of process pressure on the decarburization behavior of H13 tool steel was investigated. Specimens were austenitized at 920–1020 °C for 60 min under pressures ranging from 0.01 to 760 Torr. Carbon concentration profiles were measured by electron probe microanalysis, and hardness degradation and mass loss were evaluated. A one-dimensional diffusion model with a Robin boundary condition was applied to describe the coupled effects of carbon diffusion and surface reaction. High-vacuum conditions suppressed decarburization, whereas increasing pressure accelerated carbon loss, leading to deeper decarburized layers and pronounced hardness reduction. The model reproduced the experimental…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

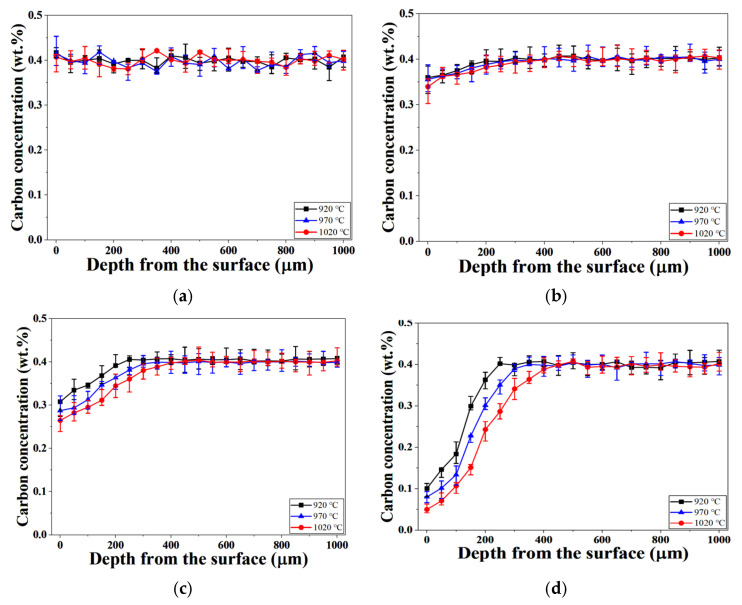

Figure 1
Figure 2

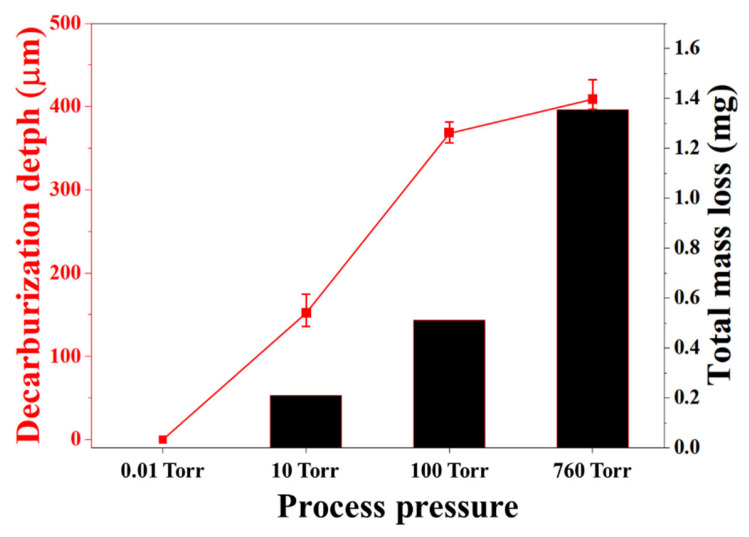

Figure 3

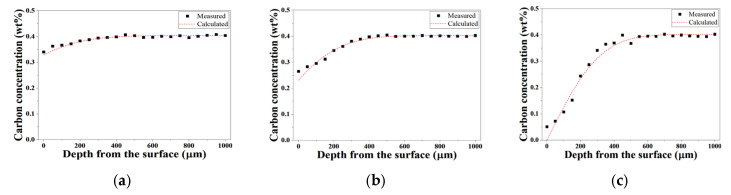

Figure 4

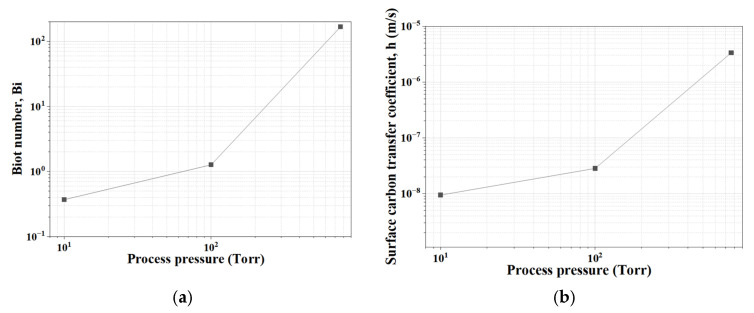

Figure 5

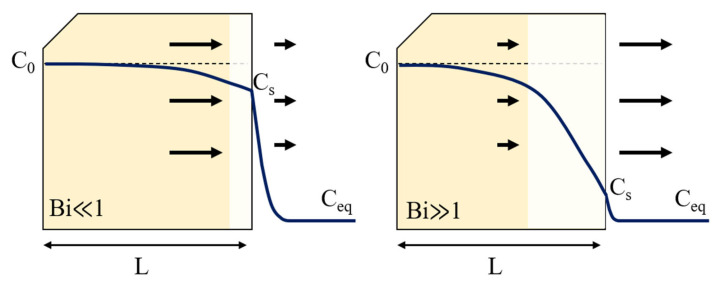

Figure 6

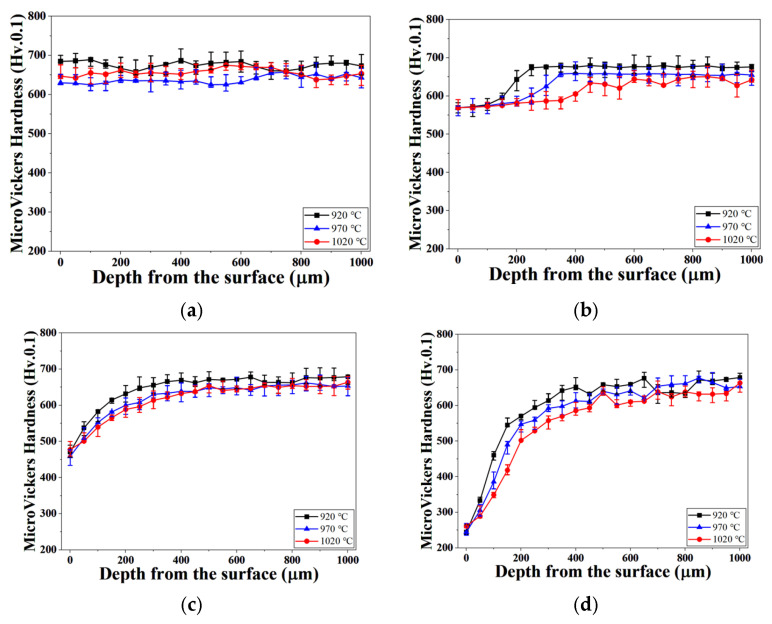

Figure 7

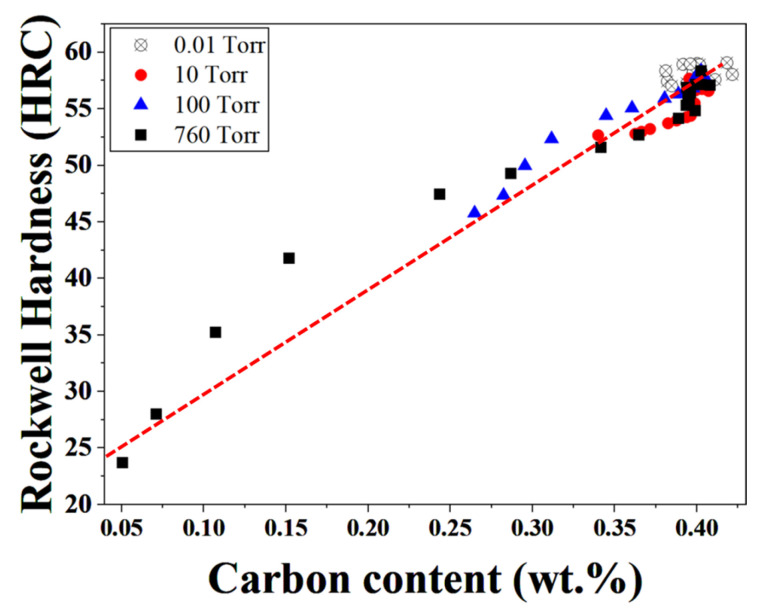

Figure 8

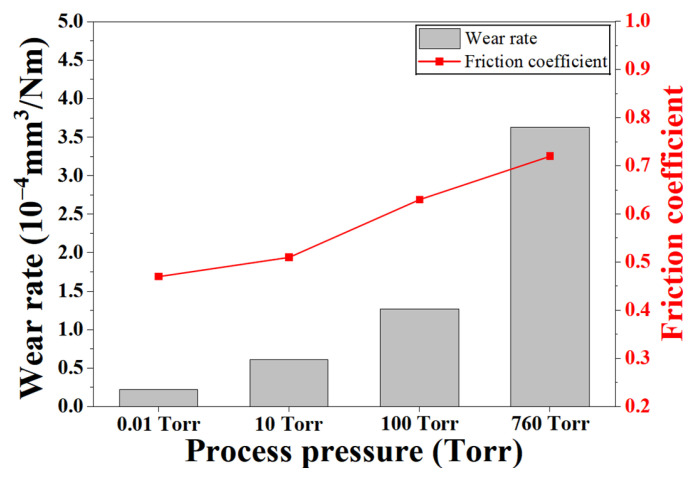

Figure 9

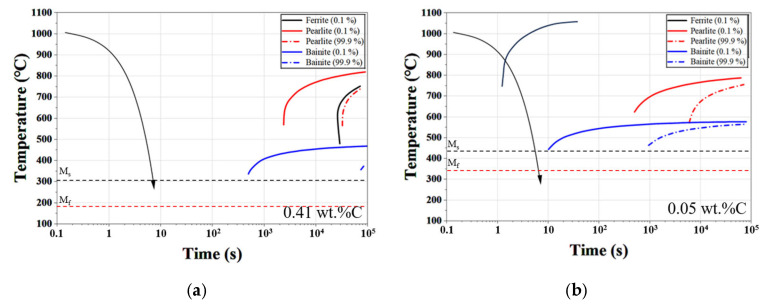

Figure 10

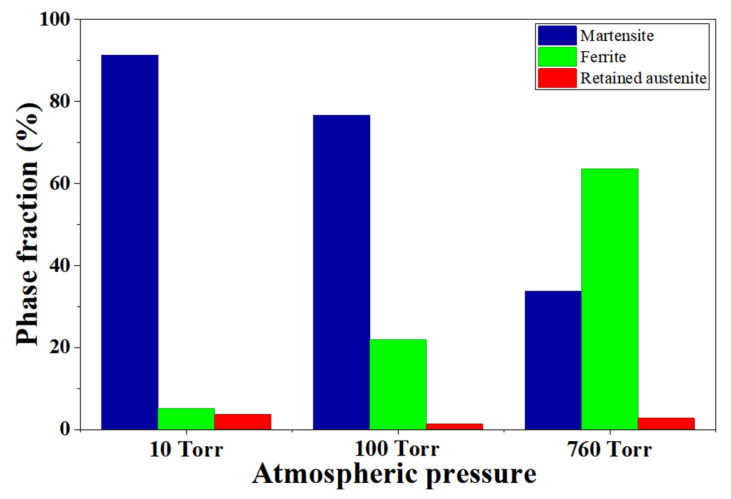

Figure 11Peer Reviews
