Berberine-Functionalized Graphene Oxide Nanocomposite for Enhanced Corrosion Protection of Epoxy-Coated Copper in Marine Environments
Hassane Lgaz
TL;DR
A new epoxy coating with berberine-loaded graphene oxide significantly improves corrosion protection for copper in marine environments.
Contribution
A novel BBR@GO nanocomposite is developed for enhanced corrosion protection of copper in marine environments.
Findings
The BBR@GO/EP coating showed a 17-fold increase in impedance compared to pure epoxy after 27 days.
The corrosion current density was reduced by four times with the BBR@GO/EP coating.
Post-immersion analysis confirmed the durability and retention of berberine in the coating matrix.
Abstract
This study introduces a novel anticorrosion coating for copper based on an epoxy matrix reinforced with a berberine-loaded graphene oxide (BBR@GO) nanocomposite. The BBR@GO was synthesized via a simple, non-covalent functionalization method, leveraging π-π stacking interactions between the planar berberine molecule and the graphene oxide surface. The successful loading of berberine was confirmed by Fourier-transform infrared (FTIR) spectroscopy, thermogravimetric analysis (TGA), and energy-dispersive X-ray spectroscopy (EDS). The BBR@GO nanocomposite was incorporated into an epoxy resin at 0.1 wt.% loading and applied to a copper substrate. The corrosion protection performance of the BBR@GO/EP coating was systematically evaluated in 3.5 wt.% NaCl solution for 27 days using electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization (PDP). The BBR@GO/EP coating…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

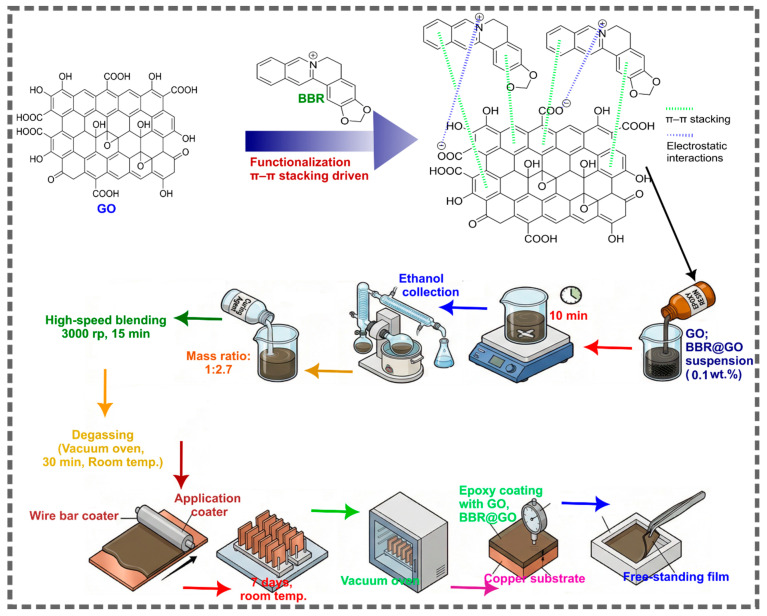

Figure 1

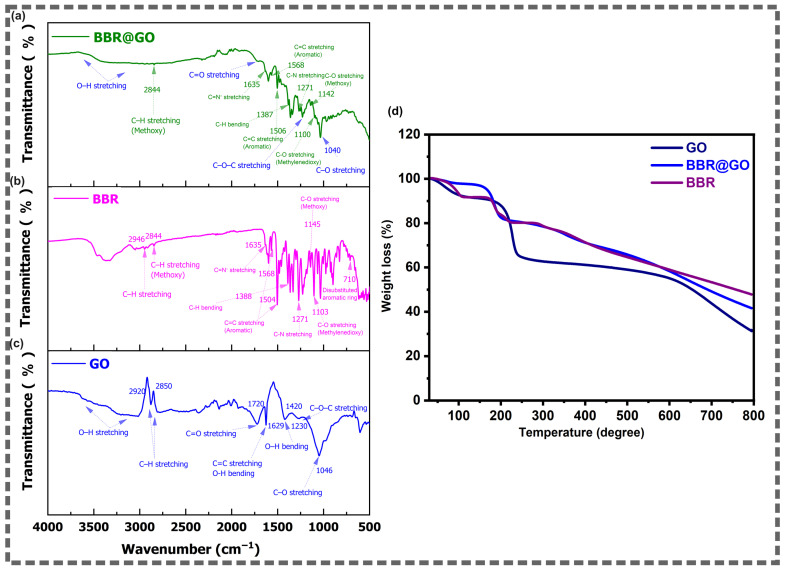

Figure 2

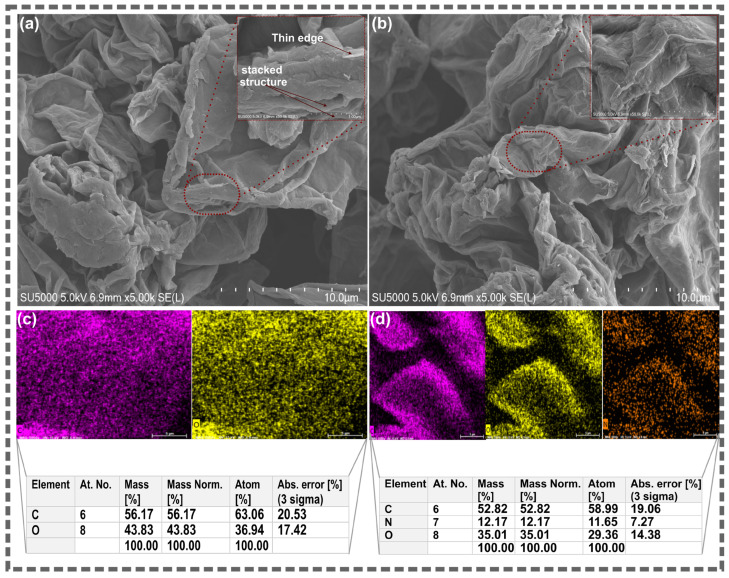

Figure 3

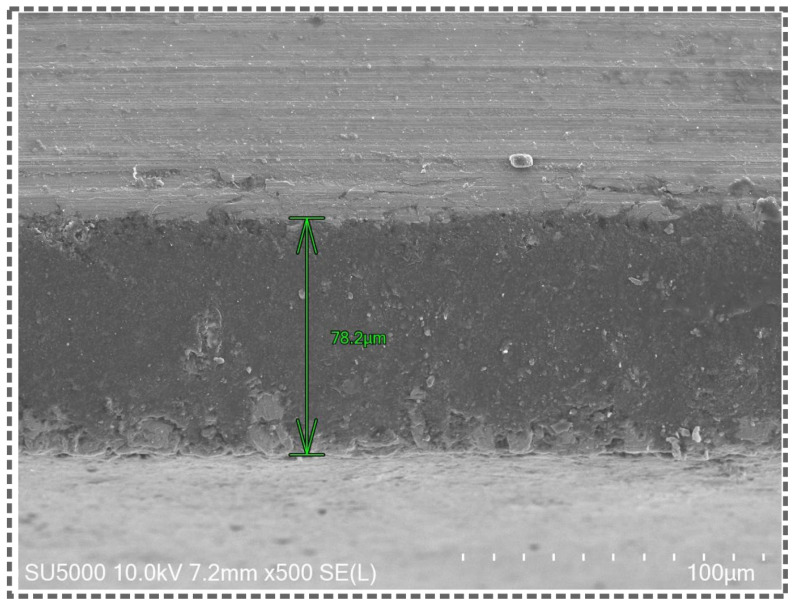

Figure 4

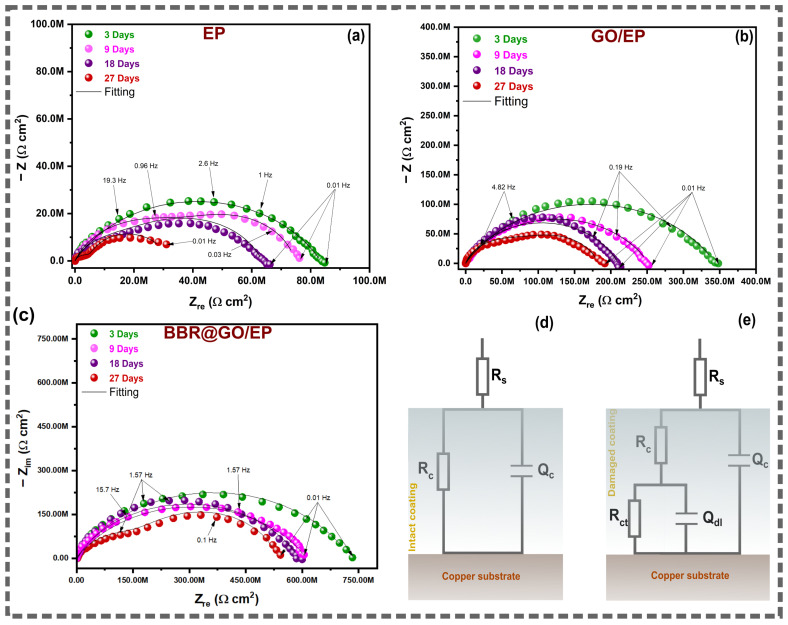

Figure 5

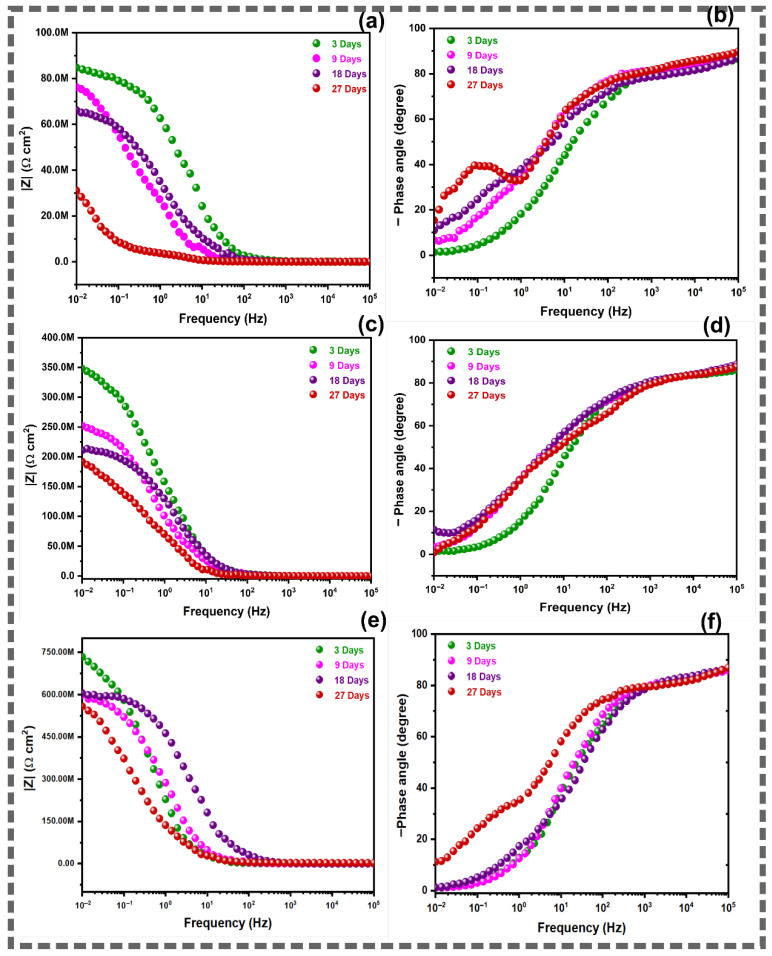

Figure 6

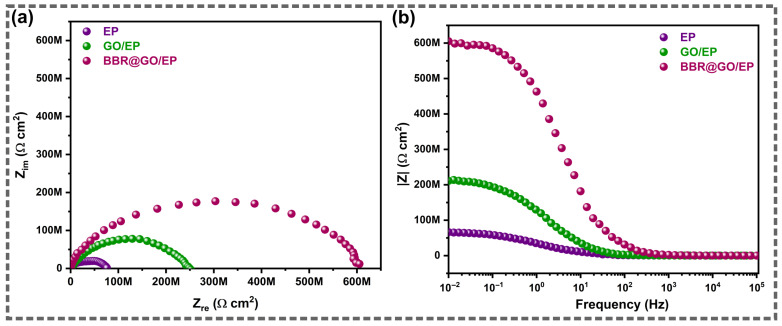

Figure 7

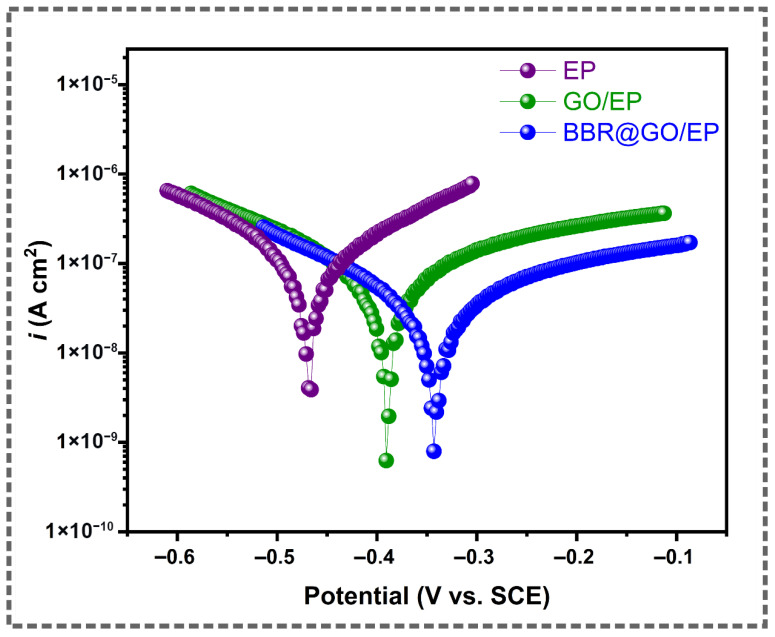

Figure 8

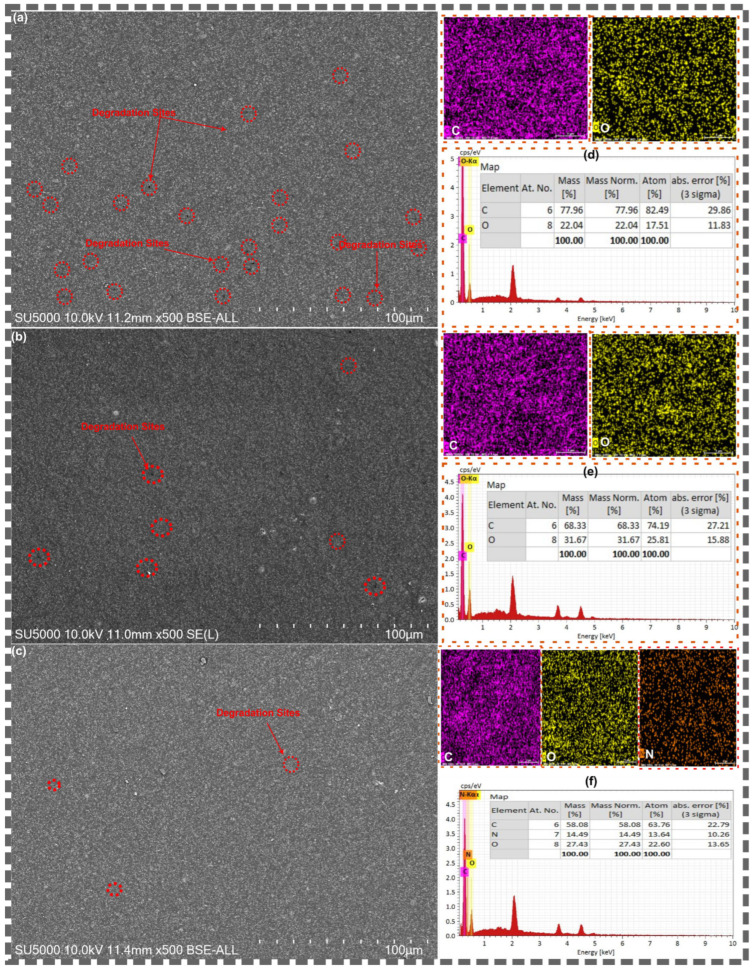

Figure 9

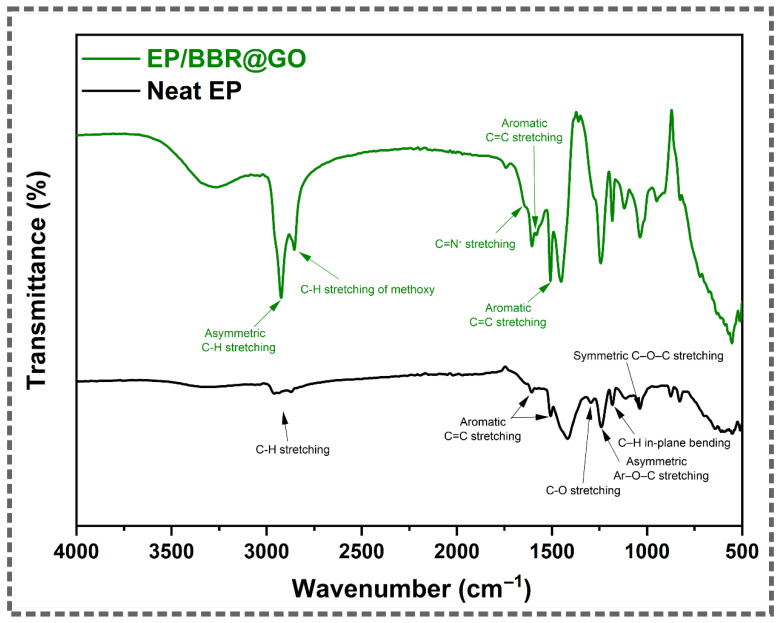

Figure 10

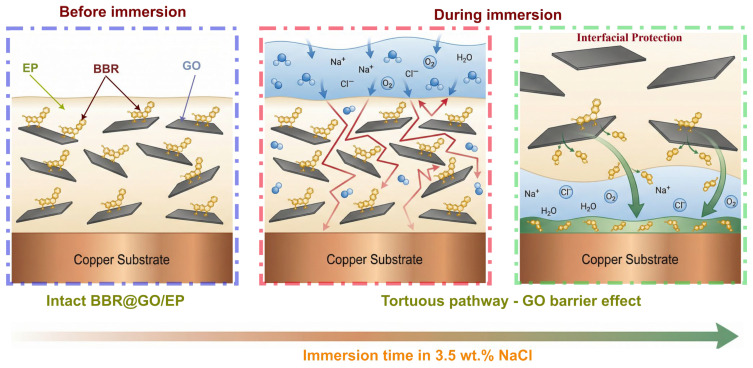

Figure 11Peer Reviews
