Influence of Boron on the Microstructural Evolution, Impact and Creep Properties Stability of IN718 Superalloy During Long-Term Aging
Zhiyuan Wang, Yingjie Liu, Ning An, Jia Man, Xin Xin, Jianyong Li, Maocheng Ji, Wenru Sun
TL;DR
This study examines how boron affects the microstructure and mechanical properties of IN718 superalloy during long-term aging.
Contribution
The novel finding is that boron suppresses δ phase growth and improves mechanical stability through grain boundary effects.
Findings
Boron suppresses δ phase precipitation and growth by grain boundary segregation.
Boron improves impact toughness and creep stability by enhancing grain boundary cohesion.
Creep deformation mechanism in B-modified alloys shifts with aging time.
Abstract
The impact of boron (B) on the microstructure evolution and stabilization of mechanical properties in the IN718 superalloy during aging at 680 °C for 3000 h is investigated. The results indicated that B had negligible effects on grain size and the intragranular γ″ phase growth. In contrast, it effectively suppressed the precipitation and growth of the δ phase during long-term aging, which is attributed to grain boundary segregation of B that retards the diffusion of alloying elements. Adding B could improve the impact toughness and stability of the creep properties of the alloy. The primary mechanism is that the addition of B enhances grain boundary cohesion and suppresses the coarsening of the δ phase, while the beneficial effect of B on mechanical stability becomes negligible during the later stages of aging, as the severe coarsening of grain boundary phases offsets the enhanced grain…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

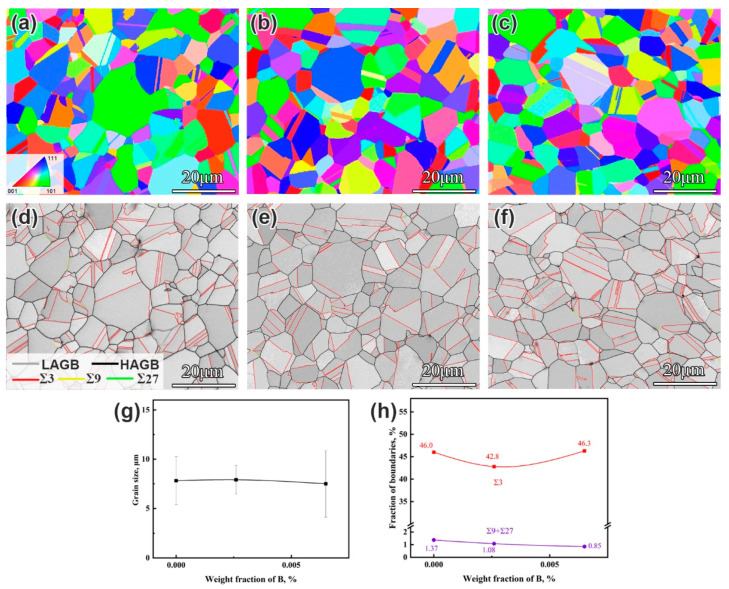

Figure 1
Figure 2

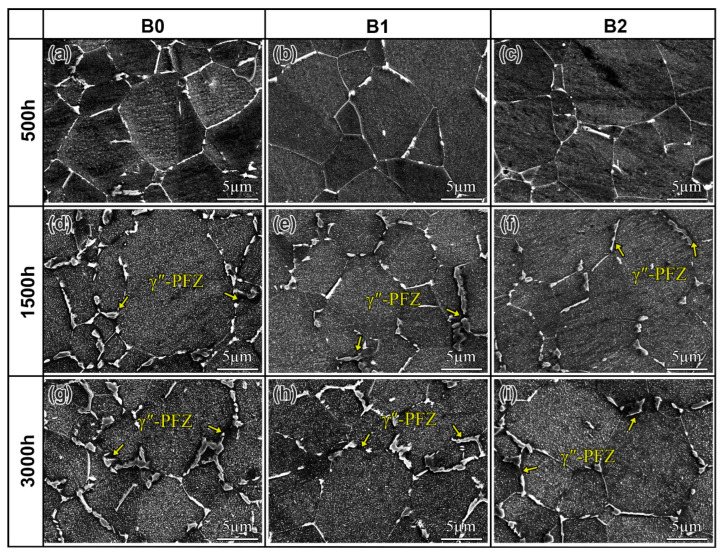

Figure 3
Figure 4

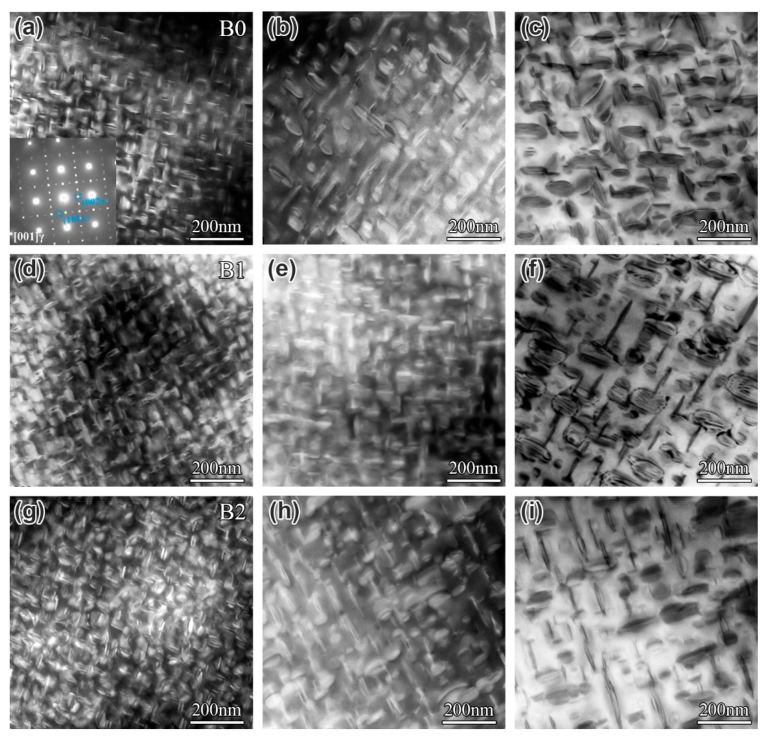

Figure 5

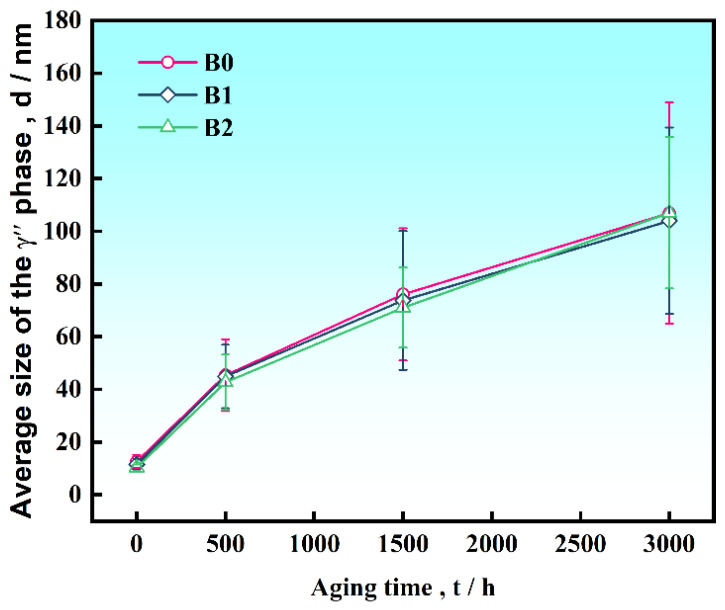

Figure 6

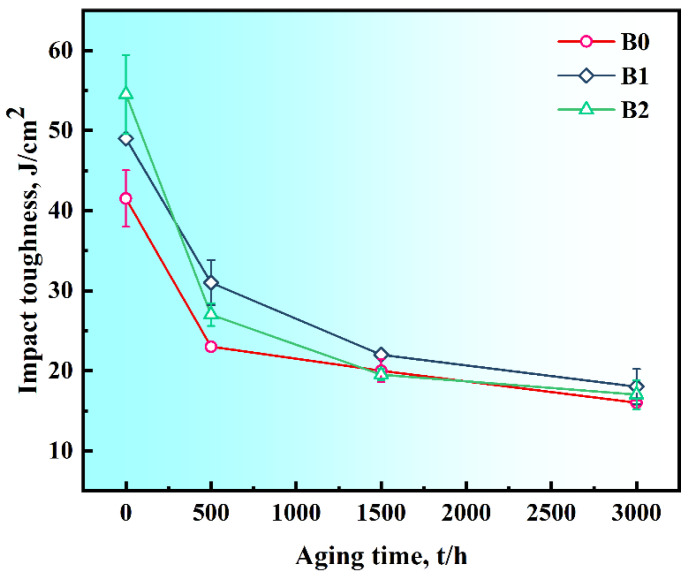

Figure 7

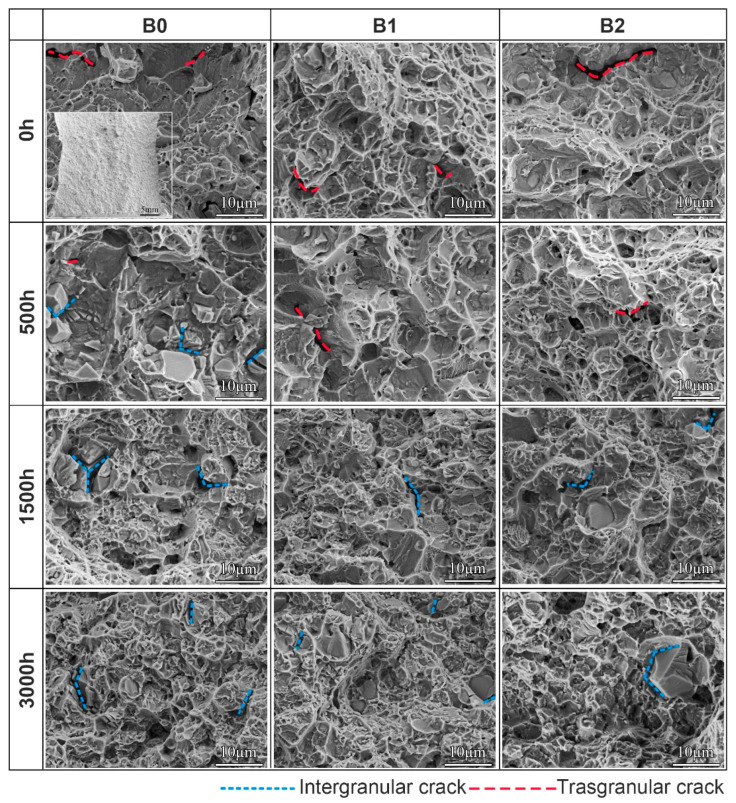

Figure 8

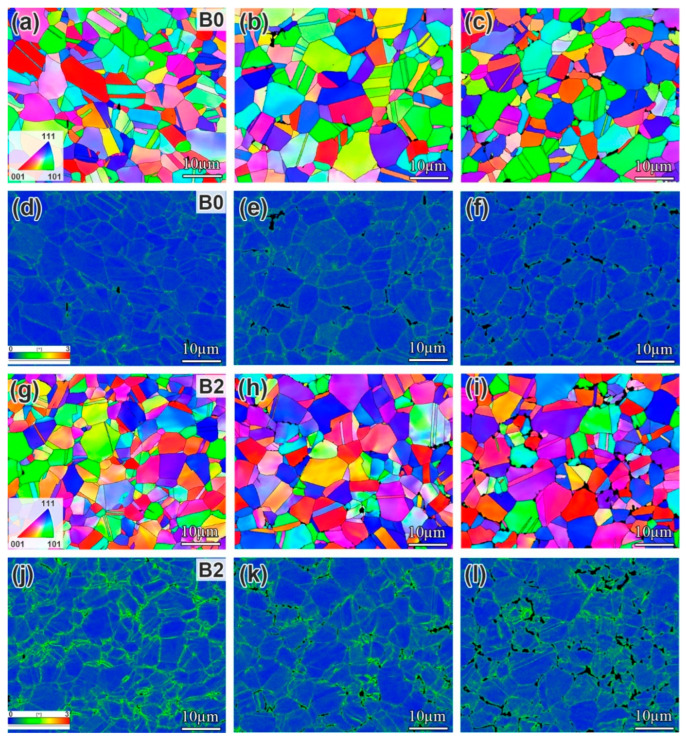

Figure 9

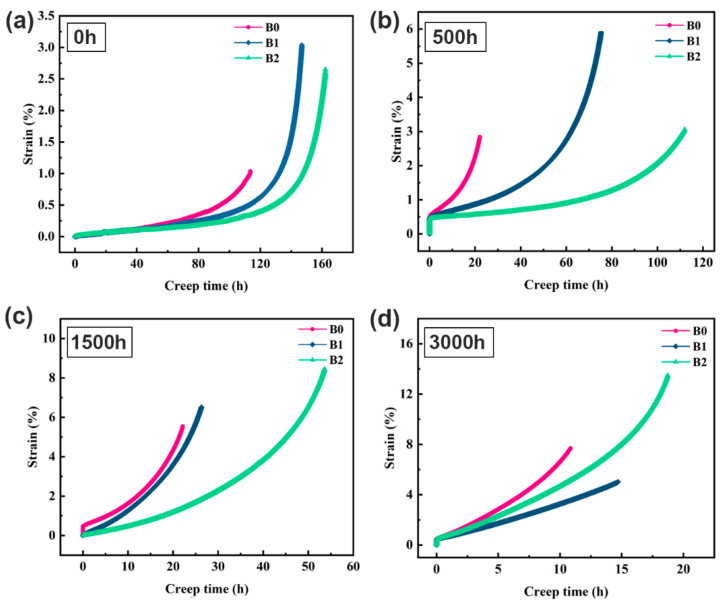

Figure 10
Figure 11

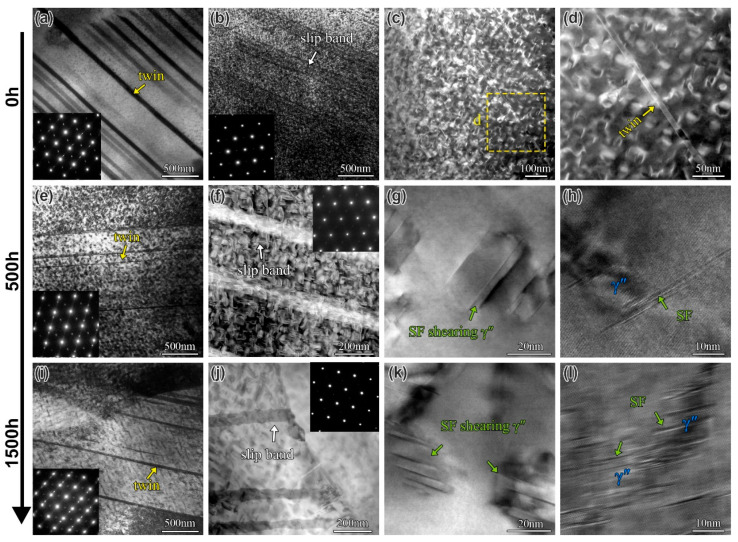

Figure 12
Figure 13Peer Reviews
